BakeMax BMCT Series Toaster Operations Manual
BakeMax BMCT Series Toaster Operations Manual
The BakeMax BMCT Series Conveyor Toaster are perfect for toast, bagels and more.
With its attractive design and easy to use functions this toaster is ideal for Restaurants,
Hotels, Cafes, Delis and more.
Features:
• Constructed entirely in Stainless-Steel
• Available in 1, 2 and 3 Slice Feeds
• 1.5” Height Opening Clearance
• Fast and Consistent Heat with Quartz-Infrared Heaters
• Easy-to-Use Controls.
• Variable Speed and Variable Top & Bottom Heat Control to get the perfect
toast every time.
• Energy Efficient Operation with a Power Saver Switch that reduces electricity
consumption up to 75%.
• Extendable Stainless-Steel Conveyor Belt for Easy Loading
• Safe Load up Area with Full-Width Front Coated Burner Guard and Cool to the
Touch Exterior
• Smart Crumb Tray keeps the Breadcrumbs from falling under the toaster and
easily removable to clean.
• Heated Holding Area to keep toast at the Perfect Temperature
• High-Limit Switch prevents toaster from overheating, protecting critical
electrical components.
• 1-Year Limited Warranty
Technical Specifications
Model
Slice
Feed
Slices /
Hour
Belt
Width
Dimensions (WDH)
Electrical
Net Weight
BMCT150
1
180
5.9"
13.4” x 25.2” x 15.8”
120V / 15A / 1800W
60hz / Nema 5-20P
40 lbs.
BMCT300
2
360
9.8"
14.6” x 25.2” x 15.8”
220V / 12.2A / 3000W
60hz / Nema 5-20P
44 lbs.
BMCT305
2
360
9.8"
14.6” x 25.2” x 15.8”
120V / 15A / 1800W
60hz / Nema 5-20P
44 lbs.
BMCT450
2
500
11.8"
17.7” x 25.2” x 15.8”
220V / 16A / 4100W
60hz / Nema 6-20P
55 lbs.
Shipping Specifications
Model
Packaging Dimensions (WDH)
Packaging Weight
BMCT150
17” x 26” x 20”
44 lbs.
BMCT300
22” x 26” x 20”
55 lbs.
BMCT305
22” x 26” x 20”
55 lbs.
BMCT450
27” x 26” x 20”
66 lbs.
BakeMax BMCT Series Toaster Operations Manual
BakeMax BMCT Series Toaster Operations Manual

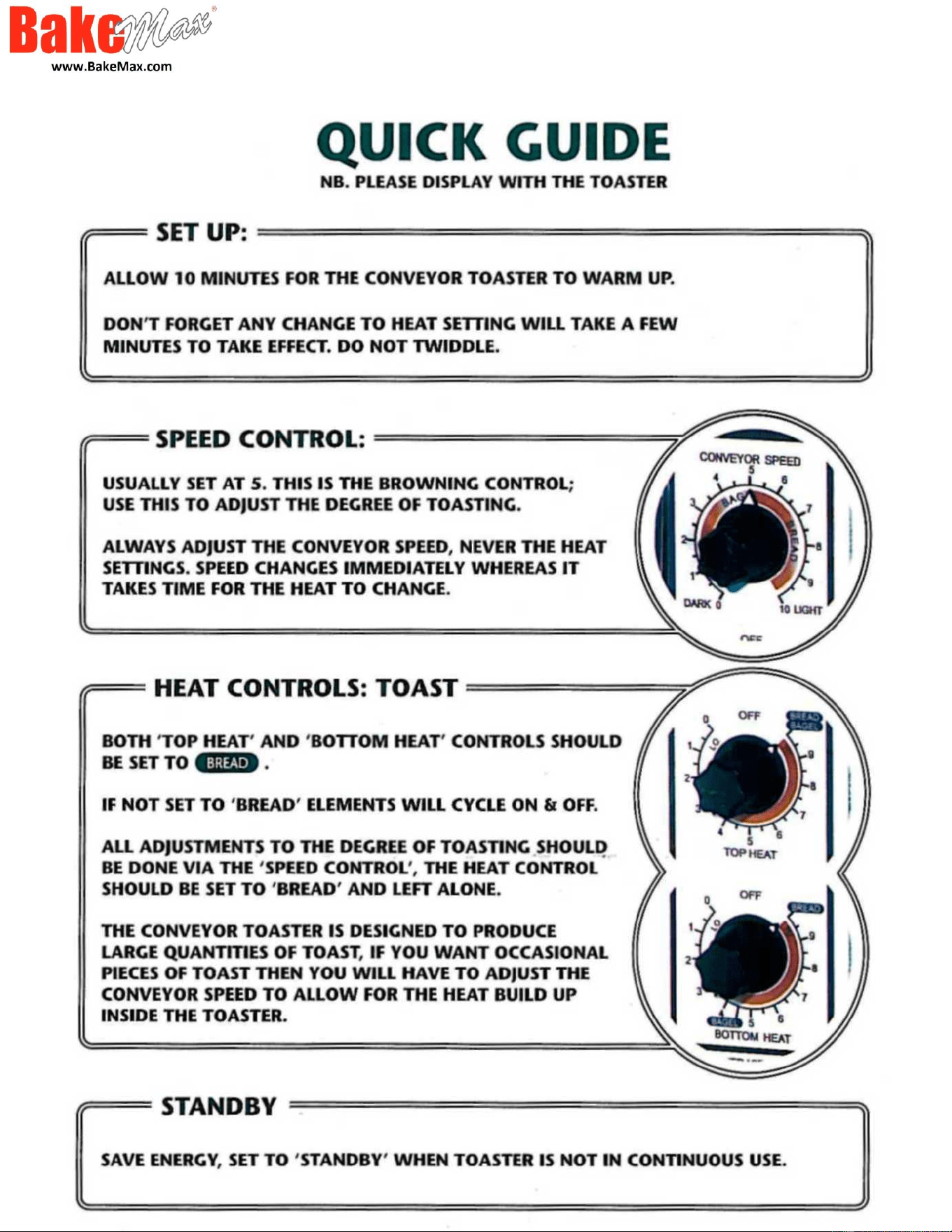

If toasting is too dark, turn conveyor control clockwcounterclockwise t
BakeMax BMCT Series Toaster Operations Manual
BakeMax BMCT Series Toaster Operations Manual
1. Element
5.
Retaining
Plate
9. Reset
Switch
13. Handle
17. Front
Bearing
21. Fan
Cover
25. Drive
Chain
29. Motor
2. Indicator
Light
6. Speed
Regulator
10. Feed
Rack
14.
Collection
Tray
18.
Conveyor
Belt
22.
Terminal
Block 10
26. Drive
Gear 11T
& 13T
30. Fan
Motor
3. Control
Label
7. Heat
Regulator
Switch
11.
Crumb
Tray
15. Front
Bearing
Spring
19. Shaft
Bearing
23.
Terminal
Block 4
27. Drive
Shaft
31. Top
Airflow
Plate
4. Control
Knob
8. Power
Control
Switch
12. Tray
Guard
16. Driven
Shaft
20. Leg
24. Drive
Gear 17T
28. Fan
Blades
32. Back
Panel
33. Cover
BakeMax BMCT Series Toaster Operations Manual
Warranty & Service
BakeMax provides a 1-Year Limited Parts and Labor warranty on most items, there are select items which carry a Limited 2-Year Warranty.
Extended Warranty is available on some products. Please contact us for details. The Warranty is not transferable and is limited to original
installation of equipment sold by BakeMax for the original user.
For all Warranty Claims, Proof of Purchase and/or Serial Number is required. Once the machine is approved, BakeMax will provide our
customers with on-site Warranty Coverage on all equipment more than 100lbs. BakeMax assumes no responsibility for down time or loss of
product. Repairs must be Pre-Authorized by BakeMax and have a Service Authorization Number issued prior to commencing Warranty Service.
Warranty begins 10-Days after shipping from warehouse; delays in installation which would extend the Warranty must be Approved. All
equipment must be installed and connected by Qualified Professionals in accordance with the Manual Specification. Products shipped are to be
inspected at time of delivery, the receiver is responsible for inspection.
Any abuse or improper use of the equipment will void the warranty. This includes failure to follow all cleaning instructions, improper installation,
improper maintenance, failure to follow capacity charts, improperly wired electrical connections. The Warranty does not apply to abuse, willful or
accidental damage, or to products used for other than their intended purpose. Normal wear parts such as Accessories, Attachments, or Electrical
Components such as Fuses, Bulbs, Elements, and Switches carry a 90-Day Warranty only.
Bench Warranty (Machines Weighing 100 lb. or less)
Once the machine is Approved for Warranty Service, if the machine requires Warranty work in less than 30 days of purchase date, BakeMax will
pay all shipping charges. Once the machine is received and repaired it will be returned to the user at BakeMax expense. Freight Damages during
return shipping is the responsibility of the owner of the machine.
The following is not covered under the BakeMax Warranty:
1. Overtime Labor Rates are not covered by BakeMax.
2. All parts will be shipped via Ground Courier only; If Express Shipping is required, it will be the responsibility of the Customer or Dealer.
3. Travel for Warranty Service is covered up to 100 Miles /160 Km Roundtrip, any further milage will be the responsibility of the Customer or
Dealer.
4. There is no on-site Warranty Service for Residential Addresses or addresses outside of the contiguous United States (Lower 48) or Canada.
**BakeMax machines sold outside of the contiguous United States (Lower 48), or Canada will carry 1-Year Parts Warranty only.
Terms & Conditions
Terms
Net 15 days subject to Credit Approval. All past due Accounts are subject to 2% per month Service Charge as per Credit Application. We
accept Visa, MasterCard, and Discover Credit Cards. We also accept E-Transfer & Wire Transfer, additional fees may apply.
Pricing
All prices are subject to change without notice. All prices are Sales Tax Extra, should you be claiming Tax Exemption, Tax Exempt Forms must
accompany your Purchase Order. BakeMax products are sold in Canadian and US Dollars. BakeMax is not responsible for specifications errors
or printing errors.
Shipping
Free shipping to Canada and the U.S. Minimum order $6,000 for BakeMax and $10,000 for BakeMax America Cooking Line. Tailgate Delivery
is $90.00 minimum. All checks made Payable to Titan Ventures International Inc. BakeMax is not responsible for goods damaged during
shipping. BakeMax is not responsible for any delays in delivery once product has left our Warehouse and is in the carrier’s possession.
Products shipped are to be inspected at time of delivery, the receiver is responsible for inspection. Damaged Freight Claims are to be claimed
with the carrier. BakeMax assumes no responsibility for Damaged Freight. Shipping Insurance available by request. By signing your name on
the delivery receipt without noting any damages, you are stating that you have received your shipment in Acceptable Condition.
Return Policy
Returns will not be Approved unless in Writing. Returns must be made within 30-Days of Purchase and must have a Return Authorization
Number issued before returning. The purchase order number, reason for return, and the serial number(s) of the unit are required for the Return
Authorization Number. Minimum return amount of $100.00.
Returns are subject to a minimum restocking fee of 30%. The cost of any repairs or re-crating required will be charged back to the dealer. If
there is a manufacturer’s defect BakeMax® will pay standard freight returned and prepaid shipping back to the customer.
Special Order Items, Clearance / Discontinued Equipment, Parts, Refurbished/Demo Equipment, or Non-Standard items are not Returnable.
Ordering Information
Send purchase orders to BakeMax via e-mail [email protected] or Fax (506-859-6929). Use Model or Part number when ordering
including Voltage Requirements, and Product Description. Please include the Dealer, Name, Address, terms, special delivery, or instructions
required or attention names to be applied to packaging. Please notify BakeMax should you need order confirmation or tracking numbers, by
calling 1-800-565-2253 or email [email protected].
Special Terms and Conditions
BakeMax reserves the right to make improvements or equipment changes without prior permission. Setup and Installation are the end user’s
Responsibility. Failure to properly Install or Maintain Equipment may Void Warranty.
Catalog, Spec Sheets and Website
BakeMax is not liable for incorrect information found in our Catalog, Spec Sheets or Website. Please contact us to confirm specifications.
Pictures and specifications are for general purposes only. Product may not be exactly as shown. Prices and availability may change at any time
without notice. Dimensions shown may change at any time without notice.
