EN User Manual | Freezer
Welcome to our family
Thank you for bringing Frigidaire into your home! We see your purchase as the
beginning of a long relationship together.
This manual is your resource for the use and care of your product. Please read it
before using your appliance. Keep it handy for quick reference. If something doesn’t
seem right, the troubleshooting section will help you with common issues.
FAQ, helpful tips and videos, cleaning products, and kitchen and home accessories
are available at http://www.frigidaire.com.
We are here for you! Visit our website, chat with an agent, or call us if you need
help. We may be able to help you avoid a service visit. If you do need service, we
can get that started for you.
Let’s make it official! Be sure to register your product.
CONTENTS
1. SAFETY IMPORTANT INFORMATION................................................. 2
2. INSTALLATION......................................................................................5
3. DOOR REMOVAL AND REVERSAL..................................................... 6
4. FEATURES............................................................................................ 8
5. CONTROLS AND SETTINGS................................................................8
6. CARE AND CLEANING......................................................................... 8
7. TROUBLESHOOTING........................................................................... 9
8. LIMITED WARRANTY..........................................................................10
1. SAFETY IMPORTANT INFORMATION
1.1 Keep a record for quick
reference
Model number
..........................................................
Serial number
..........................................................
Purchase date
..........................................................
1.2 Serial number location
WARNING!
You must follow these guidelines to
ensure that your refrigerator’s safety
mechanisms are operating correctly.
1.3 Safety definitions
2 ENGLISH
This is the safety alert symbol. It is used to
alert of potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER
DANGER indicates an imminently
hazardous situation which, if not
avoided, will result in death or serious
injury.
WARNING!
WARNING indicates a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
CAUTION!
CAUTION indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
IMPORTANT
IMPORTANT indicates installation,
operation or maintenance information
which is important but not hazard-
related.
DANGER
DANGER Risk of fire or
explosion. Flammable refrigerant
used. Do not use mechanical
devices to defrost refrigerator. Do
not puncture refrigerant tubing.
DANGER Risk of fire or
explosion. Flammable refrigerant
used. To be repaired only by
trained service personnel. Use
only manufacturer-authorized
service parts. Any repair
equipment used must be
designed for flammable
refrigerants. Follow all
manufacturer repair instructions.
Do not puncture refrigerant
tubing.
CAUTION!
CAUTION Risk of fire or
explosion. Dispose of refrigerator
properly in accordance with the
applicable federal or local
regulations. Flammable
refrigerant used.
CAUTION Risk of fire or explosion
due to puncture of refrigerant
tubing. Follow handling
instructions carefully. Flammable
refrigerant used.
WARNING!
CALIFORNIA RESIDENTS ONLY
WARNING! Cancer and Reproductive
Harm
http://www.P65Warnings.ca.gov
1.4 Child safety
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
Destroy or recycle the carton, plastic bags,
and any exterior wrapping material
immediately after the refrigerator is
unpacked. Children should never use
these items to play. Cartons covered with
rugs, bedspreads, plastic sheets or stretch
wrap may become airtight chambers, and
can quickly cause suffocation.
1.5 Important safety instructions
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
Do not store explosive substances such as
aerosol cans with a flammable propellant
in this appliance.
Do not operate the refrigerator in the
presence of explosive fumes
Avoid contact with any moving parts of
automatic ice maker.
Remove all staples from the carton.
Staples can cause severe cuts, and also
destroy finishes if they come in contact
with other appliances or furniture.
ENGLISH 3
WARNING!
Do not use electrical appliances inside
the food storage compartments of the
appliance unless they are of the type
recommended by the manufacturer.
1.6 Proper disposal of your
refrigerator or freezer
Risk of child entrapment
Child entrapment and suffocation are not
problems of the past. Junked or
abandoned refrigerators or freezers are
still dangerous – even if they will sit for
“just a few days”. If you are getting rid of
your old refrigerator or freezer, follow the
instructions below to help prevent
accidents.
We strongly encourage responsible
appliance recycling/disposal methods.
Check with your utility company or visit
http://www.energystar.gov/recycle for
more information on recycling your old
refrigerator.
Before you throw away your old
refrigerator/freezer:
• Remove doors.
• Leave shelves in place so children may
not easily climb inside.
• Have it removed by a qualified service
technician.
IMPORTANT
CFC/HCFC Disposal
Your old refrigerator may have a
cooling system that used CFCs or
HCFCs (chlorofluorocarbons or
hydrochlorofluorocarbons). CFCs and
HCFCs are believed to harm
stratospheric ozone if released to the
atmosphere. Other refrigerants may
also cause harm to the environment if
released to the atmosphere.
If you are throwing away your old
refrigerator, make sure the refrigerant
is removed for proper disposal by a
qualified technician. If you intentionally
release refrigerant, you may be
subject to fines and imprisonment
under provisions of environmental
legislation.
1.7 Electrical information
IMPORTANT
Turning on the appliance controls to
OFF will disable the appliance cooling
system but does not disconnect the
power to the light bulb and other
electrical components. To turn off
power to the appliance you must
unplug the power cord from the
electrical outlet.
• The appliance must be plugged into its
own dedicated 115 Volt, 60 Hz., 15
Amp, AC only electrical outlet. The
power cord of the appliance is
equipped with a three-prong grounding
plug for your protection against
electrical shock hazards. It must be
plugged directly into a properly
grounded three-prong receptacle. The
receptacle must be installed in
accordance with local codes and
ordinances. Consult a qualified
electrician. Do not use an extension
cord or adapter plug.
WARNING!
Avoid fire hazard or electric shock.
• If the power cord is damaged, it should
be replaced by an authorized service
technician to prevent any risk.
• Never unplug the appliance by pulling
on the power cord. Always grip the plug
4 ENGLISH
firmly, and pull straight out from the
receptacle to prevent damaging the
power cord.
• Unplug the appliance before cleaning
and before replacing the light bulb to
avoid electrical shock.
• Performance may be affected if the
voltage varies by 10% or more.
Operating the appliance with
insufficient power can damage the
compressor. Such damage is not
covered under your warranty.
• Do not plug the unit into an electrical
outlet controlled by a wall switch or pull
cord to prevent the appliance from
being turned off accidentally.
• Do not pinch, knot, or bend the power
cord in any manner.
WARNING!
Do not, under any circumstances, cut,
remove, or bypass the grounding
prong (A). Always use the power cord
with a three-prong grounded plug and
grounding type wall receptacle.
2. INSTALLATION
This User Manual provides general
installation and operating instructions for
your model. We recommend using a
service or kitchen contracting professional
to install your appliance. Use the
appliance only as instructed in this User
Manual. Before starting the appliance,
follow these important first steps.
2.1 Location
• Choose a place that is near a
grounded, non-GFCI, electrical outlet.
Do not use an extension cord or an
adapter plug.
• If possible, place the appliance out of
direct sunlight and away from the
range, dishwasher, or other heat
sources.
• The appliance must be installed on a
floor that is level and strong enough to
support a fully loaded appliance.
WARNING!
This appliance is intended for use in
residential household and similar
interior applications such as:
• Kitchen / kitchenette
• Pantry room
• Basement
• Enclosed garage
• Other interior residential type
environments
CAUTION!
Do not install the appliance where the
temperature will exceed 110 °F
(43°C). Temperatures of 0°F (-18°C)
and below will not affect operation.
Additional compressor heaters are not
recommended.
NOTE
Sufficient air circulation is essential for
the proper operation of the appliance.
WARNING!
Allow the following clearances for
ease of installation, proper air
circulation, and plumbing and
electrical connections:
• Sides and top 3" (75 mm)
• Back 3" (75 mm)
NOTE
The exterior walls of the appliance
may become warm as the compressor
transfers heat from the inside. The
temperatures may be even 30°F
higher than the room temperature. In
hotter climates it is important to allow
enough space for air circulation
around the appliance.
ENGLISH 5
NOTE
If you place the appliance with the
door hinge side against a wall, you
may have to allow additional space so
the door can be open wider.
2.2 Leveling
When positioning the appliance, ensure
that it is level, with all bottom corners
resting firmly on a solid floor. You can
adjust this using the two leveling feet
located at the front bottom of the
appliance.
3. DOOR REMOVAL AND REVERSAL
3.1 Door removal/reversal
Tools required: Phillips™ and flat head
screwdrivers, hexagonal spanner.
Two people should assemble the
appliance.
• Ensure the appliance is unplugged and
empty.
• To take the door off, tilt the appliance
backwards. Rest it on something solid
so it will not slip during the door
reversing process.
• Save all parts to reinstall the door.
• To prevent damaging the coolant
system, do not lay the appliance flat.
1. Remove 2 screws at rear side of top
cover.
2. Remove the top cover and thermostat
knob. Place it aside.
1
2
1

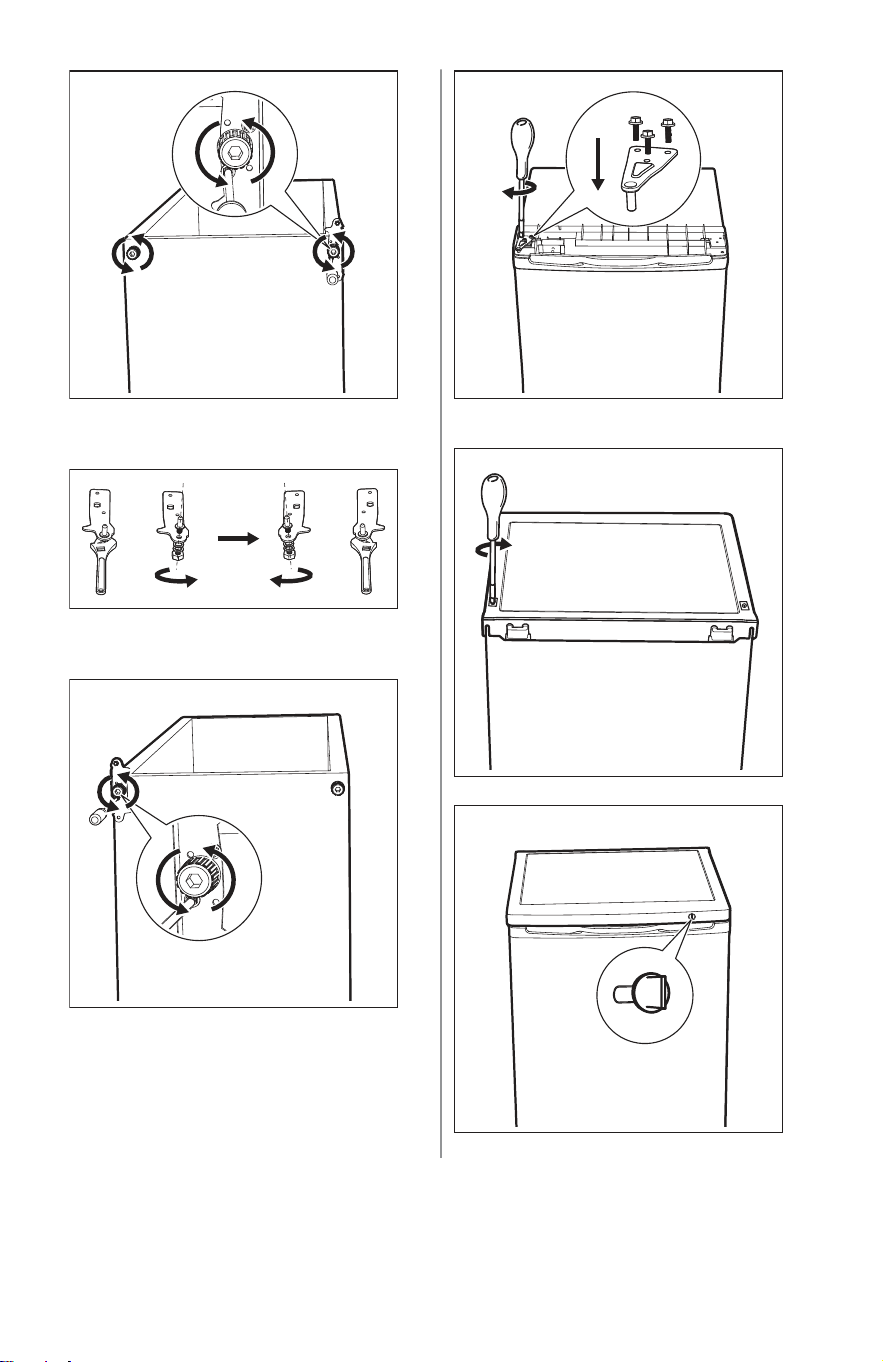

3. Unscrew top hinge. Remove the lid
and place it on a soft pad to avoid
scratching.
4. Unscrew bottom hinge. Remove
adjustable feet from both sides.
6 ENGLISH
5. Unscrew and remove bottom hinge
pin, turn the bracket over, and replace
it.
6. Re-fit the bracket fitting the bottom
hinge pin. Replace both adjustable
feet.
7. Re-place the door. Align it horizontally
and vertically so the seals are closed
on all sides. Tighten the top hinge.
8. Place top cover on the back and fix
with 2 screws.
9. Re-place the temperature control dial.
ENGLISH 7
4. FEATURES
IMPORTANT
Features may vary by model.
Accessories are available for your appliance and may be purchased at
Frigidaire.com or by calling toll-free 1-800-374-4432.
4.1 Product overview
1
3
2
1
Leveling Feet
2
Glass Shelves
3
Freezer Control
5. CONTROLS AND SETTINGS
5.1 Freezer Control
Plug in the appliance.
A thermostat regulates the internal
temperature.
There are 3 temperature settings:
• COLD (warmest),
• NORMAL,
• COLDEST (coolest).
6. CARE AND CLEANING
6.1 Cleaning
Before cleaning remove food from the
appliance and store it well covered.
Clean the appliance interior and
accessories regularly with a cloth and
lukewarm water.
Do not use abrasive cleaners. After
cleaning rinse with fresh water and dry
thoroughly with a clean cloth.
CAUTION!
Unplug the appliance from the power
source before cleaning to avoid
electrical hazard. Never clean the
appliance with a steam cleaner. Allow
the appliance to dry before using it.
8 ENGLISH
IMPORTANT
Do not use organic solvents, such as
lemon juice, juice from an orange
peel, butyric acid, or cleaners
containing acetic acid.
6.2 Defrosting
Before defrosting
To avoid frequent defrosting, use a plastic
scraper to remove frost. Scrape with a
pulling motion.
IMPORTANT
Do not use metal instruments to
remove the frost.
It is important to defrost and clean the
freezer when 1/4 to 1/2" of frost has
accumulated.
WARNING!
Always unplug the appliance prior to
defrosting.
Never unplug the appliance by pulling
on the power cord. Always grip the
plug firmly and pull straight out from
the receptacle.
IMPORTANT
Turning the control to OFF turns off
the compressor, but does not
disconnect power to other electrical
components.
Defrosting
Frost may tend to accumulate faster on
the upper part of the freezer due to warm,
moist air entering the appliance when the
door is open.
Remove food and leave the door open
when defrosting the appliance.
7. TROUBLESHOOTING
Let us help you troubleshoot your concern! This section will help you with common issues. If
you need us, visit our website, chat with an agent, or call us. We may be able to help you
avoid a service visit. If you do need service, we can get that started for you!
Visit Frigidaire.com or call toll-free 1-800-374-4432.
Appliance Operation
Concern Potential Cause Common Solution
The appliance does not run. The appliance may not be plug‐
ged in or the plug may be loose.
Ensure the plug is tightly pushed
into the outlet.
The house fuse may be blown, or
the circuit breaker may have trip‐
ped.
Check/replace the fuse with a 15-
amp time-delay fuse. Reset the
circuit breaker.
The socket may be defective. Call a qualified electrician.
The temperature inside the appli‐
ance is too cold.
The temperature is set to the
coolest setting.
Turn the control to a warmer set‐
ting.
ENGLISH 9
Concern Potential Cause Common Solution
The temperature inside the appli‐
ance is too warm.
The temperature is set too the
warmest setting.
Turn the control to a colder set‐
ting and allow several hours for
the temperature to stabilize.
The door is kept open for too long
or is opened too frequently.
Warm air enters the appliance ev‐
ery time the door is opened.
Open the door less frequently.
Large amounts of warm or hot
food may have been stored re‐
cently.
Wait until the appliance reaches
the selected temperature after
placing the food inside.
The appliance has recently been
disconnected for a period of time.
The appliance requires 24 hours
to cool down completely.
Sound and Noise
Concern Potential Cause Common Solution
Vibrating or rattling noise. The appliance is not level. It rocks
on the floor when moved slightly.
Level the unit. See Leveling sec‐
tion in Installation.
The floor is uneven or weak,
causing the appliance to rock
when moved slightly.
Ensure the floor can support the
appliance. Level it by placing
wood or metal shims under part of
the appliance.
The appliance is touching the
wall.
Level the appliance or adjust its
position. Refer to the Leveling
section in Installation.
Water/Moisture/Frost Inside the
Appliance
Concern Potential Cause Common Solution
Moisture is forming on the inside
walls.
The weather is hot and humid,
which increases the rate of frost
build-up inside.
This is normal.
The door may not be sealing
properly.
Carefully warm the leaking sec‐
tions of the door seal with a cool
air from a hair dryer, and simulta‐
neously shape the seal by hand
to ensure it seats correctly.
The door is kept open for too long
or is opened too frequently.
Open the door less frequently.
8. LIMITED WARRANTY
Your appliance is covered by a one year
limited warranty. For one year from your
date of delivery, Electrolux will pay all
costs for repairing or replacing any parts of
this appliance that prove to be defective in
materials or workmanship when such
appliance is installed, used and
maintained in accordance with the
provided instructions.
Exclusions
This warranty does not cover the following:
10 ENGLISH
1. Products with original serial numbers
that have been removed, altered or
cannot be readily determined.
2. Product that has been transferred from
its original owner to another party or
removed outside the USA or Canada.
3. Rust on the interior or exterior of the
unit.
4. Products purchased “as-is” are not
covered by this warranty.
5. Food loss due to any refrigerator or
freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve
malfunction or defects in materials or
workmanship, or for appliances not in
ordinary household use or used other
than in accordance with the provided
instructions.
8. Service calls to correct the installation
of your appliance or to instruct you
how to use your appliance.
9. Expenses for making the appliance
accessible for servicing, such as
removal of trim, cupboards, shelves,
etc., which are not a part of the
appliance when it is shipped from the
factory.
10. Service calls to repair or replace
appliance light bulbs, air filters, water
filters, other consumables, or knobs,
handles, or other cosmetic parts.
11. Surcharges including, but not limited
to, any after hour, weekend, or holiday
service calls, tolls, ferry trip charges,
or mileage expense for service calls to
remote areas, including the state of
Alaska.
12. Damages to the finish of appliance or
home incurred during transportation or
installation, including but not limited to
floors, cabinets, walls, etc.
13. Damages caused by: services
performed by unauthorized service
companies; use of parts other than
genuine Electrolux parts or parts
obtained from persons other than
authorized service companies; or
external causes such as abuse,
misuse, inadequate power supply,
accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED
WARRANTIES; LIMITATION OF
REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE
REMEDY UNDER THIS LIMITED
WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS
PROVIDED HEREIN. CLAIMS BASED
ON IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED TO ONE YEAR
OR THE SHORTEST PERIOD ALLOWED
BY LAW, BUT NOT LESS THAN ONE
YEAR. ELECTROLUX SHALL NOT BE
LIABLE FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES SUCH AS
PROPERTY DAMAGE AND INCIDENTAL
EXPENSES RESULTING FROM ANY
BREACH OF THIS WRITTEN LIMITED
WARRANTY OR ANY IMPLIED
WARRANTY. SOME STATES AND
PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL
DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES,
SO THESE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO
YOU. THIS WRITTEN WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS.
YOU MAY ALSO HAVE OTHER RIGHTS
THAT VARY FROM STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some
other appropriate payment record to
establish the warranty period should
service be required. If service is
performed, it is in your best interest to
obtain and keep all receipts. Service under
this warranty must be obtained by
contacting Electrolux at the addresses or
phone numbers below.
This warranty only applies in the USA and
Canada. In the USA, your appliance is
warranted by Electrolux Major Appliances
North America, a division of Electrolux
Home Products, Inc. In Canada, your
appliance is warranted by Electrolux
Canada Corp. Electrolux authorizes no
person to change or add to any obligations
under this warranty. Obligations for service
and parts under this warranty must be
performed by Electrolux or an authorized
service company. Product features or
specifications as described or illustrated
are subject to change without notice.
USA
1-800-374-4432
ENGLISH 11
Frigidaire
10200 David Taylor Drive
Charlotte, NC 28262
Canada
1-800-265-8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada L5V 3E4
12 ENGLISH
*
A07289902 (September 2024)
