CAUTION:
Weight on this product should not exceed 250 lbs.
Product May Vary Slightly From Pictured.
STAMINA PRODUCTS
MADE IN CHINA
©
2021 Stamina Products, Inc.
2021, 02
Owner’s Manual
COMPACT
STRIDER
When calling for parts or
service, please specify
the following numbers
:
Model#: 55-1618B,
55-1618BR
S/N: _____________
This Product is Distributed Exclusively by
2040 N Alliance Ave, Springeld, MO 65803
Customer Care
1 (800) 375-7520
www.staminaproducts.com
Exercise can present a
health risk. Consult a
physician before beginning
any exercise program with
this equipment. If you feel
faint or dizzy, immediately
discontinue use of this
equipment. Serious bodily
injury can occur if this
equipment is not assembled
and used correctly. Serious
bodily injury can also occur
if all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
securely tightened prior to
each use. Follow all safety
instructions in this manual.
!
WARNING
!
Quickstart Guide
Go to the App Store on your device or
scan the QR Code for quick access.
Smart Audio Workouts for Your Strider
Download the app and get moving!
Assembly video included in app.
IMPORTANT
Apple, the Apple logo, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service
mark of Apple Inc., registered in the U.S. and other countries. Google Play and the Google Play logo are trademarks of Google LLC.
TABLE OF CONTENTS
Safety Instructions ...................................... 3
Before You Begin ........................................ 5
Equipment Warning, Caution & Notice Labels
... 6
Hardware Identication Chart .................... 7
Assembly Instructions ................................ 8
Set Up Instructions ..................................... 9
Operational Instructions ........................... 10
Storage ....................................................... 12
Maintenance ............................................... 12
Conditioning Guidelines ........................... 13
Warm-Up and Cool-Down ......................... 14
Warranty ..................................................... 15

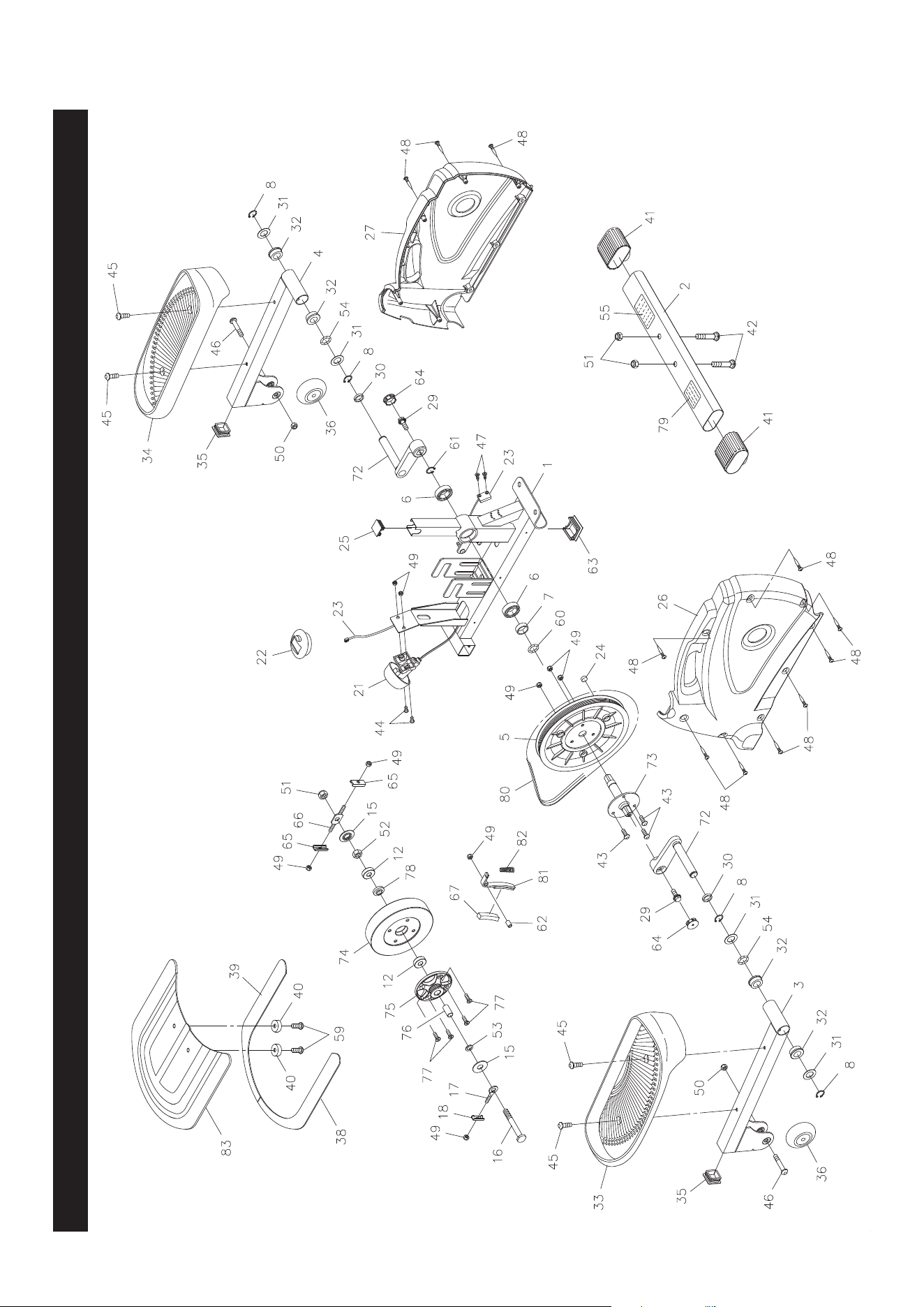

Product Parts Drawing .............................. 16
Parts List .................................................... 17
Fax/Mail Ordering Form ............................ 19
3
1. Save these instructions and ensure that other exercisers read this manual prior to using the
InMotion®
Compact Strider
for the rst time.
2. Read all warnings and cautions posted on the InMotion® Compact Strider.
3. The InMotion® Compact Strider should only be used after a thorough review of the Owner’s Manual.
Make sure that it is properly assembled and tightened before use.
4. We recommend that two people be available for assembly of this product.
5. Keep children away from the InMotion® Compact Strider. Do not allow children to use or play on the
InMotion® Compact Strider. Keep children and pets away from the InMotion® Compact Strider when
it is in use.
6. It is recommended that you place this exercise equipment on an equipment mat.
7. Set up and operate the InMotion® Compact Strider on a solid level surface. Do not position the
InMotion® Compact Strider on loose rugs or uneven surfaces.
8. Make sure that adequate space is available for access to and around the InMotion® Compact Strider.
9. Before using, inspect the InMotion® Compact Strider for worn or loose components, and securely
tighten or replace any worn or loose components prior to use.
10. Consult a physician prior to commencing an exercise program. If, at any time during exercise, you feel
faint, dizzy, or experience pain, stop and consult your physician.
11. Follow your physician’s recommendations in developing your own personal tness program.
12.
Always choose the workout which best ts your physical strength, exibility and balance levels. Know
your limits and train within them. Always use common sense when exercising.
13. Do not wear loose or dangling clothing while using the InMotion® Compact Strider.
14. Never exercise in bare feet or socks; always wear correct footwear, such as running, walking, or
crosstraining shoes. Be sure that they t well, provide foot support and feature non-skid rubber soles.
15. Be careful to maintain your balance while using, mounting, dismounting, or assembling the InMotion®
Compact Strider. Loss of balance may result in a fall and serious bodily injury.
16. To maintain your balance, always mount or dismount the InMotion® Compact Strider from the lowest
foot pedal. Refer to the detail instructions on page 10.
17. Keep both feet rmly and securely on the pedal caps while exercising.
18. This unit is not equipped with a free-wheel. Pedal speed should be reduced in a controlled manner.
19. The InMotion® Compact Strider should not be used by persons weighing over 250 pounds.
20. The InMotion® Compact Strider should be used by only one person at a time.
21. The InMotion® Compact Strider is
for consumer use only. It is not for use in public or commercial
settings.
SAFETY INSTRUCTIONS
!
WARNING
Cancer and Reproductive Harm www.P65Warnings.ca.gov
Consult your physician before starting this or any exercise program. This is
especially important if you are over the age of 35, have never exercised before,
are pregnant, or suer from any health problem. This product is for home use
only. Do not use in institutional or commercial applications. Failure to follow all
warnings and instructions could result in serious injury or death.
To reduce the risk of serious injury, read the following Safety Instructions
before using the InMotion® Compact Strider.
!
WARNING
!
WARNING
NEED HELP?
CONTACT US FIRST
1 (800) 375-7520
customer.care@staminaproducts.com
Hi! From all of us here at Stamina Products, thank you for your purchase. We
know that you have big fitness goals in mind and we are here to help you along.
Call us, email us, or send us a message on Facebook. Be sure to contact us if you
have any questions on your new product. We look forward to hearing from you!
With your body in mind,
Stamina Customer Care
To enact your extended warranty and to help us better
serve you, please go online and register your new product.
register.staminaproducts.com
ONLINE
customer.car[email protected]om
www.staminaproducts.com
TELEPHONE
1 (800) 375-7520
FAX
(417) 889-8064
MAIL
Stamina Products, Inc.
ATTN: Customer Care
2040 N Alliance Ave
Springfield, MO 65803
facebook.com/StaminaProducts
facebook.com/AeroPilates
CUSTOMER CARE HOURS:
Monday-Thursday, 7:30 AM-5:00 PM, Central Time
Friday, 8:00 AM-3:00 PM, Central Time
It is quick and easy to register online, but if you’re a little old school or just need a
reason to raise that little flag on your mailbox, fill out the info on the last page of this
manual and mail it in.
THE FOLLOWING TOOLS ARE INCLUDED FOR ASSEMBLY : Wrench
Allen Wrench (6mm)
BEFORE YOU BEGIN
5
Crank
Base Board
Right Pedal Cap
Right Cover
Left Pedal Arm
Roller
Tension Knob
Meter
Oval Endcap
Left Pedal Cap
Main Frame
Rear Stabilizer
Oval Endcap
Caution Label
Serial Decal
Thank you for choosing the InMotion®
Compact Strider. We take great pride in this
quality product and hope it will provide many hours
of quality exercise to make you feel better, look
better, and enjoy life to its fullest.
It's a proven fact that a regular exercise program
can improve your physical and mental health.
Too often, our busy lifestyles limit our time and
opportunity to exercise. The InMotion® Compact
Strider provides a convenient and simple method
to begin your journey of getting your body in shape
and achieving a happier and healthier lifestyle.
Before reading further, please review the
drawing below and familiarize yourself with the
parts that are labeled. Locate the serial decal on
the product and write the serial number on the
cover of the manual in the space provided. See the
next page for an image of the serial decal. Model
number and serial number are required when
calling for assistance.
Read this manual carefully before using the
InMotion® Compact Strider.
Providing you with a quality product is Stamina's
top priority. However, sometimes there could be a
missing or incorrectly sized part. If you have any
questions or problems with the parts included with
your InMotion® Compact Strider, please do not
return the product. Contact us FIRST!
If a part is missing or defective, please contact
Customer Care for assistance. Call us toll free
at 1-800-375-7520 (in the U.S.) or live chat on
staminaproducts.com. Our Customer Care Sta is
available to assist you from 7:30 A.M. to 5:00 P.M.
(Central Time) Monday through Thursday and 8:00
A.M. to 3:00 P.M. (Central Time) on Friday.
Be sure to have the name and model number of
the product available when you contact us.
6

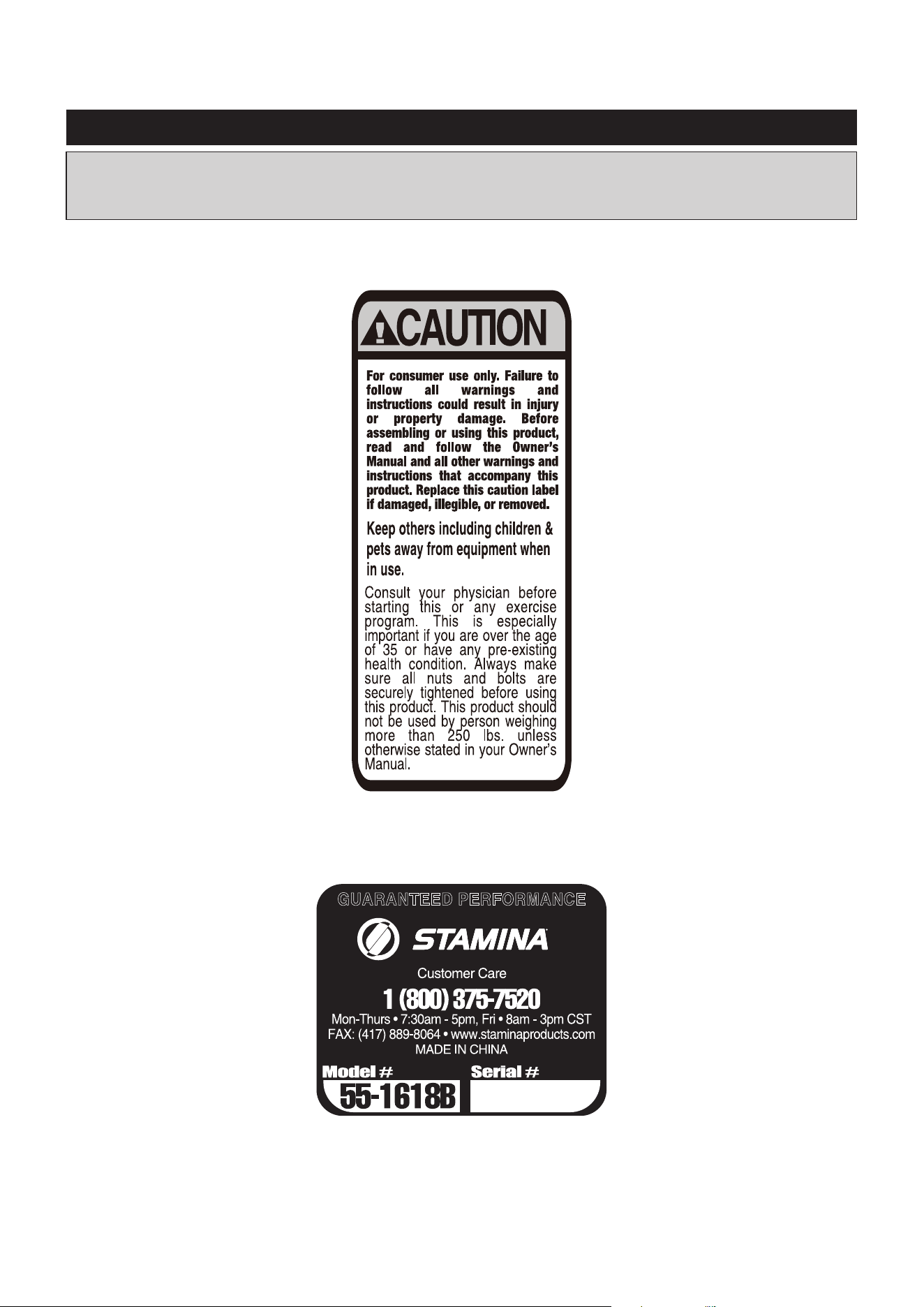

This chart is provided to help identify the warning, caution, and notice labels on the InMotion®
Compact Strider. Please take a moment to familiarize yourself with all of the warning, caution, and
notice labels.
EQUIPMENT WARNING, CAUTION & NOTICE LABELS
CAUTION LABEL(55)
To best serve you, our Customer Care Representatives will
need your serial number. For quick access, write in your
serial number on the cover of the manual.
SERIAL DECAL(79)
Part Number and Description Qty
7
42 Carriage Bolt (M10 x 1.5 x 43mm) 2
45 Bolt, Button Head (M8 x 1.25 x 20mm) 4
59 Bolt, Button Head (M8 x 1.25 x 16mm) 2
51 Nylock Nut (M10 x 1.5) 2
40 Stand 2
length
length
mm.
in.
INCHES
This chart is provided to help identify the hardware used in the assembly process. Place the washers or
the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to
check the length of the bolts and screws.
NOTICE: The length of all bolts and screws, except those with flat
heads, is measured from below the head to the end of the bolt
or screw. Flat head bolts and screws are measured from the
top of the head to the end of the bolt or screw.
After unpacking the unit, open the hardware bag and make sure that you have all the following items.
Some hardware may be already attached to the part.
MILLIMETERS
0 10 20 30 40 50 60 70 80 90
100
110
120
130 140
150
0 1/2
1 1/2
2 1/2
3 1/2
4 1/2
5 1/2
6
6 8
10
12
3/16"
1/4"
5/16" 3/8" 1/2"
HARDWARE IDENTIFICATION CHART
8
STEP 1
Attach the REAR STABILIZER(2) to the MAIN FRAME(1) with CARRIAGE BOLTS(M10x1.5x43mm)
(42) and NYLOCK NUTS(M10x1.5)(51).
STEP 2
Attach the BASE BOARD(83) to the MAIN FRAME(1) with the STANDS(40) and BUTTON HEAD
BOLTS(M8x1.25x16mm)(59).
NOTE: Make sure the BASE BOARD(83) is assembled with the FOAM PADS(38, 39) on the bottom.
STEP 3
Attach the LEFT PEDAL CAP(33) to the LEFT PEDAL ARM(3) with BUTTON HEAD BOLTS
(M8x1.25x20mm)(45). Repeat on the other side.
NOTE: The LEFT and RIGHT PEDAL CAPS(33, 34) have a raised lip on three sides. Attach the LEFT
and RIGHT PEDAL CAPS(33, 34) to the LEFT and RIGHT PEDAL ARMS(3, 4) so that the side
without the raised lip is on the outside.
ASSEMBLY INSTRUCTIONS
Place all parts from the box in a cleared area and position them on the oor in front of you. Remove
all packing materials from your area and place them back into the box. Do not dispose of the packing
materials until assembly is completed. Read each step carefully before beginning. If you are missing
a part, please go to staminaproducts.com under the Customer Care section and order the part
(in the U.S.). Our Customer Care Sta is available to assist you from 7:30 A.M. to 5:00 P.M. (Central
Time) Monday through Thursday and 8:00 A.M. to 3:00 P.M. (Central Time) on Friday.
Some product parts are t tested at the factory to ensure proper t and alignment. Marks in
the paint may be noticeable, but are not an indication of damage.
The side with FOAM
PADS(38, 39) faces
down.
FUNCTION INSPECTION:
Visually inspect the InMotion® Compact Strider to verify that assembly is as shown in the above illustration.
Check the function of the InMotion® Compact Strider. If you have good balance and are familiar with
the InMotion® Compact Strider, stand on the foot pedals. If you do not have good balance, sit in a chair
and place feet on the foot pedals. Slowly move your highest foot forward and follow the natural path of
the machine. Turn the crank slowly through one complete revolution to verify that the drive train functions
properly. Adjust the TENSION KNOB(21) and verify that the resistance changes.
CAUTION: Locate and read the CAUTION LABEL(55) on the InMotion® Compact Strider. Make sure
that all users read the CAUTION LABEL(55).
SET UP INSTRUCTIONS
9
Place the InMotion® Compact Strider in the area where it will be used. It is recommended that the
InMotion® Compact Strider be placed on an equipment mat. The InMotion® Compact Strider is
approximately 24.3 inches long x 17.5 inches wide x 11.4 inches tall. (These dimensions may vary up to
one inch.) Make sure that adequate space is available for access to move around and emergency dismount
from the InMotion® Compact Strider. A minimum of 20 inches on at least one side and 20 inches either
behind or in front of the InMotion® Compact Strider is required for safe operation.
LEVELING: Adjust the location of InMotion® Compact Strider to ensure InMotion® Compact Strider
sits on the oor without rocking.
MOVING: Grasp the handle on the top of the product to move the InMotion® Compact Strider. Do
not use the PEDAL ARMS(3,4) to move the InMotion® Compact Strider. The PEDAL
ARMS(3,4) will move and may pinch your hand or ngers.
Equipment Mat
Handle
OPERATIONAL INSTRUCTIONS
10
USING THE FITNESS METER
POWER OFF:
Automatically scans COUNT, TIME, CALORIES, and DISTANCE in sequence with a change
every six seconds. Press and release the button until “SCAN” appears on the display.
Displays the total number of strides you have taken from zero to 9999 strides.
Displays the time from one second up to 99:59 minutes.
Displays the calorie consumption from zero to 9999 Kcal.
The calorie readout is an estimate for an average user. It should be used only as a
comparison between workouts on this unit.
Displays the distance from zero to 999.9 miles.
Automatic shut o after four minutes of inactivity.
POWER ON:
FUNCTIONS:
SCAN:
COUNT :
TIME:
CALORIES:
DISTANCE:
FUNCTION BUTTON:
Press and release to select functions.
Press and hold for four seconds to reset all functions to zero.
Pedal movement or press the button.
The meter will shut o automatically after four minutes of inactivity. All function values will
be kept. Push the button and hold it down for four seconds to reset all functions to zero.
NOTE:
BATTERY
The meter operates with a 1.5v LR44 button cell battery. Replace the battery when you see inconsistencies
in the display.
HOW TO INSTALL AND REPLACE BATTERY:
1. Remove the METER(22) from the InMotion® Compact Strider.
Unplug the SENSOR WIRE(23). Place the METER(22) up-side down
as shown in the illustration.
2. Refer to the illustration. Remove the Battery Cover, and then slide out
the old battery.
3. Install a new button cell battery and cover with the Battery Cover.
Assembly the METER(22) back to the InMotion® Compact Strider.
Battery
Cover
LR44
Battery
1. Ultimate disposal of battery should be handled according
to all state and federal laws and regulations.
2. Do not dispose of batteries in re.
NOTE:
OPERATIONAL INSTRUCTIONS
11
STANDING WORKOUT
Using the InMotion® Compact Strider while standing exercises your core and other muscles. If you
have good balance and are familiar with the elliptical, you may use the InMotion® Compact Strider while
standing. Always mount and dismount the elliptical from the lowest foot pedal (as shown below). Stand on
the foot pedals with the front of your shoes close to the front edge of the pedal cap. For more stability, place
a chair next to the InMotion® Compact Strider and place your hand on the chair back while stepping onto
the pedals. Move your highest foot forward and follow the natural path of the machine. If necessary, use a
wall or table to help maintain your balance while using the InMotion® Compact Strider. Start on a load
level that is comfortable until you are familiar with the machine. Once you are familiar with the elliptical and
comfortable with the resistance, adjust the load level as described below to achieve the workout desired.
CORRECT INCORRECT
SITTING WORKOUT
Refer to the illustrations below. Seated workouts are eective for toning legs and hips, and for improving
circulation and mobility. When sitting, your feet will face the opposite direction on the pedals than when
standing. This will put your feet, ankles, and hips at the proper workout angles. To adjust the METER(22)
to face you, nd the two cavities on either side of the meter case, grasp the top of the meter and pull
the top of the METER(22) from the casing being careful not to disconnect or damage the SENSOR
WIRE(23). Turn the meter 180 degrees, and push it back into position.
Place the STAMINA® Elliptical Motion Strider on the oor in front of a chair. Sit in the chair and place
your feet in the PEDAL CAPS(33, 34) as shown in the illustration below, or place your feet on the end
of the PEDAL CAPS(33, 34) as shown in detail view A. Pedal the STAMINA® Elliptical Motion Strider
with your feet.
CAUTION: Do not stand up on the STAMINA® Elliptical Motion Strider in this workout position.
Cavity
A.
The safety and integrity designed into the InMotion® Compact Strider can only be maintained when the
InMotion® Compact Strider is regularly examined for damage and wear. Special attention should be
given to the following:
STORAGE
MAINTENANCE
12
1. To store the InMotion® Compact Strider, simply keep it in a clean dry place.
2. The InMotion® Compact Strider is approximately 24.3 inches long x 17.5 inches wide x 11.4 inches
tall. These dimensions will vary. Please measure your InMotion® Compact Strider if exact dimensions
are needed.
3. Grasp the handle located on the top of the product to move the InMotion® Compact Strider. Do not
use the Pedal Arms to move the InMotion® Compact Strider.
NOTE: A standard crank extractor tool is required to remove the CRANKS(72) from the AXLE(73).
1. Adjust the TENSION KNOB(21) and verify that it functions properly and the resistance changes.
2. Verify that all nuts and bolts are present and properly tightened. Replace missing nuts and bolts.
Tighten loose nuts and bolts.
3. Verify that the CAUTION LABEL(55) is in place and easy to read. Call Stamina Products immediately
at 1-800-375-7520 for a replacement CAUTION LABEL(55) if it is missing or damaged.
4. It is the sole responsibility of the user/owner to ensure that regular maintenance is performed.
5. Worn or damaged components must be replaced immediately or the InMotion® Compact Strider
removed from service until repair is made.
6. Only Stamina Products supplied components should be used to maintain/repair the InMotion®
Compact Strider.
7. Keep your InMotion® Compact Strider clean by wiping it o with an absorbent cloth after use.
OPERATIONAL INSTRUCTIONS
FORWARD AND REVERSE
The InMotion® Compact Strider can be used in forward and reverse directions to vary the muscles that
you work. This will help you to stay motivated and achieve the best results. To change directions, simply
slow the pedals down until they stop, then pedal in the opposite direction.
The load level of InMotion® Compact Strider can be changed at any
time during your workout. Adjusting your load level will allow you to
increase or decrease your intensity level.
To increase the load, turn the TENSION KNOB(21) clockwise. To
decrease the load, turn the TENSION KNOB(21) counterclockwise.
LOAD LEVEL ADJUSTMENT
How you begin your exercise program depends on your physical condition. If you have been inactive for
several years or are severely overweight, start slowly and increase your workout time gradually. Increase
your workout intensity gradually by monitoring your heart rate while you exercise.
Initially you may only be able to exercise within your target zone for a few minutes; however, your aerobic
capacity will improve over the next six to eight weeks. It is important to pace yourself while you exercise
so you don't tire too quickly.
Measure your heart rate periodically during your workout by stopping the
exercise but continuing to move your legs or walk around. Place two or
three ngers on your wrist and take a six second heartbeat count. Multiply
the results by ten to nd your heart rate. For example, if your six second
heartbeat count is 14, your heart rate is 140 beats per minute. A six second
count is used because your heart rate will drop rapidly when you stop
exercising. Adjust the intensity of your exercise until your heart rate is at the
proper level.
wrist pulse
Remember to follow these essentials:
Have your doctor review your training and diet programs.
Begin your training program slowly with realistic goals that have been set by you and your physician.
Warm up before you exercise and cool down after you work out.
Take your pulse periodically during your workout and strive to stay within a range of 60% (lower
intensity) to 90% (higher intensity) of your maximum heart rate zone. Start at the lower intensity, and
build up to higher intensity as you become more aerobically t.
If you feel dizzy or lightheaded you should slow down or stop exercising.
To determine if you are working out at the correct intensity, use a heart rate monitor or use the table
below. For effective aerobic exercise, your heart rate should be maintained at a level between 60%
and 90% of your maximum heart rate. If just starting an exercise program, work out at the low end of
your target heart rate zone. As your aerobic capacity improves, gradually increase the intensity of your
workout by increasing your heart rate.
CONDITIONING GUIDELINES
Target Heart Rate Zone Estimated by Age*
* For cardiorespiratory training benefits, the American College of Sports Medicine recommends
working out within a heart rate range of 55% to 90% of maximum heart rate. To predict the
maximum heart rate, the following formula was used: 220 - Age = predicted maximum heart rate
20 years
25 years
30 years
35 years
40 years
45 years
50 years
55 years
60 years
65 years
70 years
Average Maximum
Heart Rate 100%
Age
110-180 beats per minute
107-175 beats per minute
105-171 beats per minute
102-166 beats per minute
99-162 beats per minute
97-157 beats per minute
94-153 beats per minute
91-148 beats per minute
88-144 beats per minute
85-139 beats per minute
83-135 beats per minute
200 beats per minute
195 beats per minute
190 beats per minute
185 beats per minute
180 beats per minute
175 beats per minute
170 beats per minute
165 beats per minute
160 beats per minute
155 beats per minute
150 beats per minute
Target Heart Rate Zone
(55%-90% of Maximum Heart Rate)
13
WARM-UP and COOL-DOWN
Warm-Up
The purpose of warming up is to prepare your body for exercise and to minimize injuries.
Warm up for two to ve minutes before strength training or aerobic exercising. Perform activities that
raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging,
jumping jacks, jump rope, and running in place.
Stretching
Stretching while your muscles are warm after a proper warm-up and again after your
strength or aerobic training session is very important. Muscles stretch more easily at these times
because of their elevated temperature, which greatly reduces the risk of injury. Stretches should be held
for 15 to 30 seconds. Do not bounce.
Suggested Stretching Exercises
Remember to always check with your physician before starting any exercise program.
Cool-Down
The purpose of cooling down is to return the body to its normal, or near normal, resting
state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows
blood to return to the heart. Your cool-down should include the stretches listed above and should be
completed after each strength training session.
Lower Body Stretch
Place feet shoulder-width
apart and lean forward.
Keep this position for 30
seconds using the body as a
natural weight to stretch the
backs of the legs.
DO NOT BOUNCE!
When the pull on the back of
the legs lessens, gradually
try a lower position.
Floor Stretch
While sitting on the oor,
open the legs as wide as
possible. Stretch the upper
body toward the knee on the
right leg by using your arms
to pull your chest to your
thighs. Hold this stretch 10
to 30 seconds.
DO NOT BOUNCE!
Do this stretch 10 times.
Repeat the stretch with the
left leg.
Bent Over Leg Stretch
Stand with feet shoulder-
width apart and lean forward
as illustrated. Using the
arms, gently pull the upper
body towards the right leg.
Let the head hang down.
DO NOT BOUNCE!
Hold the position a minimum
of 10 seconds. Repeat
pulling the upper body to
the left leg. Do this stretch
several times slowly.
Bent Torso Pulls
While sitting on the oor,
have legs apart, one leg
straight and one knee bent.
Pull the chest down to touch
the thigh on the leg that is
bent, and twist at the waist.
Hold this position at least 10
seconds. Repeat 10 times
on each side.
14
LIMITED WARRANTY
MODEL 55-1618B, 55-1618BR
15
WARRANTY
Stamina Products, Inc. (“Stamina”) warrants to the original purchaser that this product will be free from
defects in materials and workmanship that arise under normal use, service, proper assembly and proper
operation in accordance with product warnings/instructions for a period of 90 days on the parts and one
year on the frame from the date of the original purchase from an authorized retailer. THIS WARRANTY
SHALL NOT APPLY TO ANY PRODUCT WHICH HAS BEEN SUBJECT TO COMMERCIAL USE,
ABUSE, MISUSE, ALTERATION OF ANY KIND OR TO ANY DEFECT OR CHANGE CAUSED BY
IMPROPER ASSEMBLY, REPAIR, REPLACEMENT, SUBSTITUTION OR USE WITH PARTS NOT
PROVIDED BY STAMINA. Commercial use includes use of product in athletic clubs, health clubs, spas,
gyms, and all other public or semipublic facilities whether or not the product’s use is in furtherance of a
prot making enterprise, and all other use which is not for personal purposes.
To implement this limited warranty, send a written notice stating your name, date, and place of purchase
and a brief description of the defect along with your receipt to Stamina Products, Inc. 2040 N Alliance
Ave, Springeld, Missouri, USA, MO 65803, or email us at customer[email protected], or call
us at 1-800-375-7520. If the defect is covered under this limited warranty, you will be requested to return
the product or part to us for free repair or replacement at our option.
NO ACTION FOR BREACH OF THIS LIMITED WARRANTY MAY BE COMMENCED MORE
THAN ONE (1) YEAR AFTER THE DATE THE ALLEGED BREACH WAS OR SHOULD HAVE
BEEN DISCOVERED. NO ACTION FOR BREACH OF ANY IMPLIED WARRANTY (INCLUDING
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) MAY BE COMMENCED MORE
THAN ONE (1) YEAR AFTER DELIVERY OF THE PRODUCT TO THE PURCHASER. These warranties
are not transferable. IF ANY PART OF THE PRODUCT IS NOT IN COMPLIANCE WITH THIS LIMITED
WARRANTY OR ANY IMPLIED WARRANTY, THE REMEDY OF REPAIR OR REPLACEMENT IS THE
EXCLUSIVE REMEDY. If any claim is made under this limited warranty or any implied warranty, Stamina
reserves the right to require the product to be returned for inspection, at the purchaser’s expense, to
Stamina’s premises in Springfield, Missouri. Return of the enclosed warranty registration card is not
required for warranty coverage, but is merely a way of establishing the date and place of purchase.
Stamina SHALL NOT BE LIABLE FOR THE LOSS OF USE OF ANY PRODUCT, LOSS OF TIME,
INCONVENIENCE, COMMERCIAL LOSS OR ANY OTHER INDIRECT, CONSEQUENTIAL, SPECIAL
OR INCIDENTAL DAMAGES DUE TO BREACH OF THE ABOVE WARRANTY OR ANY IMPLIED
WARRANTY.
THIS LIMITED WARRANTY IS THE ONLY EXPRESS WARRANTY. NO ORAL OR WRITTEN
INFORMATION GIVEN BY STAMINA, ITS AGENTS OR EMPLOYEES, SHALL CREATE A WARRANTY
OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY. This warranty gives you specic legal
rights, and you may also have other legal rights which vary from state to state. ANY OTHER RIGHT
WHICH YOU MAY HAVE, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY.
The laws in some states aect the disclaimer or limitation of implied warranties and consequential and
incidental damages. If any such law is found applicable, the foregoing disclaimers and limitations of and
on implied warranties and consequential and incidental damages shall be deemed to be modied to the
extent necessary to comply with applicable law.
PRODUCT PARTS DRAWING
BACK
FRONT
16
PART# PART NAME QTY
1 Main Frame 1
2 Rear Stabilizer 1
3 Left Pedal Arm 1
4 Right Pedal Arm 1
5 Pulley 1
6 Bearing (6003) 2
7 Pulley Spacer 1
8 C Ring (16mm) 4
12 Bearing (6000) 2
15 Spacer Cap 2
16 Flywheel Shaft Bolt (M10 x 1.5 x 82mm) 1
17 Eyebolt 1
18 Tension Bracket 1
21 Tension Knob 1
22 Meter 1
23 Sensor Wire 1
24 Magnet 1
25 Square Plug (25mm x 25mm) 1
26 Left Cover 1
27 Right Cover 1
29 Flange Bolt (M8 x 1.25 x 15mm) 2
30 Crank Spacer 2
31 Large Washer (16.3 x 24mm) 4
32 Pedal Arm Bushing 4
33 Left Pedal Cap 1
34 Right Pedal Cap 1
35 Square Plug (30mm x 30mm) 2
36 Roller 2
38 Left Foam Pad 1
39 Right Foam Pad 1
40 Stand 2
41 Oval Endcap (30mm x 60mm) 2
42 Carriage Bolt (M10 x 1.5 x 43mm) 2
43 Bolt, Button Head (M6 x 1 x 13mm) 3
44 Bolt, Button Head (M6 x 1 x 17mm) 2
45 Bolt, Button Head (M8 x 1.25 x 20mm) 4
46 Bolt, Button Head (M8 x 1.25 x 42mm) 2
47 Screw, Round Head (M3.4 x 8mm) 2
48 Screw, Round Head (M4 x 25mm) 11
49 Nylock Nut (M6 x 1) 9
50 Nylock Nut (M8 x 1.25) 2
51 Nylock Nut (M10 x 1.5) 3
52 Nut (M10 x 1.5) 1
53 Washer (M10) 1
54 Wavy Washer (M16) 2
55 Caution Label 1
56 Wrench 1
PARTS LIST
17
57 Allen Wrench (6mm) 1
58 Manual 1
59 Bolt, Button Head (M8 x 1.25 x 16mm) 2
60 Wavy Washer (M17) 1
61 C Ring (17mm) 1
62 Pu Bushing 1
63 Square Plug (38mm x 38mm) 1
64 Crank Cap 2
65 Large Tension Bracket 2
66 Double Eyebolt 1
67 Felt Bracket Pad 1
72 Crank 2
73 Axle 1
74 Flywheel 1
75 Flywheel Pulley 1
76 Flywheel Spacer (ø10mm x ø12mm x 24mm) 1
77 Bolt, Flat Head (M6 x 1 x 15mm) 4
78 Bearing Spacer 1
79 Serial Decal 1
80 V-Ribbed Belt (270 J4) 1
81 Brake Brace 1
82 Spring 1
83 Base Board 1
PART# PART NAME QTY
PARTS LIST
18
Model Number: ...................................................................................... Serial Number: .............................................................................................
Product Name: ..................................................................................................................................................................................................................................
Place Purchased: ..............................................................................................................................................................................................................................
Date of Purchase: .................................................................................. Purchase Price: ............................................................................................
First Name: ............................................................................................ Last Name: ...................................................................................................
City: .................................................................. State: ................................................................ Zip Code: .................................................
Email Address: ....................................................................................... Phone #: ( ) ......................................................................................
Would you like to receive email information or special oers from Stamina Products?* ____Yes ____No
*If yes, be sure your email address is included above.
Stamina Products, Inc.
2040 N Alliance Ave, Springeld, MO 65803
If there are missing or damaged parts, you can go to parts.staminaproducts.com and order those parts. If you have questions,
please contact customer care. Do not return the product. To order parts by mail, fill out the sheet below and fax it to
417-889-8064. The part will be mailed to your address.
Mr./Ms: ..............................................................................................................................................................................................................................................
Address: ........................................ ............................................................................................. Apt. #:..........................................................................
City: .................................................................. State: ................................................................ Zip Code: .................................................
IMPORTANT : We require your phone number to process the order!
Phone #: ( ) ................................................................................ Work Phone #: ( ) .............................................................................
Date of Purchase: ..................................................................................
Model #: ............................................................................................................................................................................................................................................
Purchased From: ..............................................................................................................................................................................................................................
IMPORTANT: Before lling out the portion below, make sure you have the correct information.
Refer to the parts list to make sure you're ordering the right parts!
Stamina Products, Inc.
2040 N Alliance Ave, Springeld, MO 65803
Detach and Mail or Fax the Form Above
TO CONTACT CUSTOMER CARE
For your convenience, Stamina’s customer care representatives can be reached by email at customer.care@staminaproducts.
com or by phone at 1-800-375-7520 (in the U.S.). Our customer care representatives are available Monday through Thursday
from 7:30 a.m. until 5:00 p.m., and Friday 8:00 a.m. until 3 p.m. Central Time.
TO REGISTER YOUR PRODUCT
Would you like to recieve email information or special oers from Stamina Products? Register at contact.staminaproducts.com
TELEPHONE
CUSTOMER CARE
Tel: 1 (800) 375-7520
FAX
CUSTOMER CARE
Fax: (417) 889-8064
MAIL
STAMINA PRODUCTS, INC.
ATTN: Customer Care
2040 N Alliance Ave, Springeld, MO 65803
ONLINE
CUSTOMER CARE
customer[email protected]
www.staminaproducts.com
To enact your warranty, please register your product by going to register.staminaproducts.com. Please have your product model
number (printed on the cover of this owner’s manual) and the serial number (printed on the black and white sticker on your
product) ready.
If you don’t have internet access, you can call customer care at 1-800-375-7520, or ll out and mail the product registration form
below to Stamina Products, Inc.; 2040 N Alliance Ave, Springeld, MO 65803.
PRODUCT REGISTRATION FORM
TO ORDER PARTS
Detach and Mail or Fax the Form Below
PARTS ORDER FORM
PART # DESCRIPTION QUANTITY
1 Rear Unit Assembly 1
EXAMPLE:
