USER MANUAL CZ-800/Quantum
Hello.
Quantum.
At Cozzia we understand that every body is different and have carefully designed your massage chair with that in mind.
For replacement parts and tech support, please call our service and warranty phone number, or visit www.cozziausa.com

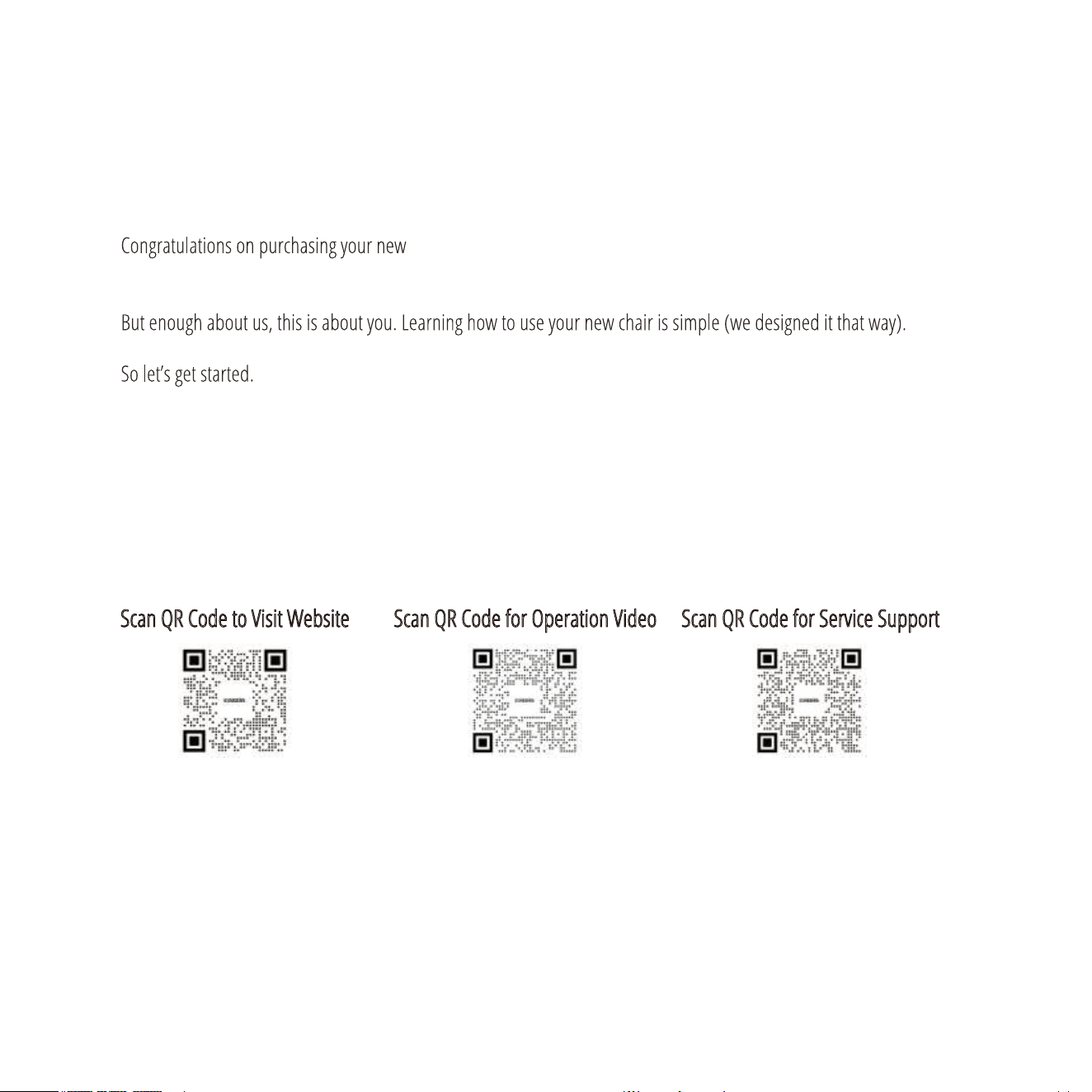

Scan QR Code for Service SupportScan QR Code to Visit Website Scan QR Code for Operation Video
1
INTRO
Dimensions
Contents
3
4
MASSAGE
Wired Touch-pad Interface
Try Me
Custom Program
Auto Program
Spot Program
Stretch Program
Spa Auto
Spa Manual
Chair Doctor
Heat Therapy
My Favorites
Recline
Settings
User Account
9-11
12-14
15-20
21-22
23-24
25-26
27-28
29-33
34-36
53-56
43-52
41-42
39-40
37-38
Move & Clearance
Components
Massage Points
Specifications
5
6
7
8
CHAIR
TABLE OF CONTENTS
TABLE OF CONTENTS
2
Safety
Grounding Instruction
Troubleshooting
Care and Storage
Warranty
57-58
59
59
59
60
CARE
3
DIMENSIONS
First, let’s get your chair inside.
49.4”
63”
31.8”
Footrest
2
Box
22.4”
21.9”
25.4”
Base & Backrest
1
Box
33.9”
55.9”
50.4”
4
USER MANUAL CZ-800/Quantum
CONTENTS
CZ-800
Warranty Postcard
CZ-800/Quantum Massage chairWidescreen Touch-PadPower Cord
Everything you need for a relaxing experience.
CZ-800/Quantum
Installation ManualUser Manual
5
Move & Clearance
Reserve space on the left and right
Reserve space on the front and back
8”
8”
31.5”
2”
CLEARANCE
HOW TO MOVE
Caution: If you roll the chair on wood floor, marks may be left
Two people are needed to lift the chair
A few simple steps to find the best place for your new chair.
Move with a slight pull or push
6
CHAIR COMPONENTS
Note: The speaker will only operate when the massage chair is in operation
Some of your chair’s most important features.
Speaker
Backrest Pad
Armrest Buttons
Side Panel
Base Stopper
Footrest
Pillow
Shoulder Panel
Chair Doctor Palm Sensor
Armrest
Seat Pad
To play music using your massage chair’s speakers please connect your
smartphone, tablet, or other electronic device to your chair using bluetooth.
Note that the code to connect the bluetooth is Cozzia Quantum.
Speaker
Wireless Charger
Widescreen Touch Pad
USB-C Port
7
MASSAGE POINTS
33 air bags
Heat pad on mechansim,
shoulder, arm,
lumbar and seat
26 air bags
Heat pad on leg or knee
14 air bags
Heat pad on foot
Foot roller with scraping
Back Massage Mode Air Bag Heater Roller
8
CHAIR SPECIFICATIONS
Model No.
CZ-800/ Quantum
Rated Current
2.3A
Massage Time
5 to 30 Minutes
Shipping Weight
Gross weight: 334.9 lbs
Net weight: 293.6 lbs
Safety Feature
Equipped with child safety lock,
leg rest safety sensor,
and overheating and power surge detectors
Dimensions (L x W x H)
Chair dimensions: 63" x 31.8" x 49.4"
Reclined dimensions: 74.4" x 31.8" x 40.4"
A few important facts about your massage chair.
Rated Voltage
110 - 120V
Rated Frequency
60Hz
Power of Monster Speakers
15x2W & 8x2W
Length of Wiring
Power supply wiring: 70.9”
Usage Condition
Environment temperature: 10
。
C-40
。
C
Contrasting humidity: 30-85RH
Storage Condition
Storage temperature: -20
。
C-60
。
C
Storage humidity level: 30-85RH
9
WIRED TOUCH-PAD INTERFACE
We have designed your massage chair’s tablet controller with a user-friendly interface to make using your chair even easier.
Home Screen 1
Date
Recline
Chair Doctor User Accounts Go to Masspage Page
Power
Mood Light Foot Rollers Negative lons Volume
Heat Therapy
Settings
My Favorites
10
Home Screen 2
Auto Program Stretch Program Spa Auto
Try Me
Spa Manual
Custom Program
Spot Program
Recommended Massage Program
Custom Spa Auto Program
Custom Spa Program
11
Massage Controls
Strength
5D Real time / Model
Name of Program Home Page
Edit
Stop Button
Speed
Air
Intensity
Music
Massage time
PulseAdd to My Favorites
Heat Therapy
12
TRY ME
In order to allow you to quickly understand the many features of this massage chair, we have created a Try Me program for you.
Choose the "Try Me" icon to begin the Try Me program
13

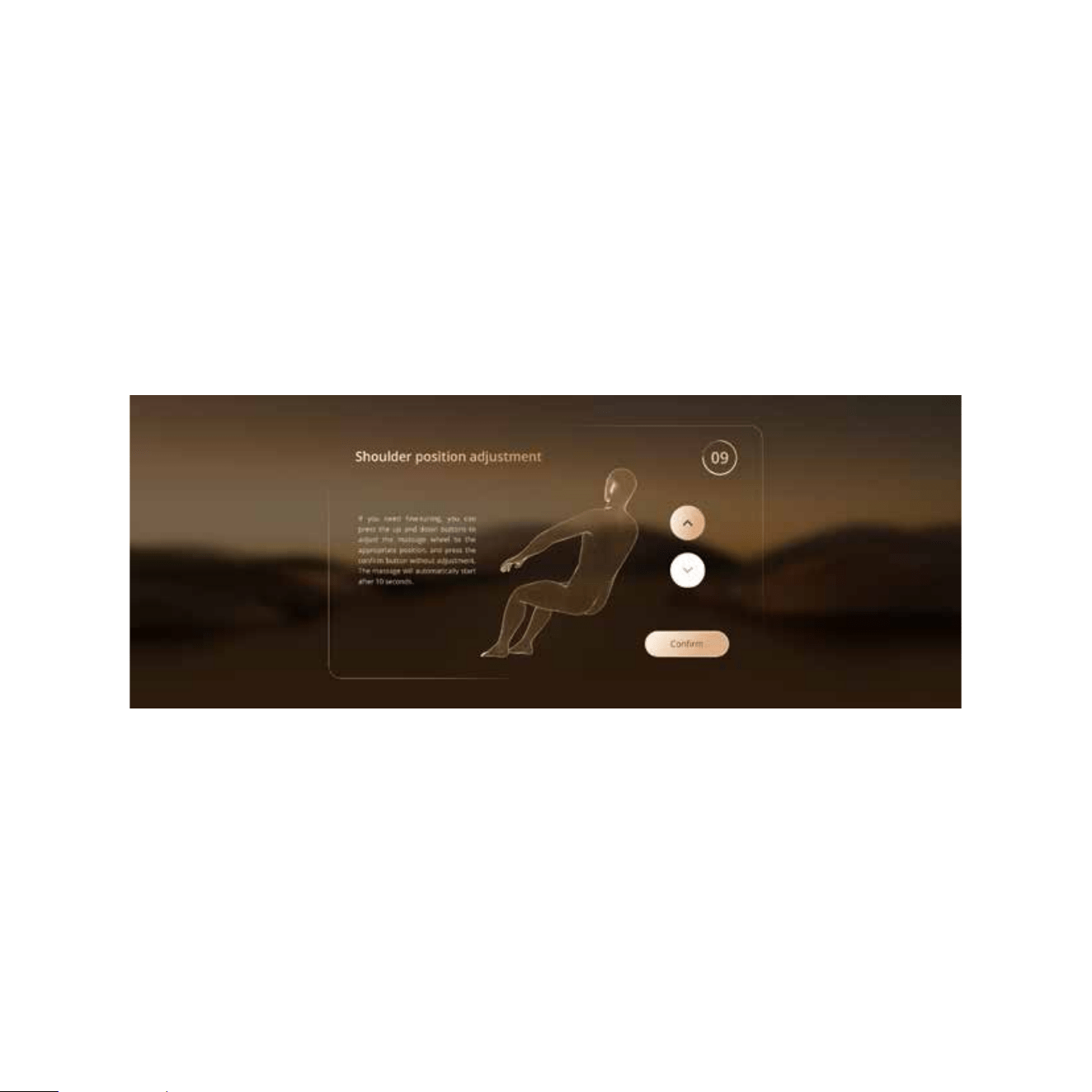

Shoulder Scan Confirmation Page

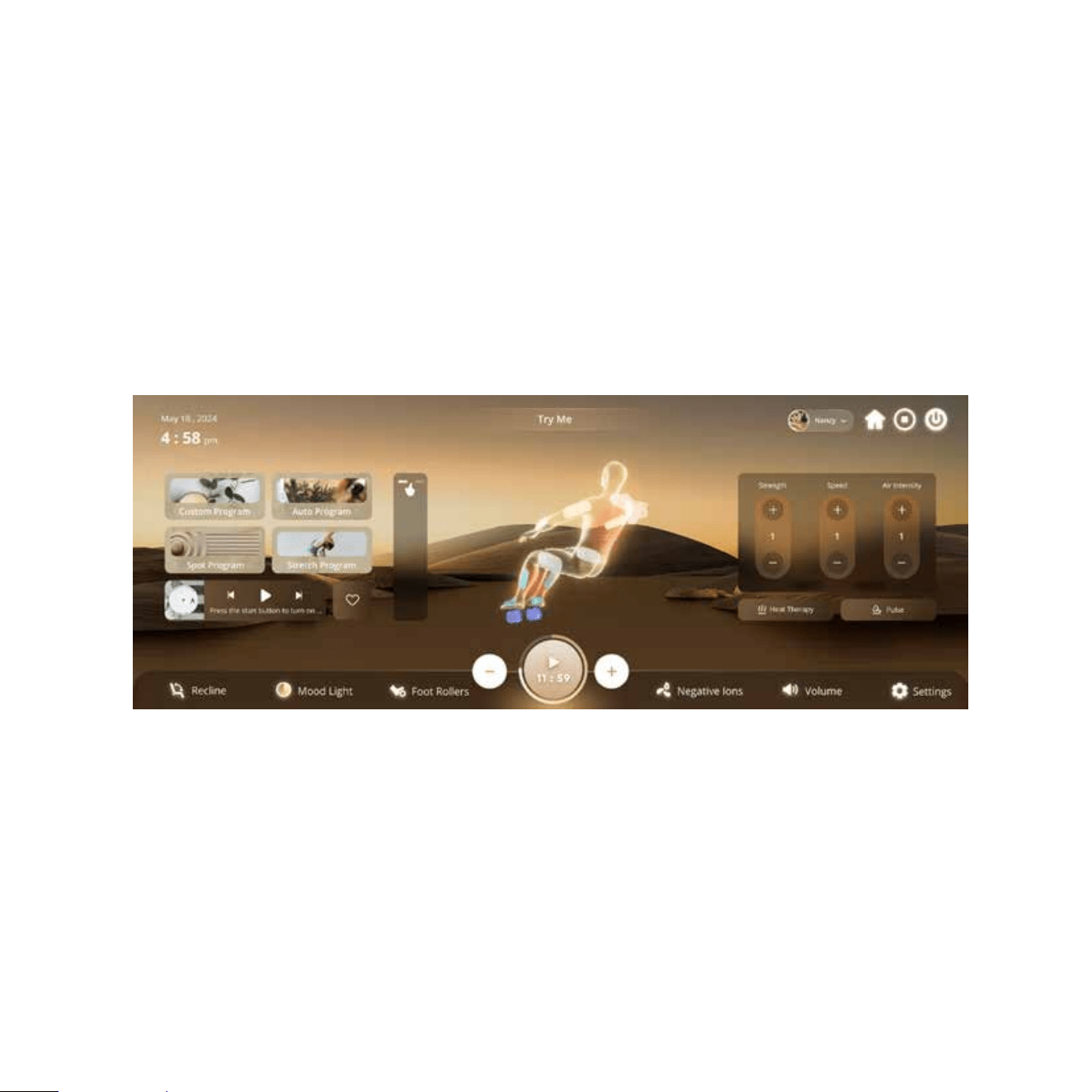

Try Me Interface 1
14
Try Me Interface 2

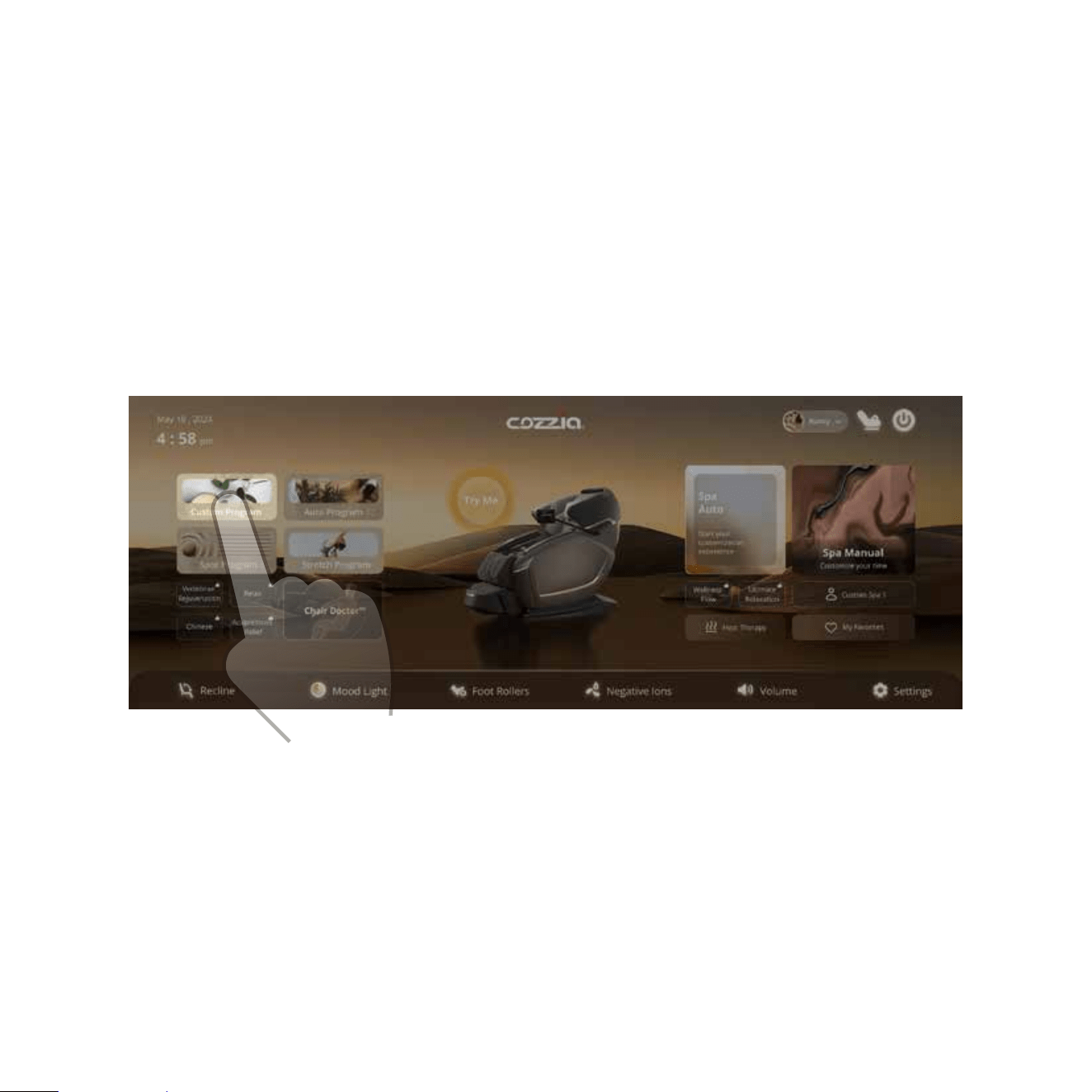

CUSTOM PROGRAM
Every body is different. That’s why we’ve given you the option to customize your massage to meet your specific needs.
Follow these simple instructions to create a new custom massage.
15
16

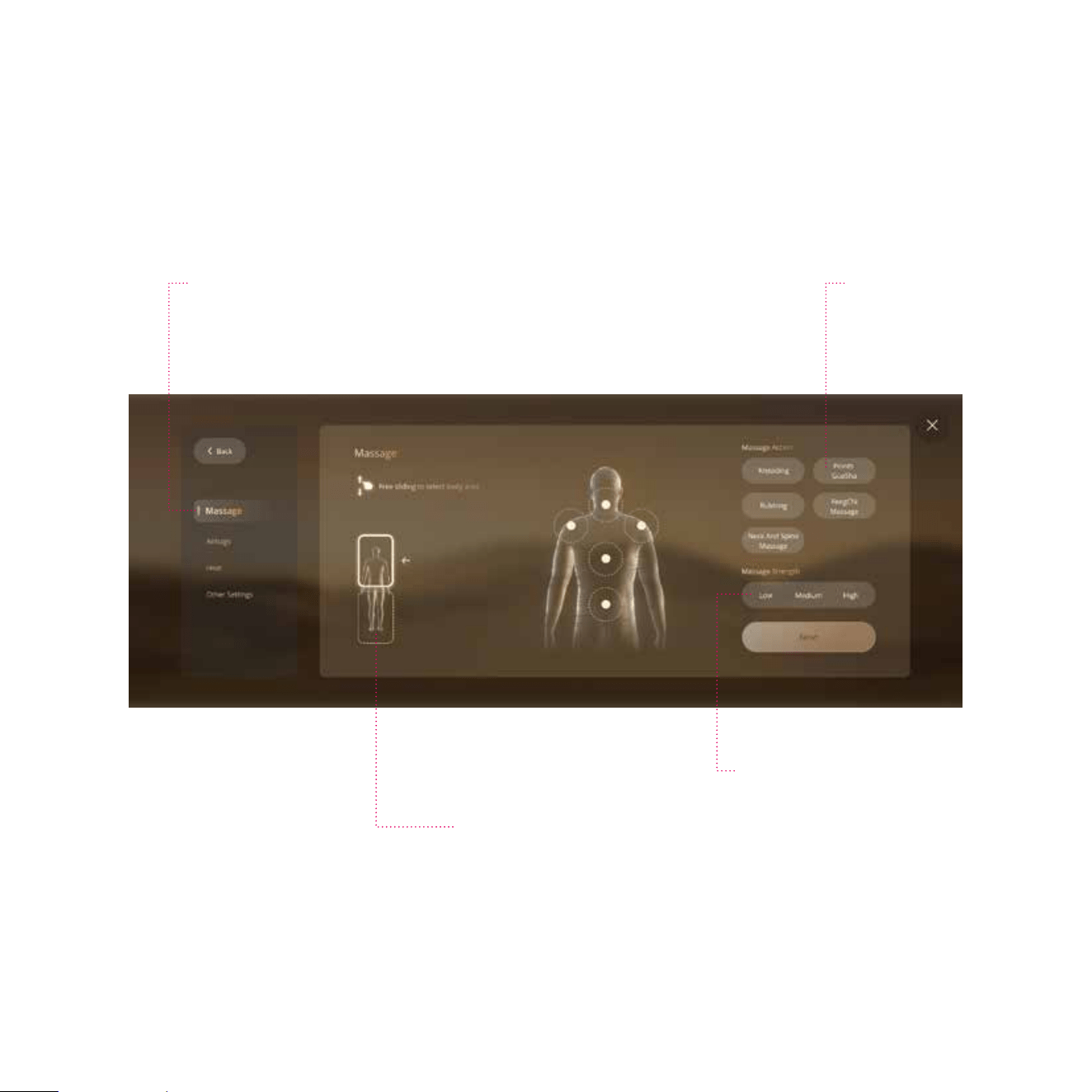

Custom Program Interface 1
Select the massage areas, massage action and massage strength that you prefer
Massage Massage Action
Switch upper and lower body
Massage Strength
17
Airbags Massage Action

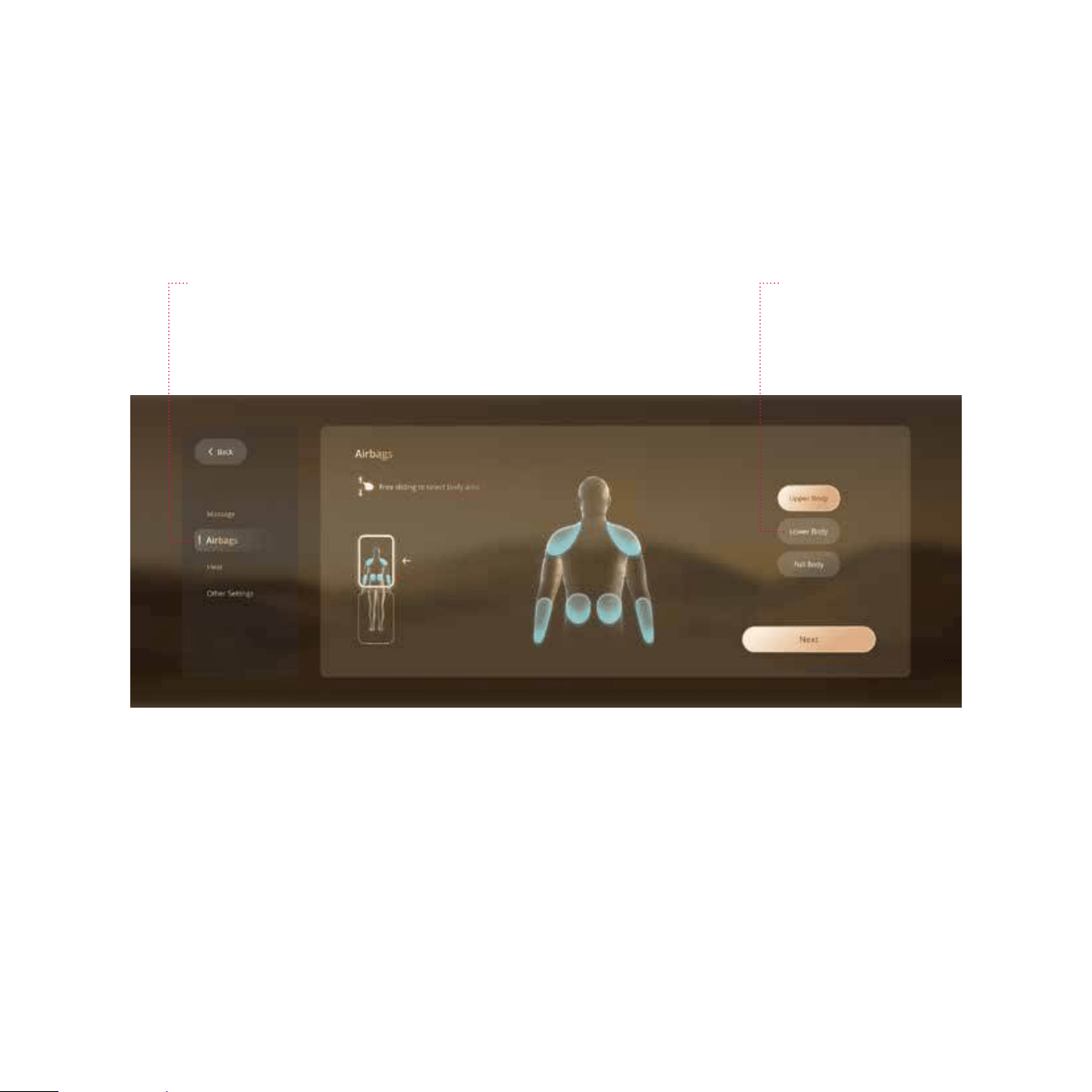

Custom Program Interface 2
Select the airbags massage areas that you prefer
18
Heat Temperature

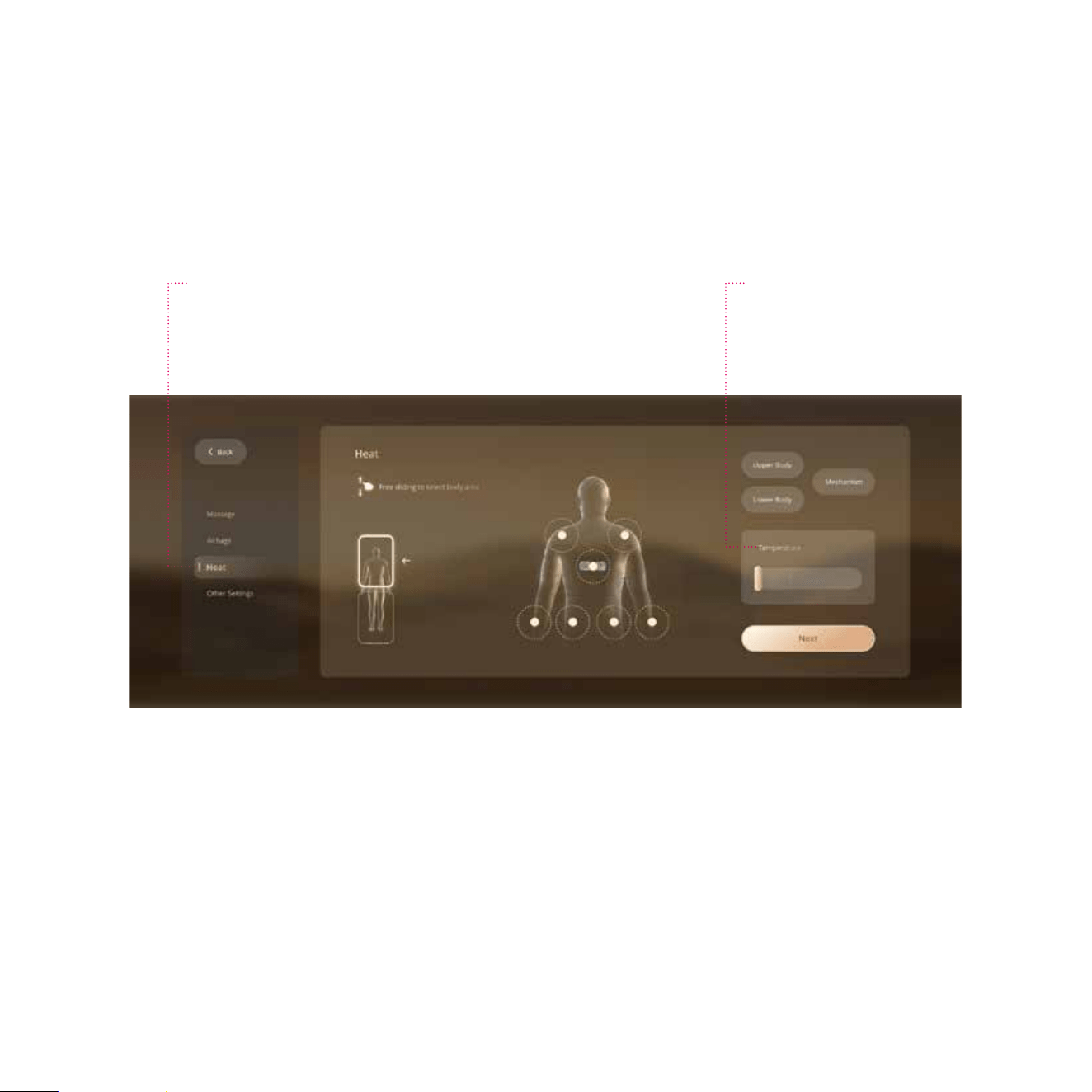

Custom Program Interface 3
Select the heat areas and temperature that you prefer
19
Select the light color and negative ions that your prefer
Other Settings
Negative Ions Switch
Custom Program Interface 4
Light Color
20
After creating your custom program,you can click on the "Favorites" icon
to create your own custom program name and save it to your favorites
Custom Program Interface 5
21
AUTO PROGRAM

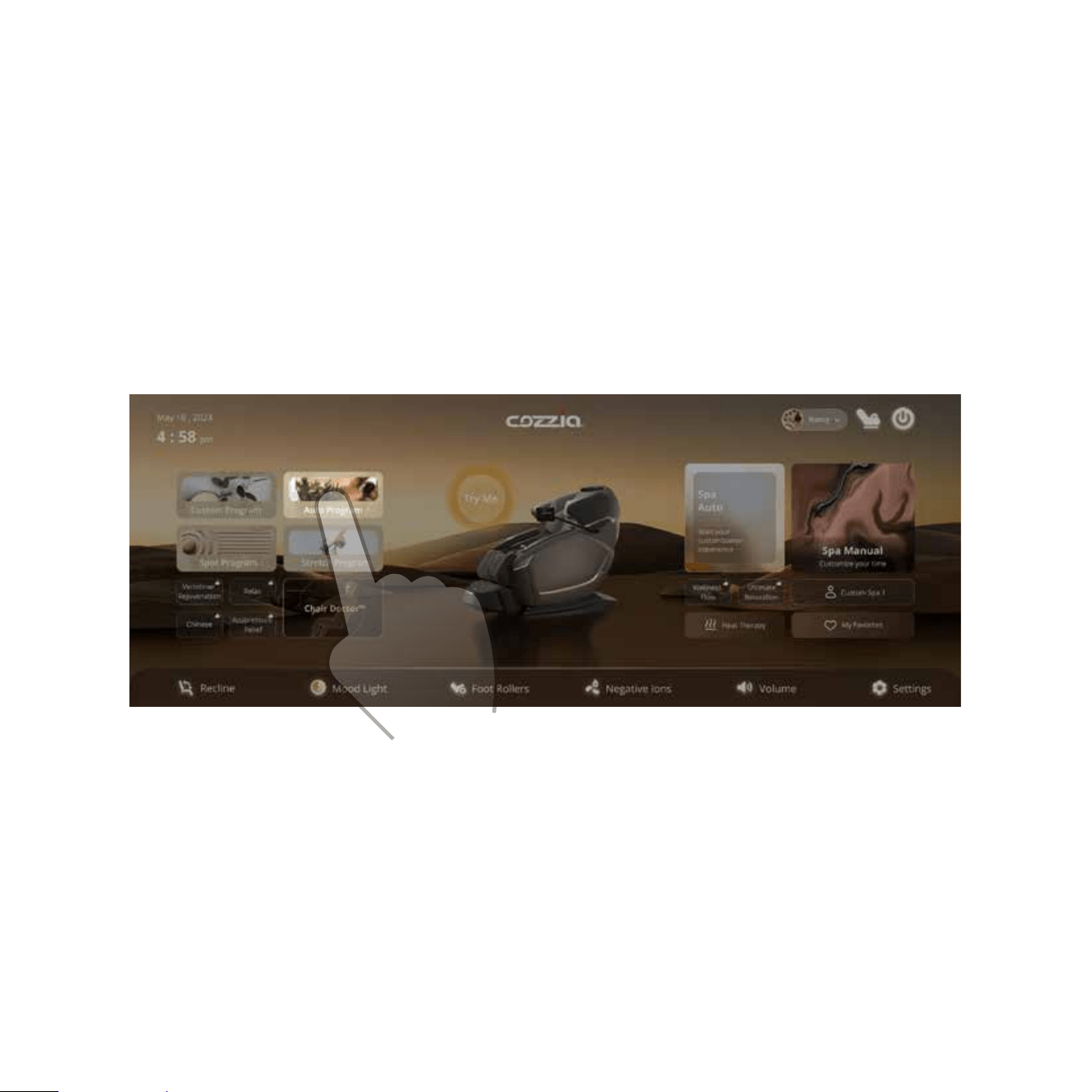

Choose the "Auto Program" icon to select your auto massage program
We have designed your chair with multiple massage options for your changing needs.
Follow these simple instructions to begin a new auto massage.
22
Introduction to massage procedures

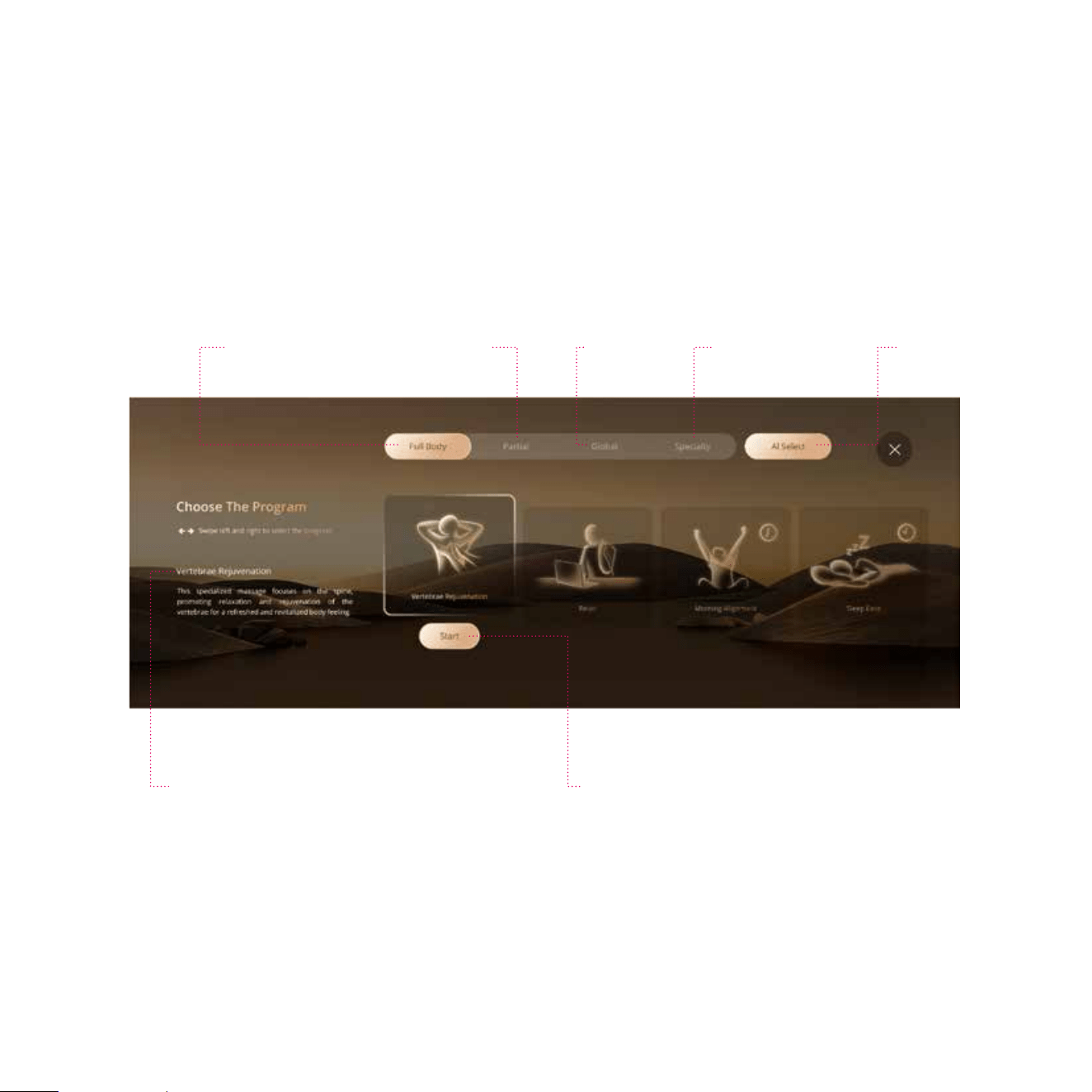

Auto program Interface
You can choose your favorite massage program icon and press the "Start" button to begin
the massage,or you can click the "AI Select" button to randomly start a program
Start Button
Full Body
Global Al SelectPartial
Specialty
23

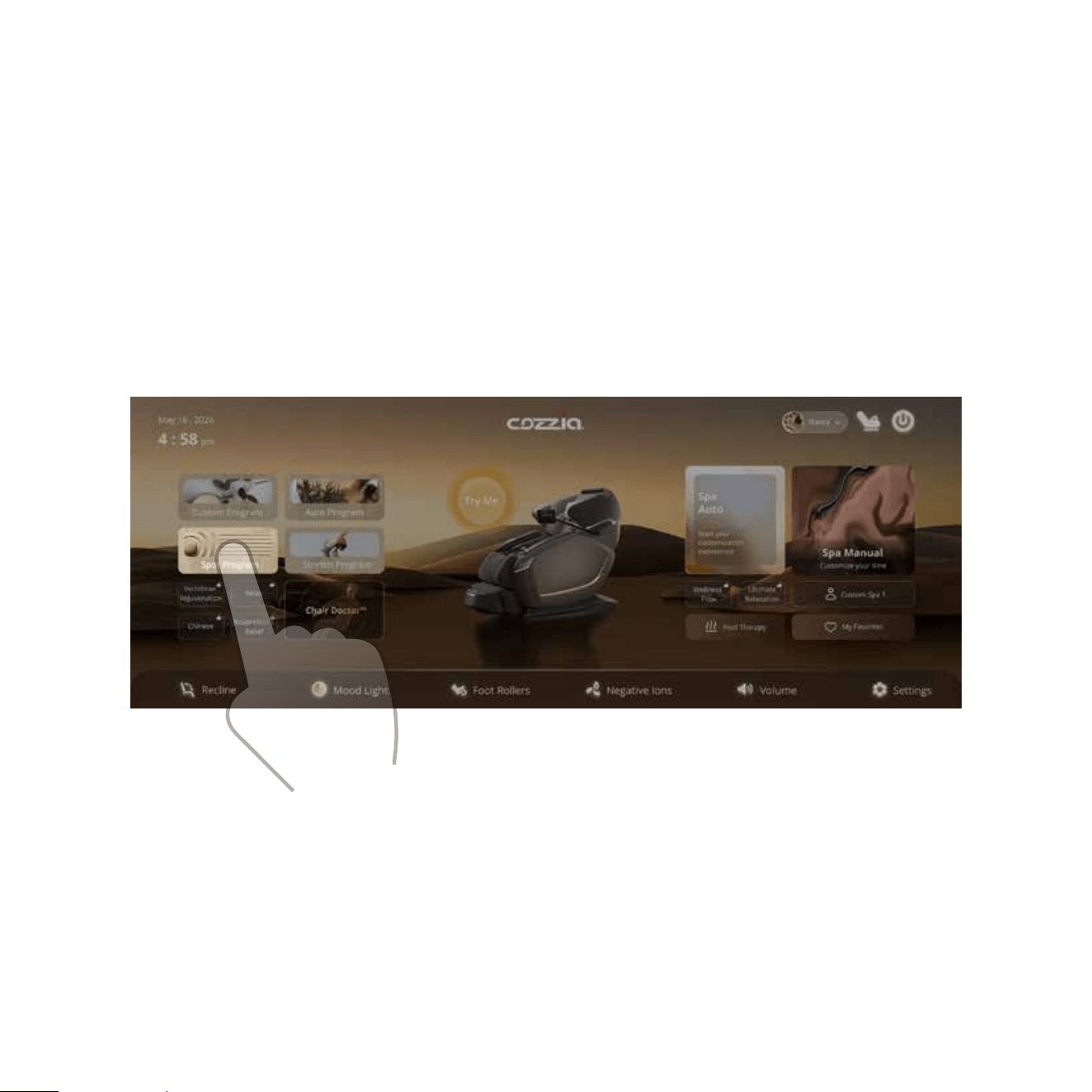

Choose the “Spot Program” button to take you to the spot massage page
SPOT PROGRAM
This is a fixed massage area and actions program.
24
Airbag
Action

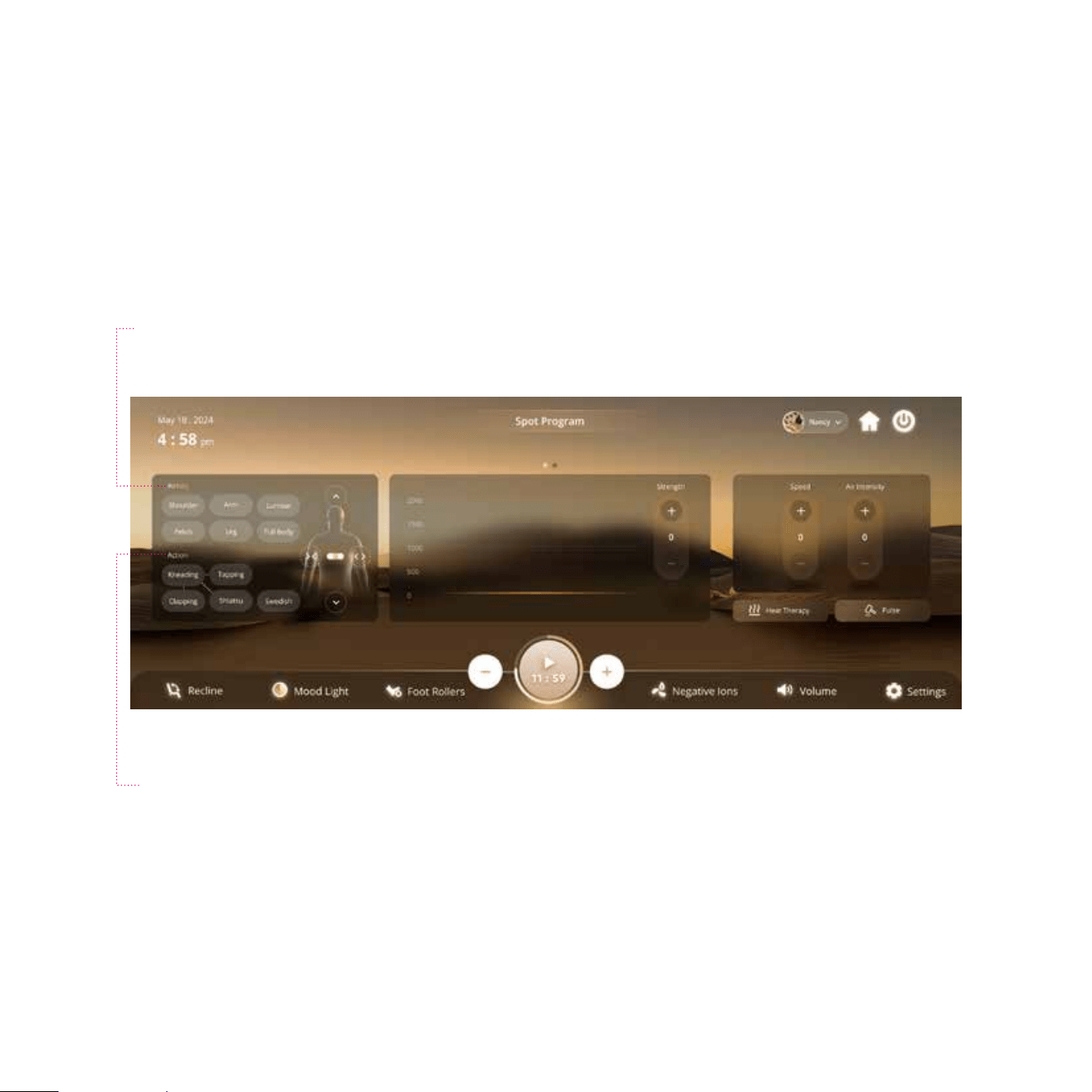

Spot Program Interface
25

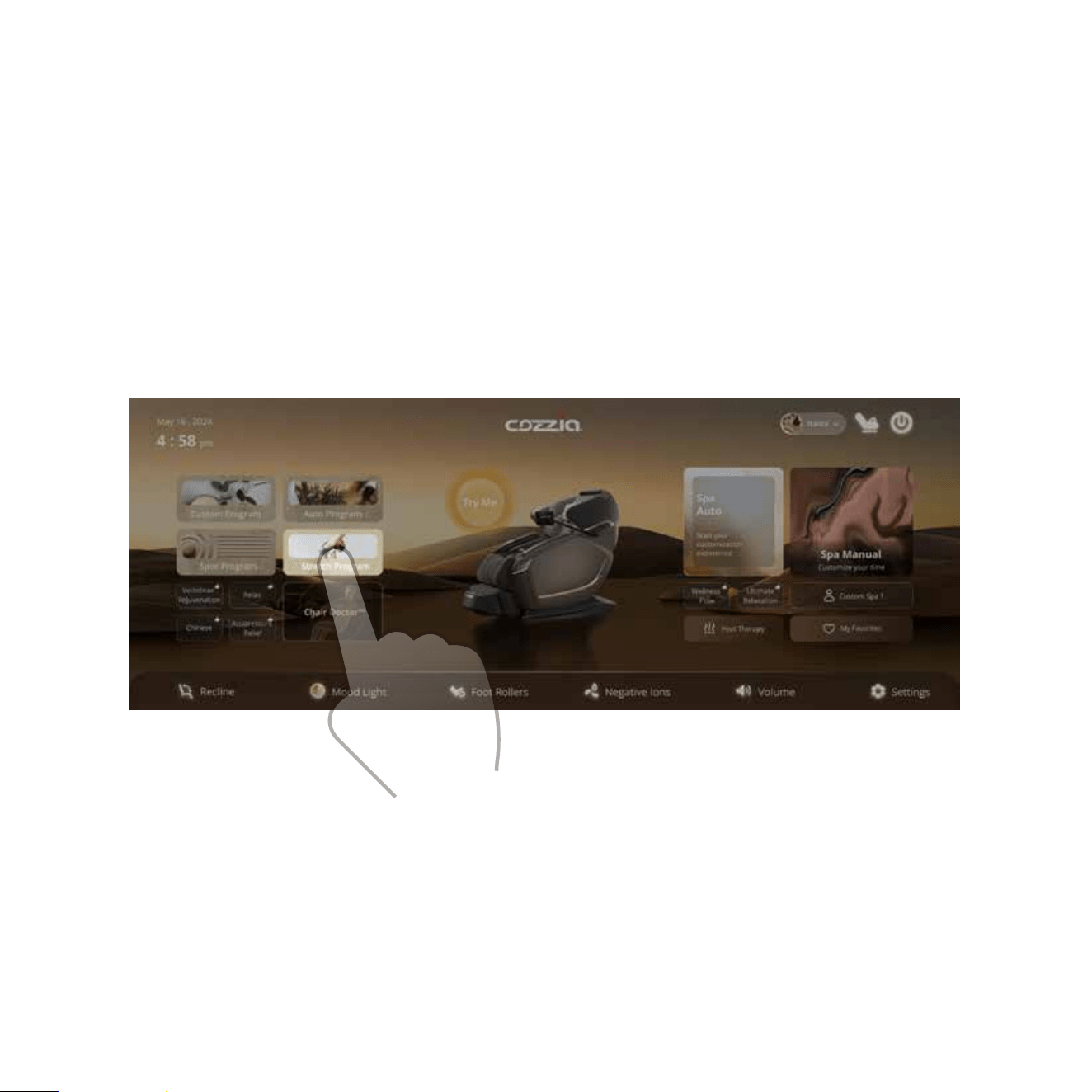

STRETCH PROGRAM
Every body is different.That's why we've given you the option to customize your stretch massage to meet your specific needs.
Please select the area where you need to stretch.
26
Select the stretch areas and temperature that you prefer
Heat Switch
Start Button
Stretch Area
Temperature

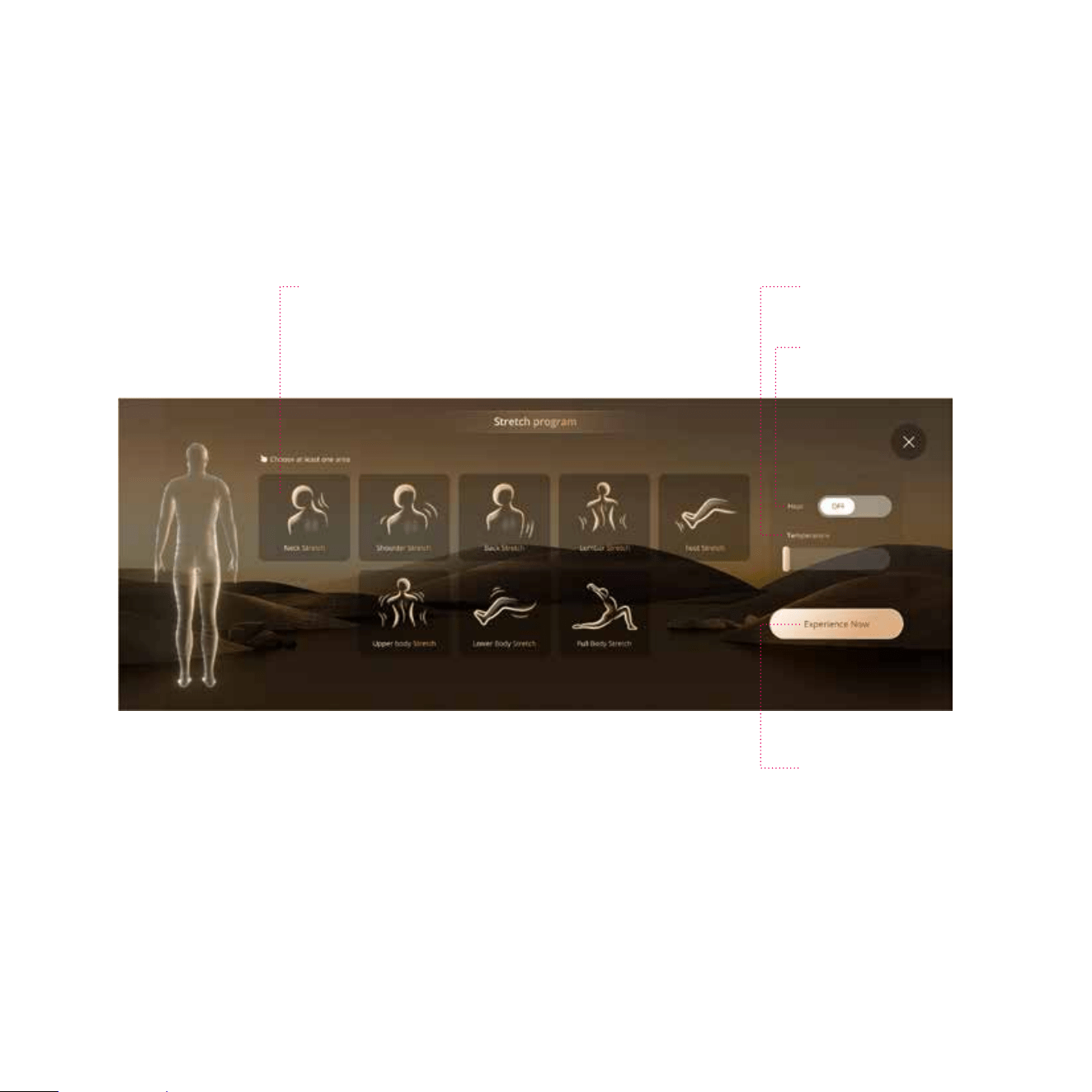

Stretch Program Interface
27
SPA AUTO
Experience the ultimate relaxation with SPA auto massage chair's preset programs,
designed to soothe your body and mind with a seamless blend of massage techniques tailored for your ultimate comfort.
28
Rejuvenation / Stress Relief / Pain Relief / Wellness Flow / Ultimate Relaxation
Start Button

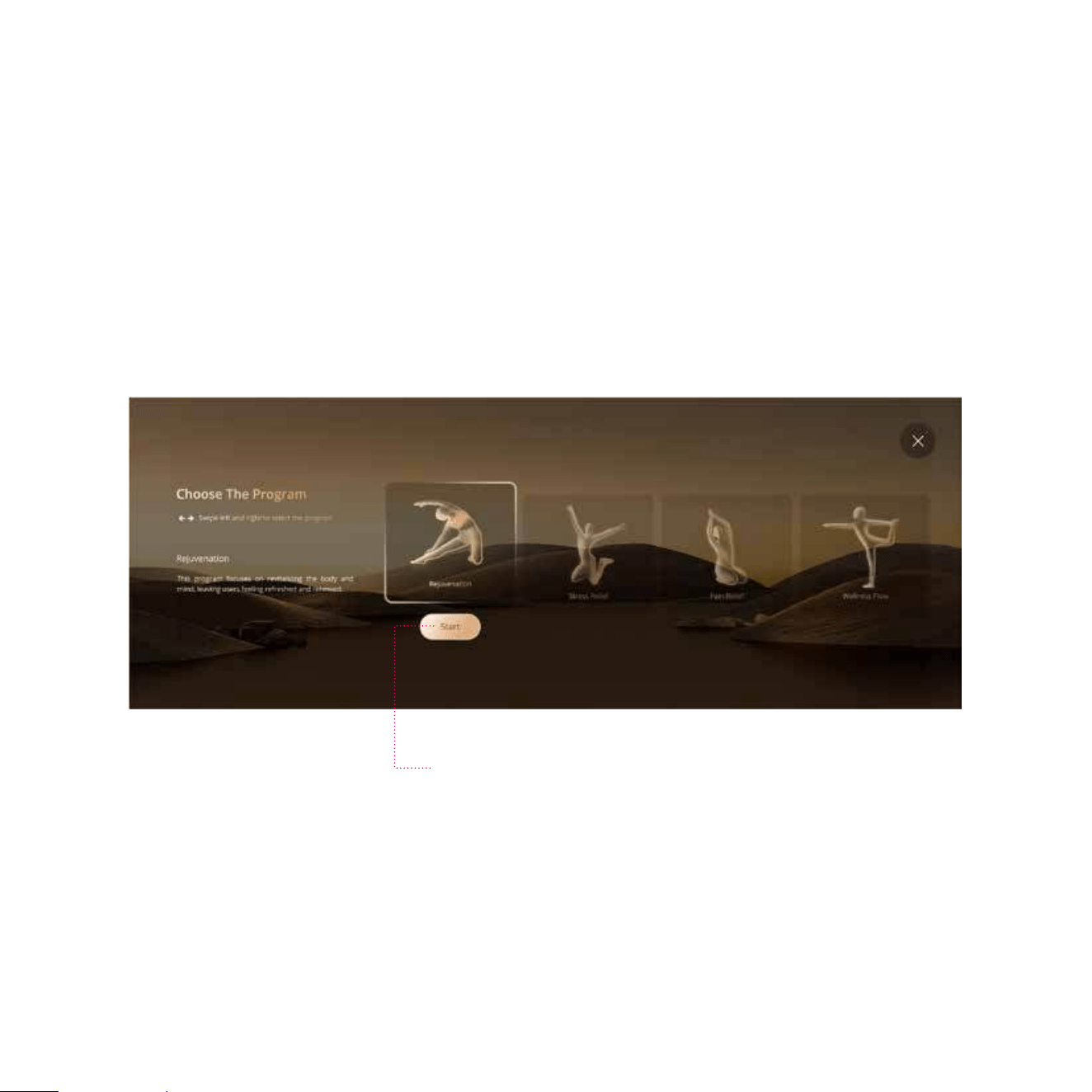

Spa Auto Interface

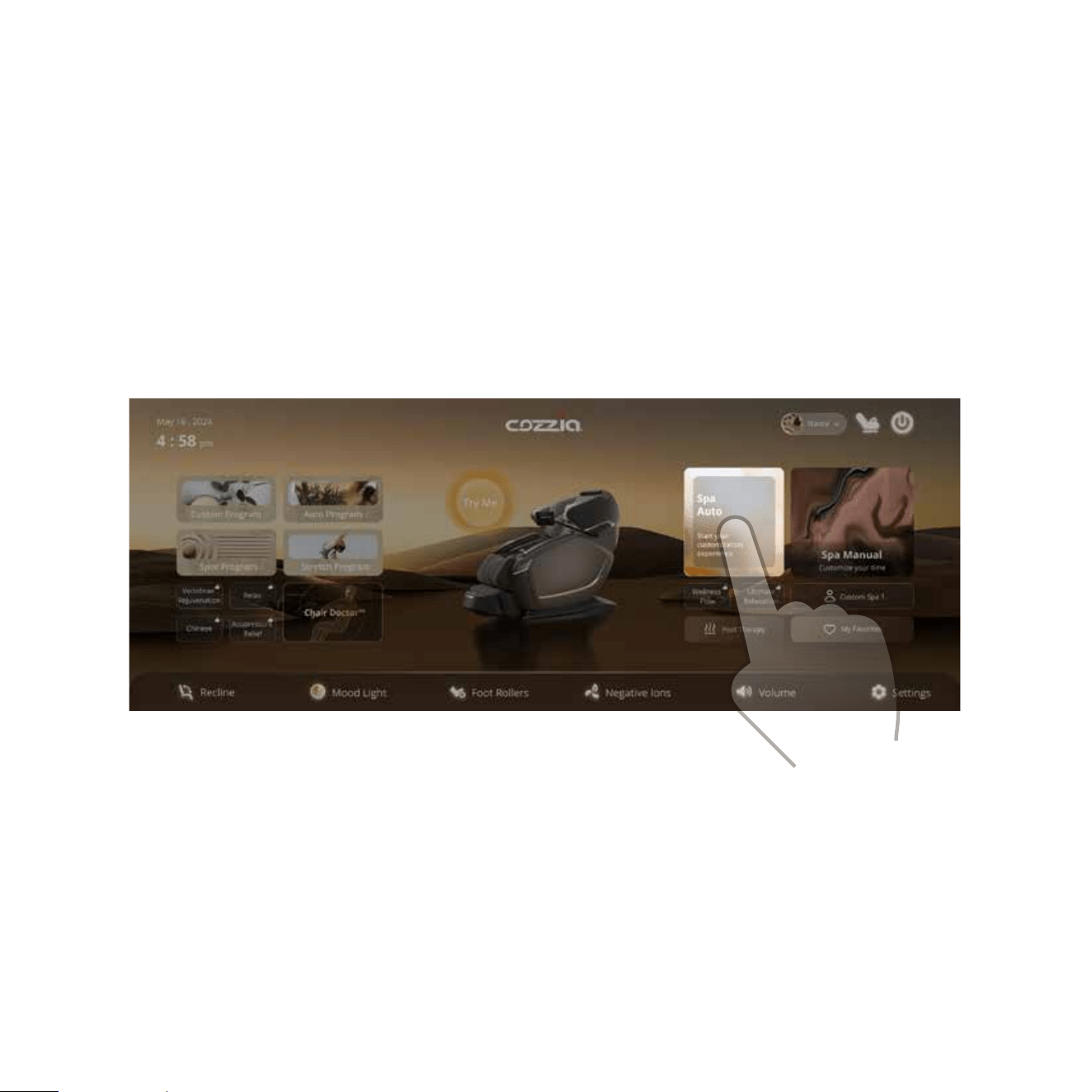

29

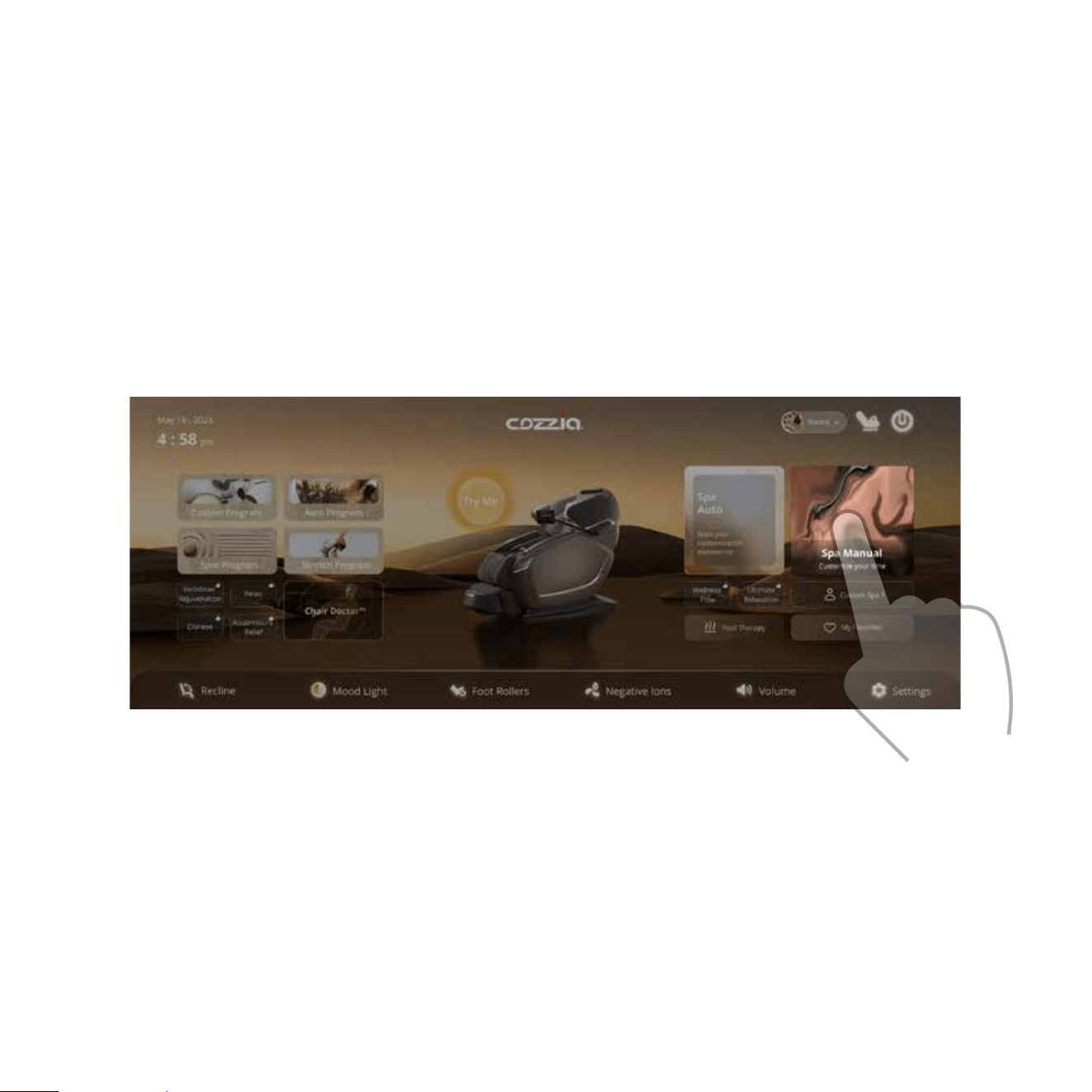

Elevate your massage experience with SPA manual massage chair's flexible customization options.
Design your own perfect massage routine,blending different massage styles and techniques to create a one-of-a-kind therapy session.
SPA MANUAL
Choose the “Spa Manual” icon to custom your Spa manual massage
30

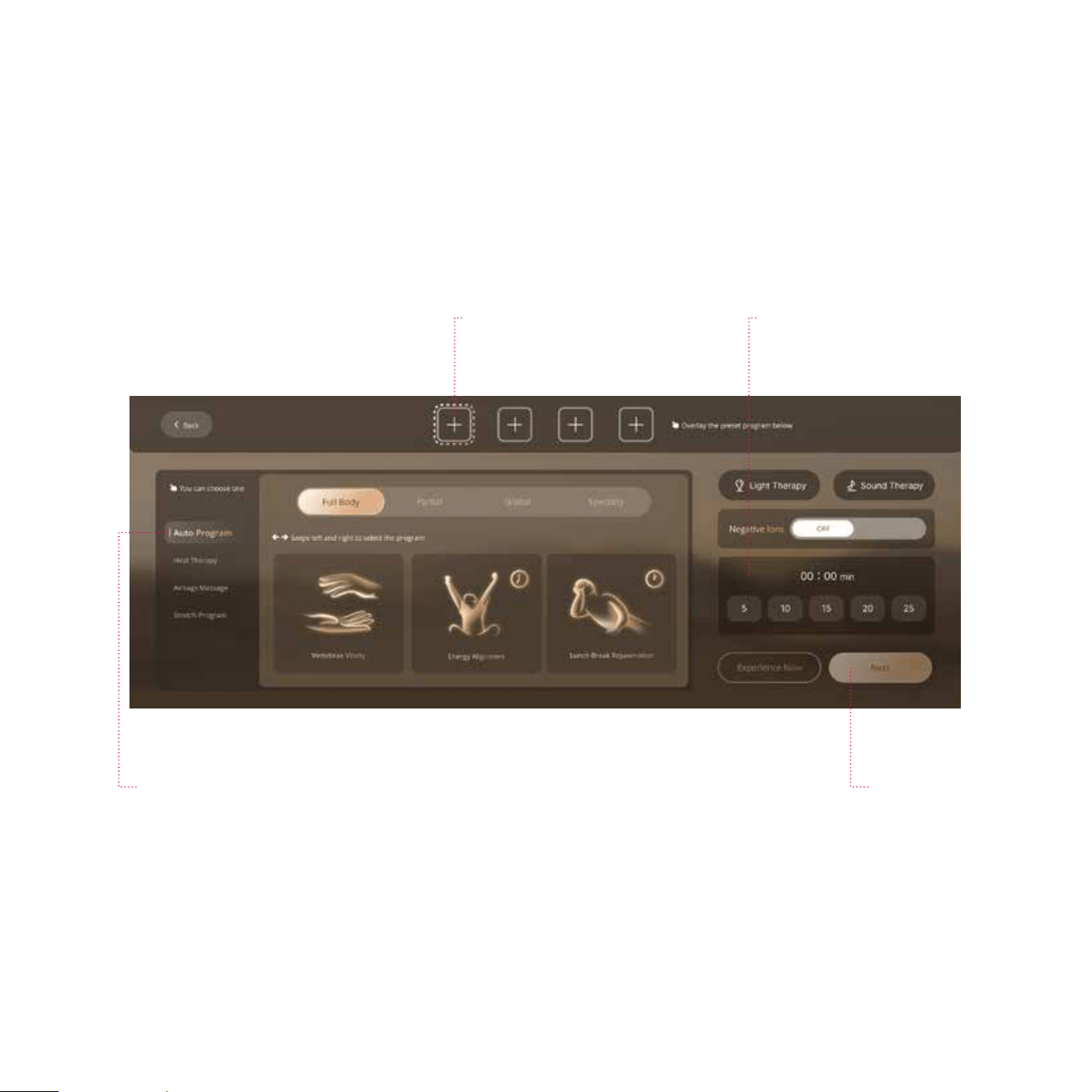

Spa Manual Interface 1
Choose the auto program you prefer
Preset Program Massage Time
Auto Program Next Button
31

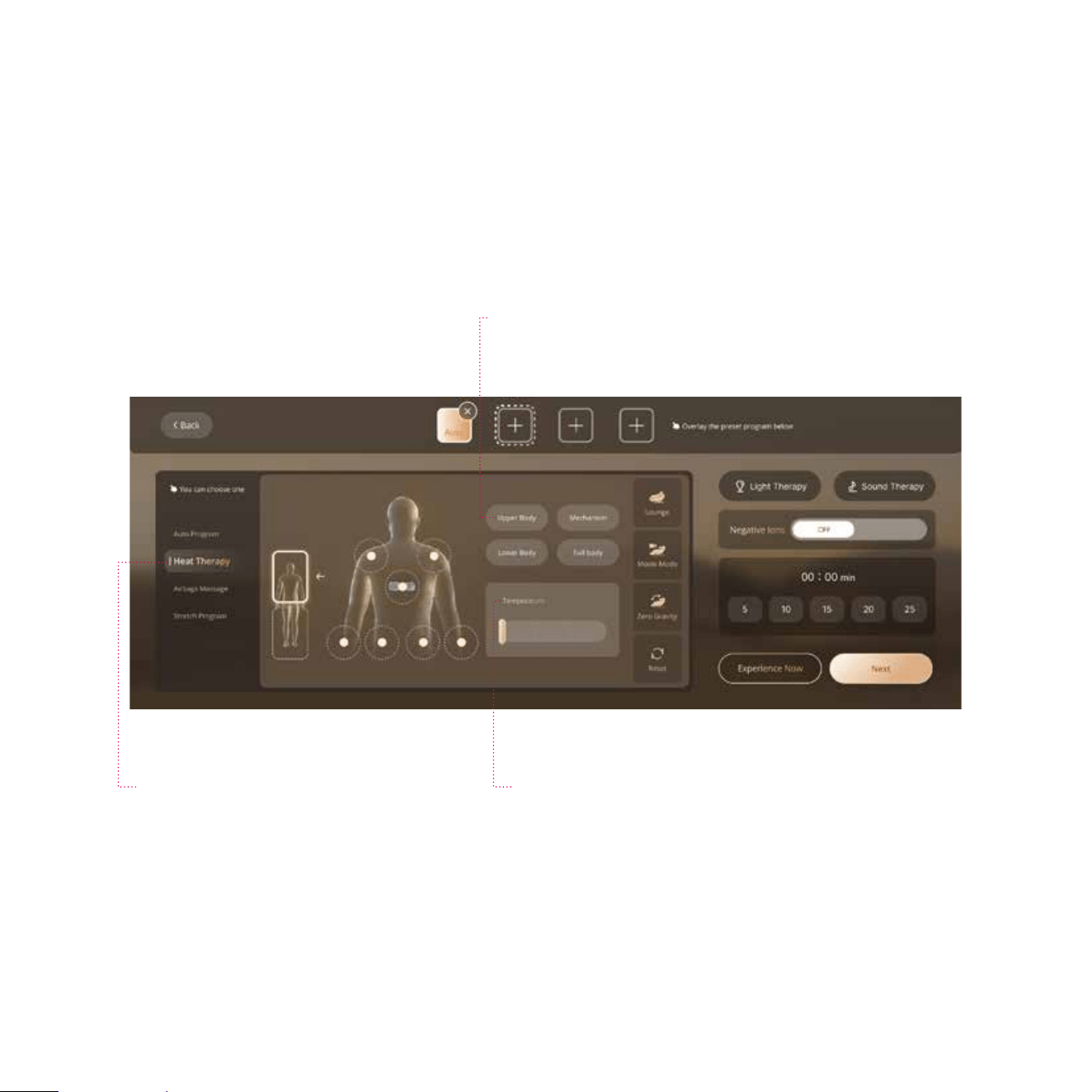

Spa Manual Interface 2
Choose the heat area,temperature and time you prefer
Heat Area
Heat Therapy Heat Temperature
32
Choose the airbags massage area and massage time you prefer

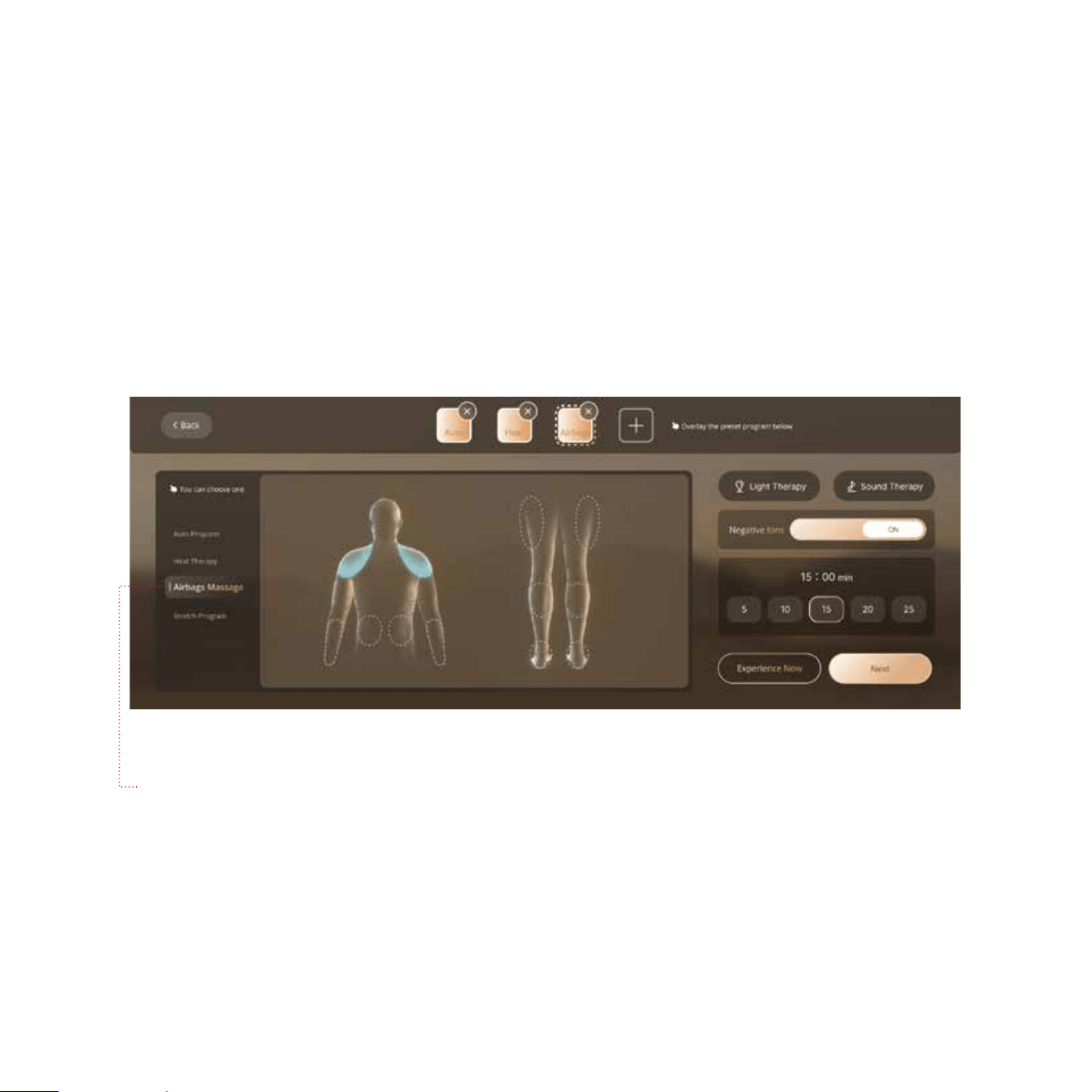

Spa Manual Interface 3
Airbags Massage
33
Choose the stretch program you prefer,one or more stretching programs are available

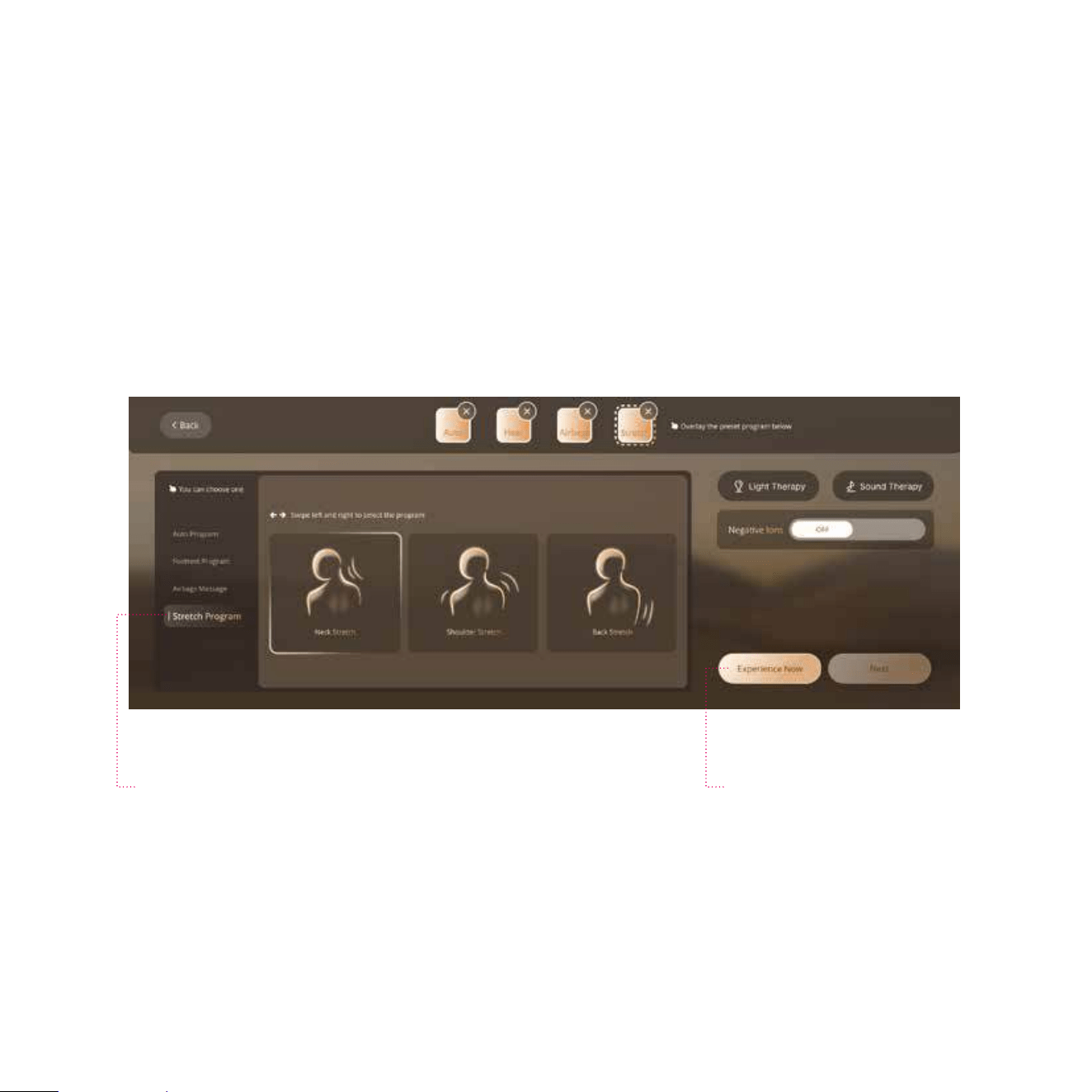

Spa Manual Interface 4
Stretch Program Start Button
34
An innovative tool that diagnoses your body tension, SpO2 (oxygen saturation), and heart rate etc, to customize a treatment for
your unique body.

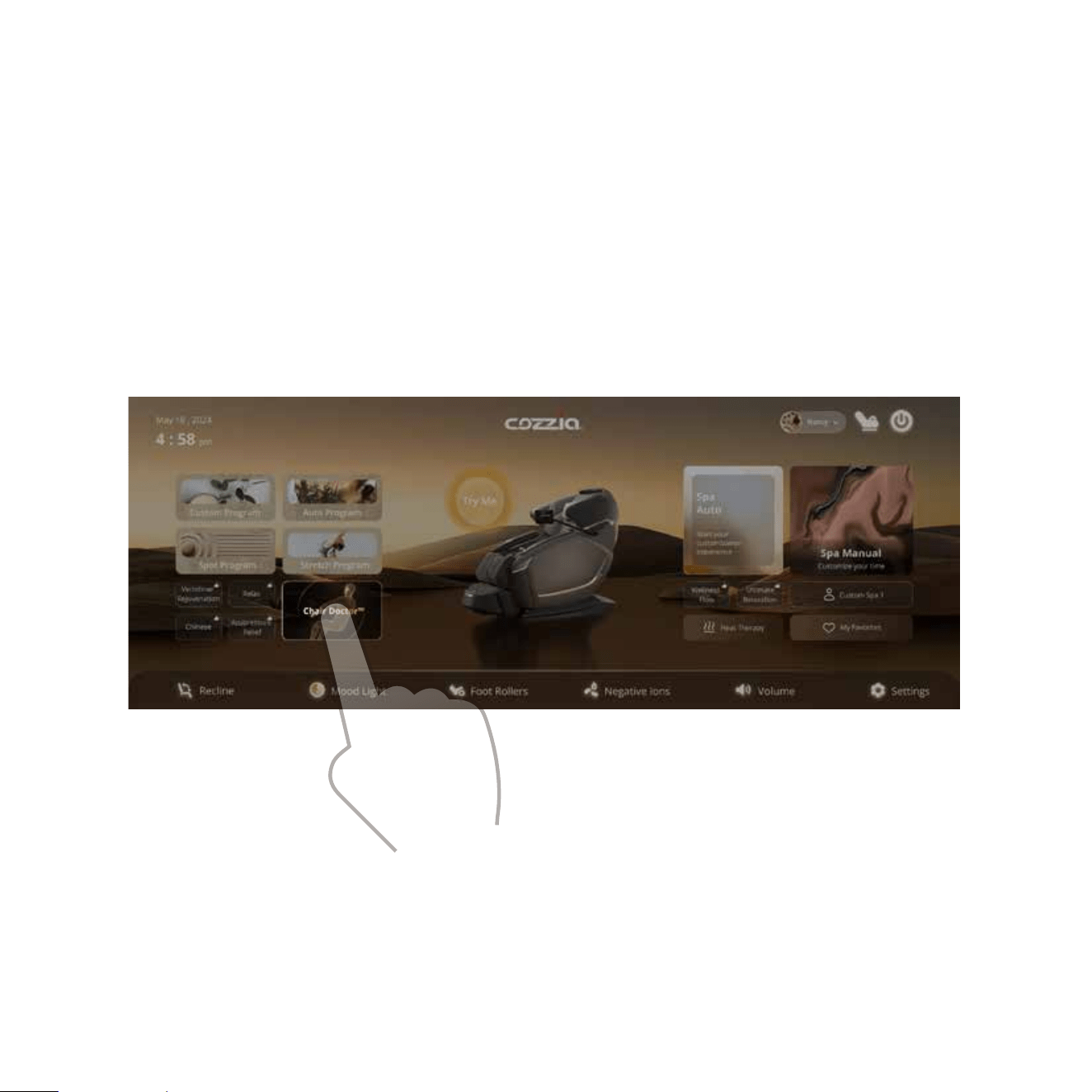

CHAIR DOCTOR
35

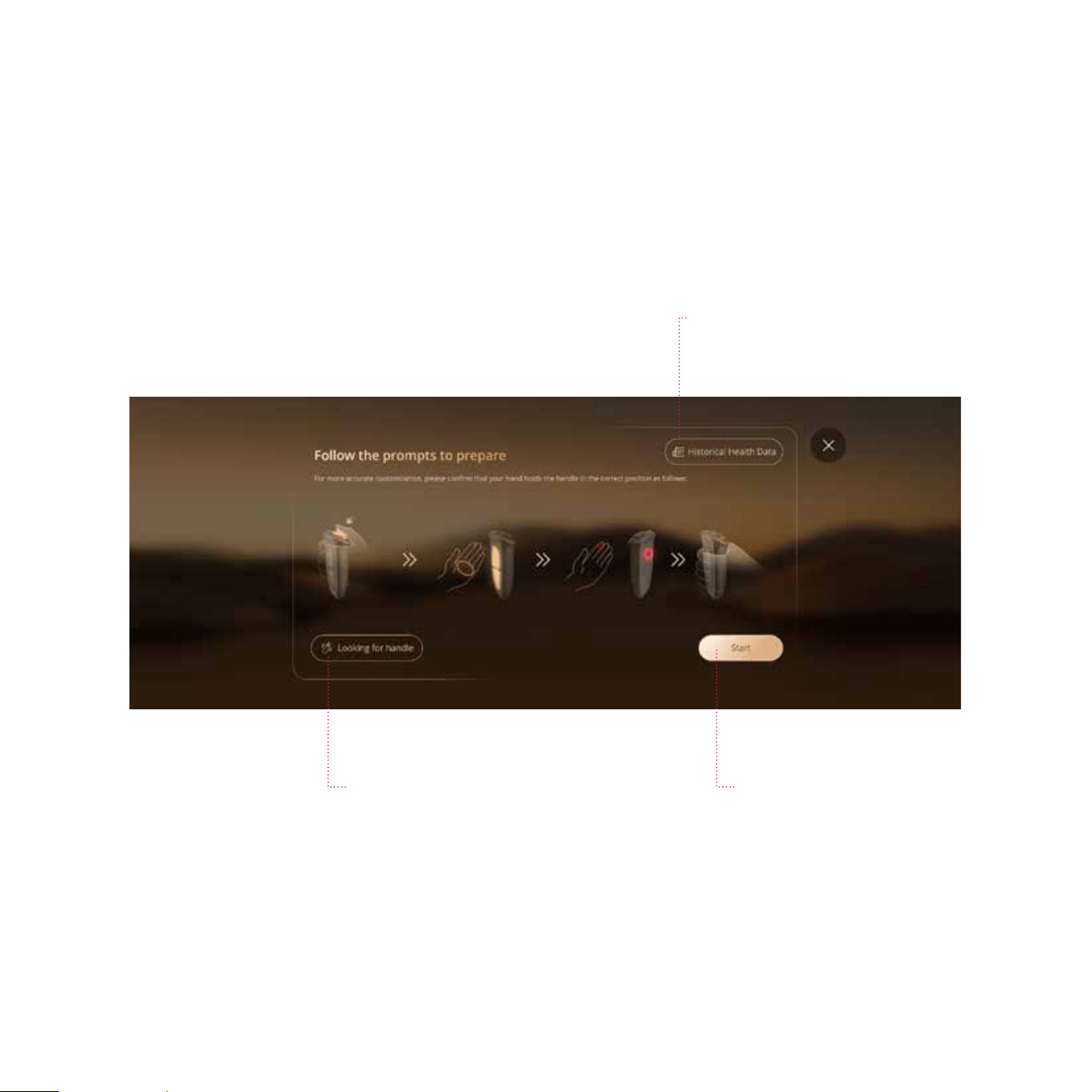

Chair Doctor Interface 1
Historical Health Data
Looking For Handle Start Button
36
Chair Doctor Interface 2
User InformationScore
Start TherapyTest Again
Human body Fatigue State
37

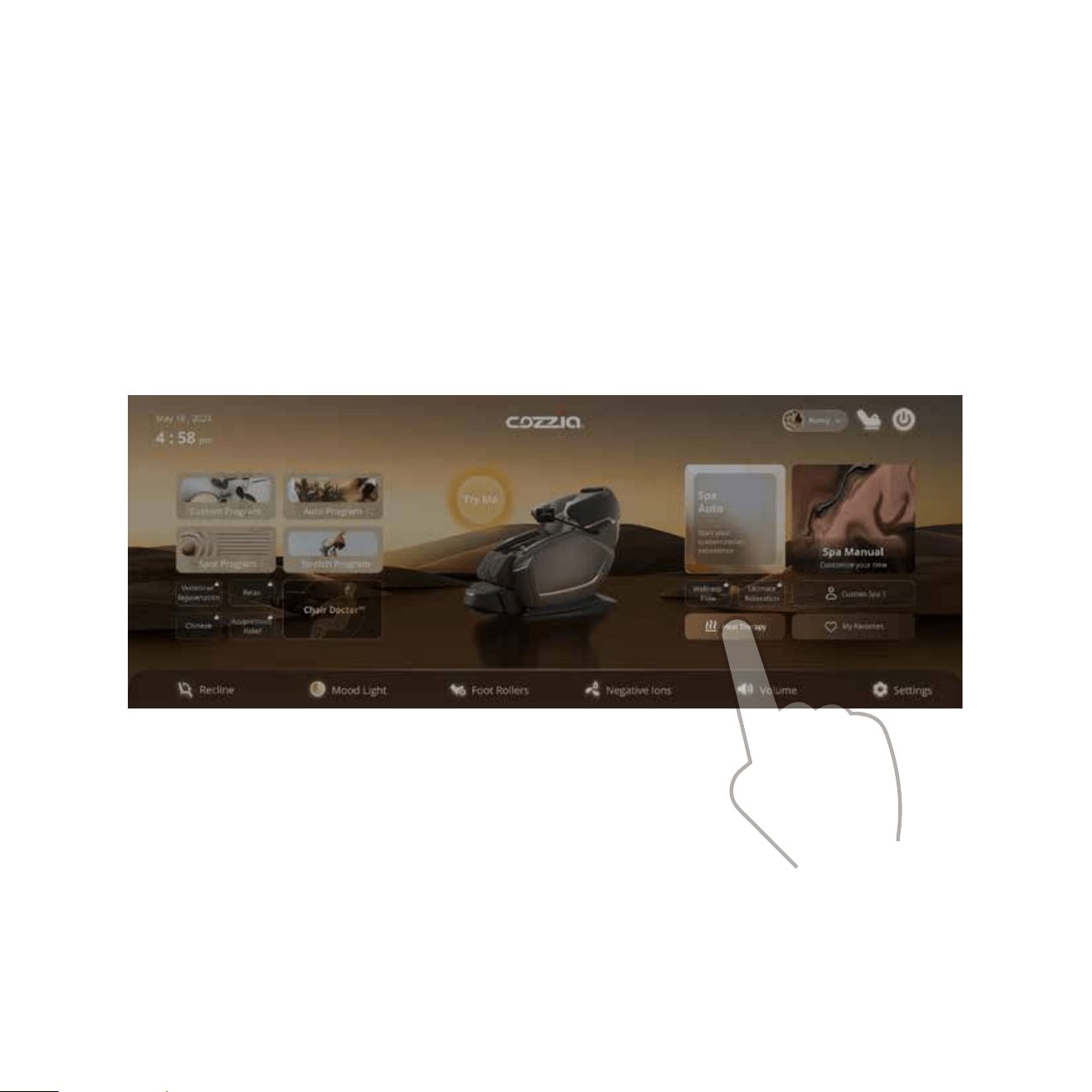

Multi-zone heating with adjustable temperature settings for personalized comfort.
HEAT THERAPY
38
Heat Therapy Interface
39
MY FAVORITES
Discover your Massage program Favorites – a quick-access collection of your top massage program picks for instant relaxation.
40
My Favorites Interface 1
Edit my
favorites program
Edit Home Page
recommended program
41
RECLINE
42
Recline Interface
Press and hold to adjust seat position
43
SETTINGS

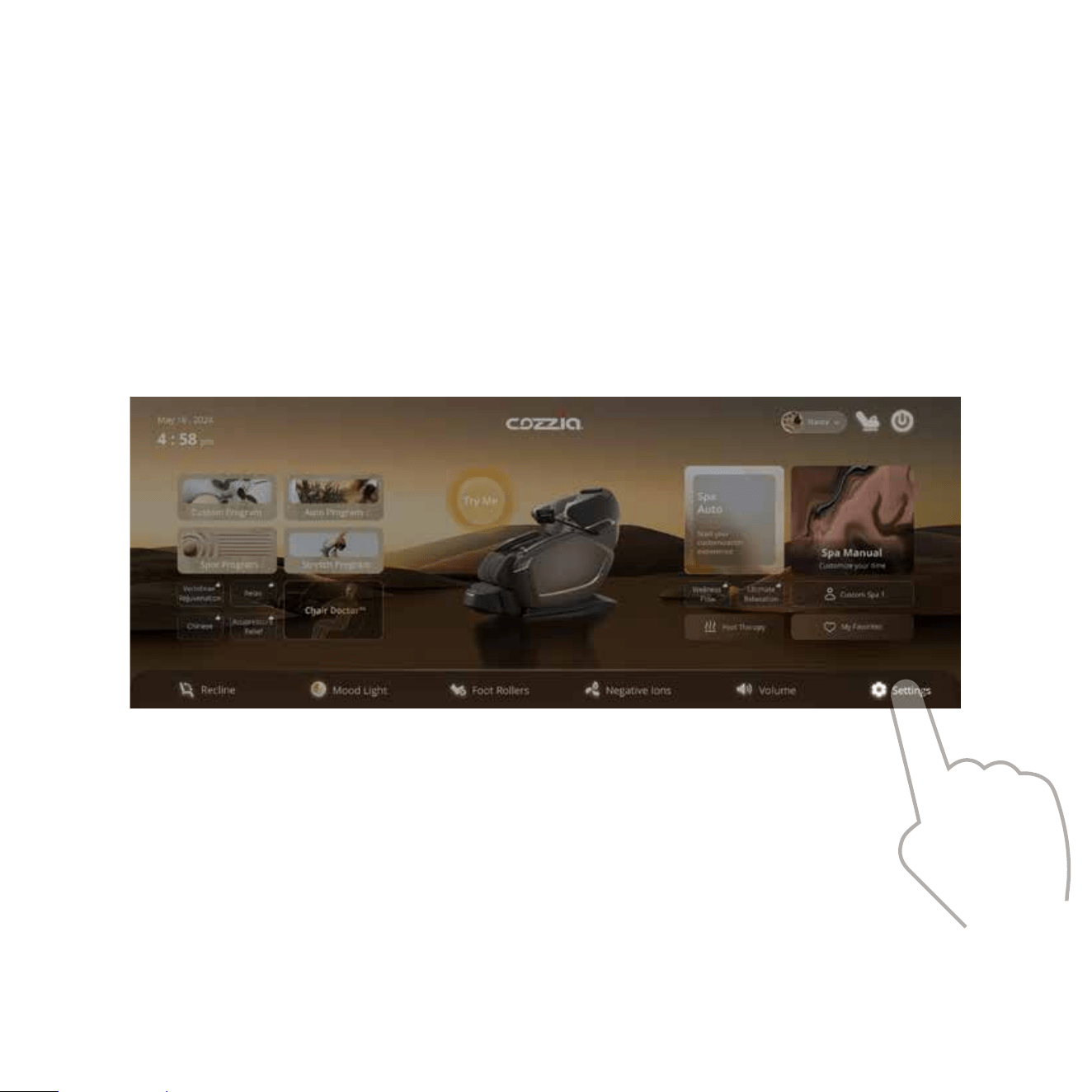

Choose the “Settings” icon to take you to the settings page.
44
Settings Interface
Bluetooth Settings
Brigthness
Touch Sound
WIFI Settings Child Lock
Air Intensity
Voice Control Switch
Sleep Mode
Troubleshoot
Update Version
Language
Sound Settings
Voice Commands
45

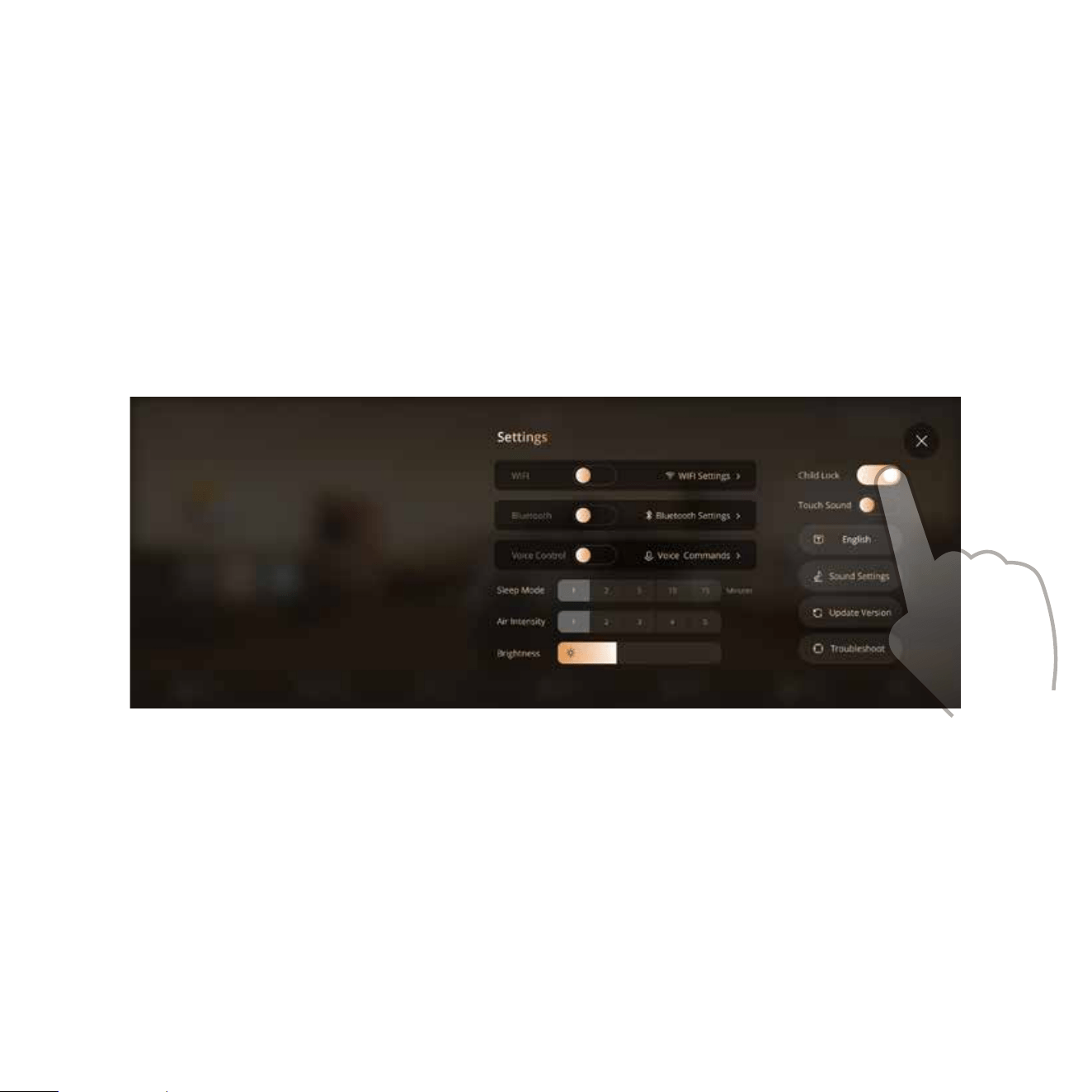

Child Lock
To disable this chair for child safety, turn on the child lock switch
46

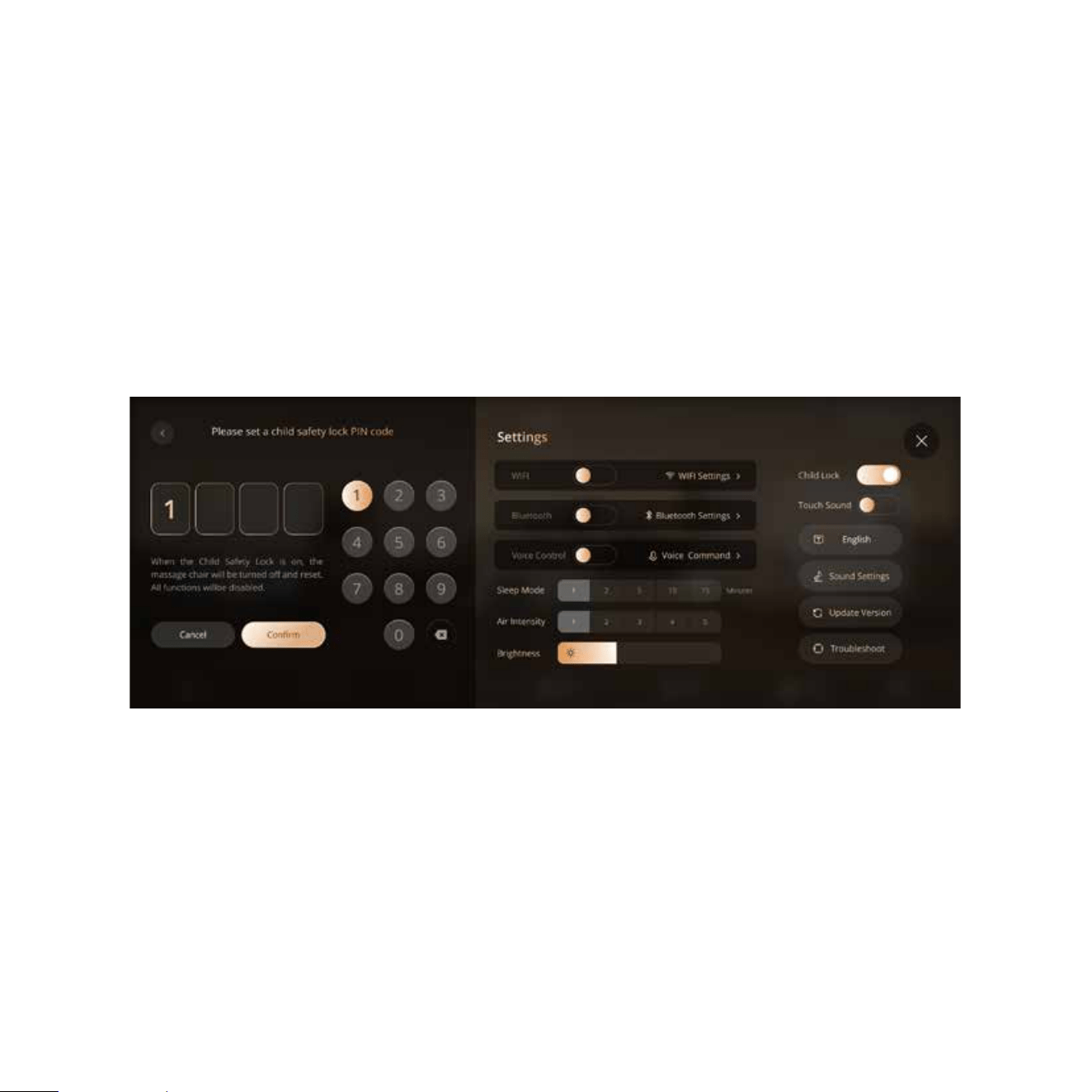

Child Lock 1
Set a password and click the confirm button
When the child safety lock is on, the massage chair will be turned off and reset - all functions will be disabled
47
Child Lock 2
When the child safety lock is enabled, this screen will appear at startup
48
Child Lock 3
Please enter the password you set or "0304" to unlock your massage chair
If you don't need the Child Safety Lock on anymore, go to the Settings page to turn off this function
49

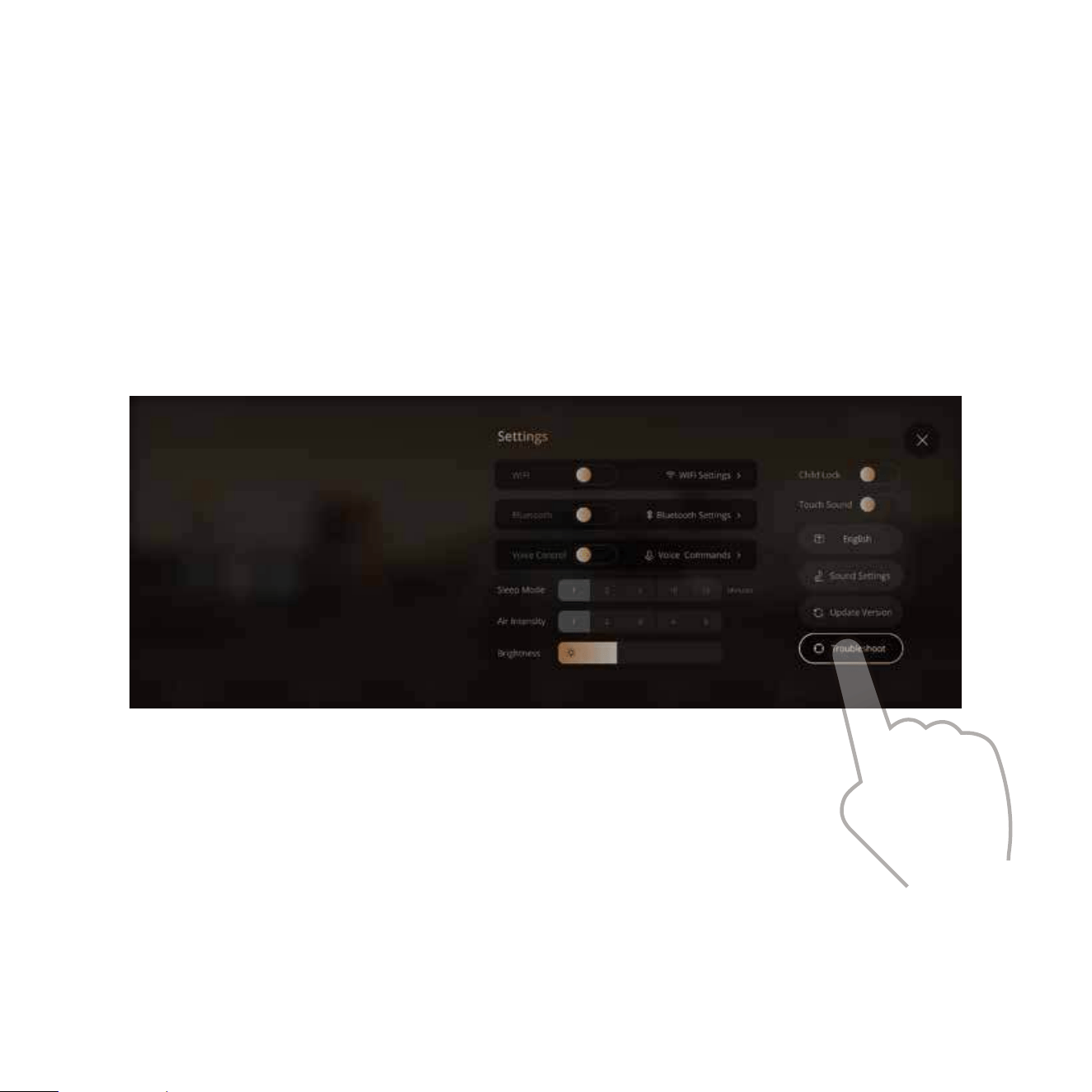

Trouble Shooting Interface
If your chair has any trouble, press the "Trouble Shoot" icon for the chair to automatically detect
problem areas Use the error code provided when contacting our customer service team
50

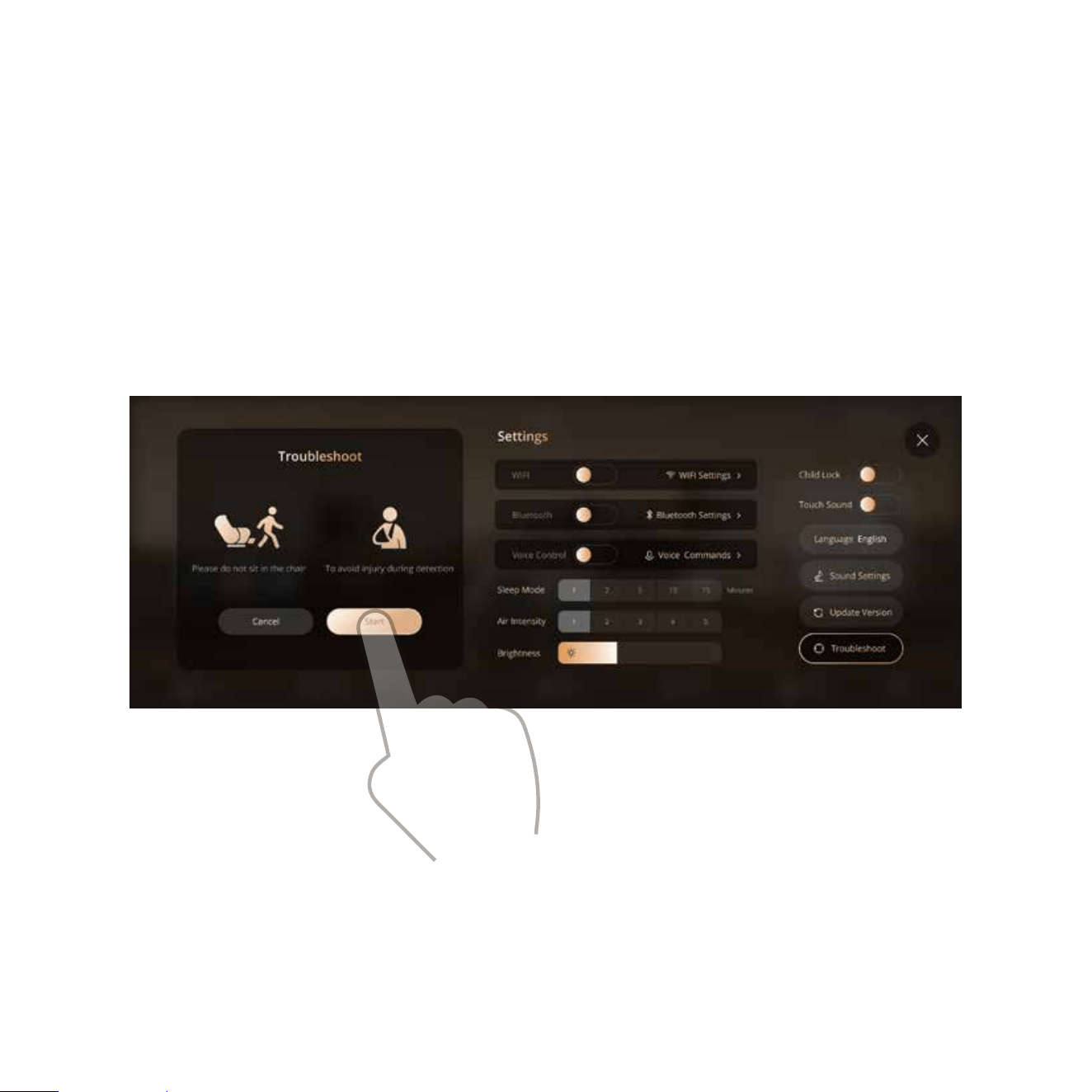

Trouble Shooting Interface 1
Choose "Start" icon and make sure the chair is not occupied during chair detection
51

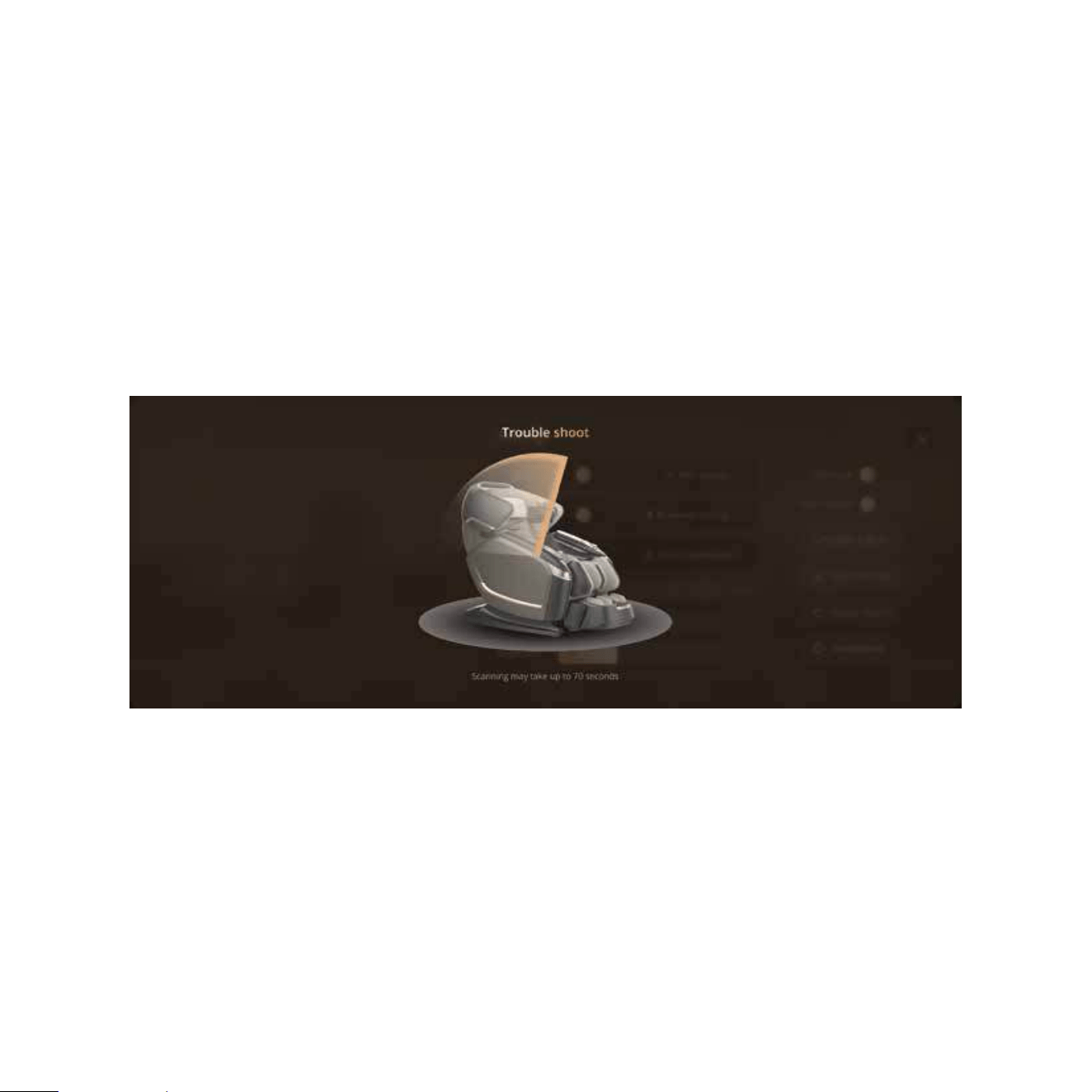

Trouble Shooting Interface 2
Your chair is detecting possible malfunctions, please wait for the detection result
52

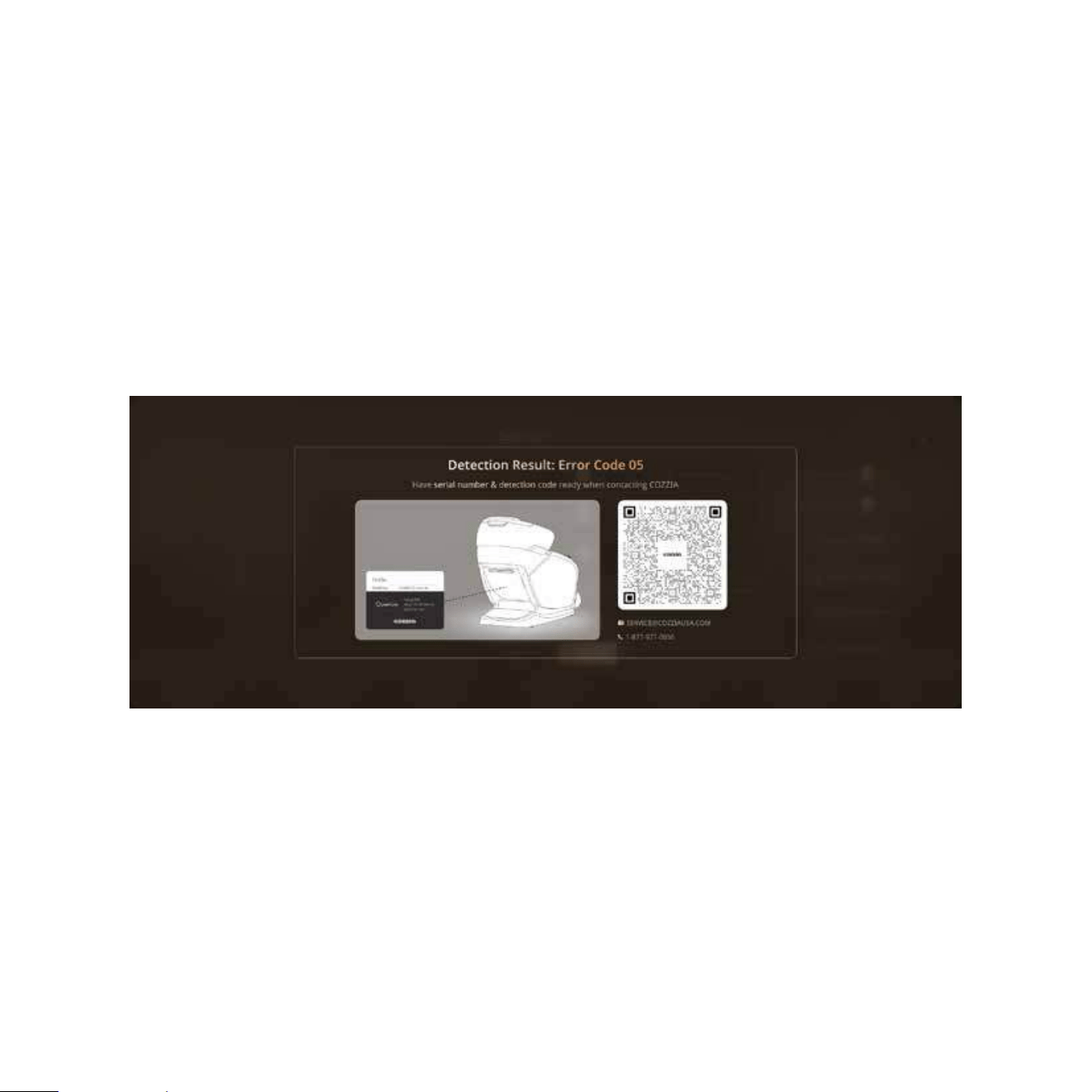

Trouble Shooting Interface 3
You can use your detection code when contacting the customer service team about your chair’s problems
53

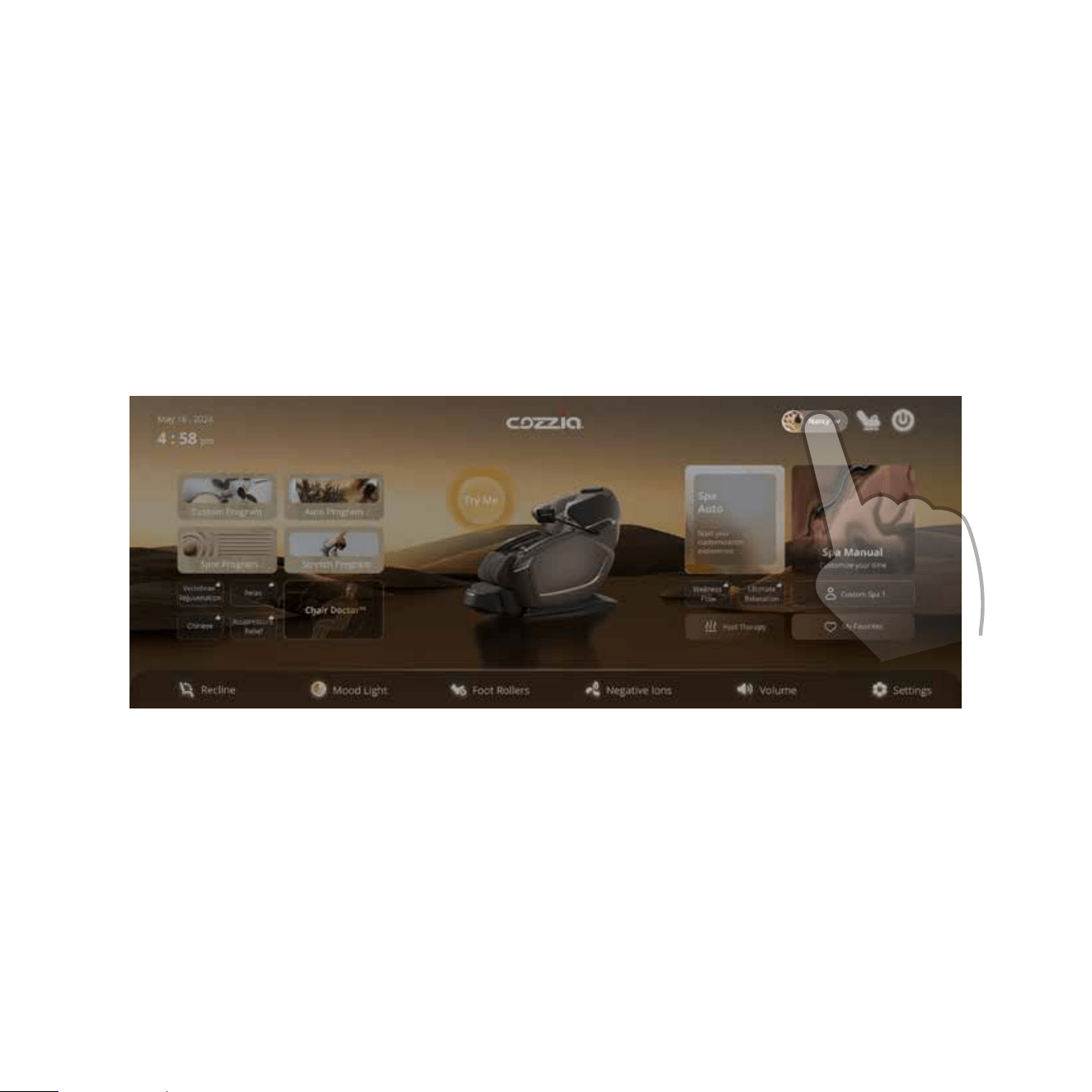

Choose the “User Account” icon to get to the account settings page
*A wifi connection is required before logging in to your account
After logging in to your account, you can save your own favorite programs and health data
USER ACCOUNT
54

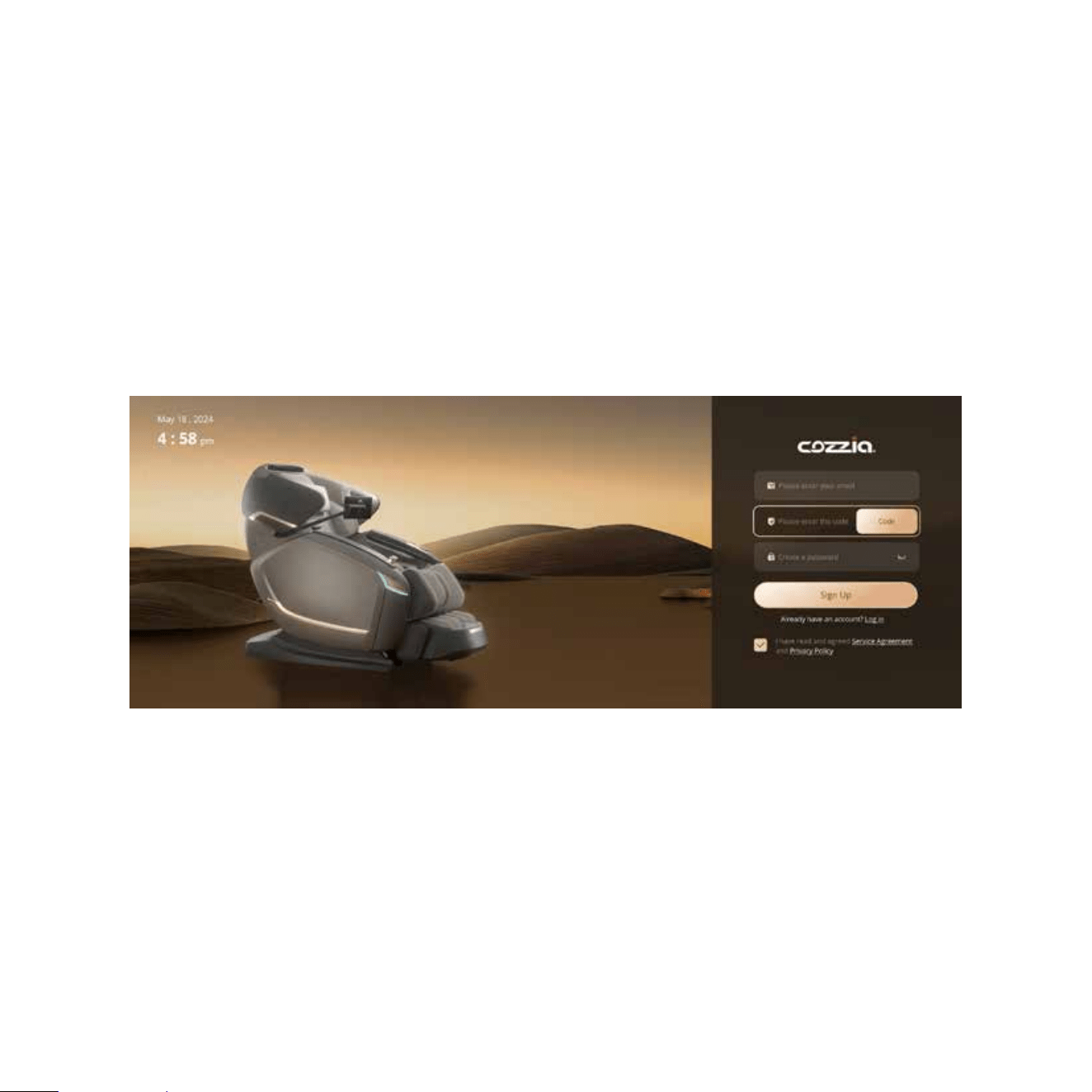

Register an Account Interface
Enter your email address and click the "Code" button to get a verification code sent to your email
Enter the verification code from your email, then create your password
Before registering an account, you need to agree to the service agreement and privacy policy
55

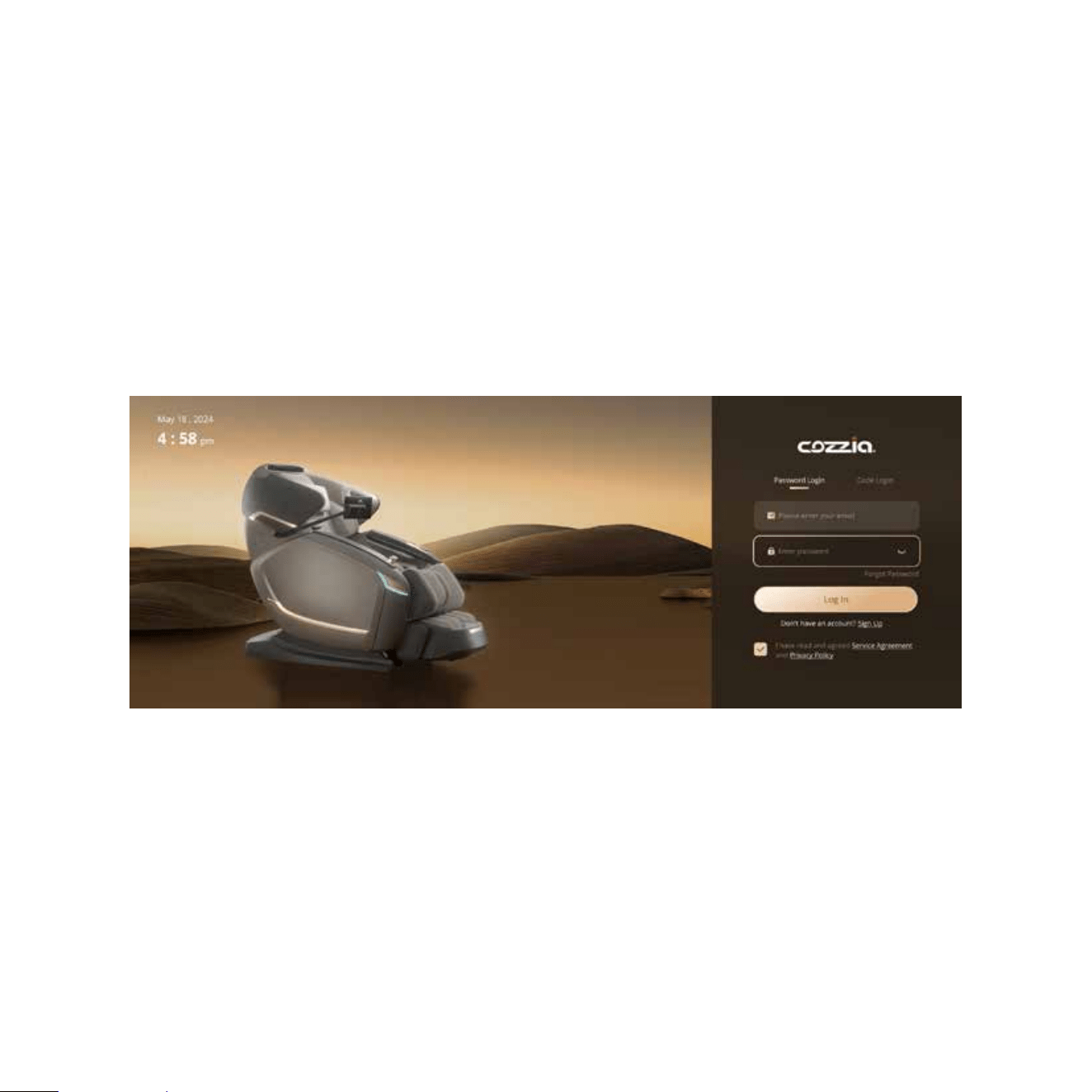

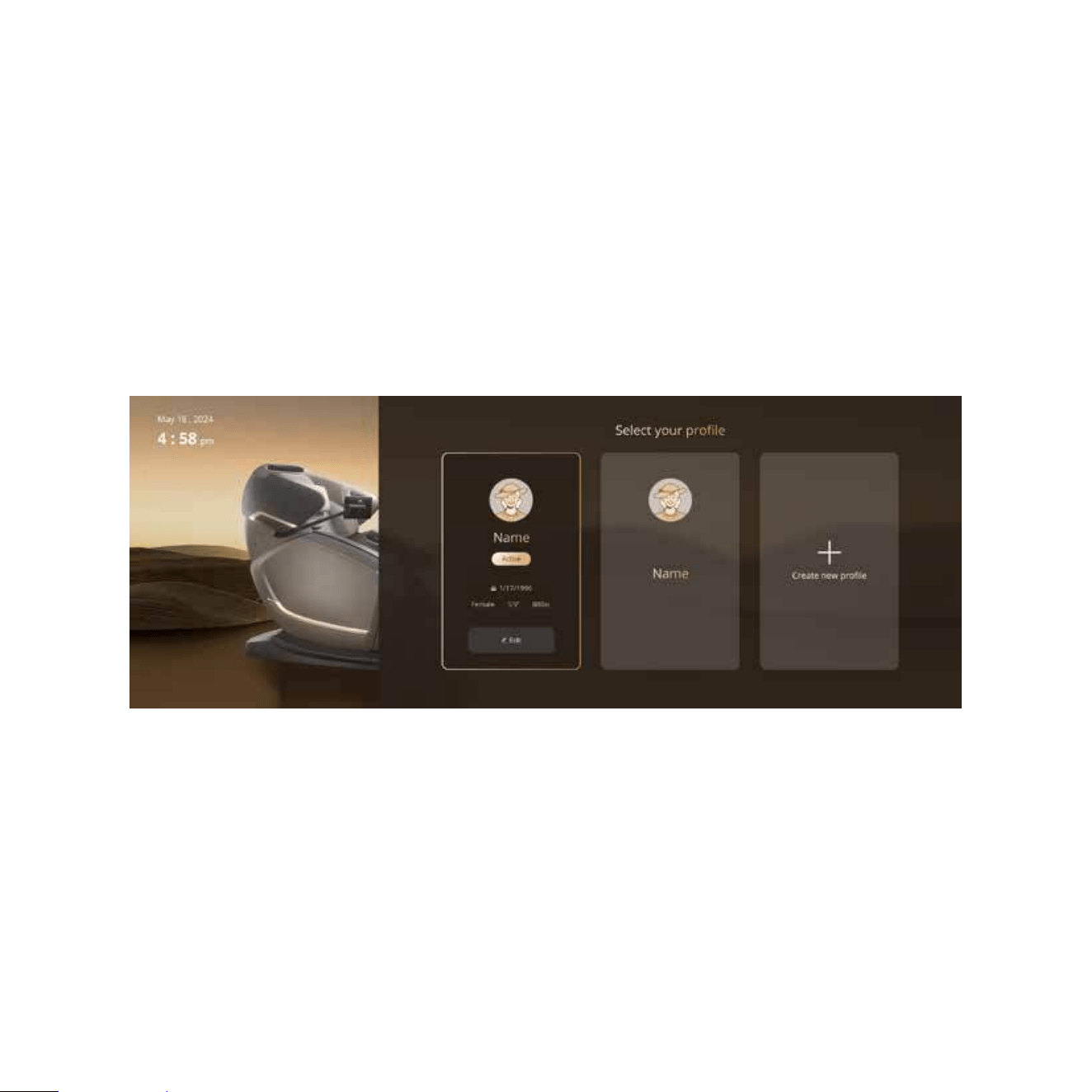

Account login Interface
If you already have an account, you can log in with your password or email verification cod
56
You can switch between accounts or edit your account information
Account Settings Interface
57
SAFETY PRECAUTIONS
We’re looking out for you.
When using the massage chair, basic precautions should always be followed, including the following:
Read all instructions before using this massage chair.
• Always unplug this massage chair from the electrical outlet immediately after using and
before cleaning.
• Never use pins or other metallic fasteners with this appliance.
• Carefully examine the covering before each use. Call for service if the covering shows any
sign of deterioration, such as blistering, peeling or cracking.
• Keep dry - do not operate in a wet or moist condition.
IMPORTANT SAFETY INSTRUCTIONS
DANGER - To reduce the risk of electric shock:
WARNING - To reduce the risks of burns, fire, electric shock or injury to persons:
• Read all instructions before using.
• A massage chair should never be left unattended when plugged in. Unplug from the outlet when it is not in
use and before putting on or taking off parts.
• Close supervision is necessary when this massage chair is used by or near children or disabled persons.
Keep children away from reclining backrest and extended leg rest.
• Use this massage chair only for its intended use as described in this manual.
• Never operate this massage chair if it has a damaged cord or plug, if is not working properly, if it has been
dropped or damaged, or dropped into water. Contact customer service department.
• Keep the cord away from heated surfaces.
• Never operate the massage chair with the air openings blocked. Keep the air openings free of lint, hair and
the like.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
• To disconnect, turn all controls to the off position, then remove the plug from the outlet.
• Do not stand on or in the massage chair. Use only while seated.
• The product is not intended for use by children or persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the product by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the product.
• Temperatures sufficiently high to cause burns may occur regardless of the control setting. Do not use on an
infant or invalid or on a sleeping or unconscious person. Check the skin in contact with the heated area of the
appliance frequently to reduce the risk of blistering.
• Burns may result from improper use.
• Do not crush in order to avoid sharp folds.
• Keep children away from extended foot support (or other similar parts).
• DO NOT WET.
• DO NOT USE PINS.
• NEVER REMOVE COVER.
• Connect this appliance to a properly grounded outlet only. See Grounding Instructions.
• Do not use the massage chair in an excessively humid or dusty environment as this may
result in malfunction or electric shock.
• Do not use the massage chair in a room with a temperature of 104°F or higher.
• Do not expose the massage chair to heaters, stoves or direct sunlight.
• Place and use the massage chair on an even, non-slip floor.
• The massage chair is designed for home use and not for commercial purposes.
This massage chair is intended for household use only.
SAVE THESE INSTRUCTIONS
1. Usage Environment
• This massage chair is to be used indoors only.
• If you use the massage chair in a cold room, do not increase the
room temperature abruptly. It is recommended that you increase the
temperature gradually to a normal level.
• If the massage chair is stored in a cold place and is being brought
into a warm environment, it is advisable to wait for one hour before
use. This is because its performance may not be at an optimal level,
as there may be water droplets on the mechanical parts due to
condensation. Using the massage chair under such conditions may
result in malfunction.
Caution
58
2. Safety Precautions
• To ensure safe and correct use of the massage chair, do not operate it without reading this
operation manual carefully.
• Do not use the massage chair when the upholstery or seat is removed. This may cause
injury or malfunction.
• Do not use the massage chair in combination with other therapeutic equipment or electric
blanket etc., as this may result in ineffectiveness or injury.
• Do not use the massage chair an hour before or after eating as this may have adverse
effects on the user.
• Do not allow children or pets to play around the massage chair, e.g. behind the backrest,
under the seat base or legrest of the massage chair. This may result in injury.
• Do not use the massage chair when your body is wet.
• Do not operate the massage chair with wet hands.
• It is not recommended to use the massage chair for more than 30 minutes.
• Do not perform continuous massage on the same spot of your body for more than 5
minutes at a time as this may result in excessive stimulation and may have adverse effects.
• Do not insert your hand or foot along the paths of the massage rollers during use as this
may cause injury.
• Stop operation immediately if you feel any discomfort.
• This product is not intended for self-treatment of conditions that should be managed by a
qualified health care provider.
• People on medication or with medical conditions, please consult your doctor before use.
• Please do not use the product if you are not feeling well.
Consult your doctor before use if you:
3. People with Medical Conditions
• Are under medical rest as ordered by a doctor.
• Have spinal disorders, an abnormal spinal condition or have suffered a spinal injury.
• Have back problems.
• Have diabetes, osteoporosis or sensory impairment.
• Have joint dysfunction such as rheumatism, hammertoe or gout.
• Have a pacemaker or other electronic medical devices.
• May be pregnant.
• Have phlebitis or thrombosis.
• Have an increased risk for blood clots.
• Had recent surgery.
• Have surgical pins, screws, or anything mechanical in the legs, ankles or feet.
In the following events, please switch off the main power switch immediately and disconnect the power cord
from the electrical outlet:
• If liquid is accidentally spilled onto the massage chair. This may result in electric shock or
malfunction.
• If the fabric of the backrest is torn and the internal components are exposed.
• If pain or discomfort is felt during massage, stop operation immediately and consult your
doctor.
• If you detect any malfunction or any other abnormal condition during operation.
• If there is power failure. Injury may occur when power is restored unexpectedly.
• If there is lightning.
4. Instances When the Massage Chair Should Not Be Used
5. Assembly and Repair of the Massage Chair
6. Things to Be Noted About the Power Plug and Cord
• Do not disassemble the backrest cover of the massage chair. Touching the internal
components may result in malfunction or electrical shock.
• This massage chair must only be professionally serviced or repaired. Only disassemble or
repair the massage chair if directed by a Cozzia service rep.
• Check that the Alternating Current (AC) voltage corresponds with the specifications indicated for the
massage chair.
• Do not connect or disconnect the power plug from the electrical outlet with wet hands. This may result in
malfunction or electric shock.
• When disconnecting the power plug, pull it by holding the plug, not the cord.
• Although operation will be stopped automatically by the Auto-Timer function, always remember to switch
off the main power after use.
• Do not place the power cord under the massage chair or under any other heavy objects.
• Do not wind the power cord around the massage chair as this may damage the cord and result in a fire or
electric shock.
• Do not operate the massage chair with a damaged cord or extension cord.
• Do not use the massage chair if the electrical outlet is loose.
• If the power cord is damaged, it should be replaced by a qualified technician.
Caution
• Avoid using the massage chair under the influence of alcohol.
• Do not apply massage rollers directly on the head, elbow or knee
joints, torso or abdomen.
• If your legs or feet slip off the leg rest during massage, do not force
them back in as this may result in injury.
• Remove the power plug from the electrical outlet immediately should
liquid be accidentally spilled onto the massage chair. Do not use wet
hands to connect or disconnect the power plug from the electrical
outlet.
• Do not tamper with the power cord or use the massage chair with a
damaged cord as this may result in malfunction and electric shock.
59
The massage chair is connected to the power
supply but is not functioning
1. Check to see that the plug is properly connected
and working
2. Ensure the massage chair switch is in the ‘I’
position
Possible overheating due to prolonged use. Turn off
the power for at least 30 to 50 minutes
1. Ensure the chair is plugged into a working outlet
2. Turn the power OFF and ON again
The remote control works but the massage chair
is not functioning
Both the remote control and the massage chair
are not functioning
This massage chair is controlled by a microcomputer and is thus susceptible to power surges of +10 to - 15%.
The following situations may arise in the event of a power surge:
If you continue to have problems, please read the warranty card and contact the Cozzia service department.
TROUBLESHOOTING
GROUNDING INSTRUCTIONS
Grounding Pin
Grounded Outlet Box
Grounded Outlet
This product must be grounded. If it should malfunction or break down, grounding provides a path of least
resistance for the electric current to reduce the risk of electric shock. This product is equipped with a cord that
has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
Danger - Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check
with a qualified electrician or service technician if it will not fit the outlet. Have a proper outlet installed by a
qualified electrician.
This product is for use on a nominal 120V circuit and has a grounding plug that looks like that plug illustrated
below. Make sure that the product is connected to an outlet having the same configuration as the plug. No
adapter should be used with this product.
Caution
Caution
• Do not use abrasive cleaning agents like benzene or thinner to clean the massage chair. This
may cause the upholstery to fade.
Caution
• Do not use a wet cloth to clean the controller. This may result in malfunction.
PRODUCT CARE AND STORAGE
1. Storing the Massage Chair
2. Cleaning the Massage Chair
• Use only a clean, dry cloth to clean the controller.
3. Cleaning the Controller
• Do not store the massage chair in direct sunlight or in places of high temperature. This may
cause the color of the upholstery to fade.
• Do not allow the massage chair to remain in contact with vinyl or wallpaper for extended
periods of time as this could lead to discoloration.
• Wipe off dust and dirt from the massage chair with a dry, soft, clean cloth after use.
• Keep the massage chair clean and away from places of high humidity.
• If the massage chair is not to be used for a long period of time, cover the massage chair with a dust cover
and unplug its power plug from the electrical outlet.
• Before cleaning, ensure that the main power switch is off and the power plug is disconnected from the
electrical outlet.
• Wipe off dust and dirt from the massage chair with a dry, soft, clean cloth after each use.
• This product can be cleaned thoroughly with a slightly damp cloth.
• Do not iron the upholstery.
• Do not wash the upholstery using a home washing machine as this may result in deterioration of the
upholstery’s quality.
60
Product Repairs
• Floor Models and Demonstration Units have a prorated warranty period that begins the day the model is
placed on the floor and connected to an electrical outlet by the retail partner. Proof of purchase is required
in order to obtain warranty service and parts. Non-warranty parts and service are available at a “per
incident” charge.
• Warranty Coverage Period - Warranty coverage starts at the time that the consumer PURCHASES their chair.
Proof of purchase is required for all warranty repairs. The warranty time period is measured by continuous
calendar days based on a seven-day week.
• Field Service - Cozzia customer service department will diagnose and schedule an authorized service
provider to repair the chair in the consumer's residence.
CONSUMER WARRANTY LIMITATIONS AND EXCLUSIONS
• Warranties are only valid in the 48 contiguous United States and Canada and are contingent upon the
consumer operating the chair according to the corresponding instruction manual.
• The warranty only applies to Cozzia products and does not include any accessories or enhancements.
• Field service requires pre-approval and must be performed by Cozzia's authorized field service personnel.
• Field service is only available in the United States and in major metropolitan areas in Canada.
• Softening of foams and filling composites in pillows, pads, and memory foam occurs naturally and does not
constitute a defect under this warranty.
• Fading, wear and piling of fabrics occurs naturally and does not constitute a defect under this warranty.
• Warranties do not cover any loss or damage resulting from improper installation, unauthorized repairs or
modifications, improper use of electrical/power supply, loss of power, dropped product, a malfunction or
damage of an operating part from failure to provide manufacturer's recommended maintenance,
transportation damage, theft, abuse, misuse, neglect, vandalism or environmental conditions (fire, floods,
rust, corrosion, sand, dirt, windstorm, hail, earthquake or exposure to weather conditions).
• Warranties do not cover any loss during the time spent waiting for parts or repairs.
• Damage due to shipping and handling does not constitute a defect under this warranty.
• Under no circumstance shall Cozzia or its representatives be liable for indirect, consequential, or incidental
damages (including damages for lost profits, business interruption, bodily injury, medical and the like).
• Warranties are non-transferable.
• Cozzia's sole liability and the purchaser's exclusive remedy shall be for the repair, or at Cozzia's option, for
the replacement of the defective part.
• Notwithstanding the above, if replacement parts for defective materials are not available, Cozzia reserves the
right to make substitutions in lieu of repair or replacement.
• All warranties begin on the DATE OF PURCHASE; no allowance or extension is offered for delivery and/or
installation.
• Warranties do not apply to rental, business, commercial, institutional or other non-residential users.
COZZIA CONSUMER WARRANTY
Service And Technical Support
Extended Warranties:
This Cozzia product has the following warranty:
The Cozzia Quantum has a three-year in-home service and parts warranty. Cozzia customer service will not
issue Return Material Authorizations (RMAs) for products. Cozzia products will be either repaired by the
consumer or by an in-home technician. Cozzia will not issue Return Material Authorizations (RMAs) for buyer’s
remorse.
Consumers may contact Cozzia's customer service department at 1-877-977-0656 between 9:00 am and 5:30 pm
PST, Monday through Friday, email us at [email protected], or visit our website at www.cozziausa.com for
warranty or service issues.
Consumers are required to provide the unit serial number and dated proof of purchase (sales receipt) when they
contact the Cozzia service department regarding a repair.
A Cozzia customer service representative will attend to most consumer inquiries, but in some cases a technical
service specialist will provide advanced support.
Non-warranty repair is provided on a "per incident" basis. Cozzia customer service will verify that the unit has
failed and provide instructions for repairing the unit. All applicable repairs, parts, shipping, handling, local tax
and a "per incident" fee will be charged for non-warranty repairs and support calls.
Proof of purchase (original receipt) is required for all warranty repairs or service.
Cozzia offers extended warranty programs to enhance the ownership of your massage chair. Please call Cozzia
customer service at 877-977-0656 for details and pricing.
• Parts - All parts deemed necessary for repairs will be shipped to the consumer at no charge by the Cozzia
service department. Some Cozzia product repairs may be performed by the consumer in their own home
with parts and instructions supplied by Cozzia, such as remote controller replacements that don’t require a
technician.
TEL: 1-877-977-0656
FAX: 1-800-521-4712
WWW.COZZIAUSA.COM
861 S. Oak Park Road,
Covina, CA 91724
