P. Olssons i Linderöd AB
966 83 30-01
Bruksanvisning
Snow blade
966 83 30-01
Läs anvisningen noga innan produkten används
114 35 72-38
2
2.
5.
6.
3.
6.
4.
7.
P524
R422
PR17
R418
x4 x2
3
x4 x4
1-1,5mm
4
-25°
-15°
0°
15°
25°
5
65/75 kg
15° / 25°
Min 108cm
45cm
Max 125cm
6

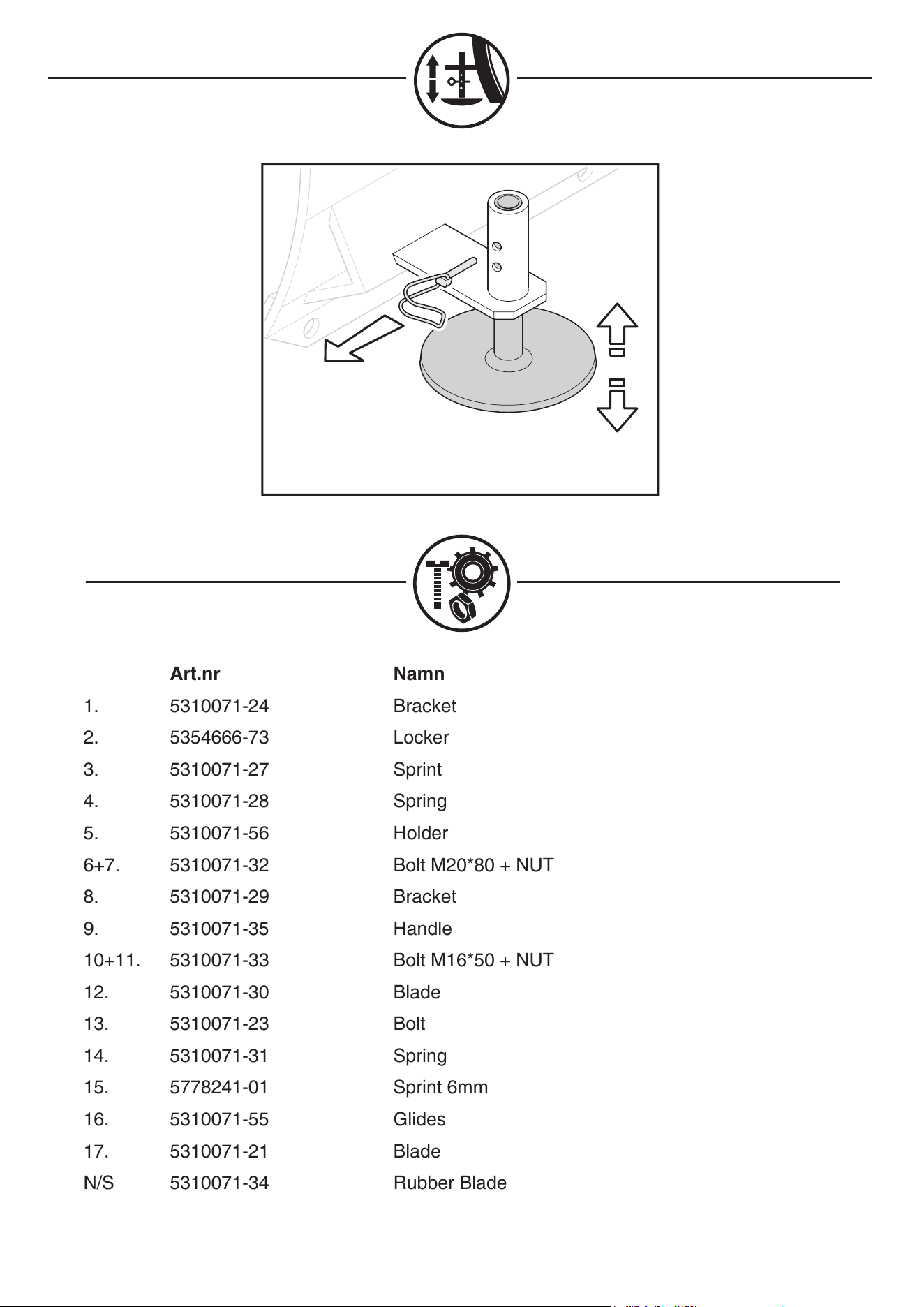

Art.nr Namn
1. 5310071-24 Bracket
2. 5354666-73 Locker
3. 5310071-27 Sprint
4. 5310071-28 Spring
5. 5310071-56 Holder
6+7. 5310071-32 Bolt M20*80 + NUT
8. 5310071-29 Bracket
9. 5310071-35 Handle
10+11. 5310071-33 Bolt M16*50 + NUT
12. 5310071-30 Blade
13. 5310071-23 Bolt
14. 5310071-31 Spring
15. 5778241-01 Sprint 6mm
16. 5310071-55 Glides
17. 5310071-21 Blade
N/S 5310071-34 Rubber Blade
Declaration of conformity
We – P Olssons i Linderöd AB , Steglitsvägen 6 , 291 67 Fjälkinge , Sweden
+46 44 340011 , [email protected]
declare that the product
Type Plough
Model LBL 125
Part nr. 966 83 30-01
Complies with EN 13021 and A1:2008 (the supply of Machinery 2008)
_________________________________
Ola Olsson
P Olsson i Linderöd AB
Steglitsvägen 6
291 67 Fjälkinge
SWEDEN
UK Importer:
Husqvarna UK Ltd
Preston Road, Co. Durham
DL5 6UP
