2:1(560$18$/$1'$66(0%/<,16758&7,216
0RGHO1XPEHU65)35
LQ6PRNHOHVV)LUH3LW
.((37+,6,16758&7,210$18$/)25)8785(5()(5(1&(
:$51,1*
ADULT ASSEMBLY REQUIRED.
Keep screws, nuts and parts out of reach of children.
&86720(56(59,&(
Monday - Friday, 7:30 a.m. – 4:30 p.m., PST
!
ASSEMBLY INSTRUCTIONS
CARE AND MAINTENANCE
WARRANTY INFORMATION
WARNINGS 1-2
3
-
1
PARTS AND HARDWARE
7$%/(2)&217(176
PRODUCT USE OR INSTRUCTIONS
•
•
Keep this manual for future reference. It contains useful information
and important procedures for maintenance and safety.
If any parts are missing, do not attempt to assemble the fire pit. Call Customer
Service to request replacement parts.
Read the Assembly section completely before beginning the assembly process. This
will allow you to become familiar with parts and steps. In some cases, it might be
necessary to leave hardware loose for further assembly steps.
%()25($66(0%/<
•
Verify all the parts are included BEFORE you begin assembly. Refer to the Parts Lists
section. For your convenience, some parts might be pre-assembled or attached to
fire pit components.
1. DO NOT use this fire pit without reading this entire document and all WARNINGS, cautions and
instructions.
2. This item is for outdoor use only, and shall NOT be used in a building, garage or any other
enclosed area.
3. DO NOT use this fire pit for indoor heating. TOXIC carbon monoxide fumes can accumulate and
cause asphyxiation or death.
4. This fire pit is NOT for commercial use.
5. This fire pit is NOT to be operated by children.
6. This fire pit is NOT to be used in or on boats or recreational vehicles.
7. Always use in accordance with all applicable local, state and national codes. Contact your local fire
department for details on outdoor burning.
8. When using this fire pit, exercise the same precautions you would with any open fire.
9. The use of alcohol, prescription or non-prescription drugs may impair the consumer’s ability to
properly assemble or safely operate this fire pit.
10. This fire pit is for use with dry, seasoned hardwoodDQGSHOOHW. It will burn hotter, more completely
and createless smoke.
11. DO NOT burn charcoal briquette, lump charcoal, manufactured logs, driftwood, trash, leaves,
papers, cardboard, plywood, painted or stained or pressure treated wood. Avoid using softwoods
such as pine or cedar that can throw sparks.
12. DO NOT alter this fire pit in any manner.
13. DO NOT use this fire pit until it is COMPLETELY assembled and all parts are securely fastened
and tightened.
Save these instructions for future reference. If you are assembling this fire pit for someone
else, give this manual to him or her to save for future reference.
1. Improper installation, adjustment, alteration, service, or maintenance may result in
property damage, injury or death.
2. Read the installation, operation, maintenance instructions thoroughly before installing
or servicing this equipment.
3. Failure to follow these instructions could result in a fire or explosion, which could cause
property damage, personal injury or death.
:$51,1*6
:$51,1*
For Outdoor Use Only
(outside any enclosure)
:$51,1*
:$51,1*
)25<2856$)(7<
1
:$51,1*6
14. DO NOT store or use gasoline or other flammable vapors or liquids in the vicinity of this or any
other appliance.
15. DO NOT store or use an LP gas cylinder within 10 feet (3.05 m) of this fire pit while it is in operation.
16. DO NOT use this fire pit near automobiles, trucks, vans or recreational vehicles.
17. DO NOT use in an explosive atmosphere. Keep outdoor area clean and free from combustible
materials, gasoline and other flammable liquids.
18. DO NOT use this fire pit under an overhead or near any unprotected combustible constructions.
Avoid using near or under overhanging trees and shrubs.
19. Always use this fire pit on a hard level non-combustible surface such as concrete, rock or stone.
An asphalt or blacktop surface may not be acceptable for this purpose. DO NOT use on wooden decks.
20. Always empty this fire pit before each use.
21. DO NOT wear flammable or loose clothing when operating this fire pit.
22. DO NOT use in windy conditions.
23. DO NOT use gasoline, kerosene, diesel fuel, lighter fluid to relight fires.
24. Keep all electrical cords away from a hot fire pit.
25. All surfaces of this fire pit are hot when in operation. To avoid burns, do NOT touch fire pit until it
has completely cooled unless you are wearing protective gear (potholders, gloves, BBQ mittens, hot
pads etc). Never touch ashes or coals to see if they are hot.
26. DO NOT leave a lit fire pit unattended, especially around children and pets.
27. DO NOT attempt to move or store this fire pit until ashes and coals are completely extinguished.
28. DO NOT remove ashes or coals until they are completely extinguished.
29. Use heat-resistant gloves or hot pads when WRXFKLQJILUHSLW.
30. Do not add additional firewood until the fire burns down.
31. DO NOT lean over this fire pit when lighting or when in use.
32. Avoid breathing smoke from the fire and avoid getting it into your eyes.
33. This fire pit should be thoroughly inspected and cleaned on a regular basis.
34. After a period of storage and/or non-use, check for signs of damage and creosote build-up.
DO NOT operate until necessary repairs and/or clean up is executed.
35. Death, serious injury or damage to property may occur if the above is not followed exactly.
:$51,1*
This product can expose you to chemicals including soot, which is known in the State of California to cause
cancer and reproductive toxicity，and carbon monoxide, which is known to the State of California to cause
birth defects or other reproductive harm. For more information, go to: www.P65Warnings.ca.gov.
2
3

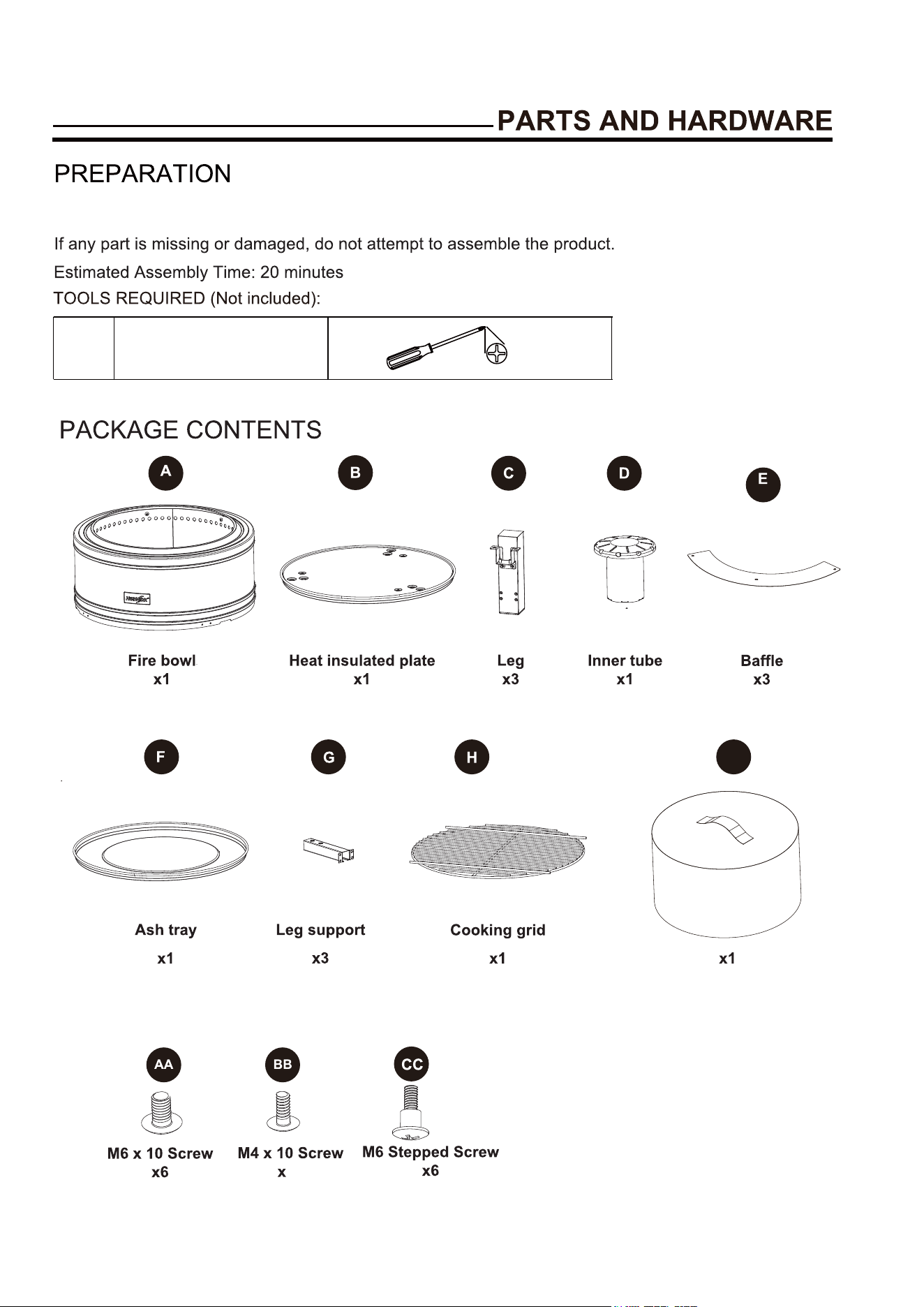

Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list.
Phillips screwdriver
1
HARDWARE CONTENTS
27
I
6WHS
6WHS
Attach the leg supports (G) to the legs (C) with (12) M4 x 10 screws (BB) as illustrated.
NOTE: Assemble the fire pit on a non-abrasive, level surface. If missing parts please contact
customer service.
%%
x12
M4 x 10 Screw
+DUGZDUH8VHG
Attach the heat insulated plate (B) to the leg supports (G) with (6) M6 stepped screws (CC)
as illustrated.
$66(0%/<,16758&7,216
&&
x6
M6 Stepped Screw
+DUGZDUH8VHG
%
*
*
%%
&
%
&&
&&
*
6WHS
Attach the inner tube (D) to the fire bowl (A) with (6) M4 x 10 screws (BB) as illustrated.
Then place the bottom of fire bowl upward.
Note: The inner tube installation is optional. This step can be ignored, see instructions
on page .
$66(0%/<,16758&7,216
6WHS
Attach the leg assembly to the bottom of fire bowl (A) with (6) M6 x 10 screws (AA) as illustrated.
$$
x6
M6 x 10 Screw
+DUGZDUH8VHG
$$
%%
x6
M4 x 10 Screw
+DUGZDUH8VHG
$
$
'
%%
$
6WHS
Attach the baffles (E) to the bottom of fire bowl (A) with (9) M4 x 10 screws (BB) as illustrated.
%%
x9
M4 x 10 Screw
+DUGZDUH8VHG
$66(0%/<,16758&7,216
6WHS
Place the ash tray (F) onto the heat insulated plate (B) as illustrated.
%%
(
)
+
6WHS
3ODFHWKHFRRNLQJJULG+RQWRWKHILUHERZODVLOOXVWUDWHG
$66(0%/<,16758&7,216
Lighting
Using firewood
1. Make sure there is no ash in the bottom of fire bowl.
2. Start by placing dry kindling and small wood pieces in the fire bowl.
3. Use a match to light kindling or small wood pieces.
4. As the ember bed gets hotter, start adding in 1-3 pieces of wood.
As those catch, add enough wood to fill the fire bowl.
Using wood pellets
1. Make sure there is no ash in the bottom of fire bowl.
2. Place 100% natural hardwood pellets in the fire bowl, and put
kindling or a natural fire starter on to the pellets.
Note: Do not overfill with pellets that covers or extends above the
top air holes.
3. Ignite the kindling or fire starter to allow the fire to start.
Extinguishing
1. Allow fire to burn itself out.
2. DO NOT use water to extinguish as this is dangerous and can cause damage to this outdoor fire pit.
)LUHZRRGSODFHPHQW
Inner tube installed
Inner tube not installed
)LUHZRRGSODFHPHQW
Inner tube installed
Inner tube not installed
0D[XVDJH/%0LQXVDJH/%
4. If you need to add pellets, it is recommended to add near the end
of fire burning, and add pellets by batches, each time 1.1 ~ 2.2 lbs is appropriate.
352'8&786(25,16758&7,216
&DUHDQG0DLQWHQDQFH
Inspecting
This fire pit should be inspected on a regular basis to ensure product safety and longer product life.
DO NOT attempt to inspect this fire pit until the fire is COMPLETELY out and cool to the touch.
1. Check components for any signs of damage or rust.
2. If damage to any component is detected, DO NOT operate until repairs are executed.
Cleaning
This fire pit should be cleaned on a regular basis to promote safer experiences and longer product life.
Note: After repeated use, a slight discoloration of the finish may occur.
DO NOT attempt to clean this fire pit until the fire is COMPLETELY out and cool to the touch.
DO NOT use oven cleaner or abrasive cleaners as they will damage this product.
DO NOT clean any part of this fire pit in a self cleaning oven as it may damage the finish.
1. Wipe exterior surfaces with a mild dishwashing detergent or baking soda.
2. For stubborn surfaces use a citrus based degreaser and a nylon scrubbing brush.
3. Rinse and clean with water.
4. Remove built-up creosote from components with a chimney cleaning product.
Storage
DO NOT move or store this fire pit until the fire is COMPLETELY out and cool to the touch.
1. Once the fire is out, coals or pellets are cold and fire pit is cool to the touch, remove ashes and
properly dispose.
2. Store the fire pit in a dry location to maximize product life.
3. Store assembled in a location away from children and pets.
Due to extremely high temperatures during burning, discoloration of the fire pit will occur and this is
considered normal. Stainless steel has better resistance to rust, however, it is not rust-proof.
Prolonged exposure to moisture may result in staining and/or rusting.
Due to extremely high temperatures inside when use, the fire pit may show signs of staining
and / or rust. This is normal and will not affect normal use or functions.
&$5($1'0$,17(1$1&(
:$55$17<,1)250$7,21
This appliance has been manufactured under the highest standards of quality and
workmanship. Shinerich Industrial Ltd warrants, to the original consumer/purchaser, that all
aspects of this product will be free of defects in material and workmanship for one (1) year
from the date of purchase shown on the purchaser’s receipt. Please retain your sales receipt
as proof of purchase might be required or requested. This limited warranty shall be limited
to the replacement of parts, which prove defective under normal use and service and which
Shinerich Industrial determines, at their reasonable discretion, to be defective. A replacement
for any defective part will be supplied free of charge for installation by the consumer.
7KLVOLPLWHGZDUUDQW\GRHVQRWFRYHUGHIHFWVRUGDPDJHFDXVHGE\RYHUKHDWLQJPRGL¿FDWLRQ
abuse, improper use, installation, storage or maintenance. The limited warranty also does
not cover damage due to shipment or poor handling. Shinerich Industrial Ltd will not be
responsible for labor charges and/or damage incurred in installation, repair or replacement,
nor for incidental or consequential damage. This limited warranty also does not cover damage
or defect caused by failure to perform routine maintenance, as described within the assembly/
instruction manual. In addition, the limited warranty does not cover damage to the ¿nish, such
as scratches, dents, discoloration, rust or other weather damage, after purchase.
Shinerich Industrial is not responsible for local codes nor if any of our products are not
approved for installation. Please check with your local building department or governing
agencies for proper approvals before purchasing/installing. Shinerich Industrial Ltd is not
responsible for the actions including negligence of the installer.
7KLVZDUUDQW\VSHFL¿FDOO\H[FOXGHVOLDELOLW\IRUindirect, incidental, or consequential damages.
6RPHVWDWHVGRQRWDOORZWKHH[FOXVLRQVRUOLPitation of incidental or consequential damages;
VRWKHDERYHH[FOXVLRQPD\QRWDSSO\WR\RXTKLVZDUUDQW\JLYHV\RXVSHFL¿FOHJDOULJKWV
and you may have other rights that vary from state to state.
<($5/,0,7(':$55$17<
FXVWRPHUVHUYLFH#VKLQHULFKXV
