COFFEE GRINDER
USER MANUAL
MODEL: BD-CG001
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
BD-CG001
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
Coffee Grinder
BD-CG001
- 2 -
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be
followed:
Warning - To reduce the risk of injury, user must read instructions manual
carefully.
This symbol, placed before a safety comment, indicates a kind of
precaution, warning, or danger. Ignoring this warning may lead to an
accident. To reduce the risk of injury, fire, or electrocution, please always
follow the recommendation shown below.
Alternating current
This product is of protection class II. That means it is equipped with
enhanced or double insulation.
FOR HOUSEHOLD USE ONLY
Correct Disposal of this product:
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To
return your used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can take this
product for environmental safe recycling.
WARNING：Read all safety warnings, instructions, illustrations and specifications
provided with this electrical appliances. Failure to follow all instructions listed below may
result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
- 3 -
WARNING：
1. Read all instructions.
2. To protect against fire, electric shock and injury to persons, do not immerse cord, plugs
or machine in water or other liquid.
3. Close supervision is necessary when any appliance is used by or near children（Note:
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision)..
4. Unplug from outlet when not in use, before putting on or taking off parts, and before
cleaning. To unplug, grasp plug and pull from electrical outlet. Never pull cord.
5. Avoid contact with moving parts
6. To reduce the risk of severe injury to persons or damage to the appliance, keep hands
and utensils out of the coffee bean box while grinding, and when the appliance is plugged
in.
7. Do not operate the grinder with a damaged cord or plug or after the appliance
malfunctions, or is dropped or damaged in any manner. In this case, return the appliance to
the approved Service Center for examination, repair, or electrical or mechanical
adjustment.
8. The use of attachments not recommended or sold by may cause fire, electric shock or
injuries.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter or touch hot surfaces, including the
stove.
11. Check Coffee bean box for presence of foreign objects before using.
12. Always operate the burr grinder with the lid securely in place.
13. Do not place on or near a hot gas or electric burner or in a heated oven.
14. This product has been designed for household use only. Any commercial use,
inappropriate use or failure to comply with the instructions will void the manufacturer's
Warranty.
15. This appliance is only used for roasted coffee beans grinding. Do not use the appliance
for other intended use (such as hard seeds, spice, nuts, etc.);,
- 4 -
16. Every appliance is inspected strictly during mass production, and be tested with coffee
beans for grinding, which may cause slight traces of use or residual coffee grounds;.
17. All machines are subject to stringent quality control. Practical tests using machines
taken at random are conducted and this may explain any slight marks or coffee residue
showing prior to use.
18.Type Y attachment: If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
19.Avoid contacting moving parts.Do not attempt to defeat any safety interlock
mechanisms.
SAVE THESE INSTRUCTIONS
CAUTION
This appliance is for household use only. Any servicing other than cleaning and user
maintenance should be performed by the nearest authorized Service Center.
■ Do not immerse appliance in water.
■To reduce the risk of fire or electric shock, do not dismantle the appliance. Repair should
be done by an authorized Service Center only.
SHORT CORD INSTRUCTIONS
Regarding your Cord Set:
A. A short power-supply cord is provided to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
B. Extension cords should be used with caution.
C. If an extension cord is used, (1) the marked electrical rating of the extension cord
should be at least as great as the electrical rating of the appliance, (2) if the appliance is of
the grounded type, the extension cord should be of a grounded type and (3) the longer cord
should be arranged so that it will not drape over the counter top or table top where it can be
pulled on by children or tripped over.
POLARIZED PLUG
This appliance has a polarized plug (one blade is wider than the other), to reduce the risk of
electrical shock. This plug will fit into a polarized outlet only one way.
If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit,contact a
qualified electrician. Do not modify the plug in any way.
- 5 -
ABOUT GRINGDING COFFEE
The proper grind gives the most flavorful cup of coffee. The grind size and amount depend
on the method by which the coffee is to be brewed. Generally, the finer the grind the more
quickly the coffee should be prepared. That is why coffee ground for an espresso machine
extraction is much finer than coffee to be brewed in a drip system.
Coffee that is ground too fine for a particular brewing process - (For example, fine espresso
grind used in a filter drip coffee machine) will result in over-extraction and bitter, pungent
tasting coffee. Conversely, coffee that is too coarse for a particular brew method will result
in under-extraction and weak, watery coffee. If the correct grind is used, adding more
coffee simply makes a brew stronger without making it bitter.
In addition to providing a range of grind settings, coffee grinders provide a consistent grind.
This is important to ensure the extraction is consistent across all of the ground coffee
particles.
DESCRIPTION
A. Coffee Bean box lid
B. Coffee Bean box
C. Removable upper conical
burr
D. Coarseness adjustment ring
E. Control panel
F. Stainless steel plate
G. LED display
H. Cup selection button
I. Timer button
J. START/STOP button
K. Brush
L. Coffee powder lid
M. Coffee powder jar
N. Rubber mat
- 6 -
Caution:
Power saving mode: If without operation over 3 minutes, the unit enters Power saving
mode automatically, press start/stop button it restarts.
BEFORE FIRST USE
Before using the coffee grinder, wipe the housing and Coffee bean box with a clean damp
cloth. Wash the coffee powder jar and the coffee powder jar lid in hot soapy water, then
rinse and dry.
SET THE COFFEE BEAN BOX
How to remove the Coffee bean box
1. Make sure the coffee grinder is unplugged.
2. Press the Coffee bean box release lever located at the opposite of the grinding size
markings.
3. Turn the Coffee bean box counter-clockwise until the unlock icon aligns with the
arrow and lift it up.
How to assemble the Coffee bean box
- 7 -
1. Make sure the top part of the conical burr is clear. If not, pls use the brush provided to
clean the top part of the burr.
2. Align the unlock icon on the base with the arrow on the Coffee bean box.
3. Turn the Coffee bean box clockwise until the lock icon aligns with the
arrow ,
NOTE: If the coffee bean box is not assembled properly, the coffee grinder won't work.
SET COFFEE GRIND SIZE
1. Put the coffee powder jar at the correct position.
2. Fill coffee beans into coffee bean box, close the lid.
- 8 -
3. The coffee grinder has 51 grind size options. To adjust the grind size, rotate the coffee
bean box and adjust from fine to coarse according to the type of coffee you want.
See chart below:
GRIND SIZE SETTING RECOMMENDATIONS
Coffee
Type
Espresso
Mocca
Siphon
Filter
Coffee
Pour
Over
French
Press
Grind
Size
Fine
Middle Fine
Middle
Middle
Middle
Coarse
Coarse
- 9 -
Grind
Setting
1-7
8-15
16-26
27-34
35-43
44-51
OPERATION INSTRUCTIONS
1. Control panel instruction
“ ”
：Display the number of cups or time：01，02，03……14 or Countdown
“ ”：Select to set the number of cups
“ ”：Select maximum running time
“ ”：Start/Stop button.
- 10 -
2.Instructions
1. Turn on the power. After the power is turned on, the buzzer will sound once, and
the LED will display "01", which means entering the cup count mode to grind a cup
of coffee grinding powder
2. Cups button
When pressing the "cup count button", the display screen will display "01".
The default setting range is 1-14 cups. Each time you press the button, 1 cup will be added,
and 01, 02, 03, 04... 14 will be displayed. After selecting the number of cups, press the
"Start button" to start grinding beans.
If you want to stop grinding, press the start/stop button again.
3. Time button
When "time key" is selected, the display screen will display "56".
Press the "Start button" to start grinding beans, and the screen displays the countdown of
56,55; If you want to stop grinding, press the "Start/Stop button" again.
The maximum grinding time is 56 seconds.
4. Start/stop button
After selecting the "cup count button" or "time button", press the "start/stop button" to start
working.
If you need to stop halfway, press the "Start/Stop button" to stop working.
- 11 -

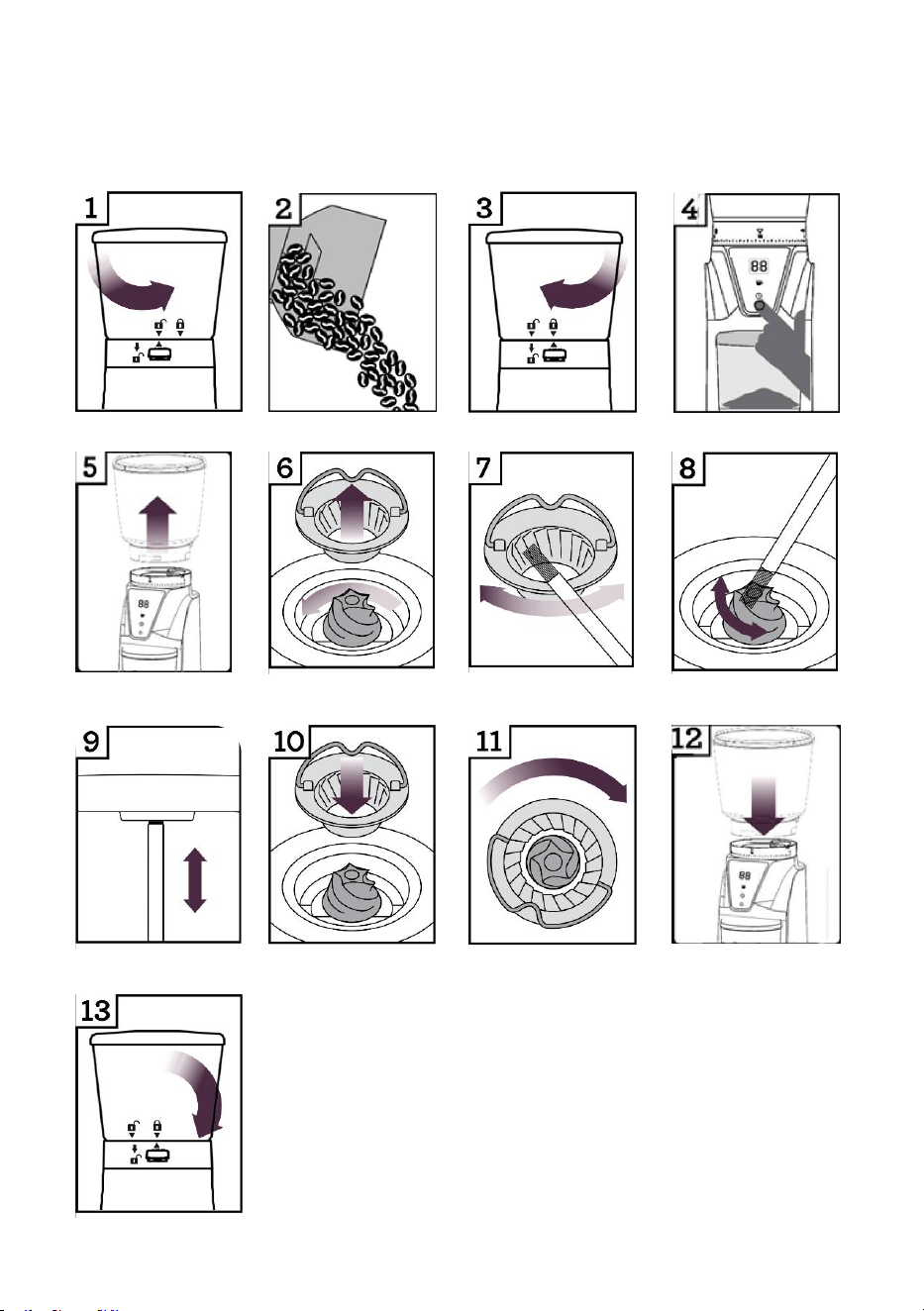

CLEANING CONICAL BURRS
Regular cleaning helps the burrs achieve consistent grinding results which is especially
important.
- 12 -
IMPORTANT!
For your appliance to run correctly, make certain that:
■ The lid to the coffee bean box is correctly closed.
■ The coffee powder jar and its lid are correctly placed in the body of the appliance.
■ This appliance is equipped with an overheat protective device. If the appliance overheats,
it will switch off automatically. In this case let it cool down for 30 minutes then restart..
MAINTENANCE
■ To keep all your coffee`s aroma and to avoid a degradation of the ground coffee, empty
the ground coffee container after each use.
■ Always unplug from the power outlet before cleaning.
■ Never place the grinder, power supply cord or plug in water or under running water.
■ Do not use strong detergents or abrasive pads to clean the appliance.
■ Clean the lids and the ground coffee holder in warm, soapy water.
■ To remove the upper burr, hold of the upper mill and turn counter clockwise, then raise it
vertically to remove.
■ Clean the upper burr with the cleaning brush (k).
■ Carefully clean the inside of the coffee bean box with a damp cloth.
■ To replace the upper burr, insert the burr and turn it once in the clockwise direction. For
proper alignment, residual coffee and coffee grounds in the lower burr will need to be
- 13 -
cleared,
TROUBLESHOOTING GUIDE
Code in display
Trouble description
Trouble solution
E1
No bean holder or bean holder is
not connected tightly.
Assembly the bean holder or
tighten the bean holder until
the micro switch is closed,
once bean holder is close then
error code E1 in display
disappears.
Motor is overheating.
Waiting for motor cooling down
over 30 minutes and restart.
E2
Total operating is 4 cycles, it
power off automatically to protect
the unit.
Unplug power cord, waiting for
it cooling down, then restart.
Motor program is overheating.
Waiting for motor cooling down
over 30 minutes and restart.
This appliance shall not be used by children. Keep the appliance and its cord out of reach
of children.
Appliances can be used by persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and if they understand the hazards involved.
TECHNICAL PARAMETER
MODEL: BD-CG001
- 14 -
VOLTAGE: 220V
〜
240V, 50-60HZ (EC&UK
）
120V~ 60HZ (US)
POWER: 165W
CORRECT DISPOSAL OF THIS PRODUCT
THIS MARKING INDICATES THAT THIS PRODUCT SHOULD NOT BE
DISPOSED WITH OTHER HOUSEHOLD WASTES THROUGHOUT THE EU. TO
PREVENT POSSIBLE HARM TO THE ENVIRONMENT OR HUMAN HEALTH
FROM UNCONTROLLED WASTE DISPOSAL, RECYCLE IT RESPONSIBLY TO
PROMOTE THE SUSTAINABLE REUSE OF MATERIAL RESOURCES. TO
RETURN YOUR USED DEVICE, PLEASE USE THE RETURN AND
COLLECTION SYSTEMS OR CONTACT THE RETAILER WHERE THE
PRODUCT WAS PURCHASED. THEY CAN TAKE THIS PRODUCT FOR
ENVIRONMENTAL SAFE RECYCLING.
Importer: WAITCHX
Address: 250 bis boulevard Saint-Germain 75007 Paris
Importer: FREE MOOD LTD
Address: 2 Holywell Lane, London, England, EC2A 3ET
Manufacturer: Zhongshan Dippers Electric Co., Ltd.
Address: 3rd&4th floor, building #7. No.109 Liyu mountain, Longtang, Wuguishan town,
Zhongshan City, Guangdong Province, China.
MADE IN CHINA
REP
UK
EUREP UK LTD
UNIT 2264, 100 OCK STREET, ABINGDON
OXFORDSHIRE ENGLAND OX14 5DH
REP
EC
EUREP GmbH
Unterlettenweg 1a, 85051
Ingolstadt, Germany
