Table of Contents
Safety Information ..................................2
Pre-Installation .....................................9
Tools Required ....................................9
Hardware Included .................................9
Package Contents ................................10
Design Notice ....................................11
Ambient Temperature Range for operation .............11
Exhaust Hose Installation ...........................11
Installation Overview ..............................12
Installation .......................................13
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Remote Control Operation ...........................20
Quick Start Guide .................................20
Remote Control Buttons and Functions .................22
Using the Remote Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Maintenance ......................................27
Safety Precautions ................................27
Air Filter Cleaning ................................27
Unit Cleaning ....................................27
Store the unit when not in use .......................27
Care and Cleaning .................................27
Troubleshooting ...................................28
Hubspace - Application Setup ........................29
Hubspace - Voice Commands ........................30
Hubspace - Troubleshooting .........................31
Safety Information
READ THIS MANUAL
Inside you will nd many helpful hints on how to use and maintain
your air conditioner properly. Just a little preventive care on your
part can save you a great deal of time and money over the life of
your air conditioner. You’ll nd many answers to common problems
in the chart of troubleshooting tips. If you review our chart of
Troubleshooting Tips rst, you may not need to call for service at all.
To prevent injury to the user or other people and property damage,
the following instructions must be followed. Incorrect operation
due to ignoring of instructions may cause harm or damage. The
seriousness is classied by the following indications.
WARNING: This symbol indicates the possibility of death
or serious injury.
CAUTION: This symbol indicates the possibility of injury
or damage to property.
WARNING:
□ Installation must be performed according to the
installation instructions. Improper installation can cause
water leakage, electrical shock, or re.
□ Use only the included accessories and parts, and
specied tools for the installation. Using nonstandard
parts can cause water leakage, electrical shock, re,
and injury or property damage.
□ Make sure that the outlet you are using is grounded
and has the appropriate voltage. The power cord is
equipped with a three-prong grounding plug to protect
against shock. Voltage information can be found on the
nameplate of the unit.
WARNING:
□ Your unit must be used in a properly grounded wall
receptacle. If the wall receptacle you intend to use is not
adequately grounded or protected by a time delay fuse
or circuit breaker (the fuse or circuit breaker needed
is determined by the maximum current of the unit. The
maximum current is indicated on the nameplate located on
unit), have a qualied electrician install the proper receptacle.
□ Install the unit on a at, sturdy surface. Failure to do so could
result in damage or excessive noise and vibration.
□ The unit must be kept free from obstruction to ensure proper
function and to mitigate safety hazards.
□ Do not modify the length of the power cord or use an
extension cord to power the unit.
□ Do not share a single outlet with other electrical appliances.
Improper power supply can cause re or electrical shock.
□ Do not install your air conditioner in a wet room such as a
bathroom or laundry room. Too much exposure to water can
cause electrical components to short circuit.
□ Do not install the unit in a location that may be exposed to
combustible gas, as this could cause re. The unit has wheels
to facilitate moving. Make sure not to use the wheels on thick
carpet or to roll over objects, as these could cause tipping.
□ Do not operate a unit that it has been dropped or damaged.
□ The appliance with electric heater shall have at least 1 meter
space to the combustible materials.
□ Do not touch the unit with wet or damp hands or when
barefoot.
□ If the air conditioner is knocked over during use, turn off the
unit and unplug it from the main power supply immediately.
Visually inspect the unit to ensure there is no damage. If you
suspect the unit has been damaged, contact a technician or
customer service for assistance.
3 HOMEDEPOT.COM/VISSANI
Please contact 1-855-VISSANI (1-855-847-7264) for further assistance.
Safety Information (continued)
WARNING:
□ In a thunderstorm, the power must be cut off to avoid damage to the machine due to lightning.
□ Your air conditioner should be used in such a way that it is protected from moisture, e.g. condensation, splashed water, etc. Do not place or
store your air conditioner where it can fall or be pulled into water or any other liquid. Unplug immediately if it occurs.
□ All wiring must be performed strictly in accordance with the wiring diagram located inside of the unit.
□ The unit’s circuit board (PCB) is designed with a fuse to provide overcurrent protection. The specications of the fuse are printed on the
circuit board, such as: T 3.15A/250V, etc.
□ When the water drainage function is not in use, keep the upper and the lower drain plug rmly to the unit to get rid of choking. When the
drain plug is not in use, keep it carefully to prevent children from choking.
CAUTION:
□ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of
experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible
for their safety. Children should be supervised to ensure that they do not play with the appliance. Children must be supervised around the
unit at all times. (Applicable for other countries except the European Countries).
□ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualied persons in order to avoid a
hazard.
□ Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.
□ Do not remove any xed covers. Never use this appliance if it is not working properly, or if it has been dropped or damaged.
□ Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or
appliances. Arrange cord away from trafc area and where it will not be tripped over.
□ Do not operate unit with a damaged cord, plug, power fuse or circuit breaker. Discard unit or return to an authorized service facility for
examination and/or repair.
□ To reduce the risk of re or electric shock, do not use this fan with any solid-state speed control device.
□ The appliance shall be installed in accordance with national wiring regulations.
□ Contact the authorised service technician for repair or maintenance of this unit.
□ Contact the authorised installer for installation of this unit.
□ Do not cover or obstruct the inlet or outlet grilles.
□ Do not use this product for functions other than those described in this instruction manual.
□ Before cleaning, turn off the power and unplug the unit.
□ Disconnect the power if strange sounds, smell, or smoke comes from it.
□ Do not press the buttons on the control panel with anything other than your ngers.
□ Do not remove any xed covers. Never use this appliance if it is not working properly, or if it has been dropped or damaged.
□ Do not operate or stop the unit by inserting or pulling out the power cord plug.
□ Do not use hazardous chemicals to clean or come into contact with the unit. Do not use the unit in the presence of inammable substances
or vapor such as alcohol, insecticides, petrol,etc.
□ Always transport your air conditioner in a vertical position and stand on a stable, level surface during use.
□ Always contact a qualied person to carry out repairs. If the damaged power supply cord must be replaced with a new power supply cord
obtained from the product manufacturer and not repaired.
□ Hold the plug by the head of the power plug when taking it out.
□ Turn off the product when not in use.
4
Safety Information (continued)
ELECTRONIC WORK
WARNING: Before performing any electrical or wiring work, turn off the main power to the system.
NOTE: Please strictly follow the wiring label attached to the machine for all wiring connections. The wiring diagram may vary for different
unit. Please refer to the wiring diagram on the machine you have purchased. The above wiring diagram is a simplied version for preliminary
illustration purposes only.
Main Control
Compressor
Fan Motor
Display
Power
Supply
L/AC L/L1/L-IN
N/AC N/L2/N-IN
Other
WARNING FOR USING R32 REFRIGERANT:
□ Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
□ The appliance shall be stored in a room without continuously operating ignition sources (for example: open ames, an operating gas
appliance or an operating electric heater).
□ Do not pierce or burn.
□ Be aware that the refrigerants may not contain an odor.
□ Appliance should be installed, operated and stored in a room with a oor area according to the amount of refrigerant to be charged. For
specic information on the type of gas and the amount, please refer to the relevant label on the unit itself. When there are differences
between the label and the manual on the Min. room area description, the description on label shall prevail.
□ Appliance shall be installed, operated, and stored in a room with a oor area larger than 4 m.
□ Appliance shall not be installed in an unventilated space, if that space is smaller than 4 m.
□ No any open re or device like switch which may generate spark/arcing shall be around appliance to avoid causing ignition of the
ammable refrigerant used. Please follow the instructions carefully when storing or maintaining the appliance to prevent mechanical
damage from occurring.
5 HOMEDEPOT.COM/VISSANI
Please contact 1-855-VISSANI (1-855-847-7264) for further assistance.
Safety Information (continued)
CAUTION: Risk of re/ammable materials.
Explanation of symbols displayed on the unit:
CAUTION This symbol shows that the operation manual should be read carefully.
CAUTION This symbol shows that service personnel should be handling this equipment with reference to the
installation manual.
CAUTION This symbol shows that information is available such as the operating manual or installation manual.
WARNINGS: (FOR UNITS USING R32 REFRIGERANT)
□ Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of
other skilled personnel shall be carried out under the supervision of the person competent in the use of ammable refrigerants.
□ DO NOT modify the length of the power cord or use an extension cord to power the unit.
□ DO NOT share a single outlet with other electrical appliances. Improper power supply can cause re or electrical shock.
□ Please follow the instruction carefully to handle, install, clear, service the appliance to avoid any damage or hazard.
□ When maintaining or disposing the appliance, the refrigerant shall be recovered properly, shall not discharge to air directly.
□ Compliance with national gas regulations shall be observed.
□ Keep ventilation openings clear of obstruction.
□ The appliance shall be stored so as to prevent mechanical damage from occurring.
□ The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specied for operation.
□ Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certicate from an industry-
accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry
recognized assessment specication. All training shall follow the ANNEX HH requirements of UL 60335-2-40 4th Edition.
Examples for such working procedures are:
• breaking into the refrigerating circuit;
• opening of sealed components;
• opening of ventilated enclosures.
TRANSPORT OF EQUIPMENT CONTAINING FLAMMABLE REFRIGERANTS
See transport regulations.
MARKING OF EQUIPMENT USING SIGNS
See local regulations.
DISPOSAL OF EQUIPMENT USING FLAMMABLE REFRIGERANTS
See national regulations.
STORAGE OF EQUIPMENT/APPLIANCES
The storage of the appliance should be in accordance with the applicable regulations or instructions, whichever is more stringent.
STORAGE OF PACKED (UNSOLD) EQUIPMENT
Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a
leak of the refrigerant charge. The maximum number of pieces of equipment permitted to be stored together will be determined by local
regulations.
6
Safety Information (continued)
INFORMATION ON SERVICING
1. Checks to the area: Prior to beginning work on systems containing ammable refrigerants, safety checks are necessary to ensure
that the risk of ignition is minimized. For repair to the refrigerating system, the following precautions shall be complied with prior to
conducting work on the system.
2. Work procedure: Work shall be undertaken under a controlled procedure so as to minimize the risk of a ammable gas or vapor being
present while the work is being performed.
3. General work area: All maintenance staff and others working in the local area shall be instructed on the nature of work being carried
out. Work in conned spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within
the area have been made safe by control of ammable material.
4. Checking for presence of refrigerant: The area shall be checked with an appropriate refrigerating detector prior to and during work, to
ensure the technician is aware of potentially ammable atmospheres. Ensure that the leak detection equipment being used is suitable
for use with ammable refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.
5. Presence of re extinguisher: If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate
re extinguishing equipment shall be available to hand. Have a dry powder or CO
2
re extinguisher adjacent to the charging area.
6. No ignition sources: No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that
contains or has contained ammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of re
or explosion. All possible ignition sources, including cigarette smoking, should be kept sufciently far away from the site of installation,
repairing, removing and disposal, during which ammable refrigerant can possibly be released to the surrounding space. Prior to work
taking place, the area around the equipment is to be surveyed to make sure that there are no ammable hazards or ignition risks. No
Smoking signs shall be displayed.
7. Ventilated area: Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any
hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse
any released refrigerant and preferably expel it externally into the atmosphere.
8. Checks to the refrigeration equipment: Where electrical components are being changed, they shall be t for the purpose and to the
correct specications. At all times the manufacturer’s maintenance and service guidelines shall be followed. If in doubt consult
the manufacturer’s technical department for assistance. The following checks shall be applied to installations using ammable
refrigerants: The charge size is in accordance with the room size within which the refrigerant containing parts are installed. The
ventilation machinery and outlets are operating adequately and are not obstructed. If an indirect refrigerating circuit is being used,
the secondary circuit shall be checked for the presence of refrigerant. Marking to the equipment continues to be visible and legible.
Markings and signs that are illegible shall be corrected. Refrigeration pipe or components are installed in a position where they
are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are
constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.
9. Checks to electrical devices: Repair and maintenance to electrical components shall include initial safety checks and component
inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until
it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate
temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised. Initial safety checks
shall include: That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking. That no live electrical
components and wiring are exposed while charging, recovering or purging the system. That there is continuity of earth bonding.
SEALED ELECTRICAL COMPONENTS SHALL BE REPLACED.
INTRINSICALLY SAFE COMPONENTS MUST BE REPLACED.
7 HOMEDEPOT.COM/VISSANI
Please contact 1-855-VISSANI (1-855-847-7264) for further assistance.
Safety Information (continued)
CABLING
Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental
effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.
DETECTION OF FLAMMABLE REFRIGERANTS
Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch
(or any other detector using a naked ame) shall not be used. The following leak detection methods are deemed acceptable for systems
containing ammable refrigerants. Electronic leak detectors shall be used to detect ammable refrigerants, but the sensitivity may not be
adequate, or may need recalibration. (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a
potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the
refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25% maximum) is conrmed. Leak
detection uids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine
may react with the refrigerant and corrode the copper pipework. If a leak is suspected, all naked ames shall be removed/extinguished.
If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means
of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both
before and during the brazing process. Removal of refrigerant shall be according to Removal and evacuation.
REMOVAL AND EVACUATION
When breaking into the refrigerant circuit to make repairs—or for any other purpose—conventional procedures shall be used. However, for
ammable refrigerants it is important that best practice be followed, since ammability is a consideration. The following procedure shall be
adhered to:
□ Safely remove refrigerant following local and national regulations;
□ Evacuate;
□ Purge the circuit with inert gas (optional for A2L);
□ Evacuate (optional for A2L);
□ Continuously ush or purge with inert gas when using ame to open circuit;
□ Open the circuit.
The refrigerant charge shall be recovered into the correct recovery cylinders if venting is not allowed by local and national codes. For
appliances containing ammable refrigerants, the system shall be purged with oxygen-free nitrogen ammable refrigerants. This process
might compressed air or oxygen shall not be used for purging refrigerant systems.
For appliances containing ammable refrigerants, refrigerants purging shall be achieved by breaking the vacuum in the system with
oxygen-free nitrogen and continuing to ll until the working pressure is achieved, then venting to atmosphere, and nally pulling down to a
vacuum (optional for A2L). This process shall be repeated until no refrigerant is within the system (optional for A2L). When the nal oxygen-
free nitrogen charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. The outlet for the
vacuum pump shall not be close to any potential ignition sources, and ventilation shall be available
CHARGING PROCEDURES
In addition to conventional charging procedures, the following requirements shall be followed.
Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as
possible to minimize the amount of refrigerant contained in them. Cylinders shall be kept in an appropriate position according to the
instructions. Ensure that the refrigeration system is earthed prior to charging the system with refrigerant. Label the system when charging
is complete (if not already). Extreme care shall be taken not to overll the refrigeration system. Prior to recharging the system it shall be
pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning. A follow-up leak test shall
be carried out prior to leaving the site.
8
Safety Information (continued)
DECOMMISSIONING
Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is
recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall
be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task
is commenced.
1. Become familiar with the equipment and its operation.
2. Isolate system electrically.
3. Before attempting the procedure ensure that:
□ Mechanical handling equipment is available, if required, for handling refrigerant cylinders.
□ All personal protective equipment is available and being used correctly.
□ The recovery process is supervised at all times by a competent person.
□ Recovery equipment and cylinders conform to the appropriate standards.
4. Pump down refrigerant system, if possible.
5. If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
6. Make sure that cylinder is situated on the scales before recovery takes place.
7. Start the recovery machine and operate in accordance with manufacturer’s instructions.
8. Do not overll cylinders. (No more than 80% volume liquid charge).
9. Do not exceed the maximum working pressure of the cylinder, even temporarily.
10. When the cylinders have been lled correctly and the process completed, make sure that the cylinders and the equipment are removed
from site promptly and all isolation valves on the equipment are closed off.
11. Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.
LABELING
Equipment shall be labeled stating that it has been decommissioned and emptied of refrigerant. The label shall be dated and signed. Ensure
that there are labels on the equipment stating the equipment contains ammable refrigerant.
RECOVERY
When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants
are removed safely.
When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the
correct number of cylinders for holding the total system charge is available. All cylinders to be used are designated for the recovered
refrigerant and labeled for that refrigerant (i.e., special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure
relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before
recovery occurs.
The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be
suitable for the recovery of ammable refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working
order.
Hoses shall be complete with leak-free disconnect couplings and in good condition.
Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated
electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt.
The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer
Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be
removed, ensure that they have been evacuated to an acceptable level to make certain that ammable refrigerant does not remain within
the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the
compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.
9 HOMEDEPOT.COM/VISSANI
Please contact 1-855-VISSANI (1-855-847-7264) for further assistance.
Pre-Installation
TOOLS REQUIRED
Phillips
screwdriver
Measuring tape
or ruler
Scissors or knife
Saw
(Used on some models to shorten
window adaptor for narrow windows)

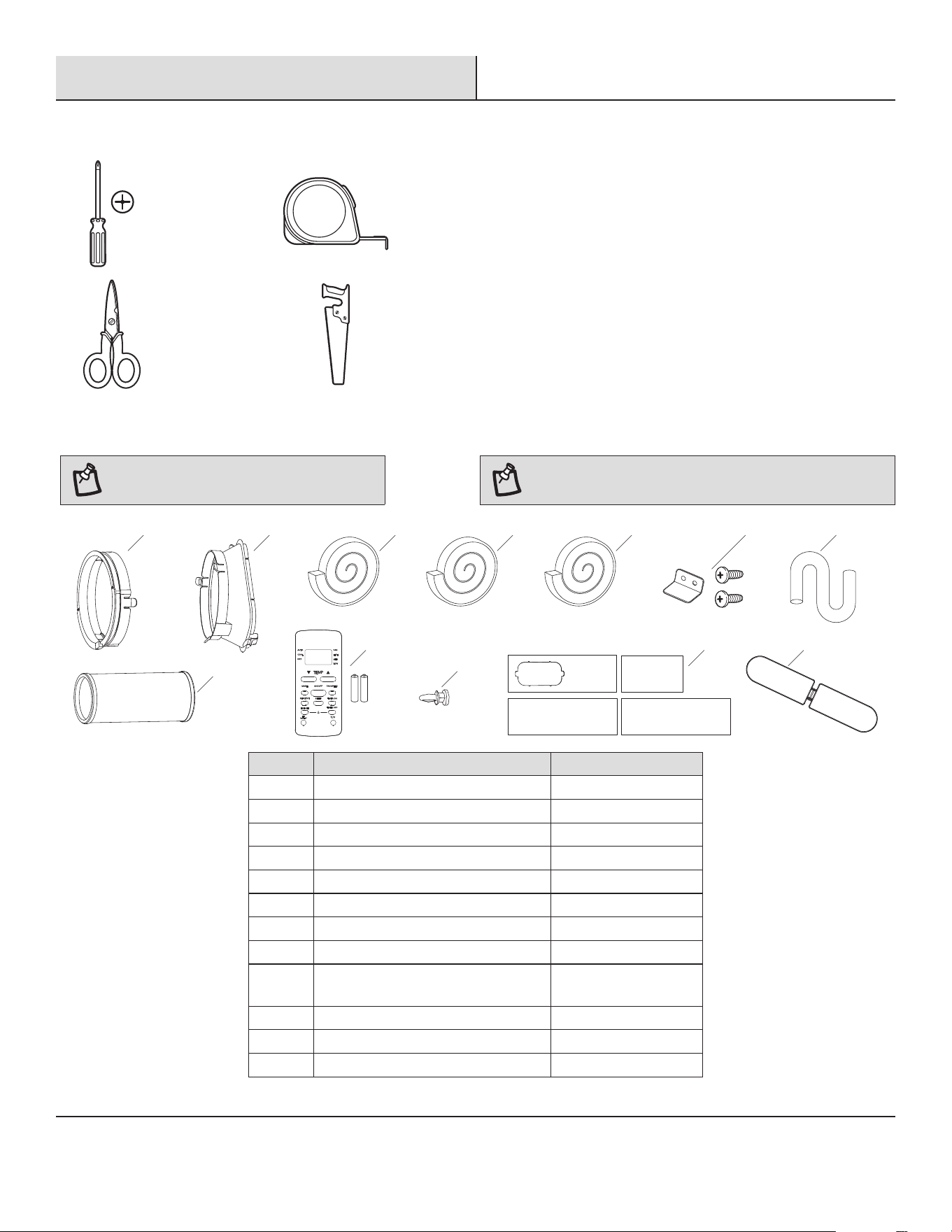

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
NOTE: This Window Installation Kit ts windows 19.4” - 62.2”
(49.3 - 158.1cm) and can be shortened for smaller windows.
AA BB CC DD EE
KK LL
JJ
II
HH
FF GG
Part Description Quantity
AA Unit adaptor 1
BB Window slider adaptor 1
CC Foam seal A (Adhesive) 4
DD Foam seal B (Adhesive) 2
EE Foam seal C (Non-adhesive) 2
FF Security bracket and two (2) screws 1 set
GG Drain hose 1
HH Exhaust hose 1
II Remote control and batteries
(only for remote control models)
1 set
JJ Bolt 3
KK Window sliders 1
LL Power cord buckle 1
10
Pre-Installation (continued)
PACKAGE CONTENTS
A
Front Rear
B
D
F
G
L
O
H
I
J
K
N
M
C
E

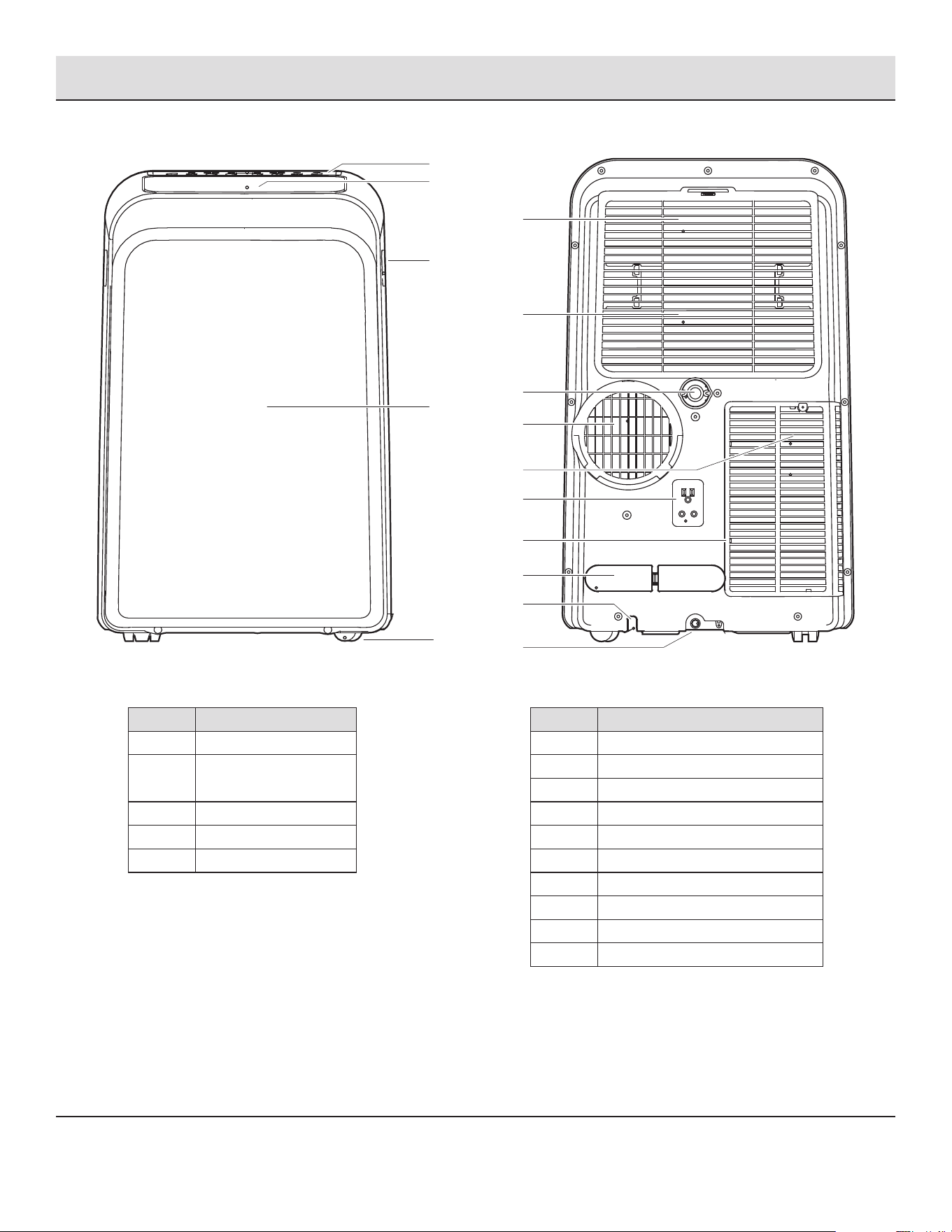

Part Description Part Description
A Control panel F Upper air lter (behind the grille)
B Horizontal louver blade
(swing automatically)
G Upper air intake
H Drain outlet
C Handle (both sides) I Air outlet
D Panel J Lower air lter
E Caster K Power plug socket
L Lower air intake
M Power cord buckle
N Power cord outlet
O Bottom tray drain outlet
11 HOMEDEPOT.COM/VISSANI
Please contact 1-855-VISSANI (1-855-847-7264) for further assistance.
Pre-Installation (continued)
DESIGN NOTICE
In order to ensure the optimal performance of our products, the design specications of the unit and remote control are subject to change
without prior notice. All illustrations in this manual are for explanation purpose only. Your machine may be slightly different. The actual
shape shall prevail. The unit can be controlled by the unit control panel alone or with the remote controller.
AMBIENT TEMPERATURE RANGE FOR OPERATION
MODE Temperature Range
Cool 17-35°C (62-95°F)
Dry 13-35°C (55-95°F)

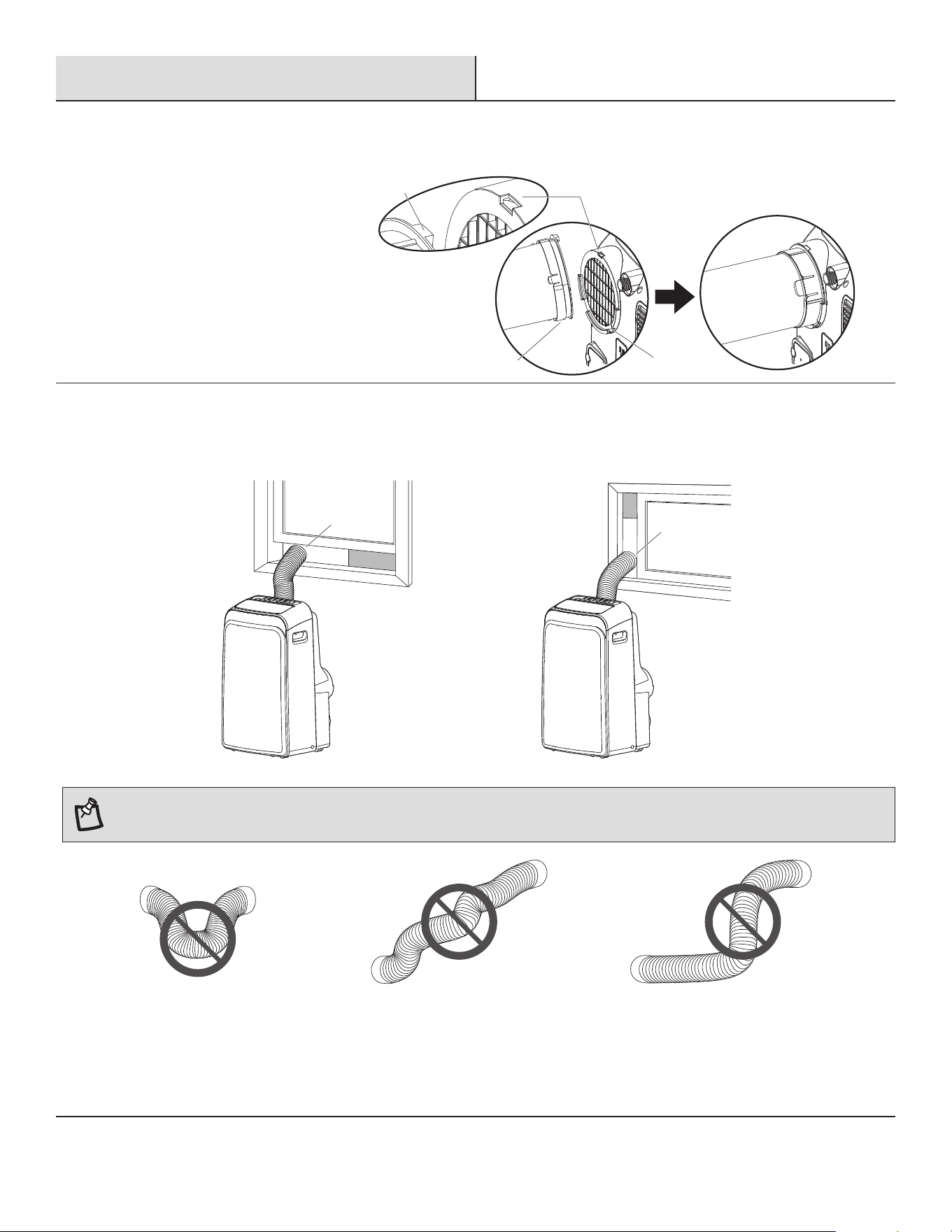

EXHAUST HOSE INSTALLATION
The exhaust hose and adaptor must be installed or removed in accordance with the usage mode. For COOL, or AUTO mode exhaust hose
must be installed. For FAN, or DRY mode exhaust hose must be removed.
19.7 in
(50 cm)
12 in
(30 cm)
19.7 in
(50 cm)
12 in
(30 cm)

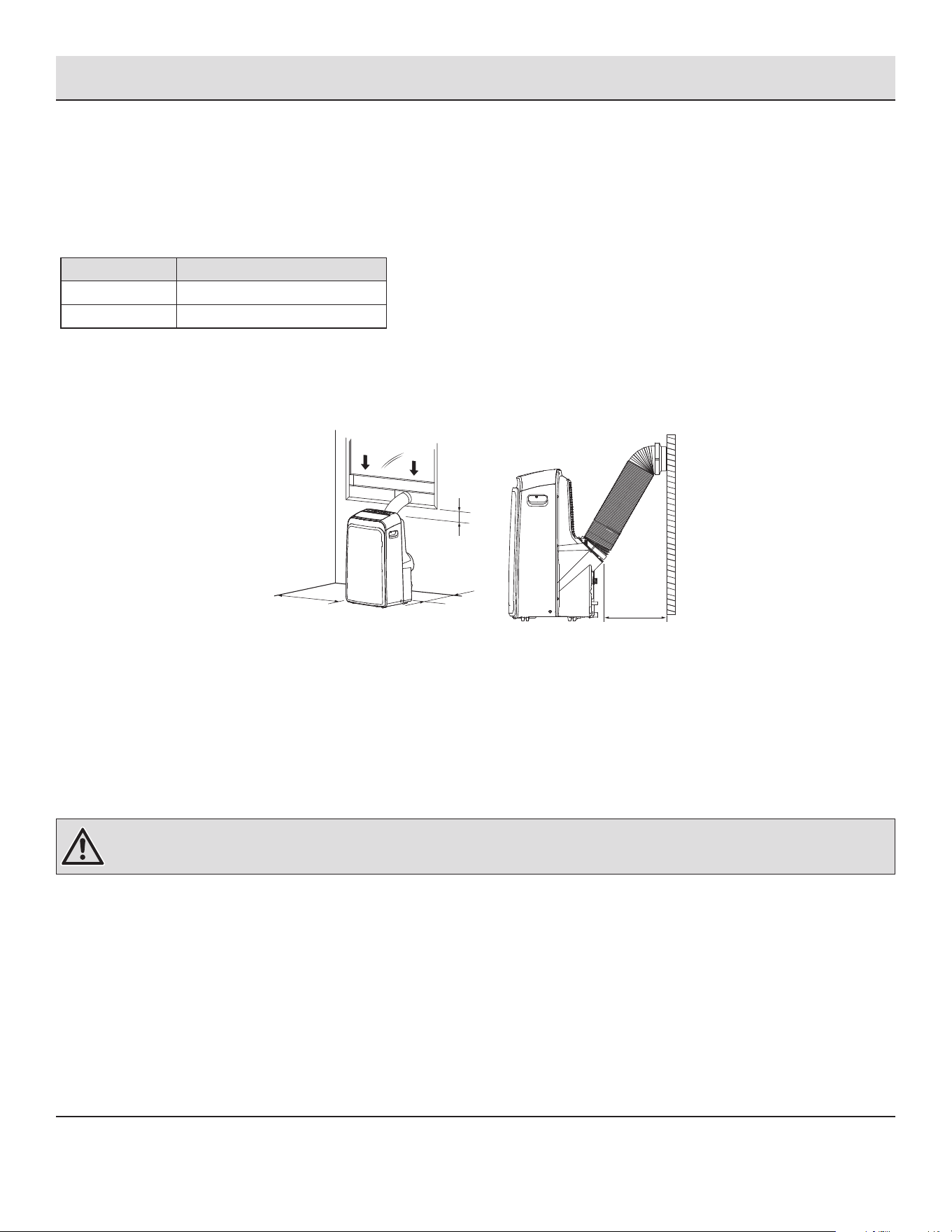

Your installation location should meet the following requirements:
□ Make sure that you install your unit on an even surface to minimize noise and vibration.
□ The unit must be installed near a grounded plug, and the collection tray drain (found on the back of the unit) must be accessible.
□ The unit should be located at least 12 in. (30 cm) from the nearest wall to ensure proper air conditioning. The horizontal louver blade
should be at least 19.7 in. (50 cm) away from obstacles.
□ DO NOT cover the Intakes, Outlets or Remote Signal Receptor of the unit, as this could cause damage to the unit.
WARNING: This air-conditioning unit is a hermetically sealed unit that contains uorinated gasses. For specic information on the type of
gas and the amount, please refer to the relevant label on the unit itself. Service, maintenance and repair of this unit must be performed by a
certied technician. Product recycling must be done according to local regulations.
12
Pre-Installation (continued)
HOW TO STAY COOL WITH A NEW PORTABLE AIR CONDITIONER
Because of a new federal test procedure for Portable Air Conditioners, you may notice that the cooling capacity claims on portable air
conditioner packaging are signicantly lower than that of models produced prior to 2017. This is due to changes in the test procedure, not
to the portable air conditioners themselves.
WHAT SHOULD I LOOK FOR FIRST WHEN PURCHASING A PORTABLE AIR CONDITIONER?
The right air conditioner helps you cool a room efciently. An undersized unit won’t cool adequately while one that’s too large will not
remove enough humidity, leaving the air feeling damp. To nd the proper air conditioner, determine the square footage of the room you
want to cool by multiplying the room length by its width. You also need to know the air conditioner’s BTU (British Thermal Unit) rating, which
indicates the amount of heat it can remove from a room. A higher number means more cooling power for a larger room. (Be sure you are
comparing only newer models to each other- older models may appear to have a higher capacity, but are actually the same). Be sure to
“size up” if your portable air conditioner will be placed in a very sunny room, in a kitchen, or in a room with high ceilings. After you’ve found
the right cooling capacity or your room, you can look at other features.
WHY IS THE COOLING CAPACITY LOWER ON NEWER MODELS THAN ON OLDER UNITS?
WHAT IS SACC?
SACC is the representative value of Seasonally Adjusted Cooling Capacity, in Btu/h, as determined in accordance with the Department of
Energy (DOE) test procedure at title 10 Code of Federal Regulations (CFR) 430, subpart B, appendix CC and applicable sampling plans.

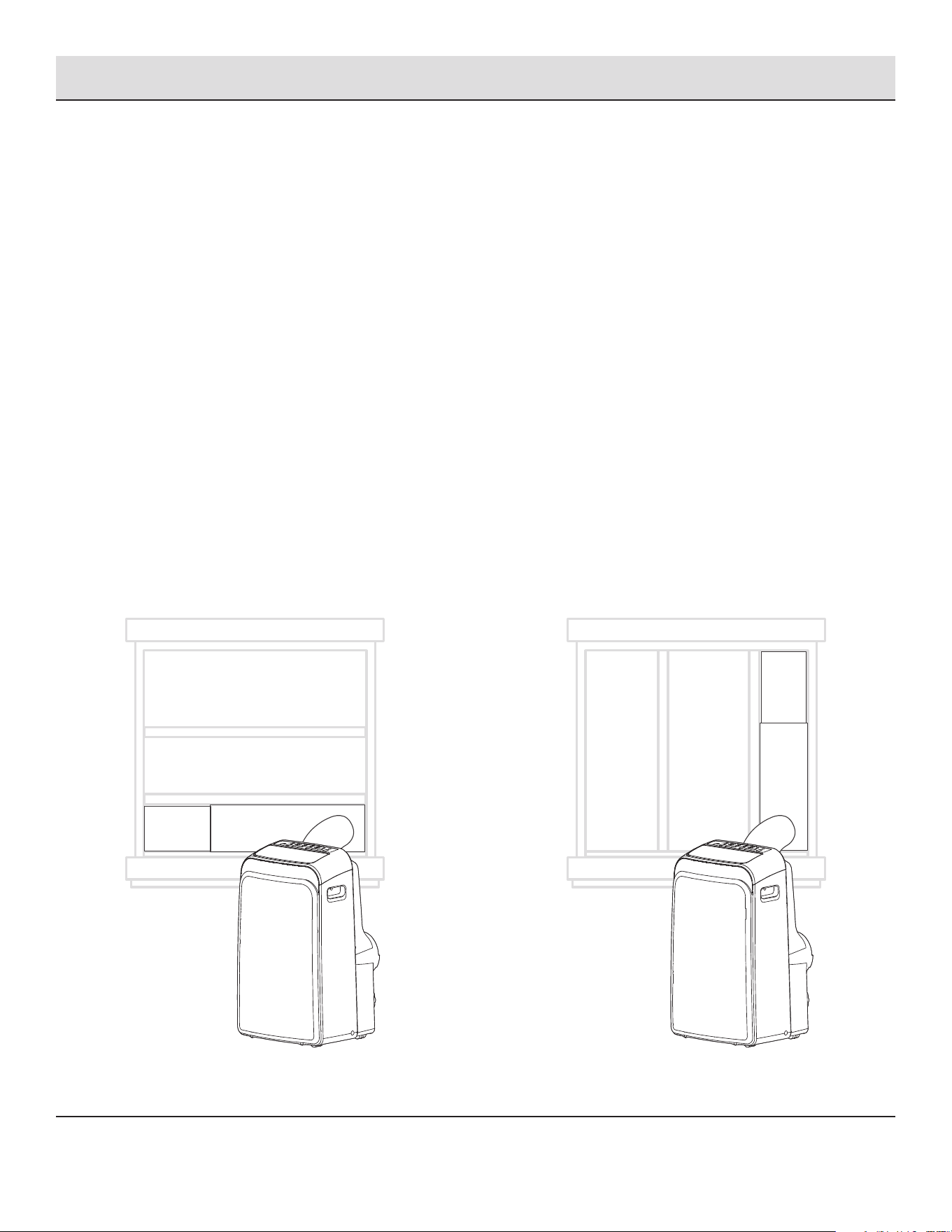

INSTALLATION OVERVIEW
Hung Window
Installation
Sliding Window
Installation
Federal regulations require manufacturers to calculate cooling capacity based on a specic test procedure. Models manufactured before
2017 were tested under a different procedure and cooling capacity is measured differently than in prior years’ models. So, while the BTUs
may be lower, the actual cooling capacity of the air conditioners has not changed.
13 HOMEDEPOT.COM/VISSANI
Please contact 1-855-VISSANI (1-855-847-7264) for further assistance.
Installation
1

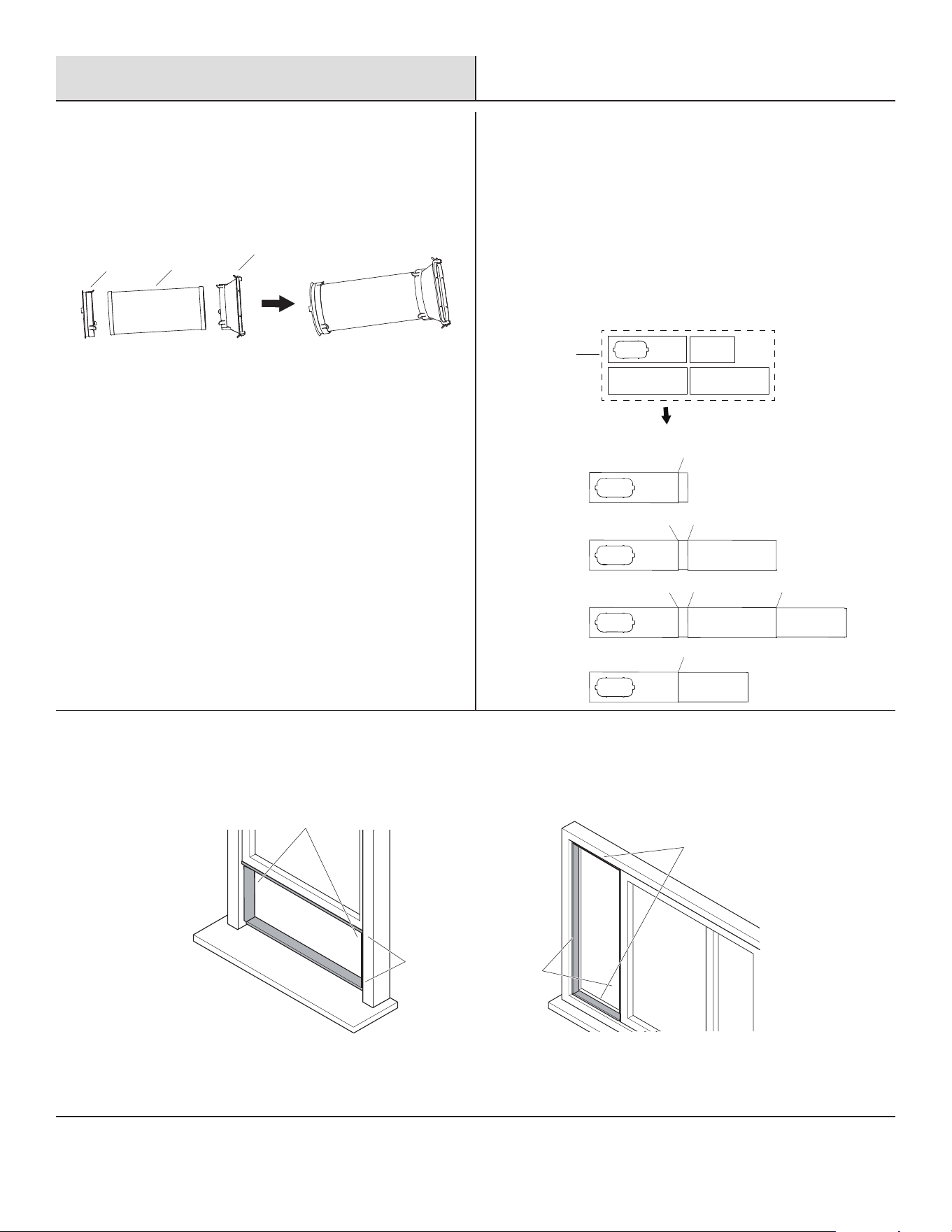

Preparing the Exhaust Hose Assembly
□ Press the exhaust hose (HH) into the window slider adapter
(BB) and the unit adapter (AA) until the plastic clips click
onto the hose.
AA
HH
BB
2
Preparing the Adjustable Window
Slider
□ Depending on the size of your window, adjust the size of the
window slider.
□ If the length of the window requires two or three window
sliders, use the bolt(s) (JJ) to fasten the window sliders once
they are adjusted to the proper length.
1+2
JJ
1+2+3
JJ
JJ
1+2+3+4
JJ
JJJJ
1+4
JJ
KK
After assembly
Before assembly
3
Installing Adhesive Foam Seal
□ Cut the adhesive foam seal A (CC) and B (DD) strips to the proper lengths, and attach them to the window sash and frame.
CC
CC
DD
DD
14
Installation (continued)
4a

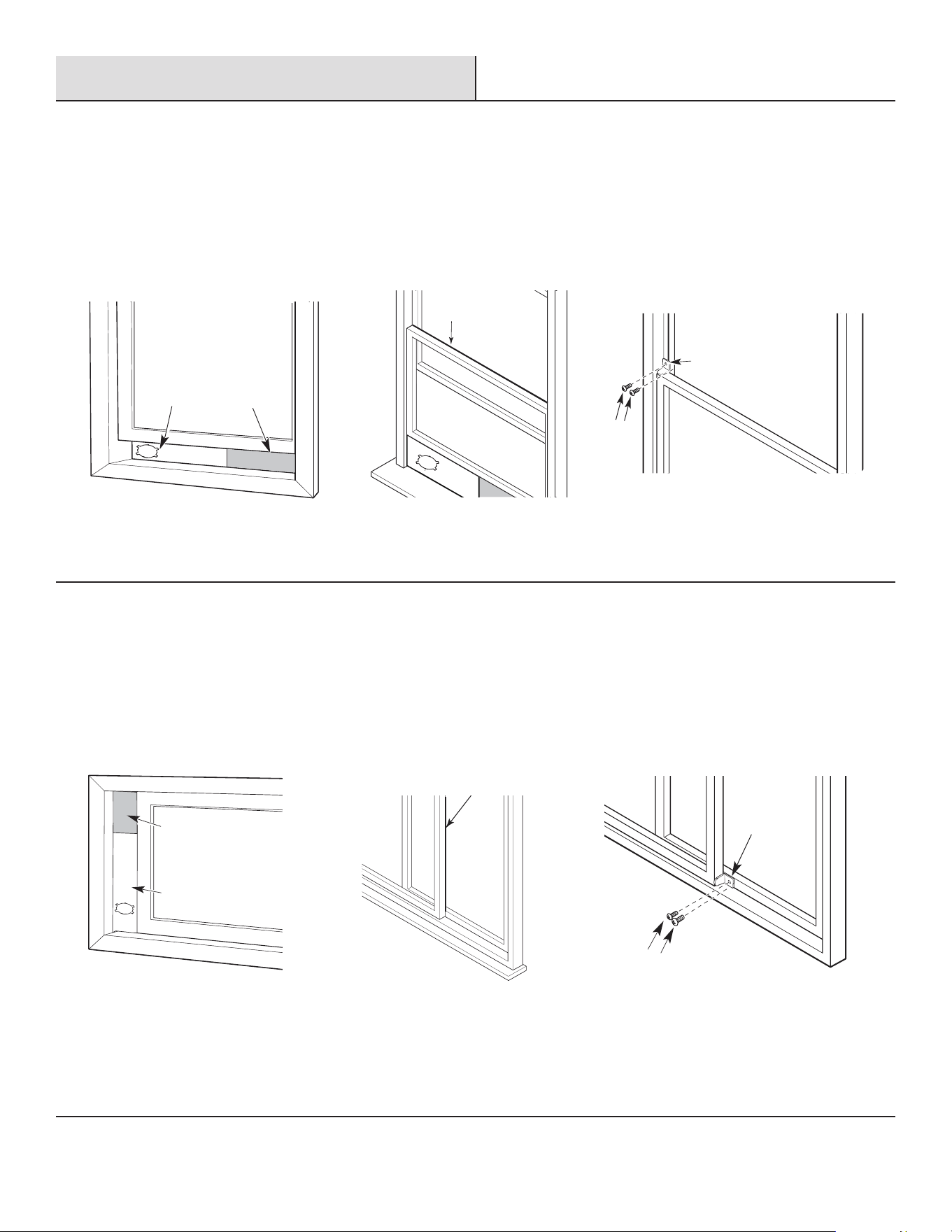

Installing Window Slider (Hung Window Installation)
□ Insert the window slider (KK) assembly into the window opening.
□ Cut the non-adhesive foam seal C (EE) strip to match the width of the window. Insert the seal between the glass and the window
frame to prevent air and insects from getting into the room.
□ Install the security bracket (FF) with 2 screws as shown. (Optional)
FF
FF
KK
KK
EE
4b
Installing Window Slider (Sliding Window Installation)
□ Insert the window slider (KK) assembly into the window opening.
□ Cut the non-adhesive foam seal C (EE) strip to match the height of the window. Insert the seal between the glass and the window
frame to prevent air and insects from getting into the room.
□ Install the security bracket (FF) with 2 screws as shown. (Optional)
KK
EE
FF
FF
KK
15 HOMEDEPOT.COM/VISSANI
Please contact 1-855-VISSANI (1-855-847-7264) for further assistance.
Installation (continued)
5
Installing the Exhaust Hose Assembly to the Unit
□ Insert the unit adapter side of the
exhaust hose assembly into the
groove (1) of the air outlet on the
back of the unit. Align the hook (2)
of the unit adapter with the seat
(3) on the air outlet and slide the
assembly down until seated.
BB
1
2
3
6
Install Window Slider Adaptor
□ Insert the window slider adaptor (BB) into the hole of the window slider (KK).
BB
BB
NOTE: To ensure proper functioning, DO NOT overextend or bend the hose. Make sure there are no obstacles within 1.6 ft (0.5 m) of the air
outlet of the exhaust hose for the exhaust system to properly function. All illustrations in this manual are for explanation purposes only. Your air
conditioner may slightly differ.
16
Operation
NOTE: The following control panels are for explanation purpose only. The control panel of the unit you purchased may be slightly different
according to the models. Your machine may not contain some indicators or buttons. The actual shape shall prevail.
1

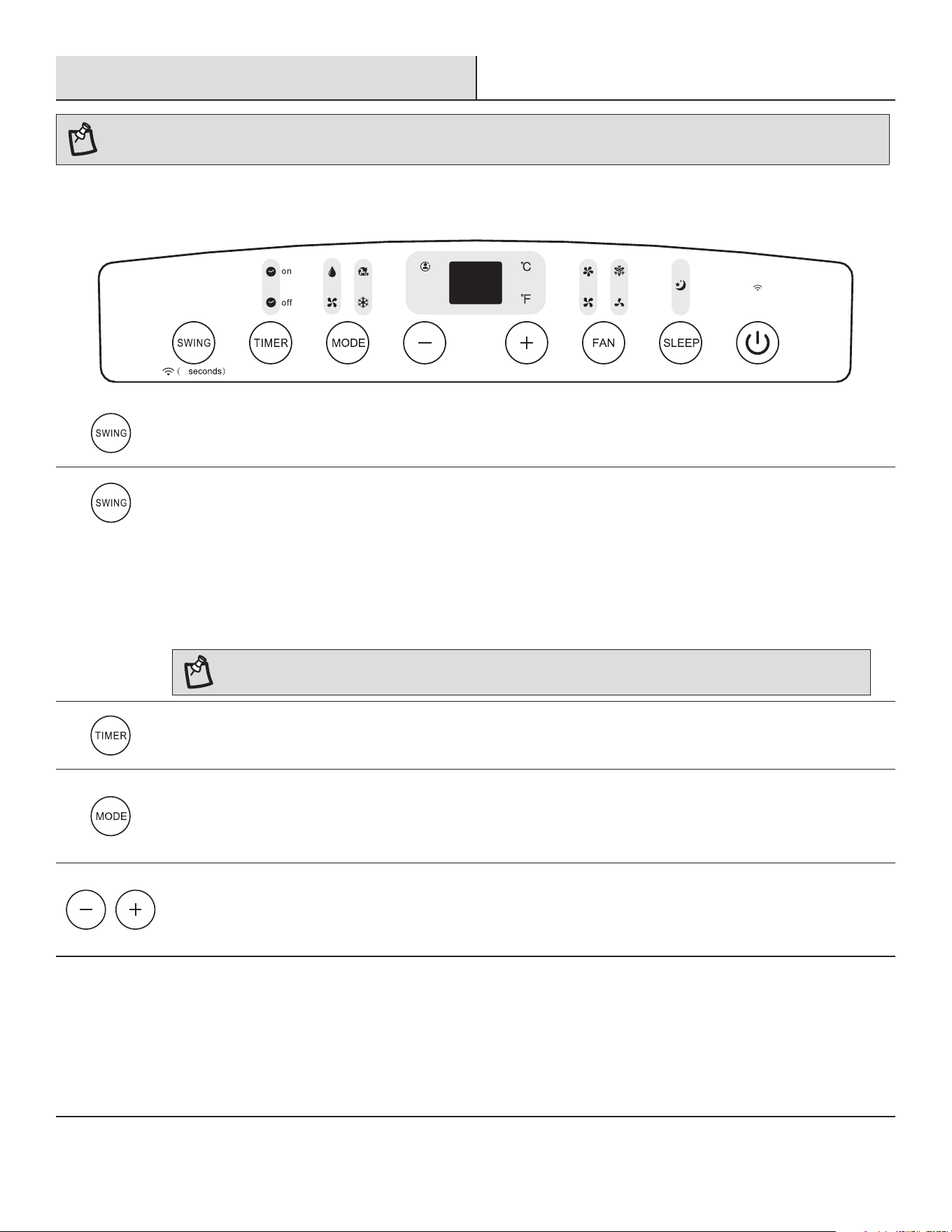

Using the Control Panel
CONSTANT FAN (Press 3s)
CONSTANT FAN (Press 3s)
SWING Button
Used to initiate the Auto Swing feature. When the operation is ON, pressing the SWING button can stop the louver at the
desired angle.
CONSTANT FAN (Press 3s)
Wireless Button
Also used to initiate the Wireless connection mode. To initiate the Wireless connection mode, power on the air
If the connection is successful, the unit will exit Wireless connection mode and illuminate the Wireless LED. If the
connection fails, the unit will exit Wireless connection mode automatically after 8 minutes and the Wireless LED does
not illuminate.
NOTE: The Wireless connection process must be completed within 8 minutes after powering the air conditioner on.
CONSTANT FAN (Press 3s)
TIMER Button
Used to initiate the AUTO ON start time and AUTO OFF stop time program. The timer on or off light will illuminate
depending on the selected setting.
CONSTANT FAN (Press 3s)
MODE Button
Selects the desired operating mode. Each time you press the button, a mode is selected in a sequence that goes from
AUTO, COOL, DRY and FAN.
The mode light illuminates and indicates the selected mode.
CONSTANT FAN (Press 3s)
CONSTANT FAN (Press 3s)
UP and DOWN Buttons
Used to increase/decrease temperature settings in 1°C/1°F increments in a range of 17°C/62°F to 30°C/86°F or the
TIMER setting in range of 0 ~ 24hrs.
To change between °F or °C, simultaneously press and hold the Up and Down buttons for 3 seconds.
5
conditioner then press the SWING button for 5 seconds.
The LED DISPLAY will show ‘AP’ to indicate the unit is in Wireless connection mode. Refer to the Hubspace Application
Setup to nish the connection process.
17 HOMEDEPOT.COM/VISSANI
Please contact 1-855-VISSANI (1-855-847-7264) for further assistance.
Operation (continued)
1
Using the Control Panel (continued)
CONSTANT FAN (Press 3s)
FAN Button
Controls the fan speed. Press to control the fan speed in four steps - LOW, MED, HIGH and AUTO. The selected fan speed
light (except AUTO) will illuminate. When AUTO is selected, no lights will illuminate.
NOTE: Applicable to models with the Constant Fan feature.
In COOL or DRY mode, press the button for 3 seconds to turn on or off the constant fan function. When the function is
turned on, the constant fan light will illuminate, identifying the fan continuous run for cooling. When the function is
turned off, the constant fan light will go out, identifying the fan cycle run with compressor stop.
CONSTANT FAN (Press 3s)
SLEEP Button
CONSTANT FAN (Press 3s)
POWER Button
Used to turn the unit on or off.
CONSTANT FAN (Press 3s)

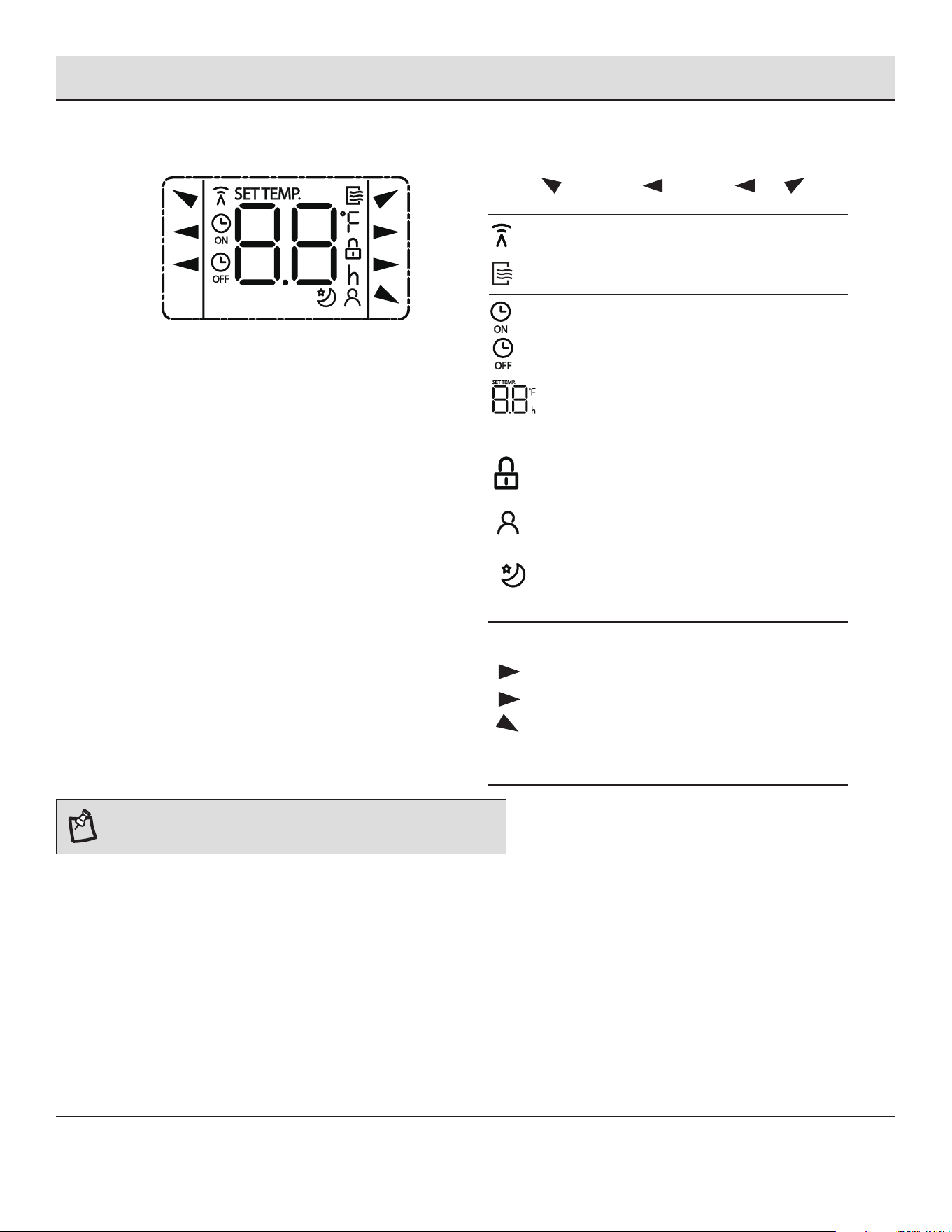

LED Display
Shows the set temperature in °C or °F and the Auto-timer settings. While on DRY and FAN modes, it shows the room
temperature.
Shows Error codes:
□ E1 — Room temperature sensor error.
□ E2 — Evaporator temperature sensor error.
□ E3 — Condenser temperature sensor error (on some models).
□ E4 — Display panel communication error.
Shows protection code:
□ P1 — Bottom tray is full. Connect the drain hose and drain the collected water away.
If protection repeats, call for service.
NOTE: When one of the above malfunctions occurs, turn off the unit and check for any
obstructions. Restart the Unit. If the malfunction persists, turn off the unit and unplug the power
cord. Contact the manufacturer or its service agents or a similar qualied person for service.
Sleep Mode runs the product for 8 hours using lower fan speeds and automatic temperature adjustments, and then turns off.
18
Operation (continued)
2
Operating Instructions
COOL OPERATION
□ Press the “MODE” button until the “COOL” indicator light
comes on.
□ Press the Up (+) or Down (-) buttons to select your desired
room temperature. The temperature can be set within a range
of 17°C~30°C/62°F~86°F.
□ Press the “FAN SPEED” button to choose the fan speed.

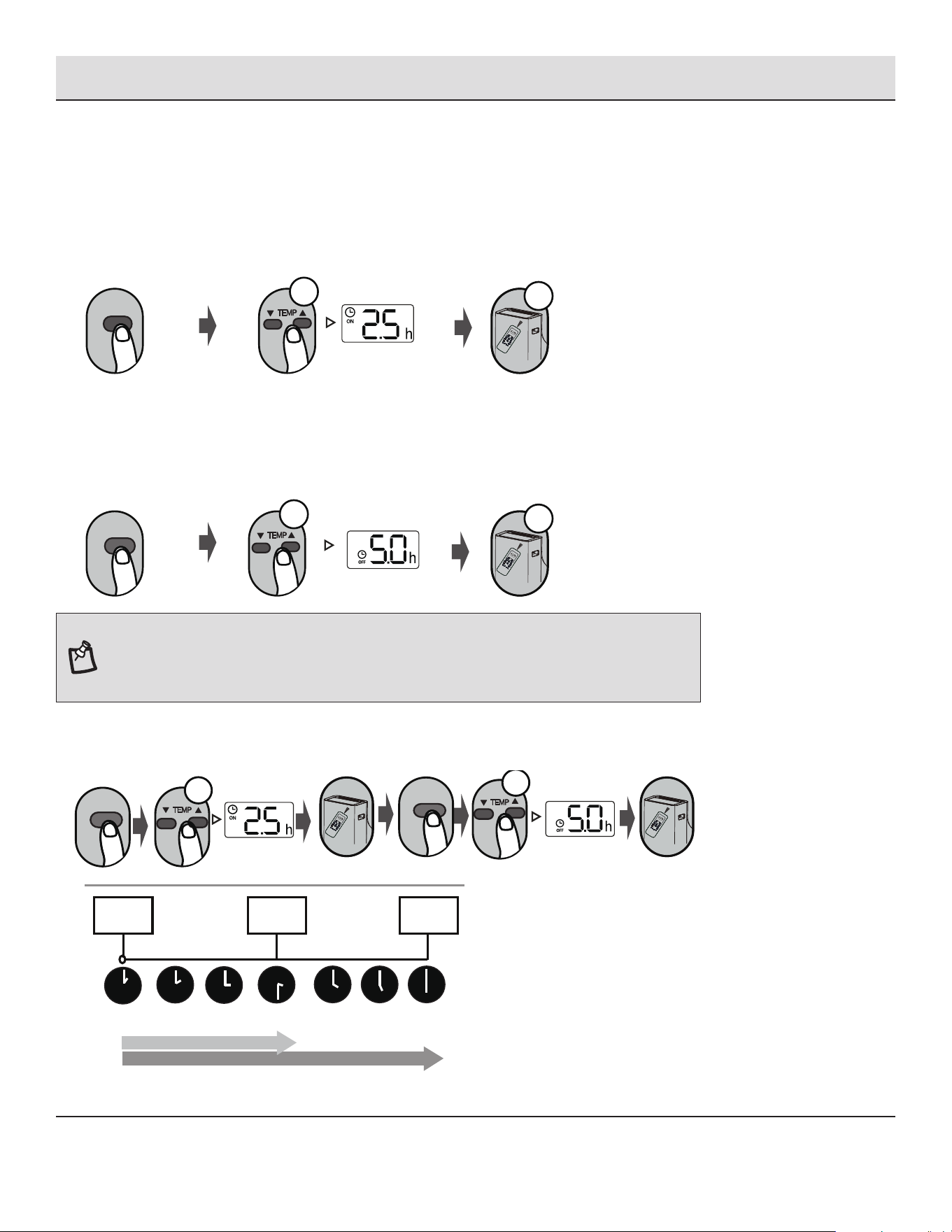

TIMER: AUTO START/STOP OPERATION
□ When the unit is on, pressing the Timer button will initiate the
Auto stop program. The TIMER OFF indicator light illuminates.
Press the Up or Down button to select the desired time.
Press the TIMER button again within 5 seconds. The Auto
start program is initiated and the TIMER ON indicator light
illuminates. Press the up or down button to select the desired
Auto start time.
□ When the unit is off, press the Timer button to initiate the
Auto start program. Pressing it again within ve seconds will
initiate the Auto stop program.
□ Press or hold the Up or Down button to change the Auto
time by 0.5 hour increments, up to 10 hours, then at 1 hour
increments up to 24 hours. The control will count down the
time remaining until start.
□ The system will automatically revert back to display the
previous temperature setting if there is no operation within 5
seconds.
□ Turning the unit ON or OFF at any time or adjusting the timer
setting to 0.0 will cancel the Auto Start/Stop timer program.
□ Should a malfunction occur, the Auto Start/Stop timed program
will be cancelled.
DRY OPERATION
□ Press the “MODE” button until the “DRY” indicator light comes
on.
□ While in this mode, you cannot select a fan speed or adjust the
temperature. The fan motor operates at LOW speed.
□ Keep windows and doors closed for the best dehumidifying
effect.
AUTO OPERATION
□ When you set the air conditioner to AUTO mode, it will
automatically select cooling, heating (cooling only models
excluded), or fan only operation depending on what
temperature you have selected and the current room
temperature.
□ The air conditioner will automatically control the room
temperature based on the desired temperature set point.
□ Under AUTO mode, you cannot select the fan speed.
FAN OPERATION
□ Press the “MODE” button until the ”FAN“ indicator light
comeson.
□ Press the “FAN SPEED” button to choose the fan speed. The
temperature cannot be adjusted.

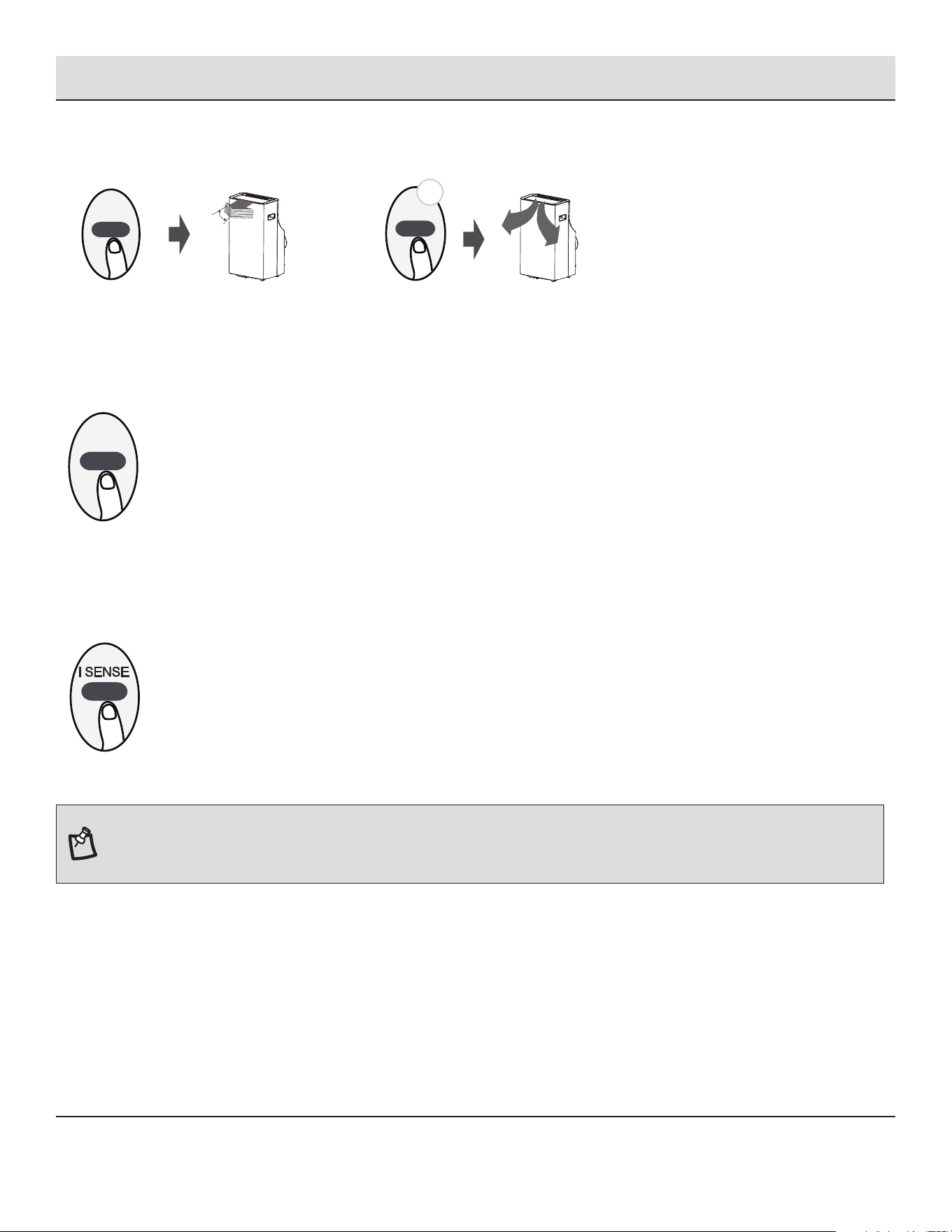

I SENSE FEATURE
To activate the I SENSE feature, point the remote control towards
the unit and press the I SENSE button. The remote’s display will
show actual temperature at its location and must be within 26
feet of the air conditioner to work. The remote control will send
this signal to the air conditioner every 3 minutes until the I SENSE
button is pressed again. If the unit does not receive the I SENSE
signal during any 7 minutes interval, the unit will beep to indicate
the I SENSE mode has ended.
NOTE: This feature can ONLY be activated from the remote
control. The remote control serves as a remote thermostat
allowing for the precise temperature control at its location
which must be within 26 feet of the air conditioner.
SLEEP OPERATION
Pressing this button will increase (during cooling operation) or
decrease (during heating operation) 1°C/1°F after 30 minutes. The
temperature will again increase (cooling) or decrease (heating)
by another 1°C/1°F after an additional 30 minutes. This new
temperature will be maintained for 7 hours before returning to the
originally selected temperature. This ends the SLEEP mode and the
unit will continue to operate as originally programmed.
NOTE: The SLEEP operation feature is unavailable in FAN or
DRY mode.
19 HOMEDEPOT.COM/VISSANI
Please contact 1-855-VISSANI (1-855-847-7264) for further assistance.
Operation (continued)
2
Operating Instructions(continued)
AUTO-RESTART
If the unit shuts off unexpectedly due to a power outage, it will
restart with the previously set function automatically when the
power resumes.
WAIT 3 MINUTES BEFORE RESUMING OPERATION
After the unit has stopped, it cannot be restarted until 3 minutes
time has elapsed. This is to protect the unit. Operation will
automatically resume after 3 minutes.
AIRFLOW DIRECTION ADJUSTMENT
For models with the Auto Swing feature, the louver can be adjusted
automatically using the SWING button. When the Power is ON,
the louver fully opens. Press the SWING button to initiate the Auto
Swing feature. The louver will swing up and down automatically.
Do not adjust the louver manually.
3

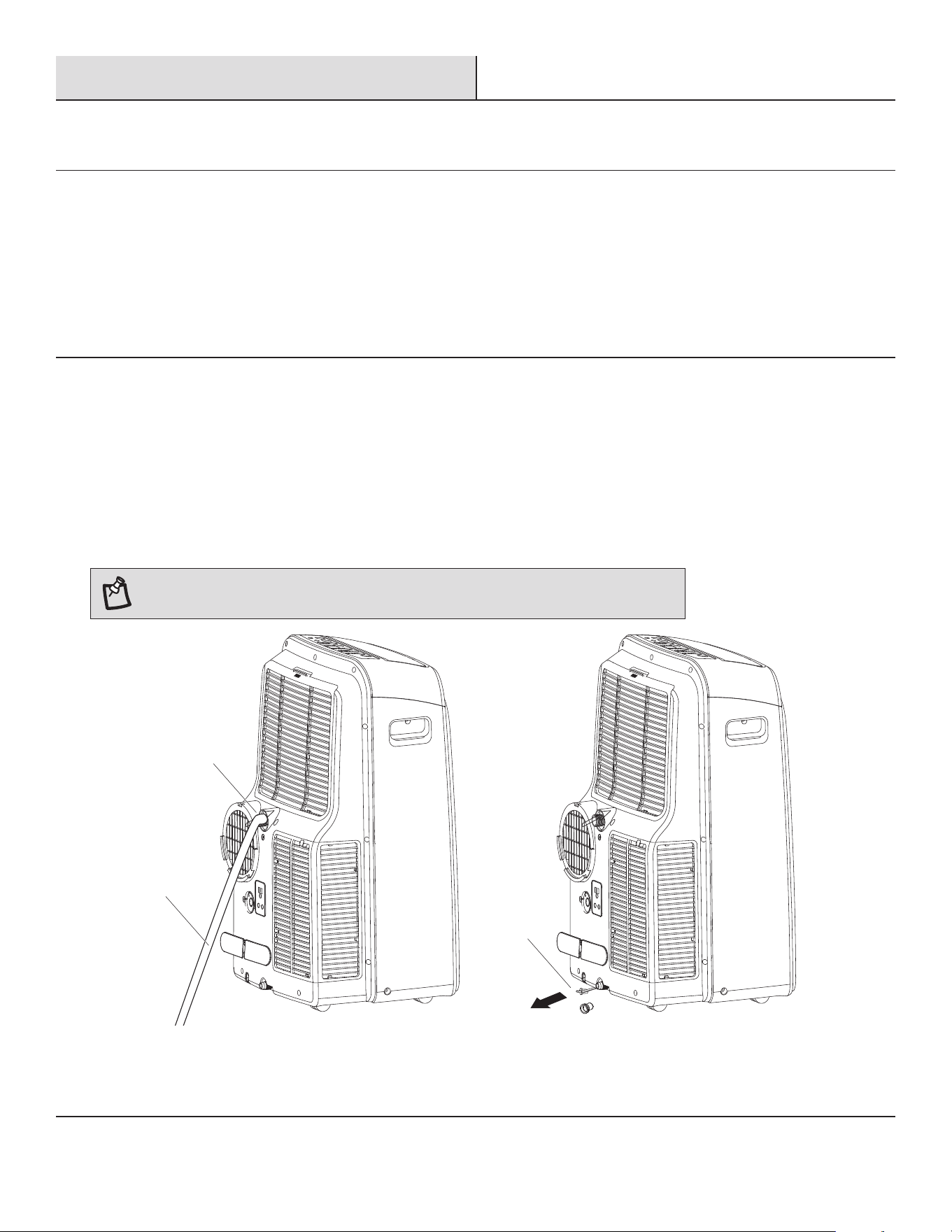

Water Drainage
□ During Dry mode, remove the upper drain plug (1) from the back of the unit and install the drain connector (5/8" universal female
adapter) with a 3/4" hose (not included). For models without the drain connector, attach the drain hose (2) to the connector. Place
the end of the hose in the drain area you’re using.
□ When the water level of the bottom tray reaches a predetermined level, the unit beeps 8 times. The digital display shows “P1.”
At this time the air conditioning/dehumidication process will immediately stop. However, the fan motor will continue to operate
(this is normal). Carefully move the unit to a drain location, remove the bottom drain plug (3) and let the water drain away.
Reinstall the bottom drain plug and restart the machine until the “P1” symbol disappears. If the error repeats, call for service.
NOTE: Be sure to reinstall the bottom drain plug rmly to prevent leakage before using the unit.
1
2
3
20

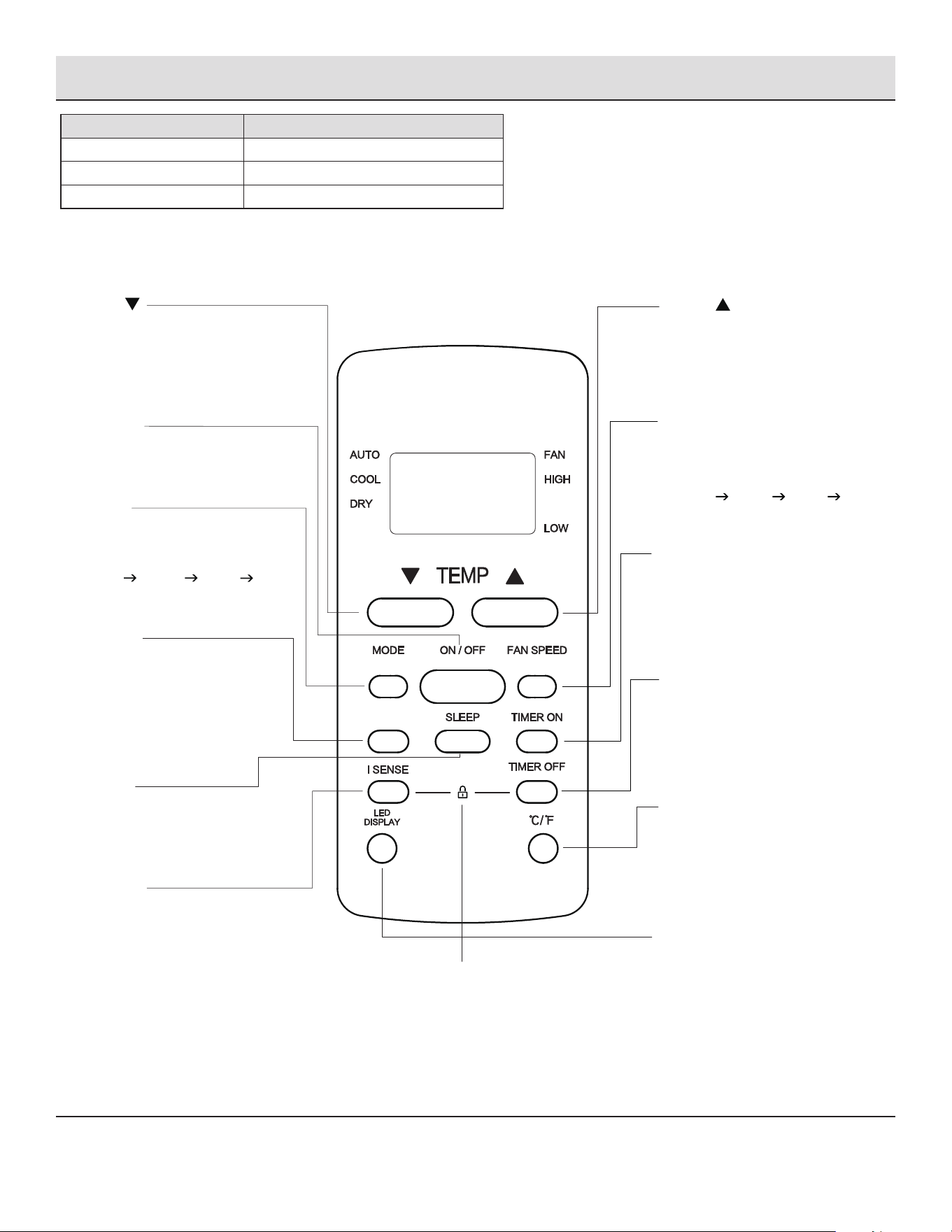

Remote Control Operation

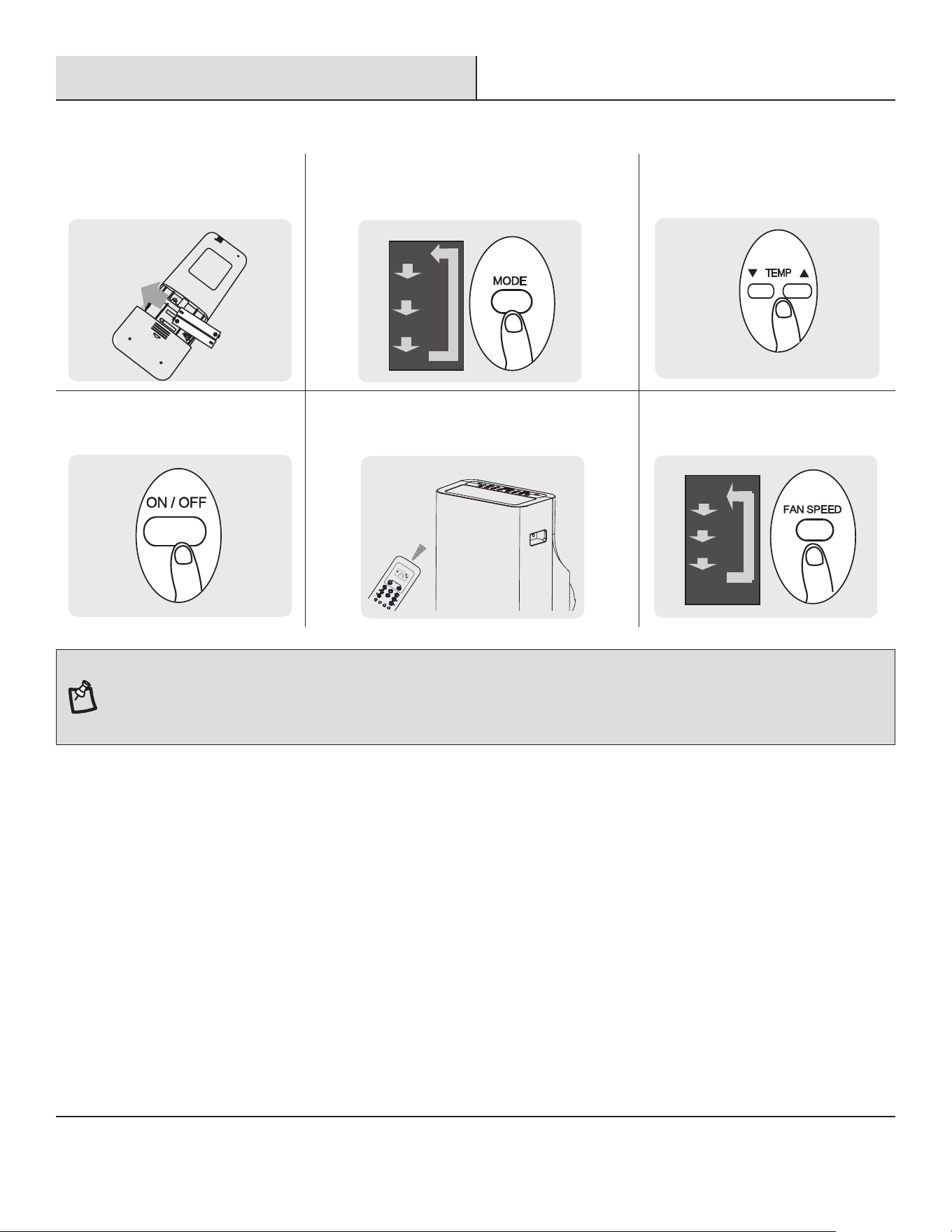

QUICK START GUIDE
1

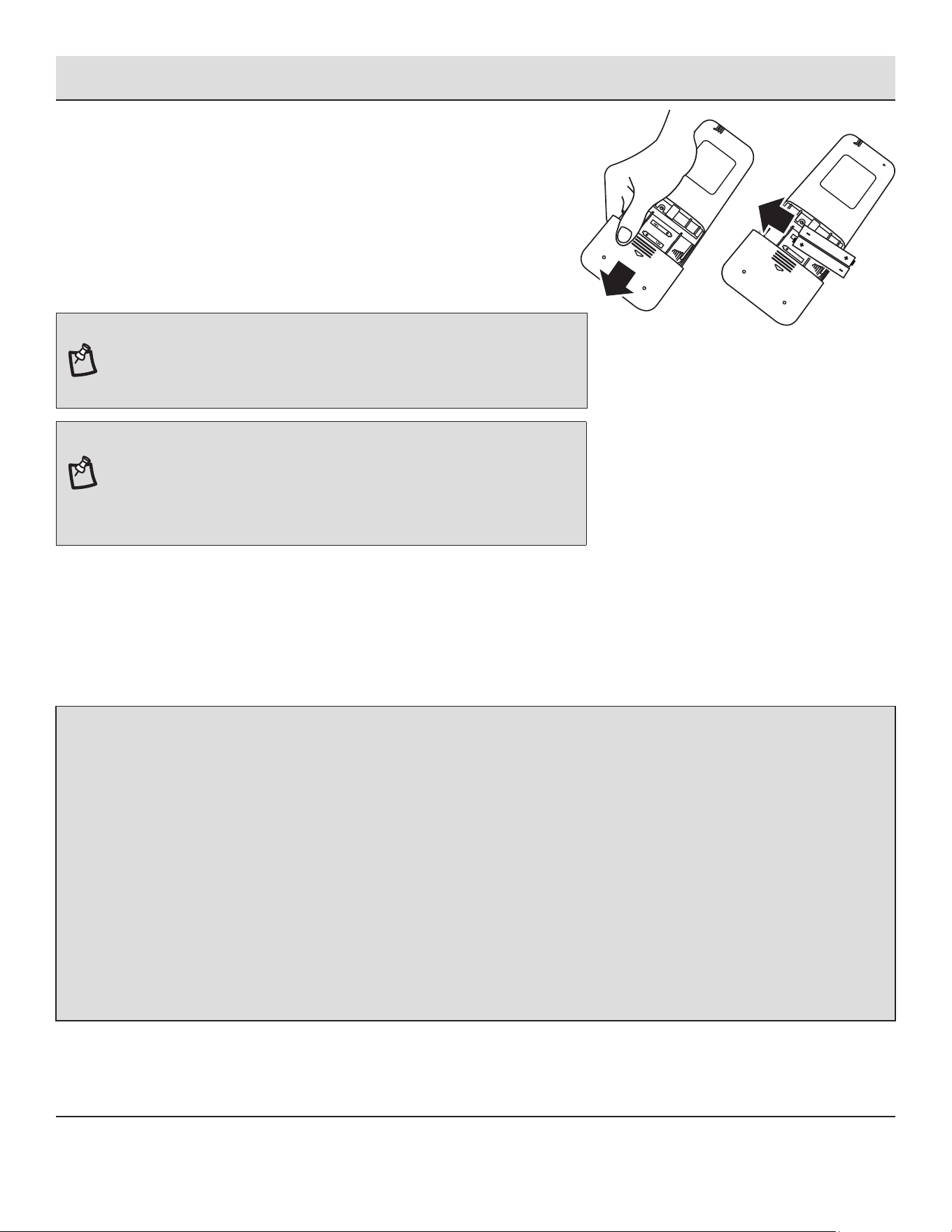

Fit Batteries
AUTO
LOW
MED
HIGH
AUTO
COOL
DRY
FAN
My
Mo
de
F
o
l
l
o
w
Me
L
ED
T
u
rb
o
I
on
is
e
r
S
w
i
n
g
T
i
m
e
r
S
elf
C
l
e
a
n
M
o
d
e
O
n
/
O
f
f
F
a
n
Sl
eep
AU
T
O
C
O
O
L
D
RY
H
EA
T
F
AN
H
IG
H
M
ED
L
O
W
S
E
T
T
E
M
P
E
RA
T
U
R
E
2
Select Mode
AUTO
LOW
MED
HIGH
AUTO
COOL
DRY
FAN
My
Mo
de
F
o
l
l
o
w
Me
L
ED
T
u
rb
o
I
on
is
e
r
S
w
i
n
g
T
i
m
e
r
S
elf
C
l
e
a
n
M
o
d
e
O
n
/
O
f
f
F
a
n
Sl
eep
AU
T
O
C
O
O
L
D
RY
H
EA
T
F
AN
H
IG
H
M
ED
L
O
W
S
E
T
T
E
M
P
E
RA
T
U
R
E
3
Select Temperature
AUTO
LOW
MED
HIGH
AUTO
COOL
DRY
FAN
My
Mo
de
F
o
l
l
o
w
Me
L
ED
T
u
rb
o
I
on
is
e
r
S
w
i
n
g
T
i
me
r
S
elf
C
l
e
a
n
M
o
d
e
O
n
/
O
f
f
F
a
n
Sl
eep
AU
T
O
C
O
O
L
D
RY
H
EA
T
F
AN
H
IG
H
M
ED
L
O
W
S
E
T
T
E
M
P
E
RA
T
U
R
E
4
Press Power Button
AUTO
LOW
MED
HIGH
AUTO
COOL
DRY
FAN
My
Mo
de
F
o
l
l
o
w
Me
L
ED
T
u
rb
o
I
on
is
e
r
S
w
i
n
g
T
i
m
e
r
S
elf
C
l
e
a
n
M
o
d
e
O
n
/
O
f
f
F
a
n
Sl
eep
AU
T
O
C
O
O
L
D
RY
H
EA
T
F
AN
H
IG
H
M
ED
L
O
W
S
E
T
T
E
M
P
E
RA
T
U
R
E
5
Point Remote Toward Unit
AUTO
LOW
MED
HIGH
AUTO
COOL
DRY
FAN
My
Mo
de
F
o
l
l
o
w
Me
L
ED
T
u
rb
o
I
on
is
e
r
S
w
i
n
g
T
i
m
e
r
S
elf
C
l
e
a
n
M
o
d
e
O
n
/
O
f
f
F
a
n
Sl
eep
AU
T
O
C
O
O
L
D
RY
H
EA
T
F
AN
H
IG
H
M
ED
L
O
W
S
E
T
T
E
M
P
E
RA
T
U
R
E
6
Select Fan Speed
AUTO
LOW
MED
HIGH
AUTO
COOL
DRY
FAN
My
Mo
de
F
o
l
l
o
w
Me
L
ED
T
u
rb
o
I
on
is
e
r
S
w
i
n
g
T
i
me
r
S
elf
C
l
e
a
n
M
o
d
e
O
n
/
O
f
f
F
a
n
Sl
eep
AU
T
O
C
O
O
L
D
RY
H
EA
T
F
AN
H
IG
H
M
ED
L
O
W
S
E
T
T
E
M
P
E
RA
T
U
R
E
SPECIAL NOTE:
□ Button designs on your unit may differ slightly from the example shown.
□ If the indoor unit does not have a particular function, pressing that function’s button on the remote control will have no effect.
□ When there are wide differences between “Remote Controller Operation” and “Operation” on function description, the description of
“Operation” shall prevail.
21 HOMEDEPOT.COM/VISSANI
Please contact 1-855-VISSANI (1-855-847-7264) for further assistance.
Remote Control Operation (continued)
INSERTING AND REPLACING BATTERIES
Your air conditioning unit may come with two batteries (some units). Put the
batteriesin the remote control before use.
1. Slide the back cover from the remote control downward, exposing the
batterycompartment.
2. Insert the batteries, paying attention to match up the (+) and (-) ends of the
batteries with the symbols inside the battery compartment.
3. Slide the battery cover back into place.
BATTERIES NOTE:
For optimum product performance:
□ Do not mix old and new batteries, or batteries of different types.
□ Do not leave batteries in the remote control if you don’t plan on using the device
for more than 2 months.
NOTE:
□ Do not dispose of batteries as unsorted municipal waste.
Refer to local laws for proper disposal of batteries.
□ Appliances and used batteries must be treated in a specialized facility for reuse,
recycling and recovery. By ensuring correct disposal, you will help avoid possible
negative consequences for the environment and human health.
TIPS FOR USING REMOTE CONTROL
□ Direct sunlight can interfere with the infrared signal receiver.
□ There must be a clear line of sight between the remote and the appliance.
□ If the signals from the remote control happen to control another appliance, move the appliance to another location or contact customer
service.
The device could comply with the local national regulations.
□ In Canada, it should comply with CAN ICES-3(B)/NMB-3(B).
□ In USA, this device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
□ Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.
□ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
□ Consult the dealer or an experienced radio/TV technician for help.
□ Changes or modications not approved by the party responsible for compliance could void user’s authority to operate the equipment.
22
Remote Control Buttons and Functions
Model RG51F2(1)/CEFU1
Rated Voltage 3.0V (Dry batteries R03/LR03×2)
Signal Receiving Range 8m
Environment 23°F~140°F (-5°C~60°C)
Before you begin using your new air conditioner, make sure to familiarize yourself with the remote control. The following are brief
instructions to the remote control itself. For instructions on how to operate your air conditioner, refer to the How to Use Basic Functions
section of this manual.
I SENSE
Temperature sensing and
room temperature display button.
°C/°F
Press together the two buttons simultaneously
for 5 seconds to lock the keyboard. Press
together the two buttons for 2 seconds to
unlock the keyboard.
ON/OFF
Turns the unit on or off.
MODE
Scrolls through operation
modes as follows:
AUTO LOW MED
HIGH
AUTO COOL DRYFAN
FA N SPEED
Selects fan speeds in
the following order:
SLEEP
Saves energy during
sleeping hours.
TEMP
Press this button to alternate
the temperature display
between the °C & °F.
Increases temperature
in 1°F (1°C) increments.
Max. temperature is
86°F (30°C).
TEMP
Decreases temperature in
1°F (1°C) increments.
Min. temperature is 62°F(17°C).
TIMER ON
Sets timer to turn unit
on (see pg. 25 for
instructions).
TIMER OFF
Sets timer to turn unit
off (see pg. 25 for
instructions).
LOCK
LED DISPLAY
SWING
Starts and stops the horizontal
louver movement. Hold down
for 2 seconds to initiate
vertical louver auto swing
feature(some units).
Press this button to turn on
and turn off the display
on the indoor unit.
SWING
MED
23 HOMEDEPOT.COM/VISSANI
Please contact 1-855-VISSANI (1-855-847-7264) for further assistance.
Remote Control Buttons and Functions (continued)
REMOTE SCREEN INDICATORS
Displayed when data transmitted.
Displayed when remote controller is ON.
Low speed
NO display
Medium speed
High speed
Auto fan speed
Displayed when TIMER ON time is set
Displayed when TIMER OFF time is set
Indicated all the current settings are
locked
Shows set temperature or room
temperature, or time under TIMER
setting
HIGH
MED
LOW
AUTO
COOL
DR
Y
AUTO COOL FANDRY
Mode display
Fan speed indication
FAN
HIGH
MED
LOW
Displayed when Follow Me feature is
activated
Displayed when SLEEP feature is
activated
NOTE: All indicators shown in the gure are for the purpose of clear
presentation. But during the actual operation, only the relative function
signs are shown on the display window.
24
Using the Remote Control
IMPORTANT: Before operation, please ensure the unit is plugged in and power is available.

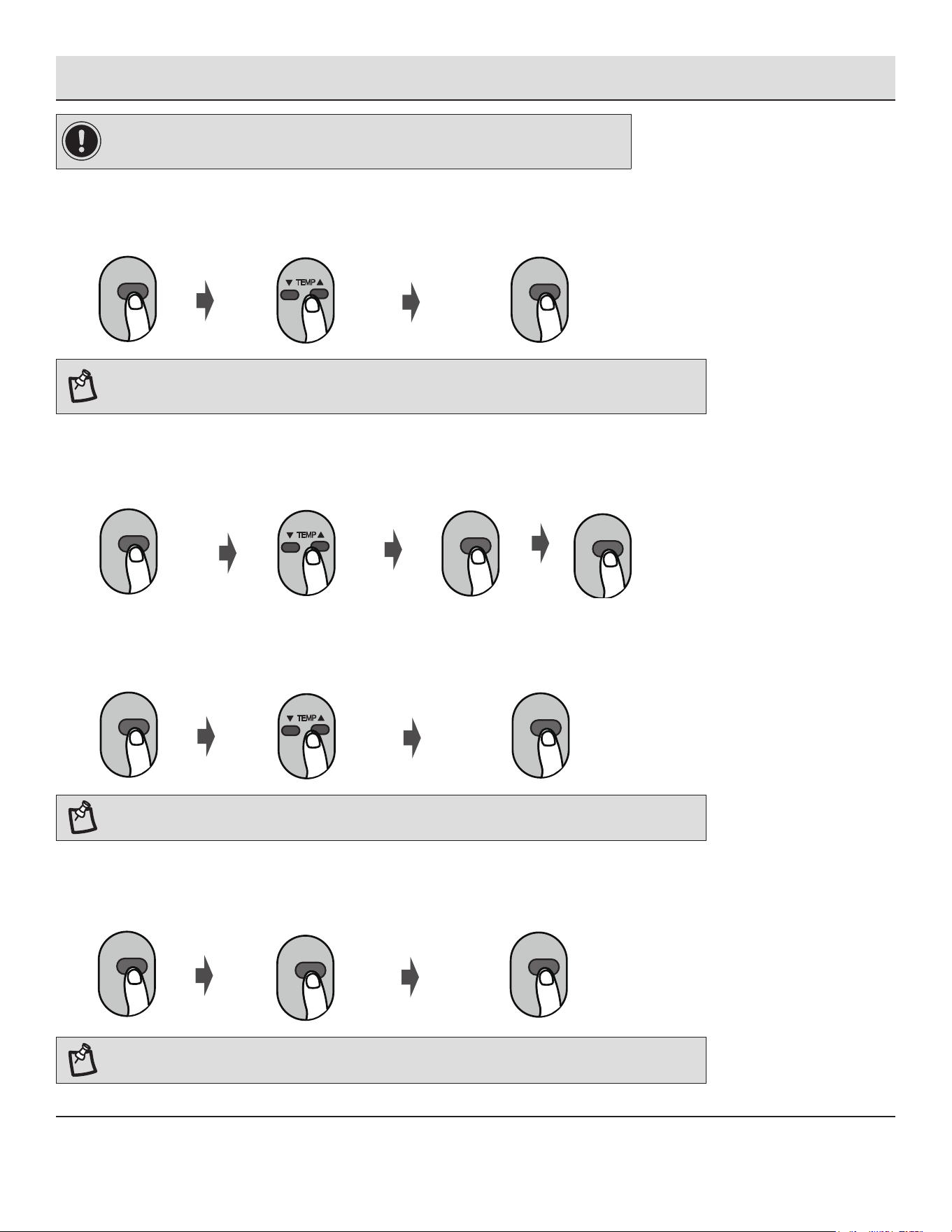

AUTO MODE
Select AUTO mode Set your desired temperature Turn on the air conditioner
AUTO Mode
COOL Mode
DRY Mode
MODE
ON/OFF
MODE
FAN SPEED
ON/OFF
Select AUTO mode Set your desired temperature
NOTE:
1. In AUTO mode,
the unit will automatically select the COOL, or FAN function based on the set
temperature.
2. In AUTO mode, fan speed can not be set.
Turn on the air conditioner
MODE
ON/OFF
Select DRY mode Set your desired temperature Turn on the air conditioner
FAN Mode
MODE
ON/OFF
Select FAN mode Turn on the air conditioner
Select COOL mode Set the temperature Turn on the air
conditioner
Set the fan speed
FAN SPEED
Set the fan speed
NOTE: In DRY mode, fan speed can not be set since it has already been automatically controlled.
NOTE: In FAN mode, you can’t set the temperature. As a result , no temperature displays in remote screen.
NOTE:
1. In AUTO mode, the unit will automatically select the COOL, or FAN function based on the set temperature.
2. In AUTO mode, fan speed can not be set.
COOL MODE
Select COOL mode Set the temperature Set the fan speed Turn on the air conditioner
AUTO Mode
COOL Mode
DRY Mode
MODE
ON/OFF
MODE
FAN SPEED
ON/OFF
Select AUTO mode Set your desired temperature
NOTE:
1. In AUTO mode,
the unit will automatically select the COOL, or FAN function based on the set
temperature.
2. In AUTO mode, fan speed can not be set.
Turn on the air conditioner
MODE
ON/OFF
Select DRY mode Set your desired temperature Turn on the air conditioner
FAN Mode
MODE
ON/OFF
Select FAN mode Turn on the air conditioner
Select COOL mode Set the temperature Turn on the air
conditioner
Set the fan speed
FAN SPEED
Set the fan speed
NOTE: In DRY mode, fan speed can not be set since it has already been automatically controlled.
NOTE: In FAN mode, you can’t set the temperature. As a result , no temperature displays in remote screen.
DRY MODE
Select DRY mode Set your desired temperature Turn on the air conditioner
AUTO Mode
COOL Mode
DRY Mode
MODE
ON/OFF
MODE
FAN SPEED
ON/OFF
Select AUTO mode Set your desired temperature
NOTE:
1. In AUTO mode,
the unit will automatically select the COOL, or FAN function based on the set
temperature.
2. In AUTO mode, fan speed can not be set.
Turn on the air conditioner
MODE
ON/OFF
Select DRY mode Set your desired temperature Turn on the air conditioner
FAN Mode
MODE
ON/OFF
Select FAN mode Turn on the air conditioner
Select COOL mode Set the temperature Turn on the air
conditioner
Set the fan speed
FAN SPEED
Set the fan speed
NOTE: In DRY mode, fan speed can not be set since it has already been automatically controlled.
NOTE: In FAN mode, you can’t set the temperature. As a result , no temperature displays in remote screen.
NOTE: In DRY mode, fan speed cannot be set since it has already been automatically controlled.
FAN MODE
Select FAN mode Set the fan speed Turn on the air conditioner
AUTO Mode
COOL Mode
DRY Mode
MODE
ON/OFF
MODE
FAN SPEED
ON/OFF
Select AUTO mode Set your desired temperature
NOTE:
1. In AUTO mode,
the unit will automatically select the COOL, or FAN function based on the set
temperature.
2. In AUTO mode, fan speed can not be set.
Turn on the air conditioner
MODE
ON/OFF
Select DRY mode Set your desired temperature Turn on the air conditioner
FAN Mode
MODE
ON/OFF
Select FAN mode Turn on the air conditioner
Select COOL mode Set the temperature Turn on the air
conditioner
Set the fan speed
FAN SPEED
Set the fan speed
NOTE: In DRY mode, fan speed can not be set since it has already been automatically controlled.
NOTE: In FAN mode, you can’t set the temperature. As a result , no temperature displays in remote screen.
NOTE: In FAN mode, you can’t set the temperature. As a result, no temperature displays in remote screen.
25 HOMEDEPOT.COM/VISSANI
Please contact 1-855-VISSANI (1-855-847-7264) for further assistance.
Using the Remote Control (continued)
SETTING THE TIMER
TIMER ON/OFF - Set the amount of time after which the unit will automatically turn on/off.
TIMER ON setting
Press TIMER ON button
to initiate the ON time
sequence.
Press Temp. up or down button
for multiple times to set the
desired time to turn ON the unit.
Point remote to unit and wait 1 sec,
the TIMER ON will be activated.
TIMER OFF setting
TIMER ON & OFF setting(example)
Press TIMER ON button to
initiate the ON time sequence.
Press Temp. up or down button for
for multiple times to set the desired
time to turn on the unit.
Press Temp. up or down button for
for multiple times to set the desired
time to turn off the unit.
NOTE:
1. When setting the TIMER ON or TIMER OFF, the time will increase by 30 minutes increments with each
press, up to 10 hours. After 10 hours and up to 24, it will increase in 1 hour increments. (For example,
press 5 times to get 2.5h, and press 10 times to get 5h,) The timer will revert to 0.0 after 24.
2. Cancel either function by setting its timer to 0.0h.
Point remote to unit and wait 1sec,
the TIMER ON will be activated.
Press TIMER OFF button to
initiate the OFF time sequence.
Point remote to unit and wait 1sec,
the TIMER OFF will be activated.
Current
time 1PM
2:00PM 3:00PM
4PM 5PM
6PM
Timer starts
Unit turns
ON
Unit turns
OFF
2.5 hours later
5 hours later
3:30PM
Example: If current timer is 1:00PM,
to set the timer as above steps, the
unit will turn on 2.5h later (3:30PM)
and turn off at 6:00PM.
x5
TIMER ON
TIMER ON
TIMER OFF
TIMER OFF
xn
xn
xn
Keep in mind that the time periods you set for both functions refer to hours after the current time.
x10
My Mode
Follow Me
LED Turbo
Ioniser
Swing
Timer
Self Clean
Mode
On/Off
Fan
Sleep
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
SET TEMPERATURE
1sec
My Mode
Follow Me
LED Turbo
Ioniser
Swing
Timer
Self Clean
Mode
On/Off
Fan
Sleep
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
SET TEMPERATURE
1sec
My Mode
Follow Me
LED Turbo
Ioniser
Swing
Timer
Self Clean
Mode
On/Off
Fan
Sleep
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
SET TEMPERATURE
My Mode
Follow Me
LED Turbo
Ioniser
Swing
Timer
Self Clean
Mode
On/Off
Fan
Sleep
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
SET TEMPERATURE
TIMER OFF setting
Press TIMER OFF button
to initiate the OFF time
sequence.
Press Temp. up or down button
for multiple times to set the
desired time to turn OFF the unit.
Point remote to unit and wait 1 sec,
the TIMER OFF will be activated.
TIMER OFF setting
TIMER ON & OFF setting(example)
Press TIMER ON button to
initiate the ON time sequence.
Press Temp. up or down button for
for multiple times to set the desired
time to turn on the unit.
Press Temp. up or down button for
for multiple times to set the desired
time to turn off the unit.
NOTE:
1. When setting the TIMER ON or TIMER OFF, the time will increase by 30 minutes increments with each
press, up to 10 hours. After 10 hours and up to 24, it will increase in 1 hour increments. (For example,
press 5 times to get 2.5h, and press 10 times to get 5h,) The timer will revert to 0.0 after 24.
2. Cancel either function by setting its timer to 0.0h.
Point remote to unit and wait 1sec,
the TIMER ON will be activated.
Press TIMER OFF button to
initiate the OFF time sequence.
Point remote to unit and wait 1sec,
the TIMER OFF will be activated.
Current
time 1PM
2:00PM 3:00PM
4PM 5PM
6PM
Timer starts
Unit turns
ON
Unit turns
OFF
2.5 hours later
5 hours later
3:30PM
Example: If current timer is 1:00PM,
to set the timer as above steps, the
unit will turn on 2.5h later (3:30PM)
and turn off at 6:00PM.
x5
TIMER ON
TIMER ON
TIMER OFF
TIMER OFF
xn
xn
xn
Keep in mind that the time periods you set for both functions refer to hours after the current time.
x10
My Mode
Follow Me
LED Turbo
Ioniser
Swing
Timer
Self Clean
Mode
On/Off
Fan
Sleep
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
SET TEMPERATURE
1sec
My Mode
Follow Me
LED Turbo
Ioniser
Swing
Timer
Self Clean
Mode
On/Off
Fan
Sleep
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
SET TEMPERATURE
1sec
My Mode
Follow Me
LED Turbo
Ioniser
Swing
Timer
Self Clean
Mode
On/Off
Fan
Sleep
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
SET TEMPERATURE
My Mode
Follow Me
LED Turbo
Ioniser
Swing
Timer
Self Clean
Mode
On/Off
Fan
Sleep
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
SET TEMPERATURE
NOTE:
1. When setting the TIMER ON or TIMER OFF, the time will increase by 30 minutes increments with each
press, up to 10 hours. After 10 hours and up to 24, it will increase in 1 hour increments. (For example,
press 5 times to get 2.5h, and press 10 times to get 5h,) The timer will revert to 0.0 after 24.
2. Cancel either function by setting its timer to 0.0h.
TIMER ON & OFF setting (example)
Keep in mind that the time periods you set for both functions refer to hours after the current time
TIMER OFF setting
TIMER ON & OFF setting(example)
Press TIMER ON button to
initiate the ON time sequence.
Press Temp. up or down button for
for multiple times to set the desired
time to turn on the unit.
Press Temp. up or down button for
for multiple times to set the desired
time to turn off the unit.
NOTE:
1. When setting the TIMER ON or TIMER OFF, the time will increase by 30 minutes increments with each
press, up to 10 hours. After 10 hours and up to 24, it will increase in 1 hour increments. (For example,
press 5 times to get 2.5h, and press 10 times to get 5h,) The timer will revert to 0.0 after 24.
2. Cancel either function by setting its timer to 0.0h.
Point remote to unit and wait 1sec,
the TIMER ON will be activated.
Press TIMER OFF button to
initiate the OFF time sequence.
Point remote to unit and wait 1sec,
the TIMER OFF will be activated.
Current
time 1PM
2:00PM 3:00PM
4PM 5PM
6PM
Timer starts
Unit turns
ON
Unit turns
OFF
2.5 hours later
5 hours later
3:30PM
Example: If current timer is 1:00PM,
to set the timer as above steps, the
unit will turn on 2.5h later (3:30PM)
and turn off at 6:00PM.
x5
TIMER ON
TIMER ON
TIMER OFF
TIMER OFF
xn
xn
xn
Keep in mind that the time periods you set for both functions refer to hours after the current time.
x10
My Mode
Follow Me
LED Turbo
Ioniser
Swing
Timer
Self Clean
Mode
On/Off
Fan
Sleep
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
SET TEMPERATURE
1sec
My Mode
Follow Me
LED Turbo
Ioniser
Swing
Timer
Self Clean
Mode
On/Off
Fan
Sleep
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
SET TEMPERATURE
1sec
My Mode
Follow Me
LED Turbo
Ioniser
Swing
Timer
Self Clean
Mode
On/Off
Fan
Sleep
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
SET TEMPERATURE
My Mode
Follow Me
LED Turbo
Ioniser
Swing
Timer
Self Clean
Mode
On/Off
Fan
Sleep
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
SET TEMPERATURE
26
Using the Remote Control - Advanced Functions
SWING FUNCTION (SOME UNITS)
Press Swing button
SWING
Swing function(some units)
SLEEP function
Press Swing button
The horizontal louver will swing up and down
automatically when pressing Swing button.
Press again to make it stop.
Keep pressing this button more than 2 seconds,
the vertical louver swing function is activated.
(Model dependent)
SWING
2s
SLEEP
When the I SENSE function is activated, the remote display is actual temperature at its location.
The remote control will send this signal to the air conditioner every 3 minutes interval until press
the I SENSE button again.
OF
NOTE: Press this button for seven seconds to start/stop memory feature of I SENSE function.
If the memory feature is activated, “ ” displays for 3 seconds on the screen.
If the memory feature is stopped, “ ” displays for 3 seconds on the screen.
While the memory feature is activated, press the ON/OFF button, shift the mode or power failure
will not cancel the I SENSE function.
On
The horizontal louver will swing up and down
automatically when pressing Swing button.
Press again to make it stop.
Keep pressing this button more than 2 seconds, the
vertical louver swing function is activated.
(Model dependent)
SLEEP FUNCTION
SWING
Swing function(some units)
I SENSE function(some units)
SLEEP function
Press Swing button
The horizontal louver will swing up and down
automatically when pressing Swing button.
Press again to make it stop.
Keep pressing this button more than 2 seconds,
the vertical louver swing function is activated.
(Model dependent)
SWING
2s
SLEEP
When the I SENSE function is activated, the remote display is actual temperature at its location.
The remote control will send this signal to the air conditioner every 3 minutes interval until press
the I SENSE button again.
OF
NOTE: Press this button for seven seconds to start/stop memory feature of I SENSE function.
If the memory feature is activated, “ ” displays for 3 seconds on the screen.
If the memory feature is stopped, “ ” displays for 3 seconds on the screen.
While the memory feature is activated, press the ON/OFF button, shift the mode or power failure
will not cancel the I SENSE function.
On
I SENSE FUNCTION
SWING
Swing function(some units)
I SENSE function(some units)
SLEEP function
Press Swing button
The horizontal louver will swing up and down
automatically when pressing Swing button.
Press again to make it stop.
Keep pressing this button more than 2 seconds,
the vertical louver swing function is activated.
(Model dependent)
SWING
2s
SLEEP
When the I SENSE function is activated, the remote display is actual temperature at its location.
The remote control will send this signal to the air conditioner every 3 minutes interval until press
the I SENSE button again.
OF
NOTE: Press this button for seven seconds to start/stop memory feature of I SENSE function.
If the memory feature is activated, “ ” displays for 3 seconds on the screen.
If the memory feature is stopped, “ ” displays for 3 seconds on the screen.
While the memory feature is activated, press the ON/OFF button, shift the mode or power failure
will not cancel the I SENSE function.
On
When the I SENSE function is activated, the remote display is actual temperature at its location. The remote control will send this signal
to the air conditioner every 3 minutes interval until press the I SENSE button again.
NOTE: Press this button for seven seconds to start/stop memory feature of I SENSE function.
□ If the memory feature is activated, “ On ” displays for 3 seconds on the screen.
□ If the memory feature is stopped, “ Off ” displays for 3 seconds on the screen.
□ While the memory feature is activated, press the ON/OFF button, shift the mode or power failure will not cancel the I SENSE function.
Sleep Mode runs the product for 8 hours using lower fan speeds and automatic temperature adjustments, and then turns off.
27 HOMEDEPOT.COM/VISSANI
Please contact 1-855-VISSANI (1-855-847-7264) for further assistance.

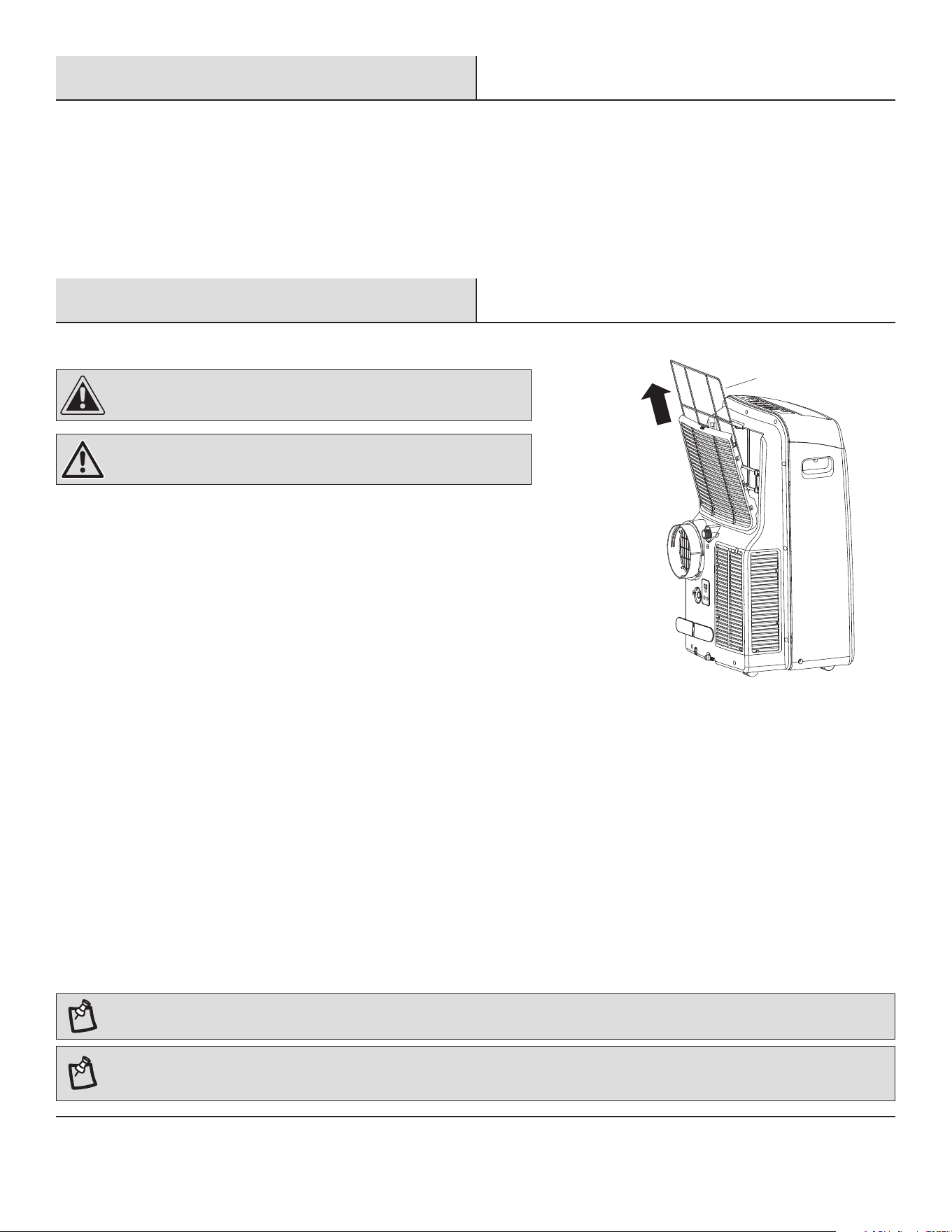

Maintenance
SAFETY PRECAUTIONS
□ Always unplug the unit before cleaning or servicing.
□ DO NOT use ammable liquids or chemicals to clean the unit.
□ DO NOT wash the unit under running water. Doing so causes electrical danger.
□ DO NOT operate the machine if the power supply was damaged during cleaning. A damaged power cord must be replaced with a new
cord from the manufacturer.
Care and Cleaning
AIR FILTER CLEANING
CAUTION: DO NOT operate the unit without lter because dirt and lint will
clog it and reduce performance.
WARNING: Do not remove or install the lower lter by yourself. It should
be performed by an authorized dealer or a licensed service provider.
Removal
□ Take the lter out along the arrow direction.
Cleaning
□
neutral detergent. Rinse the lter and dry it in a shady place.
Mounting
□ Install the air lter after cleaning .
Maintenance Tips
□ Be sure to clean the air lter every 2 weeks for optimal performance.
□ The water collection tray should be drained immediately after P1 error occurs, and before storage to prevent mold.
□ In households with animals, you will have to periodically wipe down the grill to prevent blocked airow due to animal hair.
UNIT CLEANING
Clean the unit using a damp, lint-free cloth and mild detergent. Dry the unit with a dry, lint-free cloth.
STORE THE UNIT WHEN NOT IN USE
□
□ Run the appliance on FAN mode for 12 hours in a warm room to dry it and prevent mold.
□ Turn off the appliance and unplug it.
□ Clean the air lter according to the instructions in the previous section. Reinstall the clean, dry lter before storing.
□ Remove the batteries from the remote control.
NOTE: Be sure to store the unit in a cool, dark place. Exposure to direct sunshine or extreme heat can shorten the lifespan of the unit.
NOTE: The cabinet and front may be dusted with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mild
liquid dishwashing detergent. Rinse thoroughly and wipe dry. Never use harsh cleansers, wax or polish on the cabinet front. Be sure to wring
excess water from the cloth before wiping around the controls. Excess water in or around the controls may cause damage to the unit.
Air Filter
Wash the air lter by immersing it gently in warm water (about 40°C/104°F) with a
Drain the unit’s water collection tray according to the instructions on page 19.
28
Troubleshooting
Problem Possible Causes Solution
Unit does not turn on when
pressing ON/OFF button
P1 Protection Code □ The Water Collection Tray is full. Turn off the unit, drain the
water from the Water Collection Tray and restart the unit.
In COOL mode: room temperature is
lower than the set temperature
□ Reset the temperature
Unit does not cool well
The air lter is blocked with dust or
animal hair
□ Turn off the unit and clean the lter according to instructions
Exhaust hose is not connected or is
blocked
□ Turn off the unit, disconnect the hose, check for blockage and
reconnect the hose
The unit is low on refrigerant □ Call a service technician to inspect the unit and top off
refrigerant
Temperature setting is too high □ Decrease the set temperature
The windows and doors in the room
are open
□ Make sure all windows and doors are closed
The room area is too large □ Double-check the cooling area
There are heat sources inside the
room
□ Remove the heat sources if possible
The unit is noisy and vibrates
too much
The ground is not level □ Place the unit on a at, level surface
The air lter is blocked with dust or
animal hair
□ Turn off the unit and clean the lter according to instructions
The unit makes a gurgling
sound
This sound is caused by the ow of
refrigerant inside the unit
□ This is normal
29 HOMEDEPOT.COM/VISSANI
Please contact 1-855-VISSANI (1-855-847-7264) for further assistance.
Hubspace - Application Setup
GETTING STARTED
□ Download the Hubspace™ app from the App Store or the Google Play Store to your mobile device.
□ Launch the app.
□ To register, enter your email address and a password. Or, login if you already have an account.
□ Bluetooth access is required for device setup.
VERIFY YOUR NETWORK
□ Hubspace only shows Wi-Fi networks that your device can use. Check your network only if an option does not appear during set up.
□ This Hubspace device requires a 2.4 GHz Wi-Fi channel.
□ Most routers provide a 2.4 GHz Wi-Fi channel.
□ If you do not see your Wi-Fi network name when you attempt to connect your device, please check your router settings.
ADD A DEVICE
□ In the Hubspace app, tap the plus (+) sign in the upper right corner.
□ Scan your product’s QR code. You can nd a copy of the QR code on the device itself and in the Quick Start Guide.
Scan problem?
If the QR code cannot be scanned for some reason, you can enter the code manually. Tap Enter Code and follow the instructions.
□ Connect your device to power and follow the instructions on screen.
SET UP YOUR VOICE ASSISTANT
□ In the Hubspace app, tap the Hubspace button.
□ Select the Integrations tab, choose your voice assistant and follow the instructions.
For problems connecting to Hubspace device, see the Troubleshooting section.
NOTE: For more information on smart remote setup, please
refer to the quick start guide located in the remote pack.
Questions, problems missing parts?
Please call Hubspace Customer service
8 a.m. - 7 p.m. EST, Monday - Friday;
9 a.m. - 6 p.m., EST, Saturday
(877) 592-5233
30
Hubspace - Voice Commands
The Portable Air Conditioner works with Alexa and Google Assistant.
This section lists some of the voice commands you can use. To view these and other commands, go to http://hubspaceconnect.com.
Alexa
Google
When you want to... Ask Alexa to...
Turn on the AC Unit only. … turn on <AC Unit name>.
Turn off the AC Unit only. … turn off <AC Unit name>.
Set the temperature. … Set <AC unit name> to <desired temperature>.
… Increase the <AC unit name> temperature.
… Decrease the <AC unit name> temperature.
Change system mode.
Set the temperature.
Change system mode.
… Set the <AC unit name> to cool.
… Set the <AC unit name> to fan.
… Set the <AC unit name> to dehumidify.
… Set the temperature in the <AC unit name>
to <temperature>.
… Increase the temperature in the <AC unit
name> by <number> degrees.
… Decrease the temperature in the <AC unit
name> by <number> degrees.
… Set the <AC unit name> to cool.
… Set the <AC unit name> to fan.
… Set the <AC unit name> to dehumidify.
When you want to... Ask Google to...
Turn on the AC Unit only. … turn on <AC Unit name>.
Turn off the AC Unit only. … turn off <AC Unit name>.
31 HOMEDEPOT.COM/VISSANI
Please contact 1-855-VISSANI (1-855-847-7264) for further assistance.
Hubspace - Troubleshooting
Problem Solution
My hubspace device is not
connecting to Wi-Fi.
□ Make sure your device is connected to a power source.
□ Your Internet connection or Wi-Fi network may be down.
My device cannot nd any Wi-Fi
networks.
□ Make sure you have a 2.4 GHz capable Wi-Fi network within range of the device you are trying to
add.
My device is in a location that
does not have Wi-Fi. Can I still
use it with the Hubspace app?
Yes:
□ Use the app on a phone with an Internet connection like LTE.
□ The phone must be within Bluetooth range of your Hubspace device.
I cannot nd the QR code. □ Look for it where other stickers are on the product. A copy of the QR code is also included in your
device’s documentation
The QR code has become
damaged. How do I add the
device?
□ Under the QR code are numbers. You can enter those in manually instead of scanning the code.
How do I reset the device? □ Remove the device from your account, then add it back. Devices also reset when they transfer to a
new account.
A device is on another account.
How do I transfer it?
□ Scan the QR code and it will transfer to your account.
My device is ofine for long
periods of time.
□ Make sure your Wi-Fi signal strength is sufcient. You may need to move your router, use mesh
Wi-Fi, or Wi-Fi extenders.
The device is on and I scanned
the QR code, but the app cannot
connect to it.
□ Scan the QR code and it will transfer to your account.
Can I scan the same QR code to
add multiple products?
□ No. Each product has a unique QR code.
Questions, problems, missing parts? Before returning to the store,
call Vissani Customer Service
8 a.m. - 8 p.m., EST, Monday - Friday, 8 a.m. - 6 p.m., EST, Saturday
1-855-VISSANI (1-855-847-7264)
HOMEDEPOT.COM/VISSANI
Retain this manual for future use.
Satisfaction Guaranteed
We want you to be 100% satised with your purchase.
Questions, problems, missing/damaged parts or need
installation help?
We can help you faster!
Contact VISSANI Customer Service
1-855-847-7264
Monday – Friday, 8AM – 8PM EST
Saturday, 8AM – 6PM EST
CALL BEFORE RETURNING PRODUCT TO STORE
