USER MANUAL
Thank you for purchasing Acekool Window Air Conditioner. Before operating this unit,
please read these instructions completely and keep the manual ready for further reference.
Window Air Conditioner CW4
01
11
21
29
CONTENTS
Important Safety Instructions
Assembling Your Air Conditioner
Using Your Air Conditioner
Troubleshooting
Your home in sync
Important Safety Instructions
Read All Instructions and Cautionary Markings Before Operation and Installation to
prevent death or injury to the user or other people and property damage, the following
instructions must be followed. Incorrect operation due to ignoring of instructions may
cause death, harm or damage.
This symbol indicates the possibility of personnel injury or loss of life.
WARNING
WARNING
This symbol indicates the possibility of property damage or serious consequences.
CAUTION
Installation must be performed according to the installation instructions. Improper
installation can cause water leakage, electrical shock, or fire.
Use only the included accessories and parts, and specified tools for the installation.
Using nonstandard parts can cause water leakage, electrical shock, fire, and injury or
property damage.
Make sure that the outlet you are using is grounded and has the appropriate voltage.
The power cord is equipped with a three-prong grounding plug to protect against
shock. Voltage information can be found on the nameplate of the appliance.
Your appliance must be used in a properly grounded wall receptacle. If the wall recep-
tacle you intend to use is not adequately grounded or protected by a time delay fuse
or circuit breaker (the fuse or circuit breaker needed is determined by the maximum
current of the appliance. The maximum current is indicated on the nameplate located
on the appliance), have a qualified electrician install the proper receptacle.
Install the appliance on a flat, sturdy surface. Failure to do so could result in damage
or excessive noise and vibration.
The appliance must be kept free from obstruction to ensure proper function and to
mitigate safety hazards.
Do not modify the length of the power cord or use an extension cord to power the
appliance.
Do not share a single outlet with other electrical appliances. Improper power supply
can cause fire or electrical shock.
Do not install your air conditioner in a wet room such as a bathroom or laundry room.
Too much exposure to water can cause electrical components to short circuit.
Your home in sync
01
Do not install the appliance in a location that may be exposed to combustible gas, as
this could cause fire.
He appliance has wheels to facilitate moving. Make sure not to use the wheels on thick
carpet or to roll over objects, as these could cause tipping.
Do not operate the appliance if it has been dropped or damaged.
The appliance with electric heater shall have at least 3 feet / 1 meter space away from
the combustible materials.
Do not touch the appliance with wet or damp hands or when barefoot.
If the air conditioner is knocked over during use, turn off the appliance and unplug it
from the main power supply immediately. Visually inspect the appliance to ensure
there is no damage. If you suspect the appliance has been damaged, contact a tech-
nician or customer service for assistance.
In a thunderstorm, the power must be cut off to avoid damage to the machine due to
lightning. Your air conditioner should be used in such a way that it is protected from
moisture. e.g. condensation, splashed water, etc. Do not place or store your air condi-
tioner where it can fall or be pulled into water or any other liquid. Unplug immediately
if it occurs.
All wiring must be performed strictly in accordance with the wiring diagram located
inside of the appliance.
The appliance's circuit board(PCB) is designed with a fuse to provide overcurrent
protection. The specifications of the fuse are printed on the circuit board, such as:
T 3.15A/250V, etc.
After proper installation, condensate will not overflow during normal use. If the fan
hits the built-up water and the sound annoys you, please remove the cap located at
the back of the air conditioner to drain the water away.
This appliance can be used by children aged from 8 years and above and person with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children without
supervision. (be applicable for the European Countries)
If the supply cord is damaged, it must be replaced by the manufacturer,its service
agent or similarly qualified persons in order to avoid a hazard.
CAUTION
Your home in sync
02
Prior to cleaning or other maintenance, the appliance must be disconnected from the
supply mains.
Never use this appliance if it is not working properly, or if it has been dropped or
damaged.
Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar
coverings. Do not route cord under furniture or appliances. Arrange cord away from
traffic area and where it will not be tripped over.
Do not operate with a damaged cord, plug, power fuse or circuit breaker. Discard the
appliance or return to an authorized service facility for examination and/or repair.
To reduce the risk of fire or electric shock, do not use this fan with any solid-state
speed control device.
The appliance shall be installed in accordance with national wiring regulations. Contact
the authorized service technician for repair or maintenance of this appliance.
Contact the authorized installer for installation of this appliance.
Do not cover or obstruct the inlet or outlet grilles.
Do not use this product for functions other than those described in this instruction
manual.
Before cleaning, turn off the power and unplug the appliance.
Disconnect the power if strange sounds, smell, or smoke comes from it.
Do not press the buttons on the control panel with anything other than your fingers.
Do not operate or stop the appliance by inserting or pulling out the power cord plug.
Do not use hazardous chemicals to clean or come into contact with the appliance.
Do not use the appliance in the presence of inflammable substances or vapour such
as alcohol, insecticides, petrol,etc.
Always contact a qualified person to carry out repairs. If the damaged power supply
cord must be replaced with a new power supply cord obtained from the product
manufacturer and not repaired.
Hold the plug by the head of the power plug when taking it out.
Turn off the product when not in use.
Operation of Current Device
The power supply cord contains a current measuring device that detects damage to
the power cord. Test your power supply cord as follows:
Plug in the air conditioner.
The power supply cord will have TWO buttons on the plug head. Press the TEST button.
You will notice a click as the RESET button pops out.
Press the RESET Button. You will notice a click as the button engages.
The power supply cord is now supplying electricity to the unit. (On some products this
is also indicated by a light on the plug head.)
Your home in sync
03
The power supply cord with this air conditioner contains a current detection device
designed to reduce the risk of fire.
In the event that the power supply cord is damaged, it can not be repaired. It must
be replaced with a cord from the manufacturer.
Do not use this device to turn the unit on or off.
Always make sure the RESET button is pushed in for correct operation.
The power supply cord must be replaced if it fails to reset when either the TEST button
is pushed, or it can not be reset.Please contact Customer Service.
Appliance shall be installed, operated and stored in a room with a floor area larger
than 4 m2.
Appliance shall not be installed in an unvertilated space, if that space is smaller than
4 m2.
Compliance with national gas regulations shall be observed.
Keep ventilation openings clear of obstruction.
The appliance shall be stored so as to prevent mechanical damage from occurring.
A warning that the appliance shall be stored in a well-ventilated area where the room
size corresponds to the room area as specified for operation.
Any person who is involved with working on or breaking into a refrigerant circuit should
hold a current valid certificate from an industry-accredited assessment authority,
which authorises their competence to handle refrigerants safely in accordance with an
industry recognised assessment specification.
TEST
RESET
Plug in & press RESET
Grounding type wall receptacle
Do not, under any
circumstances, cut,
remove or bypass
the grounding prong.
Power supply cord with 3-prong grounding
plug and current detection device.
NOTE:
WARNING FOR USING R32 REFRIGERANT
For R32 refrigerant models:
Your home in sync
04
Servicing shall only be performed as recommended by the equipment manufacturer.
Maintenance and repair requiring the assistance of other skilled personnel shall be
carried out under the supervision of the person competent in the use of flammable
refrigerants.
Please follow the instruction carefully to handle, install, clear, service the air conditioner
to avoid any damage or hazard. Flammable Refrigerant R32 is used within air conditi-
oner. When maintaining or disposing the air conditioner, the refrigerant (R32) shall be
recovered properly, shall not discharge to air directly.
No any open fire or device like switch which may generate spark/arcing shall be around
air conditioner to avoid causing ignition of the flammable refrigerant used.
Please follow the instruction carefully to store or maintain the air conditioner to prevent
mechanical damage from occurring.
Flammable refrigerant -R32 is used in air conditioner. Please follow the instruction
carefully to avoid any hazard.
For specific information on the type of gas and the amount, please to the relevant
label on the unit itself.
Fluorinated greenhouse gases are contained in hermetically sealed equipment. For
specific information on the type, the amount and the Co2 equivalent in tonnes of the
fluorinated greenhouse gas(on some models), please refer to the relevant label on
the unit itself.
Installation, service, maintenance and repair of this unit must be performed by a certified
technician.
Product uninstallation and recycling must be performed by a certified technician.
Caution:
Risk of fire/flammable materials
(Required for R32 units only)
Warning:
Low burning velocity
material
Note about Fluorinated Gases
Explanation of symbols displayed on the unit:
WARNING
CAUTION
CAUTION
CAUTION
This symbol shows that this appliance used a flammable refrigerant. If the refrigerant
is leaked and exposed to an external ignition source, there is a risk of fire.
This symbol shows that a service personnel should be handling this equipment with
reference to the installation manual.
This symbol shows that information is available such as the operating manual or
installation manual.
This symbol shows that the operation manual should be read carefully.
Your home in sync
05
For household use only read and save these instructions
Checks to the area
Prior to beginning work on systems containing flammable refrigerants, safety checks
are necessary to ensure that the risk of ignition is minimised. For repair to the refriger-
ating system, the following precautions shall be complied with prior to conducting
work on the system.
Work procedure
Work shall be undertaken under a controlled procedure so as to minimise the risk of
a flammable gas or vapour being present while the work is being performed.
General work area
All maintenance staff and others working in the local area shall be instructed on the
nature of work being carried out. Work in confined spaces shall be avoided. The area
around the workspace shall be sectioned off. Ensure that the conditions within the
area have been made safe by control of flammable material.
Checking for presence of refrigerant
The area shall be checked with an appropriate refrigerant detector prior to and during
work, to ensure the technician is aware of potentially flammable atmospheres.
Ensure that the leak detection equipment being used is suitable for use with flamma-
ble refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.
Transport of equipment containing flammable refrigerants
See transport regulations.
Marking of equipment using signs
See local regulations.
Disposal of equipment using flammable refrigerants
See national regulations.
Storage of equipment/appliances
The storage of equipment should be in accordance with the manufacturer's instructions.
Storage of packed (unsold) equipment
Storage package protection should be constructed such that mechanical damage to
the equipment inside the package will not cause a leak of the refrigerant charge. The
maximum number of pieces of equipment permitted to be stored together will be
determined by local regulations.
Information on servicing
Your home in sync
06
Presence of fire extinguisher
If any hot work is to be conducted on the refrigeration equipment or any associated
parts, appropriate fire extinguishing equipment shall be available to hand. Have a dry
powder or CO2 fire extinguisher adjacent to the charging area.
No ignition sources
No person carrying out work in relation to a refrigeration system which involves expo-
sing any pipe work that contains or has contained flammable refrigerant shall use any
sources of ignition in such a manner that it may lead to the risk of fire or explosion.
All possible ignition sources, including cigarette smoking, should be kept sufficiently
far away from the site of installation, repairing, removing and disposal, during which
flammable refrigerant can possibly be released to the surrounding space. Prior to work
taking place, the area around the equipment is to be surveyed to make sure that there
are no flammable hazards or ignition risks. No Smoking signs shall be displayed.
Ventilated area
Ensure that the area is in the open or that it is adequately ventilated before breaking
into the system or conducting any hot work. A degree of ventilation shall continue
during the period that the work is carried out. The ventilation should safely disperse
any released refrigerant and preferably expel it externally into the atmosphere.
Checks to the refrigeration equipment
Where electrical components are being changed, they shall be fit for the purpose and
to the correct specification. At all times the manufacturer's maintenance and service
guidelines shall be followed. If in doubt consult the manufacturer's technical depart-
ment for assistance. The following checks shall be applied to installations using flam-
mable refrigerants:
a. The charge size is in accordance with the room size within which the refrigerant
containing parts are installed;
b. The ventilation machinery and outlets are operating adequately and are not obstructed;
c. If an indirect refrigerating circuit is being used, the secondary circuit shall be checked
for the presence of refrigerant; Marking to the equipment continues to be visible and
legible. Markings and signs that are illegible shall be corrected;
d. Refrigeration pipe or components are installed in a position where they are unlikely
to be exposed to any substance which may corrode refrigerant containing components,
unless the components are constructed of materials which are inherently resistant to
being corroded or are suitably protected against being so corroded.
Checks to electrical devices
Repair and maintenance to electrical components shall include initial safety checks
and component inspection procedures. If a fault exists that could compromise safety,
then no electrical supply shall be connected to the circuit until it is satisfactorily dealt
with. If the fault cannot be corrected immediately but it is necessary to continue
operation, an adequate temporary solution shall be used. This shall be reported to
the owner of the equipment so all parties are advised. Initial safety checks shall include:
a. That capacitors are discharged: this shall be done in a safe manner to avoid possi-
bility of sparking;
Your home in sync
07
b. That there no live electrical components and wiring are exposed while charging,
recovering or purging the system;
c. That there is continuity of earth bonding.
Do not apply any permanent inductive or capacitance loads to the circuit without ensuring
that this will not exceed the permissible voltage and current permitted for the equipment
in use. Intrinsically safe components are the only types that can be worked on while live
in the presence of a flammable atmosphere. The test apparatus shall be at the correct
rating. Replace components only with parts specified by the manufacturer. Other parts
may result in the ignition of refrigerant in the atmosphere from a leak.
Repair to intrinsically safe components
Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration,
sharp edges or any other adverse environmental effects. The check shall also take into
account the effects of aging or continual vibration from sources such as compressors
or fans.
Cabling
Under no circumstances shall potential sources of ignition be used in the searching for
or detection of refrigerant leaks. A halide torch (or any other detector using a naked
flame) shall not be used.
Detection of flammable refrigerants
The following leak detection methods are deemed acceptable for systems containing
flammable refrigerants. Electronic leak detectors shall be used to detect flammable
refrigerants, but the sensitivity may not be adequate, or may need re-calibration.
(Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the
detector is not a potential source of ignition and is suitable for the refrigerant used.
Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and
shall be calibrated to the refrigerant employed and the appropriate percentage of gas
(25% maximum) is confirmed. Leak detection fluids are suitable for use with most refri-
gerants but the use of detergents containing chlorine shall be avoided as the chlorine
may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected,
all naked flames shall be removed/extinguished. If a leakage of refrigerant is found which
requires brazing, all of the refrigerant shall be recovered from the system, or isolated
(by means of shut off valves) in a part of the system remote from the leak. Oxygen free
nitrogen (OFN) shall then be purged through the system both before and during the
brazing process.
Leak detection methods
Your home in sync
08
When breaking into the refrigerant circuit to make repairs or for any other purpose
conventional procedures shall be used. However, it is important that best practice is
followed since flammability is a consideration. The following procedure shall be adhered
to:
Remove refrigerant; Purge the circuit with inert gas; Evacuate; Purge again with inert gas;
Open the circuit by cutting or brazing. The refrigerant charge shall be recovered into
the correct recovery cylinders. The system shall be flushed with OFN to render the unit
safe. This process may need to be repeated several times. Compressed air or oxygen
shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the
system with OFN and continuing to fill until the working pressure is achieved, then venting
to atmosphere, and finally pulling down to a vacuum. This process shall be repeated
until no refrigerant is within the system. When the final OFN charge is used, the system
shall be vented down to atmospheric pressure to enable work to take place. This opera-
tion is absolutely vital if brazing operations on the pipe-work are to take place. Ensure
that the outlet for the vacuum pump is not close to any ignition sources and there is
ventilation available.
Removal and evacuation
In addition to conventional charging procedures, the following requirements shall be
followed. Ensure that contamination of different refrigerants does not occur when using
charging equipment. Hoses or lines shall be as short as possible to minimise the amount
of refrigerant contained in them. Cylinders shall be kept upright. Ensure that the refriger-
ation system is earthed prior to charging the system with refrigerant. Label the system
when charging is complete (if not already). Extreme care shall be taken not to overfill
the refrigeration system. Prior to recharging the system it shall be pressure tested with
OFN. The system shall be leak tested on completion of charging but prior to commis-
sioning. A follow up leak test shall be carried out prior to leaving the site.
Charging procedures
Before carrying out this procedure, it is essential that the technician is completely familiar
with the equipment and all its detail. It is recommended good practice that all refriger-
ants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample
shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is
essential that electrical power is available before the task is commenced.
a. Become familiar with the equipment and its operation.
b. Isolate system electrically.
c. Before attempting the procedure ensure that: Mechanical handling equipment is
available, if required, for handling refrigerant cylinders; All personal protective equipment
is available and being used correctly; The recovery process is supervised at all times by
a competent person; Recovery equipment and cylinders conform to the appropriate
standards.
Decommissioning
Your home in sync
09
d. If a vacuum is not possible, make a manifold so that refrigerant can be removed from
various parts of the system.
f. Make sure that cylinder is situated on the scales before recovery takes place.
g. Start the recovery machine and operate in accordance with manufacturer's instructions.
h. Do not overfill cylinders. (No more than 80 % volume liquid charge).
i. Do not exceed the maximum working pressure of the cylinder, even temporarily.
j. When the cylinders have been filled correctly and the process completed, make sure
that the cylinders and the equipment are removed from site promptly and all isolation
valves on the equipment are closed off.
k. Recovered refrigerant shall not be charged into another refrigeration system unless
it has been cleaned and checked.
Equipment shall be labelled stating that it has been de-commissioned and emptied of
refrigerant. The label shall be dated and signed. Ensure that there are labels on the
equipment stating the equipment contains flammable refrigerant.
Labelling
When removing refrigerant from a system, either for servicing or decommissioning, it is
recommended good practice that all refrigerants are removed safely. When transferring
refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are
employed. Ensure that the correct number of cylinders for holding the total system charge
is available. All cylinders to be used are designated for the recovered refrigerant and
labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant).
Cylinders shall be complete with pressure relief valve and associated shut-off valves in
good working order. Empty recovery cylinders are evacuated and, if possible, cooled
before recovery occurs. The recovery equipment shall be in good working order with a
set of instructions concerning the equipment that is at hand and shall be suitable for the
recovery of flammable refrigerants. In addition, a set of calibrated weighing scales shall
be available and in good working order. Hoses shall be complete with leak-free disconnect
couplings and in good condition. Before using the recovery machine, check that it is in
satisfactory working order, has been properly maintained and that any associated elec-
trical components are sealed to prevent ignition in the event of a refrigerant release.
Consult manufacturer if in doubt. The recovered refrigerant shall be returned to the
refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer
Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders.
If compressors or compressor oils are to be removed, ensure that they have been evac-
uated to an acceptable level to make certain that flammable refrigerant does not remain
within the lubricant. The evacuation process shall be carried out prior to returning the
compressor to the suppliers. Only electric heating to the compressor body shall be emp-
loyed to accelerate this process. When oil is drained from a system, it shall be carried
out safely
Recovery
Your home in sync
10
Gentle Reminder
Check the appliance regularly and refer to TROUBLESHOOTING or contact our
customer support if it shows any of the following signs:
1) Power cord or plug is damaged.
2) Loud noise, unusual smell or excessive heat.

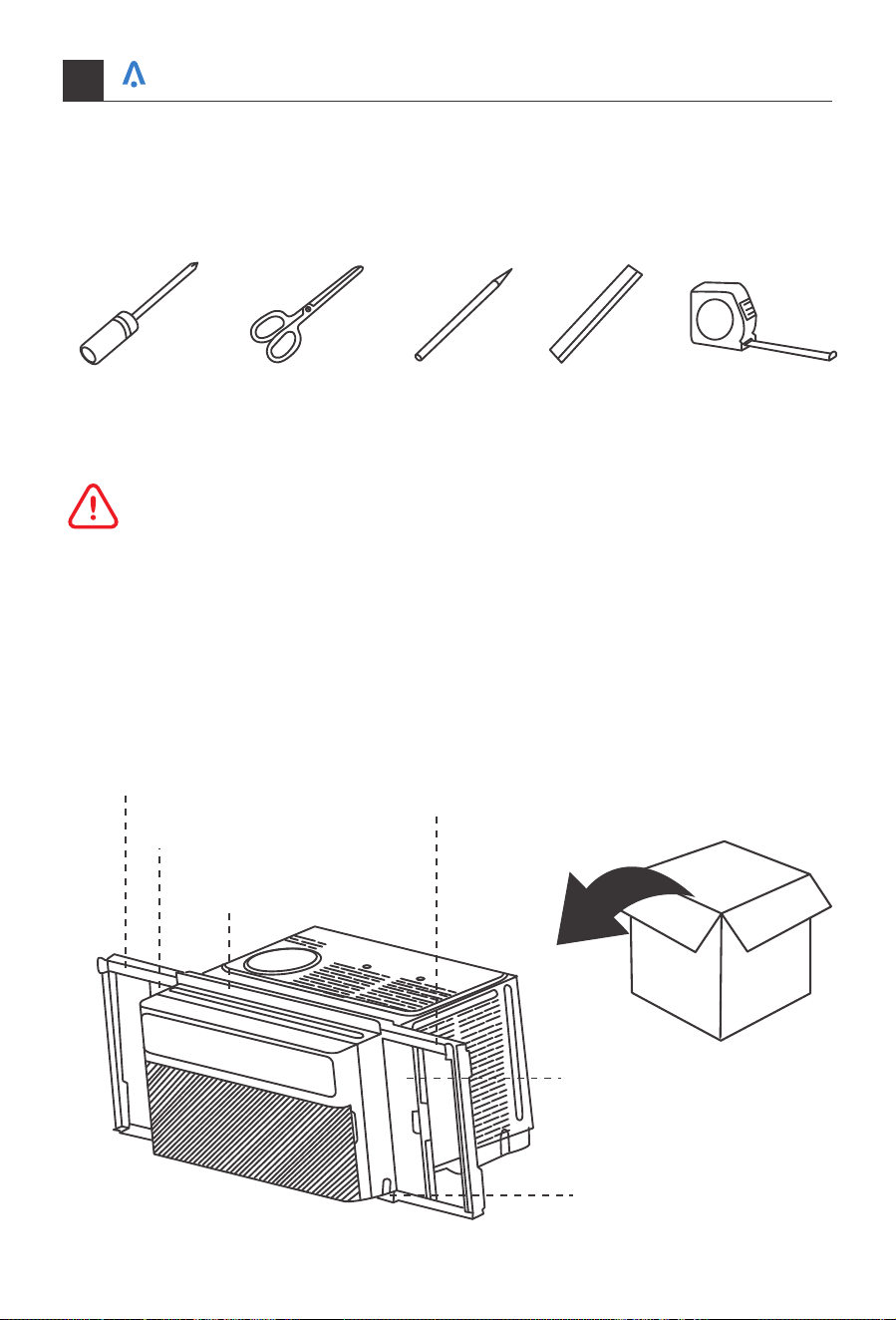

Assembling Your Air Conditioner

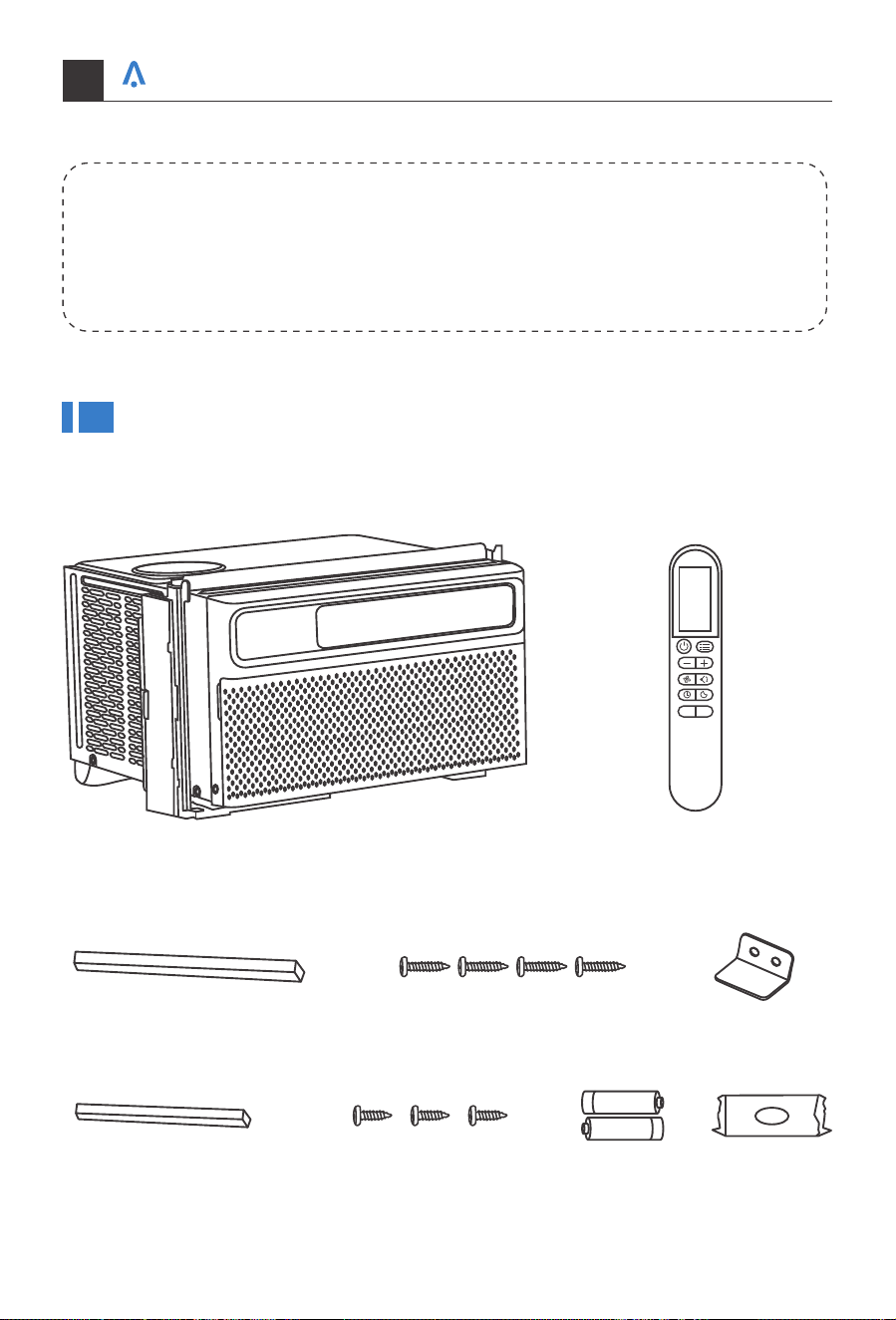

Package Contents
ECO LED
Window Air Conditioner*1
Long Foam Seal (Non-Adhesive)*1
Long Foam Seal (Adhesive)*1
Remote Control*1
3/4 " Screw*4
1/2 " Screw*3 Remote Control
Battery*2
Plasticene*1
Security Bracket*1
Your home in sync
11

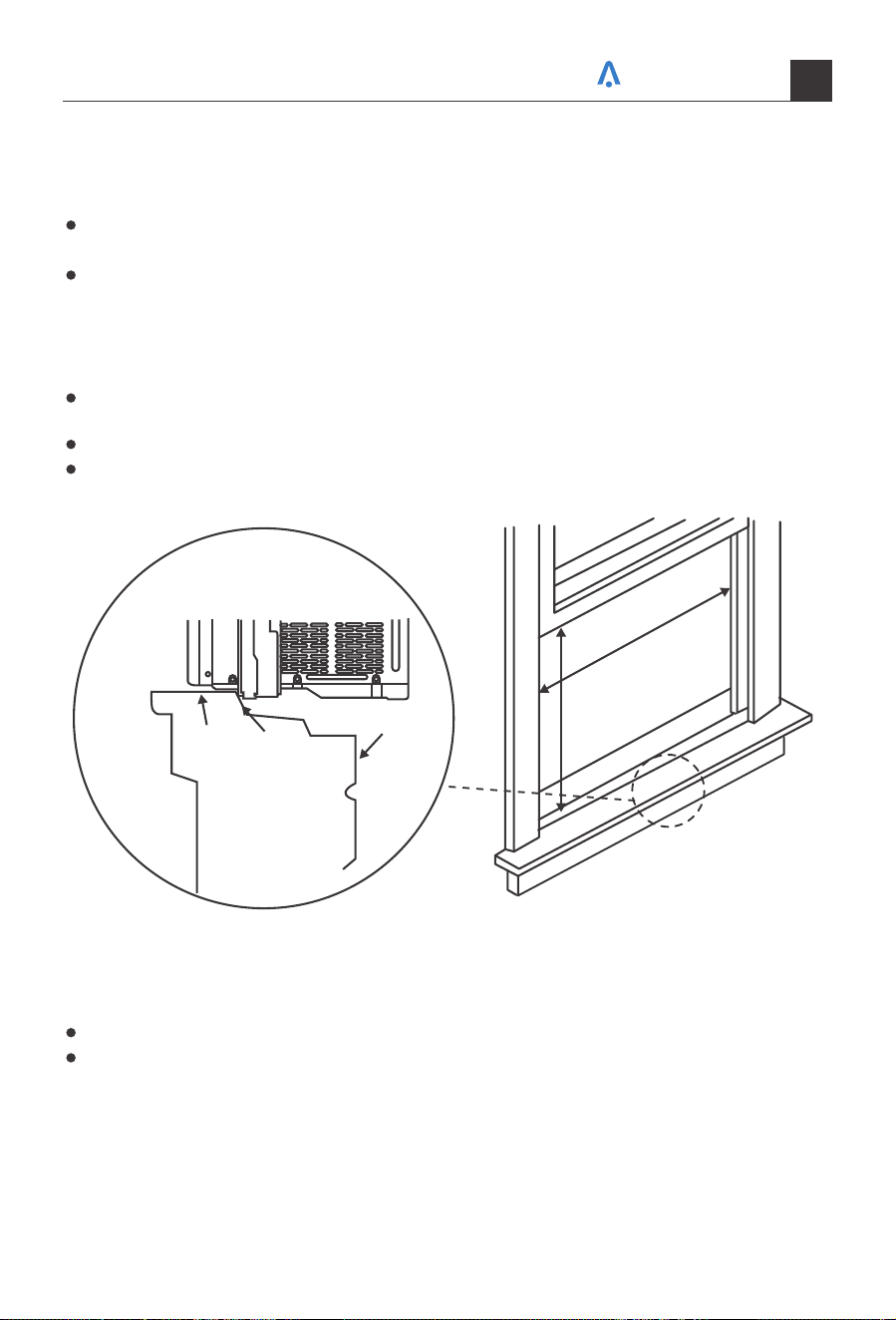

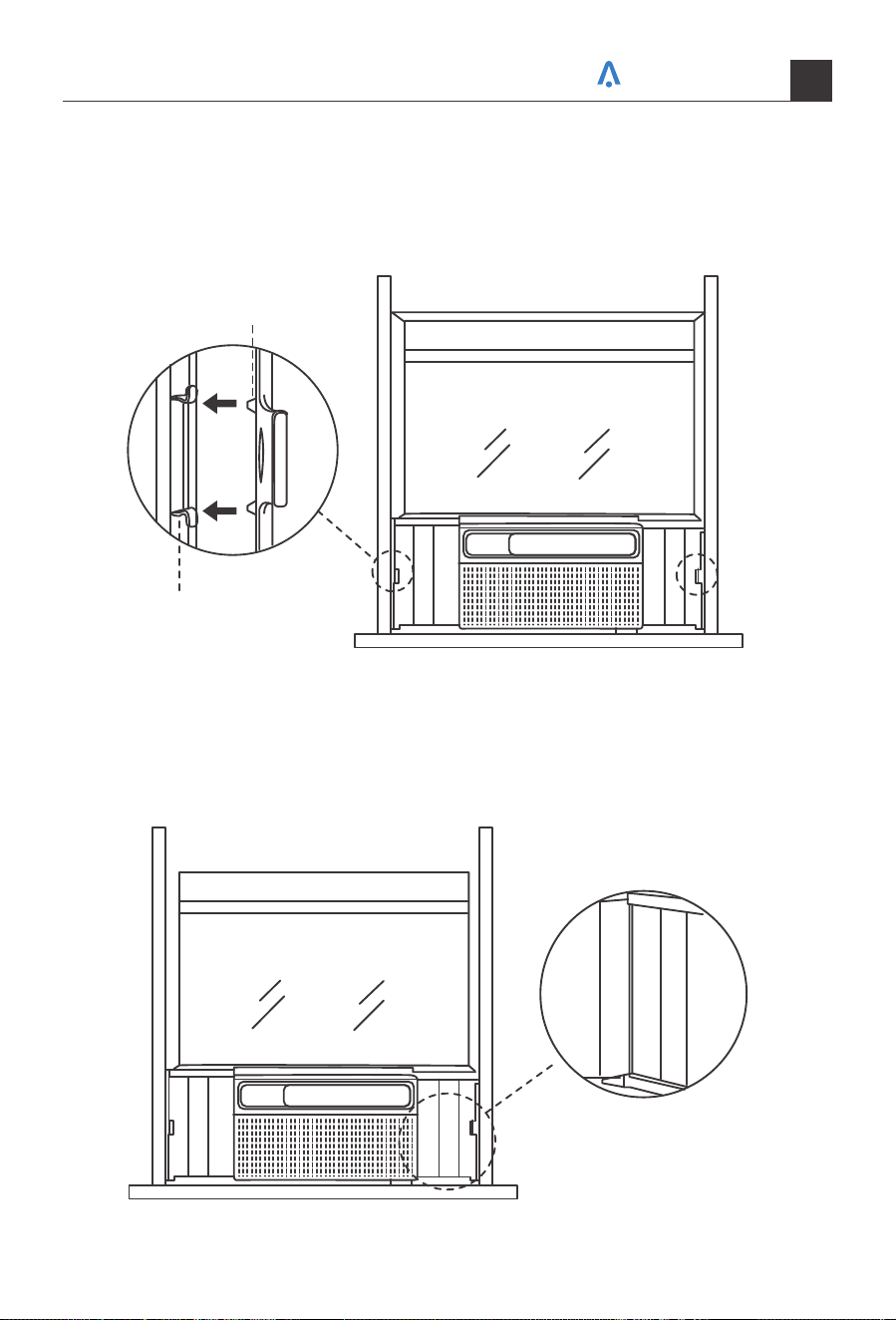

This air conditioner is designed to be installed in a standard single-hung or double-hung
window with a window width between 25" and 36" (645mm-915mm).
The air conditioner can be installed without the side panels to fit in a narrow window
opening. See the window dimensions. If the air conditioner is installed on a window
with a width of 645-720mm, the air conditioner must be installed to the right and the
right bracket must be abut on the air conditioner, otherwise the air conditioner will
not operate normally.
The lower sash (the lower part of the window that moves up and down) must allow
for 14.5" of vertical clearance when open.
All supporting parts must be secured to firm wood, masonry or metal.
The electrical outlet must be within reach of the power cord.
Window Requirements
14.5inch
368mm
25-36inch
645-915mm
Interior Wall
Stool
Sill
Offset
Exterior
Wall
Save the product packaging and installation instructions for future reference.
Store the air conditioner in the product box during winter or when not in use.
NOTE:
Your home in sync
12
Getting Started
Suggested Tools For Installation (Not Included)
Phillips
Screwdriver
Scissors
or Knife
Pencil Level Ruler or Tape
Measure
Heavy object. Team handling is required during the installation process.
Carefully remove all the packaging straps and wraps from the air conditioner and accesso-
ries.
CAUTION
Removing All the Packaging
Left curtain frame
pre-assembled in factory.
Left curtain,
pre-assembled in factory.
Top channel,
pre-assembled in factory.
Right curtain frame,
pre-assembled in factory.
Right curtain,
pre-assembled in factory.
Bottom channel,
pre-assembled in factory.
L
R
Your home in sync
13
When handling the unit, be careful to avoid cuts from the sharp metal edges and aluminum
fins on the front and rear coils.
To be easy installation, both the left and right curtains, curtain frames, top channel, and
bottom channel, are pre-assembled in factory.

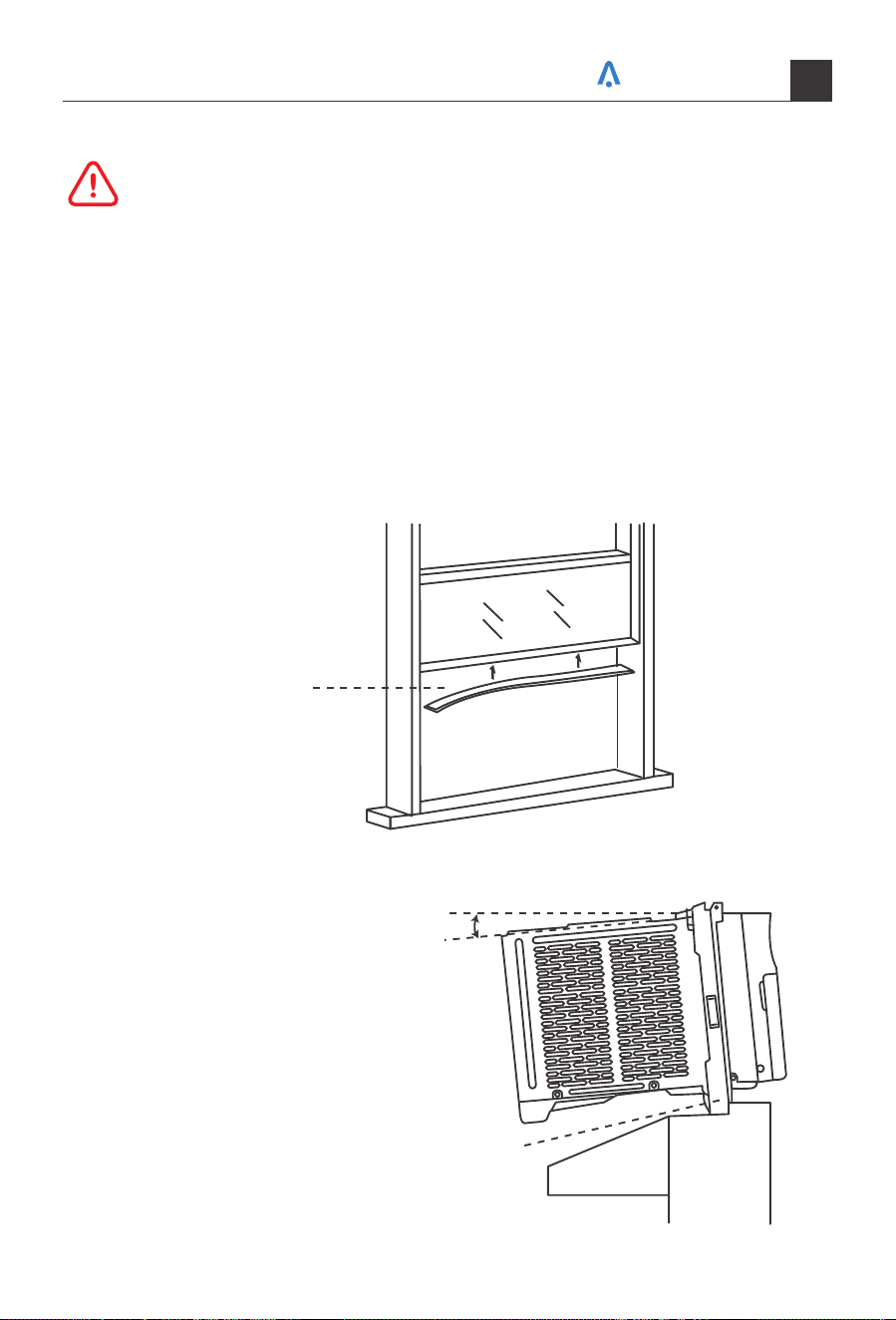

Measure the length of the upper window frame, trim the adhesive foam seal to the appr-
opriate length and apply as shown.
Carefully lift the air conditioner with a
helper to the windowsill and pull down
the sash, making sure the air conditi-
oner is centered and its bottom rail is
flush against the windowsill.
The air conditioner should be tilted
about 3° for better drainage of conde-
nsate and rainwater. Use a level: about
1/3 bubble willshow correct slant.
CAUTION
NOTE:
Applying the Adhesive Foam Seal
Placing Inside an Open Window
Adhesive
Foam Seal
About 3°
Inside
Outside
Bottom
Rail
NOTE:
Your home in sync
14

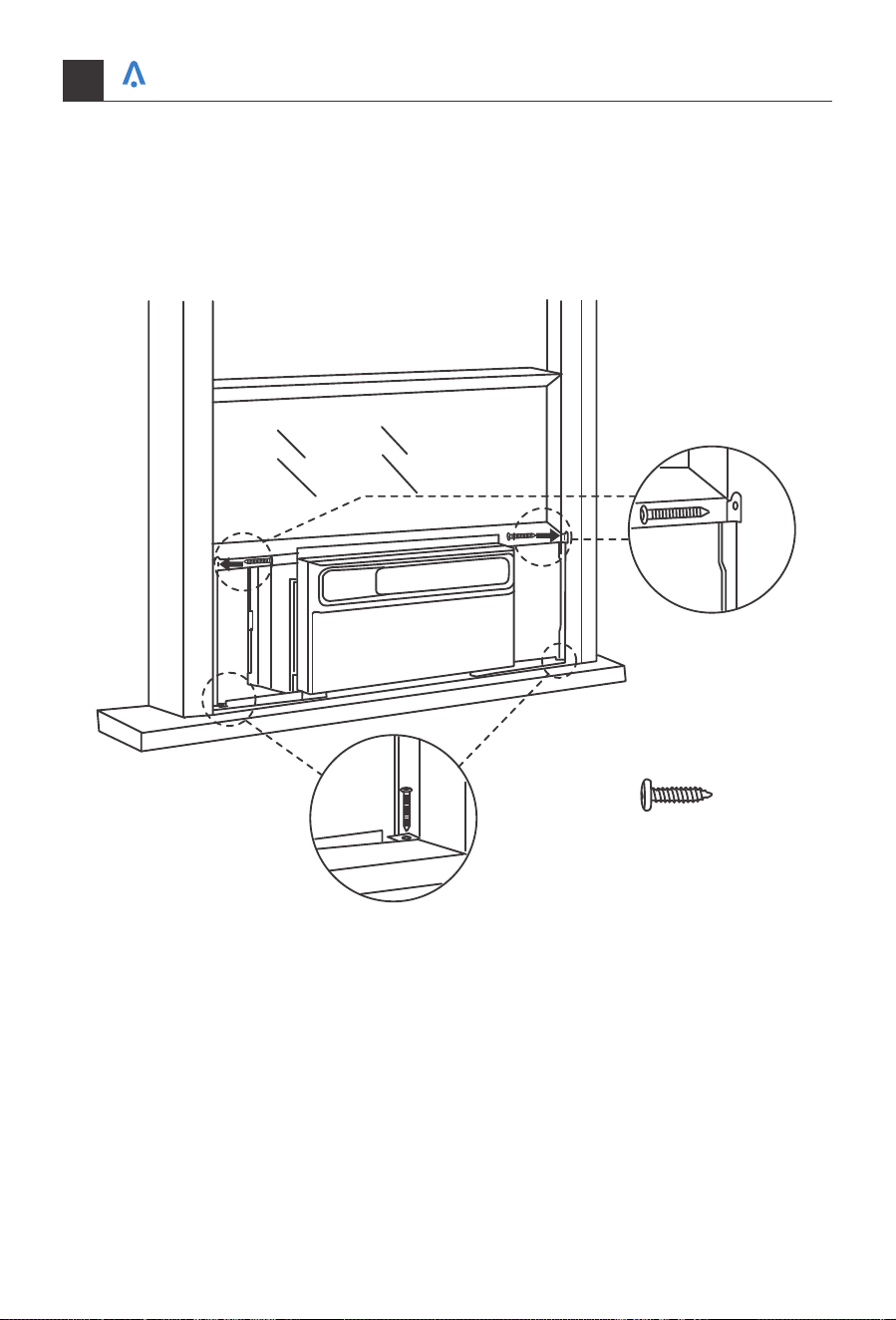

Extend the side brackets from both sides of the air conditioner onto the left and right
window frames and secure by installing four 3/4" screws as shown.
Securing the Side Brackets
3/4" Screws *4
Fix the upper screws first, then the lower screws.
NOTE:
Your home in sync
15
Pull the side panels inwards to align with the brackets, then secure onto the sides by
snapping the jutting points onto the locking pins.
Securing the Side Panels
Fill the crevices between the side brackets and panels with the included plasticene.
Sealing the Crevices with Plasticene
Locking Pins
Jutting Points
Your home in sync
16

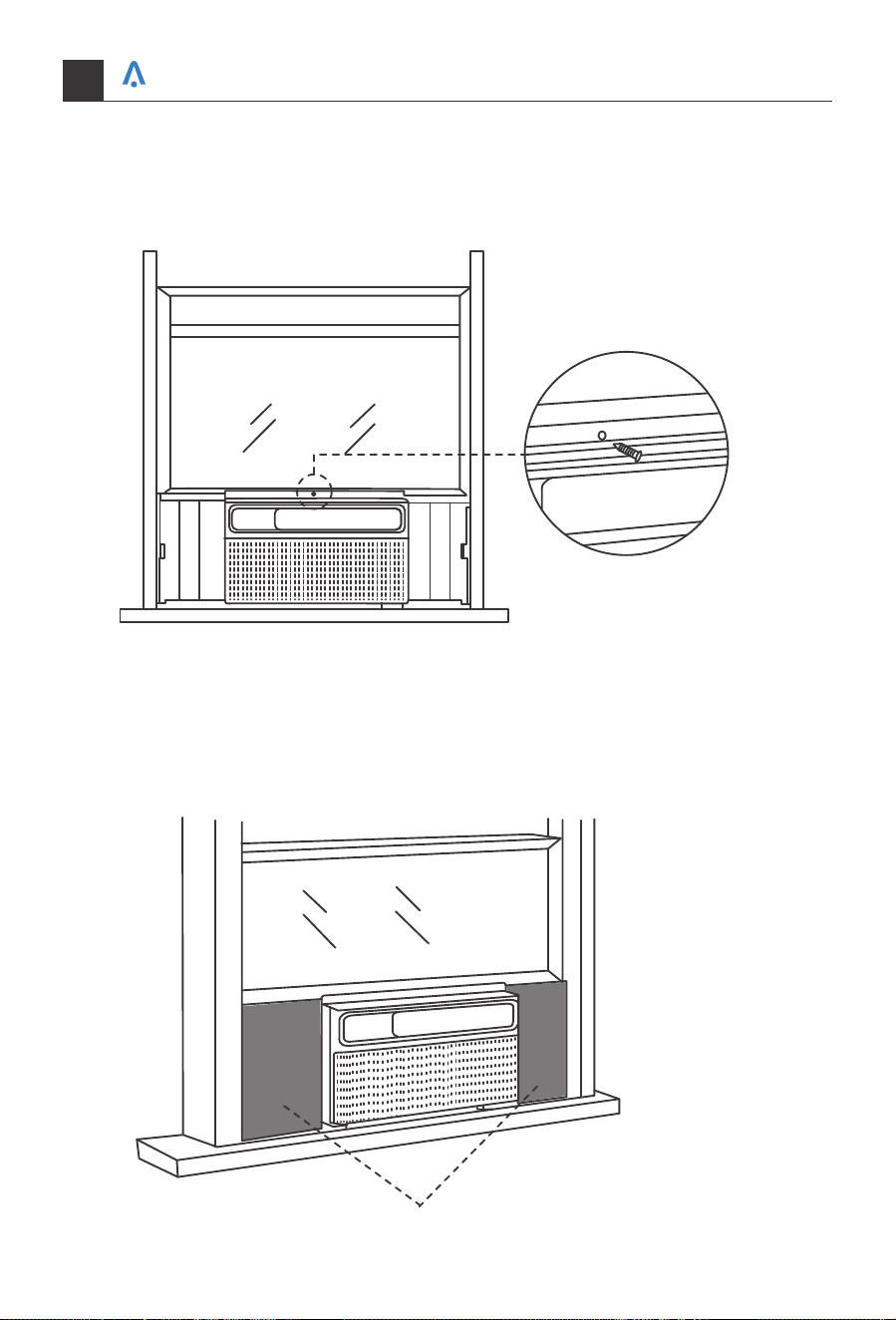

Install the 1/2" screw into the top rail of the air conditioner.
Installing the Screw Into the Top Rail
Measure the length extended by the side panels, trim the panel seals to the appropriate
length, peel off the backings and apply on the panels on both sides.
Applying the Panel Seals (Optional)
Top Rail
Panel Seals*2
Your home in sync
17

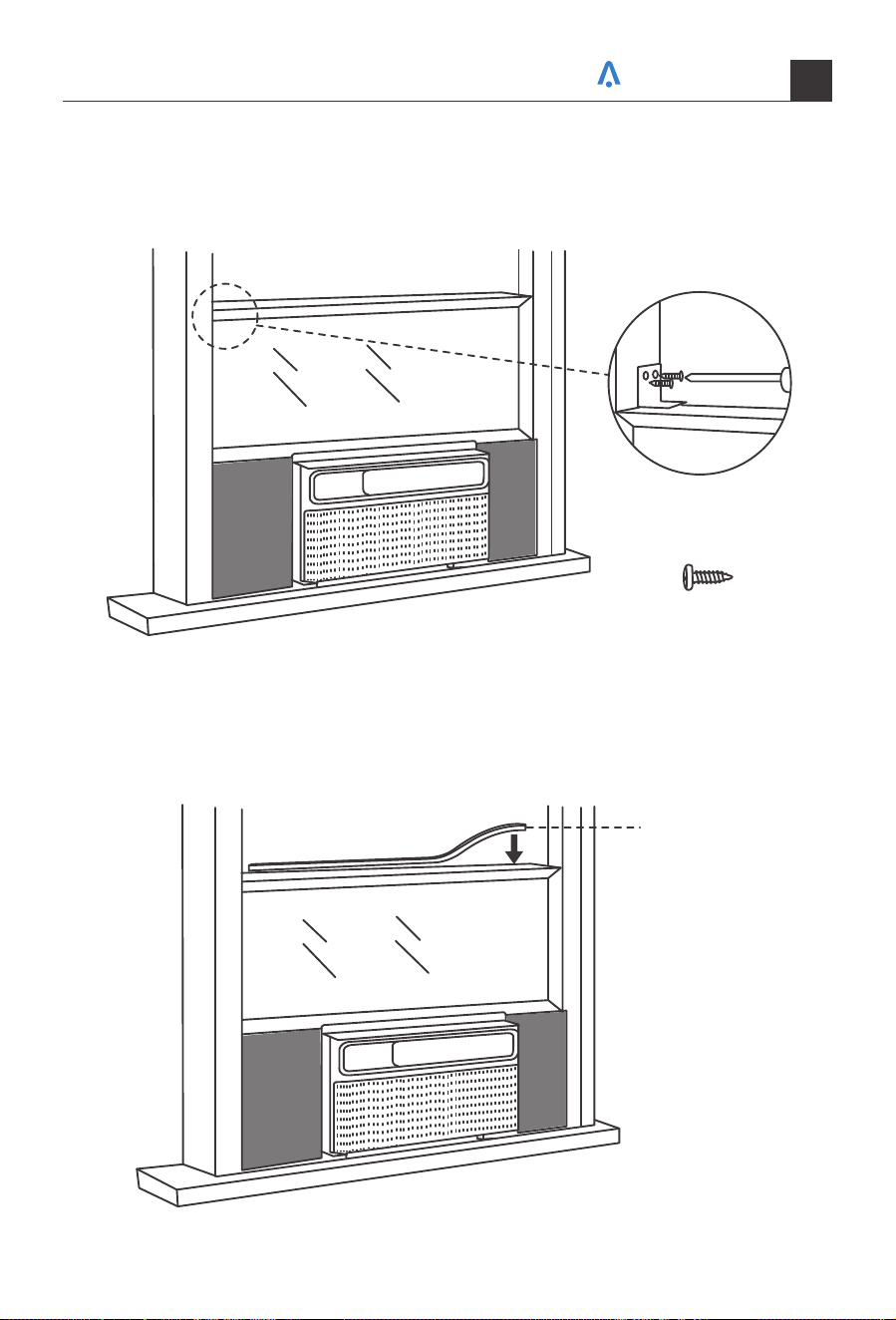

Attach the security bracket on top of the window sash and secure with two 1/2" screws.
Installing the Security Bracket
Trim the non-adhesive foam seal to the appropriate length and insert between the
window sashes.
Filling the Gap Between Sashes
1/2" Screws *2
Non-Adhesive
Foam Seal
Your home in sync
18
When open the window, besure that the fixed screws are avaliable from the curtain to
the window frame.
CAUTION
If AC is Blocked By Storm Window
Installation & Assembly Instructions
Add wood as shown, or remove storm window before air conditioner is installed.
If Storm Window Frame must remain, be sure the drain holes or slots are not caulked or
painted shut. Accumulated Rain Water or Condensate must be allowed to drain out.
Before installing the appliance, you must read the manual carefully to get the safety
information and notes.
Unit refrigerant charge amount: refer to unit name plate marking.
A leak test must be done after the installation is completed.
It is a must to do the safety inspection before maintaining or repai-
ring an air conditioner using combustible refrigerant in order to
ensure that the fire risk is reduced to minimum.
It is necessary to operate the machine under a controlled procedure
in order to ensure that any risk arising from the combustible gas
or vapor during the operation is reduced to minimum.
Board thickness as required,
for proper pitch to rear, along
entire sill. Fasten with nails or
screws.
Storm window
frame or other
obstruction.
OUTSIDE
1-1/2 min
(38 mm)
INSIDE
SASH
Important Considerations
Your home in sync
19
Introduction to Refrigerants R32
Site Safety
Installation Safety
Please note that:
Open Flames
Prohibited
Ventilation
Necessary
Operation Safety
Mind Static
Electricity
Must Wear
Protective Clothing
and Anti-Static
Gloves
Don't Use
Mobile Phone
1) Refrigerant Leak Detector
2) Appropriate Installation Location
3) The left picture is the schematic diagram of arefrigerant leak detector
The installation site should be in a well-ventilated condition.
The sites for installing and maintaining an air conditioner using Refrigerant R32 should
be free from open fire or welding, smoking, drying oven or any other heat source
higher than 548 which easily produces open fire.
When installing an air conditioner, it is necessary to take appropriate anti-static meas-
ures such as wear anti-static clothing and/or gloves.
It is necessary to choose the site convenient for installation or maintenance wherein
the air inlets and outlets of the indoor and outdoor units should be not surrounded
by obstacles or close to any heat source or combustible and/or explosive environment.
If the indoor unit suffers refrigerant leak during the installation, all the personnel
should go out till the refrigerant leaks completely for 15 minutes. If the product is
damaged, it is a must to carry such damaged product back to the maintenance station
and it is prohibited to weld the refrigerant pipe or conduct other operations on the
user's site.
It is necessary to choose the place where the inlet and outlet air of the indoor unit is
even.
It is necessary to avoid the places where there are other electrical products, power
switch plugs and sockets, kitchen cabinet, bed, sofa and other valuables right under
the lines on two sides of the indoor unit, and also prevent mechanical damage from
occurring.
Your home in sync
20
Using Your Air Conditioner

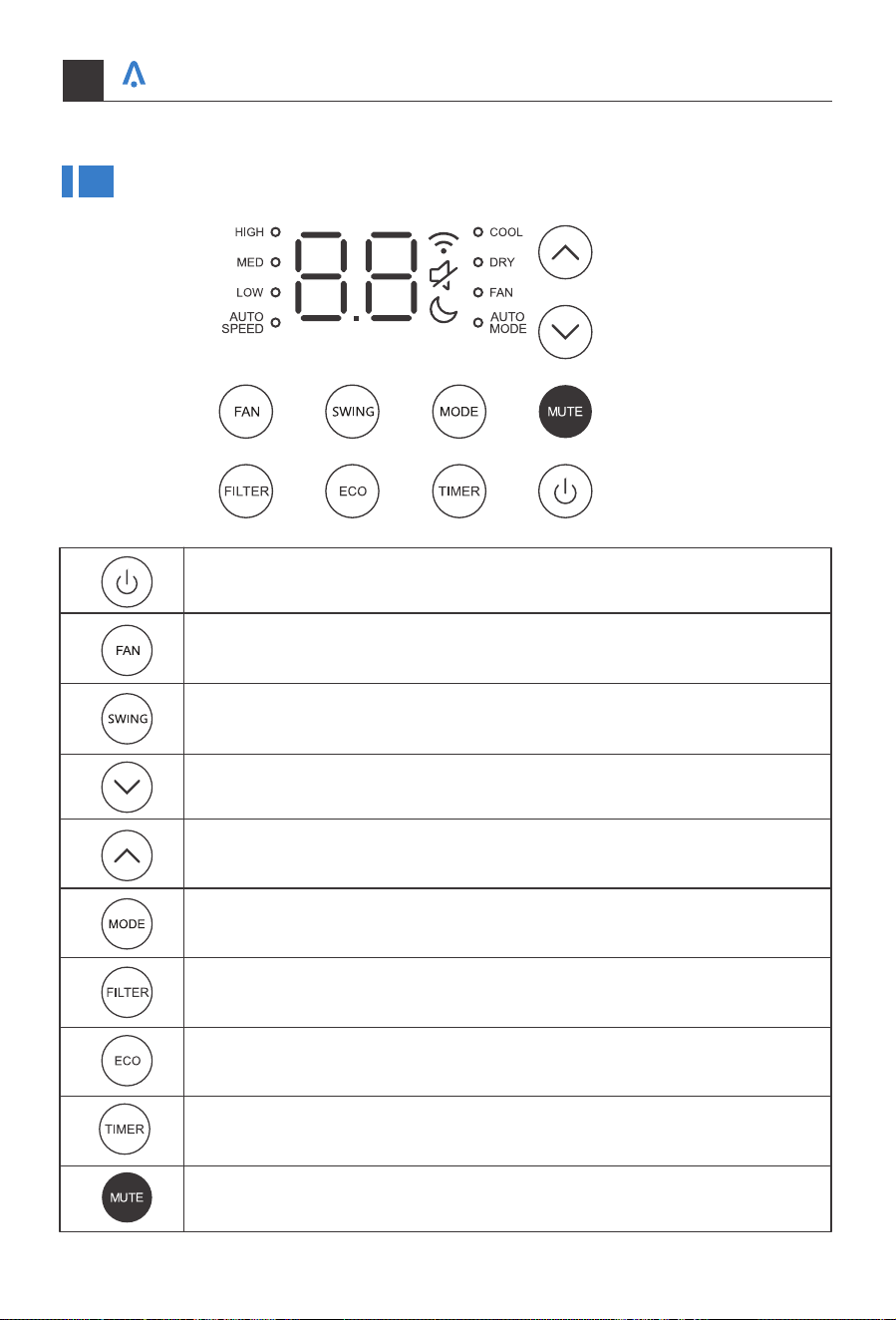

Adjust fan speed (Low, Med, High, Auto)
NOTE: Fan speed setting is available in Auto,Cool, and Fan modes only.
Decrease the air conditioning temperature.
Increase the air conditioning temperature.
Remind to clean the dust filter.
Turn on/off the ECO mode, under Cool/Dry mode.
Timer on or Timer off the unit.
Turn on/off the MUTE mode.
Turn on the air conditioner or switch to standby.
Select to adjust the airflow direction by swinging the louver vertically.
Switch between Cool/Dry/Fan/Auto mode.
Your home in sync
21

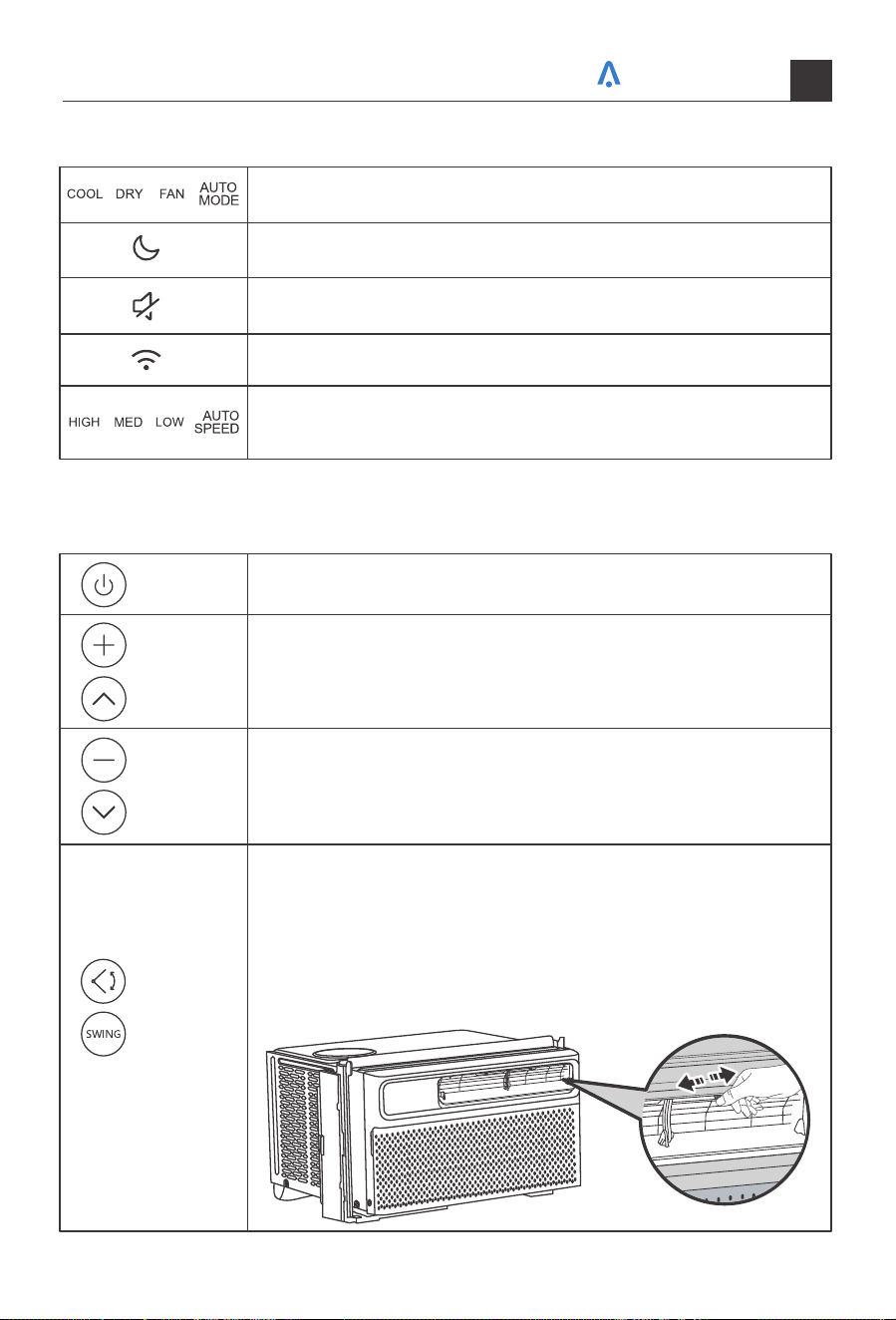

Indicates the unit is in Sleep mode.
Indicates the unit is in MUTE mode.
Indicates Cool, Dry, Fan, and Auto mode, respectively.
Indicates that there is a WiFi connection.
Indicates Low, Medium, High, and Automatic fan speeds,
respectively.
General Operations
Press to turn on the air condi�oner or switch it to standby mode.
Press to increase the air condi�oning temperature by 1F°/C°.
Press to decrease the air condi�oning temperature by 1F°/C°.
1.Press to make the louver move up and down.
2.Press again to stop the louver at the desired angle.
NOTE: To adjust the airflow direc�on horizontally, manually move
the levers located on top of the air outlet from side to side.
NOTE: Do not adjust the big ver�al louver by hand, otherwise will
cause damage.
Power
Button
Increase
Button
Decrease
Button
Swing/
Oscillation
Button
Your home in sync
22
Adjust Fan Speed
Press repeatedly to adjust fan speed: Low, Med, High, and Auto.
Fan Speed
Button
Filter
Button
NOTE:
Reset Filter Reminder
To clean the filter, see page below.
In Auto speed, fan speed will adapt to the room temperature.
In Dry Mode, fan speed cannot be adjusted.
Press repeatedly to cycle through Cool, Dry, Fan and Auto modes.
Cool Mode
In Cool mode, the air conditioner cools the room to the desired
temperature.
Temperature and fan speed are adjustable.
Dry Mode
In Dry mode, the air conditioner works as a dehumidifier to
remove humidity in the room. The fan is constantly running
at a low speed.
Temperature and fan speed cannot be adjusted.
Fan Mode
In Fan mode, the air conditioner circulates air like a normal fan.
Remember to open the vent during this function, but keep it
closed during cooling for maximum cooling efficiency.
Fan speed can be set to Low, Med, or High.
Temperature cannot be adjusted.
Auto Mode
In Auto mode, the air conditioner adjusts its working mode
(Cool or Fan) automatically based on the room temperature.
Temperature and fan speed cannot be adjusted.
Mode
Button
Your home in sync
23
Timer
Button (On
Remote
Control)
Eco Mode
Button (On
Remote
Control)
Sleep
Mode
Button (On
Remote
Control)
LED
Display
Button (On
Remote
Control)
When the air conditioner is on standby/running, press the
Timer button and its icon will flash on the remote display.
During the flashing process, press + or - to select a timer
from 0.5 to 24 hours, then press the Timer button again to
confirm the setting. After the timer ends, the air conditioner
will start/stop running automatically.
Turning the air conditioner ON or OFF at any time or adjusting
the timer setting to 0.0 hour will cancel the timer program.
In Eco mode, when the desired temperature is reached, the
compressor will turn off and the fan will continue to run for
3 minutes. Then the fan cycles on for 1 minutes at 5 minute
intervals until the room temperature is above the set tempe-
rature, at which time the compressor turns back on and cooling
restarts.
In Sleep mode, the air conditioning temperature will adjust
gradually every 30 minutes to keep you comfortable while
preventing overcooling. After 10 hours, Sleep mode will exit
automatically and the temperature will return to the initial
temperature.
NOTE: In Sleep mode, all the button sounds will be muted, and
all the indicators on the display will turn off after 15 seconds,
except for the Sleep mode indicator.
Long press 5 seconds to turn on or off MUTE mode.
When the running time of the fan reaches 500 hours, the filter reminder will light up to
remind you to clean the filter. To clean the filter, see page below.
Turn on or off the display on the air conditioner.
Long press 5 seconds to switch between °F/°C.
Other Features
Filter Reminder
Your home in sync
24
Display will dim after 30 seconds (off after 15 seconds in sleep mode).
Wake up the display with any button.
If the air conditioner is turned OFF and stays connected to the power, it will operate under
the previous settings (except the timer setting) when it is turned ON again.

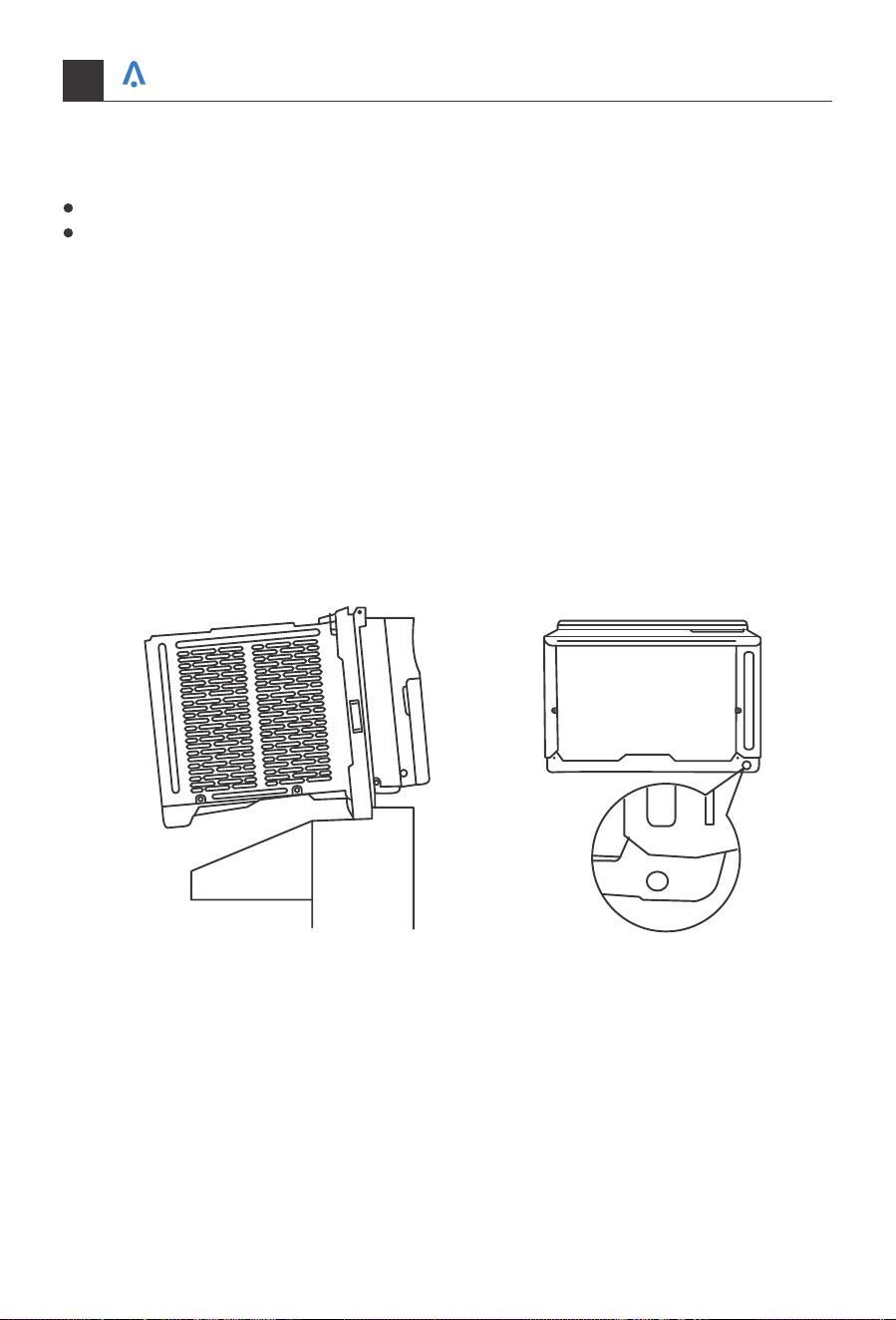

After proper installation, condensate will not overflow during normal use.
If the fan hits the built-up water and the sound annoys you, please remove the cap located
at the back of the air conditioner to drain the water away.
NOTE: Removing the cap may affect the heat transfer efficiency.
Display Auto Off
Memory
Drain Water
Inside
Outside
Remove the cap Located at the Back
Your home in sync
25
Remote Control
Battery Replacement
ECO LED
POWER
Turn on/off
DECREASE
Decrease temperature /
timer.
FAN SPEED
Adjust fan speed
(Low, Med, High, Auto)
TIMER
Set a timer to turn
on/off the air conditioner.
ECO MODE
Save energy while
ensuring the room stays
at the set temperature.
MODE
Cycle through Cool, Dry,
Fan and Auto modes.
INCREASE
Increase temperature /
timer
SWING
Starts and pauses the
louver movement.
SLEEP MODE
Save energy during sleeping
hours. Long press 5 seconds
to turn on or off MUTE mode.
LED DISPLAY
Turn on/off the display on
the air conditioner.
Long press 5s to switch
between °F/°C.
Your air conditioner may come with two batteries. Put the batteries in the remote control
before use.
Your home in sync
26
Slide the back cover from the remote control downward, exposing the battery comp-
artment.
Insert the batteries, paying attention to match up the (+) and (-) ends of the batteries
with the symbols inside the battery compartment.
Slide the battery cover back into place.
Do not mix old and new batteries, or batteries
of different types.
Do not leave batteries in the remote control if
you don,t plan on using the device for more
than 2 months.
Do not dispose of batteries as unsorted municipal waste. Refer to local laws for proper
disposal of batteries.
The remote control must be used within 26 feet / 8 meters of the unit.
The unit will beep when remote signal is received.
Curtains, other materials and direct sunlight can interfere with the infrared signal
receiver.
Remove batteries if the remote will not be used more than 2 months.
NOTE:
DISPOSAL
Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit
before cleaning to prevent shock or fire hazards.
The air filter should be checked at least once every month to see if it needs cleaning.
Never use hot water over 104°F (40°C) to clean the air filter. Never attempt to operate
the unit without the air filter.
Trapped particles and dust can build up in the filter and may decrease airflow as well as
cause the cooling coils to accumulate frost. To clean the air filter:
Care and Cleaning
Air Filter Cleaning
Tips For Using Remote Control
For optimum product performance:
Your home in sync
27

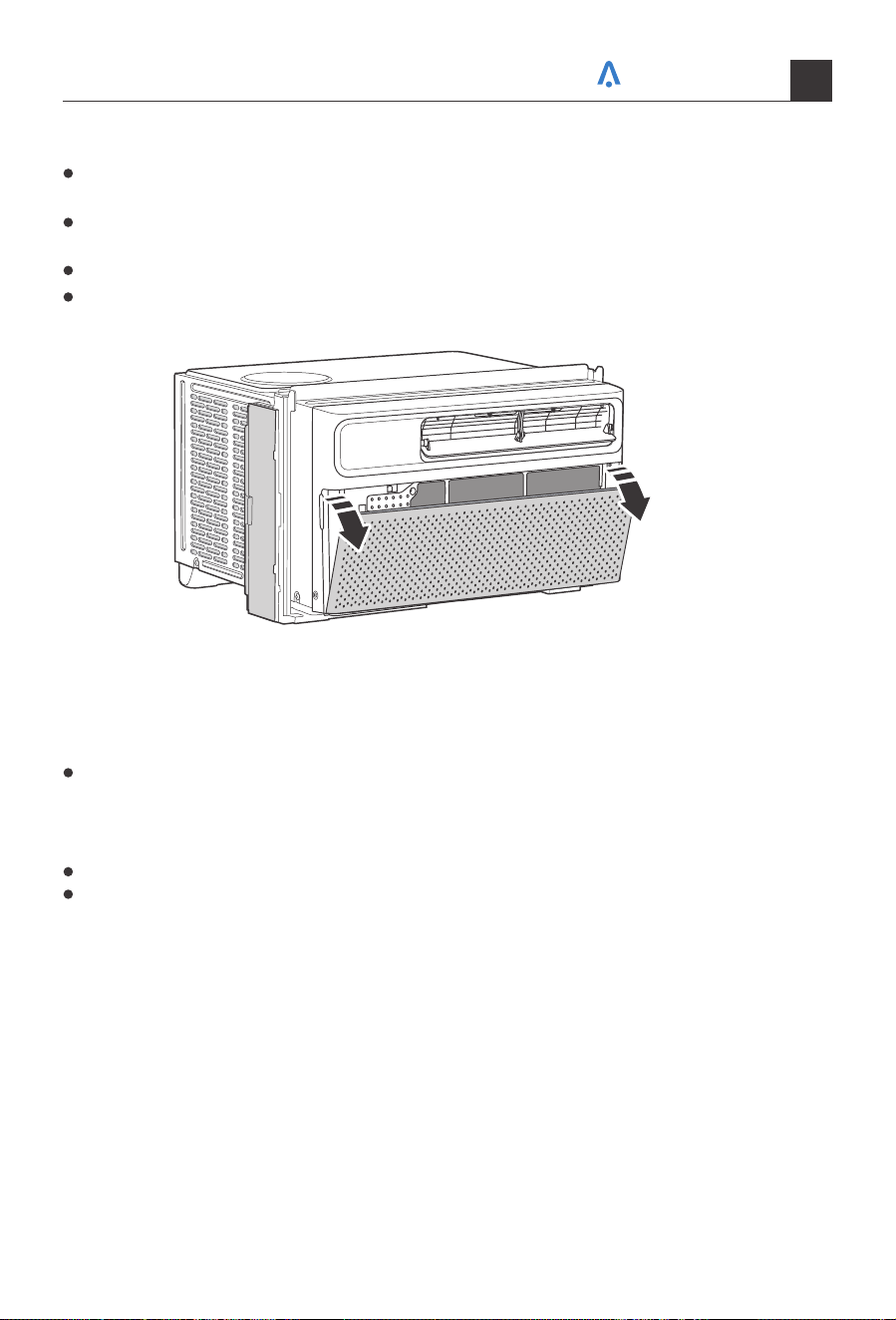

Pull the grille out from the indents on both sides at the front and remove the filter
inside.
Wash the filter using liquid dish soap and warm water. Rinse the filter thoroughly.
Gently shake the filter to remove excess water.
Let the filter dry completely before placing it into the air conditioner.
If you do not wish to wash the filter, you may vacuum the filter to remove the dust
and other particles.
Unplug the air conditioner to prevent shock or a fire hazard. The cabinet and front
panel of the air conditioner may be dusted with an oil free cloth or washed with a cloth
dampened in a solution of warm water and mild liquid soap. Rinse thoroughly with a
damp cloth and wipe dry.
Never use harsh cleaners, wax or polish on the cabinet front.
Be sure to wring excess water from the cloth before wiping around the controls. Excess
water in or around the controls may cause damage to the air conditioner.
To store the air conditioner when it is not in use for an extended period of time, remove
it carefully from the window according to the installation instructions and cover it with
plastic or place it in the original box.
Cabinet Cleaning
Winter Storage
To clean the air conditioner cabinet:
Your home in sync
28
Troubleshooting
Problem Possible Cause Solution
The air conditioner
will not start
The air conditioner
does not cool as it
should
The air conditioner is
unplugged
Make sure the air conditioner plug is
pushed completely into the outlet.
Check the house fuse/circuit breaker
box and replace the fuse or reset the
breaker.
Make sure there are no curtains,
blinds or furniture blocking the
front of the air conditioner
Lower the set thermostat
temperature.
Clean the filter. Refer to CLEANING
& MAINTENANCE.
Please allow time for the room to
cool down after turning on the air
conditioner.
Check for open furnace registers
and cold air returns.
The fuse is blown / circuit
breaker is tripped
Power failure
The current interrupter
device is tripped
Air flow is restricted
The temperature control
may not be set correctly.
The air filter is dirty
The room may be too
warm
Cold air is escaping
The unit will automatically restart
when power is restored.
There is a protective time delay
(approx. 3 minutes) to prevent
tripping of the compressor overload.
For this reason, the unit may not
start normal cooling for 3 minutes
after it is turned back on.
Press the RESET button located on
the power cord plug.
If the RESET button will not stay
engaged, discontinue use of the
air conditioner and contact a
qualified service technician.
Your home in sync
29
The air conditioner
does not cool as it
should
The air conditioner
is freezing up
The remote control
is not working
Water is dripping
outside
Problem Possible Cause Solution
Water is dripping
OUTSIDE when the
unit is cooling
Water is dripping
INSIDE when the
unit is cooling
Noise when the
unit starts
The cooling coils are
frozen
Switch to high fan speed and set the
thermostat to a higher temperature.
Temperature sensor behind the air
filter is touching the coil.
Try to move it so it does not contact
the cold coil.
Switch to high fan speed and set the
thermostat to a higher temperature.
Check the position of the batteries.
Replace the batteries.
This is normal.
This is normal.
Improper installation. Tilt air
conditioner slightly to the outside
to allow water drainage. Refer to
installation instructions.
This is normal for a short period in
areas with low humidity and normal
for a longer period in areas with
high humidity.
Temperature sensor
is not well situated.
Ice blocks the air flow
and stops the air
conditioner from
cooling the room
The batteries are
inserted incorrectly
The batteries may be
dead
Hot and humid weather
The air conditioner is not
correctly tilted outside
Moisture removed from
the air is draining into
the base pan
A "da-da" sound may
occur for 30 seconds
when the unit is turned
on due to the compressor
starting
Your home in sync
30
