Technical Support and E-Warranty Certificate www.vevor.com/support
WORKBENCH WITH PEGBOARD
USER'S MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL:SHFGM4824GR
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
WORKBENCH WITH
PEGBOARD
SHFGM4824GR
- 2 -
SAFE INSTRUCTIONS
：Please read this user manual carefully！
Assembly Precautions
1.Assemble only according to these instructions. Improper assembly can
create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during
assembly.
3.Keep assembly area clean and well lit.
4.Keep bystanders out of the area during assembly.
5.Do not assemble when tired or when under the influence of alcohol,
drugs or medication.
6.Weight capacity and other product capabilities apply to properly and
completely assembled product only.
7.Assemble on a flat, level, hard and smooth surface capable of safely
supporting a fully loaded workbench.
Use Precautions
1. Do not attach or mount this product to a vehicle.This may cause
personal injury or product damage.
2. Do not stand or step on this product.You may fall which may cause
personal injury.
3. Keep the product on level surfaces.The product may become unstable
and tip if stored or moved on an unlevel surface,which may cause
personal injury or product damage.
4. Lock the drawers before moving this product.The drawers could come
open and make the product unstable and tip,which may cause
personal or product damage.
5. Keep children and bystanders away while loading,unloading and
moving the product.
6. Do not lift the product directly with a forklift or tow with any mechanical
- 3 -
devices.
7. Do not exceed the maximum load capacity,including contents.Do not
exceed the maximum load capacity of each drawer.Do not exceed the
maximum load capacity of each tray.
8. Do not alter this product in any manner.
9. The box contains some small components; please place them properly
before installation to keep them away from kids and ensure safety.
10. Before installing the socket, the desktop should be cleaned to ensure
that there are no stains on the desktop. In particular, attention should
be paid to not bringing water into the socket so as to avoid safety
problems during subsequent use.
CAUTION: Carefully read instructions and procedures for safe operations.
SAVE THESE INSTRUCTIONS
MODEL AND PARAMETERS
Model
SHFGM4824GR
Desktop Size
48"x24"
Maximum Load Capacity
2000lbs
Pegboard
48"x24"
(Hole:Ф5.8mm,Hole Spacing:1")
Drawer Size
1000x405x85mm( inside)
Table Height Range
28"－39.5"
Power Strip
120V~ 60Hz,USB (DC5V,2A)
Lighting
LED / DC5V,14W
- 4 -
STRUCTURE DIAGRAM
1. Drawer 2.Telescopic Leg 3.Foundation 4.Power Strip
5.LED Light 6.Pegboard 7.Hanging Plate（Side) 8.Desktop
COMPONENTS
1
2
3
4
5
6
7
8
- 5 -
P1*1
P2*1 P3*1
P4*2
P5*4
P6*4
A*1
B*1 C*1
D*1
E*1
F*1
G*1 H*1
I*1
J*2
F1(M6x12mm)*16+2
F2(M8x12mm)*20
F3(M8)*12+2
F4(M8x50mm)*8
F5(M4x12mm)*2
- 6 -
INSTALLATION
Installation Preparation:
1. Two or more people to move and assemble the workbench.
2. Please prepare a carpet or mat to protect your floor you need to spread
out all the accessories.
3. Please prepare gloves to avoid being scratched by sharp parts that may
occur during installation.
4. Please open all the boxes to check that the accessories are complete
and in good condition.
5. If you need to use power tools to install this product, please set the
speed to low speed in advance.
6. When Installing please align all the holes and do not tighten all the
screws first;otherwise, it may make the installation difficult.
H*1
F6*1
a*1
b*26 c*26
- 7 -

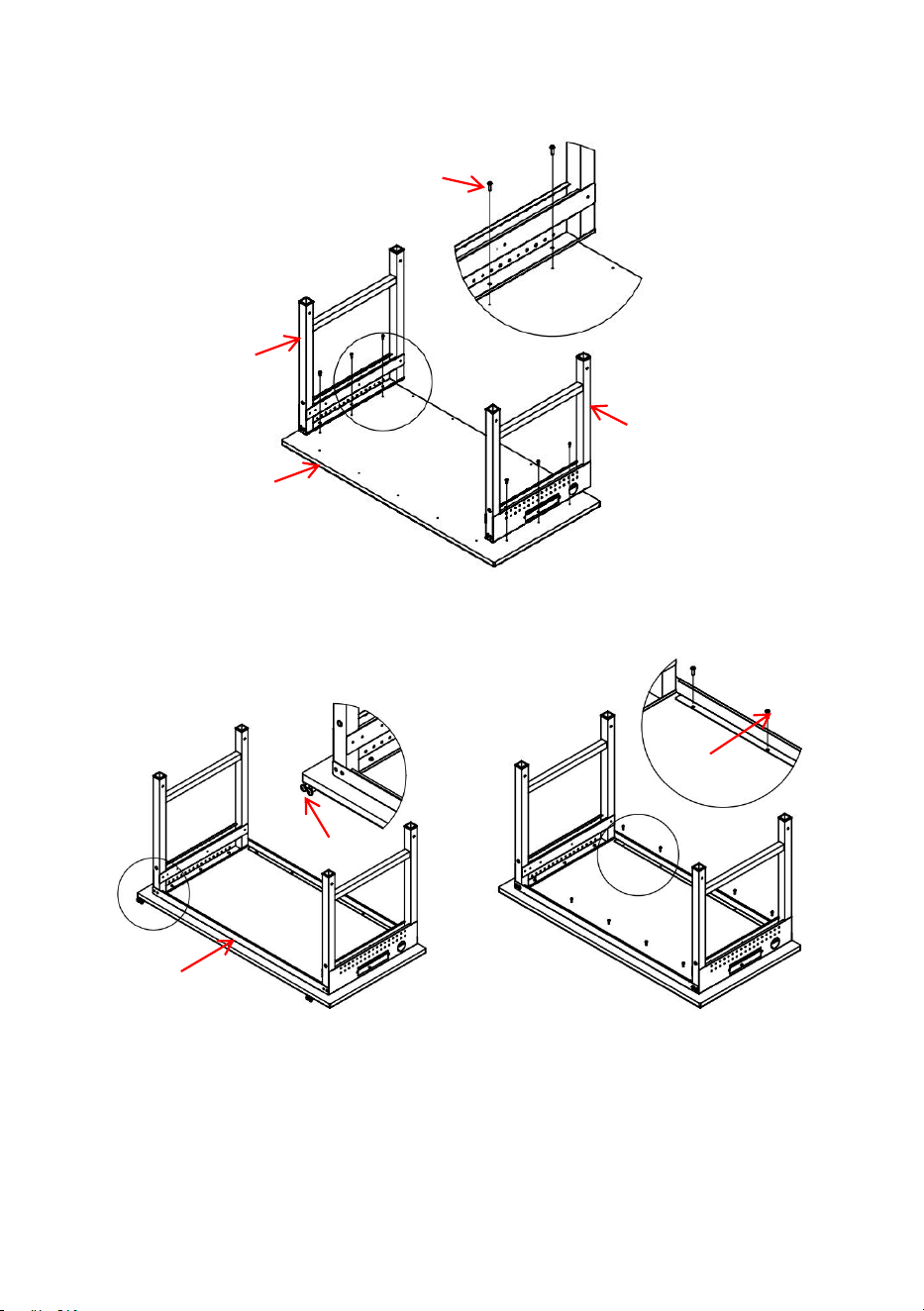

Installation:
STEP 1: Install desktop and supports
STEP 2: Install front and rear baffles
P3
P2
P1
F1
P4
F2
F1
- 8 -

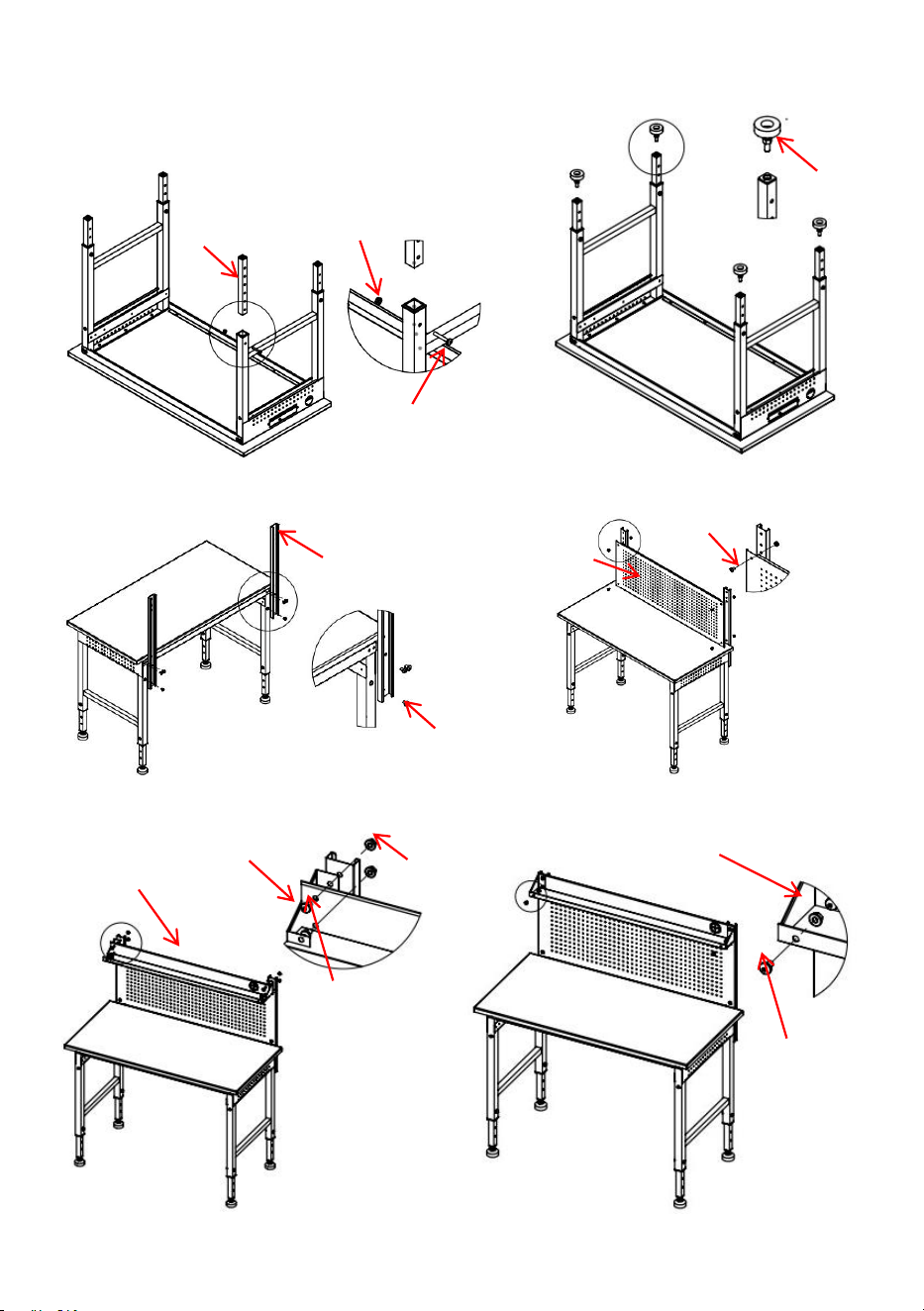

STEP 3: Install telescopic legs
STEP 4: Install the pegboard
STEP 5: Install upper slots
P5
F4+F3
F4+F3
P6
J
F2
I
F2+F3
F
F2
G+H
F3
F3
F2
- 9 -

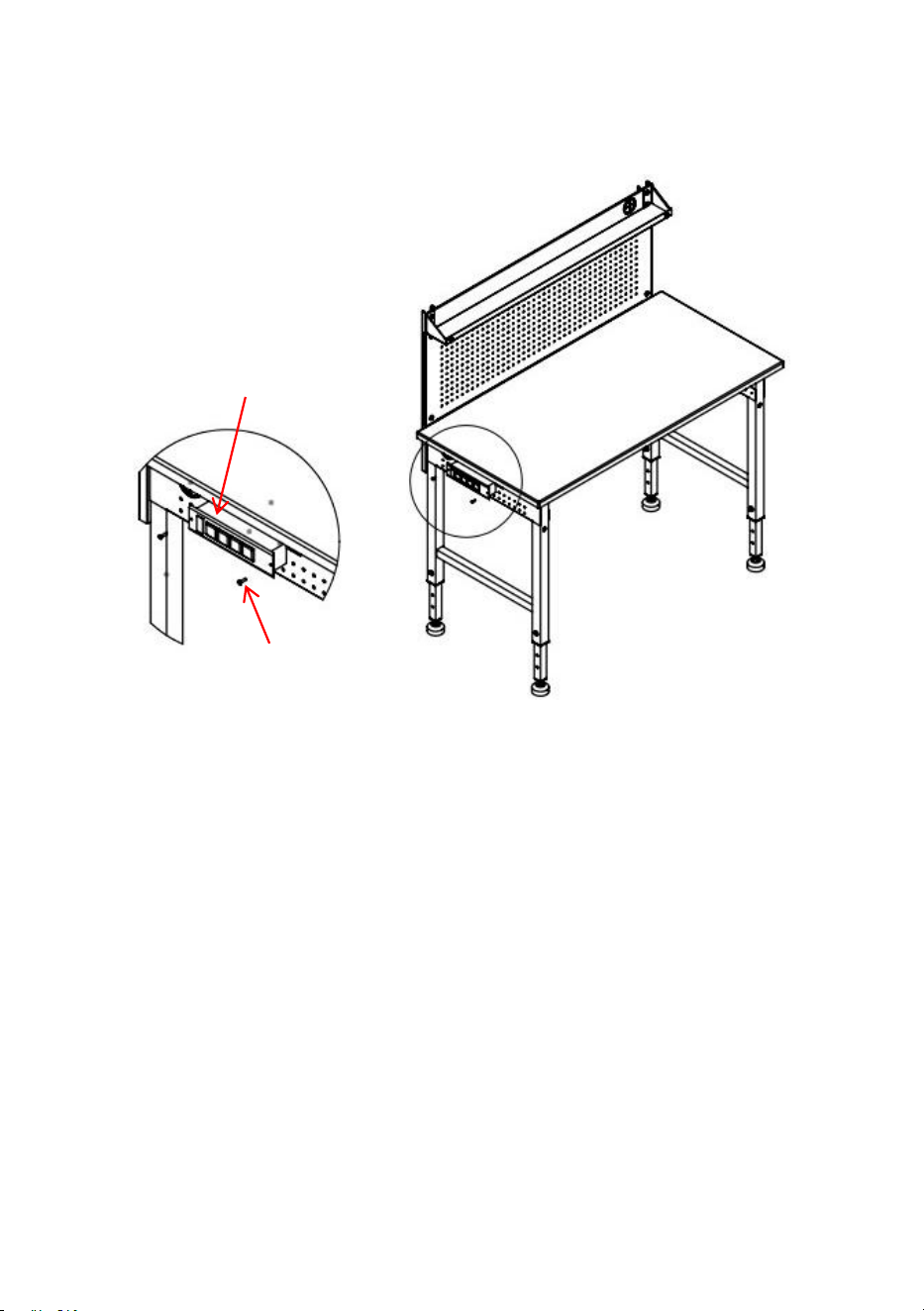

STEP 6: Install power strip and LED light strips are attached to the top
shelf.
F5
F6
- 10 -

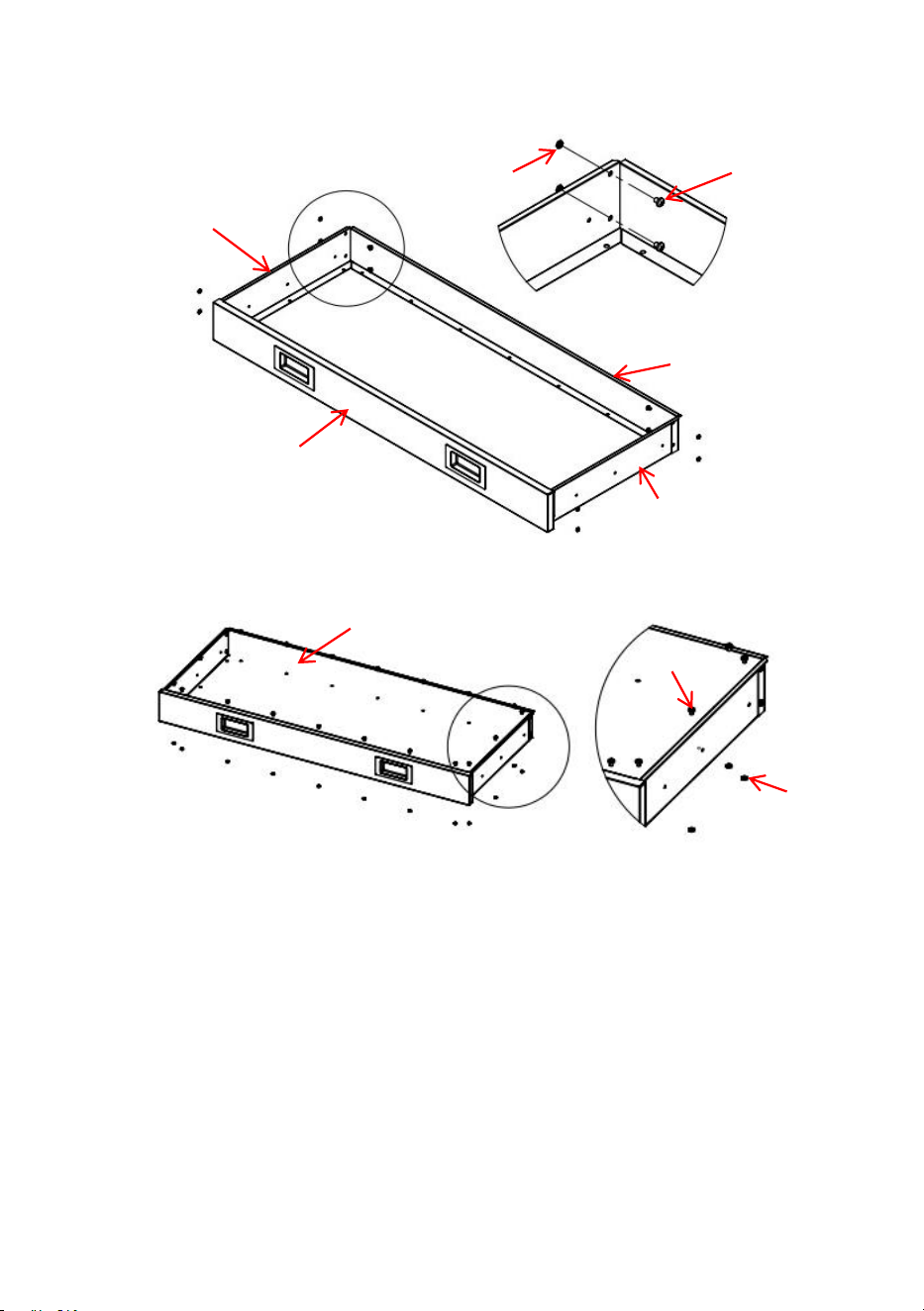

STEP 7: Mount the drawer.
A
D
E
B
b
C
c
b
c
- 11 -

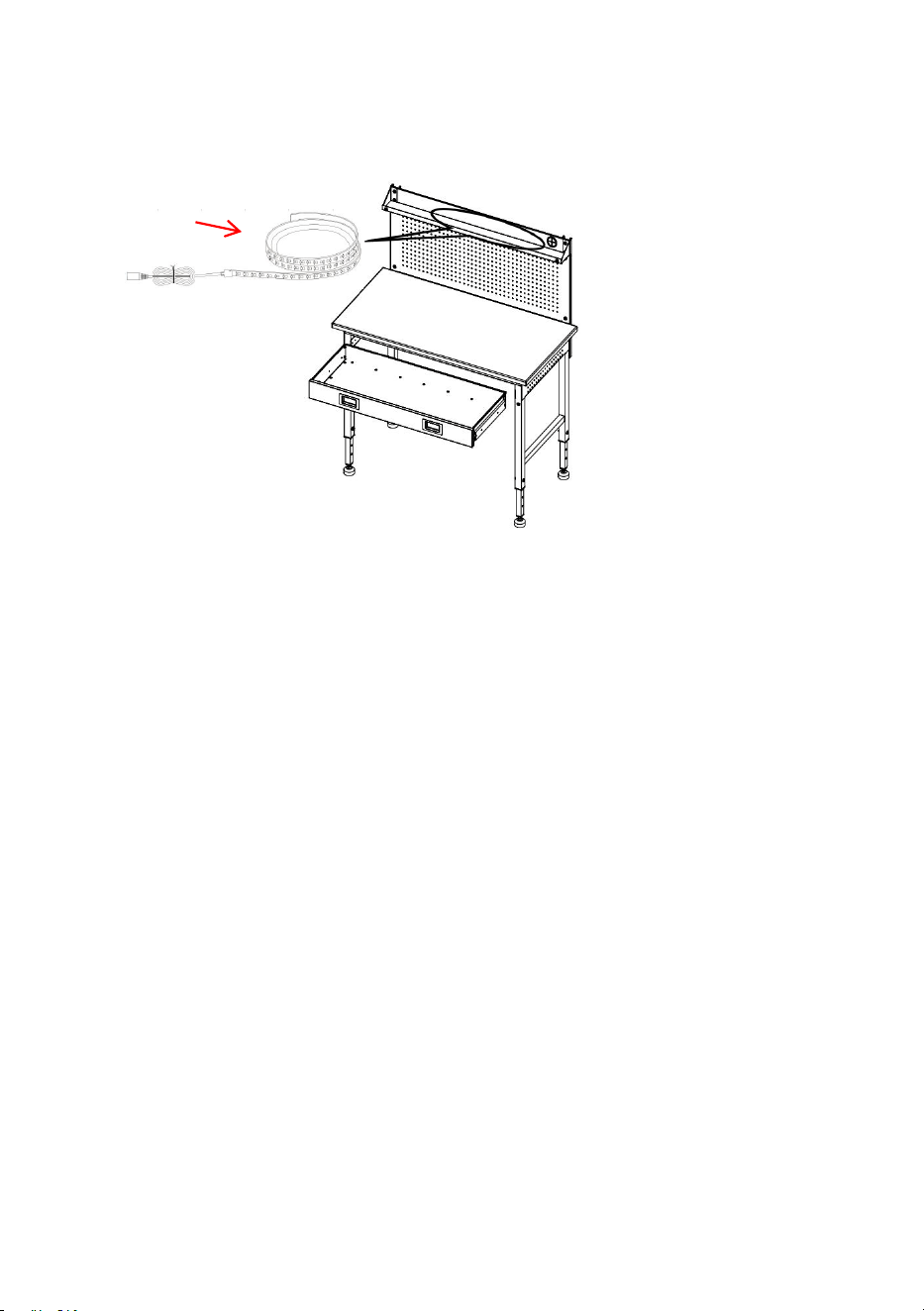

STEP 8: Paste LED strip and plug in(if needed)，and then installation is
complete.
NOTE: Do not bend LED strip light to a diameter less than1.5 inches.
Do not fold,crease,or twist LED strip light.
Do not bend LED strip light on a horizontal plane.
Do not put excessive pressure on surface of tape light.
Do not cover strip light with any materials.
Do not wind the LED strip when it is powered on .
H
- 12 -
MAINTENANCE
1. Please try to avoid putting wet items on desktop.
2. Dust off regularly with a clean rag, and arrange items neatly on desktop.
3. Don't let it sit in the sun for too long.
4. Check the table regularly to prevent screws from loosening and falling
off.
- 13 -
