Brand: COLOZO
Model:COW28S1/COW46S1
Read this manual and follow all safety rules and operating instructions before first use of this
Beverage cooler .
Support Phone:+1 540 228 1592
Support Email :service@colozo.com
INSTRUCTION MANUAL
BUILT-IN BEVERAGE COOLER
Need Help?
Before you request customer support, here are a few things you can do to help us
serve you better.
Read this Instruction Manual:
It is highly recommended that you read this manual before plugging in your newbeverage cooler
as it contains important safety information, installation instruction, operation instruction,
troubleshooting and maintenance tips to help you use and maintain your beverage cooler
properly,
so as to ensure the reliability and longevity of your beverage cooler.
If you receive a damaged beverage cooler:
Immediately contact COLOZO at service@colozo.com with the following information: your
order
number and photos of the damage.
Save time and money:
Check the troubleshooting section at the end of this manual before writing to us. This section
will help you solve common problems that may occur.
Thanks for being a valued COLOZO Customer.
Hope this Beverage cooler you purchased could make your life better as we expected.
We are proud of our quality products and we believe in dependable service. You're covered
with COLOZO 1-year free warranty to against any manufacturing defect. You are always
welcome to
reach us for warranty service or technical support, especially
1) when you received a damaged, defective Beverage cooler;
2) when you have any concerns, questions, or problems while using this Beverage cooler.
We will always appreciate your emails, and just as we are glad that you let us know
something had gone wrong, we also rely on your feedback to improve.
To access customer service for technical support or warranty service, please email to
service@colozo.com
PRODUCT DIAGRAM
7
INSTALLATION INSTRUCTIONS
8
Before Using Your Beverage cooler
8
To Install Stainless Steel Handle
8
To Install Your Beverage cooler
9
OPERATION INSTRUCTIONS
11
Controls
11
Storage
12
Shelves
12
CARE & MAINTENANCE
13
Cleaning Your Beverage cooler
13
Power Failure
13
Vacation Time
13
Moving Your Beverage cooler
14
Energy Saving Tips
14
TROUBLESHOOTING GUIDE
15-16
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS 4
. Plug into its own individual electrical outlet with a voltage rating that matches the rating
label on the cooler ( 115/120V AC only, 60Hz, 10A). Use receptacles that cannot be
turned off by a switch or pull chain. Be sure that the plug is fully inserted into the
receptacle.
. Plug into a grounded 3-prong outlet. Do not under any circumstances cut or remove the
third ground prong from the power cord supplied.
. To protect against electric shock, do not immerse the Beverage cooler, plug or cord in
water or other liquids.
. Never unplug the cooler by pulling the power cord. To disconnect the Beverage cooler,
always grip the plug firmly and pull straight out from the wall outlet.
. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at
either end.
. Do not connect or disconnect the electric plug when your hands are wet. Do not operate
the cooler with wet hands, while standing on a wet surface or while standing in water.
. Unplug the Beverage cooler or disconnect power before cleaning or servicing. Failure to
do so can result in electrical shock or death.
. When moving the Beverage cooler, be careful not to roll over or damage the power cord.
. Never clean Beverage cooler parts with flammable fluids. These fumes can create a fire
hazard or explosion. And do not store or use gasoline or other flammable vapor and
liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard
or explosion.
. Do not attempt to repair or replace any part of your Beverage cooler unless it is
specifically recommended in this manual. All other servicing should be referred to a
qualified technician.
. An empty Beverage cooler can be dangerous to children . Remove any latches, lids, locks,
and/or doors from unused or discarded Beverage coolers to prevent child entrapment
and suffocation . Never allow children to operate, play with or crawl inside this Beverage
cooler.
IMPORTANT SAFETY INSTRUCTIONS
Your safety and the safety of others are very important.
This Beverage cooler complies with the applicable safety requirements and is safe for daily use .
However, basic safety precautions should always be followed when using an electrical appliance,
to reduce the risk of fire, electric shock, and personal injury.
4
1.This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be made by children
without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
5. To avoid a hazard due to instability of the appliance, it must be fixed in accordance
with the instructions.
6. When positioning the appliance, ensure the supply cord is not trapped or damaged.
7. Do not locate multiple portable socket-outlets or portable power supplies at the rear
of the appliance.
8. Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
9. Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
10. Do not damage the refrigerant circuit.
11. Do not use electrical appliances inside the drink storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
12. Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
13. This appliance is intended to be used in household and similar applications such
as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
14. To avoid contamination of drink, please respect the following instructions:
– Opening the door for long periods can cause a significant increase of the
temperature in the compartments of the appliance.
– Clean regularly surfaces that can come in contact with drink and accessible drainage
systems.
– Clean water tanks if they have not been used for 48 h, flush the water system
connected to a water supply if water has not been drawn for 5 days.
– If the refrigerating appliance is left empty for long periods, switch off, defrost, clean,
dry, and leave the door open to prevent mould developing within the appliance.
5
. Do not use this beverage cooler for other than its intended purpose. For indoor,
household use only.
. Move this beverage cooler by 2 people . Failure to do so can result in injury.
. Place this beverage cooler in a well-ventilated area with temperatures above 15°C
(60°F) and below 32°C (90°F).
. To ensure proper ventilation for your beverage cooler, the front of the cooler must be
completely unobstructed.
. This beverage cooler must be installed in an area away from wind, rain, water spray or
drips.
. The beverage cooler should not be located next to ovens, grills or other sources of high heat.
. Do not kink or pinch the power supply cord of beverage cooler .
. It is important for the beverage cooler to be evl eled ni order to work properly. You may need
to make several adjustments to level it.
. This beverage cooler is designed for storing and cooling beverage. Do not store perishable
food or medical products inside the cooler .
. When disposing of refrigeration beverage coolers, special handling s often required. It is the
consumer’s responsibility to comply with federal and local regulations when disposing of
this product.
. WARNING: Risk of child entrapment and suffocation. Before you throw away this or an
old cooler, remove the door. Leave the shelves in place, so that children may not easily
climb inside.
FLAMMABLE REFRIGERANT GAS
DANGER - Risk of fire or explosion. Flammable refrigerant used.
DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture refrigerant
tubing.
DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained
service personnel. DO NOT puncture refrigerant tubing.
CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult repair manual / owner’s
guide before attempting to service this product. All safety precautions must be followed.
CAUTION - Risk of fire or explosion. Dispose of property in accordance with federal or local
regulations. Flammable refrigerant used.
CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling
instructions carefully. Flammable refrigerant used.
CAUTION - To prevent a child from being entrapped, keep out of reach of children and not in the
vicinity of the cooler.
6

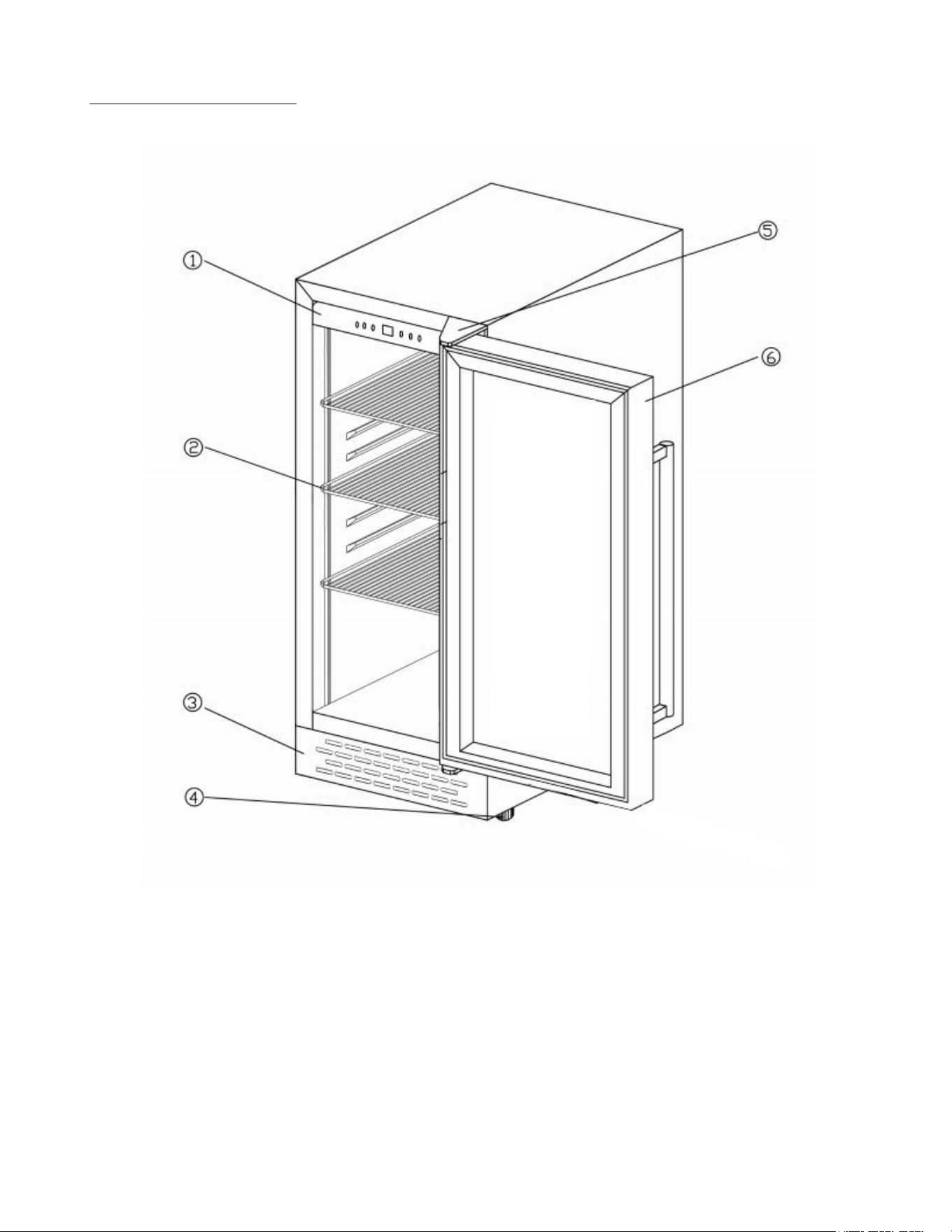

4 Leveling Legs
5 Top Hinge
6 Foam Door with Handle
1 Control Panel
2 Shelves
3 Exhaust Window
PRODUCT DIAGRAM
7
INSTALLATION INSTRUCTIONS
Before Using Your Beverage cooler
-
Remove the exterior and interior packaging.
-
Check to be sure you have all of the following parts :
o 3 Shelves
o Stainless Steel Handle
o Instruction Manual
o 2 Extra Screws for Installing Handle
-
IMPORTANT: Before connecting this Beverage cooler to a power source, let it stand upright
for approximately 2 4 hours . This will reduce the possibility of a malfunction in the cooling
system from handling during transportation.
-
Clean the interior surface with lukewarm water using a soft cloth.
-
Install the handle on the left side of the door.
To Install Stainless Steel Handle
1) Pull away the door gasket in the area where the handle is to be installed, as Illustration #1.
The gasket is easily removed by hand, no tools are necessary.
2) Align the handle with the pre-installed screws on the door frame. Tighten the screws with a
screwdriver until the handles secure tightly against the door frame, as Illustration #2. (Do NOT
over tighten as this will cause damage to the handle assembly).
3) Replace the door gasket to its original position.
Note: This Beverage cooler includes stainless steel handles that are not required to operate this
Beverage cooler. If you choose not to use the handle supplied, simply follow step 1 to access the
pre-installed screws and remove them and then place 2 decorative plugs (NOT included) into the
two holes separately. Continue on to step 3 to replace the door gasket to its original position.
8
To Install Your Beverage cooler
- This Beverage cooler is designed for free standing or built-in (fully recessed) installation.
- Place your Beverage cooler on a solid and level floor that is strong enough to support it when
it is fully loaded. This will ensure a vibration-free and noise-free operation. Adjust the leveling
legs in and out to stabilize the cooler horizontally. If the legs are not properly adjusted, the
cooler may be unstable and result in excess noise or vibration.
- Locate the Beverage cooler away from direct sunlight and sources of heat (stove, heater,
radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase
electrical consumption. Extremely cold ambient temperatures may also cause the cooler not
to perform properly.
- It is not advisable to install this cooler in moist areas or directly adjacent to a kitchen sink, as
moisture could cause premature corrosion to the components of your new cooler.
- It is recommended you install the Beverage cooler in a place with temperatures above 60°F
(15°C) and below 90°F (32°C), and humidity is under 60%. If the ambient temperature is
above or below recommended temperatures, the performance of the cooler may be affected.
Placing your cooler in extremely cold or hot conditions may cause interior temperatures to
1 Gasket
2 Screw
3 Screw Driver
4 Handle
Illustration #1 Illustration #2
9
fluctuate, and the temperature range of 3ºC-18ºC (37ºF-65ºF) may not be reached.
- Connect the Beverage cooler to an exclusive, properly grounded, standard electrical supply
(115 V AC only, 60 Hz), in accordance with the National Electrical Code and local codes and
ordinances. Any questions concerning power and/or grounding should be directed toward a
certified electrician or an authorized products service center.
Warning : Improper use of the grounded plug can result in the risk of electrical shock. If the
power cord is damaged, have it replaced by an authorized service center.
- The Beverage cooler should always be plugged into its own individual electrical outlet
which has a voltage rating that matches the rating label on the Beverage cooler . This
provides the best performance and also prevents overloading house wiring circuits that
could cause a fire hazard from overheated.
- Do not under any circumstances cut or remove the third ground prong from the power
cord supplied.
- Do not use an extension cord or adapter plug. However, if you must use an extension
cord, it is absolutely necessary that it be a UL-listed, 3-wire grounding type Beverage
cooler extension cord having a grounding type plug and outlet and that the electrical
rating of the cord is 10 amperes (minimum) and 120 volts.
- Do not use a cord that shows cracks or abrasion damage along its length or at either end.
- If the Beverage cooler is going to be used in an area that is prone to power
surges/outages, it is suggested that you use a power surge protector. The surge
protector that you select must have a surge block high enough to protect the Beverage
cooler it is connected to. Damages due to power surges are not considered a
manufacturer covered defect and will void your product warranty.
10
Press once to turn ON the cooler. Press and hold
about 3 seconds to turn OFF
the cooler.
Press
to increase or press
to decrease the temperature in 1 degree
increments between 3°C and 18°C or between 37°F and 65°F.
Press to begin adjusting the temperature for upper or lower zone
Toggles the temperature display between Celsius and Fahrenheit.
Press
once to turn the interior light ON or OFF.
OPERATION INSTRUCTIONS
Controls
After plugging the Beverage cooler into a wall outlet, the cooler would turn on automatically and
the LCD screen would show the temperature inside of the cooler.
After setting your desired serving temperature, allow the cooler to cool down for 3 to 4 hours
before placing beverage bottles in the Beverage cooler .
11
Storage
Many cans and bottles may differ in size and dimensions. As such the actual number of bottles
you may be able to store may vary..
Wired Shelves
The appliance is equipped with three wired shelves. You can remove the shelf by lift up and pull
it out smoothly.
To prevent damaging the door gasket, make sure to have the door all the way opened when
pulling the bottom shelf out of the rail compartment.
For easy access to the storage content, you can pull the shelf approximately 30% out of the
rail compartment, however this unit was designed with a stopper on each side of the shelf
track to prevent bottles from falling.
12
CARE & MAINTENANCE
Cleaning Your Beverage cooler
IMPORTANT: Always unplug the cooler before cleaning or performing maintenance. Never use
harsh cleansers or scouring pads to clean any part of the cooler.
- Turn off the power, unplug the Beverage cooler, and remove all items including shelves.
- Wash the inside surfaces with warm water and baking soda solution. The solution should
be about 2 tablespoons of baking soda to a quart of water.
- Wash the shelves with a mild detergent solution.
- Wring excess water out of the sponge or cloth when cleaning the area near the controls,
or any electrical parts.
- Wash the outside cabinet with warm water and a mild liquid detergent. Rinse well and
wipe dry with a clean soft cloth. Do not use steel wool or steel brush to rub the stainless
steel, which will contaminate the stainless steel with steel particles and rusting may
occur.
Power failure
Most power failures are corrected within a few hours and should not affect the temperature of
your Beverage cooler. If the power is off for an extended period of time, proper steps should be
taken to protect your contents.
Vacation Time
Leave the Beverage cooler operating during vacations of less than three weeks. For periods
longer than this, turn the Beverage cooler off and leave the door slightly ajar to prevent odor
from building inside the Beverage cooler.
13
Moving Your Beverage cooler
-
Remove all items (bottles) from the cooler;
-
Securely tape down any loose items, such as shelves, inside the cooler.
- Turn the adjustable leg up to the base to avoid damage .
-
Tape the door shut.
- Ensure that the Beverage cooler stays securely in the upright position during transportation.
Protect the outside of the Beverage cooler with a blanket or a similar item.
Energy saving tips
- The cooler should be located in the coolest area of the room away from heat sources or direct
sunlight.
- Ensure that the cooler is adequately ventilated. Never cover air vents.
- Only open the cooler door for as long as necessary. Frequent opening of the door will affect
internal temperature.
14
PROBLEM
POSSIBLE CAUSE
SOLUTION
The Beverage
cooler does not
run.
The Beverage cooler may not be
plugged in, or plug may be loose.
Ensure the Beverage cooler has been
plugged in properly.
The Beverage cooler is turned off.
Press
o
to
turn
on
the
cooler.
House fuse blown or tripped circuit
breaker.
Check/replace fuse. Reset circuit
breaker.
The Beverage
cooler is not
cold enough.
External environment may require a
higher setting.
Set a colder setting. Allow several hours
for the temperature to stabilize.
The Beverage cooler has recently
been disconnected for a period of
time.
It takes 3-4 hours for the Beverage
cooler to cool down completely.
Prolonged or frequent door
openings.
Open the door less often.
The door is not closed completely.
Close the door properly.
The door gasket does not seal
properly.
Check the door gasket. Clean or change
gasket if necessary.
The compressor
turns on and off
frequently.
The room temperature is hotter than
normal.
It’s normal for the Beverage cooler to
work harder under these conditions.
A large amount of contents has been
added to the cooler.
A large amount of contents cause the
Beverage cooler to run more until the
desired temperature is reached.
Prolonged or frequent door
openings.
Open the door less often.
The temperature has not been set
correctly.
Press either or
to check the
set temperature, and set the
temperature properly.
The door is not closed completely.
Close the door properly.
The door gasket does not seal
properly.
Check the door gasket. Clean or change
gasket if necessary.
TROUBLESHOOTING GUIDE
Before you reach out to colozo customer service, please check if you can resolve the problems
according to the following hints.
15
PROBLEM
POSSIBLE CAUSE
SOLUTION
The light does not
work.
Not plugged in.
Plug the cooler in.
The circuit breaker tripped
or a blown fuse.
Check the breaker and/or fuses.
The light button is “OFF”.
Press to turn the light ON.
Vibrations.
The cooler is not leveled.
Check to assure that the cooler is level.
The bottles are vibrating.
Make sure the bottles don’t touch each
others.
There is an object under the
cooler.
Remove the object under the cooler.
The cooler seems to
make too much
noise.
The cooler is not level.
Level the cooler.
Normal noise from the flow
of the refrigerant
The rattling noise may come from the flow
of the refrigerant, which is normal. As each
cycle ends, you may hear gurgling sounds
caused by the flow of refrigerant in your
cooler. Contraction and expansion of the
inside walls may cause popping and
crackling noises.
The door will not
close properly.
The cooler is not level.
Level the cooler.
The door was reversed and
not properly installed.
Re-install the door properly.
The gasket is dirty.
Clean the door gasket.
The shelves are out of
position.
Place the shelves properly.
Moisture build up on
interior or
exterior of the
Beverage cooler.
This is normal during high
humidity periods.
Lower the room humidity.
This is normal in high
temperature environment.
Move the cooler to a cooler place, and avoid
heat and sunlight.
Prolonged or frequent door
openings.
Open the door less often.
The door does not seal
completely.
Check door gaskets for proper seal.
Error Code:
E1-E2-E3-E4-E7-E8
A sensor has failed.
Contact the customer service at
service@ colozo. com
16
