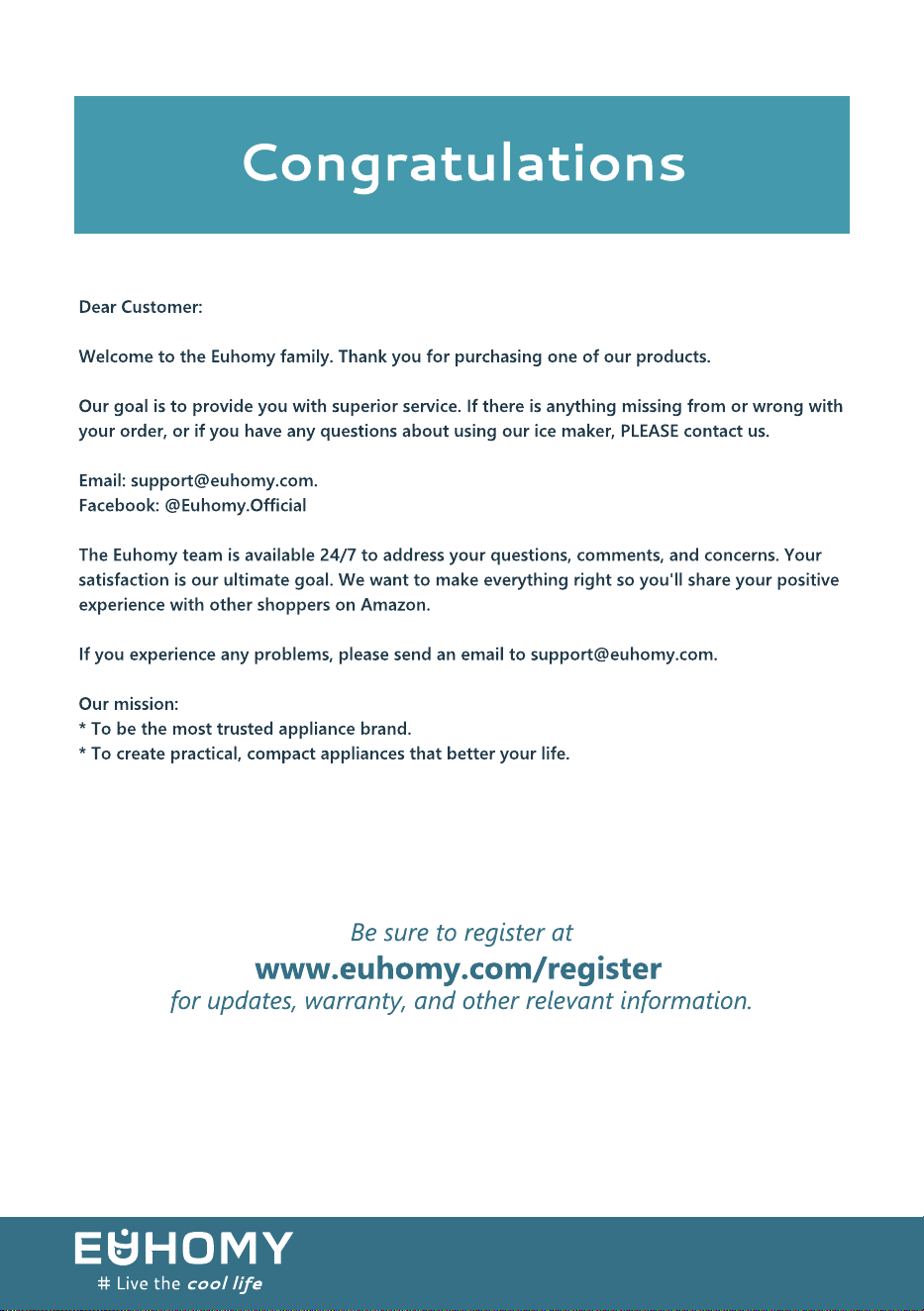

Email：support@euhomy.com
Facebook：@Euhomy.Official
Ice Maker
SKU：IM-FM
Instruction Manual
purified
01
02
03-08
09-11
12
13
02
Your safety and the safety of others are very important.
You can be killed or seriously injured if you don’t immediate follow
instructions.
We have provided many important safety messages manual and your appliance.
Always read and obey all safety messages.
This is the safety alert symbol:
All safety messages will follow the safety alert symbol and the word “DANGER” or “WARNING”.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of
injury, and tell you what can happen if the instructions are not followed.
These words mean:
!
DANGER
WARNING
!
!
03
1. Control Panel:
A. ON/OFF button: start or stop ice making; At the same time can cancel the cleaning and timer setting
program; When the unit is making ice cube, press the button for more than 5 seconds, the unit will
switch to ice harvest process by force.
B. Time "+" and clean button:
Ice making time adjustment: when adjusting the ice thickness, press 1 time and the ice making cycle will
increase 1 minute.
Timing time adjustment: when setting timing time, press 1 time and the timing time
will increase 1 hour.
Automatic cleaning: in standby mode, press the button for more than 5 seconds to enter the automatic
program
C. Time "-" and timer setting button.
Ice making time adjustment: when adjusting the ice thickness, press 1 time and the ice making cycle will
reduce 1 minute.
Timing time adjustment: when setting timing time, press 1 time and the timing time will reduce 1
hour.
Timing setting: in standby mode, press the button for more than 5 seconds to set the timing of the
machine.
D. Ice cube symbol:when the symbol is rotating,the unit is making ice cube,when the symbol flash,the
unit is ice harvest.
E. Ice full warning symbol: the unit will automatically make ice after removing the ice.
F. Digital display:
Ice thickness display: when the number is displayed simultaneously with "D" on the right, means the
current ice thickness adjustment gear; For example, the display of "1" and "D" means that the ice making
time is increased by 1 minute.
⑥
⑤
③
④
⑨
⑧
②
①
⑩
⑦
A
B
C
E
D
F
G
H
I
J
04
For example, if the display of "20" blinks, it means that the automatic
cleaning will end after about 20 minutes.
G. Water shortage symbol: If the symbol is on, the machine is short of water.
H. Ice thickness adjustment unit, display in conjunction with digital display.
I. Ice making time countdown unit, display in conjunction with digital display.
J. Timing setting, display in conjunction with digital display.
2. Ice basket
3. Evaporator
4. Water separator pipe
5. Front up cover
6. Water tank
7. Cover for the water reservoir
8. Water draining cap: To draining out the water from unit
9. Ice scoop
10. Hot Air Outlet
Ice making time countdown display:when the number is displayed simultaneously with "M" on the
right,means the ice making time countdown display; For example,the display of "2" and "M" means that
the unit will start harvesting ice in about 2 minutes.
Timing display: when the number is displayed simultaneously with " " on the right, means the timing
startup or shutdown display.
Automatic cleaning time countdown display: when the number is blinking, there is no unit display on the
right side, means the cleaning time countdown;
05
UNPACKING YOUR ICE MAKER
CONNECTING YOUR ICE MAKER
WARNING:
fill with potable water only.
* Improper use of the grounded plug can result in the risk of
electrical shock. If the power cord is damaged please call our
customer service.
1. Remove the exterior and interior packaging. Check that ice basket and ice scoop is included. If any
parts are missing, please contact our customer service.
2. Clean the interior with lukewarm water and a soft cloth. Take out the ice basket and clean it
3. Find a location for your ice maker that is protected from direct sunlight and other sources of
heat (i.e.: stove, furnace, radiator). Place the ice maker on a level surface. Maker sure that
there is at least 6 inches of space between the back and sides of your ice maker and the wall.
4. Allow one hour for the refrigerant fluid to settle before plugging ice maker in.
5. The appliance must be positioned so that the plug is accessible.
1. This unit should be properly grounded for your safety. The power cord of this appliance is equipped
with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility
of electric shock.
2. Plug your appliance into an exclusive, properly installed, grounded wall outlet. Do not under any
circumstances, cut or remove the third (ground) prong from the power cord. Any questions concerning
power and/or grounding should be directed toward a certified electrician.
3. This appliance requires a standard 110-120volt, 60Hz electrical outlet with three-prong ground.
DANGER
!
06
Method 1: Manually add water:
Insert the "water tank" into the
corresponding position on the top of the
machine, open the "water tank cover",
pour drinking water, the water level
should be lower than the "MAX" mark
line, and then cover the "water tank
cover" to prevent foreign matter from
entering the water tank. As shown in
the picture on the right:
Operation and display areas
1. Ice making startup: Plug in the power plug, the display symbol will start to be steady on, press
the " " key on the operation panel, water will be added to the water tank through the electromagnetic
water valve, after reaching the standard water level, the unit starts to make ice, the symbol and" 0
"and" D "are steady on, steady" 0 D ", means that the ice is made at the default time;
After a few minutes of ice making work, there will be a flashing number and symbol "M", and the flashing
number "10M" means that it will take 10 minutes for the ice making to end.
2. After each ice making is finished, the unit will start to harvest the ice cube, and the ice making
symbol will be shining. Water will be added to the tank through the electromagnetic water valve
until it reaches the standard water level of the tank, and the unit will enter the next ice making cycle;
when the water added to the tank cannot reach the standard water level of the tank, the symbol
will be steady on, and the unit will stop working. After a water shortage, it is necessary to restart the
machine, otherwise it will wait for about 15 minutes and automatically start up.
Add water to ice maker
Ice making operation
Water tank
Cover of the
water reservoir
07
Automatic self-cleaning program, the default cleaning time is 20 minutes. Plug in the unit with the water
tank filled with water, press the "+" button on the operation panel for more than 5 seconds to start
entering the self-cleaning function, and the number "20" on the display flashes, indicating the end of the
self-cleaning function after 20 minutes.
Cancel the self-cleaning program: It takes about 20 minutes to complete a self-cleaning program. When
the program is finished, the system will automatically be in the off state.; You can also force a stop to
the self-cleaning program by pressing the "On/off" button on the operation
Timer setting: Timer setting range: 1-24 hours
Timed shutdown: When the unit is working, timer setting the unit off.
Timed startup: When the unit is in standby, timer setting the unit on.
Note: Each ice-making cycle is about 10-25 minutes, and the ice-making time may vary according to the
ambient temperature and the water temperature added. Especially the first time to make ice, due to the
higher water temperature in the tank, the ice making time will be longer. But the ice-making cycle will
not exceed 35 minutes.
3. Adjustment of ice thickness: if you think the ice cube is not thick enough, during ice making,press
the“+”and“-”to set the ice-making time. ; when the number and symbol "D" are displayed on the
display screen, it means setting ice-making time, the default is "0", press the "+" key once to increase
the ice-making time by one minute,and the ice cube will be thicker, the ice-making time can be
increased by up to 6 minutes, the display will display the corresponding number; Press the "-" key
once to reduce the ice-making time by one minute,and the ice cube will be thinner, the ice-making
time can be reduced by up to 6 minutes. After the unit is powered on again, it returns to the default
setting of "0". After the ice making time is set, it can only start from the new cycle.
4. When ice full symbol is on,the unit will stop,take out the ice cube inside ,the unit will start
working again.
5. Ice making shutdown: Press the "On/Off" button on the operation panel to shut down the unit and
enter the standby mode when the unit is working.
Forced ice harvesting operation
Automatic self-cleaning program
Timed startup and timed shutdown function operation panel.
If press the "On/Off" button more than 5S,when the ice maker is working,the unit will start harvest.
Press "On/Off" button,the unit will turn off.
08
In order to ensure hygiene requirements, please change the water every 24 hours and clean the inner
tank and water tank every three days.
Ice maker drainage: pull out the drain plug at the bottom of the ice maker to empty the water in
the inner tank; The ice maker must be in standby mode to drain water from the water tank and inner
tank. Then reset the drain plug when the drain is complete.
Warning
A, make sure the water tank,water filter and the water separator pipe is not blocked,
clean them
B, The water temp will effect the ice making capacity.The lower temp,the more ice cube
produce.
C, The cooler ambient temp, the more ice cube produce.
D, always use good quality water to make sure the pump work well.Bad quality water will
cause pump noise,but doesn't effect the unit working.
E, The compressor restart 3mins later if you turn off the unit.
Press the "-" button on the operation panel for more than 5 seconds, and the timing time "1" and
symbol " " appear on the display screen, then press the" + "button to adjust the timing time you
need, each time you press, the time increases by 1 hour; Press "-" to reduce the timing time. The
symbol " " is shining during the time adjustment process, and the setting will be completed when
the symbol turns on after 5 seconds.
Timed shutdown display: in the ice making condition, the symbol " " is on, indicating that there is a
timed shutdown setting at present, press the" - "button for more than 5 seconds, you can display the
current setting time, display" 5 "and" ", indicating that the machine will automatically shut down
after 5 hours.
When the unit has been timed, press the "-" button on the operation panel for more than 5 seconds,
the number and " " on the screen blink, and then press the" - "button on the operation panel for
more than 5 seconds, the timing will be canceled; You can also set the timing time to "0", and the
timing will be canceled after 5 seconds.
You can also directly press the " " key on the operation panel to force off the timing function and
directly turn it on or off.
Timed startup display: "5" and " " are displayed in the standby state, indicating that the
unit will automatically start up after 5 hours;
How to cancel the timing
How to set the timer
09
IMPORTANT SAFETY TIPS
When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire,
electric shock, and injury to persons or property. Read all instructions before using any appliance.
WARNING: This appliance must be earthed.
Do not operate this, or any other appliance with a damaged cord.
Connect to properly polarized outlets only. No other appliance should be plugged into the same outlet.
Be sure that the plug is fully inserted into the receptacle.
Do not run the power cord over carpeting or other heat insulators. Do not cover the cord. Keep cord
away from traffic areas, and do not submerge in water.
We do not recommend the use of an extension cord, as it may overheat and become a risk of fire. If
you must use an extension cord, use No.14 AWG minimum size and rated no less than 1875 watts.
Unplug the ice maker before cleaning or making any repairs or servicing.
Exercise caution and use reasonable supervision when appliance is used near children.
Do not use your ice-maker outdoors. Place the ice-maker away from direct sunlight and make sure
that there is at least 6 inches of space between the back of your unit and wall. Keep a minimum
distance of 6 inches on each side of your unit free.
Do not use other liquid to make the ice-cube other than water.
Do not clean your ice maker with flammable fluids. The fumes can create a fire hazard or explosion.
Do not tip over.
If the ice maker is brought in from outside in wintertime, give it a few hours to warm up to room
temperature before plugging it in.
DANGER – Risk Of Fire or Explosion. Flammable Refrigerant Used. Do Not Use Mechanical Devices To
Defrost Ice Maker. Do Not Puncture Refrigerant Tubing.
10
IMPORTANT:
CAUTION – Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair Manual/Own-
er’s Guide Before Attempting To Install or Service This Product. All Safety Precautions Must be
Followed.
CAUTION – Risk Of Fire Or Explosion. Dispose Of Property In Accordance With Federal Or Local
Regulations. Flammable Refrigerant Used .
CAUTION-Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow Handling
Instructions Carefully. Flammable Refrigerant Used.
The ice maker should be installed in accordance with the safety standard for Refrigeration Systems,
ASHRAE15. The ice maker shall not be installed in corridors or hallways of public buildings.
If the unit is with problem need to be maintained, that replacing with like components and that
servicing shall be done by factory authorized service personnel, so as to minimize the risk of possible
ignition due to incorrect parts or improper service.
The wires in this mains lead are colored in accordance with the following code:
To avoid a hazard due to instability of the appliance, it must be placed at a even or flat surface.
White: Neutral
Black: Live
DANGER – Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be
Repaired Only By Trained Service Personnel. Do Not Puncture Refrigerant Tubing.
Green or Green with a strip yellow: Grounding
11
Before using your ice maker, it is strongly recommended to
clean it thoroughly.
1. Take out the ice basket.
2. Clean the interior with diluted detergent, warm water and a soft cloth.
3. Then use the water to rinse the inside parts, and drain out the water from the draining port by
unplugging the Water drainage cap on the bottom.
4. The outside of the ice maker should be cleaned regularly with a mild detergent solution and
warm water.
5. Dry the interior and exterior with a soft cloth.
6. When the machine is not in use for a long time, open the water drain cap to drain water completely
out from the water reservoir.
1. If the water separator pipe is blocked and there is no water flowing down when you listen the
compressor and the water pump inside are still working,. Clean the each hole on the pipe wall
displayed in following picture.
2. For both of the water tank and the big water reservoir, clean them with diluted detergent, warm
water and a soft cloth. Then use the water to rinse the inside, and drain out the water from the draining
port by unplugging the Water drainage cap on the bottom. It will help you keep the unit and ice-cube
hygienicly, and also make the unit work normally.
3. When cleaning, if find that the ice cube left on the evaporator and can not be taken out easily, you can
turn on the unit to let the unit enter the ice making process, then press “ON/OFF” button for more than
5 seconds to let the unit start ice harvest process to melt the ice cube.It will help you remove the hard
ice cube.
Because the water in the big water reservoir is stop to drain port by the water valave, if you want to
drain away all the water, please plug on the unit and but don’t start the unit, then remove the Water
drainage cap at the bottom. Wait some minutes, all of the water will flow out.
After using your ice maker for a long time, we also suggest you
should clean your unit.
Especially to the water separator pipe and the wate filters, you must clean them periodically.
How to drain out the water from the internal tank and big water
reservoir completely
Water Separator Pipe
Evaporator
Hole
12
13
TROUBLESHOOTING
< > is on
Lack of water
Turn off the unit and add water to
<MAX>level, then re-start the unit.
< >is on
Too much ice cube in the
basket
Remove the ice cube in the basket.
< > is flash
The ice full plate blocked
Take out the ice cube under the ice
full plate,make sure the ice full plat
e
can roll smoothly.Or wait 3-6 hour
s
until the ice cube melt and the ice fu
ll
plate roll back automatically.
The water reservoir has
water,but< > is on
The inlet solenoid valve
breakdown
Need the technical service person to
Maintain.
<E> is on
The ice making system
damage
Need the technical service person to
Maintain.
Too much water in the ice
basket
Drain out the water below the ice
basket,and then turn on the unit.
<E1> is on
Ambient temp sensor
breakdown
The unit can still work, change a new
sensor
<E2> is on
Water temp sensor
breakdown
The unit can still work, change a ne
w
sensor
No water in the water
Separator pipe
The holes are blocked
Use slim wire to prick each hole, till
The water can flow out easily.
Water filter block
Clean the water filter
Ice cube thick and can ’ t
Drop down
Ice making cycle too long
Press <->to reduce the ice making
time.
Ice cube thin
Ambient temp too high
Move the unit to cool place
Water temp too high
The water temp should be no more
Morethan25
℃
(77
℉
).
Ice making short
Press<+>to increase the ice making
Time.
Unit work but no ice cube
Ambient temp is high or the
Water temp is high
Move the unit to somewhere ambient
Temp lower than30
℃(86℉),fill coo
l
water.
Refrigerant system
leakage
Need the technical service person to
maintain
Refrigerant system block
Need the technical service person to
maintain
PROBLEM POSSIBLE CAUSE SOLUTION
Email：support@euhomy.com
Facebook：@Euhomy.Official
