Before You Start
What You Need (Not Provided)
Step 1. Preparation
At A Glance
What's In The Box
Step 2. Install the Deadbolt
Step 3. Install the Exterior Assembly
Step 4. Install the Interior Assembly
Step 5. Install the Strike Plate
Step 6. Set up the System & Register Palm Vein ID
Congratulations!
Open / Close the Lock Cylinder Cover
Disconnect the Radar Cable
Remove the Batteries
Before You Start
Make sure your door is a standard entry door without a storm door. eufy FamiLock S3 is
not compatible with storm doors and doors behind them, as the storm door may block the
camera.
What You Need (Not Provided)
• Phillips screwdriver
• 5V / 2A power adapter and USB-C charging cable
• Flathead screwdriver (optional)
• Screwdriver with drill bits (optional)
Installation generally takes less than 15 minutes. If you have any questions or concerns, visit
support.eufy.com for assistance.
Step 1. Preparation

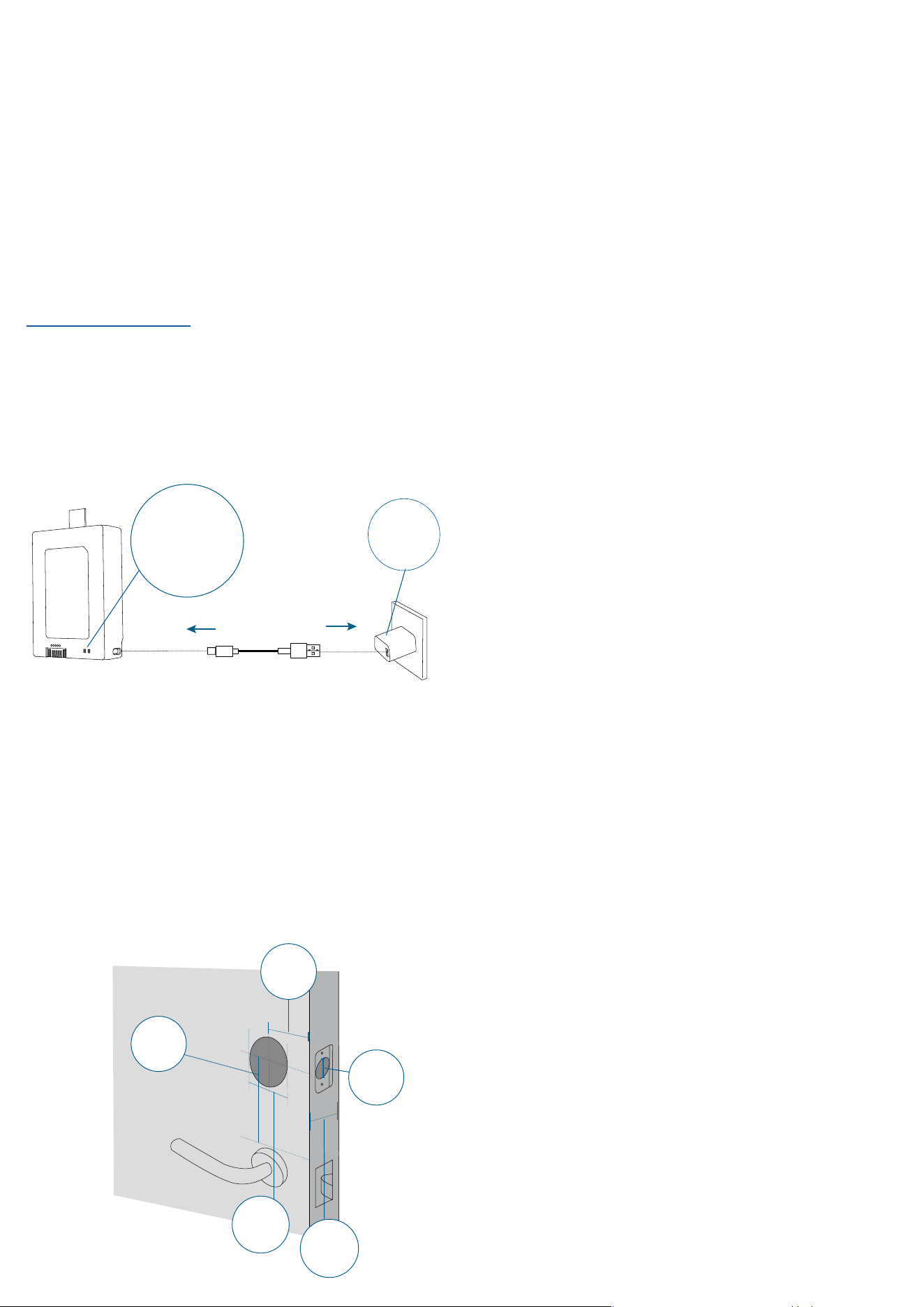

1. Charge The Battery
Fully charge the rechargeable battery before first use.
Please use a charger with an output of 5V/2A. It takes 6 to 8 hours for a full charge.
*This battery does not support fast charging.
Charger Output:
5V
⎓
2A
6-8 Hours
LED Indicator
Red: Charging
Blue: Fully Charged
USB-C
2. Prepare the Door
1. Remove the existing lock.
2. Measure and confirm your door:
a. Door thickness: 1⅜’’ (35 mm) or 2⅙’’ (55 mm)
b. Cross bore diameter: 1½’’ (38 mm) or 2⅛’’ (54 mm)
c. Backset: 2⅜’’ (60 mm) or 2¾ (70 mm)
d. Door hole diameter: 1’’ (25.4 mm)
e. Lock spacing: at least 1¾’’ (45 mm) from existing lock
3. Use the template to drill new holes if needed.
Door Hole
Diameter
1’’ (25.4 mm)
Minimum
Distance
1¾’’ (45 mm)
Backset
2⅜’’ (60 mm)
or 2¾ (70 mm)
Cross Bore
Diameter
1½’’ (38 mm)
or 2⅛’’ (54 mm)
Door Thickness
1⅜’’ (35 mm)
or 2⅙’’ (55 mm)
At A Glance

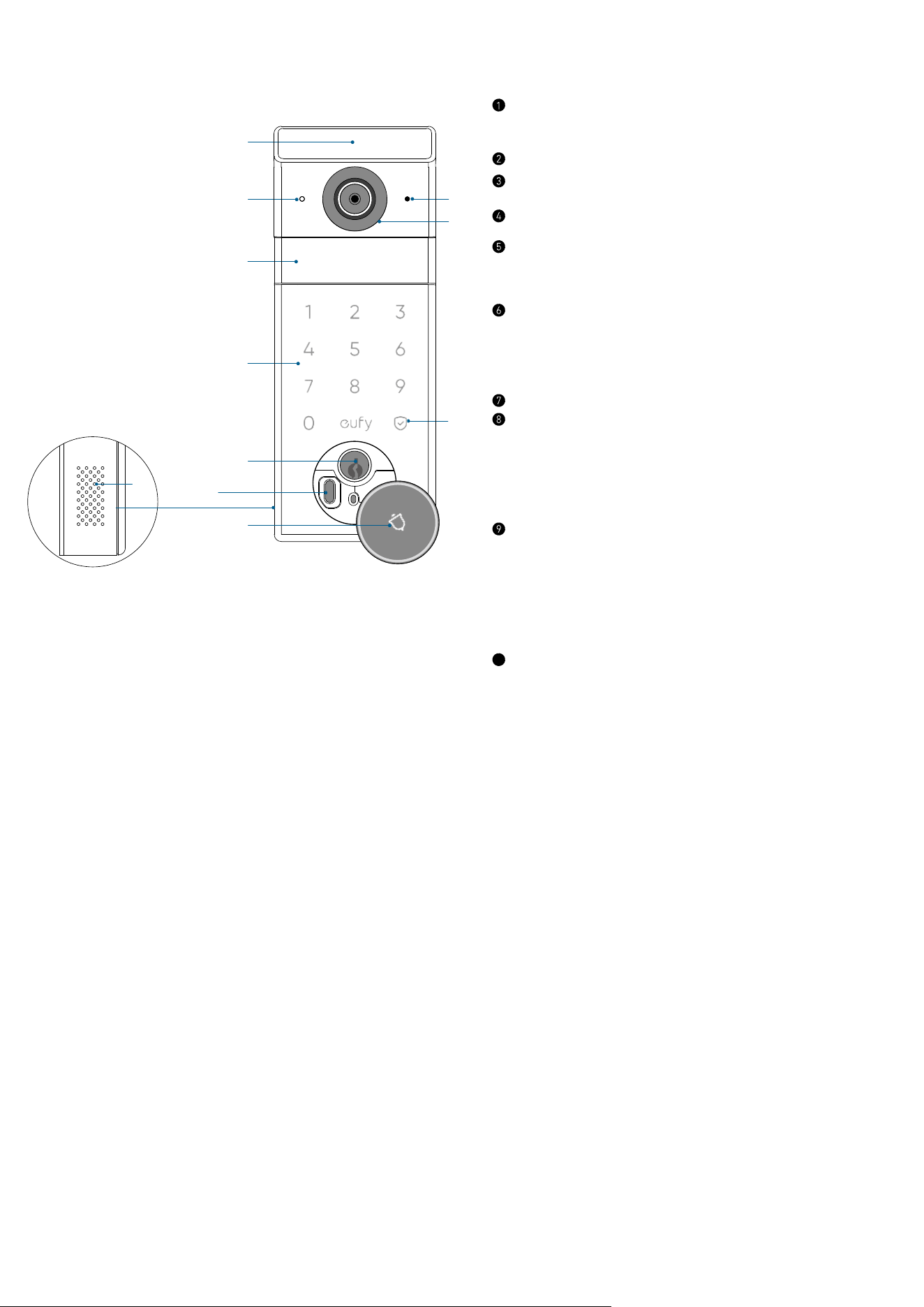

Exterior Assembly
➁
➉
➃
➄
➀
➇
➈
➂
➆
➅
⑪
Palm Scanner
• Unlock the door with your palm ID.
IR Night Vision Light
Motion Sensors
Keypad
Mechanical Keyhole
• Unlock the door in emergency situations.
Emergency Power Port
• Power up the lock in emergency situations only.
*To ensure data privacy, this port is not available
for charging or data transfer.
Speaker
Lock Cylinder
• Lights up when someone approaches the door.
• Open the cover to access the emergency USB-C
port and machanical keyhole.
Status Light and Confirm Button
• Short press to lock when the door is unlocked.
• Blue: Door Unlocked
• Orange: Door Locked
• Red: Abnormal State
10
Camera Lens
⓫
Microphone

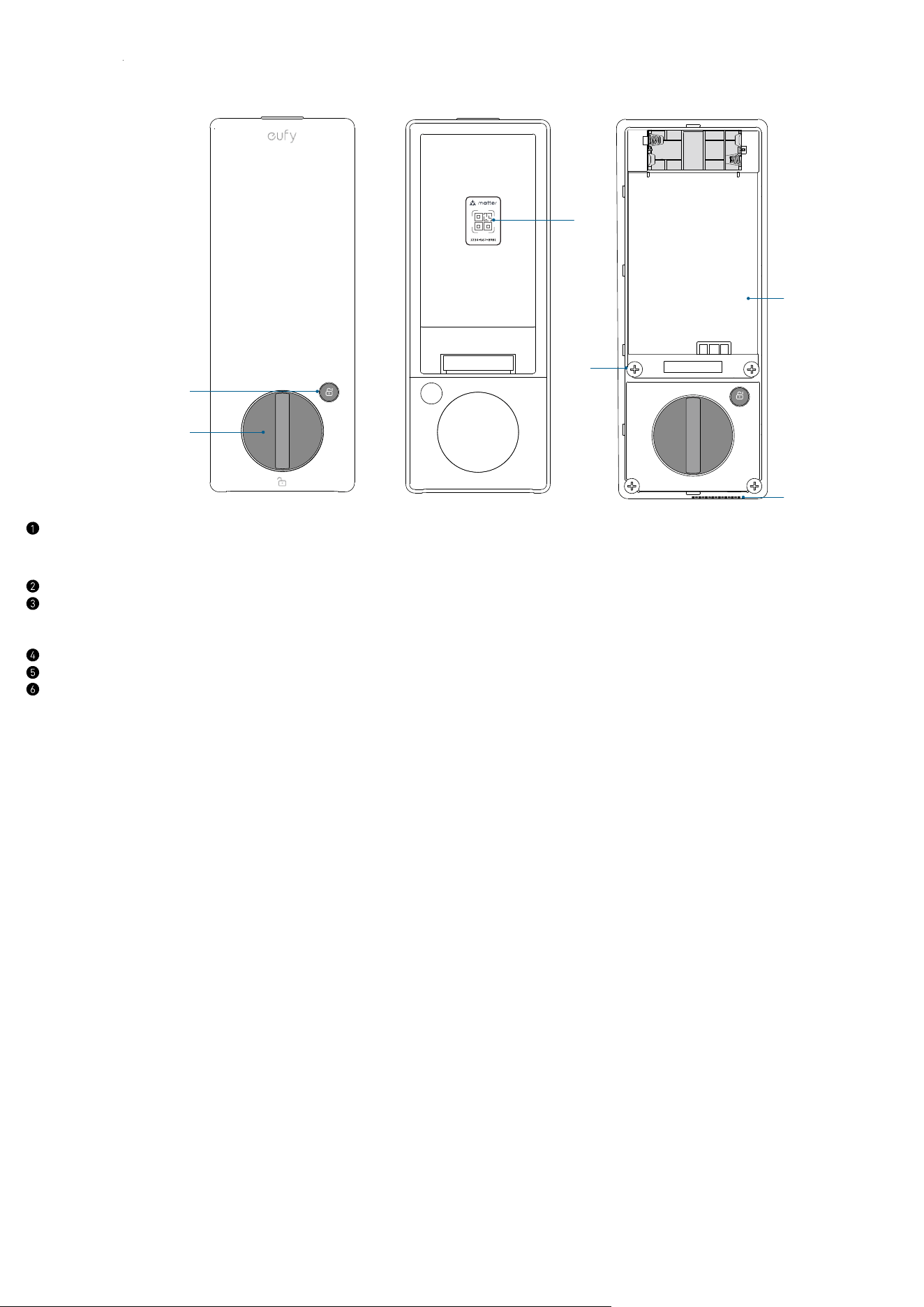

Interior Assembly
➁
➄
➃
➅
➂
➀
Lock / Unlock Button
• Press to lock or unlock the door.
Thumbturn
QR Code
• Scan to add FamiLock S3 in the app.
Screw Holes
Speaker
Battery Compartment

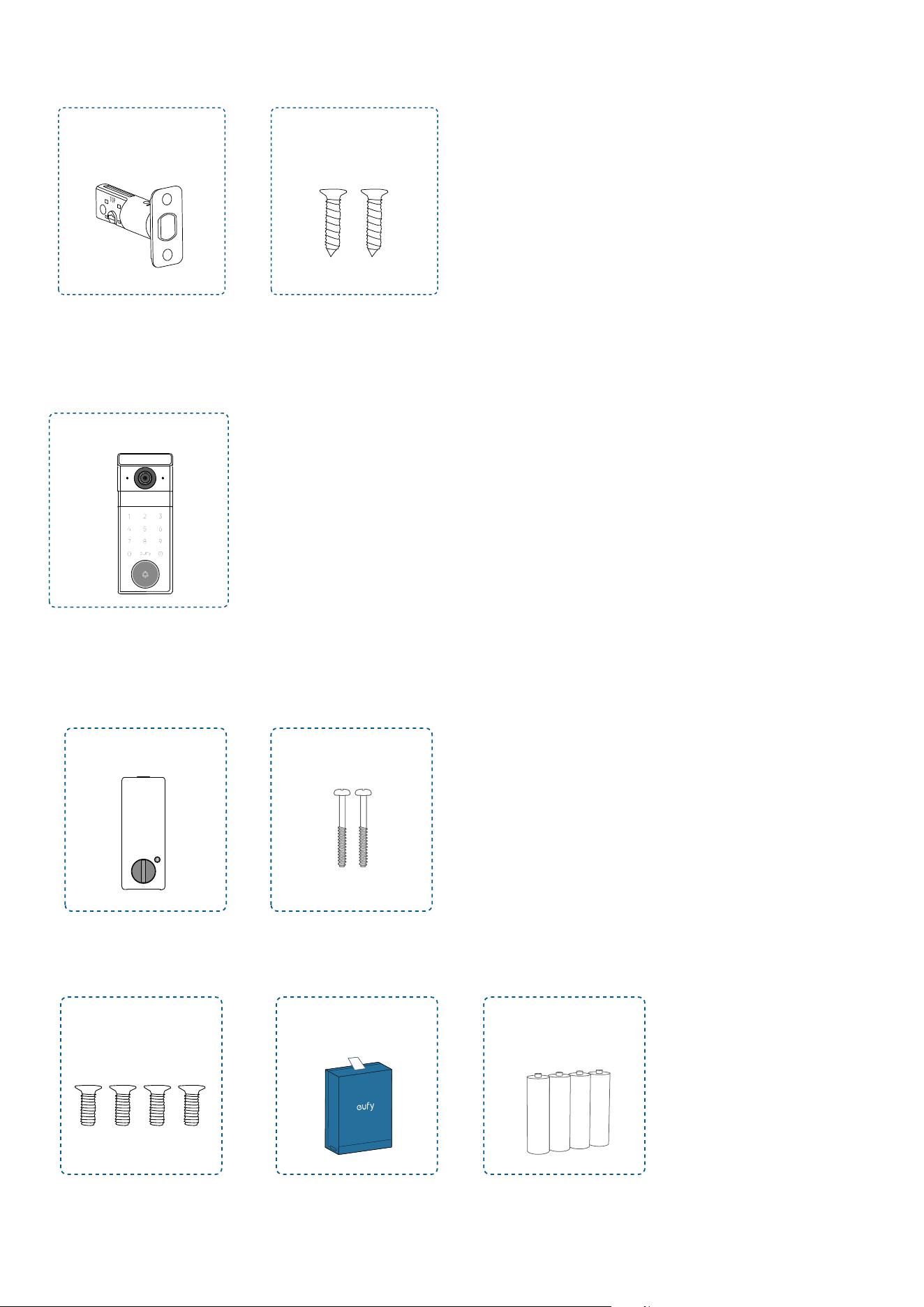

What's In The Box

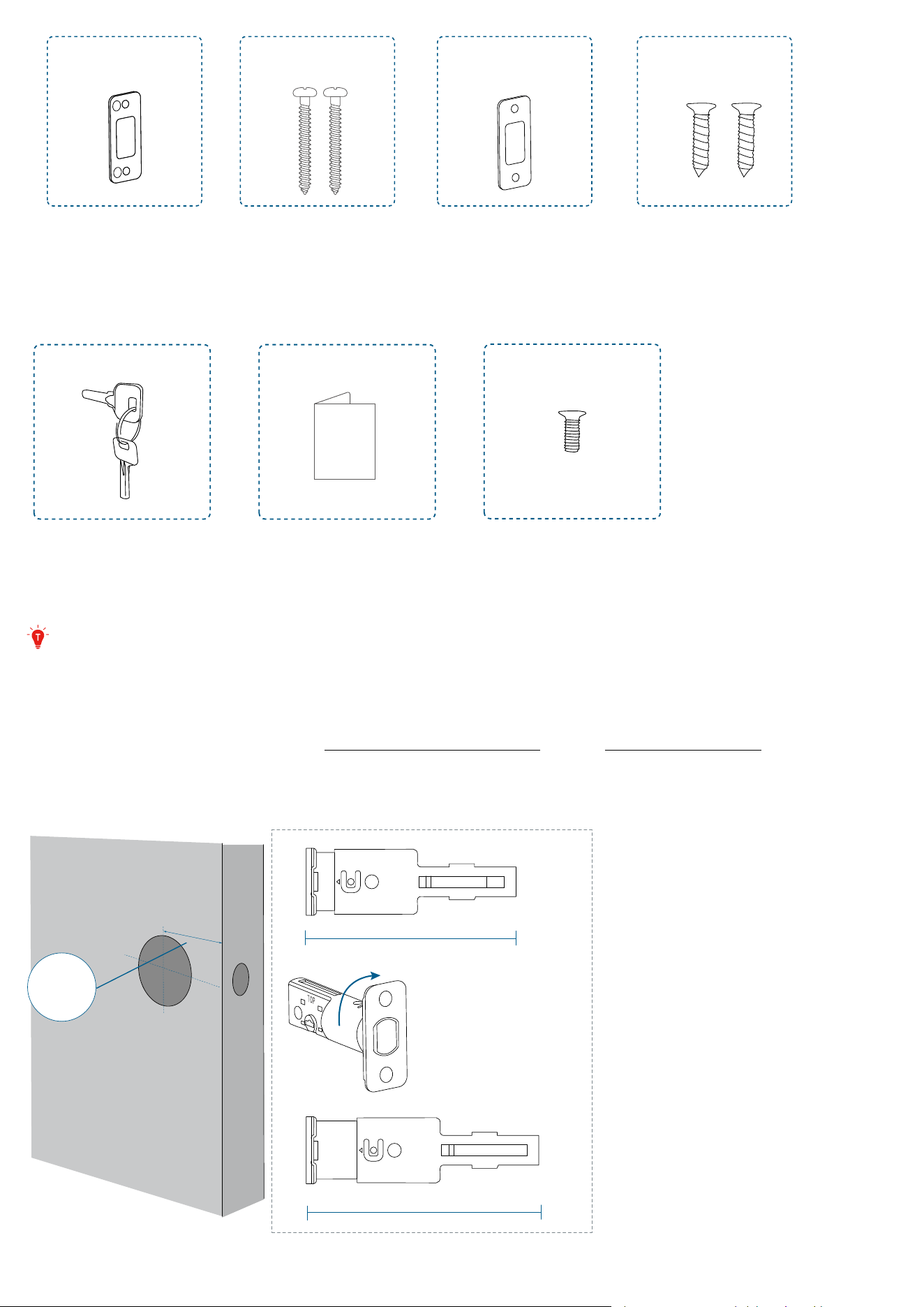

For Deadbolt Installation
A
B
Deadbolt
Deadbolt Screws × 2
For Exterior Assembly Installation
C
Exterior Assembly
For Interior Assembly Installation
D
E
Interior Assembly
Interior Assembly Screws ×
4
Rechargeable
Battery
AAA Batteries × 4
Mounting Plate Screws × 2
F G H
For Strike Plate Installation
I J K L
Strike Reinforcer Strike Plate Strike Plate
Screws × 2
Reinforcer
Screws × 2
Others
QSG
Keys
Quick Start Guide Spare Screw × 1
Step 2. Install the Deadbolt
If your existing deadbolt is a standard eufy deadbolt, there is no need to change it. If not,
please replace with the provided deadbolt to ensure the locking/unlocking functions
properly.
1. Adjust the Deadbolt
Measure the distance between center of the door hole to the edge of the door.
If the backset is 2⅜ in (60 mm), insert the deadbolt directly.
If the backset is 2¾ in (70 mm), rotate the faceplate of the deadbolt 180° to adjust the
deadbolt to 70 mm.
2-3/8
2-3/4
180°
Backset
2⅜’’ (60 mm)
2¾’’ (70 mm)

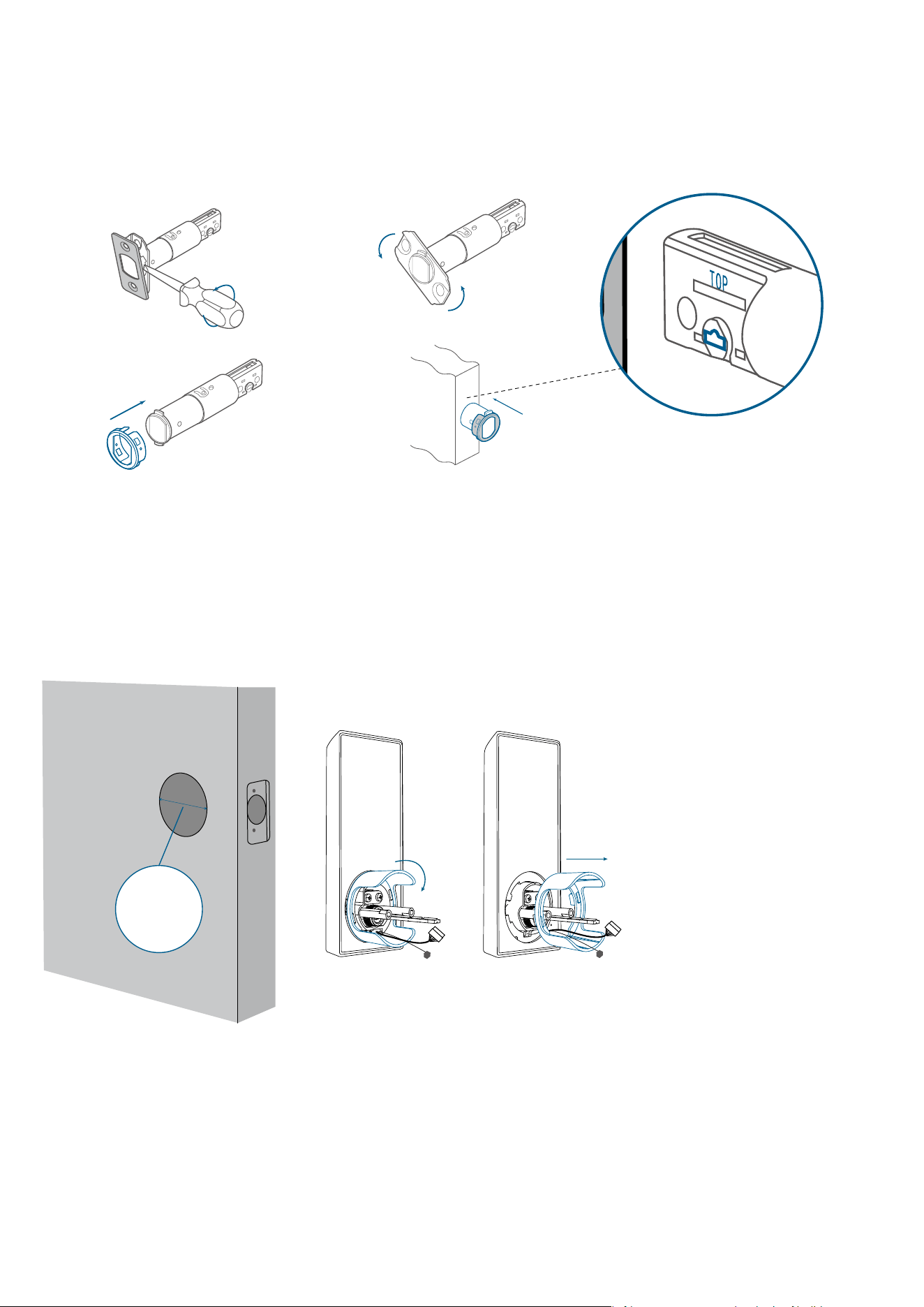

2. Check the Latch Recess
If your latch recess is round, contact eufy Support to get a round drive-in faceplate, and
replace the existing one.
Call Support for
A
B
A
Rectangular Latch Recess
Round Latch Recess
a free round faceplate

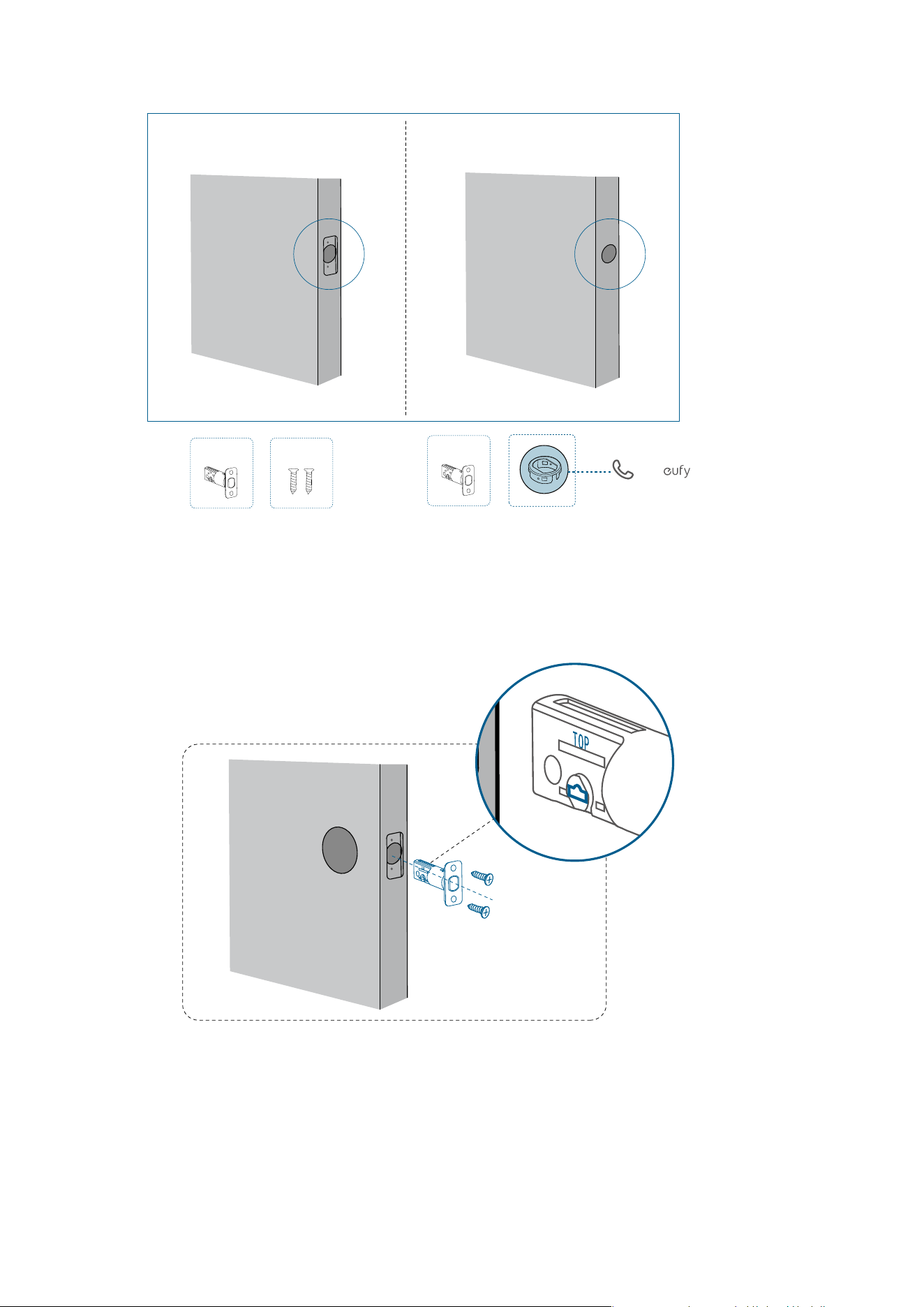

3. Install the Deadbolt
»
If your latch recess is rectangular, insert and screw the provided deadbolt directly.
Ensure the word "TOP" on the deadbolt faces up and the T-shaped hub is centered.
»
If your latch recess is round, swap the faceplate first:
1) Take apart the current faceplate with a flathead screwdriver.
2) Take o the other part of the faceplate.
3) Slide the round drive-in faceplate onto the deadbolt.
And then install the deadbolt into the door frame.
❷❶
❸❹
Step 3. Install the Exterior Assembly
1. Measure Cross Bore Diameter
• If 2 ⅛ in (54 mm), install the exterior assembly.
• If 1 ½ in (38 mm), remove the spacer first, and install the exterior assembly.
Cross Bore
Diameter
1 ½ in (38 mm)

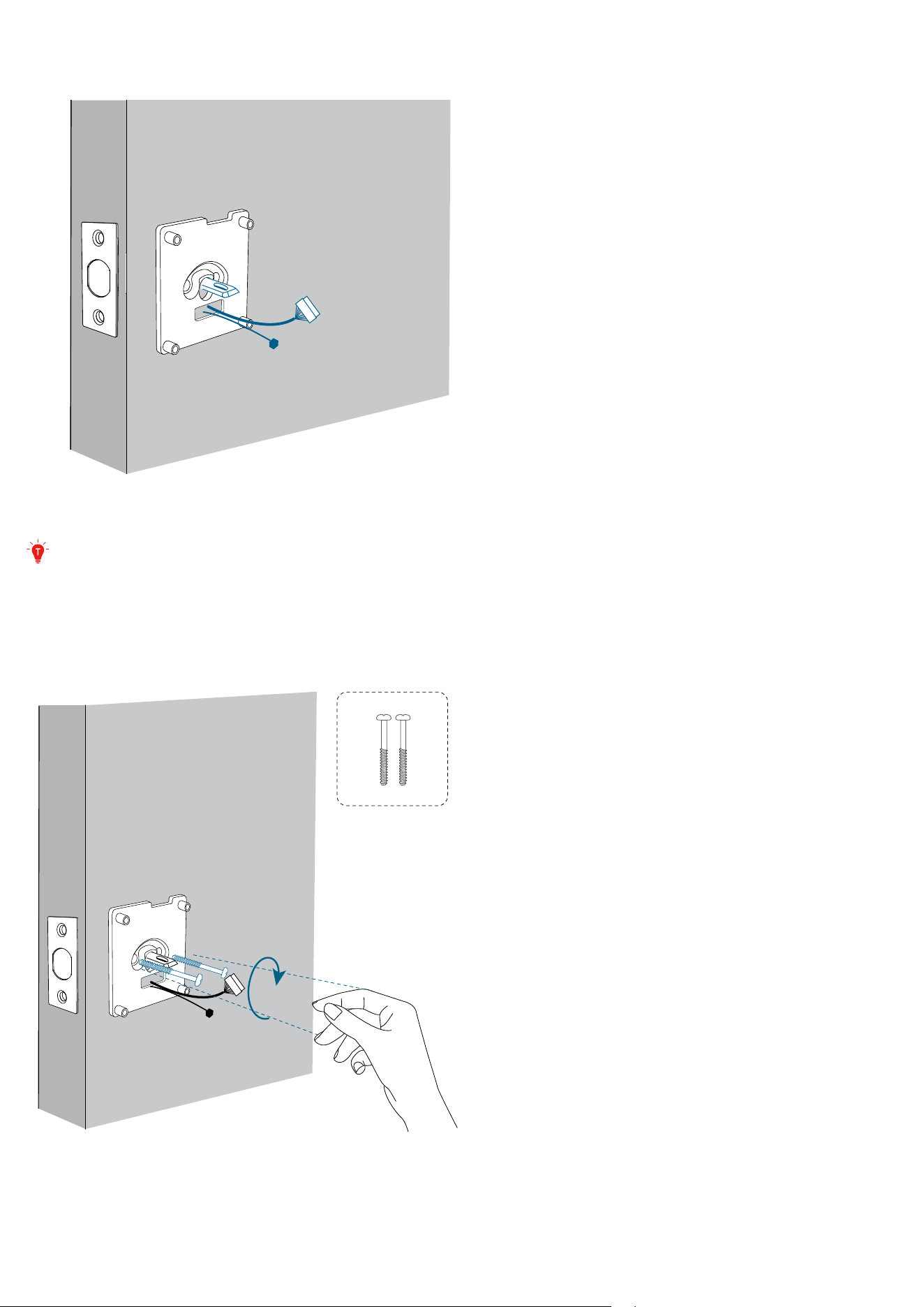

2. Attach Exterior Assembly to the Door
1. Feed the T-shaped tailpiece of the exterior assembly through the T-shaped tailpiece slot
on the deadbolt.
2. Make sure the cables go underneath the deadbolt.
6
1
2
3
4
5
7
0
8
9
❷
❶
Step 4. Install the Interior Assembly

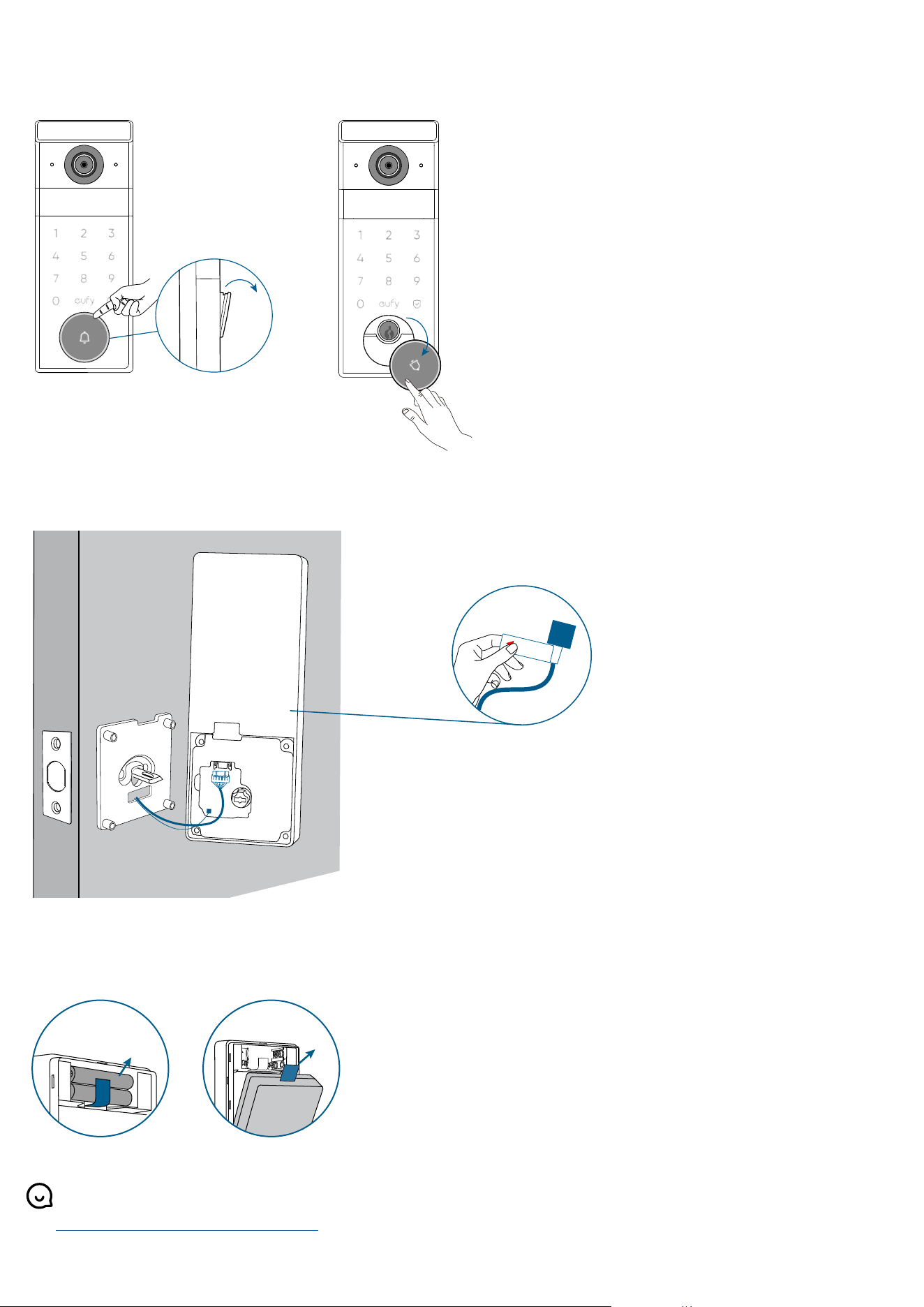

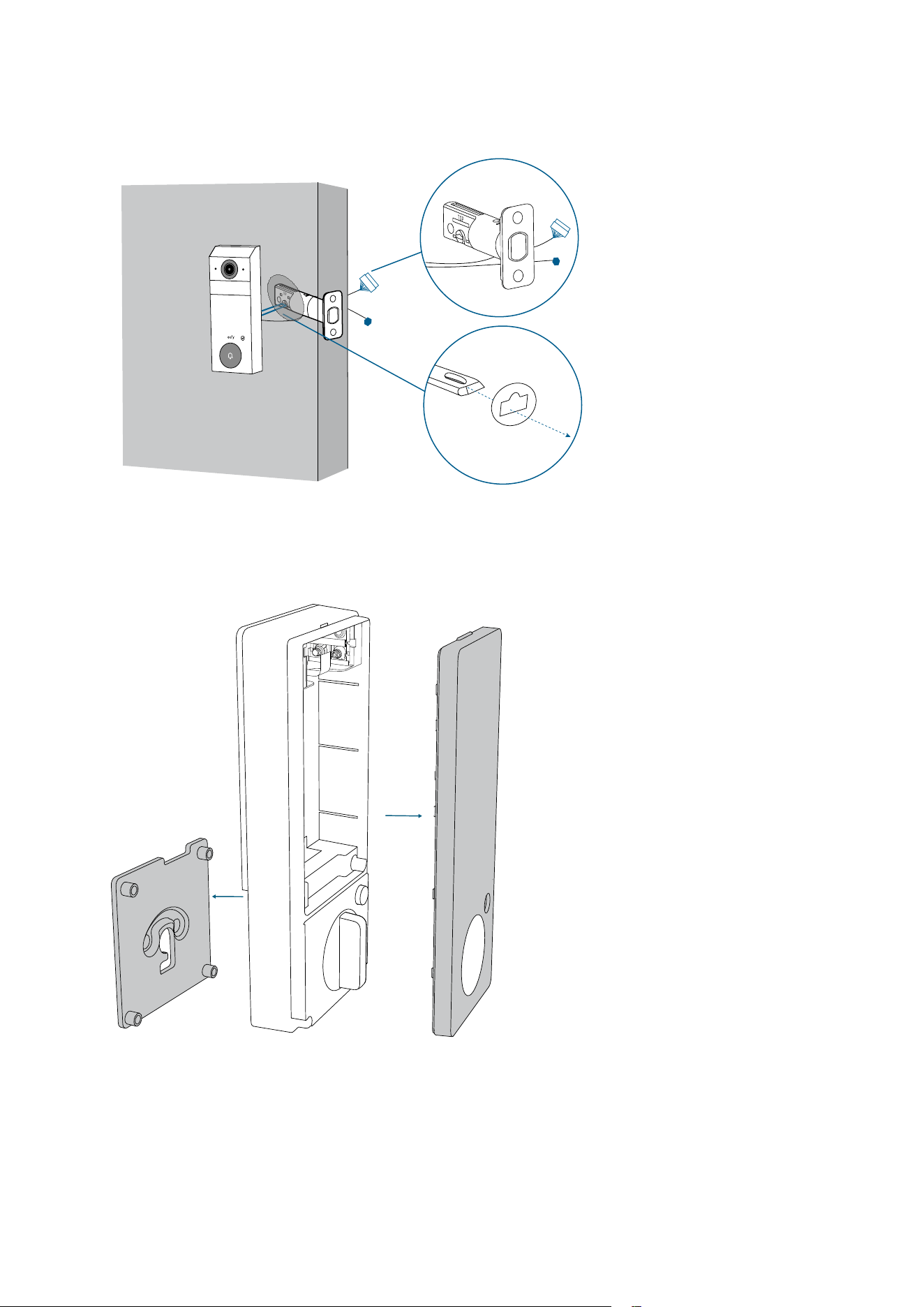

1. Detach Mounting Plate and Battery Cover
2. Run the Cables
Run the cables through the slot on the mounting plate.
• Make sure the silicone pad is against the door.
Up
Down
Pay attention to the "Up" and "Down" markings on the mounting plate, and place it
correctly as instructed
.
3. Secure the Mounting Plate
1. Align the mounting plate with the threaded screw receptacles of the exterior assembly.
2. Set the screws (E) with your hands, then fasten with a screwdriver.
Up
Down
E

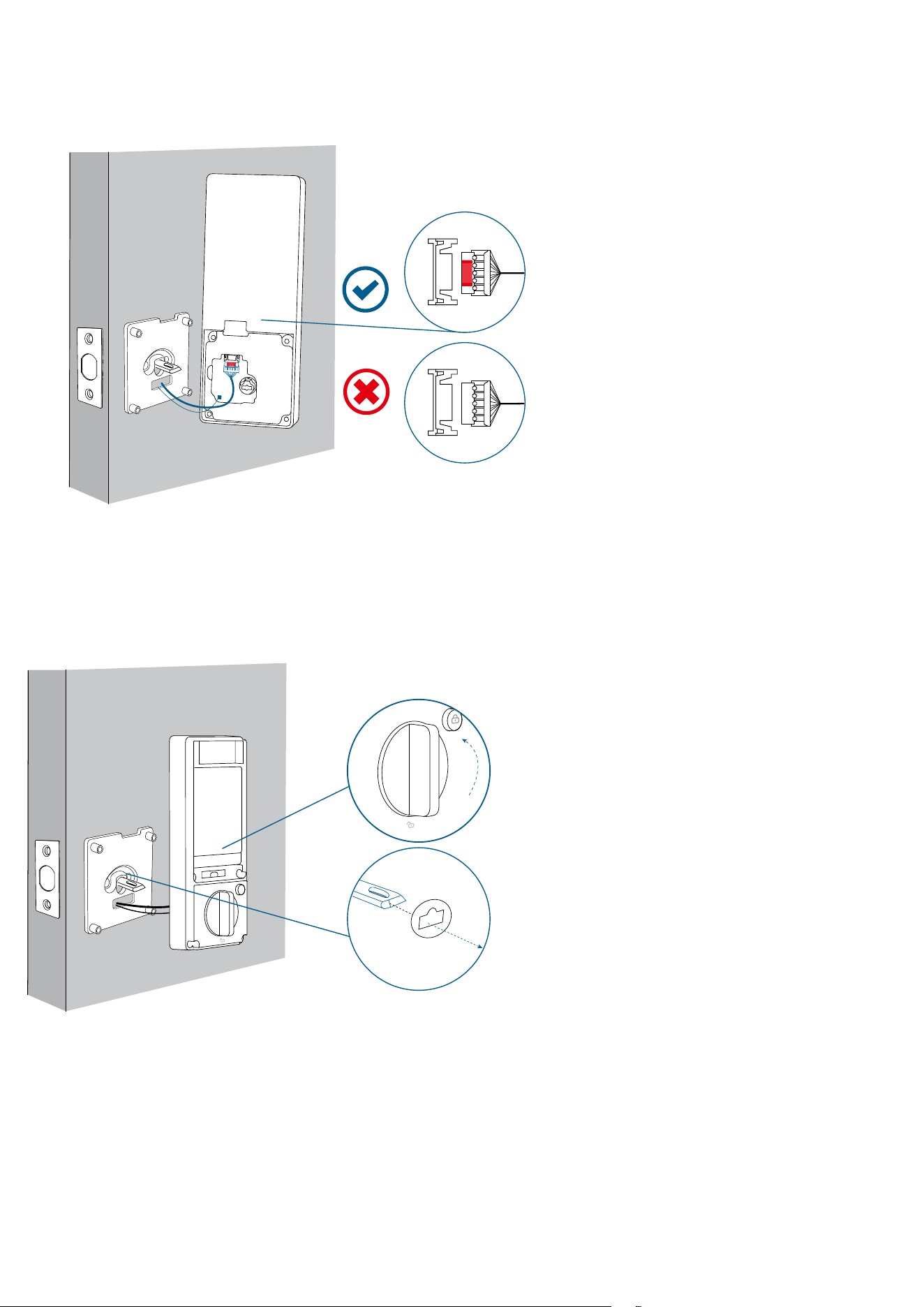

4. Connect the Cables
Plug the power cable (large connector) and then the radar cable (small connector) into the
sockets on the back of the interior assembly.
• Route the cables around the tailpiece receiver to avoid pinching during installation.
Up
Down
5. Secure the Interior Assembly
1. Insert the T-shaped tailpiece into the T-shaped tailpiece receiver of the interior assembly.
• Make sure both wires are tucked into the cavity on the back of the interior assembly.
2. Make sure the deadbolt is retracted and the thumbturn knob is at the "unlock" position.
Up
Down
❶
❷

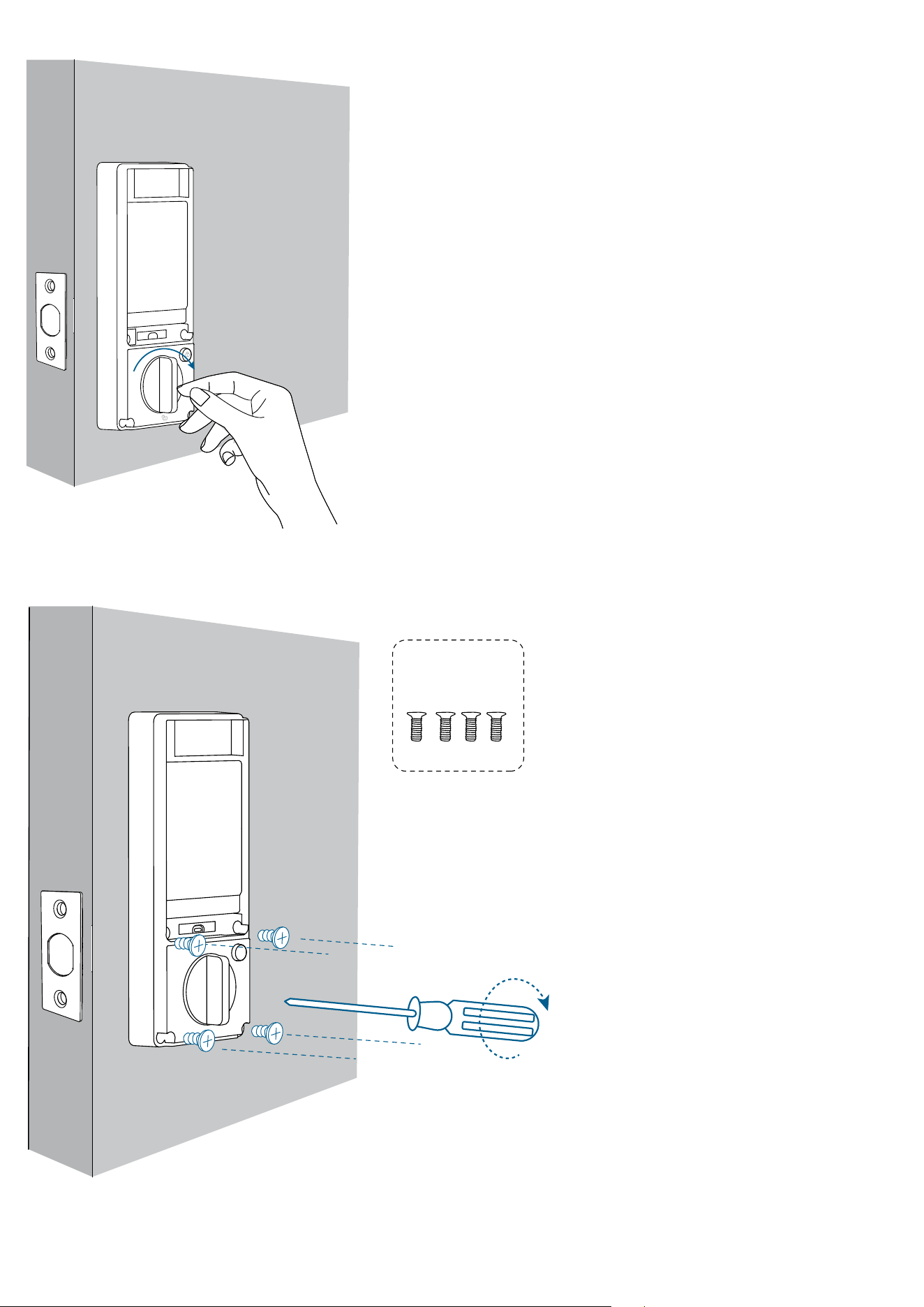

3. Check if the deadbolt moves properly by turning the thumbturn.
4. Use a long screwdriver to fasten the interior assembly screws (F).
• Ensure there is no gap between the mounting plate and the interior assembly.
F

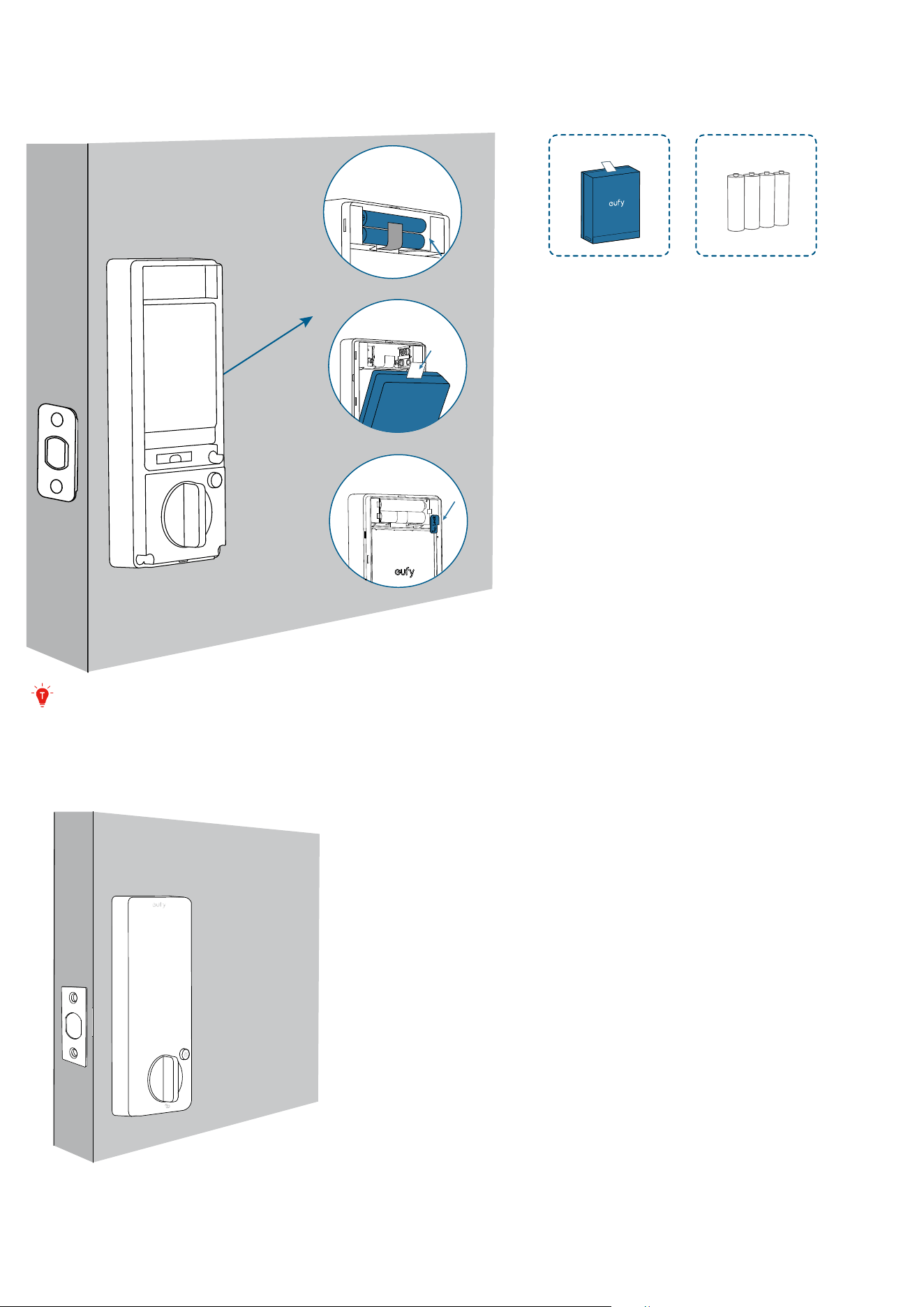

6. Install the Batteries
1. Install the 4 AAA batteries first.
2. Install the rechargeable battery.
3. Pull down the fixation piece to secure the rechargeable battery.
G
❶
❷
H
❸
If only the AAA batteries are installed, most of the features will be disabled, including
video surveillance, palm vein recognition, etc. But you can still unlock the door with the
PIN code.
7. Close the Battery Cover

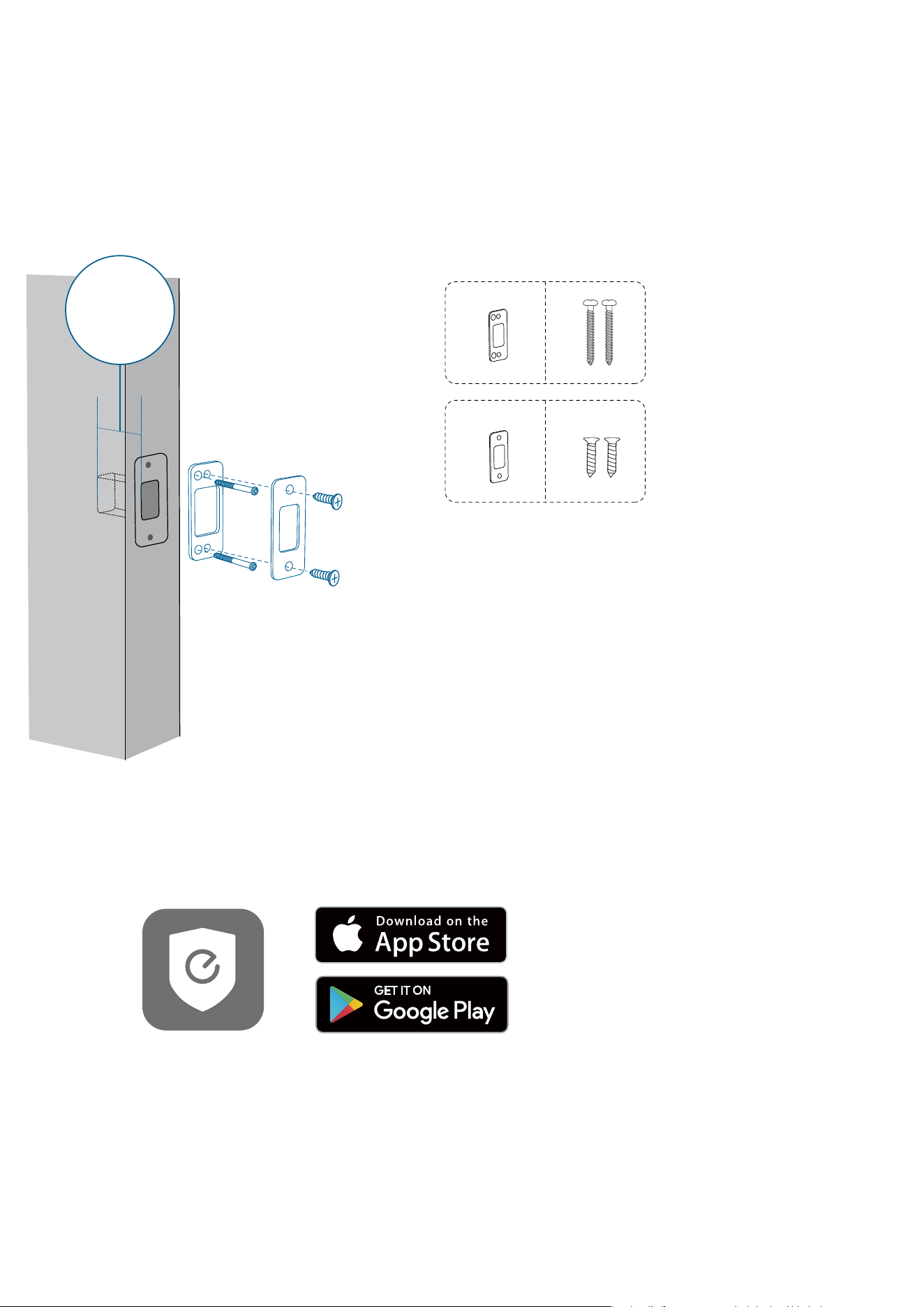

Step 5. Install the Strike Plate
1. Check the Strike Hole Depth
Strike hole depth in the door frame: at least 1” (25.4 mm).
• Otherwise calibration may fail during setup, and the lock may not function as expected.
2. Install the Strike Reinforcer
Install the strike reinforcer (I) with the long screws (J).
3. Install the Strike Plate
Install the strike plate (K) on top of the reinforcer with the short screws (L).
J
K L
I
Latch Hole
Depth
1” (25.4mm)
Step 6. Set up the System & Register Palm Vein ID

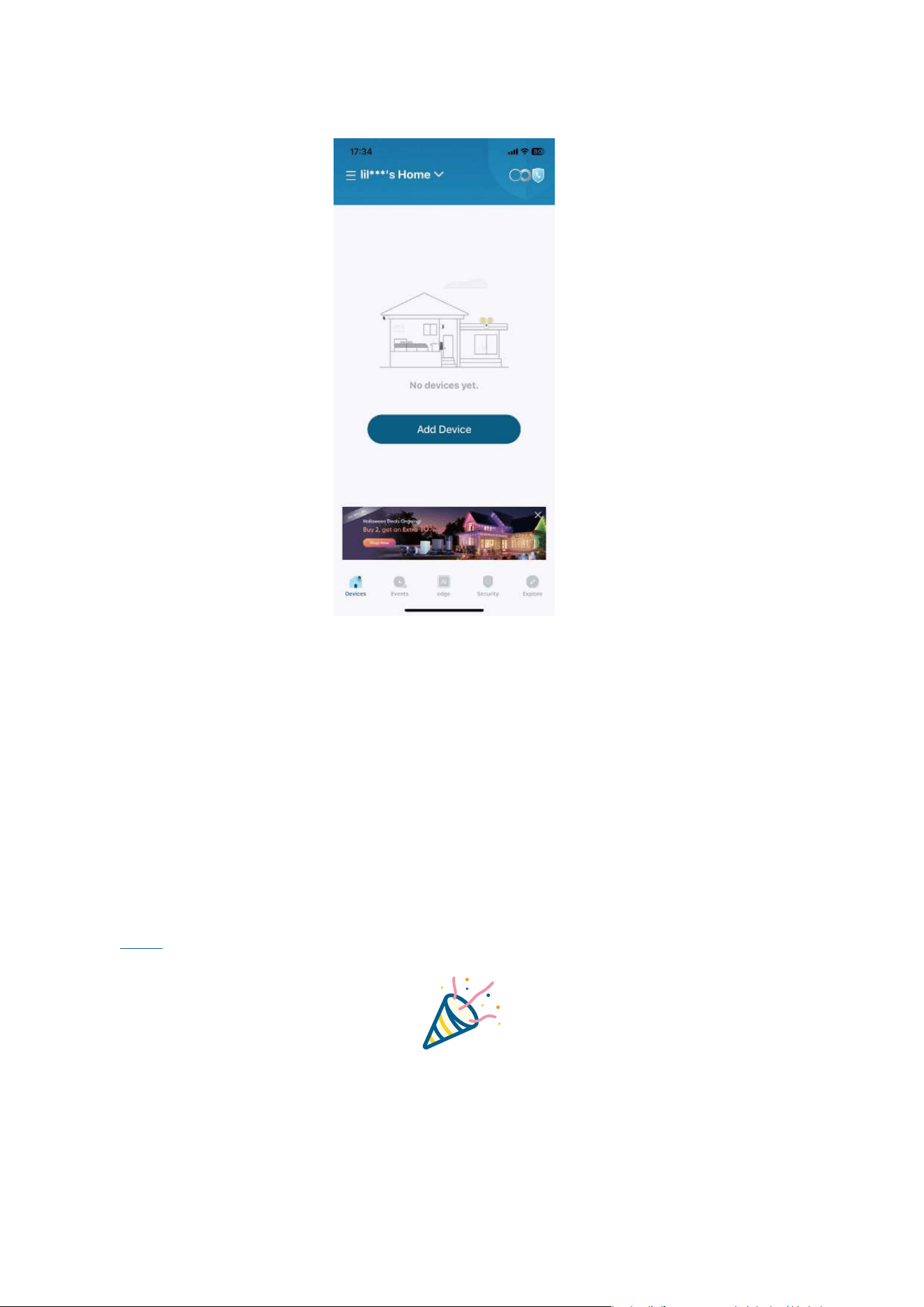

1. Download the App
Download and install the eufy Security app, then sign up for an account.
2. Add FamiLock S3 to Device List
Follow the in-app instructions to add the lock to your device list.
• Ensure your FamiLock S3 battery is charged, or it may fail to be added to the eufy Security
app.
3. Register Your Palm Vein ID
Follow the in-app instructions to register your palm vein ID.
Before registering your palm vein ID, please make sure that
• The smart lock is fully installed.
• Your palm is dry and free of significant damage or dirt.
4. Set up the Lock with Matter
This smart lock is Matter-compatible, enabling seamless integration with Apple Home,
SmartThings, Alexa, and Google-enabled devices in your home. To set it up, use the eufy
app and navigate to Device >> Settings >> Work with Matter to pair with the third-party
ecosystems.
• Click
here to read the Matter device setup guide and set up the device in the
corresponding app.
Congratulations!
Now you are all set to use the lock.
Read on for more information about your lock.
Open / Close the Lock Cylinder Cover
To open the cover, gently pull on the cover and rotate it counterclockwise.
To close the cover, turn it clockwise and slide it back into place.
Disconnect the Radar Cable
Gently pull the tag.
Up
Down
PULL
Remove the Batteries
1. Pull the ribbon to remove the AAA batteries first.
2. Pull the ribbon on the rechargeable batteries to take it out.
❷
❶
For online support, tutorial videos, FAQs, and more information, please visit
https://support.eufy.com/s/.
