Slip Fit Spouts
WITH THE "O"-RING SEAL
Lookout must be free from deep scratches, dents, kinks
or bends. The cut-off end must be free from burrs
inside and out. The edge must not be rolled inward
from a dull tubing cutter.
The spouts are specifically designed to permit the
use of copper water tube on drops and lookouts.
FINISHED
WALL LINE
1/2" COPPER WATER TUBE
MT531C MAY 02
© Copyright, 2002
Moen Incorporated
Printed in U.S.A.

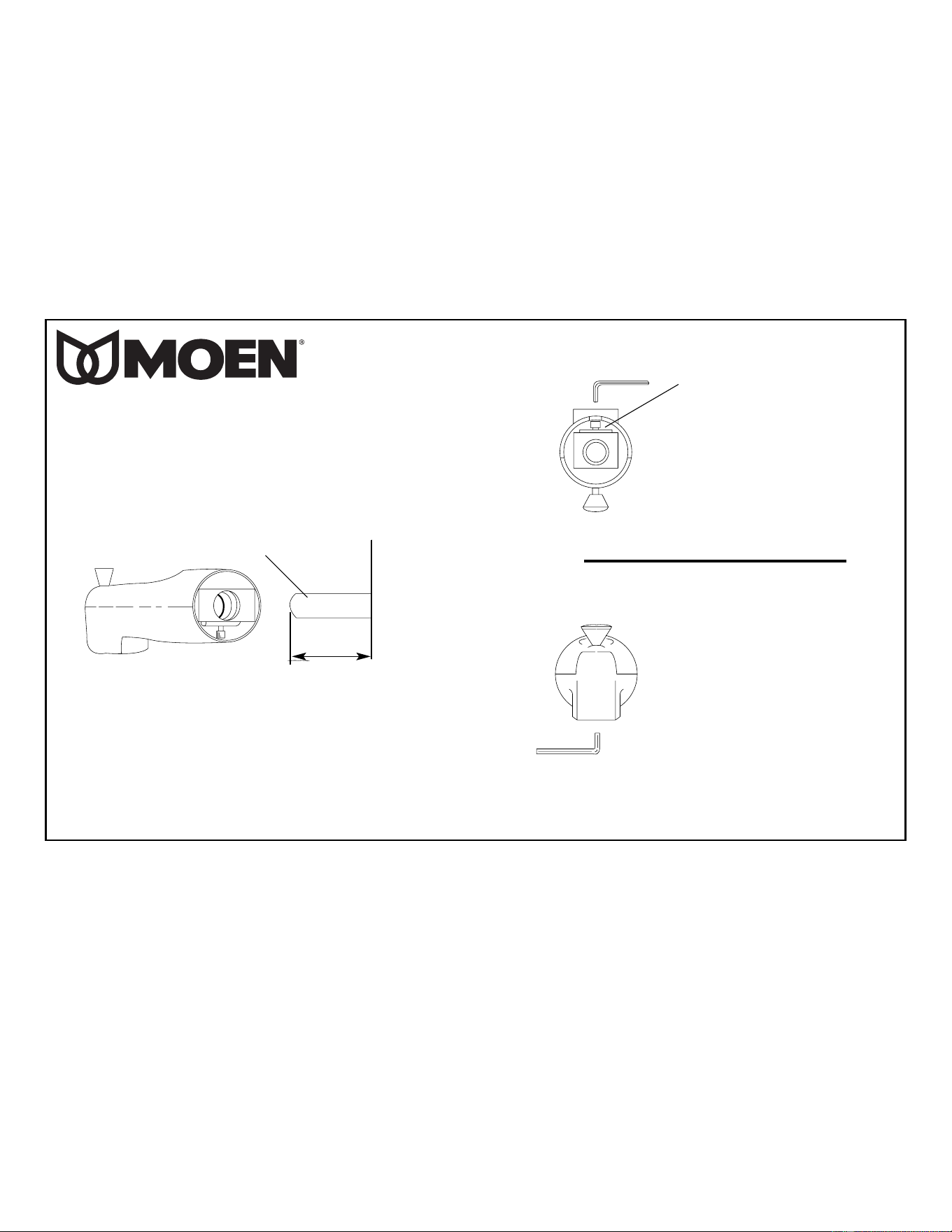

Turn spout upright into position
against the wall and finish tightening
the clamp screw by hand. The use
of pliers or another wrench on the
hex wrench is not necessary. Do not
overtighten.
CLAMP SCREW
Press and twist the spout onto the
lookout upside down. Tighten the
clamp screw with a 5/32" hex
wrench until it just starts to bind.
MT531C
LOOKOUT LENGTH
(ROUND BASE
SPOUT SHOWN)
1-1/2" MIN.
3" MAX.
