Thank you for purchasing the Shiatsu Kneading and Rolling Foot Massager. Please take a
moment to read this guide and store it for future reference.
- 1 -
Item No. 206997
User Guide
SHIATSU KNEADING AND ROLLING FOOT MASSAGER
- 2 -
FEATURES
• 4 Preset massage modes
• 3 Auto target modes for toe / arch / sole
• Manual mode with variable speed and direction
• 15-minute automatic shutoff
BASIC OPERATION
• Plug the power cord directly into a standard AC outlet
• Press the ON/OFF button to turn the unit on
• Set the unit to your choice of massage programs

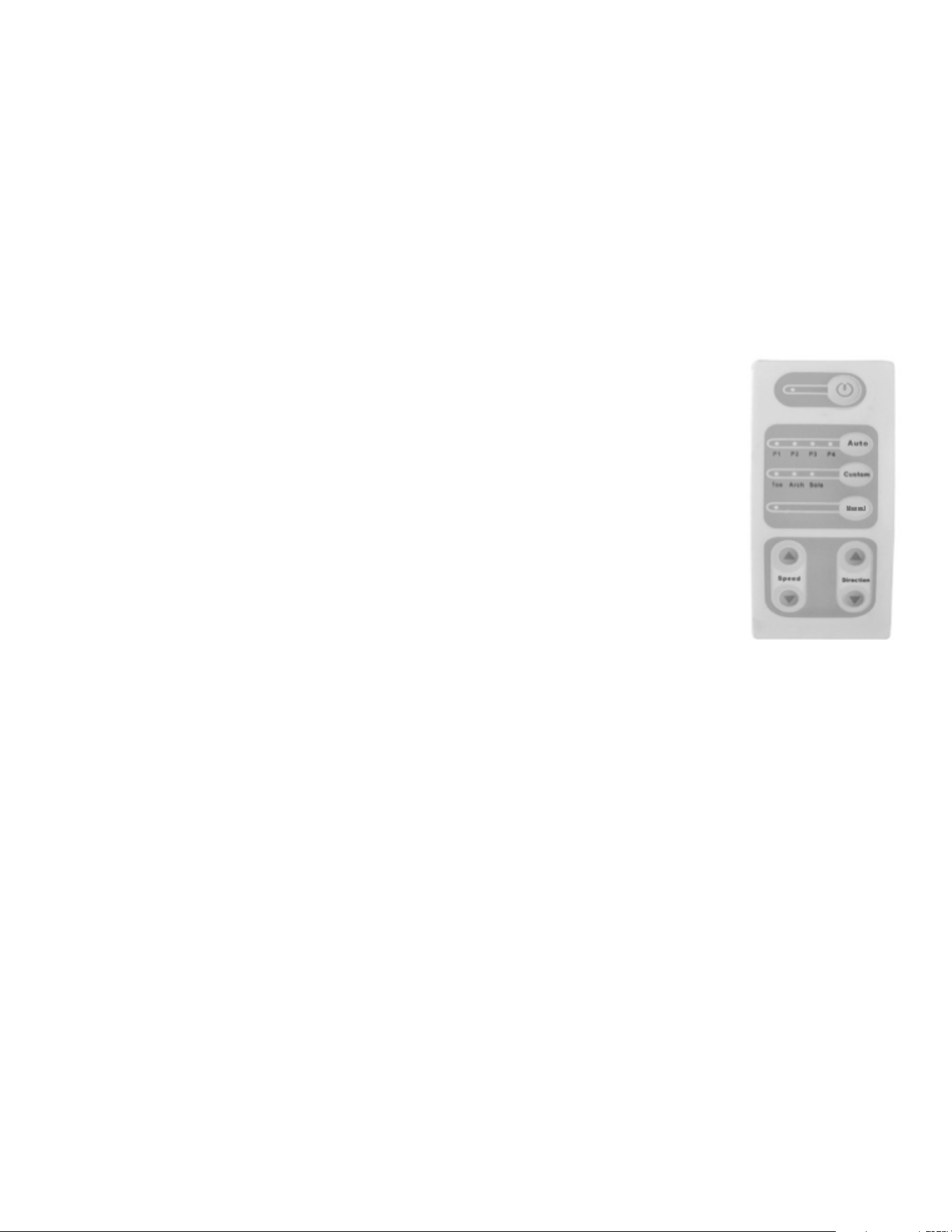

USING THE CONTROL PAD
Auto Mode: Press the “Auto” button to cycle through four preset massage
programs. Each program contains a specific massage sequence designed to
stimulate the different pressure points on your feet and heels. (Note: You will hear
a beep each time a new massage program is selected)
P1: Clockwise medium speed 20 seconds / counterclockwise low speed 20
seconds / clockwise low speed 10 seconds, clockwise high speed 25 seconds
/ clockwise low speed 20 seconds / clockwise medium speed 25 seconds /
counterclockwise high speed 25 seconds, counterclockwise medium speed 15
seconds / counterclockwise low speed 30 seconds / counterclockwise medium
speed 10 seconds / clockwise high speed 20 seconds / clockwise medium speed
10 seconds / clockwise low speed 10 seconds / clockwise high speed 10 seconds /
clockwise medium speed 10 seconds / clockwise low speed 10 seconds / repeat.
P2: Counterclockwise medium speed 25 seconds / counterclockwise low speed 30
seconds / counterclockwise high speed 25 seconds / counterclockwise low speed
20 seconds / counterclockwise medium speed 10 seconds / clockwise medium
speed 10 seconds / clockwise high speed 15 seconds / clockwise medium speed
20 seconds / clockwise low speed 15 seconds / counterclockwise low speed
15 seconds / counterclockwise medium speed 10 seconds / counterclockwise
high speed 15 seconds / counterclockwise medium speed 10 seconds /
counterclockwise low speed 5 seconds / clockwise low speed 5 seconds /
clockwise high speed 10 seconds / clockwise low speed 8 seconds / clockwise high
speed 8 seconds / repeat.
P3: Counterclockwise medium speed 28 seconds / counterclockwise low speed
27 seconds / counterclockwise high speed 19 seconds / clockwise high speed 10
seconds / clockwise low speed 16 seconds / clockwise medium speed 50 seconds
/ counterclockwise medium speed 7 seconds / counterclockwise low speed
28 seconds / counterclockwise medium speed 10 seconds / counterclockwise
high speed 15 seconds / counterclockwise medium speed 10 seconds /
counterclockwise low speed 5 seconds / clockwise low speed 5 seconds /
clockwise high speed 10 seconds / clockwise low speed 5 seconds / clockwise high
speed 10 seconds / repeat.
- 3 -
P4: Counterclockwise medium speed 2 seconds / clockwise medium speed 26 seconds
/ clockwise low speed 27 seconds / clockwise high speed 25 seconds / clockwise low
speed 20 seconds / clockwise medium speed 20 seconds / clockwise high speed 20
seconds / clockwise medium speed 5 seconds / counterclockwise medium speed 15
seconds / counterclockwise low speed 15 seconds / counterclockwise medium speed
15 seconds / clockwise medium speed 5 seconds / clockwise high speed 15 seconds /
clockwise medium speed 10 seconds / clockwise low speed of 10 seconds / clockwise
high speed 10 seconds / clockwise medium speed 10 seconds / clockwise low speed 10
seconds / repeat.
Custom Mode: Press the “Custom” button to automatically target different areas of the
foot (Toe, Arch and Sole).
Toe Mode: Counterclockwise medium speed 60 seconds / clockwise medium speed 60
seconds / counterclockwise medium speed 60 seconds / repeat.
Arch Mode: Counterclockwise medium speed 120 seconds / clockwise medium speed
120 seconds / counterclockwise medium speed 120 seconds / repeat.
Sole Mode: Counterclockwise medium speed 180 seconds / clockwise medium speed
180 seconds / counterclockwise medium speed 180 seconds / repeat.
Manual Mode: Press the “Manual” button to begin a personalized massage experience.
Simply use the Speed and Direction arrows to find the perfect massage for your needs.
AUTOMATIC SHUTOFF
Please note: There is an automatic shutoff timer that turns off all massage programs
after 15 minutes. To manually turn off the unit, press and hold the ON/OFF button until
the unit beeps. The unit will power off within 5 seconds.
SAFETY WARNINGS
To reduce the risk of burns, fire, electric shock or injury to people:
• Only use this appliance for its intended household use as described in this manual
• Before using this device, inspect the unit and power cord to determine if there is
any damage. If there is any damage, do not use this device
• Do not use this device in or near water. Do not immerse in water
• Not for use by children. Keep this device out of reach of children
WARRANTY / CUSTOMER SERVICE
This item from SharperImage.com includes a 1-year limited replacement warranty.
If you have any questions not covered in this guide, please call our Customer Service
department at 1 (877) 210-3449. Customer Service agents are available Monday
through Friday, 9:00 a.m. to 6:00 p.m. ET.
