EN
SAFETY INSTRUCTIONS
IMPORTANT TO BE READ AND OBSERVED
Before using the appliance, read these safety
instructions. Keep them nearby for future reference.
These instructions and the appliance itself provide
important safety warnings, to be observed at all
times. The manufacturer declines any liability for
failure to observe these safety instructions, for
inappropriate use of the appliance or incorrect
setting of controls.
Very young children (0-3 years) should be kept
away from the appliance. Young children (3-8 years)
should be kept away from the appliance unless
continuously supervised. Children from 8 years old
and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge can use this appliance only if they
are supervised or have been given instructions on
safe use and understand the hazards involved.
Children must not play with the appliance. Cleaning
and user maintenance must not be carried out by
children without supervision.
Children aged from 3 to 8 years are allowed to load
and unload refrigerating appliances.
PERMITTED USE
CAUTION: The appliance is not intended to be
operated by means of an external switching device,
such as a timer, or separate remote controlled
system.
This appliance is intended to be used in household
and similar applications such as: sta kitchen areas
in shops, oces and other working environments;
farm houses; by clients in hotels, motels, bed &
breakfast and other residential environments.
This appliance is not for professional use. Do not
use the appliance outdoors.
The bulb used inside the appliance is specically
designed for domestic appliances and is not suitable
for general room lighting within the home (EC
Regulation 244/2009).
The appliance is designed for operation in places
where the ambient temperature comes within the
following ranges, according to the climatic class
given on the rating plate. The appliance may not
work properly if it is left for a long time at a
temperature outside the specied range.
Climatic class ambient temperatures:
SN: From 10°C to 32°C ;
N: From 16°C to 32°C
ST: From 16°C to 38°C ;
T: From 16°C to 43°C
This appliance does not contain CFCs. The
refrigerant circuit contains R600a (HC).
Appliances with Isobutane (R600a):
isobutane is a natural gas without
environmental impact, but is ammable.
Therefore, make sure the refrigerant circuit
pipes are not damaged, especially when
emptying the refrigerant circuit.
WARNING: Do not damage the appliance
refrigerant circuit pipes.
WARNING: Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear
of obstruction.
WARNING: Do not use mechanical, electric or
chemical means other than those recommended by
the Manufacturer to speed up the defrost process.
WARNING: Do not use or place electrical devices
inside the appliance compartments if they are not of
the type expressly authorised by the Manufacturer.
WARNING: Ice makers and/or water dispensers
not directly connected to the water supply must be
lled with potable water only.
WARNING: Automatic ice-makers and/or water
dispensers must be connected to a water supply
that delivers potable water only, with mains water
pressure between 0.17 and 0.81 MPa (1.7 and 8.1
bar).
Do not store explosive substances such as aerosol
cans and do not place or use gasoline or other
ammable materials in or near the appliance.
Do not swallow the contents (non-toxic) of the
ice packs (provided with some models). Do not eat
ice cubes or ice lollies immediately after taking them
out of the freezer since they may cause cold burns.
For products designed to use an air lter inside
an accessible fan cover, the lter must always be in
position when the refrigerator is in function.
Do not store glass containers with liquids in the
freezer compartment since they may break.
Do not obstruct the fan (if included) with food items.
After placing the food check that the door of
compartments closes properly, especially the freezer
door.
Damaged gaskets must be replaced as soon as
possible.
Use the refrigerator compartment only for storing
fresh food and the freezer compartment only for
storing frozen food, freezing fresh food and making
ice cubes.
Do not store unwrapped food in the refrigerator
or freezer compartments to avoid direct contact
with internal surfaces.
Appliances could have special compartments (Fresh
Food Compartment, Zero Degree Box,...).
Unless dierently specied in the specic booklet of
product, they can be removed, maintaining
equivalent performances.
C-Pentane is used as blowing agent in the
insulation foam and it is a ammable gas.
The most appropriate compartments of the
appliance where specic types of food are to be
stored, taking into account dierent temperature
distribution in dierent compartments in the
appliance, are as follows:
- Refrigerator compartment:
1) Upper area of the refrigerator compartment &
door - temperature zone: Store tropical fruit, cans,
drinks, eggs, sauces, pickles, butter, jam
2) Middle area of the refrigerator compartment -
cool zone: Store cheese, milk, dairy food, deli food,
yoghurt
3) Lower area of the refrigerator compartment
- coldest zone: Store cold cuts, desserts, meat and
sh, cheesecake, fresh pasta, sour cream, pesto/
salsa, home-cooked food, pastry cream, pudding
and cream cheese
4) Fruit & vegetable drawer at the bottom of the
refrigerator compartment: Store vegetables and
fruits (excluding tropical fruits)
5) Chiller compartment: Only store meat and sh in
the coldest drawer - Freezer compartment:
4 star zone (****) compartment is suitable for
freezing foodstus from ambient temperature and
for storing frozen food as the temperature is evenly
distributed throughout the entire compartment.
Purchased frozen food has the storage expiration
date stated on the packaging. This date takes into
account the type of food being stored and therefore
this date should be respected. Fresh food should be
stored for the following time periods: 1-3 months for
cheese, shellsh, ice cream, ham/sausage, milk, fresh
liquids; 4 months for steak or chops (beef, lamb,
pork); 6 months for butter or margarine, poultry
(chicken, turkey); 8-12 months for fruits (except
citrus), roast meat (beef, pork, lamb), vegetables.
Expiration dates on the packaging of foods in the
2-star zone must be respected.
To avoid food contamination, please observe the
following:
– Opening the door for long periods can cause a
signicant increase of the temperature in the
compartments of the appliance.
– Regularly clean surfaces that may come into
contact with food and accessible drainage systems.
– Clean water tanks if they have not been used for
48 h; ush the water system connected to a water
supply if water has not been drawn for 5 days.
– Store raw meat and sh in suitable containers in
the refrigerator, so that it does not come into contact
with or drip onto other food.
– Two-star frozen food compartments are suitable
for storing pre-frozen food, storing or making ice
cream and ice cubes.
– Do not freeze fresh food in one, two or three-star
compartments.
– If the refrigerating appliance is left empty for long
periods, switch o, defrost, clean, dry, and leave the
door open to prevent mould developing inside the
appliance.
INSTALL ATION
The appliance must be handled and installed by
two or more persons - risk of injury. Use protective
gloves to unpack and install - risk of cuts.
Installation, including water supply (if any),
electrical connections and repairs must be carried
out by a qualied technician. Do not repair or replace
any part of the appliance unless specically stated in
the user manual. Keep children away from the
installation site. After unpacking the appliance,
make sure that it has not been damaged during
transport. In the event of problems, contact the
dealer or your nearest After-sales Service. Once
installed, packaging waste (plastic, styrofoam parts
etc.) must be stored out of reach of children - risk of
suocation. The appliance must be disconnected
from the power supply before any installation
operation - risk of electrical shock.
During installation, make sure the appliance does
not damage the power cable - risk of re or electrical
shock. Only activate the appliance when the
installation has been completed.
Be careful not to damage the oors (e.g.
parquet) when moving the appliance. Install the
appliance on a oor or support strong enough to
take its weight and in a place suitable for its size and
use. Make sure the appliance is not near a heat
source and that the four feet are stable and resting
on the oor, adjusting them as required, and check
that the appliance is perfectly level using a spirit
level. Wait at least two hours before switching the
appliance on, to ensure that the refrigerant circuit is
fully ecient.
WARNING: When positioning the appliance,
ensure the supply cord is not trapped or damaged.
WARNING: To avoid a hazard due to instability,
positioning or xing of the appliance must be done
in accordance with the manufacturer instructions.
It's forbidden to place the refrigerator in such way
that the metal hose of gas stove, metal gas or water
pipes, or electrical wires are in contact with the
refrigerator back wall (condenser coil).
To guarantee adequate ventilation, leave a space
on both sides and above the appliance. The distance
between the rear of the appliance and the wall
behind the appliance should be 50 mm, to avoid
access to hot surfaces. A reduction of this space will
increase the Energy consumption of product.
Please remove the power cord from condenser hook
during installation before connecting product to
power supply.
EN
ELECTRICAL WARNINGS
It must be possible to disconnect the appliance
from the power supply by unplugging it if plug is
accessible, or by a multi-pole switch installed
upstream of the socket in accordance with the
wiring rules and the appliance must be earthed in
conformity with national electrical safety standards.
Do not use extension leads, multiple sockets or
adapters. The electrical components must not be
accessible to the user after installation. Do not use
the appliance when you are wet or barefoot.
Do not operate this appliance if it has a damaged
power cable or plug, if it is not working properly, or
if it has been damaged or dropped.
If the supply cord is damaged, it must be replaced
with an identical one by the manufacturer, its service
agent or similarly qualied persons in order to avoid
a hazard - risk of electrical shock.
WARNING: Do not locate multiple portable
socket-outlets or portable power supplies at the rear
of the appliance.
CLEANING AND MAINTENANCE
WARNING: Ensure that the appliance is switched
o and disconnected from the power supply before
performing any maintenance operation. To avoid
risk of personal injury use protective gloves (risk of
laceration) and safety shoes (risk of contusion); be
sure to handle by two persons (reduce load); never
use steam cleaning equipment (risk of electric
shock). Non-professional repairs not authorised by
the manufacturer could result in a risk to health and
safety, for which the manufacturer cannot be held
liable. Any defect or damage caused from non-
professional repairs or maintenance will not be
covered by the guarantee, the terms of which are
outlined in the document delivered with the unit.
Do not use abrasive or harsh cleaners such as
window sprays, scouring cleansers, ammable
uids, cleaning waxes, concentrated detergents,
bleaches or cleansers containing petroleum
products on plastic parts, interior and door liners or
gaskets. Do not use paper towels, scouring pads, or
other harsh cleaning tools.
This refrigerating appliance is not intended to be
used as a built-in appliance.
Doors and lids of the refrigeration appliance should
be removed before disposal in the landll, to avoid
children or animals getting trapped inside.
Recommended setting:
• Refrigerator compartment: +4°C or MED
• Freezer compartment: -18°C or -20°C
To optimise freezing speed and get more storage
space, the freezer compartment can be used without
the freezer drawers and the food can be placed
directly on the bottom of the compartment.
The quantity of fresh food that can be frozen in a
specic time period is indicated on the rating plate.
Load limits are determined by baskets, aps, drawers,
shelves etc. Make sure that these components can
still close easily after loading. To avoid food waste,
please refer to the recommended setting and
storage times found in the online user manual.
Fill 2/3 of the ice tray with water and put it back in
the freezer compartment. Do not, under any
circumstances, use sharp or pointed objects to
remove the ice. The model information can be
retrieved using the QR-Code indicated on the energy
label. The label also includes the model identier
that can be used to consult the https://eprel.ec.
europa.eu database portal.
Policies, standard documentation, ordering spare
parts and additional product information can be
found at this address:
https : / / parts - selfservice . europeanappliances . com
DISPOSAL OF PACKAGING MATERIALS
The packaging material is 100% recyclable and is marked with the
recycle symbol
. The various parts of the packaging must therefore
be disposed of responsibly and in full compliance with local authority
regulations governing waste disposal.
DISPOSAL OF HOUSEHOLD APPLIANCES
This appliance is manufactured with recyclable or reusable materials.
Dispose of it in accordance with local waste disposal regulations.
For further information on the treatment, recovery and recycling of
household electrical appliances, contact your local authority, the
collection service for household waste or the store where you purchased
the appliance. This appliance is marked in compliance with European
Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE)
and with the Waste Electrical and Electronic Equipment regulations 2013
(as amended). By ensuring this product is disposed of correctly, you will
help prevent negative consequences for the environment and human
health.
The symbol
on the product or on the accompanying documentation
indicates that it should not be treated as domestic waste but must be
taken to an appropriate collection center for the recycling of electrical
and electronic equipment.
ENERGY SAVING TIPS
Install the appliance in a dry, well ventilated room far away from any heat
source (eg. radiator, cooker, etc.) and in a place not exposed directly to
the sun. If required, use an insulating plate.
To guarantee adequate ventilation follow installation instructions.
Insucient ventilation at the back of the product increases energy
consumption and decreases cooling eciency.
Frequent door opening might cause an increase in Energy Consumption.
The internal temperature of the appliance and the Energy Consumption
may be aected also by the ambient temperature, as well as location of
the appliance. Temperature setting should take into consideration these
factors. Reduce door opening to minimum.
When thawing frozen food, place it in the refrigerator. The low
temperature of the frozen products cools the food in the refrigerator.
Allow warm food and drinks to cool down before placing in the appliance.
Positioning of the shelves in the refrigerator has no impact on the
ecient usage of energy. Food should be placed on the shelves in such
way to ensure proper air circulation (food should not touch each other
and distance between food and rear wall should be kept).
You can increase storage capacity of frozen food by removing baskets
and, if present, Stop Frost shelf.
Do not worry about noises coming from the compressor which are
normal operation noises.
The Gulf Conformity Marking on the product indicates the
conformity with all the requirements of the Gulf Technical
Regulation for Low Voltage Electrical Equipment and
Appliances BD-142004-01.
®
Product Features
Total no frost design
Multi air-ow cooling system
Electronic temperature control Interior LED lighting
Parts name:
Due to technological innovations, the product descriptions in this manual may not be completely consistent with your refrigerator.
Detailed information is in accordance with the nal product.
Preparations for use
Installation location:
1. Ventilation condition
The position you select for the refrigerator installation should be well-ventilated and has less hot air. Do not locate the refrigerator
near a heat source such as cooker, boiler, and avoid it from direct sunlight, thus guaranteeing the refrigeration eect while saving
energy consumption. Do not locate the refrigerator in the damp place, so as to prevent the refrigerator from rusting and leaking
electricity. The result of the refrigerant charge amount of the refrigerator being divided by the total space of the room in which the
refrigerator is installed shall be less than 8g / m³.
Note: The amount of refrigerant charged for the refrigerator can be found on the nameplate.
2. Heat dissipation space
When working, the refrigerator gives o heat to surroundings. Therefore, at least 30mm of free space should be spared at the top
side, more than 100mm on both sides, and above 50mm at the back side of the refrigerator.
Dimensions in mm:
W D H A B C (°) E F
595 635 1855 966 1176 130 50 100
Fig.1 Fig.2
Note: Figure 1, Figure 2 only illustrate the space demand of the product.
3. Level ground
Place the refrigerator on the solid and at ground (oor) to keep it stable, or else, it will give rise to vibration and noise. When the
refrigerator is placed on such ooring materials as carpet, straw mat, polyvinyl chloride, the solid backing plates should be applied
underneath the refrigerator, so as to prevent color change due to heat dissipation.
Unobstructed ventilation shall be maintained around the appliance or in an embedded structure.
No Description
1 Temperature modes & LED Light
2 Fridge glass shelves
3 Crisper cover
4 Salad crisper
5 freezer drawers
6 Leveling feet
7 Bottle racks
Preparations for use
1. Standing time
After the refrigerator is properly installed and well cleaned, do not switch it on immediately. Make sure to energize the refrigerator
after more than 1 hour’s standing, so as to ensure its normal operation.
2. Cleaning
Conrm the accessory parts inside the refrigerator and wipe the inside with a soft cloth.
3. Power-on
Insert the plug into the solid socket to start the compressor. After 1 hour, open the refrigerator door, if the temperature inside the
refrigerator compartment drops obviously, it indicates the refrigeration system is working normally.
4. Storage of food
After the refrigerator runs for a period of time, the internal temperature of the refrigerator will be automatically controlled according
to the user’s temperature setting. After the refrigerator is fully cooled, put in foods, which usually need 2~3 hours to be fully coo-
led. In summer, when the temperature is high, it takes more than 4 hours for the foods to be fully cooled (Try to open the refrige-
rator door as less as possible before the internal temperature cools down).
If the refrigerator is installed in the moisture place, make sure to check whether the ground wire and leakage circuit breaker
are normal. If vibration noises are produced due to the refrigerator contacting the wall or if the wall gets blackened by air con-
vection around the compressor, move the refrigerator away from the wall. Setting up the refrigerator may cause jamming noise or
image chaos to the mobile phone, xed-line telephone, radio receiver, television surrounding it, so try to keep the refrigerator as
far away as possible in such case.
Functions
1. Functions
1.1 Temperature setting
COLDEST
COLD
2
When the user needs a colder temperature.
4
5 When in normal use.
6
When the user does not need a colder temperature.
8
Temperature can be adjusted by pressing the ‘SET’ key. Every time when the “SET” key is pressed, the current mode indicator
lights o while the next mode indicator lights up, with the said mode setting validated if no key operation within 5s (or else, the
mode setting will be invalid). After the setting takes eect, temperature will be immediately controlled as per the mode setting.
The temperature modes cycle as following: “2→4→5→6→8→FAST COOL→2”
• When the temperature mode keeps unchanged, adjust the air regulating rod from left to right, the fridge temperature gets
decreased while the freezer temperature increased.
• When the temperature mode keeps unchanged, adjust the air regulating rod from right to left, the fridge temperature gets
increased while the freezer temperature decreased.
• It is recommended to adjust the air regulating rod in the middle position. When the user needs a lower freezer temperature,
adjust the air regulating rod to the left properly, then the freezer temperature decreases while the fridge temperature rises. When
the temperature meets the requirement, adjust the air regulating rod back to the middle position again in a timely manner.
The fridge thermostat and the air regulating rod should be used in combination.
Temperature adjustment
Use
environment
Recommended mode setting
on the display panel
Recommended air regulating
rod position
Notes
Higher than 35 °C
1) It is recommended to set at the
middle mode.
2) The temperature modes can be
adjusted as recommended in the
left table in case of change to the
ambient temperature around the
refrigerator.
16°C - 35°C
Lower than 16°C
• When the ambient temperature around the refrigerator is higher than 35°C, do not set the thermostat at Mode 2 and adjust the
air regulating rod to the leftmost position, so as not to aect the normal refrigeration of the refrigerator.
• Do not set the thermostat at Mode 2 and adjust the air regulating rod to the rightmost position, in order to avoid the fridge
compartment undercooling.
• If the fridge temperature is not cool or undercooled, set the thermostat at the middle mode and adjust the air regulating rod in
the middle position.
• In case the ‘Fastcool’ function is enabled, adjust the air regulating rod to the middle position.
1.1 Temperature setting
Temperature can be adjusted by pressing the ‘SET’ key. Every time when the “SET” key is pressed, the current mode indicator
lights o while the next mode indicator lights up, with the said mode setting validated if no key operation within 5s (or else, the
mode setting will be invalid). After the setting takes eect, temperature will be immediately controlled as per the mode setting.
The temperature modes cycle as following: “2→4→5→6→8→FAST COOL→2”
COLDEST
COLD
2
When the user needs a colder temperature.
4
5 When in normal use.
6
When the user does not need a colder temperature.
8
• When the temperature mode keeps unchanged, adjust the air regulating rod from left to right, the fridge temperature gets
decreased while the freezer temperature increased.
• When the temperature mode keeps unchanged, adjust the air regulating rod from right to left, the fridge temperature gets
increased while the freezer temperature decreased.
• It is recommended to adjust the air regulating rod in the middle position. When the user needs a lower freezer temperature,
adjust the air regulating rod to the left properly, then the freezer temperature decreases while the fridge temperature rises. When
the temperature meets the requirement, adjust the air regulating rod back to the middle position again in a timely manner.
The fridge thermostat and the air regulating rod should be used in combination.
Temperature adjustment
Use
environment
Recommended mode setting
on the display panel
Recommended air regulating rod
position
Notes
Higher than 35 °C
1) It is recommended to set
at the middle mode.
2) The temperature modes
can be adjusted as recom-
mended in the left table in
case of change to the am-
bient temperature around the
refrigerator.
16°C - 35°C
Lower than 16°C
• When the ambient temperature around the refrigerator is higher than 35 °C , do not set the thermostat at Mode 2 and adjust
the air regulating rod to the leftmost position, so as not to aect the normal refrigeration of the refrigerator.
• Do not set the thermostat at Mode 2 and adjust the air regulating rod to the rightmost position, in order to avoid the fridge
compartment undercooling.
• If the fridge temperature is not cool or undercooled, set the thermostat at the middle mode and adjust the air regulating rod in
the middle position.
• In case the ‘Fastcool’ function is enabled, adjust the air regulating rod to the middle position.
1.1 Temperature setting
Temperature can be adjusted by pressing the ‘SET’ key. Every time when the “SET” key is pressed, the current mode indicator
lights o while the next mode indicator lights up, with the said mode setting validated if no key operation within 5s (or else, the
mode setting will be invalid). After the setting takes eect, temperature will be immediately controlled as per the mode setting.
The temperature modes cycle as following: “5→4→3→2→1→FAST COOL→5”
COLDEST
COLD
5
When the user needs a colder temperature.
4
3 When in normal use.
2
When the user does not need a colder temperature.
1
• When the temperature mode keeps unchanged, adjust the air regulating rod from left to right, the fridge temperature gets
decreased while the freezer temperature increased.
• When the temperature mode keeps unchanged, adjust the air regulating rod from right to left, the fridge temperature gets
increased while the freezer temperature decreased.
• It is recommended to adjust the air regulating rod in the middle position. When the user needs a lower freezer temperature,
adjust the air regulating rod to the left properly, then the freezer temperature decreases while the fridge temperature rises. When
the temperature meets the requirement, adjust the air regulating rod back to the middle position again in a timely manner.
The fridge thermostat and the air regulating rod should be used in combination.
Temperature adjustment
Use
environment
Recommended mode setting on
the display panel
Recommended air regula-
ting rod position
Notes
Higher than 35 °C
1) It is recommended to set at the
middle mode.
2) The temperature modes can be
adjusted as recommended in the left
table in case of change to the ambient
temperature around the refrigerator.
16°C - 35°C
Lower than 16°C
• When the ambient temperature around the refrigerator is higher than 35 °C , do not set the thermostat at Mode 5 and adjust
the air regulating rod to the leftmost position, so as not to aect the normal refrigeration of the refrigerator.
• Do not set the thermostat at Mode 5 and adjust the air regulating rod to the rightmost position, in order to avoid the fridge
compartment undercooling.
• If the fridge temperature is not cool or undercooled, set the thermostat at the middle mode and adjust the air regulating rod in
the middle position.
• In case the ‘Fastcool’ function is enabled, adjust the air regulating rod to the middle position.
1.2 “FAST COOL”
Cooling down the temperature in a rapid manner is benecial to the prevention of food nutrition against lost and the preserva-
tion of freshness.
After a cumulative running period of 30 hours, the fast cooling function will exit automatically, with the temperature mode
restored to that set before the fast cooling function is enabled.
1.3 Door open alarm
If the fridge door is open for more than 3 minutes, buzzer alarms will be continuously issued, which can be stopped when the
set key is pressed, but will be restored after 3 minutes if the door keeps open. The alarms will not be lifted until the door is
closed.
1.4 Power cut memory
In case of power failure, the refrigerator will maintain the operating state before power failure when power supply is restored.
1.5 Power-on delay
In order to protect the refrigerator compressor from being damaged in the case of short-time power failure (i.e., less than 5
minutes), the compressor will not be started immediately after it is powered on.
1.6 Fault alarm
When the indicator light of Mode 2 or Mode 5 or Mode 8 keeps ashing, it indicates fault with the refrigerator. Please contact
the aftersales person for visiting service in such case.
When the indicator light of Mode 5 or Mode3 or Mode 1 keeps ashing, it indicates fault with the refrigerator. Please contact
the aftersales person for visiting service in such case.
Instructions for food storage
Precautions for use
• The appliance might not operate consistently (there is possibility of defrosting or temperature becoming too warm in the frozen
food compartment) when sited for an extended period of time below the cold limit of the temperature range for which the refri-
gerating appliance is designed
• The information of climate type of the appliance is provided on the rating plate.
• The internal temperature could be aected by such factors as the location of refrigerating appliance, ambient temperature,
and frequency of door open, etc., and if appropriate, a warning that setting of any temperature control device might have to be
varied to allow for these factors should be made.
• Eervescent drinks should not be stored in the freezer compartment or the low-temperature compartment, and some products
such as water ices should not be consumed too cold.
Food storage location
Due to the cold air circulation in the refrigerator, the temperature of each area in the refrigerator is dierent, so dierent kinds of
food should be placed in dierent areas.
The fresh food compartment is suitable for the storage of such foods as need not to be frozen, the cooked food, beer, eggs, some
condiments that need cold preservation, milk, fruit juice, etc. The crisper box is suitable for the preservation of vegetables, fruits,
etc.
The freezer compartment is suitable for the storage of ice cream, frozen food and the foods to be preserved for a long time.
Use of the fresh food compartment
Fridge shelf: When removing the shelf, lift it up rst, and then pull it out; and when installing the shelf, place it into position before
putting it down. Keep the shelf rear ange upward, to prevent foods from contact the liner wall. When taking out or putting in the
shelf, hold it rmly, and handle with care to avoid damage.
Crisper box: Pull out the crisper box for access to food. After using or cleaning the cover plate of the crisper box, be sure to put it
back onto the crisper, so that the internal temperature of the crisper box will not be aected.
Use of the crisper humidity regulating rod
The humidity regulating rod of the crisper box is design to maintain the humidity and freshness of the vegetables stored inside.
When the humidity regulating rod is slide to the right, with more holes exposed, lower humidity will be kept inside the crisper box.
When the humidity regulating rod is slide to the left, with less holes exposed, higher humidity will be kept inside the crisper box.
How to use the ice-making box
Place the ice-making box in the upper position of the freezer compartment, so that it ices up as soon as possible.
Cautions for food storage
You’d better clean the foods and wipe them dry before storing them inside the refrigerator. Before foods are put in the refrigerator,
it is advisable to seal them up, so as to prevent water evaporation to keep fresh fruits and vegetables on one hand, and prevent
taint of odor on the other hand.
Do not put too many or too heavy foods inside the refrigerator. Keep enough space between foods; if too close, the cold air ow
will be blocked, thus aecting the refrigeration eect. Do not store excessive or overweight foods, to avoid the shelf from being
crushed. When storing the foods, keep a distance away from the inner wall; and do not place the water-rich foods too close to the
fridge rear wall, lest they get frozen on the inner wall.
Categorized storage of foods:
Foods should be stored by category, with the foods you eat every day placed in front of the shelf, so that the door open duration
can be shortened and food spoilage due to expiration can be avoided.
Energy-saving tips: Allow the hot food cool down to the room temperature before putting it in the refrigerator. Put the frozen food
in the fresh food compartment to thaw, using the low temperature of the frozen food to cool the fresh food, thus saving energy.
Storage of fruits and vegetables
In the case of refrigerating appliances with chill compartment, a statement to the eect that some types of fresh vegetables and
fruits are sensitive to cold and therefore are not suitable for storage in this kind of compartment should be made.
Use of the frozen food storage compartment
The freezer temperature is controlled below -18°C, and it is advisable to store the food for long-term preservation in the freezer
compartment, but the storage duration indicated on the food packaging should be adhered to.
The freezer drawers are used to store food that needs to be frozen. Fish and meat of large block size should be cut into small
pieces and packed into fresh-keeping bags before they are evenly distributed inside the freezer drawers.
• Allow the hot foods to cool down to the room temperature before putting them in the freezer compartment.
• Do not put a glass container with liquid or the canned liquid that is sealed in the freezer compartment, so as to avoid burst due
to volume expansion after the liquid gets frozen up.
• Divide the food into appropriately small portions
• You’d better pack the food up before freezing it, and the packing bag used should be dry, in case the packing bags are frozen
together. Foods should be packed or covered by such suitable materials as are rm, tasteless, impervious to air and water,
non-toxic and pollution-free, to avoid cross-contamination and transfer of odor.
Tips for shopping the frozen foods
1. When you are buying frozen food, look at the Storage Guidelines on the packaging. You will be able to store each item of
frozen food for the period shown against the star rating. This is usually the period stated as “Best to use them before×”, found
on the front of the packaging.
2. Check the temperature of the frozen food cabinet in the shop where you buy the frozen foods.
3. Make sure the frozen food package is in perfect condition.
4. Always buy frozen products last on your shopping trip or visit to the supermarket.
5. Try to keep frozen food together whilst shopping and on the journey home, as this will help to keep the food cooler.
6. Don’t buy frozen food unless you can freeze it straight away. Special insulated bags can be bought from most supermarkets
and hardware shops. These keep the frozen foods cold longer.
7. For some foods, thawing before cooking is unnecessary. Vegetables and pasta can be added directly to boiling water or ste-
am cooked. Frozen sauces and soups can be put into a saucepan and heated gently until thawed.
8. Use quality food and handle it as little as possible. When foods are frozen in small quantities, it will take less than for them to
freeze up and thaw.
9. Estimate the amount of foods to be frozen up. When freezing large amounts of fresh food, adjust the temperature control knob
to the low mode, with the freezer temperature lowered. So, foods can be frozen up in fast manner, with the food freshness
well kept.
Tips for Water dispenser (if available)
The refrigerator includes a water dispenser which makes it easier to ll your cup of water and have access to cold water almost
immediately. The water dispenser includes one tank of 2.0litres of water which has to be lled out. To use water dispenser, follow
the instructions below:
1. Open the refrigerator door to ensure
the water dispenser xed well.
2. Open the ller cover of the water tank,
slowly ll the water tank to prevent any
spills until the tank is lled. Then close
the ller cover of the water tank. See
image C.
Filler cover
Water tank cover
Water tank
close
open
C
3. Once the water tank is full, set the thermostat at the lowest mode or the Fast Cool mode,
and one hour later you can dispense water for drinking. See image D.
4. When using the water dispenser, some water may drip and accumulate at the bottom of the
water dispenser. Please wipe it with a cloth when necessary.
5. The maximum ll must be lower than the tank cover is indicated by the maximum ll line
NOTE:Don’t take away the cup until no waterdrop.
Tips for special needs
Moving the refrigerator/freezer
• Location
Do not place your refrigerator/freezer near a heat source, e.g. cooker, boiler or radiator. Avoid it from direct sunlight in out-buildin-
gs or sun lounges.
• Leveling
Make sure to level your refrigerator/freezer using the front leveling feet. If not level, the refrigerator/freezer door gasket sealing
performance will be aected, or even it may lead to the operating failure of your refrigerator/freezer.
After locating the refrigerator/freezer in position, wait for 4 hours before using it, so as to allow the refrigerant to settle.
• Installation
Do not cover or block the vents or grilles of your appliance.
When you are out for a long time
• If the appliance will not be used for several months, turn it o rst, and then unplug the plug from the wall outlet.
• Take out all foods.
• Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door ajar: block it open or have the door
removed if necessary.
• Keep the cleaned appliance in a dry, ventilated place and away from the heat source, place the appliance smoothly, and do
not place heavy objects on top of it.
• The unit should not be accessible to child’s play.
Maintenance and cleaning
Before cleaning, unplug the power plug rst; Do not plug in or plug out the plug with wet hand, because there is
a risk of electric shock and injury. Do not spill water directly on the refrigerator, to avoid rust, electricity leakage and
accidents. Do not stretch your hands into the bottom of the refrigerator, since you might be scratched by sharp metal
corners.
Internal cleaning and external cleaning
The food residuals in the refrigerator are liable to produce bad odor, so the refrigerator must be cleaned regularly. The fresh food
compartment is usually cleaned once a month.
Remove all shelves, crisper box, bottle racks, cover board, and drawers etc., and clean them with a soft towel or sponge dipped
in warm water or neutral detergent.
Clear o the dusts accumulated on the rear panel and side plates of the refrigerator often.
After using detergent, be sure to rinse it with clean water, and then wipe it dry.
Do not use bristle brush, steel wire brush, detergent, soap powder, alkaline detergent, benzene, gasoline, acid, hot
water and other corrosive or soluble items to cleanse the cabinet surface, door gasket, plastic decorative parts, etc., so
as to avoid damage.
Carefully wipe dry the door gasket, clean the groove using a wooden chopstick wrapped with cotton string. After the cleaning, x
the four corners of the door gasket rst, and then embed it segment by segment into the door groove.
Water switch
D
Interruption of power supply or failure of the refrigerating system
• Take care of the frozen foods in the event of an extended non-running of the refrigerating appliance (such as interruption of
power supply or failure of the refrigerating system).
• Try to open the refrigerator door as less as possible, in this way can food safely and freshly kept for hours even in hot sum-
mer.
• If you get the power outage notice in advance:
1)Adjust the thermostat knob to the high mode an hour in advance, so that foods get fully frozen (Do not store new food during
this time!). Restore the temperature mode to the original setting when power supply becomes normal in a timely manner.
2)You can also make ice with a watertight container, and put it in the upper part of the freezer, so as to extend the time for fresh
food to be stored.
Note: Once the refrigerator is used, you’d better use it continuously; and under normal circumstance, do not stop
its use, so as not to aect the service life.
Defrosting
This appliance is designed with automatic defrosting function, thus no need to defrost it manually.
Changing the lamp
The LED lamp is used by the refrigerator for lighting, which features low energy consumption and long service life. In case of any
abnormality, please contact the after-sales personnel for visiting service.
Lamp type:LED light.
Energy eciency leve: F
Safety-check after maintenance
Is the power cord broken or damaged?
Is the power plug rmly inserted into the socket?
Is the power plug abnormally overheated?
Note: Electric shock and re accident may be caused in case the power cord and plugs are damaged or stained by
dust. If any abnormality, please unplug the power plug and get in contact with the vendor.
How to dissemble the parts
Fridge door bottle rack:
Hold the bottle rack with both hands, and then push it up.
Fridge shelf:
Hold one end of the shelf to lift it up, and meantime pull it outward, in this way can the shelf be taken out.
Simple fault analysis and elimination
With regard to the following small faults, not every failure needs to be xed by the technical service personnel; you can try to
solve the problem.
Case Inspection Solutions
• Completely non-refrigeration • Is power plug o?
• Are breakers and fuses broken?
• No electricity or line trip?
• Where is the refrigerator installed?Is
it placed in balconies, garages, stora-
ge rooms and other places where the
ambient temperature is below 10°C?
• Re-plug
• Opening the door and checking
whether the lamp is lit.
• Power outage or line tripping?
• Install refrigerator in a location that is
protected and the ambient tempera-
ture is above 10°C.If your refrigerator
is installed in too low temperature,the
internal cooling system may not work
correctly.
• Abnormal noise • Is refrigerator stable?
• Does refrigerator reach the wall?
• Adjusting refrigerator’s adjustable
feet.
• O the wall.
• Poor refrigerating eciency • Do you put hot food or too much
food?
• Do you open the door frequently?
• Do you clip food bag to the seal of
door?
• Direct sunlight or near a furnace or
stove?
• Is it well-ventilated?
• Temperature setting in too high?
• Putting food into refrigerator when
hot food becomes cool.
• Checking and closing the door.
• Removing the refrigerator from the
heat source.
• Emptying the distance to maintain
good ventilation.
• Setting to the appropriate tempera-
ture.
• Peculiar smell in refrigerator • Any spoiled food?
• Do you need to clean refrigerator?
• Do you pack food of strong avors?
• Throwing away spoiled food.
• Cleaning refrigerator.
• Packing food of strong avors.
• LED lamp always ashing • Is the door open for more than 10
minutes?
• Close the fridge door, open it again in
2s, checking whether the LED lamp
restores to normal.
Note: If the above descriptions are inapplicable to troubleshooting, do not disassemble and repair it yourself. Repairs carried
out by inexperienced persons may cause injury or serious malfunctioning. Contact the local store where your purchase was
made. This product should be serviced by an authorized engineer and only genuine spare parts should be used.
When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods and clean the appliance,
leaving the door ajar to prevent unpleasant smells.
Certications
Electrical information
This electrical appliance must be grounded.
This product is equipped with a plug, which is suitable for all houses equipped with sockets meeting the current specications
If the tted plug is not suitable for your socket outlets, it should be cut o and carefully disposed of. To avoid a possible shock
hazard, do not insert the discarded plug into a socket.
This product complies the EEC directives.
Warnings for disposal
• Refrigerant and cyclopentane foaming material used for the refrigerator are ammable. Therefore, when the refrigerator is
scrapped, it shall be kept away from any re source and be recovered by a special recovering company with corresponding
qualication other than be disposed by combustion, so as to prevent damage to the environment or any other harm.
• When the refrigerator is scrapped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves
in a proper place, so as to prevent trapping of any child.
Safe recovery instructions
Disposal
Old appliances still have some surplus value. An environmentally friendly approach will ensure that valuable raw materials are
recycled.
The refrigerants used in your equipment and insulation materials require special handling procedures. Make sure there is no pipe
damage on the back of the equipment before handling.
Up-to-date information on the options for disposing of old equipment and packaging from old equipment can be obtained from the
local municipal oce
Correct Disposal of this product
This marking indicates that this product should not be disposed with other household wastes throughout the
EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle
it responsibly to promote the sustainable reuse of material resources. To return your used device, please use
the return and collection systems or contact the retailer where the product was purchased. They can take this
product for environmentally safe recycling.

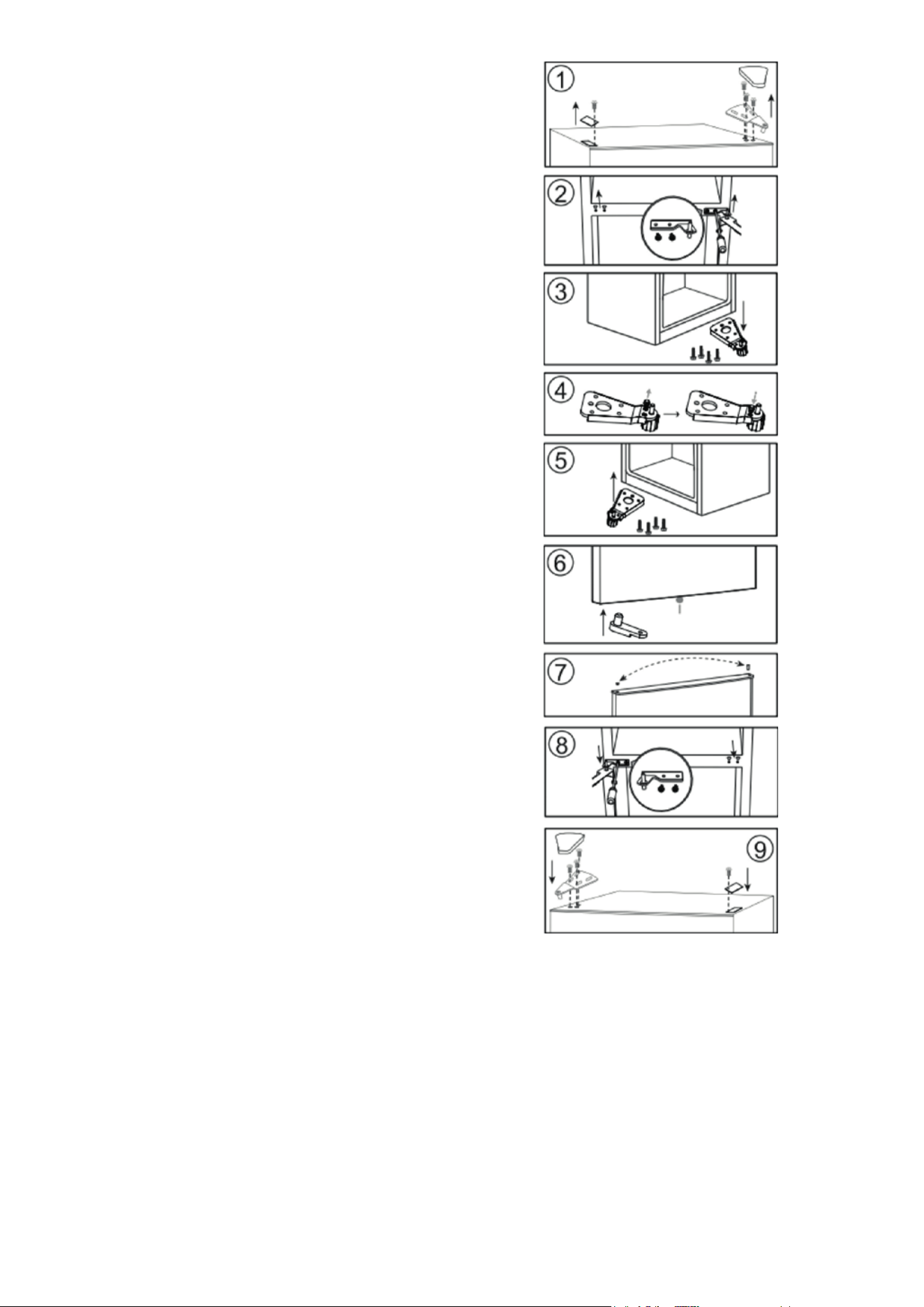

DOOR REVERSAL INSTRUCTIONS
If the appliance is placed on its back or side during this
process it must be allowed to stand upright for 6 hours before
plugging in to avoid damage to internal components.
1. Remove the screw hole cover from the top left side of the
cabinet. Remove the upper hinge cover and the upper
hinge from the top right side of the cabinet. Remove the
freezer door from the cabinet.
2. Remove the center hinge from the right side of the cabinet.
Remove the refrigerator door from the cabinet. Remove
the screw hole covers from the left side of the cabinet.
Remove the refrigerator door from the cabinet.
3. Remove the lower hinge from the bottom right side of the
cabinet.
4. Remove the pin shaft to the right hole on the lower hinge,
then insert the pin shaft into the left hole on the lower
hinge.
5. Install the lower hinge onto the lower left side of the cabi-
net.
6. Remove the freezer door stop from the lower right side to
the left side of the door. Get the left door stoop from the
accessory bag, install it on bottom left side of the refrigera-
tor door.
7. Move the door bushing from the top right side of the refri-
gerator door and remove the hinge hole cover from the top
left side of the door. Exchange their positions.
8. Install the freezer door onto the cabinet. Install the center
hinge on the left side of the cabinet. Install the screw hole
covers on the right side of the cabinet.
9. Install the refrigerator door onto the cabinet. Install the
upper hinge on the top left side of the cabinet. Install the
screw hole cover onto the top right side of the cabinet.
Note: These instructions reference the models that come from
the factory with a right hand swing door. If your appliance
comes with a left hand swing, ensure that you ip the ‘left” and
“right” in these instructions.
