Thank you for purchasing our product.
承蒙购买本公司产品
深表谢意。
Please read this manual carefully before use.
Please read “Safety Precautions” carefully
before use.
Please keep this manual in a safe place.
Our product is intended for household use only.
使用前请务必阅读本说明书。
使用前请务必阅读“安全注意事项”。
使用后请保存好本说明书。
本公司产品专为家庭用户设计。
Operation Manual
of Fully Auto Top Load
Washing Machine
自动洗衣机使用说明书
20
9
22
11
24
12
25
13
26
14
27

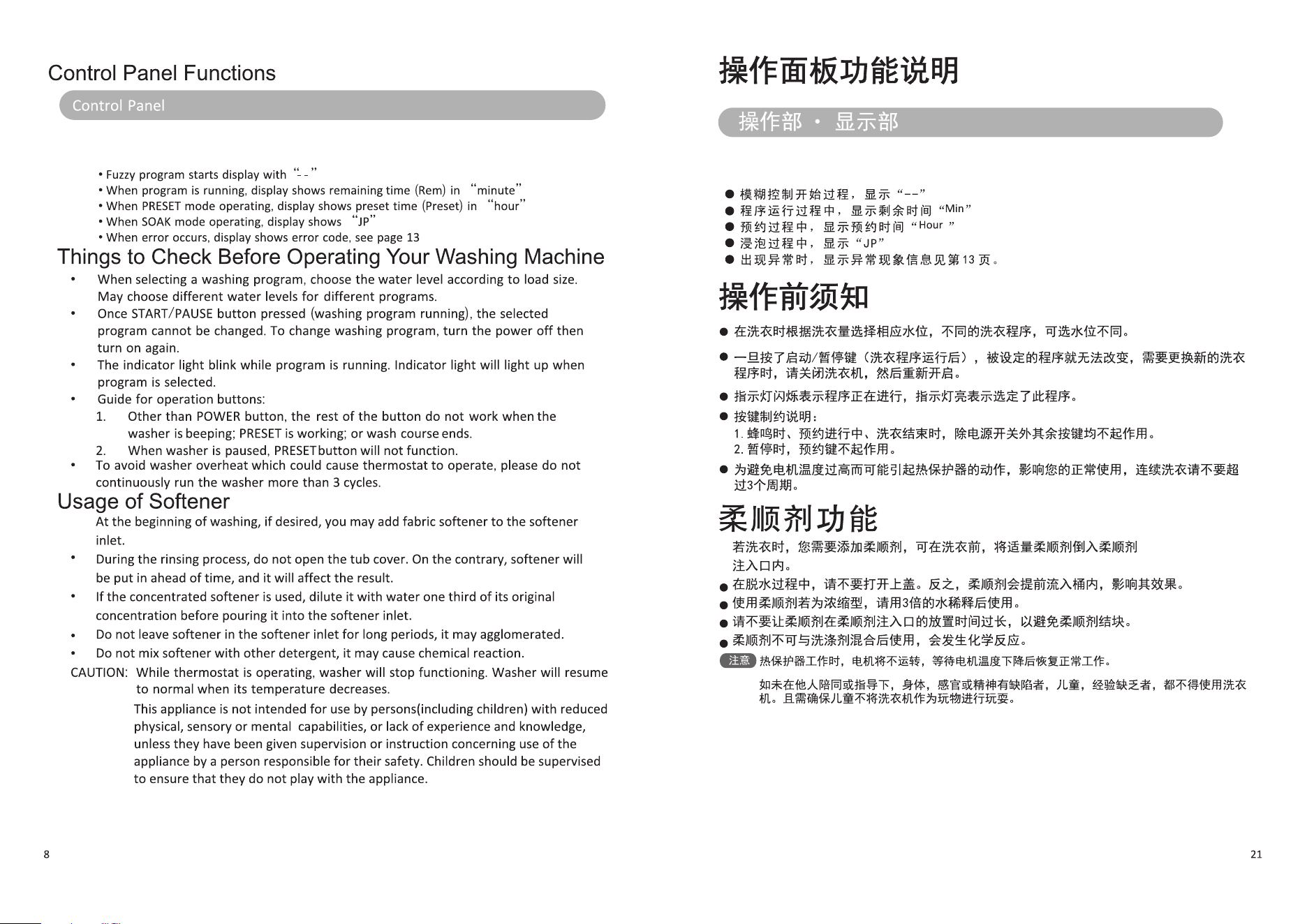

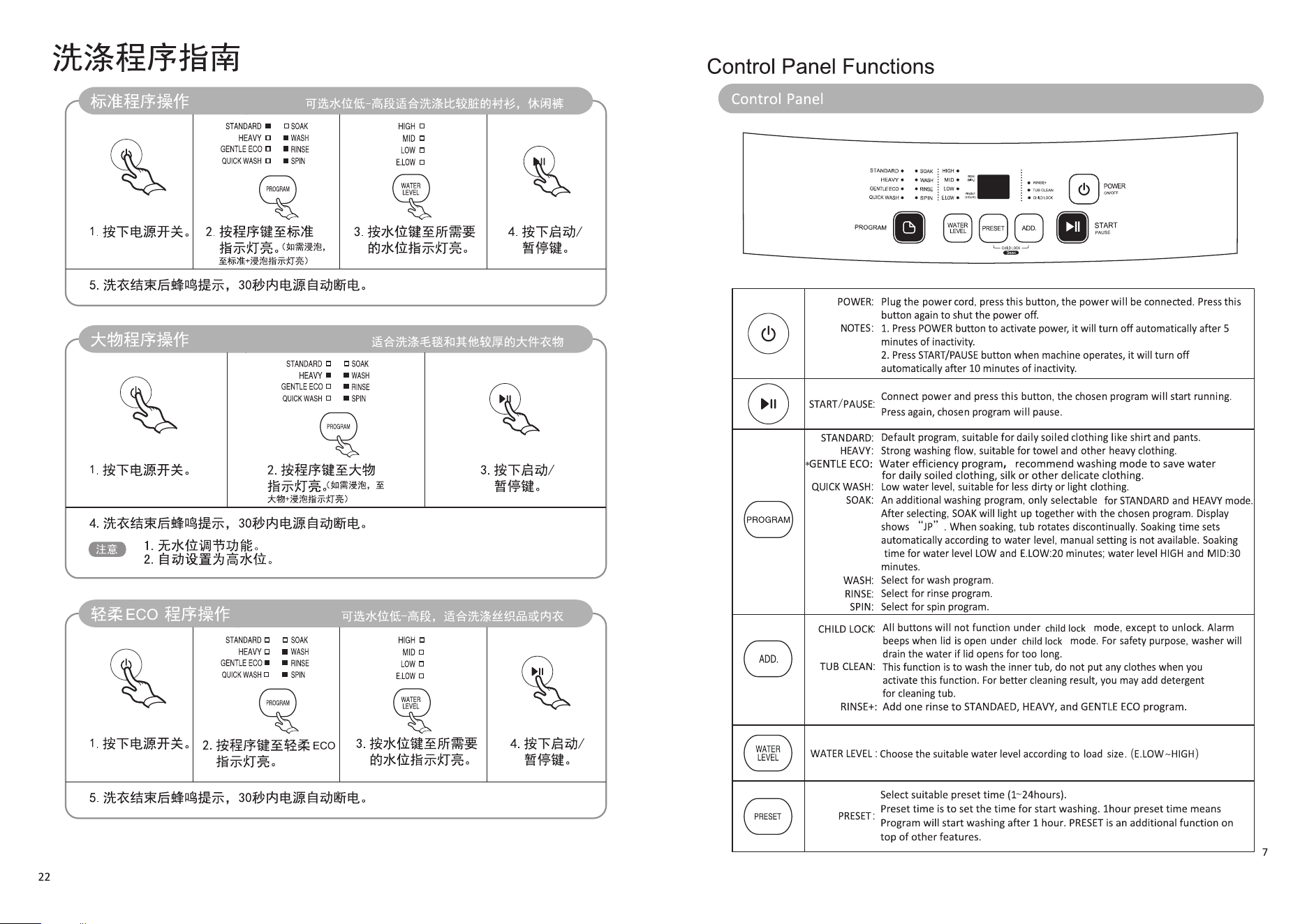

C Panel F

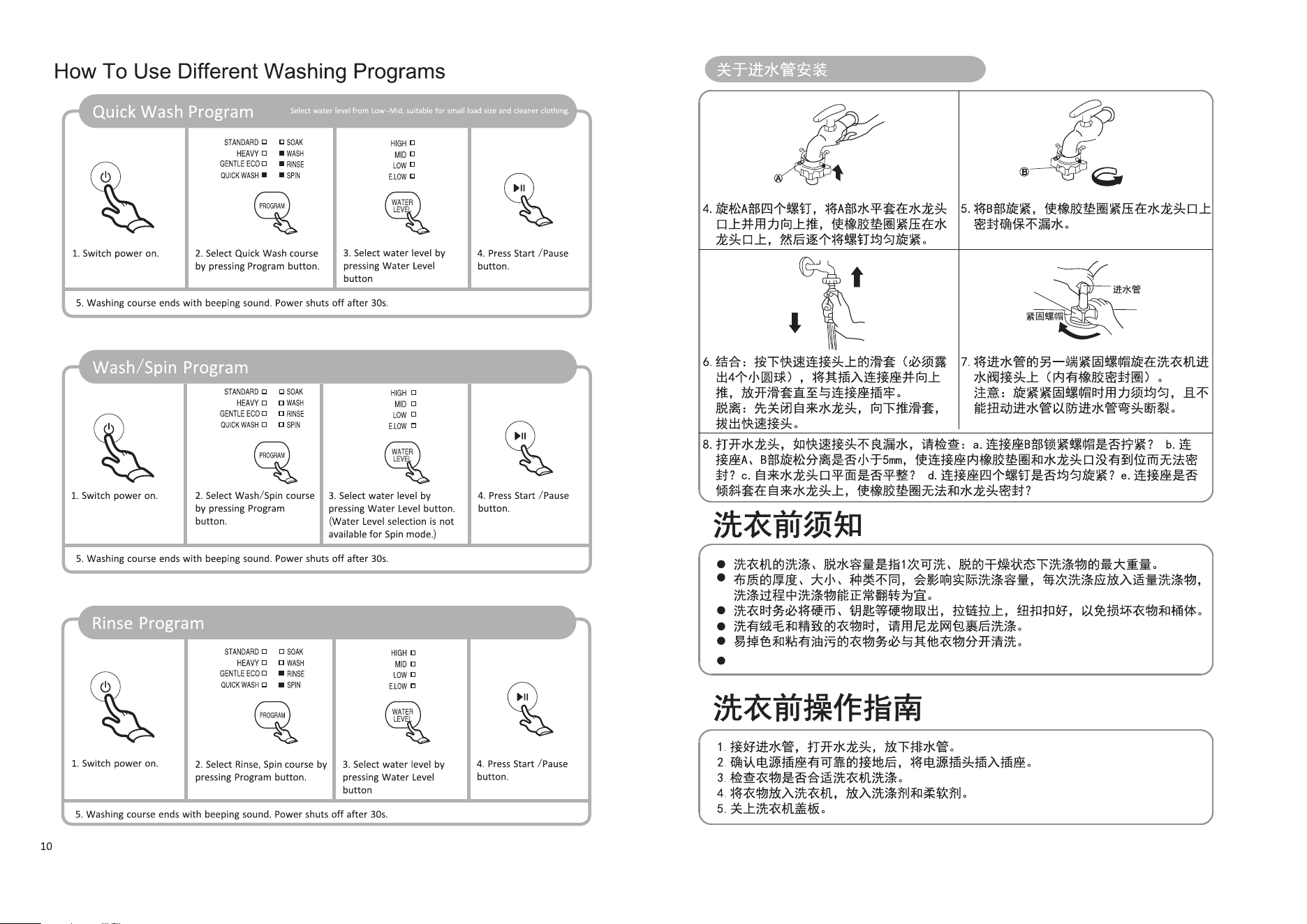

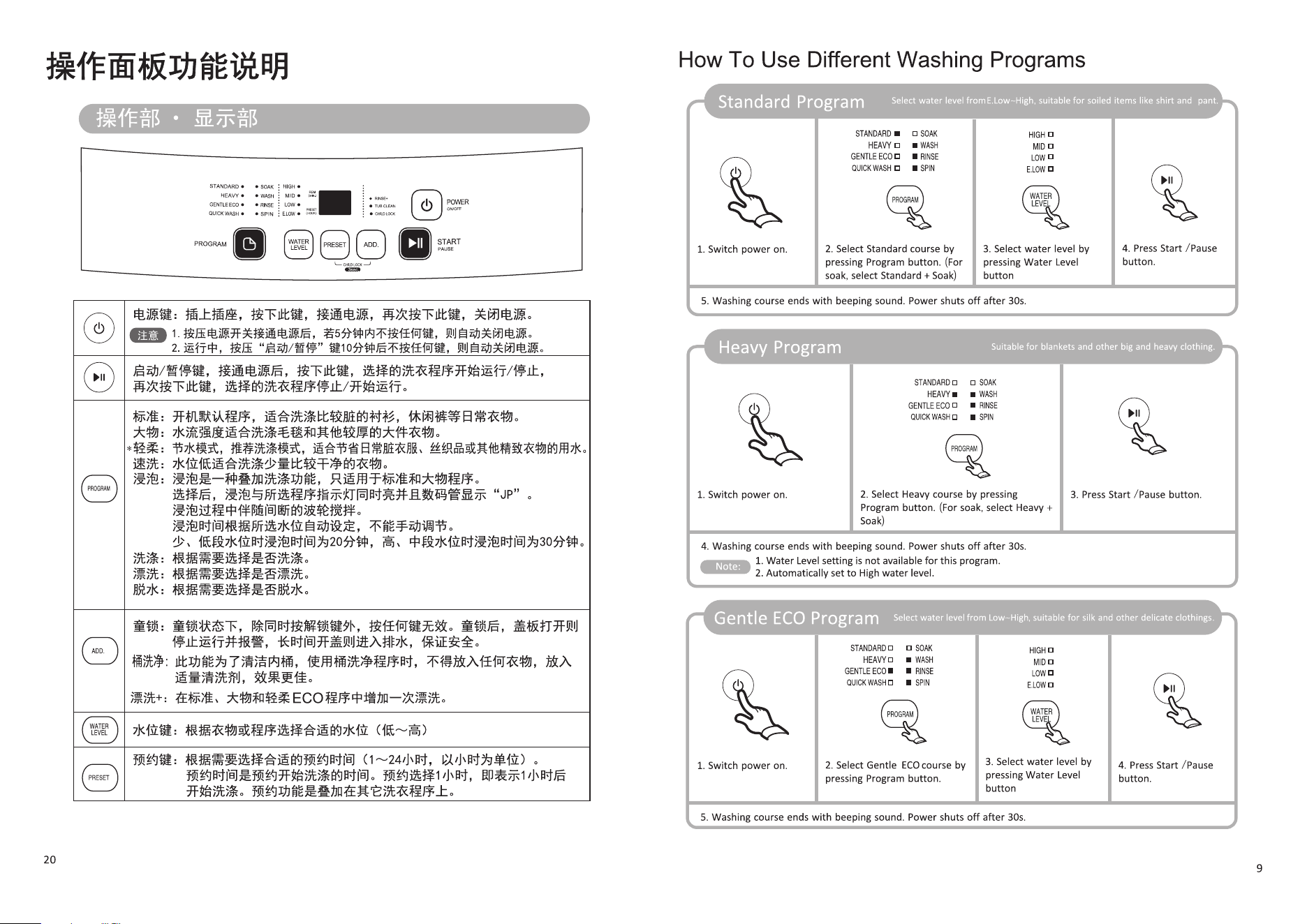

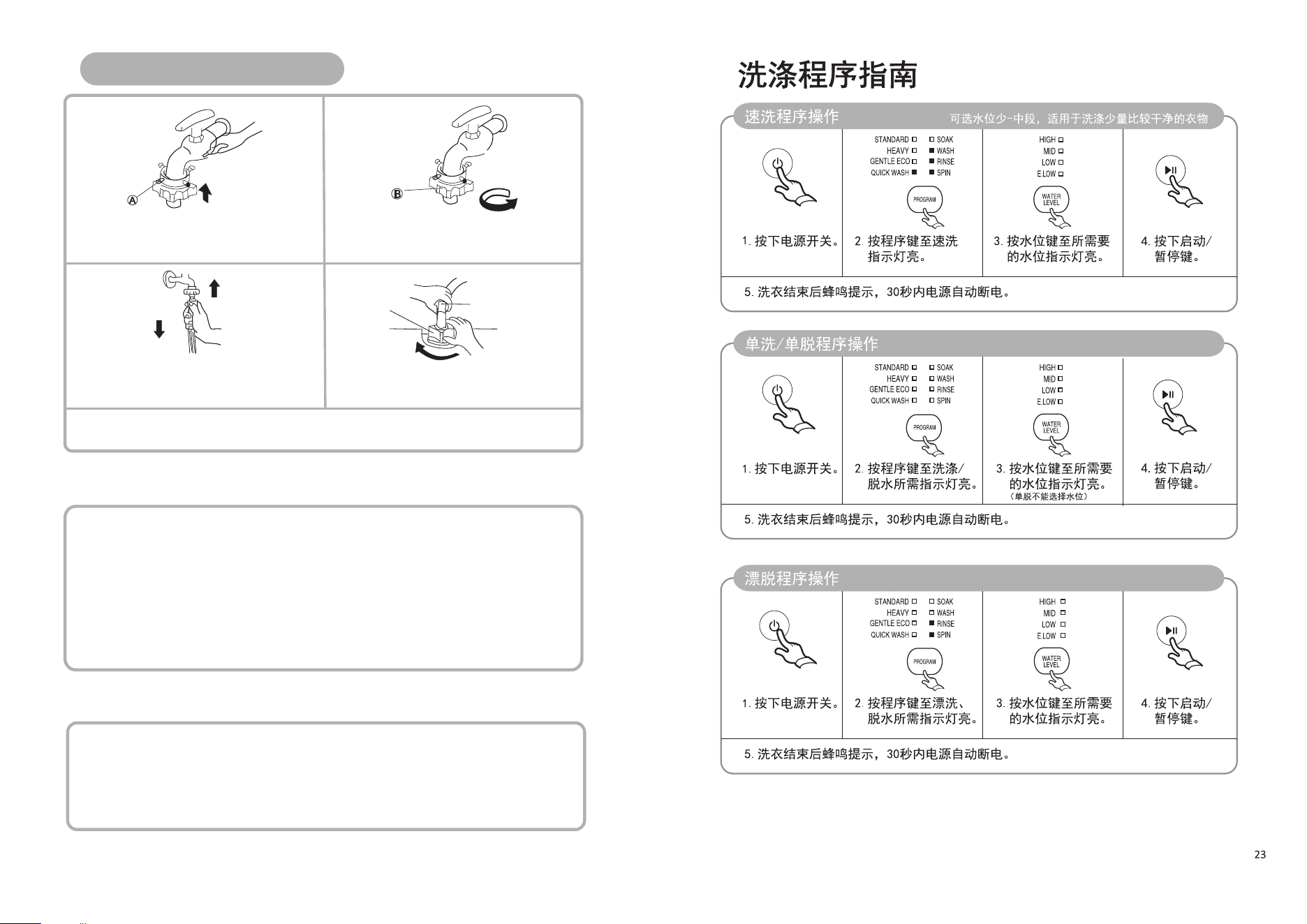

How to Use Different Washing Programs
洗涤程序指南

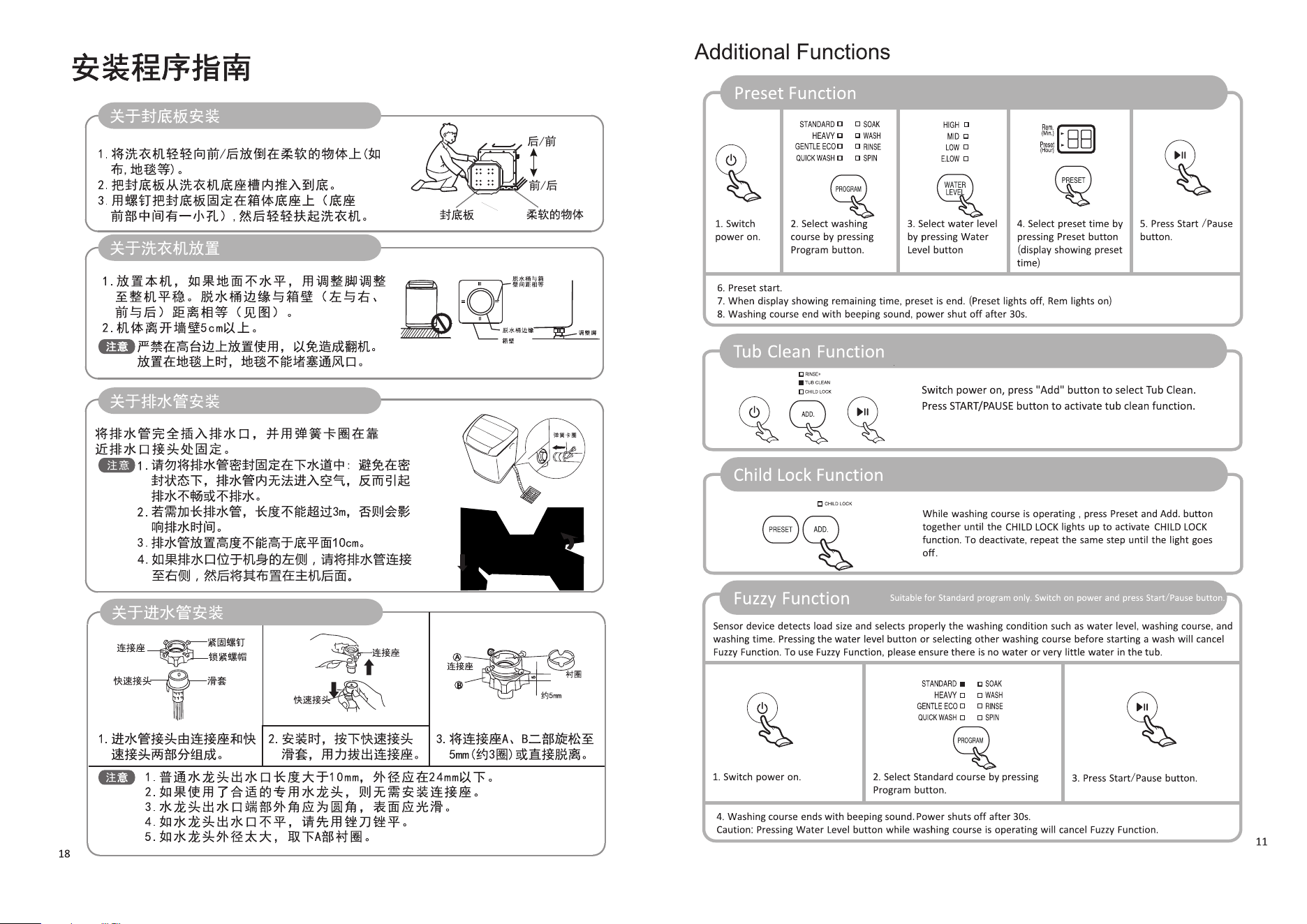

Additional Functions
附加功能操作说明
Cleaning and Maintenance
清洁与维护操作指南
Troubleshooting
异常
故障确认与处理方法
Specifications
规格
Table of contents
目录
Page
页次

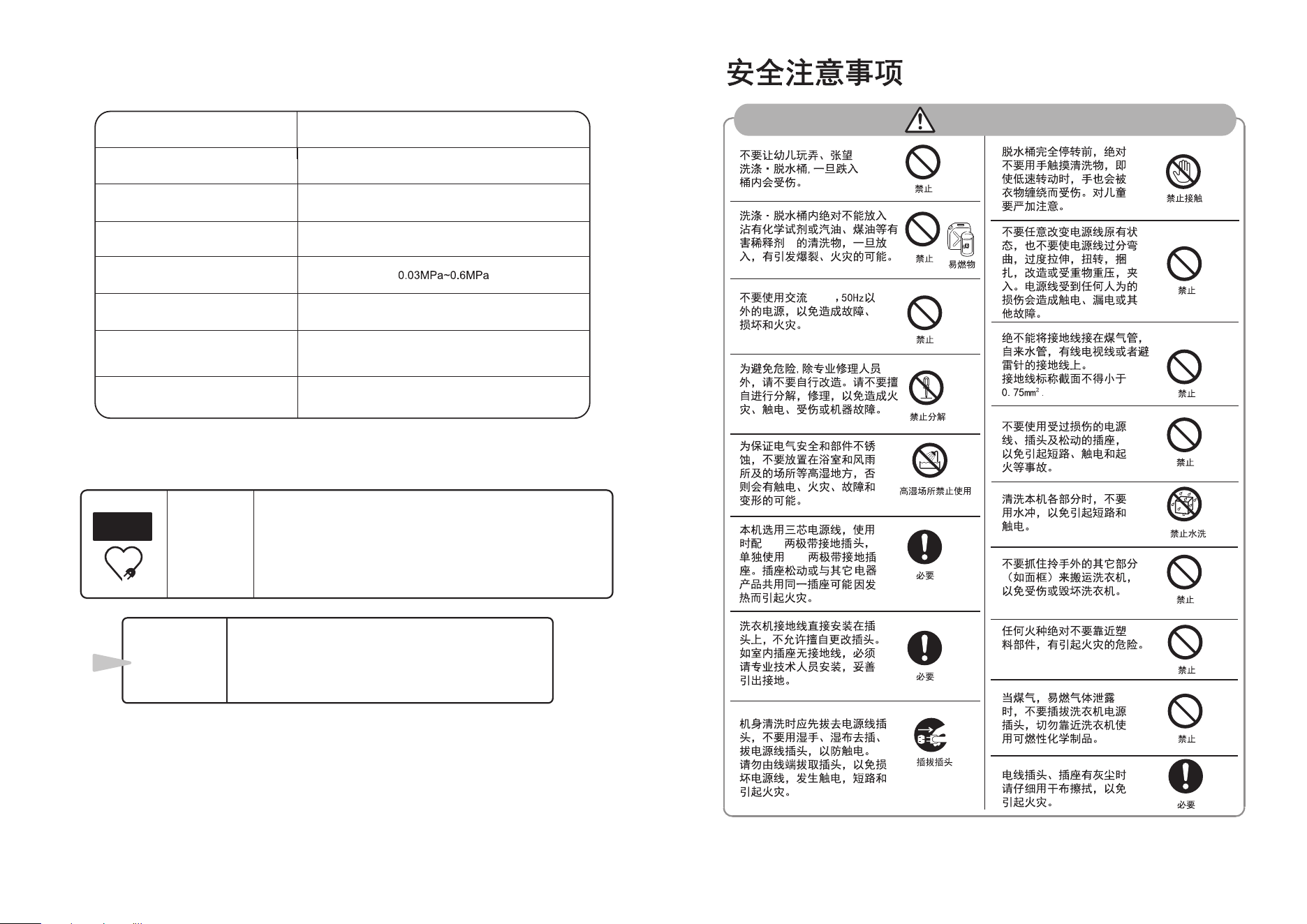

Safety Precautions
安全注意事项
Component Parts
各部分名称

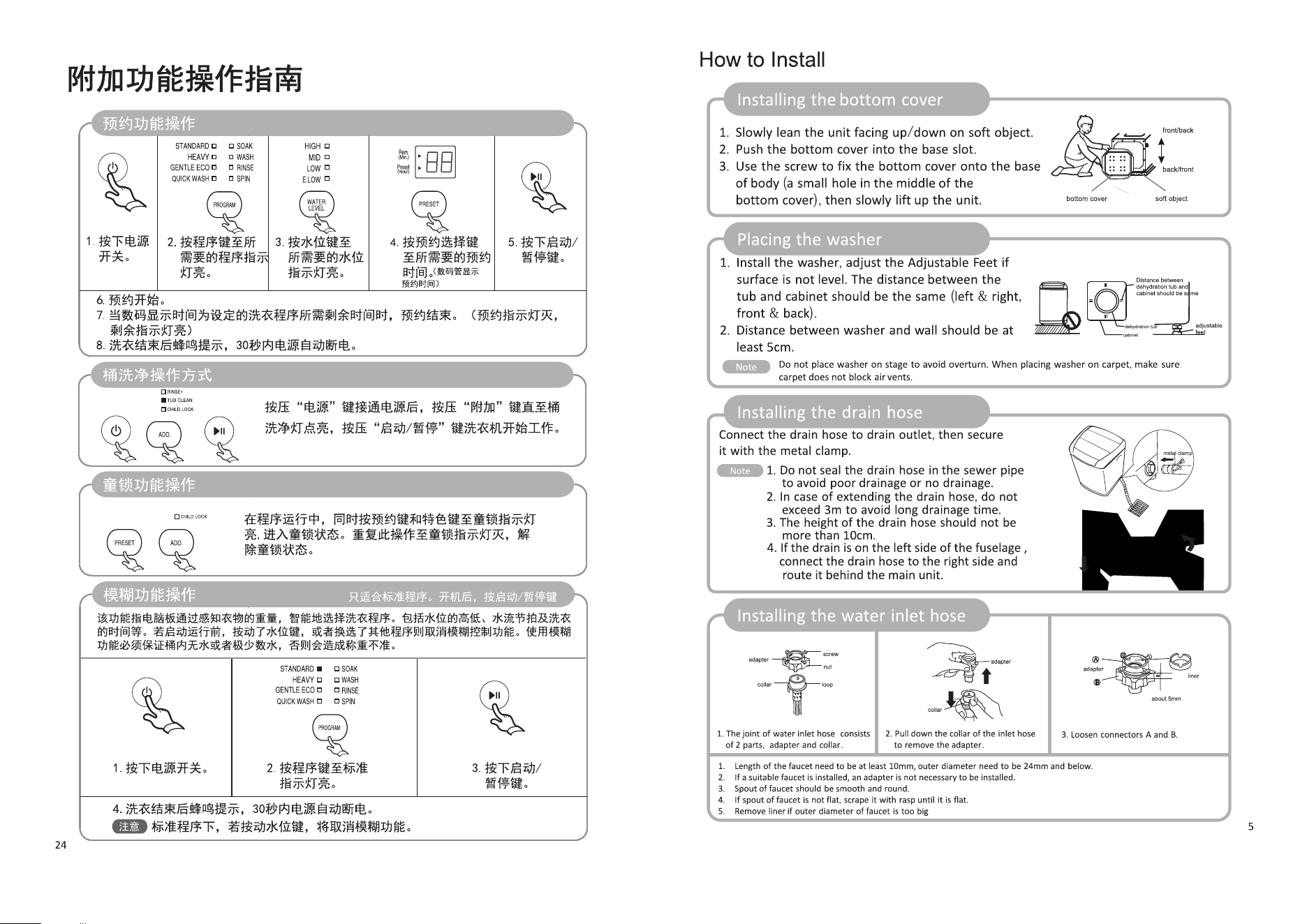

How to Install
安装与调整指南
Things to Check Before Wash
洗衣前须知
Instructions Before Wash
洗衣前操作指南
ontrol unctions
操作面板说明
2
15
4
17
5
18
6
19
6
19
7
ES-X155
Safety Precautions
WARNING
Do not allow children to play
with or look around the
washing • dehydration tub,
in case they fall into the tub,
they will get injured.
Clothing stained with harmful
diluting agents such as gasoline,
kerosene and so on must not be
put into the washing •
dehydration
tub.
Do not use power supply other
than AC240V, 50Hz, so as to
avoid malfunction, damage and
fire.
Do not modify the machine (except
for professional repairmen).
Please
do
not disassemble and repair the
machine without permission, so as
to avoid fire, electric shock, getting
hurt or machine malfunctions.
To prevent electric shocks, fires,
malfunctions and distortions, do not
place the machine in a place with
high-humidity (such as
bathrooms), or where wind and
rain may get in.
Use a plug seat above 10A
separately. A loose plug seat or
the action of sharing a plug seat
with other apparatus may start a
fire due to heat.
While cleaning the machine body,
the plug should be pulled out first.
Do not plug or pull the plug with
wet hand or wet cloth, so as to
avoid electric shock.
Before the dehydration tub
completely stops, do not touch
the clothing being washed.
Even
if the tub is running at
low speed,
your hand may get
wrapped up
and injured.
Special attention should be
paid
to children.
Do not change the original
state of power cable. Any
artificial damage to the power
cable could cause electric
shock, electric leakage or
other malfunctions.
Do not use damaged power
cable, plug and loose plug
seat, so as to avoid short
circuit, electric shock, fires and
other accidents.
Do not wash components of
the machine, so as to avoid
short fires and electric shock.
Do not approach any fire source
near
to a plastic component,
which
has the risk of starting
a fire.
Clean the dust on the plug and
plug seat to avoid fire.
This machine is equipped with an
earthing
plug.
Changing the plug is
not allowed. If an earthing-type
receptacle is not available, customer
is obligated to have it installed by
qualified electrician.
To move the machine, carry
only by the its handle to avoid
any harm and damage.
If gas leak, do not plug
or
unplug the machine. Do not
use any inflammable object
close to the machine.
2
FORBIDDEN
FORBIDDEN
FORBIDDEN TO TOUCH
PLUG OR PULL
THE PLUG
FORBIDDEN
FORBIDDEN
FORBIDDEN
FORBIDDEN
FORBIDDEN
FORBIDDEN TO
WASH WITH WATER
FORBIDDEN
FORBIDDEN TO
DISASSEMBLE
FORBIDDEN TO USE
AT HIGH-HUMUDITY
LOCATIONS.
MANDATORY
MANDATORY
MANDATORY
27
ES-X155
15.5kg
650x670x1040
50
推荐洗涤模式
GENTLE ECO
26
异常表示
常见非故障现象
Component Parts
List of accessories
Item
Quantity
Water inlet hose assembly
1 set
Drain hose assembly
1 set
Screw
1 pc
Bottom cover
1 pc
Operation manual
1 pc
Warranty card
1 pc
Unit
4
Lint Filter
Control Panel
Top Lid
Water Inlet Valve
Detergent Box
Power Cord
Drainage hose
Pulsator
Cabinet
Adjustable
Feet
Liquid Detergent
Dispenser
Liquid Detergent
Dispenser
Powder
Detergent
Dispenser
Powder
Detergent
Dispenser
Softener
Dispenser
Softener
Dispenser
Things to Check Before Wash
Installing the water inlet hose
1. The capacity of Wash and Spin program refers to the maximum weight of dry
clothes that Wash and Spin program can take on.
2. Different types of fabric and size will affect the washing performance, put an
adequate amount of clothes to ensure a good rotation for a more effective wash.
3. Remove coins, keys, and other hard objects, ensure zippers are fastened and buttons
are buckled to avoid scratching the interior of washing machine.
4. To wash wool and delicate clothing, use washing mesh bag.
5.
6. The amount of softener and liquid detergent shall not exceed the top of siphon cap.
Sort out colorfast items and heavily soiled items to wash them separately.
Instructions Before Wash
1. Connect water inlet hose properly, turn on water tap, put down the drain hose.
2. Before plugging in the power cord, make sure the socket is earthed.
3. Check the care label to see whether the clothes is suitable to wash by a washer.
4. Load washing machine properly, add measured detergent and softener.
5. Close the lid.
4. Loosen the four screws on connector A, fit it into the water
tap. Push up the adapter so that the rubber seal can attach
to the water tap tightly, then screw evenly.
5. Screw connector B tightly so that rubber seal can attach to
water tap tightly, to avoid leaking.
6. To attach: Pull the collar down until you see four metal
balls, fit it into the adapter, let go the collar after it is fixed.
To detach: Turn off the water tap, pull down the collar and
remove the adapter.
7. Tighten the other end of the inlet hose to the water inlet of
washer.
Caution: Tighten the nut by fastening evenly. Do not twist
the hose to avoid hose cracking.
8. Turn on water faucet. If collar part is leaking, please check: (a) Is the nut of connector B screwed properly? (b) Is distance
between connector A and B less than 5mm, causing rubber seal in adapter not to seal with water faucet? (c) Is head of water
tap flat? (d) Is adapter A screwed properly? (e) Is adapter slant causing rubber seal not to seal properly on water faucet?
6
nut
Water in let
hose
*Water efficiency program: Power on, select GENTLE ECO program by PROGRAM button,This is water effciency
program. (water level will be in HIGH), then press Start/Pause button. This nominated mode is recommeded for
normally soiled load, silk or other delicate clothing to rate capacity in the product literature.
*按下 电源键 ，按P R OG R AM按键 选择G E NT L E EC O程 序,此程序 为节水 程序。 （水位
将处 于高位 ），然 后按开 始/暂停按 钮。进 入节水 程序,此程 序适合 洗涤一 般衣物,
丝织 品及精 致衣物 （与洗 衣机标 称容量 相符的 衣物量 ）。
19
柔顺剂和洗涤剂注入量不得超过虹吸帽顶部
本机
附件清单
17
洗涤剂盒
螺钉
洗涤液
投放盒
洗衣粉
投放盒
柔顺剂
投放盒
Phenomenon
Possible reason and solution
Program stops during WASH/RINSE mode
Water detector is
working, it is normal.
Water inlet
during WASH/RINSE mode
Water detector detects low water level, inlet
water automatically.
Program
stop after WASH/RINSE mode
Spin mode delay, it
is normal.
When spinning, tub rotates
discontinuously
Program
designated to be intermittently paused.
During SPIN mode,
tub knocking and water start supply
and
enter RINSE mode
Unbalance
spinning causes program to autocorrect and resume, it is
normal.
Sounds
of water
flowing after SPIN mode end
It
is the sound of the fluid inside balance ring, it is normal.
Control panel heating
up
The memory part of PWB heating
up, it is normal.
Operation button not working
Pressing too soft.
CHILD LOCK mode is on, deselect it.

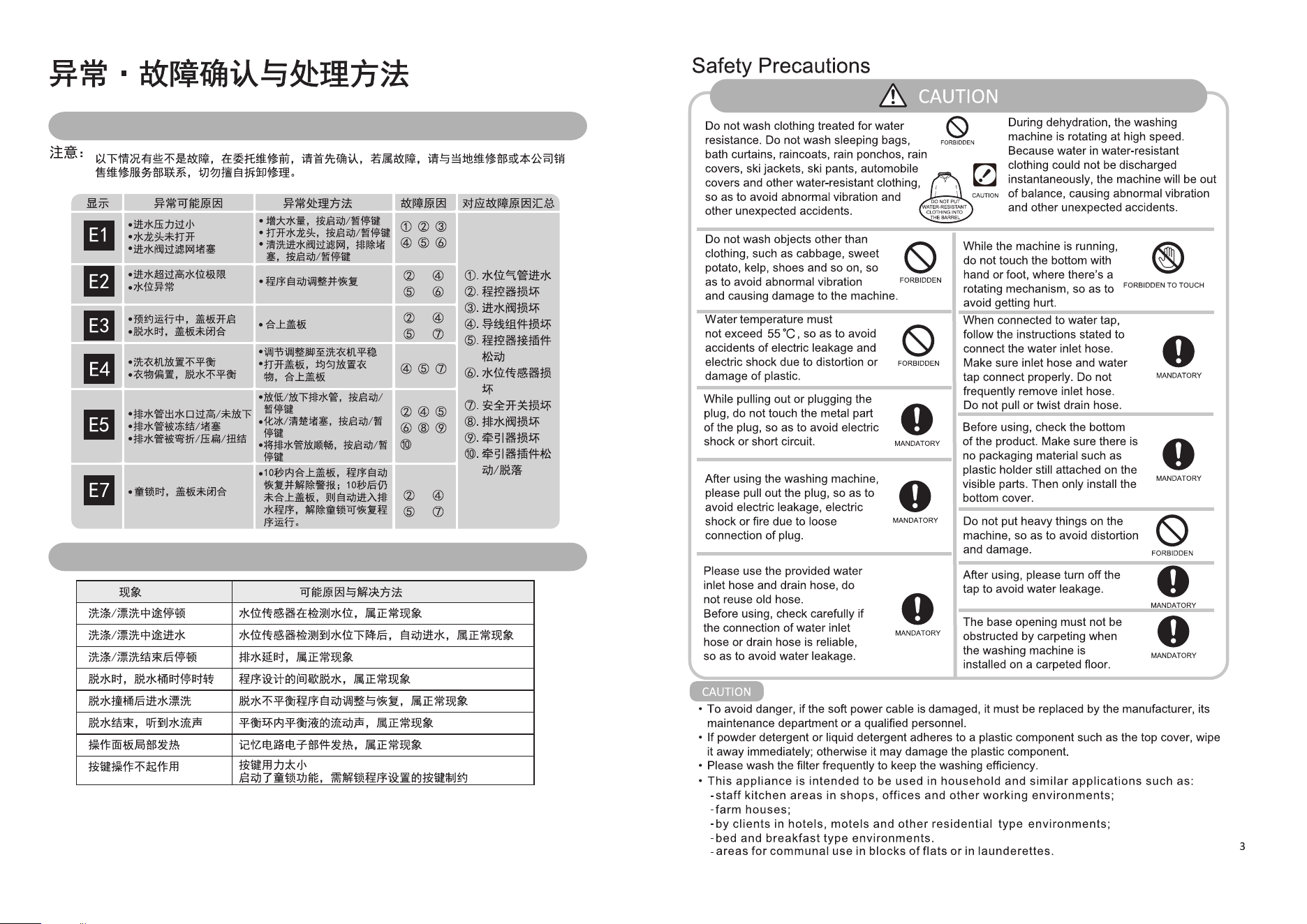

Troubleshooting
Some of the circumstances may not be a
please contact our service department, do not try to disassemble the washer or repair the washer
by yourself.
fault, please check before sending for repairs. If it is a fault,
Display
Problem
Solution
Reason Summary of
Reason
• Water supply is too low.
• Water faucet is shut off.
• Filter net of water Inlet valve
jammed.
• Increase water supply.
• Turn
on the water faucet.
• Wash the filter net, remove blockage,
press the START/PAUSE button.
①②
③④
⑤⑥
①
Pipe
leaking
② PWB
breakdown
③ Inlet
valve
breakdown
④ Circuit board
breakdown
⑤ Connection of
control panel
loosen off
⑥ Water level
sensor breakdown
⑦ Child lock
breakdown
⑧ Drainage system
breakdown
⑨ Retractor
breakdown
⑩ Connection of
retractor loosen off
• Water level exceeded the highest
limit
of the tub.
• Abnormal water level.
• Program will automatically
adjust the
water level and resume function.
②④
⑤⑥
• Lid
open when running PRESET
mode.
• Lid is not close when Spin mode is
operating.
• Close the lid.
②④
⑤⑦
• Washing machine incline.
• Clothes
is collected on one side,
causing unbalanced spin.
• Adjust the adjustable leg.
• Open the lid
and distribute the clothes
evenly.
④⑤
⑦
• Draining
position is relatively high.
• Drainage
hose is frozen or blocked.
• Drainage hose is bent, squeezed,
tangled.
• Lower
down the drain hose, press
START/PAUSE button.
• Defreeze/unblock drainage hose, press
START/PAUSE button.
• Smooth out drainage hose, press
START/PAUSE button.
②④
⑤⑥
⑧
⑩
⑨
•
Lid is not close when child lock is
on.
• Close the lid in 10s
and program will
resume
itself; if lid is still open after 10s,
machine will start draining. To resume,
deselect CHILD LOCK mode.
②④
⑤⑦
Common non-fault phenomenon
13
E1
E2
E3
E4
E5
E7
CAUTION:
15
240V
10A
10A
警 告

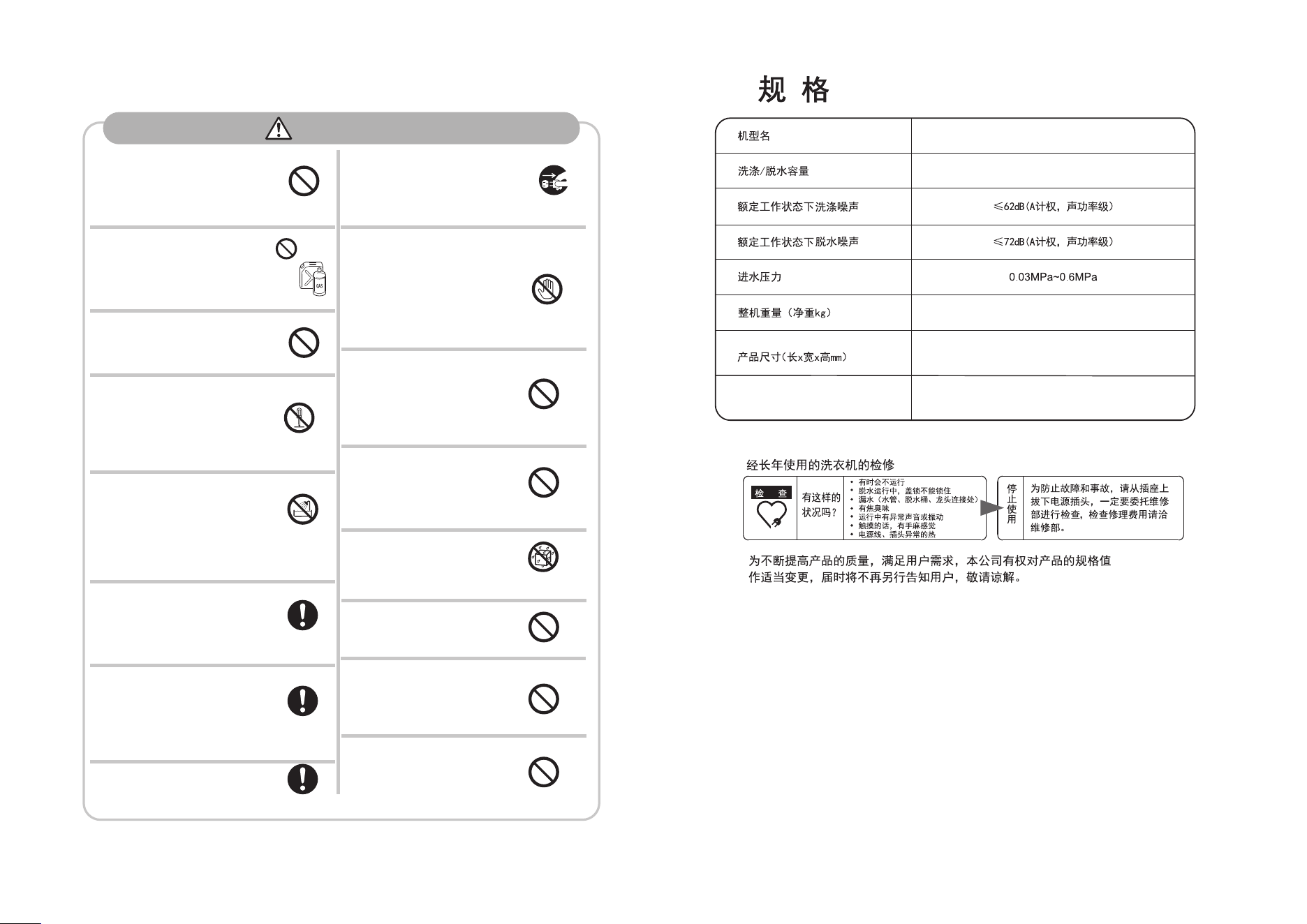

Specifications
Inspecting a washing machine that has been used for many years.
Are there
situations
like these?
• Doesn't run sometimes.
• When spinning, lid cannot be locked.
• Water leak (water hose, spinning tub, tap connection).
• There s a burning smell.'
• There s an abnormal sound or vibration during running.'
• Your hand feels numb while touching the machine.
• Power cable or plug is unusually hot.
Check
To avoid a fault or an accident, please pull out the plug from
the plug seat.
Be sure to entrust the maintenance department to check it,
and consult the maintenance department for check and repair
fees.
Stop using
the machine
To
consistently
improve
quality
of
our
products,
we
reserve
the
right
to
modify
product
specifications
without
prior
notice.
We
appreciate
your
kind
understanding
and
continuously
strive
to
exceed
customers' expectations.
14
Model Name
≤62dB(sound power level)
≤72dB(sound power level)
Capacity
Wash Noise
Spin Noise
Operating Water Pressure
Net Weight(kg)
Dimension (WxDxHmm)
ES-X155
15.5kg
650x670x1040
50
Recommended
Wash Mode
GENTLE ECO
