MBC55224FE
Contents
2
For your safety and correct usage before installing and first
using the appliance, read this user manual carefully, including
its hints and warnings. To avoid unnecessary mistakes and
accidents, it is important to make sure that all people using the
appliance are thoroughly familiar with its
operation and safety features. Save these instructions and be
sure that they remain with the appliance if it is moved or sold,
so that anyone using it throughout its life, will be properly
informed on its usage and safety notices.
For the safety of life and property, keep the precautions of
these user's instructions as the manufacturer is not
,
responsible for damages caused by omission.
Safety for children and otherswho are vulnerable people
According to EN standard
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
According to IEC standard
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
_ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _
Safety and warning information_ __ _ _ _ _ 2
Description of the appliance _ _ _ _ _ _ _ _
Electronic control _ _ _ _ _ _ _ _ _ _ _ _ _ _
First use and installation_ _ _ _ _ _ _ _ _ _
Daily use _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _
14
15
16
18
19
9
9
11
13
Helpful hints and tips
Cleaning and care

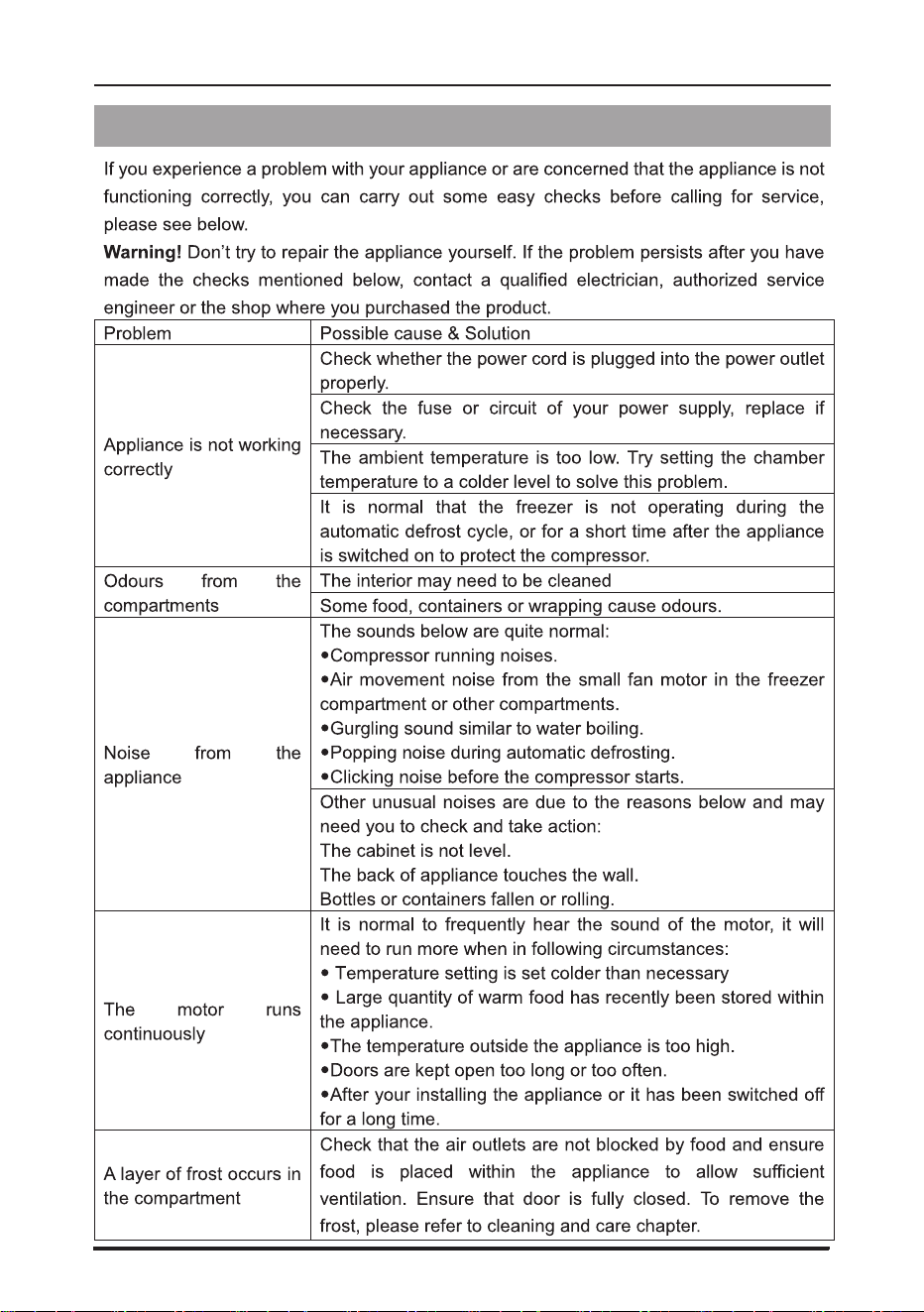

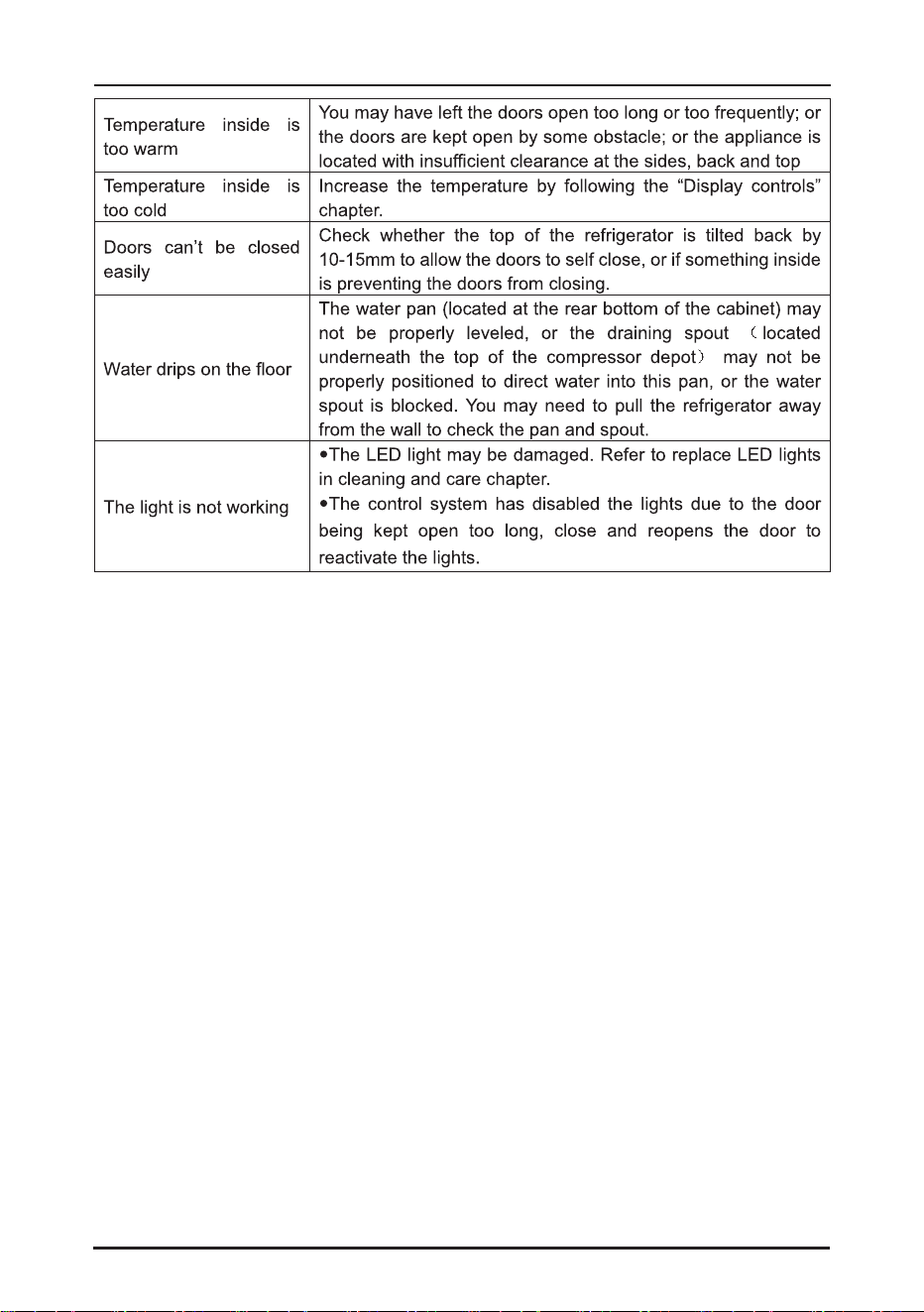

Troubleshooting_ _ _ _ _ _ _ _ _ _ _ _ _ _
Reverse the door
Disposal of the appliance
_ _
_
3
Keep all packaging away from children as there is risk of
suffocation.
If you are discarding the appliance, pull the plug out of the
socket, cut the connection cable (as close to the appliance
as you can) and remove the door to prevent children playing
from suffering an electric shock or from closing themselves
inside it.
If this appliance, featuring a magnetic door seals, is to
replace an older appliance having a spring lock (latch) on the
door or lid, be sure to make the spring lock unusable before
you discard the old appliance. This will prevent it from
becoming a death trap for a child.
General safety
WARNING —This appliance is intended to be used in
household and similar applications such as
-staff kitchen areas in shops, offices and other working
environments;
-farm houses and by clients in hotels, motels and other
residential type environments;
-bed and breakfast type environments;
-catering and similar non-retail applications.
WARNING — Do not store explosive substances such as
aerosol cans with a flammable propellant in this appliance.
WARNING — If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
WARNING — Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
WARNING — Do not use mechanical devices or other
means to accelerate the defrosting process, other than those
recommended by the manufacturer.
WARNING — Do not damage the refrigerant circuit.
WARNING — Do not use electrical appliances inside the
food storage compartments of the appliance, unless they are
of the type recommended by the manufacturer.
4
WARNING — The refrigerant and insulation blowing gas are
flammable. When disposing of the appliance, do so only at
an authorized waste disposal centre. Do not expose to
flame.
WARNING —When positioning the appliance, ensure the
supply cord is not trapped or damaged.
WARNING —Do not locate multiple portable socket-outlets
or portable power supplies at the rear of the appliance.
WARNING — To avoid a hazard due to instability of the
appliance, it must be fixed in accordance with the
instructions.
Refrigerant
The refrigerant isobutene (R600a) is contained within the
refrigerant circuit of the appliance, a natural gas with a high
level of environmental compatibility, which is nevertheless
flammable. During transportation and installation of the
appliance, ensure that none of the components of the
refrigerant circuit becomes damaged.
The refrigerant (R600a) is flammable.
If the refrigerant circuit should be damaged:
-Avoid opening flames and sources of ignition.
-Thoroughly ventilate the room in which the appliance is
situated.
WARNING — Refrigerators contain refrigerant andgases in
the insulation. Refrigerant and gases must be disposed of
professionally as they may cause eye injuries or ignition.
Ensure that tubing of the refrigerant circuit is not damage
prior to proper disposal.
Replacing the illuminating lamps
WARNING—The illuminating lamps must not be replaced by
the user! If the illuminating lamps is damaged, contact the
customer helpline for assistance.
This warning is only for refrigerators that contain illuminating
lamps.
:
WARNING
Risk of fire / flammable materials
5
Daily use
Do not store flammable gass or liquids in the appliance,
There is a risk of an explosion.
Do not operate any electrical appliances in the appliance
(e.g.electric ice cream makers,mixers etc.).
When unplugging always pull the plug from the mains
socket,do not pull on the cable.
Do not place hot items near the plastic components of this
appliance.
Electrical safety
1.The power cord must not be lengthened.
2. Make sure that the power plug is not crushed or damaged.
A crushed or damaged power plug may overheat and cause a
fire.
3. Make sure that you can access the main plug of the
appliance.
4. Do not pull the main cable.
5. If the power plug socket is loose, do not insert the power
plug. There is a risk of electric shock or fire.
6.You must not operate the appliance without the interior
lighting lamp cover.
7.The fridge is only applied with power supply of single phase
alternating current of 220~240V/50Hz. If fluctuation of voltage
in the district of user is so large that the voltage exceeds the
above scope, for safety sake, be sure to apply A.C. Automatic
voltage regulator of more than 350W to the fridge. The fridge
must employ a special power socket instead of common one
with other electric appliances. Its plug must match the socket
with ground wire.
It is dangerous to alter the specifications or modify this
product in any way.
Any damage to the cord may cause a shortcircuit, fire, and/or
electric shock.
6
Do not place food products directly against the air outlet on
the rear wall.
Store pre-packed frozen food in accordance with the frozen
food manufacture’s instructions.
The appliances manufactures storage recommendations
should be strictly adhered to.Refer to relrelevant instructions
for storage.
Do not place carbonated or fizzy drinks in the freeze
compartment as it creates pressure on the container,which
may cause it to explode,resulting in damage to the
appliance.
Frozen food can cause frost burns if consumed straight from
the freezer compartment.
Do not place the appliance in direct sunlight.
Keep buring candles,lamps and other items with naked
flames away from the appliance so that do not set the
appliance on fire.
The appliance is intended for keeping food stuff and/or
beverages in normal household as explained in this
instruction booklet The appliance is heavy.Care should be
taken when moving it.
Do not remove nor touch items from the freezer
compartment if your hands are damp/wet,as this could cause
skin abrasions or frost/freezer burns.
Never use the base,drawers, doors etc. to stand on or as
supports.
Frozen food must not be refrozen once it has been thawed
out.
Do not consume ice popsicles or ice cubes straight from
the freezer as this can cause freezer burn to the mouth
and lips.
To avoid items falling and causing injury or damage to
the appliance, do not overload the door racks or put too
much food in the crisper drawers.
Never cover or obstruct the ventilation slats on the
appliance.
7
Adequate air circulation should be around the appliance,
lacking this leads to overheating. To achieve sufficient
ventilation, follow the instructions relevant to installation.
Wherever possible the back of the product should not be too
close to a wall to avoid touching or catching warm parts
(compressor, condenser) to prevent the risk of a fire, follow
the instructions relevant to installation.
The appliance must not be locate close to radiators or
cookers.
Make sure that the mains plug is accessible after the
installation of the appliance.
Installation Important!
For electrical connection carefully, follow the instructions
given in this manual.
Unpack the appliance and check if there are damages on it.
Do not connect the appliance if it is damaged. Report
possible damages immediately to the place you bought it. In
this case retain packing.
It is advisable to wait at least four hours before connecting
the appliance to allow the oil to flow back in the compressor.
Before maintenance, switch off the appliance and disconnect
the mains plug from the mains socket.
Do not clean the appliance with metal objects, steam
cleaner, ethereal oils, organic solvents or abrasive
cleansers.
Do not use sharp objects to remove frost from the appliance.
Use a plastic scraper.
caution!
Care and cleaning
Service
Any electrical work required to do the servicing of the
appliance should be carried out by qualified electrician or
competent person.
This product must be serviced by an authorized Service
Center, and only genuine spare parts must be used.
1)If the appliance is Frost Free.
2)If the appliance contains freezer compartment.
If a malfunction occurs on the appliance, please look first in
the “Trouble shooting” section of these instructions. If the
information given there does not help, please do not perform
any further repairs yourself.
Under no circumstance should you attempt to repair the
appliance yourself. Repairs carried out by inexperienced
persons may cause injury or serious malfunctioning.
In case of malfunction
Remove transport packaging
The appliance and the interior fittings are protected for
transportation. Pull off the adhesive tape on the left and
right side of the door. You can remove any remnants of
adhesive using white spirit. Remove all adhesive tape
and packing pieces from the interior of the appliance.
8
: Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances.(This clause applies only to the
EU region.)
Note
9
Description of the appliance
Note:
Due to constant modification of our products, your refrigerator may be slightly different
from this Instruction Manual, but its functions and using methods remain the same.
V iew of the appliance
1. Electronic control
2. Storage shelves
3. Bottle rack
4. Vegetable drawer cover
5. Vegetable drawer
6. Freezer drawers
Note:
To get the best energy efficiency of this product, please place all shelves, drawers and
baskets on their original position as the illustrati
on above.
7. Freezer glass
However, the exact setting should be
room temperature
quantity of food stored
To ensure the normal operation of the
refrigerator, we recommend that when
you start your refrigerator for the first
depends on:
how often the door is opened
refrigerator is set to 5 ℃.
chosen keeping in mind that the
time, the temperature for the
appliance location
temperature inside the appliance
All functions and controls of the unit are
accessible from a control panel conveniently
located on the roof of the cabinet. A display
circuit board allows easy configuration of
features and settings in a simple and intuitive
manner.
sound of “beep” when you press the buttons.
pilot lights will turn on for 3 sec and you will
When the refrigerator is energized, all the
display board consists of four buttons and
also heard a long sound of “beep”. The
eight pilot lights. You will heard a short
Electronic Control
1
2
3
5
6
9
4
8. Upper rack
9. Middle rack
8
10
7
6
10. Lower rack
10
2.Super Cool
Press “Super Cool” button to activate
the super cool function. The Super icon
will light up and the fridge temperature
indicator will display 2℃.
Super cool automatically switches off
after 52 hours.
The alarm light on and a buzzing sound
indicate abnormal conditions, such as
accidentally a door left open.
Leaving the door of refrigerator open
for over 2 minutes will activate a door
alarm and buzzer. The buzzer will beep
3 times per minute for 10 minutes.
Closing the door cancels the door
alarm and buzzer.
When super cool function is on, you
can switch off super cool function by
pressing “Super Cool” or “Temp” button,
then the fridge temperature setting or
function mode will revert back to the
previous setting.
Press “Alarm” button to stop alarm and
buzzing then “Alarm” icon will turn off.
Door Alarm
To save energy, please avoid keeping
the door open for a long time when using
refrigerator.
When the refrigerator is working, you
can switch the appliance off by pressing
“Power” button for above 3 seconds,
meanwhile the display panel will be
turned off.
Important ! Do not store any food in the
fridge during this time. If you will not
use the refrigerator for a long time,
please pull the plug.
4. Power
If you want to stop using it,
you can turn the appliance
off by pressing “Power”
When the appliance is power off, you
can switch the appliance on by pressing
“Power” button for 1 second, and the
button.
refrigerator returns to previous
temperature setting.
1.Temp
the light of the comparable temperature will
be lighten corresponding values according
to the following sequence.
Press “Temp” button to set
fridge temperature between
8 and 2 as needed, and ℃ ℃
obtain a colder fridge temperature and a
Note!
Settings may be made from 2 to 8. You will
Electronic Control (located at the top of appliance)
3. Alarm
In case of alarm, “Alarm”
icon will light up and a
buzzing sound will start.
“Temp” towards 2 position:
lower freezer temperature by adjusting
a
medium
Warmest setting: 8℃.
Coldest setting: 2℃.
setting is generally the most suitable.
Free
Note:High temperature setting will accelerate
For optimum food preservation,
food waste.
To freeze fresh food activate the
Super Cool function at least 24
hours before placing the food to
complete prefreezing.
The Super Cool is used to perform perfree-
zing and fast freezing in sequence of Fresh
food and Freezer compartments. This function
accelerates the freezing of freshfood and, at
the same time, protects foodstuffs already
stored from undesirable warming.
11
First use and installation
listed are only for reference.
there will be a slight deviation between actual dimension and design parameter. The data
Note: Parameters provided in table are design parameters. Because of the various reasons,
RIB291
1772 540 811 811 71
≦95°
Parameters of appliance
a
b
c
d
e
f
Built-In Fridge Freezer
the User Instructions provided.
be correctly installed, located and operated in accordance with the instructions contained in
Note: Your product is designed and built for domestic household use only. The product must
x 4
x 2
Door-opening angle
Profundity
f
Freezer door height
Refrigerator door height
Width
Height
(UK)
(EU)
560
-
56
8
1772-1780
55
0
200
cm
2
200 cm
2
40
L
1772
13
4
35
(mm)
2100
a
b
c
e
d
12
Cleaning before use
Before using the appliance for the first
time, wash the interior and all internal
accessories with lukewarm water and
neutral soap in order to remove the
typical smell of a brand new product,
then dry thoroughly.
Installation Positioning
Warning! Before installing, read the
instructions carefully for your safety
and the correct operation of the appliance.
Position the appliance away from sources
of heat such as stoves, radiators, direct
sunlight, etc.
Maximum performance and safety are
guaranteed by maintaining the correct
indoor temperature for the class of unit
concerned, as specified on the rating
plate.
The appliance performs well within the
climate class from N to ST showed in the
tale below.
It may not work properly if left at a
temperature above or below the indicated
range for a long period.
and low power consumption.
sufficiently cleared space should be
refrigerator
For this reason,
available around the .
Climate class
Ambient temperature
SN
N
ST
T
+10°C to +32°C
+16°C to +32°C
+16°C to +38°C
+16°C to +43°C
Important! It is necessary to have good
ventilation around the refrigerator to allow
for the dissipation of heat, high efficiency,
Leveling
The appliance should be level in order to
eliminate vibration. To make the appliance
level, it should be upright and adjusters
should be in stable contact with the floor.
Electrical connection
Caution!
Any electrical work required to
install the appliance should be carried out by
a qualified or person.authorized
Also adjust the level by unscrewing the
appropriate level adjustment in the front
(use your fingers or a suitable spanner).
W arning!
This appliance must be grounded.
The manufacturer declines any liability should
these safety measures not be observed.
13
Daily use
Accessories 1)
Movable shelves/trays
Various glass, plastic storage shelves or
wire trays are included with your appliance.
Different models have different combinations
and different models have different features.
The walls of the refrigerator are equipped
with a series of runners so that the shelves
can be positioned as desired.
Positioning the door racks
To permit the storage of food packages of
various sizes, the door racks can be
placed at different heights.
To gradually pull the rack in the
direction of the arrows until it comes free,
then reposition as required.
adjust,
Vegetable Drawer
For storing fruit and vegetables.
Freezer Drawer
For storing frozen food.
Refrigerator compartment 2)
For storing food that does not need to be
frozen and different sections suitable for
different kinds of food.
Freezer food compartment 2)
For freezing fresh food and storing frozen
and deep-frozen food for long periods of
time.
Ice-cube tray
For making ice and storing ice-cubes.
Thawing food 2)
In the refrigerator compartment.
At room temperature.
In a microwave oven.
In a conventional or convection oven.
Food once thawed should be re-frozen
with the exception of special cases.
1) If the appliance contains related accessories
and functions.
2) If the appliance contains a freezer compartment.
Remove the door rack
Install the door rack
14
Helpful hints and tips
Noises during operation
Clicks- Whenever the compressor switches
on or off, a click can be heard.
Humming- As soon as the compressor is in
operation, you can hear it humming.
Bubbling- When refrigerant flows into thin
tubes, you can hear bubbling or splashing
noises.
Splashing- Even after the compressor has
been switched off, this noise can be heard
for a short time.
Energy saving tips
Do not install the appliance near stoves,
radiators or other sources of warmth.
Keep the time the appliance is open to a
minimum.
Do not set the temperature colder than
necessary.
Make sure the side plates and back plate
of the appliance are at some distance
from the wall, and follow the instructions
relevant to installation.
If the diagram shows the correct
combination for the drawers, crisper and
shelves, do not adjust the combination as
it would produce an effect on energy
consumption.
Hints for fresh food refrigeration
Do not store warm foods or evaporating
liquids in the appliance.
Do cover or wrap the food, particularly if it
Hints for refrigeration
Meat (all types): wrap in polyethylene
bags and place on the glass shelf
above the vegetable drawer. For safety,
store in this way only one or two days at
the most.
Cooked foods, cold dishes, etc…: these
should be covered and may be placed on
any shelf.
Fruit and vegetables: these should be
thoroughly cleaned and placed in the
special drawer provided.
(plastic)
has a strong flavor or odor.
Position food so that air can circulate freely
around it.
Hints for freezing
Prepare food in small portions to enable it
to be rapidly and completely frozen and to
make it possible to subsequently thaw
only the quantity required.
When first starting-up or after a period out
of use. Before putting the food in the
compartment, let the appliance run at
2 hours on the higher settings.
Milk bottles: these should have a cap and
should be stored in the bottle rack on the
door.
Wrap up the food in aluminum foil or
the packages are airtight.
Do not allow fresh, unfrozen food to touch
food that is already frozen, thus avoiding a
rise in the temperature of the latter.
polyethylene (plastic) and make sure that
It is recommended to label and date each
frozen package in order to keep track of
the storage time.
Hints for the storage of frozen food
Ensure that frozen food has been stored
correctly by the food retailer.
Once defrosted, foods deteriorate rapidly
and can not be re-frozen.
Do not exceed the storage period indicated
by the food manufacturer.
Note: If the appliance contains related
accessories and functions.
Butter and cheese:these should be placed
in aluminum foil or polyethylene (plastic)
possible.
bags while removing as much air as
Iced products, if consumed immediately
after removal from the freezer compartment,
can possibly cause skin to become freezer
burnt.
Empty the appliance.
Pull out the power plug.
Clean and dry the interior thoroughly.
Ensure that all doors are wedged open
slightly to allow air to circulate.
Switching off your appliance
Cleaning and Care
Cleaning and care
For hygienic reasons, the appliance ( the
including exterior and interior accessories)
should be cleaned regularly at least every
two months.
Warning! Danger of electrical shock!
The appliance must not be connected to
the during cleaning.
Before cleaning, switch the appliance off
and remove the plug from the main power
fuse.
main power supply
supply, or shut off the circuit breaker or
Door seals cleaning
Take care to keep door seals clean.
Sticky food and drinks can cause seals
to the cabinet and tear when you open
the door. Wash seal with a mild detergent
and warm water. Rinse and dry it
thoroughly after cleaning.
Caution!
Only after the door seals are completely
dry should the appliance be powered on.
Exterior cleaning
To maintain good appearance of your
appliance, you should clean it regularly.
Wipe the digital panel and display panel
with a clean, soft cloth.
Spray water onto the cleaning cloth
instead of spraying directly on the surface
of the appliance. This helps ensure an
even distribution of moisture to the surface.
Clean the doors and cabinet surfaces with
a mild detergent and then wiped dry with
a soft cloth.
Caution!
Don’t use sharp objects as they are likely
to scratch the surface.
Don’t use Thinner, Car detergent, Clorox,
ethereal oil, abrasive cleansers or organic
solvent such as Benzene for cleaning.
They may damage the surface of the
appliance and may cause fire.
Interior cleaning
You should clean the appliance interior
regularly. It will be easier to clean when
food stocks are low. Wipe the inside of
the fridge freezer with a weak solution of
bicarbonate of soda, and then rinse with
warm water using a wrung-out sponge
or cloth. Wipe completely dry before
replacing the shelves and baskets.
Thoroughly dry all surface and removable
parts
Although this appliance automatically
defrosts, a layer of frost may occur on the
freezer compartment’s interior walls if the
freezer door is opened frequently or kept
open too long. If the frost is too thick,
choose a time when the supply of food
stocks are low and proceed as follows:
Remove existing food and accessories
baskets, unplug the appliance from the
mains power and leave the doors open
Ventilate the room thoroughly to
accelerate the thawing process.
When defrosting is completed, clean
your freezer as described above.
Caution!
Don’t use sharp objects to remove frost
from the freezer compartment. Only after
the interior is completely dry should the
appliance be switched back on and plug.
back into the mains socket.
Defrosting
A) Fridge compartment
This compartment defrosts automatically.
The defrosting water runs to the drain tube
via a collection container at the back of the
appliance.
Drain tube
Defrost
Water
Collection
B) Freezer compartment
This compartment defrosts automatically.
Replacing the LED light
Warning: The LED light must not be
replaced by the user! If damaged, contact
the customer helpline for assistance. To
replace the LED light, the below steps can
be followed:
1. Unplug your appliance.
2. Remove light cover by pushing up and
out.
3. Hold the LED cover with one hand and
pull it with the other hand while pressing
the connector latch.
4. Replace LED light and snap it correctly
in place.
15
5.This product contains a light source of
5.This product contains a light source of energy efficiency class <G>
5.This product contains a light source ofenergy efficiency class G.
16
Troubleshooting
17
18
Reverse the door
The side in which the door opens can be
changed from the right side (as supplied) to
the left side, if the installation site
Tools you will need:
1. 8mm socket driver
2. Cross-shaped screwdriver
allows for it.
3. Putty knife or thin-blade screwdriver
Note: When required, tilt the refrigerator side
in order to gain access to the base, you
should rest the appliance on soft foam
packaging or similar material to avoid damage.
180°
180°
Warning! When reversing the door, the
appliance must not be connected to the
mains. Ensure that the plug is removed from
the mains socket.
1. Stand the refrigerator upright. Open the
upper door to take out all door racks (to avoid
racks damaged) and then close the door.
2. Unscrew the upper door hinge and remove
it. Remove the upper door from the middle
hinge by carefully lifting the door straight up.
Then place it on a smooth surface with its
upper cover upwards.
3. Loose screws used to fix the middle door
hinges and remove them. Then remove the
lower door. And unscrew the lower door hinge.
4. Change screw hole covers from left to
right, and change the door hinges to opposite
side (as shown in figure below).
5. Fix the lower hinge with screws, and slot
the lower door onto the bottom hinge pin and
hold in position. Adjust the middle hinges to
to the appliance position and then install it
ensuring the lower door in secured in place.
6. Install the upper door and the upper hinge
as the same way.
Note: When reversing the door, the cabinet
installation can refer to Built-In Fridge Freezer
installation instructions.
1) If doors squeak when opened,the sliders are
mounted correctly, sliders should be checked
that it is fitted level.
2) To ensure the doors are fully closed/sealed,
conduct a test on both doors following the ins-
tallation of decor door,such as using a sheet of
papaer in-between the unit door and its seal and
closing the decor door and seeing if there is any
tension observed when pulling the sheet of paper
- the sheet s hould hold in place and not fall out.
3) For reversing the door,the hole covers need to
be removed from the current location and refitted
to cover the new holes. If these break when
removing and can be replaced by accessory bag.
19
Disposal of the appliance
Correct disposal of this product
It is prohibited to dispose of this appliance in domestic household waste.
Packaging materials
Packaging materials with the recycle symbol are recyclable. Dispose of the packaging in a
suitable container to recycle it.
Before disposal of the appliance.
1. Disconnect the main plug from the main socket.
2. Cut off the main cable and discard it.
waste collection
This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible
harm to the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable reuse of
material resources. To return your used device, please use the
return and collection systems or contact the retailer where the
product was purchased.They can take this product for environmental
safe recycling.
To avoid contamination of food, please respect the following instructions
Opening the door for long periods can cause a significant increase of the temperature
in the compartments of the appliance.
systems.
- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in
contact with or drip onto other food.
- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or
making icecream and making ice cubes.
- One-, two- and three-star compartments are not suitable for the freezing of fresh food.
-
- Clean regularly surfaces that can come in contact with food and accessible drainage
Order
Compartments
TYPE
Target storage
temp.[℃]
Appropriate food
1
Fridge
+2 +8
Eggs, cooked food, packaged food, fruits and
vegetables, dairy products, cakes, Drinks and
other foods which are not suitable for freezing.
2
( Freezer***)*-
≤-18
Seafood (fish, shrimp, shellfish), freshwater
aquatic products and meat products
(recommended time is 3 months – nutrition
values and taste decrease with time), suitable
for frozen fresh food.
3
***-Freezer
≤-18
Seafood (fish, shrimp, shellfish), freshwater
aquatic products and meat products
(recommended time is 3 months – nutrition
values and taste decrease with time). Not
suitable for freeing fresh food.
4
**-Freezer
≤-12
Seafood (fish, shrimp, shellfish), freshwater
aquatic products and meat products
(recommended time is 2 months – nutrition
values and taste decrease with time). Not
suitable for freeing fresh food.
5
*-Freezer
≤-6
Seafood (fish, shrimp, shellfish), freshwater
aquatic products and meat products
(recommended time is 1 month – nutrition
values and taste decrease with time). Not
suitable for freeing fresh food.
6
0-star
-6 0
Fresh pork, beef, fish, chicken, some packaged
processed foods, etc. (Recommended to eat
within the same day, preferably not later than
3 days) .
Partially packed/wrapped up encapsulated
processed foods (non-freezable foods)
7
Chill
-2 +3
Fresh/frozen pork, beef, chicken, freshwater
aquatic products, etc.(7 days below 0 ℃ and
above 0 ℃ is recommended for consumption
within that day, preferably no mo re than 2 days).
Seafood (less than 0 for 15 days, it is not
recommended to store above 0 ℃)
20
~
~
~
8
Fresh Food
0 +4
Fresh pork, beef, fish, chicken, cooked food, etc.
(Recommended to eat within the same day,
preferably no more than 3 days)
9
Wine
+5 +20
red wine,white wine,sparkling wine etc.
Water dispenser cleaning (special for water dispenser products):
- Clean water tanks if they have not been used for 48 h; flush the water system
connected to a water supply if water has not been drawn for 5 days.
- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean,
dry, and leave the door open to prevent mould developing within the appliance.
Note: please store different foods according to the compartments or target storage
temperature of your purchased products.
21
WARNING! Food needs to be packed in bags before putting into the refrigerator, and
liquids need to be packed in bottles or capped containers to avoid the problem that
the product design structure is not easy to clean.
~
~
0191 387 0804
FRIDGEMASTER
Ground floor, Munroe Court,
White Rose Office Park,
Millshaw Park Lane,
Leeds LS11 0EA
United Kingdom
Fridgemaster Technical helpline and
Service Centre
Telephone 0191 387 0804
