REAR AXLE BUSH TOOL - FORD FIESTA IV, KA
MODEL NO: VSE4779.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS &
CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO
SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE
FOR FUTURE USE.
1. SAFETY
WARNING! Ensure Health and Safety, local authority and general workshop practice regulations are adhered to when using tools.
8 DO NOT use tools if damaged.
9 Maintain tools in good and clean condition for best and safest performance.
9 Ensure that the vehicle which has been jacked up is adequately supported with axle stands.
9 Wear approved eye protection. A full range of personal safety equipment is available from your Sealey stockist.
9 Wear suitable clothing to avoid snagging. DO NOT wear jewellery and tie back long hair.
9 ALWAYS keep screw rod well lubricated.
8 DO NOT use the tool for purposes other than for which it is designed
8 DO NOT use the tool when you are tired or under the inuence of alcohol, drugs or intoxicating medication.
8 DO NOT use an impact wrench or air tools with this tool.
9 When not in use, store tool in a safe, dry childproof area.
IMPORTANT: These instructions are provided as a guide only. Always refer to the vehicle manufacturer’s service instructions or a
propriety manual, to establish the current procedure and data.
WARNING! The warnings, cautions and instructions discussed in this manual cannot cover all possible conditions and situations that
may occur. It must be understood that common sense and caution are factors which cannot be built into this product, but must be
applied by the operator.
2. INTRODUCTION
Remove/install Fiesta IV rear axle mounting bushes. Can be
used in situ - no need to remove trailing link assembly from
vehicle. Supplied in storage case.
Applications: Ford Fiesta IV, Ka-1996 onwards.
3. OPERATION
NOTE: the screw rod has a maximum load of 150Nm.
Exceeding this load will shorten the life of the screw rod. The screw rod is considered to be a consumable item and is NOT covered
under warranty.
8 DO NOT use an impact wrench with this tool.
3.1. Before working under the vehicle ensure that it is adequately
supported.
3.2. Thoroughly lubricate the screw rod threads each time the
tool is used.

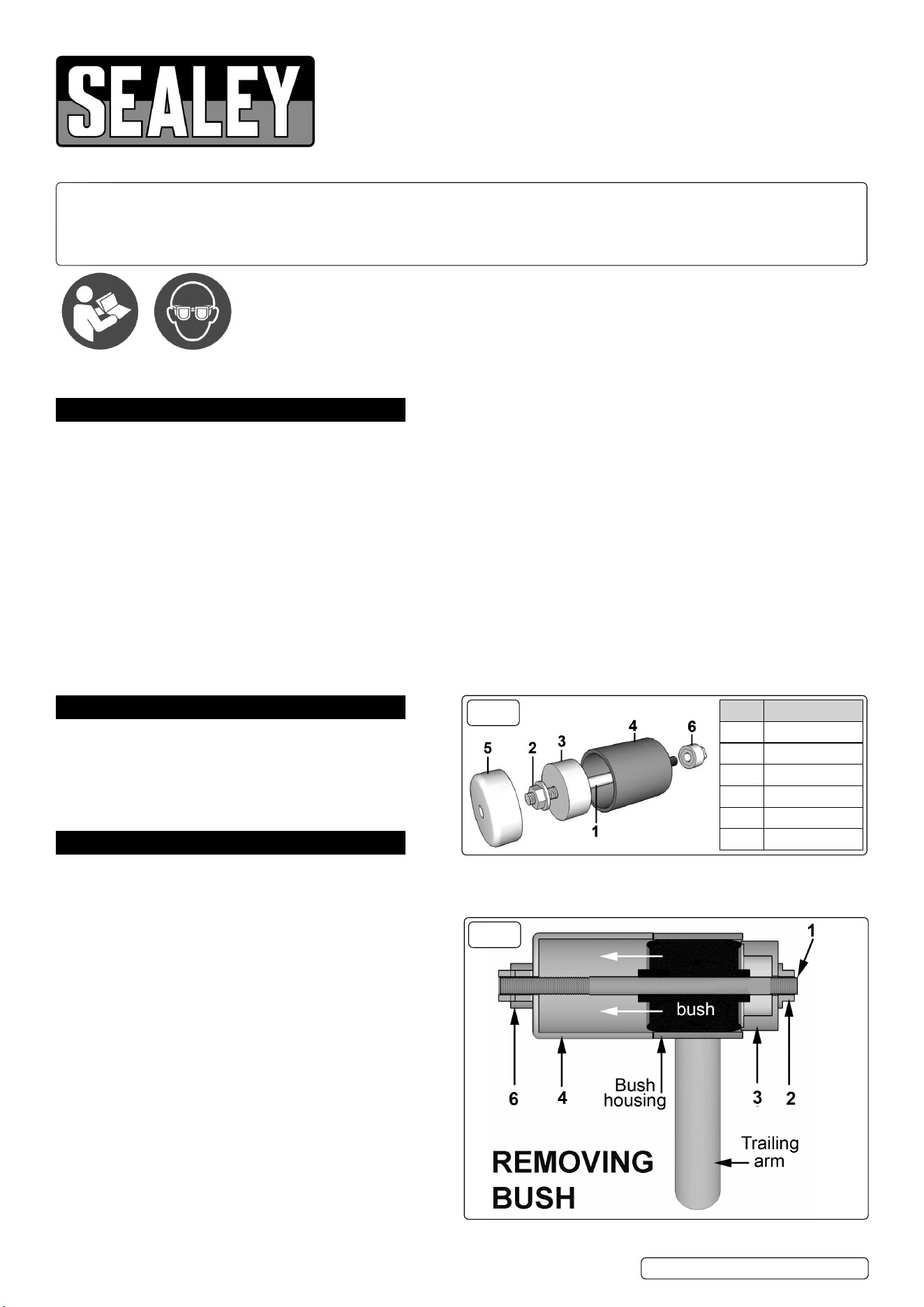

3.3. REMOVING BUSH (FIG.2)
3.3.1. Remove the rear wheels to gain access to the bush
housings at the top of each trailing arm. For a detailed and
up to date breakdown of this procedure refer to the vehicle
manufacturer’s service instructions, or a proprietary manual.
3.3.2. Thoroughly apply penetrating oil to each bush to aid
extraction from the bush housing.
3.3.3. To extract the old bush, assemble the tool onto the bush
as shown in Fig.2. Ensure that the screw rod (1) is well
lubricated prior to assembly. Hold the retention nut (2) with
a 24mm ring spanner. Using a ratchet wrench with a 24mm
deep socket turn the nut on the force nut assembly (6)
clockwise to drive the bush out of its housing.
Refer to
instructions
Wear eye
protection
VSE4779.V2 Issue 2 13/05/24
Original Language Version
© Jack Sealey Limited
ITEM DESCRIPTION
1 Screw Rod
2 Retention Nut
3 Pushing Cup
4 Receiving Cup
5 Insertion Cup
6 Force Nut
FIG.1
FIG.2

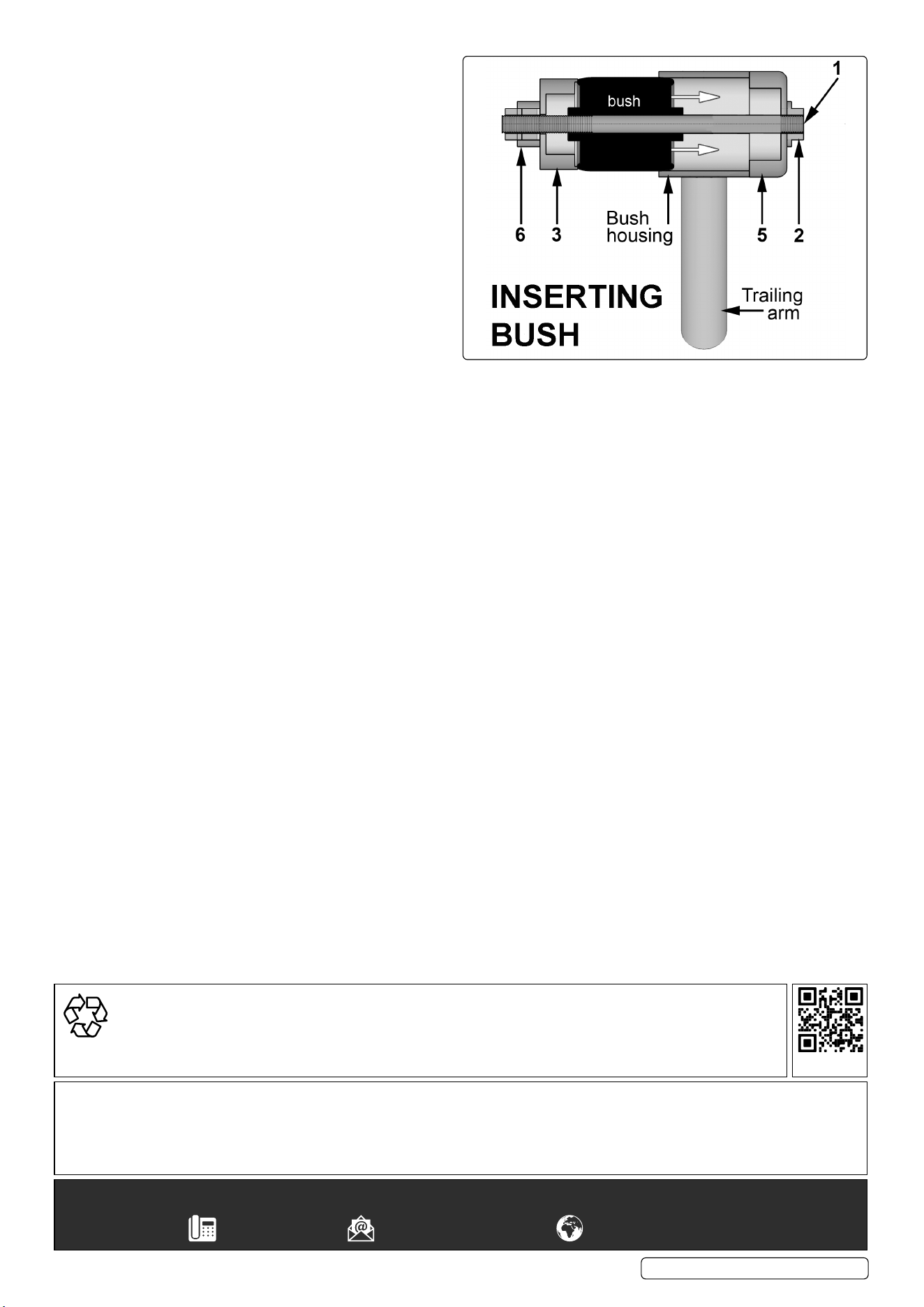

3.4. INSERTING BUSH (FIG.3)
3.4.1. To insert the new bush, assemble the tool and bush onto the
bush housing as shown in Fig.3.
3.4.2. Ensure that the screw rod (1) is well lubricated prior to
assembly.
3.4.3. Hold the retention nut (2) with a 24mm ring spanner. Using a
ratchet wrench with a 24mm deep socket turn the nut on the
force nut assembly (6) clockwise to drive the bush into the
housing.
