  3. Echomaster CAM-WLP User Manual

Echomaster CAM-WLP Wireless Back up Camera

Product's Documents

Below are documents related to this product, you can read online or download:
Main documentSpecificationQuestions and answersRelateds Products
CAM-WLP photo

User Manual

This is the main product document for model CAM-WLP.

The file format is pdf, 20 pages, you can download this manual here .

background
background
2

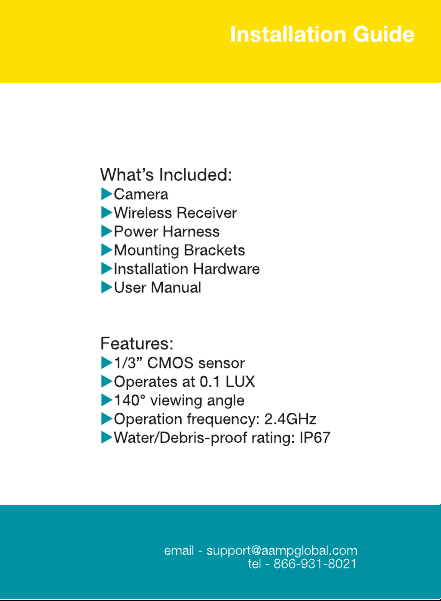

background
3

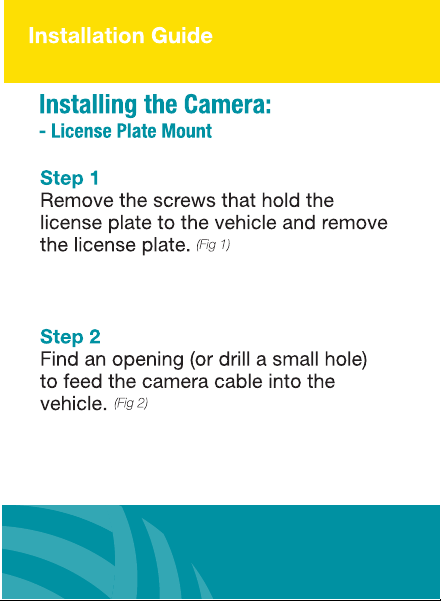

background
4

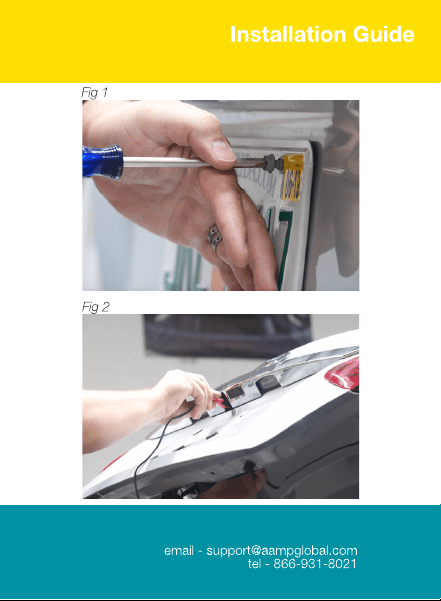

background
5

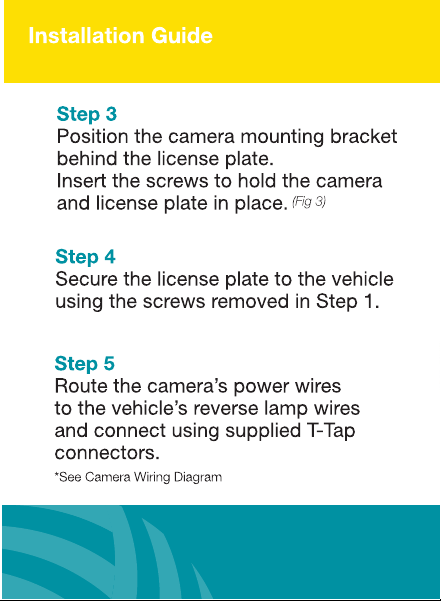

background
6

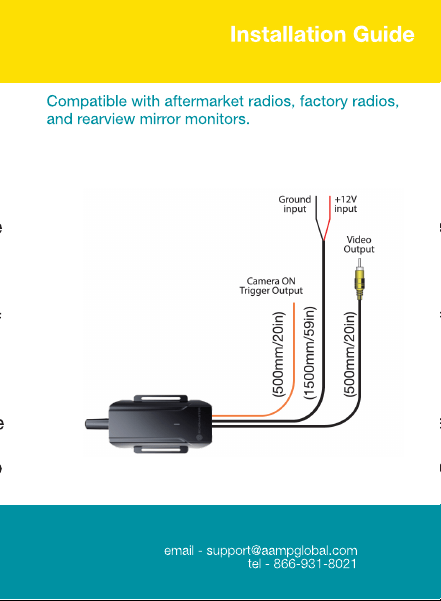

Camera ON
Trigger Output
+12V
input
Ground
input
Video
Output

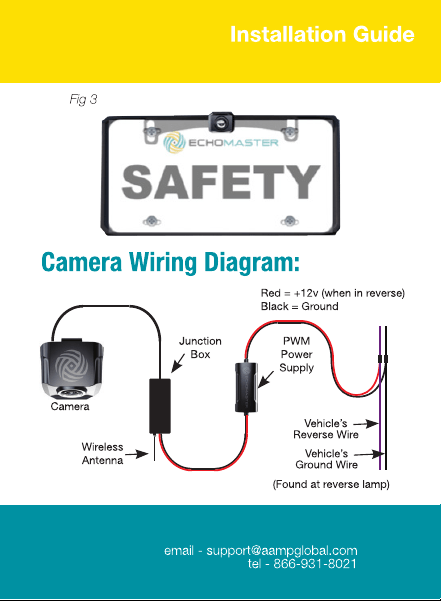

background
7
Camera ON
Trigger Output
+12V
input
Ground
input
Video
Output

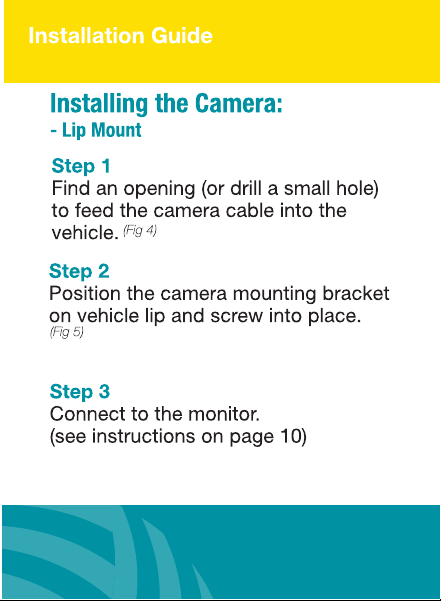

background
8

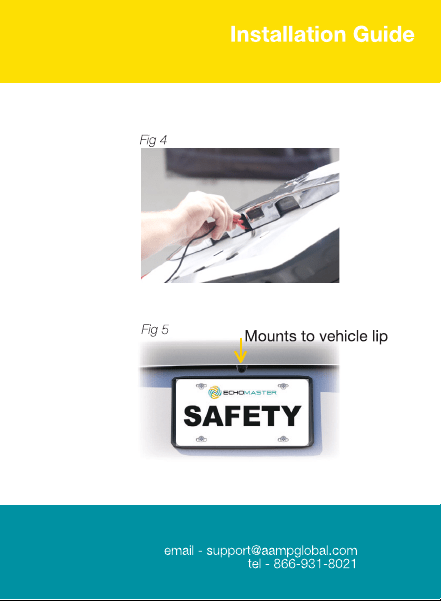

background
9

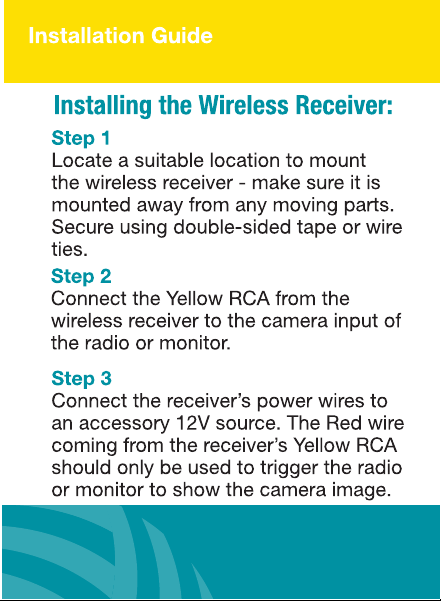

background
10
background
11

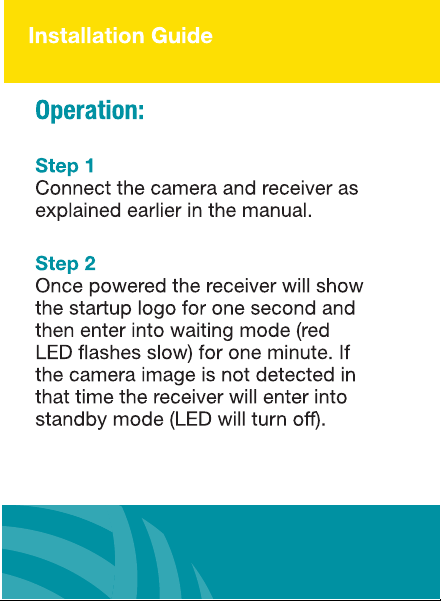

background
12

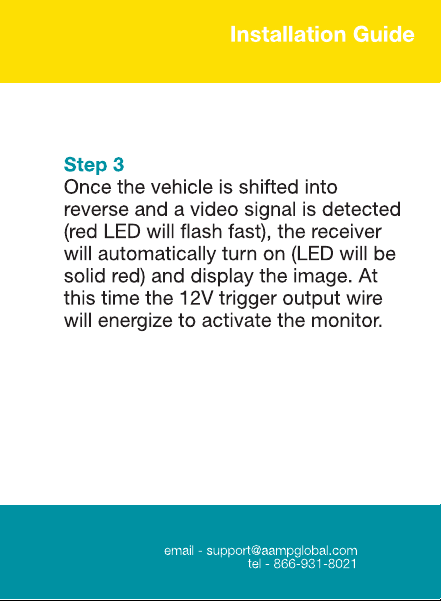

background
13

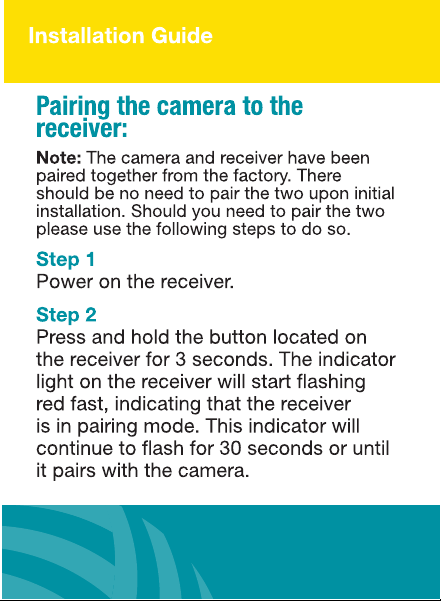

background
14

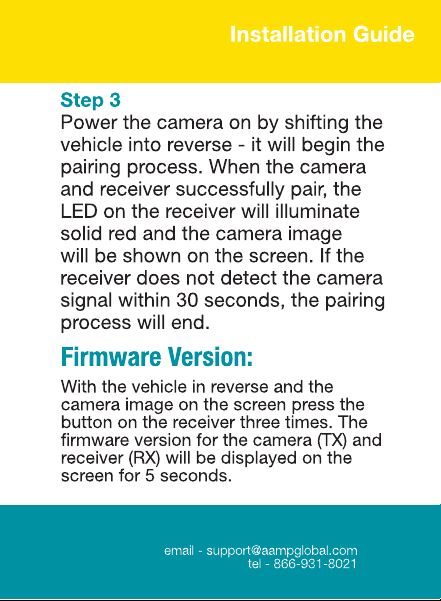

background
15
background
16

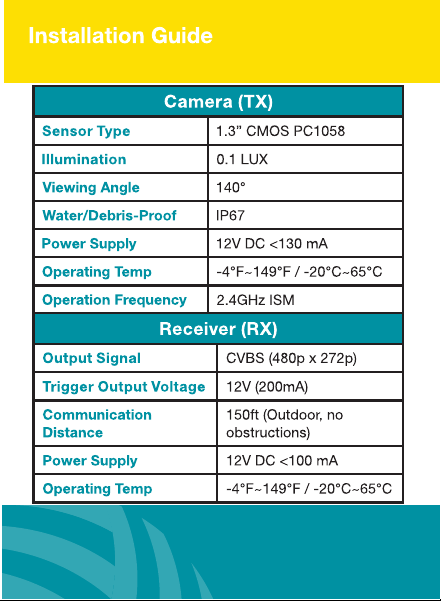

Receiver (RX)
Output Signal CVBS (480p x 272p)
Trigger Output Voltage 12V (200mA)
Communication
Distance
150ft (Outdoor, no
obstructions)
Power Supply 12V DC <100 mA
Operating Temp -4°F~149°F / -20°C~65°C
background
17
Dimensions (mm)
Receiver
Camera Power Supply
Receiver (RX)
Output Signal CVBS (480p x 272p)
Trigger Output Voltage 12V (200mA)
Communication
Distance
150ft (Outdoor, no
obstructions)
Power Supply 12V DC <100 mA
Operating Temp -4°F~149°F / -20°C~65°C
background
18
background
19
background

Specifications
