OWNER’S MANUAL
Please read this manual carefully before
operating your set and retain it for future
reference.
The model and serial number of the
product are located on the back and on
one side of the product. Record them
below in case you ever need service.
Model
Serial No.
*MFL718723192211REV01*
SQ-G2ST55
SQ-G2ST65
SQ-G2ST8377
SR-G3WU55
SR-G3WU65
SR-G3WU8377
2
* Image shown may differ from your product.
Safety instructions
This symbol is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions
in the literature accompanying the appliance.
Please read these safety precautions carefully before using the product.
• When lifting or moving the product, at least two people are
required due to the heavy weight of the product.
- The product may fall down, causing a malfunction or
injury.
• Do not let children hang on or climb onto the product.
- The product may fall down, causing an injury or even
death.
• Do not install the product in a place which is unstable or
vibrating or a place where the product is not completely
supported such as a shaky shelf or a tilted place.
- The product may fall down or overturn, causing an injury
or malfunction.
• Put the product on a flat and firm floor.
• When moving or handling a product assembled with the
Stand, be cautious about damaging the exterior of the
product.
• When there is a stain or fingerprint left on the surface, wipe
it off gently.
- When removing a stain, do not use excessive force. Wiping
with excessive force may cause scratches or discoloration
on the product.
Assembling and Preparing
Accessories
x 4
(M4 x L20)
(Only SQ-G2ST55, SQ-G2ST65, SR-G3WU55, SR-G3WU65)
(Only SQ-G2ST8377, SR-G3WU8377)
3

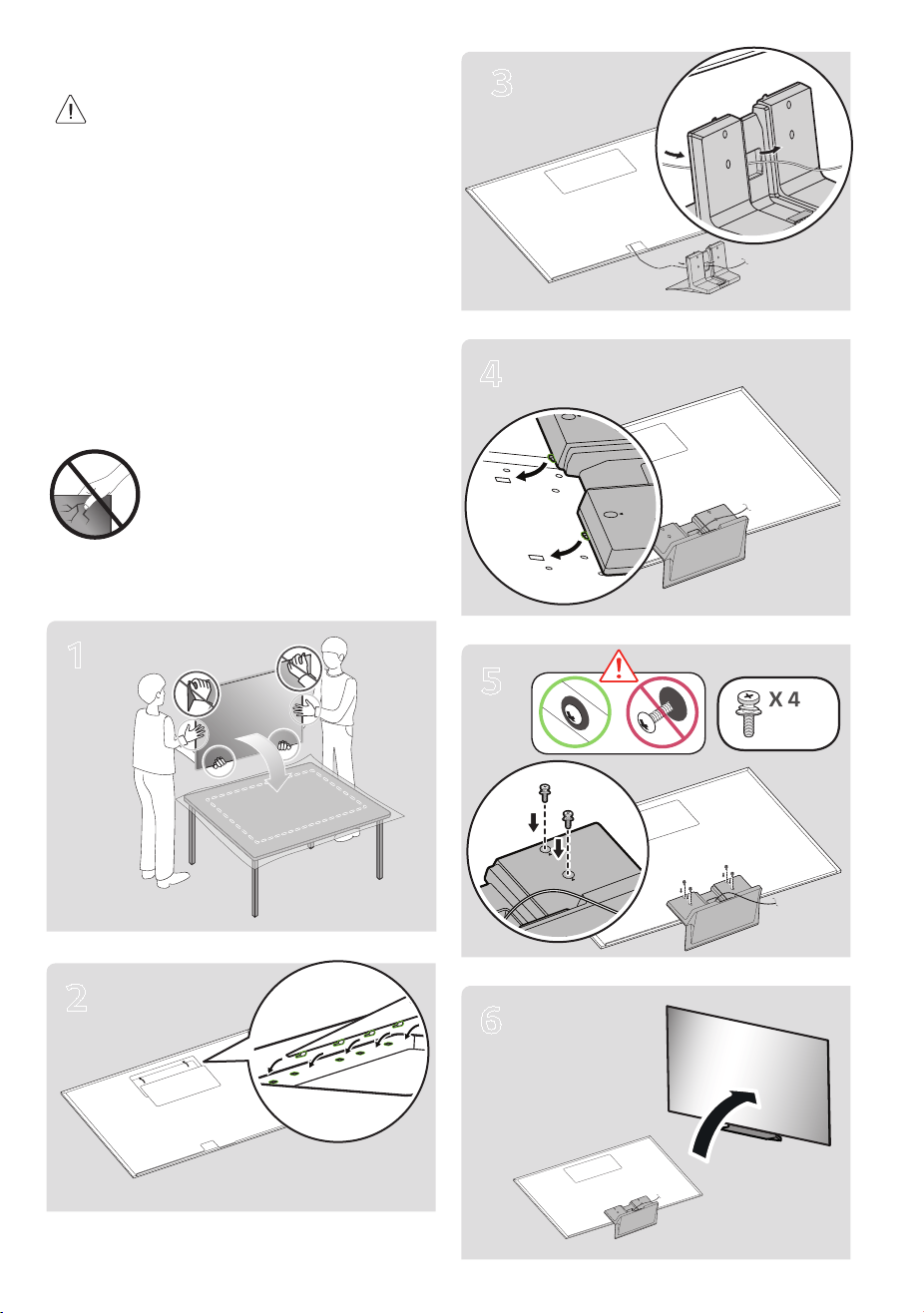

How to Assemble the Stand
• When assembling the stand, put the product on a table or a
flat floor with its screen facing downward. Here, first put a
soft and fluffy cloth on the place, and then put the product
on top of it to prevent the screen from being damaged.
• When assembling the stand, ensure that all of the provided
screws are attached. If the screws are not fully tightened, the
product may tilt or tip over, resulting in damage. Tightening
the screws with excessive force may cause them to come off
due to abrasion of the screw joint.
• When assembling the product, do not use foreign substances
(oil, lubricant, etc.) on the screws.
- It may cause damage to the product.
• Before installing a wall mount support, disassemble the
Stand by conducting the method to assemble the stand in a
reverse order.
1
2
3
4
5
M4 x L20
6
4

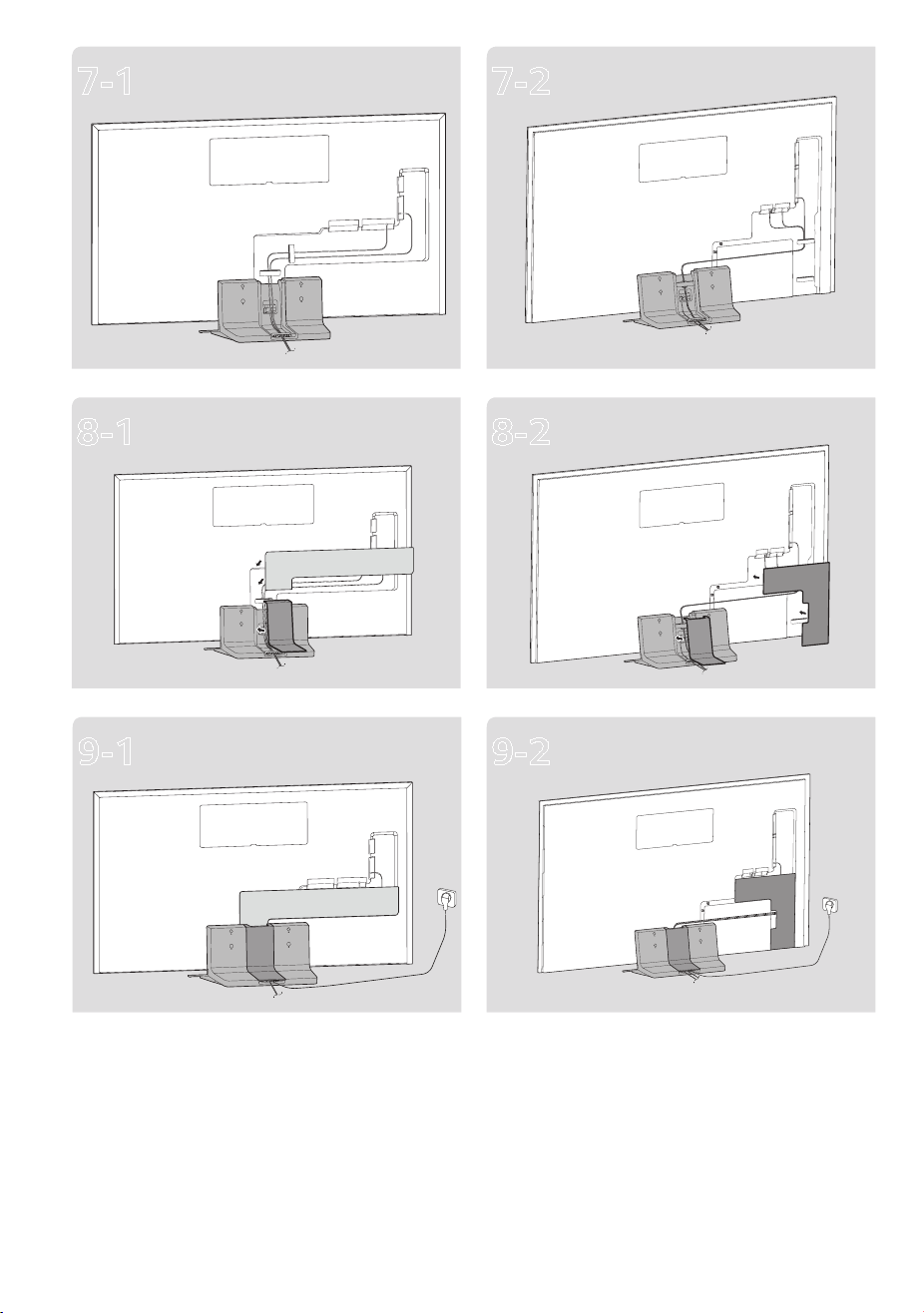

7-1
SQ-G2ST55, SQ-G2ST65
SR-G3WU55, SR-G3WU65
8-1
SQ-G2ST55, SQ-G2ST65
SR-G3WU55, SR-G3WU65
9-1
SQ-G2ST55, SQ-G2ST65
SR-G3WU55, SR-G3WU65
7-2
SQ-G2ST8377
SR-G3WU8377
8-2
SQ-G2ST8377
SR-G3WU8377
9-2
SQ-G2ST8377
SR-G3WU8377
5
Mounting on a Table
10 cm
10 cm
(4 inches)
10 cm
8 cm
(3.1 inches)
21 cm
(8.2 inches)
• Lift and tilt the TV into its upright position on a table.
- Leave a 21 cm (8.2 inches) (minimum) space from the wall for
proper ventilation.
• Only use the authorized stand and wall mounting bracket made
specifically for LG products.
- Pursuant to Consumer Protection Law, LG Electronics will not be
held responsible for any product malfunction, material damage or
injury caused by using products not authorized by LG Electronics.
20˚
20˚
• If there is a problem with angle adjustment, lift the product slightly
and put it back down.
• Do not apply foreign substances (oils, lubricants, etc.) to the screw
parts when assembling the product. (Doing so may damage the
product.)
• If you install the TV on a stand, you need to take actions to prevent
the product from overturning. Otherwise, the product may fall over,
which may cause injury.
• Do not use any unapproved items to ensure the safety and product
life span.
• Any damage or injuries caused by using unapproved items are not
covered by the manufacturer’s warranty.
• Make sure that the screws are inserted correctly and fastened
securely. (If they are not fastened securely enough, the TV may tilt
forward after being installed.) Do not use too much force and over
tighten the screws; otherwise screw may be damaged and not
tighten correctly.
• Make sure the TV is level.
• It is safe to install the product according to the installation method
to prevent the damage to the product or personal injury even if the
product is pulled forward.
• Allow sufficient space around the product. Otherwise, it may lose its
balance during rotation and fall, causing injury or product damage.
Make sure to use a cabinet or shelf that is an appropriate size for the
product.
• When rotating the TV, make sure there are no objects around it, and
place the product on a flat surface for smooth rotation. Users who are
not professional installation staff can also adjust the angle.
6
Securing the TV to a Wall
1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back
of the TV.
• If there are bolts inserted at the eye-bolts position, remove the
bolts first.
2 Mount the wall brackets with the bolts to the wall.
Match the location of the wall bracket and the eye-bolts on the rear
of the TV.
3 Connect the eye-bolts and wall brackets tightly with a sturdy rope.
Make sure to keep the rope horizontal with the flat surface.
• Use a platform or cabinet that is strong and large enough to support
the TV securely.
• Brackets, bolts and ropes are not provided. You can obtain additional
accessories from your local dealer.
Specifications
Model Name
Width x Height x Depth
(mm) (inches)
Weight
(kg) (lbs)
SQ-G2ST55
SR-G3WU55
432 x 225 x 245
(17.0 x 8.8 x 9.6)
4.2
(9.2)
SQ-G2ST65
SR-G3WU65
432 x 225 x 245
(17.0 x 8.8 x 9.6)
4.2
(9.2)
SQ-G2ST8377
SR-G3WU8377
501 x 252 x 321
(19.7 x 9.9 x 12.6)
6.0
(13.2)
