Owner’s Manual I MA-870
Read and save these instructions.
MINI
AXIAL FAN
®
WARNING
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, these instructions and warnings should always be
followed to reduce the risk of fire, electrical shock and injury to persons:
Read all instructions before using this Fan.
WARNING
DO NOT use this Fan to ventilate areas where flammable liquids or vapors are used, stored or are present, including paints,
gasoline, varnishes, floor refinishing products or solvents. ALWAYS read and follow all warnings and instructions on the
containers for these products!
ALWAYS be sure the plug fits tightly into the outlet. When plugs fit loosely into outlets, they may slip partially out of the outlet
and create a poor connection. This may cause outlets to overheat and create a potential fire hazard. Outlets in this condition
should be replaced by a qualified electrician.
ALWAYS unplug the power cord when servicing, cleaning or moving the Fan. DO NOT use the ON/OFF switch as the sole
means of disconnecting power. NEVER leave children unattended when the Fan is on or plugged in. ALWAYS turn off and
unplug the Fan when not in use.
Use ONLY GFCI protected receptacles if utilizing as an installation type Fan.
BE CERTAIN that the power source for the Fan is 120V AC. DO NOT plug the Fan into 240V or other power source.
THIS FAN HAS A POLARIZED PLUG (one blade is wider than the other). This plug is designed to fit into the outlet only one way.
Match the wide blade to wide slot in outlet and FULLY INSERT. DO NOT attempt to bypass or defeat this safety feature. If the
plug does not fit in the outlet, consult a qualified electrician. The outlet may need to be replaced. To Reduce The Risk Of Fire or
Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device
The power cord is equipped with a three-prong grounded plug that must be inserted into a matching receptacle. Under no
circumstances should the grounding prong be cut off the plug. Where a two-prong wall receptacle is encountered, it must be
replaced with a properly grounded three-prong receptacle installed in accordance with the National Electrical Code (NEC) and
all applicable local codes and ordinances. This work must be done only by a qualified electrician, using copper wire only.
DO NOT USE A THREE-PRONG TO TWO-PRONG ADAPTER. IMPROPER CONNECTION MAY CREATE THE RISK OF
ELECTRICAL SHOCK. USE OF SUCH ADAPTERS IS NOT PERMITTED IN CANADA.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT USE THIS FAN WITH ANY SOLID
STATE SPEED CONTROL DEVICES.
CAUTION
• DO NOT operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or
repair.
• Unplug or disconnect the unit from power supply before servicing.
• DO NOT use extension cords, power strips, power taps, outlet style air fresheners or other cord connected device, as these devices
may overheat and cause a fire hazard.
• DO NOT route power cord under rugs, carpets, runners or furniture. This may damage the cord or cause it to overheat creating a
fire hazard.
• ALWAYS place the fan on a stable, flat, level surface while in operation to prevent the fan from overturning.
• NEVER insert or allow fingers or objects to enter grill openings while fan is in operation or injury and/or damage to the fan may occur.
• DO NOT block, cover or obstruct air flow to or from the fan while in operation.
• DO NOT use this fan outdoors or near wet locations such as a bath tub, pool, hot tub or pooled water. Use of this fan in a wet location
may create a shock hazard.
• DO NOT run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture
or appliances. Arrange cord away from traffic area where it will not be tripped over.
• DO NOT use this fan if it has been damaged or is not functioning properly.
• DO NOT operate unit in stacked position.
• THIS FAN DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 547-7 (2008). This Fan is not suitable for use in agricultural
facilities including areas where livestock, poultry or other animals are confined. Please refer to National Electric Code (NEC) Article
547-7 (2008), or applicable state or local codes or standards relating to electrical requirements for agricultural buildings.
• THIS FAN DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 500 (2008). This Fan is not suitable for use in hazardous
locations. Please refer to National Electric Code (NEC) Article 500 or applicable state or local codes or standards relating to electrical
requirements for hazardous locations.
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR PERSONAL INJURY,
ALWAYS FOLLOW THESE IMPORTANT SAFETY INSTRUCTIONS AND WARNINGS:
Rev. E 03/23
2
Owner’s Manual | MA-870
Rev. E 03/23
3
Owner’s Manual | MA-870

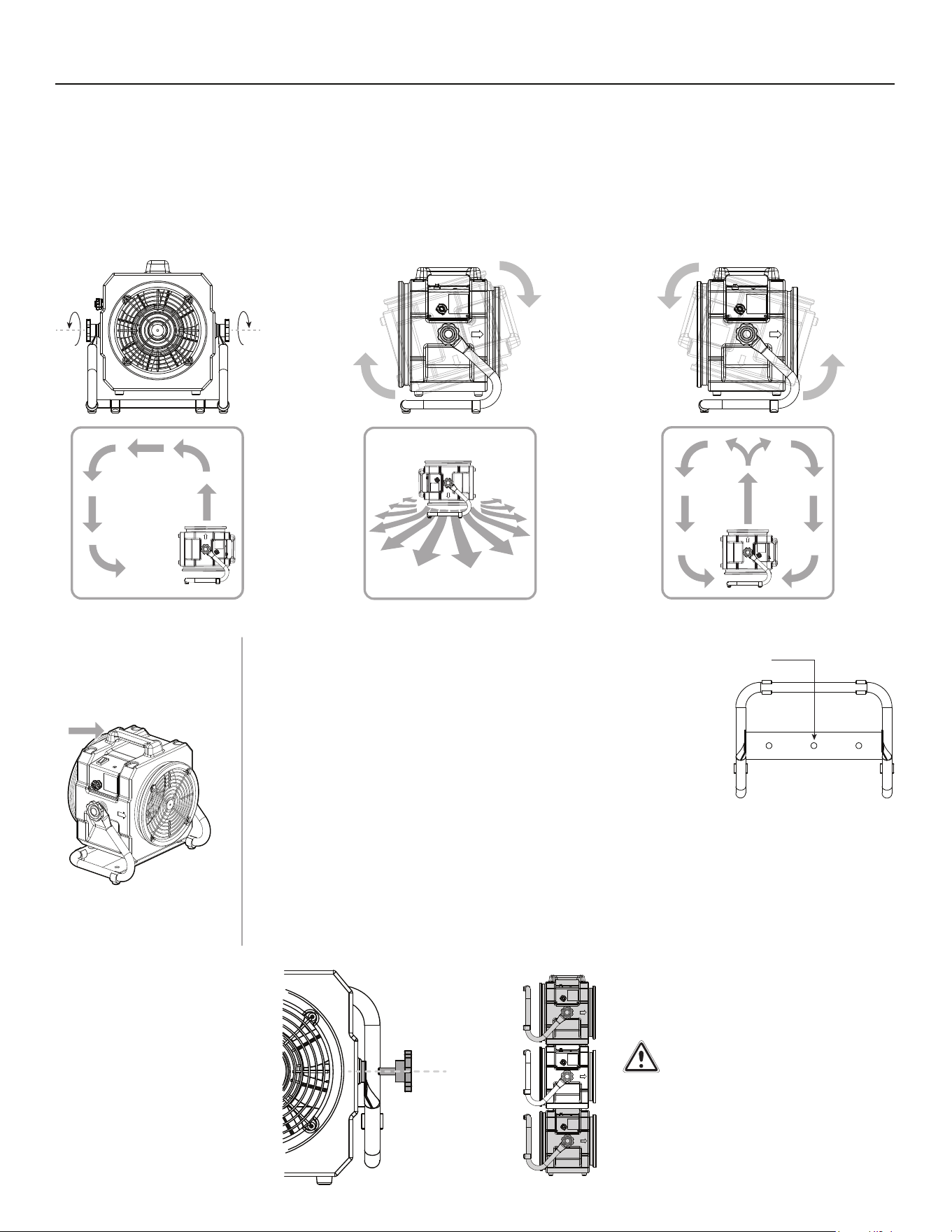

Operation
This Axial Fan is designed to offer efficient air circulation and ventilation with its high and long-distance focused airflow.
It’s perfect for air circulation and ventilation in janitorial, sanitation jobs, water damage restoration and more.
To turn Axial Fan on, press the power button located on top of the Axial Fan.
Secure Operation Position
The Axial Fan features 360º rotation. Tilt the Axial Fan to desired angle and tighten stand knobs to secure the fan position.
To turn Axial Fan on, press the power button located on top of the Axial Fan.
Transportation
Transport the Axial Fan
using the handle on top
of the unit.
Wall Installation
Wood Structures:
Locate the wall or ceiling stud nearest to the desired Fan location.
Attach the fan to the stud using a 1/2” diameter x 3” long Lag
Screw and washer (not supplied). This lag screw must be
installed in the brackets’ center hole. Next, install on both sides
of the bracket center hole, 2 additional Lag Screws and washers
(not supplied) into drywall with appropriate anchors or wood studs.
NOTE: Always install the yoke to a minimum 2 x 4 studding.
Steel Structures:
Attach the fan using (qty. 3) 1/2” bolts of the appropriate length,
with flat washers, lock washers and a 1/2” nuts (not supplied).
Masonry Structures:
Attach using (qty. 3) 1/2” lag screws, with a lag shield of appropriate length (not supplied).
NOTE: In all cases, it is required that 3 screws and flat washers be used on the fan to assist
in smooth rotation and safety.
Stack Multiple Units
Stack the axial fans on top of each
other as shown.
WARNING
Do not stack more than three
units of this appliance.
Stacking function is not secure
during transportation.
Stand Installation
Place rubber gasket between
fan housing and bracket.
Align the hole in the rubber
gasket and bracket.
Thread the bracket screw
through the rubber gasket and
bracket into the fan housing.
Center Hole for Lag Bolt and Washer
Wall Stud Mounting
Troubleshooting
WARNING
- Always unplug the cord before moving, servicing or cleaning.
- NEVER place the Fan in or near water.
- Clean the Fan only with a vacuum equipped with a brush attachment; the vacuum will remove the lint and dirt
from inside the Fan.
- Never attempt to take apart the Fan.
- Clean the body of the Fan with a soft cloth only.
- NEVER use ALCOHOL or SOLVENTS such as gasoline, benzene, paint thinner, or other harsh cleaners.
MAINTENANCE
To reduce the risk of electrical shock and fire please observe the following instructions:
TROUBLE SHOOTING TIPS
If your Fan fails to operate, see below for a list of probable cause and solution:
Be sure the power cord is plugged into a working electrical outlet.
If you have a problem that can not be resolved by the steps listed above, contact Technical Assistance at (800) 233-0268,
Monday through Friday, between the hours of 8:00 a.m. and 5:00 p.m. Eastern.
STORAGE: Store the Fan with these instructions, in the original carton in a cool, dry place.
LUBRICATION: Motor is permanently lubricated. No maintenance is required.
DISPOSITION: Corrugated packaging materials are recyclable. For environmentally responsible disposal of this product, contact your
local waste service provider or visit www.1800recycling.com
®
.
Rev. E 03/23
4
THE BLUE PLUG™
on your BlueDri fan is a safety feature. It contains a non-replaceable safety device (fuse) that should not be
removed or tampered with. To reduce the risk of fire, electric shock and personal injury, DO NOT attempt to remove, replace, repair or
tamper with the originally supplied plug. If the Fan has stopped functioning, it may be due to the safety device incorporated in this plug.
Call 800-233-0268, Monday - Friday, between 8:00 a.m. and 5:00 p.m. Eastern for questions. If the plug warning label is missing or
damaged, call the toll free number for a replacement label.
Unit will not start
• No power to unit-Plug it in. Check circuit breaker
• Switch not on-Place in “ON” position.
• Switch is faulty-Replace switch.
• Faulty/broken cord or motor wire-Perform continuity check, using volt/amp meter.
Repair/replace faulty broken wire.
Possible Cause/SolutionProblem
Axial Fan runs but air mover
makes loud scraping noise
• Unit has been severely jolted causing blower wheel to rub against housing-Remove
motor and replace damaged motor mounts.
• Unit has been severely jolted causing housing to deform - Replace blade.
Axial Fan runs but vibrates
excessively
• Severe jolt has bent motor shaft causing unit to be out of balance - Remove and
replace motor.
• Air mover blade damaged-Replace blade if necessary.
• Dirt build up on one side of axial fan blade - Clean axial fan blade.
Axial Fan runs but blower wheel
does not turn
• Motor bearings are falling or motor has developed an internal electrical fault -
Replace motor.
• Intake grill and/or exhaust grill is obstructed-Replace blade if necessary.
• Excessive duct length-Reduce duct length to recommended maximum.
Owner’s Manual | MA-870
Rev. E 03/23
5
Owner’s Manual | MA-870

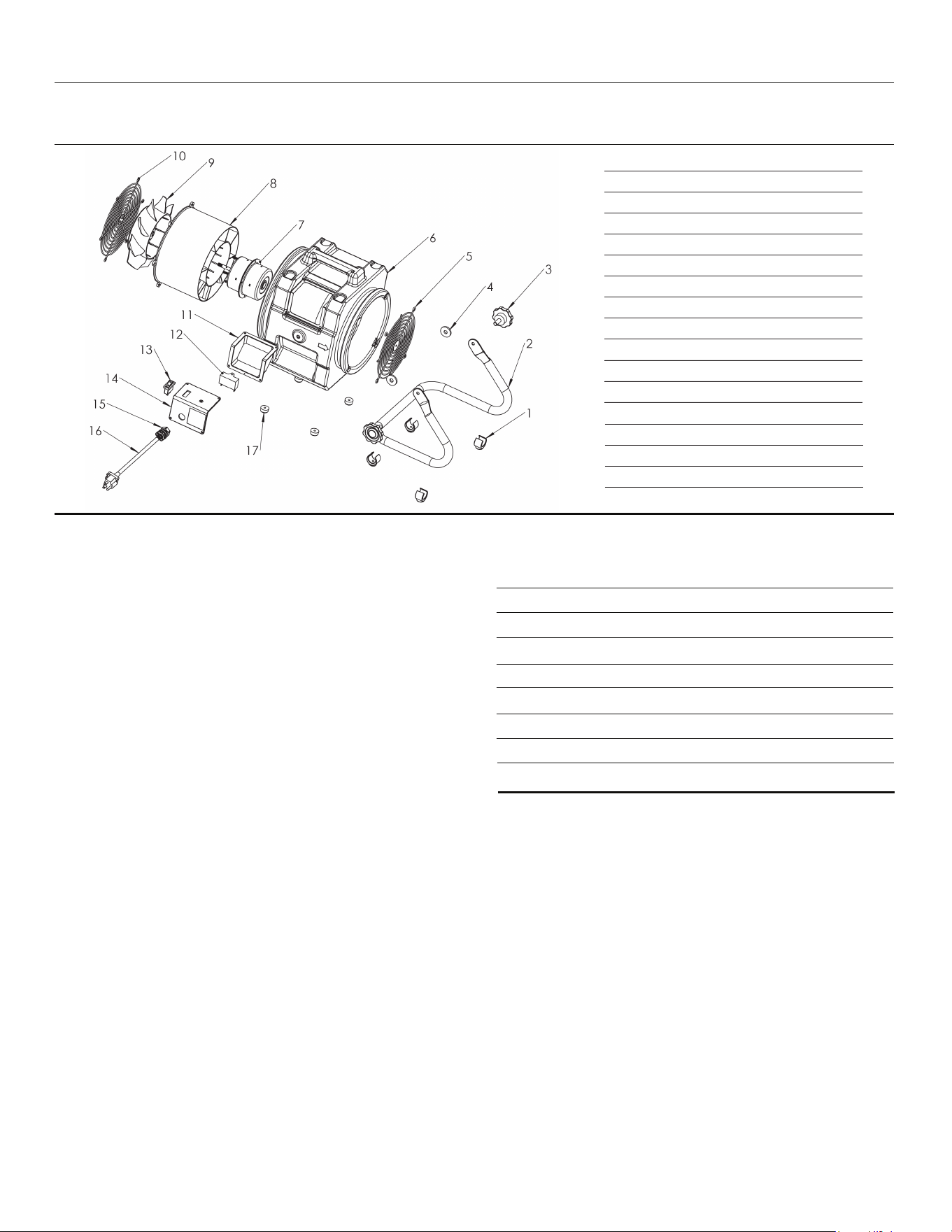

Unit Assembly
Limited Warranty
Subject to this limited warranty, Intertex, LLC (Company)
warrants to the original purchaser only this BlueDri product
shall be free from defects in material and workmanship,
under normal use and service conditions.
If the defective condition can be confirmed without return
of the product, replacement parts will be shipped to the
original purchaser free of charge. If the original product
must be returned for inspection, it shall be at original
purchaser’s expense. If the defective condition is
confirmed, the original purchaser shall be provided
replacement parts and shipping free of charge. If the
defective condition is not confirmed, the product and
replacement parts may be returned to the original
purchaser at original purchaser’s expense.
This limited warranty does not apply to damage or defect
caused by accident, misuse, negligence, fire or excessive
wear conditions on items including but not limited to, power
cords, transport wheels, castors, handle grips, filters,
screens, brushes or carbon brushes. Further, this limited
warranty shall not apply to a BlueDri product which has
been serviced or repaired by a non-authorized BlueDri
Service Distributor or non-Intertex personnel. This limited
warranty is void if products are used for any purpose other
than that which was intended by the manufacturer.
There are no other warranties expressed or implied.
In no event shall Company be liable for incidental or
consequential damages, to the extent permitted under
applicable law.
Unit Specifications
VOLTS 120V
POWER 1/5 HP
CYCLE 60 Hz
MAX AIR VOLUME 870 CFM
AMPS 1.6 AMPS
WEIGHT 16.5 LBS
SIZE L/W/H 14”L x 11”W x15”H
SPEED 2 SPEED
CORD LENGTH 12’
Specifications are subject to change without notice.
Item Description QTY
1 Rubber Feet 4
2 Bracket 1
3 Bracket Screw 2
4 Rubber Gasket 2
5 Outlet Grill 1
6 Fan Housing 1
7 Motor 1
8 Motor Bracket 1
9 Fan Blade 1
10 Inlet Grill 1
11 Switch Box 1
12 Capacitor 1
13 Switch 1
14 Switch Panel 1
15 Cord Connector 1
16 Power Cord 1
1-Year Coverage
Subject to the conditions stated in Limited Warranty,
Company offers a limited warranty on parts and labor
on the following equipment, parts and accessories to
be free from defects in material and workmanship for
a period of one year to the original purchaser.
5-Year Coverage
Subject to the conditions stated in Limited Warranty,
Company warrants parts and labor on rotationally
molded polyethylene tanks/housings and injection
molded vacuum head assemblies to be free from
defects in materials and workmanship for a period
of five years to the original purchaser.
Rev. E 03/23
6
Owner’s Manual | MA-870
Owner’s Manual I MA-870
MINI
AXIAL FAN
®
Intertex, LLC
Lasko.com
820 Lincoln Ave
West Chester, PA 19380
