Introduction and Features

Important Notes

The RP5-GM61 interface allows the replacement of a factory radio in select General Motors vehicles with 29-bit LAN v2, 20-pin and

16-pin connector radios. Using this interface will retain factory features such as BOSE, OnStar, vehicle settings, steering wheel

controls (SWC), front and rear park assist and warning chimes when the original radio is removed. The RP5-GM61 also provides data

bus driven outputs such as retained accessory power (RAP), vehicle speed (VSS), illumination, reverse trigger and parking brake.

1. Please make your vehicle settings selections before removing the factory radio for optimal installation time. Once the radio has been removed,

the vehicle settings which are normally selected through the factory radio can be accessed and changed by downloading and installing the

PAC RadioPRO PC Application from http://www.pac-audio.com/rmware.

2. Before removing your factory radio, please review the following settings as these will not be retained once the factory radio is removed:

• Ambient Lighting Control

• Teen Driver Feature

• Valet Mode

• Rear Park Assist Symbols displayed on Reverse Camera Image

• OnStar Text

• Performance Data Recorder

• Custom Launch Control (Line Lock, Launch Control)

3. When you plug in the module for the rst time, it must go through an initialization process that takes up to 12 seconds. Make sure you have

the vehicle running diring this process.

4. The radio select dip-switchs on the side of the interface must be adjusted to the proper radio setting before plugging the interface into the

vehicle (see page 2 for setting chart).

5. The Voice button can be set to activate the factory OnStar function by using the RadioPRO PC Application. By default, this button is

re-programed to control the aftermarket radios voice function.

6. For retaining OnStar, you must add on an additional RPA-SPK Chime speaker if you are using an aftermarket amplier on Mids & Highs that

can be purchased seperatly.

7. The interface comes pre-programmed for all of the vehicles factory SWC functions and does not require programming unless you wish to

re-assign the SWC functions, utilize the buttons that have no initial programming or utilize short press long press dual command functionality.

The SWC can always be restored to default settings by pressing and releasing the program button on the side of the interface once and

waiting 7 seconds for the LED to ash 4 times.

• Chevrolet Malibu will require SWC re-mapping. By default volume up / down and track up / down are reversed.

8. Language: In some vehicles the Lauguage setting is controled over MOST. Please make sure that you adjust this accordlingly before removing

the radio as this will not show up in most cases after your install.

9. Please reference the vehicles RPO CODE sticker normally located in the vehicles glove box or the underside of the spare tire cover.

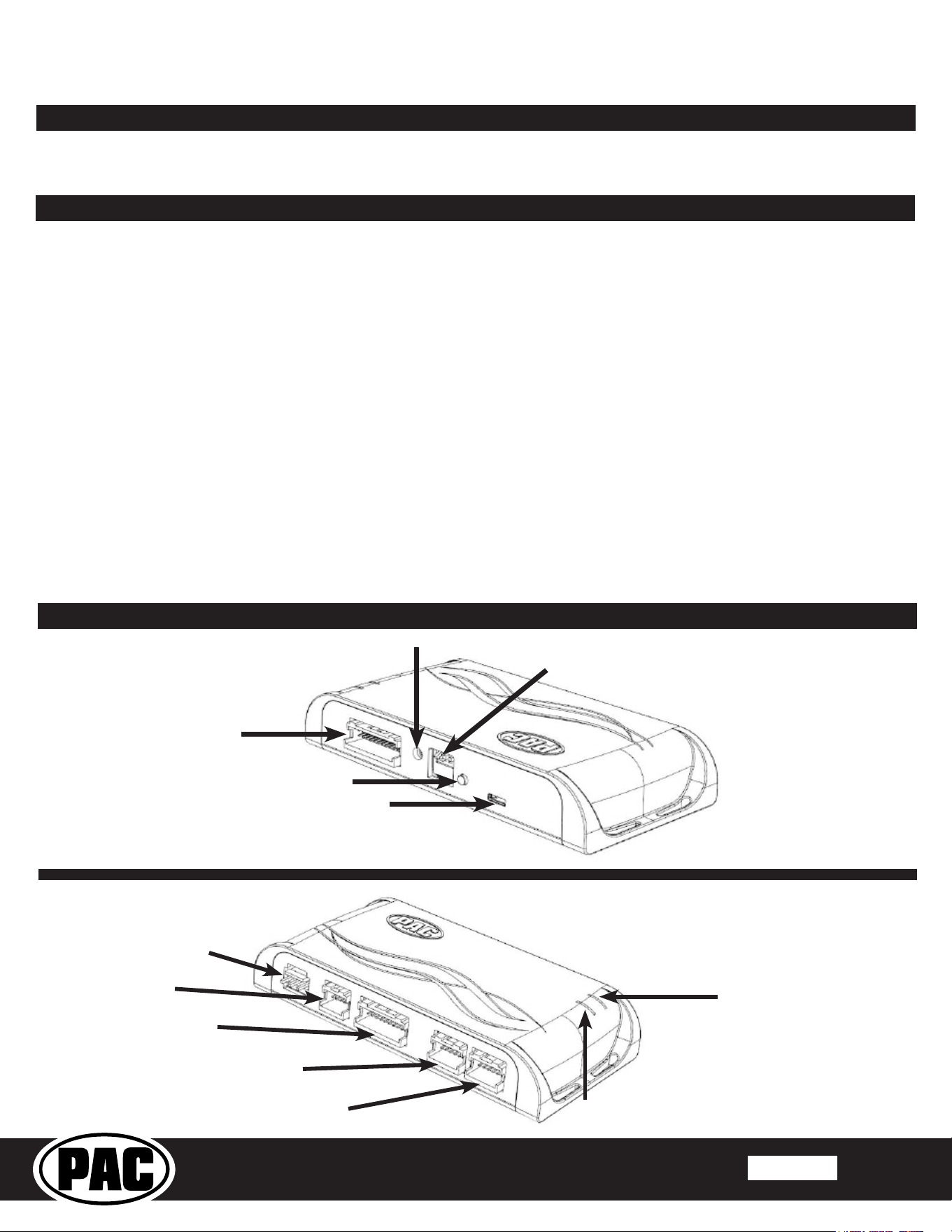

Module Layout

LED 1

LED 2

Interface Connector 1

Expansion Port

Interface Connector 2

Amplied Audio Output

Non-Amplied Audio Output

Programming Button

USB Port

Radio Select DIP switches

Interface Connector 4

Adjustment Dial

Radio Replacement Interface for General Motors Vehicles

with 29-bit V2 and with or W/O BOSE and OnStar

Pacific Accessory Corporation

Rev. 2/2/24

PAC-audio.com

RP5-GM61

Page 4

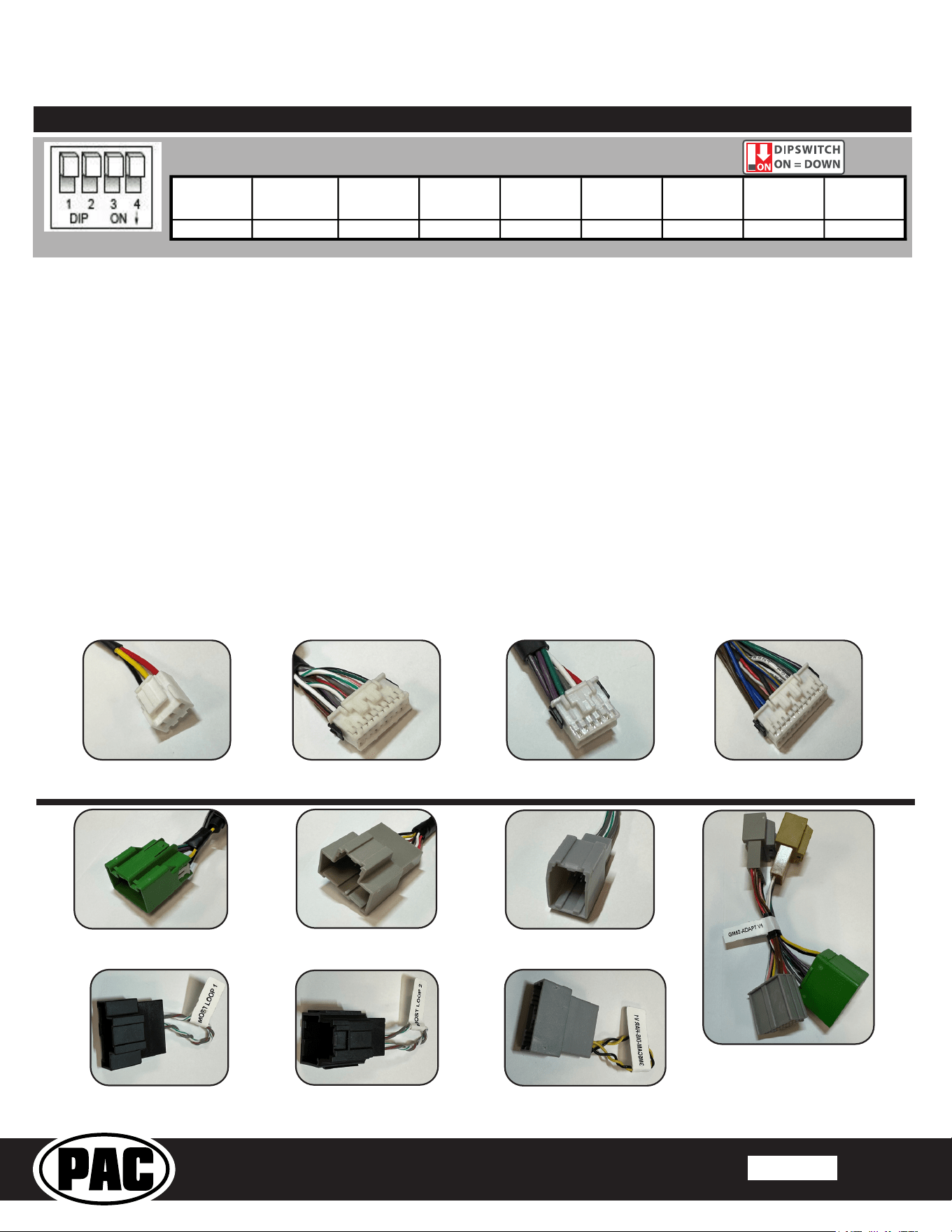

Installation Steps

Other =

Advent, BOYO, Dual, Lightning Audio, Rockford Fosgate, Visteon

Set DIP switches that correspond with your radio to the ON position.

Set all other DIP switches to the OFF position.

If your brand is not listed above, please use “ALL OTHER BRANDS.”

Alpine JVC

Kenwood /

Lightning

Audio

Stinger

Clarion /

Nakamichi

All Other

Brands

Pioneer Sony Fusion

1 2 1 & 2 3 3 1, 2, & 3 1, 2, & 3 4 1 & 4

1. Set the Radio Select DIP switches according to the radio you are installing.

2. Wire your aftermarket radio to the RP5-GM61’s harness according to the wiring connections chart on Page.3.

3. If your aftermarket radio has a mute wire, cut the Brown mute loop in Interface Connector 4. After cutting the loop, you will

want to use the side that is next to the orange wire in pin 24. This will be used to wire to the Mute wire on your aftermarket

radio if available.

4. Plug Interface Connectors 1 & 2 into the appropriate ports on the RP5-GM61 interface (using the diagram on page 1 or

the label on the bottom of the interface).

5. The Interface Connector 3 connection port will be dependent upon whether or not the vehicle has a factory amplied

system. Plug this connector into the appropriate port on the RP5-GM61 (using the diagram on page 1 or the label on the

bottom of the interface).

6. Remove the factory radio and plug in the RP5-GM61’s Vehicle Connector 1, 2, & 3 into the factory vehicle harness. Vehicle

Connector 3 might not be present in all vehicles. In vehicles with IOA / IOB use Vehicle Connector 7 to adapt your main

harness to your vehicle.

7. Vehicle Connectors 4 & 5 are used when removing the factory CD player in the dash and are mandatory that they are

plugged in to keep the MOST loop Intact. Failing to plug these in will result in no sound. Not all connectors may be present.

8. Vehicle Connector 6 (GM5CAM-DIS-HAR) will only be used in vehicle with an IOB Build Code and will be connected to the

harness that was plugged in to the factory display in the vehicle once removed. This is used to maintain the camera signal in

IOB build code vehicles.

Interface Connector 1

(3-pin)

Interface Connector 2

(20-pin)

Interface Connector 4

(24-pin)

Interface Connector 3

(12-pin)

Vehicle Connector 1

(20-pin)

Vehicle Connector 2

(16-pin)

Vehicle Connector 3

(8-pin)

Vehicle Connector 7

(Adapter)

Vehicle Connector 4

(10-pin)

Vehicle Connector 5

(12-pin)

Vehicle Connector 6

(20-pin)

Radio Replacement Interface for General Motors Vehicles

with 29-bit V2 and with or W/O BOSE and OnStar

Pacific Accessory Corporation

Rev. 2/2/24

PAC-audio.com

RP5-GM61

Page 5

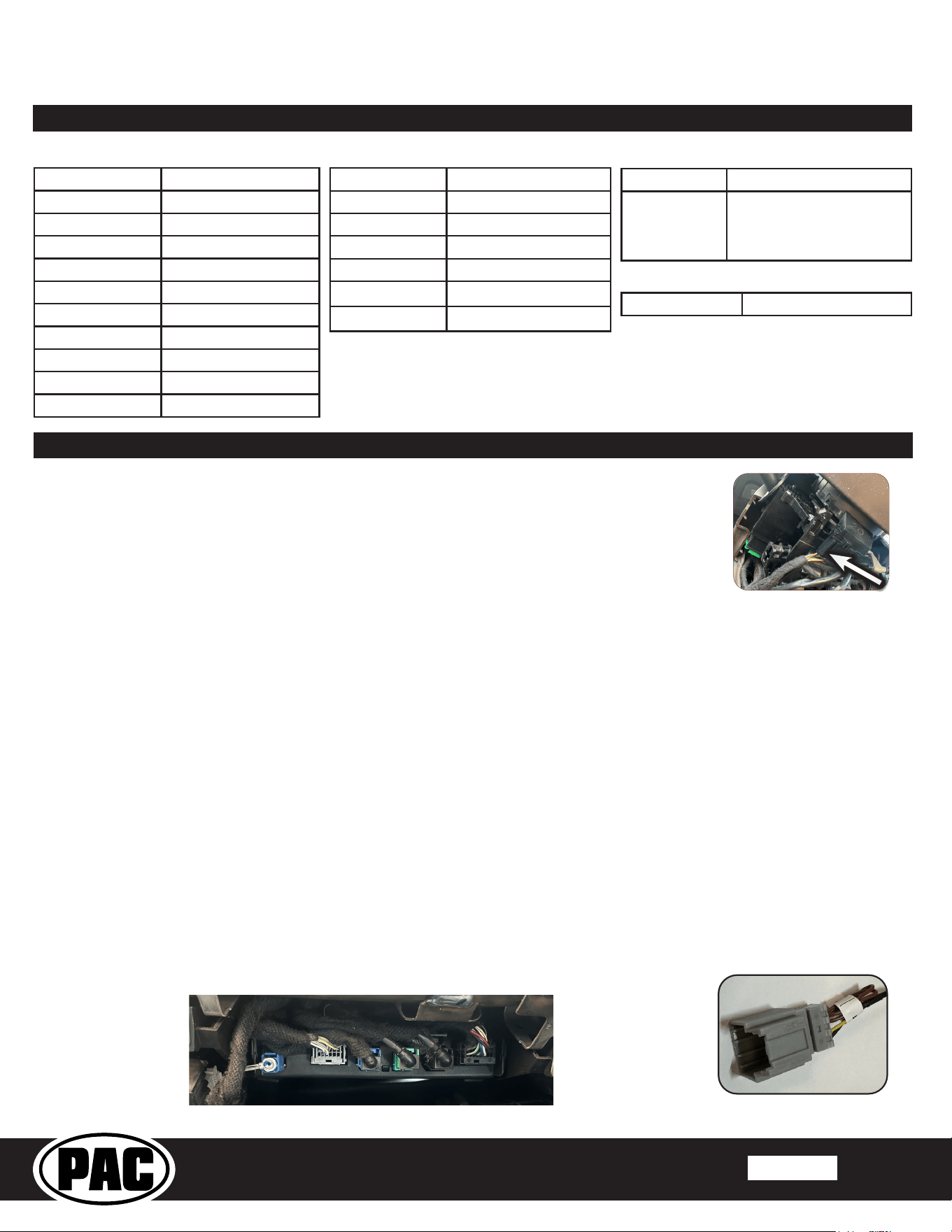

Wiring Connections Chart

SWC Connector

Blue / Yellow Kenwood or Newer JVC

3.5mm Jack

Alpine, JVC, Clarion,

Pioneer, Sony, Boyo, Dual,

Lightning Audio, Visteon or

Advent

Light Green Parking Brake Output (-)

Pink Vehicle Speed Output

Blue / White Remote Turn On

Blue Not Used

Orange / White Illumination Output (+)

Purple / White Reverse Output (+)

Brown Loop Mute Output (CUT)

Aftermarket Radio Connections

Vehicle Side Connections

Green / Black* SWC Input

Yellow Constant 12V +

Black Ground -

Red Acc. Output

White Front Left + input

White / Black Front Left - input

Grey Front Right + input

Grey / Black Front Right - input

Green Rear Left + input

Green / Black Rear Left - input

Purple Rear Right + input

Purple / Black Rear Right - input

IMPORTANT NOTES REGARDING GREEN / BLACK WIRE CONNECTIONS*

There is a 60” Pigtail that is used for

connecting the SWC input to the GM61

module that has a bullet connector on one

end, and a loose wire on the other.

This is designed to plug into the match-

ing bullet connector on the GM6X-HAR;

both of which have a matching SWC

Input label.

1. Make all connections as described in the chart above. Be sure to review all connections before plugging the

harness into your vehicle.

2. In vehicles with an IO5 / IO6 RPO CODE, to retain the steering wheel control buttons you must hardwire

them into the RP5-GM61. The wire you need to connect into can be found by removing the steering wheel

shroud located beneath the steering wheel column, and accessing the wire in pin 9 at the Black 10-pin

connector located at the base of the clock spring. (Fig. 1).

Once you have located the Green/Black wire in the vehicle you must connect the provided 60” Green/

Black wire from the GM61 module. This is a data signal so to ensure consistent operation, it is highly

recommended to solder this wired connection. DO NOT cut this wire in half. In some vehicles it may be

necessary to remove the cover around the steering column and tag the wire in pin 9 at the Black 10-pin

connector located at the base of the clock spring.

3. Plug the CMX chime module in if needed. It is always necessary unless the vehicle is equipped with the factory BOSE amplier. Connect

the CMX to the 2-pin Pigtail labeled “CMX Module” and install the CMX in a place free of obstructions, where it can be easily heard

(usually low in the dash facing downward).

4. Connect the SWC wire or the 3.5mm SWC jack to the aftermarket radio according to the chart above (aftermarket radio MUST support a

wired remote input).

5. If you wish to reassign functions to the SWC, then follow the programming instructions on page 5.

6. Connect the Red and White RCAs to the aftermarket radios AUX input to retain the factory 3.5mm AUX input jack.

7. If the vehicle was equipped with the base level radio (IO3) and a factory reverse camera, then connect the Yellow RCA in the harness

to the reverse camera input on the back of the radio. If your vehicle is equipped with the IO4, IO5 or IO6 system, follow notes “A & B”

below for reverse camera retention. Please reference the vehicles RPO CODE sticker normally located in the vehicles glove box or the

underside of the spare tire cover. Please Disreguard the Yellow RCA on the main GM6X-HAR when using the CAM-GM51.

a. Connect the supplied CAM-GM51 Harness (Fig.2). The CAM-GM51 harness connects at the Human Machine Interface Control

Module (HMICM), not at the radio. The HMICM is normally found behind the glove box in trucks and SUVs, or high in the passenger

side kick panel area in other vehicles. The (HMICM) will have the USB and LVDS cables connected to it. (Pictured Below)

b. The factory reverse camera is powered by the vehicle, not the HMICM. The camera will continue to be powered even when

disconnected from the HMICM, so no additional wiring is required to supply the camera with power.

Fig. 2

Fig. 1

Wiring Connections (Con’t)

Radio Replacement Interface for General Motors Vehicles

with 29-bit V2 and with or W/O BOSE and OnStar

Pacific Accessory Corporation

Rev. 2/2/24

PAC-audio.com

RP5-GM61

Page 6

Optional Steering Wheel Control Programming

Programming Button and Adjustment Dial Functions

You can press and hold the programming button on the side of the interface to access di󰀨erent programming modes. Once the LED is lit to the

mode you desire (see below for modes), immediately release the programming button to access that mode.

PLEASE NOTE:

• This process must be done with the interface in the vehicle and the key in the ignition position.

A. LED 1 ash green: SWC re-assignment. This allows you to re-assign the SWC functions to the buttons of your choice. Please see

the Optional Steering Wheel Control Programming instructions below for more details.

B. Both LEDs ash green: Chime volume adjustment. This allows you to adjust the volume of the chimes using the adjustment dial

on the side. Please see note 6 under Testing and Verication for more details.

C. Both LEDs ash red: Master reset. This does a master reset of the interface and restores the following settings to factory defaults:

• SWC Mapping

• Infotainment Settings

• Interface User Options

Programming

1. Turn the key to the ignition position.

2. Press and release programming button on the side of the interface.

3. Within 7 seconds, press the button that is to be learned on the steering wheel. LED 1 will turn red when the button is pressed. At this point

you have two options:

A. For short press functionality: Release the button within 1.5 seconds. LED 1 will turn back to green.

B. For long press functionality: Hold the button until LED 1 starts blinking. Release the button and the LED will

go back to green.

4. Repeat step 3 for each additional audio function on the steering wheel.

5. If you come across a function in the chart that your steering wheel does not have, or you do not want to program, press and release the

programming button on the side of the interface to skip that function.

6. Once programming is completed, wait seven seconds and LED 1 will ash three times indicating that programming has nished.

7. Test the interface for proper functionality. Whenever a button on the steering wheel is pressed, then LED 1 will illuminate green.

8. If any function does not work, repeat the programming steps.

Default Steering Wheel Control Programming

Default SWC Button Assignments

Alpine JVC Kenwood Clarion Pioneer Sony Stinger

Volume + Volume + Volume + Volume + Volume + Volume + Volume + Volume +

Volume - Volume - Volume - Volume - Volume - Volume - Volume - Volume -

Track Up Track Up Track Up Track Up Track Up Track Up Track Up Track Up

Track Down Track Down Track Down Track Down Track Down Track Down Track Down Track Down

Mode Source Source Source Source Source Source Source

Voice Voice Voice Voice Voice Voice Voice Voice

Phone Phone Receive Phone Receive Answer Call Answer / End Call Answer Call Answer/End Call Answer / End Call

Alpine JVC

Kenwood /

Lightning Audio

Stinger

Clarion /

Nakamichi

All other

Brands

Pioneer Sony

Volume +

Volume -

Mute

Preset +

Source

Preset +

Preset -

Track +

Play

Search +

Preset -

Source

Track -

Track +

Search -

Source

Source / End Call

Track +

Band / Disc +

Track -

Band

Track +

Track -

Preset / Disc -

Disc / FM +

Send / End

Track -

Power

Select

Disc / AM -

Send

Band

Enter / Play

Attenuation

Answer

End

Phone Menu

Power / End Call

Band / Program

Phone Receive

Voice

Answer Call

Voice / Answer / End Call

12 Receive Phone Reject On Hook End Call

Voice (Android Auto &

Car Play) Answer / End

Call***

End

Voice

Off Hook

Voice

Power

Mute

Preset +

No specific

programming

order. Please

refer to the

owner's manual

of your radio for

SWC

programming

instructions.

Please Note: On any entry withmultiple commands, the commands shown are source dependent.

If your brand is not listed above, please use “ALL OTHER BRANDS.”

Optional Programming Order

Optional Steering Wheel Control Programming (cont.)

Radio Replacement Interface for General Motors Vehicles

with 29-bit V2 and with or W/O BOSE and OnStar

Pacific Accessory Corporation

Rev. 2/2/24

PAC-audio.com

RP5-GM61

Page 7

RadioPRO PC App

PLEASE NOTE:

The interface must be connected to the vehicle when using

the following features of the RadioPRO PC App:

• Factory Amplier Settings

• Chime Volume

• Telematics Volume

• Change Vehicle Settings

• Interface User Options

The interface does not need to be connected to the vehicle

when using the following features of the RadioPRO PC

App:

• Firmware Updates

• Reading rmware/hardware versions

Use of the RadioPRO PC App allows you to do the

following:

• Congure User Interface Options such as:

• Factory amplier settings

• Chime Volume

• Telematics Volume

• Change Vehicle Settings

• Update Product Firmware

• Read Firmware/Hardware Versions

Download the RadioPRO PC App at: https://pac-audio.com/app-downloads/

OnStar Volume Adjustment for Vehicles without SWC

1. If SWC buttons are not present you must use the Adjustment Dial on the side of the interface untill the desired level is reached.

2. When OnStar is active turn the Adjustment Dial on the side of the interface untill the desired level is reached.

1. Turn the ignition on. The LED on the interface will turn on and the +12v accessory wire will turn on.

2. Turn on the radio and check balance and fade.

3. Pressing the OnStar button on the rearview mirror will turn o󰀨 all audio and allow the OnStar audio to be heard.

4. Verify that all SWC are functioning properly for both the aftermarket radio and OnStar. To adjust OnStar volume, press the OnStar button

on the mirror or steering wheel, then use the volume buttons on the SWC to adjust the level. If the vehicle is not equipped with steering

wheel controls, you can use the adjustment dial to raise the volume of the OnStar.

5. Verify that chimes are functioning. Chimes will play out of the front left speaker. If you have an

aftermarket amplier on your speakers, chimes will play out of the supplied CMX Module.

6. If you need to adjust the volume of the chimes: With the vehicle on, press and hold the

programming button until both LEDs ash green then release. Now turn the dial on the side of

the module to adjust volume. If no BOSE amp you will hear an audible chime during adjustment.

If there is a BOSE amp there is no audible chime and you have to do a sleep cycle to hear the

change. Chime adjustment mode will time out after 10 seconds of inactivity.

7. In vehicles without BOSE, Use the adjustment dial on the side of the CMX module (SEE IMAGE)

8. Turn o󰀨 vehicle and remove key. RAP will be active and keep the radio on for 10 minutes or until the drivers door is opened.

Testing and Verication

Technical Support and Product Updates (Firmware)

The RP5-GM61 can be updated with new rmware as it becomes available using a USB cable and RadioPRO PC application.

Please visit www.PAC-audio.com/rmware for available updates.

Email: support@PAC-audio.com

Standard / International: 727-592-5991

CMX

chime module

PAC RP5-GM61 RadioPRO Radio Replacement Interface

Product's Documents

Instruction Manual

Specifications

PAC RP5-GM61 Questions and Answers
