Operating Temperature:32℉-140℉
Storage Temperature: -4℉-140℉
Cycle Setting Range: 1 second to 23:59 minutes
(ON duration and OFF duration)
Photocell Sensor
HH:Hours MM:Minutes
Power Indicator
MM:Minutes SS:Seconds
Minus HH/MM
Set the time for the ‘ON’/ ‘OFF’ section
Opposite of day-only mode
Switch between three cycle modes
Built-in Loops
Outlet
Uses a light sensor;
timer operates with
daytime ON/OFF times
Keeps the timer
running based on set
ON/OFF times
Add HH/MM
LCD Display
-2-
1. Set Cycle Time ‘ON’ Duration Time
1.1 When the programmed time exceeds 1 hour
To set the hour, press to enter ‘ON’ time setting, the timer
displays in HH:MM format.
Press or to set the ‘ON’ duration hours. (00~23)
Press again to lock in the setting.
Press or to set the ‘ON’ duration minutes. (00 ~ 59)
To lock in the setting, press again.
The current settings show the "ON" duration as xx hours xx
minutes 00 seconds.
1.2 When the programmed time is less than 1 hour
Press the SET button until the MM:SS display turns the red light on.
Press or to set the ‘ON’ duration minutes. (00 ~ 59)
Press again to lock in the setting.
Press or to set the ‘ON’ duration seconds. (00 ~ 59)
The current settings show the "ON" duration as 00 hours xx minutes
xx seconds.
Press the SET button to save the ON setting and enter the OFF
etting.
-3-
2. Set Cycle Time ‘OFF’ Time
2.1 When the programmed time exceeds 1 hour
Complete the ‘OFF’ time setting using step 1.1 as a template.
2.2 When the programmed time is less than 1 hour
Complete the ‘OFF’ time setting using step 2.1 as a template.
After completing the setup, the device will display a countdown
according to the set "ON" and "OFF" times.
Tips
When any digit is flashing, extended press or , the digits
can be changed quickly.
When any digit is flashing, simultaneously press and , the
current digits is restored to 00.
If you operate while setting the ‘ON’ duration time, all the settings
of the ‘ON’ duration time will be restored to 00;
if you operate while setting the ‘OFF’ duration time, all the settings
of the ‘OFF’ duration time will be restored to 00.
-4-

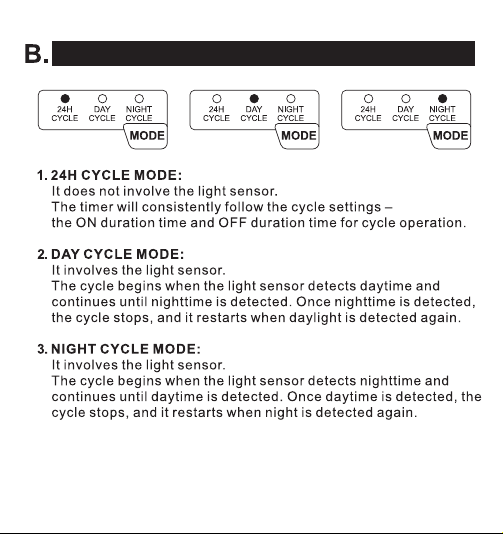

THREE CYCLE MODES
-5-

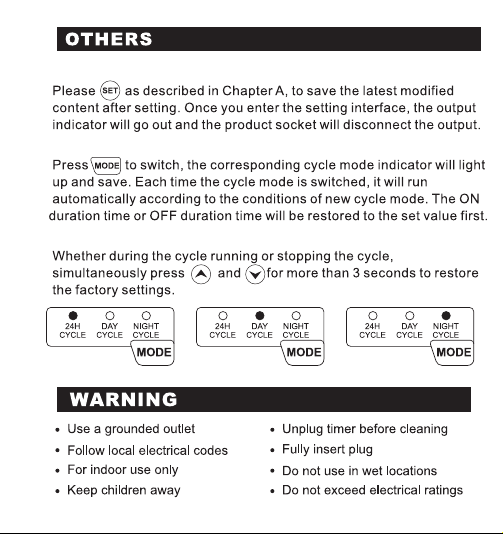

C.
1. Modify ON duration time or OFF duration time:
2. Toggle loop mode:
3. Reset:
-6-
D.
F.
-7-
E.
G.
-8-
