English Instruction Sheet
Page 1
®
705
Loop Calibrator
Instruction Sheet
Introduction

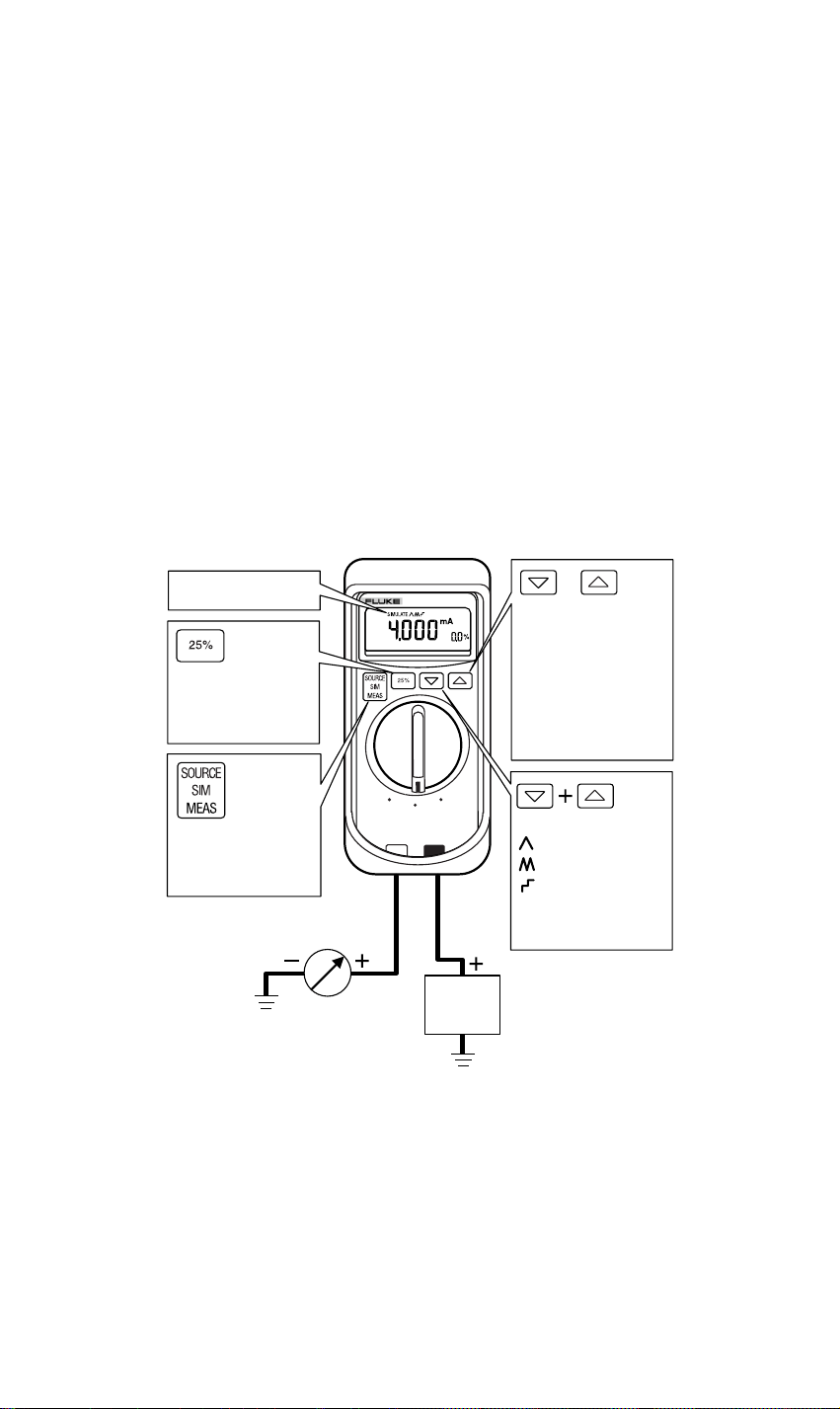

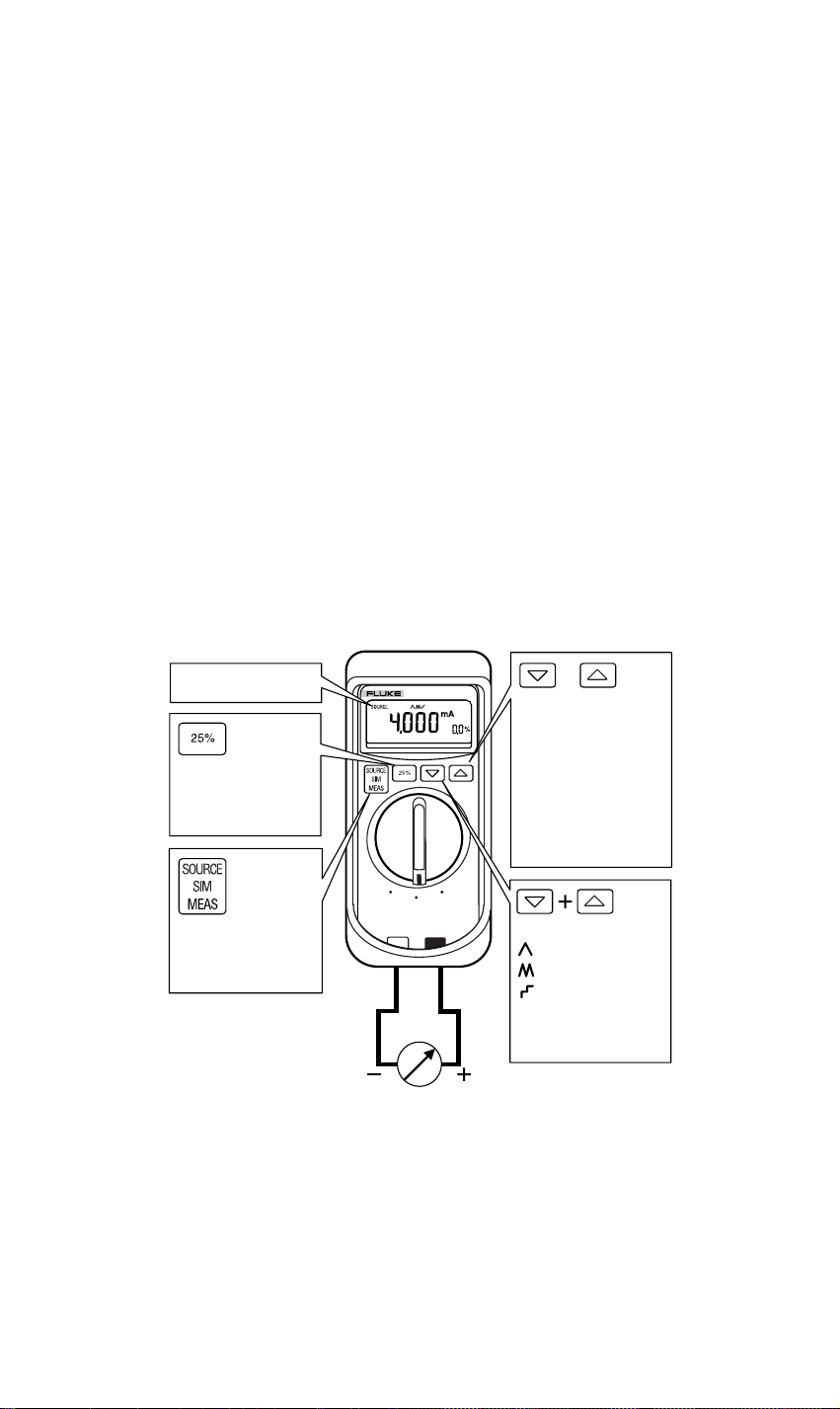

The Fluke 705 Loop Calibrator is a source and measurement tool
for 0 to 20 mA or 4 to 20 mA current loop testing and a
measurement tool for dc voltage from 0 to 28 V. The calibrator
does not source and measure simultaneously.

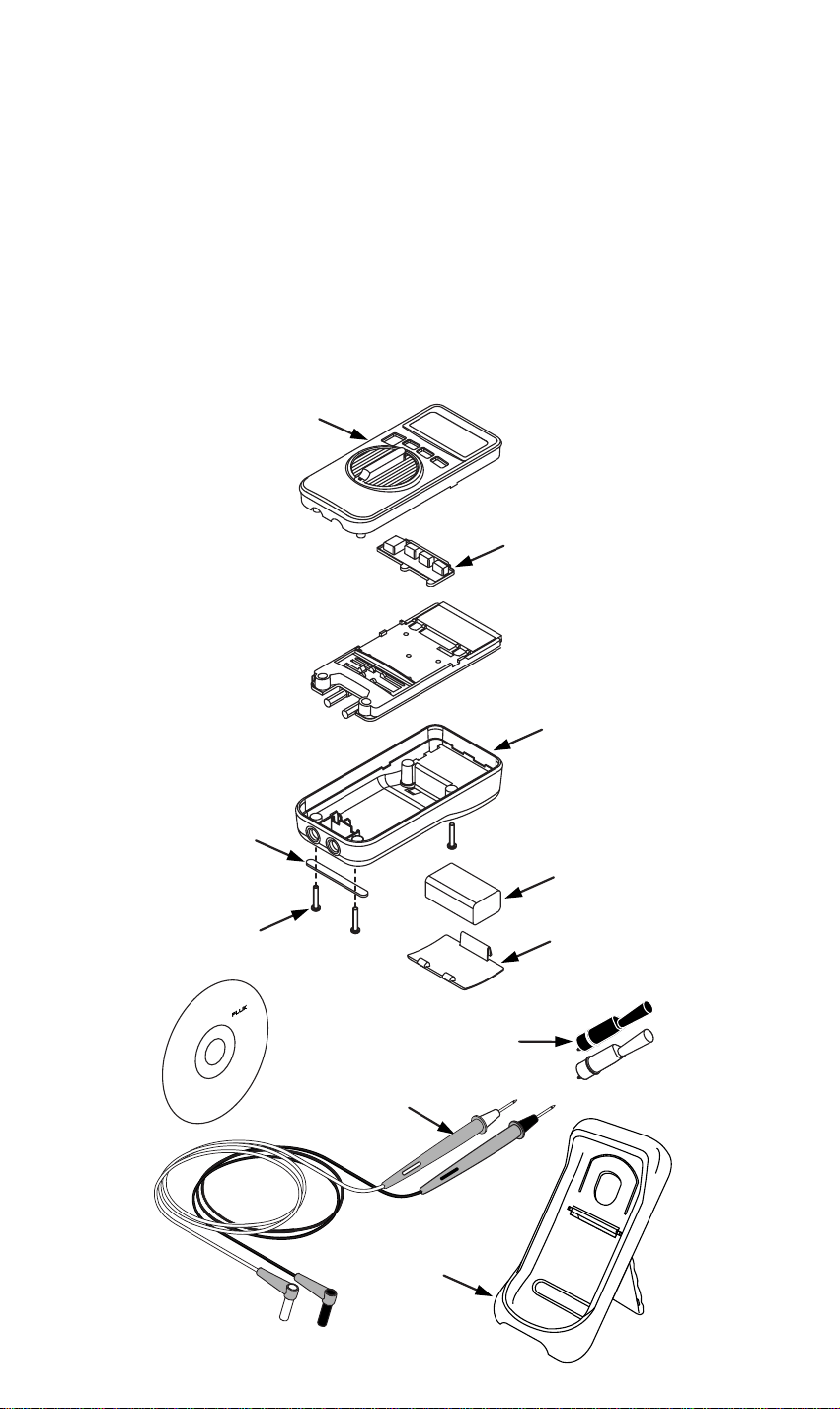

Your calibrator is supplied with a set of TL75 test leads, AC72
alligator clips, 9 V installed alkaline battery, and this instruction
sheet.
Summary of Calibrator Capabilities
Function Range Resolution
dc V input +28 V 0.001 V
dc mA input 0 to 24 mA 0.001 mA
dc mA output
Loop power
output
24 V dc output N/A
Safety Information
Use the calibrator only as specified in this sheet, otherwise the
protection provided by the calibrator may be impaired.
A Warning identifies conditions and actions that pose hazard(s)
to the user; a Caution identifies conditions and actions that may
damage the calibrator or the equipment under test.
August 1998 Rev.2, 6/03
© 1998-2003 Fluke Corporation, All rights reserved.
All product names are trademarks of their respective companies
