Instruction Manual /
Installation Manual
Ceramic Hob
E6422SC
2
Content
1. Safety Warnings ................................................ 3
1.1. Installation ........................................................ 3
1.2. Operation and maintenance.................................... 3
2. Product Overview .............................................. 7
2.1. Top View .......................................................... 7
2.2. Control Panel .................................................... 7
3. Operation instructions ........................................ 9
3.1. Using your Ceramic Hob ....................................... 9
4. Cooking Guidelines.......................................... 17
5. Installation ..................................................... 19
6. Care and Cleaning ........................................... 23
7. Disposal and recycling ..................................... 25
3
1. Safety Warnings
Your safety is important to us. Please read this information before
using your hob.
1.1. Installation
Electrical Shock Hazard
• Disconnect the appliance from the mains electricity supply before
carrying out any work or maintenance on it.
• Connection to a good earth wiring system is essential and
mandatory.
• Alterations to the domestic wiring system must only be made by a
qualified electrician.
• Failure to follow this advice may result in electrical shock or
death.
Important safety instructions
• Read these instructions carefully before installing or using this
appliance.
• No combustible material or products should be placed on this
appliance at any time.
• Please make this information available to the person responsible
for installing the appliance as it could reduce your installation
costs.
• To avoid a hazard, this appliance must be installed according to
these instructions for installation. This appliance is to be properly
installed and earthed only by a suitably qualified person.
• This appliance should be connected to a circuit which
incorporates an isolating switch providing full disconnection from
the power supply.
• Failure to install the appliance correctly could invalidate any
warranty or liability claims.
1.2. Operation and maintenance
Electrical Shock Hazard
• Do not cook on a broken or cracked hob. If the hob surface is
4
break or crack, switch the appliance off immediately at the mains
power supply (wall switch) and contact a qualified technician.
• Switch the hob off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or
death.
Health Hazard
• This appliance complies with electromagnetic safety standards.
Hot Surface Hazard
• During use, accessible parts of this appliance will become hot
enough to cause burns.
• Do not let your body, clothing, or any item other than suitable
cookware contact the ceramic glass until the surface is cool.
• Metallic objects such as knives, forks, spoons, and lids should not
be placed on the hob surface since they can get hot.
• Keep children away.
• Handles of saucepans may be hot to touch. Check saucepan
handles do not overhang other cooking zones that are on. Keep
handles out of reach of children.
• Failure to follow this advice could result in burns and scalds.
Important safety instructions
• Never leave the appliance unattended when in use. Boil over
causes smoking and greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Never use your appliance for warming or heating the room.
• After use, always turn off the cooking zones and the hob as
described in this manual (i.e., by using the touch controls).
• Do not allow children to play with the appliance or sit, stand, or
climb on it.
• Do not store items of interest to children in cabinets above the
appliance. Children climbing on the hob could be seriously
injured.
• Do not leave children alone or unattended in the area where the
appliance is in use.
• Children or persons with a disability which limits their ability to
5
use the appliance should have a responsible and competent
person to instruct them in its use. The instructor should be
satisfied that they can use the appliance without danger to
themselves or their surroundings.
• Do not repair or replace any part of the appliance unless
specifically recommended in the manual. All other servicing
should be done by a qualified technician.
• Do not use a steam cleaner to clean your hob.
• Do not place or drop heavy objects on your hob.
• Do not stand on your hob.
• Do not use pans with jagged edges or drag pans across the
Induction glass surface as this can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning agents
to clean your hob, as these can scratch the ceramic glass.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent, or similarly qualified persons to
avoid a hazard.
• This appliance is intended to be used in household and similar
applications such as:
- staff kitchen areas in shops, offices, and other working
environments.
- farmhouses.
- by clients in hotels, motels, and other residential type
environments.
- bed and breakfast type environments.
WARNING: The appliance and its accessible parts become hot
during use.
• Care should be taken to avoid touching heating elements.
• Children less than 8 years of age shall be kept away unless
continuously supervised.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical,sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
6
WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in fire. NEVER try to extinguish a fire with
water but switch off the appliance and then cover flame e.g., with a lid
or a fire blanket.
WARNING: Danger of fire: do not store items on the cooking surfaces.
WARNING: If the surface is cracked, switch off the appliance to
avoid the possibility of electric shock, for hob surfaces of glass-
ceramic or similar material which protect live parts
• A steam cleaner is not to be used.
• The appliance is not intended to be operated by means of an
external timer or separate remote-control system.
Technical Specification
Cooking hob
E6422SC
Cooking Zones
4 Zones
Supply Voltage
220-240V~/380-415V 2N~
Installed Electric Power
6400W
Product Size L×W×H(mm)
590X520X55
Cut-out dimensions A×B (mm)
560X490
Weight and Dimensions are approximate. Because we continually strive to
improve our products, we may change specifications and designs without
prior notice.
Congratulations on the purchase of your new ceramic hob.
We recommend that you spend some time to read this Instruction /
Installation Manual to fully understand how to install correctly and
operate it.
For installation, please read the installation section.
Read all the safety instructions carefully before use and keep this
Instruction / Installation Manual for future reference.
7

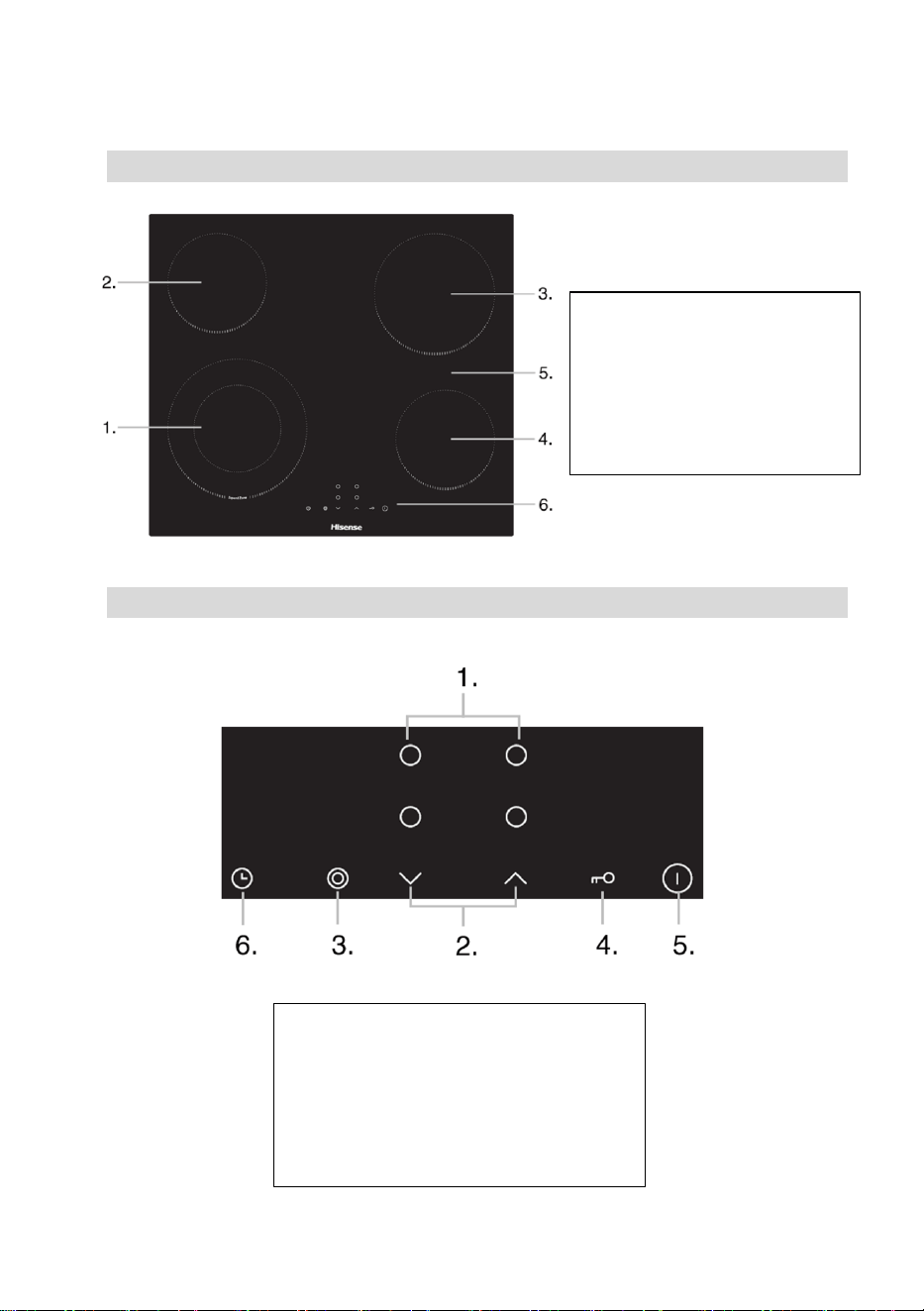

2. Product Overview
2.1. Top View
2.2. Control Panel
1. Heating zone selection controls
2. Power regulation touch control
3. Dual zone control
4. Keylock control
5. ON/OFF control
6. Timer control
1. max.1000 / 2000 W zone
2. max.1200 W zone
3. max.1800 W zone
4. max.1200 W zone
5. Glass plate
6. Control panel
8
Product Information
The microcomputer ceramic hob can meet different kinds of cuisine
demands because of resistance wire heating, micro-computerized
control, and multi-power selection, really the optimal choice for
modern families.
The ceramic hob centers on customers and adopts personalized
design. The hob has safe and reliable performances, making your
life comfortable and enabling to fully enjoy the pleasure from life.
Before using your New Ceramic Hob
• Read this guide, taking special note of the ‘Safety Warnings’
section.
• Remove any protective film that may still be on your ceramic hob.

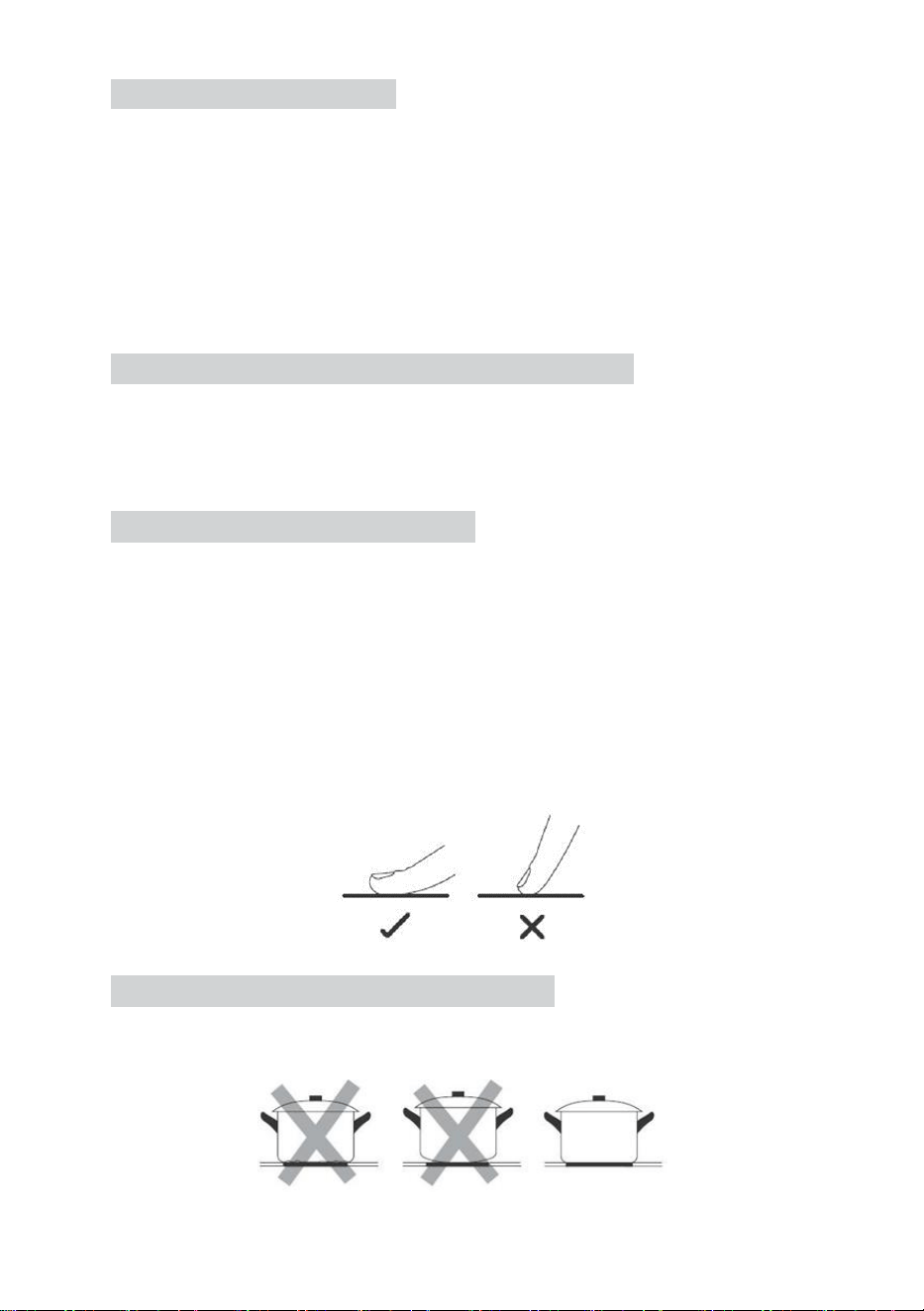

Using the Touch Controls
• The controls respond to touch, so you don’t need to apply any
pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no
object (e.g., a utensil or a cloth) covering them. Even a thin film of
water may make the controls difficult to operate.

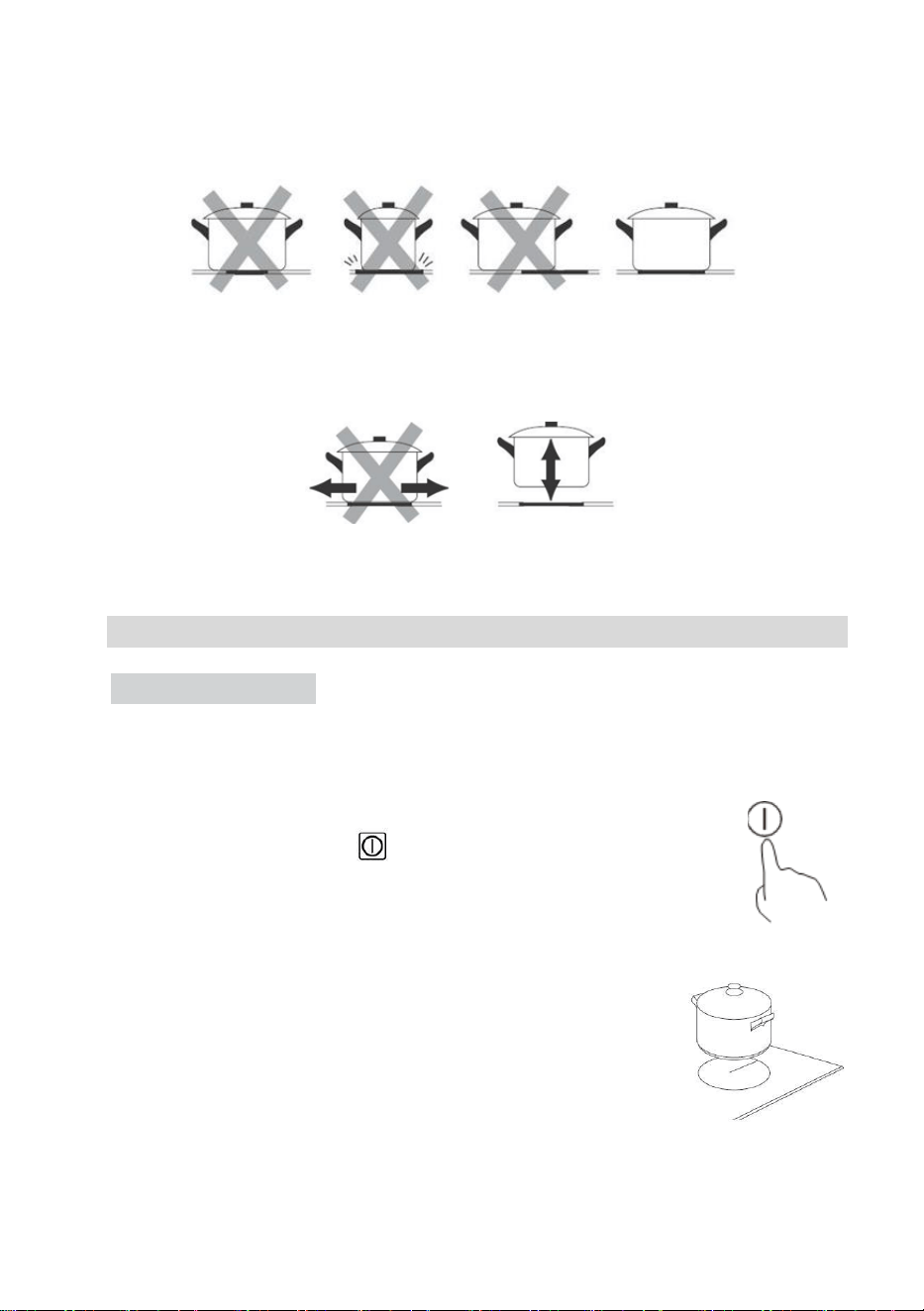

Choosing the right Cookware
Do not use cookware with jagged edges or a curved base.
9
Make sure that the base of your pan is smooth, sits flat against the
glass, and is the same size as the cooking zone. Always center your
pan on the cooking zone.
Always lift pans off the ceramic hob – do not slide, or they may
scratch the glass.
3. Operation instructions
3.1. Using your Ceramic Hob
To start cooking
After turning on the hob, the buzzer beeps once and all the indictors
illuminate up for 1 second then go out, indicating that the ceramic
hob has entered standby mode.
1. Touch the ON/OFF control. all the indicators show
“ - “
2. Place a suitable pan on the cooking zone that
you wish to use.
• Make sure the bottom of the pan and the
surface of the cooking zone are clean and
dry.
10

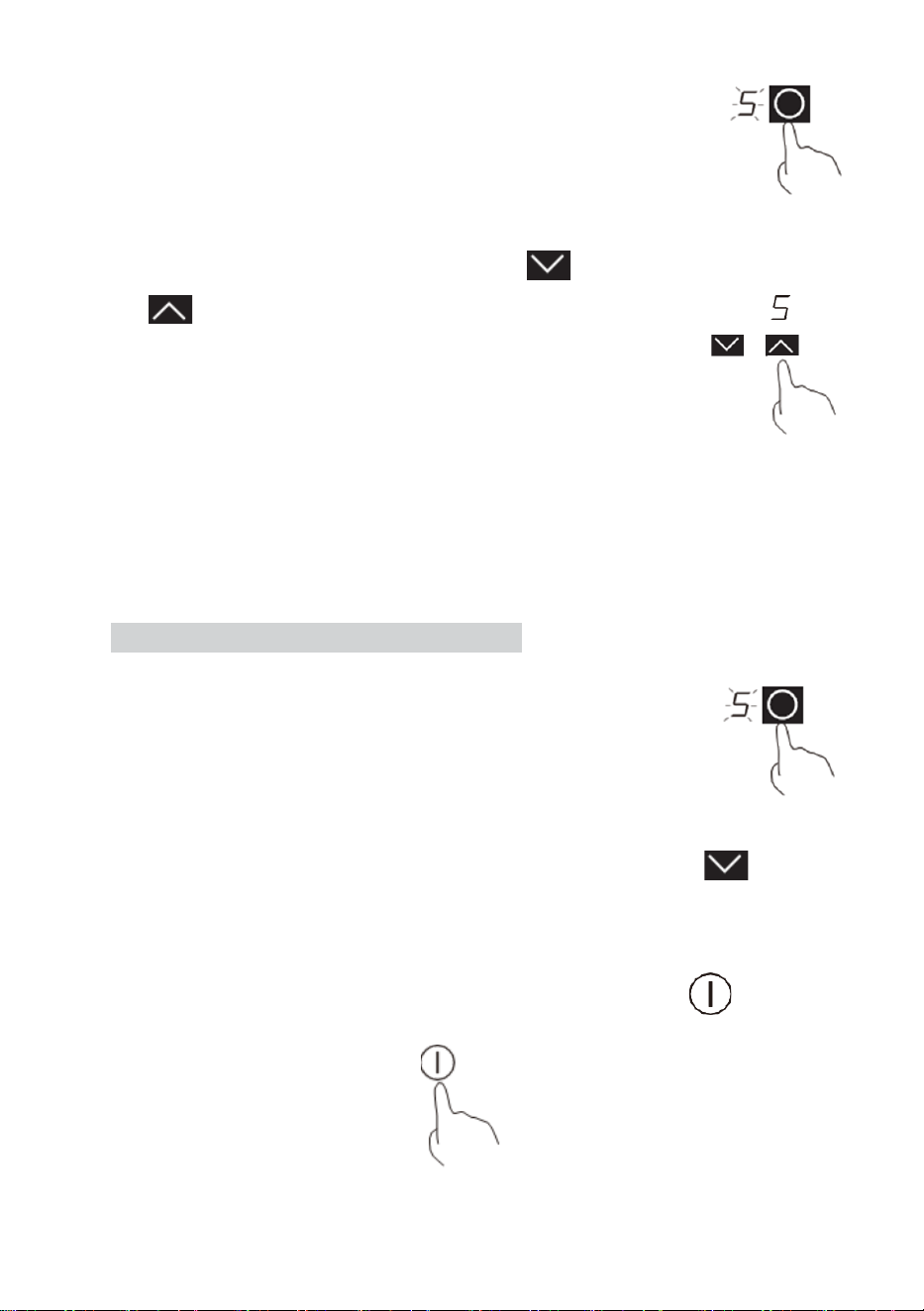

3. Touching the heating zone selection control, and
an indicator next to the key will flash.
4. Adjust heat setting by touching the“ ” or
“ ” control.
• If you don’t choose a heat setting within 1
• minute, the ceramic hob will automatically
switch off. You will need to start again at step
1.
• You can modify the heat setting at any time
during cooking.
• You can modify the power level from 0 to 9 By
the slide control.
When you have finished cooking
1. Touching the heating zone selection control that
you wish to switch off.
2. Turn the cooking zone off by touching the control“ ” to ”0”.
Make sure the display shows ”0”.
3. Turn the whole hob off by touching the ON/OFF
control.
11
4. Beware of hot surfaces - Residual Heat Warning
“H” will show which cooking zone is hot to touch. It will disappear
when the surface has cooled down to a safe temperature. It can
also be used as an energy saving function if you want to heat
further pans, use the hotplate that is still hot.
Locking the Controls
You can lock the controls to prevent unintended use (for example
children accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the ON/OFF
control are disabled.
1. To lock the controls
Touch the keylock control. The timer indicator will show “ Lo “
2. To unlock the controls
• Make sure the ceramic hob is turned on.
• Touch and hold the keylock control for a while.
• You can now start using your ceramic hob.
When the hob is in the lock mode, all the controls are
disable except the ON/OFF, you can always turn the
ceramic hob off with the ON/OFF control in an emergency,
but you shall unlock the hob first in the next operation.
Auto Shutdown
It’s safety feature of the hob. This occurs whenever you forget to
switch off a cooking zone. The default shutdown times are shown in
the table below:
Power level
1
2
3
4
5
6
7
8
9
Default working timer (hour)
8
8
8
4
4
4
2
2
2
12
Using the Timer
You can use the timer in two different ways:
• You can use it as a minute minder. In this case, the timer will not
turn any cooking zone off when the set time is up.
• You can set it to turn all the cooking zone off after the set time is
up.
You can set the timer for up to 99 minutes.
Using the Timer as a Minute Minder
If you are not selecting any cooking zone
1. Make sure the hob is turned on.
Note: you can use the minute minder even if you’re not selecting
any cooking zones.
2. Touch the timer control, the timer indicator
shows “—”
3. Adjust the timer setting by touch the “ “ or
“ ” control. The minute minder indicator
will start flashing and will show in the timer
display.
Hint: Touch the “ “ or “ ” control of the timer once to
decrease or increase by 1 minute.
Touch and hold the or control of the timer to decrease or
increase by 10 minutes.
If the setting time exceeds 99 minutes, the timer will
automatically return to 0 minute.
13

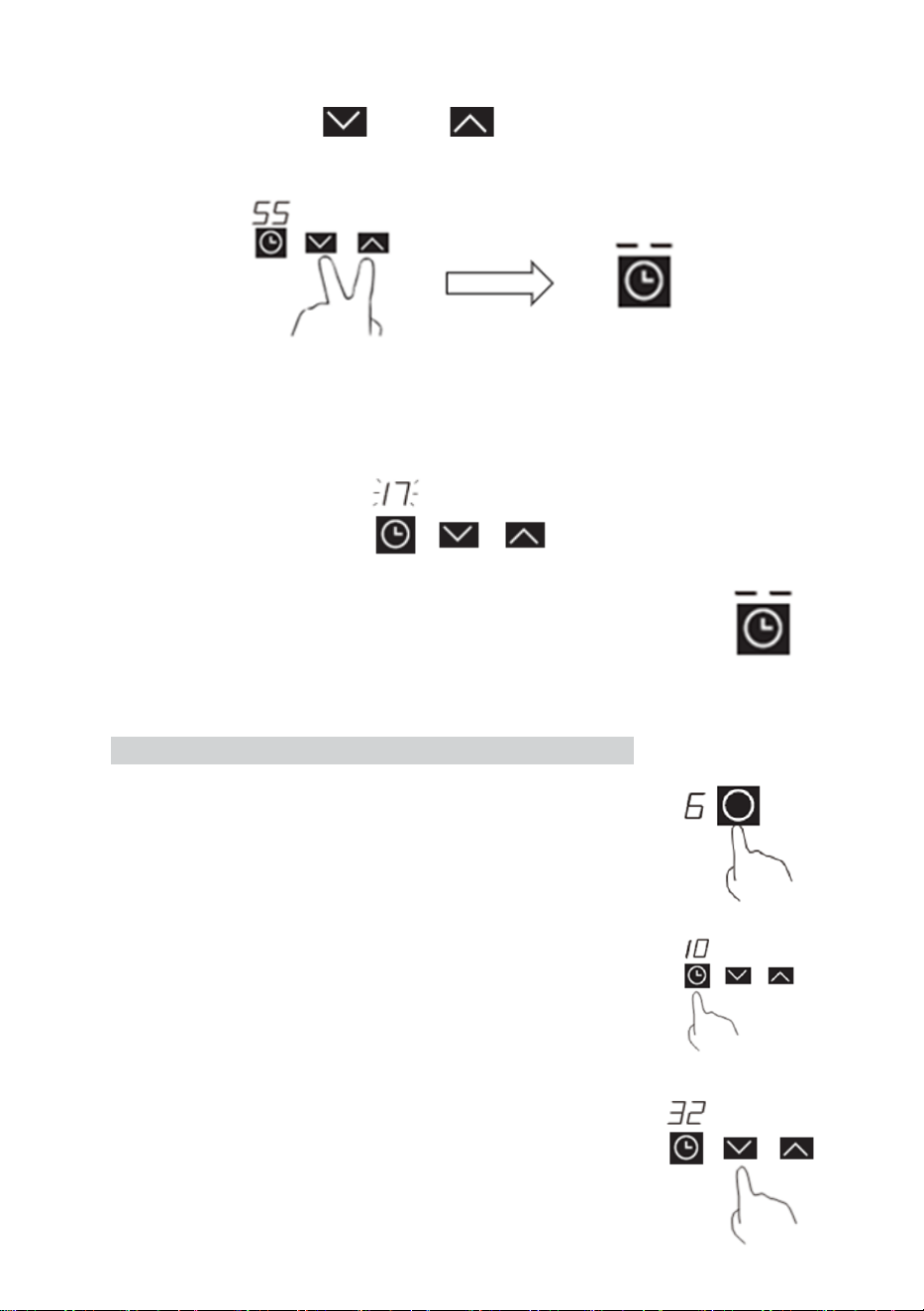

4. Touching the” “ and “ ” together, the timer is
cancelled, and the ”--“ will show in the minute display.
5. When the time is set, it will begin to count down immediately.
The display will show the remaining time and the timer
indicator will flash for 5 seconds.
6. Buzzer will beep for 30 seconds and the timer
indicator shows “- - “ when the setting time
finished.
Setting the timer to turn one cooking zone off
1. Touching the heating zone selection control
2. Touch the timer control, the timer indicator
shows “10”.
3. Set the time by touching the control of the
timer.
14

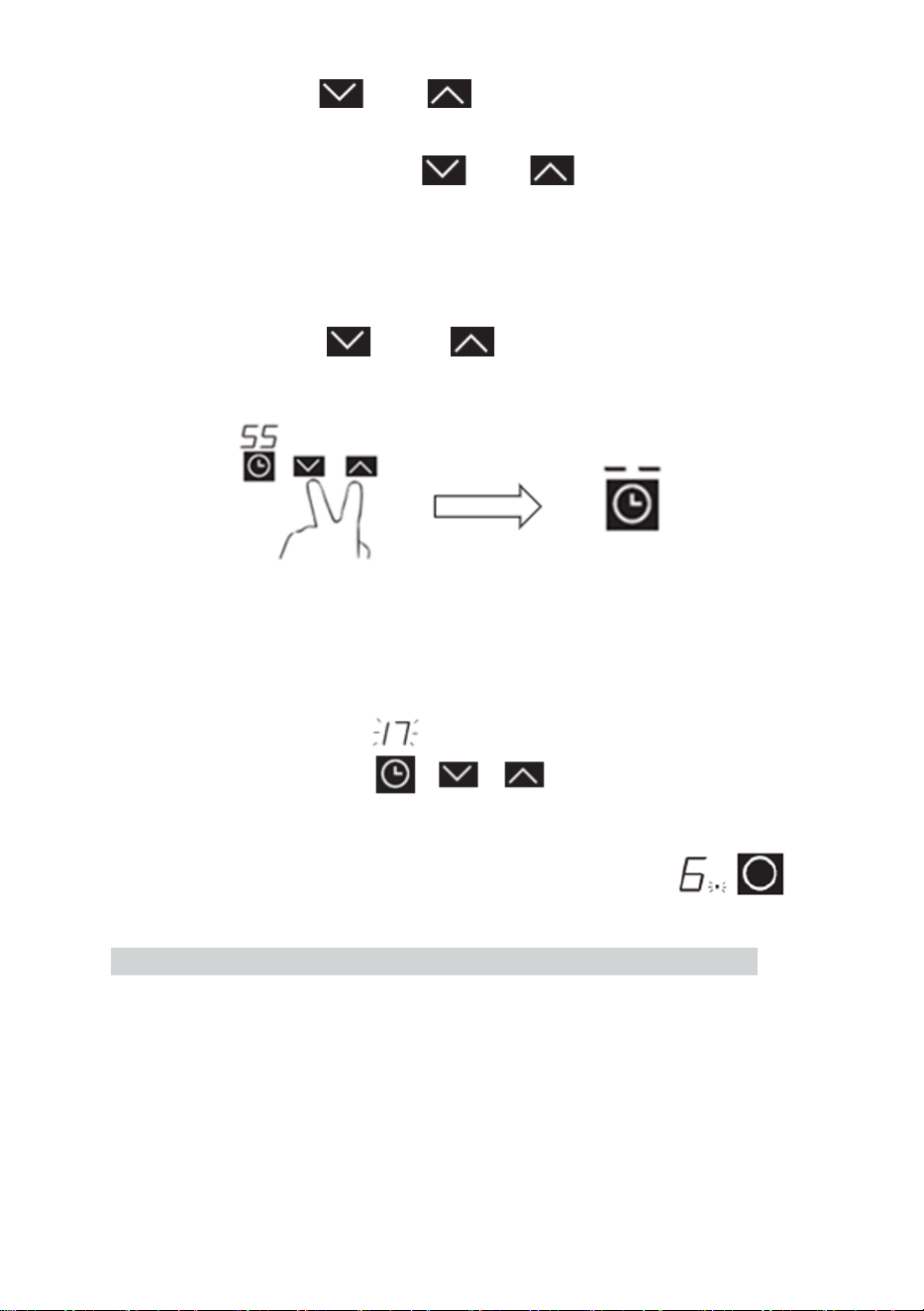

Hint: Touch the “ “ or “ ” control of the timer once will
decrease or increase by 1 minute.
Touch and hold the “ “ or “ ” control of the timer will
decrease or increase by 10 minutes.
If the setting time exceeds 99 minutes, the timer will
automatically return to 0 minute.
4. Touching the “ ” and “ ” together, the timer is cancelled,
and they will show “--” in the minute display.
5. When the time is set, it will begin to count down immediately.
The display will show the remaining time and the timer
indicator flash for 5 seconds.
NOTE: The red dot next to power level indicator
will illuminate indicating that zone is selected.

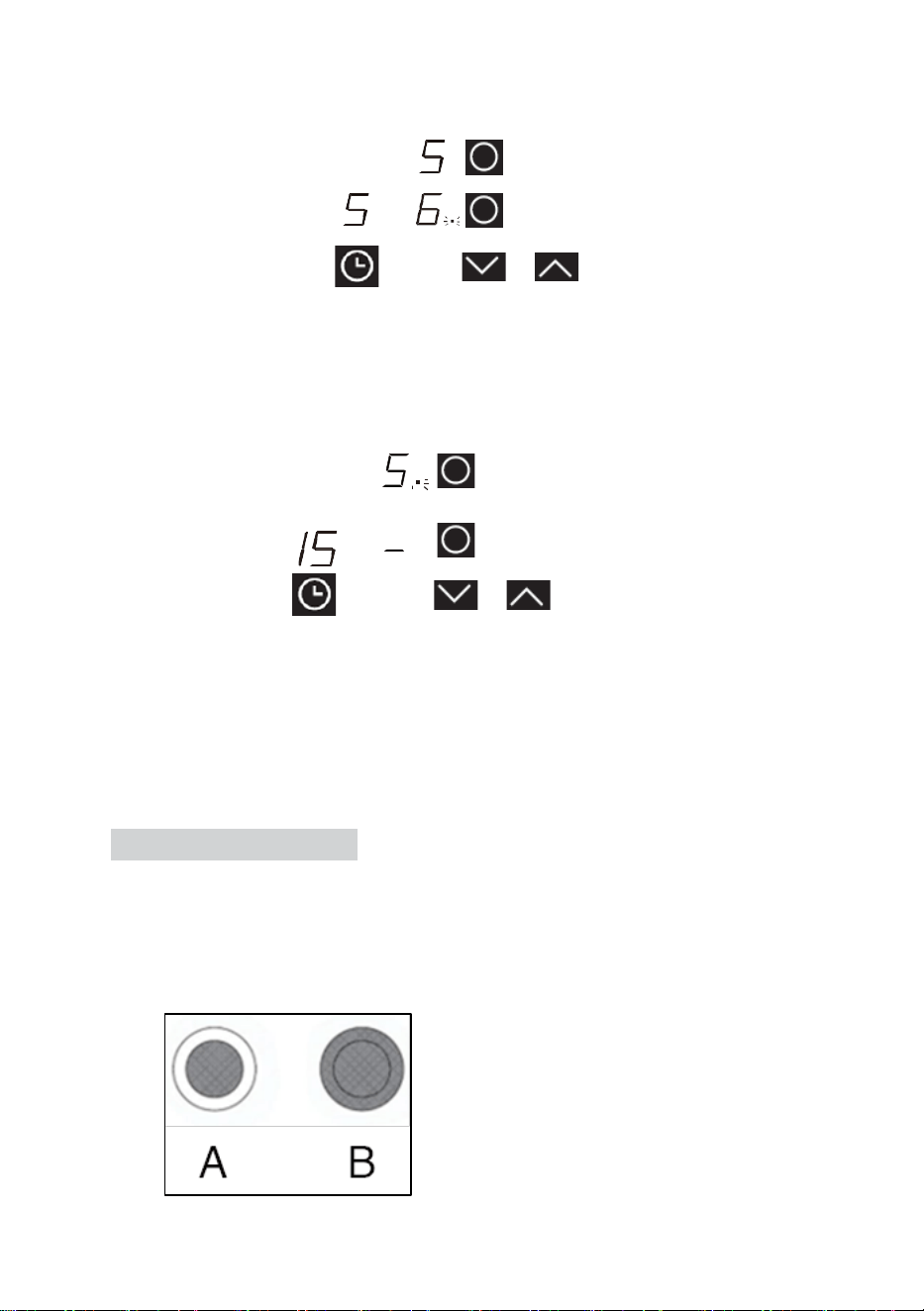

Setting the timer to turn more than one cooking zone off
1. If more than one heating zone use this function, the timer
indicator will show the lowest time.
(e.g., zone 1# setting time of 5 minutes, zone 2# setting time of
15 minutes, the timer indicator shows “5”.)
15
NOTE: The red dot next to power level indicator will flash
(Set to 15 minutes)
(Set to 5 minutes)
2. Once the countdown timer expires, the corresponding zone will
switch off. Then it will show the new min. timer and the dot of
corresponding zone will flash.
3. When cooking timer expires, the corresponding cooking zone
will be switch off automatically.
NOTE: If you want to change the time after the timer is set, you
must start from step 1
Dual Zone Function
• The function only works for front left cooking zone.
• The dual cooking zone has two cooking areas that you can use
a central section and an outer section. You can use the central
section only (A) or both sections (B).
LF cooking zone.
16
Activate the central section (A) (e.g., power
level is 6)
Press the power regulating key of the dual heating
zone. The power level will flash.
Activate the Dual Zone (B) (e.g., power level is
6)
1. Press the power regulating key of the Left
front Dual Zone. The power level will flash.
2. While the power level is flashing, press ” ”. After 5 seconds,
the indicator stops flashing, the double loop function (Dual Zone)
is activated and power level flashes showing alternately “6” and
“=”.
Deactivate the dual zone
Press once ” “ to cancel the double loop function and go back
to functioning of central part only. The power level will again show
only « 6 ».
Note:
1. The double loop is available only in cooking zone 1#.
2. You can select the power function from level 1 to level 9.
3. The external area cannot work alone (without central part)
17
4. Cooking Guidelines
Cooking Tips
• When food comes to the boil, reduce the power setting.
• Using a lid will reduce cooking times and save energy by
retaining the heat.
• Minimize the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the
food has heated through.
Simmering, cooking rice
• Simmering occurs below boiling point, at around 85˚C, when
bubbles are just rising occasionally to the surface of the cooking
liquid. It is the key to delicious soups and tender stews because
the flavors develop without overcooking the food. You should
also cook egg-based and flour thickened sauces below boiling
point.
• Some tasks, including cooking rice by the absorption method,
may require a setting higher than the lowest setting to ensure
the food is cooked properly in the time recommended.
Searing steak
To cook juicy flavorsome steaks:
1. Stand the meat at room temperature for about 20 minutes
before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of
oil into the hot pan and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking
time will depend on the thickness of the steak and how cooked
you want it. Times may vary from about 2 – 8 minutes per side.
Press the steak to gauge how cooked it is – the firmer it feels
the more ‘well done’ it will be.
5. Leave the steak to rest on a warm plate for a few minutes to
allow it to relax and become tender before serving.
18
For stir-frying
1. Choose a ceramic compatible flat-based wok or a large frying
pan.
2. Have all the ingredients and equipment ready. Stir-frying
should be quick. If cooking large quantities, cook the food in
several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meat first, put it aside and keep warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn
the cooking zone to a lower setting, return the meat to the pan
and add your sauce.
6. Stir the ingredients gently to make sure they are heated
through.
7. Serve immediately.
Heat Settings
Heat setting
Suitability
1 - 2
• delicate warming for small amounts of food
• melting chocolate, butter, and foods that burn
quickly.
• gentle simmering
• slow warming
3 - 4
• reheating
• rapid simmering
• cooking rice
5 - 6
• pancakes
7 - 8
• sauteing
• cooking pasta
9
• stir-frying
• searing
• bringing soup to the boil
• boiling water
19
5. Installation

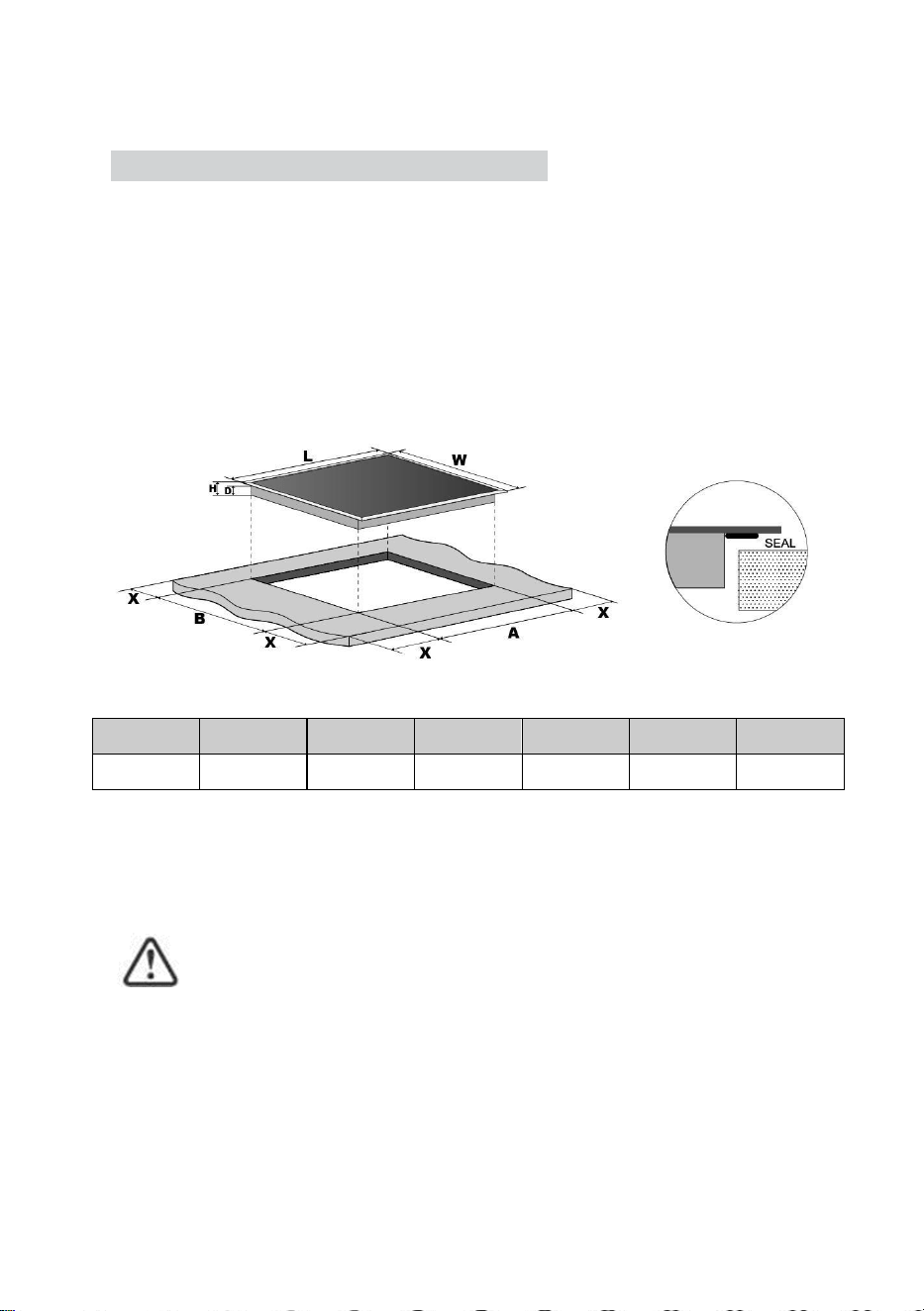

Selection of installation equipment
Cut out the work surface according to the sizes shown in the
drawing.
For installation and use, a minimum of 50 mm space shall be
preserved around the hole.
Be sure the thickness of the work surface is at least 30mm. Please
select heat-resistant work surface material to avoid larger
deformation caused by the heat radiation from the hotplate. As
shown below:
L (mm)
W (mm)
H (mm)
D (mm)
A (mm)
B (mm)
X (mm)
590
520
55
51
560
490
50 min

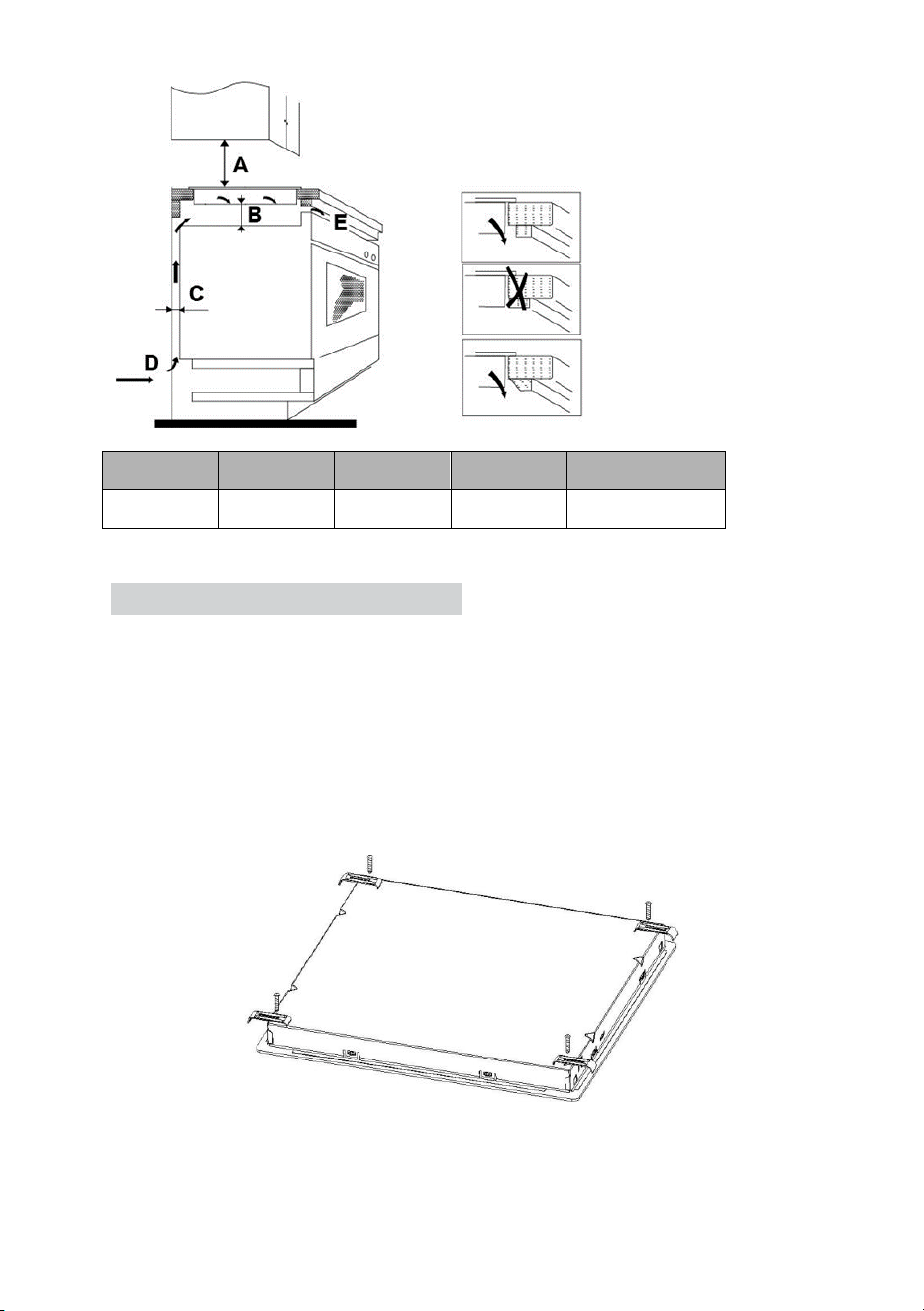

Under any circumstances, make sure the ceramic cooker hob is well
ventilated and the air inlet and outlet are not blocked. Ensure the
ceramic cooker hob is in good work state. As shown below.
Note: The safety distance between the hotplate and the
cupboard above the hotplate should be at least 650mm.
20
A (mm)
B (mm)
C (mm)
D
E
650
50 min
20 min
Air intake
Air exit 5mm

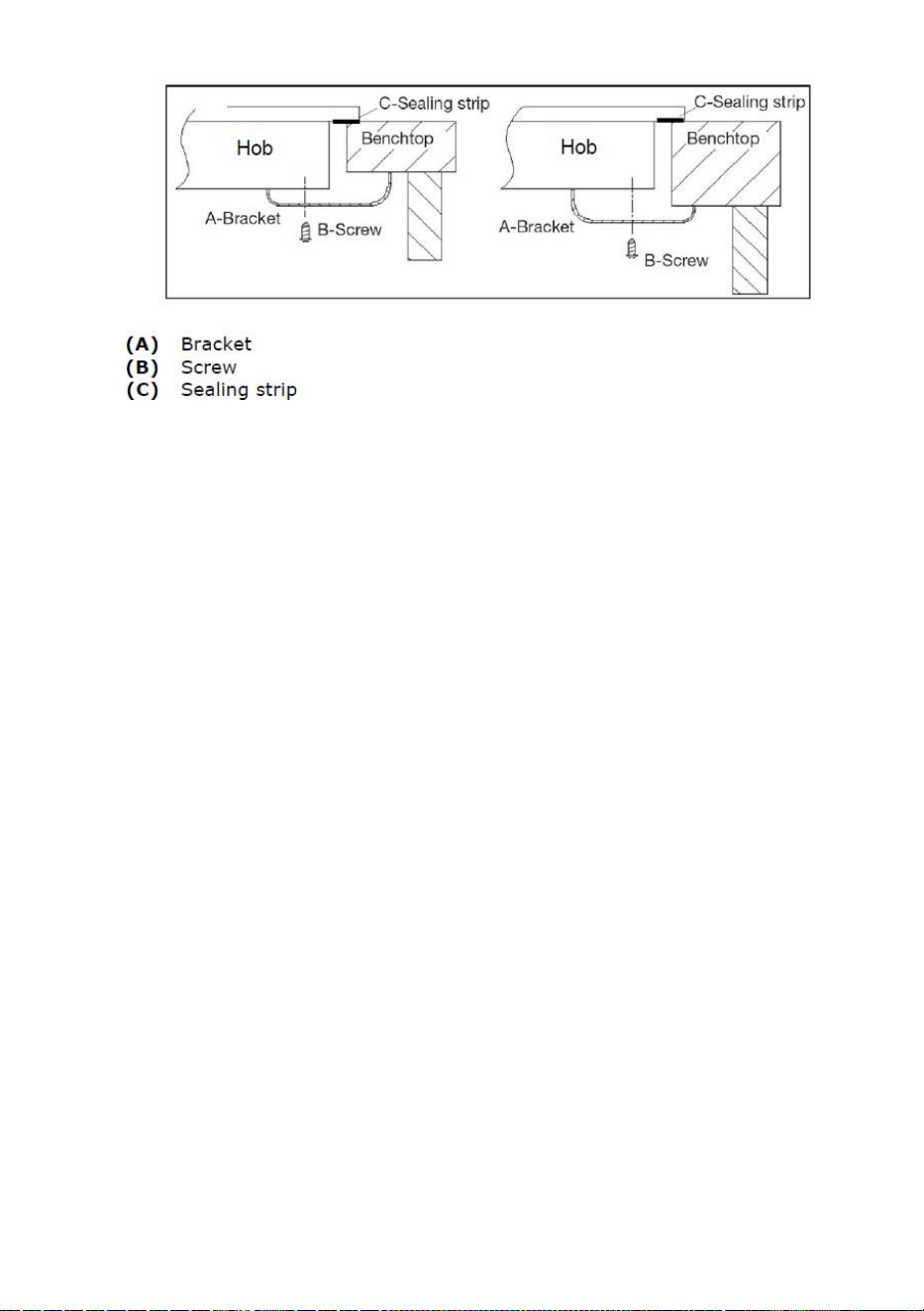

Locating the fixing brackets
The unit should be placed on a stable, smooth surface (use the
packaging). Do not apply force onto the controls protruding from the
hob.
Fix the hob on the work surface by screw four brackets on the bottom
of hob (see picture) after installation.
Adjust the bracket position to suit for different work surface’s
thickness.
21
Cautions
1. The ceramic cooker hob must be installed by qualified
personnel or technicians. We have professionals at your
service. Please never conduct the operation by yourself.
2. The ceramic cooker hob shall not be mounted to cooling
equipment, dishwashers, and rotary dryers.
3. The ceramic cooker hob shall be installed such that better heat
radiation can be ensured to enhance its reliability.
4. The wall and induced heating zone above the work surface shall
withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must
be resistant to heat.
6. A steam cleaner is not to be used.
7. This ceramic can be connected only to a supply with system
impedance no more than 0.427 ohm. In case necessary,
please consult your supply authority for system impedance
information.
22

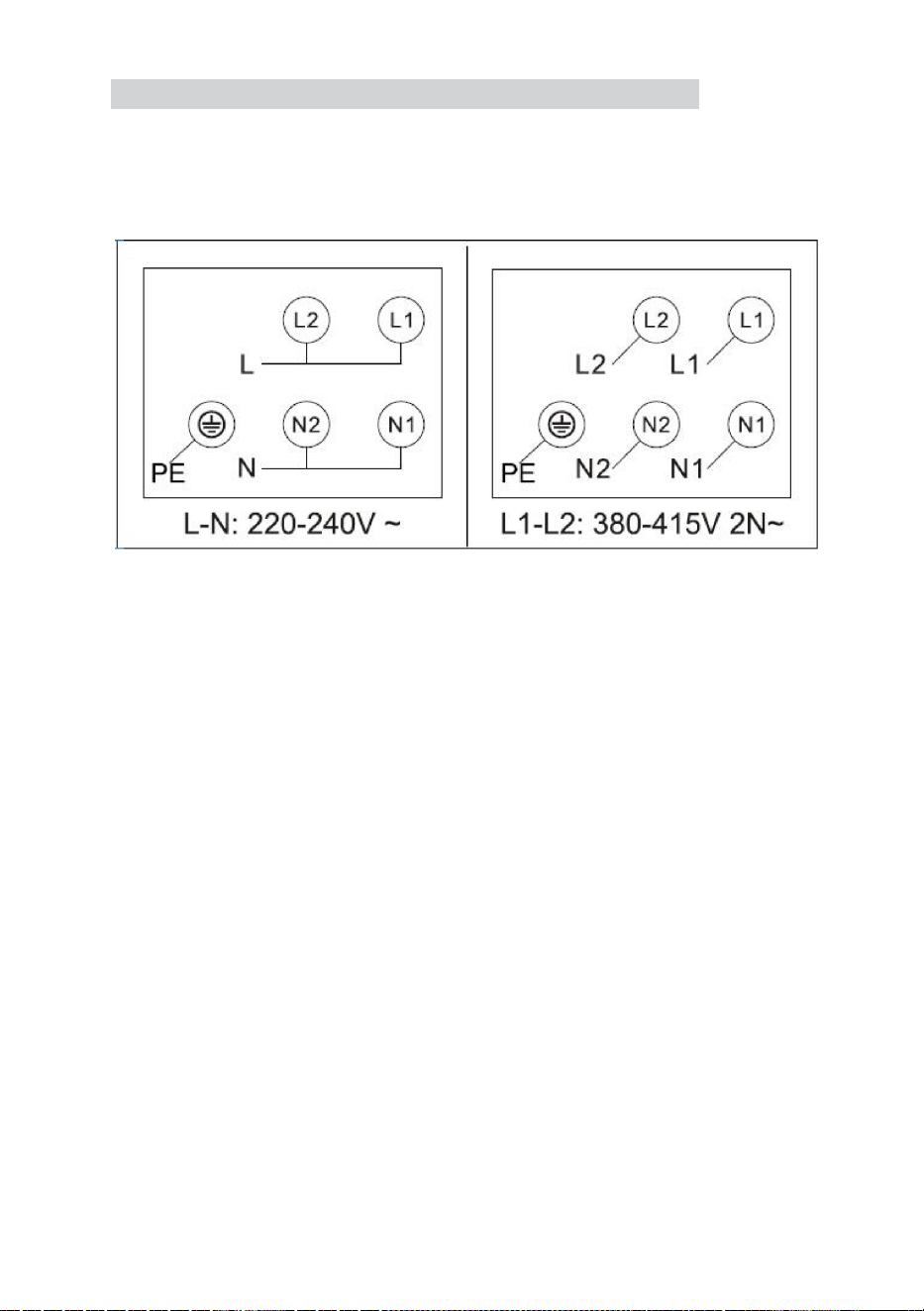

Connecting the hob to the mains power supply
The power supply should be connected in compliance with the
relevant standard, or a single-pole circuit breaker. The method of
connection is shown below.
1. If the cable is damaged or needs replacing, this should be
done by an after-sales technician using the proper tools, to
avoid any accidents.
2. If the appliance is being connected directly to the mains supply,
an omni polar circuit breaker must be installed with a minimum
gap of 3 mm between the contacts.
3. The installer must ensure that the correct electrical connection
has been made and that it complies with safety regulations.
4. The cable must not be bent or compressed.
5. The cable must be checked regularly and only replaced by a
properly qualified person.
23
6. Care and Cleaning
What?
How?
Important!
Everyday soiling on
glass (fingerprints,
marks, stains left by
food or non-sugary
spillovers on the glass)
1.
Switch the power to the hob off.
2.
Apply a hob cleaner while the
glass is still warm (but not hot!)
3.
Rinse and wipe dry with a clean
cloth or paper towel.
4.
Switch the power to the hob
back on.
•
When the power to the hob
is switched off, there will be
no ‘hot surface’ indication,
but the cooking zone may
still be hot! Take extreme
care.
•
Heavy-duty scourers, some
nylon scourers and
harsh/abrasive cleaning
agents may scratch the
glass. Always read the label
to check if your cleaner or
scourer is suitable.
•
Never leave cleaning
residue on the
hob: the glass may become
stained.
Boil overs, melts, and
hot sugary spills on the
glass
Remove these immediately with a
fish slice, palette knife or razor blade
scraper suitable for ceramic glass
hobs, but beware of hot cooking
zone surfaces:
1.
Switch the power to the hob off
at the wall.
2.
Hold the blade or utensil at a 30°
angle and scrape the soiling or
spill to a cool area of the hob.
3.
Clean the soiling or spill up with
a dish cloth or paper towel.
4.
Follow steps 2 to 4 for
‘Everyday soiling on glass’ above.
•
Remove stains left by melts
and sugary food or
spillovers as soon as
possible. If left to cool on
the glass, they may be
difficult to remove or even
permanently damage the
glass surface.
•
Cut hazard: when the safety
cover is retracted, the blade
in a scraper is razor-sharp.
Use with extreme care and
always store safely and out
of reach of children.
Spillovers on the touch
controls
1.
Switch the power to the hob off.
2.
Soak up the spill.
3.
Wipe the touch control area with
a clean damp sponge or cloth.
4.
Wipe the area completely dry
with a paper towel.
5.
Switch the power to the hob.
back on.
•
The hob may beep and turn
itself off, and the touch
controls may not function
while there is
liquid on them. Make sure
you wipe the touch control
area dry before turning the
hob back on.
24
Hints and Tips
Problem
Possible causes
What to do
The hob cannot Be
turned on.
No power.
Make sure the hob is
connected to the power
supply and that it is
switched on.
Check whether there is a
power outage in your
home or area. If you’ve
checked everything and
the problem persists, call a
qualified.
technician.
The touch controls are
unresponsive.
The controls are locked.
Unlock the controls. See
section ‘Using your
ceramic hob’ for
instructions.
The touch controls are
difficult to operate.
There may be a slight film of water
over the controls, or you may be
using the tip of your finger when
touching the
controls.
Make sure the touch
control area is dry and use
the ball of your finger
when touching the
controls.
The glass is being
scratched.
Rough-edged cookware.
Unsuitable, abrasive scourer or
cleaning products being used.
Use cookware with flat and
smooth bases. See
‘Choosing the right
cookware’.
See ‘Care and cleaning’.
Some pans make
crackling or clicking
noises.
This may be caused by the
construction of your cookware
(layers of different metals
vibrating differently).
This is normal for
cookware and does not
indicate a fault.
25
7. Disposal and recycling
This appliance is labeled in compliance with
European directive 2002/96/EC for Waste
Electrical and Electronic Equipment (WEEE). By
ensuring that this appliance is disposed of
correctly, you will help prevent any possible
damage to the environment and to human health,
which might otherwise be caused if it were
disposed of in the
wrong way.
The symbol on the product indicates that it may
not be treated as normal household waste. It
should be taken to a collection point for the
recycling of electrical and electronic goods.
DISPOSAL: Do not
dispose this product
as unsorted
municipal waste.
Collection of such
waste separately
for special treatment
is necessary.
This appliance requires specialist waste disposal.
For further information regarding the treatment,
recovery and recycling of this product please
contact your local council, your household waste
disposal service, or the shop where you
purchased it.
For more detailed information about treatment,
recovery, and recycling of this product, please
contact your local city office, your household
waste disposal service or the shop where you
purchased the product.
