WQ610 THERMOSTAT - FULL USER MANUAL
TABLE OF CONTENTS
1. Introduction ...............................................................................................................................................................4
1.1 Product Compliance ......................................................................................................................................................................4
1.2 Safety Informations .......................................................................................................................................................................4
2. Product Overview .......................................................................................................................................................5
2.1 Example of boilers compatible with the OpenTherm OT+ 4.0 protocol ..........................................................................................6
2.2 Package content ............................................................................................................................................................................7
2.3 Proper thermostat location ...........................................................................................................................................................7
2.4 Connection description ..................................................................................................................................................................8
I A - Boiler connection ..........................................................................................................................................................8
I B - Pump / Valve connection ...............................................................................................................................................8
3. Before you start (rst power up) ..................................................................................................................................9
3.1 LCD icon description ......................................................................................................................................................................9
3.2 Button description .........................................................................................................................................................................9
3.3 First power up sequence and conguration .................................................................................................................................10
4. Operating .................................................................................................................................................................11
4.1 Setpoint temperature change (manual mode) ............................................................................................................................11
4.2 Schedule mode - programming schedule ....................................................................................................................................12
4.3 Temporary override mode ...........................................................................................................................................................13
4.4 OFF mode ....................................................................................................................................................................................13
4.5 Language ....................................................................................................................................................................................14
4.6 Advanced settings .......................................................................................................................................................................15
4.6.1 DST (Daylight Saving Time) setting ............................................................................................................................15
4.6.2 Display temperature accuracy ....................................................................................................................................16
4.6.3 PIN Code .....................................................................................................................................................................16
4.6.4 Service alert ...............................................................................................................................................................17
4.6.5 Optimum Start ...........................................................................................................................................................18
4.6.6 Optimum Stop ...........................................................................................................................................................18
4.6.7 Thermostat temperature calibration ..........................................................................................................................19
4.6.8 Minimum setpoint temperature .................................................................................................................................19
4.6.9 Maximum setpoint temperature ................................................................................................................................19
4.6.10 Frost protection temperature ...................................................................................................................................20
4.6.11 Control algorithm .....................................................................................................................................................20
4.7 Holiday mode ..............................................................................................................................................................................21
4.8 Time/Date ...................................................................................................................................................................................22
4.9 BOOST hours - hourly temperature override ................................................................................................................................23
4.10 Operating mode ........................................................................................................................................................................24
5. Factory Reset ............................................................................................................................................................25
6. Error codes ...............................................................................................................................................................26
7. Cleaning and Maintenance ........................................................................................................................................27
8. Technical Informations ..............................................................................................................................................27
9. Warranty ..................................................................................................................................................................28
4
This product complies with the essential requirements and other relevant provisions of Directives 2014/53/EU and 2011/65/EU. The full text of the EU
Declaration of Conformity is available at the following internet address: www.saluslegal.com.
• Before starting installation work and before using the product, read the entire manual.
• The information contained in the instructions is essential for proper functioning.
• To avoid accidents resulting in personal injury and material damage, please follow all safety precautions, specied in this manual.
• The device should not be used by people with limited mental, sensory or mental abilities, without experience, of insucient knowledge as well as
children.
• Do not use an unassembled device (eg without a cover).
• The device may only be opened by a qualied person.
• Keep electrical devices out of the reach of children and ensure that they do not play with it. Children should not be left unattended. If necessary,
disconnect the control system for the entire room.
• Do not leave the packaging, cabinet, or any loose parts of the device unattended, as they pose a risk to children.
WARNING!
• Installation must be carried out by a qualied person with appropriate electrical qualications in accordance with standards and regulations in force in
the given country and in the EU.
• Never try to connect the device other than as described in the manual.
• Before assembly, repair or maintenance as well as during any connection works it is absolutely necessary disconnect the mains supply and make sure
that the terminals and electric wires are not live.
• The device may not be exposed to extreme temperatures, strong vibrations or subjected to mechanical shock.
• The device should not be used in unfavorable environmental conditions or in rooms where there is a concentration of ammable gases, fumes or dust.
WARNING!
• There may be additional protection requirements for the entire installation that the installer is responsible for maintaining.
1. Introduction
1.1 Product Compliance
1.2 Safety Informations
Care for the natural environment is of paramount importance to us. The awareness that we manufacture electronic devices obliges us
to dispose of used electronic components and devices safely. Therefore the company has received a registration number issued by the
Chief Inspector for Environmental Protection. The crossed out symbol the trash can on the product means that the product must not be
disposed of with ordinary waste containers. Sorting waste for recycling helps to protect the environment. It is the user’s responsibility
to surrender used equipment to a designated collection point for recycling waste from electrical and electronic equipment.
5
The WQ610 room thermostat simply switches the heating system on and o as necessary. It works by sensing the air temperature, switching on the he-
ating when the air temperature falls below the thermostat setting, and switching it o once this set temperature has been reached.
Turning a room thermostat to a higher setting will not make the room heat up any faster. How quickly the room heats up depends on the design of the
heating system, for example, the size of boiler and radiators. Neither does the setting aect how quickly the room cools down. Turning a room thermostat
to a lower setting will result in the room being controlled at a lower temperature, and saves energy.
The heating system will not work if a time switch or programmer has switched it o.
The way to set and use your room thermostat is to nd the lowest temperature setting that you are comfortable with, and then leave it alone to do its
job. The best way to do this is to set the room thermostat to a low temperature – say 18⁰C – and then turn it up by one degree each day until you are
comfortable with the temperature.
You won’t have to adjust the thermostat further. Any adjustment above this setting will waste energy and cost you more money.
If your heating system is a boiler with radiators, there will usually be only one room thermostat to control the whole house. But you can have dierent
temperatures in individual rooms by installing thermostatic radiator valves (TRVs) on individual radiators. If you don’t have TRVs, you should choose a
temperature that is reasonable for the whole house. If you do have TRVs, you can choose a slightly higher setting to make sure that even the coldest room
is comfortable, then prevent any overheating in other rooms by adjusting the TRVs.
Room thermostats need a free ow of air to sense the temperature, so they must not be covered by curtains or blocked by furniture. Nearby electric res,
televisions, wall or table lamps may prevent the thermostat from working properly.
Thermostat is compatibile with OpenTherm OT+ 4.0 version.
The OpenTherm protocol is an open standard communication protocol used in central heating systems for two-way communication between a central
heating boiler and a room thermostat. Thanks to the communication protocol, the boiler power is modulated, which can signicantly increase the energy
eciency of the heating system while maintaining the set temperature in the room. OpenTherm modulation, compared to standard communication (ON
/ OFF), occurs by setting the desired temperature of water from the boiler (boiler power), and not by its cyclical switching on and o.
PLEASE NOTE!
Make sure your gas combi boiler is compatible with OT + 4.0 communication protocol.
The list of compatible boilers is on the next page.
Product advantages:
- automatically detects the OT+ 4.0 protocol and regulates the DHW temperature
- possibility to choose hysteresis or built-in ITLC algorithm
- working according to time schedules
- PIN-protected service mode
- maximum/minimum temperature limit
- may temporarily change the temperature (overwriting until the next program change)
2. Product Overview
6
2.1 Example of boilers compatible with the OpenTherm OT+ 4.0 protocol
COMPANY MODEL
Alpha Heating
E-Tec S
E-tec Plus
E-tec
Evoke
Intec GS
Atag
iC
iC Economiser
iS
Baxi
100 Combi
200 Combi
400 Combi
600 Combi
Daikin
D2CND 24Kw
D2CND 28kw
D2CND 35kw
Ferroli
i25 Condensing Combination Boiler
i29 Condensing Combination Boiler
Ideal
Independent + Combi
Independent Combi
Independent System
Logic Combi+ Combi C
Logic Combi C24, C30, C35 (via a separate bundle set)
Logic Code Combi (via a separate bundle set)
I-mini C24, c30 (via a separate bundle set)
Vogue Combi C26,C32, C40
Logic + System
Logic + Heat
Intergas
Intergas Rapid
Intergas Rapid Plus
Combi Compact, Compact Range
ECO RF
Xtreme
Xclusive
Main Eco Compact Combi 25-30
Navien Navien NCB
Ravenheat
Avanta, Quinta Ace
Quinta Pro
Gas 110 Eco
Vokera
Evolve C
Evolve S
Linea One (przez OpenTherm Kit Part_1221179)
Vision Combi (requires a control interface 294501430
Compact A (requires a control interface 29450143)
Verve (only heating mode)
Mynute I (only heating mode)
Vision System (only heating mode)
Unica I
Vibe
Vision C
COMPANY MODEL
Vokera
Linea HE
Mynute A
Mynute HE
Unica HE
Viessmann
Vitodens 100W Typ WB1A (Connection: X3.3 and X3.4)
Vitodens 100W Typ WB1B (Connection: X21.1 and
X21.2)
Vitodens 100W Typ WB1C (Connection: X21.1 and X21.2)
Vitodens 200-W WB2B 26+ 35 kW (via Expansion Mo-
dule OT and OT-A8 + _Terminal -10 and +10 are on the
extension of the A8 boiler)
Vitodens 200-W WB2C, B2HA,B2JA, B2LA (via icm
Expander OpenTherm)
Vaillant
(via Vaillant
VR33 module)
Ecotec Pro
Ecotec Plus
Ecotec Exclusive
Ecot Pure
Worcester
Bosch
(via Net
EMS-OT
OpenTherm
converter)
EMS capable boilers
Greenstar i
Greenstar i Junior (Made in July 2013)
Greenstar Si Compact
Greenstar CDi Compact
Greenstar CDi Classic (Made after 16.01.2007 with
CF12.10 software version and newer)
Greenstar Highow CDi
Greenstar 12i System – 24i System (On condition that
an optional integrated diverter valve manufactured
after February 2011 is installed)
Greenstar 27i System – 30i System (Provided the optio-
nal Integrated Changeover Valve is installed Greenstar
CDi Classic System (provided the optional Integrated
Changeover Valve manufactured after 02/16/2007 with
software version CF12.10 and above is installed))
7
2.2 Package content
1) WQ610
2) Short instruction
3) Mounting screws

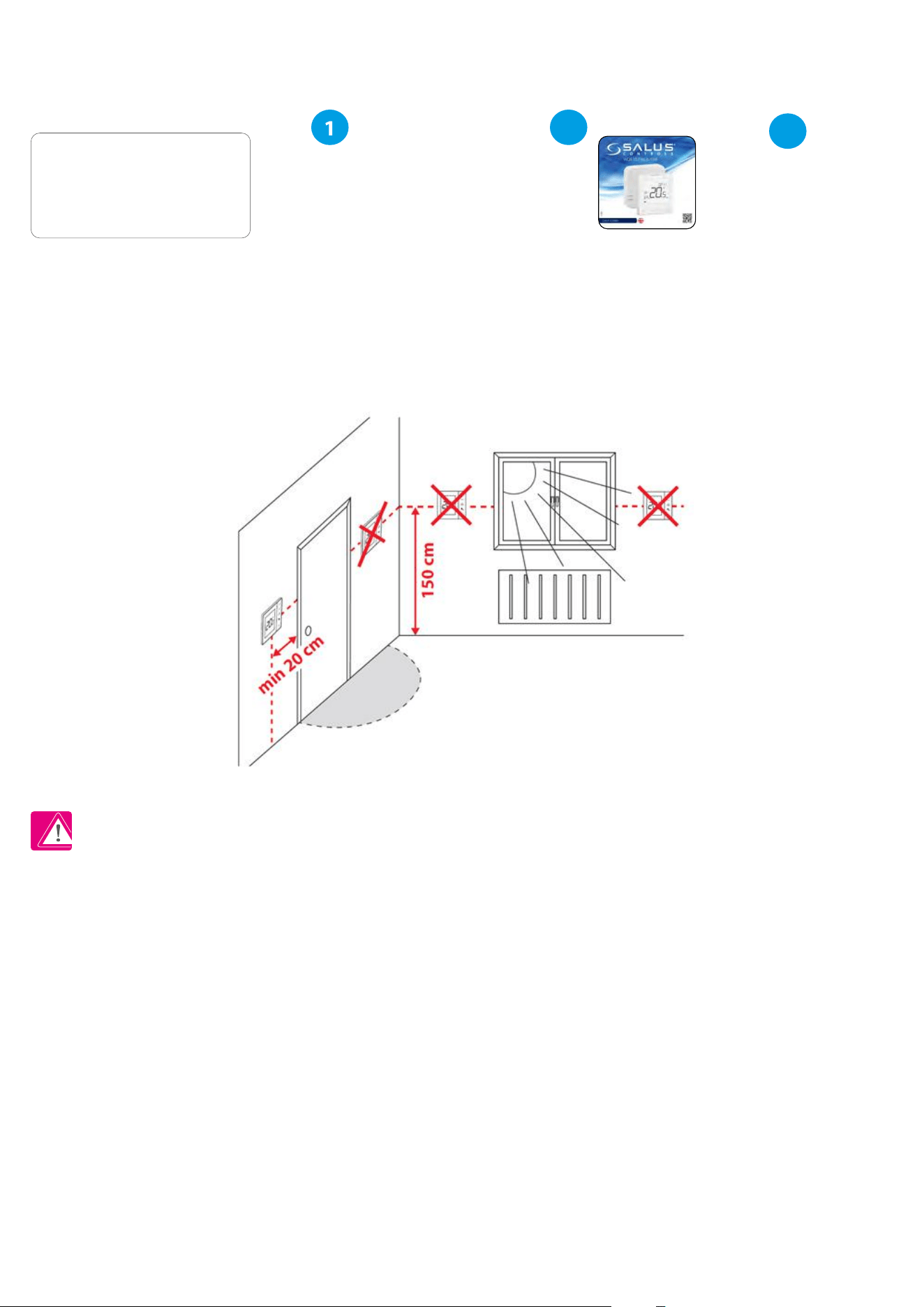

2.3 Proper thermostat location
Please note:
The ideal position to thermostat mounting is about 1,5m under oor level far from heating or cooling sources. Thermostat can’t be
exposed to sunlight or any extreme conditions like for example draft.
Because of re and explosion risk there is not allowed to use thermostat in atmosphere of explosive gases and ammable liquids (eg coal dust). In case
if any of listed dangers occur you have to use additional protection measures – anti-dust and explosive gases (tight cover) or prevent their formation.
Furthermore, thermostat can’t be used in condensation of water vapor conditions and be exposed to water action.
1 2
3
8
DO NOT connect to OpenTherm terminals unless your boiler is OpenTherm Association approved and has the OpenTherm Logo.
2.4 Connection description

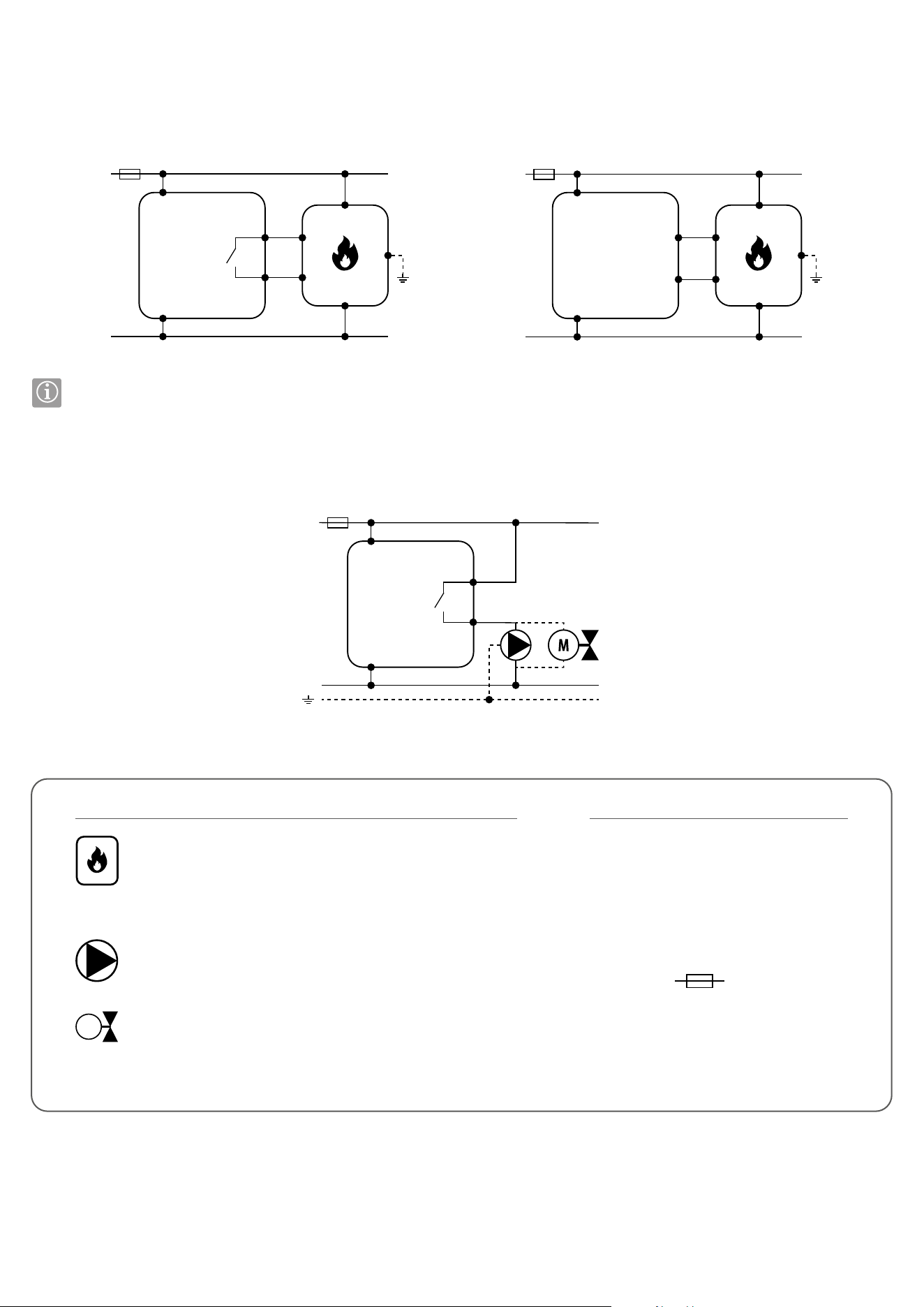

I A - Boiler connection
I B - Pump / Valve connection
NO
COM
WQ610
WQ610
BOILER CONNECTION *
B
A
WQ610
OPENTHERM*
L
AC 230V
N
N
L
L
N
N
L
L
AC 230V
N
N
L
L
N
L
AC 230V
N
MAX
3 (1) A
NO
COM
NO
COM
WQ610
WQ610
BOILER CONNECTION *
B
A
WQ610
OPENTHERM*
L
AC 230V
N
N
L
L
N
N
L
L
AC 230V
N
N
L
L
N
L
AC 230V
N
MAX
3 (1) A
NO
COM
NO
COM
WQ610
WQ610
BOILER CONNECTION *
B
A
WQ610
OPENTHERM*
L
AC 230V
N
N
L
L
N
N
L
L
AC 230V
N
N
L
L
N
L
AC 230V
N
MAX
3 (1) A
NO
COM
L, N - power supply 230V
NO, COM - voltage-free output
A, B - OpenTherm Communication Wire
- fuse
Legend:
Symbols explanation:
Valve
Pump
Boiler - Boiler connection*
- Boiler’s contacts for ON/OFF
thermostat (according to the
boiler’s instructions)
M
(ON / OFF) OpenTherm
9
3. Before you start (rst power up)
3.2 Button description

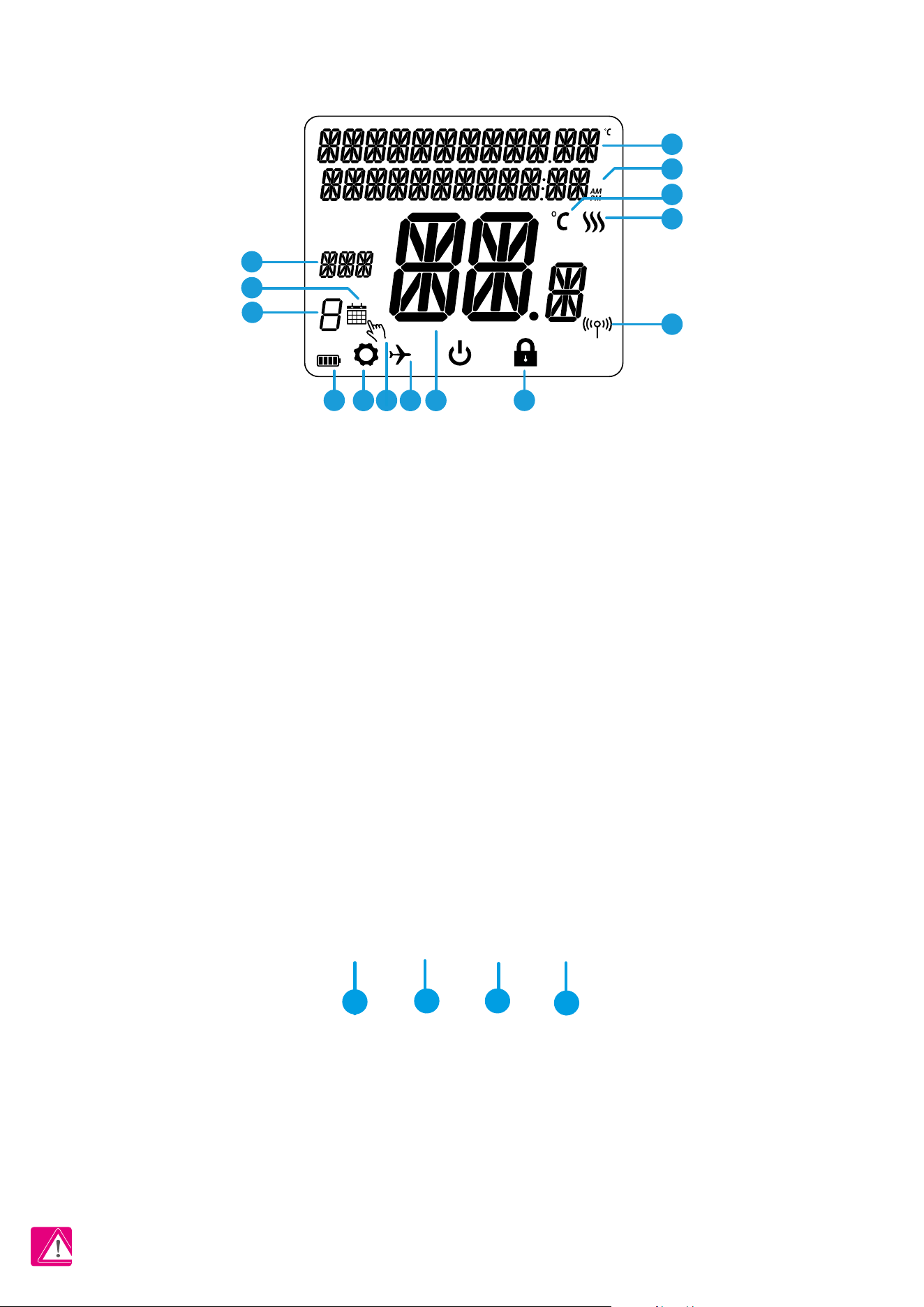

3.1 LCD icon description
1. Menu/Settings description
2. Clock 24hr/AM/PM
3. Temperature unit
4. Heating indicator (icon is animating
when there is heating demand)
5. RF Connection indicator (WQ610RF only)
6. Advanced settings lock indication
7. Current /Setpoint Temperature
8. Holiday mode indicator
9. Temporary override mode
10. Settings icon
11. Battery indicator
12. Schedule program number
13. Schedule mode icon
14. Day indicator/ SET information
PLEASE NOTE! The LCD screen can be activated by using any button.
1. MENU - enter the menu options, press and
hold for 3 seconds to return to main screen
without saving changes.
2. DOWN - decrease the temperature and
move through the menus.
3. UP - increase the temperature and move
through the menus.
4. TICK - conrm changes and enter menus.
Press and hold for 3 seconds to exit User Menu
and save changes. Press and hold to cancel
BOOST feature or temporary override (while in
main screen).
1
3
5
4
2
14
13
12
11
10
9 8 7
6
1
2 3
4
10

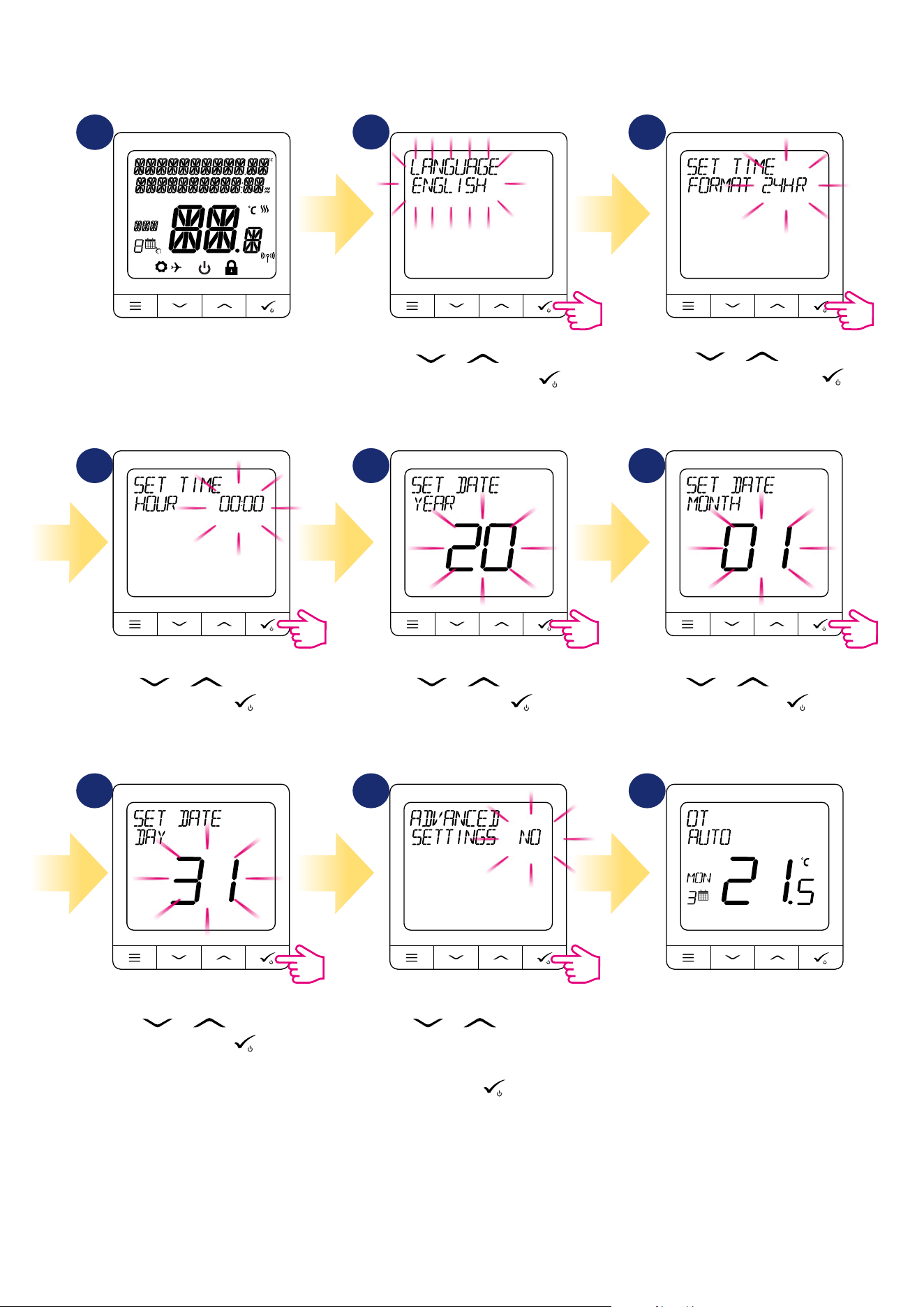

3.3 First power up sequence and conguration
Using or , choose your
language and then press .
Using
or , set the hour
and then press .
Using
or , set the day
and then press .
Using or , choose if you
want to set advanced settings (you
can always edit them later) then
press .
Thermostat is displaying main screen.
Using
or , set the year
and then press .
Using or , set the month
and then press .
Using
or , choose the
time format and then press
.
After connecting to 230V power
supply, the thermostat will power up.
2
1
4 5 6
3
7 8 9
11
4. Operating

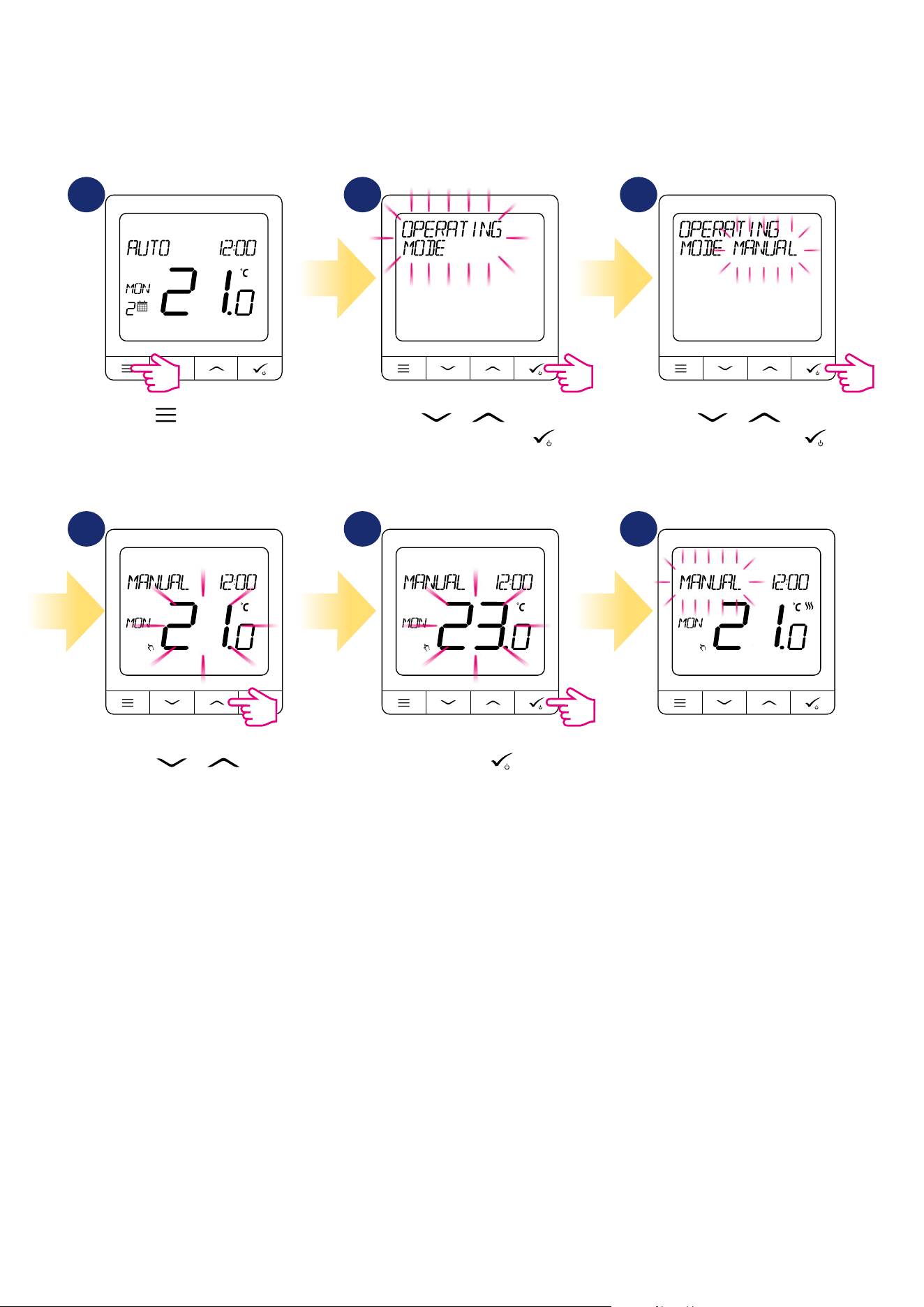

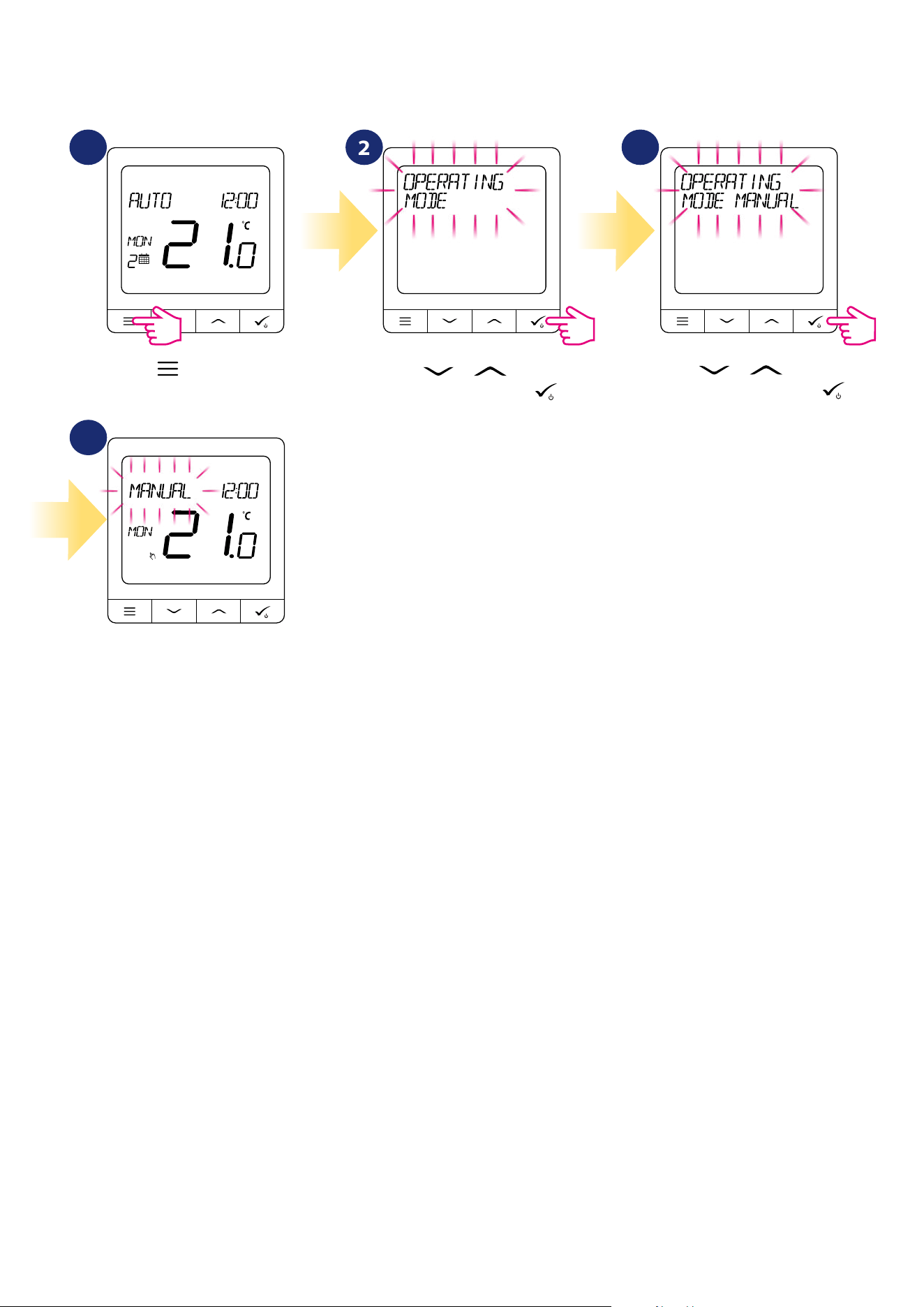

4.1 Setpoint temperature change (manual mode)
In manual mode, the thermostat maintains a constant temperature set by the user. A hand icon is displayed when manual mode is active.
1
4 5 6
2 3
Using or , choose
MANUAL and then press .
Press to enter menu. Using or , choose
parameter and then press .
Using
or , set
temperature.
Conrm by
.
Thermostat work in MANUAL mode.
12

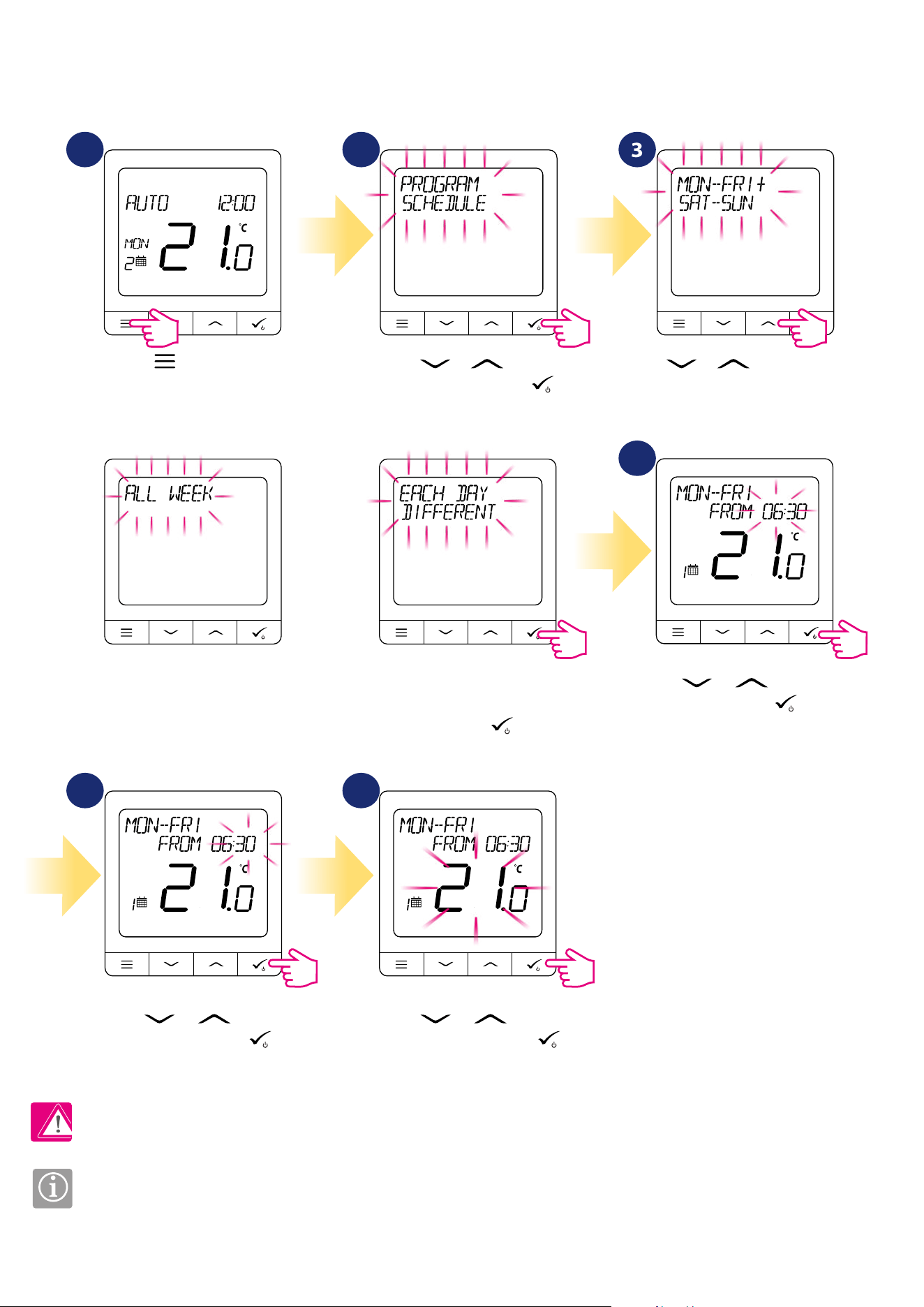

4.2 Schedule mode - programming schedule
In this mode, user can set the schedules for thermostat (temperature setpoints for specic periods of time). Programmed schedules should use all time
periods.
Using
or , select the program
type between: 5 + 2 (schedule for the
working days and for the weekend)
Each day different
(daily schedules). Confirm your
selection by
.
Using or , set the hour
and then press .
Press
to enter menu.
Using
or , set the
temperature and then press .
Using or , set the
minutes and then press .
Using
or , choose
parameter and then press .
All week
(set one schedule for the entire week)
Repeat the process for all time periods.
1 2 3
4
65
PLEASE NOTE! Thermostat should be set in AUTO mode to work according to the programmed schedule. Please refer to chapter 5.9.
13

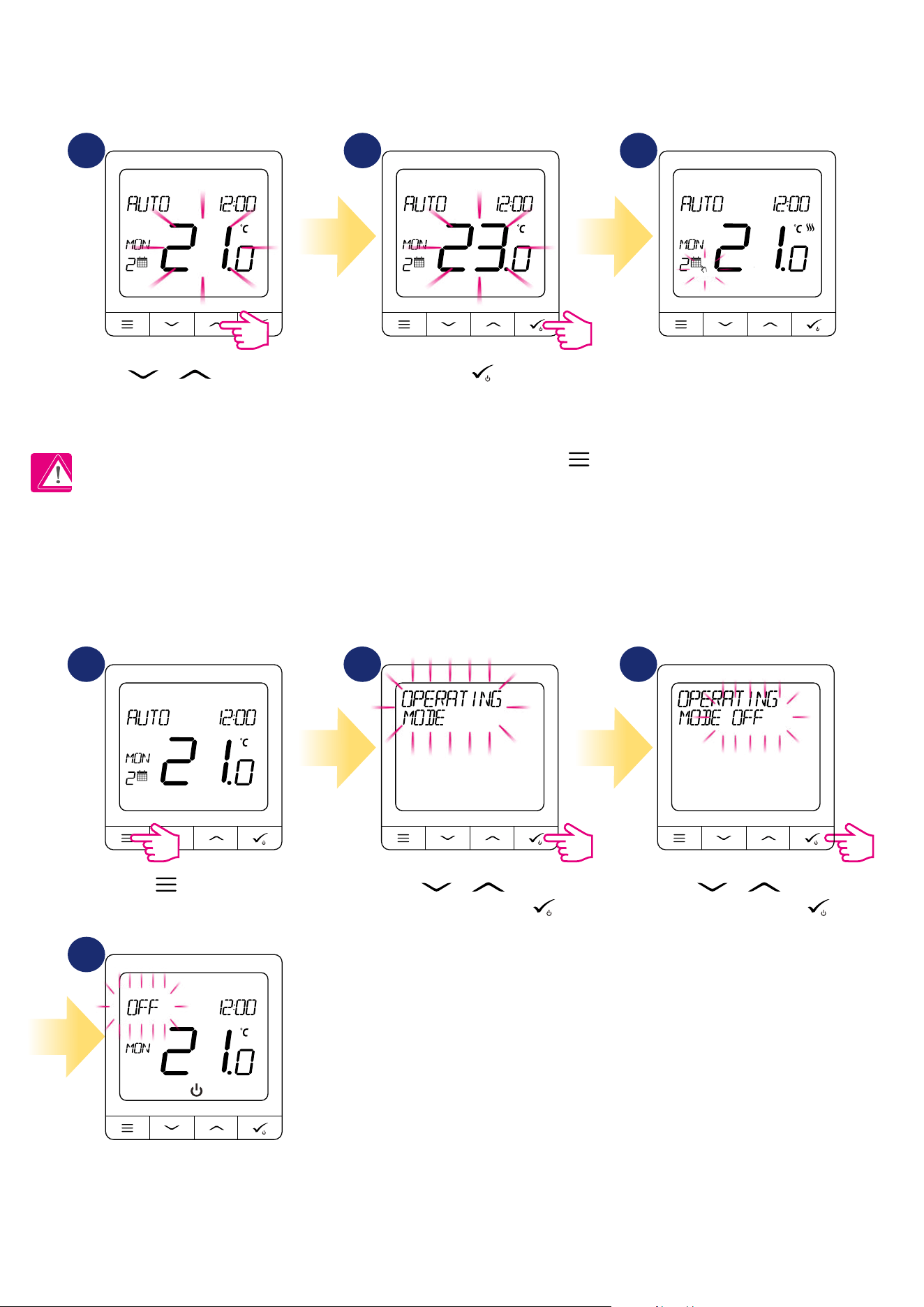

4.3 Temporary override mode
4.4 OFF mode
When thermostat is running schedule mode we can temporarily override it by setting new setpoint temperature.
In this mode thermostat is turning o and maintain frost protection temperature (please refer to 4.6.10 chapter).
Using
or , set tempera-
ture during active schedule.
Conrm by
button.
Thermostat works in temporary
override mode.
1 2 3
PLEASE NOTE: To cancel temporary override mode and go back to the schedule hold button for 3 seconds. The calendar icon indicates that
thermostat went back to schedule mode.
1 2 3
Using or , choose
OFF mode and then press .
Press to enter menu. Using or , choose
parameter and then press .
4
Thermostat works in OFF mode.
14

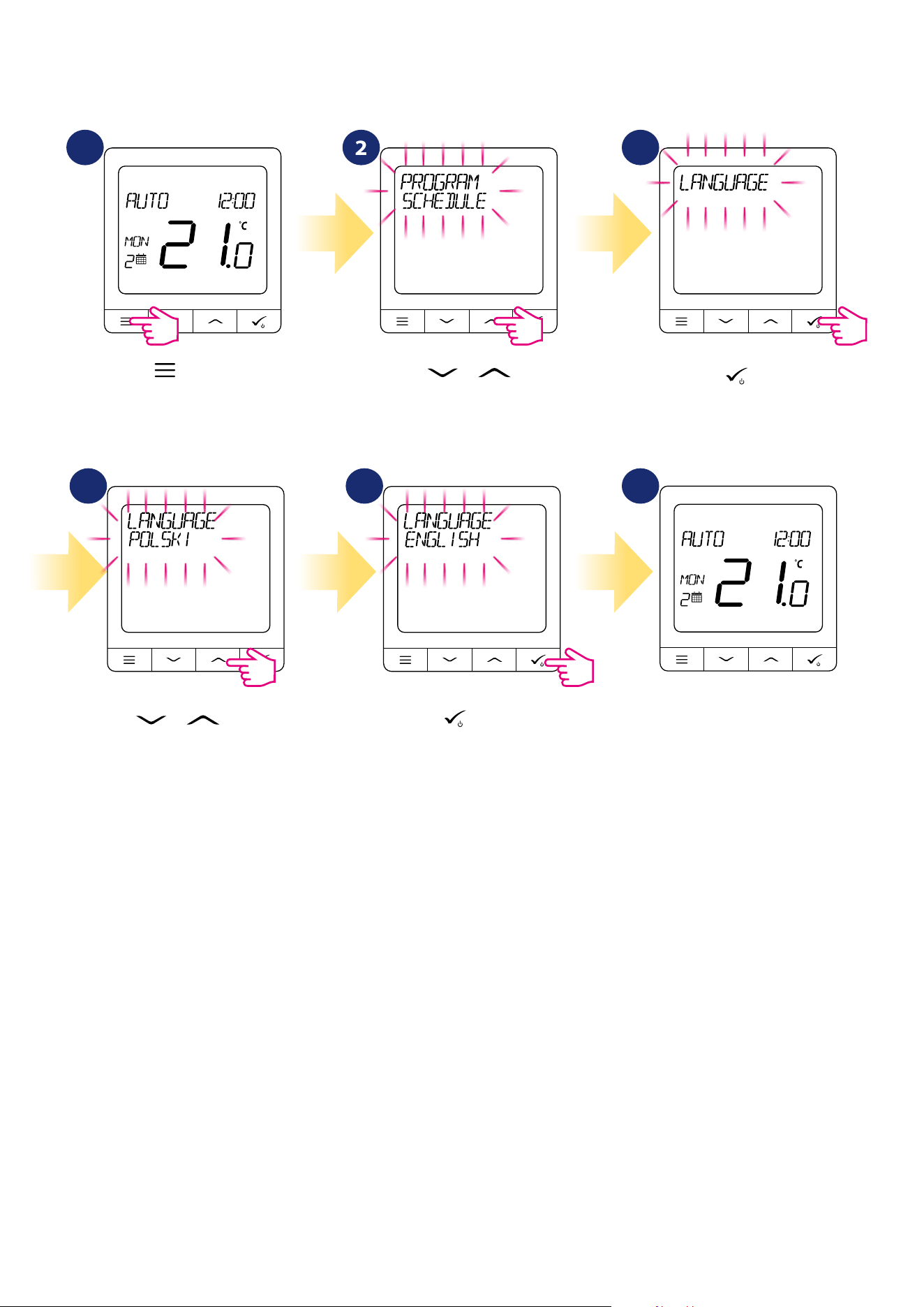

4.5 Language
To choose language follow steps below:
Using
or choose your
language.
Press
to confirm.
Thermostat will go to the main
screen with saving the changes.
3
4 5 6
Press to enter
language settings.
Press to enter menu. Using or move
between parameters.
1 2
15

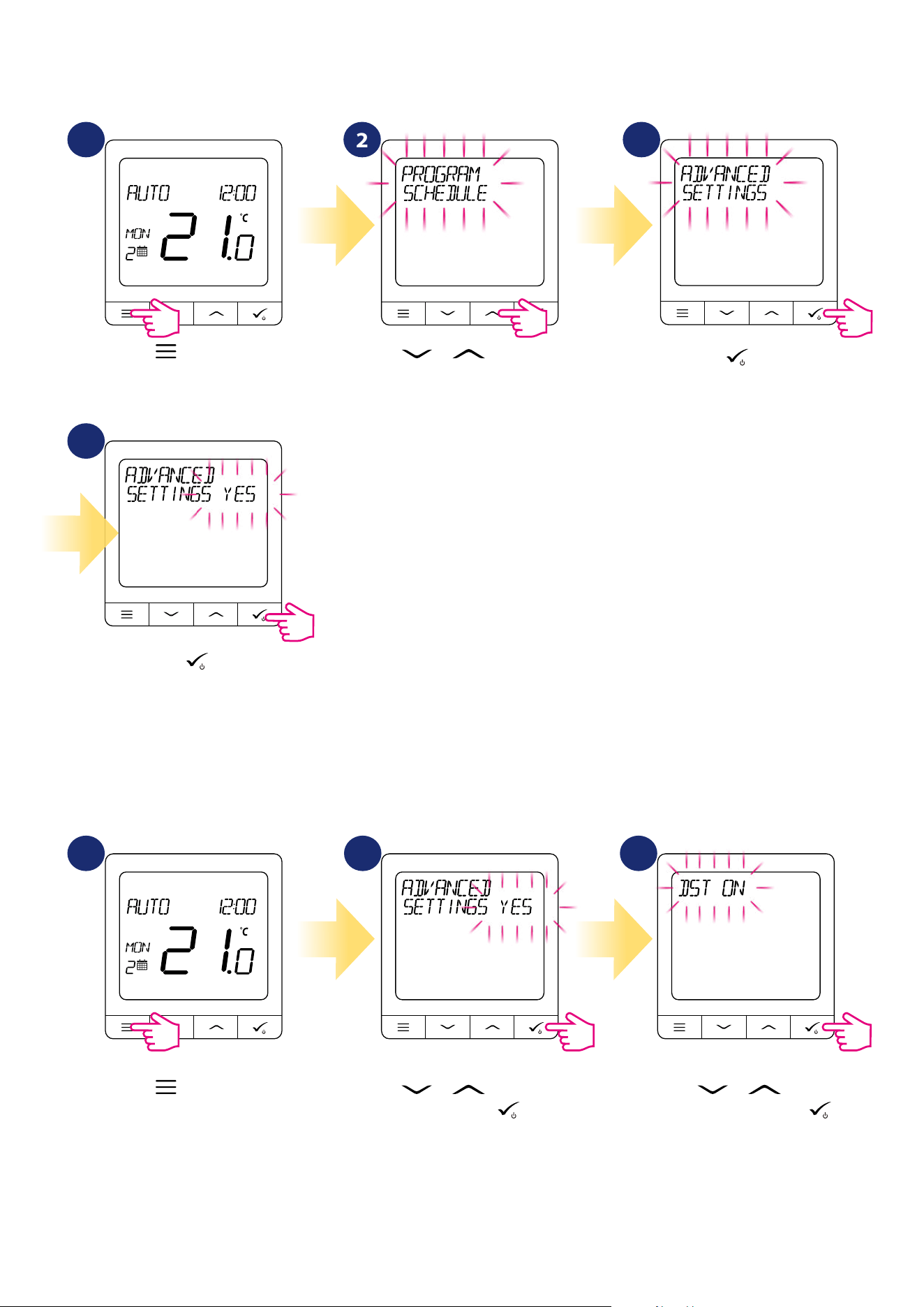

4.6 Advanced settings
4.6.1 DST (Daylight Saving Time) setting
In advanced settings user can set eg. temperature calibration, DST or PIN code etc. Remember that these are installer settings!
When DST function is ON then thermostat will automatically change time in summer time period.
3
Press . to enter
advanced settings.
Press to enter menu.
Press
to enter menu. Using or move between
parameters. Enter by button.
Using or , choose
parameter and then press .
Enter by
button.
Using
or move between
parameters.
1
1 2 3
4
2
16

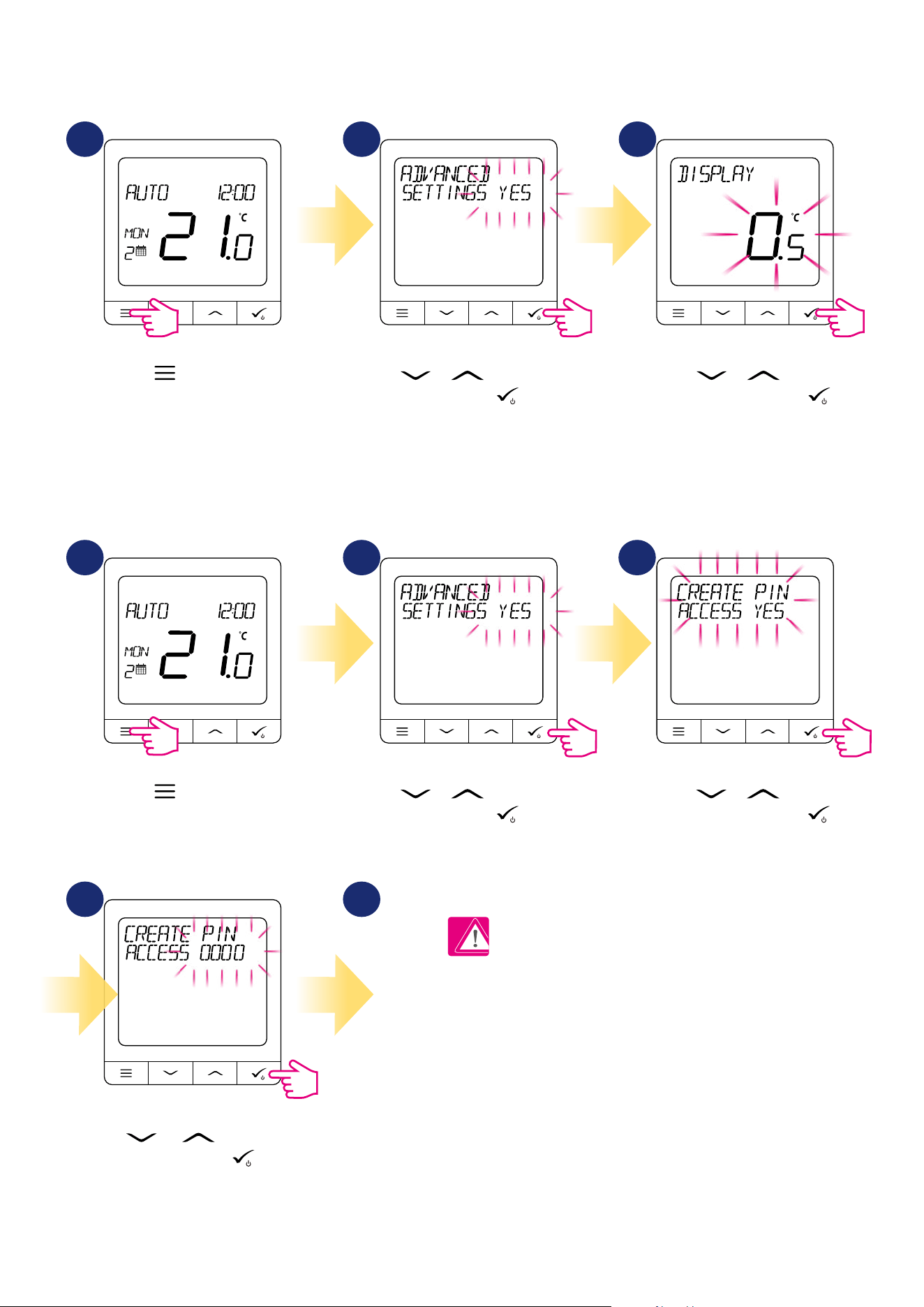

4.6.2 Display temperature accuracy
4.6.3 PIN Code
Adjust the measured thermostat temperature display scale for about 0,5 °C or 0,1 °C. Please follow steps below:
Set PIN code to lock possibility to control the thermostat until you enter the code.
Press to enter menu.
Press
to enter menu.
Using
or move between
parameters. Enter by button.
Using
or move between
parameters. Enter by button.
Using
or set PIN code.
Conrm each number by button.
Note: The rst PIN code entry is also
the setting of a NEW PIN CODE which
must be entered each time to enter
the ADVANCED (Admin) menu.
Using
or , choose
parameter and then press .
Using
or , choose
parameter and then press .
1
1
4 5
2
2 3
3
Please remember to write
down your pin code so that
you can use the thermostat
without any hassle from
losing it.
17

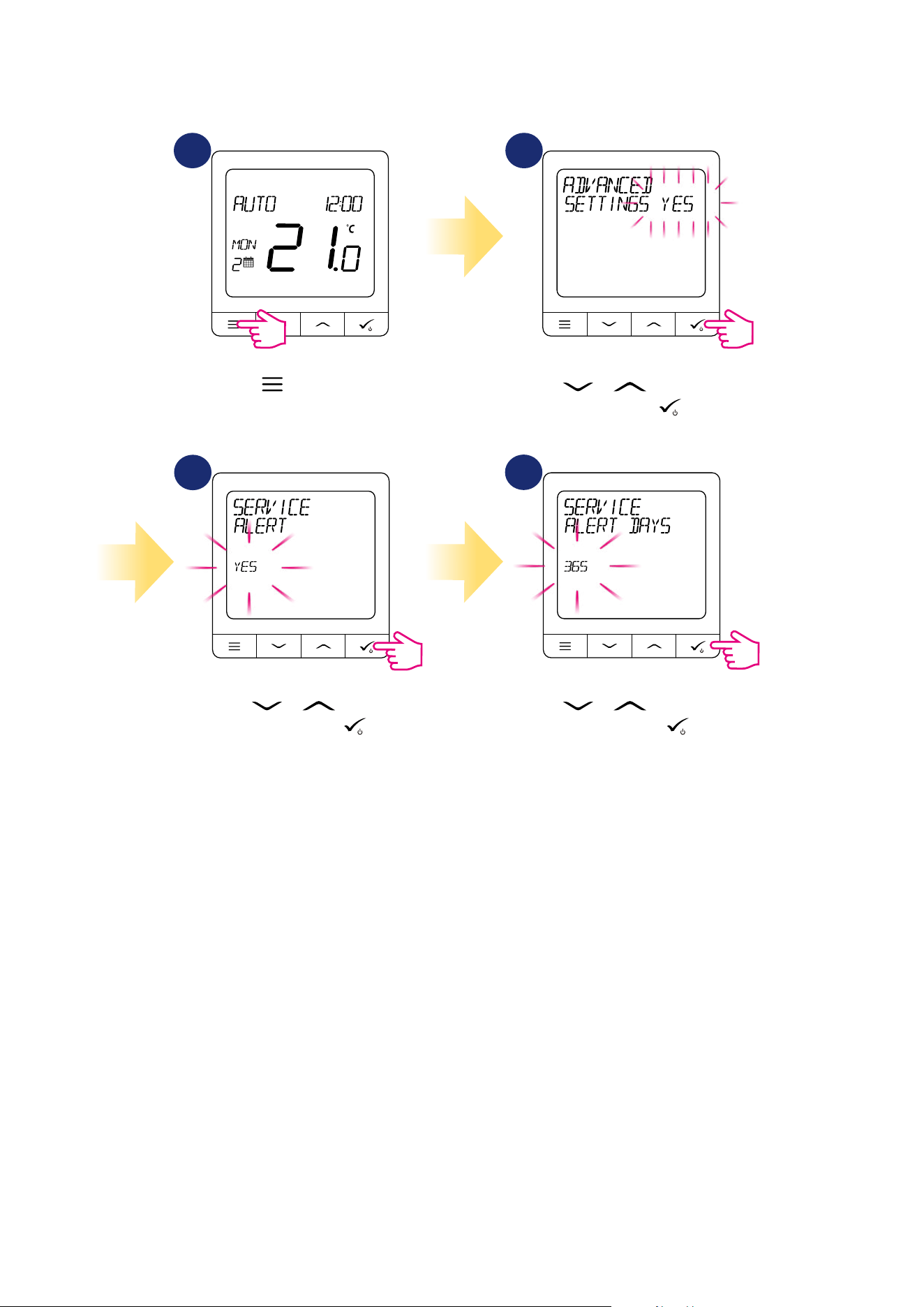

4.6.4 Service alert
Set a service reminder on the thermostat that will warn the tenant when the boiler is due its annual service.
Press to enter menu.
Using
or move between
parameters. Conrm by button.
Using
or move between
parameters. Enter by
button.
Using
or , choose
YES and then press .
1 2
3
4
18

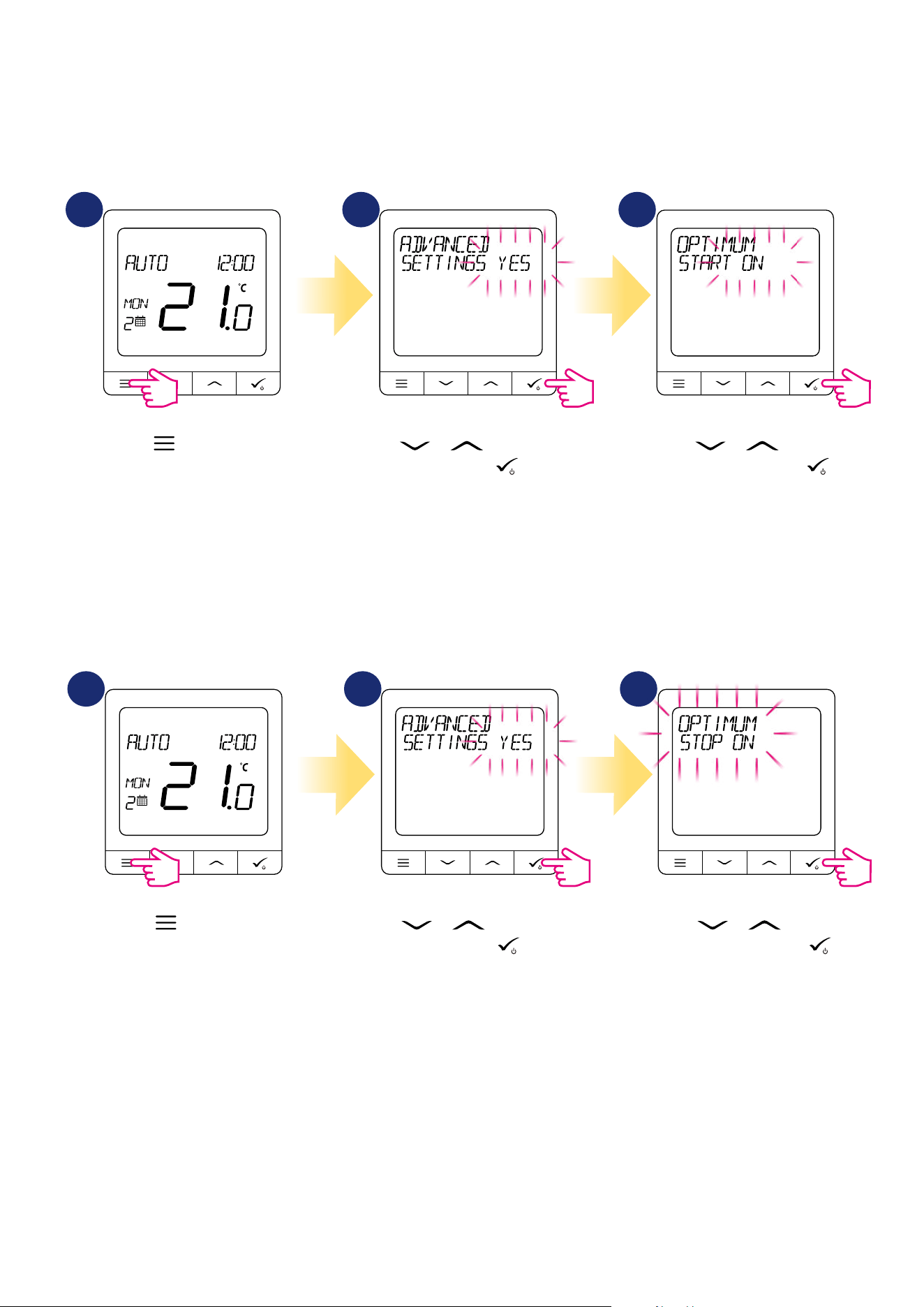

4.6.6 Optimum Stop
When the OPTIMUM STOP function is active, the thermostat, taking into account the inertia of the system, switches o the heat source earlier,
keeping the temperature set in the schedule.
Press to enter menu. Using or move between
parameters. Enter by button.
Using or , choose
parameter and then press .
1 2 3
4.6.5 Optimum Start
The optimization function is an energy-saving algorithm used for ecient control of the heating device, ensuring better thermal comfort at certain
times of the day. When the OPTIMUM START function is active, the thermostat sends a heating signal to the heat source beforehand so that the preset
temperature in the room is reached at the time specied in the schedule.
Press to enter menu. Using or move between
parameters. Enter by button.
Using or , choose
parameter and then press .
1 2 3
19

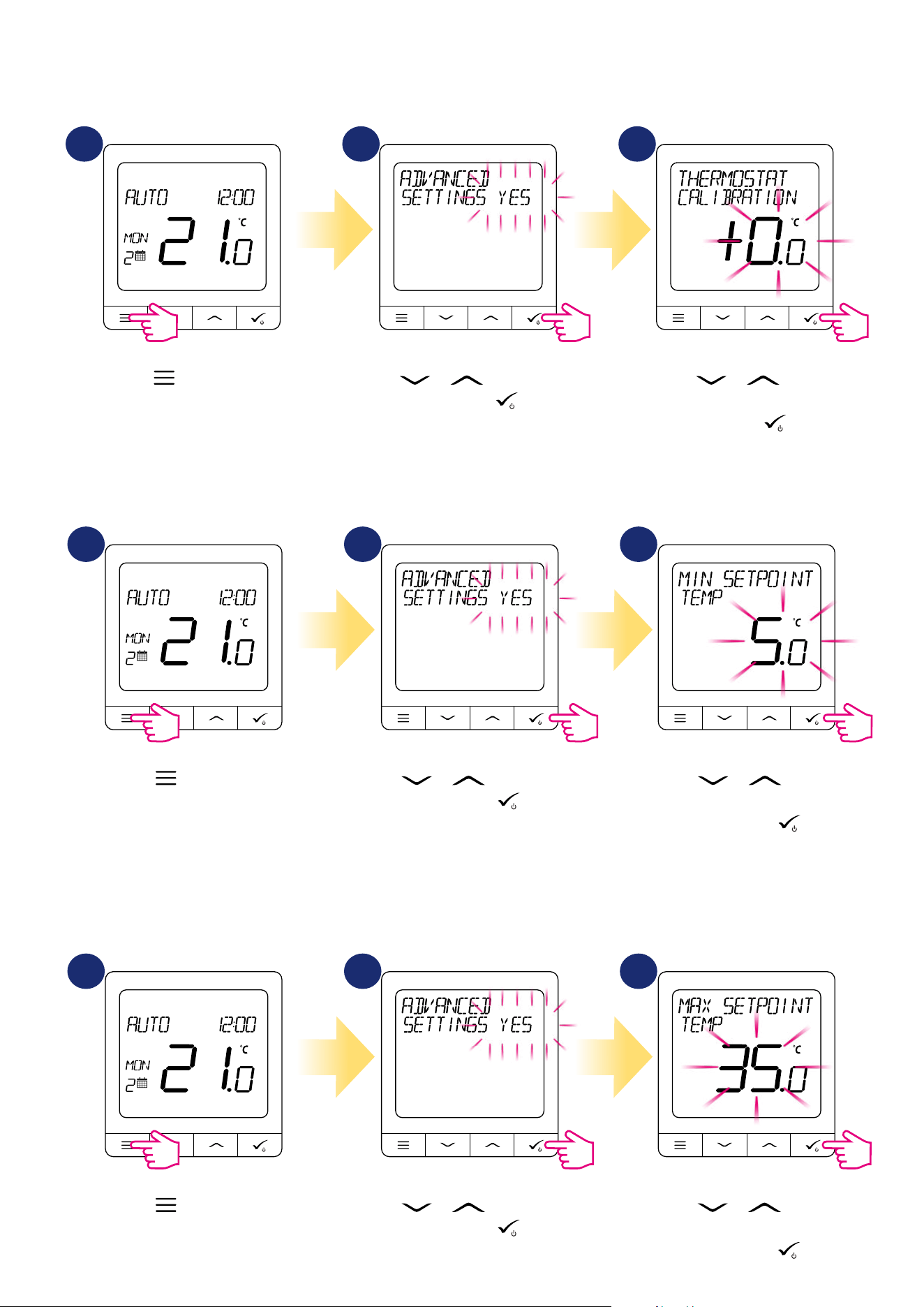

4.6.8 Minimum setpoint temperature
4.6.9 Maximum setpoint temperature
This parameter allows to limit temperature setpoint range by setting minimum setpoint for heating mode. Default temperature setting range: 5⁰C - 35⁰C
This parameter allows to limit temperature setpoint range by setting maximum setpoint for heating mode. Default temperature setting range: 5,5⁰C -
35,0⁰C
Press to enter menu.
Press
to enter menu.
Using
or move between
parameters. Enter by button.
Using
or move between
parameters. Enter by button.
Using or , choose
maximal temperature setpoint value
and then press .
Using
or , choose
minimal temperature setpoint value
and then press .
1
1
2
2 3
3
4.6.7 Thermostat temperature calibration
Thermostat calibration is a function which allows user to recalibrate internal thermostat’s temperature sensor by a given number of degrees (in the range
from -3,5 °C to 3,5 °C). To calibrate thermostat’s temperature sensor please follow steps below:
Press to enter menu. Using or move between
parameters. Enter by button.
Using or , choose
temperature calibration value and
then press .
1 2 3
20

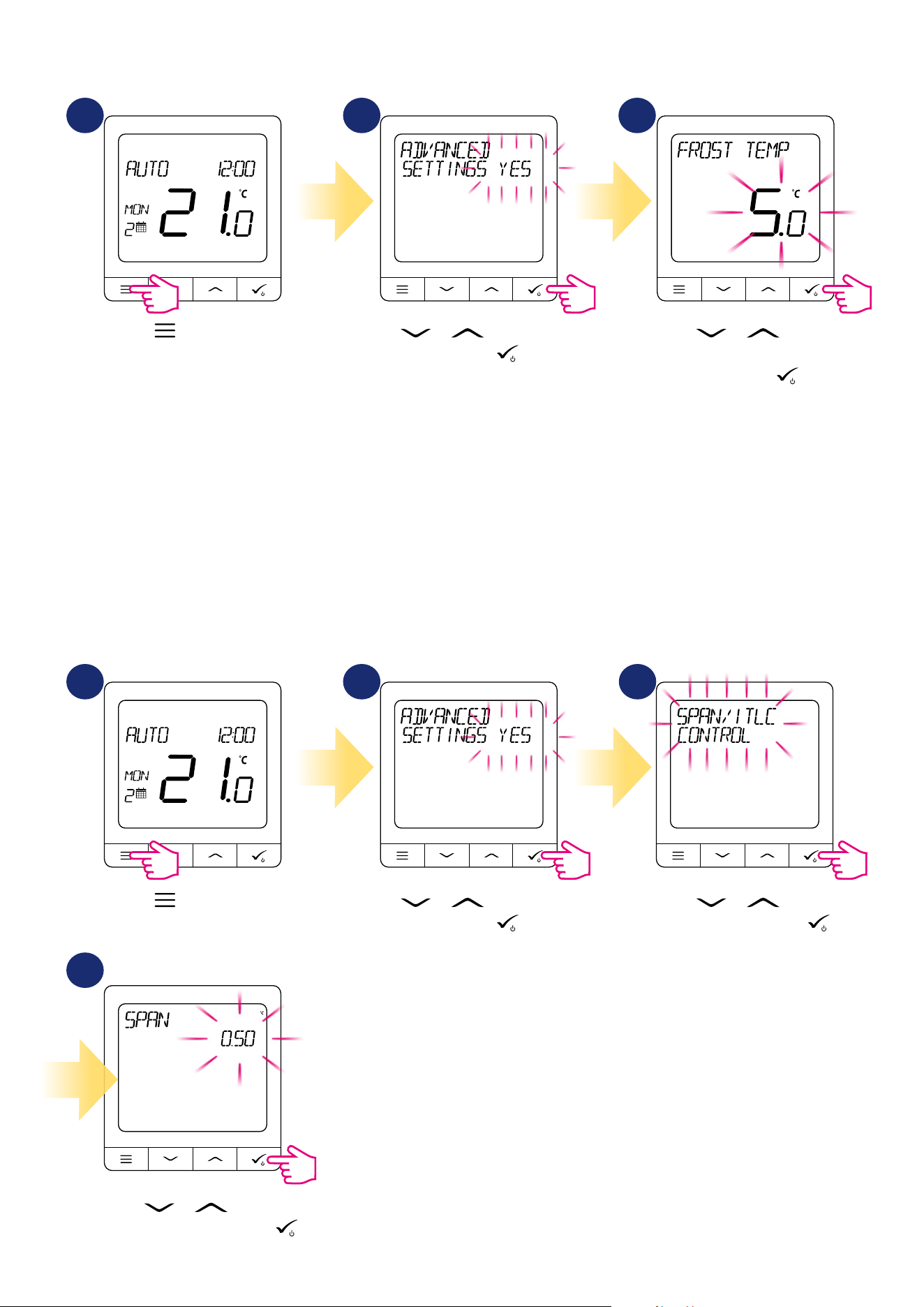

4.6.10 Frost protection temperature
4.6.11 Control algorithm
Set temperature for frost protection mode.
Set control algorithm: ITLC for radiators, SPAN (hysteresis) 0,5°C or SPAN (hysteresis) 0,25°C.
ITLC is a self-learning, time-proportional control algorithm. The regulation of the ITLC type ensures economical operation system due to more precise
temperature maintenance during the controlling process In addition to an accurate and stable room temperature, the advantage of this system is the
minimization of energy consumption and signicant savings.
Hysteresis is the temperature dierence between which the thermostat works, keeping the set temperature. For example, if you set the temperature to
20°C and if the hysteresis is ± 0.5°C, the heating will be turned on when the room temperature drops to 19.5°C and turned o when the temperature
reaches 20.5°C.
Press to enter menu.
Press
to enter menu.
Using
or , choose
control algorithm and then press .
Using
or move between
parameters. Enter by
button.
Using
or move between
parameters. Enter by button.
Using or , choose
parameter and then press .
Using
or , choose
frost protection temperature value
and then press .
1
1
4
2
2 3
3
21

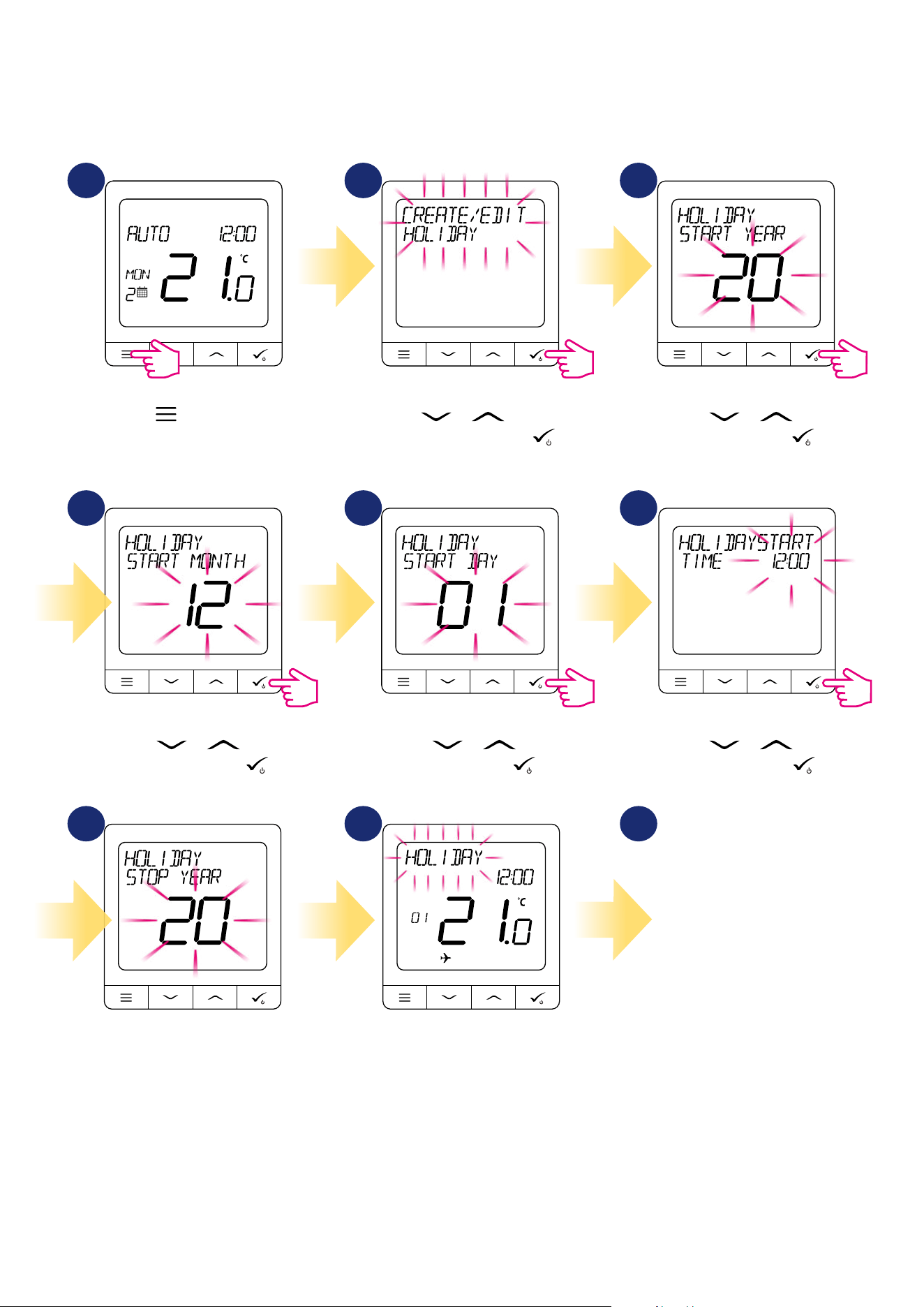

4.7 Holiday mode
Holiday mode is a special program temperature setpoint which thermostat will maintain for specied days. During holiday mode thermostat is mainta-
ining frost protection setpoint temperature. How to set HOLIDAY MODE:
Press to enter menu. Using or , choose
parameter and then press .
Using or , set
year and then press .
Using
or , set
month and then press .
Now do steps from 3-6 to set when
holiday mode should stop.
Using or , set
day and then press .
Thermostat will work in Holiday
Mode during set period of time.
To cancel holiday mode you have
to go to main menu and choose
“CANCEL HOLIDAY” option and
confirm.
Using or , set
time and then press .
1
4
7
2
5
8 9
3
6
22

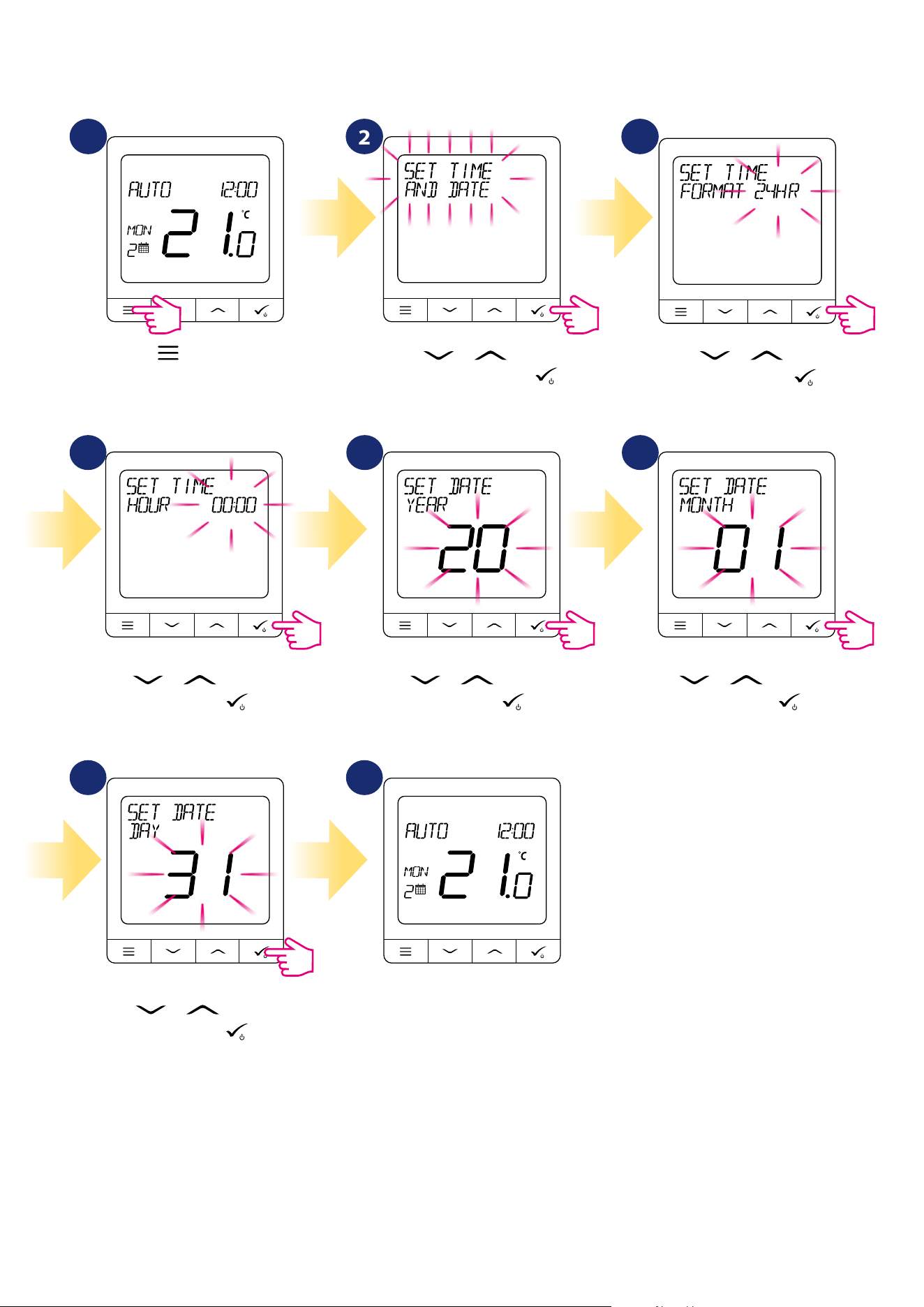

4.8 Time/Date
To set time/date follow steps below:
1 2 3
Press to enter menu. Using or , choose
parameter and then press .
Using or , choose
the time format. Press
to
conrm.
Using
or , set the hour
and then press
.
Using
or , set the month
and then press
.
Using
or , set the day
and then press
.
Thermostat will go to the main screen
with saving all the settings.
Using
or , set the year
and then press
.
4 5 6
7 8
23

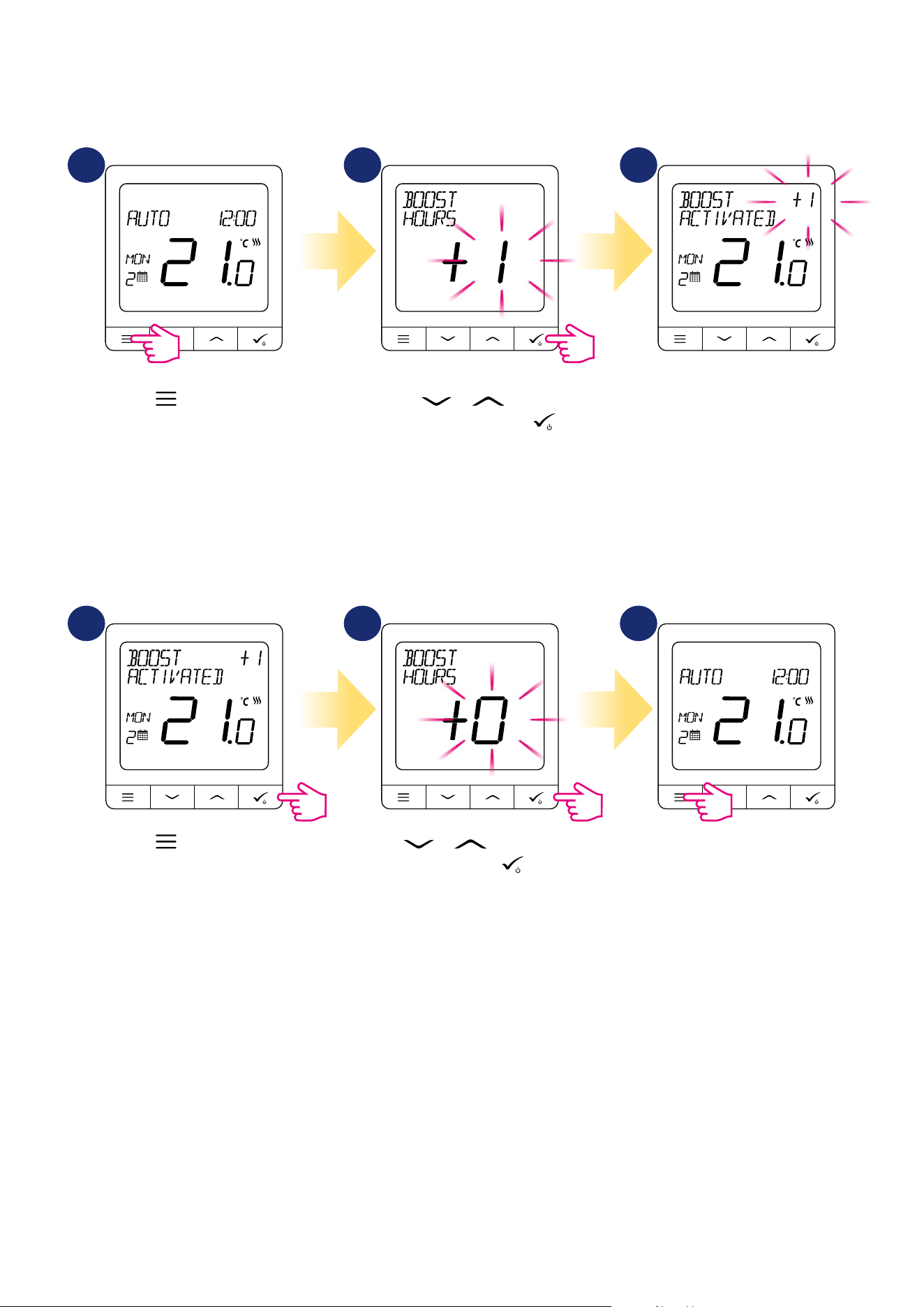

4.9 BOOST hours - hourly temperature override
The function is available only in AUTO and OFF modes. Used to change the temperature to the desired value for a specied number of hours (up to 9 hours).
After the elapsed time, the thermostat returns to the previous operating mode.
How to stop BOOST mode:
1
1
2
2 3
3
Press to enter menu.
Press
to enter menu. Using or , set value to 0
and then press .
Thermostat will go back to work in
previous mode.
Using
or , choose
hour value and then press
.
Thermostat is working in BOOST
mode for selected time.
24
4.10 Operating mode
Select operating mode for thermostat: Manual mode, AUTO mode or OFF.
1 2 3
Using or , choose
selected mode and then press .
4
Thermostat will work in selected
mode (AUTO, Manual or OFF).
Press
to enter menu. Using or , choose
parameter and then press .
25

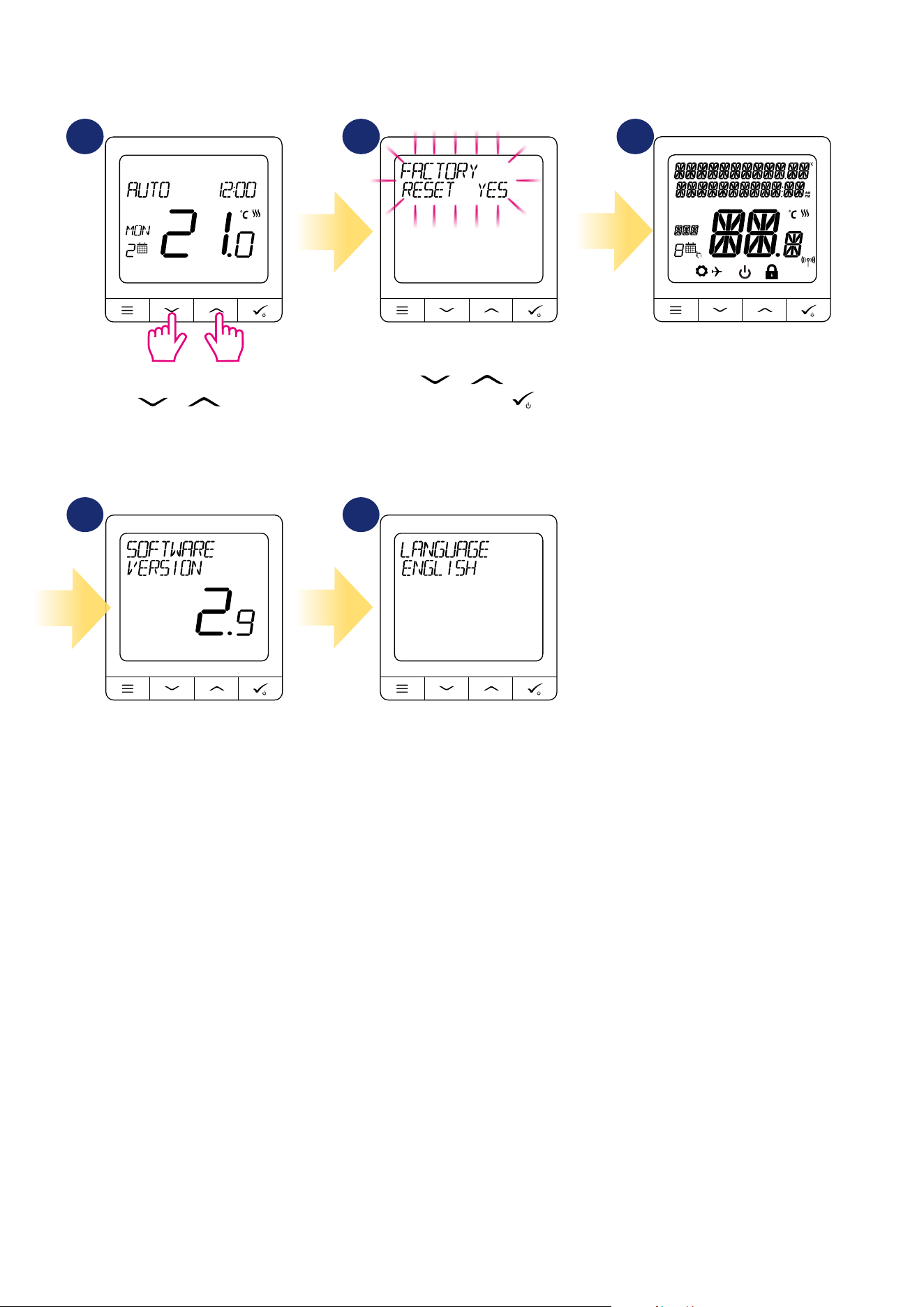

5. Factory Reset
Using or , choose
YES and then press .
It will display rmware version... ...and then it will go through all start
settings.
Thermostat has been reseted.To reset the thermostat press and hold
together + buttons for 5
seconds.
To RESET WQ610 thermostat to it’s factory default settings please follow steps below:
1 2
54
3
26
Thermostat will display errors only when it’s connected to the boiler by OPENTHERM terminals (A / B). Please refer then to boiler manual. Each
boiler can have dierent error codes.

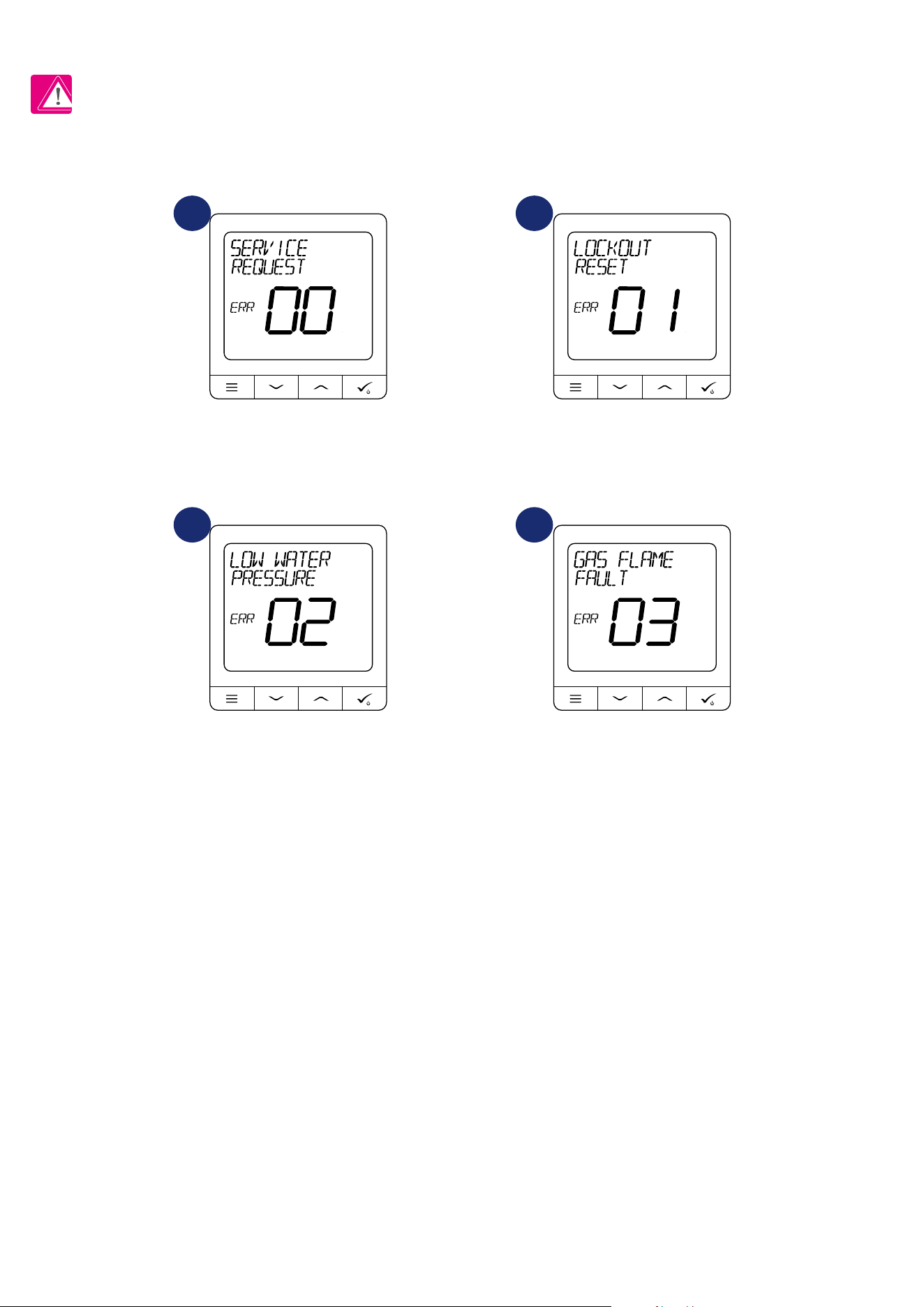

ERRORS EXAMPLES:
1 2
43
6. Error codes
SERVICE REQUEST ERROR LOCKOUT RESET ERROR
LOW WATER PRESSURE ERROR GAS FLAME FAULT ERROR
27
Power supply 230V AC 50Hz
Rating max 3(1)A
Output signal
OpenTherm or
COM/NO relay
Temperature range 5 - 35°C
Display temperature accuracy 0.1°C or 0.5°C
Control algorithm ITLC or ±0.25°C or ±0.5°C
Communication Wired
Dimension [mm] 86 x 86 x 28
The WQ610 thermostat requires no special maintenance. Periodically, the outer casing can be wiped clean using a dry cloth (please DO NOT use solvents,
polishes, detergents or abrasive cleaners, as these can damage the thermostat). There are no user serviceable parts within the unit; any servicing or
repairs could only be carried out by Salus Controls or their appointed agents.
7. Cleaning and Maintenance

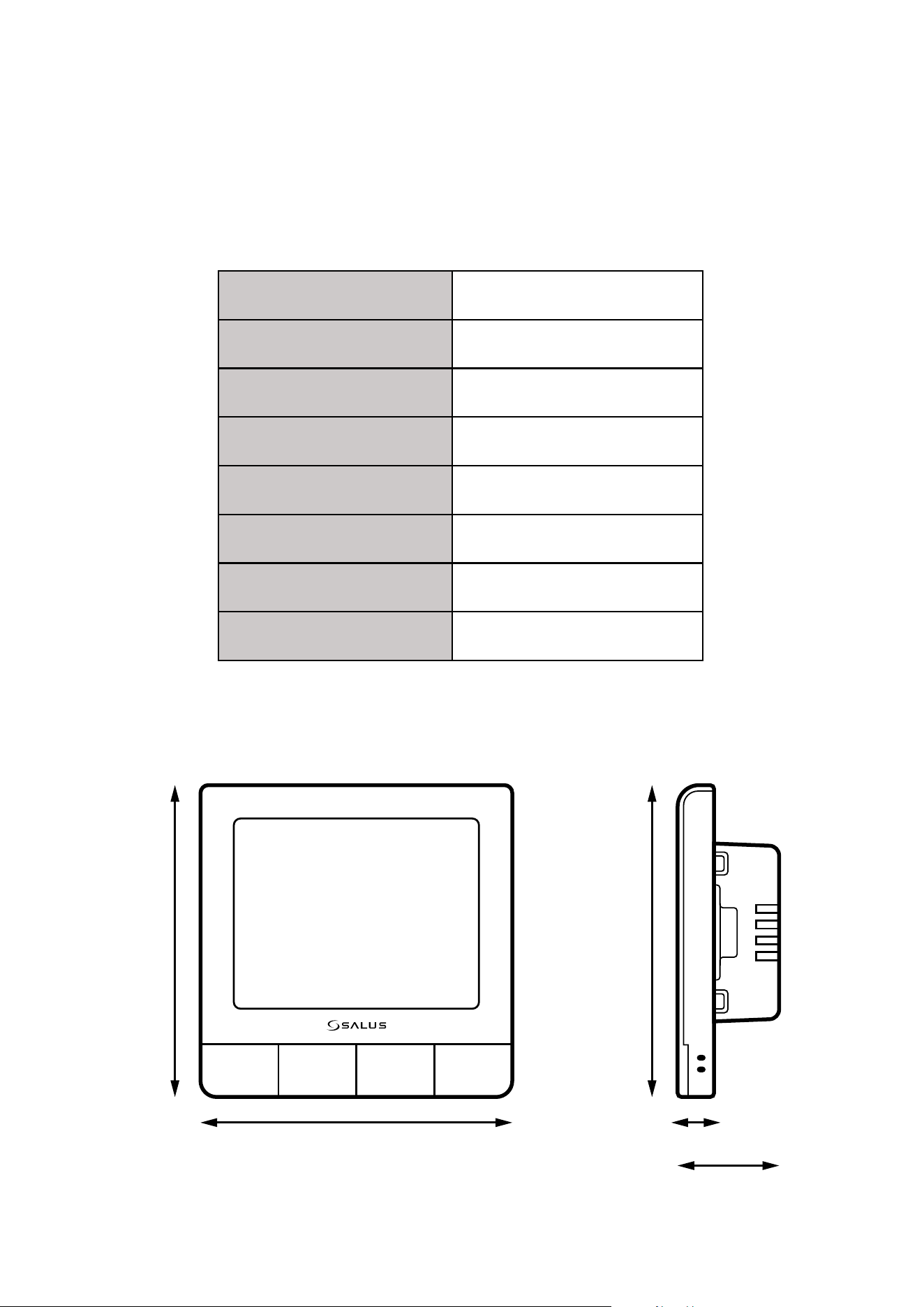

8. Technical Informations
86 mm
28 mm
10 mm
86 mm 86 mm
28
9. Warranty
SALUS CONTROLS warrants this product to be free from any defects in material or workmanship and to perform as specied for a period of ve years from
the date of installation. SALUS CONTROLS reserves the sole responsibility for breach of this warranty by repairing or replacing the defective product. This
product includes software that matches the distributor’s identication at the time of sale. The manufacturer / distributor provides a guarantee covering
all functions and specics of the product in accordance with this marking. The distributor’s warranty does not cover the correct operation of the functions
and features available as a result of a product software update.
The full warranty conditions are available at www.salus-controls.eu
30
PRODUCER:
Salus Limited
6/F, Building 20E, Phase 3, Hong Kong
Science Park, 20 Science Park East Avenue,
Shatin, New T
erritories, Hong Kong
www.saluscontrols.com
SALUS Controls is a member of the Computime Group.
Maintaining a
policy of continuous product development SALUS Controls plc reserve the right to change
specification, design and materials of products listed in this brochure without prior notice.
Ver. 5
Issued: 04 V 2021
Soft version: 2.9
