Hikvision DS-2CD2H55FWD-IZS User Manual
Hikvision DS-2CD2H55FWD-IZS 5 MP Varifocal Turret Network Camera
User Manual
For DS-2CD2H55FWD-IZS.
PDF File Manual
,
191 pages
,
Read Online
|
Download pdf file
Chapter 1 System Requirement
Chapter 2 Network Connection
2.1 Setting the Network Camera over the LAN

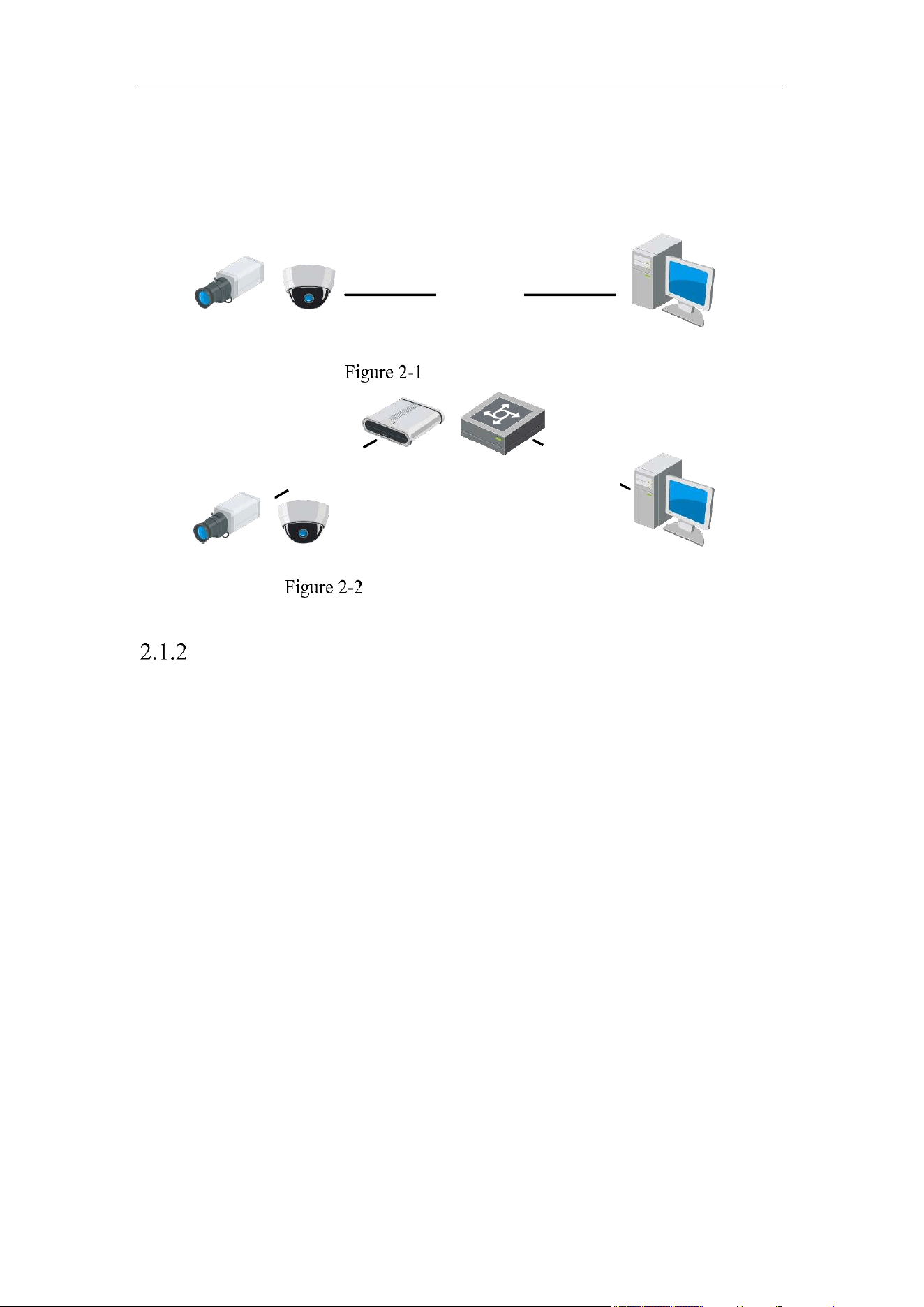

2.1.1 Wiring over the LAN

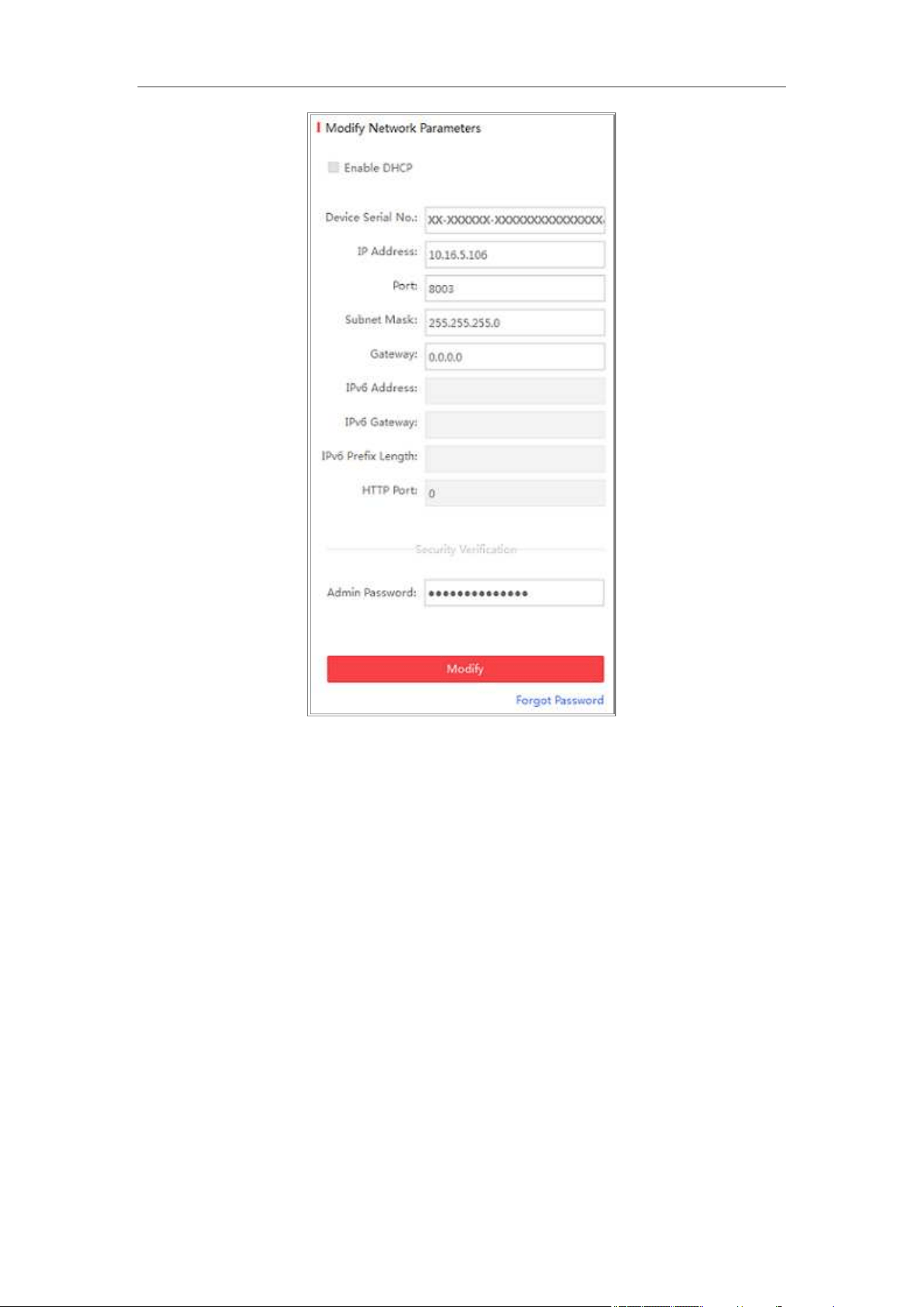

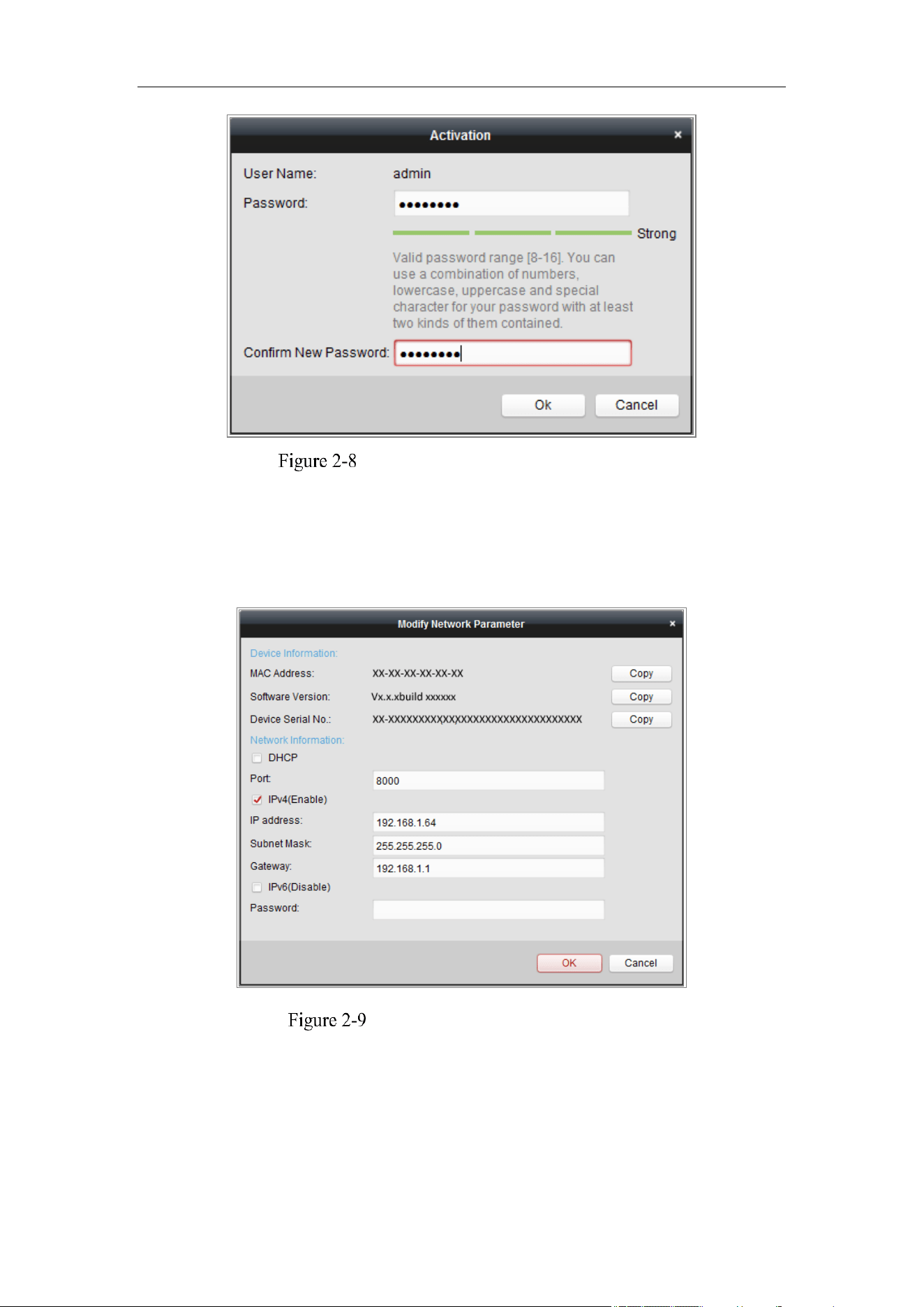

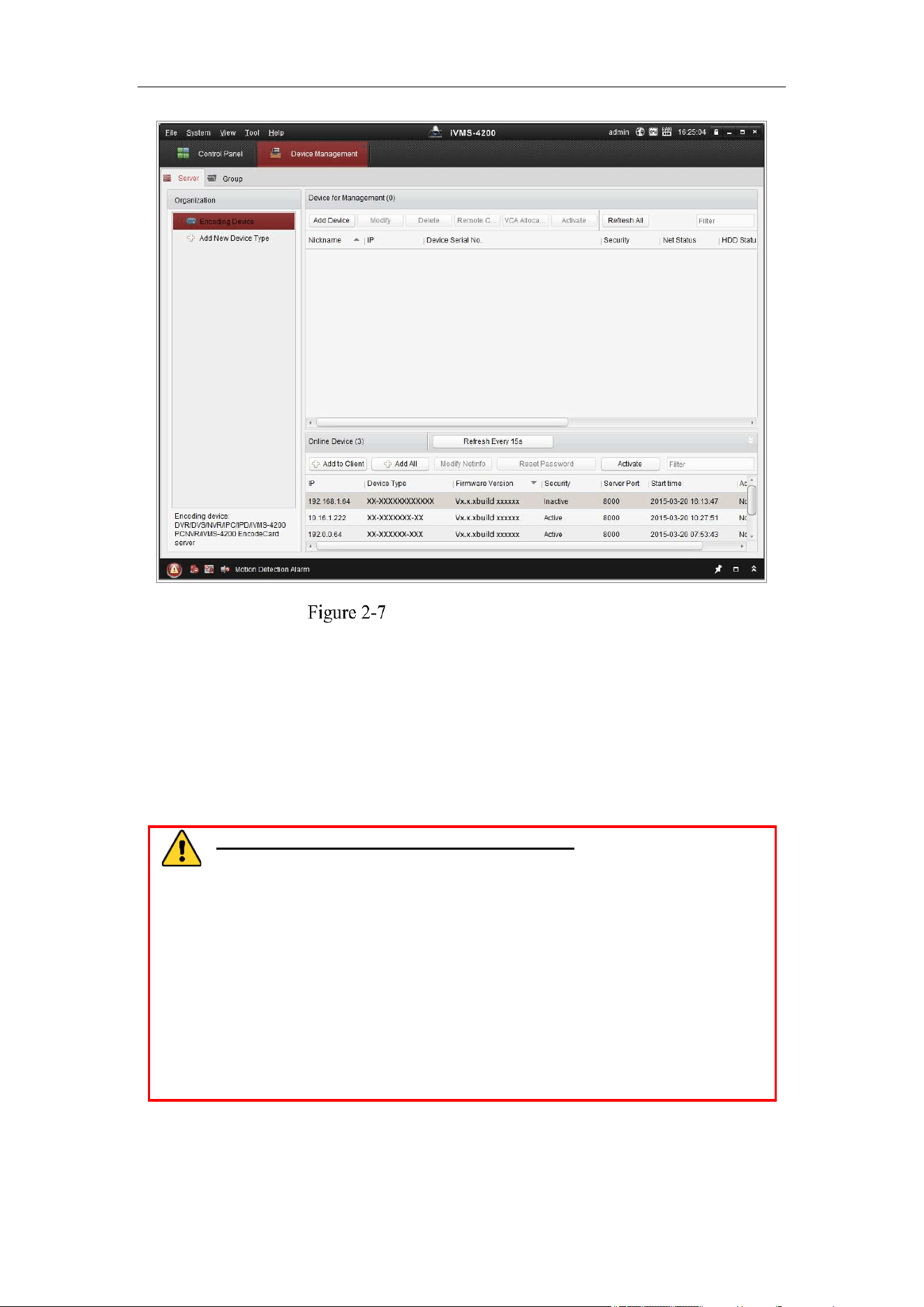

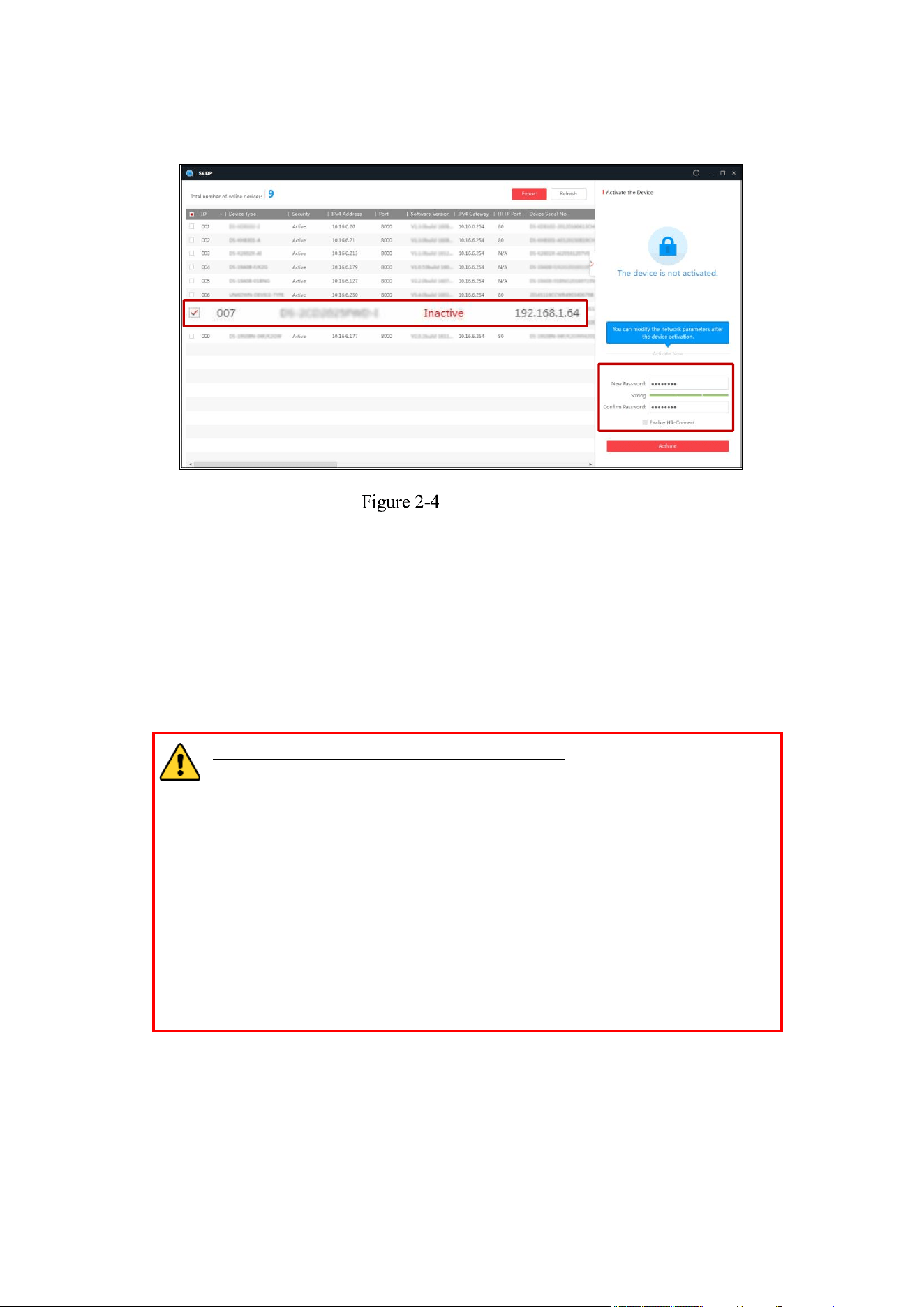

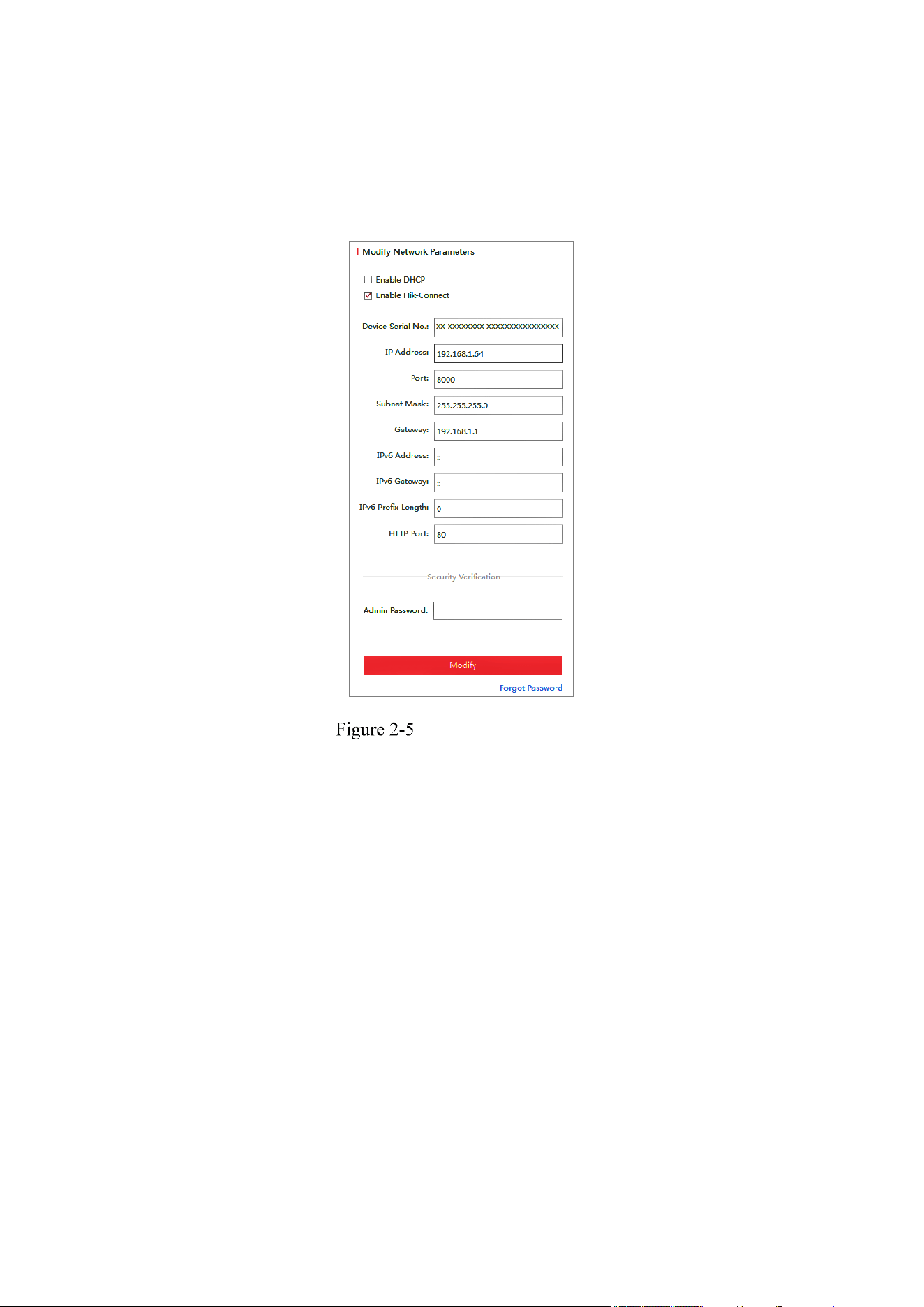

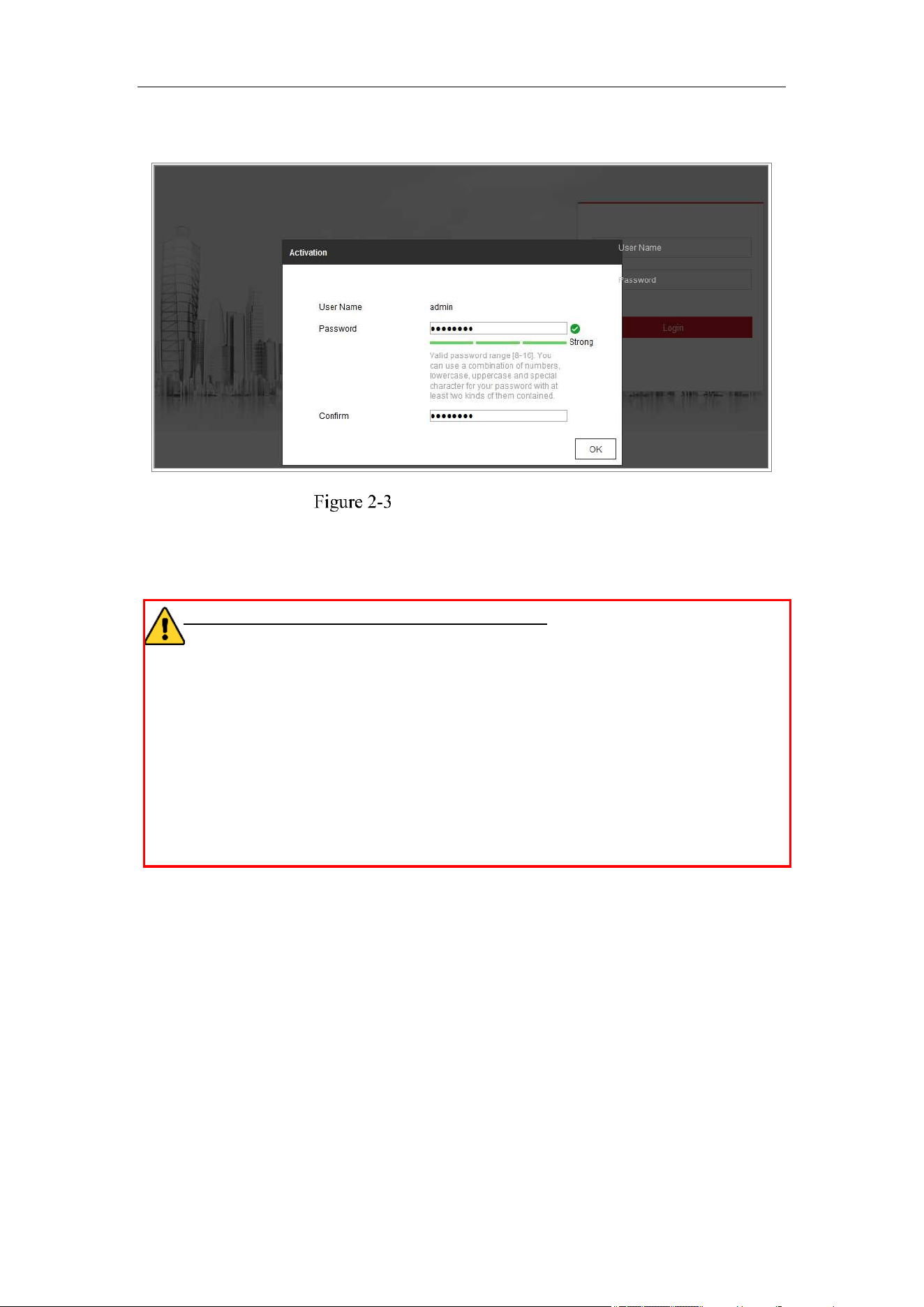

2.1.2 Activating the Camera
2.1.3 (Optional) Setting Security Question
2.2 Setting the Network Camera over the WAN

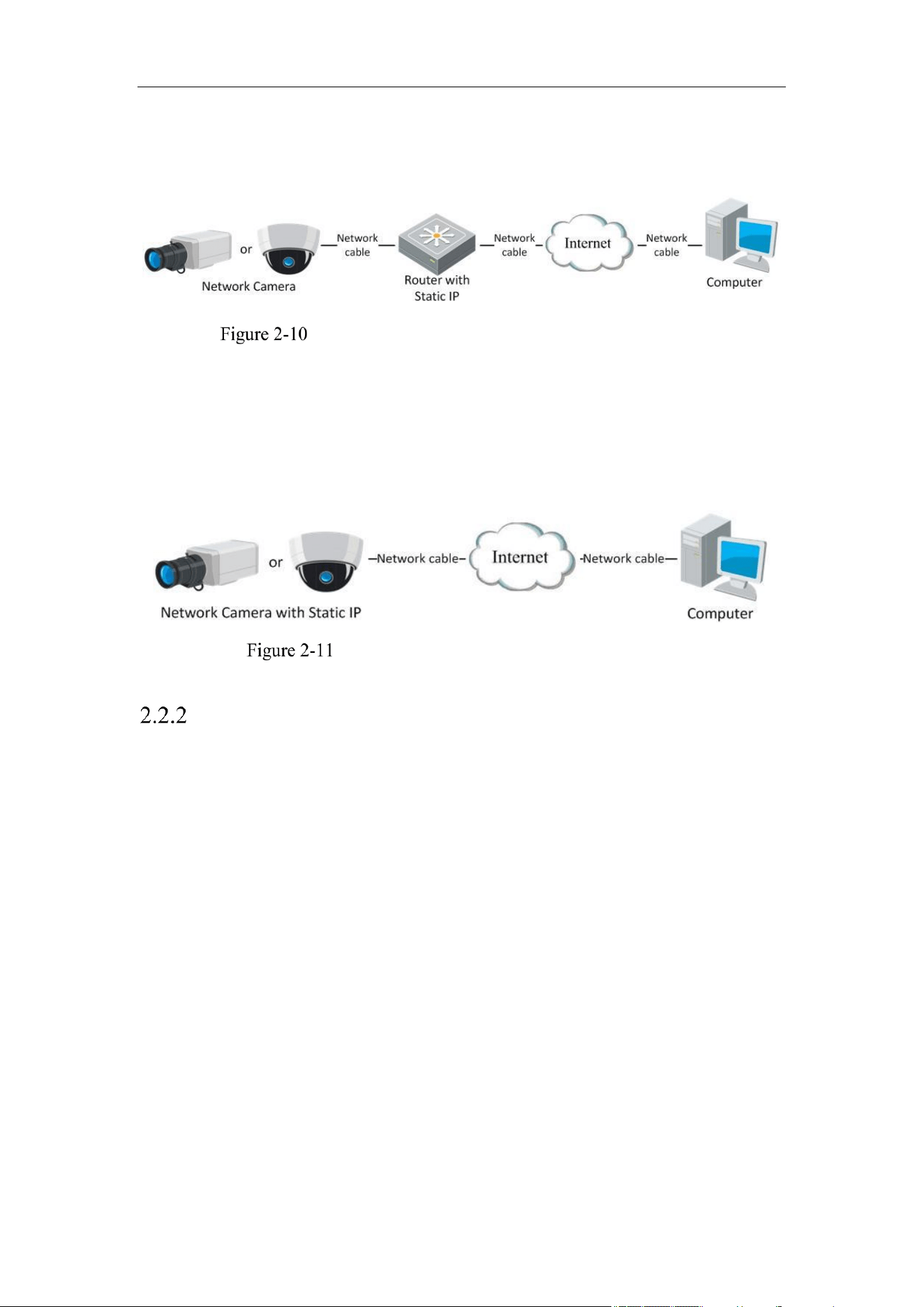

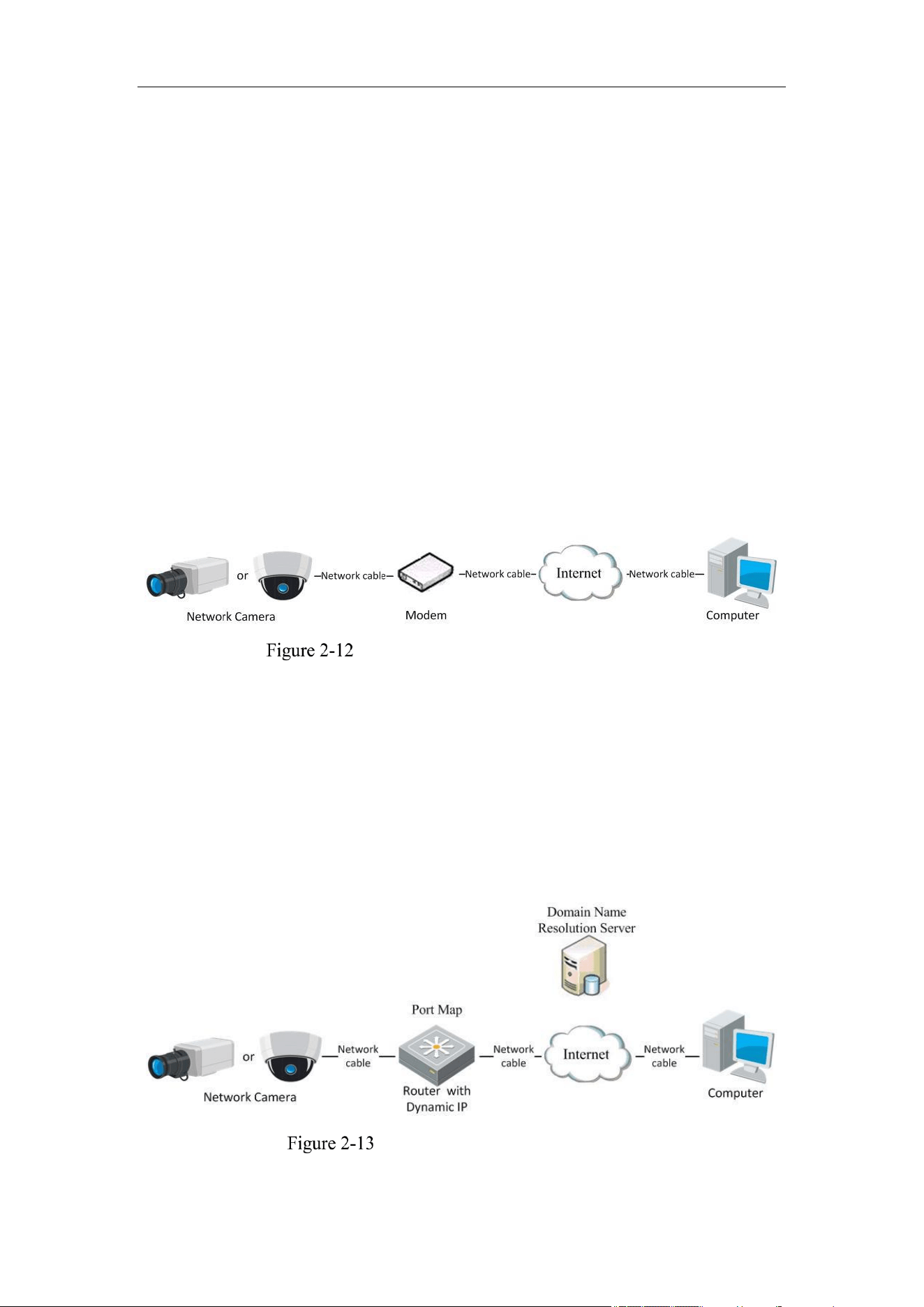

2.2.1 Static IP Connection
2.2.2 Dynamic IP Connection
Chapter 3 Access to the Network Camera

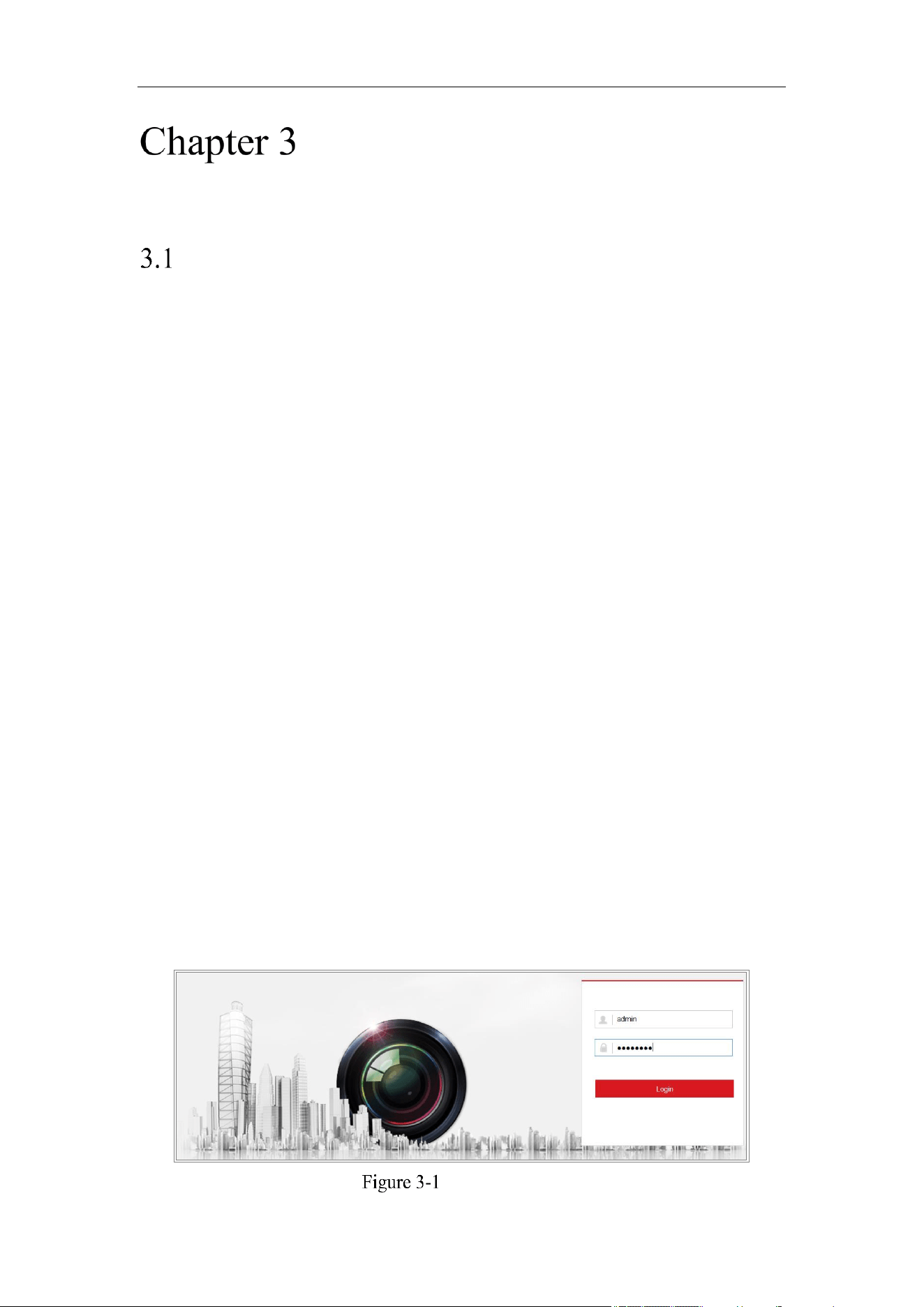

3.1 Accessing by Web Browsers

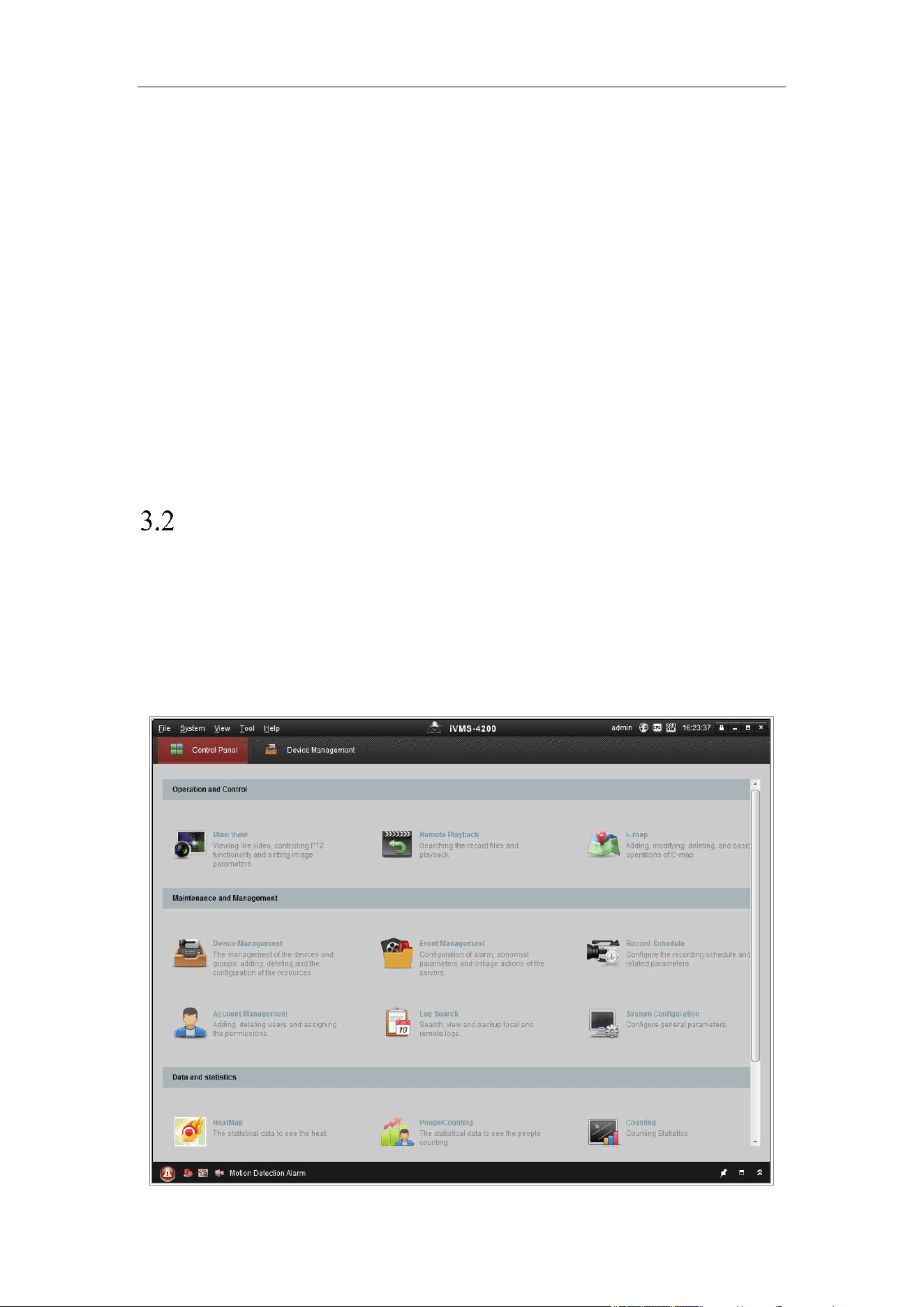

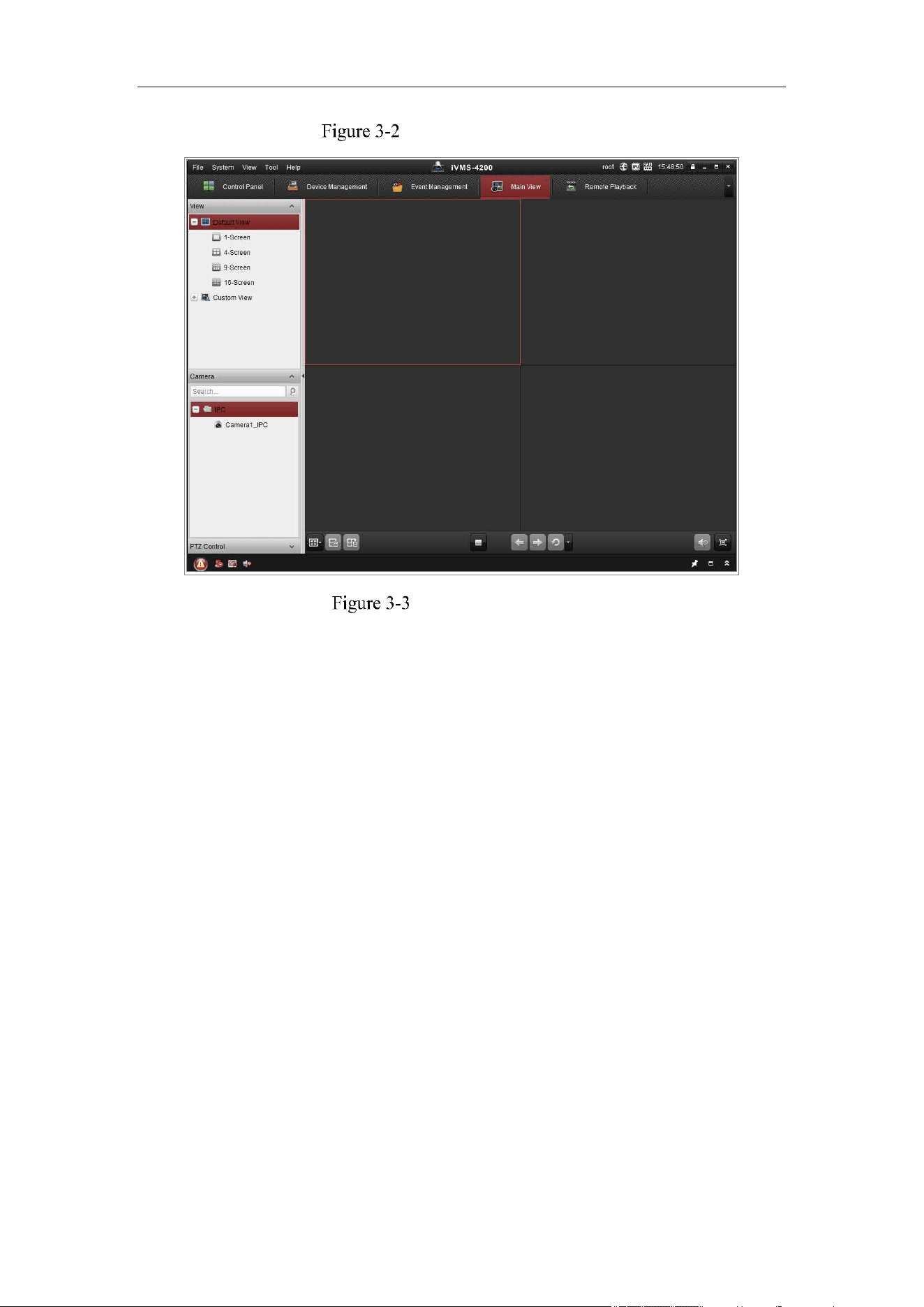

3.2 Accessing by Client Software
Chapter 4 Wi-Fi Settings

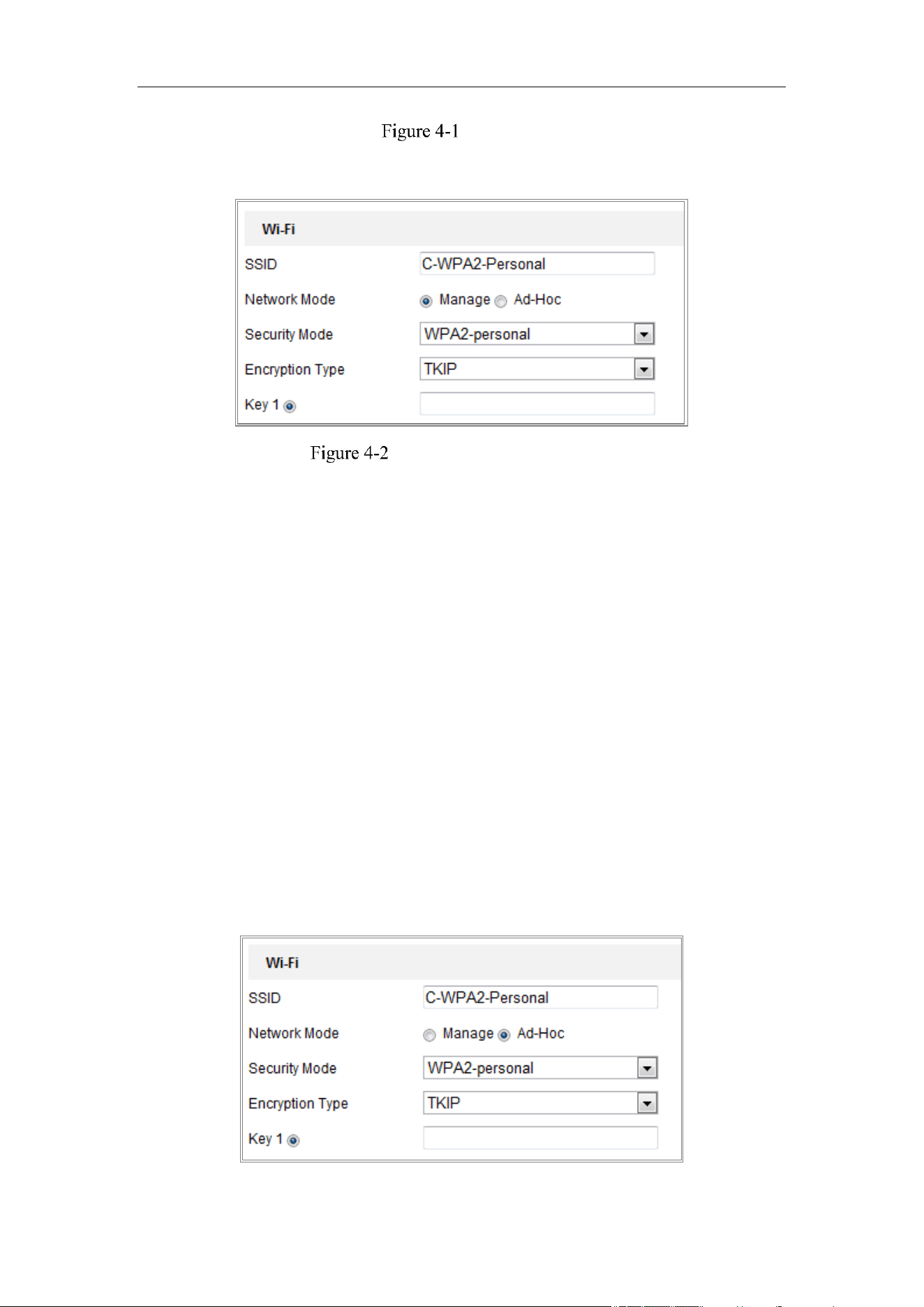

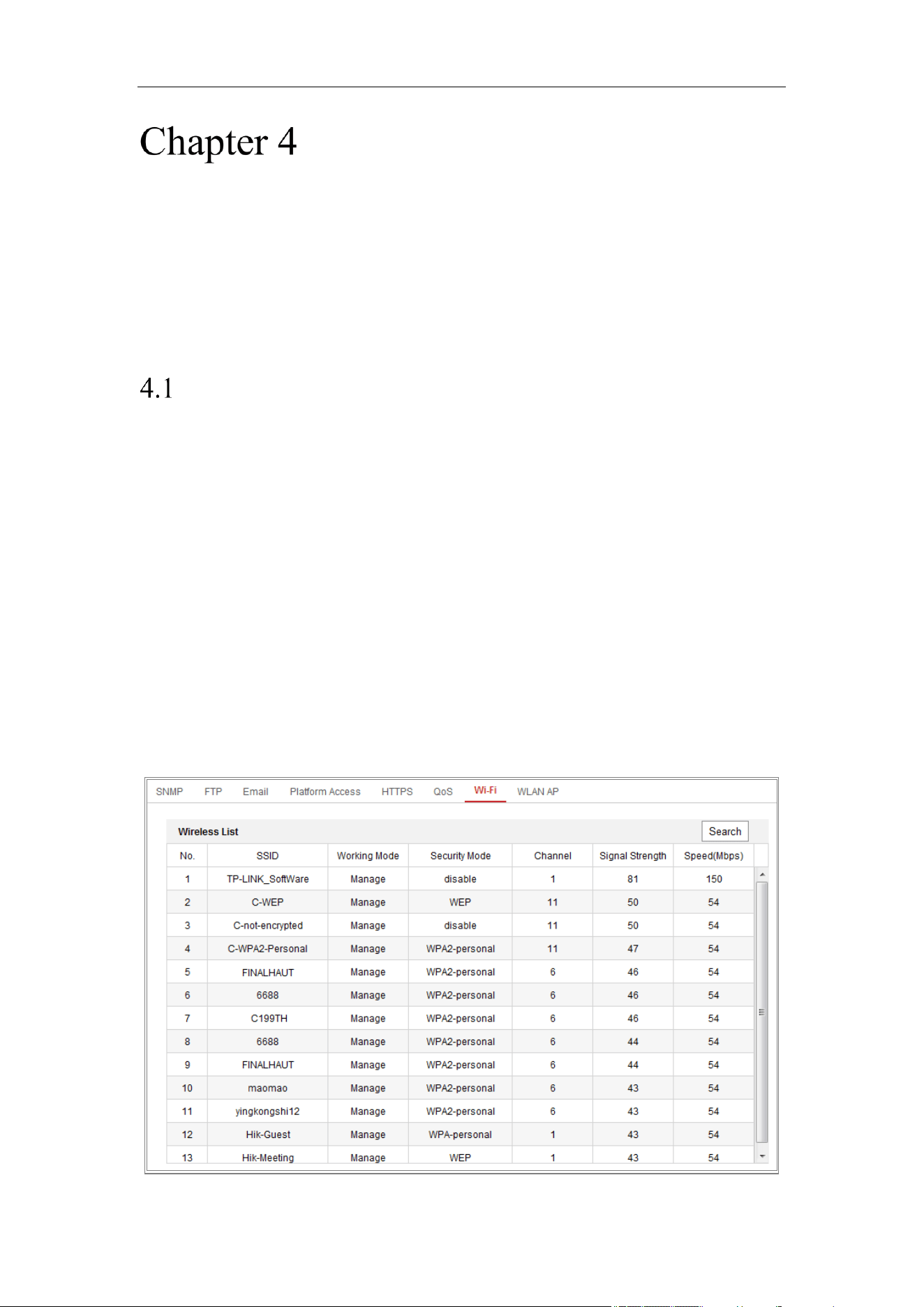

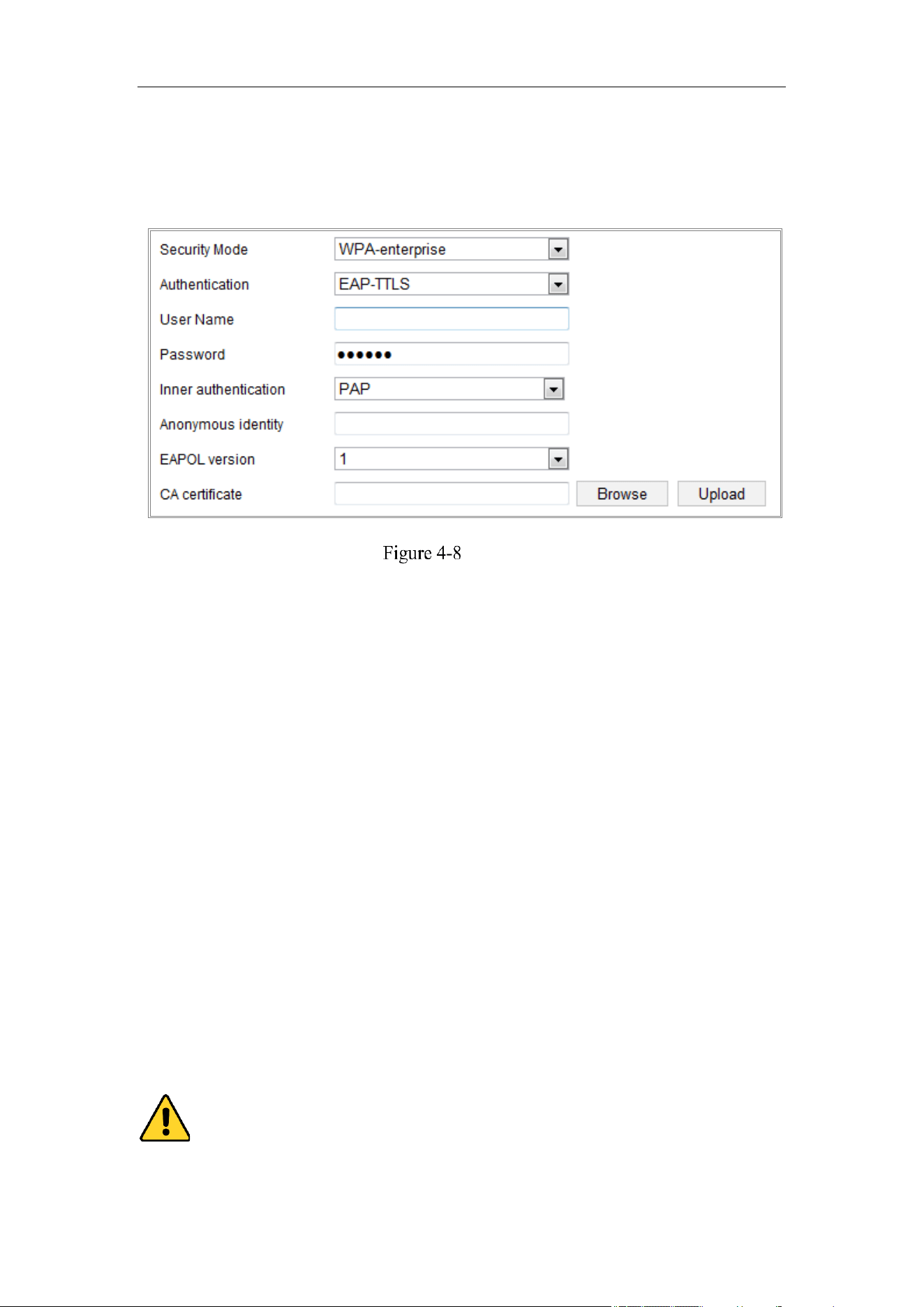

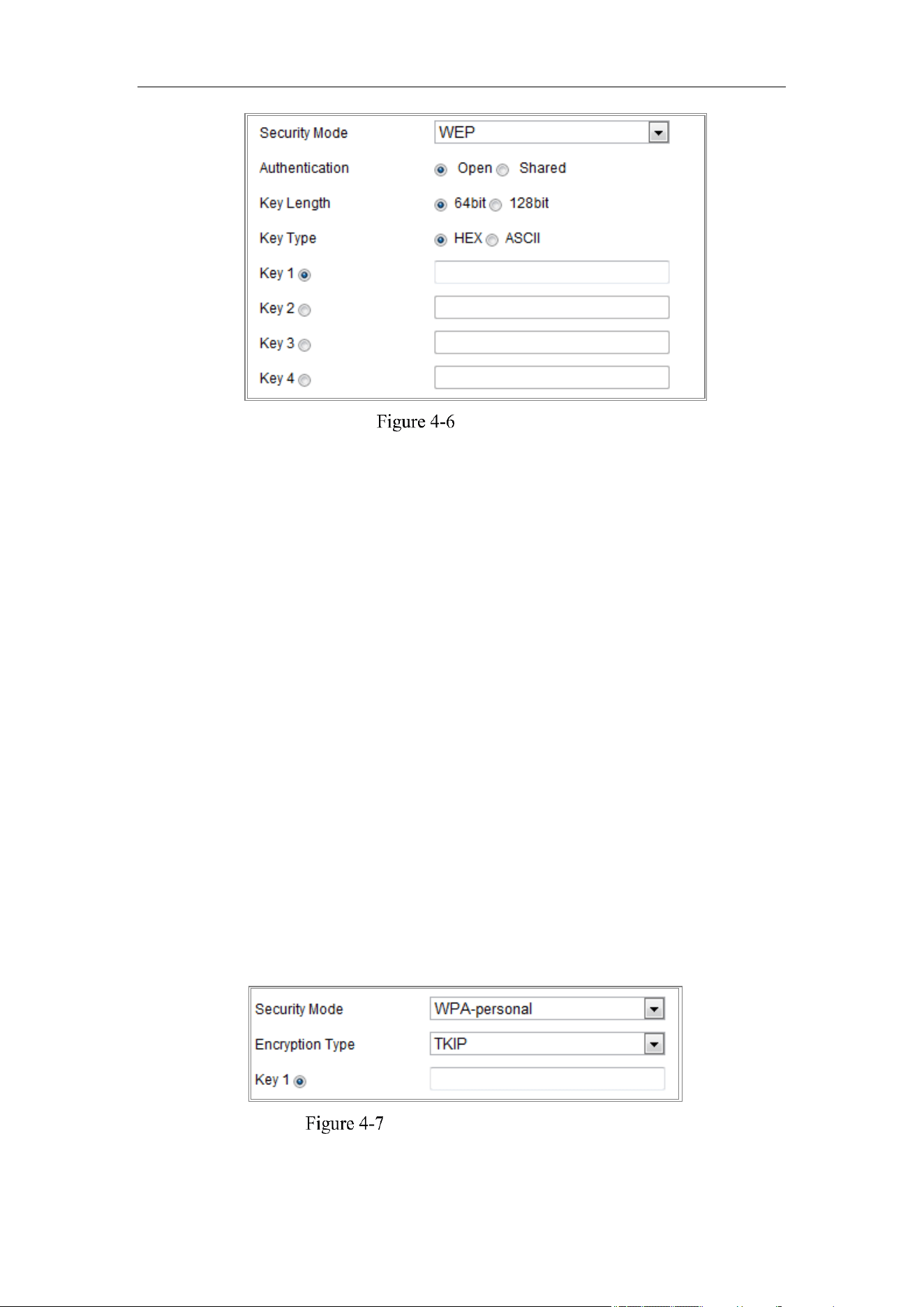

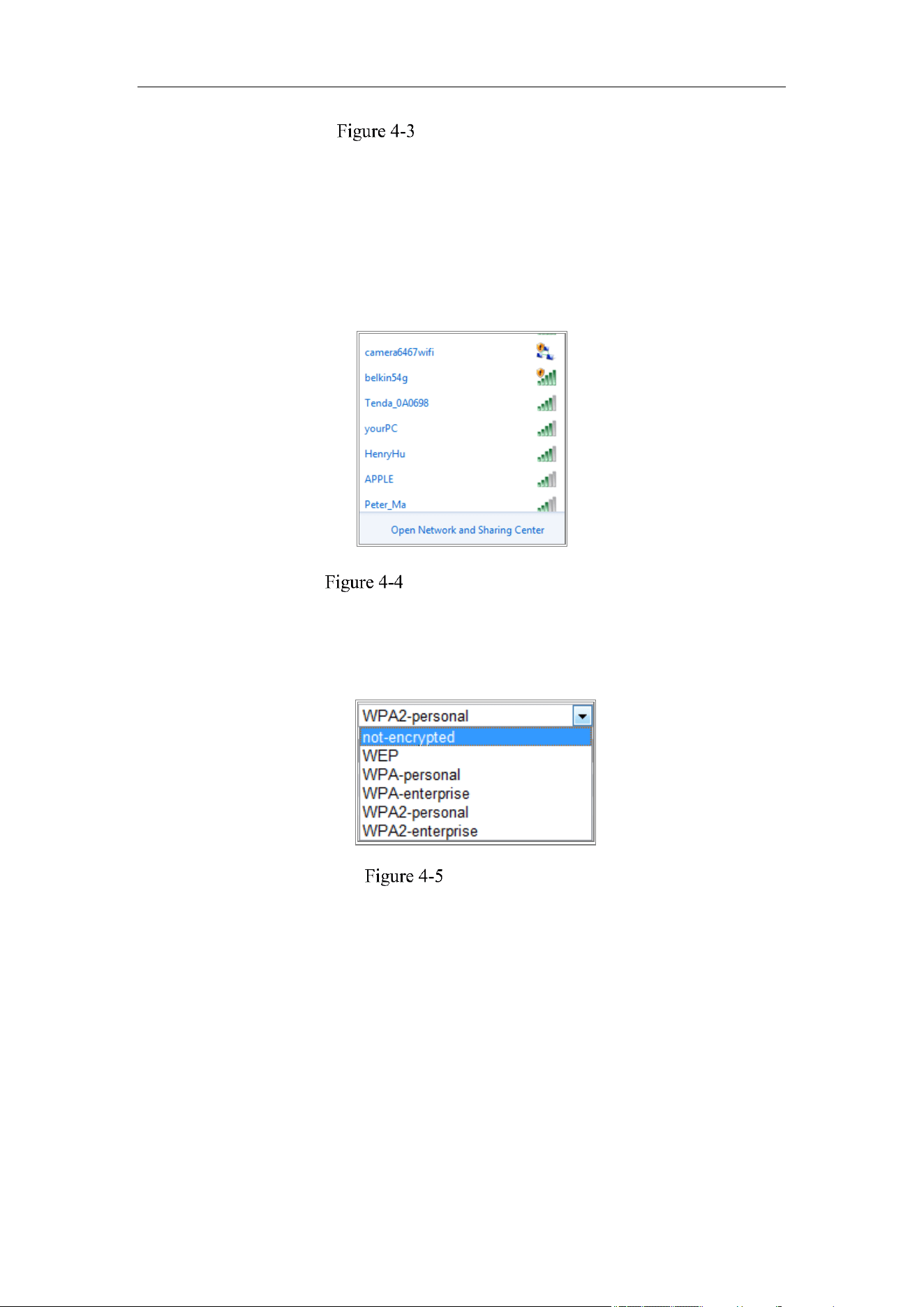

4.1 Configuring Wi-Fi Connection in Manage and Ad-hoc Modes

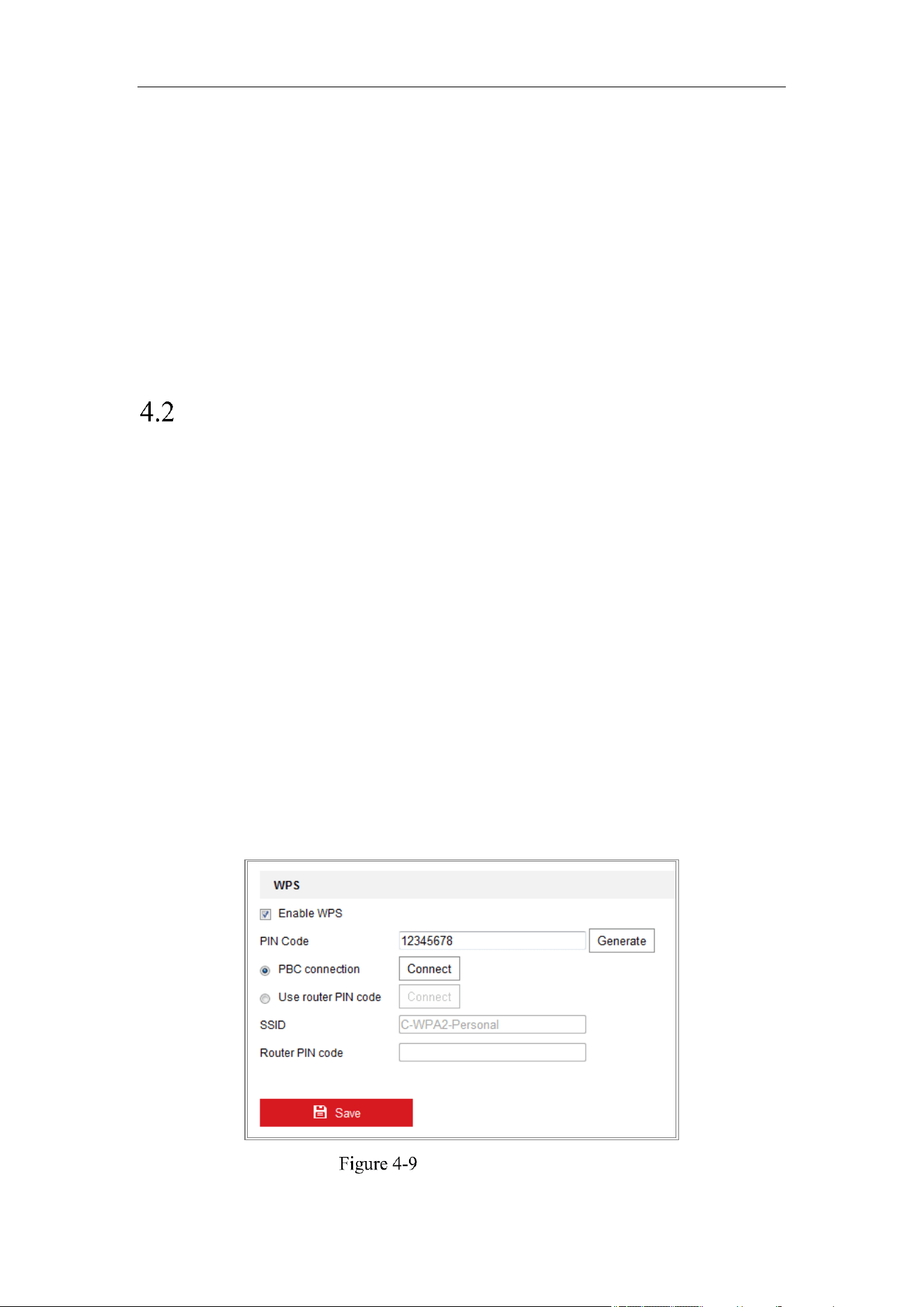

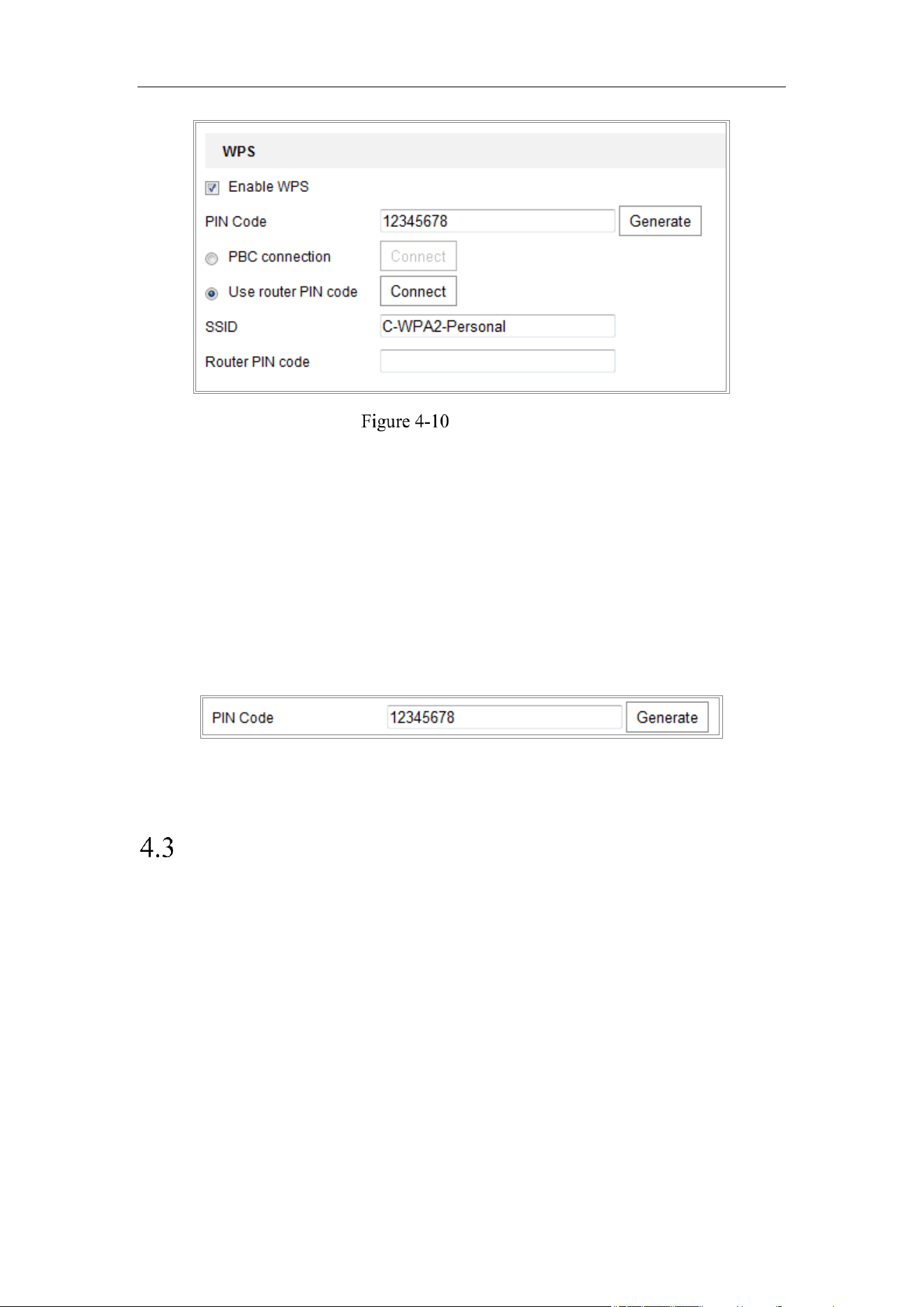

4.2 Easy Wi-Fi Connection with WPS function

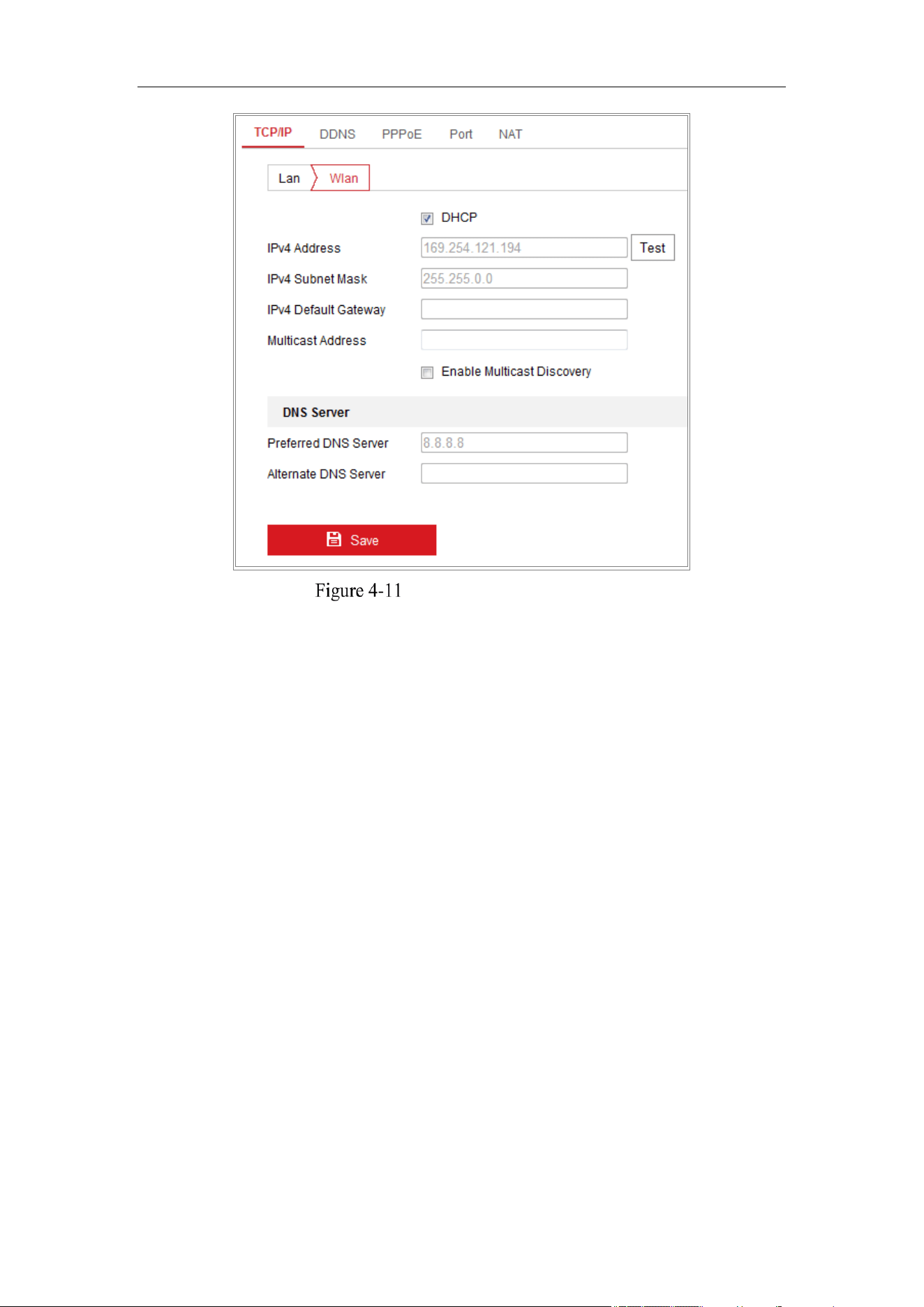

4.3 IP Property Settings for Wireless Network Connection
Chapter 5 Live View

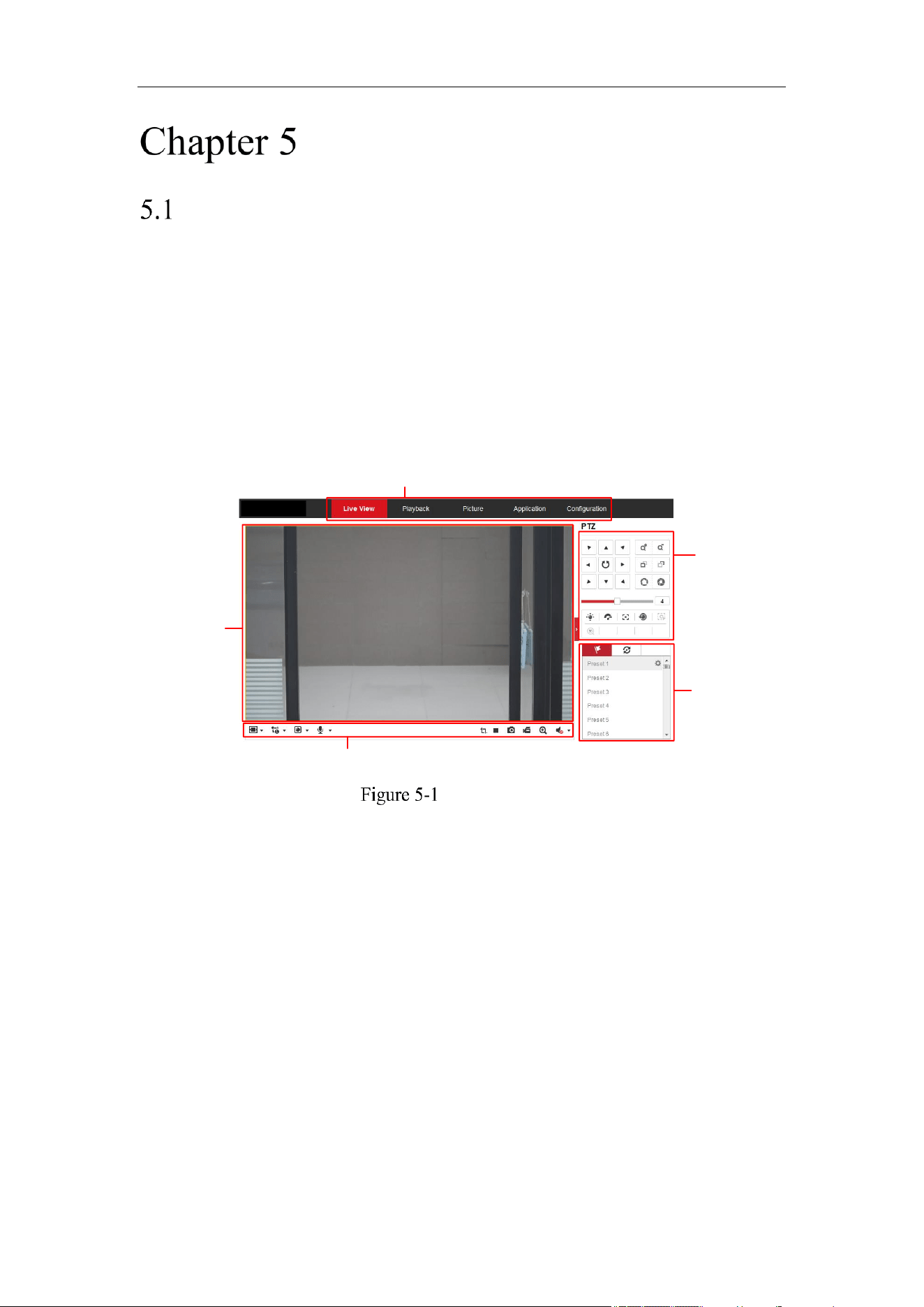

5.1 Live View Page
5.2 Starting Live View

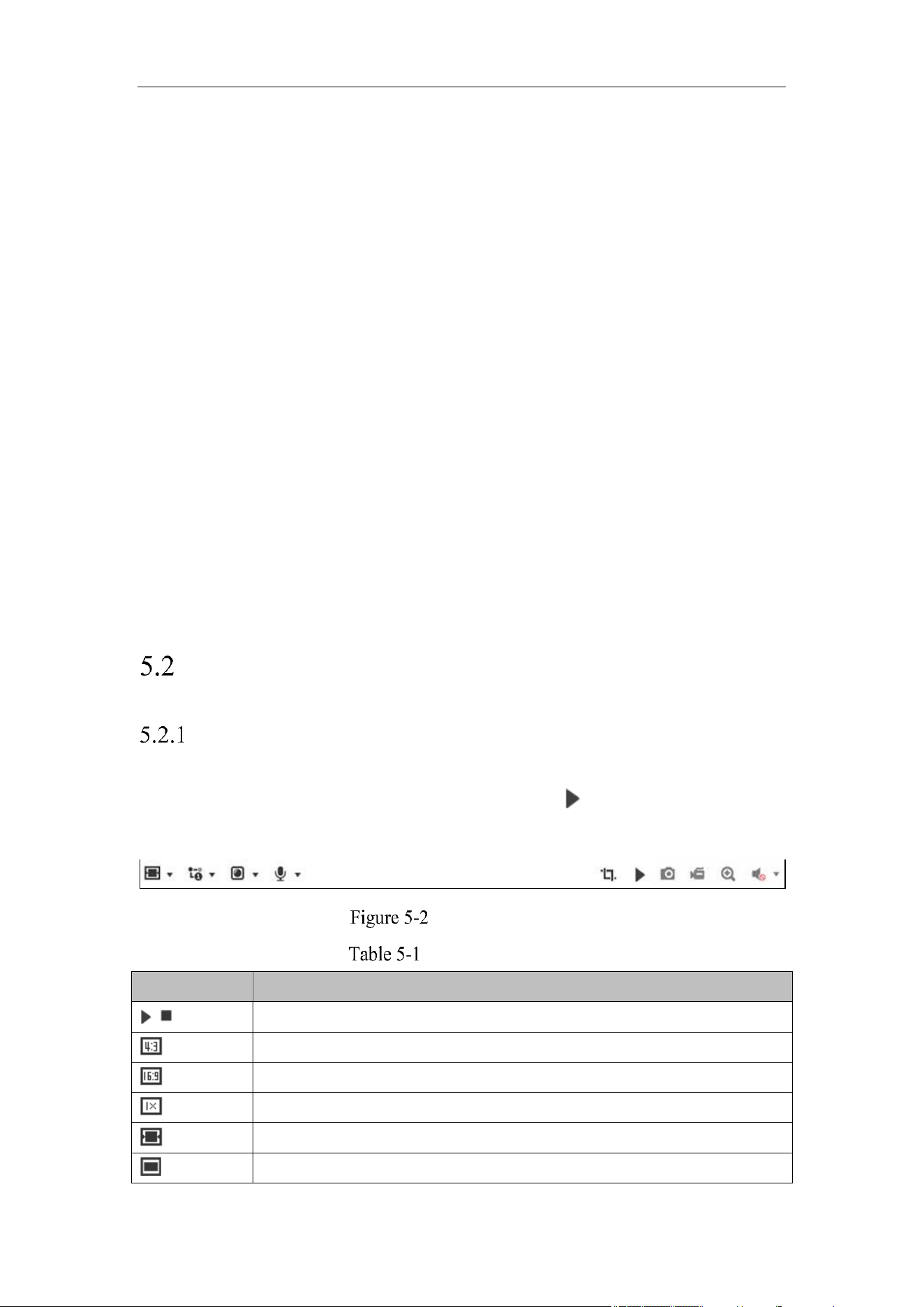

5.2.1 Live Operation
5.2.2 Install Plug-in
5.3 Recording and Capturing Pictures Manually
5.4 Live View Quick Setup
5.5 Operating PTZ Control

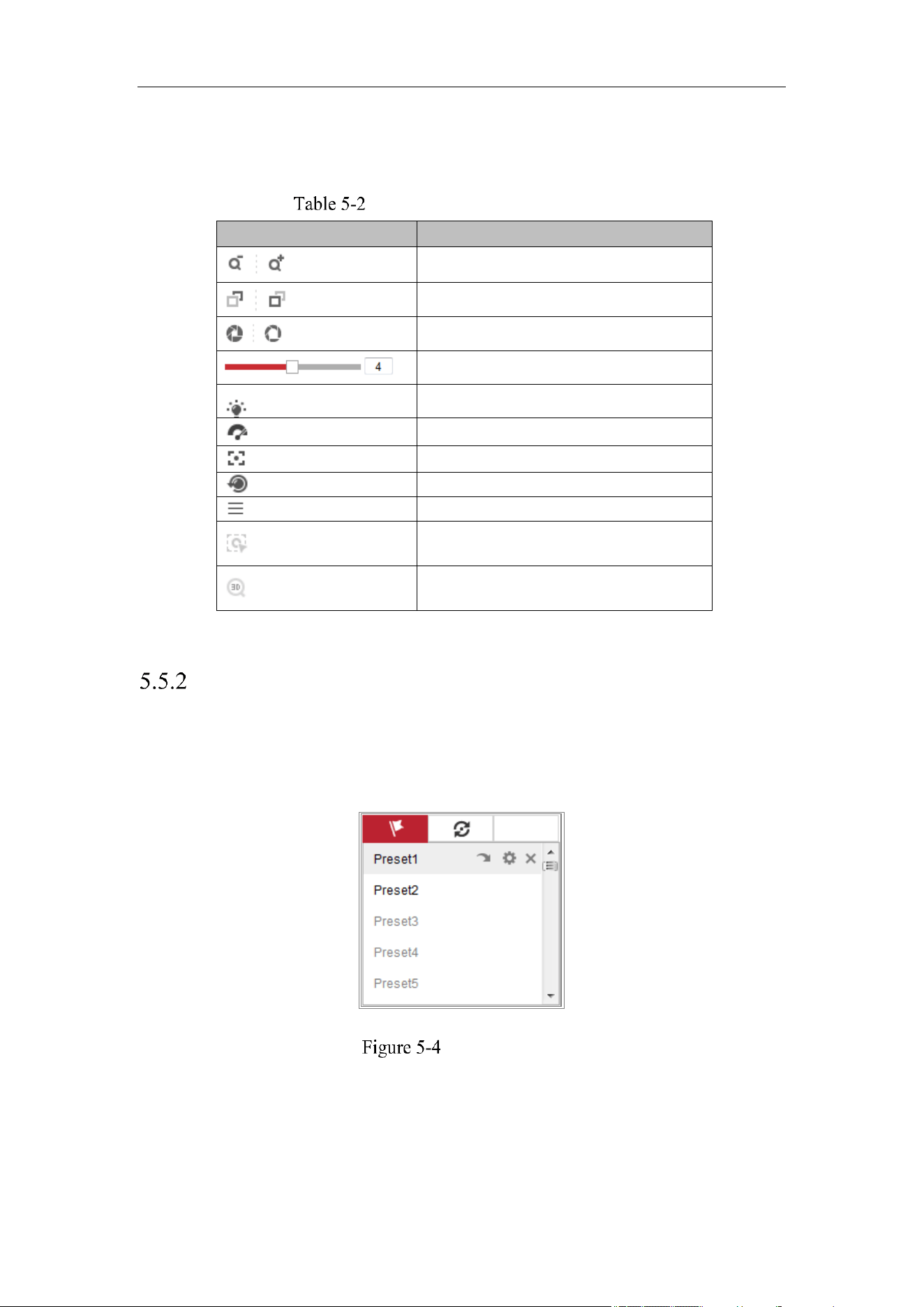

5.5.1 PTZ Control Panel
5.5.2 Setting/Calling a Preset

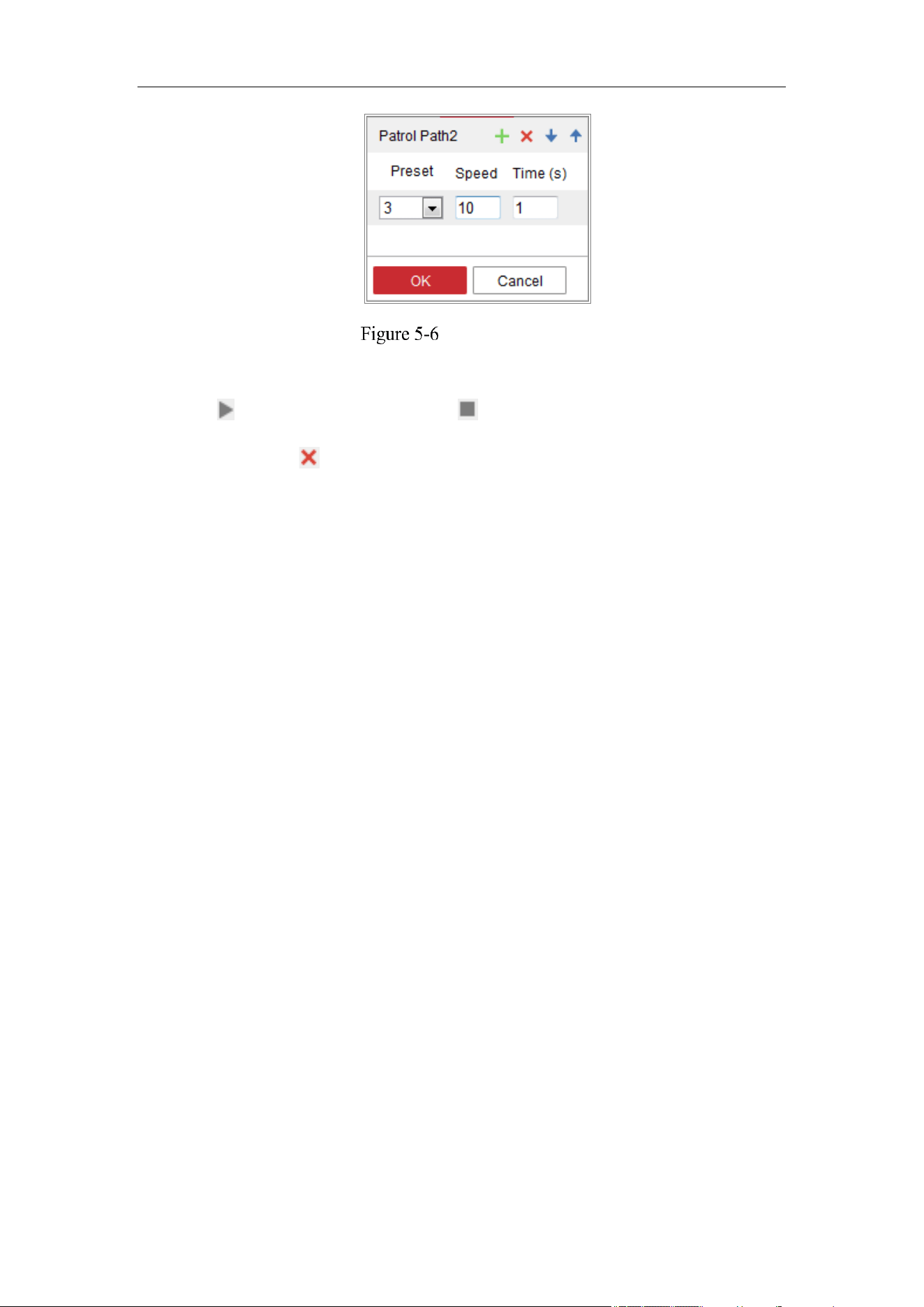

5.5.3 Setting/Calling a Patrol
Chapter 6 Network Camera Configuration
6.1 Configuring Local Parameters
6.2 Configure System Settings
6.2.1 Configuring Basic Information

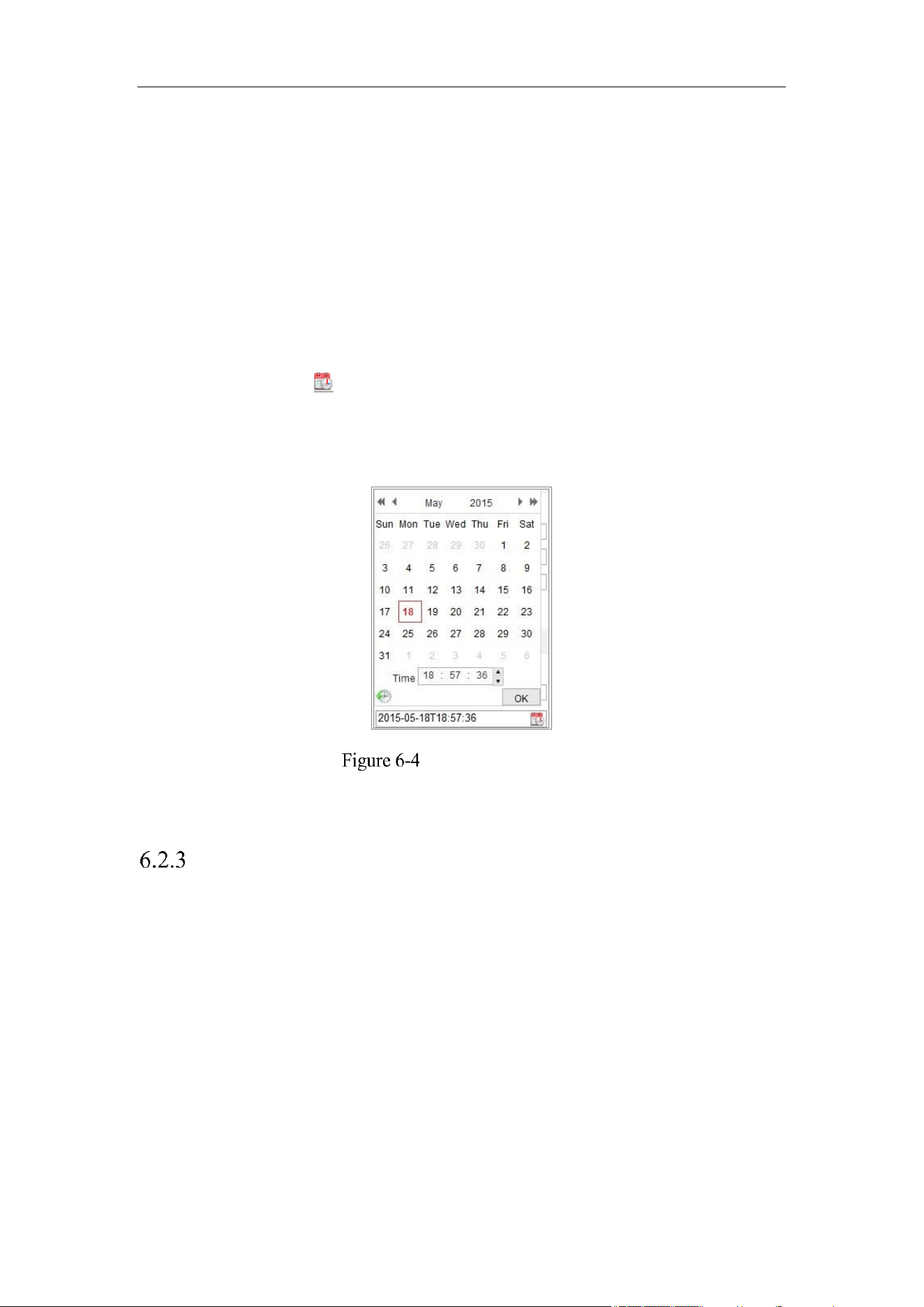

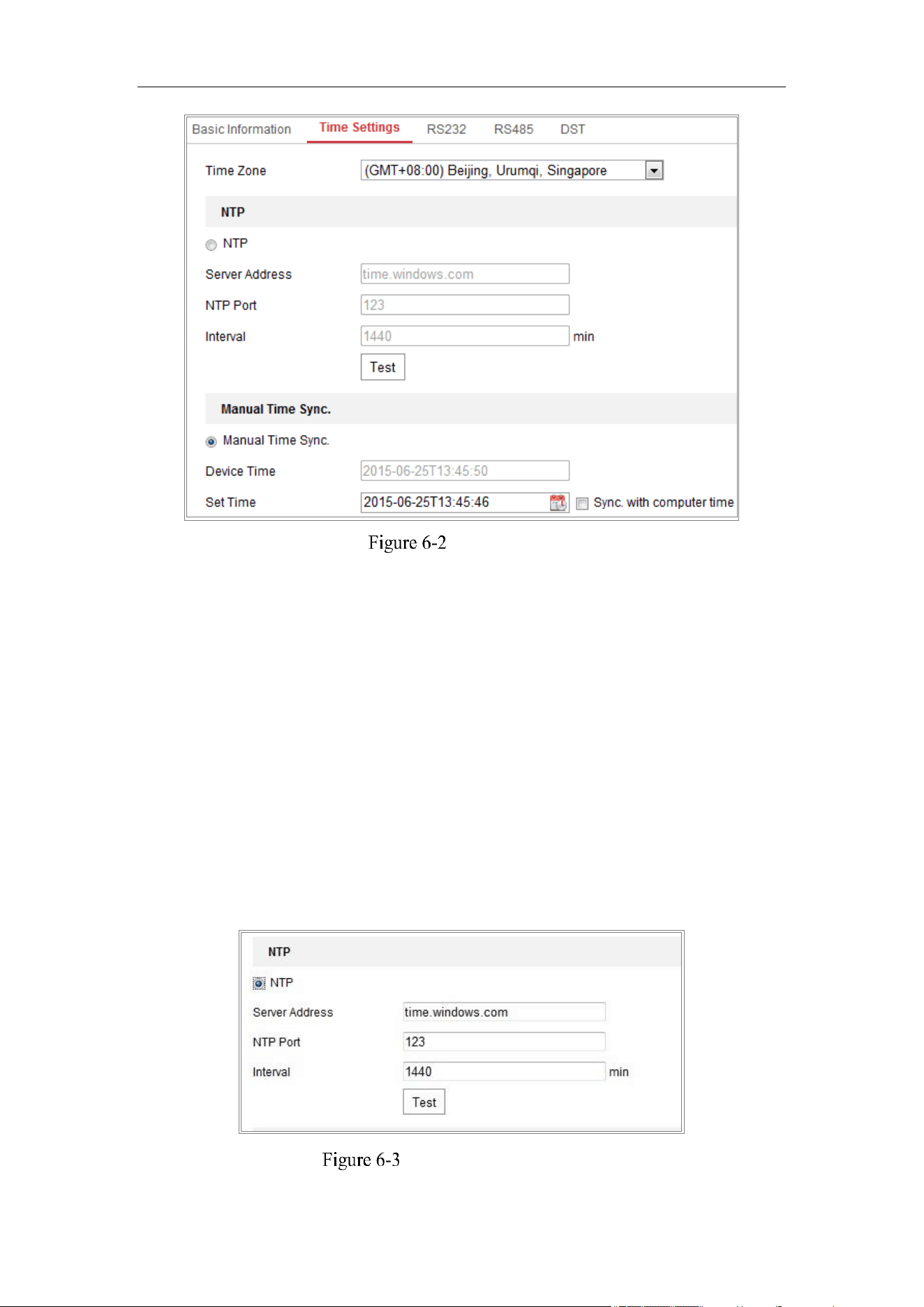

6.2.2 Configuring Time Settings
6.2.3 Configuring RS232 Settings

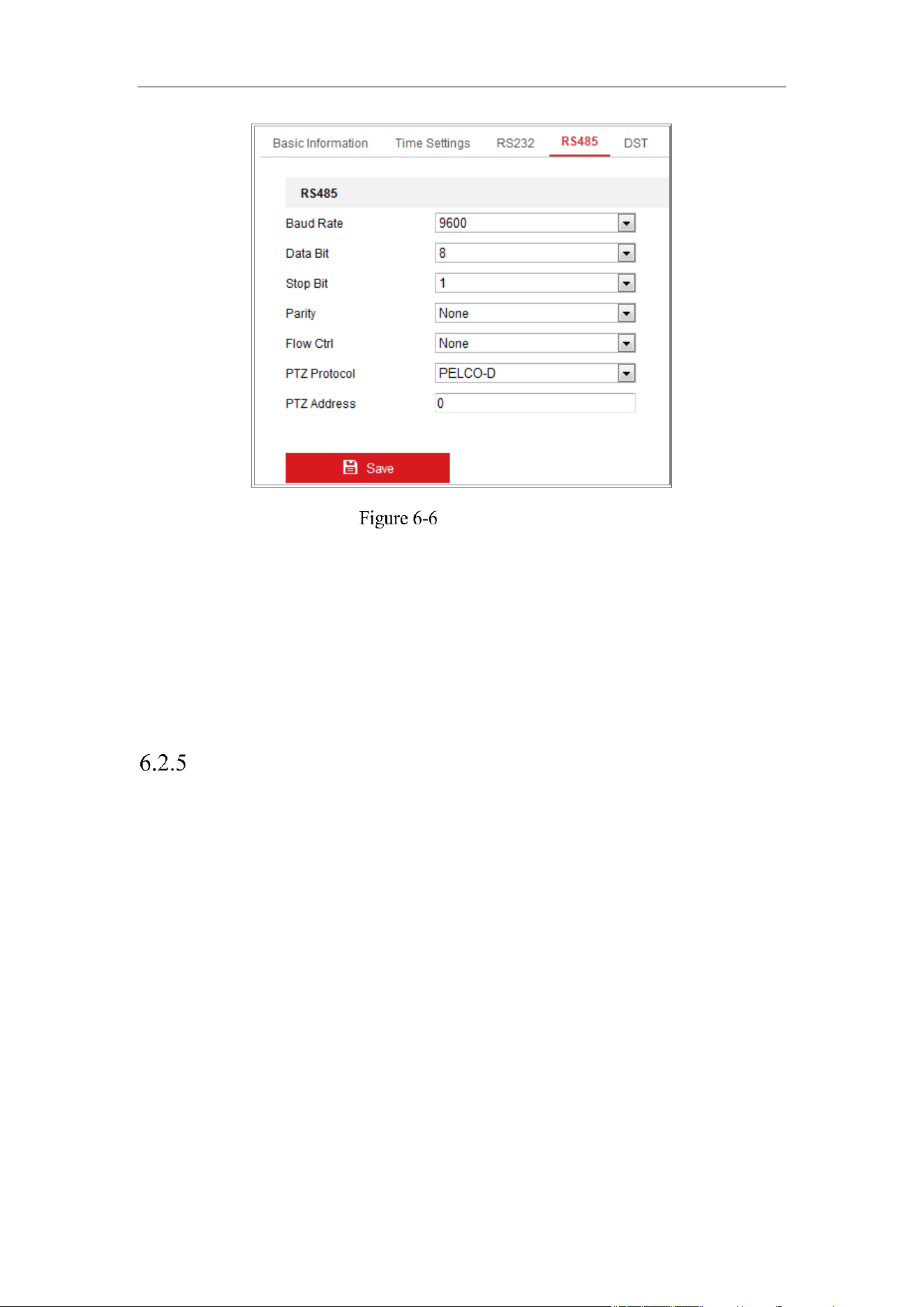

6.2.4 Configuring RS485 Settings

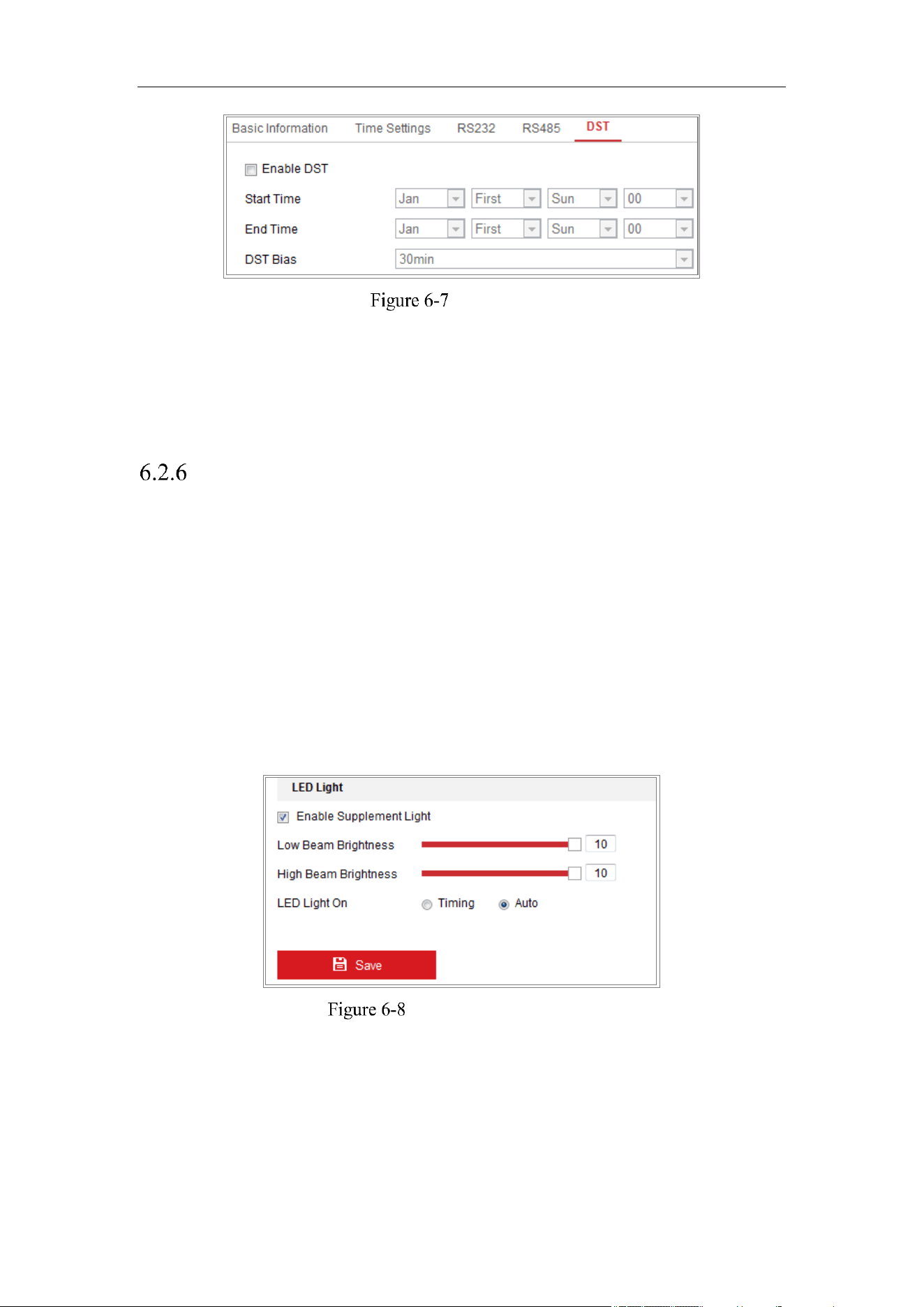

6.2.5 Configuring DST Settings
6.2.6 Configuring External Devices

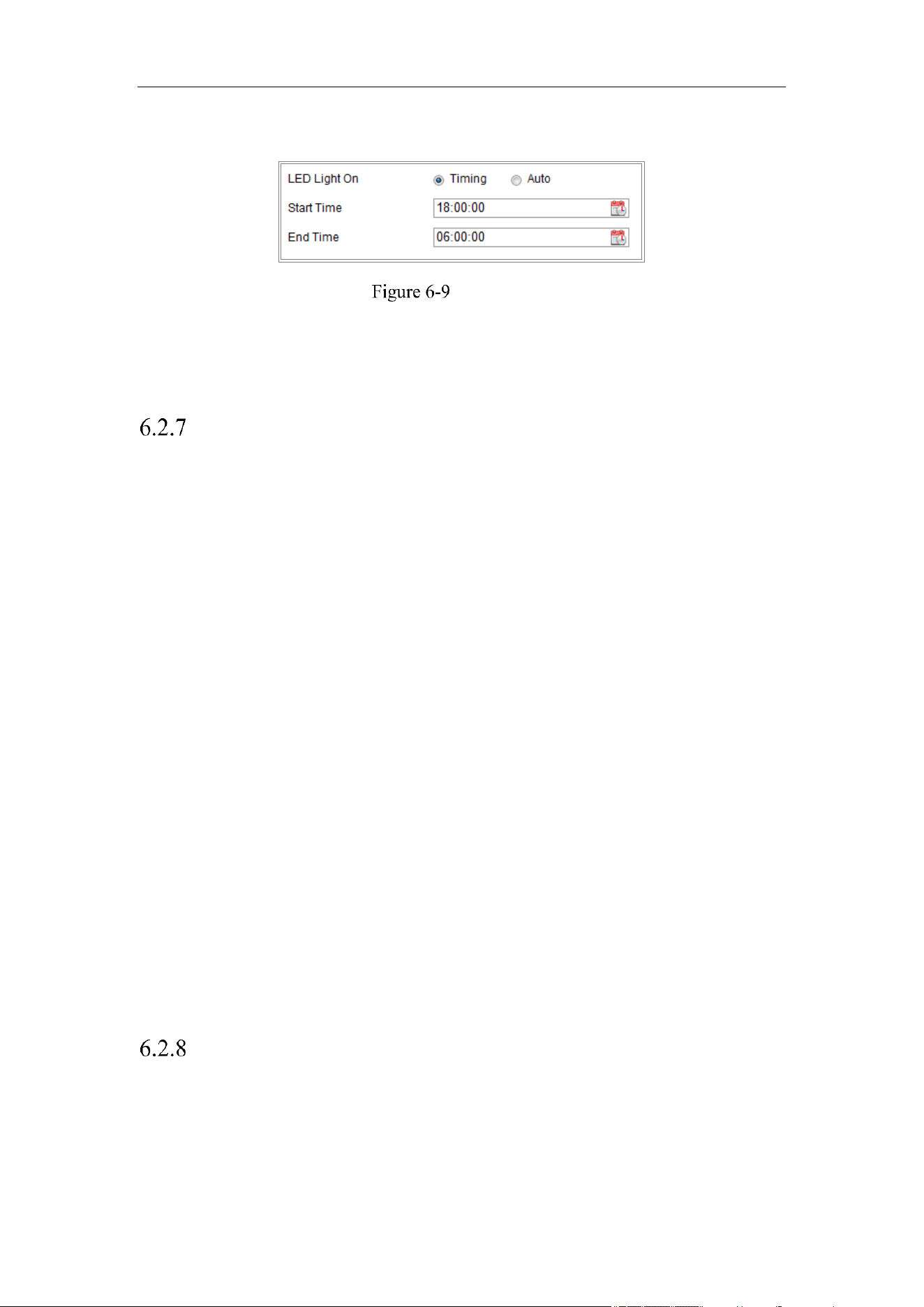

6.2.7 Configuring VCA Resource
6.2.8 Configuring Metadata Settings
6.2.9 Open Source Software License
6.3 Maintenance
6.3.1 Upgrade & Maintenance

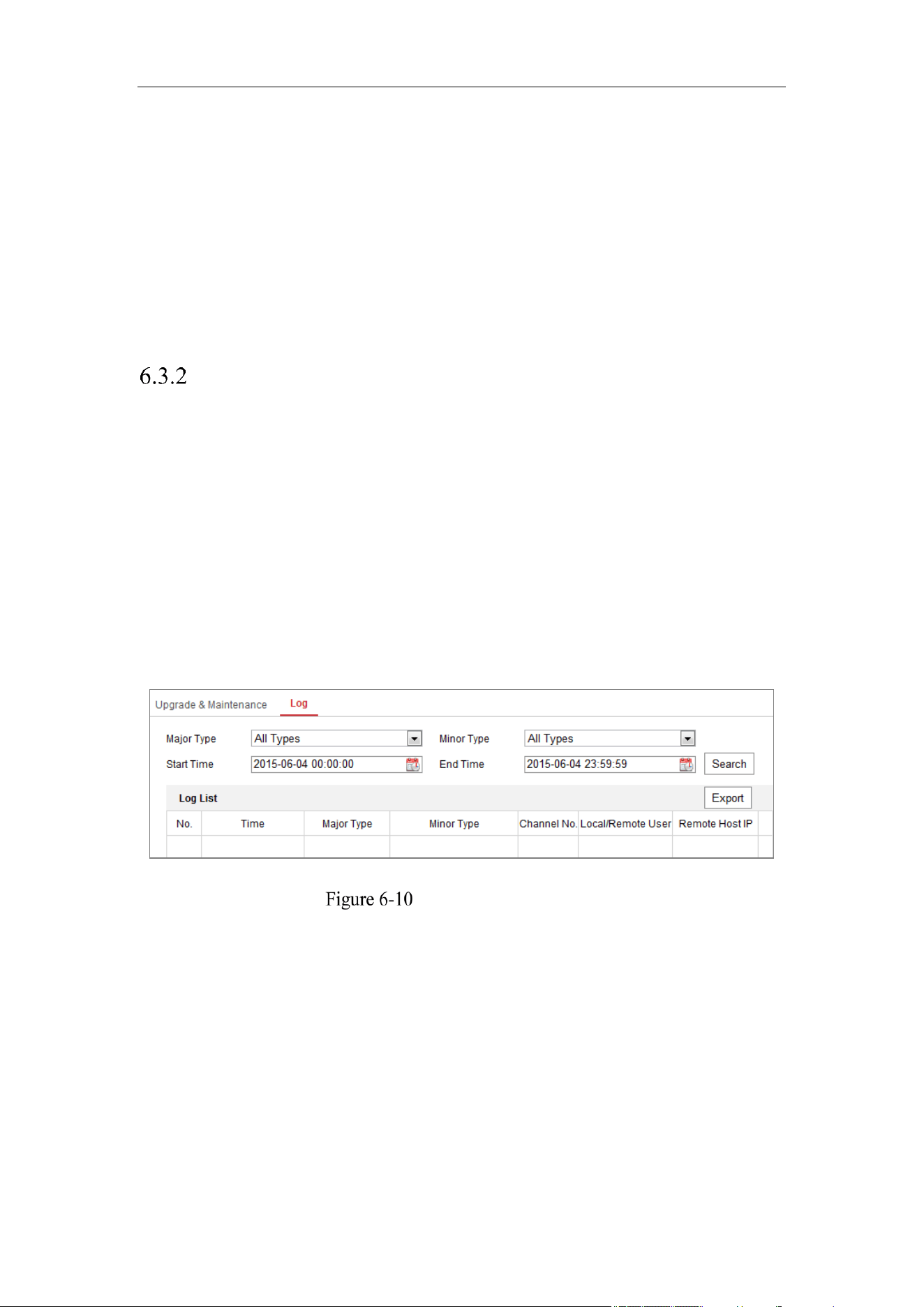

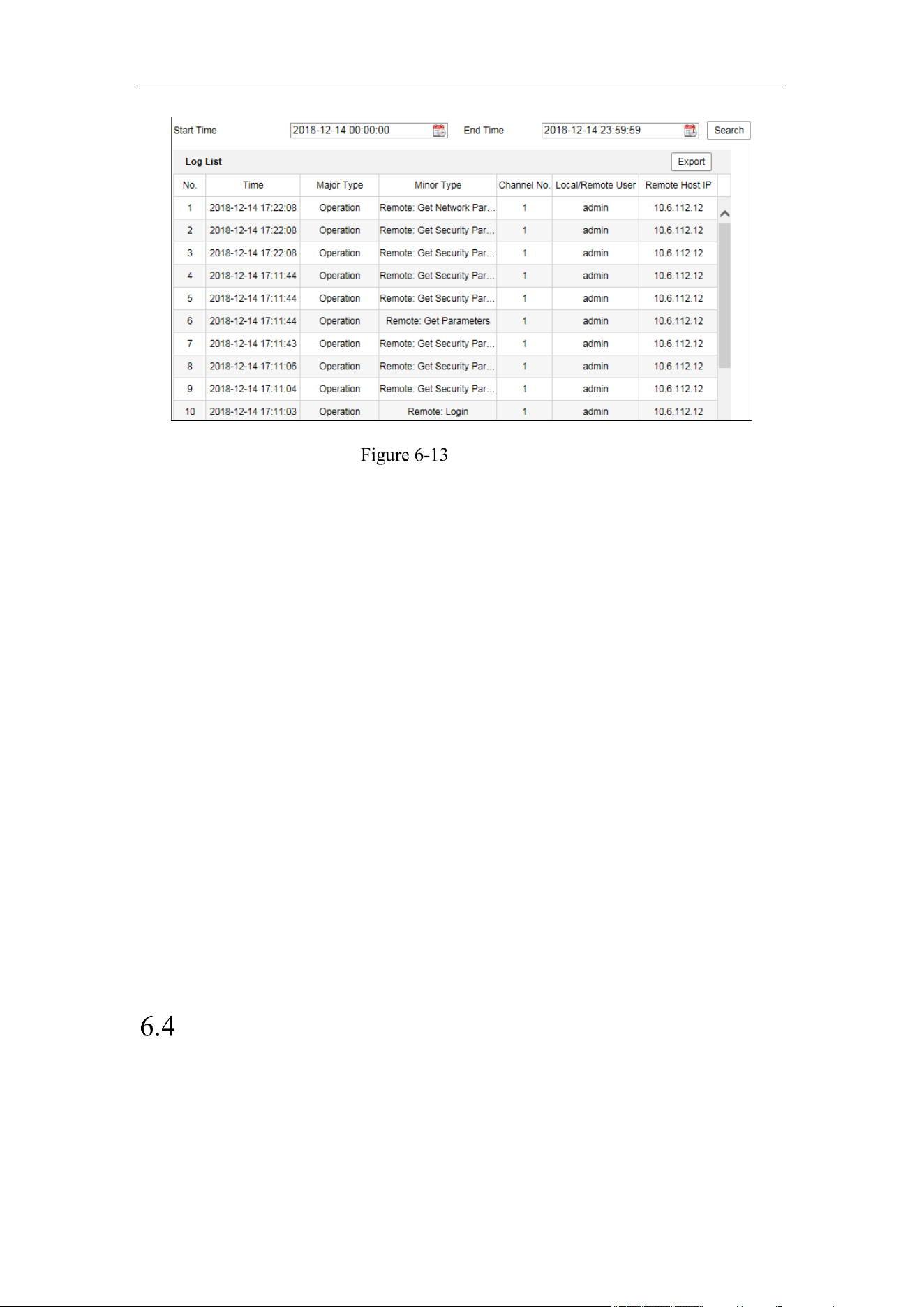

6.3.2 Log
6.3.3 System Service

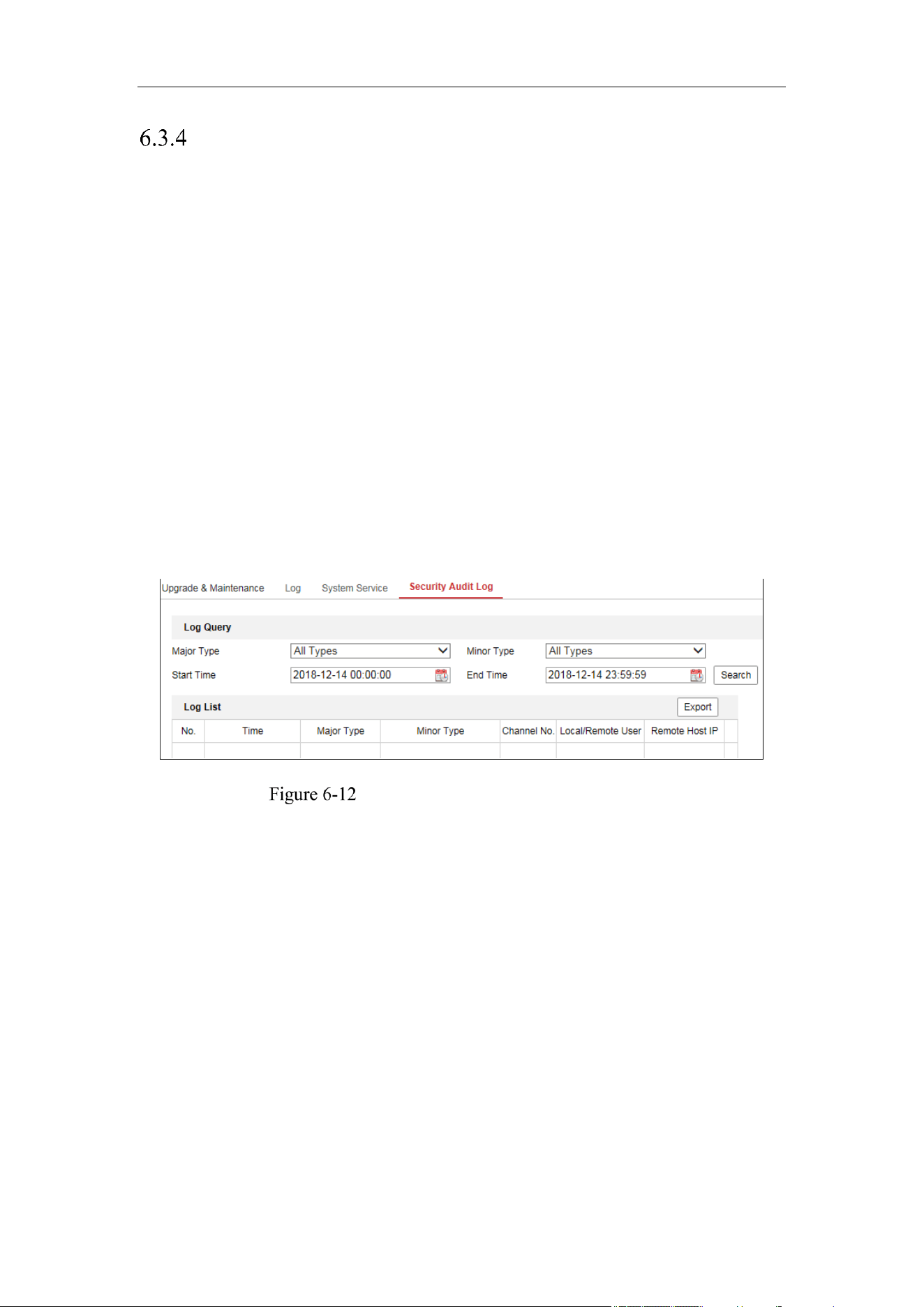

6.3.4 Security Audit Log
6.4 Security Settings

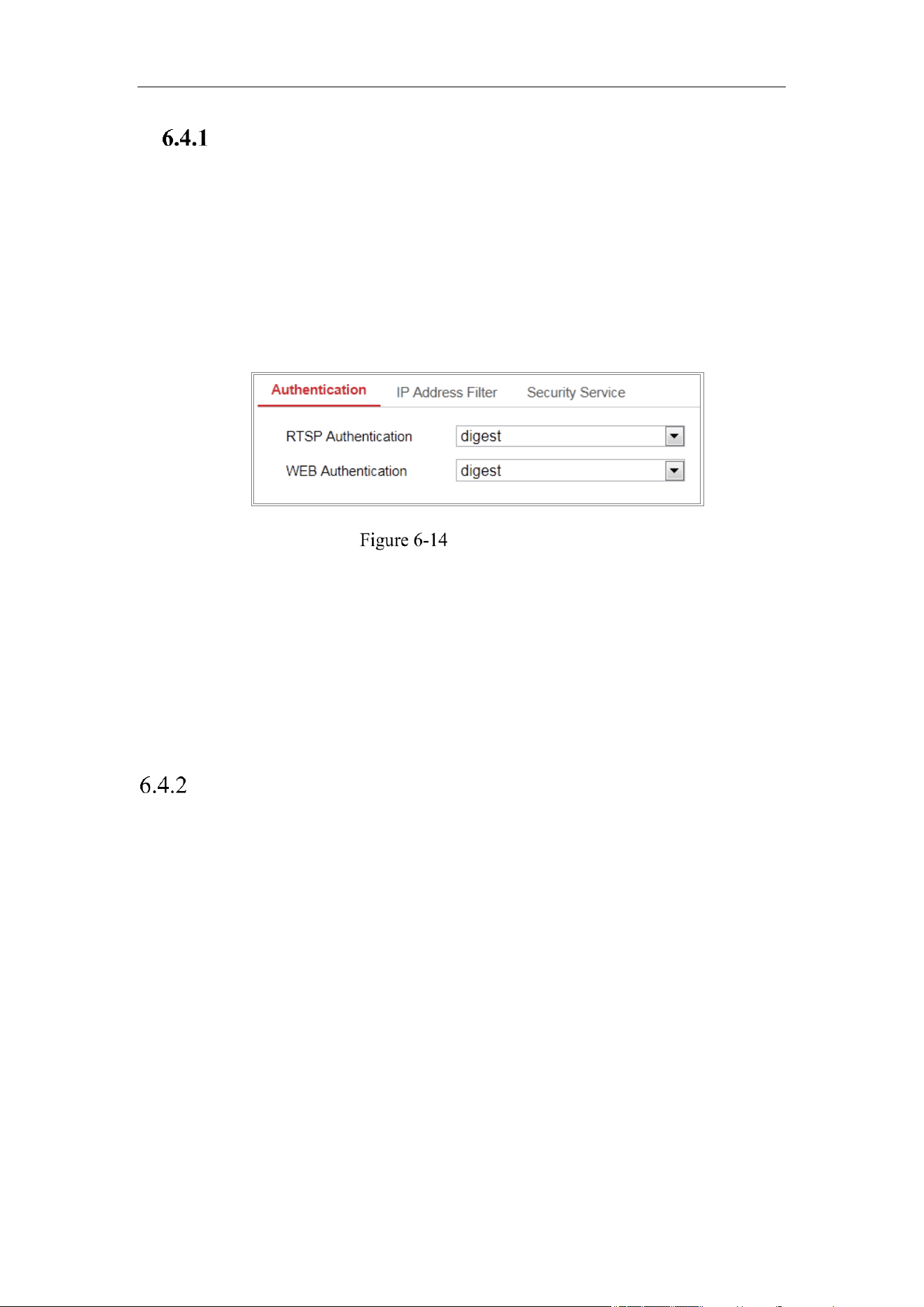

6.4.1 Authentication

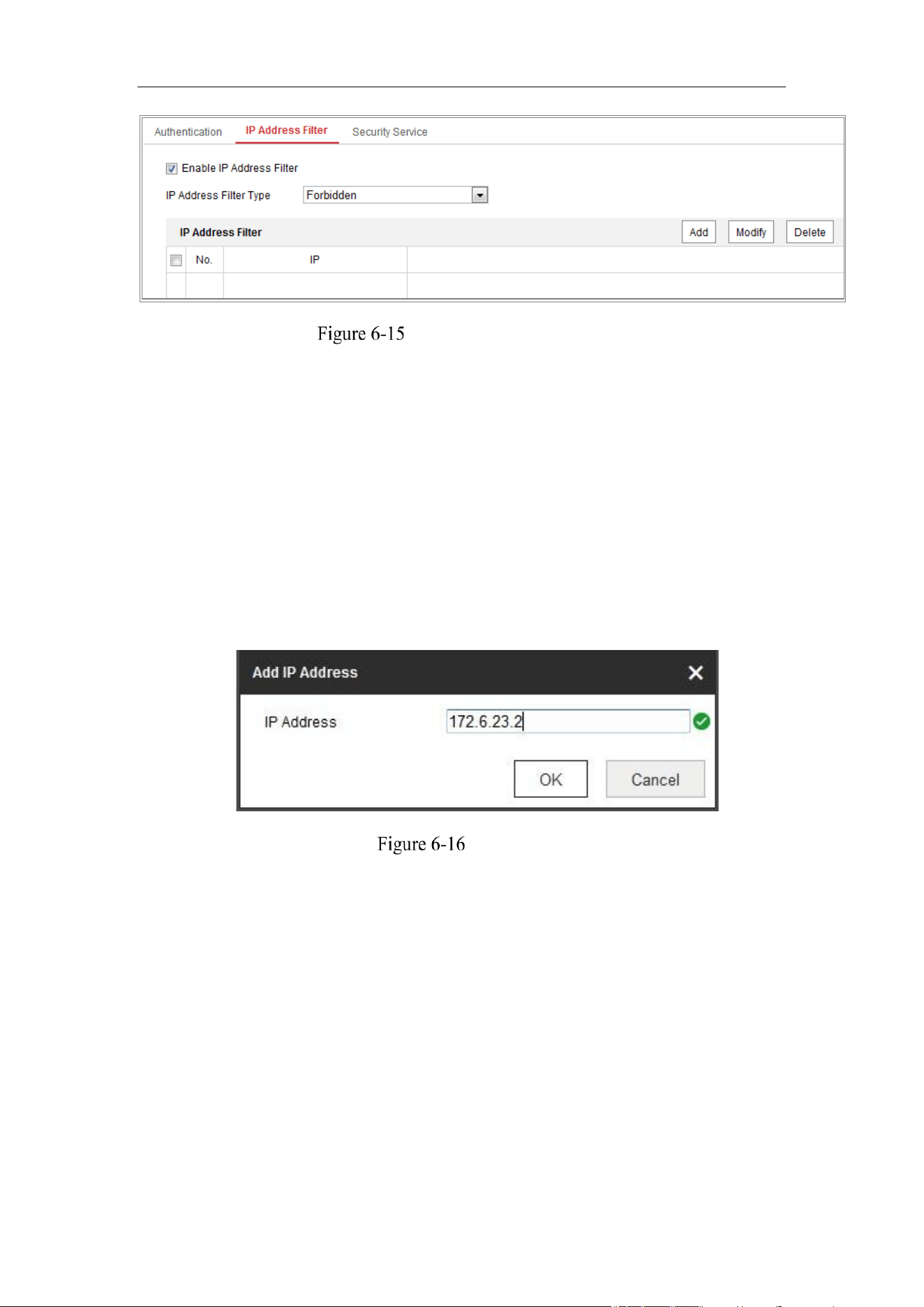

6.4.2 IP Address Filter

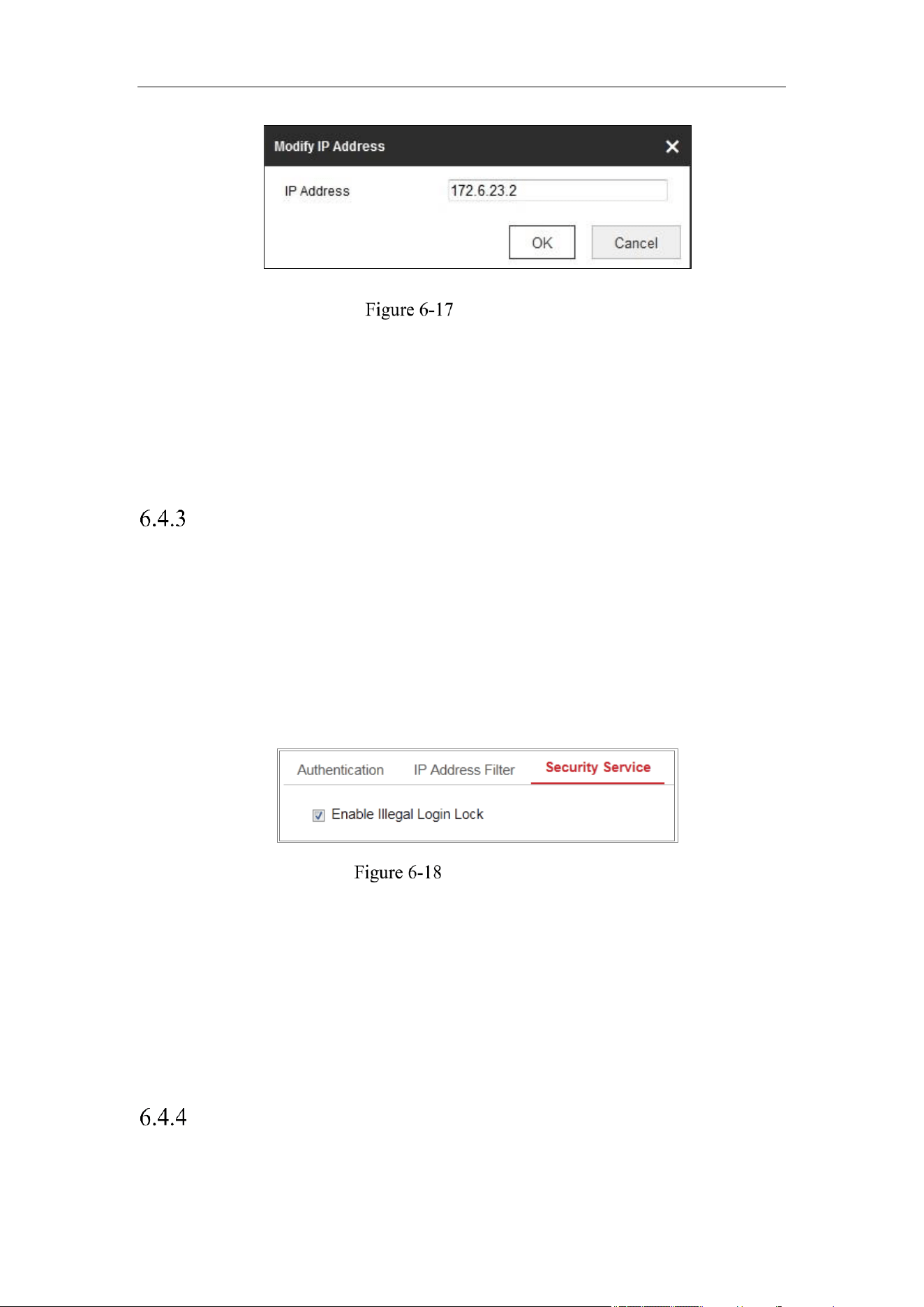

6.4.3 Security Service
6.4.4 Advanced Security
6.5 User Management

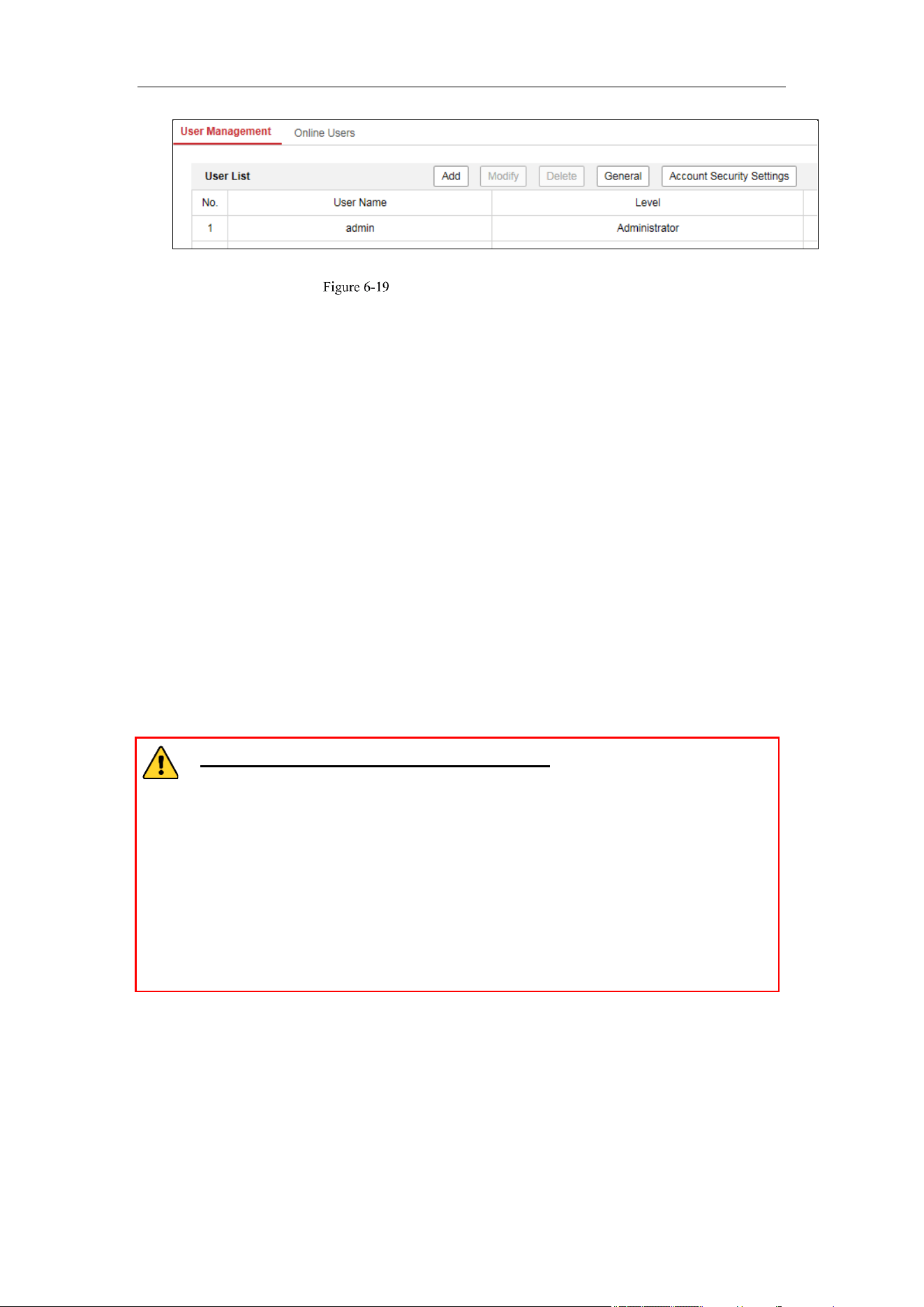

6.5.1 User Management

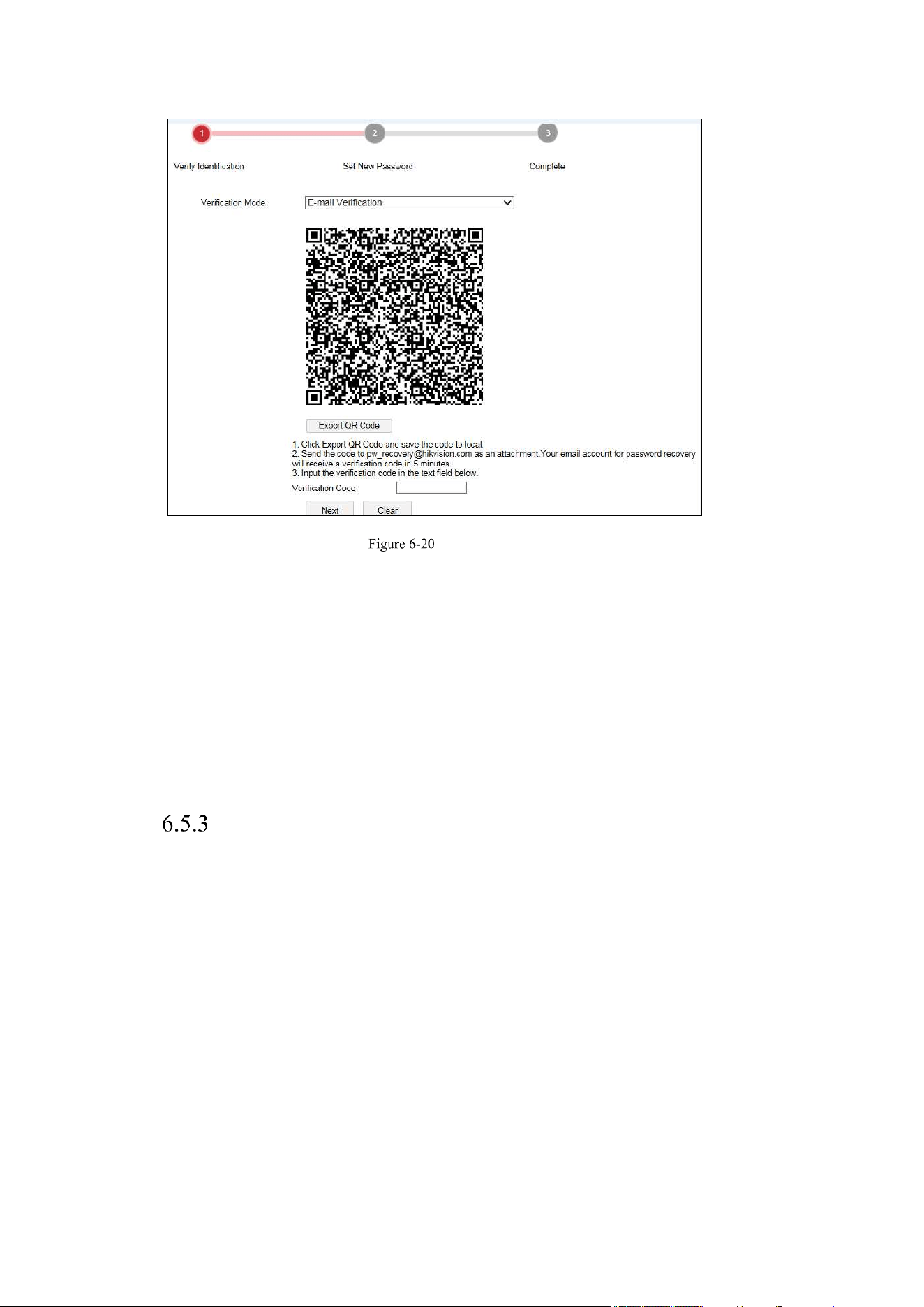

6.5.2 Security Question

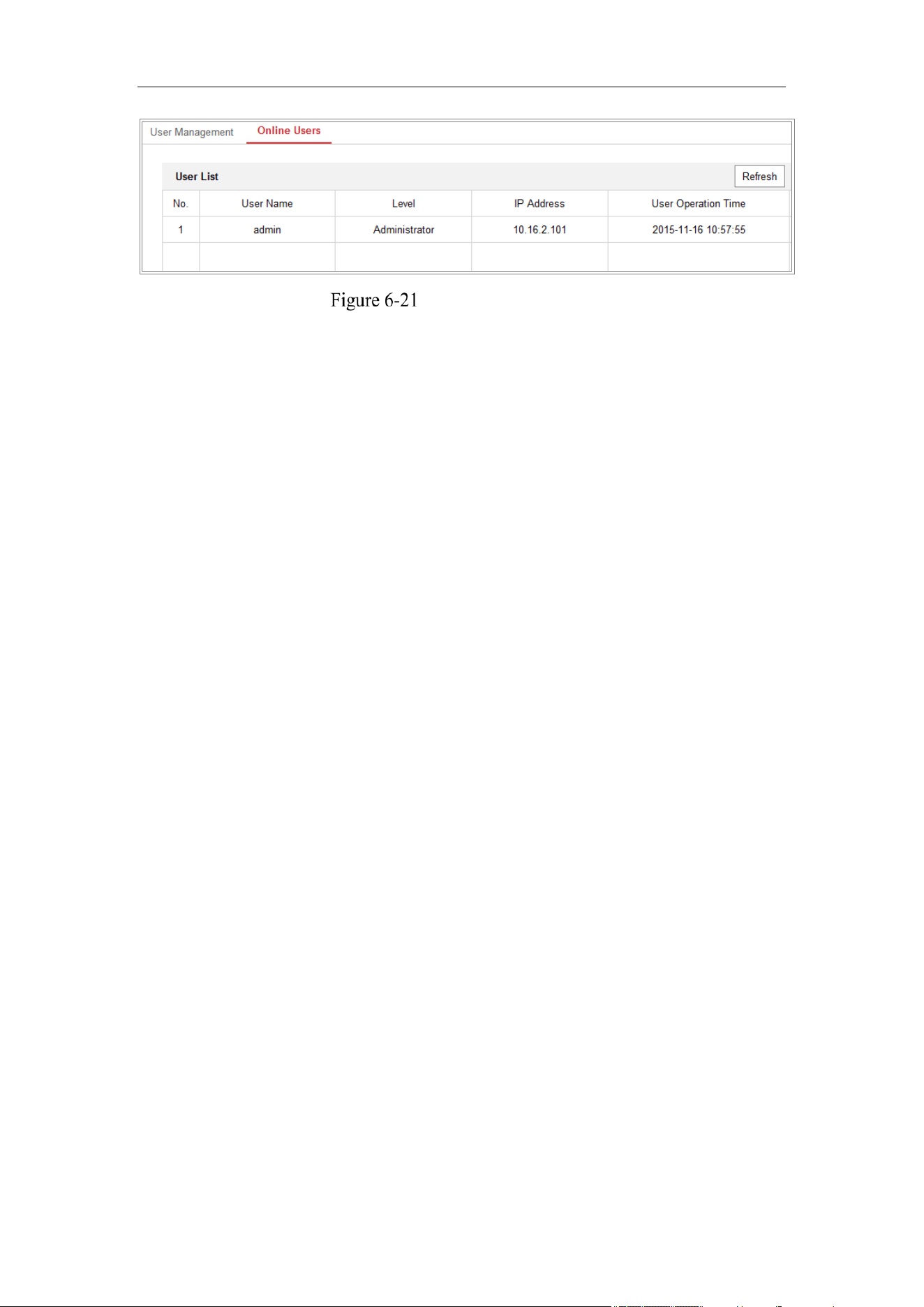

6.5.3 Online Users
Chapter 7 Network Settings
7.1 Configuring Basic Settings

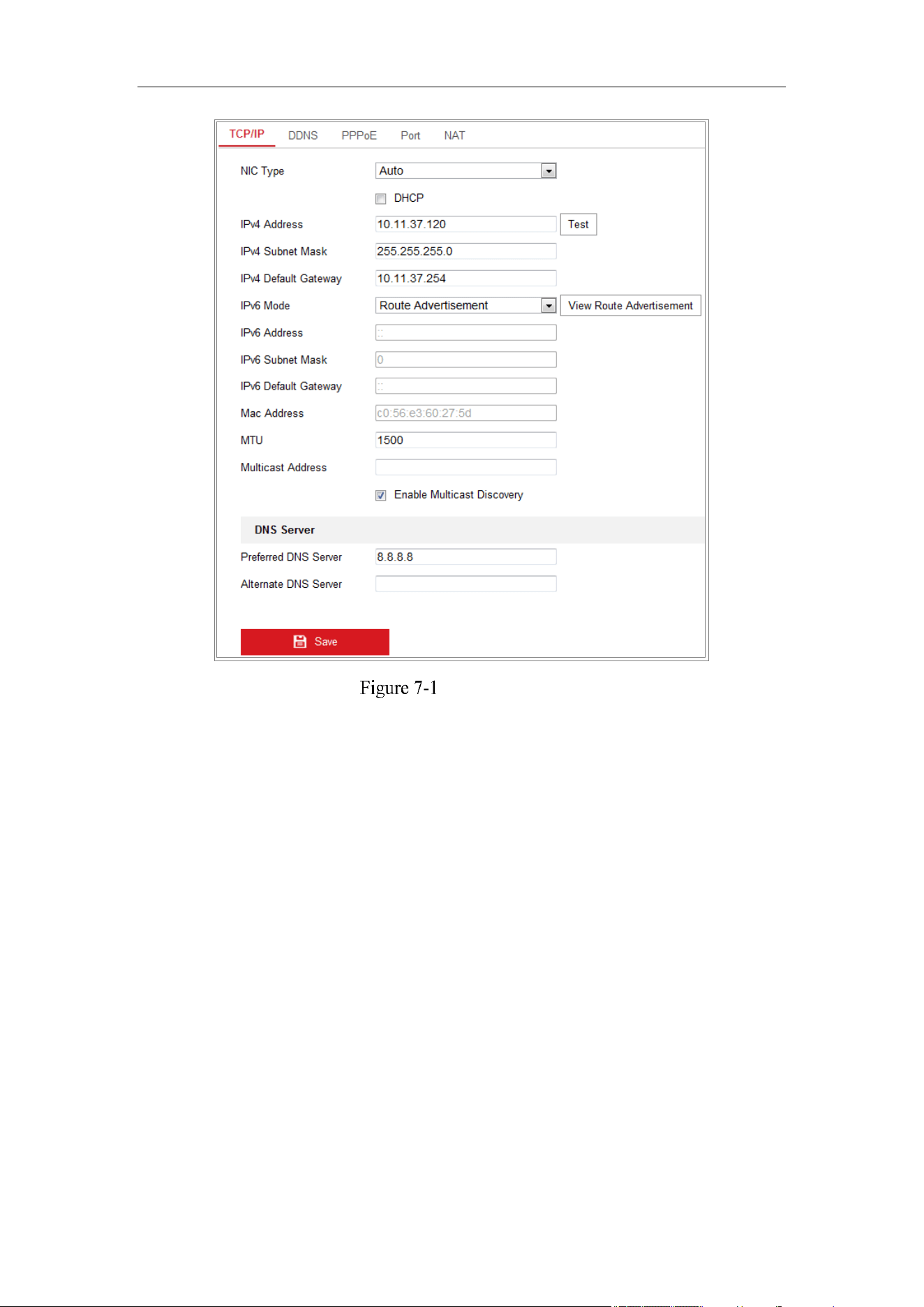

7.1.1 Configuring TCP/IP Settings

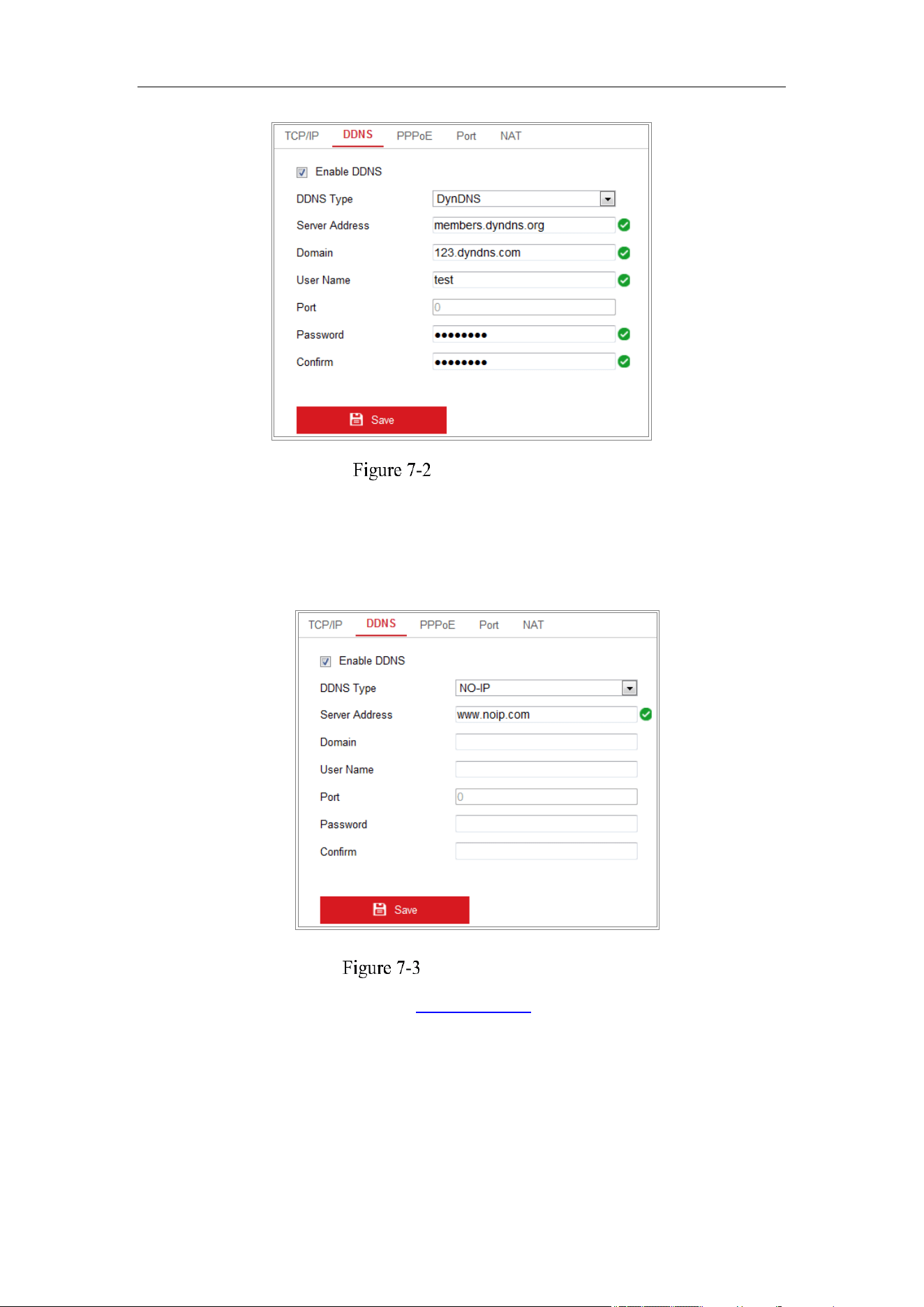

7.1.2 Configuring DDNS Settings
7.1.3 Configuring PPPoE Settings

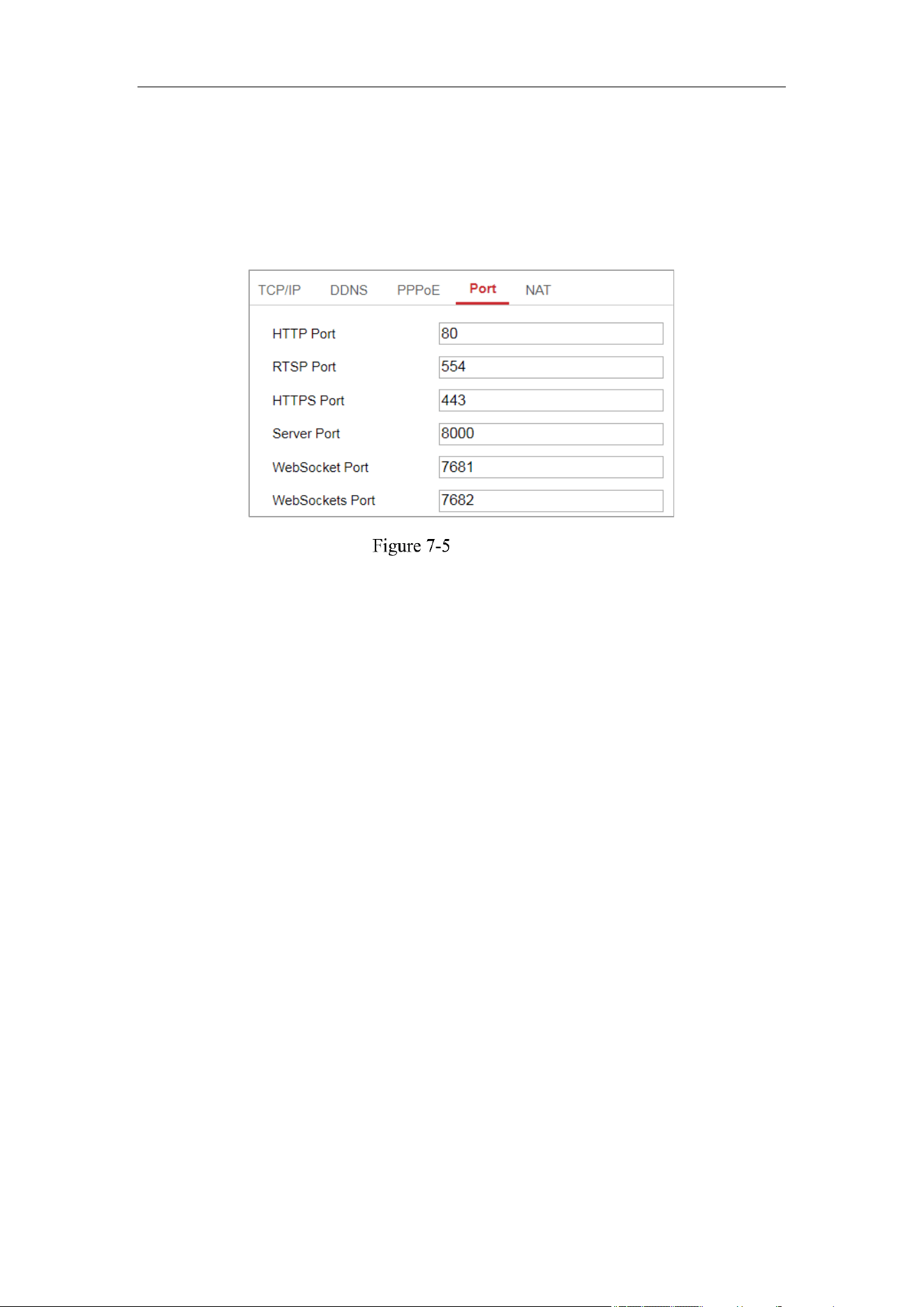

7.1.4 Configuring Port Settings

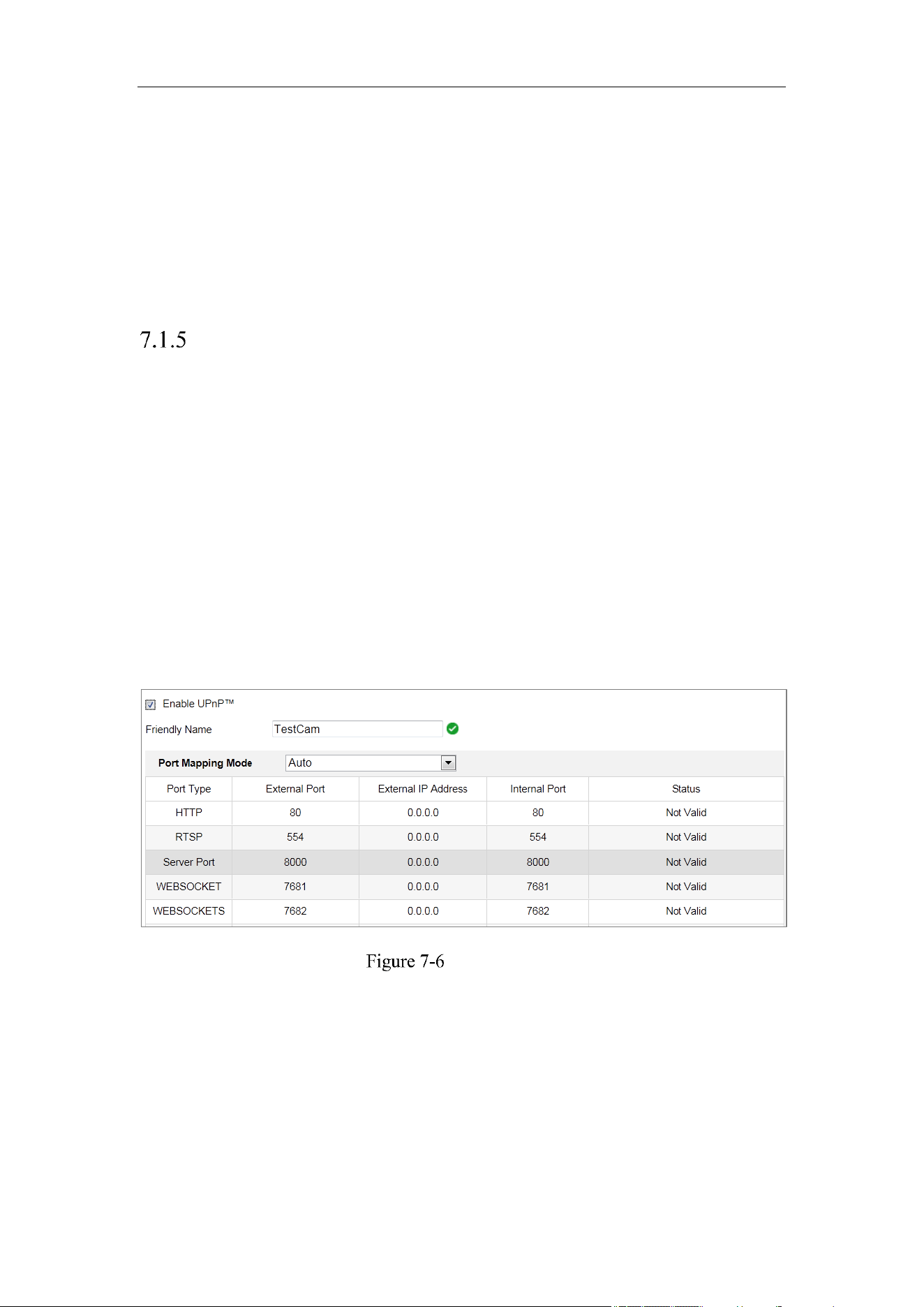

7.1.5 Configure NAT (Network Address Translation) Settings

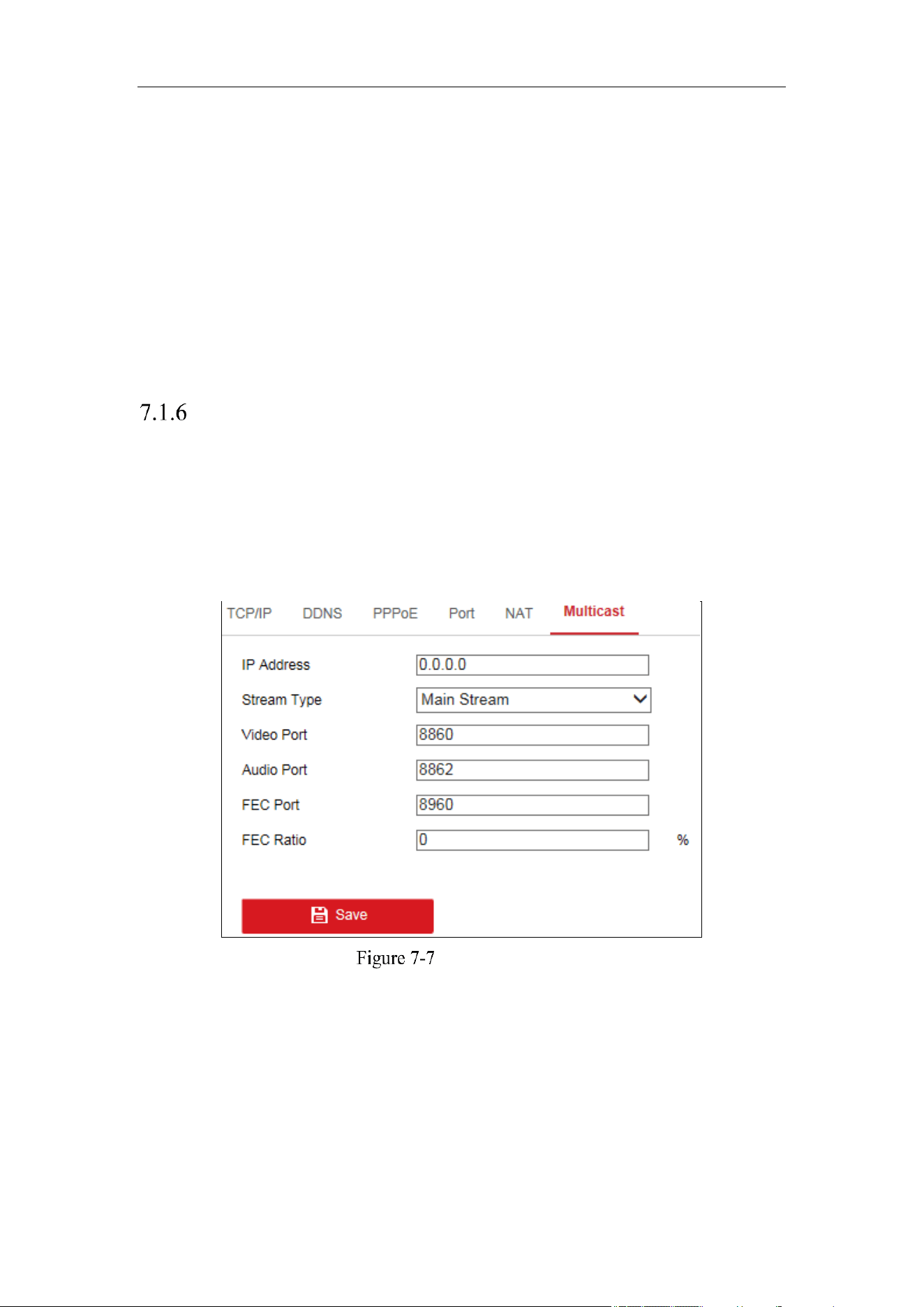

7.1.6 Configuring Multicast
7.2 Configure Advanced Settings

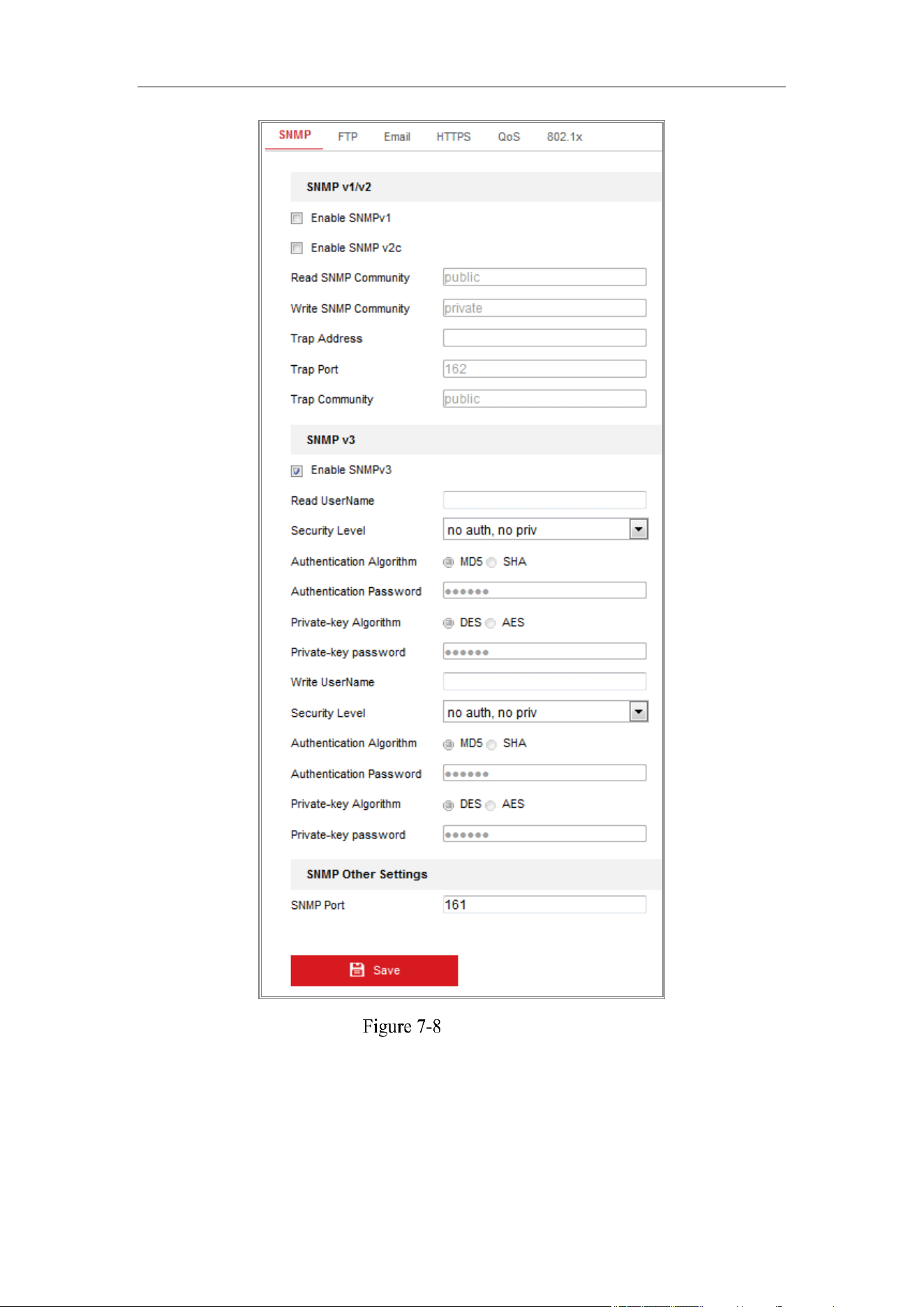

7.2.1 Configuring SNMP Settings

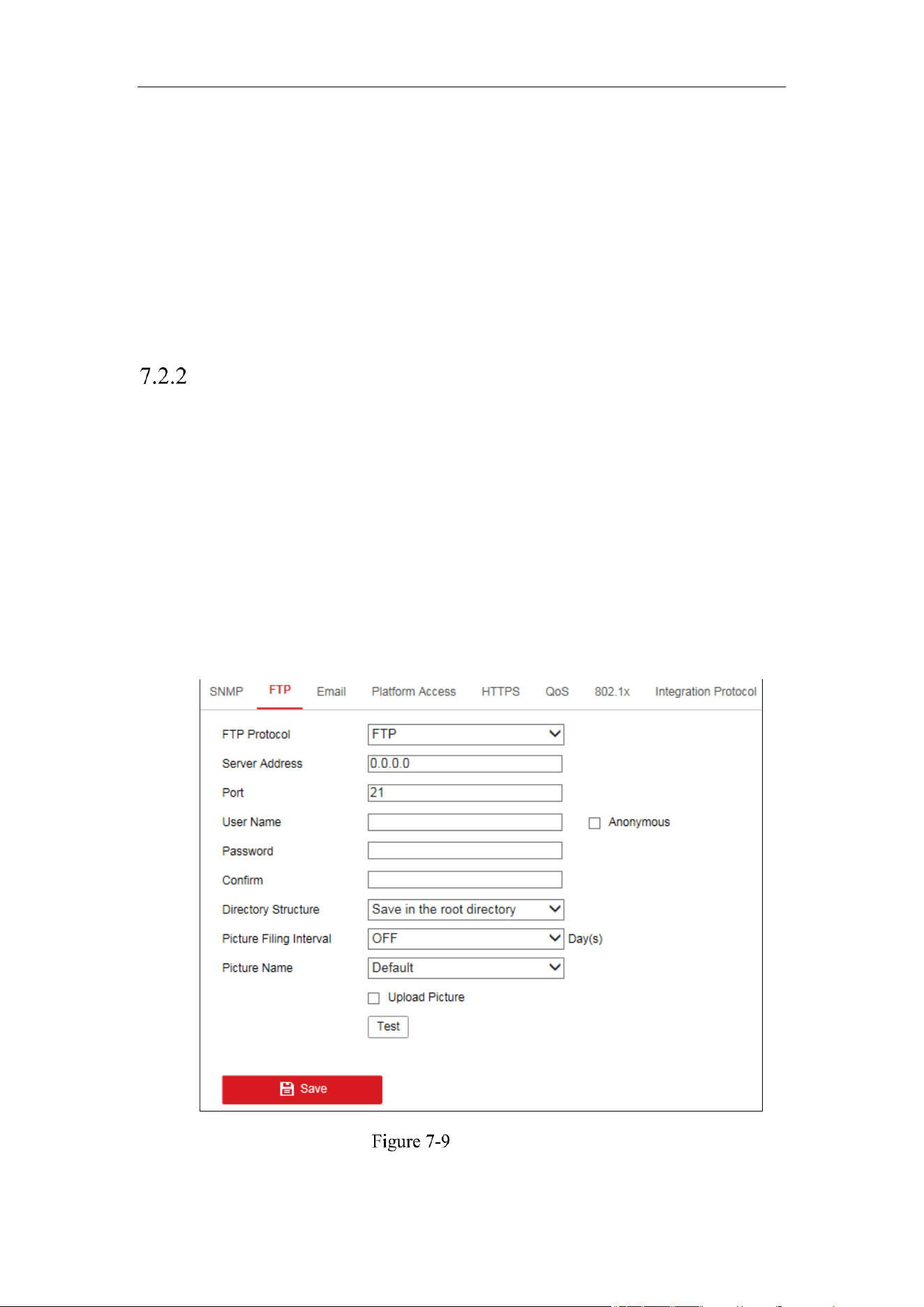

7.2.2 Configuring FTP Settings

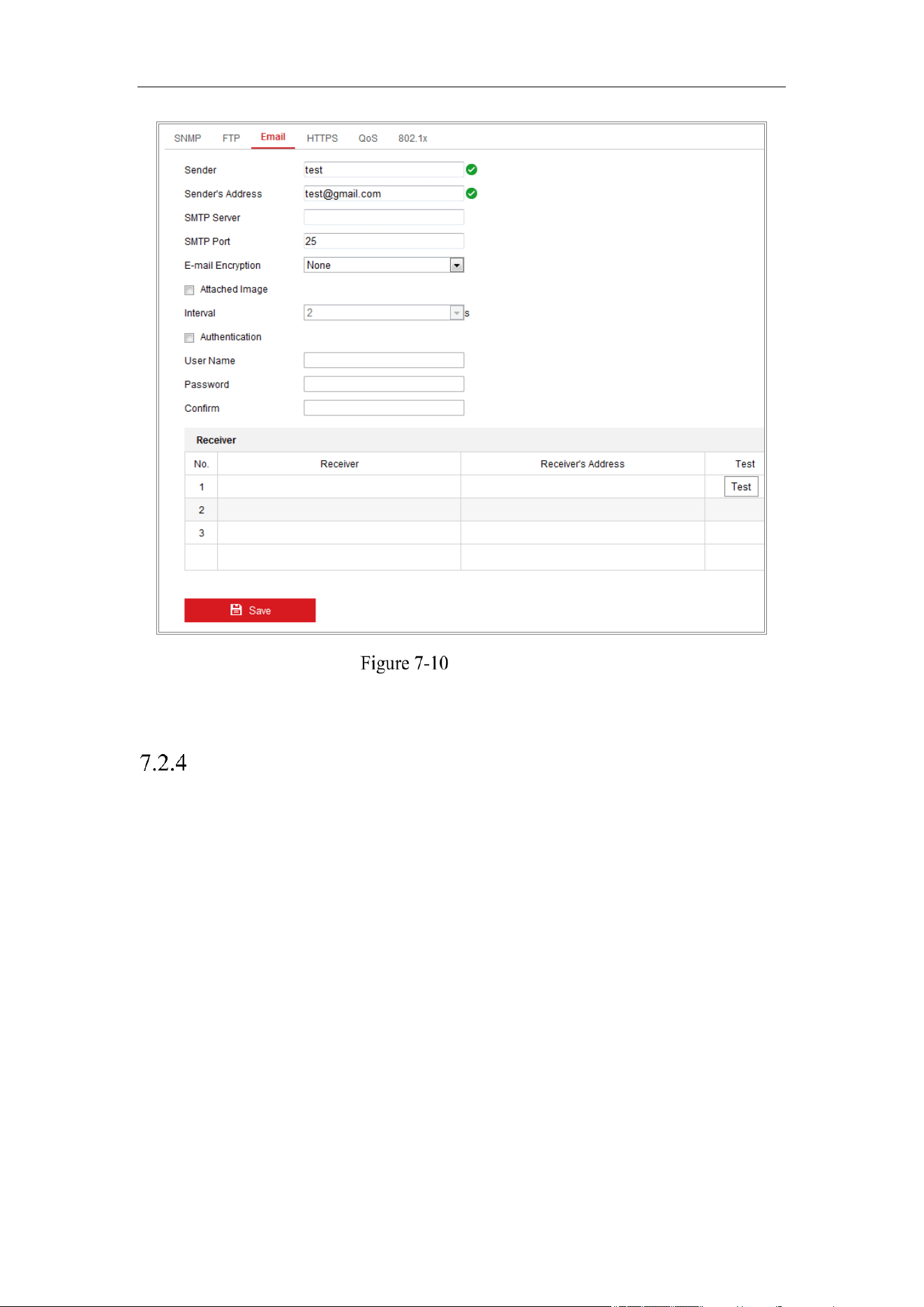

7.2.3 Configuring Email Settings
7.2.4 Platform Access
7.2.5 Wireless Dial

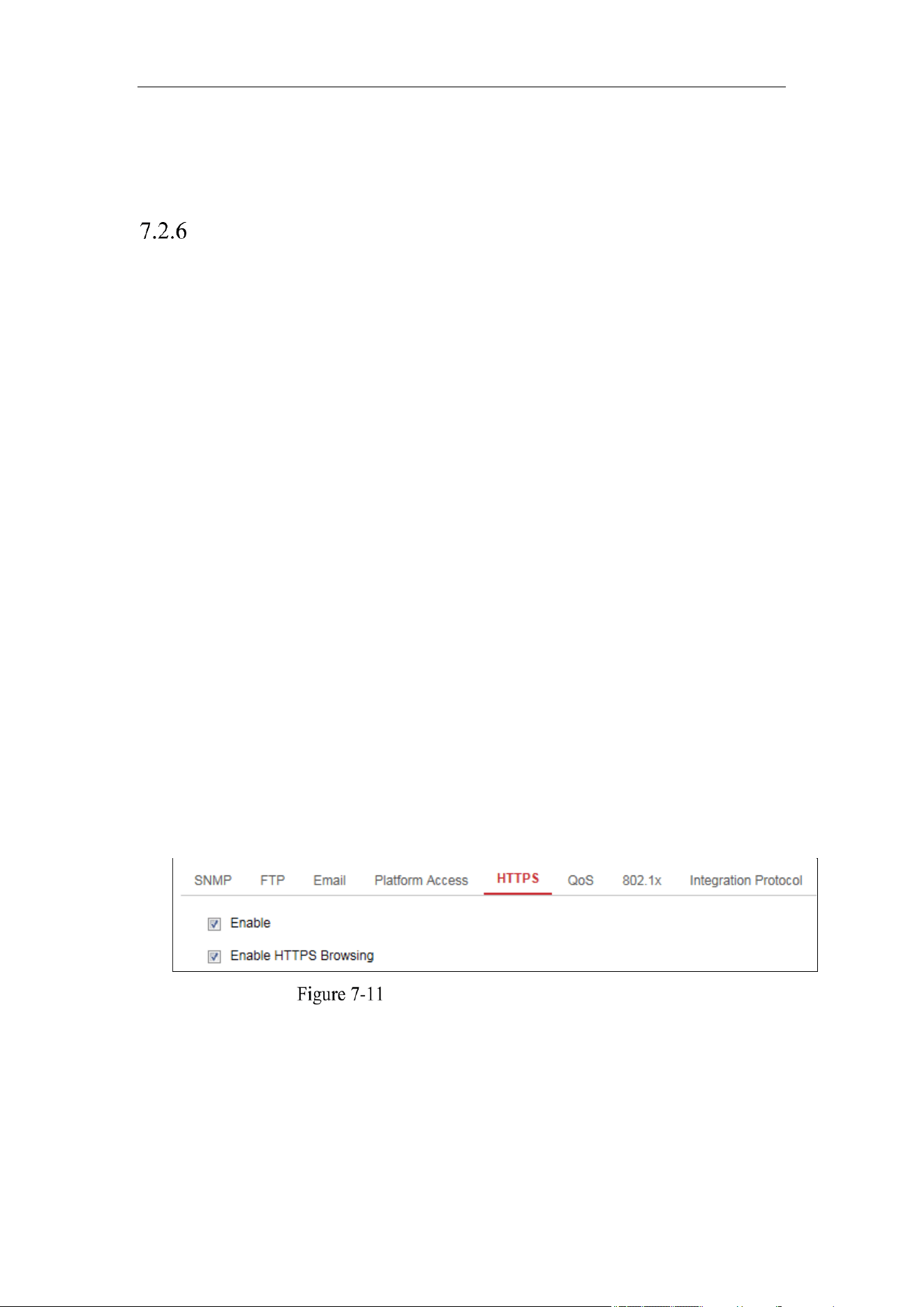

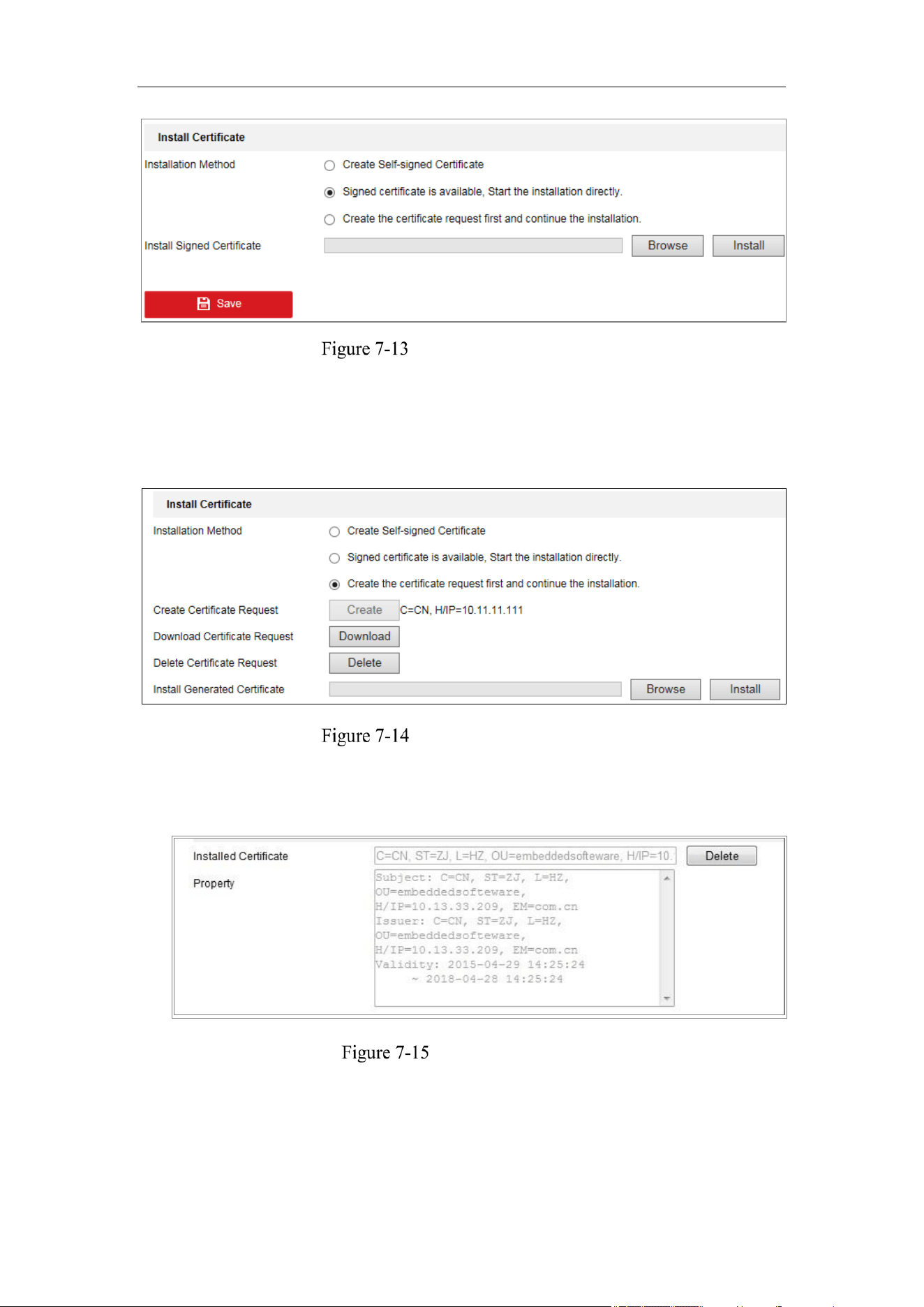

7.2.6 HTTPS Settings

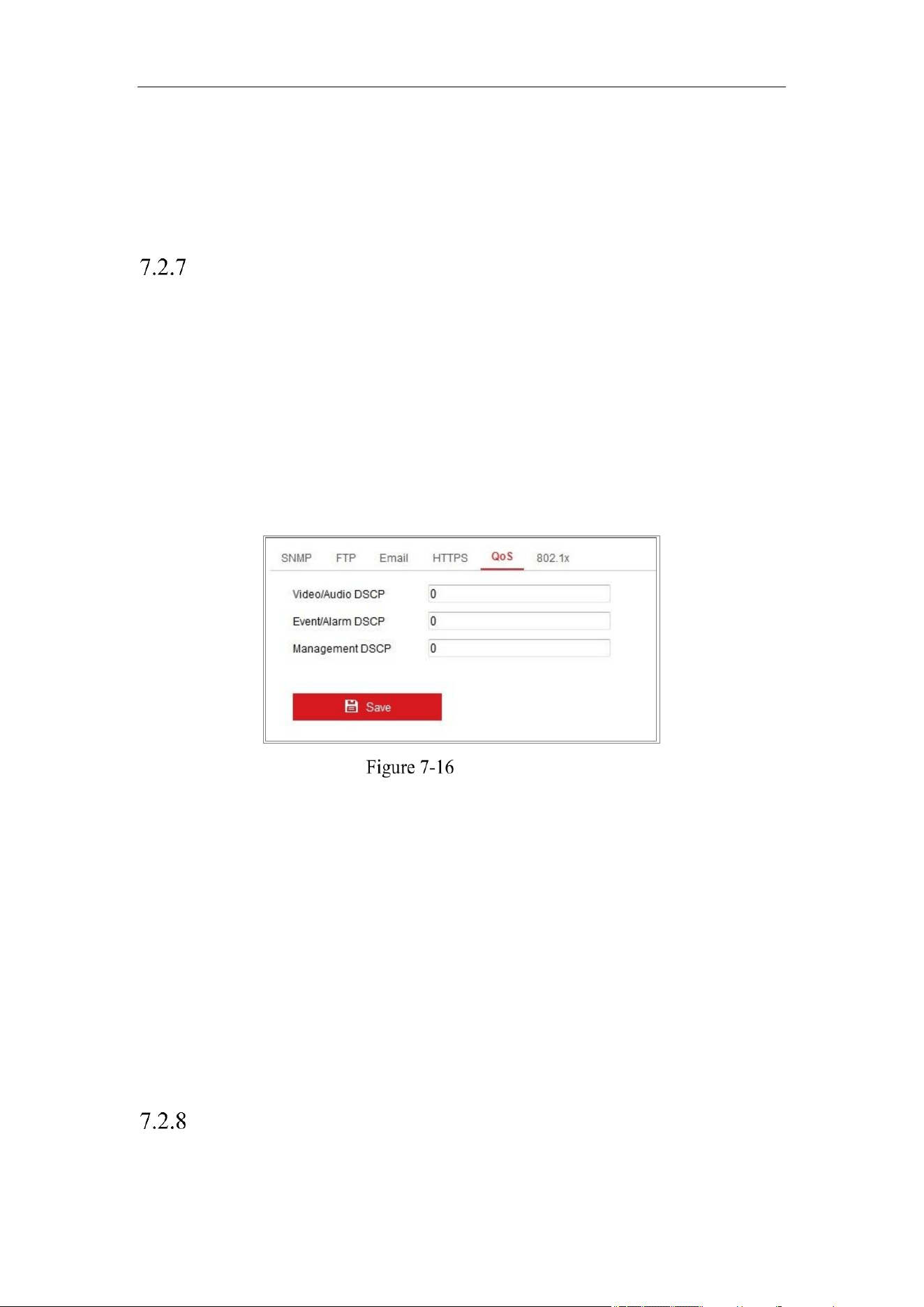

7.2.7 Configuring QoS Settings

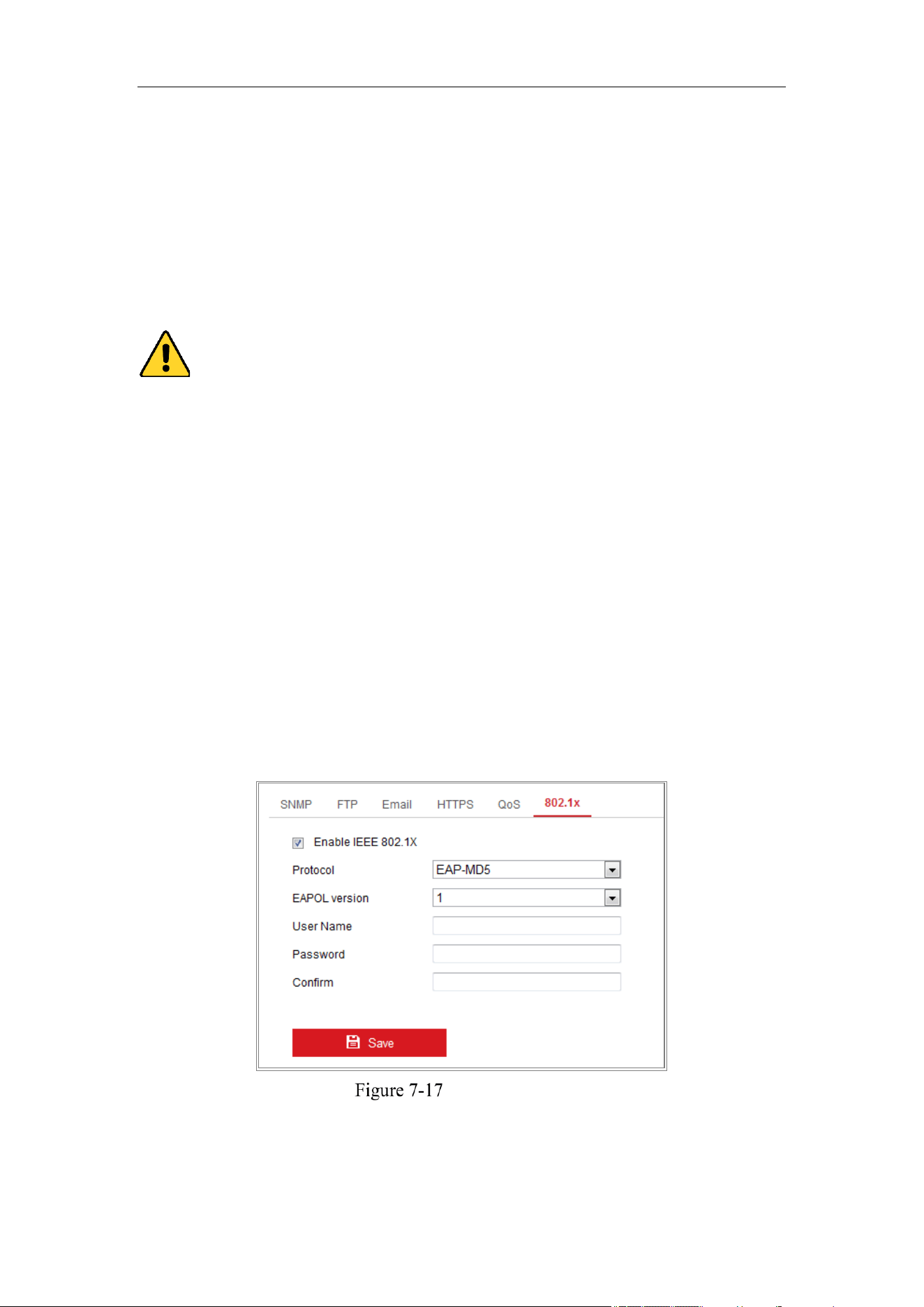

7.2.8 Configuring 802.1X Settings
7.2.9 Integration Protocol
7.2.10 Bandwidth Adaptation
7.2.11 Network Service
7.2.12 Smooth Streaming
Chapter 8 Video/Audio Settings
8.1 Configuring Video Settings

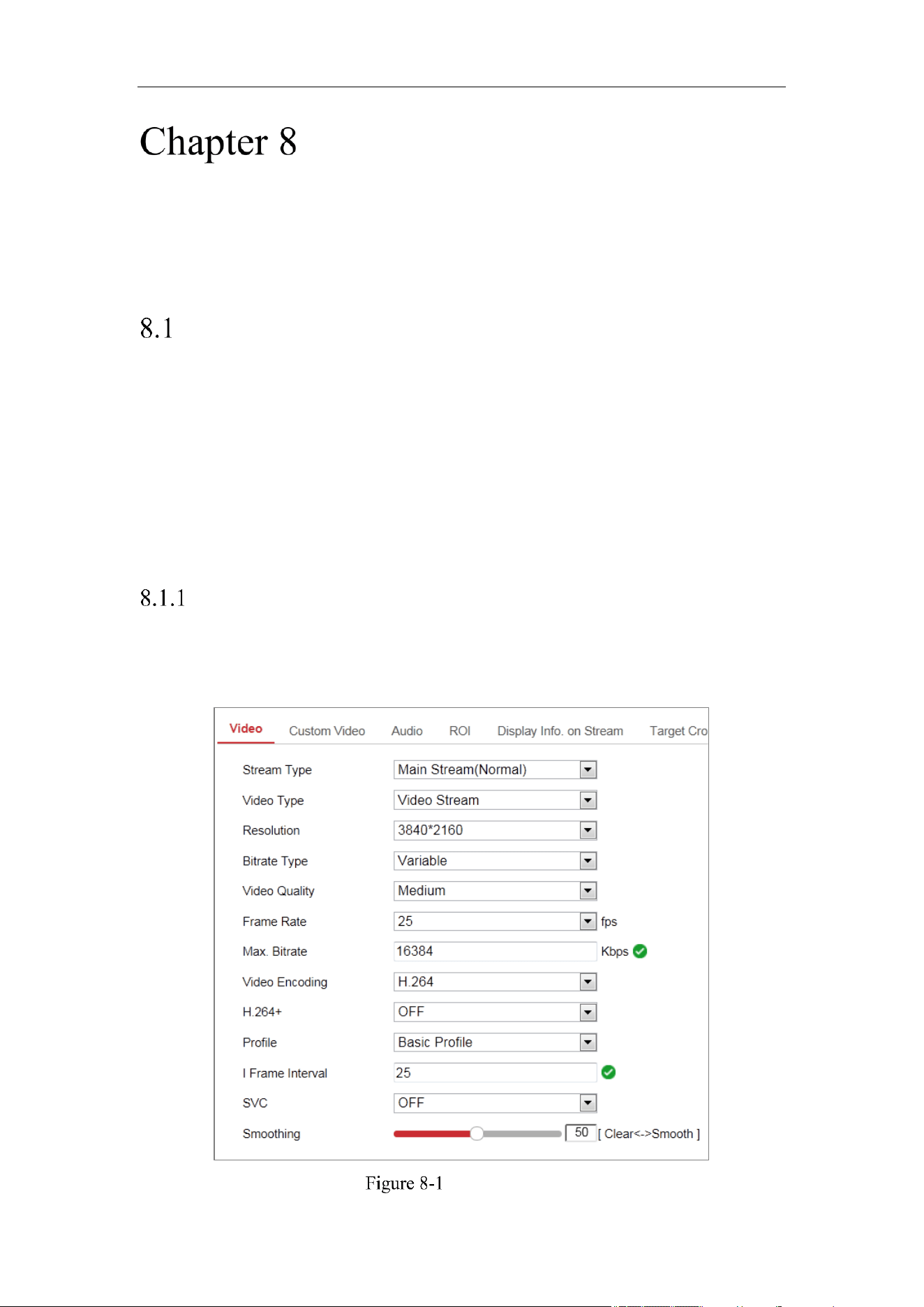

8.1.1 Video Settings

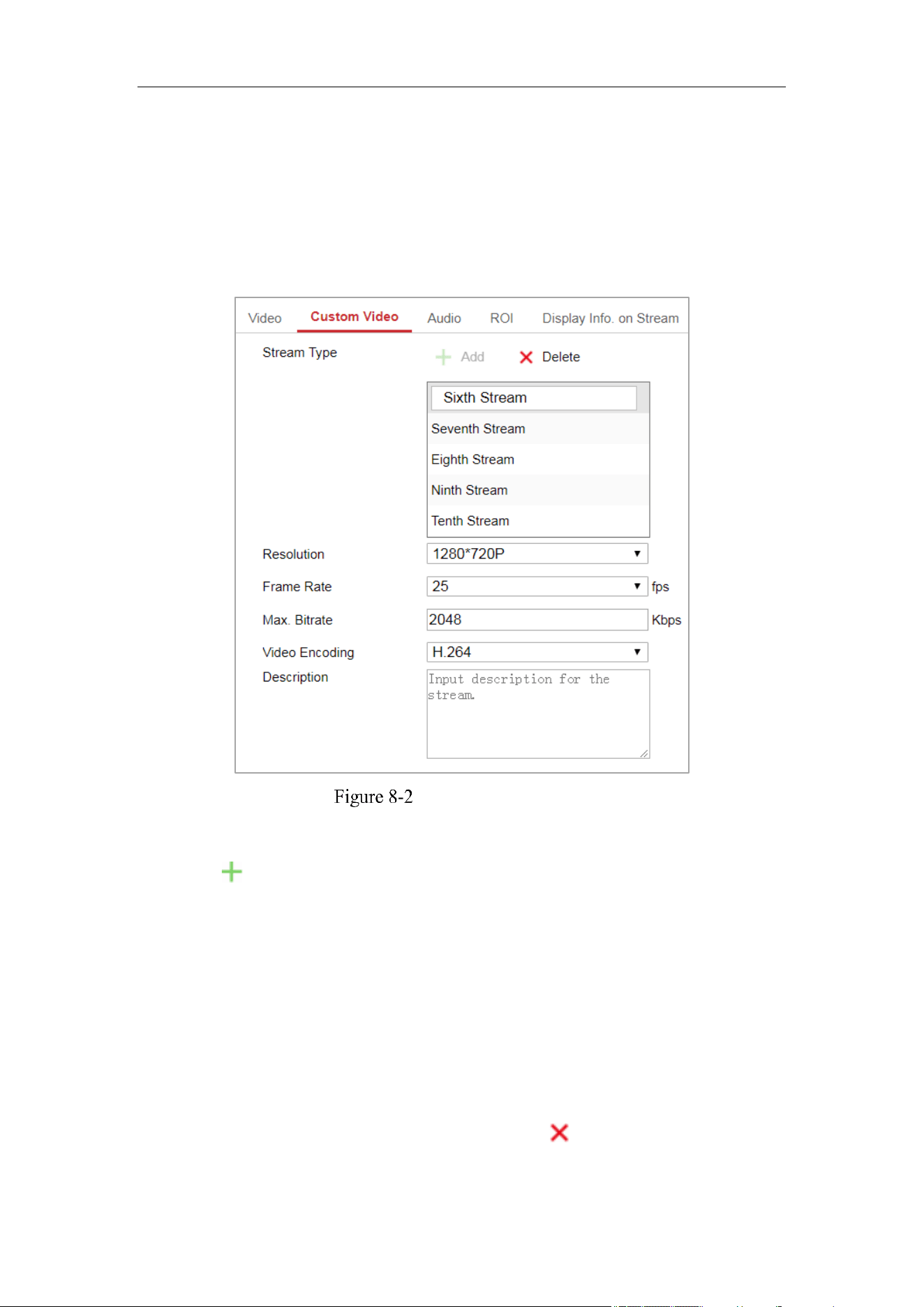

8.1.2 Custom Video

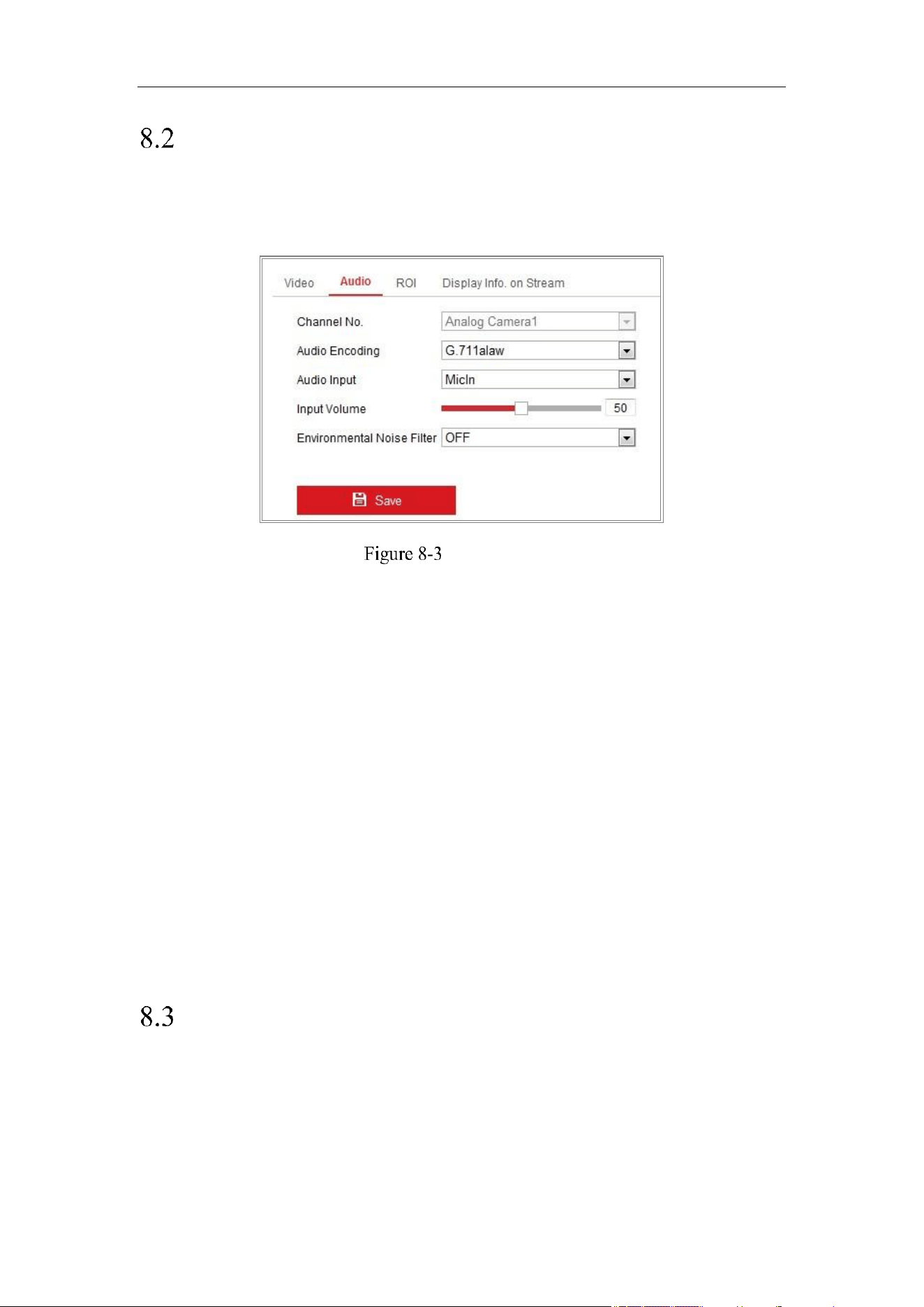

8.2 Configuring Audio Settings
8.3 Configuring ROI Encoding

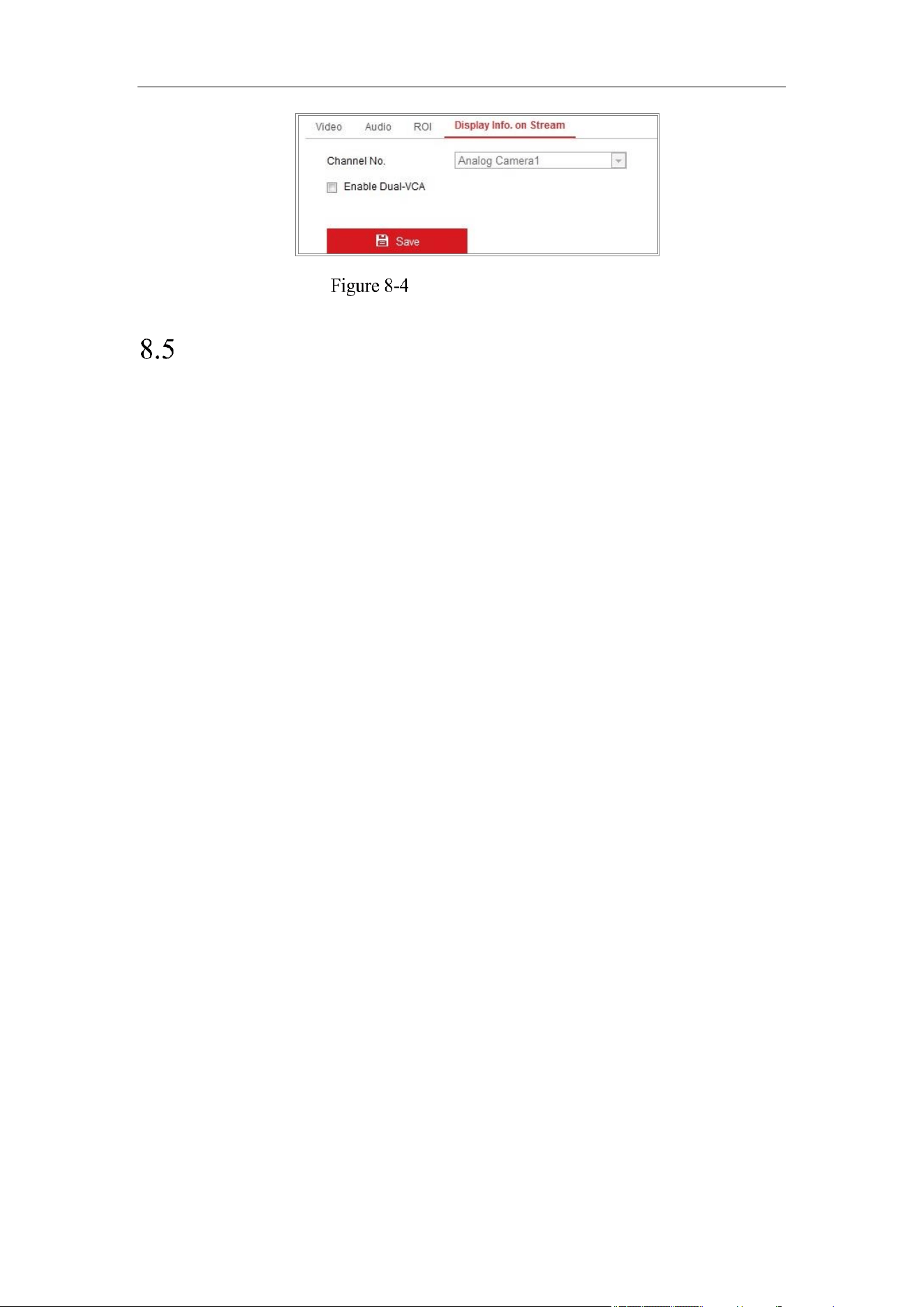

8.4 Display Info. on Stream
8.5 Configuring Target Cropping
Chapter 9 Image Settings

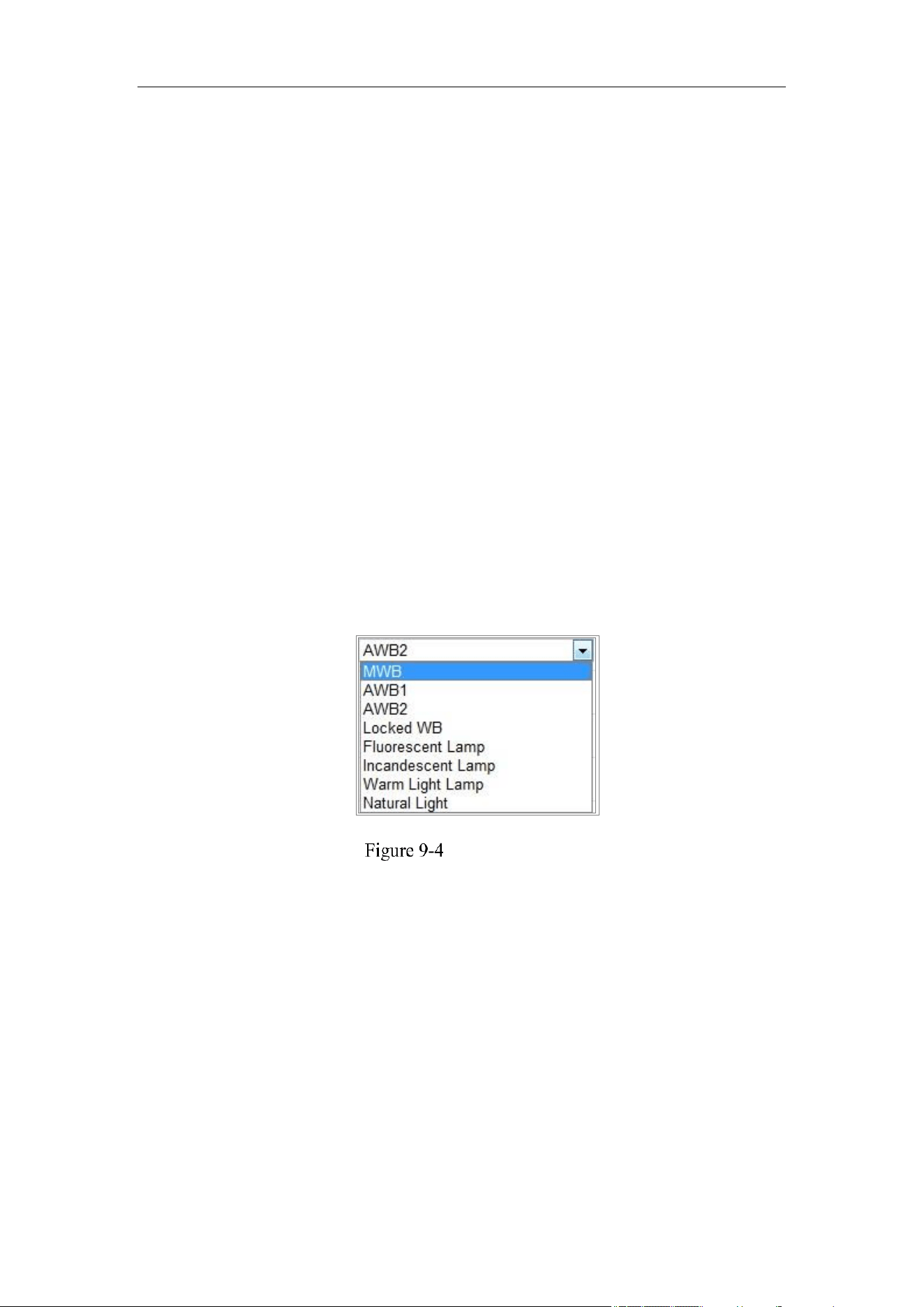

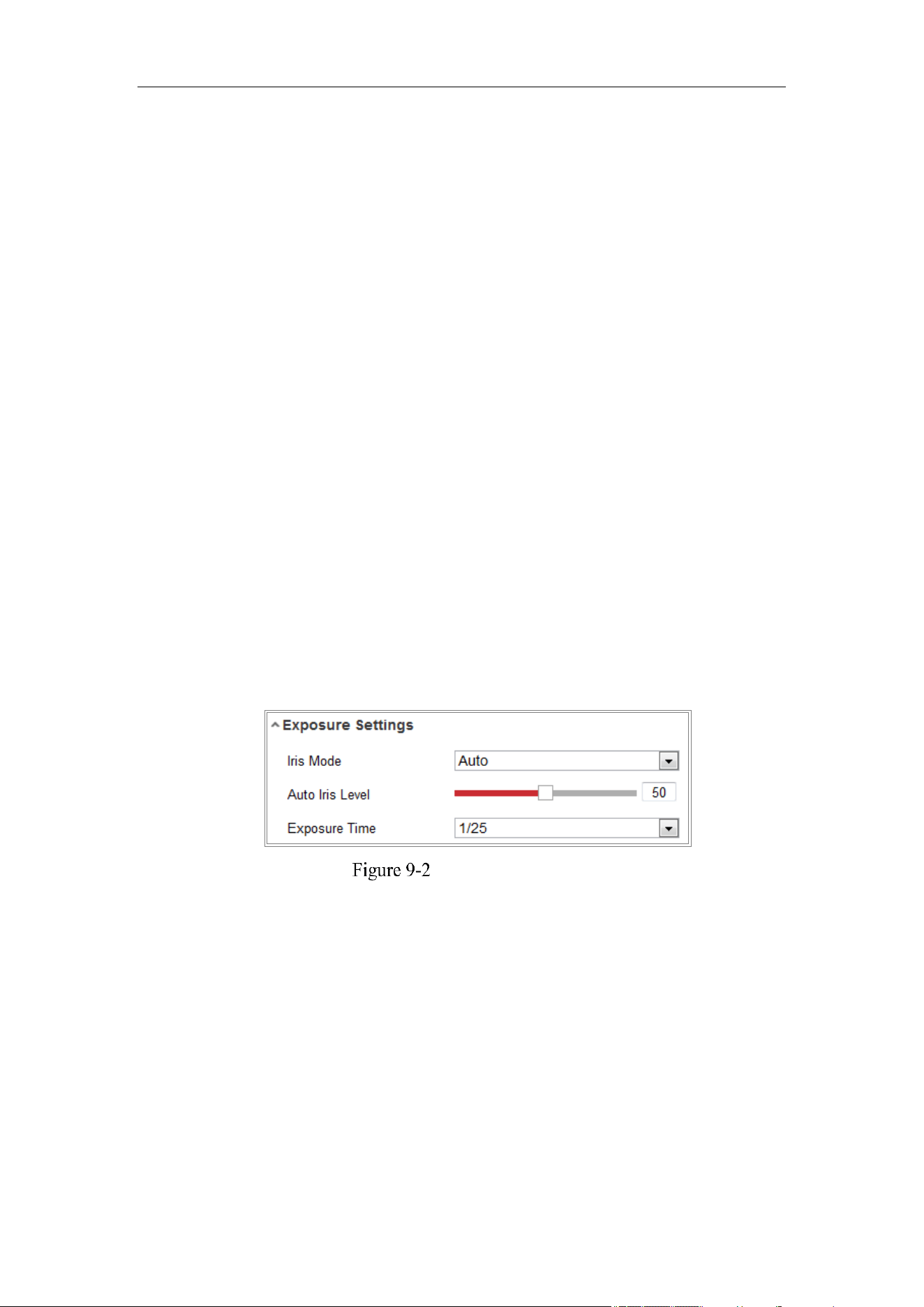

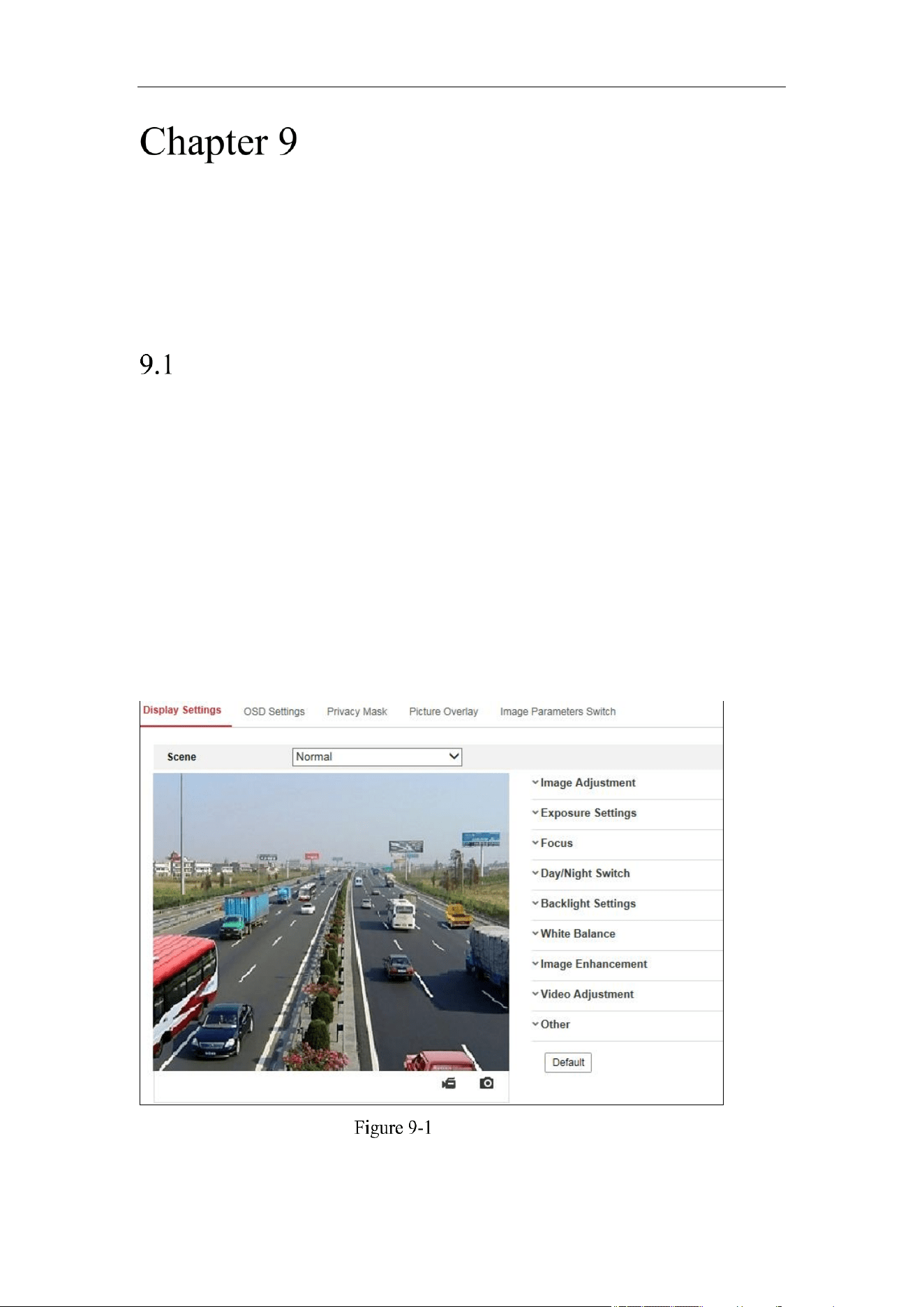

9.1 Configuring Display Settings
9.2 Configuring OSD Settings

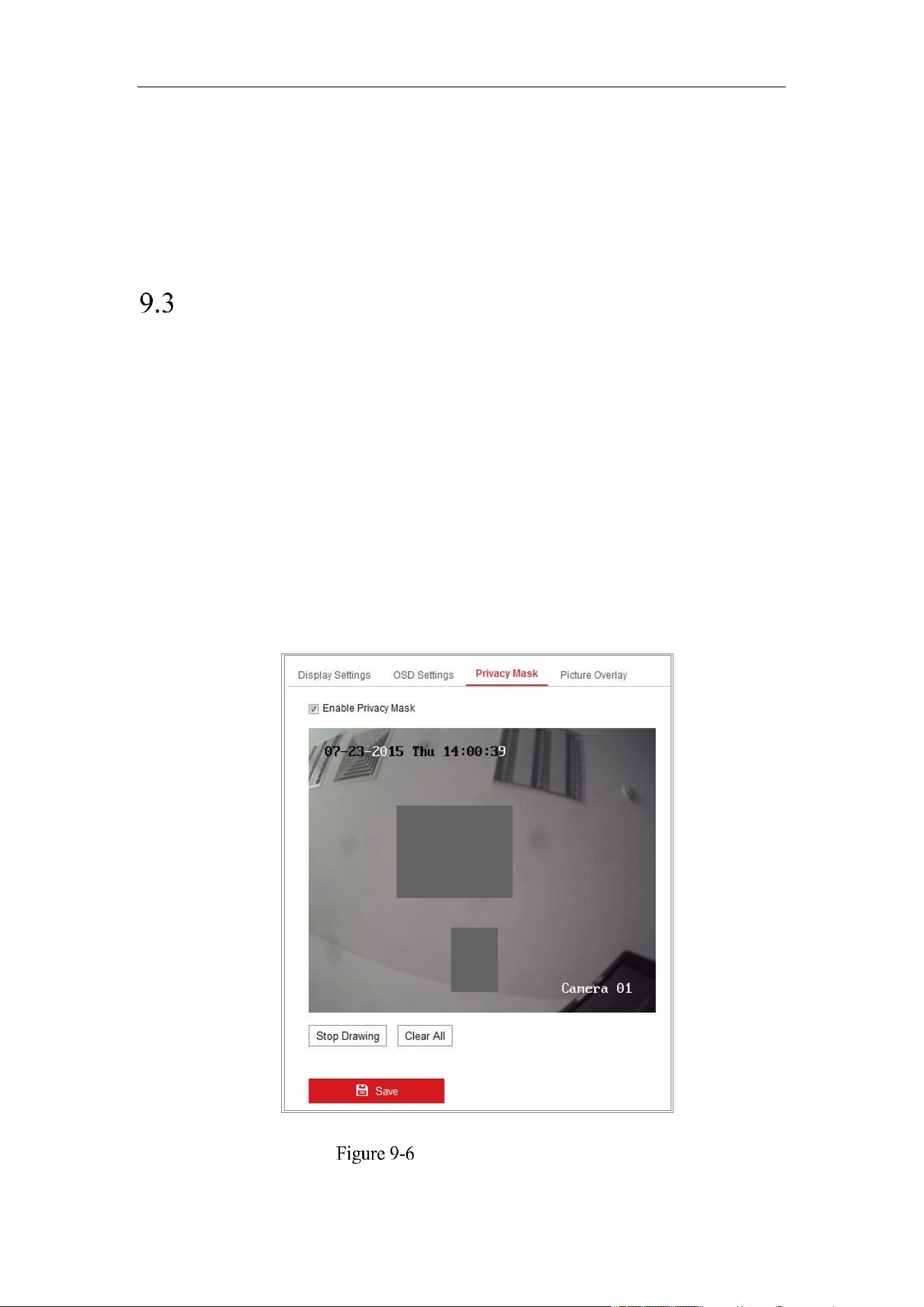

9.3 Configuring Privacy Mask

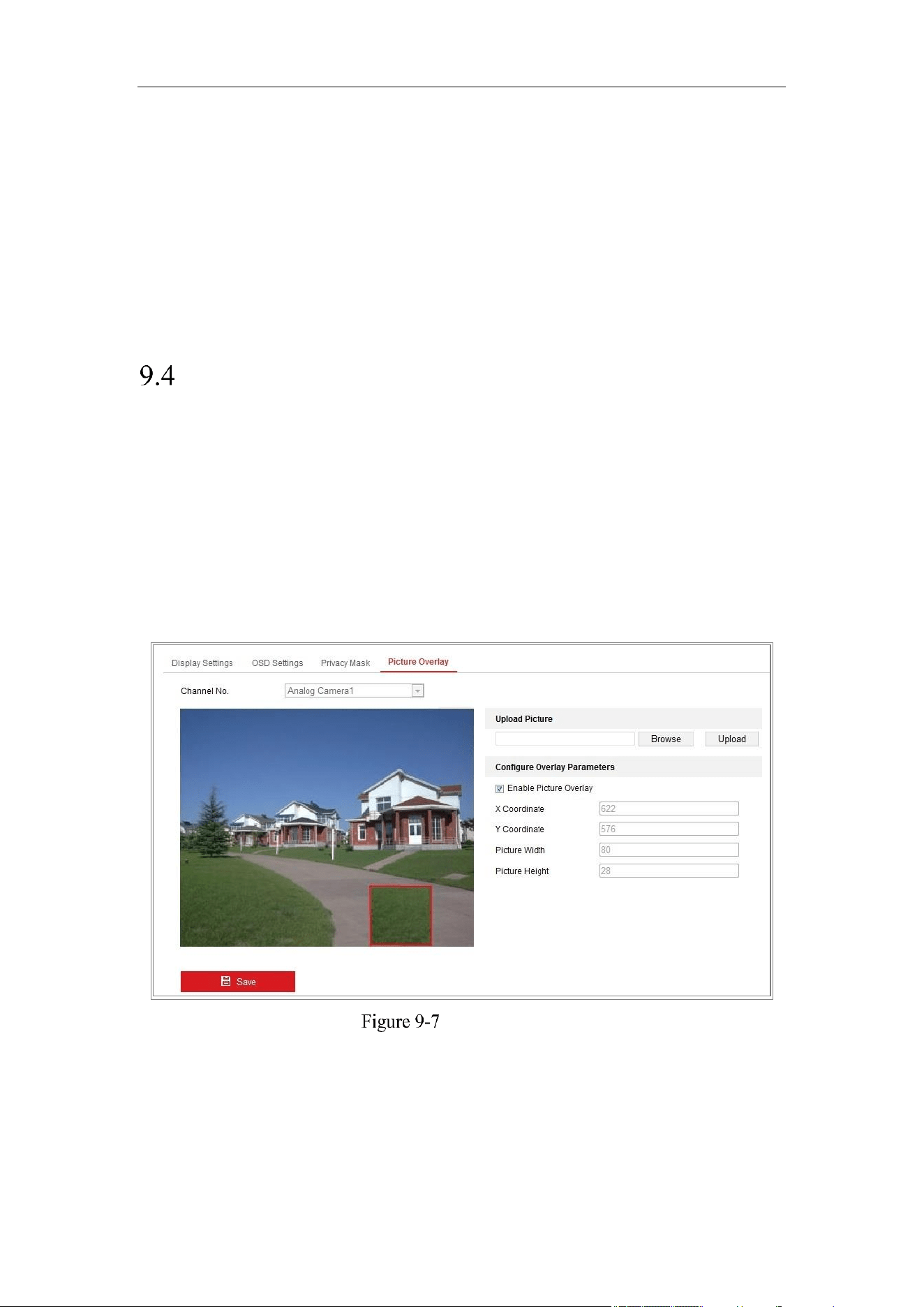

9.4 Configuring Picture Overlay

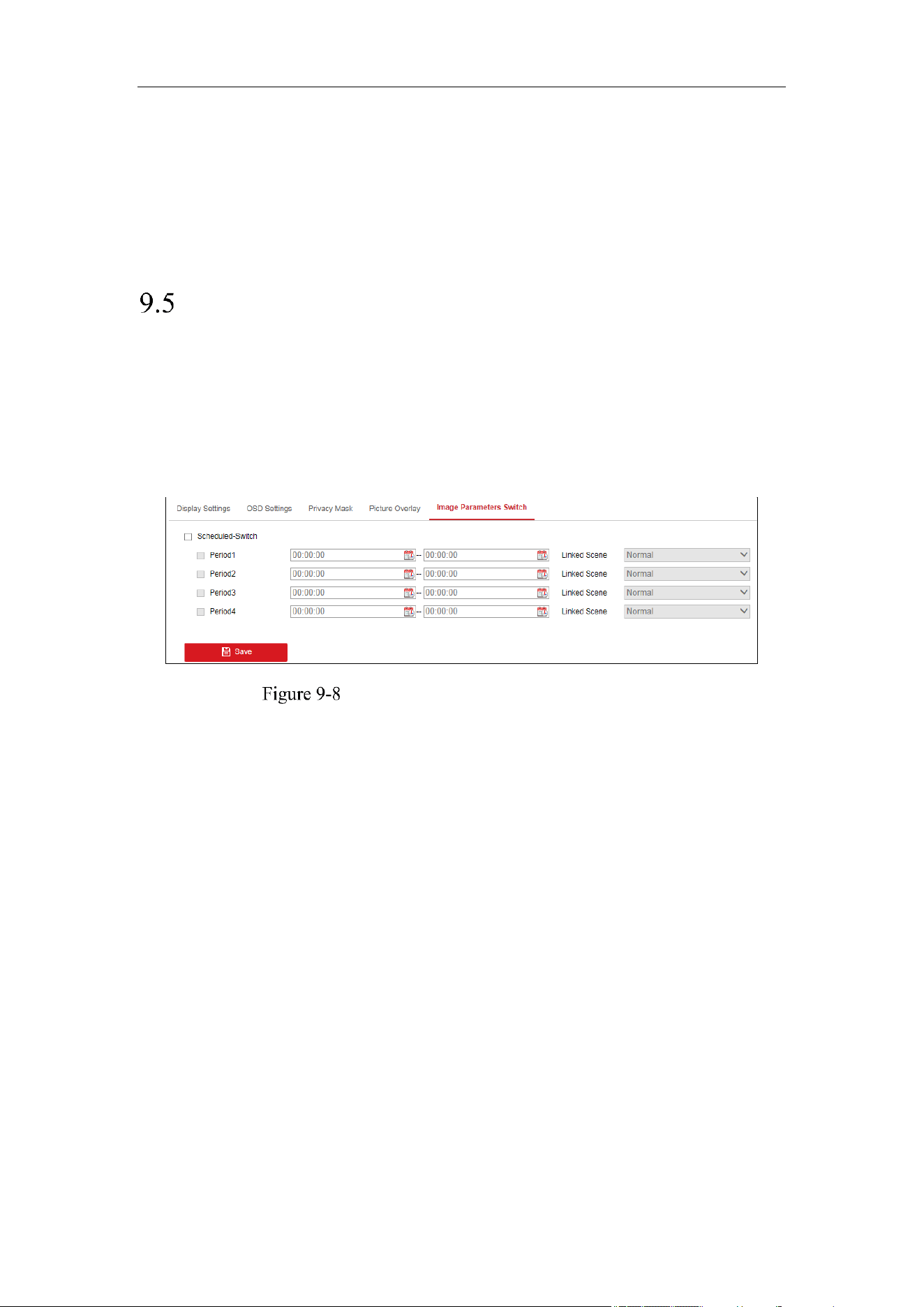

9.5 Configuring Image Parameters Switch
Chapter 10 Event Settings
10.1 Basic Events

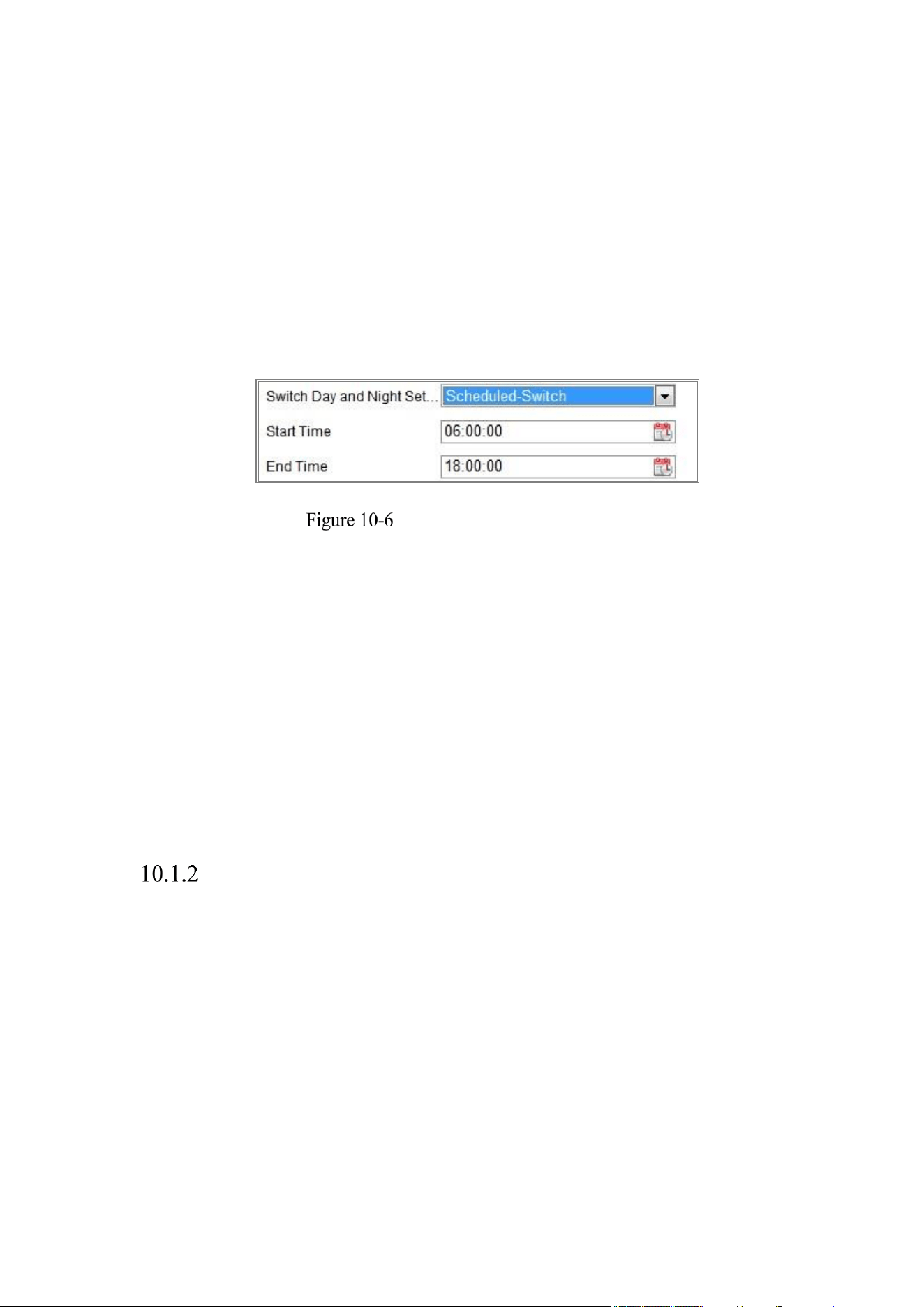

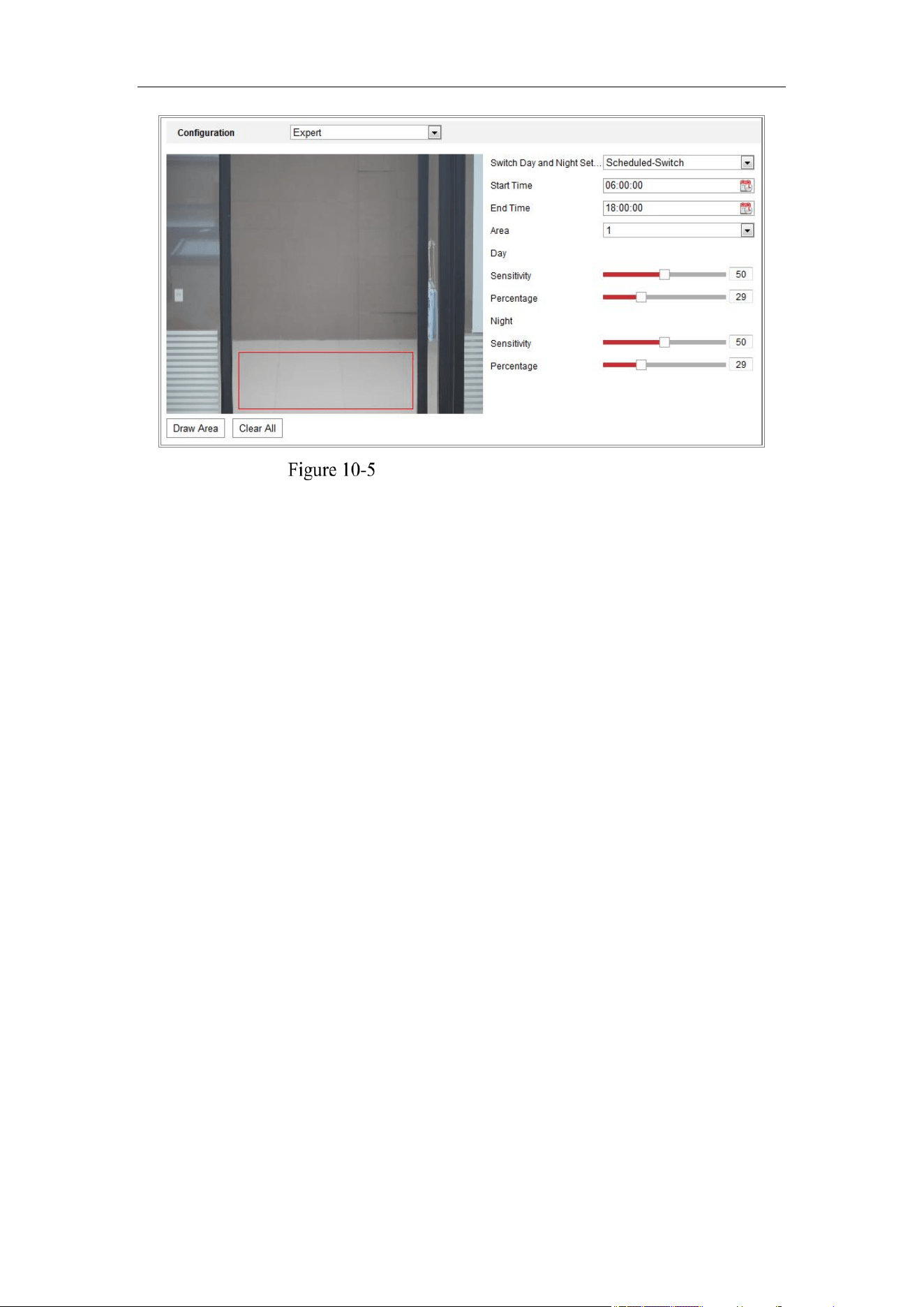

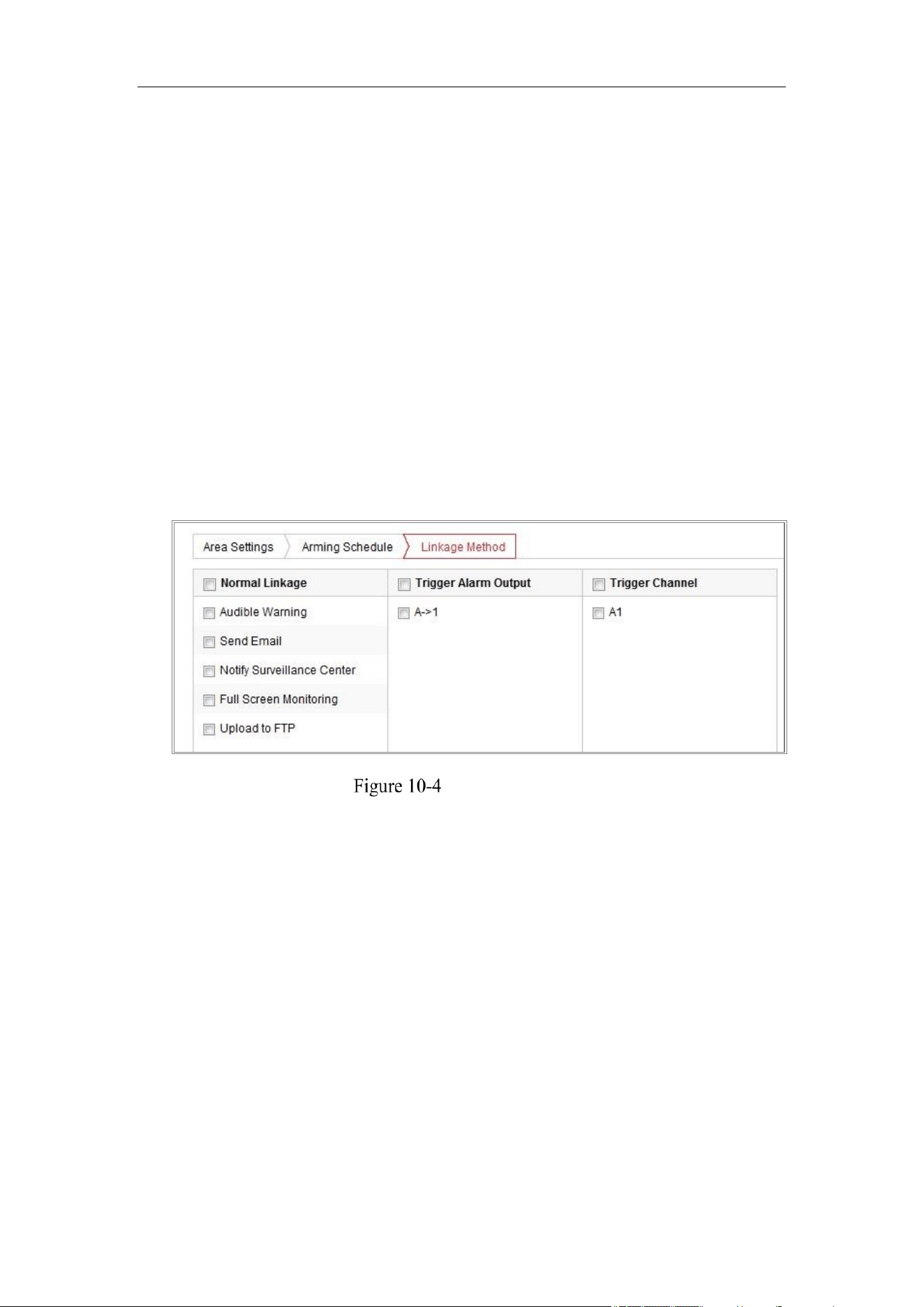

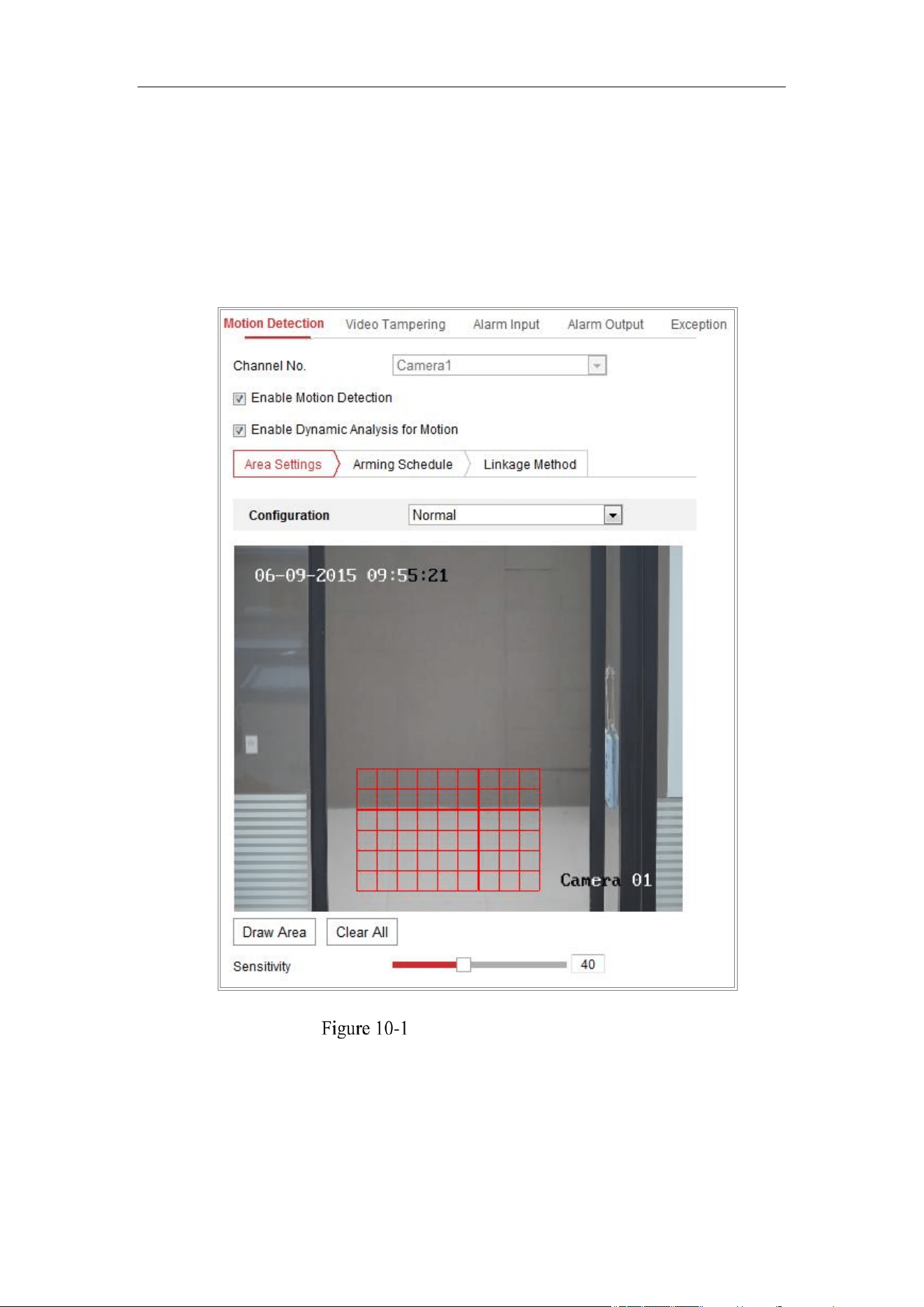

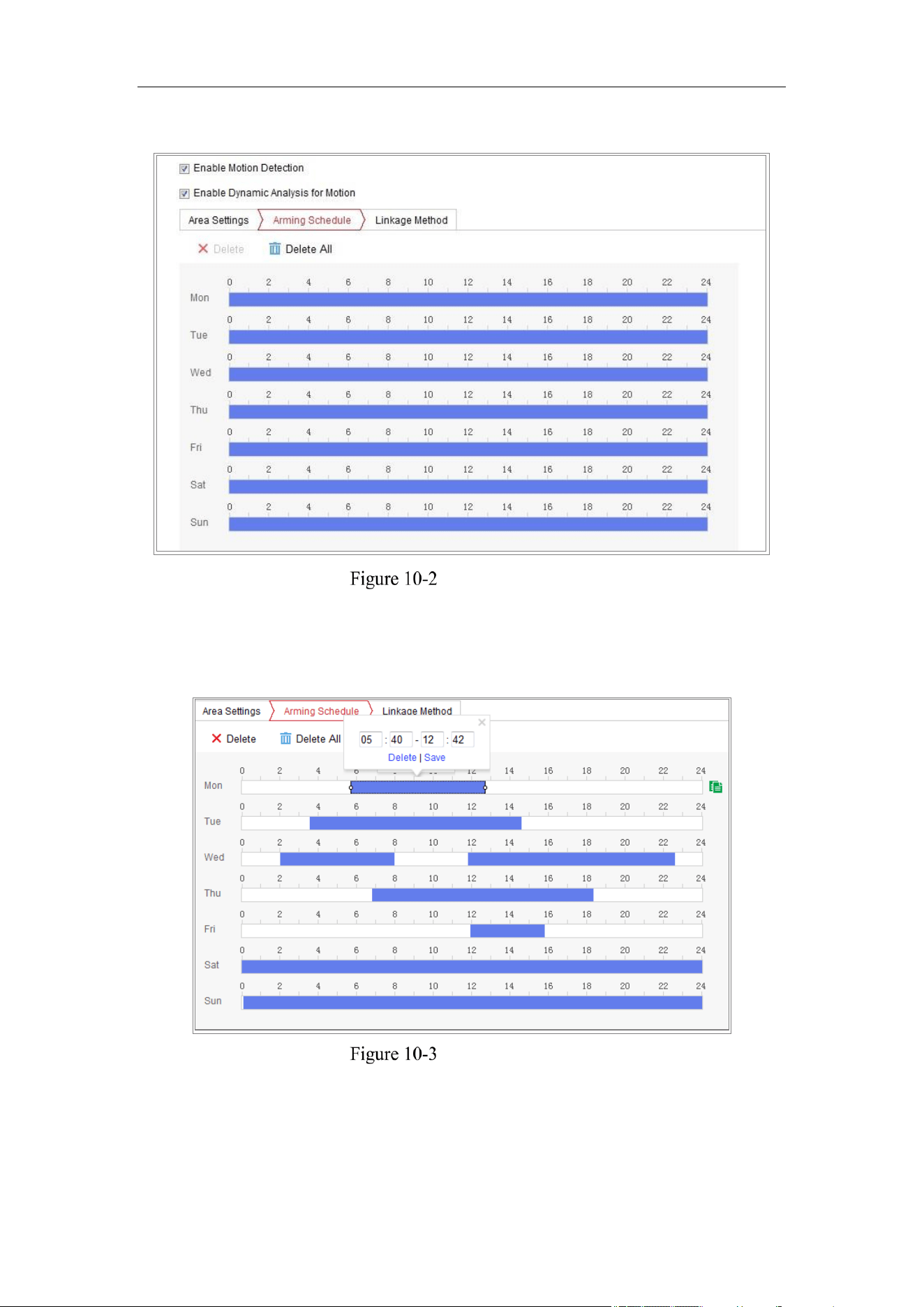

10.1.1 Configuring Motion Detection
10.1.2 Configuring Video Tampering Alarm

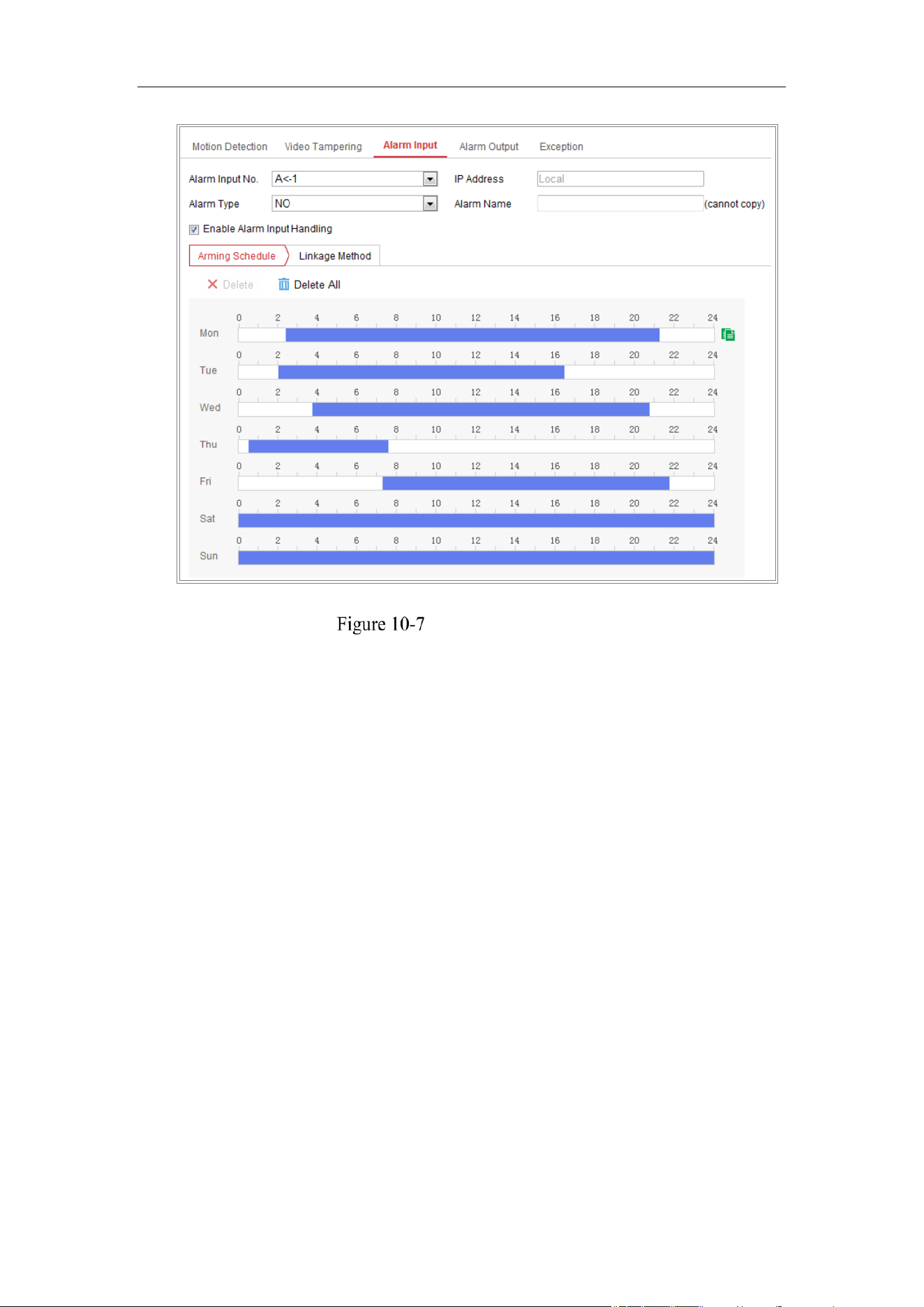

10.1.3 Configuring Alarm Input

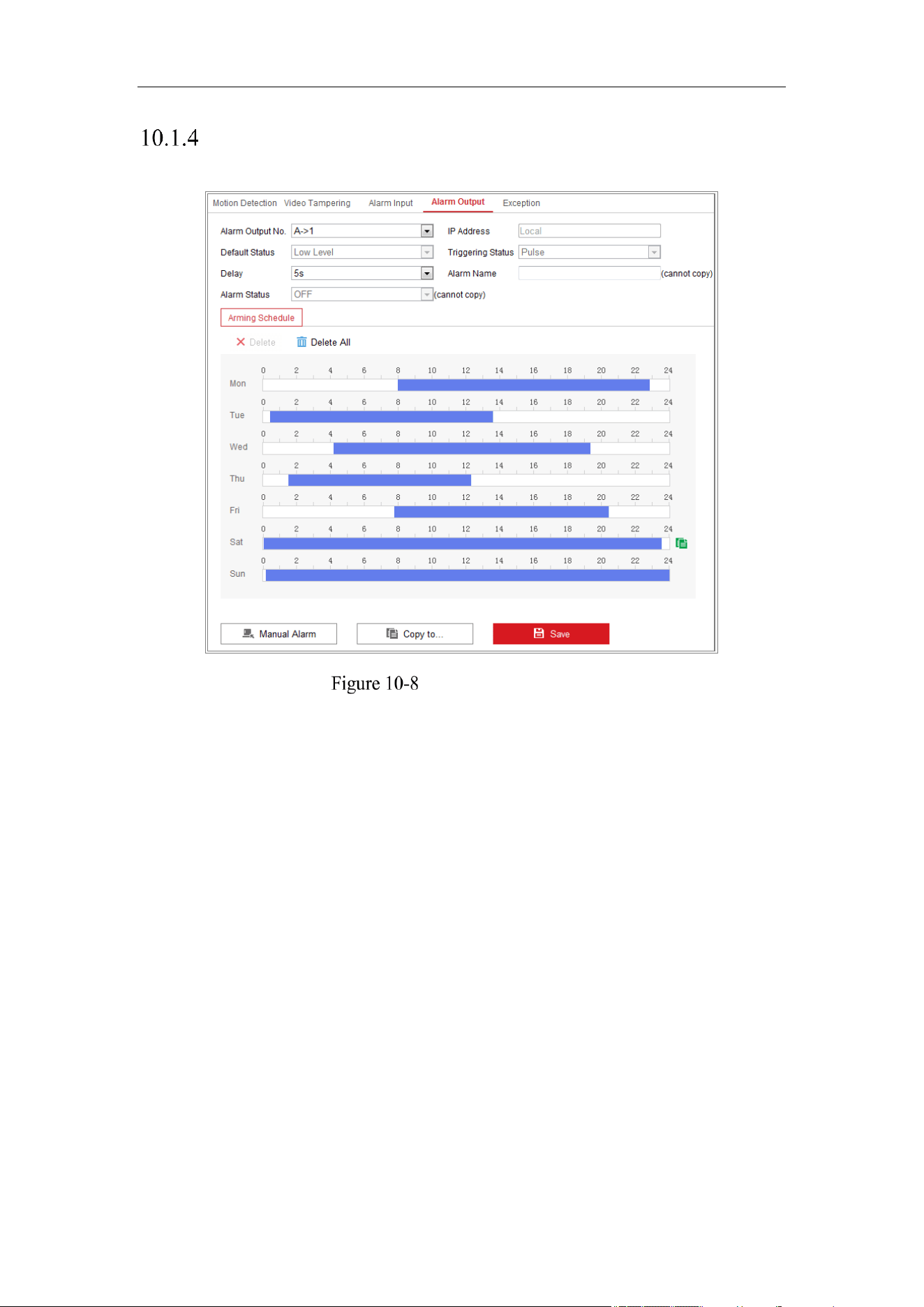

10.1.4 Configuring Alarm Output
10.1.5 Handling Exception
10.1.6 Configuring Flashing Alarm Light Output

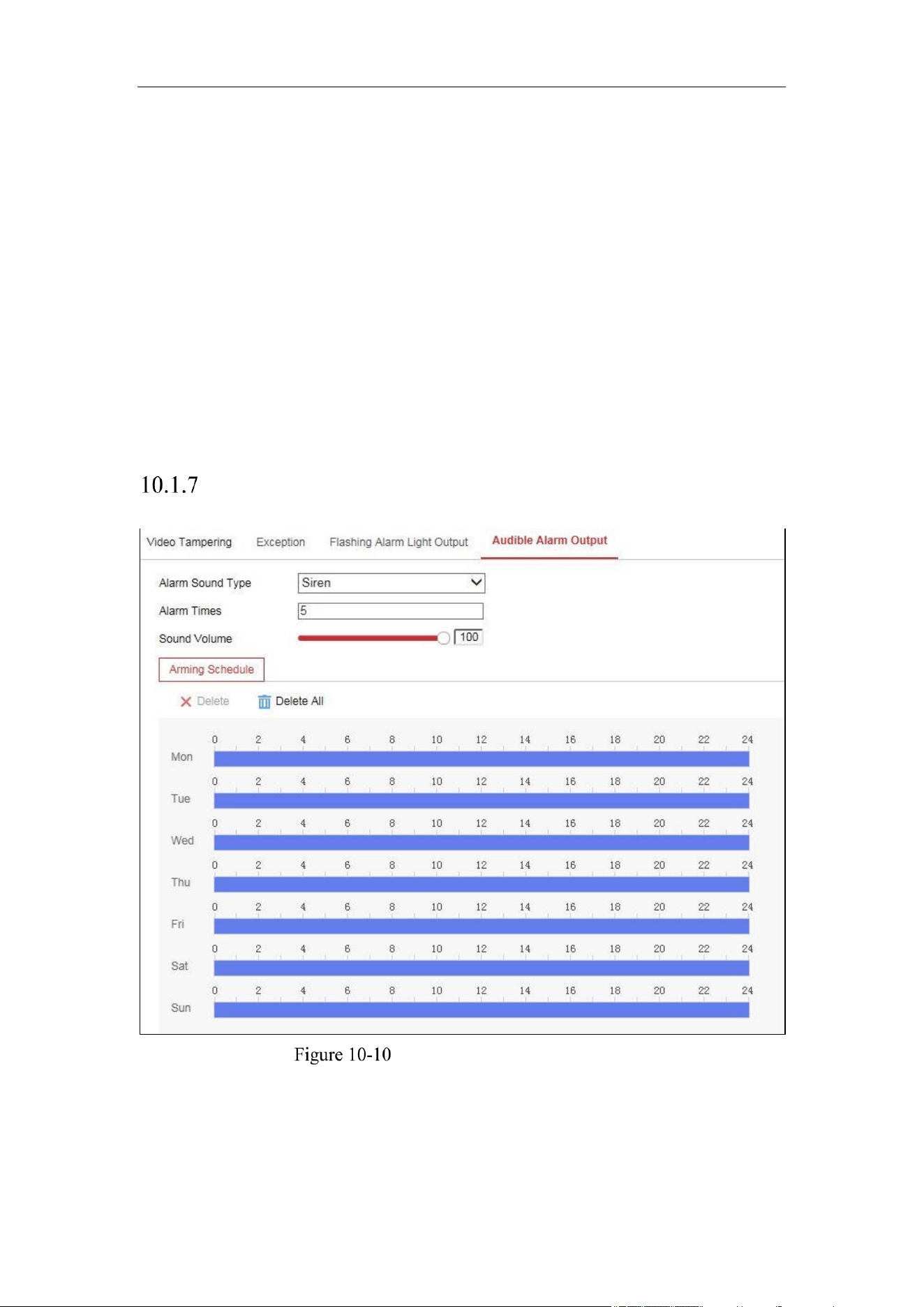

10.1.7 Configuring Audible Alarm Output

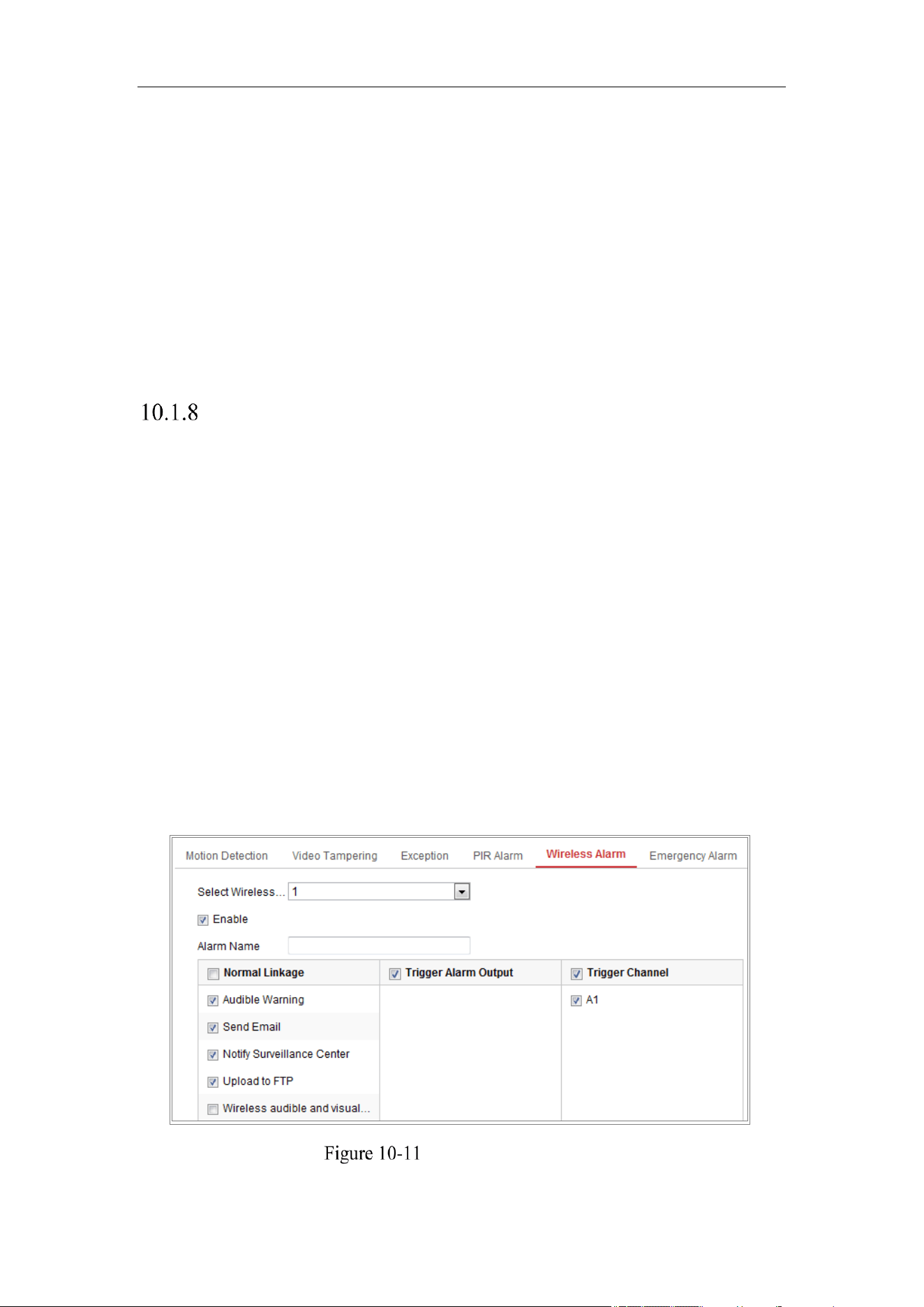

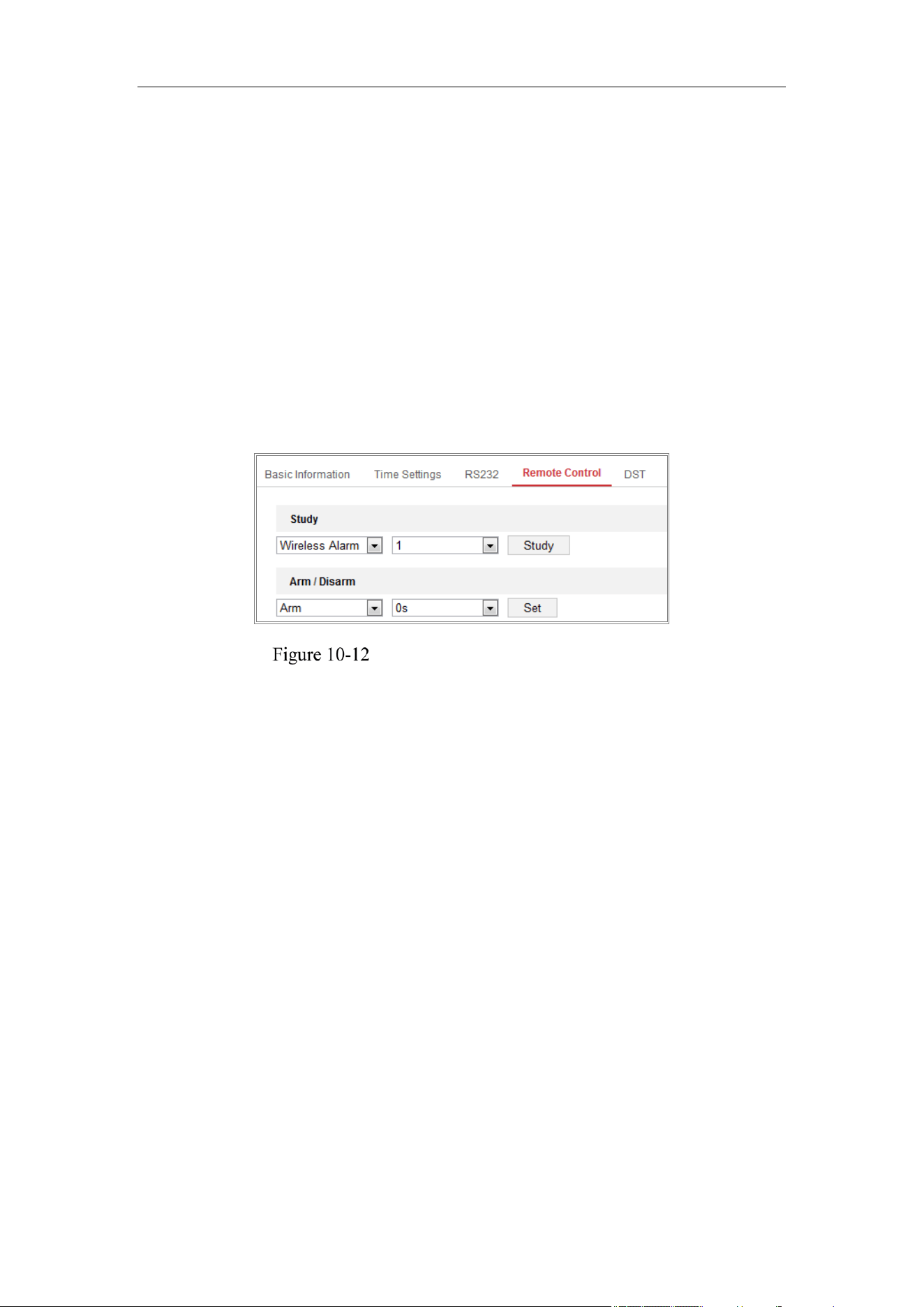

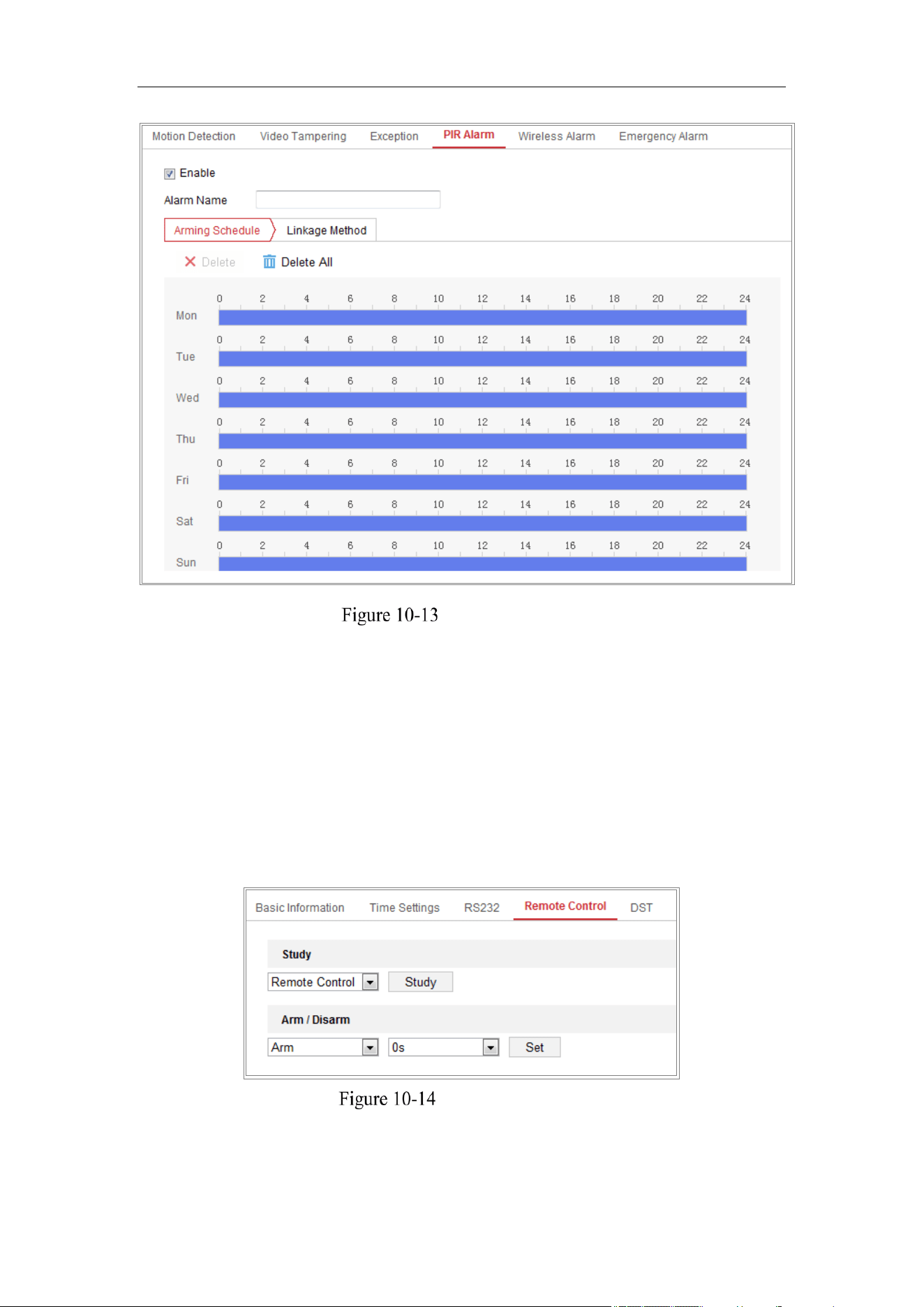

10.1.8 Configuring Other Alarm
10.2 Smart Events

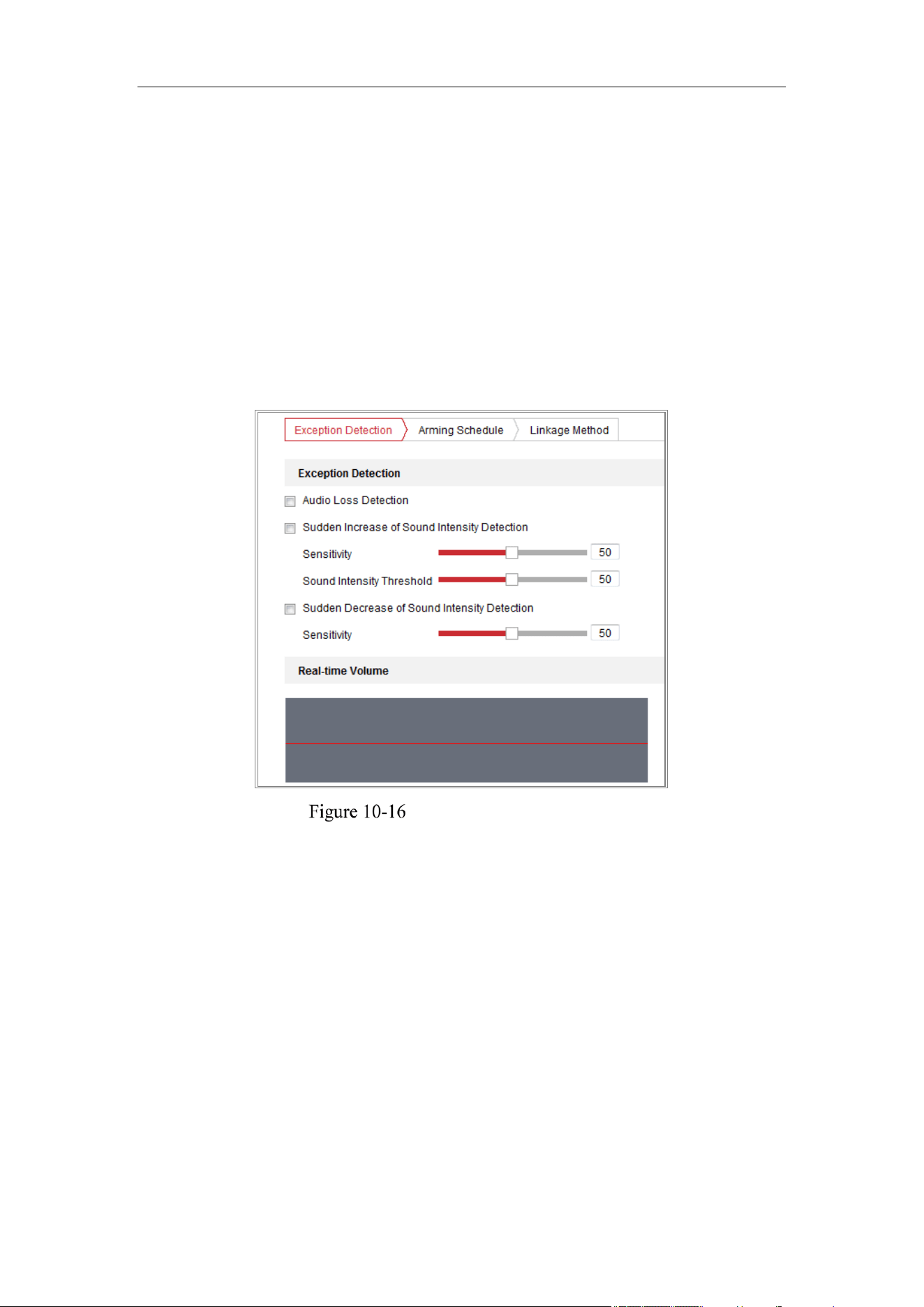

10.2.1 Configuring Audio Exception Detection
10.2.2 Configuring Defocus Detection

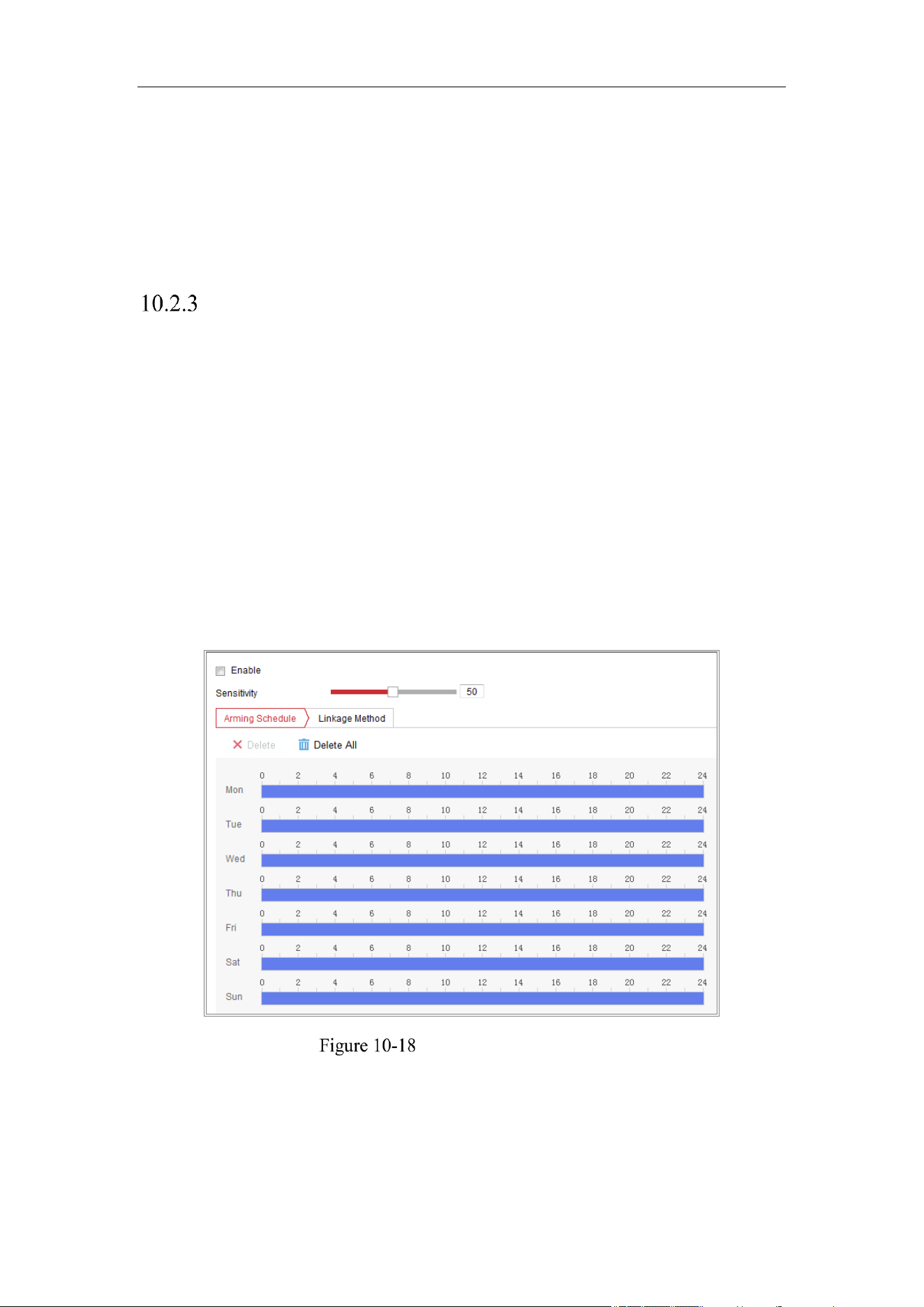

10.2.3 Configuring Scene Change Detection

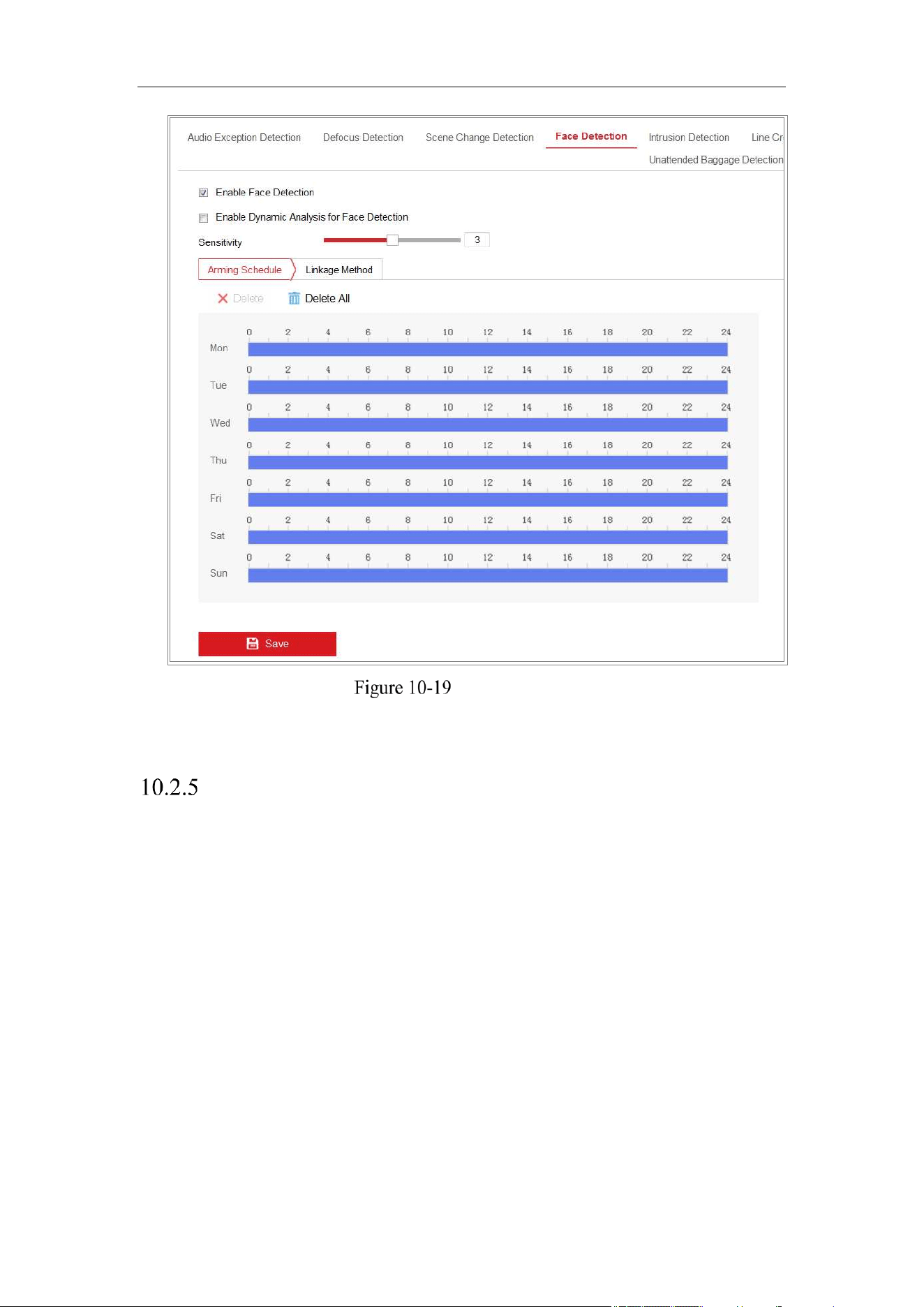

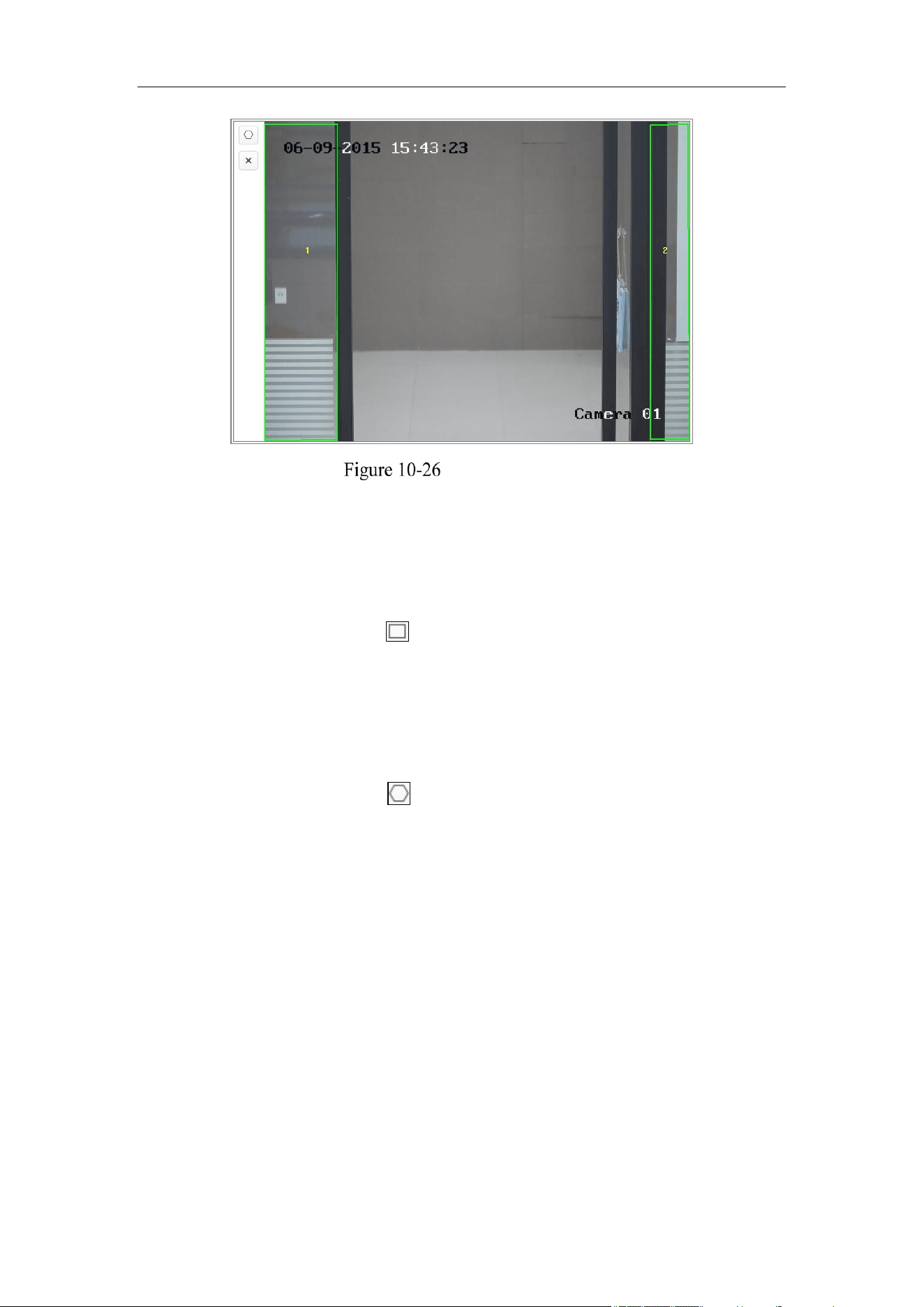

10.2.4 Configuring Face Detection

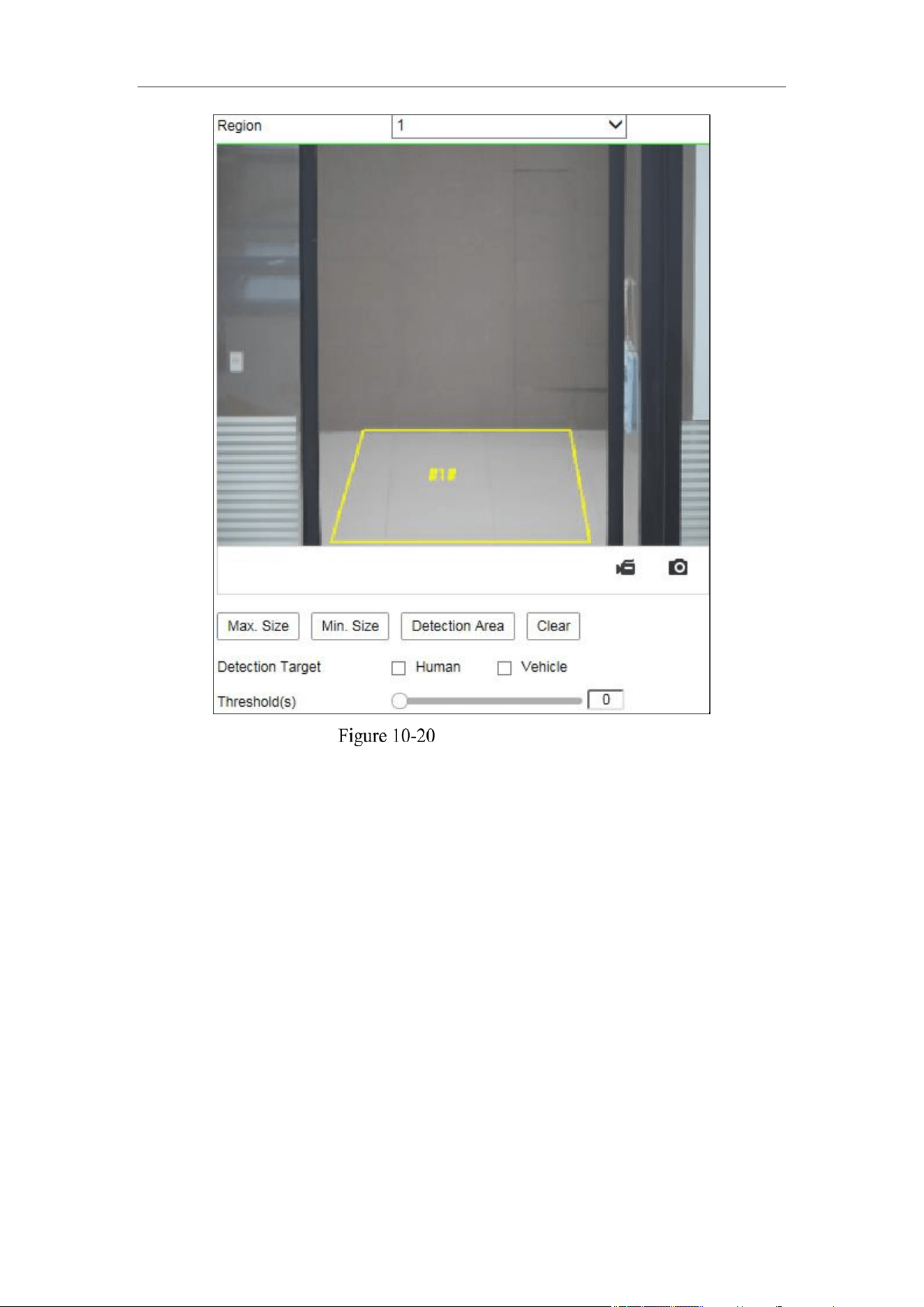

10.2.5 Configuring Intrusion Detection

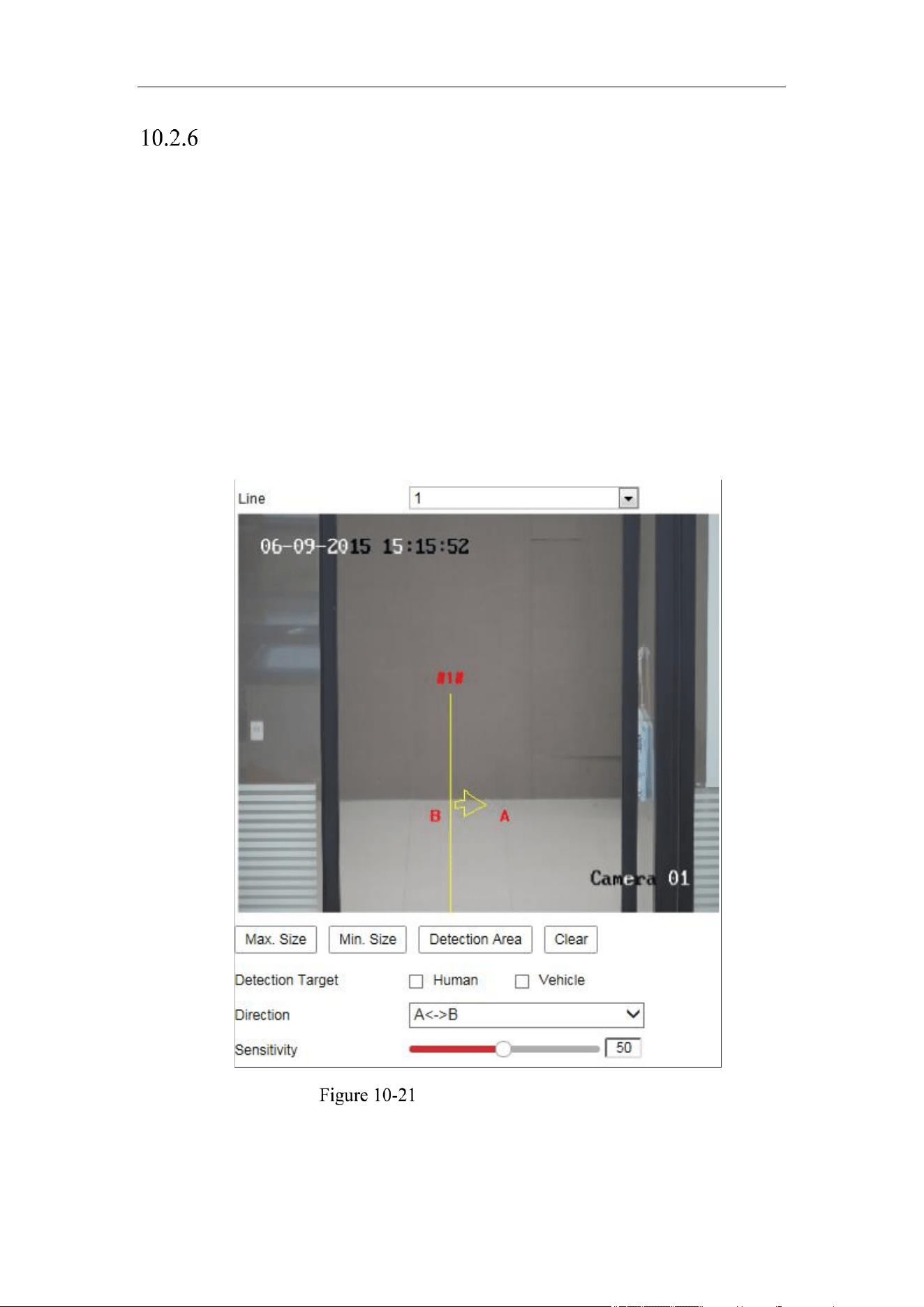

10.2.6 Configuring Line Crossing Detection

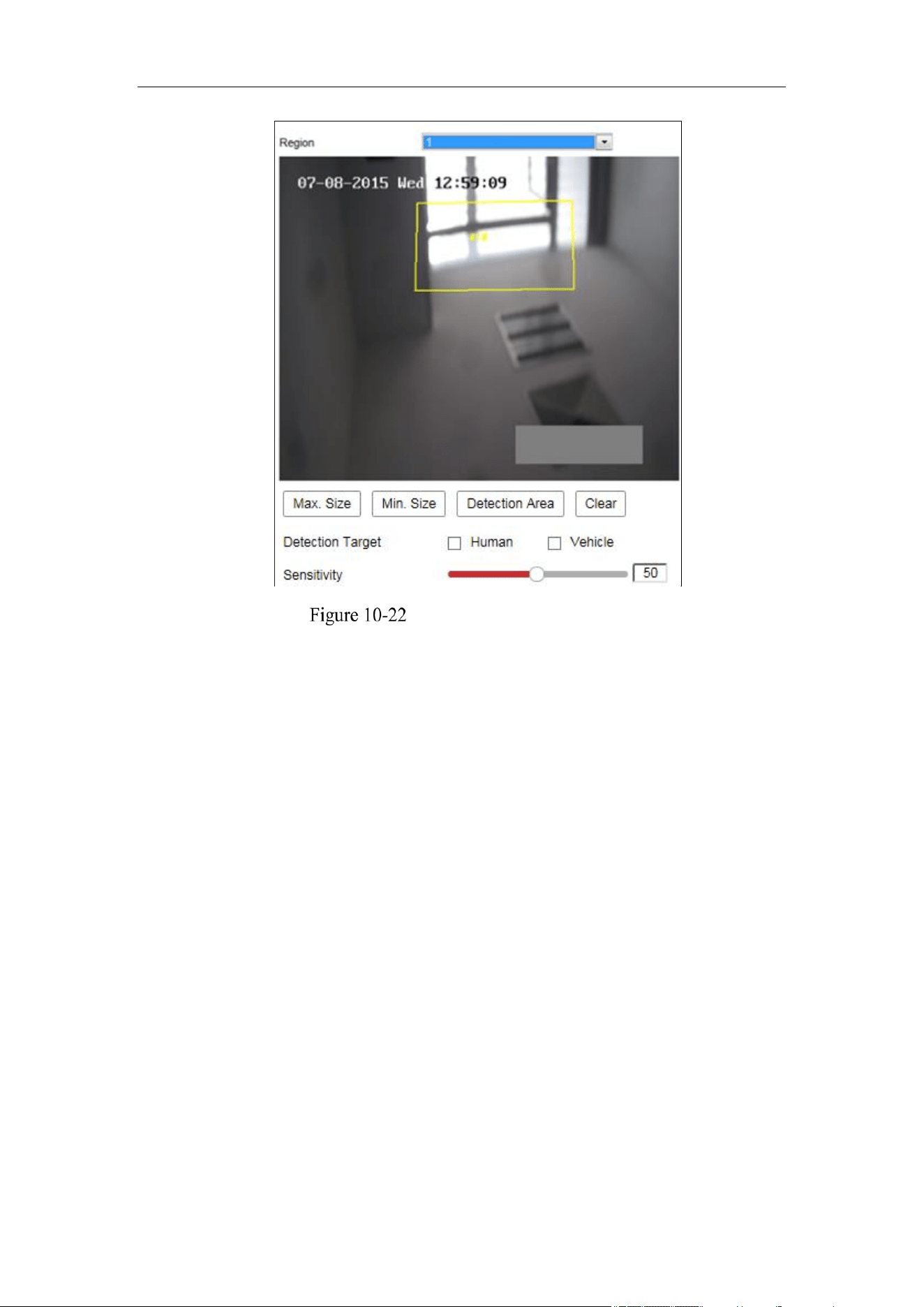

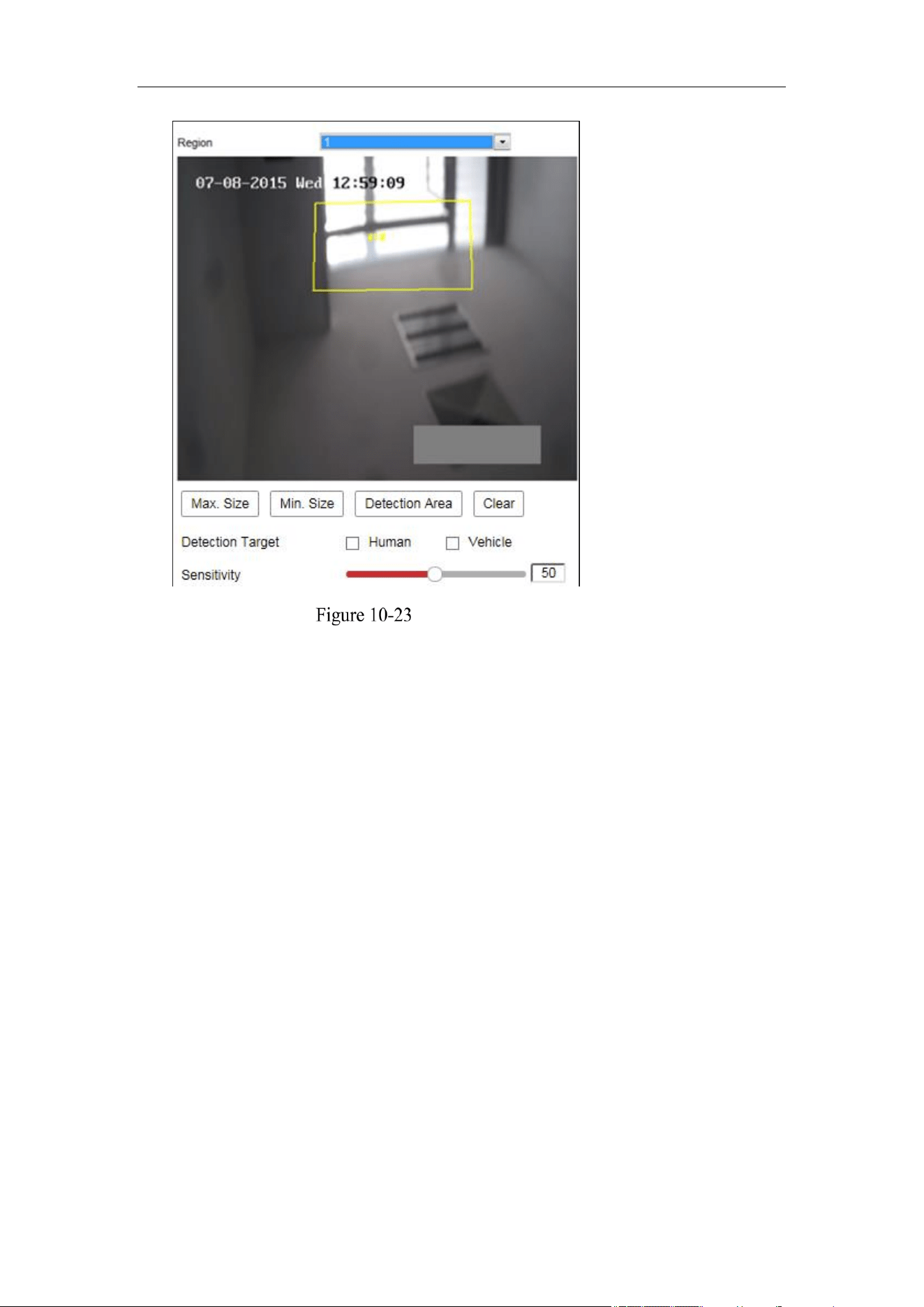

10.2.7 Configuring Region Entrance Detection
10.2.8 Configuring Region Exiting Detection

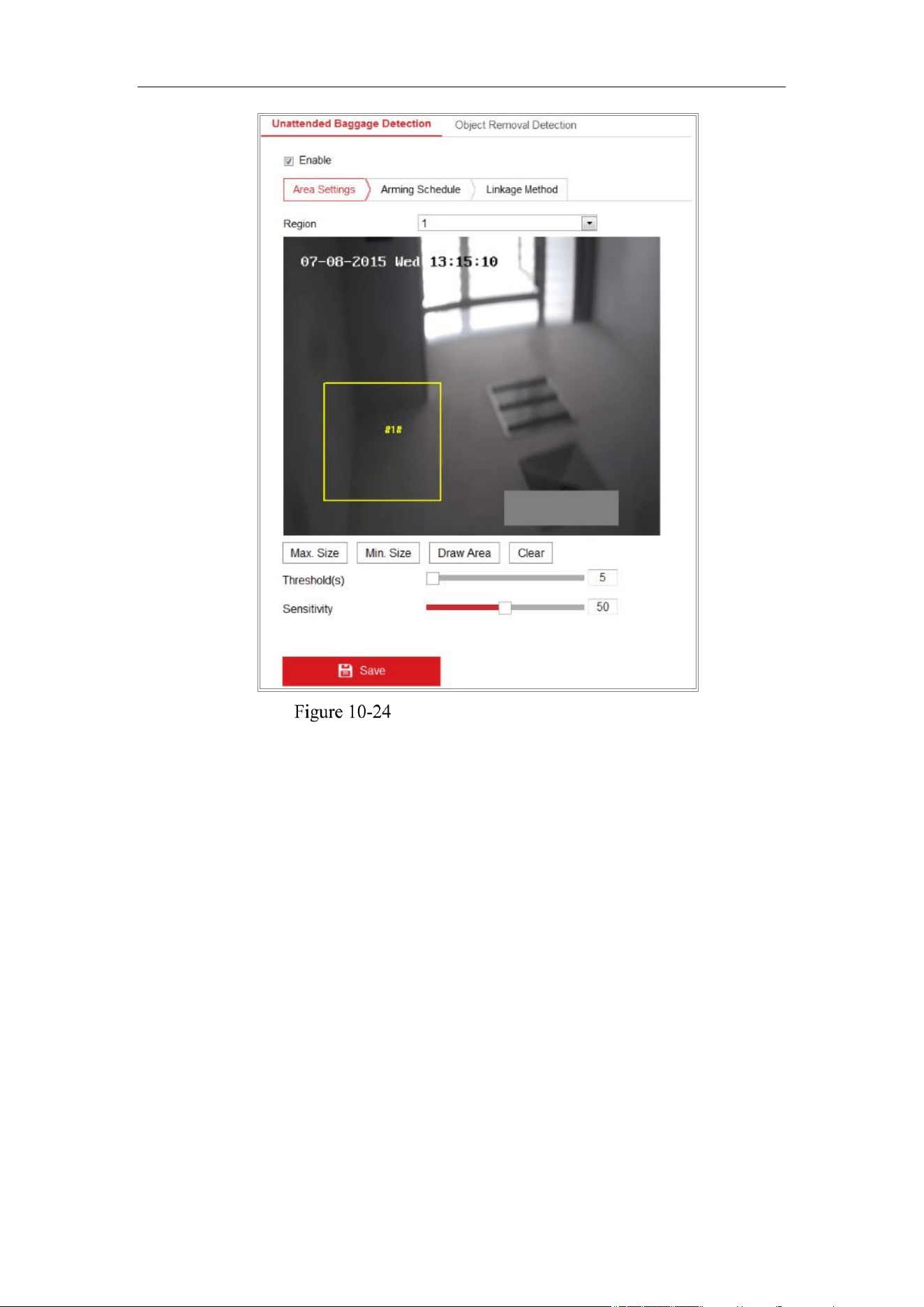

10.2.9 Configuring Unattended Baggage Detection
10.2.10 Configuring Object Removal Detection
10.3 VCA Configuration

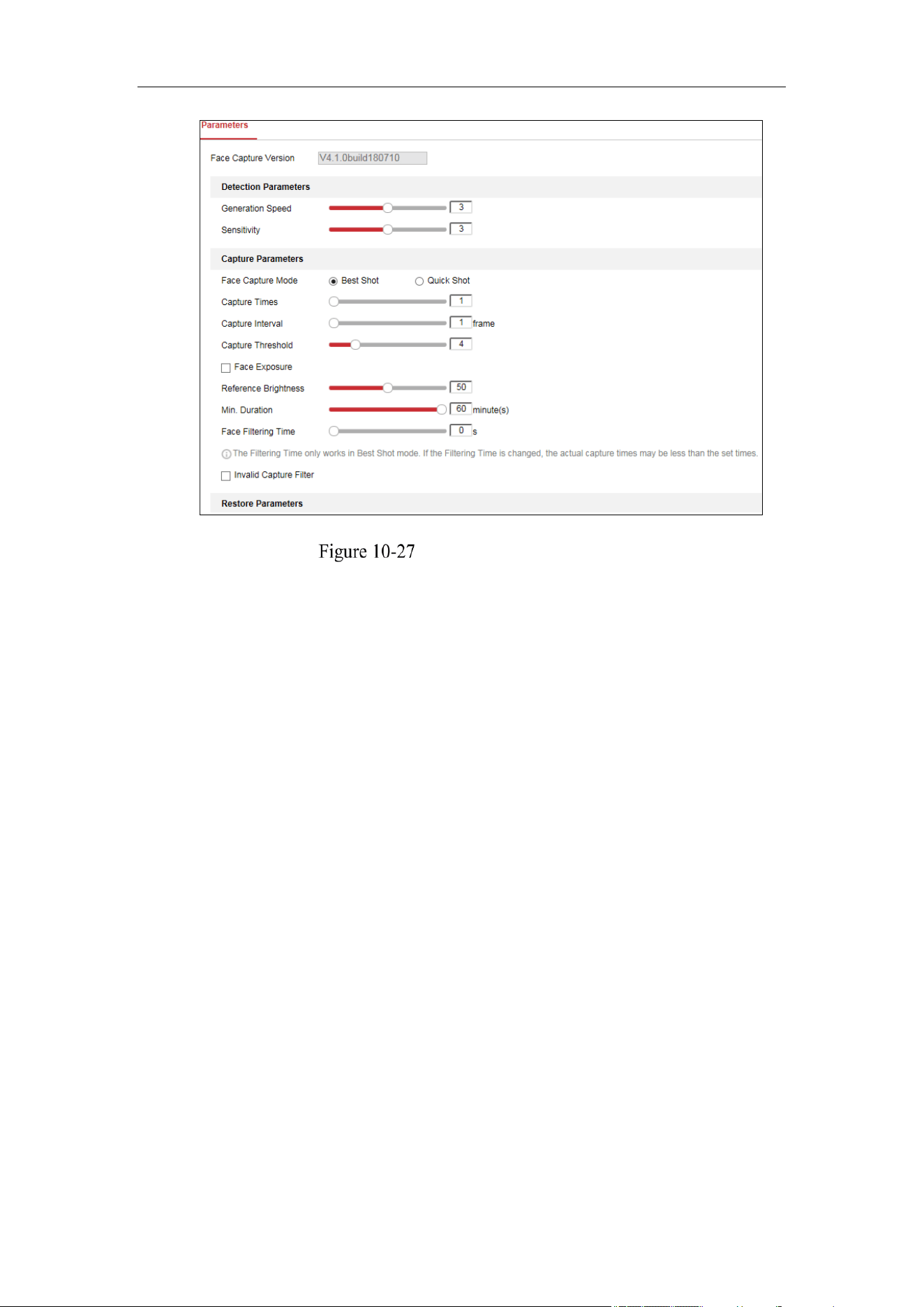

10.3.11 Face Capture
10.3.12 People Counting

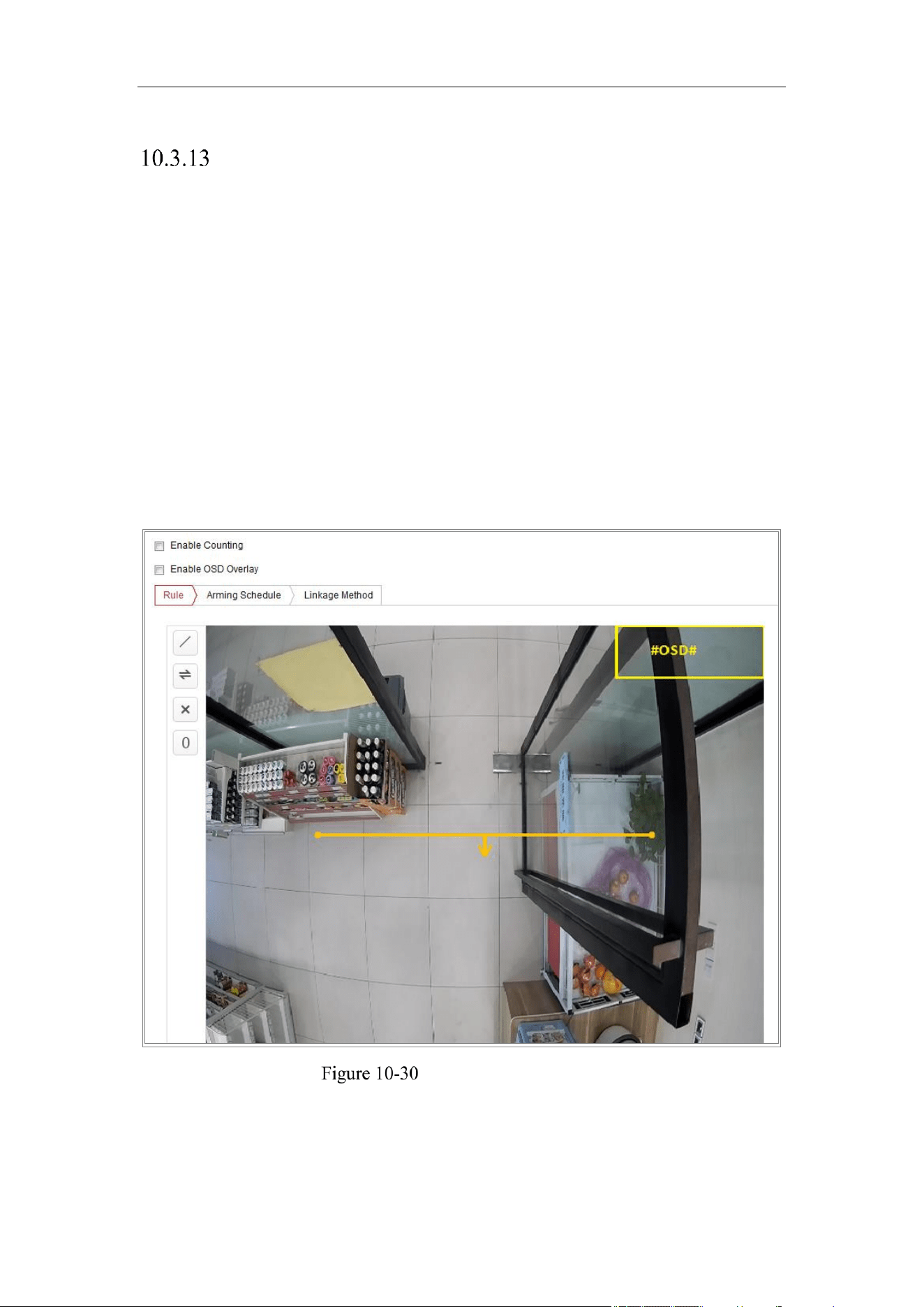

10.3.13 Counting

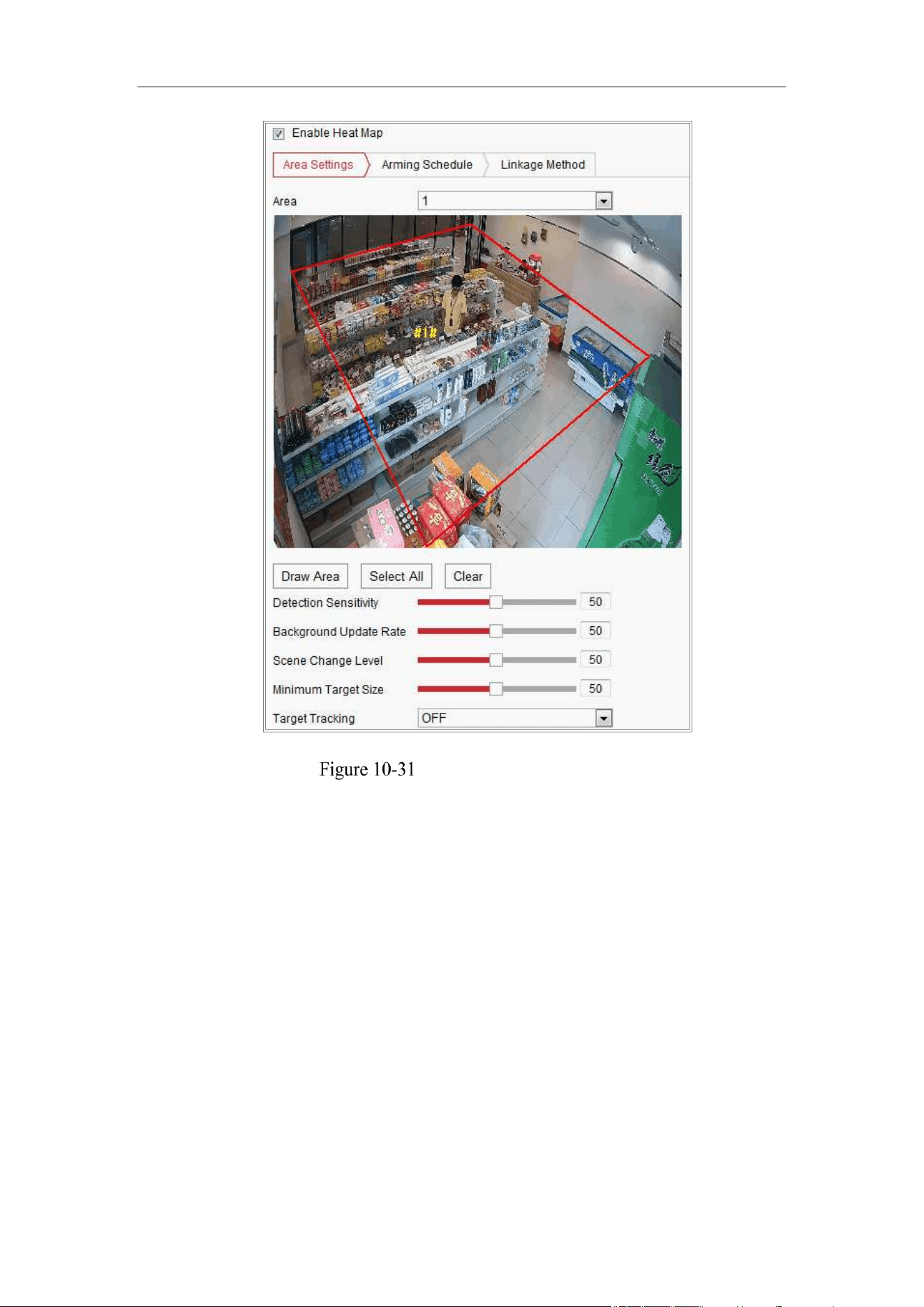

10.3.14 Heat Map
10.3.15 Road Traffic

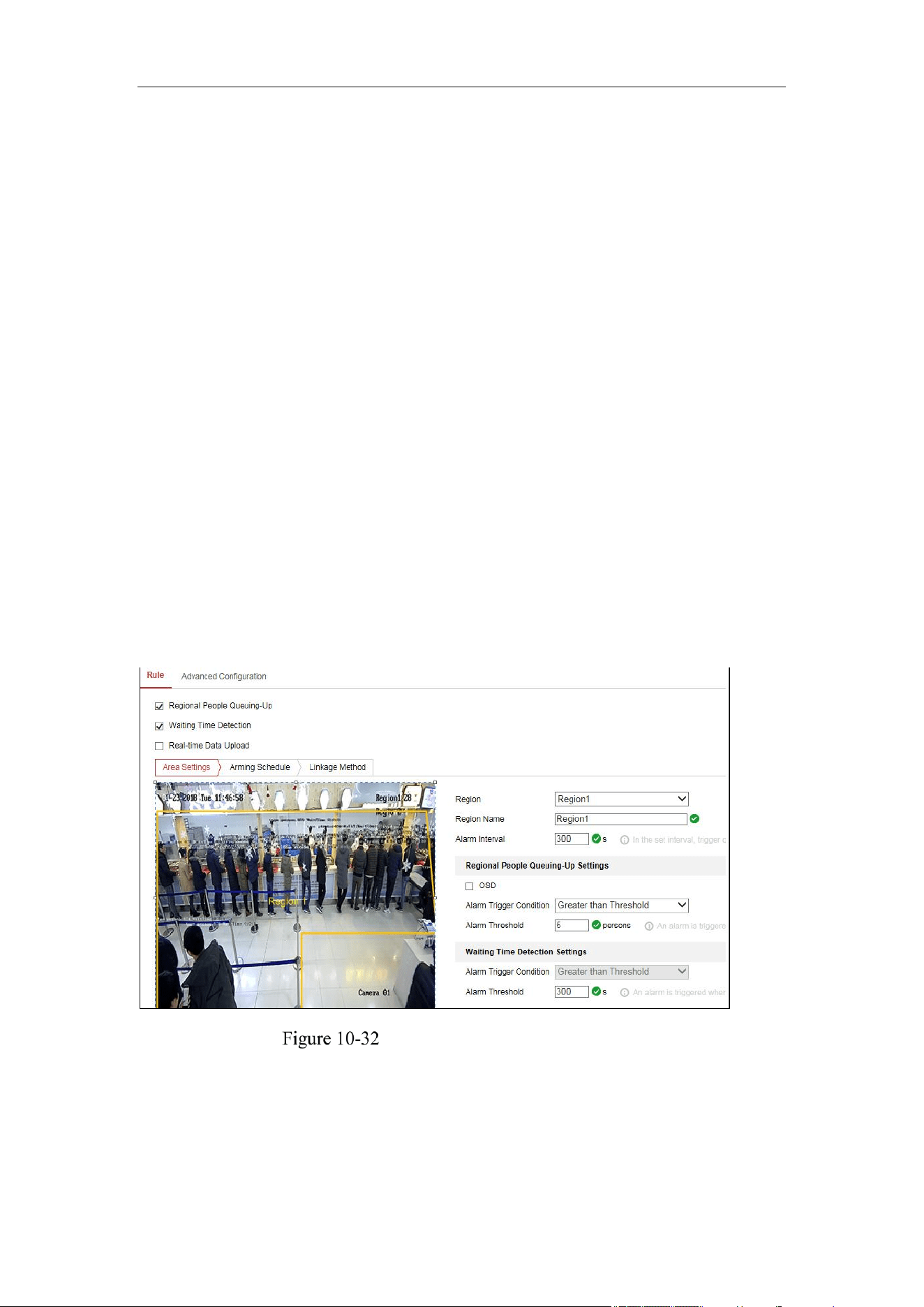

10.3.16 Queue Management
Rule Settings
Chapter 11 Storage Settings

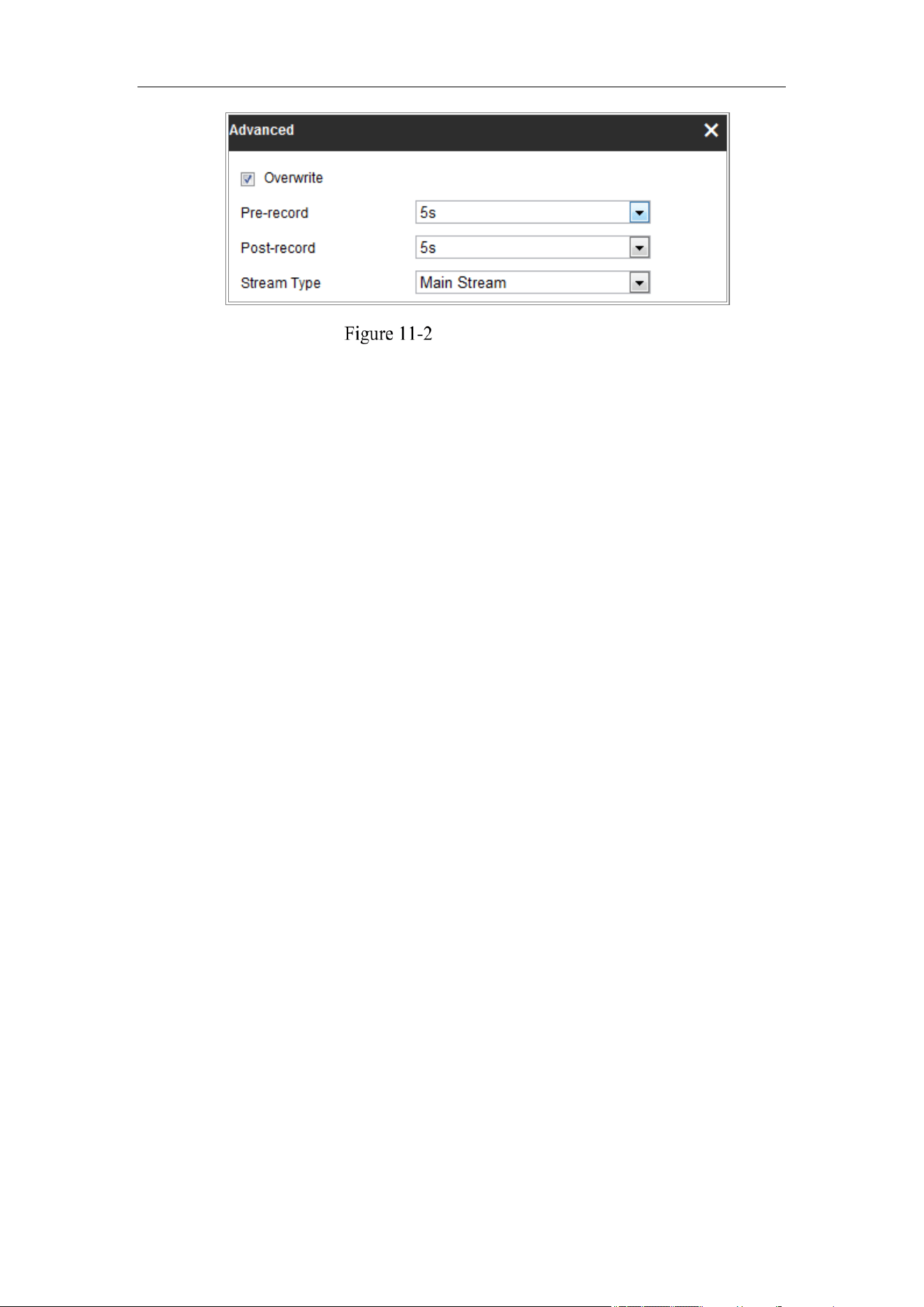

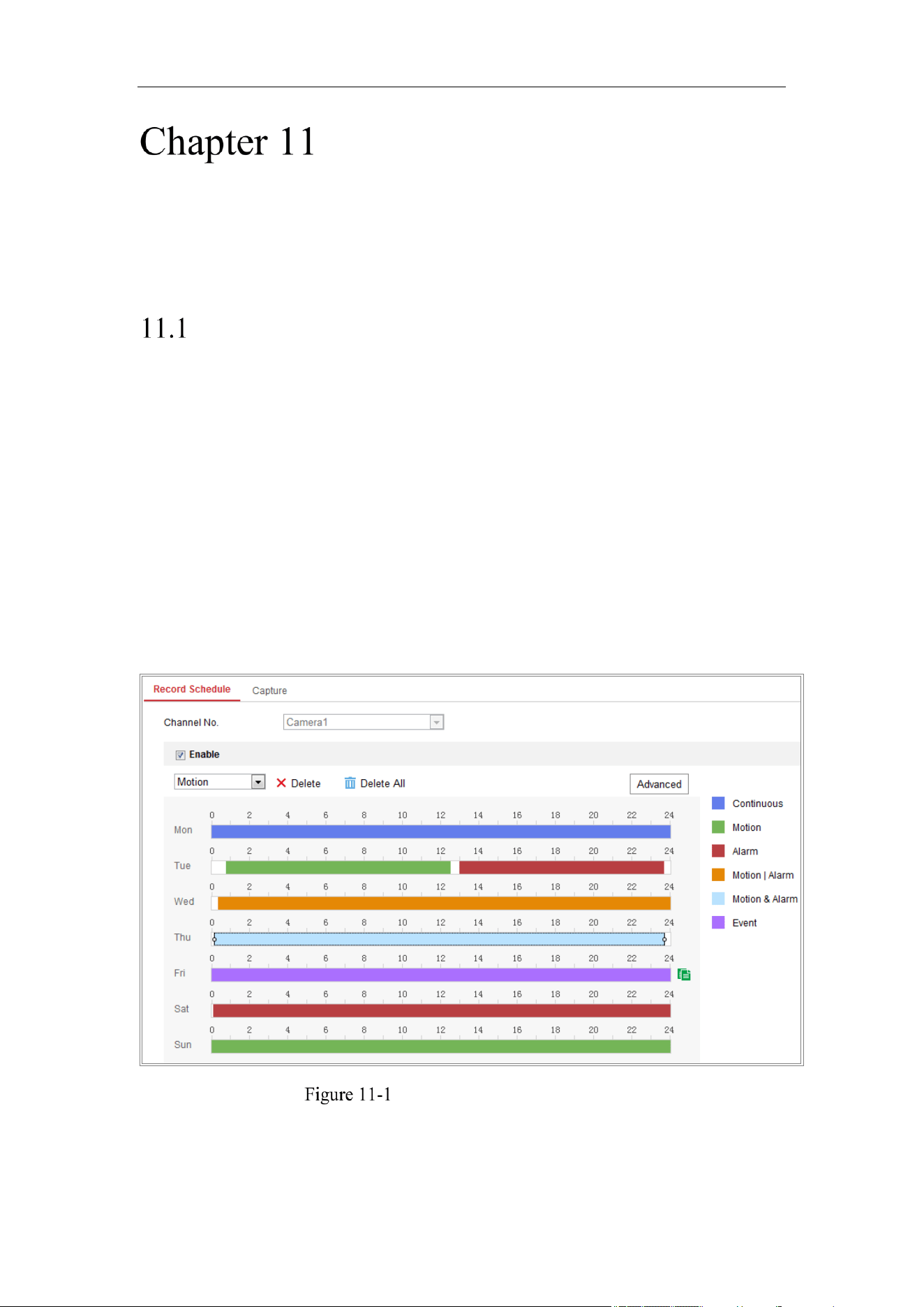

11.1 Configuring Record Schedule

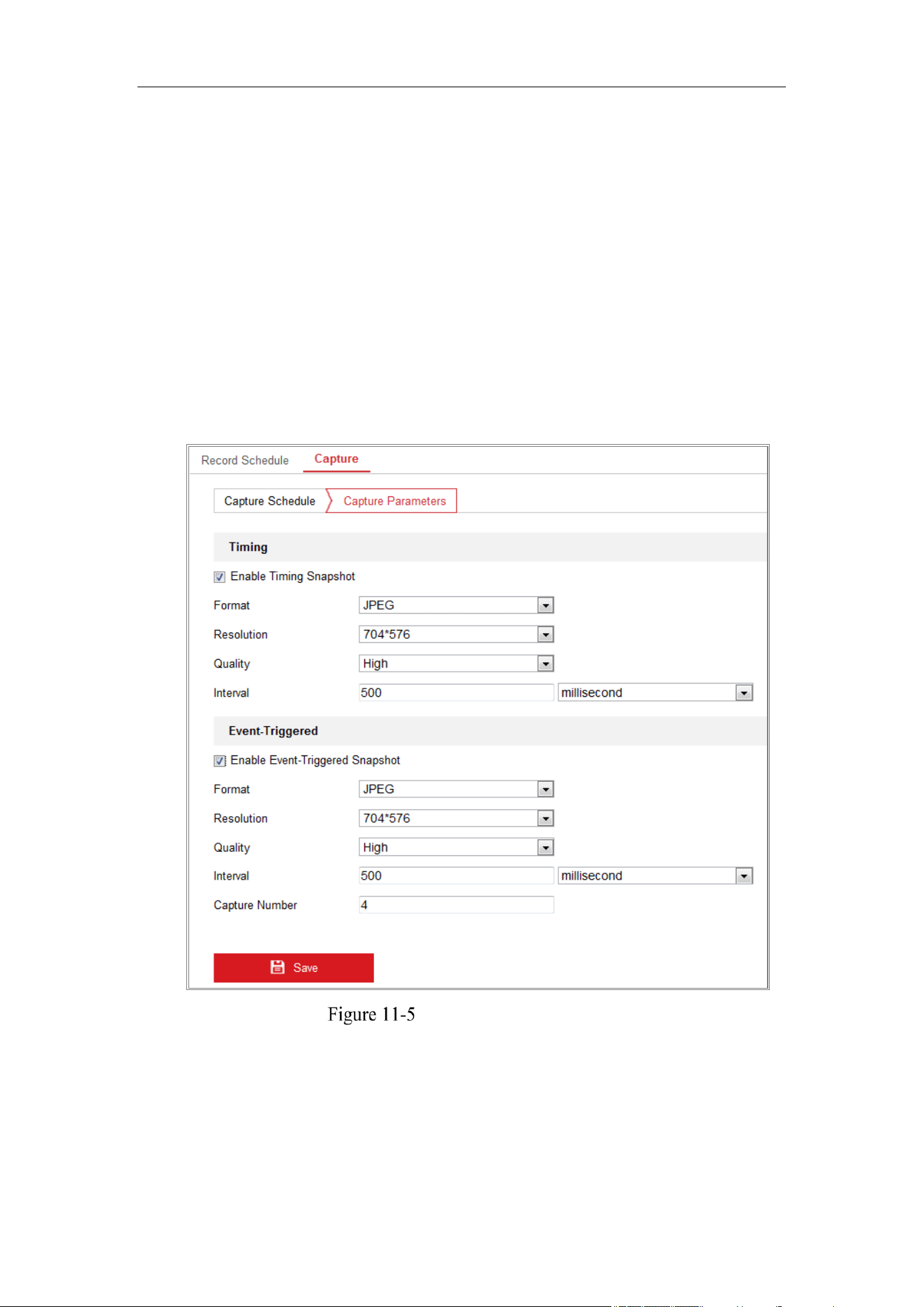

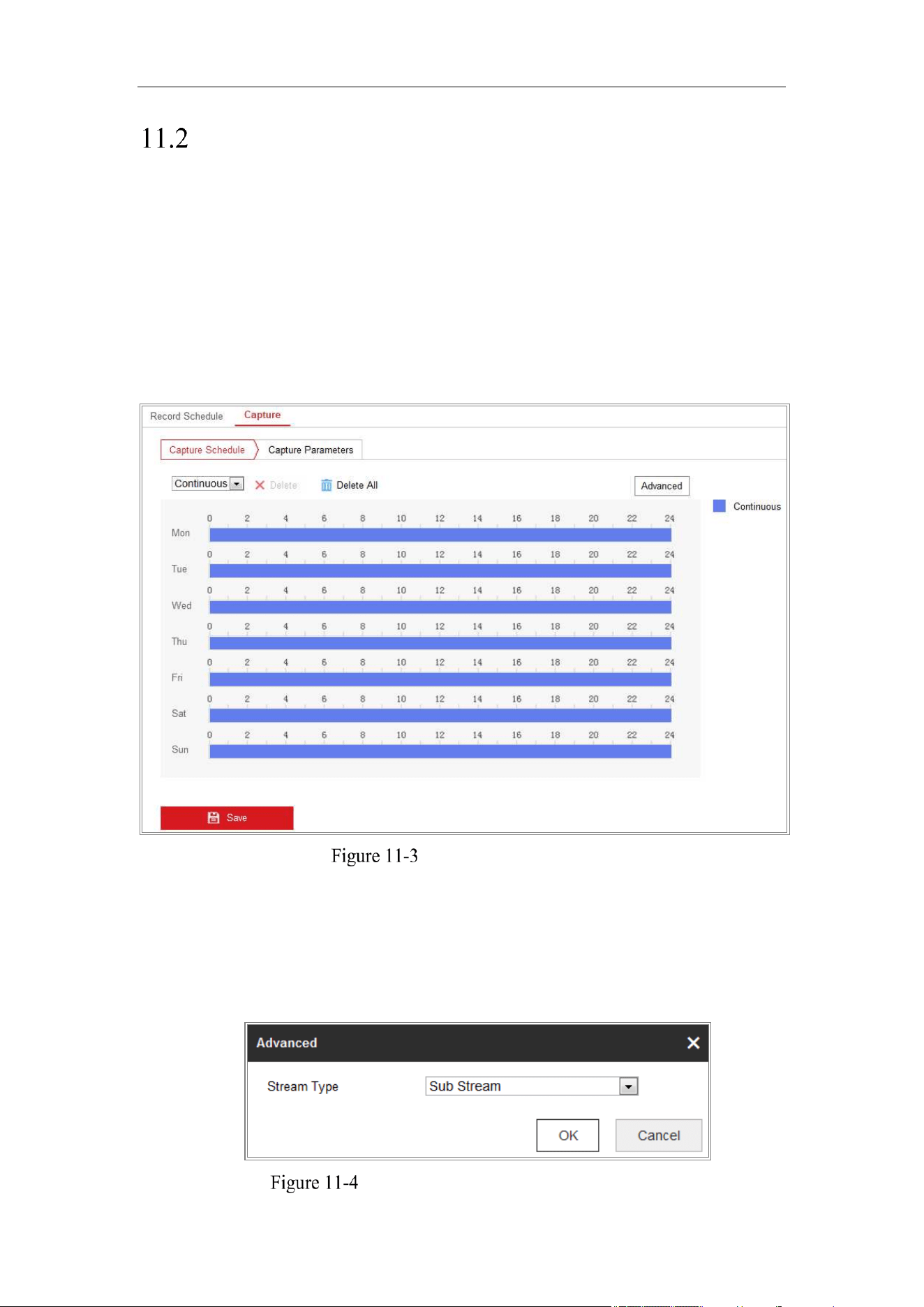

11.2 Configure Capture Schedule

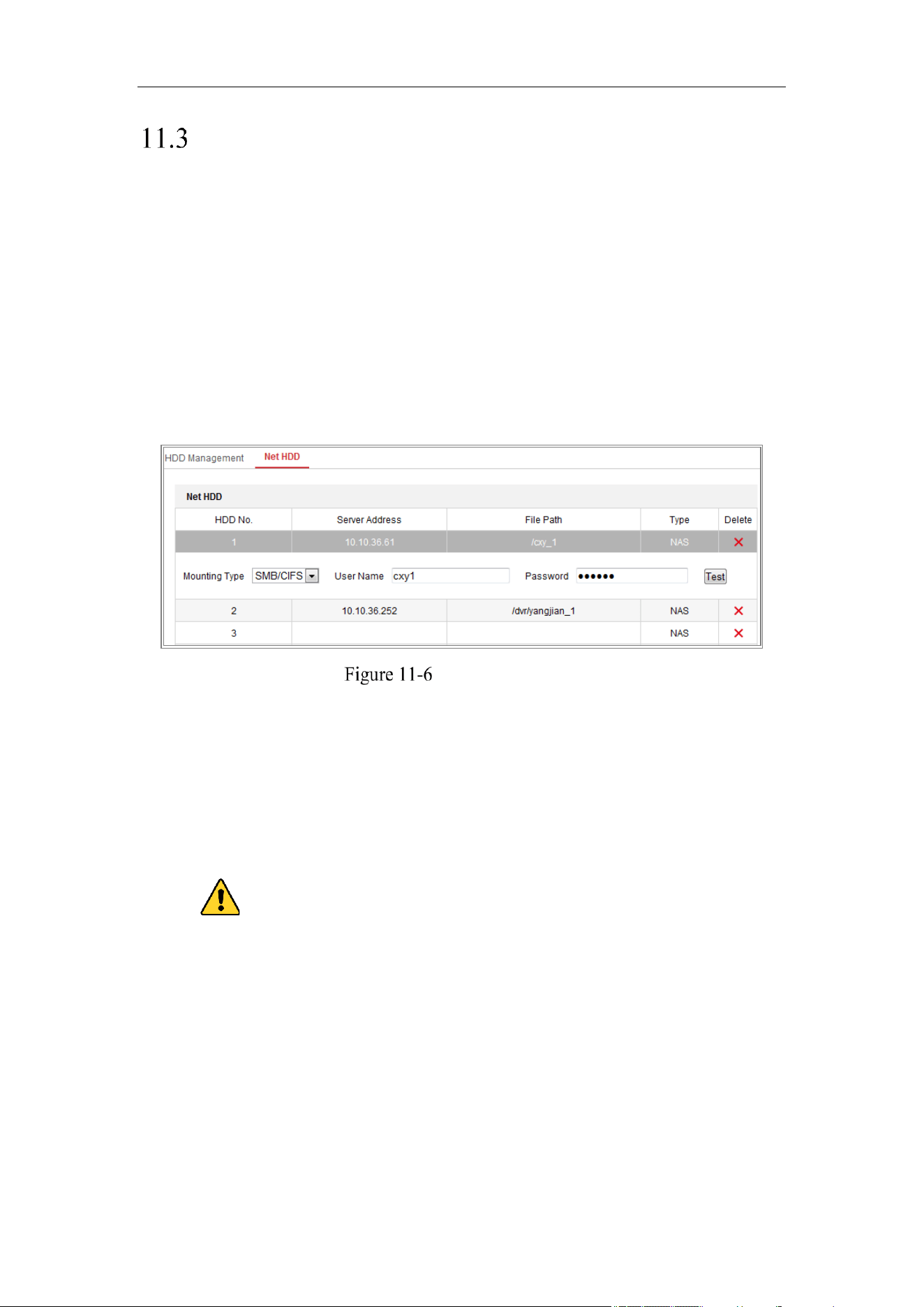

11.3 Configuring Net HDD

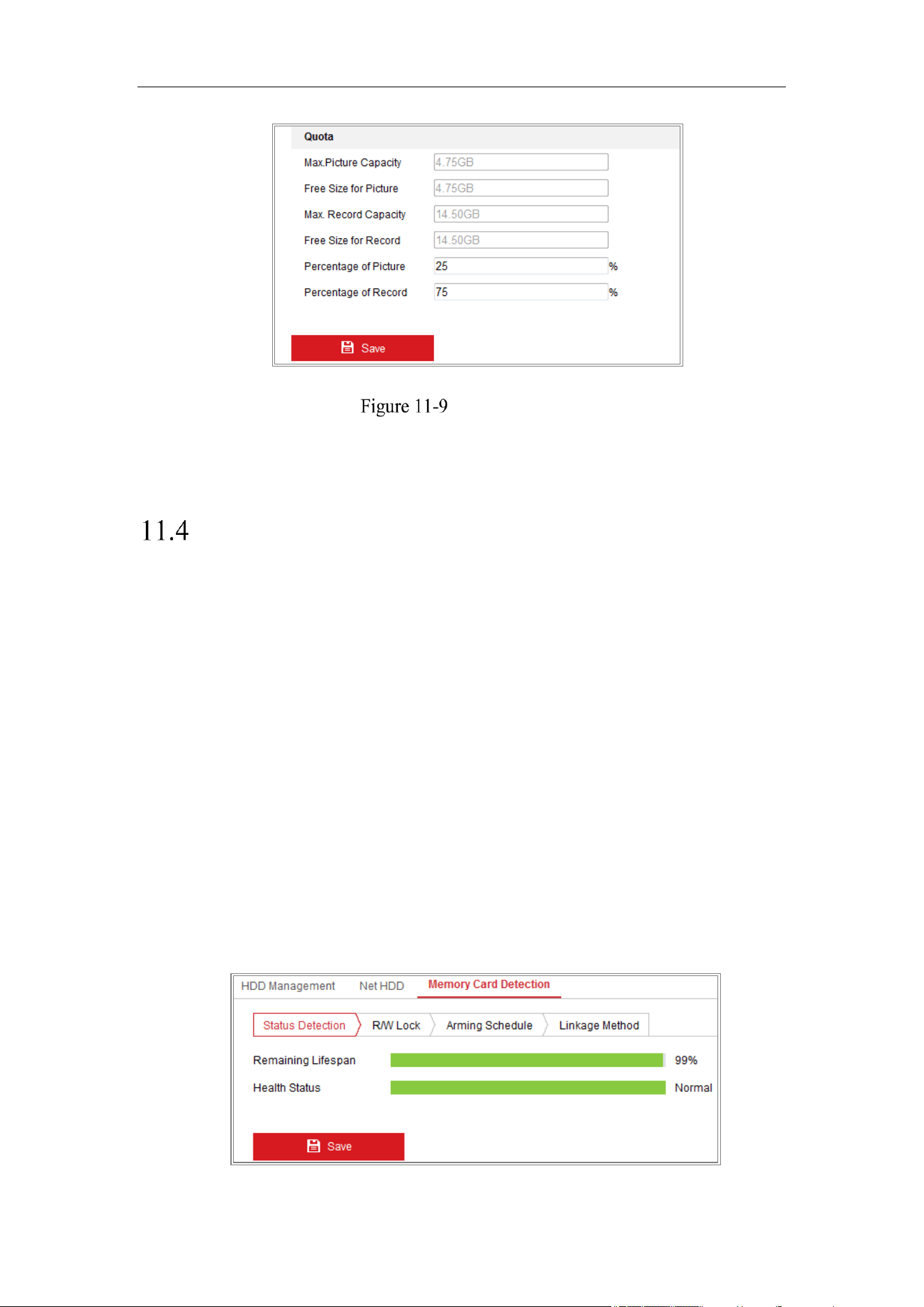

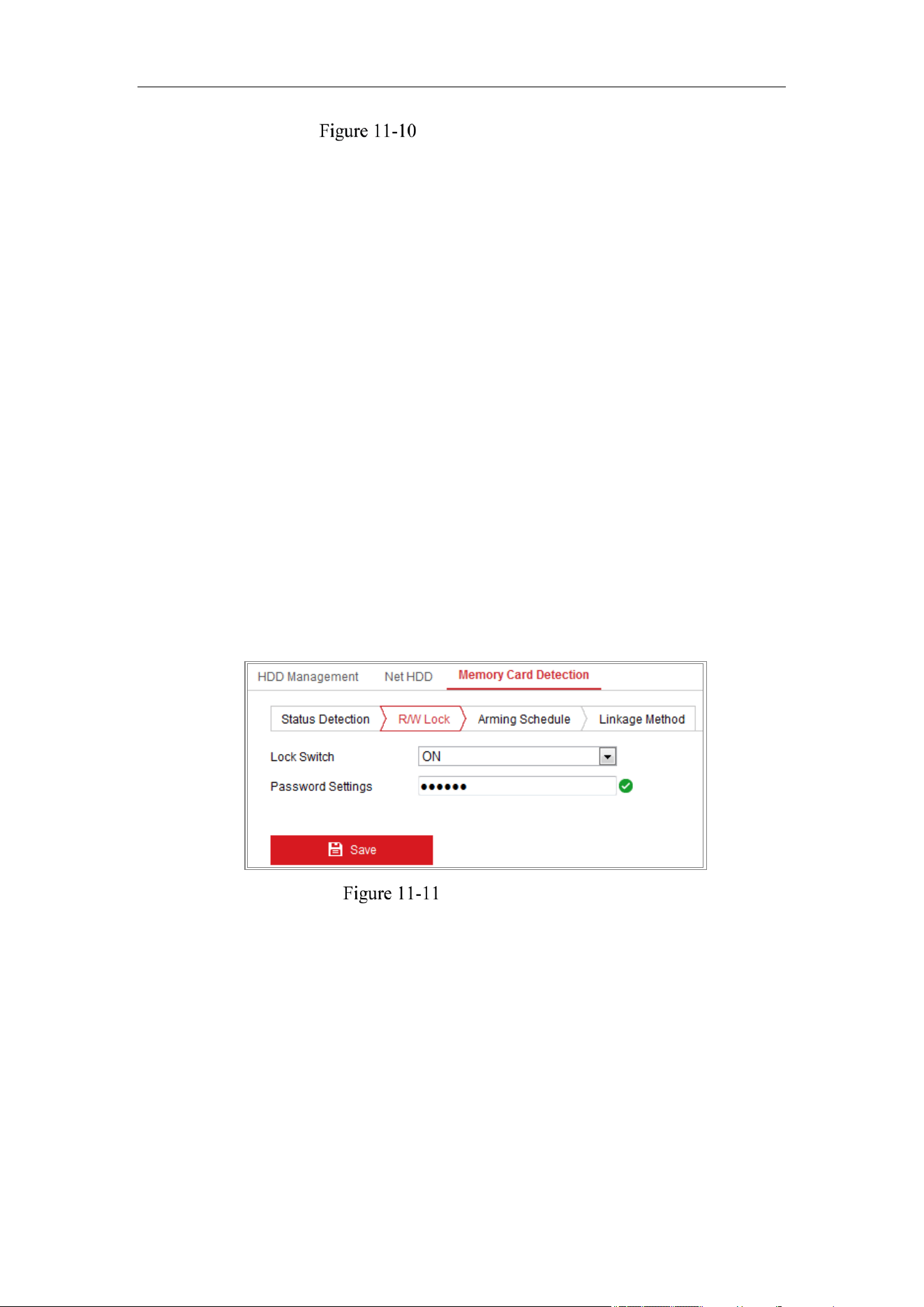

11.4 Memory Card Detection
11.5 Configuring Lite Storage

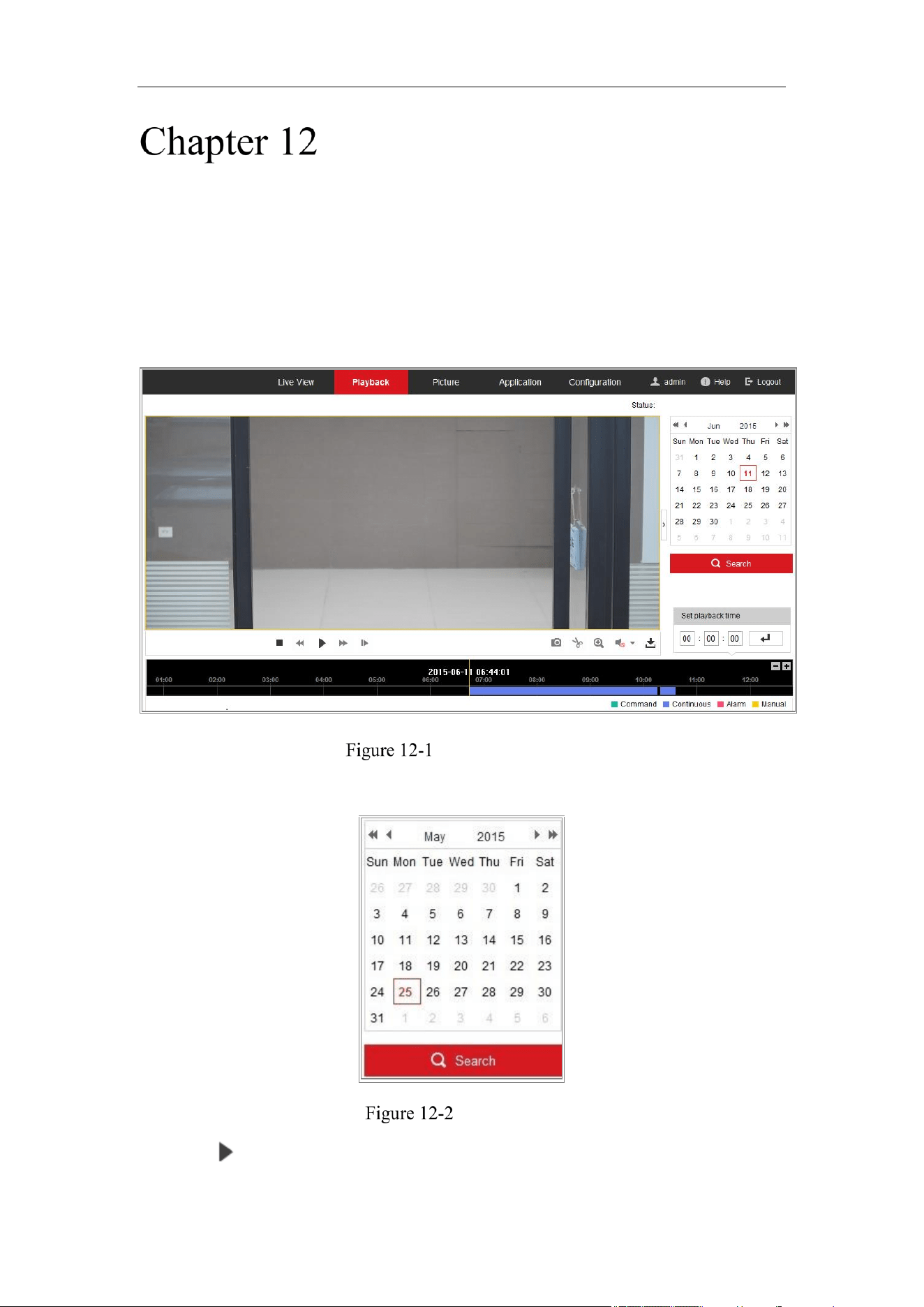

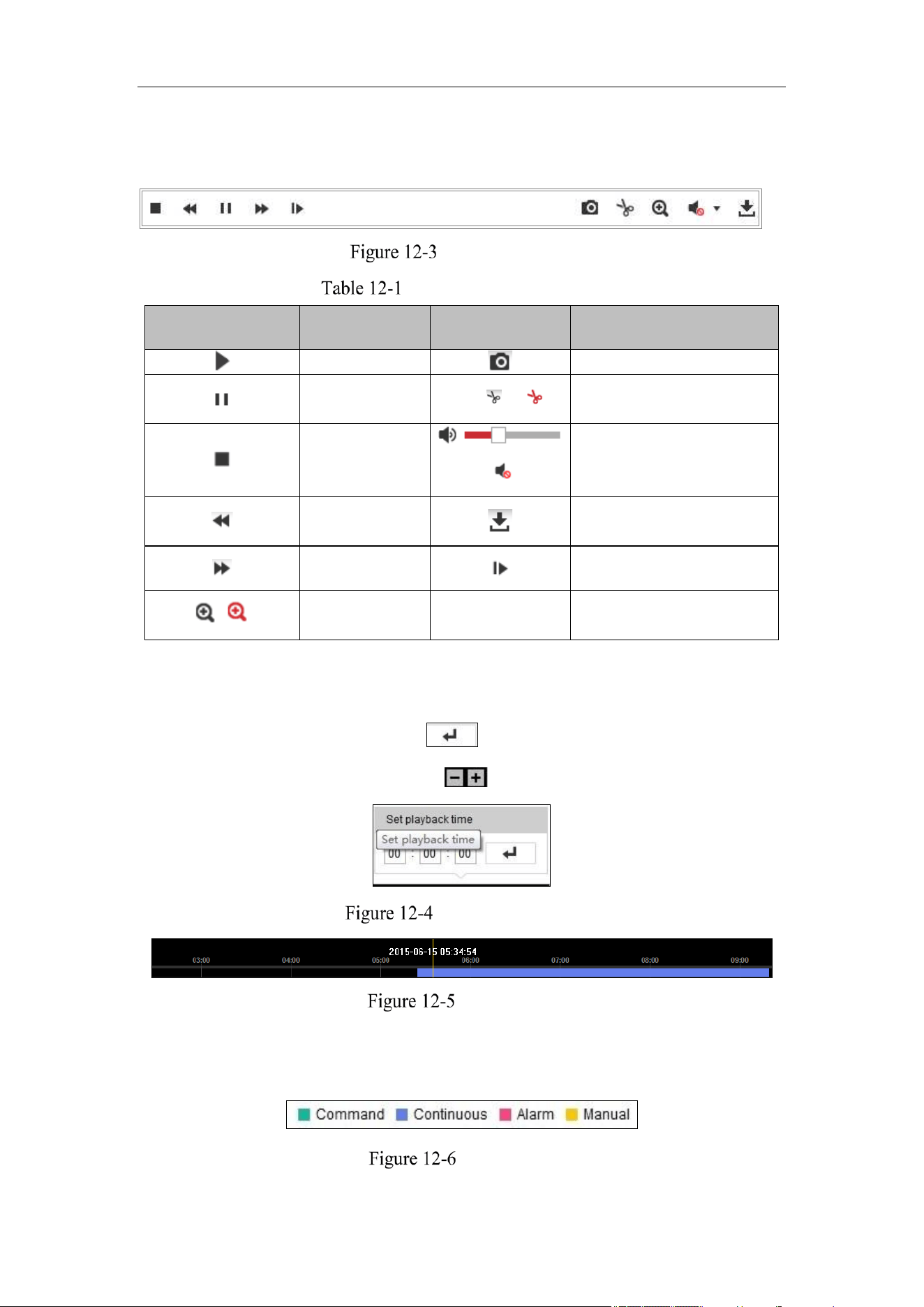

Chapter 12 Playback

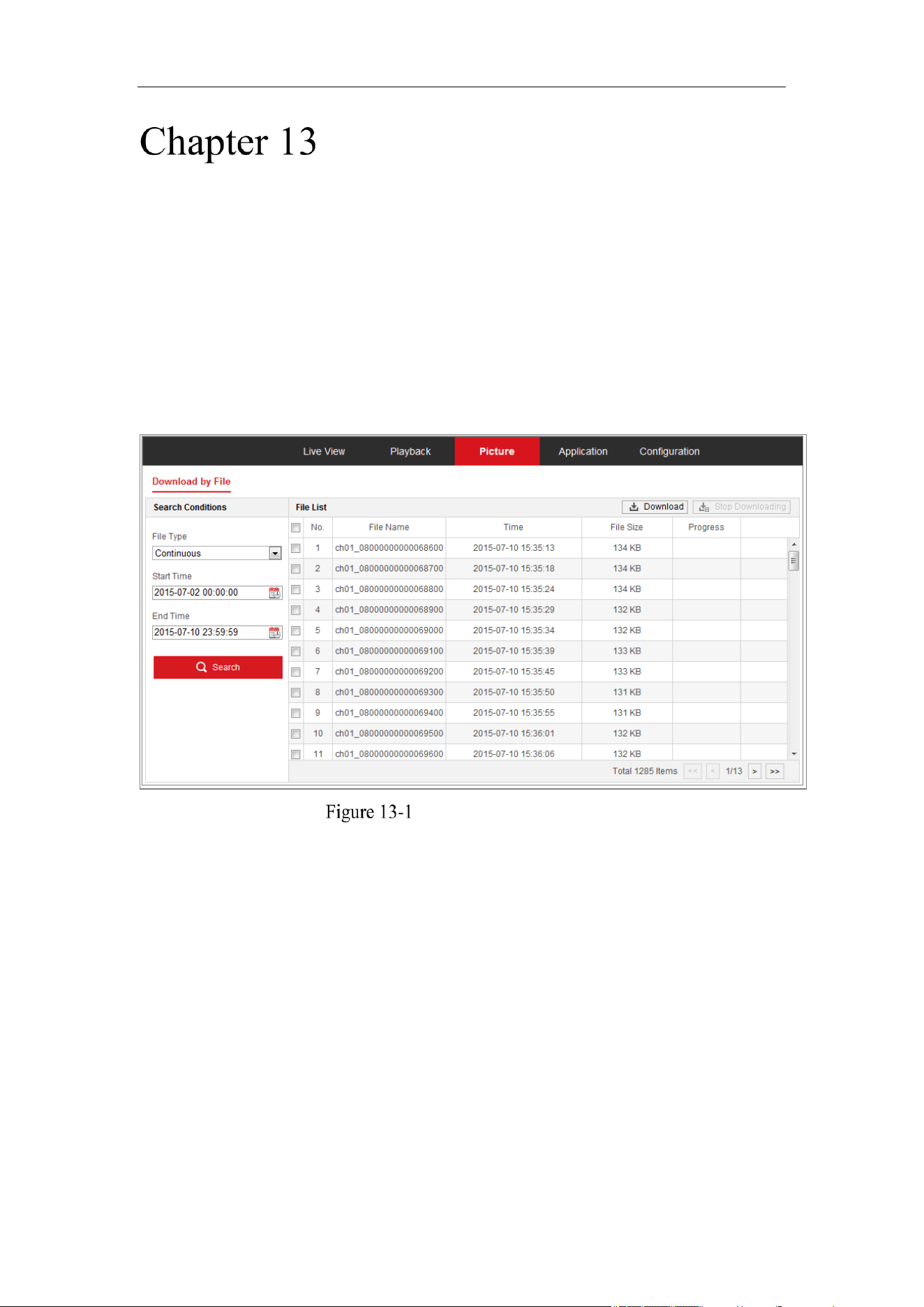

Chapter 13 Picture
Chapter 14 Application

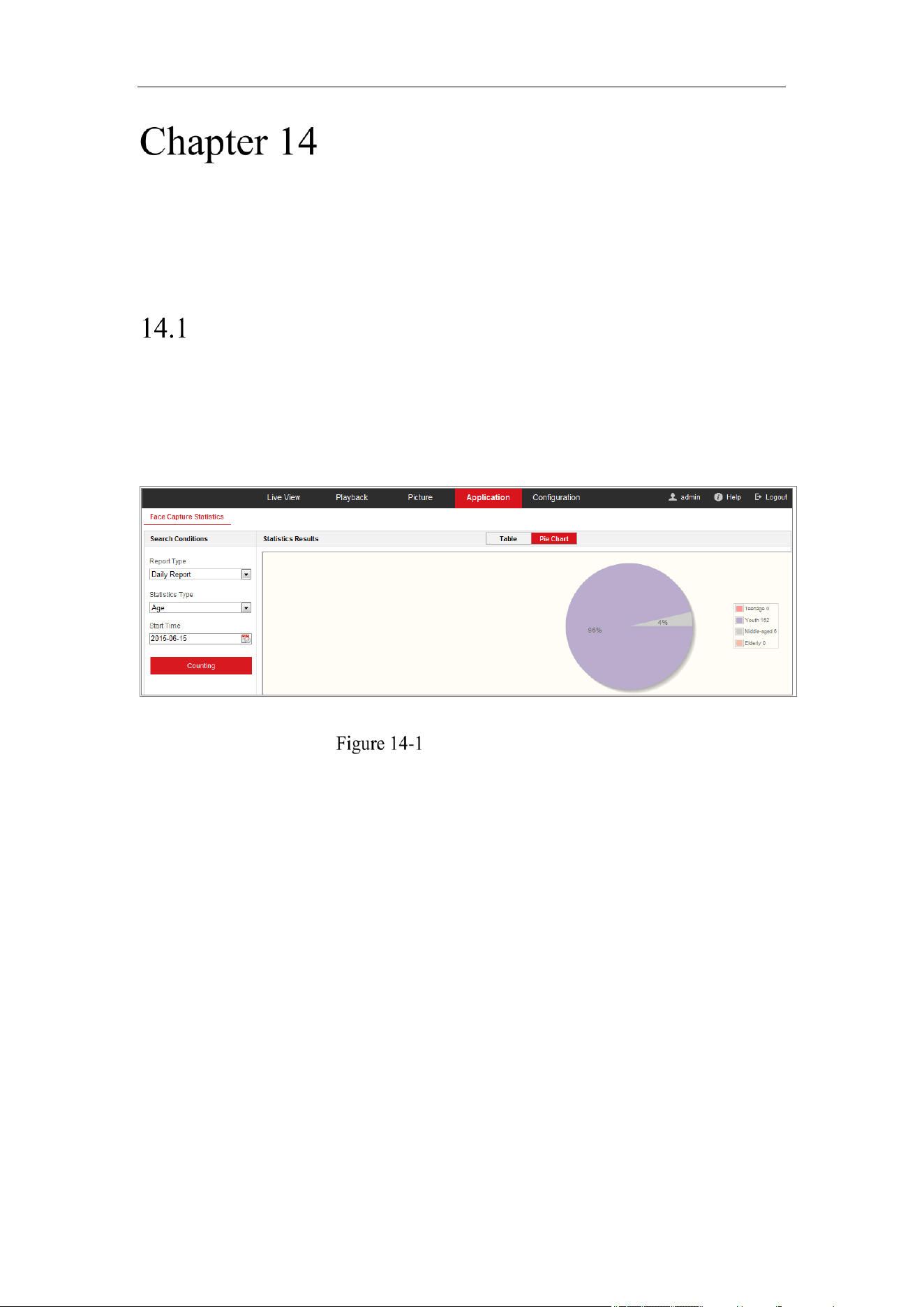

14.1 Face Capture Statistics

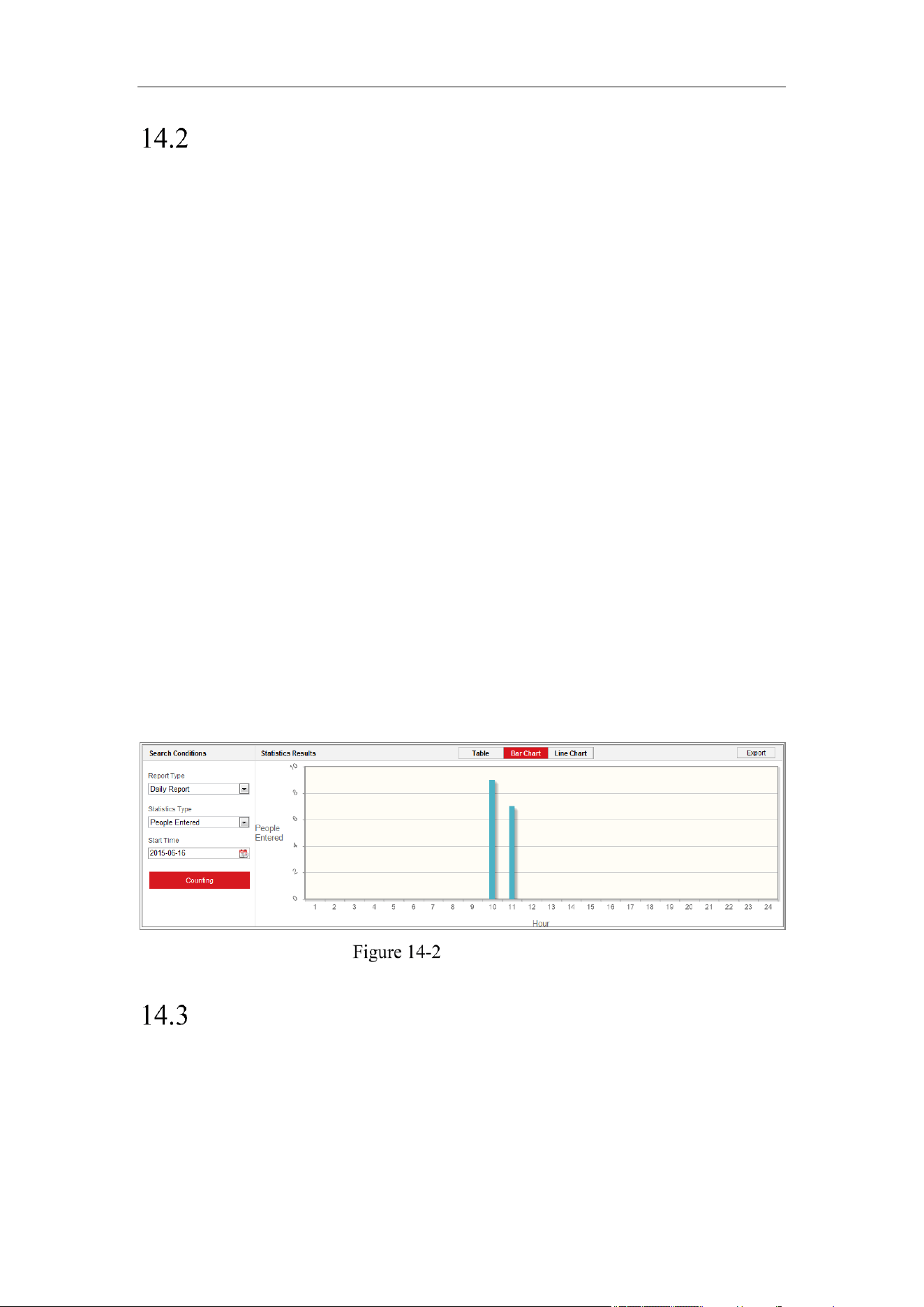

14.2 People Counting Statistics

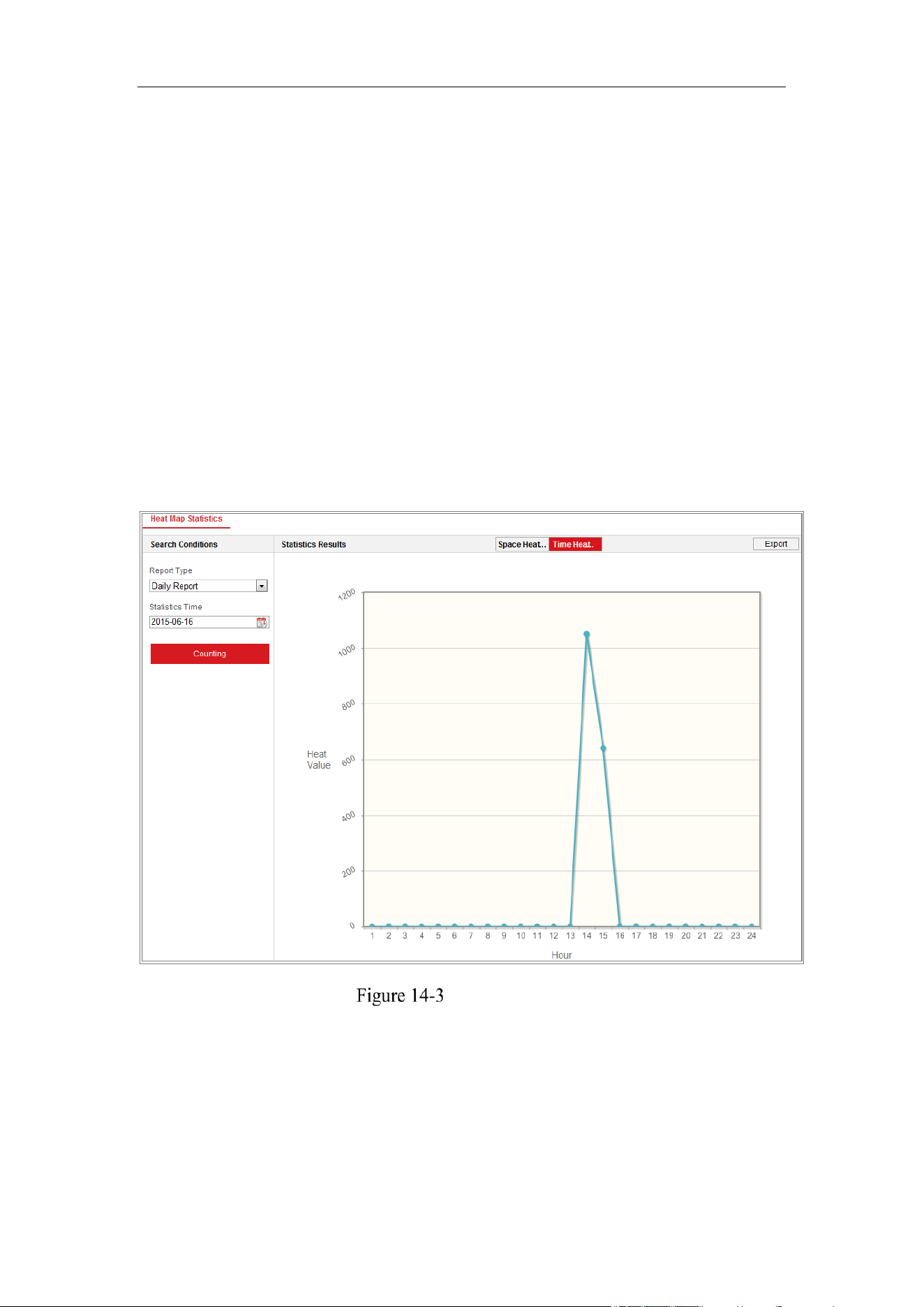

14.3 Heat Map Statistics
14.4 Counting Statistics
14.5 Queue Management Statistics
14.5.1 Queuing-Up Time Analysis
14.5.2 Queue Status Analysis
14.5.3 Raw Data

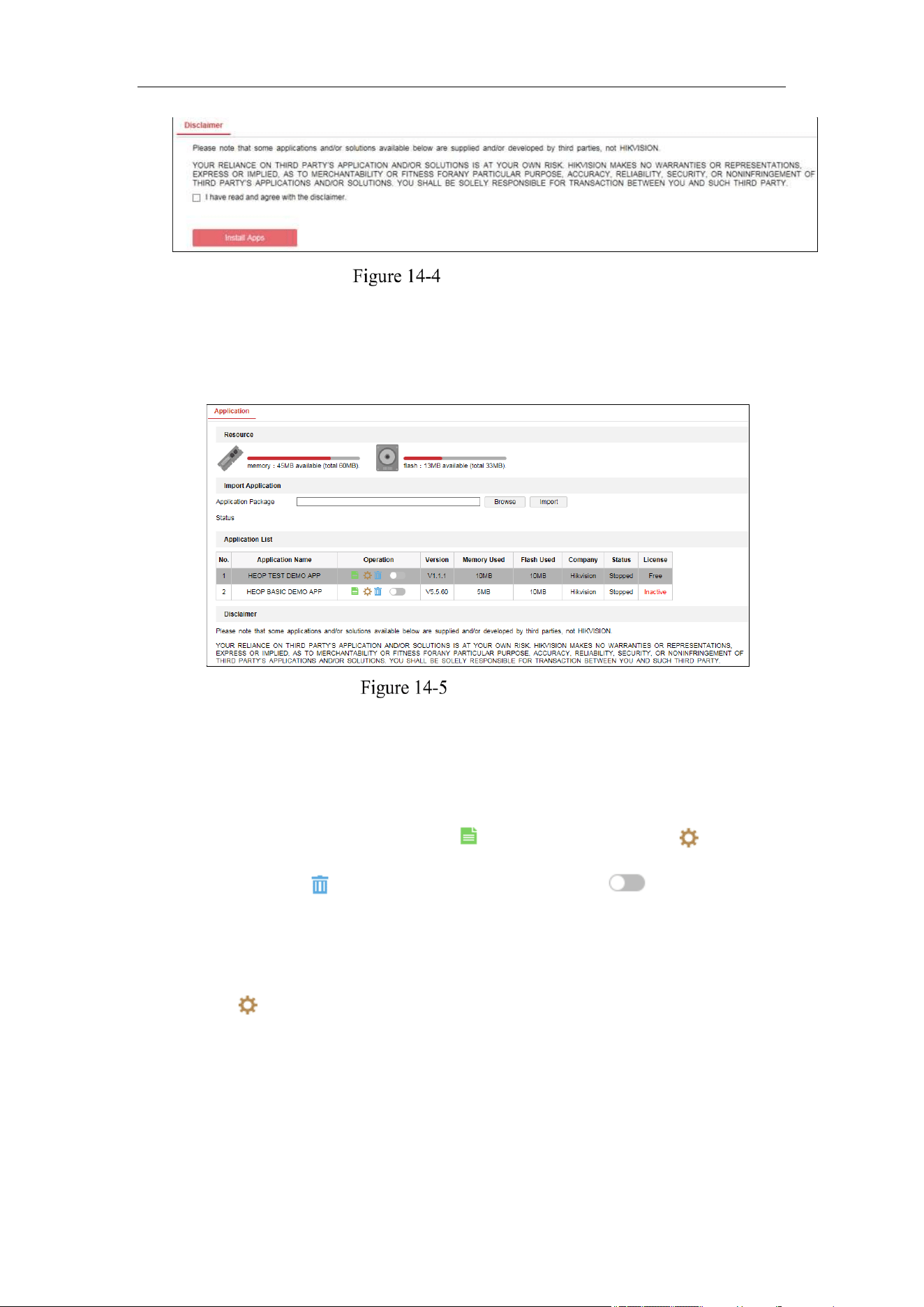

14.6 Open Platform
Appendix

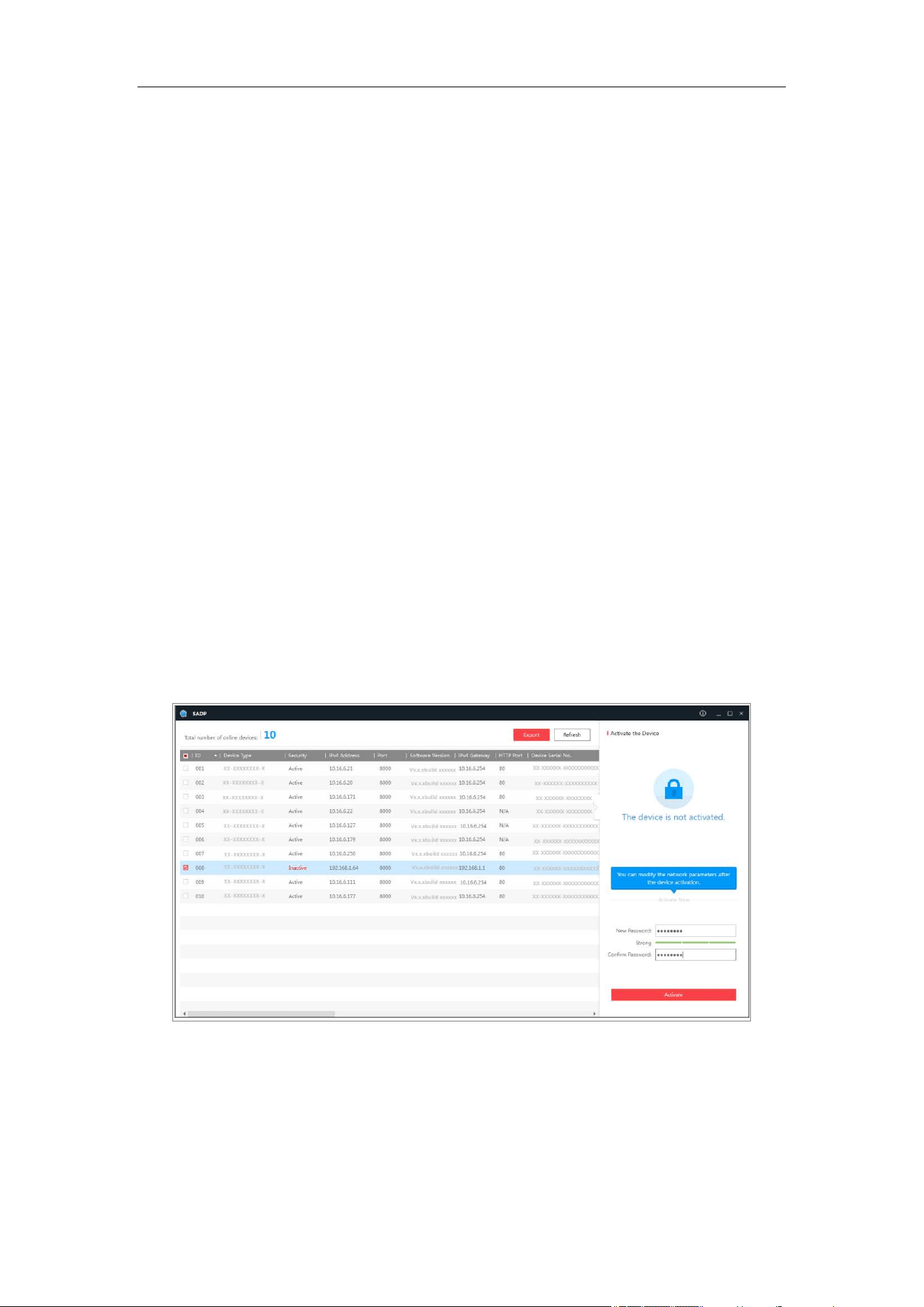

Appendix 1 SADP Software Introduction

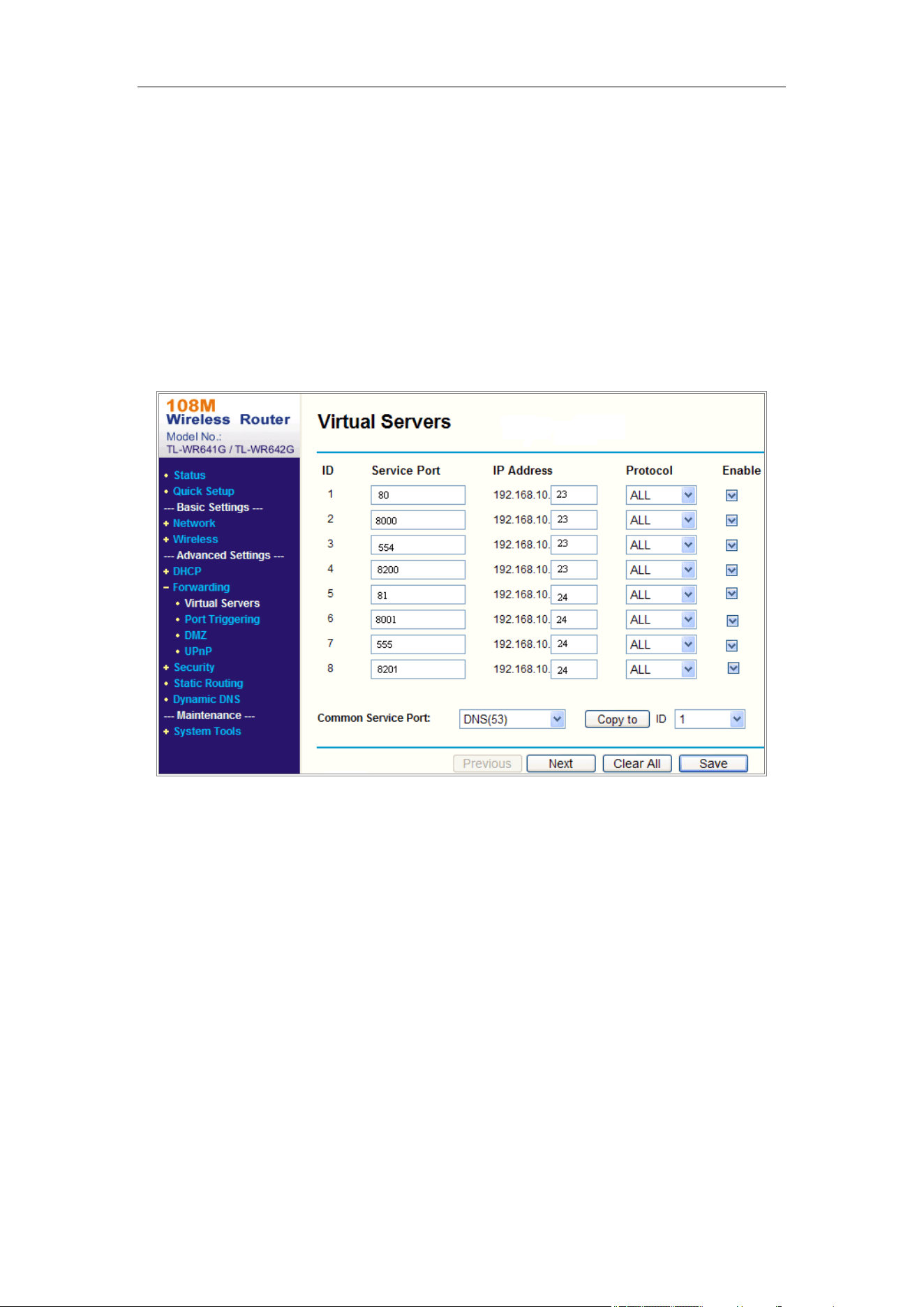

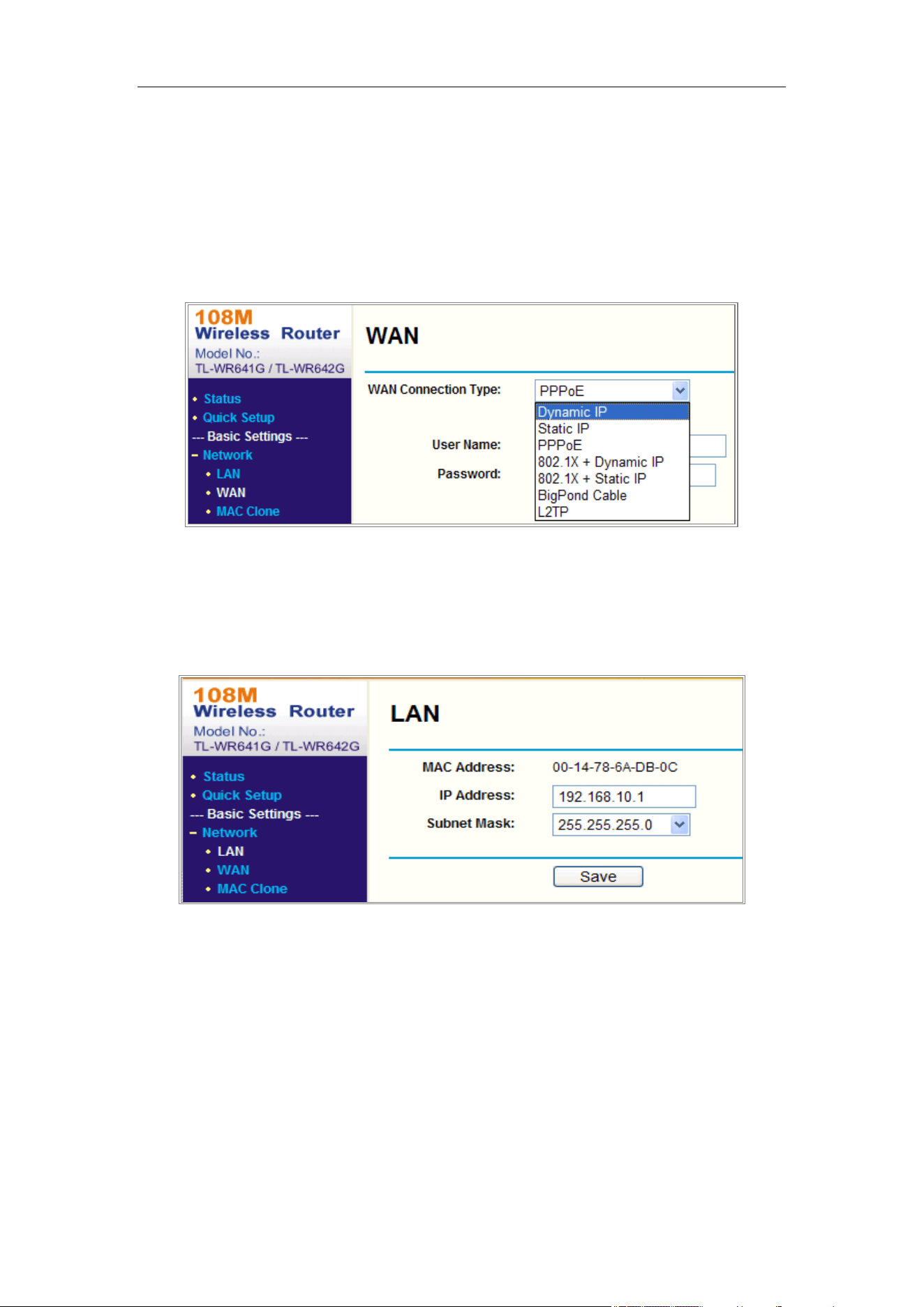

Appendix 2 Port Mapping
Page 1/191
