Portable Speed Dome
User Manual
Portable Speed Dome User Manual
i
Initiatives on the Use of Video Products
Thank you for choosing Hikvision products.
Technology affects every aspect of our life. As a high-tech company, we are increasingly aware of
the role technology plays in improving business efficiency and quality of life, but at the same time,
the potential harm of its improper usage. For example, video products are capable of recording
real, complete and clear images. This provides a high value in retrospect and preserving real-time
facts. However, it may also result in the infringement of a third party's legitimate rights and
interests if improper distribution, use and/or processing of video data takes place. With the
philosophy of "Technology for the Good", Hikvision requests that every end user of video
technology and video products shall comply with all the applicable laws and regulations, as well as
ethical customs, aiming to jointly create a better community.
Please read the following initiatives carefully:
● Everyone has a reasonable expectation of privacy, and the installation of video products should
not be in conflict with this reasonable expectation. Therefore, a warning notice shall be given in
a reasonable and effective manner and clarify the monitoring range, when installing video
products in public areas. For non-public areas, a third party's rights and interests shall be
evaluated when installing video products, including but not limited to, installing video products
only after obtaining the consent of the stakeholders, and not installing highly-invisible video
products.
● The purpose of video products is to record real activities within a specific time and space and
under specific conditions. Therefore, every user shall first reasonably define his/her own rights
in such specific scope, in order to avoid infringing on a third party's portraits, privacy or other
legitimate rights.
● During the use of video products, video image data derived from real scenes will continue to be
generated, including a large amount of biological data (such as facial images), and the data
could be further applied or reprocessed. Video products themselves could not distinguish good
from bad regarding how to use the data based solely on the images captured by the video
products. The result of data usage depends on the method and purpose of use of the data
controllers. Therefore, data controllers shall not only comply with all the applicable laws and
regulations and other normative requirements, but also respect international norms, social
morality, good morals, common practices and other non-mandatory requirements, and respect
individual privacy, portrait and other rights and interests.
● The rights, values and other demands of various stakeholders should always be considered
when processing video data that is continuously generated by video products. In this regard,
product security and data security are extremely crucial. Therefore, every end user and data
controller, shall undertake all reasonable and necessary measures to ensure data security and
avoid data leakage, improper disclosure and improper use, including but not limited to, setting
up access control, selecting a suitable network environment (the Internet or Intranet) where
video products are connected, establishing and constantly optimizing network security.
Portable Speed Dome User Manual
ii
● Video products have made great contributions to the improvement of social security around the
world, and we believe that these products will also play an active role in more aspects of social
life. Any abuse of video products in violation of human rights or leading to criminal activities are
contrary to the original intent of technological innovation and product development. Therefore,
each user shall establish an evaluation and tracking mechanism of their product application to
ensure that every product is used in a proper and reasonable manner and with good faith.
Portable Speed Dome User Manual
iii
Legal Information
© 2021 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
About this Manual
The Manual includes instructions for using and managing the Product. Pictures, charts, images and
all other information hereinafter are for description and explanation only. The information
contained in the Manual is subject to change, without notice, due to firmware updates or other
reasons. Please find the latest version of this Manual at the Hikvision website
(https://www.hikvision.com/).
Please use this Manual with the guidance and assistance of professionals trained in supporting the
Product.
Trademarks
and other Hikvision's trademarks and logos are the properties of
Hikvision in various jurisdictions.
Other trademarks and logos mentioned are the properties of their respective owners.
Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT
DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS IS" AND
"WITH ALL FAULTS AND ERRORS". HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR
A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT
WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT
DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS
INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION,
WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT
LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY
RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK,
VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE
TIMELY TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE
SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW.
ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT
INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF
PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS.
YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE
DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR
Portable Speed Dome User Manual
iv
PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED
TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN
RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER
PREVAILS.
Portable Speed Dome User Manual
v
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at
his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with
"CE" and comply therefore with the applicable harmonized European standards
listed under the EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the
RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be
disposed of as unsorted municipal waste in the European Union. For proper
recycling, return this product to your local supplier upon the purchase of
equivalent new equipment, or dispose of it at designated collection points. For
more information see: www.recyclethis.info
2006/66/EC (battery directive): This product contains a battery that cannot be
disposed of as unsorted municipal waste in the European Union. See the product
documentation for specific battery information. The battery is marked with this
symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery to your supplier or to a
designated collection point. For more information see: www.recyclethis.info
Portable Speed Dome User Manual
vi
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.
Portable Speed Dome User Manual
vii
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol
Description
Danger
Indicates a hazardous situation which, if not avoided, will or could
result in death or serious injury.
Caution
Indicates a potentially hazardous situation which, if not avoided,
could result in equipment damage, data loss, performance
degradation, or unexpected results.
Note
Provides additional information to emphasize or supplement
important points of the main text.
Portable Speed Dome User Manual
viii
Safety Instruction
Regulatory Information
This is a class A product and may cause radio interference in which case the user may be required
to take adequate measures.
Laws and Regulations
Use of the product must be in strict compliance with the local laws and regulations. Please shut
down the device in prohibited area.
Power Supply
● Use of the product must be in strict compliance with the local electrical safety regulations.
● Use the power adapter provided by qualified manufacturer. Refer to the product specification
for detailed power requirements.
● It is recommended to provide independent power adapter for each device as adapter overload
may cause over-heating or a fire hazard.
● Make sure that the power has been disconnected before you wire, install, or disassemble the
device in the authorized way according to the description in the manual.
● To avoid electric shock, DO NOT directly touch exposed contacts and components once the
device is powered up.
● DO NOT use damaged power supply devices (e.g., cable, power adapter, etc.) to avoid electric
shock, fire hazard, and explosion.
● DO NOT directly cut the power supply to shut down the device. Please shut down the device
normally and then unplug the power cord to avoid data loss.
● The socket-outlet shall be installed near the equipment and shall be easily accessible.
● Make sure the power supply has been disconnected if the power adapter is idle.
● Connect to earth before connecting to the power supply.
Transportation, Use, and Storage
● To avoid heat accumulation, good ventilation is required for a proper operating environment.
● Store the device in dry, well-ventilated, corrosive-gas-free, no direct sunlight, and no heating
source environment.
● Avoid fire, water, and explosive environment when using the device.
● Install the device in such a way that lightning strikes can be avoided. Provide a surge suppressor
at the inlet opening of the equipment under special conditions such as the mountain top, iron
tower, and forest.
● Keep the device away from magnetic interference.
● Avoid device installation on vibratory surfaces or places. Failure to comply with this may cause
device damage.
● DO NOT touch the heat dissipation component to avoid burns.
● DO NOT expose the device to extremely hot, cold, or humidity environments. For temperature
and humidity requirements, see device specification.
Portable Speed Dome User Manual
ix
● No naked flame sources, such as lighted candles, should be placed on the equipment.
● DO NOT touch the sharp edges or corners.
● To prevent possible hearing damage, DO NOT listen at high volume levels for long periods.
● The device can only be safely used in the region below 2,000 meters above the sea level.
Maintenance
● If smoke, odor, or noise arises from the device, immediately turn off the power, unplug the
power cable, and contact the service center.
● If the device cannot work properly, contact the store you purchased it or the nearest service
center. DO NOT disassemble or modify the device in the unauthorized way (For the problems
caused by unauthorized modification or maintenance, the company shall not take any
responsibility).
● Keep all packaging after unpacking them for future use. In case of any failure occurred, you
need to return the device to the factory with the original packaging. Transportation without the
original packaging may result in damage to the device and the company shall not take any
responsibility.
Network
● Please enforce the protection for the personal information and the data security as the device
may be confronted with the network security problems when it is connected to the Internet.
Contact us if network security risks occur.
● Please understand that you have the responsibility to configure all the passwords and other
security settings about the device, and keep your user name and password.
Lens
● DO NOT touch the lens with fingers directly in case the acidic sweat of the fingers erodes the
surface coating of the lens.
● DO NOT aim the lens at the strong light such as sun or incandescent lamp. The strong light can
cause fatal damage to the device.
Screen
Clean the screen with soft and dry cloth or other substitutes to wipe the interior and exterior
surface. DO NOT use alkaline detergents. Protect the screen from scratches.
Battery
● DO NOT charge the battery continuously more than one week. Overcharging may shorten the
battery life.
● Battery will discharge gradually if it is not used for a long time. It must be recharged before
using.
● If the device contains dismountable battery, store the device and battery separately if it is not
used.
● The battery must be charged and discharged every three months if it is not used, and recharged
to 60% to 70% power percentage to store.
● The scrapped battery should be discarded in compliance with the local laws and regulations. If
Portable Speed Dome User Manual
x
there are no corresponding laws or regulations, throw it in a hazardous trash can.
● DO NOT pierce the battery or shorten the electrodes, or it may cause explosion or fire hazard.
● DO NOT dispose of the battery into fire or a hot oven, or mechanically crush or cut the battery,
which may result in an explosion.
● CAUTION: Please use the specific battery supported by the device, or it may cause explosion. If
the battery is damaged and needs to be changed, contact the device manufacturer or local
distributor.
● If the device contains button battery, keep it far away from children.
● DO NOT expose the battery pack or battery combination to sunlight, fire, or similar overheated
environment. DO NOT leave the battery in an extremely high temperature surrounding
environment or subject the battery to extremely low air pressure, which may result in an
explosion or the leakage of flammable liquid or gas.
● Keep new and used batteries away from children. If the battery compartment does not close
securely, stop using the product and keep it away from children.
Data
DO NOT disconnect the power during formatting, uploading, and downloading. Or files may be
damaged.
Portable Speed Dome User Manual
xi
Contents
Chapter 1 Introduction ............................................................................................................... 1
1.1 Product Introduction ............................................................................................................. 1
1.2 Key Feature ............................................................................................................................ 1
Chapter 2 Activation and Login ................................................................................................... 2
2.1 Activation ............................................................................................................................... 2
2.1.1 Default Information ................................................................................................... 2
2.1.2 Activate via SADP ....................................................................................................... 2
2.1.3 Activate via Web Browser .......................................................................................... 3
2.2 Login ....................................................................................................................................... 4
Chapter 3 Capture Configuration ................................................................................................ 5
3.1 Set Capture Parameters ........................................................................................................ 5
3.1.1 Set Capture Overlay ................................................................................................... 5
3.1.2 Set Image Encoding Parameters ................................................................................ 6
3.1.3 Set Voice Broadcast .................................................................................................... 7
3.2 Vehicle Arming ...................................................................................................................... 8

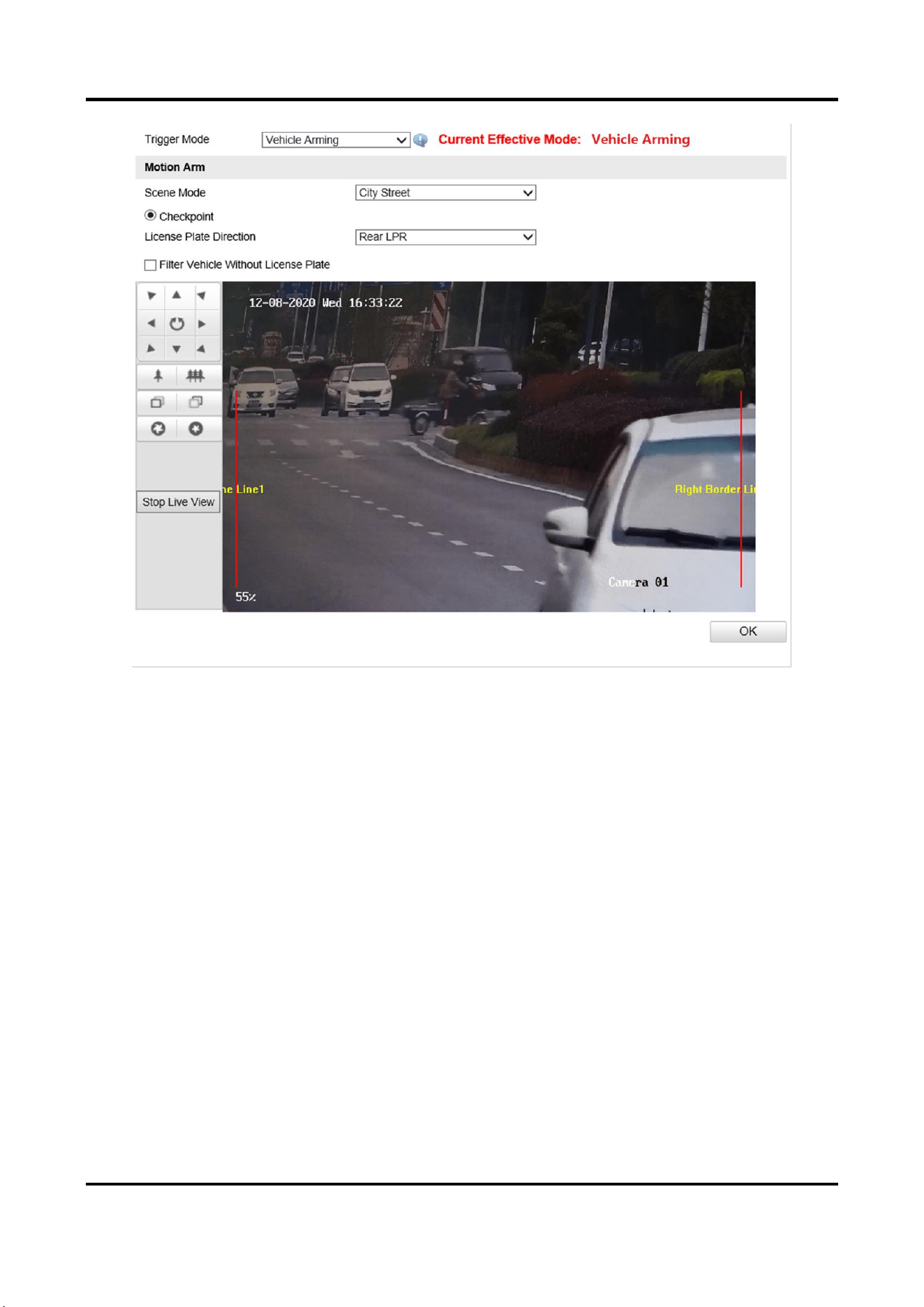

3.2.1 Set Vehicle Arming ..................................................................................................... 8
3.2.2 Set Blocklist .............................................................................................................. 10

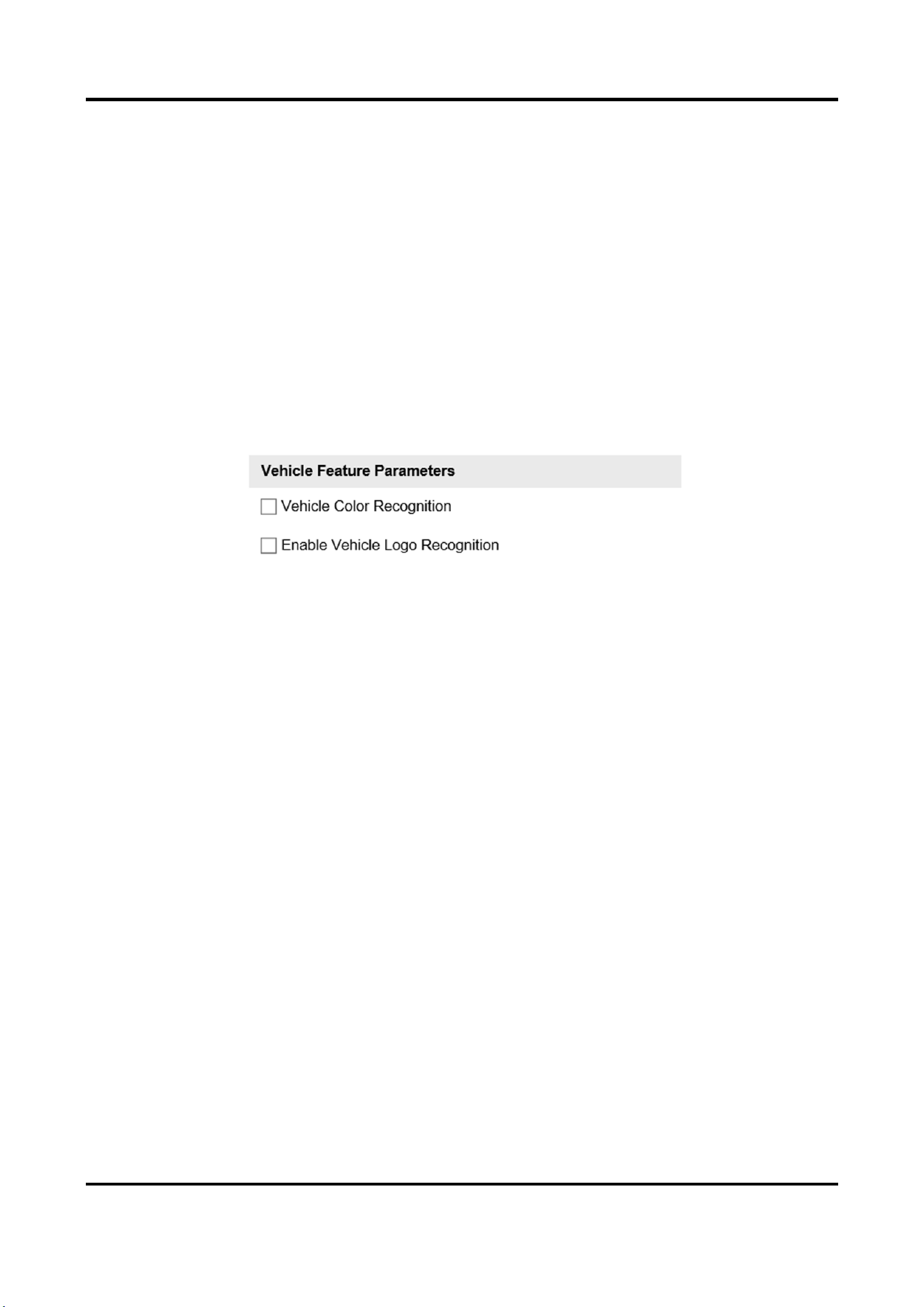

3.2.3 Set Vehicle Feature Parameters .............................................................................. 11

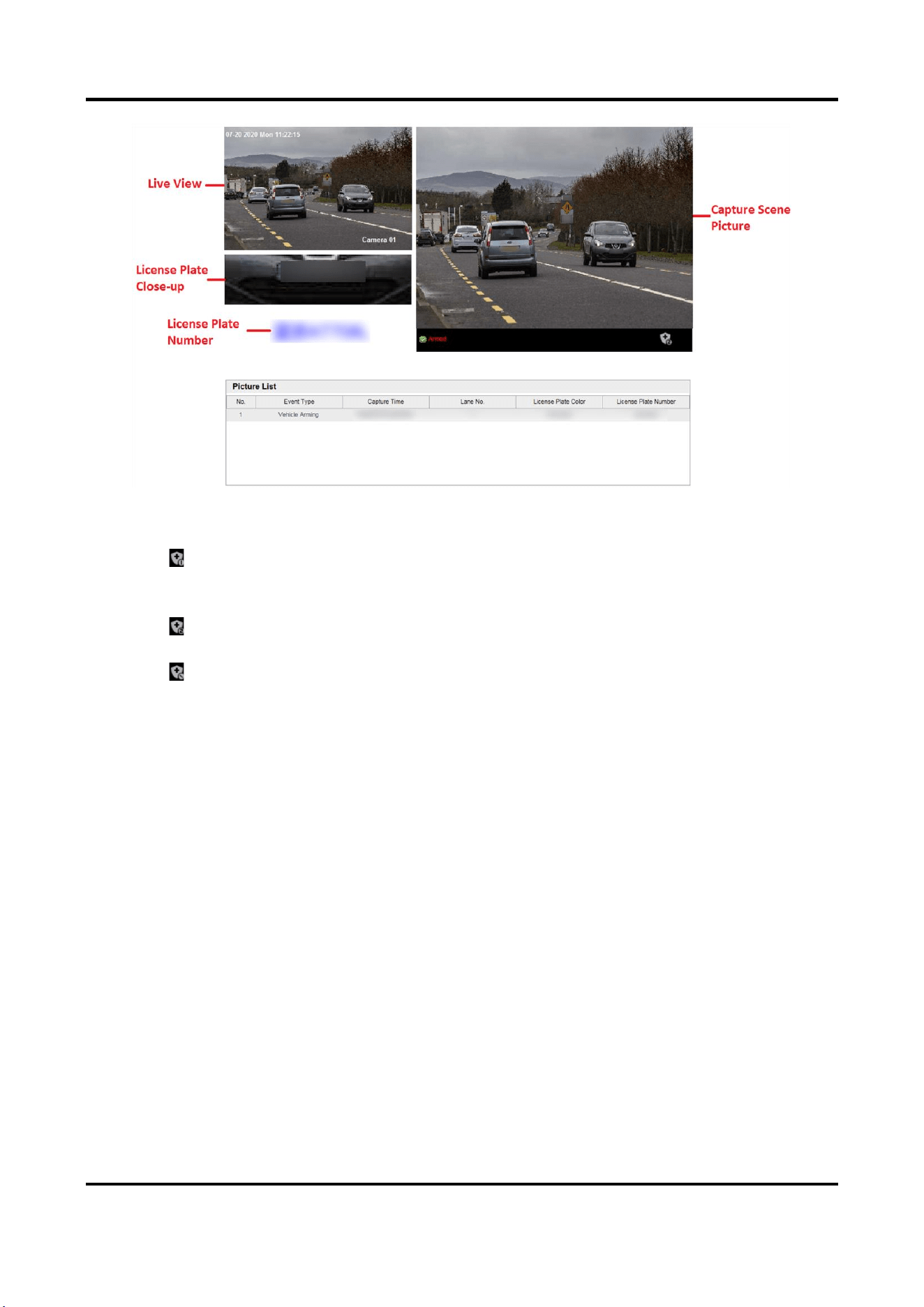

3.2.4 View Vehicle Arming Real-Time Picture .................................................................. 11
3.3 Face Picture Capture and Comparison ............................................................................... 12

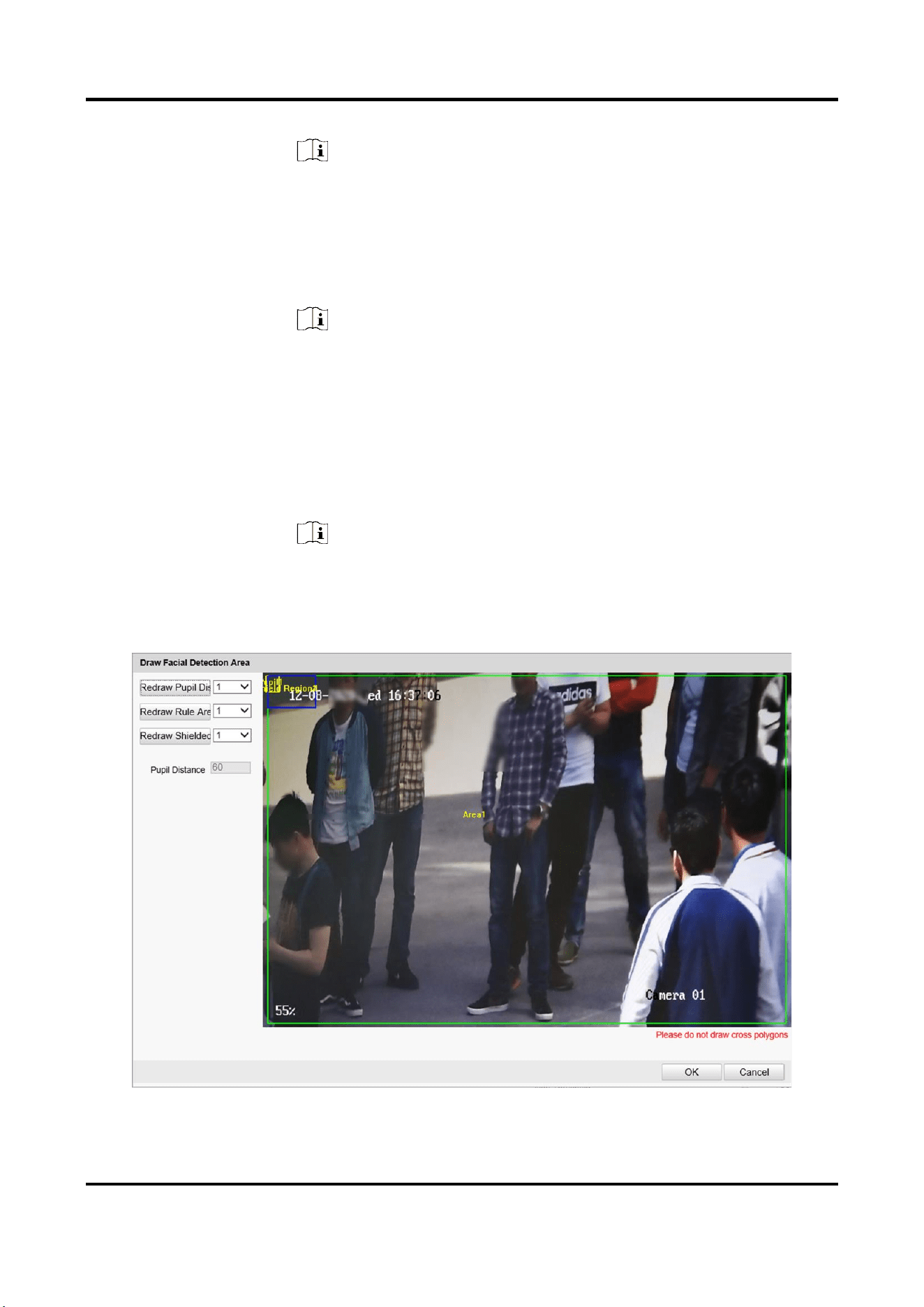

3.3.1 Set Face Detection .................................................................................................... 12

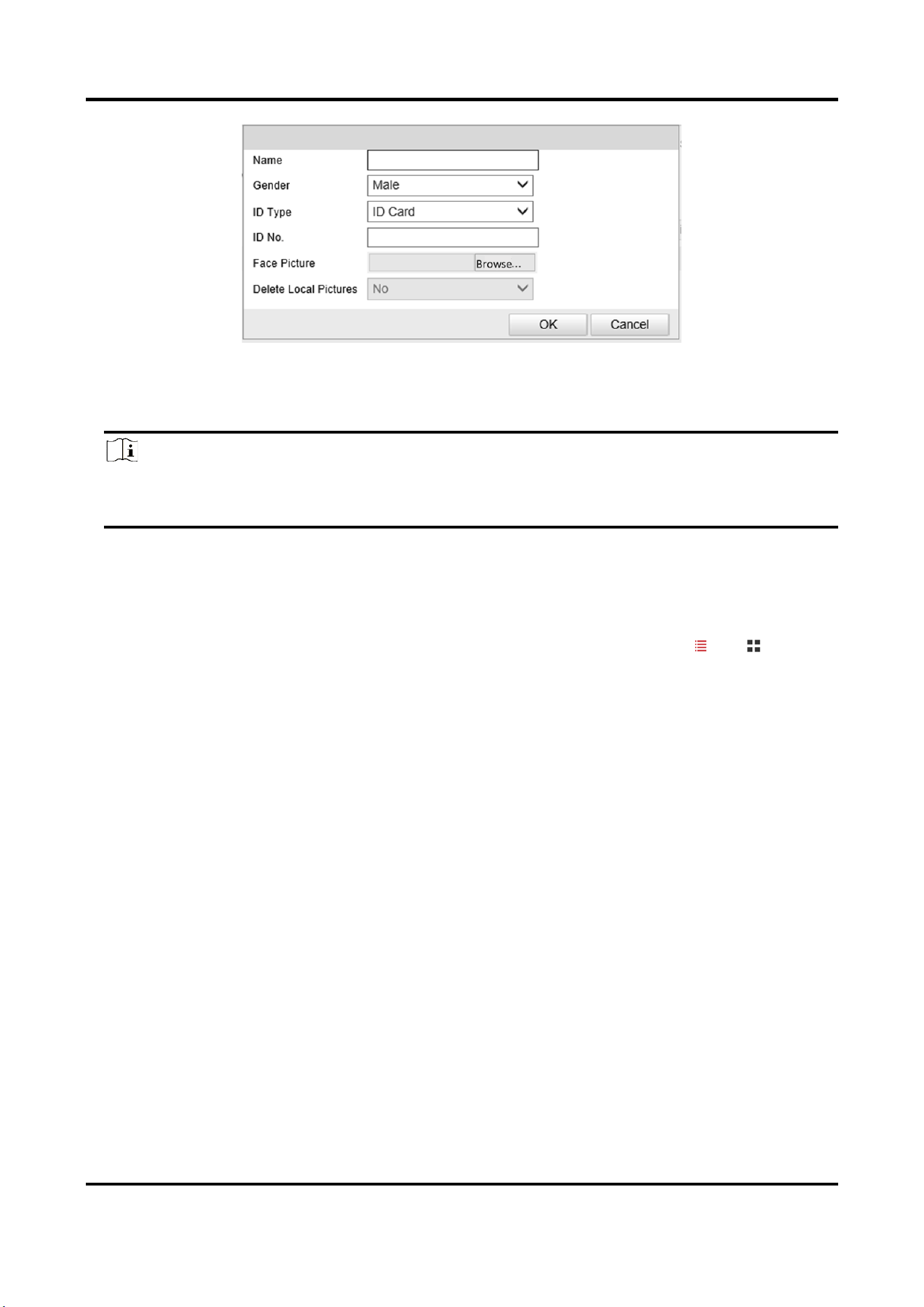

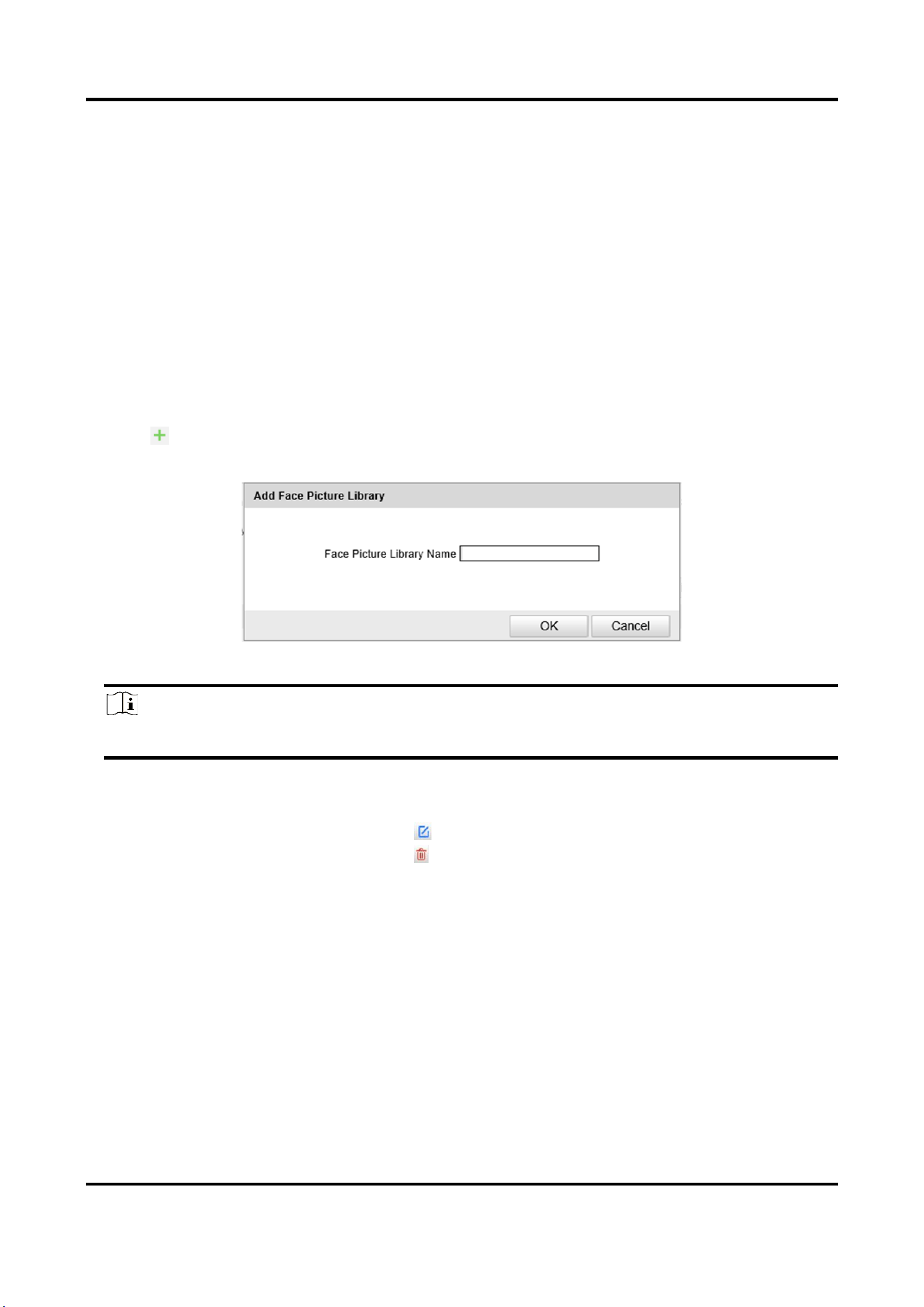

3.3.2 Set Face Picture Library ............................................................................................ 16
3.3.3 View Face Detection Real-Time Picture .................................................................. 18

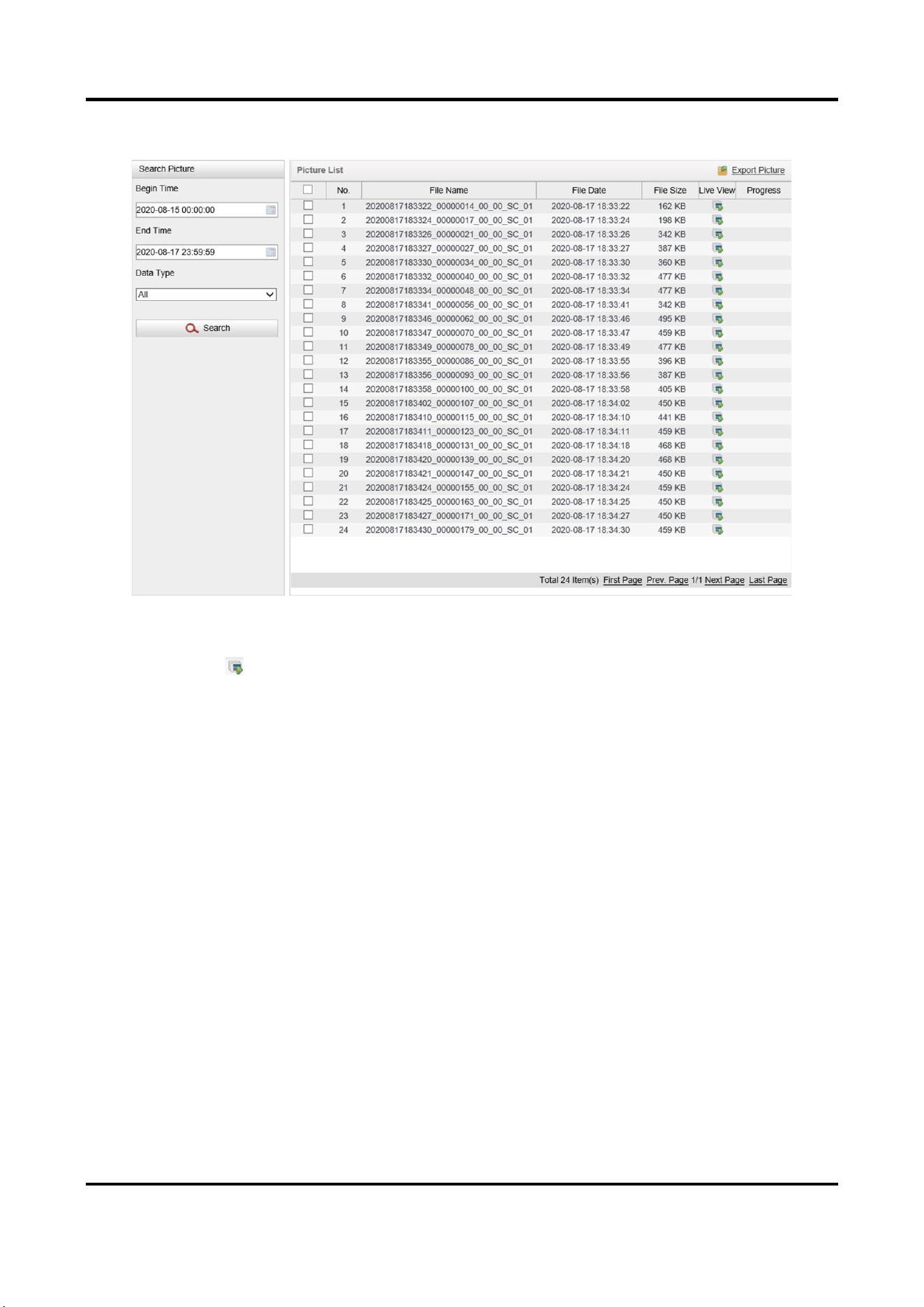

3.4 Search Picture ...................................................................................................................... 19
Chapter 4 Live View and Local Configuration ............................................................................ 21
4.1 Live View .............................................................................................................................. 21
4.1.1 Start/Stop Live View ................................................................................................ 21
4.1.2 Select Image Display Mode ...................................................................................... 21
4.1.3 Select Stream Type ................................................................................................... 21
Portable Speed Dome User Manual
xii
4.1.4 Capture Picture Manually ........................................................................................ 21
4.1.5 Record Manually ...................................................................................................... 21
4.1.6 Start/Stop Two-Way Audio ...................................................................................... 22
4.1.7 Enable/Disable Audio ............................................................................................... 22
4.1.8 Enable Digital Zoom ................................................................................................. 22
4.1.9 Enable 3D Positioning .............................................................................................. 22
4.1.10 Display in Full Screen ............................................................................................. 23

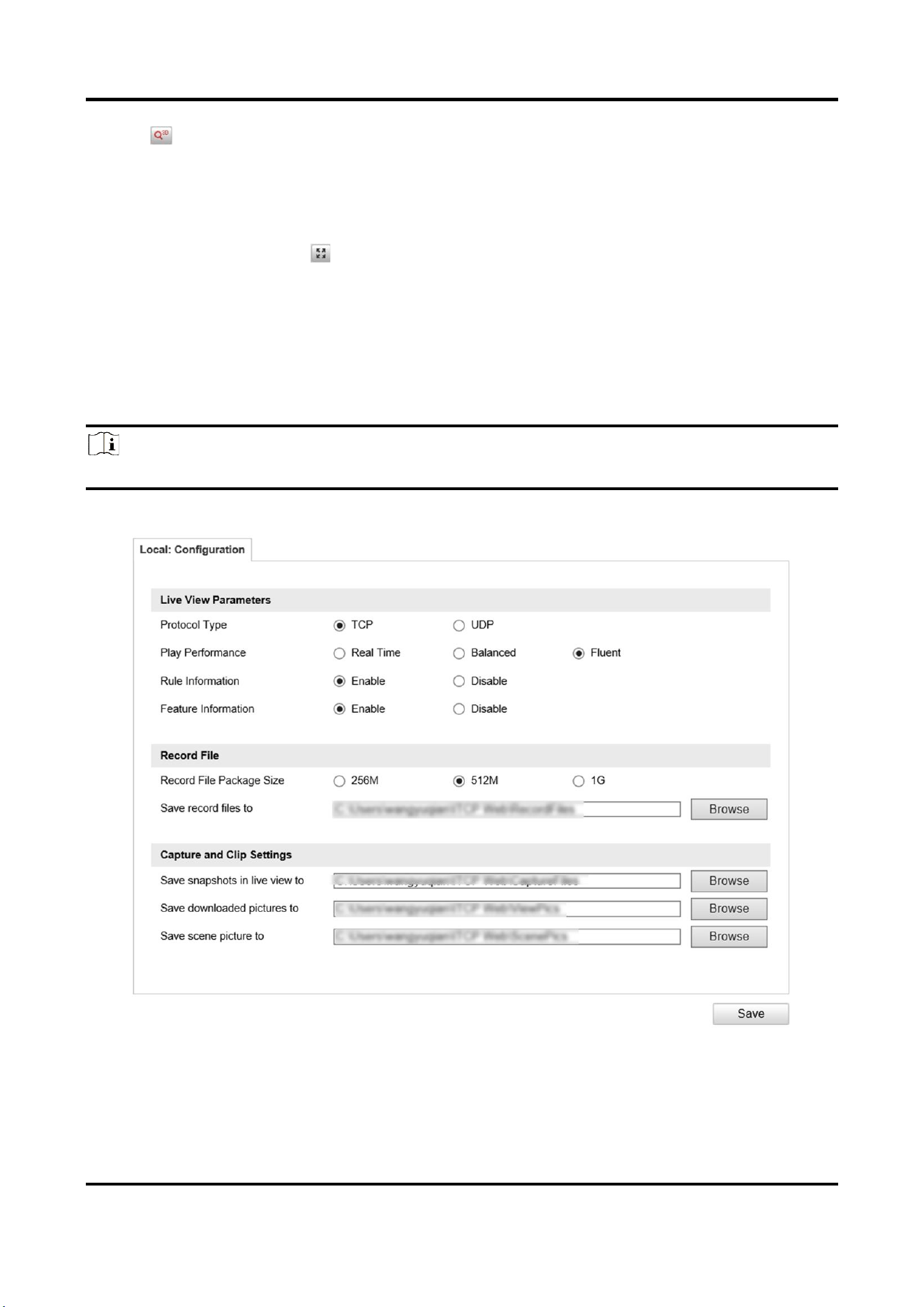

4.2 Local Configuration ............................................................................................................. 23
Chapter 5 PTZ ........................................................................................................................... 25

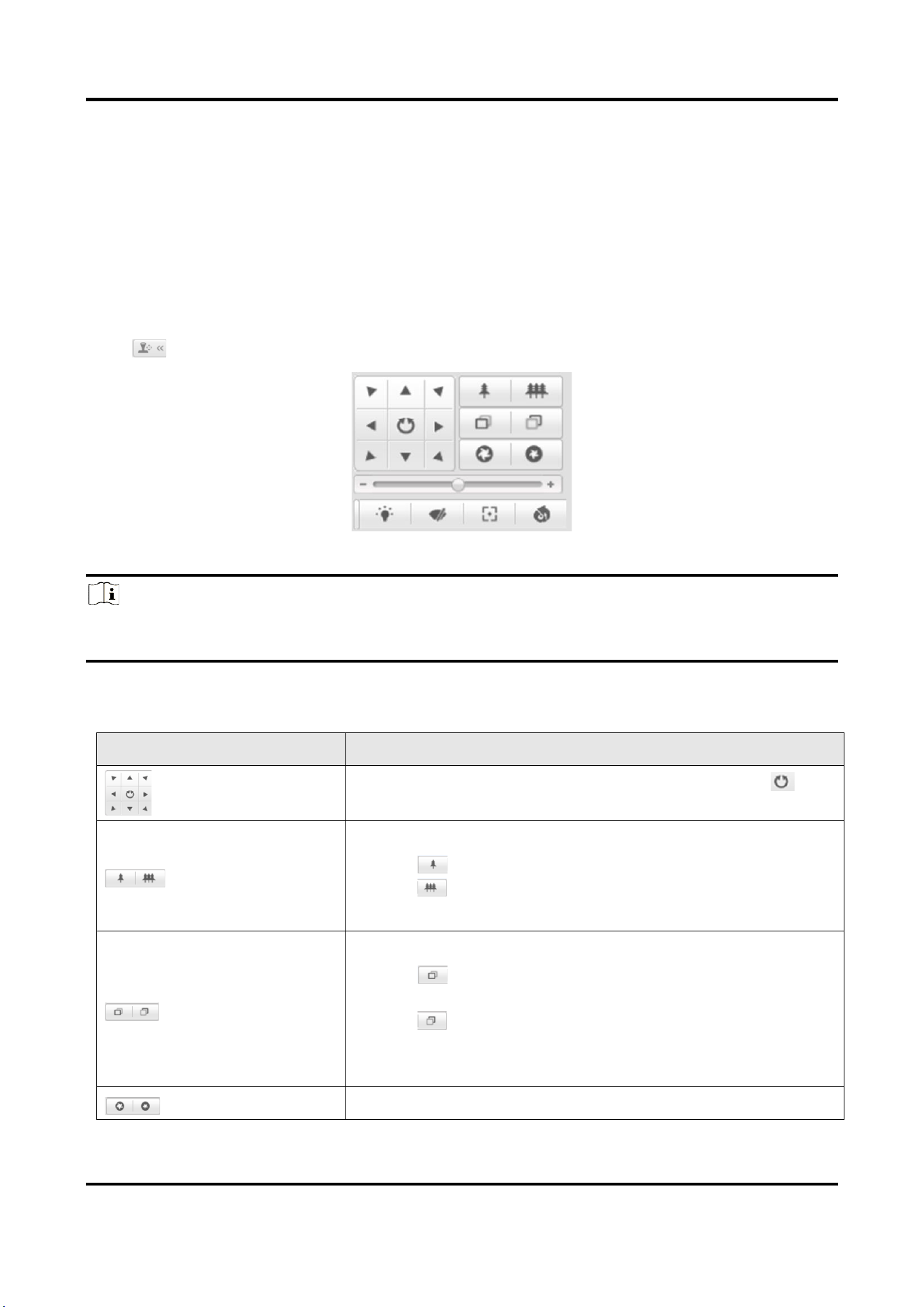

5.1 PTZ Control Panel ................................................................................................................ 25

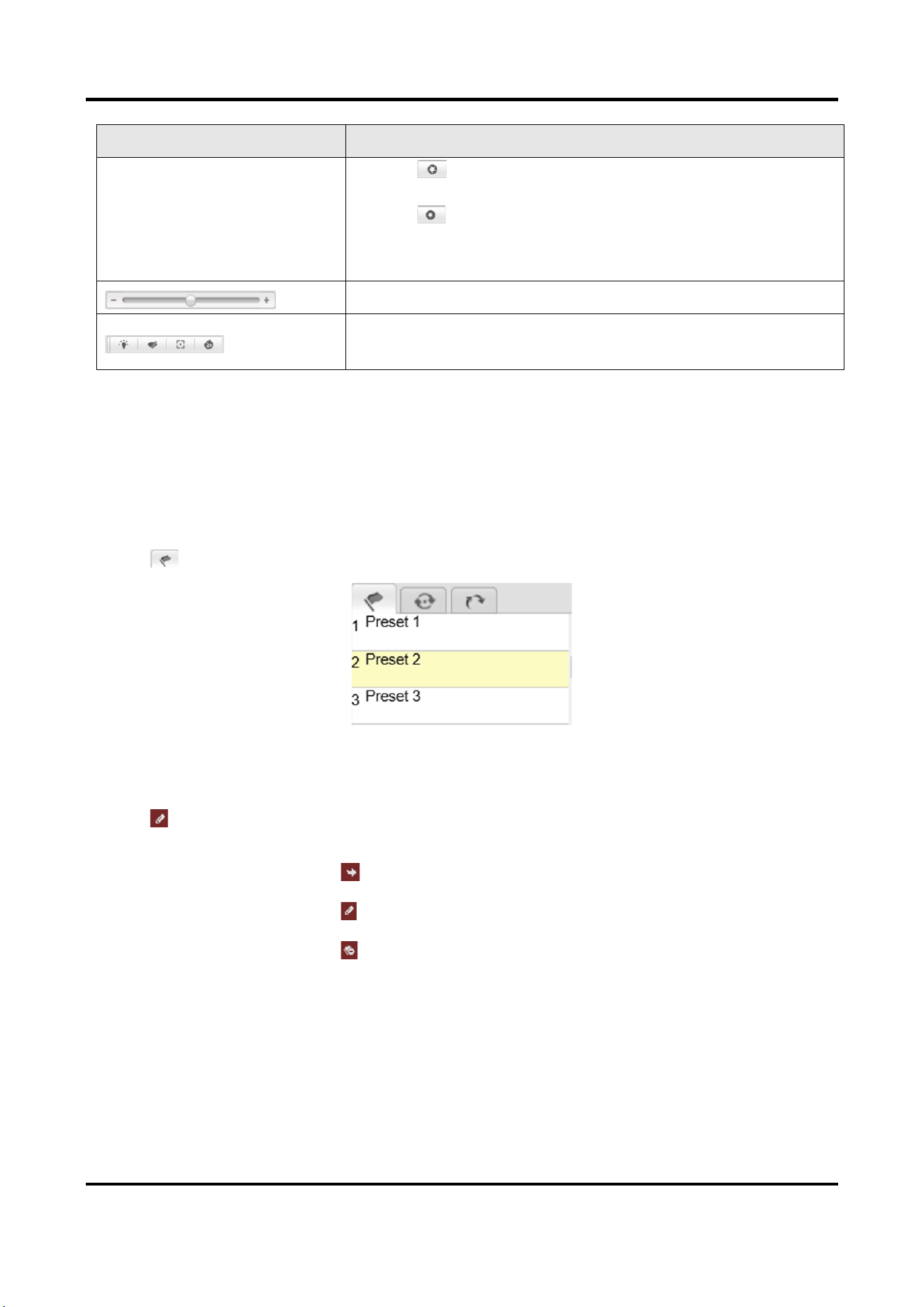

5.2 Set Preset ............................................................................................................................. 26
5.3 Call Preset ............................................................................................................................ 27

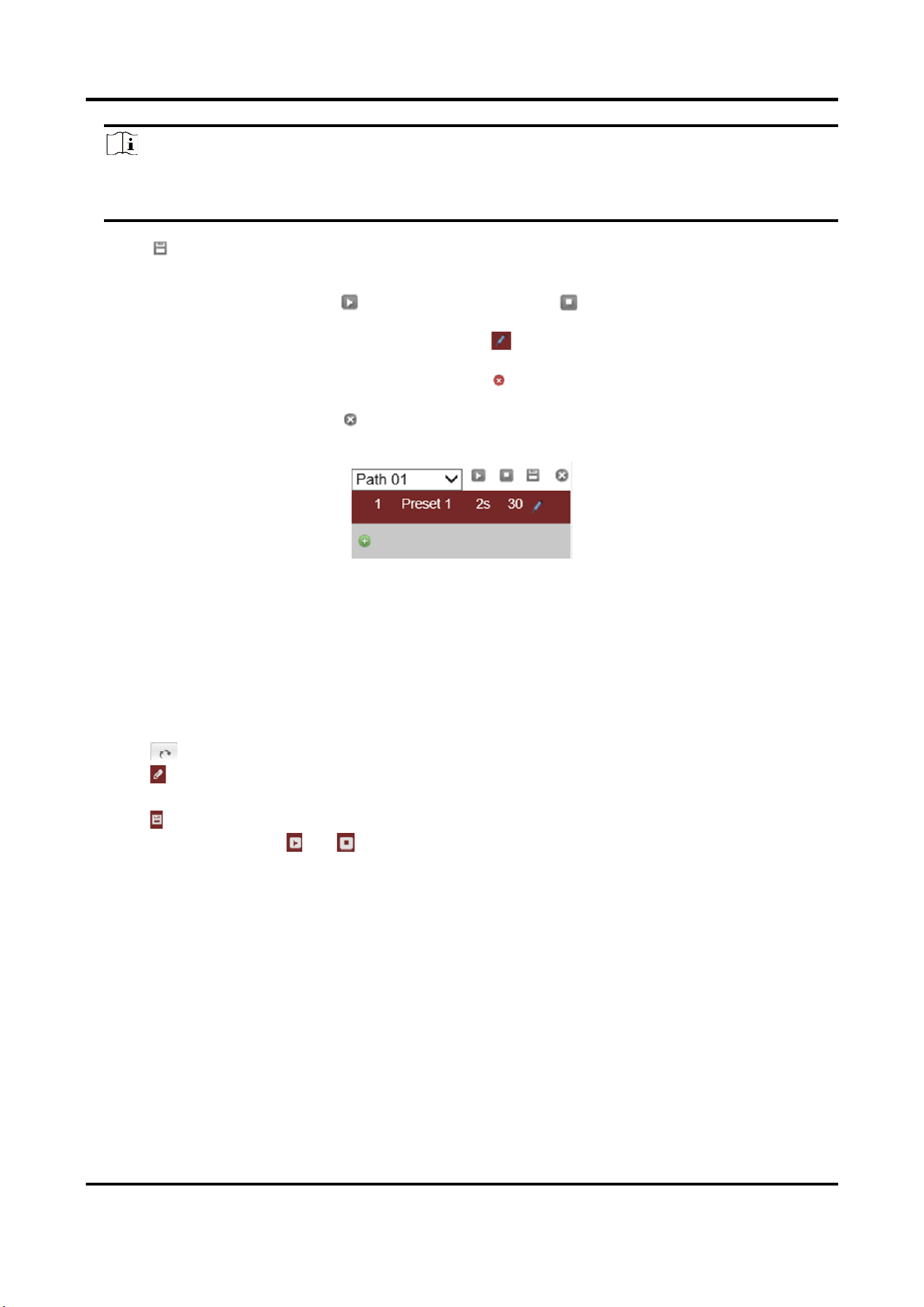

5.4 Set Patrol ............................................................................................................................. 27
5.5 Set Pattern ........................................................................................................................... 28
5.6 Set Basic Parameters ........................................................................................................... 28

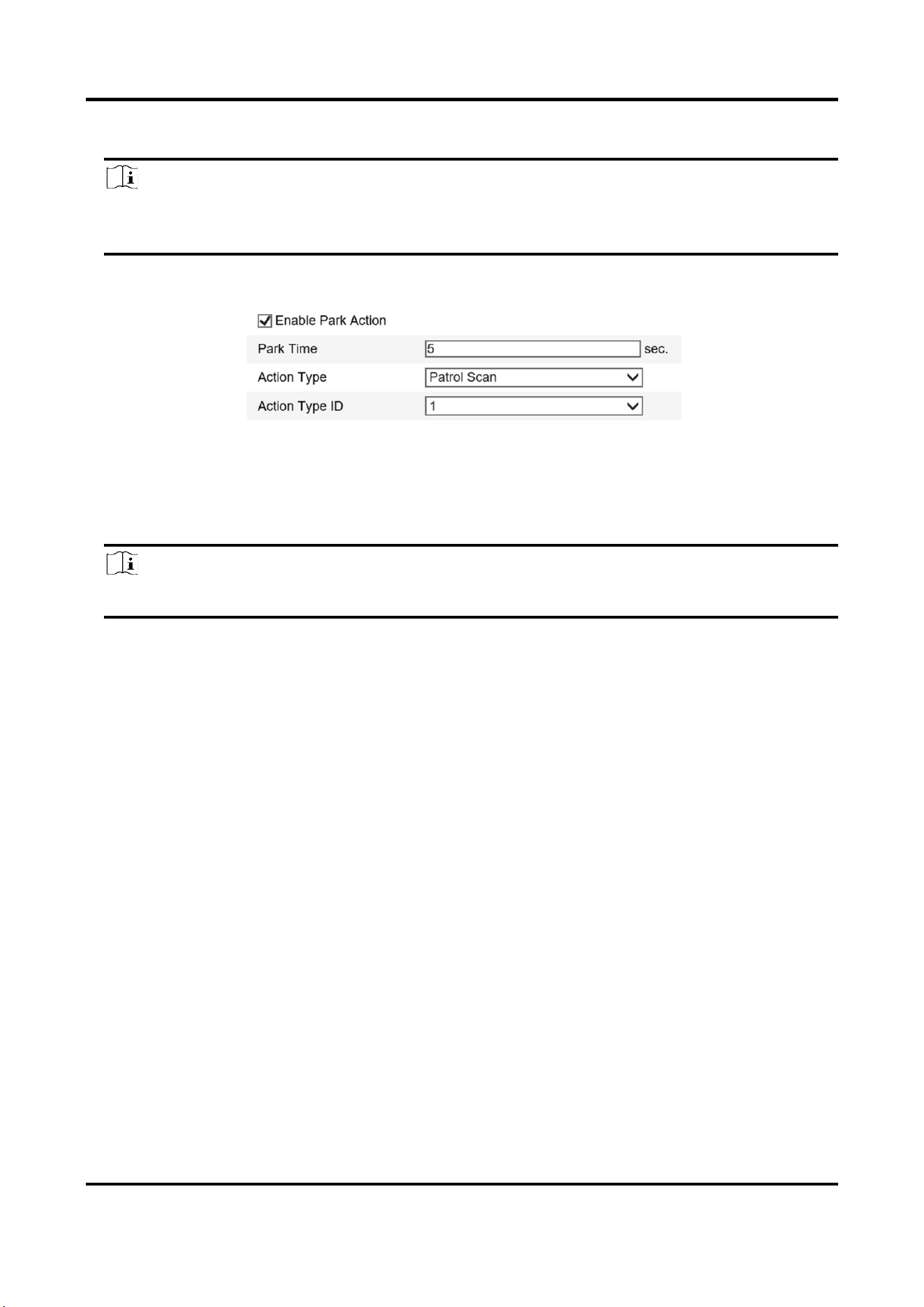

5.7 Set Park Action .................................................................................................................... 29

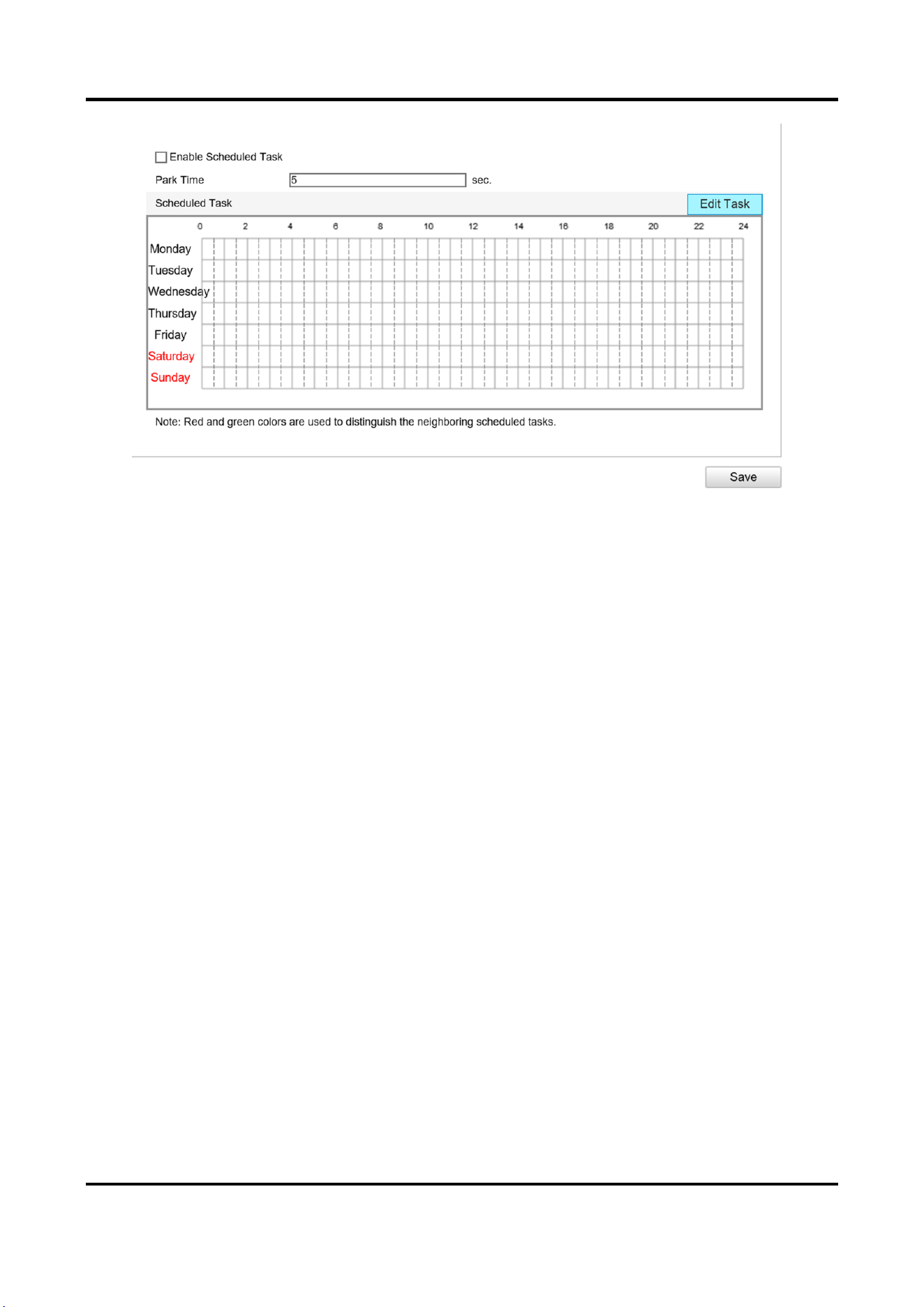

5.8 Set Scheduled Task .............................................................................................................. 30
5.9 Clear PTZ Settings ................................................................................................................ 32
Chapter 6 Playback ................................................................................................................... 34
Chapter 7 Record and Capture .................................................................................................. 35
7.1 Set Storage Path .................................................................................................................. 35
7.1.1 Set Memory Card...................................................................................................... 35

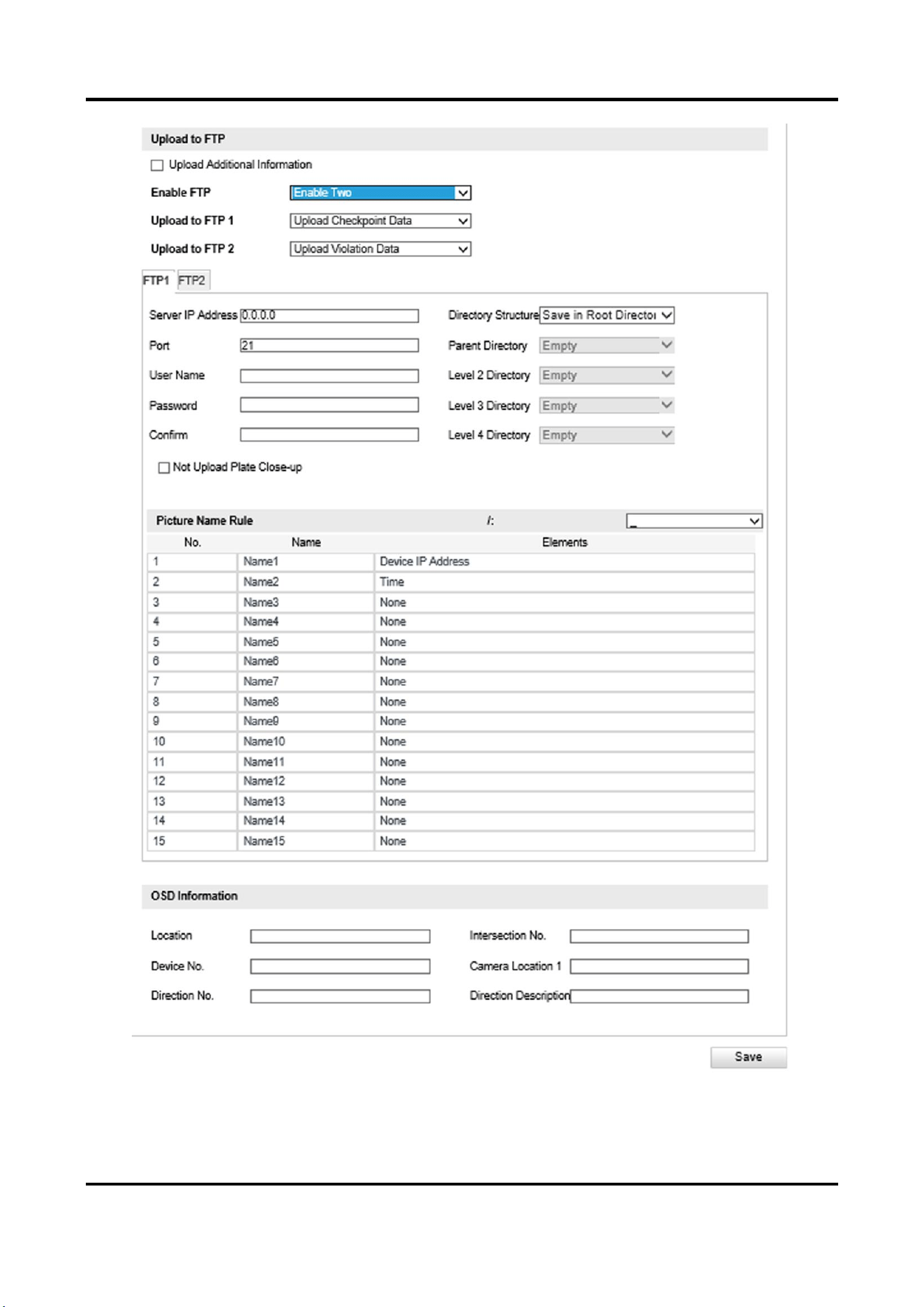

7.1.2 Set FTP ...................................................................................................................... 36

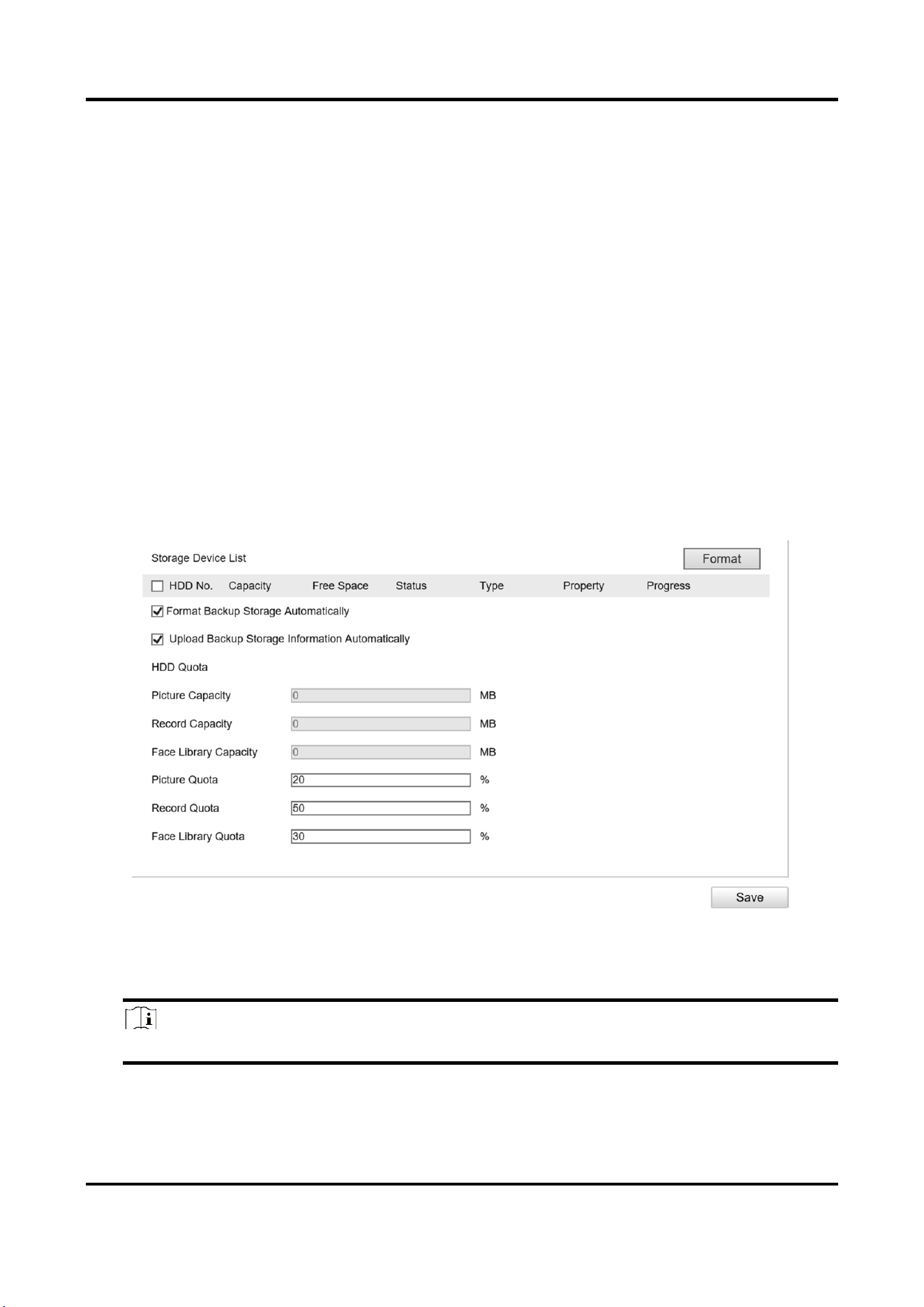

7.2 Set Quota ............................................................................................................................. 38

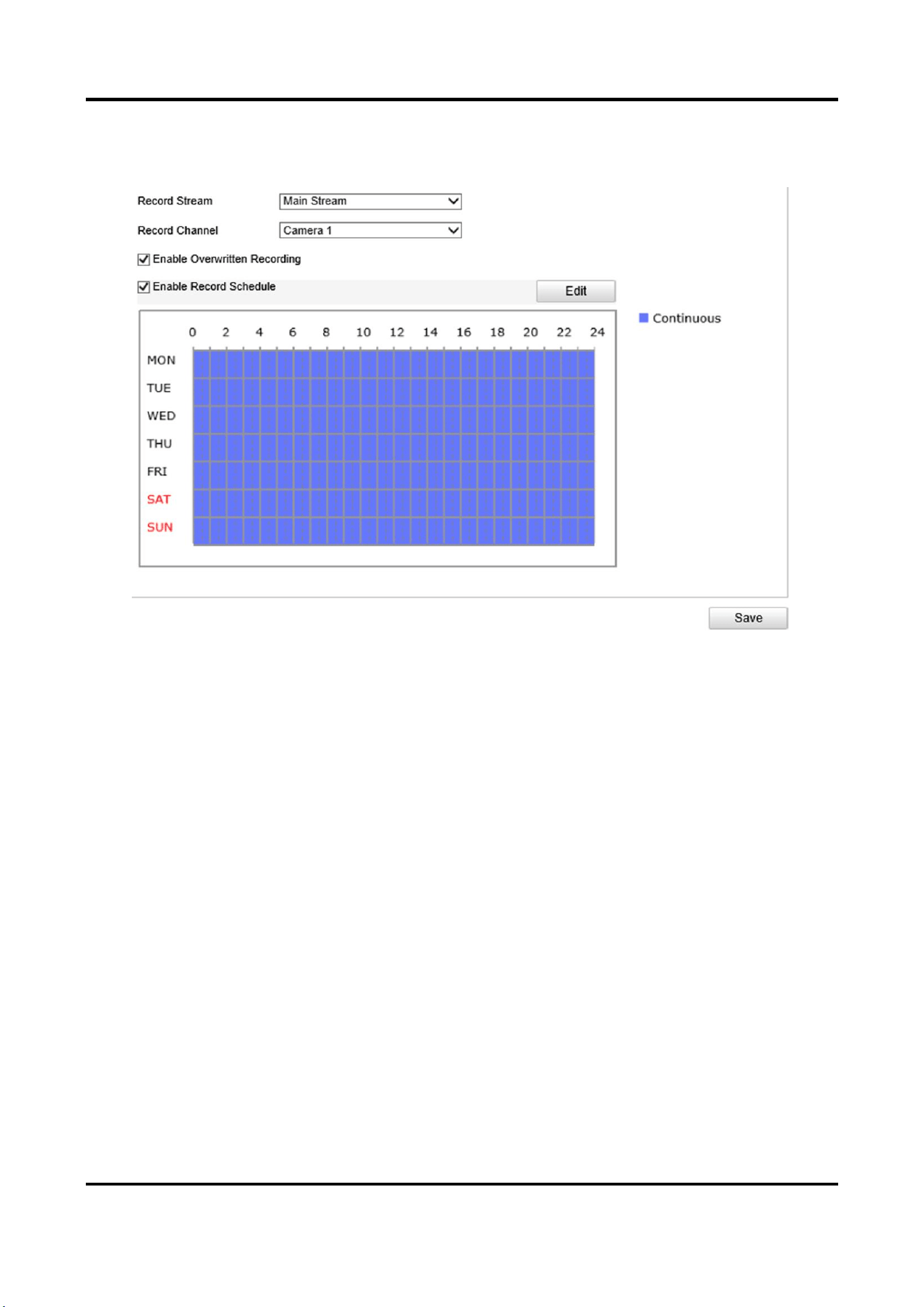

7.3 Set Record Schedule ............................................................................................................ 38
7.4 Set Capture Schedule .......................................................................................................... 39
Chapter 8 Encoding and Display ................................................................................................ 41
8.1 Set Video Encoding Parameters .......................................................................................... 41
8.2 Set Audio Encoding Parameters ......................................................................................... 42
8.3 Set Image Parameters ......................................................................................................... 42

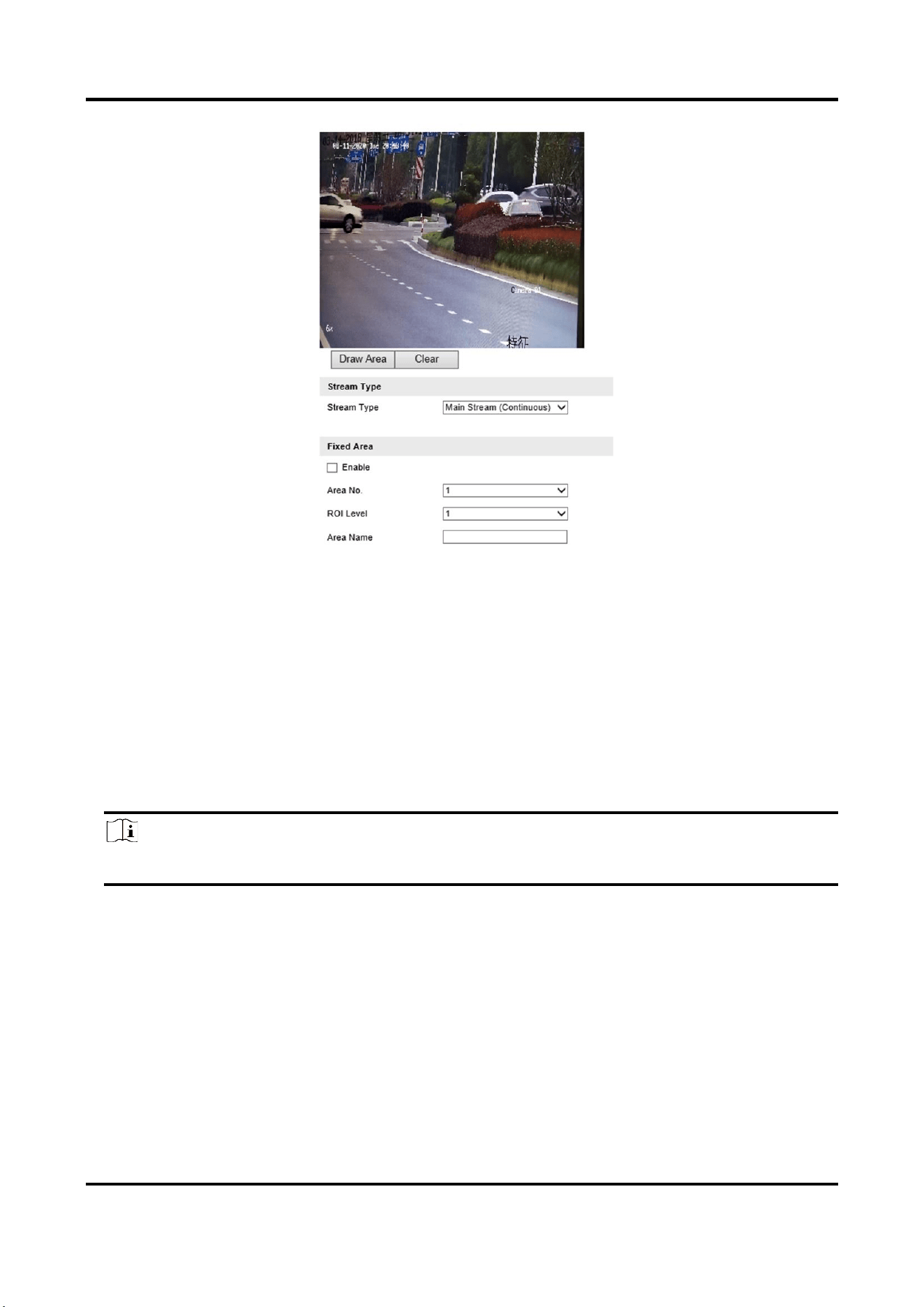

8.4 Set ROI ................................................................................................................................. 46
Portable Speed Dome User Manual
xiii

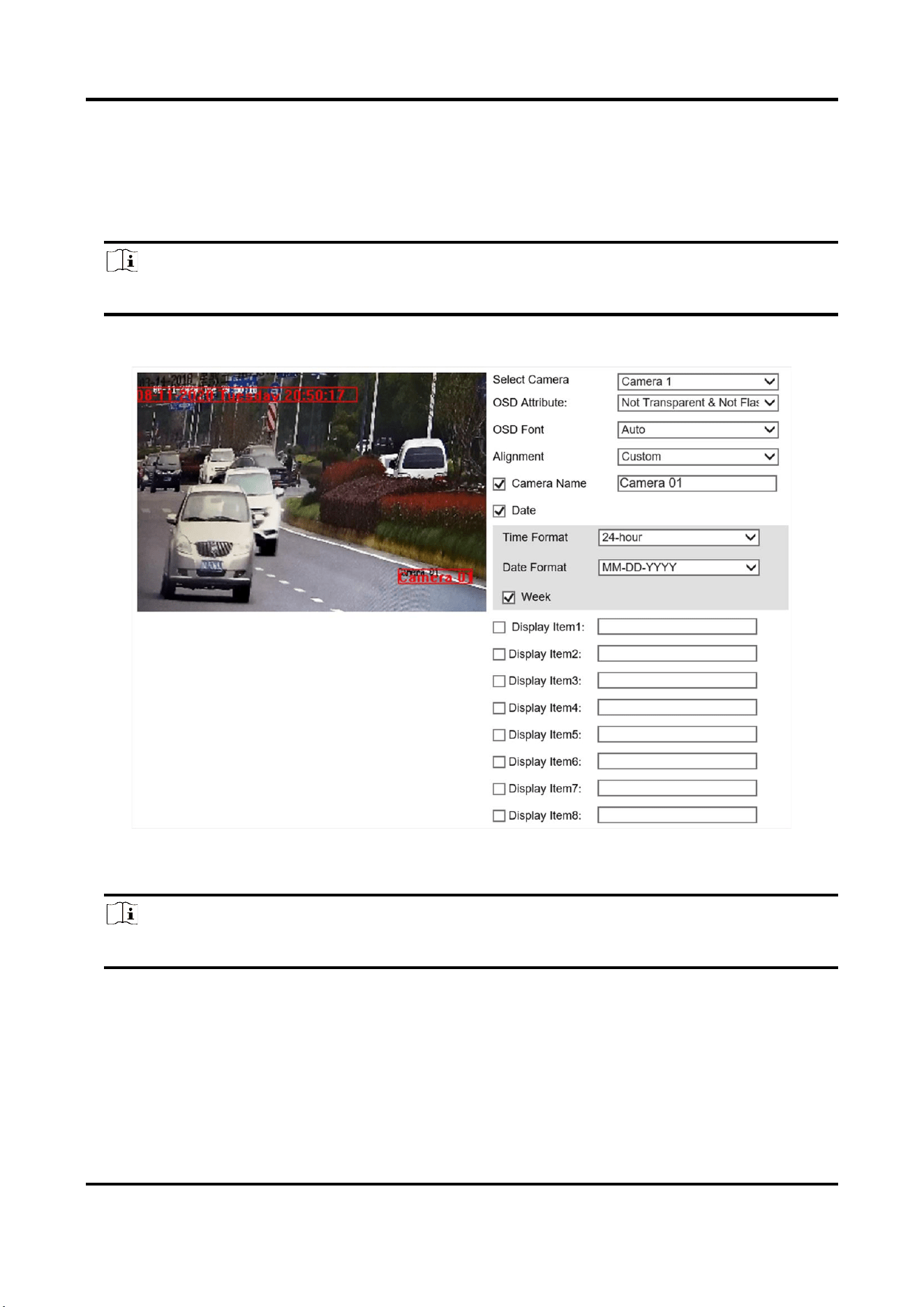

8.5 Set OSD ................................................................................................................................ 48
Chapter 9 Network Configuration ............................................................................................. 50
9.1 Set IP Address ...................................................................................................................... 50

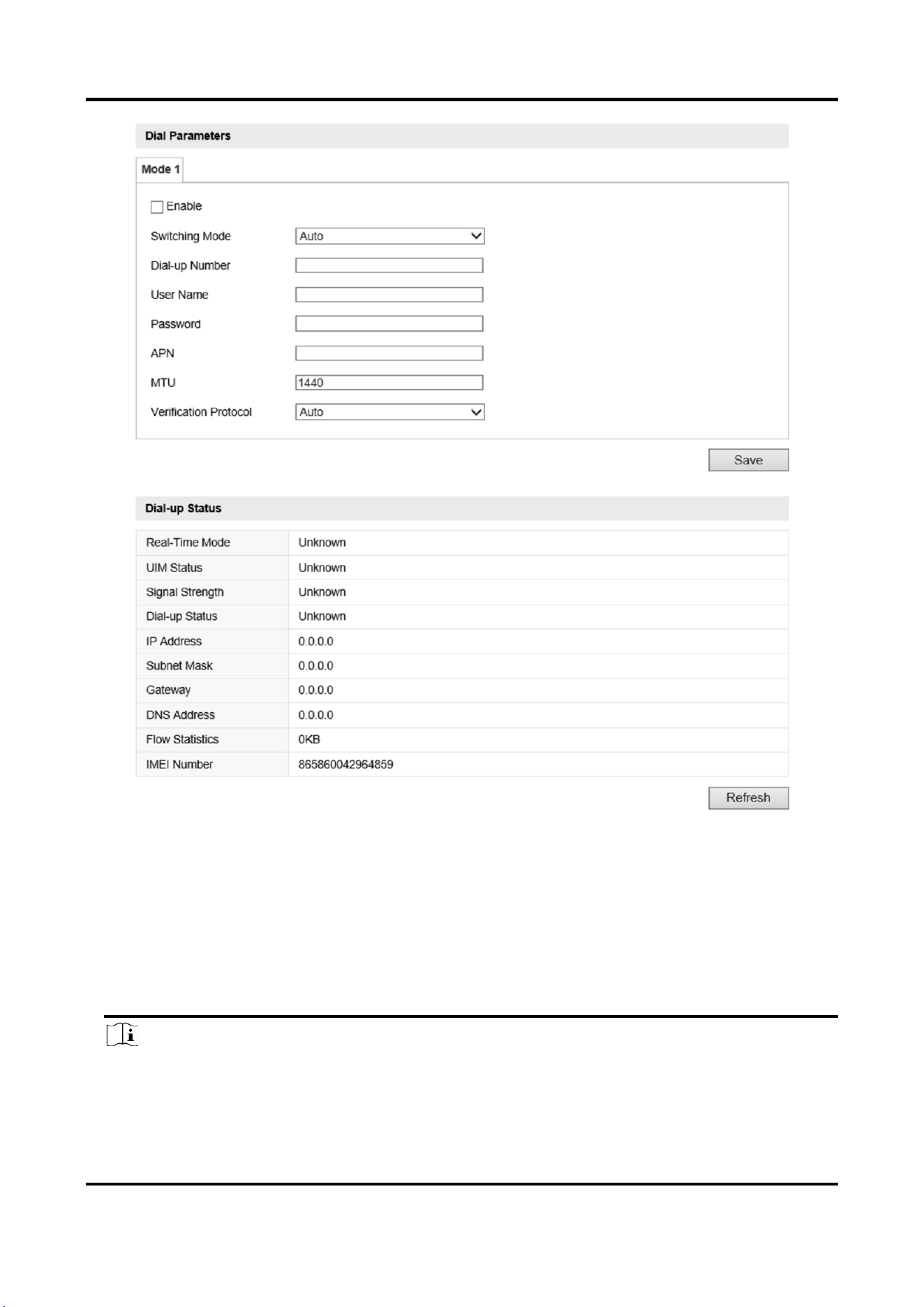

9.2 Dial ....................................................................................................................................... 51
9.3 Connect to Wi-Fi .................................................................................................................. 53
9.4 Set Wi-Fi Hotspot................................................................................................................. 53

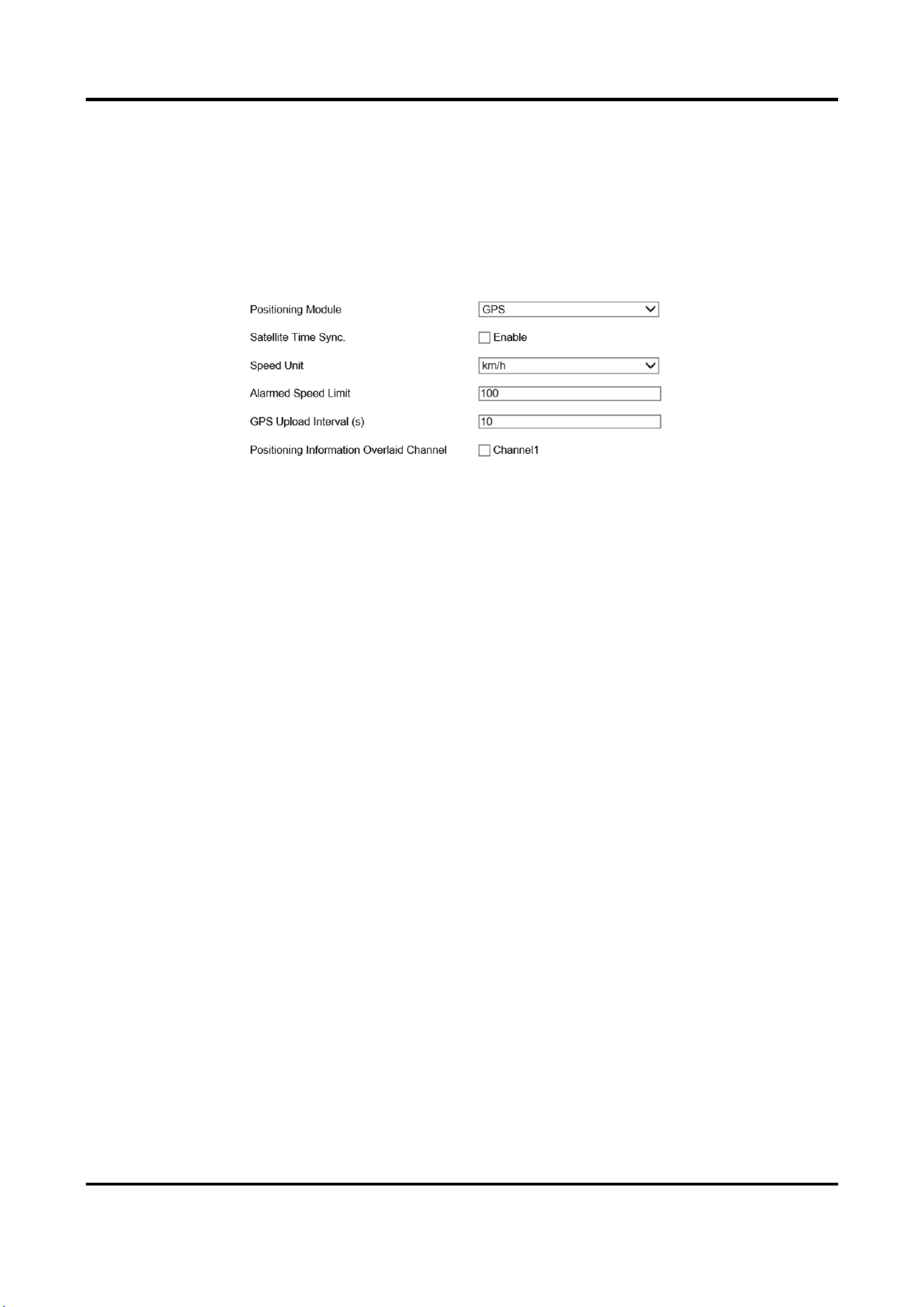

9.5 Set Satellite Positioning ...................................................................................................... 55
9.6 Set Bluetooth ....................................................................................................................... 55
9.7 Connect to Platform ............................................................................................................ 56
9.7.1 Connect to ISUP Platform ........................................................................................ 56

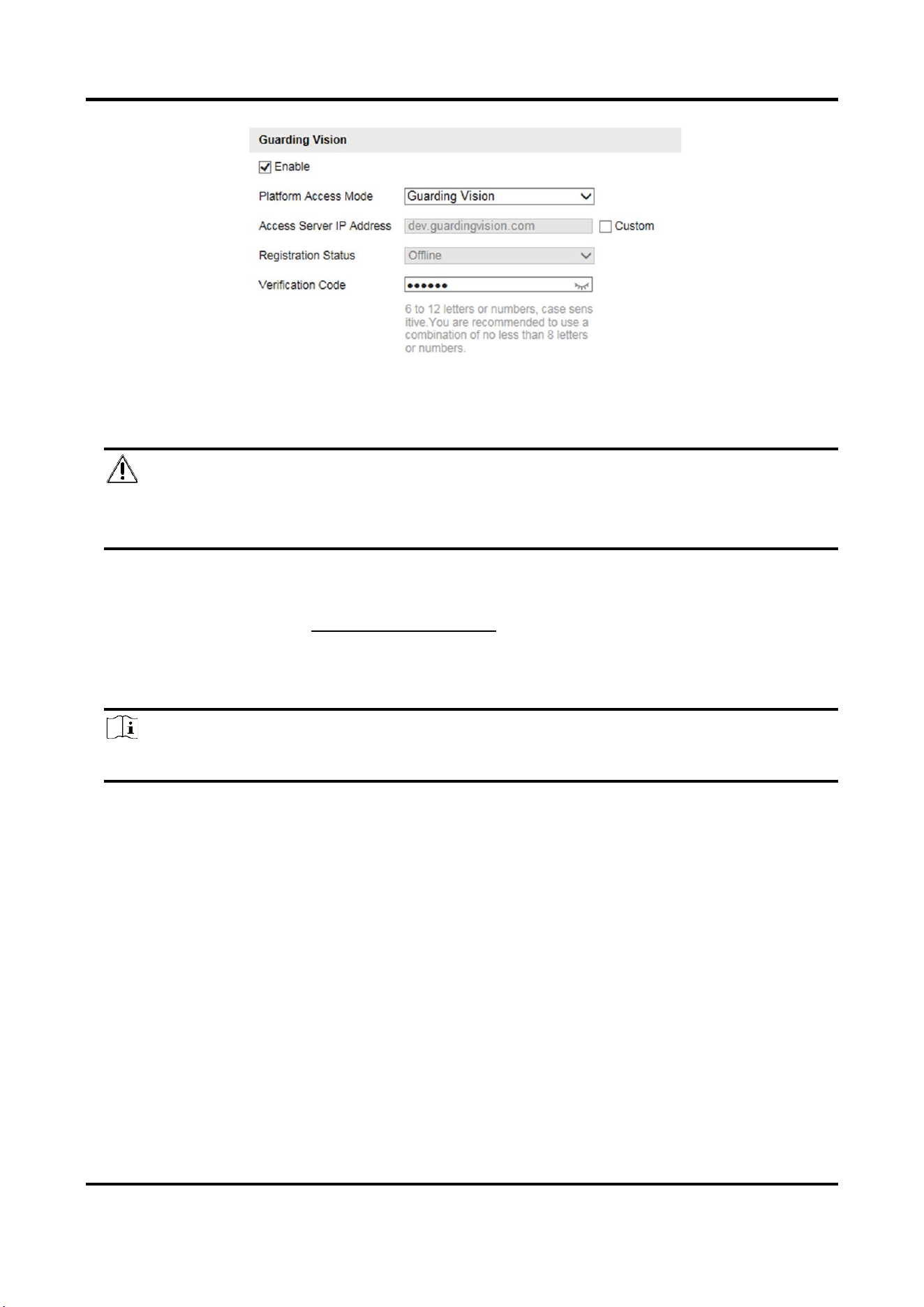

9.7.2 Connect to Guarding Vision ..................................................................................... 57
9.8 Set DDNS .............................................................................................................................. 58
9.9 Set Port ................................................................................................................................ 59
Chapter 10 Serial Port Configuration ........................................................................................ 61
10.1 Set RS-485 .......................................................................................................................... 61

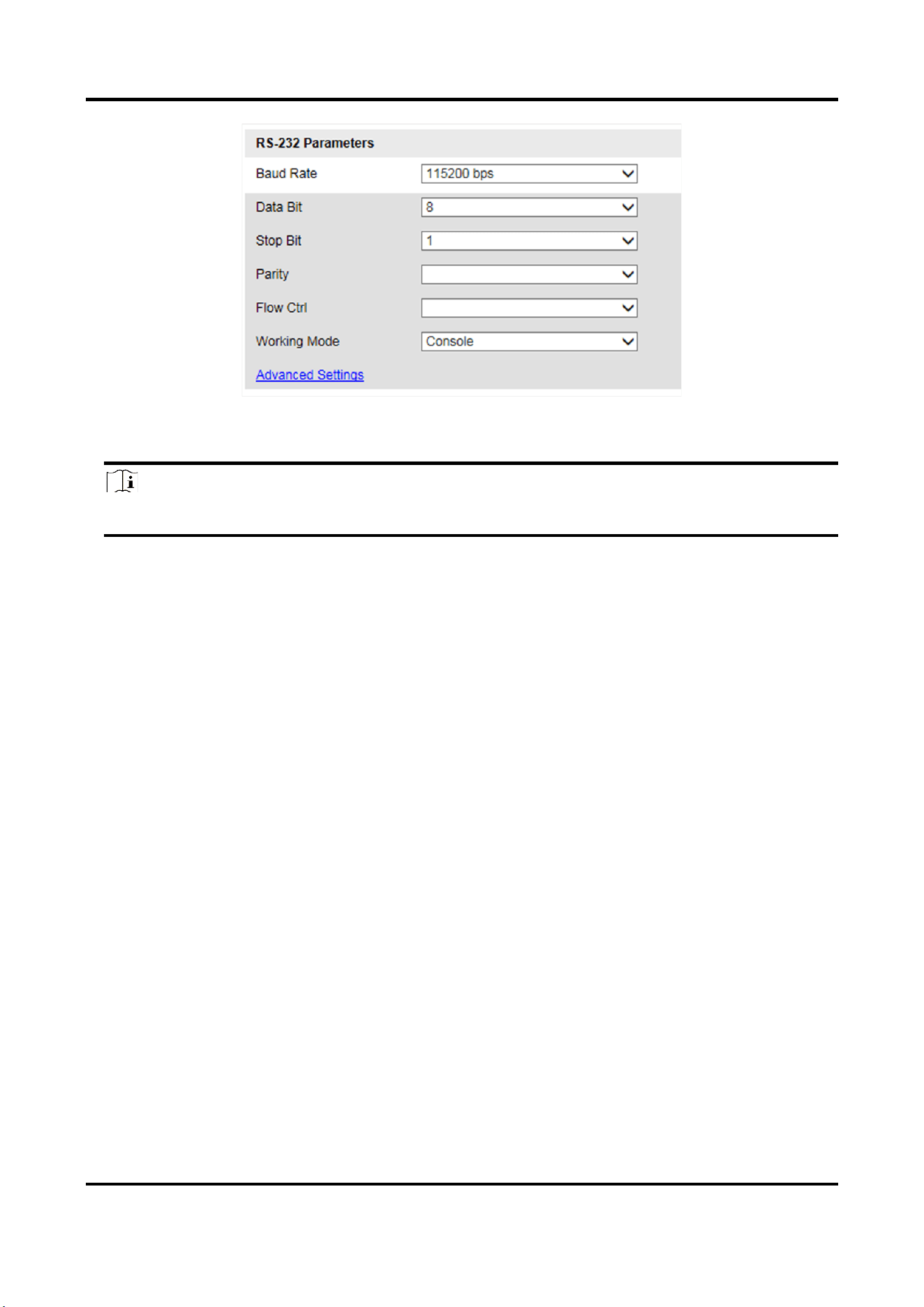

10.2 Set RS-232 .......................................................................................................................... 61
Chapter 11 Exception Alarm ..................................................................................................... 63
Chapter 12 Safety Management ............................................................................................... 64
12.1 Manage User...................................................................................................................... 64
12.2 Set RTSP Authentication ................................................................................................... 65
12.3 Set IP Address Filtering ..................................................................................................... 65
12.4 Enable User Lock ............................................................................................................... 65
12.5 Set SSH ............................................................................................................................... 66
12.6 Set HTTPS ........................................................................................................................... 66
12.6.1 Create and Install Self-signed Certificate .............................................................. 66
12.6.2 Install Authorized Certificate ................................................................................. 66
Chapter 13 Maintenance .......................................................................................................... 68
13.1 Set Startup Mode .............................................................................................................. 68
13.2 View Device Information .................................................................................................. 68
13.3 Search Log .......................................................................................................................... 68
13.4 Upgrade ............................................................................................................................. 69
Portable Speed Dome User Manual
xiv
13.5 Reboot ............................................................................................................................... 69
13.6 Restore Parameters ........................................................................................................... 69
13.7 Set DST ............................................................................................................................... 70
13.8 Synchronize Time .............................................................................................................. 70
13.9 Export Parameters ............................................................................................................. 70
13.10 Import Configuration File ................................................................................................ 71
13.11 Export Violation Type File ............................................................................................... 71
13.12 Export Debug File ............................................................................................................ 72
A. Communication Matrix ........................................................................................................ 73
Portable Speed Dome User Manual
1
Chapter 1 Introduction
1.1 Product Introduction
Embedded with 4G, Wi-Fi, and GPS module, and the LPR (License Plate Recognition) and deep
learning algorithm, portable speed dome is widely used in temporary events security and license
plate recognition for mobile scenes, e.g., outdoor concert, law enforcement, onboard monitoring,
etc.
1.2 Key Feature
● Multiple video compression modes to save network transmission bandwidth and storage space.
● Dual built-in TF cards storage.
● Wired and wireless network module and GPS module.
● Quick installation with the magnetic base and the tripod bracket.
● Supports hotspot, which allows to connect the phone to the camera directly and control the
camera conveniently.
● Pluggable battery for continuous work.
● Replaceable battery for sustainable work.
● Supports PTZ.
● Accessible via web browser.
● Supports LPR and blocklist.
● Supports face picture capture.
● Supports safety helmet detection.
Portable Speed Dome User Manual
2
Chapter 2 Activation and Login
2.1 Activation
For the first-time access, you need to activate the device by setting an admin password. No
operation is allowed before activation. The device supports multiple activation methods, such as
activation via SADP software, web browser, and iVMS-4200 Client.
Note
Refer to the user manual of iVMS-4200 Client for the activation via client software.
2.1.1 Default Information
Device default IP address and user name are as follows.
● Default IP address: 192.0.0.64
● Default port No.: 80
● Default user name: admin
2.1.2 Activate via SADP
SADP is a tool to detect, activate, and modify the IP address of the devices over the LAN.
Before You Start
● Get the SADP software from the supplied disk or the official website
http://www.hikvision.com/, and install it according to the prompts.
● The device and the computer that runs the SADP tool should belong to the same network
segment.
The following steps show how to activate one device and modify its IP address. For batch
activation and IP address modification, refer to User Manual of SADP for details.
Steps

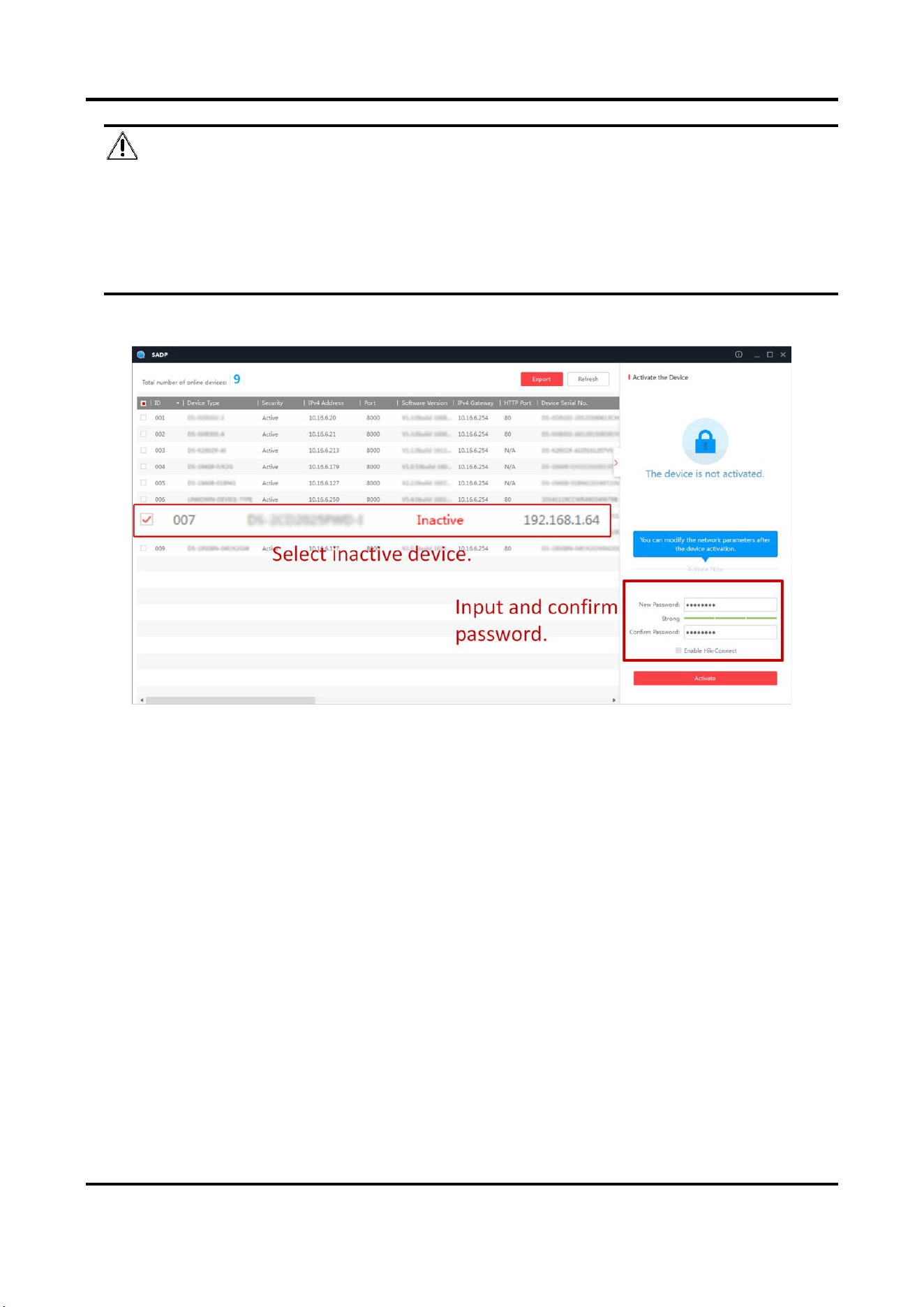

1. Run the SADP software and search the online devices.
2. Find and select your device in online device list.
3. Enter a new password (admin password) and confirm the password.
Portable Speed Dome User Manual
3
Caution
STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of
your own choosing (using a minimum of 8 characters, including upper case letters, lower case
letters, numbers, and special characters) in order to increase the security of your product. And
we recommend you reset your password regularly, especially in the high security system,
resetting the password monthly or weekly can better protect your product.
4. Click Activate to start activation.
Figure 2-1 Activate via SADP
Status of the device becomes Active after successful activation.
5. Modify IP address of the device.
1) Select the device.
2) Change the device IP address to the same network segment as your computer by either
modifying the IP address manually or checking Enable DHCP.
3) Enter the admin password and click Modify to activate your IP address modification.
2.1.3 Activate via Web Browser
Use web browser to activate the device. For the device with the DHCP enabled by default, use
SADP software or client software to activate the device.
Before You Start
Ensure the device and the computer connect to the same LAN.
Steps
1. Change the IP address of your computer to the same network segment as the device.
Portable Speed Dome User Manual
4
2. Open the web browser, and enter the default IP address of the device to enter the activation
interface.
3. Create and confirm the admin password.
Caution
STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of
your own choosing (using a minimum of 8 characters, including upper case letters, lower case
letters, numbers, and special characters) in order to increase the security of your product. And
we recommend you reset your password regularly, especially in the high security system,
resetting the password monthly or weekly can better protect your product.
4. Click OK to complete activation.
5. Go to the network settings interface to modify IP address of the device.
2.2 Login
You can log in to the device via web browser for further operations such as live view and local
configuration.
Before You Start
Connect the device to the network directly, or via a switch or a router.
Steps
1. Open the web browser, and enter the IP address of the device to enter the login interface.
2. Enter User Name and Password.
3. Click Login.
4. Download and install appropriate plug-in for your web browser. Follow the installation prompts
to install the plug-in.
5. Reopen the web browser after the installation of the plug-in and repeat steps 1 to 3 to login.
6. Optional: Click Logout on the upper right corner of the interface to log out of the device.
Portable Speed Dome User Manual
5
Chapter 3 Capture Configuration
3.1 Set Capture Parameters
3.1.1 Set Capture Overlay
If you want to overlay information on the captured pictures, set capture overlay.
Steps
1. Go to Configuration → Device Configuration → Text Overlay → Capture Overlay Configuration.
2. Check Text Overlay on Capture.
Figure 3-1 Set Capture Overlay
3. Set the font size, color, overlay position, etc.
Percentage
It is the percentage that the overlaid information occupies on the picture. For example, if you
set the percentage to 50, the overlaid information in a row will occupy up to half of the image
width, and the excess content will be overlaid from a new line.
Overlay Number to Zeroize
When the overlaid number digits are smaller than the fixed digits, 0 will be overlaid before
the overlaid number. E.g., the fixed digits for lane No. is 2. If the lane No. is 1, 01 will be
overlaid on the picture.
Portable Speed Dome User Manual
6
Overlay Plate Close-up
Check it, and a license plate close-up picture will be overlaid on the upper left corner of the
captured picture.
4. Select the overlay information from the list.
Note
The overlay information varies with different models. The actual device prevails.
5. Set the overlay information.
Set Type
You can edit the type.
Set Overlay
Information
For some information type, you can edit the detailed information.
Set Overlay Position
If you select Overlay on the Picture, you can check it. Then the
current information will be displayed from a new line.
Set Space
Edit the number of space between the current information and the
next one from 0 to 255. 0 means there is no space.
Set Line Break
Characters
Edit the number of characters from 0 to 100 between the current
information line and the previous information line. 0 means no line
break.
Adjust overlay
sequence
Click / to adjust the display sequence of the overlay
information.
6. Click Save.
3.1.2 Set Image Encoding Parameters
If the captured pictures are not clear, set the resolution of the captured pictures and the picture
size.
Steps
1. Go to Configuration → Device Configuration → Encoding and Storage → Image Encoding.
Figure 3-2 Set Image Encoding Parameters
2. Select Capture Resolution.
3. Enter JPEG Picture Size.
4. Click Save.
Portable Speed Dome User Manual
7
3.1.3 Set Voice Broadcast
With built in MIC, speaker, external Bluetooth headset, and other audio input and output devices,
you can set voice broadcast content and parameters.
Steps
Note
Voice broadcast may vary with different models. Please refer to the actual product.
1. Go to Configuration → Device Configuration → Encoding and Storage → Audio
Announcement.
Figure 3-3 Set Voice Broadcast
2. Select Broadcast Mode.
Loop Broadcast
The device will loop broadcast according to the set interval.
Vehicle Capture Broadcast
The device will broadcast vehicle information captured in vehicle arming mode.
Face Capture Broadcast
After enabling face picture comparison, when the face picture comparison fails, the device
will broadcast face information captured in face detection mode.
Face Comparison Broadcast
After enabling face picture comparison, when the face picture comparison is successful, the
Portable Speed Dome User Manual
8
device will broadcast face comparison information captured in face detection mode.
3. Check Enable.
4. Set Interval, Times and Play File.
5. Click Import Played File according to your actual needs.
Note
Only the broadcast files in WAV format, 8K sampling rate, 16 bits, and 400 K size below can be
imported.
6. Optional: You can delete or test the imported file.
Delete
Select the file, and click Delete to delete the broadcast file.
Audio Test
Click Audio Test to test the imported file broadcast effect.
7. Click Save.
3.2 Vehicle Arming
3.2.1 Set Vehicle Arming
Set vehicle arming to detect vehicles and recognize license plates in the detection area. It is mainly
applied to city streets and highways.
Steps
1. Go toConfiguration → Device Configuration → Application Mode.
2. Select Trigger Mode as Vehicle Arming.
Portable Speed Dome User Manual
9
Figure 3-4 Set Vehicle Arming
3. Select Scene Mode according to the actual needs.
4. Set corresponding parameters.
License Plate Direction
Select Front LPR to capture the front license plates. Select Rear LPR to capture the rear
license plates.
Filter Vehicle Without License Plate
Vehicles without license plates will not be captured.
5. Adjust the lane line 1 and right border line of the lane in the live view image.
6. Click OK.
What to do next
Reboot the device to take the application mode into effect.
Portable Speed Dome User Manual
10
3.2.2 Set Blocklist
Set blocklist to capture and control vehicles in the blocklist.
Before You Start
Install the storage card, and ensure the storage status is normal.
Steps
1. Go to Configuration → Device Configuration → Capture Parameters → Blocklist.
2. Add a blocklist.
1) Click Add.
2) Enter License Plate Number , select License Plate Type and License Plate Color.
3) Optional: If you want to control vehicles during fixed time period, check Enable Time
Settings, and set the effective start time and end time.
4) Click OK.
The information of the added vehicles in blocklist will be listed below.
Figure 3-5 Set Blocklist
3. Optional: You can also do following operations.
Search vehicle
information
Set search condition or keywords when there are various items in the
blocklist. Click Search to list vehicle information below.
Delete vehicle
information
Select the delete type or enter keywords. Click Delete.
Import vehicle
information in batch
1. Click Import.
2. Click Download Template, and save the template.
3. Open the template, edit the information, and save it.
4. Click to select the edited template.
Portable Speed Dome User Manual
11
5. Click Import.
Modify vehicle
information
Select an item from the list, and then click Edit to edit the vehicle
information. Click OK after completing the modification.
3.2.3 Set Vehicle Feature Parameters
Set vehicle feature parameters if you need to detect the vehicle features of the passing vehicle.
Steps
1. Go to Configuration → Device Configuration → Capture Parameters → Vehicle Feature
Parameters.
Figure 3-6 Set Vehicle Feature Parameters
2. Check the vehicle features that needed to be detected.
3. Click Save.
3.2.4 View Vehicle Arming Real-Time Picture
You can view the real-time captured pictures and license plate information.
Before You Start
Vehicle arming has been set. Refer to "Set Vehicle Arming" for details.
Steps
1. Click Alarm.
2. Select an item from the list, and you can view the live view image, capture scene picture, license
plate number, etc.
Portable Speed Dome User Manual
12
Figure 3-7 Real-Time Picture of Vehicle Arming
3. Select the arming level.
– Click to select Level 1 Arming which can only connect one client or web. The uploaded
pictures will not be stored in the storage card. The pictures in the storage card will be
uploaded to the level 1 arming.
– Click to select Level 2 Arming which can connect three clients or webs. The pictures will
be uploaded to the client/web, and stored in the storage card.
– Click to disarm to cancel the alarm status or real-time picture.
3.3 Face Picture Capture and Comparison
3.3.1 Set Face Detection
If you need the device to capture the face pictures appeared in the detection area and upload
them to the platform, set face detection.
Steps
1. Go to Configuration → Device Configuration → Application Mode.
2. Select Trigger Mode as Face Detection.
Portable Speed Dome User Manual
13
Figure 3-8 Set Face Detection
3. Set the algorithm parameters.
Capture Interval
Set the frame interval of every capture during the process that the face appears in the
detection area and disappears from the area. The face picture with the highest quality rating
will be captured.
Capture Times
Set the capture times of the same face picture during the process that the face appears in the
detection area and disappears from the area.
Detection Sensitivity
Set the face detection sensitivity. If there are many mistaken captures, adjust the sensitivity
smaller. If there are many missing captures, adjust the sensitivity larger.
Capture Threshold
Set the face capture rating threshold. Only the face picture larger than or equaling to the
threshold can be captured.
Portable Speed Dome User Manual
14
Generation Speed
Set the generation speed of the face target appearing in the detection area. The larger the
speed is, the more quickly the target can be generated.
Enable Face Picture Exposure
When the face is recognized, the detected face area can be exposed partially to raise the
brightness of the area.
4. Set the smart information.
Enable Information Overlay on Picture
Check it to overlay the detection rectangle on the face appeared in the captured scene
picture.
Enable Video Information Overlay
Check it to overlay the detection rectangle on the face appeared in the video.
Note
You need to enable rule information in Configuration → Local Configuration before enabling
video information overlay.
Upload Face Picture Only
If you check it, only the close-up face picture will be uploaded to the platform. Otherwise,
both the scene picture and close-up face picture will be uploaded to the platform.
5. Select Pupil Distance Rectangle Amount, Rule Area Amount, and Shielded Area Amount.
6. Set face picture comparison parameters if you want to enable the function.
1) Check Enable Picture Comparison.
2) Set Face Picture Comparison Threshold.
Note
Add and enable the face picture library before enabling face picture comparison. Refer to
"Set Face Picture Library" for details.
When the similarity between the captured face picture and the face picture in the face
picture library exceeds the set threshold, alarm will be triggered and the captured face
picture will be uploaded to the platform. You can view the captured face picture and
information, capture scene picture, similarity, and the face picture in the face picture library.
Refer to "View Face Detection Real-Time Picture" for details.
7. If the default area does not fit the current scene, click Draw Area to redraw the area.
Redraw pupil
distance
Pupil distance refers to the distance between the pupils of both eyes.
Draw to set the value. The recommended value is 40.
1. Click Redraw Pupil Distance.
2. Drag the mouse to draw the pupil distance rectangle.
3. Click OK.
Portable Speed Dome User Manual
15
Note
Pupil distance must be set, or the face picture cannot be captured.
Redraw rule area
Click the left button of the mouse to draw a rectangular or polygonal
frame, and then click the right button of the mouse to save the
settings.
Note
● Up to a decagonal frame can be drawn.
● The rule area is recommended to occupy 1/2 of the live view
image, and not more than 2/3 of the live view image.
Redraw shielded
area
Draw the rectangular or polygonal frame. The faces detected in the
shielded area will not be captured. Up to four shielded areas can be
set.
Note
The drawing method of the shielded area is the same with that of the
rule area.
Figure 3-9 Draw Area
Portable Speed Dome User Manual
16
8. Click OK.
What to do next
Reboot the device to take the settings into effect.
3.3.2 Set Face Picture Library
Manage Face Picture Library
You can add, edit, or delete the face picture library locally.
Steps
1. Click Face Picture Lib.
2. Click to add a face picture library.
3. Enter Face Picture Library Name, and click OK.
Figure 3-10 Add Face Picture Library
Note
Up to ten face picture libraries can be added.
4. Click Enabled to enable the added face picture library.
5. Optional: Edit, delete, or disable a face picture library.
– Select a face picture library, and click to edit its name.
– Select a face picture library, and click to delete it.
– Select a face picture library, and click Disabled to disable it.
Add Face Picture
You can add face pictures one by one to the face picture library.
Steps
1. Click Face Picture Lib.
2. Select a face picture library.
3. Click Add.
Portable Speed Dome User Manual
17
Figure 3-11 Add Face Picture
4. Set Name, Gender, ID Type, and ID No.
5. Click Browse, and select a face picture from the computer to add to the library.
Note
● The added face picture size cannot exceed 1 M.
● Only the face picture in the format of .jpg can be added.
6. Optional: If you want to delete the face picture in the device local storage after it is added to
the library and modeled successfully to protect data security, select Delete Local Pictures as
Yes.
7. Click OK.
The added face picture information will be displayed in the list. You can click or to
switch between the list mode and picture mode.
8. Optional: Edit or delete the face picture information.
– Select the added face picture information, and click Edit to edit the information.
– Select the added face picture information, and click Delete to delete the information.
Import Face Picture to Library in Batch
You can import face pictures from the computer to the library manually in batch.
Steps
1. Click Face Picture Lib.
2. Select a face picture library.
3. Click Import.
4. Click Yes or No in the popup window asking you whether to delete the pictures in the device
local storage before importing pictures.
– Click Yes, and the face picture in the device local storage will be deleted automatically after it
is added to the library and modeled successfully to protect data security.
– Click No, and the face picture in the device local storage will not be deleted.
5. Select the file folder storing the face pictures, and click OK.
Portable Speed Dome User Manual
18
Note
● The imported face picture should be named as "name_gender_ID No.jpg". Here the gender
should be 0/1/2 to stand for the male/female/unknown gender respectively. E.g.,
Jim_0_1234567890.jpg. If the face picture name does not conform to the requirement, the
device will recognize the face picture name as the person name to import.
● Only the face picture in the format of .jpg can be imported.
● Up to 50,000 face pictures can be imported to a face picture library.
6. Check the importing information in the popup window, and click OK.
The imported face picture information will be displayed in the list. You can click or to
switch between the list mode and picture mode.
7. Optional: Edit or delete the face picture information.
– Select the imported face picture information, and click Edit to edit the information.
– Select the imported face picture information, and click Delete to delete the information.
Search Face Picture
You can search the face pictures according to the set conditions.
Steps
1. Click Face Picture Lib.
2. Select a face picture library.
3. Set the search conditions. You can search according to the name, gender, modeling status, ID
type, and ID No.
4. Click Search.
Result
The face picture information conforming to the conditions will be displayed in the list.
3.3.3 View Face Detection Real-Time Picture
The device supports showing the real-time picture of face detection.
Before You Start
Set the face detection parameters. Refer to "Set Face Detection" for details.
Steps
1. Click Alarm.
2. Select an item from the picture list, and you can view the captured face picture, face picture
comparison similarity, the face picture in the library, etc.
Portable Speed Dome User Manual
19
Note
Only after you have enabled face picture comparison in face detection, can the similarity and
face picture in the library be shown. Up to the top 5 similarities and the corresponding face
pictures in the libraries can be shown.
Figure 3-12 View Face Detection Real-Time Picture
3. Select the arming level.
– Click to select Level 1 Arming which can only connect one client or web. The uploaded
pictures will not be stored in the storage card. The pictures in the storage card will be
uploaded to the level 1 arming.
– Click to select Level 2 Arming which can connect three clients or webs. The pictures will
be uploaded to the client/web, and stored in the storage card.
– Click to disarm to cancel the alarm status or real-time picture.
3.4 Search Picture
You can search the captured pictures stored in the storage card and export the pictures you need.
Before You Start
Install the storage card, and ensure the storage status is normal.
Steps
1. Click Picture.
2. Set the search conditions, such as Data Type, Begin Time, and End Time.
Portable Speed Dome User Manual
20
3. Click Search.
Figure 3-13 Search Picture
The searched pictures information will be displayed in the picture list.
4. Optional: Click to preview the selected picture.
5. Optional: Check pictures and click Export Picture to export them to the saving path that you set.
The downloaded picture(s) will be marked as "Downloaded". You can go to Configuration →
Local Configuration to get the saving path of downloaded pictures.
Portable Speed Dome User Manual
21
Chapter 4 Live View and Local Configuration
4.1 Live View
4.1.1 Start/Stop Live View
Click to start live view. Click to stop live view.
4.1.2 Select Image Display Mode
Click to display the image in 4:3/16:9/original/self-adaptive display mode.
4.1.3 Select Stream Type
Click / to select the stream type. It is recommended to select the main stream to get the
high-quality image when the network condition is good, and select the sub-stream to get the
fluent image when the network condition is not good enough.
4.1.4 Capture Picture Manually
You can capture pictures manually on the live view image and save them to the computer.
Steps
1. Click to start live view.
2. Click to capture a picture.
3. Optional: Click Configuration → Local Configuration to view the saving path of snapshots in live
view.
4.1.5 Record Manually
You can record videos manually on the live view image and save them to the computer.
Steps
1. Click to start live view.
2. Click to start recording.
3. Click to stop recording.
4. Optional: Click Configuration → Local Configuration to view the saving path of record files.
Portable Speed Dome User Manual
22
4.1.6 Start/Stop Two-Way Audio
The device supports two-way audio with terminals, such as computers.
Before You Start
The device is equipped with an audio input interface and audio output interface, which support
connecting with the corresponding devices, such as microphones and loudspeakers.
Steps
1. Click to start live view.
2. Click to start two-way audio.
When speaking at the PC end, you can hear the voice at the device end and vice versa.
3. Click to stop two-way audio.
4.1.7 Enable/Disable Audio
Enable the audio if necessary after connecting an audio input device under the audio & video
stream. Click to enable and adjust it. Click the icon again to disable this function.
4.1.8 Enable Digital Zoom
You can enable digital zoom to zoom in a certain part of the live view image.
Steps
1. Click to start live view.
2. Click to enable digital zoom.
3. Place the cursor on the live view image position which needs to be zoomed in. Drag the mouse
rightwards and downwards to draw an area.
The area will be zoomed in.
4. Click any position of the image to restore to normal image.
5. Click to disable digital zoom.
4.1.9 Enable 3D Positioning
You can enable 3D positioning to select an area of the live view image and move it to the center of
the image to zoom in and view the details.
Steps
1. Click .
The icon will change to , which means the 3D positioning is enabled.
2. Click anywhere of the image, and the lens will move the image center to the point.
– Hold the left button of the mouse to draw a rectangular area to the lower/upper right of the
image, and then the lens will move the image center to the area and zoom in.
– Hold the left button of the mouse to draw a rectangular area to the upper/lower left of the
image, and then the lens will move the image center to the area and zoom out.
Portable Speed Dome User Manual
23
3. Click to disable the 3D positioning.
4.1.10 Display in Full Screen
You can display the live view image in full screen.
On Live View interface, click to display the live view image in full screen.
In full screen mode, press esc on the keyboard to exit full screen mode.
4.2 Local Configuration
Go to Configuration → Local Configuration to set the live view parameters and change the saving
paths of videos, captured pictures, scene pictures, etc.
Note
The parameters vary with different models. The actual device prevails.
Figure 4-1 Local Configuration
Protocol Type
Select the network transmission protocol according to the actual needs.
Portable Speed Dome User Manual
24
TCP
Ensures complete delivery of streaming data and better video quality, yet the real-time
transmission will be affected.
UDP
Provides real-time audio and video streams.
Play Performance
Real Time
The video is real-time, but the video fluency may be affected.
Balanced
Balanced mode considers both the real time and fluency of the video.
Fluent
When the network condition is good, the video is fluent.
Rule Information
When the rule information is enabled, the rule rectangles of vehicle arming and face detection
will appear on the live view image.
Feature Information
Reserved.
Record File Package Size
Select the packed size of the manually recorded video files. After the selection, the max. record
file size is the value you selected.
Save record files to
Set the saving path for the manually recorded video files.
Save snapshots in live view to
Set the saving path of the manually captured pictures in live view mode.
Save downloaded pictures to
Set the saving path for the downloaded pictures.
Save scene picture to
Set the saving path of the captured pictures in Real-Time Picture interface.
Portable Speed Dome User Manual
25
Chapter 5 PTZ
Enter a short description of your concept here (optional).
This is the start of your concept.
5.1 PTZ Control Panel
Click to show/hide the PTZ control panel.
Figure 5-1 PTZ Control Panel
Note
The PTZ supports power-off memory. When the device is suddenly cut off power or restarted
normally, it can automatically return to the position before the power cut or reboot.
The button descriptions are as follows:
Table 5-1 Button Description
Button
Description
Hold the direction buttons to pan/tilt the device. Click , and
the device keeps panning. Click it again to stop panning.
Zoom + and Zoom –
● Hold to zoom in the scene.
● Hold to zoom out the scene.
Focus + and Focus –
● Hold under the manual focus mode to make near
objects become clear and distant objects become vague.
● Hold to make distant objects become clear and near
objects become vague.
Iris + and Iris –
Portable Speed Dome User Manual
26
Button
Description
● Hold to increase the iris diameter when in a dark
environment.
● Hold to decrease the iris diameter when in a bright
environment.
Drag the slider to adjust the speed of pan/tilt movement.
Auxiliary buttons: light, windshield wiper, one-touch focus, and
lens initialization.
5.2 Set Preset
A preset is a predefined image position. For the defined preset, you can call the preset No. to view
the position.
Steps
1. Click .
Figure 5-2 Set Preset
2. Operate the direction buttons of the PTZ control panel to turn the PTZ to the desired position.
3. Select the preset to be set.
4. Click and set the preset according to the prompt information.
5. Optional: You can call, reset, and clear the preset.
Call preset
Click , and the PTZ will turn to the set position.
Reset preset
Click to reset the preset.
Clear preset
Click to clear the PTZ position information corresponding to the
preset.
Portable Speed Dome User Manual
27
5.3 Call Preset
This feature enables the camera to point to a specified position when an event takes place.
Click to call the preset.
Note
● The special preset is named with the function name, not the "Preset X". Special presets can only
be called.
● Special presets may vary with different models. Please refer to the actual product.
The functions corresponding to the special presets are shown as the table below.
Table 5-2 Special Preset Function
Preset No.
Function
Preset No.
Function
10
Vehicle control
46
High beam off
11
Face detection
47
Low beam on
34
Back to origin
48
Low beam off
35 to 38
Call patrol 1 to 4
94
Remote reboot
39
Day mode
96
Stop a scan
40
Night mode
99
Start auto scan
41 to 44
Call pattern 1 to 4
102 to 105
Call patrol 5 to 8
45
High beam on
/
/
5.4 Set Patrol
Patrol scan is a function to automatically move among multiple presets.
Before You Start
Set two or more presets.
Steps
1. Click .
2. Click to select the path.
3. Click to add the presets.
1) Select Preset.
2) Enter Patrol Time, which is the duration staying on one patrol point.
3) Click OK.
4) Repeat the above steps to add more presets.
Portable Speed Dome User Manual
28
Note
● At least 2 presets need to be added in one patrol.
● Up to 32 presets can be added in one patrol.
4. Click to save paths.
5. Optional: You can also start, stop, edit, and delete patrol.
Start/stop patrol
Click to start patrol, and click to stop patrol.
Edit preset
Select a preset, and click to edit it.
Delete preset
Select a preset, and click to delete it.
Delete patrol path
Click to delete the whole patrol path information.
Figure 5-3 Edit Patrol
5.5 Set Pattern
The device can move as the recorded pattern.
Steps
1. Click , and select a pattern scan path.
2. Click to start recording pattern scan.
3. Click PTZ control buttons as demands.
4. Click to save pattern scan path.
5. Optional: You can click or to start or stop pattern scan.
5.6 Set Basic Parameters
You can configure the basic PTZ parameters, including proportional pan, preset freezing, preset
speed, etc.
Steps
1. Go to Configuration → Device Configuration → PTZ → Basic Settings.
2. Check or set corresponding parameters.
Basic Parameters
Enable/disable proportional pan and preset freezing.
Portable Speed Dome User Manual
29
Proportional Pan
If you enable this function, the pan/tilt speeds change according to the amount of
zooming. When there is a large amount of zooming, the pan/tilt speed will be slower to
prevent the live view image from moving too fast.
Preset Freezing
This function enables the live view to switch directly from one scene defined by a preset to
another, without showing the middle areas between these two, to ensure the efficiency. It
can also reduce the use of bandwidth in a digital network system.
Note
Preset freezing function is invalid when you call a pattern.
Keyboard Control Speed
Define the speed of PTZ control by a keyboard.
Zoom Speed
The zoom speed is adjustable from level 1 to 3.
PTZ OSD
Set the on-screen display duration of the PTZ status.
Zoom Status
Set the OSD duration of zooming status.
PT Status
Set the azimuth angle display duration while panning and tilting.
Preset Status
Set the preset name display duration while calling the preset.
3. Click Save.
5.7 Set Park Action
You can set a certain action or return to a certain position that the PTZ needs to perform when it
does not receive a control signal within the park time.
Before You Start
Set the desired action mode. For example, if you need to realize pattern scan, set the pattern scan
first.
Portable Speed Dome User Manual
30
Steps
Note
Scheduled task is prior to park action. When these two functions are set at the same time, only
the scheduled task function takes effect.
1. Go to Configuration → Device Configuration → PTZ → Park Action.
Figure 5-4 Set Park Action
2. Check Enable Park Action.
3. Set Park Time as the inactivity time of the PTZ before it starts the park actions.
4. Select Action Type.
Note
Action type may vary with different models. Please refer to the actual product.
5. Set Action Type ID.
6. Click Save.
5.8 Set Scheduled Task
You can configure the device to perform a certain action automatically in a defined time period.
Steps
1. Go to Configuration → Device Configuration → PTZ → Scheduled Task.
Portable Speed Dome User Manual
31
Figure 5-5 Set Scheduled Task
2. Check Enable Scheduled Task.
3. Set Park Time (a period of inactivity) before the device starts the scheduled tasks.
4. Set the schedule and task details.
1) Click Edit Tasks to edit the task schedule.
Portable Speed Dome User Manual
32
Figure 5-6 Edit Tasks
2) Select the day you want to set the task schedule.
3) Click All Day to set the schedule as all day; or click Customize and enter the Start Time and
End Time for each task, and click Enter on your keyboard to enter the time.
4) Select Task Type. You can select preset, patrol, pattern, etc.
5) Optional: After you set the scheduled task, you can copy the task to other days.
6) Click OK to save the settings.
Note
The time of each task cannot be overlapped. Up to ten tasks can be configured for each day.
5. Click Save.
5.9 Clear PTZ Settings
You can clear PTZ configurations, including all presets, patrols, patterns, privacy masks, PTZ limits,
Portable Speed Dome User Manual
33
and scheduled tasks.
Steps
1. Go to Configuration → Device Configuration → PTZ → Clear Config.
2. Check the items you want to clear.
3. Click Save to clear the settings.
Portable Speed Dome User Manual
34
Chapter 6 Playback
You can search, playback, and download videos that stored on the TF card in the Playback
interface.
Steps
1. Click Playback.
2. Select date.
3. Click Search.
4. Click to play the video.
5. Optional: You can also use following functions.
Set playback time
● Drag the time bar to the target time and click to play the video.
● Enter the time point in Set playback time and click to play
the video.
Capture image
Click to capture an image.
Clip record
Click / to start/stop clipping the record.
Play back in single
frame
Click once to play back the video in one frame.
Adjust volume
Click to enable, disable, or adjust the volume.
Download record
1. Click .
2. Select the date and click Search.
3. Check record files that need to be downloaded.
4. Click Download.
Stop playback
Click to stop playback.
Slow forward
Click to apply 1/2 or 1/4 speed playback.
Fast forward
Click to apply 2× or 4× speed playback.
Portable Speed Dome User Manual
35
Chapter 7 Record and Capture
7.1 Set Storage Path
7.1.1 Set Memory Card
If you want to store the files to the memory card, make sure you insert and format the memory
card in advance.
Before You Start
Insert the memory card to the device.
Steps
1. Go to Configuration → Device Configuration → Encoding and Storage → Backup Storage.
Figure 7-1 Set Memory Card
2. Format the memory card in two ways.
– Check the memory card, and click Format to format it manually.
Note
For the newly installed memory card, you need to format it manually before using it normally.
– If you want to format the memory card automatically when the card is abnormal, check
Format Backup Storage Automatically.
Portable Speed Dome User Manual
36
3. Optional: If the device has been connected to the platform, and you want to upload the
memory card information automatically, check Upload Backup Storage Information
Automatically.
4. Click Save.
7.1.2 Set FTP
Set FTP parameters if you want to upload the captured pictures to the FTP server.
Before You Start
Set the FTP server, and ensure the device can communicate normally with the server.
Steps
1. Go to Configuration → Device Configuration → Encoding and Storage → FTP.
Portable Speed Dome User Manual
37
Figure 7-2 Set FTP
Portable Speed Dome User Manual
38
2. Optional: Check Upload Additional Information, and then the related information can be
attached when uploading.
3. Enable the FTP server.
4. Set FTP parameters.
1) Enter Server IP Address and Port.
2) Enter User Name and Password, and confirm the password.
3) Select Directory Structure.
Note
If multiple directories are needed, you can customize the directory name.
5. Optional: Check Not Upload Plate Close-up if the license plate close-up pictures are not needed
to upload.
6. Set the name rule and separator according to the actual needs.
7. Optional: Edit OSD information which can be uploaded to the FTP server with the pictures to
make it convenient to view and distinguish the data.
8. Click Save.
7.2 Set Quota
Set the video, picture, and face picture library ratio in the storage.
Before You Start
Install the memory card.
Steps
1. Go to Configuration → Device Configuration → Encoding and Storage → Backup Storage.
2. Set Picture Quota, Record Quota, and Face Library Quota according to the actual needs.
Note
The percentage sum of the picture, video, and face picture library ratio should be 100%.
3. Click Save.
What to do next
Format the memory card after the settings.
7.3 Set Record Schedule
Set record schedule to record video automatically during configured time periods.
Before You Start
Install the memory card, and the video quota ratio is not 0.
Portable Speed Dome User Manual
39
Steps
1. Go to Configuration → Device Configuration → Encoding and Storage → Record Settings.
Figure 7-3 Set Record Schedule
2. Optional: Check Enable Overwritten Recording.
When the storage is full, the earliest videos will be overwritten.
3. Check Enable Record Schedule.
4. Click Edit to edit the record schedule.
1) Select Customize.
2) Set the start time and end time.
3) Optional: Select the other days and click Copy to copy the settings to other days.
4) Click OK.
5. Click Save.
7.4 Set Capture Schedule
The device captures pictures all day by default. If you need to capture pictures in a certain period
of time, you can set capture schedule.
Before You Start
Install and format the storage media.
Steps
1. Go to Configuration → Device Configuration → Encoding and Storage → Capture.
Portable Speed Dome User Manual
40
Figure 7-4 Set Capture Schedule
2. Check Enable Timing Capture.
3. Select Picture Format, Resolution, Picture Quality and Capture Interval.
4. Click Edit to set the capture schedule.
Note
Refer to step 4 of "Set Record Schedule" for details.
5. Click Save.
The device captures pictures according to the capture schedule.
Portable Speed Dome User Manual
41
Chapter 8 Encoding and Display
8.1 Set Video Encoding Parameters
Set video encoding parameters to adjust the live view and recording effect.
● When the network signal is good and the speed is fast, you can set high resolution and bitrate to
raise the image quality.
● When the network signal is bad and the speed is slow, you can set low resolution, bitrate, and
frame rate to guarantee the image fluency.
● When the network signal is bad, but the resolution should be guaranteed, you can set low
bitrate and frame rate to guarantee the image fluency.
● Main stream stands for the best stream performance the device supports. It usually offers the
best resolution and frame rate the device can do. But high resolution and frame rate usually
means larger storage space and higher bandwidth requirements in transmission. Sub-stream
usually offers comparatively low resolution options, which consumes less bandwidth and
storage space.
Steps
1. Go to Configuration → Device Configuration → Encoding and Storage → Video Encoding.
2. Select Stream Type.
3. Set the parameters for different streams.
Video Type
Video stream and video & audio stream are selectable.
Resolution
The higher the resolution is, the clearer the image will be. Meanwhile, the network
bandwidth requirement is higher.
Bitrate Type
Select the bitrate type to constant, variable, MVBR, or SVBR.
Image Quality
When bitrate type is not constant, 6 levels of image quality are selectable. The higher the
image quality is, the higher requirements of the network bandwidth.
Max. Frame Rate
It is to describe the frequency at which the video stream is updated and it is measured by
frames per second (fps). A higher frame rate is advantageous when there is movement in the
video stream, as it maintains image quality throughout.
Max. Bitrate
Select relatively large bitrate if you need good image quality and effect, but more storage
Portable Speed Dome User Manual
42
spaces will be consumed. Select relatively small bitrate if storage requirement is in priority.
Video Encoding
The device supports multiple video encoding types, such as H.264, H.265, and MJPEG.
Supported encoding types for different stream types may differ. H.265 is a new encoding
technology. Compared with H.264, it reduces the transmission bitrate under the same
resolution, frame rate, and image quality.
Profile
Selectable profiles vary according to device models.
I Frame Interval
It refers to the number of frames between two key frames. The larger the I frame interval is,
the smaller the stream fluctuation is, but the image quality is not that good.
4. Click Save.
8.2 Set Audio Encoding Parameters
Set audio encoding parameters to adjust the audio effect.
Steps
1. Go to Configuration → Device Configuration → Encoding and Storage → Audio.
Figure 8-1 Set Audio Encoding Parameters
2. Select Audio Encoding and Audio Input.
3. Click Save.
8.3 Set Image Parameters
You can adjust the image parameters to get clear image.
Note
The supported parameters may vary with different models. The actual device prevails.
Go to Configuration → Device Configuration → Image Parameters → Image Parameters.
Portable Speed Dome User Manual
43

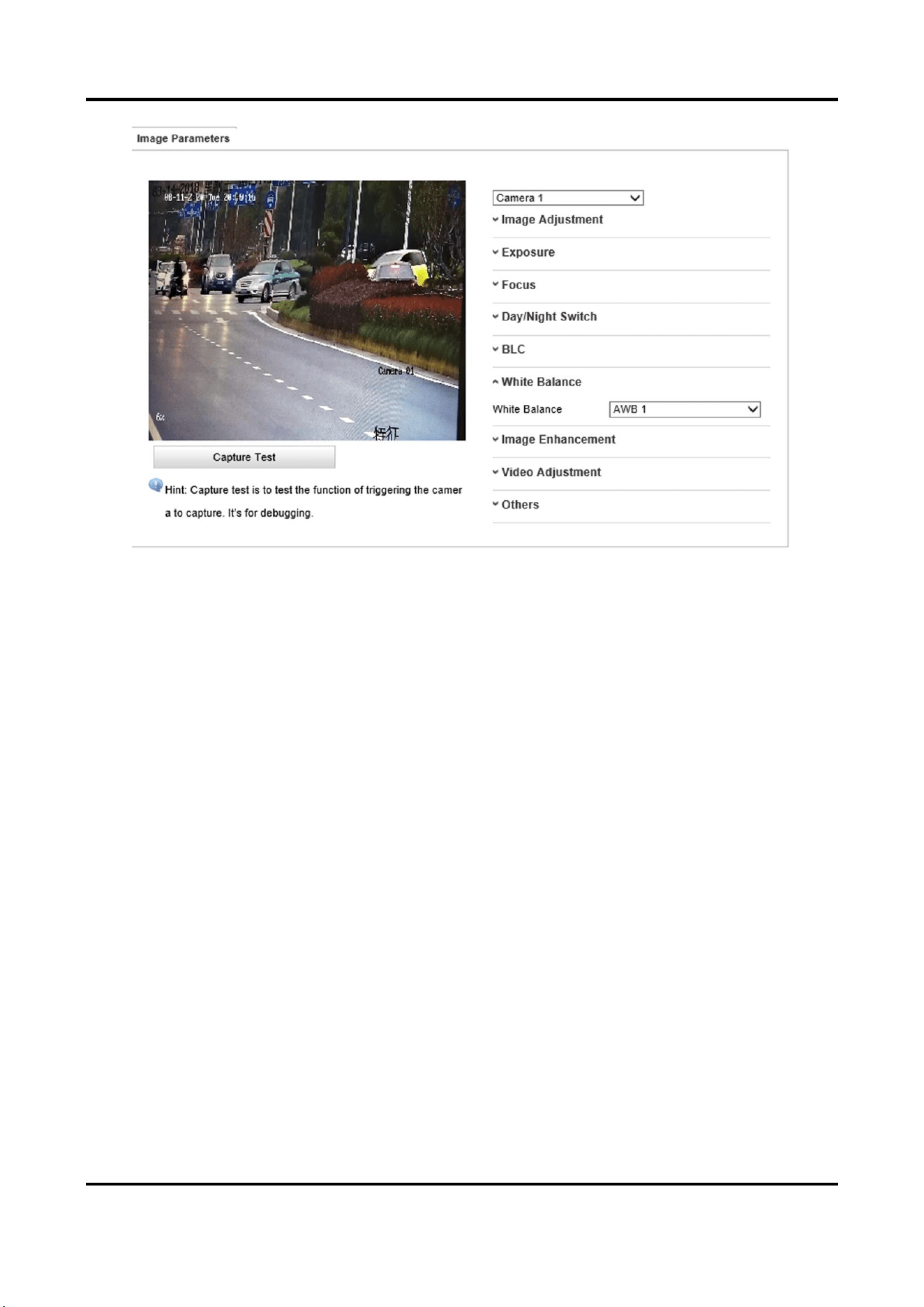

Figure 8-2 Set Image Parameters
Image Adjustment
Brightness
This feature is used to adjust brightness of the image.
Contrast
This feature enhances the difference in color and light between parts of an image.
Saturation
This feature is used to adjust color saturation of the image.
Sharpness
Sharpness function enhances the detail of the image by sharpening the edges in the image.
Exposure
Iris Type
Auto
The iris, shutter and gain values will be adjusted automatically according to the brightness of
the environment.
Manual
In manual mode, you can adjust the values of Gain, Shutter, and Iris manually.
Iris Priority
Portable Speed Dome User Manual
44
The value of iris needs to be adjusted manually. The shutter and gain values will be adjusted
automatically according to the brightness of the environment.
Shutter Priority
The value of shutter needs to be adjusted manually. The iris and gain values will be adjusted
automatically according to the brightness of the environment.
Max./Min. Iris Limit
This function is used to limit the iris range to help the device adapt to different scenes. Increase
the iris diameter when monitoring subjects nearby, whereas decrease the iris diameter when
monitoring subjects in the distance.
Max./Min. Shutter Limit
This function is used to limit the shutter range, so that can help the camera to adapt to different
scenes. The faster the shutter speed is, the darker the image is.
Gain Limit
This feature is used to adjust gain of the image.
Slow Shutter
This function can be used in underexposure condition. It lengthens the shutter time to ensure
full exposure.
Focus
Focus Mode
Auto
The device focuses automatically at any time according to objects in the scene.
Semi-auto
The device focuses automatically only once after panning, tilting, and zooming.
Manual
In manual mode, you need to click on the control panel to focus manually.
Min. Focus Limit
This function is used to limit the minimum focus distance.
Day/Night Switch
Auto
In auto mode, the day mode and night mode can switch automatically according to the light
condition of environment.
Day
In day mode, the device displays color image. It is used for normal lighting conditions.
Night
Portable Speed Dome User Manual
45
In night mode, the image is black and white. Night mode can increase the sensitivity in low light
conditions.
Continuous
In continuous mode, you can set the time schedule for day mode. The rest time out of the
schedule is for night mode.
BLC
BLC (Back Light Compensation)
If there is a bright back light, the subject in front of the backlight appears silhouetted or dark.
Enabling BLC function can correct the exposure of the subject. But the back light environment is
washed out to white.
WDR (Wide Dynamic Range)
The WDR function helps the camera provide clear images even under back light circumstances.
When there are both very bright and very dark areas simultaneously in the field of view, WDR
balances the brightness level of the whole image and provide clear images with details.
HLC (High Light Compensation)
HLC makes the camera identify and suppress the strong light sources that usually flare across a
scene. This makes it possible to see the detail of the image that would normally be hidden.
White Balance
White Balance
White balance compensates for the differences in color temperature of the surrounding light.
Image Enhancement
Digital Noise Reduction
The digital noise reduction function processes the noise in the video signal. You can set Digital
Noise Reduction as Expert Mode, Normal Mode, and OFF. Under normal mode, you can adjust
DNR Level. Under expert mode, you can adjust Space DNR Level and Time DNR Level.
Defog Mode
When there is fog in the image, you can enable this function to get clear image.
EIS
The live view image would be trembled and dim when the camera is shocked slightly in some
monitoring conditions. And the electronic image stabilization (EIS) function is used to overcome
this problem to ensure a steady and clear image.
Video Adjustment
Mirror
If you enable the mirror function, the image will be flipped. It is like the image in the mirror. The
flip direction can be set to OFF or Center.
Portable Speed Dome User Manual
46
Video Standard
You can set the Video Standard according to the video system in your country.
Video Input Mode
You can set Video Input Mode to 1920 × 1080@30 fps or OFF.
Others
Lens Initialization
The lens operates the movements for initialization when you check Lens Initialization.
Zoom Limit
You can set Zoom Limit value to limit the maximum value of zooming.
8.4 Set ROI
ROI (Region of Interest) encoding helps to assign more encoding resources to the region of
interest, thus to increase the quality of the ROI whereas the background information is less
focused.
Before You Start
Please check the video encoding type. ROI is supported when the video encoding type is H.264 or
H.265.
Steps
1. Go to Configuration → Device Configuration → Encoding and Storage → ROI.
Portable Speed Dome User Manual
47
Figure 8-3 Set ROI
2. Select Stream Type.
3. Set ROI region.
1) Check Enable.
2) Select Area No.
3) Click Draw Area.
4) Drag the mouse on the live view image to draw the fixed area.
5) Select the fixed area that needs to be adjusted and drag the mouse to adjust its position.
6) Click Stop Drawing.
4. Enter Area Name and select ROI Level.
Note
The higher the ROI level is, the clearer the image of the detected area is.
5. Click Save.
6. Optional: Select other area codes and repeat the steps above if you need to draw multiple fixed
areas.
Portable Speed Dome User Manual
48
8.5 Set OSD
You can customize OSD information on the live view.
Steps
Note
Supported parameters may vary with device models. The actual device prevails.
1. Go to Configuration → Device Configuration → Text Overlay → Text Overlay on Video.
Figure 8-4 Set OSD
2. Set OSD attribute, font, and alignment.
Note
The supported functions may vary with different models. The actual device prevails.
3. Set the display content.
1) Check Camera Name, and enter the name.
2) Check Date, and set the time and date format.
3) Check Week to display week.
4. Optional: Check display item(s) and enter overlay information if you want to overlay extra
information.
Portable Speed Dome User Manual
49
5. Drag the red frames on the live view image to adjust the OSD positions.
6. Click Save.
Result
The set OSD will be displayed in live view image and recorded videos.
Portable Speed Dome User Manual
50
Chapter 9 Network Configuration
9.1 Set IP Address
IP address must be properly configured before you operate the device over network.
Go to Configuration → Device Configuration → System Settings → Network Interface Parameters
for parameter settings.

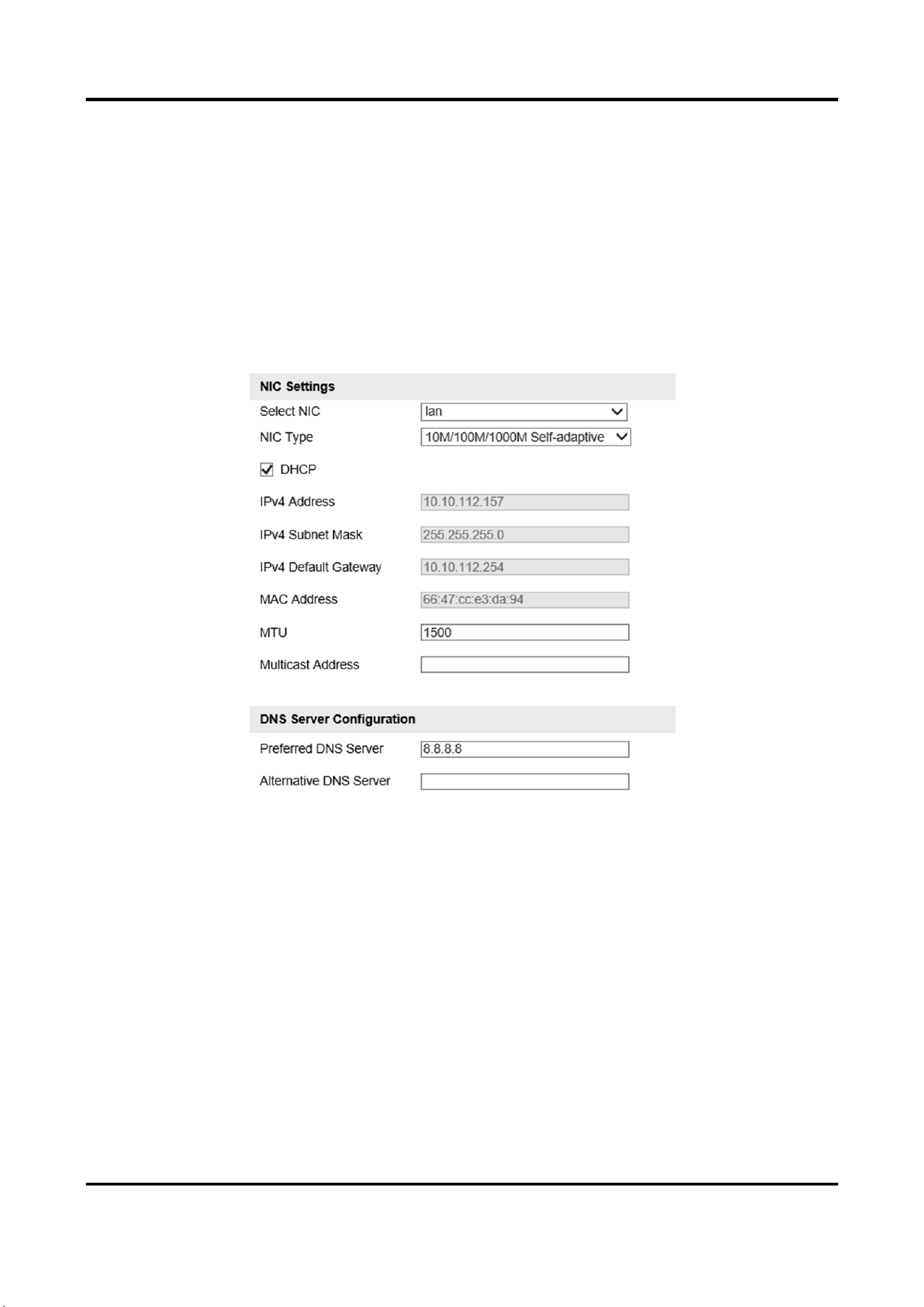

Figure 9-1 Set IP Address
NIC Type
Select a NIC (Network Interface Card) type according to your network condition.
IPv4
Two IPv4 modes are available.
DHCP
The device automatically gets the IPv4 parameters from the network if you check DHCP. The
device IP address is changed after enabling the function. You can use SADP to get the device
IP address.
Portable Speed Dome User Manual
51
Note
The network that the device is connected to should support DHCP (Dynamic Host
Configuration Protocol).
Manual
You can set the device IPv4 parameters manually. Enter IPv4 Address, IPv4 Subnet Mask, and
IPv4 Default Gateway.
MTU
It stands for maximum transmission unit. It is the size of the largest protocol data unit that can
be communicated in a single network layer transaction.
The valid value range of MTU is 1280 to 1500.
Multicast
Multicast is group communication where data transmission is addressed to a group of
destination devices simultaneously. After setting the IP address of the multicast host, you can
send the source data efficiently to multiple receivers.
DNS
It stands for domain name server. It is required if you need to visit the device with domain
name. And it is also required for some applications (e.g., sending email). Set Preferred DNS
Server properly if needed.
9.2 Dial
Set the dialing parameters if you want to connect the device to the network via SIM card.
Before You Start
Install SIM card.
Steps
1. Go to Configuration → Device Configuration → System Settings → Dial-up Configuration.
2. Check Enable.
Portable Speed Dome User Manual
52
Figure 9-2 Set Dial-up Parameters
3. Optional: If you want to use 3G/4G network only, select Switching Mode as Force Switch to 3G,
or Force Switch to 4G.
4. Set the dial-up parameters.
– When you connect the device to the normal network, you do not need to set the dial-up
parameters.
– When you connect the device to the private network, set the APN information, such as the
user name, APN, etc.
Note
● Consult the operator about the dial-up parameters of the private network.
● When you have enabled 3G/4G and Wi-Fi simultaneously, the device will use 3G/4G network
in priority.
Portable Speed Dome User Manual
53
5. Click Save.
6. Optional: Click Refresh to view the dial-up status.
9.3 Connect to Wi-Fi
Set Wi-Fi parameters if you want to connect the device to the network via Wi-Fi.
Steps
1. Go to Configuration → Device Configuration → System Settings → Wi-Fi.
2. Select Wi-Fi Mode as Wi-Fi.
3. Click Search to search the Wi-Fi.
4. Select a Wi-Fi from the wireless network list, and enter Key.
5. Click Save.
6. Optional: If you want to edit the IP address connected to the Wi-Fi to make it convenient to
access to the device via the IP address of WLAN, set the IP address of WLAN.
1) Select IP Address Type as Static IP.
2) Enter parameters such as IP address, subnet mask, etc.
3) Click Configuration to save the settings.
7. Optional: Go to Configuration → Device Status to view the connection status of Wi-Fi.
9.4 Set Wi-Fi Hotspot
Set Wi-Fi AP to use the device as a hotspot to share network to another terminal device.
Steps
Caution
Wi-Fi AP and Wi-Fi function cannot be enabled at the same time. Once one of them is enabled,
the other will be disabled automatically.
1. Go toConfiguration → Device Configuration → System Settings → Wi-Fi.
2. Select Wi-Fi Mode as Wi-Fi Hotspot.
Portable Speed Dome User Manual
54

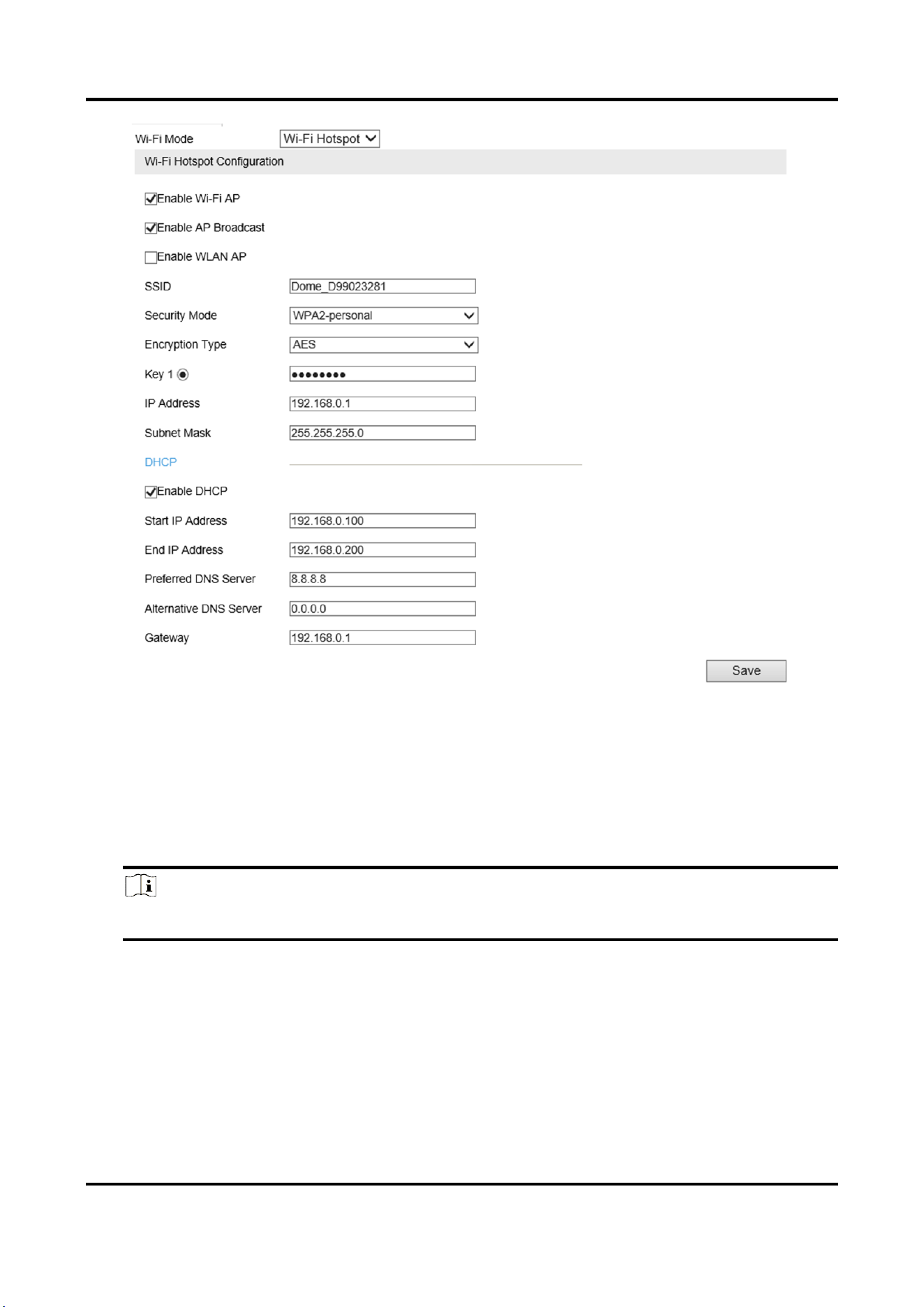

Figure 9-3 Set Wi-Fi Hotspot
3. Check Enable Wi-Fi AP, Enable AP Broadcast, and Enable WLAN AP.
4. Set hotspot information.
1) Enter SSID (hotspot name).
2) Select Security Mode.
3) Select Encryption Type.
4) Enter Key, IP Address, and Subnet Mask.
Note
The IP address should be different from the one that set in the network parameters.
5. Optional: Check Enable DHCP and enter the start/end IP address.
6. Click Save.
Result
When the device connects to the network via dialing, the connected peripheral device can get
access to the network either.
Portable Speed Dome User Manual
55
9.5 Set Satellite Positioning
Set satellite positioning if you want to get the specific location of the device, or synchronize time
via satellite.
Steps
1. Go to Configuration → Device Configuration → System Settings → Positioning Settings.
Figure 9-4 Set Satellite Positioning
2. Select Positioning Module according to your needs.
3. Optional: Check Enable to enable satellite time synchronization.
4. Set the following parameters.
Speed Unit and Alarmed Speed Limit
For example, when the Speed Unit is set to km/h and the Alarmed Speed Limit is set to 60,
an alarm will be triggered when it detects that the vehicle speed exceeds 60 km/h.
GPS Upload Interval
The device will upload the positioning information every the set interval.
Positioning Information Overlaid Channel
The positioning information will be overlaid on the video of the selected channel when live
view and playback.
5. Click Save.
9.6 Set Bluetooth
After the device is connected to the platform, the platform can listen to the audio collected from
the bluetooth headsets.
Before You Start
● Prepare the bluetooth headsets (supporting bluetooth 4.0), and put it near the device.
● Ensure the device network communication is normal.
Steps
1. Go to Configuration → Device Configuration → System Settings → Bluetooth Settings.
2. Check Enable.
Portable Speed Dome User Manual
56
3. If you want to customize the device PIN code, enter Custom PIN Code, and click Save.
When pairing the bluetooth headsets, the custom PIN code will be used to verify the correct
device.
4. Click Pair to pair with the selected device.
Figure 9-5 Pair with Online Device
Note
After enabling bluetooth, the online devices will be searched automatically. If no device is
displayed, click Refresh to refresh the online devices, or adjust the position of the bluetooth
device to make it searched.
5. Optional: View the connection status.
Note
When it displays "Paired", the bluetooth device is connected.
9.7 Connect to Platform
9.7.1 Connect to ISUP Platform
ISUP (EHome) is a platform access protocol. The device can be remotely accessed via this platform.
Before You Start
● Create the device ID on ISUP platform.
● Ensure the device can communicate with the platform normally.
Steps
1. Go to Configuration → Device Configuration → System Settings → ISUP Protocol.
Portable Speed Dome User Manual
57
Figure 9-6 Connect to ISUP Platform
2. Check Enable.
3. Select Protocol Version.
4. Enter Platform IP Address, Platform Port, and Camera No.
Note
The camera No. should be the same with the added one on the ISUP platform.
5. Optional: Enter Encryption Key if you select v5.0.
6. Click Save.
7. Optional: View Registration Status.
What to do next
When the registration status shows online, you can add or manage the device via the platform
software. Refer to its corresponding manual for details.
9.7.2 Connect to Guarding Vision
The device can be remotely accessed via Guarding Vision.
Before You Start
● Connect the device to the Internet.
● Set the IP address, subnet mask, gateway, and DNS server of the LAN.
Steps
1. Go to Configuration → Device Configuration → System Settings → Guarding Vision.
2. Check Enable.
Portable Speed Dome User Manual
58
Figure 9-7 Connect to Guarding Vision
3. Enter a customized Verification Code. You need to enter the code when adding the device in
Guarding Vision.
Caution
Valid security code range [6-12]. You are recommended to use an eight-bit or above
combination of numbers, lowercase, and uppercase for the code.
4. Click Save.
5. Get Guarding Vision application from the following ways.
– For computer user: Visit dev.guardingvision.com.
– For mobile phone user: Download Guarding Vision in App Store (iOS system) or Google
Play
(TM)
(Android system).
6. Register an account and add the device to Guarding Vision.
Note
Refer to the user manual of Guarding Vision for details.
9.8 Set DDNS
You can use the Dynamic DNS (DDNS) for network access. The dynamic IP address of the device
can be mapped to a domain name resolution server to realize the network access via domain
name.
Before You Start
● Register the domain name on the DDNS server.
● Set the LAN IP address, subnet mask, gateway, and DNS server parameters. Refer to "Set IP
Address" for details.
● Complete port mapping. The default port is 80, 8000, and 554.
Portable Speed Dome User Manual
59
Steps
1. Go to Configuration → Device Configuration → System Settings → DDNS.
Figure 9-8 Set DDNS
2. Check Enable DDNS.
3. Enter the server address and other information.
4. Click Save.
5. Access the device.
By Browsers
Enter the domain name in the browser address bar to access the
device.
By Client Software
Add domain name to the client software. Refer to the client software
manual for specific adding methods.
9.9 Set Port
The device port can be modified when the device cannot access the network due to port conflicts.
Caution
Do not modify the default port parameters at will, otherwise the device may be inaccessible.
Go to Configuration → Device Configuration → System Settings → Port for port settings.
Portable Speed Dome User Manual
60

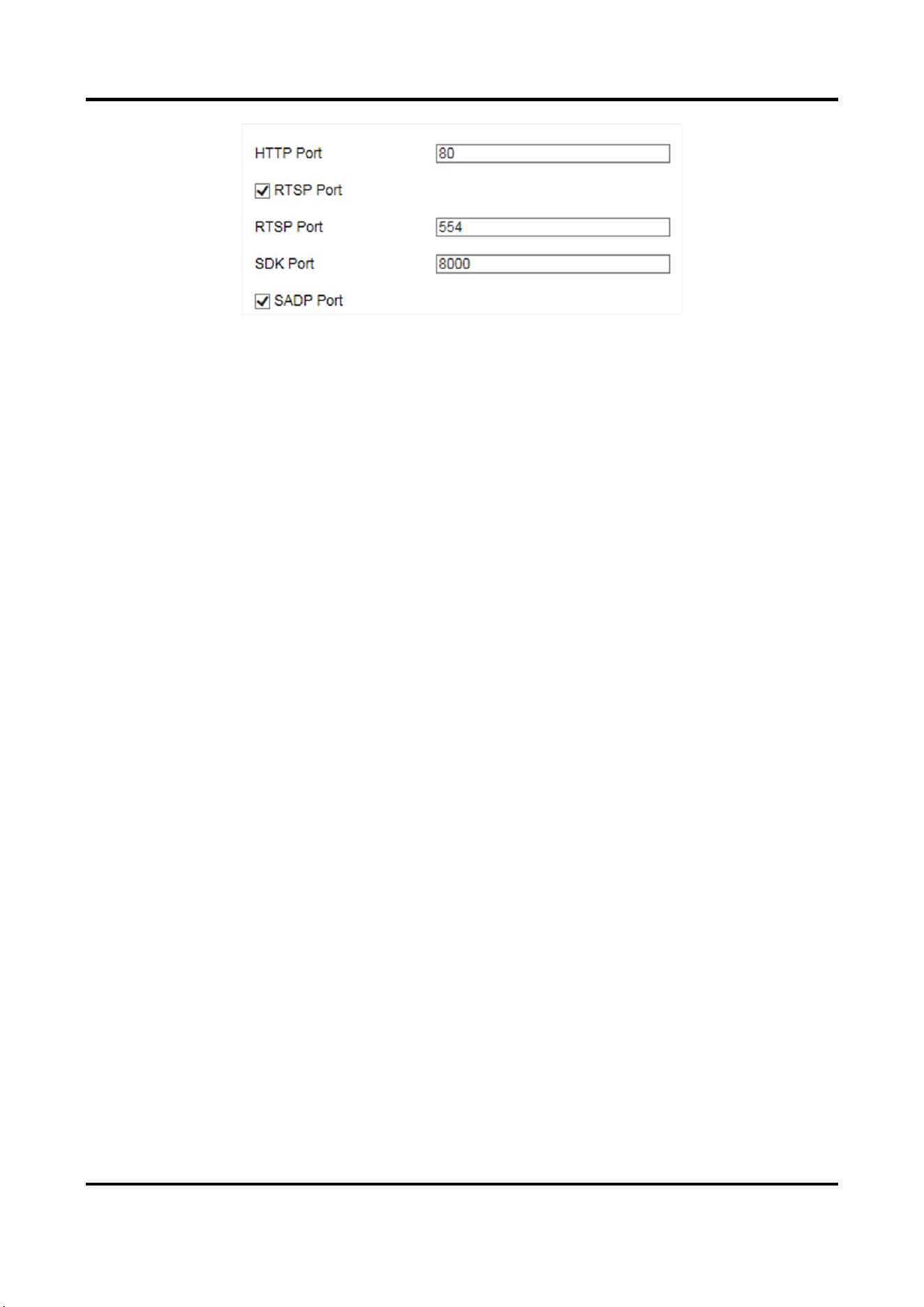

Figure 9-9 Set Port
HTTP Port
It refers to the port through which the browser accesses the device. For example, when the
HTTP Port is modified to 81, you need to enter http://192.168.1.64:81 in the browser for login.
RTSP Port
It refers to the port of real-time streaming protocol.
SDK Port
It refers to the port through which the client adds the device.
SADP Port
It refers to the port through which the SADP software searches the device.
Portable Speed Dome User Manual
61
Chapter 10 Serial Port Configuration
10.1 Set RS-485
Set RS-485 parameters if the device has been connected to a vehicle detector or other RS-485
devices.
Before You Start
The corresponding device has been connected via the RS-485 serial port.
Steps
1. Go to Configuration → Device Configuration → System Settings → Serial Port Parameters.

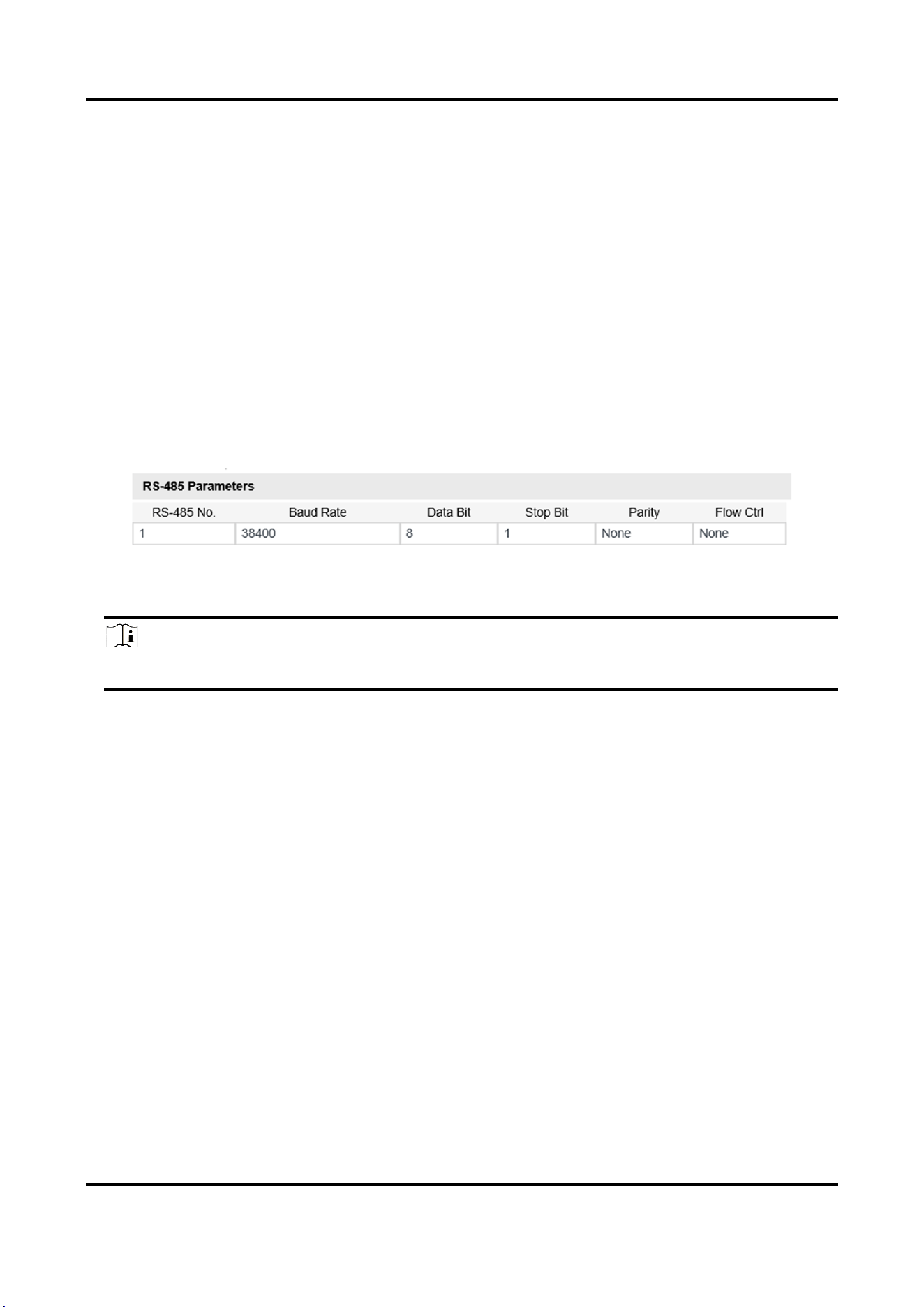

Figure 10-1 Set RS-485
2. Set Baud Rate, Data Bit, Stop Bit, etc.
Note
The parameters should be same with those of the connected device.
3. Click Save.
10.2 Set RS-232
Set RS-232 parameters if you need to debug the device via RS-232 serial port, or peripheral devices
have been connected.
Before You Start
The corresponding device has been connected via the RS-232 serial port.
Steps
1. Go to Configuration → Device Configuration → System Settings → Serial Port Parameters.
2. Click Advanced Settings.
Portable Speed Dome User Manual
62
Figure 10-2 Set RS-232
3. Set Baud Rate, Data Bit, Stop Bit, etc.
Note
The parameters should be same with those of the connected device.
4. Select Working Mode.
Console
Select it when you need to debug the device via RS-232 serial port.
Transparent Channel
Select it, and the network command can be transmitted to RS-232 control command via the
RS-232 serial port.
Narrow Band Transmission
Reserved.
5. Click Save.
Portable Speed Dome User Manual
63
Chapter 11 Exception Alarm
Set exception alarm when the network is disconnected, the IP address is conflicted, etc.
Steps
1. Go to Configuration → Device Configuration → Exception Event → Exception Event.
Figure 11-1 Set Exception Alarm
2. Select the exception type(s) and the linkage method.
3. Click Save.
Portable Speed Dome User Manual
64
Chapter 12 Safety Management
12.1 Manage User
The administrator can add, modify, or delete other accounts, and grant different permissions to
different user levels.
Steps
1. Go to Configuration → Device Configuration → User Management → User.
2. Add a user.
1) Click Add.
2) Enter User Name and select User Type.
3) Enter Password, and confirm the password.
Caution
To increase security of using the device on the network, please change the password of your
account regularly. Changing the password every 3 months is recommended. If the device is
used in high-risk environment, it is recommended that the password should be changed every
month or week.
4) Assign remote permission to users based on needs.
Common User
Users can be assigned permission of viewing live video and changing their own passwords,
but no permission for other operations.
Operator
Operators can be assigned all permission except for operations on the administrator and
creating accounts.
5) Click OK.
Note
The administrator can add up to 31 user accounts.
3. Optional: You can do the following operations.
– Select a user and click Edit to change the password and permission.
– Select a user and click Delete to delete the user.
Portable Speed Dome User Manual
65
12.2 Set RTSP Authentication
You can specifically secure the stream data of live view.
Steps
1. Go to Configuration → Device Configuration → User Management → RTSP Authentication.
2. Select Authentication Mode as basic or disable to enable or disable the RTSP authentication.
3. Click Save.
12.3 Set IP Address Filtering
You can set the IP addresses allowable and not allowable to access the device.
Steps
1. Go to Configuration → Device Configuration → User Management → IP Address Filter.
2. Check Enable IP Address Filter.
3. Set IP Address Filter Way.
Forbidden
The added IP addresses are not allowed to access the device.
Allowed
The added IP addresses are allowed to access the device.
4. Click Add, enter the IP address, and click OK.
Figure 12-1 Set IP Address Filtering
5. Optional: Edit, delete, or clear the added IP addresses.
6. Click Save.
12.4 Enable User Lock
To raise the data security, you are recommended to lock the current IP address.
Steps
1. Go to Configuration → Device Configuration → System Settings → Service.
2. Check Enable User Lock.
Portable Speed Dome User Manual
66
3. Click Save.
Result
When the times you entered incorrect passwords have reached the limit, the current IP address
will be locked automatically.
12.5 Set SSH
To raise network security, disable SSH service. The configuration is only used to debug the device
for the professionals.
Steps
1. Go to Configuration → Device Configuration → System Settings → Service.
2. Uncheck Enable SSH Service.
3. Click Save.
12.6 Set HTTPS
12.6.1 Create and Install Self-signed Certificate
HTTPS is a network protocol that enables encrypted transmission and identity authentication,
which improves the security of remote access.
Steps
1. Go to Configuration → Device Configuration → System Settings → HTTPS.
2. Select Create Self-signed Certificate.
3. Click Create.
4. Follow the prompt to enter Country, Hostname/IP, Validity, and other parameters.
5. Click OK.
Result
The device will install the self-signed certificate by default.
12.6.2 Install Authorized Certificate
If the demand for external access security is high, you can create and install authorized certificate
via HTTPS protocol to ensure the data transmission security.
Steps
1. Go to Configuration → Device Configuration → System Settings → HTTPS.
2. Select Create certificate request first and continue the installation.
3. Click Create.
4. Follow the prompt to enter Country, Hostname/IP, Validity, and other parameters.
Portable Speed Dome User Manual
67
5. Click Download to download the certificate request and submit it to the trusted authority for
signature.
6. Import certificate to the device.
– Select Signed certificate is available, start the installation directly. Click Browse and Install
to import the certificate to the device.
– Select Create the certificate request first and continue the installation. Click Browse and
Install to import the certificate to the device.
7. Click Save.
Portable Speed Dome User Manual
68
Chapter 13 Maintenance
13.1 Set Startup Mode
Power management is used to set the device startup mode.
Steps
1. Go to Configuration → Device Configuration → System Settings → Power Management.
2. Select Startup Mode.
Manual
After connecting to power, hold the power supply button for 3 s to power on the device.
Auto
After connecting to power, the device will be powered on automatically.
3. Click Save.
13.2 View Device Information
Basic Information
Go to Configuration → Device Configuration → System Settings → Device Information to view
the basic information.
You can edit Device Name and Device No. The device No. is used to control the device. It is
recommended to reserve the default value.
Device Status
Go to Configuration → Device Status to view the device status, Wi-Fi status, Wi-Fi AP status, etc.
13.3 Search Log
Log helps to locate and troubleshoot problems.
Steps
1. Click Log.
2. Set search conditions.
3. Click Search.
The matched log files will be displayed on the log list.
4. Optional: Click Save Log to save the log files to your computer.
Portable Speed Dome User Manual
69
13.4 Upgrade
Upgrade the system when you need to update the device version.
Before You Start
Prepare the upgrade file.
Steps
1. Go to Configuration → Device Configuration → System Maintenance → Upgrade.
2. Click Browse to select the upgrade file.
3. Click Upgrade.
4. Click OK in the popup window.
Note
The upgrade process will take 1 to 10 minutes. Do not cut off the power supply.
Result
The device will reboot automatically after upgrade.
13.5 Reboot
When the device needs to be rebooted, reboot it via the software instead of cutting off the power
directly.
Steps
1. Go to Configuration → Device Configuration → System Maintenance → Reboot.
2. Click Reboot.
3. Click OK to reboot the device.
13.6 Restore Parameters
When the device is abnormal caused by the incorrect set parameters, you can restore the
parameters.
Steps
1. Go to Configuration → Device Configuration → System Maintenance → Restore Default
Settings.
2. Select the restoration mode.
– Click Restore to restore the parameters except the IP parameters and user parameters to the
default settings.
– Click Restore Factory Settings to restore all the parameters to the factory settings.
3. Click OK.
Portable Speed Dome User Manual
70
13.7 Set DST
If the region where the device is located adopts Daylight Saving Time (DST), you can set this
function.
Steps
1. Go to Configuration → Device Configuration → System Settings → DST.
2. Check Enable DST.
3. Set Start Time, End Time, and DST Bias.
4. Click Save.
13.8 Synchronize Time
Synchronize the device time when it is inconsistent with the actual time.
Steps
1. Go to Configuration → Device Configuration → System Settings → Time Settings.
2. Select Time Zone.
3. Select Time Sync. Mode.
NTP Time Sync.
Select it to synchronize the device time with that of the NTP server. Set Server IP Address,
NTP Port, and Interval. Click NTP Test to test if the connection between the device and the
server is normal.
Manual Time Sync.
Select it to synchronize the device time with that of the computer. Set time manually, or
check Sync. with computer time.
Note
The time synchronization modes vary with different models. The actual device prevails.
4. Click Save.
13.9 Export Parameters
You can export the parameters of one device, and import them to another device to set the two
devices with the same parameters.
Steps
1. Go to Configuration → Device Configuration → System Maintenance → Export Parameters.
2. Click Export Parameters.
3. Set a password, and click OK.
Portable Speed Dome User Manual
71
Note
The password is used for importing the configuration file of the current device to other devices.
4. Select the saving path, and enter the file name.
5. Click Save.
13.10 Import Configuration File
Import the configuration file of another device to the current device to set the same parameters.
Before You Start
Save the configuration file to the computer.
Steps
Caution
Importing configuration file is only available to the devices of the same model and same version.
1. Go to Configuration → Device Configuration → System Maintenance → Import Config. File.
2. Select Importing Method.
Note
If you select Import Part, check the parameters to be imported.
3. Click Browse to select the configuration file.
4. Enter the password which is set when the configuration file is exported, and click OK.
5. Click Import.
6. Click OK on the popup window..
Result
The parameters will be imported, and the device will reboot.
13.11 Export Violation Type File
You can export the violation type file to check whether the vehicle has illegal types, etc.
Steps
Note
Export violation type file function vary with different models, please refer to the actual product.
1. Go to Configuration → Device Configuration → System Maintenance.
Portable Speed Dome User Manual
72
2. Click Export Violation Type File.
3. Select the saving path and enter the file name.
4. Click Save.
13.12 Export Debug File
The technicians can export the debug file to troubleshoot and maintain the device.
Steps
1. Go to Configuration → Device Configuration → System Maintenance → Export Debug File.
2. Click Export Debug.
3. Select the saving path, and enter the file name.
4. Click Save.
Portable Speed Dome User Manual
73
