Thermal Network Camera
User Manual
English _3
! OVERVIEW
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean the contaminated area on the product surface with a soft, dry cloth or a damp cloth.
(Do not use a detergent or cosmetic products that contain alcohol, solvents or surfactants or oil constituents
as they may deform or cause damage to the product.)
7. Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
15. This product is intended to be supplied by a Listed Power Supply Unit marked “Class 2” or “LPS” or “PS2”
and rated from 12 Vdc, 1.8A / PoE(53 Vdc), 0.48A.(TNM-C4940TD)
16. This product is intended to be supplied by a Listed Power Supply Unit marked “Class 2” or “LPS” or “PS2”
and rated from 12 Vdc, 1.63A / PoE(53 Vdc), 0.45A.(TNM-C4950TD/TNM-C4960TD)
17. This product is intended to be supplied by isolation power.
18. If you use excessive force when installing the product, the camera may be damaged and malfunction.
If you forcibly install the product using non-compliant tools, the product may be damaged.
19. Do not install the product in a place where chemical substances or oil mist exists or may be generated. As
edible oils such as soybean oil may damage or warp the product, do not install the product in the kitchen or
near the kitchen table.
This may cause damage to the product.
20. When installing the product, be careful not to allow the surface of the product to be stained with chemical
substance.
Some chemical solvents such as cleaner or adhesives may cause serious damage to the product’s surface.
21. If you install/disassemble the product in a manner that has not been recommended, the production functions/
performance may not be guaranteed.
Install the product by referring to “Installation & connection” in the user manual.
22. Installing or using the product in water can cause serious damage to the product.
23. This device has been verified using STP cable. The use of appropriate GND grounding and STP cable
is recommended to effectively protect your product and property from transient voltage, thunderstroke,
communication interruption.
24. Whenever there is a change in the ambient temperature or a specific interval is reached, the thermal video in
use will temporarily freeze for about 1-2 seconds. This phenomenon is a normal operation for calibrating the
thermal video.
25. When the initial power is applied, the thermal imaging screen will require about 30 minutes for stabilizing as it
is being continuously calibrated.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE
VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,
such as vases, shall be placed on the apparatus.
To prevent injury, this apparatus must be securely attached to the Wall/ceiling in accordance
with the installation instructions.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION
: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the product.
overview
overview
4_ overview
Class construction
An apparatus with CLASS
construction shall be connected to a MAINS socket outlet with a
protective earthing connection.
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive heat such as
sunshine, fire or the like.
The battery cannot be replaced.
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected. And please call a repair man in
your location.
When used outside of the U.S., it may be used HAR code with fittings of an approved
agency is employed.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
ATTENTION
IL Y A RISQUE D’EXPLOSION SI LA BATTERIE EST REMPLACÉE PAR UNE BATTERIE DE
TYPE INCORRECT.
METTRE AU REBUT LES BATTERIES USAGÉES CONFORMÉMENT AUX INSTRUCTIONS.
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than that contained in
the operating instructions unless you are qualified to do so.
The Micro USB out terminal of the product is provided for easier installation, and is not
recommended for monitoring purposes.
Please use the input power with just one camera and other devices must not be connected.
Before connecting the Power Terminal Block, you need to unplug the power plug from the
outlet first.
The ITE is to be connected only to PoE networks without routing to the outside plant.
The wired LAN hub providing power over the Ethernet (PoE) in accordance with IEEE
802.3.at shall be a UL Listed device with the output evaluated as a Limited Power Source
as defined in UL60950-1 or PS2 as defined in UL62368-1.
Unit is intended for installation in a Network Environment 0 as defined in IEC TR 62102.
As such, associated Ethernet wiring shall be limited to inside the building.
Please read the following recommended safety precautions carefully.
~
Do not place this apparatus on an uneven surface.
~
Do not install on a surface where it is exposed to direct sunlight, near heating equipment or
heavy cold area.
~
Do not place this apparatus near conductive material.
~
Do not attempt to service this apparatus yourself.
~
Do not place a glass of water on the product.
~
Do not install near any magnetic sources.
~
Do not block any ventilation openings.
~
Do not place heavy items on the product.
~
Please wear protective gloves when installing/removing the camera.
The high temperature of the product surface may cause
burn.
User’s Manual is a guidance book for how to use the
product.
The meaning of the symbols are shown below.
~
Reference : In case of providing information for helping of product’s usages
~
Notice : If there’s any possibility to occur any damages for the goods and human
caused by not following the instruction
※
Please read this manual for the safety before using of goods and keep it in the safe place.
We do not guarantee the quality of third-party products (e.g. lenses, accessories) that you
separately purchase.
In particular installation environments, there might be interference in radio communications.
When interference of electromagnetic waves occurs between the product and radio
communication device, it is recommended to keep a certain distance between the two or
change the direction of the receiving antenna.
WARNING
To prevent damage which may caused by IR LED, don’t stare at operating lamp.
For below models only.
TNM-C4940TD
Risk Group 1
WARNING IR emitted from this product.
Do not stare at operating lamp.
Product tested against IEC 62471
English _5
! OVERVIEW
CONTENTS
OVERVIEW
3
3 Important Safety Instructions
6 Recommended PC Specifications
6 Recommended Micro SD/SDHC/SDXC
Memory Card Specifications
6 Recommended NAS Specifications
6 What’s Included
7 At a Glance
INSTALLATION & CONNECTION
9
9 Installation

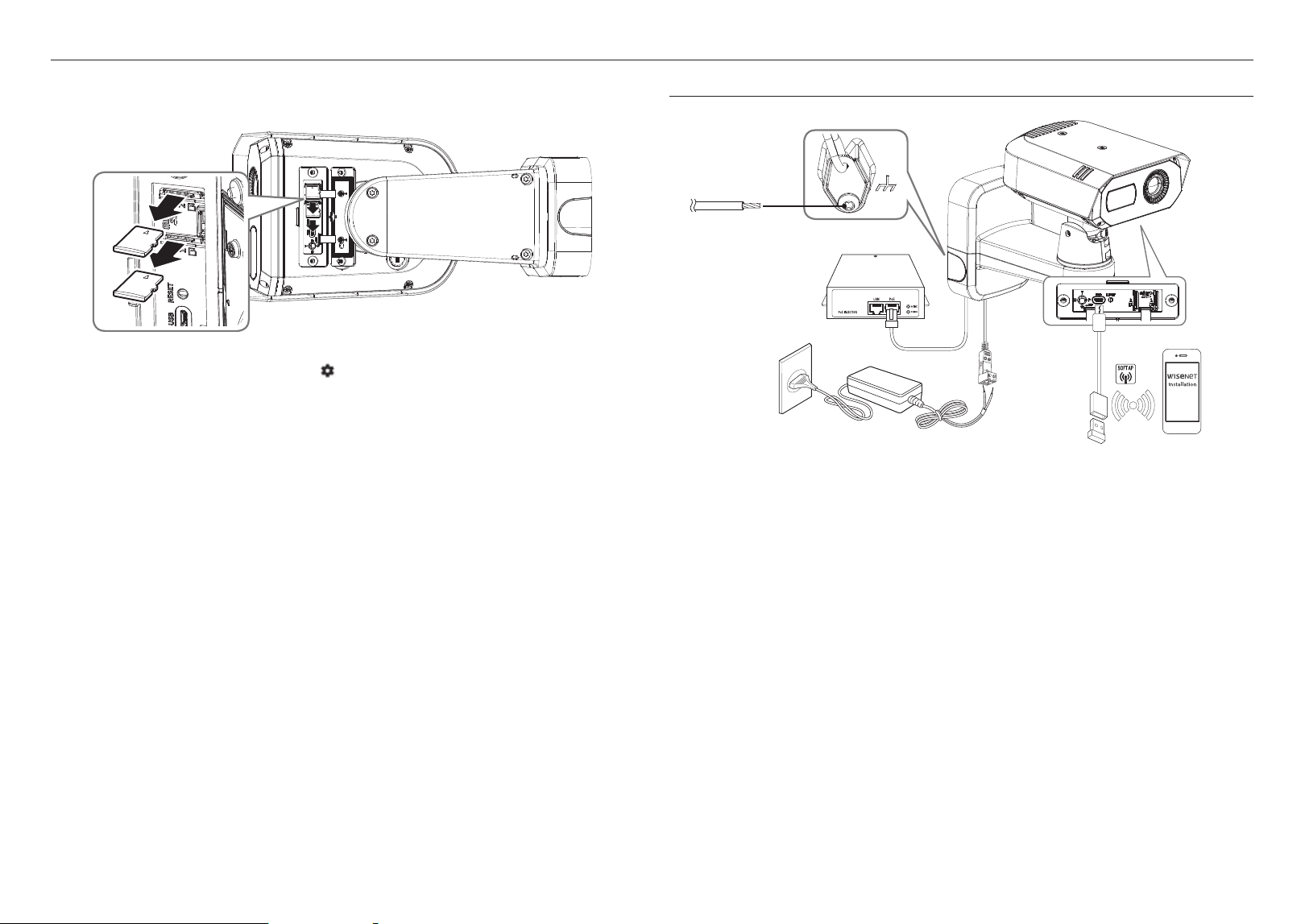

13 Inserting/Removing a Micro SD card
14 Connecting with other Device
NETWORK CONNECTION AND
SETUP
19

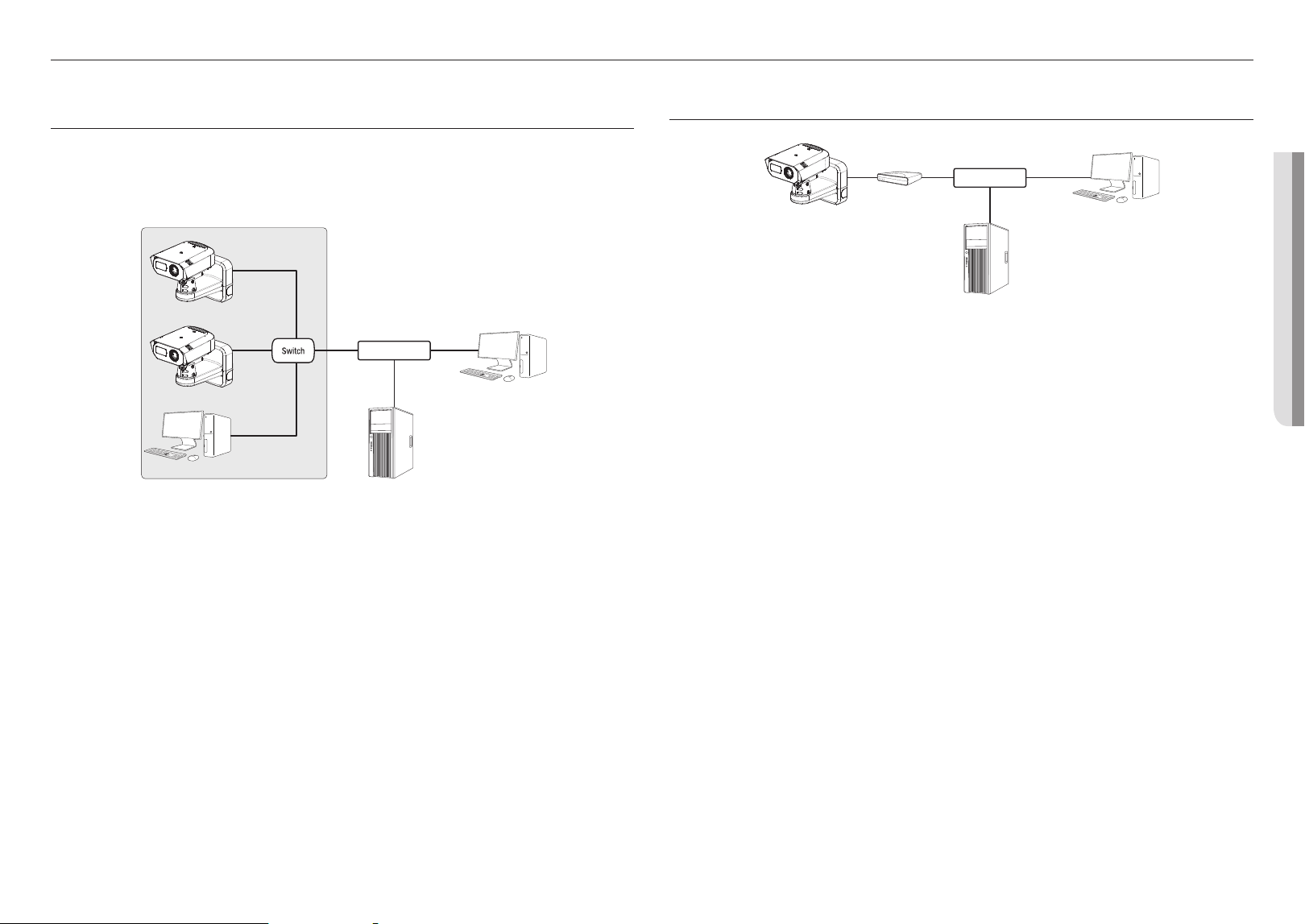

19 Connecting the Camera Directly to Local
Area Network
19 Connecting the Camera Directly to a DHCP
Based DSL/Cable Modem
20 Using Device Manager
20 Searching Camera Automatically
20 Configuring IP Address
21 Registering Camera Manually
21 Configuring IP Automatically

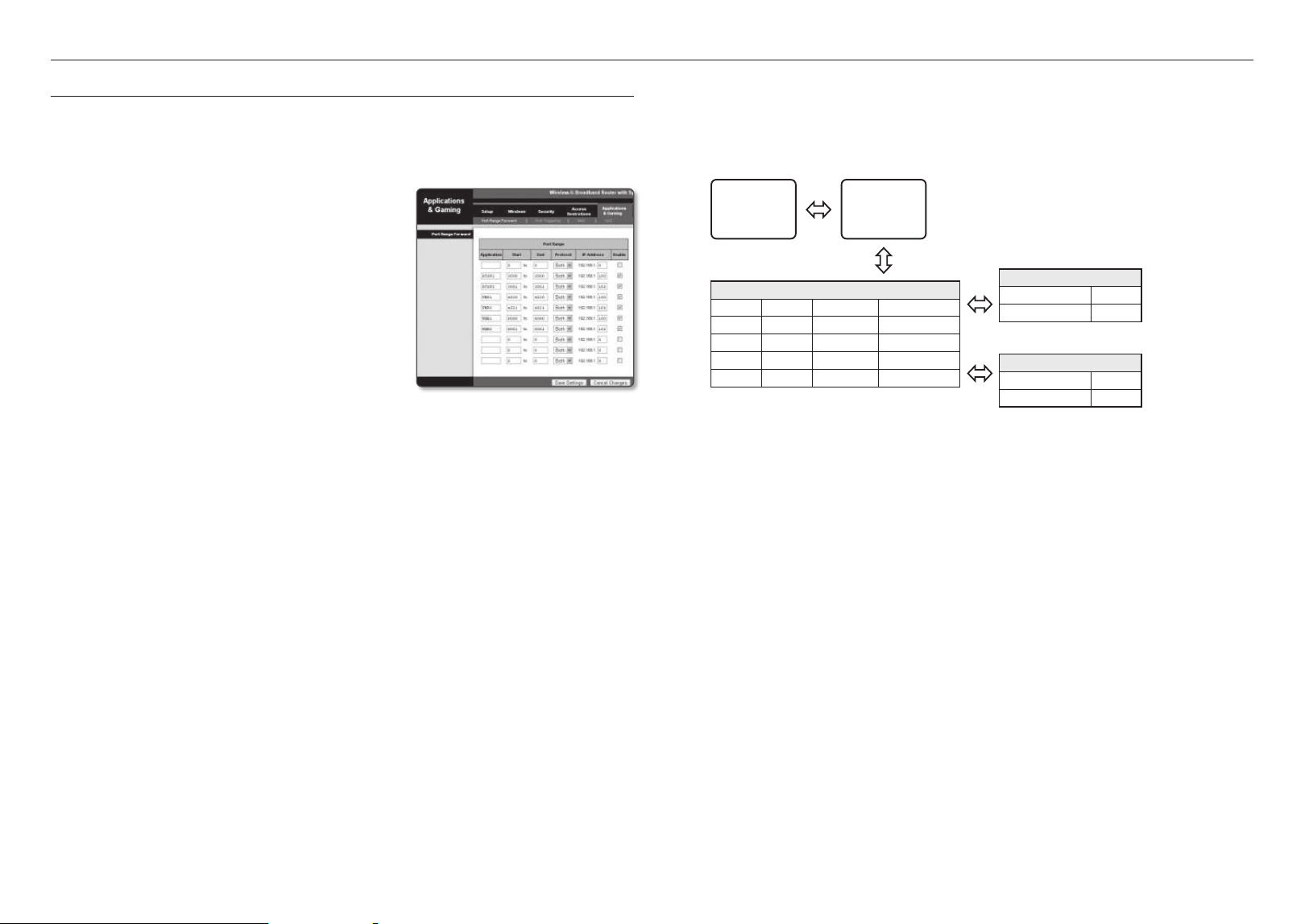

22 Port Range Forward (Port Mapping) Setup
23 Connecting to the Camera from a Shared
Local PC
23 Connecting to the Camera from a Remote
PC via the Internet
WEB VIEWER
24
24 Connecting to the Camera

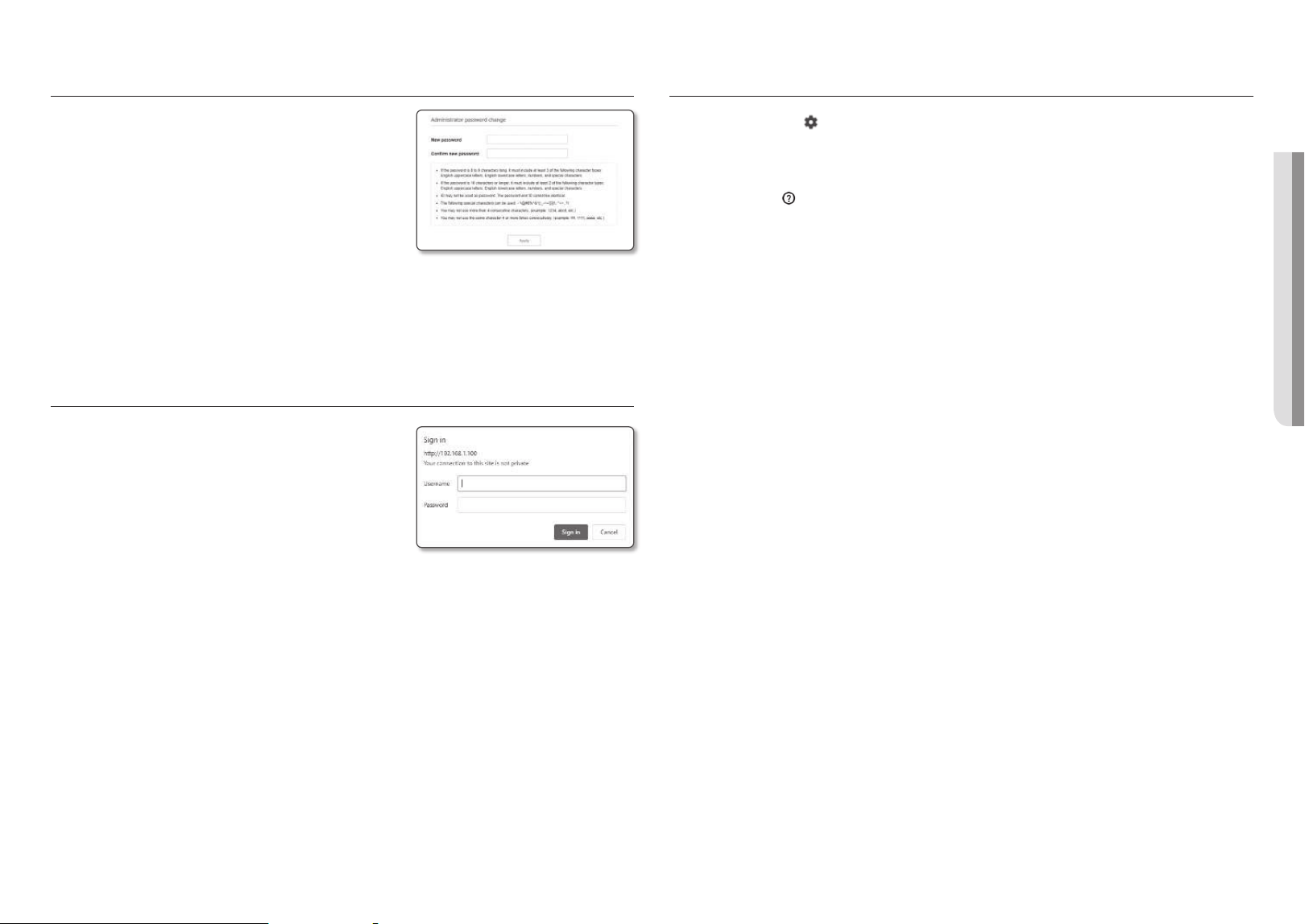

25 Password setting
25 Login
25 Camera Web Viewer Setup
APPENDIX
26
26 Troubleshooting
overview
6_ overview
RECOMMENDED PC SPECIFICATIONS
~
CPU : Intel(R) Core(TM) i7 3.4 GHz or higher
~
RAM : 8G or higher
~
Recommended browser: Chrome
~
Supported browsers: Chrome, Safari, Firefox, MS Edge(chromium based)
~
Supported OS : Windows, Mac, Linux, Android, iOS, Chrome
~
Verification environment
- Windows 10: Google Chrome version 80 or later, Firefox version 72 or later, MS Edge version 83 or later
- Mac 10.13/14: Safari version 11.0.1 or later
※
The video play performance of the web viewer depends on the performance of the user’s CPU and GPU.
RECOMMENDED MICRO SD/SDHC/SDXC MEMORY CARD
SPECIFICATIONS
~
Recommended capacity : 16GB to 256GB (
MLC or 3D TLC type required)
~
Recommended Manufacturers : SanDisk, Transcend,
Samsung
~
Product Type : High endurance, Pro endurance
~
The compatibility varies depending on the card manufacturers and types.
RECOMMENDED NAS SPECIFICATIONS
~
Recommended capacity :
200GB or higher
~
For this camera, you are recommended to use a NAS with the following manufacturer’s specs.
Recommended products : QNAP NAS, Synology NAS

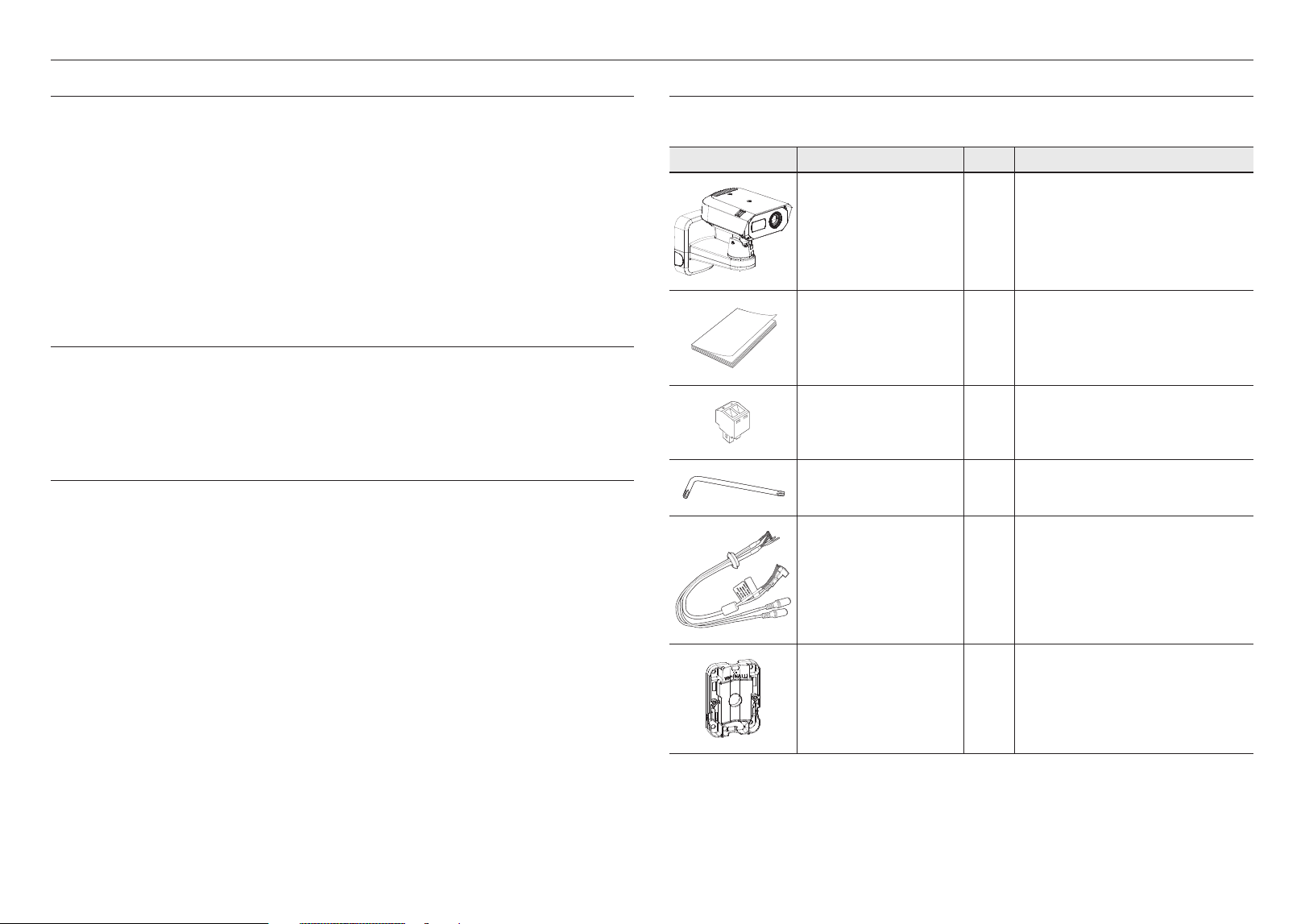

WHAT’S INCLUDED
Please check if your camera and accessories are all included in the product package.
(As for each sales country, accessories are not the same.)
Appearance Item Name Quantity Description
Camera
1
Quick Guide
(Optional)
1
Power Terminal Block
1
Used when the power line is connected to the power
socket
Torx L wrench
1
Used to open the micro SD slot cover
Power (DC 12 V)/Audio/Alarm cable
1
Used for DC 12V power input, Audio In/Out and Alarm
function
Mount plate
1
Used when installing a camera to a wall or pillar
English _7
! OVERVIEW

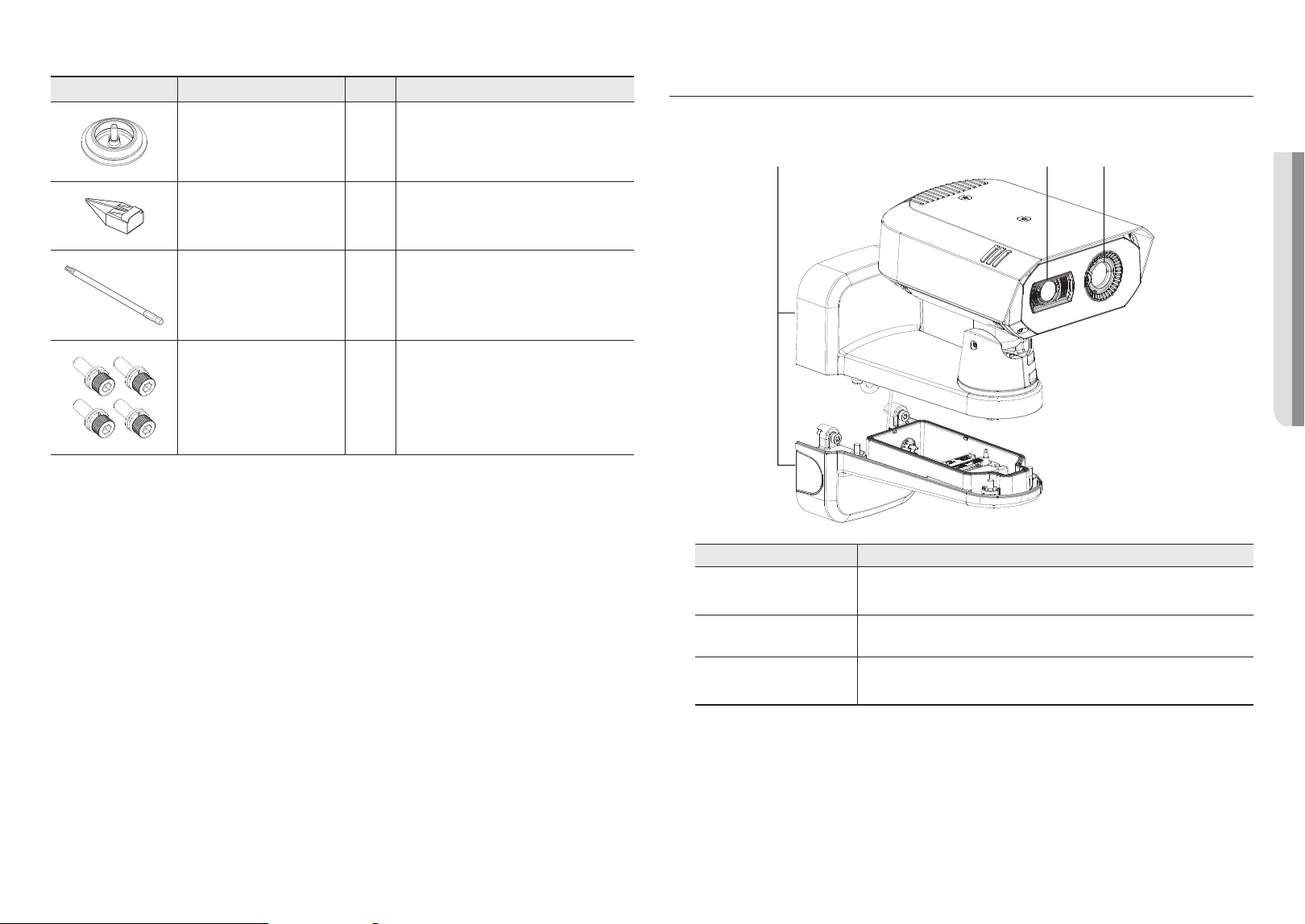

Appearance Item Name Quantity Description
Cable bushing
1
Extra cable bushing for network cable installation
Cap Installer
1
Used to connect the RJ45 cable via a cable bushing to
the PoE+ port
Screwdriver bit
1
Used when assembling or disassembling a wall mount
Anchor bolt
4
Used when fixing a mount plate to a wall
AT A GLANCE
Appearance
b ca
Item Description
a
Wall mount
Used when installing a camera on a wall or pillar. There is also a socket in its lower part for
external connections, such as to a network cable.
b
Visible lens Used when shooting scenes which are visible to the human eye.
c
Thermal lens
Used to shoot a scene after detecting and measuring infrared rays emitted from the
subject.
overview
8_ overview

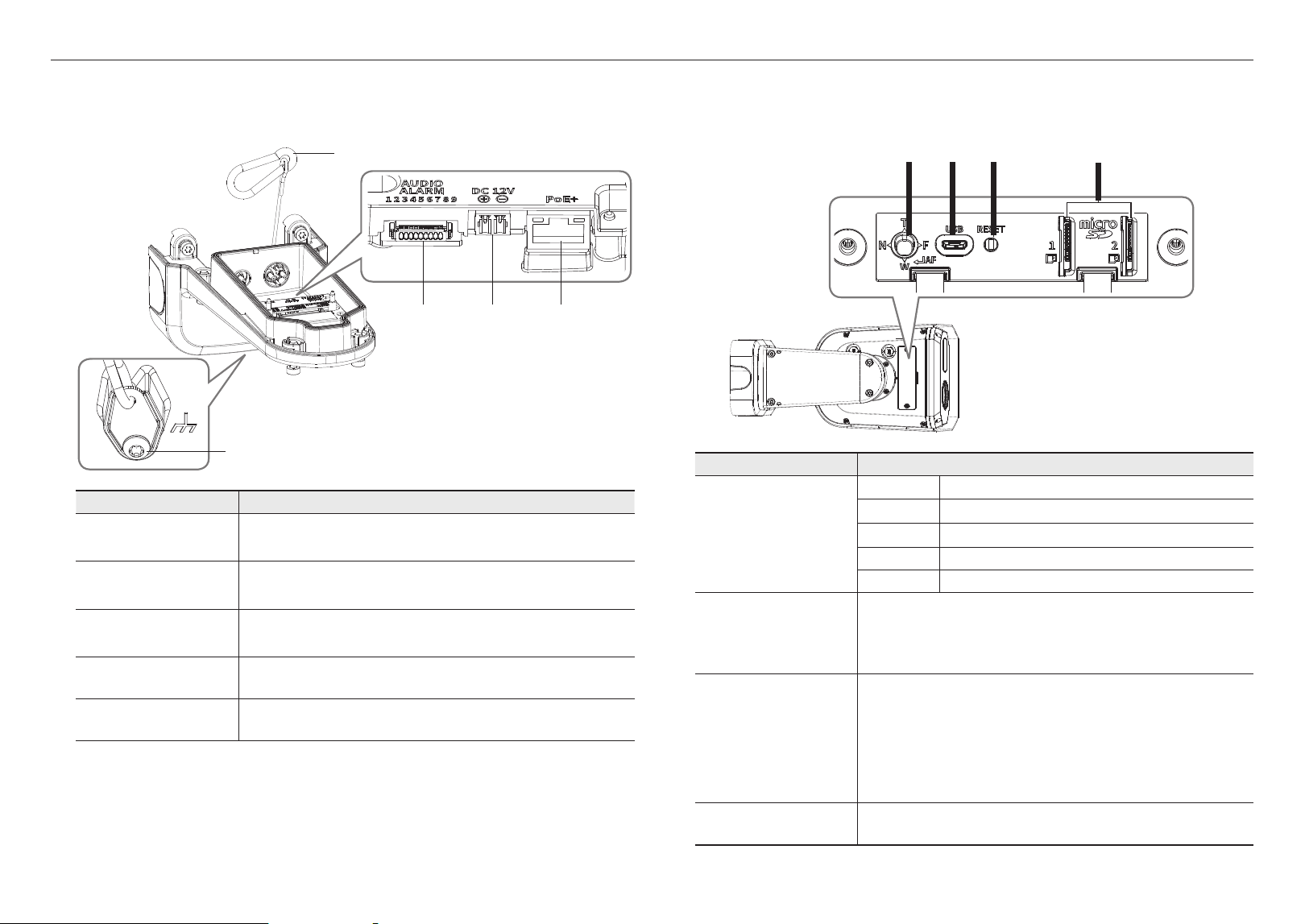

Internal composition (lower part of the mount)
c
a
ed
b
Item Description
a
GND Terminal
Used to discharge a lighting or a surge current outside in order to protect a camera from it
safely.
b
Safety wire
Cable to prevent accidents when installing cameras by connecting it to the upper part of the
mount.
c
Audio/Alarm port
Plug in the audio and alarm cables to use an external alarm device, microphone and
speaker.
d
Power port (DC 12V) Plug in two power cables with the included power terminal block. Only for DC 12V.
e
PoE+ port Plug in a PoE+ or network cable for power and network connection.
Internal composition (camera bottom)
a b c d
Item Description
a
Zoom/Focus Control Button
T Zoom in (Tele)
W Zoom out (Wide)
N Focus on a near object (Near)
F Focus on a far object (Far)
AF Press this button for automatic focus control.
b
MICRO USB port
Port to connect the WiFi dongle.
You can check the installation video through the
application installed on a smartphone.
Refer to “Connect to WiFi dongle” on page
15.
`
Wifi dongle and OTG adapter are sold separately.
c
Reset Button
Used to restore all camera settings to the factory default.
Press and hold for about 5 seconds and it reboots the system and restores the factory
default.
J
If you reset the camera, the network settings will be adjusted so that DHCP can be
enabled. If there is no DHCP server in the network, you must run the Device Manager
program to change the basic network settings such as IP address, Subnet mask,
Gateway, etc., before you can connect to the network.
d
Micro SD card slot Slot for inserting a Micro SD card. Two Micro SD cards are available.
English _9
! INSTALLATION & CONNECTION
installation & connection
INSTALLATION
J
`
This camera is waterproof and in compliance with the IP67 spec, but the jack connected to the external cable is not. You are
recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.
Precautions before installation
Ensure you read out the following instructions before installing the camera:
~
Select an installation site that can hold at least 5 times the camera’s weight.
~
Stuck-in or peeled-off cables can cause damage to the product or a fire.
~
For safety purposes, keep anyone away from the installation site.
And put aside personal belongings from the site, just in case.
~
If the product is forcibly installed with excessive force, it may malfunction and damage the camera.
Forcing assembly using non-standard tools may damage the product.

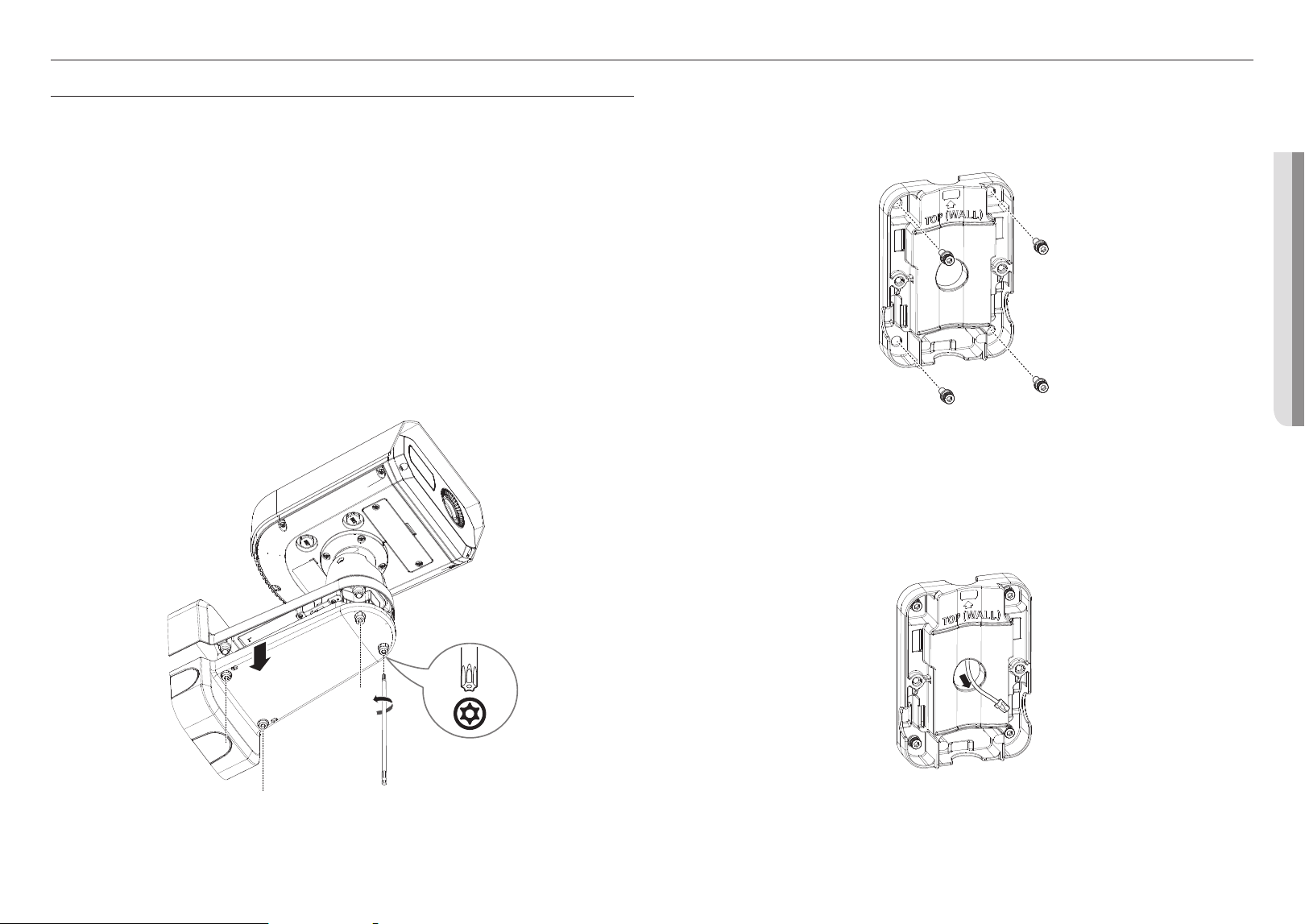

Disassembling
1. Separate it by loosening the fastening bolt at the bottom of the wall mount by turning it counterclockwise
using the supplied screwdriver bit.
4x
TR30
Installation (mount plate)
[If installing on a wall]
1-1. Install the mount plate on the wall using the four provided anchor bolts.
M
`
When installing the camera on a wall, place the mount plate on the wall, drill a hole after marking the screw hole’s location,
then insert the anchor bolt for installation.
`
During installation, the side where ‘TOP (POLE)’ is engraved should face the wall. Also, install the product so that the arrow in
front, where ‘TOP (WALL)’ is engraved, faces the top, as shown in the figure.
1-2. Take out the necessary cables from among the network/power/audio/alarm cables through the hole on
the mount plate.
M
`
This product can be connected to a 0.75” PF pipe depending on the installation conditions. There are three directions that the
pipe can be inserted from.
installation & connection
10_ installation & connection

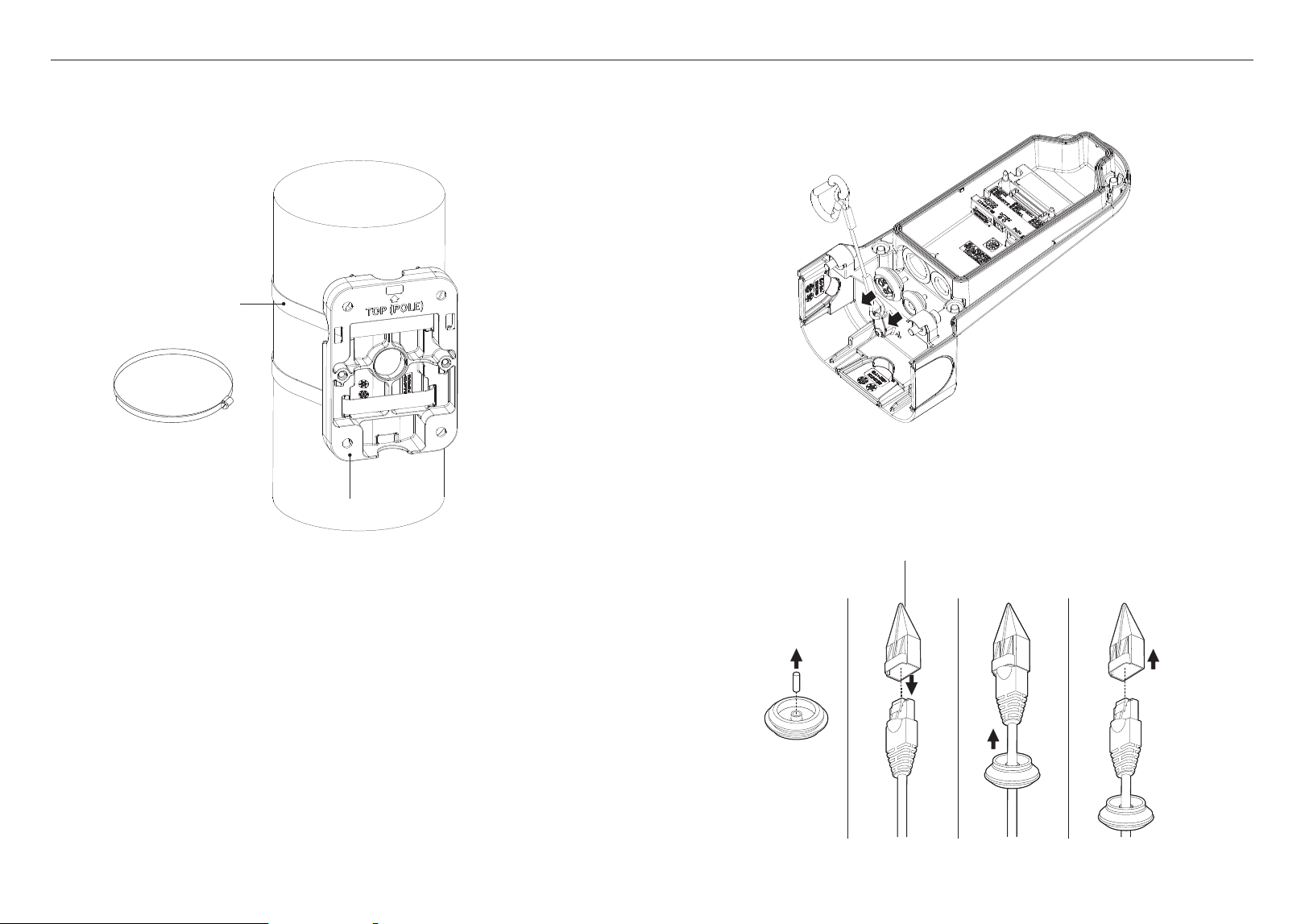

[If installing it on a pillar]
1-1. Select the pillar for installation, and check the height for where you want to install the camera.
1-2. Install the mount plate using a stainless steel mount strap (not supplied).
Stainless steel mount strap
(Optional accessory)
:SBP-100S
Mount plate
M
`
During installation, the side where ‘TOP (WALL)’ is engraved should face the wall. Also, install the product so that the arrow in
front, where ‘TOP (POLE)’ is engraved, faces the top, as shown in the figure.
`
When installing the camera on a pillar, connect it to the cable using the groove at the bottom of the mount plate.
Installation (installing cables)
2. Remove all the cable bushings at the lower part of the wall mount.
[Installation of the network cable] (IP66)
3-1. Take off the extruded part of the center hole at the cable bushing.
3-2. Pass a RJ45 cable through the hole of the cable bushing with the provided cap installer.
Cap Installer
English _11
! INSTALLATION & CONNECTION

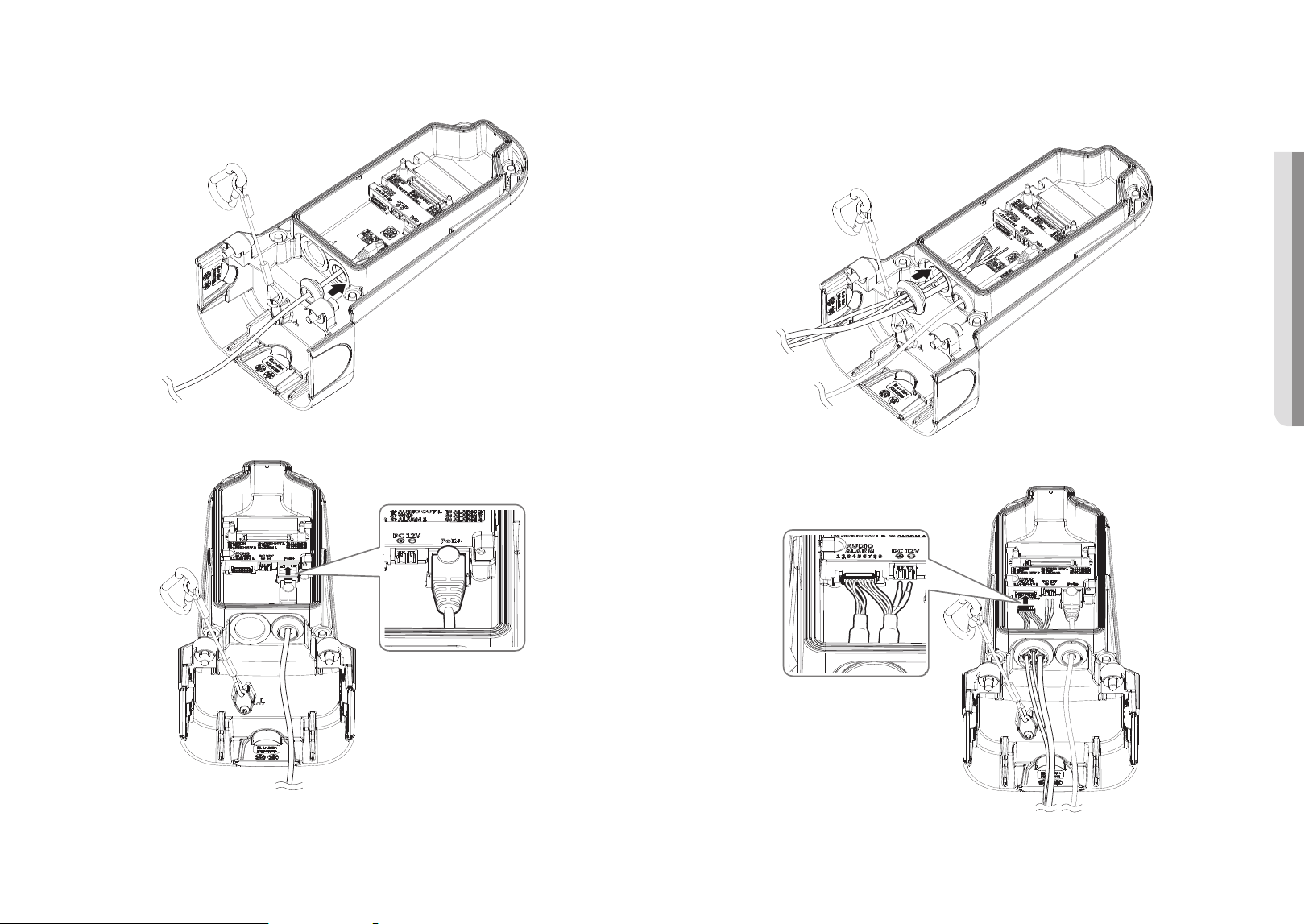

3-3. Connect the cable bushing with the network cable inserted into the lower part of the wall mount as
shown in the figure.
3-4. Connect the network cable’s connector to the PoE+ connection terminal.
[Installation of the Power(DC 12V)/Audio/Alarm cable]
4-1. Insert the cable bushings of the provided power/audio/alarm cables to the lower part of the mount, as
shown in the figure.
4-2. Connect the connector of the audio/alarm cables to the Audio/Alarm port.
installation & connection
12_ installation & connection
(When connecting the DC 12V power cable)
4-3. Connect the provided power cable block to the power line.
J
`
When connecting the power line to the power terminal block, paying attention to the polarity by referring to the imprint when
connecting it.

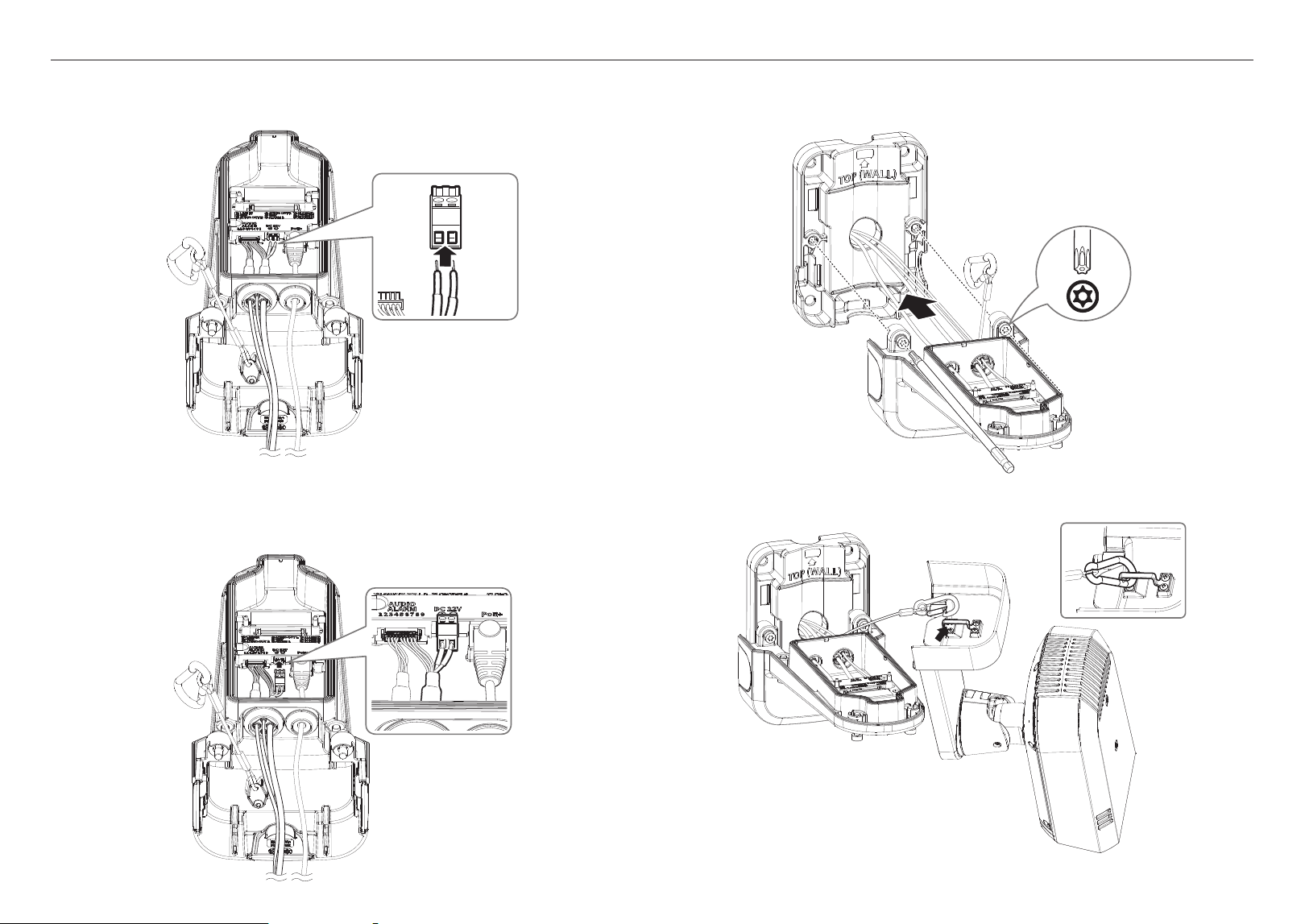

4-4. Insert the power terminal block into the power input terminal (DC 12V).
Installation (wall mount)
5. Attach the lower part of the wall mount to the mount plate using a screwdriver bit.
2x
TR30
6. Connect the safety cable at the bottom of the mount to the hook at the top of the mount.
e.g.
English _13
! INSTALLATION & CONNECTION
7. Attach the camera to the lower part of the mount using a screwdriver bit.
J
`
Make sure to tighten the screws firmly so that there is no problem with waterproofing.
4x
TR30
INSERTING/REMOVING A MICRO SD CARD
Inserting a Micro SD card
1. Turn two screws counterclockwise with the provided Torx L wrench to open the cover at the bottom of the
camera.
2x
TR20
2. Insert a Micro SD card in the direction of the arrow.
J
`
The Micro SD card should be inserted before installing the camera and inputing power source.
`
Do not insert it forcedly in the reverse direction. It might cause your Micro SD card and your product damaged.
`
It is not recommended to remove or insert a Micro SD card in rainy or humid weather.
`
When installing/removing the Micro SD card, make sure you put the product body on a flat ground before working on it in order
to prevent accidents due to loss or drop of any parts.
installation & connection
14_ installation & connection
Removing a Micro SD card
Gently press down the exposed end of the Micro SD card to eject it from the slot.
J
`
Before removing the Micro SD card, in <Setup ( )>-<Event>-<Storage>, set the device to <Off> and press the [Apply]
button and turn the camera off.
`
If the micro SD card is removed or the power is turned off while data is being saved to the micro SD card, the data may be lost
or corrupted.
CONNECTING WITH OTHER DEVICE
Grounding cable
Wi-Fi dongle
Power
PoE+ Router
J
`
The Micro USB port is used to connect a Wi-Fi dongle to communicate a smartphone installed the applications.
`
Smartphone videos which use the WiFi dongle output <CH1: Visible> or <CH2: Thermal> video of the camera. These
videos are intended to provide convenience for camera installation and are not suitable for surveillance.
`
Whenever there is a change in the ambient temperature or a specific interval is reached, the thermal video in use will
temporarily freeze for about 1-2 seconds. This phenomenon is a normal operation for calibrating the thermal video.
English _15
! INSTALLATION & CONNECTION
Ethernet Connection
Connect the Ethernet cable to the local network or to the Internet.
Connect to WiFi dongle
Camera Setup
1. Connect an OTG adapter (5-pin) and a WiFi dongle to the micro USB port.
Smartphone Setup
1. Install the Wisenet Installation application.
2. Select the camera SSID after turning on the WiFi.
3. Run the Wisenet Installation application.
4. When you log in to the camera, the video will be displayed.
`
When connecting for the first time, the video runs without logging in.
5. You can adjust angle of view while watching the video on the smartphone.
Recommended dongle manufacturer and its model name
Manufacturer Model
NETIS WF2123 n300
EDIMAX EW-7811Un V2(New ver.)
IP Time N100mini
IP Time N105L
TP-LINK TL-WN823N V1
TP-LINK TL-WN725N
TP-LINK T2U Nano
ASUS USB-N13
ASUS USB-N10 NANO
NETGEAR WNA3100M
IODATA WN-G150UMW
IODATA WN-S150UM
TOTOLINK N300UM

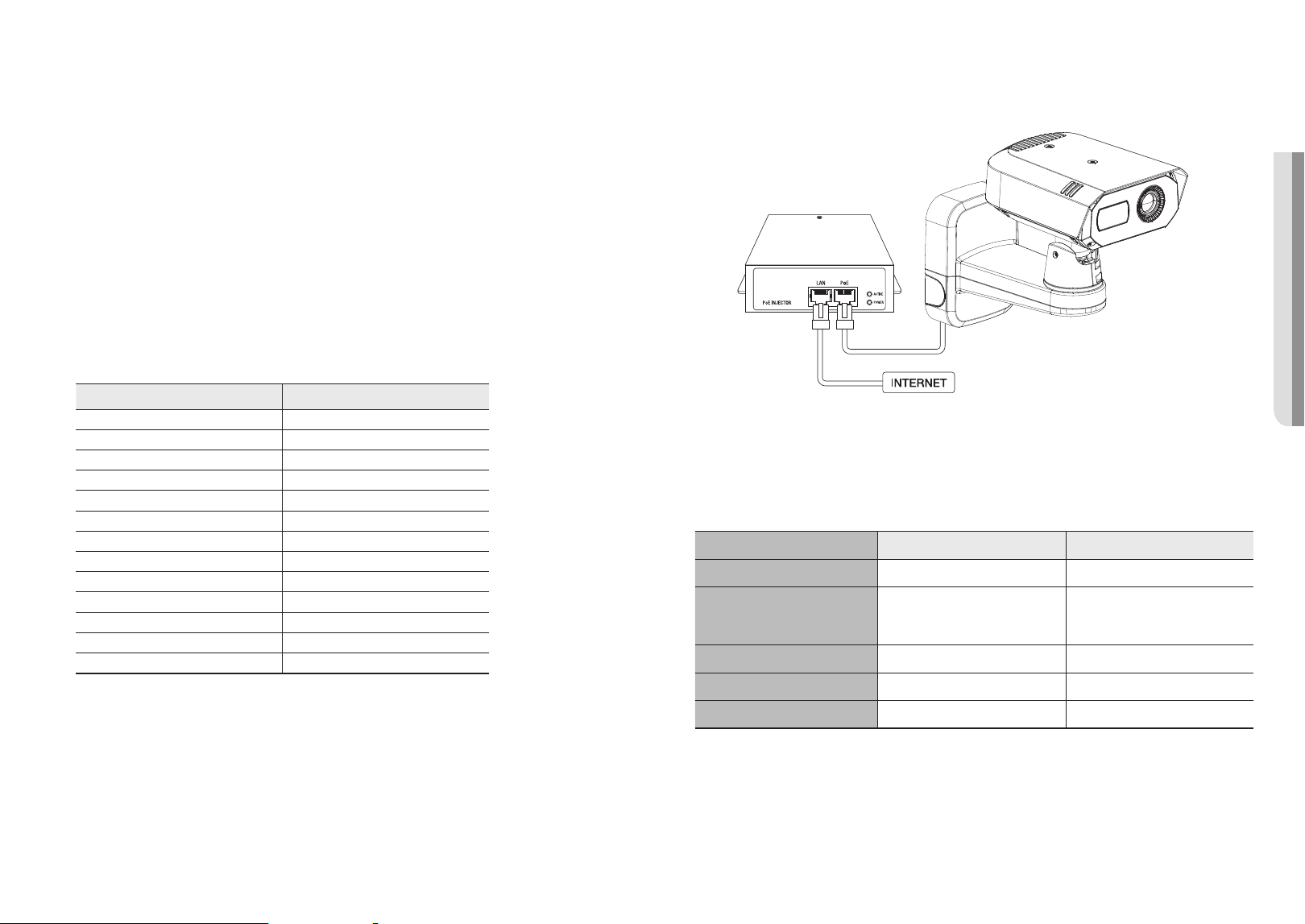

Powering and networking
Connect a PoE+ device to the PoE+ port on the lower part of the mount on the camera.
J
`
Connect to a router capable of PoE+ and use it.
`
Use a device that supports the IEEE 802.3at standard.
`
If you connect a router capable of PoE+ to the PoE+ port, you can use the camera without a separate power source (DC12V).
Network Cable Specification
Item Contents Remark
Connector
RJ45(10/100/1000BASE-T)
Ethernet 10/100/1000BASE-T
To operate it with 1000BASE-T, it is
necessary to use a Category 6 or higher
cable on the hub for appliances.
Cable Category 5e or higher
Max Distance 100 m DC Resistance ≤ 0.125 Ω/m
PoE+ Support IEEE 802.3at
installation & connection
16_ installation & connection

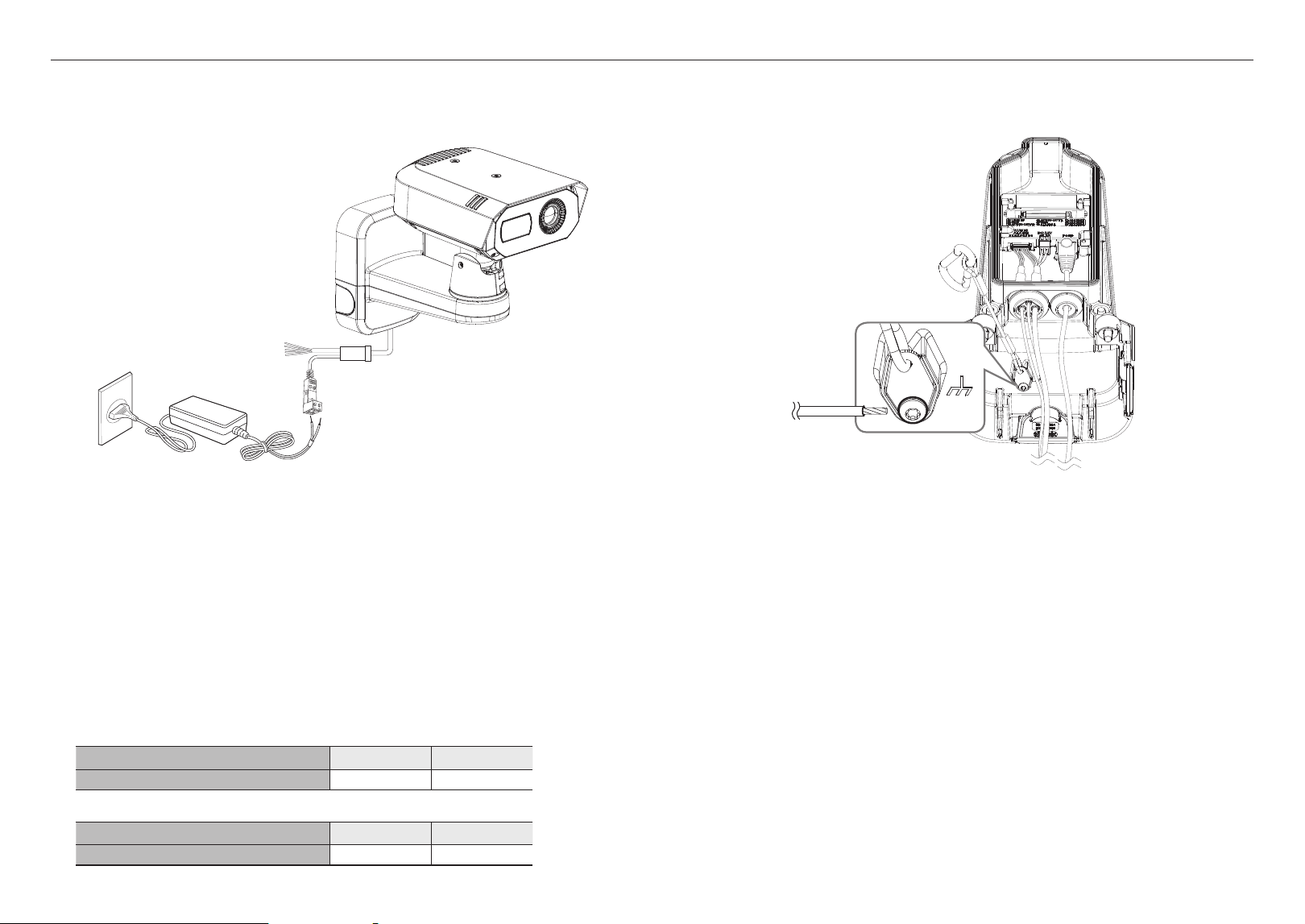

Power Supply
Connect the + , - line of the power adapter to the power terminal block connected the power port of the
camera using a screwdriver.
J
`
When PoE+ and DC 12V power are turned on at the same time, the device power is supplied simultaneously from both of
them.
- If you connect a router capable of PoE+ to the PoE+ port, you can use the camera without a separate power source
(DC12V).
- It is recommended to use the only one power source among PoE+ and DC 12V for the device.
`
Be careful not to reverse the polarity when connecting DC power cables.
`
When the initial power is applied, the thermal imaging screen will require about 30 minutes for stabilizing as it is being
continuously calibrated.
`
If you want to connect an external device, you must turn it off before doing it.
`
Before connecting a power plug to an outlet, connect the power cable to the camera and adapter first.
Power Cable Specification
In case of DC 12V Input:
(TNM-C4940TD)
Wire Type (AWG) #18 #16
Cable Length (Max.) 11m 18m
(TNM-C4950TD/C4960TD)
Wire Type (AWG) #18 #16
Cable Length (Max.) 13m 20m
Grounding the Camera
Connect the ground wire to the safety cable’s fixing screw on the lower part of the mount.
J
`
Grounding serves to protect the camera from lighting surge.
`
Before connecting a grounding wire, make sure to turn off the power of the camera.
Recommended Grounding Cable
~
Length : Less than 3M
~
Gauge : 18 AWG or bigger
Ex) UL1007 AWG 18/16, UL1015 AWG18/16/14/12
English _17
! INSTALLATION & CONNECTION

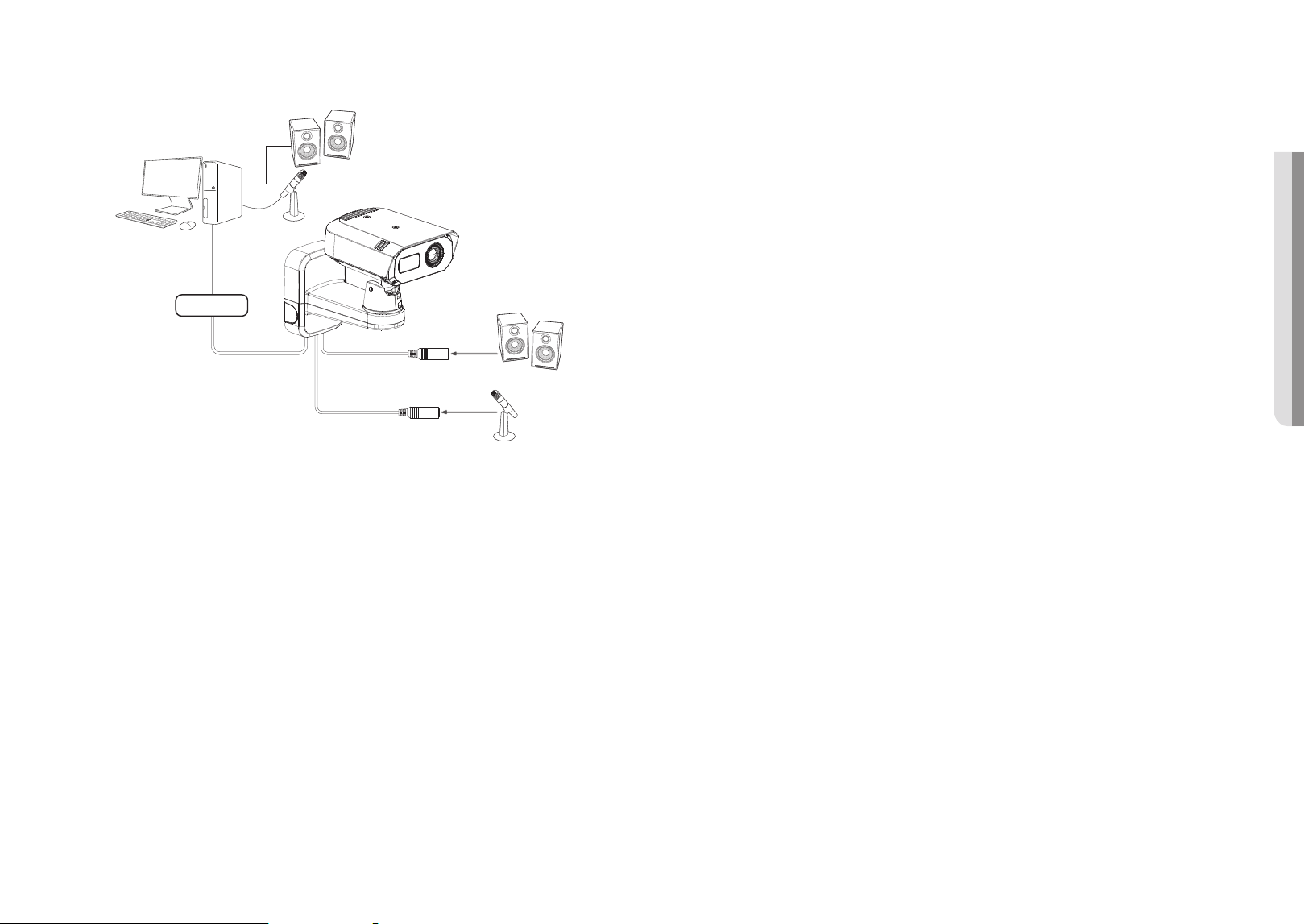

Connecting to Audio Input/Output
Speaker
Speaker
Microphone
PC
Microphone
Network
1. Connect the MIC terminal of the camera to a microphone or LINE OUT port of the amplifier where a
microphone is connected.
2. Connect the SPEAKER terminal of the camera to a speaker or LINE IN port of the amplifier where a
speaker is connected.
3. Check the specifications for audio input.
~
Audio Codec
- Audio In : G.711 PCM (Bit Rate: 64kbps / Sampling Frequency: 8kHz), G.726 ADPCM (Bit Rate:
16Kbps, 24Kbps, 32Kbps, 40Kbps / Sampling Frequency: 8kHz), AAC (Bit Rate: 48Kbps / Sampling
Frequency: 16kHz)
- Audio Out : G.711 PCM (Bit Rate: 64kbps / Sampling Frequency: 8kHz)
~
Full duplex Audio
~
Audio in : Selectable (microphone/Line-in), Supported voltage: 2.5VDC (4mA), Input impedance: 2K Ohm
~
Audio out : Line-out (3.5mm mono jack), Maximum output: 1
Vrms, Line out impedance : 600Ω
J
`
In the case you access the web viewer and select an external microphone as the audio input sources in <Video & Audio> -
<Audio setup>, the following specifications are recommended:
-
Frequency range: 40-16,000 Hz
-
Impedance: 1,500 Ω
-
Sensitivity: -40±3 dB (7.1-14.1 mV)
`
In the following cases, sound classification performance may deteriorate or malfunction.
-
The case of sound like a machine gun sound, not a single shot gunshot.
-
The case that the noise is too loud, so target sound source is not distinguishable.
-
The case that two or more different sound sources are input at the same time.
-
The case that sound classification is applied using noise canceling function in a quiet condition.
-
The case of applauding, screaming, etc., at a close distance from the camera (within 1 meter)
-
The case that a sound source such as an airplane sound or a siren sound, which is not in a sound classification category,
is suddenly loud.
-
The case that an external microphone does not meet the recommended specifications.
installation & connection
18_ installation & connection

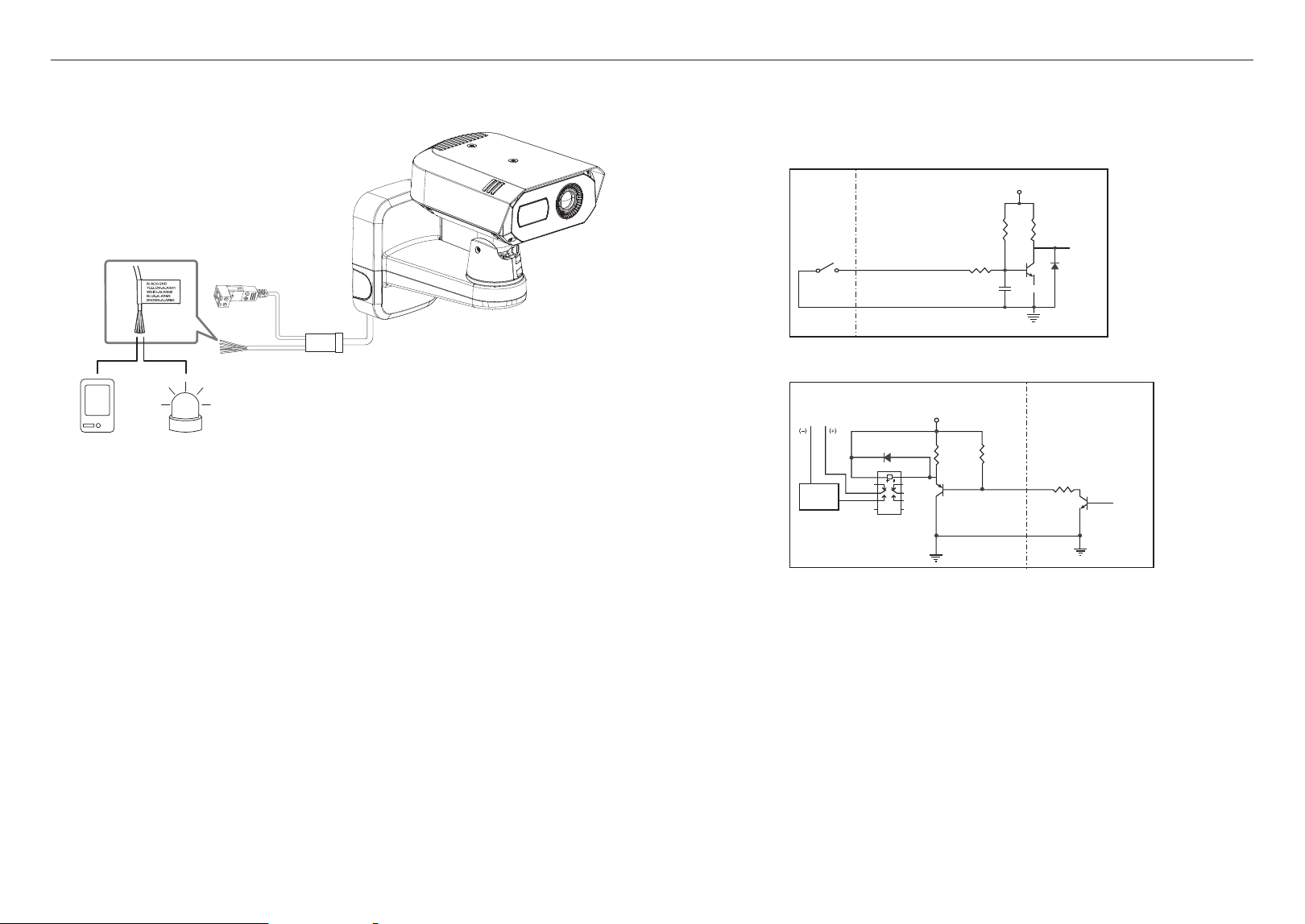

Connecting to the I/O device
Connect the Alarm I/O cable to the corresponding port of the port box.
Sensor Alarm
(Warning lamp)
~
ALARM 1~4 : These ports can be used as alarm input or output ports. If used as input ports, alarm input
or day/night sensors can be connect to them. If used as output ports, alarm output signals
can be connect to them.
※
The setting of each alarm input/output port can be changed at the Web Viewer setting
menu.
~
GND : Common ground for alarm in/output signal.
J
`
If devices (e.g., flashing light and siren) that exceed the voltage and current specifications are connected by using the open
collector method, it may cause malfunction.
Refer to the “Alarm Out Wiring Diagram” when connecting devices such as a warning lamp or a siren.
Sensor
GND
RESISTORALARM IN (5mA SINK)
RESISTOR RESISTOR
VCC_3.3V
DIODE
GND
MLCC
TRANSISTOR
External
connection
Inside of the camera
Warning lamp /
Siren power
Warning lamp /
Siren
ALARM OUT (12VDC 20mA MAX)
RESISTOR 10K ohm
DIODE
RELAY
DC 5V or 3.3V
TRANSISTOR
GND
GND
TRANSISTOR
External connection Inside of the camera
GND
RESISTOR
Connecting to an external sensor
One of the signal lines (2 wires) of various sensors is connected to the [ALARM 1~4 (where the
corresponding terminal is set as input)] terminal, and the other connected to the [GND] terminal.
Alarm In Wiring Diagram
Alarm Out Wiring Diagram
English _19
! NETWORK CONNECTION AND SETUP
network connection and setup
You can set up the network settings according to your network configurations.
CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORK
Connecting to the camera from a local PC in the LAN
1. Launch an Internet browser on the local PC.
2. Enter the IP address of the camera in the address bar of the browser.
M
`
A remote PC in an external Internet out of the LAN network may not be able to connect to the camera installed in the intranet
if the port-forwarding is not properly set or a firewall is set.
In this
case, contact your network administrator.
`
By factory default, the IP address will be assigned from the DHCP server automatically.
If there is no DHCP server available, the IP address will be set to 192.168.1.100.
To change the IP address, use the Device Manager.
For how to use the device manager, refer to “USING DEVICE MANAGER”. (Page 20)
CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE
MODEM
1. Connect the user PC directly with the network camera.
2. The IP address of the camera can be changed by the Device Manager so that a user can access it on the
web browser through the Internet.
3. Access the Web Viewer of the camera using an Internet browser.
4. Move to [Setup] page.
5. Move to [Network] – [DDNS] and configure the DDNS settings.
6. Move to [Basic] – [IP & Port], and set the IP type to [DHCP].
7. Connect the camera, which was removed from your PC, directly to the modem.
8. Restart the camera.
M
`
For information on how to set DDNS, refer to the online help of Web Viewer.
`
For information on how to set the IP, refer to the online help of Web Viewer.
Camera External Remote PC
DDNS Server
(Data Center, KOREA)
DSL/Cable Modem
INTERNET
Camera
Camera
Local PC
INTERNET
External Remote PC
DDNS Server
(Data Center, KOREA)
<Local Network>
network connection and setup
20_ network connection and setup
USING DEVICE MANAGER
M
`
Device manager program can be downloaded from <Support>-<Online Tools> menu at Hanwha Vision website
(https://www.HanwhaVision.com).
`
More instructions of Device Manager can be found at <Help> menu of the main page.
SEARCHING CAMERA AUTOMATICALLY
If a camera is connected to the same network of the PC where device manager is installed, you
can find any network camera by using search function.
1. Click <Search> at the main page of the device manager.
2. Check the camera from the list.
~
Check MAC address at the sticker attached to the camera.
CONFIGURING IP ADDRESS
If you want to change camera network setting, <Login OK> sign must be displayed at <Status>.
Click <Authentication> at the main page to log in.
Configuring Static IP
Manually insert and configure IP address & port information.
1. Click the camera that you want to change the IP setting at
the list.
2. Click <IP Assign> at the main page of the device manager.
3. Select <Assign the following IP address>.
~
IP information of the camera will be displayed as previously
set.
4. Fill in IP & Port related categories.
If not using a Broadband Router
For setting <IP Address>, <Subnet Mask>, and <Gateway>, contact your network administrator.
~
HTTP Port : Used to access the camera using the Internet browser. The default value is 80.
~
RTSP Port: Used to control real-time streaming. The default value is 554.
If using a Broadband Router
~ IP Address : Enter an address falling in the IP range provided
by the Broadband Router.
ex) 192.168.1.2~254, 192.168.0.2~254,
192.168.XXX.2~254
~
Subnet Mask : The <Subnet Mask> of the Broadband Router
will be the <Subnet Mask> of the camera.
~
Gateway : The <Local IP Address> of the Broadband Router
will be the <Gateway> of the camera.
M
`
The settings may differ depending on the connected Broadband Router model.
For more information, refer to the user manual of the applicable router.
`
For more information about port forwarding of the broadband router, refer to “Port Range Forward (Port Mapping) Setup”.
(
Page 22)
If the Broadband Router has more than one camera connected
Configure the IP related settings and the Port related settings distinctly with each other.
ex)
Category Camera #1 Camera #2
IP related settings
IP Address
Subnet Mask
Gateway
192.168.1.100
255.255.255.0
192.168.1.1
192.168.1.101
255.255.255.0
192.168.1.1
Port related settings
HTTP Port
RTSP Port
8080
554
8081
555
M
`
If the <HTTP Port> is set other than 80, you must provide the <Port> number in the address bar of the Internet browser
before you can access the camera.
ex) http://IP address : HTTP Port
http://192.168.1.100:8080
5. Click [Apply] Button.
6. If the success message is displayed, click [OK].
English _21
! NETWORK CONNECTION AND SETUP

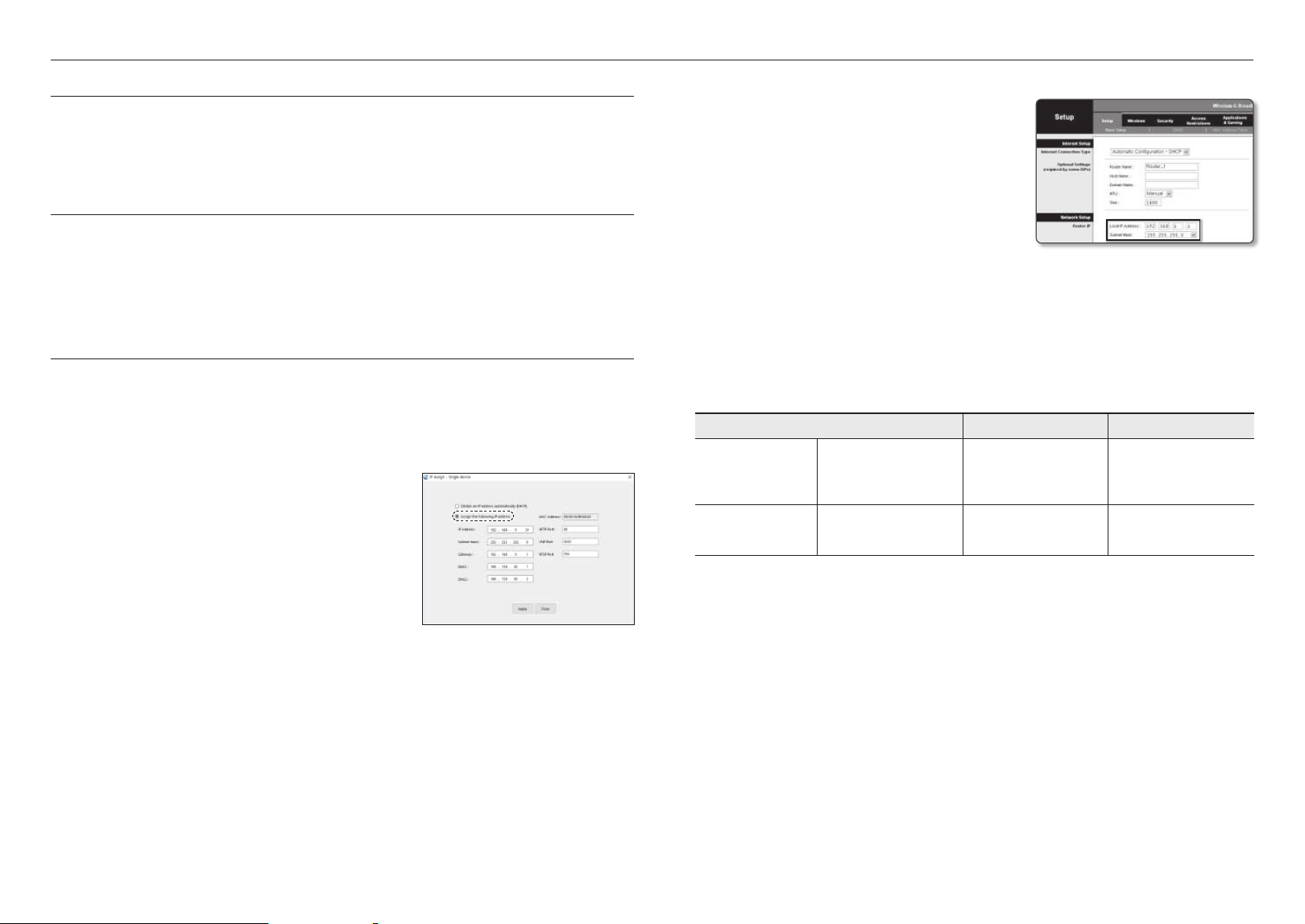

Configuring Dynamic IP
Receive IP address from DHCP
~
Example of the Dynamic IP environment
- If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server
- If connecting the camera directly to modem using the DHCP protocols
- If IPs are assigned by the internal DHCP server via the LAN
1. Click the camera that you want to change the IP setting at
the list.
2. Click <IP Assign> at the main page of device manager.
3. Select <Obtain an IP address automatically (DHCP)>.
4. Click [Apply] button.
5. If the success message is displayed, click [OK].
REGISTERING CAMERA MANUALLY
If the camera cannot be found using search function, the camera can be registered remotely by
manually inserting IP information, if the camera is connected to external network.
1. Click <Add Devices> - <Manually Add Device> at the main
page of the device manager.
2. Insert the range of IP address that you search.
3. Select the <Model Name> of the camera that you register,
and insert HTTP port, ID, and password.
4. Click [Register] button.
5. Check if camera is registered.
~
Check its MAC address at the sticker attached to the
camera.
CONFIGURING IP AUTOMATICALLY
1. Click the camera from the list that you want to automatically
configure the IP.
2. Click < + > at the main page of the device manager.
~
Equipment Setting menu appears.
3. At the menu, click <Auto IP Configure>.
4. Click [Close] button.
TNM-C4940TD
network connection and setup
22_ network connection and setup
PORT RANGE FORWARD (PORT MAPPING) SETUP
If you use a Broadband Router with a camera connected, you must set the port range forwarding on the
Broadband Router so that a remote PC can access the camera in it.
Manual Port Range Forwarding
1. From the Setup menu of the Broadband Router, select
<Applications & Gaming> - <Port Range Forward>.
For setting the port range forward for a third-party Broadband
Router, refer to the user guide of that Broadband Router.
2. Select <TCP> and <UDP Port> for each connected camera
to the Broadband Router.
The number of each port to be configured to the IP router
should be set according to the port number designated
in <Setup> - <Basic> - <IP & Port> on the camera web
viewer.
3. When done, click [Save Settings].
Your settings will be saved.
M
`
Port forwarding setting is an example of setting a CISCO IP router.
`
The settings may differ depending on the connected Broadband Router model.
For more information, refer to the user manual of the applicable router.
Setting up Port Range Forward for several network cameras
~
You can set a rule of Port Forwarding on the Broadband Router device through its configuration web page.
~
A user can change each port using the camera setting screen.
When Camera1 and Camera2 are connected to a router :
User
Internet
Broadband Router
Start End Protocol IP Address
3000 3000 TCP/UDP 192.168.1.100
3001 3001 TCP/UDP 192.168.1.101
8080 8080 TCP/UDP 192.168.1.100
8081 8081 TCP/UDP 192.168.1.101
Camera1 (192.168.1.100)
HTTP port 8080
RTSP port 3000
Camera2 (192.168.1.101)
HTTP port 8081
RTSP port 3001
M
`
Port forwarding can be done without additional router setup if the router supports the UPnP (Universal Plug and Play) function.
After connecting the network camera, select the checkbox from the menu <Quick connect> in <DDNS> in “Settings ->
Network -> DDNS”.
English _23
! NETWORK CONNECTION AND SETUP
CONNECTING TO THE CAMERA FROM A SHARED LOCAL PC
1. Run the device manager.
It searches connected cameras and displays them as a list.
2. Double-click a camera to access.
The Internet browser opens and the camera is connected.
M
`
Access to the camera can also be available by typing the camera’s IP address in the address bar of the Internet browser.
CONNECTING TO THE CAMERA FROM A REMOTE PC VIA THE
INTERNET
On a remote computer that is in the Broadband Router’s network cluster, users can access cameras within a
Broadband Router’s network by using the camera’s DDNS URL.
1. Before you can access a camera in the Broadband Router network, you should have set the port range
forward for the Broadband Router.
2. From the remote PC, launch the Internet browser and type the DDNS URL address of the camera, or the
IP address of the Broadband Router in the address bar.
ex) http://ddns.hanwha-security.com/ID
M
`
To use DDNS, sign up at the DDNS homepage (http://ddns.hanwha-security.com) and register the product at [My DDNS]>
[Register Product].
web viewer
24_ web viewer
web viewer
CONNECTING TO THE CAMERA
Normally, you would
1. Launch the Internet browser.
2. Type the IP address of the camera in the address bar.
ex) • IP address (IPv4) : 192.168.1.100
;
http://192.168.1.100
- the Login dialog should appear.
• IP address (IPv6) : 2001:230:abcd: ffff:0000:0000:ffff:1111
;
http://[2001:230:abcd:ffff:0000:0000:ffff:1111] - the Login
dialog should appear.
If the HTTP port is not 80
1. Launch the Internet browser.
2. Type the IP address and HTTP port number of the camera in the address bar.
ex) IP address : 192.168.1.100:HTTP Port number(8080)
;
http://192.168.1.100:8080 - the Login dialog should appear.
Using URL
1. Launch the Internet browser.
2. Type the DDNS URL of the camera in the address bar.
ex) URL address : http://ddns.hanwha-security.com/ID
- the Login dialog should appear.
J
`
Network connection is disabled in the LAN only environment.
Connecting via UPnP
1. Run the client or operating system to support the UPnP protocol.
2. Click the camera name for search.
In the Windows operating system, click the camera name searched from the network menu.
- The login window is displayed.
Connecting via Bonjour
1. Run the client or operating system to support the Bonjour protocol.
2. Click the camera name for search.
In the Mac operating system, click the camera name searched from the Bonjour tab of Safari.
- The login window is displayed.
To check the DDNS address
If the camera is connected directly to the DHCP cable modem, DSL modem, the IP address of your network
will be changed each time you try to connect to the ISP (Internet Service Provider) server.
In this case, you will not be informed of the IP address changed by DDNS.
Once you register a dynamic IP-based device with the DDNS server, you can easily check the changed IP
when you try to access the device.
To register your device to the <DDNS> server, visit http://ddns.hanwha-security.com and register your device
first, and then set the Web Viewer’s <Network> - <DDNS> to <DDNS>, as well as providing <Product ID>
that had been used for DDNS registration.
English _25
! WEB VIEWER
PASSWORD SETTING
When you access a camera for the first time, you must register its
login password.
J
`
For a new password with 8 to 9 digits, you must use at least 3 of
the following: uppercase/lowercase letters, numbers and special
characters. For a password with 10 to 15 digits, you must use at
least 2 types of those mentioned.
-
Special characters that are allowed. :
~`!@#$%^&*()_-+={}[]|\;:‘“<>.,?/
`
Space is not allowed for password.
`
For higher security, you are not recommended to repeat the same characters or consecutive keyboard inputs for your
passwords.
`
If you lost your password, you can press the [RESET] button to initialize it. It makes other configuration settings as well as the
original password initialized. So, don’t lose your password by using a memo pad or memorizing it.
LOGIN
Whenever you access the camera, the login window appears.
Enter the User ID and password to access the camera.
1. Enter “admin” in the <User name> input box.
The administrator’s ID, “admin,” can be changed in the Web
Viewer.
2. Enter the password in the <Password> input field.
3. Click [Sign in].
If you log in successfully, you can see the Live Viewer screen.
J
`
When you access the camera web viewer, pay special attention to the security by checking whether the image data is
encrypted.
M
`
You will experience the best video quality if the screen size is 100%. Reducing the ratio may cut the image on the borders.
CAMERA WEB VIEWER SETUP
1. Click the [Setup (
)] icon.
2. The Settings window appears.
3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and
system over the network.
4. Click <Help (
)> to view detailed descriptions of each function.
26_ appendix
appendix
TROUBLESHOOTING
PROBLEM SOLUTION
When an Windows 10 user accesses
the web viewer through Chrome
or Firefox, the sound volume of
microphone changes periodically.
~
This is what happens when microphone driver has been set to Realtek driver.
Install the High Definition Audio device (Windows Default Driver) or the third party driver as
the microphone driver.
What are the specifications for WAVE
files necessary to play audio at the
time of an event?
~
Sampling rate of 48,000 KHz or less is recommended.
~
For bits per sample (bps), up to 8/16 bit is recommended.
~
Only PCM encoding format is supported.
No video is displayed when accessing
the plug-in free webviewer on Safari
via HTTPS.
~
On the authentication popup window prompted when initially accessing https, click "View
Authentication Certificate" and select the "Always trust when connecting to the designated
webviewer IP" check box.
~
If the webviewer continues failing to display a video after you select "Next" on the message
window below, press the command key + Q to exit the Safari browser, access again and
follow the procedures stated above.
I can’t access the camera from a web
browser.
~
Check to make sure that the camera’s Network settings are appropriate.
~
Check to make sure that all network cables have been connected properly.
~
If connected using DHCP, verify that the camera is able to acquire dynamic IP addresses
without any problem.
~
If the camera is connected to a Broadband Router, verify that port forwarding is properly
configured.
Viewer got disconnected during
monitoring.
~
Connected Viewers become disconnected upon any change to camera or network
configurations.
~
Check all network connections.
The camera connected to the network
is not detected in the Device Manager
program.
~
Turn off the firewall settings on your PC and then search the camera again.
Images overlap.
~
Check whether two or more cameras are set to a single multicast address instead of different
addresses. If a single address is used for multiple cameras, the images may overlap.
No image appears.
~
If the transmission method is set to multicast, check whether there is a router that supports
multicast in the LAN where the camera is connected.
Voice is not recorded even though
audio input settings are configured.
~
You must enable the <Audio In> check box in <Basic> - <Video Profile>.
PROBLEM SOLUTION
<Motion detection> of <Analytics> is
set to <Enable>, but no notification
e-mail reaches me even when an
analysis event had occurred.
~
Verify the settings in the following sequence:
A. Check <Data & Time> settings.
B. The <Motion detection> should be set to <Enable>.
C. Check if the <E-mail> option of <Event setup> menu is checked to use.
No signal is found at the Alarm Output
port even when an intelligent video
analysis event is generated.
~
Check alarm output port settings.
Cannot record into the Micro SD card.
~
Check if the Micro SD card is defective.
Micro SD card is inserted but the
camera does not operate properly.
~
Check if the Micro SD card is inserted in the proper direction. Operation of any Micro SD card
that is formatted by other devices is not guaranteed with this camera unit.
~
Format the Micro SD card again in <Setup>
;
<Event>
;
<Storage> menu.
Cannot record in the NAS.
~
Confirm that the information registered in the NAS is correct.
It reports that NAS setting has failed.
~
Confirm that the IP address of the NAS is valid.
~
Confirm that the ID/password of the NAS is valid.
~
Confirm that you can access the folder designated as the default folder using the ID of the
NAS.
~
Confirm that the NAS SMB/CIFS items are unchecked.
~
Confirm that the NAS IP address and the camera IP address are in the same format.
ex) The NAS & camera subnet mask initial value is 255.255.255.0.
If the IP address is 192.168.20.32 then the NAS IP address should be in the range of
192.168.20.1~192.168.20.255.
~
Check whether you tried to access as another user without formatting the default folder
saved or used.
~
Confirm that you used recommended NAS equipment.
At the hybrid color palette mode, a
color palette appears out of setting
range.
~
You should consider that the setting range of the hybrid color palette needs some margin
within its accuracy range.
~
The hybrid palette is affected by some factors such as a low emissive object, ambient
emissive sources and low temperature variation, etc. It may cause its operation to
malfunction.
~
It is recommended that it should not be used to the screen with low temperature variation
and the region of interest should be set with objects of temperature difference in a screen.
Some noises might be visible on the
screen.
~
Considered the nature of thermal camera, the time for stabilization is necessary after
powering it on. During this time, some noises might be visible on the screen, but they will
normally disappear after about 30 minutes. This time could be increased depending on the
characteristics of the detector.
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other
household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains
mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these
substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them
through your local, free battery return system.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.
charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate
these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material
resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product and its electronic accessories should not be mixed with other commercial wastes for disposal.
Hanwha Vision cares for the environment at all product manufacturing stages, and is taking measures to provide
customers with more environmentally friendly products.
The Eco mark represents Hanwha Vision's devotion to creating environmentally friendly products, and indicates that
the product satisfies the EU RoHS Directive.
Any changes or modifications in construction of this device which are not expressly approved by the
party responsible for compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
