• Page 1 - English - : Operating and installation instructions Steam combination oven It is essential to read these operating and installation instructions before installing and using the appliance This prevents both personal injury and damage to the appliance enAU NZ MNr 11 218 760
• Page 2 - English - : Contents Warning and Safety instructions 8 Caring for the environment 18 Overview 19 Steam oven 19 Data plate 21 Accessories supplied 21 Controls 24 OnOff sensor 25 Proximity sensor 25 Sensor controls 26 Touch display 27 Symbols 28 Operating principles 29 Selecting a menu option 29 Scrolling through menus 29 Exiting a menu 29 Changing a value or setting 29 Changing a setting in a list 29 Entering numbers with the roller 29 Entering numbers using the numerical keypad 29 Changing the setting with a segment bar 30 Entering letters 30 Displaying the context menu 30 Moving entries 30 Displaying the pulldown menu 31 DisplayingHelp 31 Activating MobileStart 31 Description of the functions 32 Control panel 32 Water container 32 Food probe 32 TemperatureCore temperature 32 Moisture 32 Cooking duration 33 Noises 33 Heatingup phase 33 Cooking phase 33 Steam reduction 34 Oven interior lighting 34
• Page 3 - English - : Contents Before using for the first time 35 Mielehome 35 Standard settings 36 Cleaning for the first time 37 Setting the correct boiling point for water 38 Heating up the appliance 39 Settings 40 Settings overview 40 Opening the Settings menu 43 Language 43 Time 43 Date 44 Lighting 44 Start screen 45 Display 45 Volume 46 Units 46 Keeping warm 46 Steam reduction 47 Recommended temperatures 47 Booster 48 Automatic rinsing 48 Water hardness 49 Proximity sensor 50 Safety 51 Furniture front recognition 52 Mielehome 52 Remote control 53 Activating MobileStart 53 SuperVision 54 RemoteUpdate 55 Software version 56 Legal information 56 Showroom programme 56 Factory default settings 56 Alarm minute minder 57 Using the Alarmfunction 57 Using the Minute minderfunction 58 Main and submenus 59 Energy saving tips 61
• Page 4 - English - : Contents Operation 63 Changing values and settings for a cooking programme 64 Changing the temperature and core temperature 65 Changing the moisture level 65 Setting cooking durations 65 Changing the set cooking durations 66 Deleting the set cooking durations 66 Cancelling cooking 67 Interrupting a cooking programme 67 Preheating the oven 68 Booster 68 Preheat 69 Crisp function 69 Injecting bursts of steam 70 Changing the function 71 General notes 72 The advantages of cooking with steam 72 Suitable containers 72 Shelf level 73 Frozen 73 Temperature 73 Duration 73 Cooking with liquid 73 Your own recipes steam cooking 73 Universal tray and combi rack 74 Steam cooking 75 Eco Steam cooking 75 Notes on the cooking charts 75 Vegetables 76 Fish 79 Meat 82 Rice 84 Grains 85 PastaNoodles 86 European dumplings 87 Dried pulses 88 Hens eggs 90 Fruit 91 Sausages 91 Shellfish 92 Mussels 93
• Page 5 - English - : Contents Menu cooking manual 94 Sousvide vacuum cooking 96 Special applications 104 Reheat 104 Defrost 106 Mix amp Match 109 Blanch 120 Bottling 120 Bottling cakes 123 Drying 124 Prove yeast dough 125 Menu cooking automatic 125 Disinfect items 126 Sabbath programme 127 Heat crockery 128 Keeping warm 128 Heat damp towels 129 Dissolve gelatine 129 Decrystallise honey 130 Melt chocolate 130 Make yoghurt 131 Render fat 132 Sweat onions 132 Extracting juice 133 Fruit jam 134 Skinning fruit and vegetables 135 Preserving apples 136 Preparing custard royale 136 Automatic programmes 137 Categories 137 Using Automatic programmes 137 Usage notes 137 Search 138 MyMiele 139 User programmes 140 Baking 144 Baking guidelines 144 Tips on baking 145
• Page 6 - English - : Contents Notes on the oven functions 145 Roasting 147 Roasting tips 147 Notes on the oven functions 147 Food probe 149 Grilling 153 Grilling tips 153 Tips for grilling 153 Notes on the oven functions 154 Cleaning and care 156 Notes on cleaning and care 156 Unsuitable cleaning agents 157 Cleaning the front 157 PerfectClean 158 Oven compartment 159 Cleaning the water container 160 Accessories 161 Cleaning the shelf runners 162 Lowering the top heatgrill element 163 Maintenance 164 Soaking 164 Drying 164 Rinsing 164 Descaling the steam oven 164 Removing the door 166 Fitting the door 167 Problem solving guide 168 Messages in the display 168 Unexpected behaviour 171 Noises 173 Unsatisfactory results 173 General problems or technical faults 174 Optional accessories 176 Cooking containers 176 Other 176 Cleaning and care products 176 Service 177 Contact in case of fault 177
• Page 7 - English - : Contents Warranty 177 Installation 178 Safety instructions for installation 178 Installation notes 179 Installation dimensions 180 Installation in a tall unit 180 Installation in a base unit 181 Side view 182 Room for the control panel to open and close 183 Connections and ventilation 184 Installing the steam oven 185 Mains water connection 186 Drainage 188 Electrical connection 189 Copyright and licences 190 Copyright and licences for the communication module 191
• Page 8 - English - : Warning and Safety instructions The steam combination oven is referred to in the following instructions as a steam oven This appliance complies with all current local and national safety requirements However inappropriate use can lead to personal injury and damage to property Please read these operating and installation instructions carefully before using the steam oven for the first time They contain important information on safety installation use and maintenance of the appliance This prevents both personal injury and damage to the steam oven In accordance with standard IEC603351 Miele expressly and strongly advises that you read and follow the instructions in Installation as well as in the Warning and Safety instructions Miele cannot be held liable for injury or damage caused by non compliance with these instructions Keep these instructions in a safe place and pass them on to any future owner
• Page 9 - English - : Warning and Safety instructions Correct application This steam oven is designed for domestic use and for use in similar environments by guests in hotel or motel rooms bed amp breakfasts and other typical living quarters This does not include commonshared facilities or commercial facilities within hotels motels or bed amp breakfasts The steam oven is not suitable for outdoor use The steam oven is intended only to steam bake roast grill defrost and reheat food Any other use is not permitted This appliance is not intended for use by persons including children with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning its use by a person responsible for their safety and are able to recognise the dangers of misuse This steam oven is supplied with a special lamp to cope with particular conditions eg temperature moisture chemical resistance abrasion resistance and vibration This special lamp must only be used for the purpose for which it is intended It is not suitable for room lighting Replacement lamps may only be replaced by a Miele authorised technician
• Page 10 - English - : Warning and Safety instructions Safety with children Activate the system lock to ensure that children cannot switch on the steam oven inadvertently Young children must not be allowed to use this appliance Older children may only use the appliance if its operation has been clearly explained to them and they are able to use it safely They must be able to understand and recognise the possible dangers caused by incorrect operation Cleaning may only be carried out by older children under the supervision of an adult Please supervise children in the vicinity of the steam oven and do not let them play with it Risk of suffocation from packaging material Whilst playing children may become entangled in packaging material such as plastic wrapping or pull it over their head with the risk of suffocation Keep packaging material away from children Risk of injury caused by hot surfaces Childrens skin is far more sensitive to high temperatures than that of adults External parts of the steam oven such as the door glass control panel and the vent become quite hot Do not let children touch the steam oven when it is in operation Keep children well away from the steam oven until it has cooled down and there is no danger of injury Risk of injury from the open door The oven door can support a maximum weight of 10kg Children could injure themselves on an open door Do not let children sit on the open door lean against it or swing on it
• Page 11 - English - : Warning and Safety instructions Technical safety Unauthorised installation maintenance and repairs including removal of any cover can cause considerable danger for the user Installation maintenance and repairs must only be carried out by a Miele authorised technician A damaged appliance is dangerous Check the appliance for any visible damage Never install or attempt to use a damaged appliance Temporary or permanent operation with a selfsufficient or non mains synchronous energy supply system eg isolated networks backup systems is possible A requirement for the operation is that the energy supply system complies with all current local and national requirements that apply to standalone solar andor battery systems The protective measures provided in the installation and in this Miele product must also be assured in their function and operation in isolated operation or in nonmains synchronous operation or replaced with equivalent measures in the installation The electrical safety of this appliance can only be guaranteed when continuity is complete between it and an effective earthing system It is most important that this basic safety requirement is present and tested regularly and where there is any doubt the household wiring system should be inspected by a qualified electrician Before connecting the appliance to the mains supply ensure that the connection data on the data plate voltage and frequency matches the mains electricity supply This data must correspond in order to avoid the risk of damage to the appliance Consult a qualified electrician if in any doubt Do not connect the appliance to the mains electricity supply by a multisocket adapter or an extension lead These do not guarantee the required safety of the appliance eg danger of overheating
• Page 12 - English - : Warning and Safety instructions For safety reasons this appliance may only be used after it has been built in This appliance must not be installed and operated in mobile installations eg on a ship Risk of injury due to electric shock Any contact with live connections or tampering with the electrical or mechanical components of the oven will endanger your safety and may lead to steam oven malfunctions Do not open the steam oven housing under any circumstances The manufacturers warranty will be invalidated if the appliance is not repaired by a Miele approved service technician Faulty components must only be replaced by genuine Miele spare parts The manufacturer can only guarantee the safety of the appliance when Miele replacement parts are used If the electrical plug is removed from the mains connection cable or if the mains connection cable is supplied without a power plug the steam oven must be connected to the electrical supply by a qualified electrician If the mains connection cable is damaged it must be replaced with a special mains connection cable by a qualified and competent electrician in order to avoid a hazard see Installation Electrical connection During installation maintenance and repair work the appliance must be disconnected from the mains electricity supply It is only completely isolated from the electricity supply when it is switched off at the mains circuit breaker or it is switched off at the wall socket and the plug is withdrawn from the socket Do not pull the mains connection cable but the mains plug to disconnect your appliance from the mains electricity supply
• Page 13 - English - : Warning and Safety instructions If the steam oven is installed behind a furniture front eg a door do not close the furniture front while the steam oven is in use Heat and moisture can build up behind a closed furniture door This can result in damage to the steam oven the housing unit and the floor Leave the furniture door open until the steam oven has cooled down completely Connection to the mains water supply should only be carried out by a qualified and competent specialist Miele cannot be held liable for damage caused by incorrect installation or connection The appliance must be connected to the cold water supply only The tap must be easily accessible after the appliance has been installed Before connection check the inlet and drain hoses for visible signs of damage The steam combination oven may only be connected to the water supply with the new hose set supplied with the machine Old hoses must not be reused The water flow pressure must be at least 100 kPa and must not exceed 600 kPa The integrated water protection system offers protection from water damage provided the following conditions are met The steam oven is correctly installed connected to the electricity supply and plumbed in The steam oven is repaired if any damage is identified The tap has been turned off when the appliance is not going to be used for a longer period of time eg during holidays Warning If the lamps need to be replaced ensure they are replaced by a Miele approved service technician and that the appliance is switched off beforehand to avoid the possibility of an electric shock In areas which may be subject to infestation by cockroaches or other vermin pay particular attention to keeping the appliance and its surroundings clean at all times Any damage caused by cockroaches or other vermin will not be covered by the warranty
• Page 14 - English - : Warning and Safety instructions Correct use Risk of injury caused by hot surfaces and steam The steam oven gets hot during operation You could burn yourself on the heating elements oven compartment shelf runners accessories food or steam Wear oven gloves when placing food in the oven or removing it and when adjusting oven shelves etc in a hot oven Risk of injury caused by hot food Food may spill or splash around when placing it into the oven or removing it The food can cause burns When placing cooking containers in the oven or removing them make sure that the hot food does not spill Do not use the steam oven to heat up or bottle food in sealed tins Pressure will build up inside them and they can explode causing damage to the appliance as well as the risk of injury and scalding Plastic containers which are not heatresistant will melt and may ignite at high temperatures and can damage the steam oven Use only heatresistant plastic containers Please follow the container manufacturers instructions If you want to use plastic containers in your steam oven make sure they can resist high temperatures and steam Other plastic containers may melt distort or break Food which is left in the oven compartment can dry out and the moisture released can lead to corrosion damage in the steam oven Do not leave food in the oven compartment and do not use any cooking containers which are susceptible to corrosion Risk of injury from the open door You could bang into the open door or trip over it Avoid leaving the door open unnecessarily The door can support a maximum load of 10kg Do not sit on or lean against an open door and do not place heavy objects on it Also make sure that nothing can get trapped between the door and the oven compartment The steam oven could get damaged
• Page 15 - English - : Warning and Safety instructions Oil and fat can ignite if overheated Never leave the steam oven unattended when cooking with oil and fat If it does ignite do not put the flames out with water Switch the steam oven off immediately and then suffocate the flames by keeping the oven door closed Due to the high temperatures radiated objects left near the steam oven when it is in use could catch fire Do not use the steam oven to heat up the room Grilling food for excessively long cooking durations can cause it to dry out with the risk of catching fire Do not exceed the recommended cooking durations Some foods dry out very quickly and can be ignited by high grilling temperatures Do not use grilling functions for crisping rolls or bread or to dry flowers or herbs Instead use Fan Plus or Conventional Heat To avoid fuelling any flames do not open the oven door if there is smoke inside the steam oven Interrupt the programme by switching the steam oven off and disconnect it from the mains electricity supply Do not open the door until the smoke has dispersed If using alcohol in your recipes please be aware that high temperatures can cause the alcohol to vaporise and even to ignite on the hot heating elements Never line the floor of the oven compartment with aluminium foil or oven liners Do not place any crockery or any pans pots or baking trays directly on the floor of the oven compartment If you want to use the floor of the oven compartment as an extra surface place the rack on the floor of the oven compartment with the rack surface facing up and the cooking container on top In doing so ensure that the filter in the floor of the oven is not moved The oven compartment floor can become damaged by the rack being pushed around on it Do not push the rack around on the oven compartment floor
• Page 16 - English - : Warning and Safety instructions Larger deposits of food can block the drain and pump Always make sure that the filter in the floor of the oven is inserted To prevent the risk of damage do not leave the food probe in the steam combination oven when it is not being used When using a small electrical appliance eg a handheld blender near the steam oven care should be taken that the cable of the appliance cannot get trapped by the steam oven door The insulation on the cable could become damaged giving rise to an electric shock hazard Do not operate the appliance without the lamp cover Steam could attack the electrical components and cause a short circuit Steam could also damage the electrical components
• Page 17 - English - : Warning and Safety instructions Cleaning and care Risk of injury due to electric shock The steam from a steam cleaning appliance could reach electrical components and cause a short circuit Never use a steam cleaner for cleaning Scratches on the door glass can result in the glass breaking Do not use abrasive cleaners hard sponges brushes or sharp metal tools to clean the door glass The shelf runners can be removed see Cleaning and care Cleaning the shelf runners Refit the shelf runners correctly Try to avoid the interior walls being splashed with food or liquids containing salt If it does happen wipe these away thoroughly to avoid corrosion on the stainless steel surface Accessories Use only genuine original Miele spare parts If spare parts or accessories from other manufacturers are used the warranty will be invalidated and Miele cannot accept liability Miele will guarantee to supply functional spare parts for a minimum of 10years and up to 15years following the discontinuation of your steam oven Only use the Miele food probe supplied with this oven If it is faulty it must only be replaced with a suitable original Miele food probe The plastic on the food probe can melt at very high temperatures Do not use the food probe when grilling exception Fan Grill If you are not using the food probe do not store it in the oven
• Page 18 - English - : Caring for the environment Disposal of the packing material The transport and protective packaging has been selected from materials which are environmentally friendly for disposal and can normally be recycled Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites Ensure that any plastic wrappings bags etc are disposed of safely and kept out of the reach of babies and young children Danger of suffocation Disposing of your old appliance Electrical and electronic appliances often contain valuable materials They also contain specific materials compounds and components which were essential for their correct function and safety These could be hazardous to human health and to the environment if disposed of with your domestic waste or if handled incorrectly Please do not therefore dispose of your old appliance with your household waste Please dispose of it at your local community waste collection recycling centre for electrical and electronic appliances You are also responsible for deleting any personal data that may be stored on the appliance prior to disposal Please ensure that your old appliance poses no risk to children while being stored prior to disposal

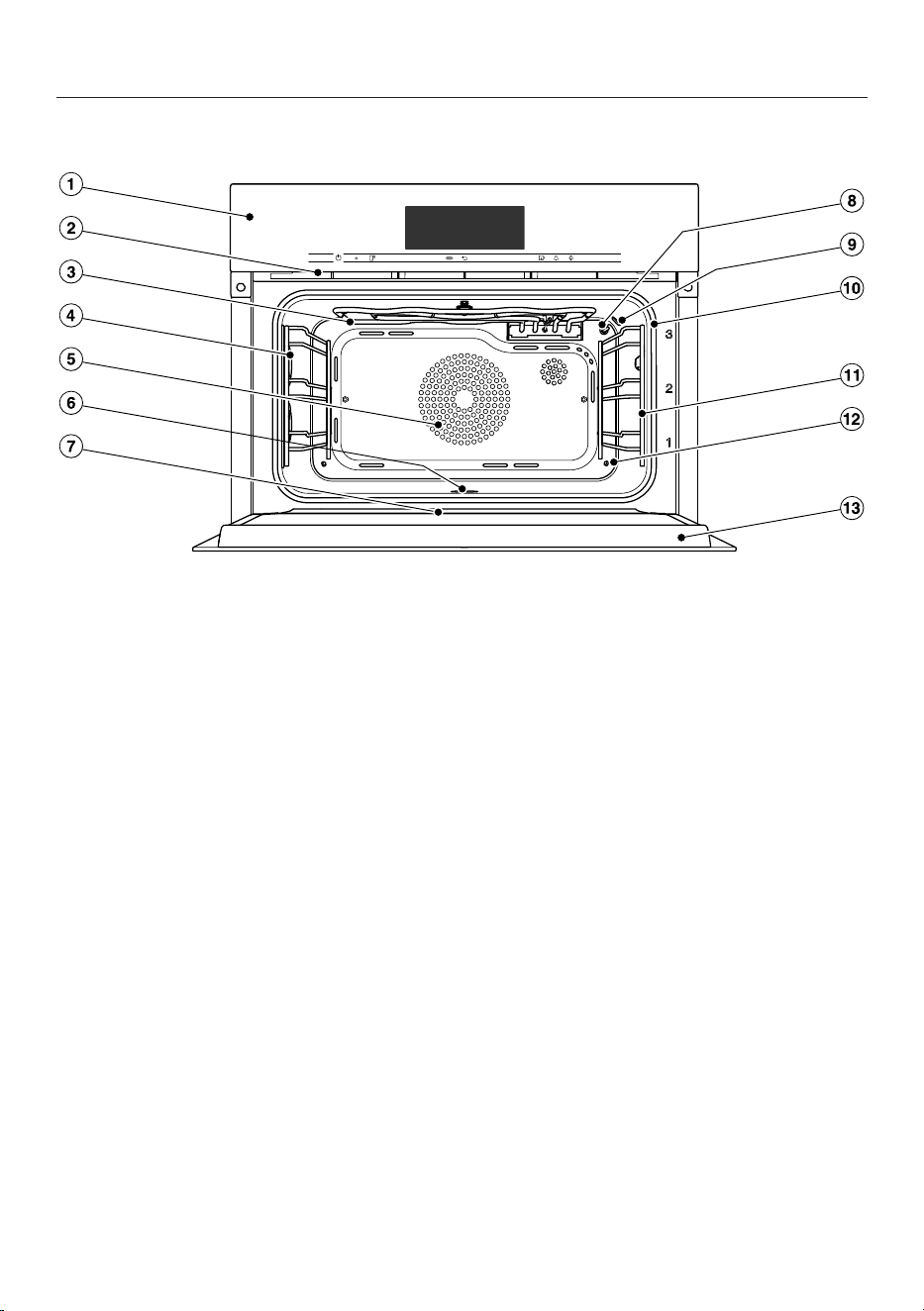

• Page 19 - English - : Overview Steam oven a Control panel b Ventilation outlet c Top heatgrill element with wireless food probe antenna d Oven interior lighting e Air inlet for the fan with ring heating element behind it f Oven floor with bottom heating element and floor filter underneath it g Drip channel h Temperature sensor i Moisture sensor j Door seal k Shelf runners with 3 shelf levels l Steam outlet m Door

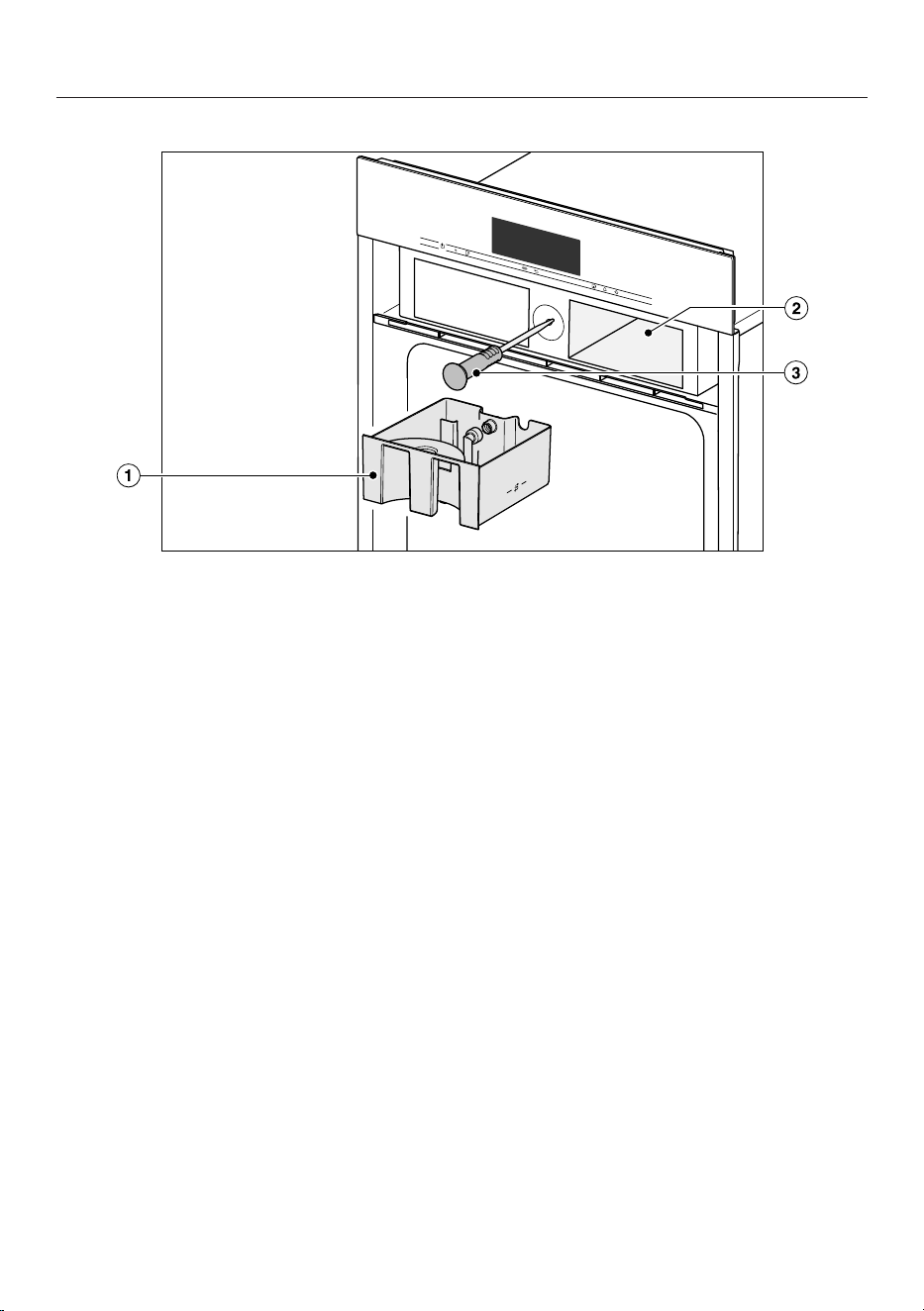

• Page 20: Overview a Water container b Compartment for water container c Food probe holder and wireless food probe
• Page 21 - English - : Overview A list of the models described in these operating and installation instructions can be found on the back page Data plate The data plate is located on the top of the housing The data plate states the model number the serial number as well as connection data mains voltage frequency and maximum rated load The model code and the serial number SN can also be found on the small plate on top on the opened control panel Please have this information to hand should you need to contact Miele regarding any questions or problems Accessories supplied The accessories supplied with your appliance as well as a range of optional ones are available to order from Miele see Optional accessories DGG 20 1 solid cooking container Gross capacity 24litres Useable capacity 18litres 450x190x40mm W x D x H DGGL 20 1 perforated cooking container Gross capacity 24 litres Useable capacity 18 litres 450x190x40mm W x D x H DGGL 12 1 perforated cooking container Gross capacity 49 litres Useable capacity 33 litres 450 x 390 x 40 mm W x D x H Universal tray 1 universal tray for baking roasting and grilling Combi rack 1 combi rack for baking roasting and grilling Insert these accessories into the shelf runners between the two rails of a shelf level

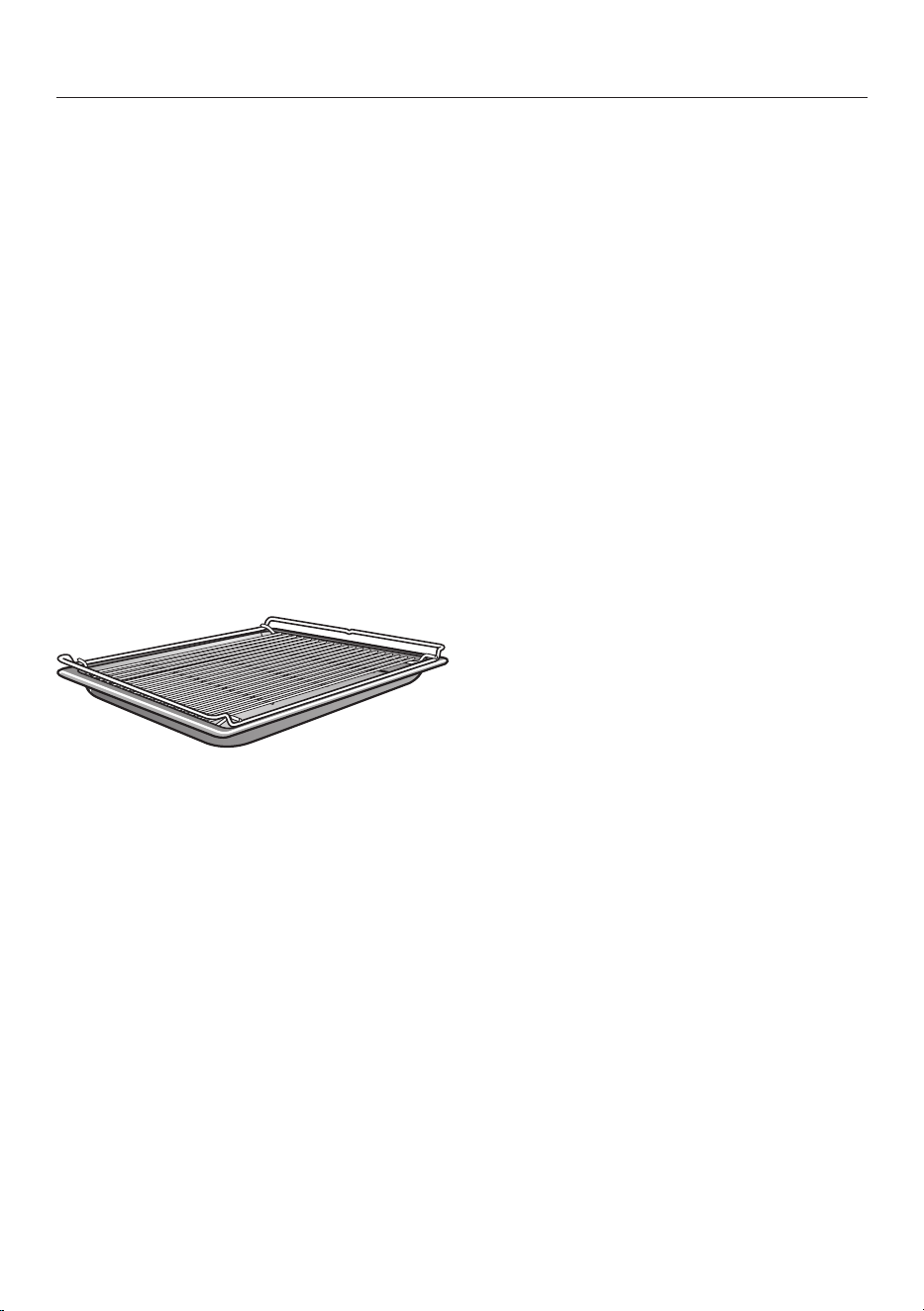

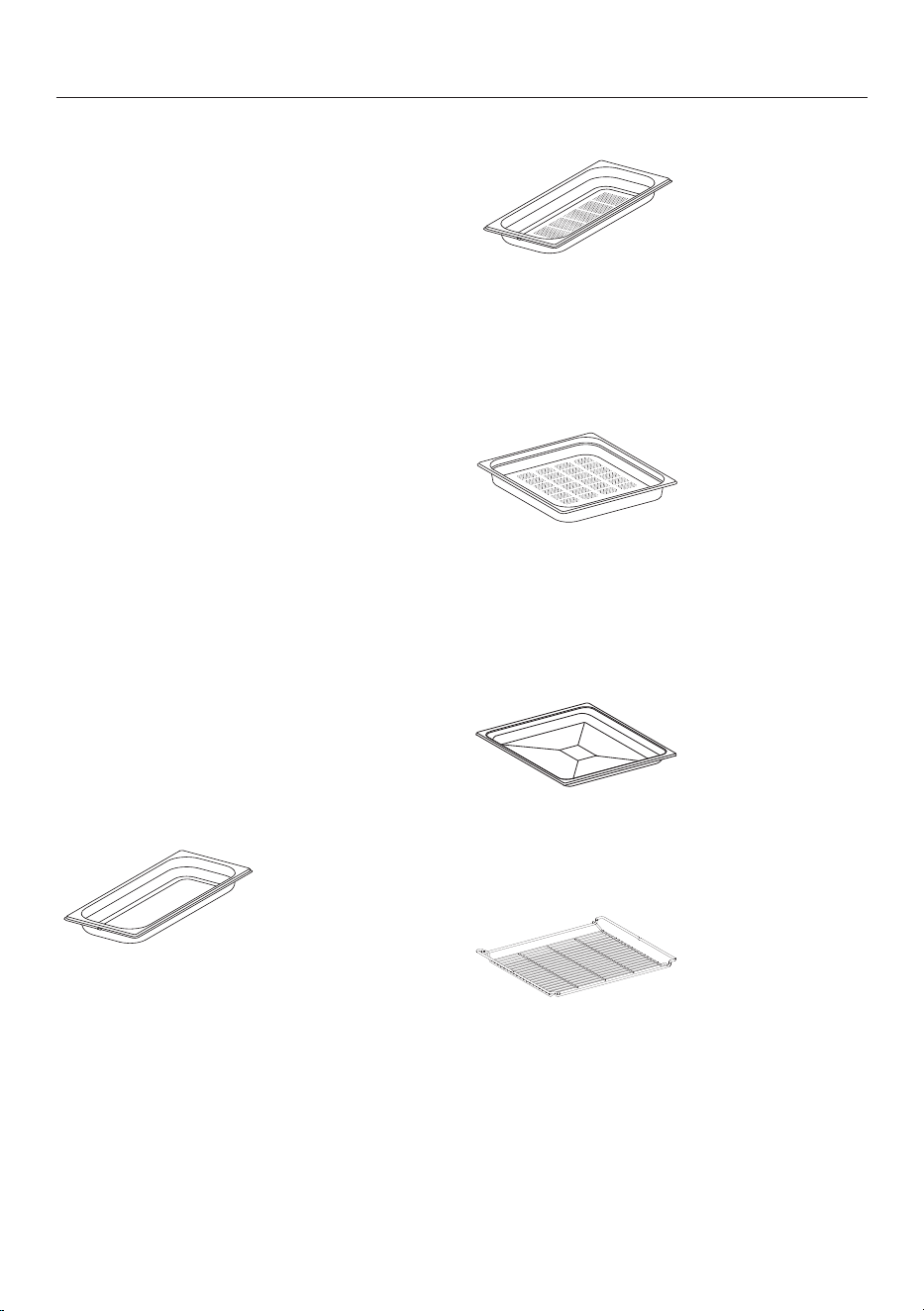

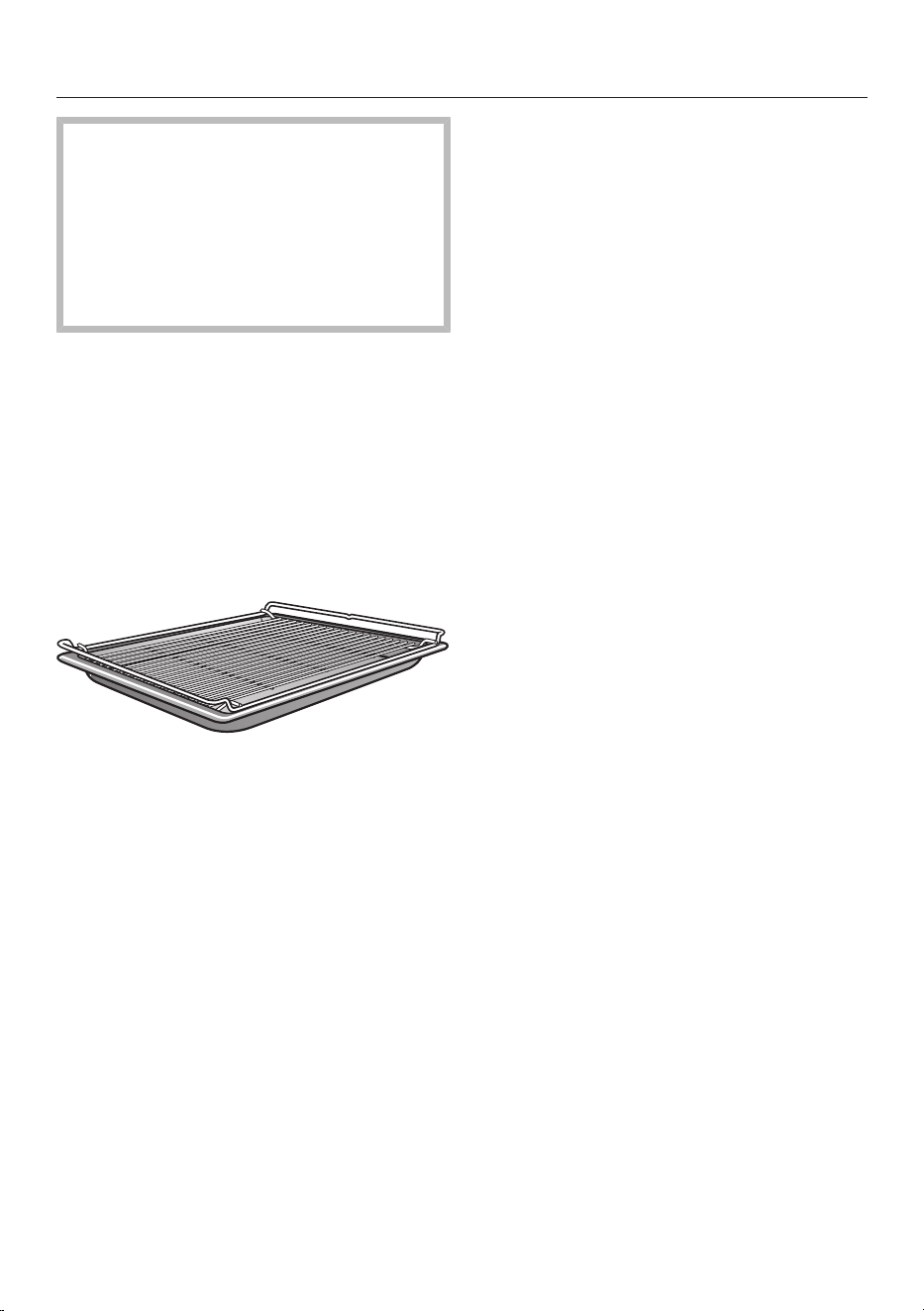

• Page 22 - English - : Overview The rack has a rail at the back to prevent dishes sliding off Ensure the rack is inserted so that the rail is facing upwards Nontip safety notches are located on accessories to prevent the trays being pulled out completely when you only wish to pull them out partially They also prevent trays from tipping The nontip safety notches are located in the middle of the short sides of the baking tray and universal tray The nontip safety notches are located towards the back of the short sides of the rack Food probe 1 food probe for precise temperature controlled cooking The food probe monitors the inner temperature of the meat core temperature Descaling tablets For descaling the appliance FlexiClip telescopic runners HFC71 The FlexiClip telescopic runners can be attached to any shelf level Push the FlexiClip telescopic runners right into the oven cavity before placing accessories on them The accessories will then automatically sit securely between the stoppers at either end of each runner and be prevented from sliding off The FlexiClip telescopic runners can support a maximum load of 15kg

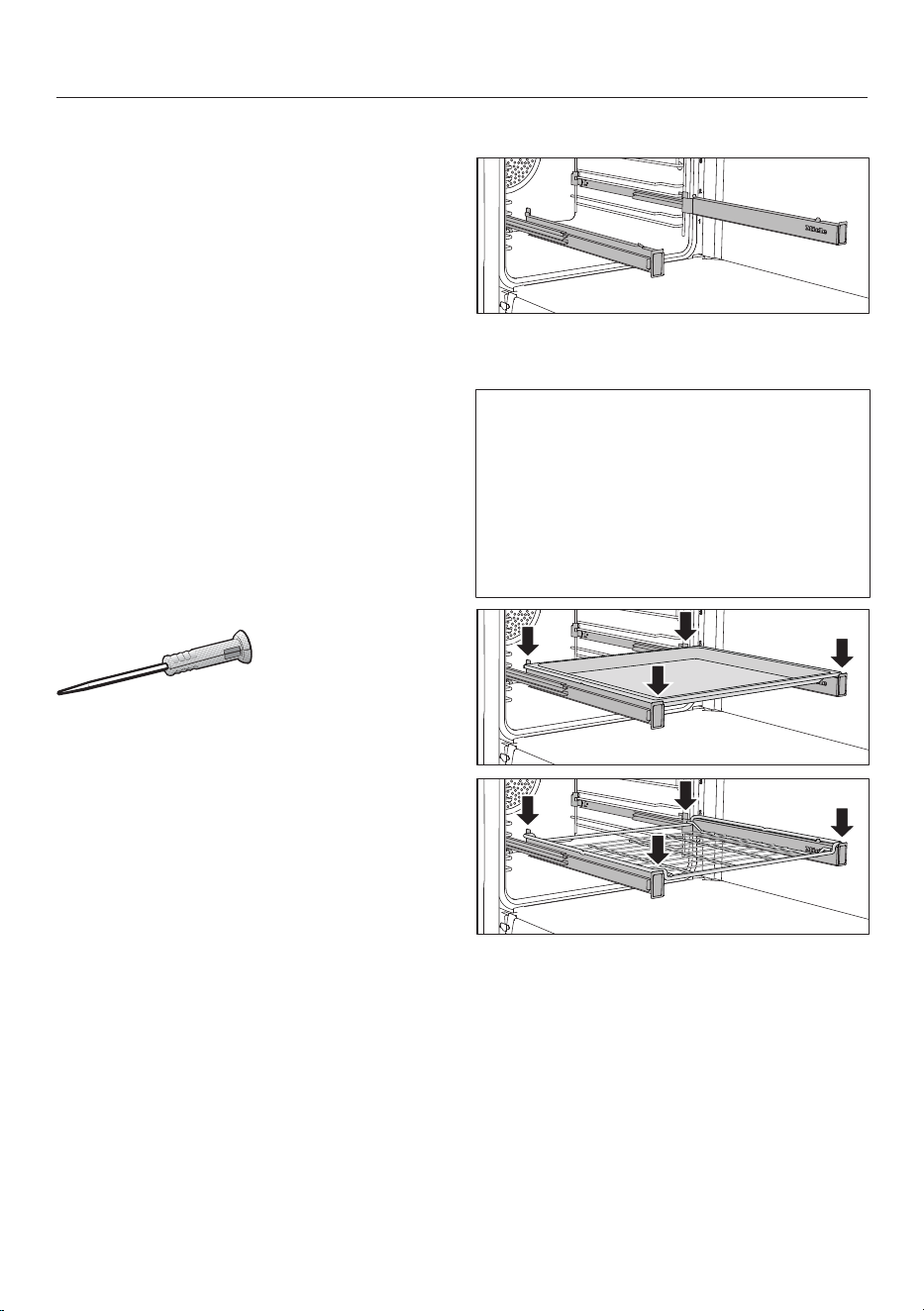

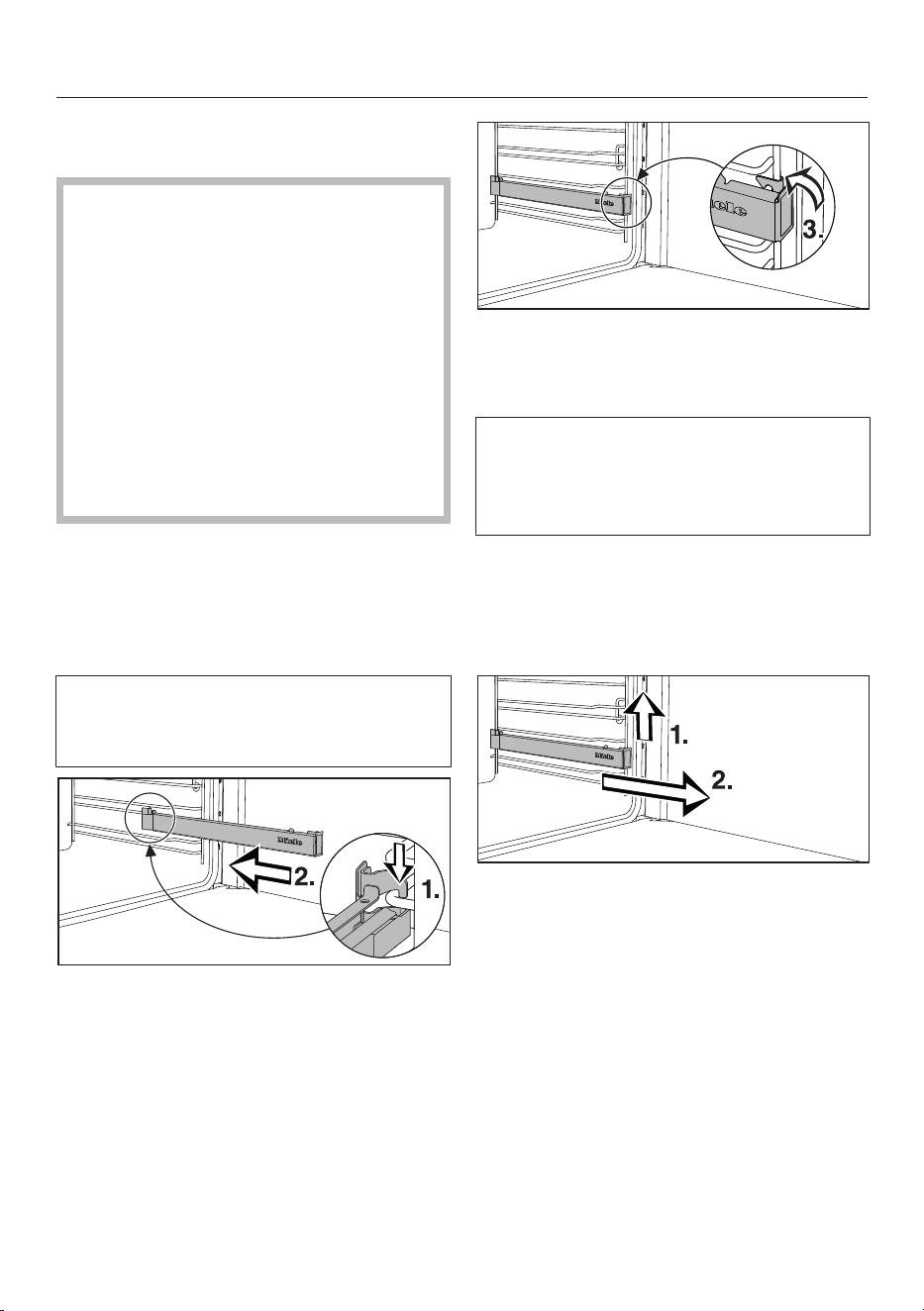

• Page 23 - English - : Overview Fitting and removing the FlexiClip telescopic runners Risk of injury caused by hot surfaces The steam oven gets hot during operation You could burn yourself on the heating elements oven compartment shelf runners or accessories Allow the heating elements oven compartment shelf runners and accessories to cool down before fitting or removing the FlexiClip telescopic runners The FlexiClip telescopic runners are fitted in between the two rails that make up a shelf level The FlexiClip telescopic runner with the Miele logo is fitted on the right When fitting or removing the telescopic runners do not extend them Hook the FlexiClip telescopic runner onto the bottom rail of a shelf level at the front 1 and push it along the rail into the oven interior 2 Then secure the telescopic runner to the bottom of the two rails as illustrated 3 If the FlexiClip telescopic runners are difficult to pull out after fitting you may need to pull firmly on them once to release them To remove a FlexiClip telescopic runner proceed as follows Push the FlexiClip telescopic runner in all the way Remove the FlexiClip telescopic runner by raising it at the front 1 and then pulling it forwards along the rail of the shelf level and out 2
• Page 24 - English - : Controls a Recessed OnOff sensor For switching the steam oven on and off b Optical interface for Miele service technicians only c sensor For controlling the steam oven via your mobile device d Touch display For displaying information and for operation e Proximity sensor For switching on the oven interior lighting and the display when approached and to dismiss the buzzer when movement is detected f sensor To go back a step g sensor For opening and closing the control panel h sensor For setting the minute minder or alarms i sensor For switching the oven interior lighting on and off
• Page 25 - English - : Controls OnOff sensor The OnOff sensor is recessed and reacts to touch Use this sensor to switch the steam oven on and off Proximity sensor The proximity sensor is located under the touch display next to the sensor The proximity sensor detects when you approach the touch display eg with your hand or body If you have activated the corresponding settings you can switch on the oven interior lighting switch on the steam oven or dismiss the buzzers see Settings Proximity sensor
• Page 26 - English - : Controls Sensor controls The sensors react to touch Every touch on the sensors is confirmed by a keypad tone This keyapd tone can be switched off by selecting theVolume Keypad tone Offsetting If you want the sensor controls to respond even when the steam oven is switched off select the Display QuickTouch Onsetting Sensor Function If you want to control the steam oven from your mobile device you must have the Mielehome system switch on the Remote controlsetting and touch this sensor The sensor then lights up orange and the MobileStart function is available As long as this sensor is illuminated you can control the steam oven via your mobile device see Settings Mielehome Depending on which menu you are in this will take you back a level or back to the main menu Use this sensor to open and close the control panel see Description of the functions Control panel If a menu appears in the display or if a cooking programme is in progress you can use this sensor to set a minute minder eg when boiling eggs on the cooktop or an alarm a specific time at any point see Alarm minute minder Select this sensor to switch the oven interior lighting on and off Depending on the setting selected the oven interior lighting switches off after 15seconds or remains constantly switched on or off
• Page 27 - English - : Controls Touch display The sensitive surface of the touch display can be scratched by pointed or sharp objects eg pens Only touch the display with your fingers Make sure that water cannot get behind the touch display The touch display is split into multiple areas Oven functions 1200 Automatic programmes Special applications MyMiele The menu path appears on the left of the header The individual menu options are separated by a vertical line indicates that there are more options available which are not visible because there is not enough space in the display If you touch a menu name in the header the display will switch to that menu To switch to the start screen touch The time of day is shown on the right of the header You can set the time of day by touching the display Additional symbols may also appear eg SuperVision At the top of the header there is an orange line where you can drag down the pull down menu This allows you to switch settings on or off during a cooking programme The current menu and menu options are shown in the centre You can scroll to the right or left by swiping your finger across the display to the right or left Touch a menu option to select it see Operating principles The operation fields that appear in the footer vary according to the menu that is selected egTimer Save or OK
• Page 28 - English - : Controls Symbols The following symbols may appear in the display Symbol Meaning This symbol indicates that there is additional information and advice about using the appliance Select OK to confirm the information This indicates that there are more options available which are not visible because there is not enough space in the display Alarm Minute minder Some settings eg display brightness and signal tone volume are selected using a segment bar The system lock or sensor lock is on see Settings Safety The controls are locked Core temperature when using the food probe Remote control only appears if you are in the Mielehome system and have selected the Remote control On setting SuperVision only appears if you are in the Mielehome system and have selected the SuperVision SuperVision display On setting
• Page 29 - English - : Operating principles You operate the steam oven via the touch display by touching the desired menu option Each time you touch a possible option the relevant characters word andor symbol light up orange Fields for confirming an operating step are highlighted in green eg OK Selecting a menu option Touch the desired field or value in the touch display Scrolling through menus You can scroll left or right Swipe across the screen To do this place your finger on the touch display and swipe it in the direction you want The bar at the bottom shows you where you are in the current menu Exiting a menu Touch the sensor or touch the symbol in the menu path Touch the symbol to switch to the status display Entries made before this which have not been confirmed withOK will not be saved Changing a value or setting Changing a setting in a list The current setting is highlighted in orange Touch the desired setting The setting is now saved This will take you back to the previous menu Entering numbers with the roller Swipe the roller up or down until the value you want is displayed in the centre Confirm with OK The changed number is now saved Entering numbers using the numerical keypad Tap on the value that is in the middle of the numerical keypad The numerical keypad will appear Touch the required numbers As soon as you enter a valid value OK turns green Use the arrow to delete the last entered number Confirm with OK The changed number is now saved
• Page 30 - English - : Operating principles Changing the setting with a segment bar Some settings are represented by a bar with seven segments If all of the segments are illuminated the maximum value is selected If none of the segments is illuminated or if only one is the minimum value is selected or the setting is switched off altogether eg buzzers Touch the corresponding segment on the segment bar to change the setting Select On or Off to switch the setting on or off Confirm your selection withOK The setting is now saved This will take you back to the previous menu Entering letters Letters are entered using a display keyboard It is best to select short memorable names Touch the letters or characters you want Useful tip You can add a line break for longer programme names using the symbol Touch Save The name is now saved Displaying the context menu In some menus you can display a context menu eg to rename User programmes or to move entries underMyMiele For example touch a User programme and keep your finger on it until the context menu opens Touch the touch display outside of the menu window to close the context menu Moving entries You can change the order of User programmes or entries underMyMiele For example touch a User programme and keep your finger on it until the context menu opens Select Move Keep your finger on the highlighted field and drag it to the desired location
• Page 31 - English - : Operating principles Displaying the pulldown menu During a cooking programme you can switch settings such asBooster orPre heat and the WiFi function on or off Use the orange line under the header to drag the pulldown menu down Select the setting you want to change Active settings are highlighted in orange Depending on the selected colour scheme inactive settings are highlighted either in black or white see Settings Display To close the pulldown menu drag it back up to the top or touch an area of the display located outside of the menu window DisplayingHelp Contextsensitive help is available for certain functions Help appears on the bottom line Touch Help to display information in text and pictures Touch Close to return to the previous menu Activating MobileStart Select the sensor to activate MobileStart The sensor lights up You can operate your steam oven remotely with the Miele App Directly operating the steam oven takes priority over operating it via the remote control function on the App You can use MobileStart as long as the sensor is lit up

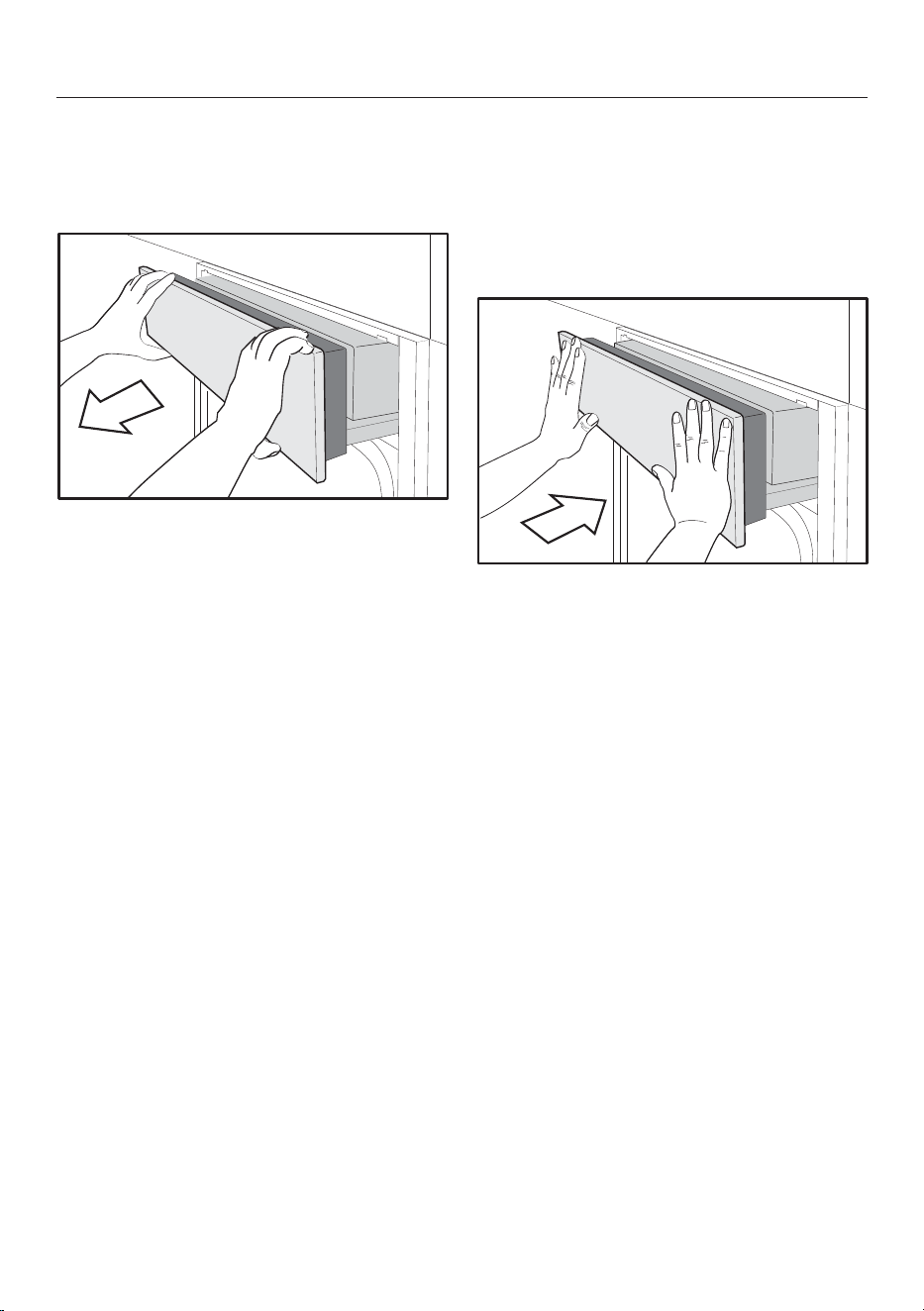

• Page 32 - English - : Description of the functions Control panel The water container and food probe are located behind the control panel The panel is opened and closed by touching the sensor It is fitted with anti trapping protection If the control panel senses resistance when opening closing the process is cancelled Do not touch the upper edge of the door when the panel is opening and closing Water container Water is pumped into the water container and then into the steam generator A malfunction can occur if the aperture to the water container is blocked The aperture on the front of the water container must not be blocked as otherwise water cannot be pumped into the steam generator Food probe The food probe measures the core temperature in the food enabling the temperature during the cooking process to be monitored simply and accurately TemperatureCore temperature Some functions are allocated with a recommended temperature The recommended temperature can be altered within the given range for an individual cooking programme a programme stage or for every time that programme is used see Settings Recommended temperatures The core temperature can also be altered within the given range for an individual programme or a specific programme stage Moisture The Combi modefunction and ReheatSpecial application use a combination of oven heat and moisture The moisture level can be selected within the given range for an individual programme or a specific programme stage Depending on the moisture setting moisture or fresh air is supplied to the oven compartment With the moisture setting0 the maximum fresh air supply is implemented and no moisture is supplied With the moisture setting100 there is no fresh air supply and the moisture content is at its maximum Some food gives off moisture during the cooking process This moisture from the food affects the amount of additional moisture needed If the required amount of moisture is low the steam generator may not be activated at all
• Page 33 - English - : Description of the functions Cooking duration Depending on the function you can set a cooking duration of between 1minute and 6 10 or 12hours The cooking durations of the Automatic Maintenance and Menu cookingprogrammes are set at the factory and cannot be altered When cooking with steam as well as for programmes and applications with pure steam operation the cooking duration does not begin until the set temperature is reached It starts immediately for all other functions programmes and applications Noises A humming sound can be heard during operation and after switching off the steam oven This noise does not indicate incorrect operation or an appliance fault The noise is made by water being pumped through the system When the steam oven is in use you will hear a fan noise Heatingup phase The display shows the temperature in the oven compartment as it rises during the heatingup phase in all functions exceptions Full Grill Economy Grill The duration of the heatingup phase with steam cooking will depend on the quantity and temperature of the food In general the heatingup phase will take approx 7minutes It will be longer if you are cooking refrigerated or frozen food The heatingup phase may also take longer when cooking at lower temperatures and when cooking with the Sousvide function Cooking phase The elapsing remaining time is shown in the display during the cooking phase When cooking with steam the cooking phase begins once the set temperature is reached It starts immediately for all other functions programmes and applications
• Page 34 - English - : Description of the functions Steam reduction With steam cooking and Combi mode the steam reduction function will switch on automatically at the end of a cooking programme which uses a temperature within a certain temperature range This is to prevent a large amount of steam escaping when the door is opened Steam reduction appears in the display Steam reduction can be switched off see Settings Steam reduction When steam reduction is switched off a large amount of steam will escape when the door is opened Oven interior lighting For energy saving reasons the oven interior lighting has been set at the factory to go out after the programme has begun If you want the lighting to remain on during cooking the relevant setting needs to be changed see Settings Lighting If the door is left open at the end of a cooking programme the oven lighting will switch off automatically after 5minutes The lighting can be switched on for 15seconds by touching the sensor on the control panel
• Page 35 - English - : Before using for the first time Mielehome Your steam oven is equipped with an integrated WiFi module In order to use it you need a WiFi network the Miele App a Miele user account The user account can be created via the Miele App The Miele App will guide you as you connect your steam oven to your home WiFi network Once your steam oven is connected to your WiFi network you can use the App for a number of actions including the following Call up information on the operating status of your steam oven Retrieve information on cooking processes that are in progress End cooking programmes that are in progress Connecting your steam oven to your WiFi network will increase energy consumption even when the steam oven is switched off Make sure that the signal of your Wi Fi network is sufficiently strong in the place where your steam oven is installed Availability of the WiFi connection The WiFi connection shares a frequency range with other appliances including microwave ovens and remote control toys This may result in sporadic or even complete connection failures Therefore a constant availability of featured functions cannot be guaranteed Mielehome availability The ability to use the Miele App depends on the availability of the Mielehome service in your country The Mielehome service is not available in every country For information about availability please visit wwwmielecom Miele App You can download the Miele App from the Apple App Store or the Google Play Store free of charge only functional in selected countries
• Page 36 - English - : Before using for the first time Standard settings The following settings must be made before starting up for the first time You can change these settings again at a later time see Settings Risk of injury caused by hot surfaces The steam oven gets hot during operation For safety reasons the steam oven may only be used when it has been fully installed The steam oven will switch on automatically when it is connected to the electricity supply Setting the language Select the language you want If you have accidentally selected a language that you dont understand proceed as described in Settings Language Setting the location Select the required location Setting up Mielehome Set up Mielehome appears in the display To set up Mielehome immediately selectContinue To set it up at a later date selectSkip See Settings Mielehome for information on setting up at a later date To set up Mielehome immediately select the desired connection method You will then be guided by the display and the Miele App Setting the date Set the day month and year Confirm with OK Setting the time of day Set the time of day in hours and minutes Confirm with OK
• Page 37 - English - : Before using for the first time Setting the water hardness level Contact your local water supplier to find out your local water hardness range if necessary See the Settings Water hardness for more information Set the water hardness level for your area Confirm with OK Completing the commissioning process Follow any further instructions in the display The appliance is now ready for use Cleaning for the first time Remove any protective foil and stickers except the data plate from the oven and accessories The appliance has undergone a function test in the factory Residual water from this testing may have trickled back into the cabinet during transportation Cleaning the water container Risk of injury caused by the control panel You could get caught in the panel as it opens or closes Do not touch the upper edge of the door when the panel is opening and closing Switch the steam oven on using the OnOffsensor Select the sensor to open the control panel Remove the water container To do this push it upwards slightly as you take it out of the appliance Rinse the water container by hand or in the dishwasher
• Page 38 - English - : Before using for the first time Cleaning the accessoriesoven compartment Take all accessories out of the oven compartment Wash the cooking containers by hand using hot water and a little washing up liquid or in the dishwasher The universal tray and combi rack surfaces are treated with PerfectClean enamel and must only be washed by hand See Cleaning and care PerfectClean Clean the universal tray and combi rack with a solution of warm water and a little washingup liquid applied with a soft sponge The interior of the steam oven has been treated at the factory with a conditioning agent To remove this clean the oven interior with a mild solution of washingup liquid and warm water applied with a soft sponge and then dry thoroughly with a soft cloth Setting the correct boiling point for water Before cooking food for the first time you must adjust the boiling temperature of the water which varies depending on the altitude of where the steam oven is located This procedure also flushes out the waterways This procedure must be carried out to ensure troublefree functioning of your appliance Run the steam oven for 15minutes using the Steam cooking function 100C Proceed as described in Operation Setting the correct boiling point for water following a house move If you move house the boiling point for the water in the steam oven will need to be reset for the new altitude if this differs from the old one by 300m or more To do this descale the appliance see Cleaning and care Maintenance
• Page 39 - English - : Before using for the first time Heating up the appliance Take all accessories out of the oven compartment if applicable To remove the grease from the ring heating element heat the steam oven up at 200C using the Fan Plus function for 30minutes Proceed as described in Operation Risk of injury caused by hot surfaces The steam oven gets hot during operation You could burn yourself on the heating elements oven compartment or shelf runners Use oven gloves when working in the hot oven compartment The heating element will give off a slight smell when it is heated up for the first time The smell and any vapours given off will dissipate after a while and do not indicate a faulty connection or appliance It is important to ensure that the kitchen is well ventilated during this operation
• Page 40 - English - : Settings Settings overview Menu option Available settings Language deutsch english Location Time Display On Off Night dimming Clock type Analogue Digital Clock format 24 h 12 h ampm Set Date Lighting On On for 15 seconds Off Start screen Main menu Oven functions Automatic programmes Special applications User programmes MyMiele Display Brightness Colour scheme Bright Dark QuickTouch On Off Volume Buzzer tones Keypad tone Welcome melody On Off Units Weight g lb lboz Temperature C F Factory settings
• Page 41 - English - : Settings Menu option Available settings Keeping warm On Off Steam reduction On Off Recommended temperatures Booster On Off Automatic rinsing On Off Water hardness 1 dH 15 dH 70 dH Proximity sensor Switch the light on during cooking process Always on Off Switch the appliance on On Off Acknowledge buzzer On Off Safety System lock On Off Sensor lock On Off Furniture front recognition On Off Mielehome Activate Deactivate Connection status Set up again Reset Set up Remote control On Off SuperVision SuperVision display On Off Display standby On Only if there is a fault Appliance list Display this appliance Buzzer tones Factory settings
• Page 42 - English - : Settings Menu option Available settings RemoteUpdate On Off Software version Legal information Open source licences Showroom programme Demo mode On Off Factory default settings Appliance settings User programmes MyMiele Recommended temperatures Factory settings
• Page 43 - English - : Settings Opening the Settings menu In the Settings menu you can personalise your steam oven by adjusting the factory default settings to suit your requirements From the main menu Select Settings Select the desired setting You can check settings or change them Settings cannot be altered while a cooking programme is in progress Language You can set your language and location After selecting and confirming your choice the language you have selected will appear in the display Useful tip If you have selected the wrong language by mistake select in the main menu Follow the symbol to get back to the Language submenu Time Display Select how you want the time of day to appear in the display when the steam oven is switched off On The time is always visible in the display If you also select the Display QuickTouch On setting all sensor controls react to touch straight away and the proximity sensor automatically detects when you approach the display If you also select the Display QuickTouch Off setting the steam oven has to be switched on before it can be used Off The display is dark to save energy The steam oven has to be switched on before you can use it Night dimming To save energy the time is only visible in the display between 500am and 1100pm The display remains dark at all other times
• Page 44 - English - : Settings Clock type The time of day can be displayed in an Analogue with a clock face or Digital hmin format With the digital display the date is also shown Clock format The time of day can be displayed in the 24 or 12hour format 24 hor12 h am pm Set Set the hours and then the minutes Useful tip If no cooking programme is in progress touch the time in the header to change it If there is a power cut the current time of day will reappear once power has been restored The time of day is saved for approx 150hours If the steam oven has been connected to a WiFi network and signed into the Miele App the time will be synchronised based on the location setting in the Miele App Date Set the date When the steam oven is switched off the date will only appear in the display if Time Clock type Digital is selected Lighting On The oven interior lighting is switched on during the entire cooking period On for 15 seconds The oven interior lighting switches off 15seconds after a cooking programme has begun Press the sensor to switch the oven interior lighting on again for 15seconds Off The oven interior lighting is switched off Press the sensor to switch on the oven interior lighting for 15seconds
• Page 45 - English - : Settings Start screen The steam oven is set at the factory for the main menu to appear when the steam oven is switched on You can change this default setting so that for instance the oven functions or MyMiele settings appear in the display see MyMiele This new start screen will then appear when the steam oven is next switched on Select the sensor or follow the path in the header to get to the main menu Display Brightness The display brightness is represented by a segment bar Maximum brightness Minimum brightness Colour scheme Choose between a light or dark colour scheme for the display Bright The display has a light background with dark characters Dark The display has a dark background with light characters QuickTouch Select how the sensor controls and the proximity sensor should respond when the steam oven is switched off On If you have also selected the Time Display On or Night dimming setting the sensor controls and the proximity sensor will also respond when the steam oven is switched off Off Regardless of whether Time Display is set the sensor controls and the proximity sensor only respond when the steam oven is switched on as well as for a certain amount of time after switching it off
• Page 46 - English - : Settings Volume Buzzer tones If buzzers are switched on a buzzer will sound when the set temperature is reached and at the end of a set time The volume of the buzzers is represented by a segment bar Maximum volume Buzzers are switched off Keypad tone The volume of the tone that sounds each time you touch a sensor is represented by a segment bar Maximum volume Keypad tone is switched off Welcome melody The melody that sounds when you touch the OnOff sensor can be switched on or off Units Weight For Automatic programmes you can set the weight of food in grams g pounds lb or poundsounces lboz Temperature You can set the temperature in degrees Celsius C or degrees Fahrenheit F Keeping warm Using the Keeping warmfunction you can keep food warm at the end of a steam cooking programme Food is kept warm at a preset temperature for a maximum of 15minutes You can cancel the keeping warm process by opening the door Please note that delicate food especially fish can continue cooking whilst being kept warm On The Keeping warmfunction is switched on If a temperature of at least 80C is selected this function will switch on after approx 5minutes The food is kept warm using a temperature of 70C Off The Keeping warmfunction is switched off
• Page 47 - English - : Settings Steam reduction The Steam reductionfunction stops excessive steam escaping when the door is opened On The steam reduction function will switch on automatically at the end of a cooking programme which uses a temperature of over approx 80C steam cooking or 80100C and 100 moisture Combi mode Steam reduction appears in the display Off If steam reduction is switched off the Keeping warm function is also automatically switched off When steam reduction is switched off a large amount of steam will escape when the door is opened Recommended temperatures If you frequently cook with different temperatures it makes sense to change the recommended temperatures After selecting this option a list of oven functions will appear in the display Select the function you want The recommended temperature will appear together with the range within which it can be changed Change the recommended temperature Confirm with OK
• Page 48 - English - : Settings Booster The Boosterfunction is used to quickly preheat the oven On The Booster function is automatically switched on during the heatingup phase of a cooking programme The top heatgrill element ring heating element and hot air fan preheat the oven compartment to the desired temperature at the same time Off The Booster function is switched off during the heatingup phase of a cooking programme Only the heating elements for the selected oven function are used to preheat the oven compartment You can also use the pulldown menu to switch the Boosterfunction on or off for a cooking programme Automatic rinsing Following a cooking programme with steam Appliance rinsing will appear in the display after the steam oven has been switched off This process flushes any remaining food deposits out of the system You can activate or deactivate the automatic rinsing process
• Page 49 - English - : Settings Water hardness To ensure that the steam oven works correctly and to ensure that descaling is carried out at the correct interval it must be set to the local water hardness level The harder the water is the more frequently the steam oven needs to be descaled Contact your local water supplier to find out your local water hardness range if necessary If you are using bottled drinking water eg mineral water use noncarbonated water Select settings according to the calcium content The calcium content is given on the label of the bottle in mgl Ca 2 or ppm mg Ca 2 l The degree of hardness can be set between 02mmoll 1dH and 125mmoll 70dH The hardness level is set to 27mmoll 15dH at the factory Set the water hardness level for your area Confirm with OK Water hardness Calcium content mglCa 2 or ppm mgCa 2 l Setting dH mmoll 1 02 7 1 2 04 14 2 3 05 21 3 4 07 29 4 5 09 36 5 6 11 43 6 7 13 50 7 8 14 57 8 9 16 64 9 Water hardness Calcium content mglCa 2 or ppm mgCa 2 l Setting dH mmoll 10 19 71 10 11 20 79 11 12 22 86 12 13 23 93 13 14 25 100 14 15 27 107 15 16 29 114 16 17 31 121 17 18 32 129 18 19 34 136 19 20 36 143 20 21 38 150 21 22 40 157 22 23 41 164 23 24 43 171 24 25 45 179 25 26 47 186 26 27 49 193 27 28 50 200 28 29 52 207 29 30 54 214 30 31 56 221 31 32 58 229 32 33 59 236 33 34 61 243 34 35 63 250 35 36 65 257 36 3745 6680 258321 3745 4660 82107 322429 4660 6170 109125 430500 6170
• Page 50 - English - : Settings Proximity sensor The proximity sensor detects when you approach the touch display eg with your hand or body If you want the proximity sensor to respond even when the steam oven is switched off select the Display QuickTouch On setting Switch the light on during cooking process As soon as you approach the touch display during a cooking programme the oven interior lighting switches on The oven interior lighting automatically switches off again after 15seconds Always on As soon as you approach the touch display the oven interior lighting switches on The oven interior lighting automatically switches off again after 15seconds Off The proximity sensor does not respond when you approach the touch display Select the sensor to switch on the oven interior lighting for 15seconds Switch the appliance on On If the time is displayed the steam oven switches on and the main menu appears as you approach the touch display Off The proximity sensor does not respond when you approach the touch display Switch the steam oven on using the OnOff sensor Acknowledge buzzer On As soon as you approach the touch display the buzzers switch off Off The proximity sensor does not respond when you approach the touch display Switch the buzzers off manually
