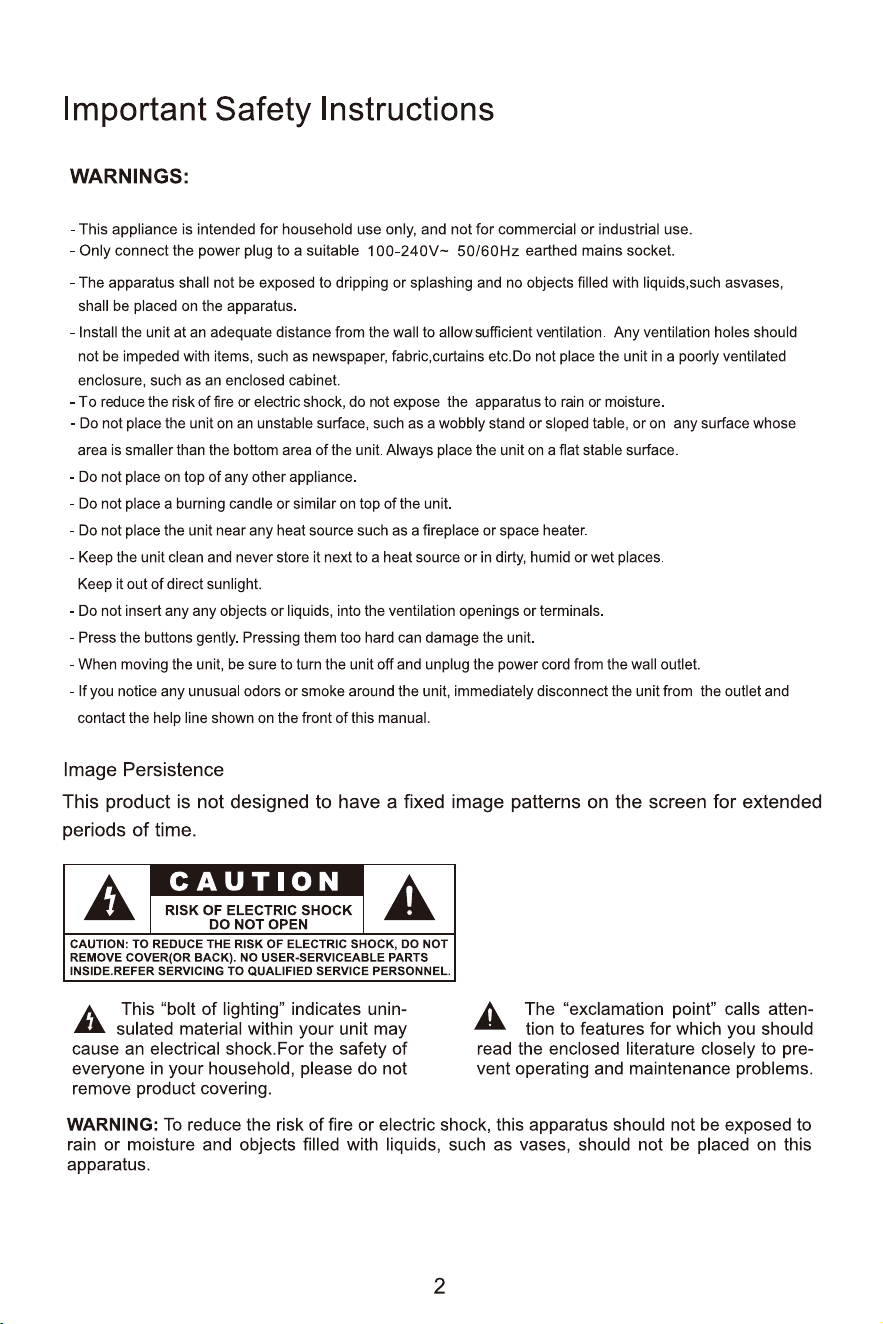

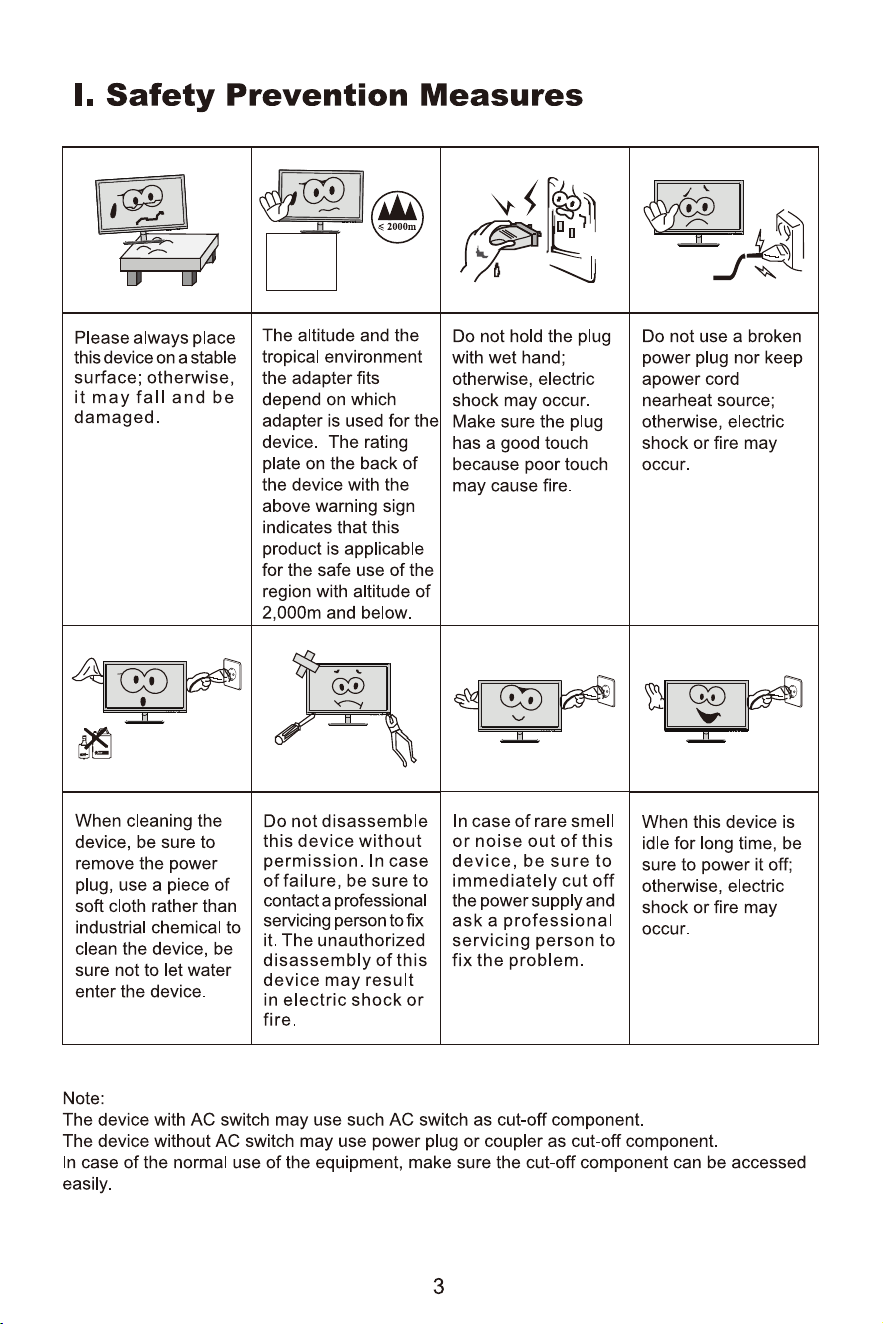

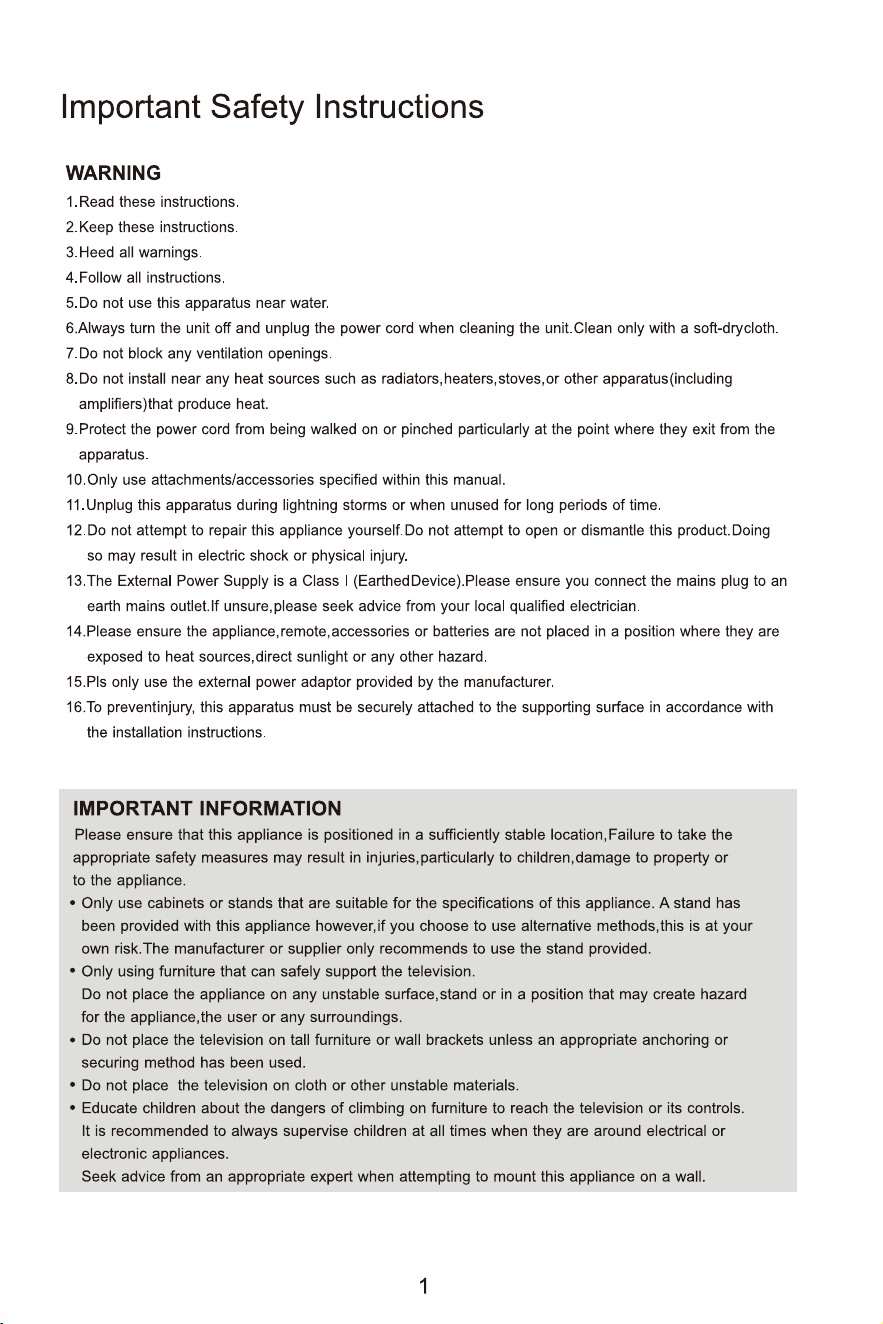

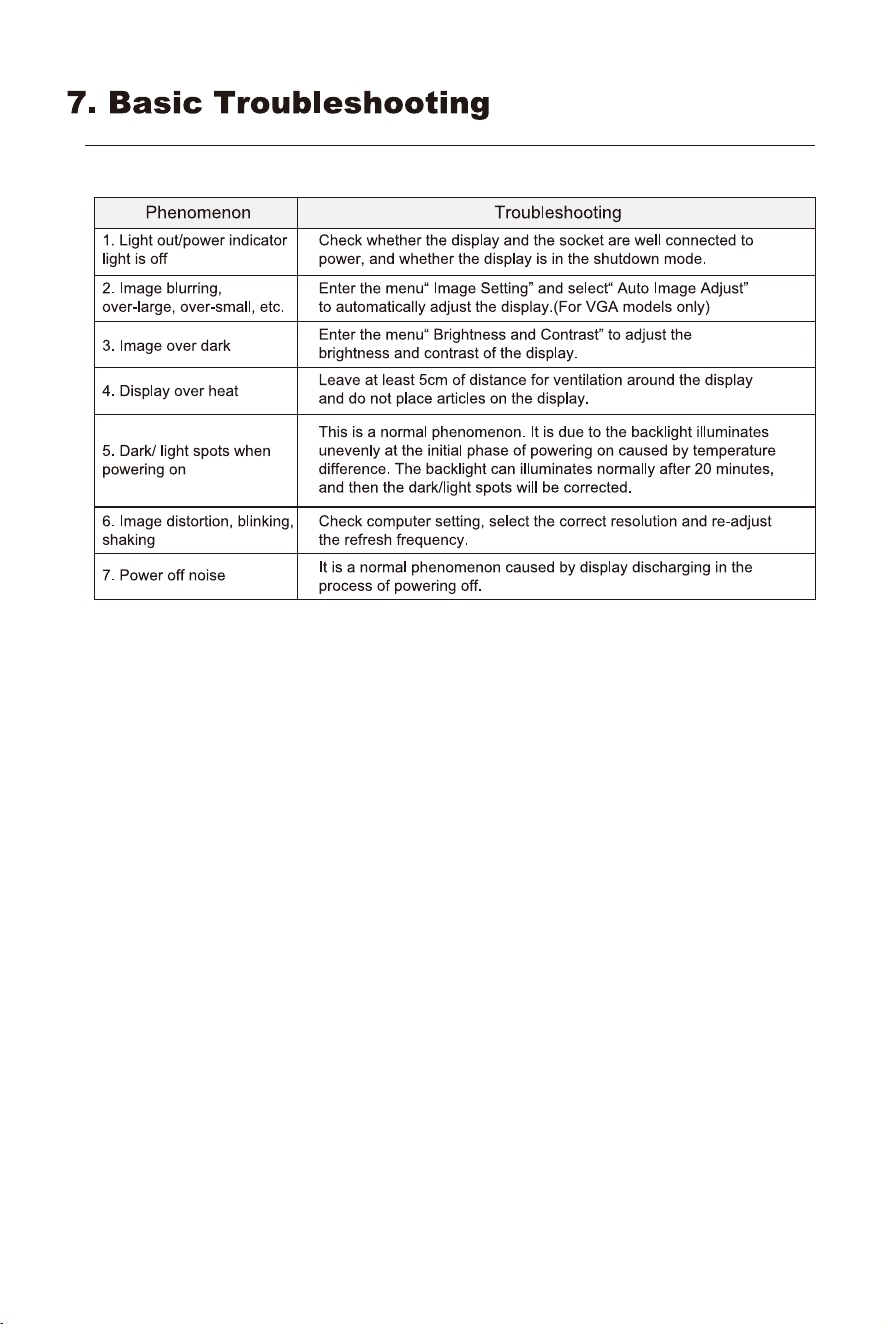

WM24FA9420 / WM27FA9420
WM24FA9420/WM27FA9420

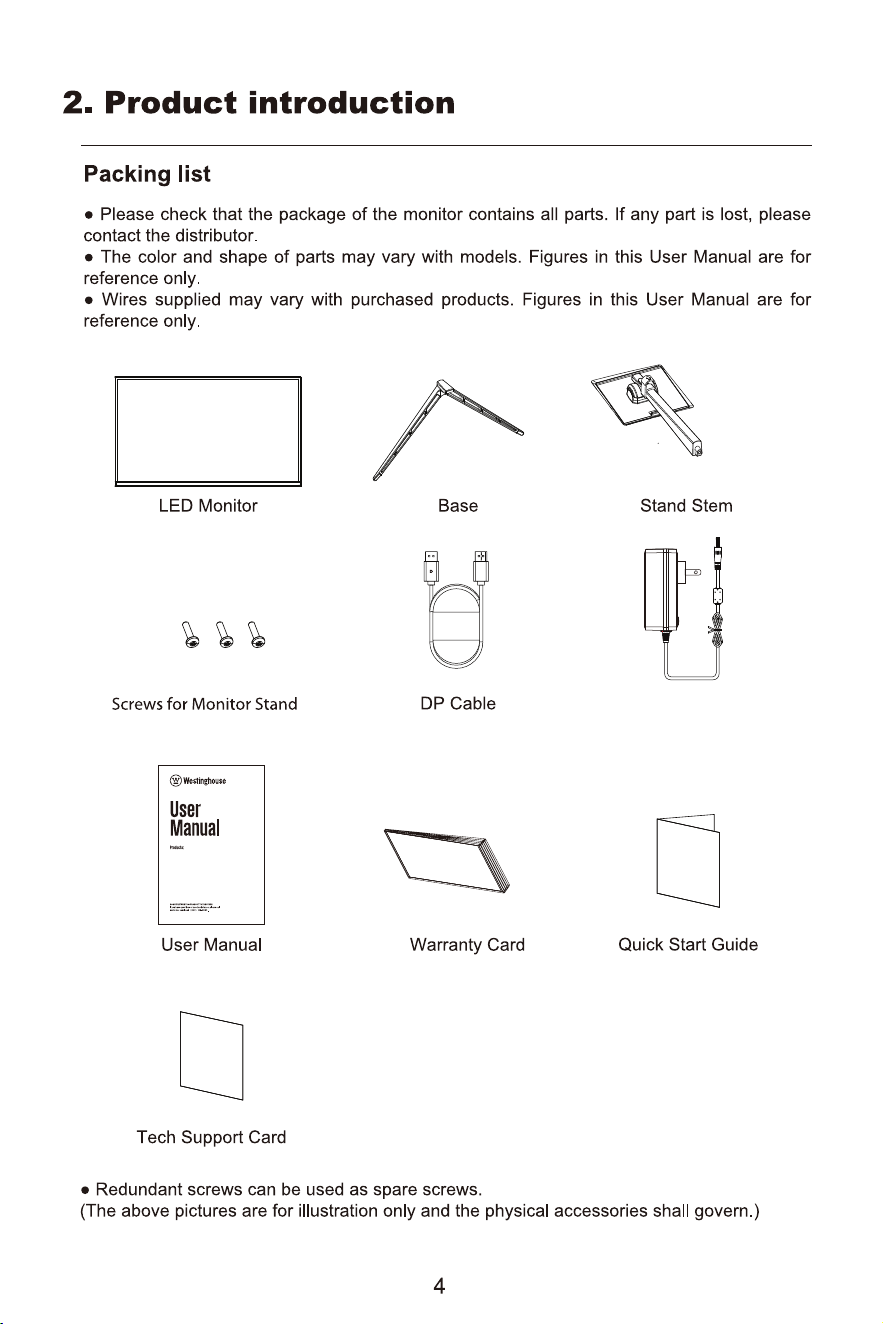

Power Adapter
1

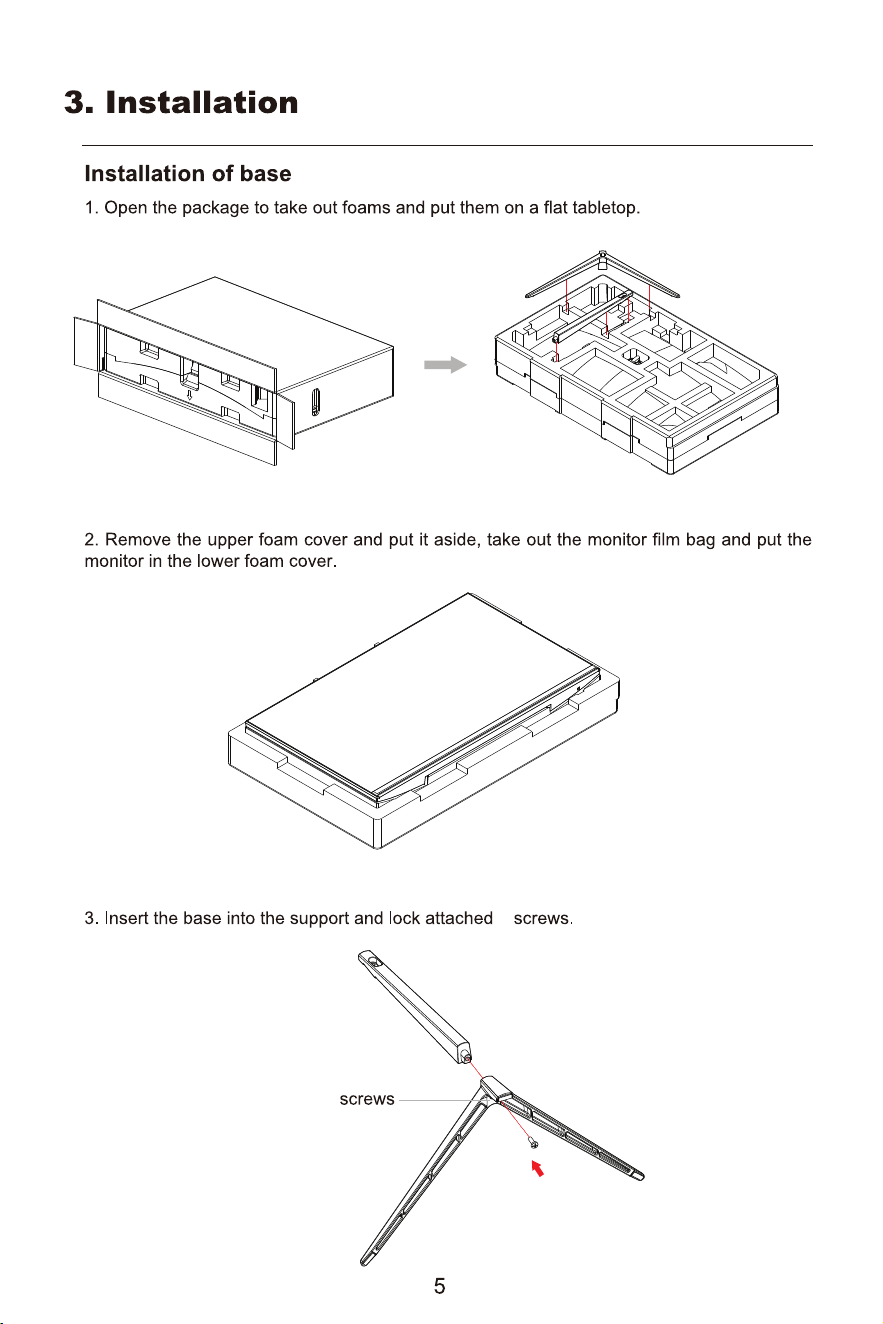

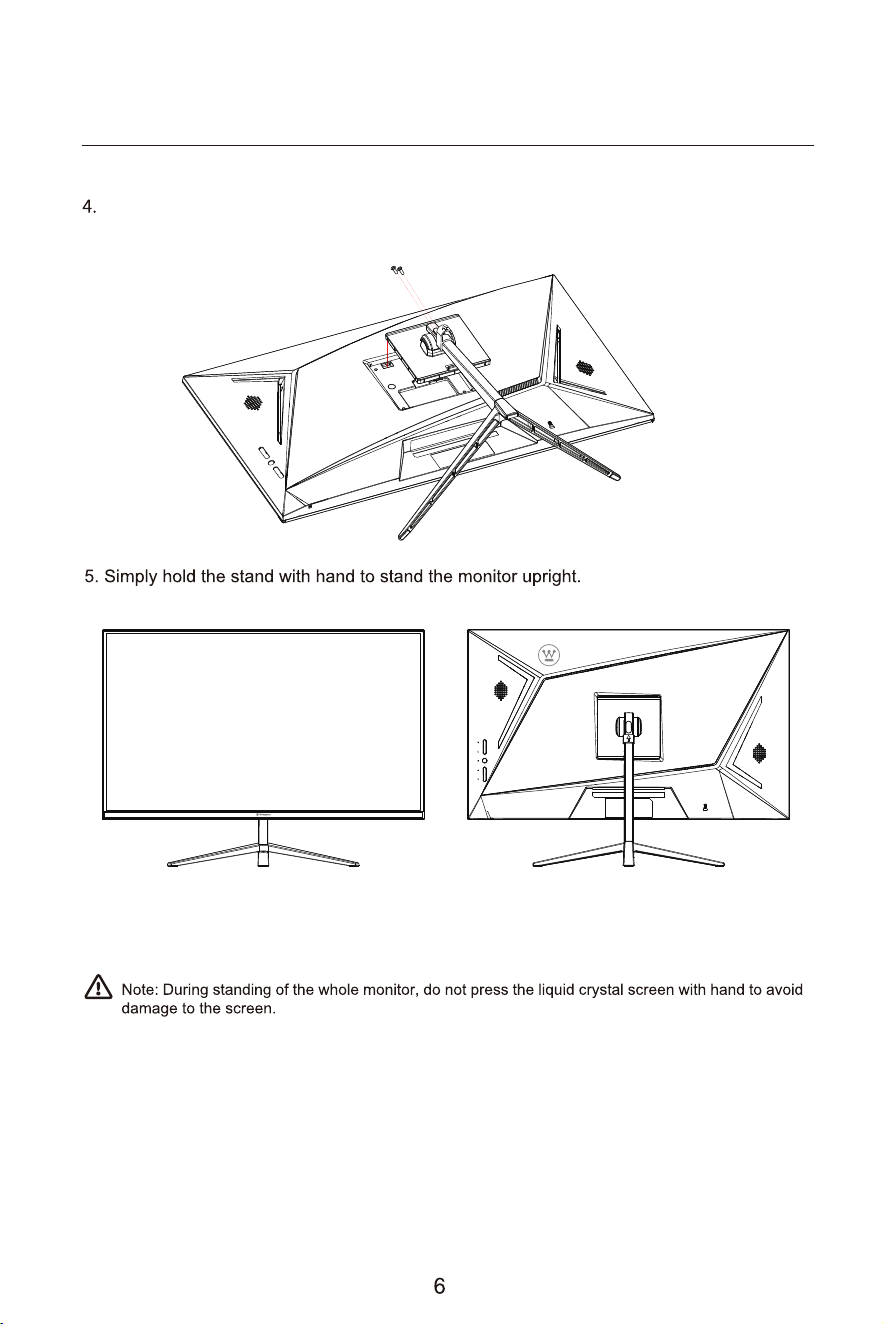

Insert the neck into mounting on the back of the monitor and secure the installation
by inserting and tightening the 2 BM4*8 screws.
20
Open the OSD Menu.
Confirm the selection to enter the sub-menu/option.
Select signal source or Exit OSD.
Power ON/OFF the monitor.
Press to move the option to the desired menu/settings and adjust on
submenu.Brightness adjustment shortcut button.
Press to move the option to the desired menu/settings and adjust on
submenu.Crosshair Shortcut Button During Gaming.

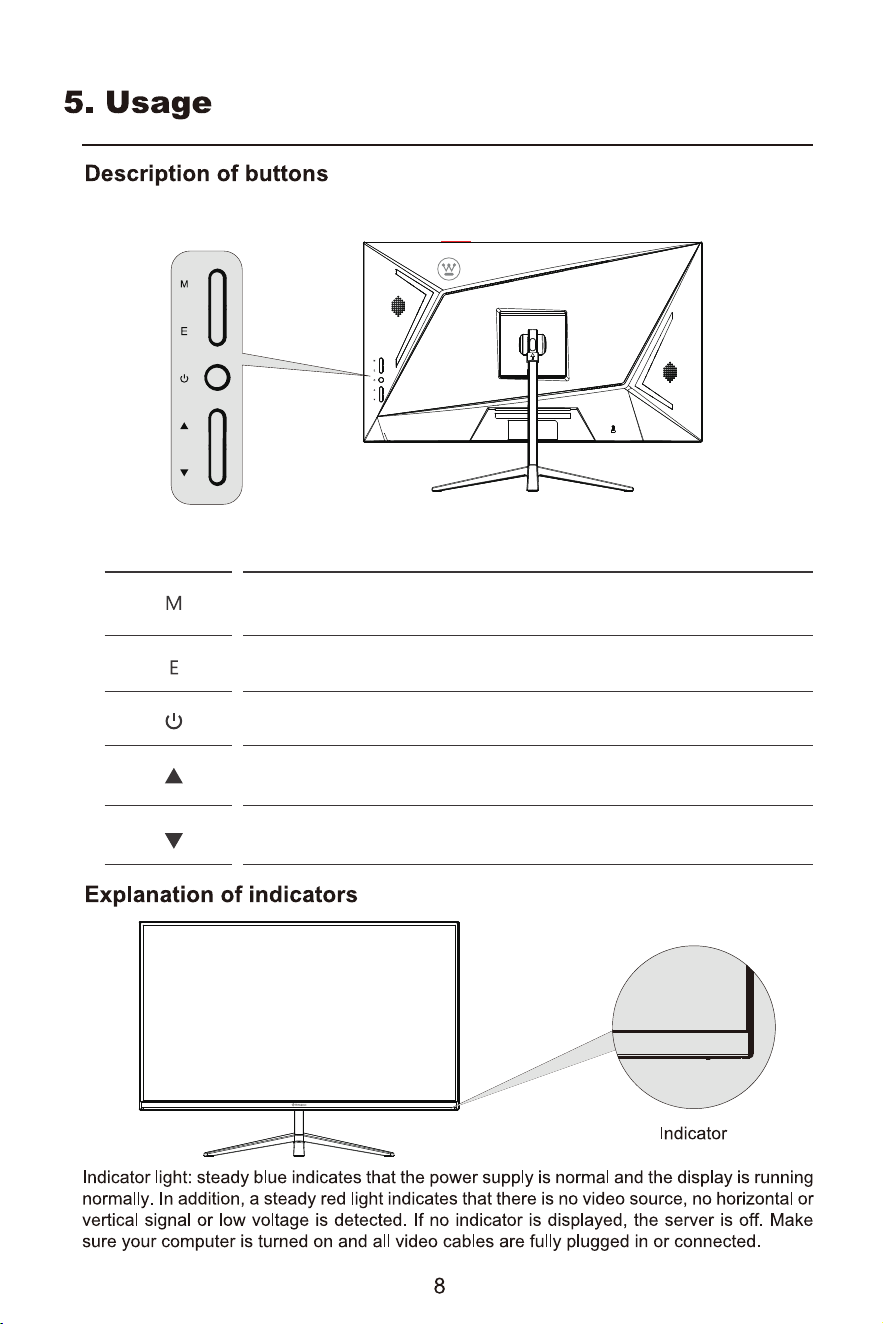

Monitor Button Action

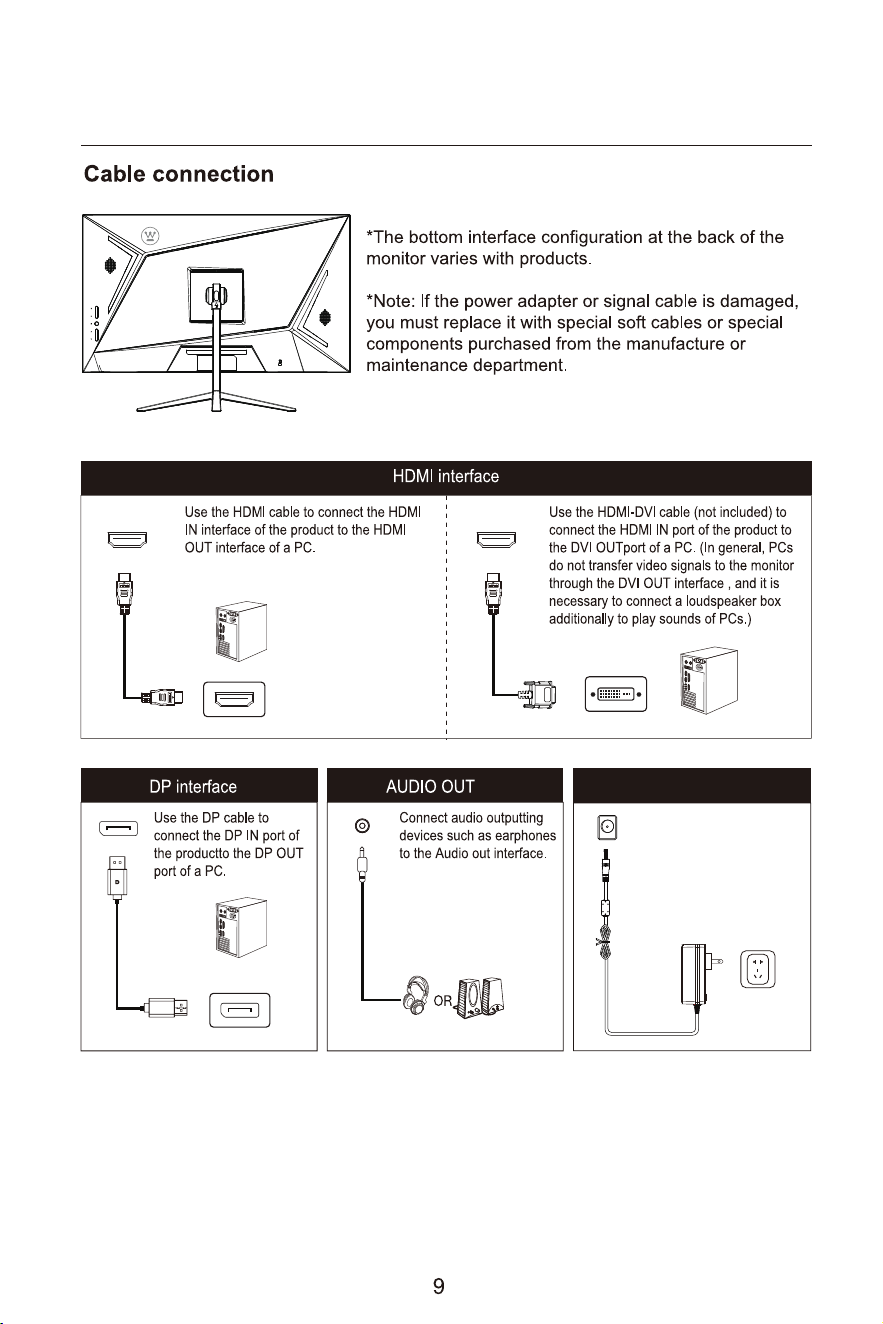

Please connect the power
adapter plug to the
corresponding power port
of the monitor, and then
connect the power cable
to a properly grounded
power outlet.
DC interface
Brightness/Contrast

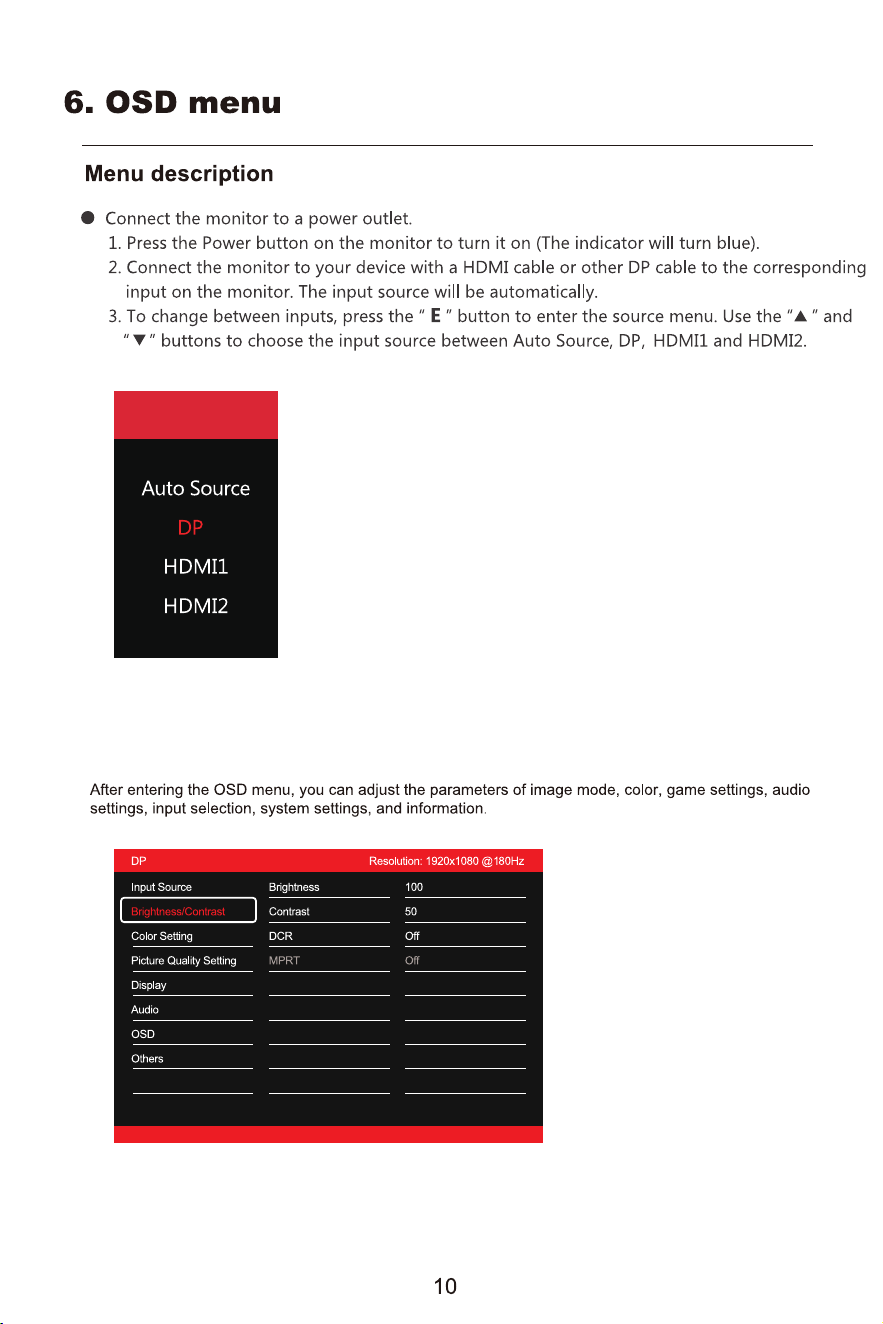

Main menu Secondary menu Third menu
Input Source
Auto Source
DP
HDMI1
HDMI2
Brightness/Contrast
Brightness 0~100
Contrast 0~100
DCR On/Off
MPRT On/Off
Color Setting
Gamma Off/1.8/2.0/2.2/2.4/2.6
Picture Mode Standard/Game/Movie/PhotO/FPS/RTS
Color Temperature Cool/Normal/Warm/User
Hue 0~100
Saturation 0~100
Low Blue Mode 0~100
Picture Quality Setting
Sharpness 0~100
Response Time Off/Low/Middle/High
Display Aspect Ratio Wide Screen/4
:3
Audio
Mute On/Off
Volume 0~100
OSD
Language English/etc.
OSD H.Position 0~100
OSD V.Position 0~100
OSD Transparency 0~100
OSD Timeout 0~100
OSD Rotation Normal/90/180/270
Others
Adaptive Sync On/Off
HDR Off/Auto/On
Led Effect On/Off
Reset /
12
Product model
WM24FA9420
Screen Size
Viewing Angle
23.8inches
178°(H) / 178°(V)
Contrast ratio 1000:1（TYP）
16.7M(8bit)
Colors
16:9
1920×1080
Product
Dimensions
Without base
Action
Storage
21.30"x 2.22"x 12.64"
21.30"x 7.40"x 16.70"
With base
2 x2watt

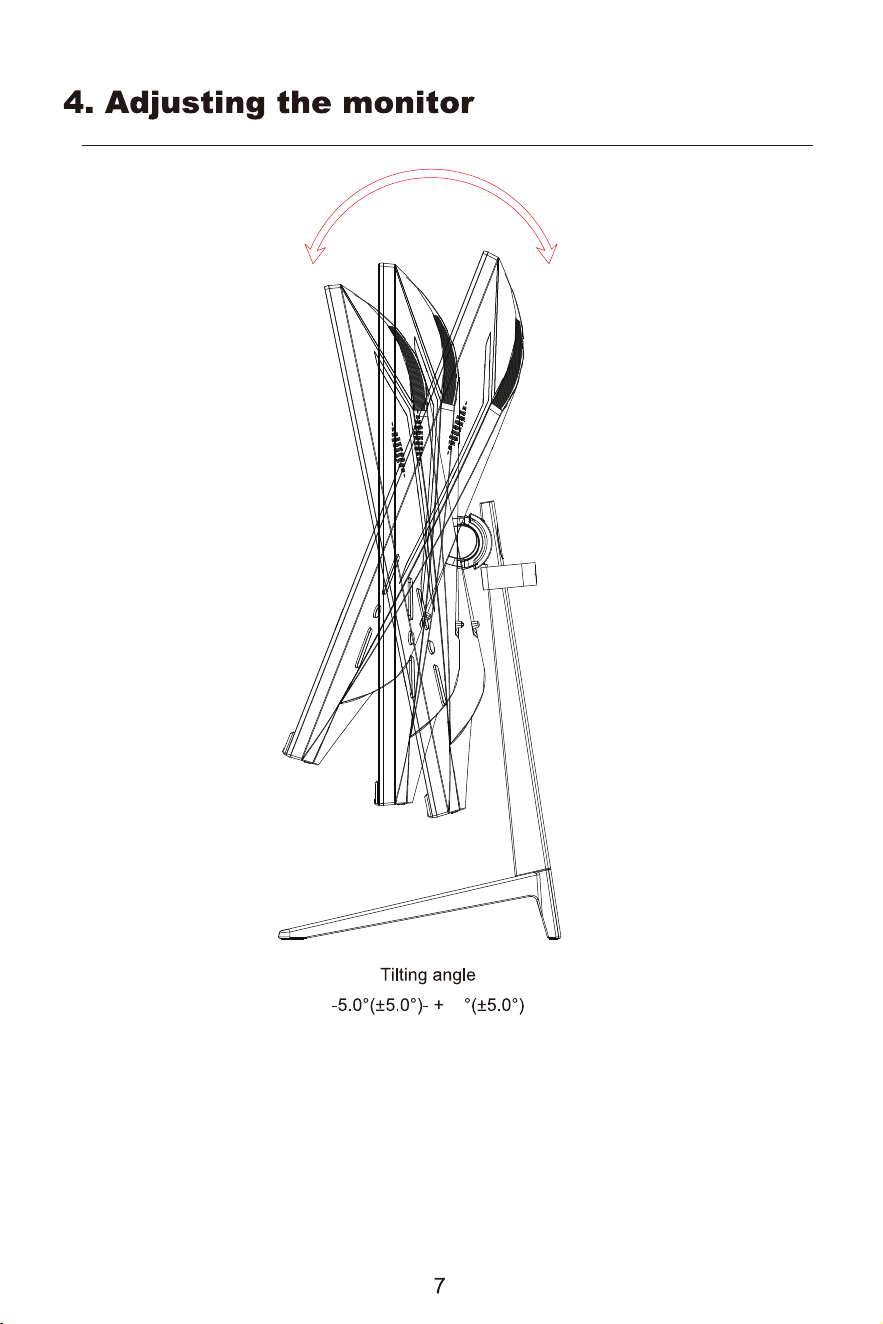

Tilting angle
speaker
Environmental
conditions
Temperature: 0 ~ + 40
Temperature: -10 ~ +60
Power Input
Maximum refresh rate
180Hz
Product Name
23.8" Flat GAMING MONITOR
DC 12V 3A
WM27FA9420
27inches
178°(H) / 178°(V)
1000:1（TYP）
16.7M(8bit)
16:9
1920×1080
24.13"x 7.40"x 17.73"
24.13"x 2.10"x 14.22"
180Hz
27" Flat GAMING MONITOR
DC 12V 4A
(The actual application of the above parameters shall be subject to the specific model.)
13
20
