1500W 7 Fin Oil Filled Radiator with Timer
Model No. HEA1894
User Manual
User Manual
2
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
1500W 7 Fin Oil Filled Radiator with Timer
Model No. HEA1894
User Manual
READING AND STORING THE USER MANUAL
Before using this product, please read through this manual
carefully paying particular attention to the safety instructions.
Failure to do so may result in personal injury or damage to the
product.
Carefully save this instruction manual for future reference. Ensure the
user manual is included when passing the product on to any third
parties.
IMPORTANT SAFETY INSTRUCTIONS FOR PROPER USE
When using electrical appliances, basic safety precautions should
always be followed.
Only use the product as described in this user manual. Any other use is
considered improper and may result in damage to property or persons.
The manufacturer or vendor cannot be held liable for damages or injury
incurred through improper or incorrect use.
• Read and familiarise yourself with all operating
instructions before using this Oil Filled Radiator.
• Before plugging your unit into the mains, visually check
that the unit is intact and has not suffered any transit
damage.
• WARNING! In order to avoid overheating, do not cover
the heater.
• DO NOT install the appliance directly below an electrical
socket.
• DO NOT use this heater with a programmer, timer,
separate remote-control system or any other device that
switches the heater on automatically, since a fire risk
exists if the heater is covered or positioned incorrectly.
• DO NOT use this heater with an extension cable.
• Check that the voltage indicated on the data plate
corresponds with that of the local network before
connecting the appliance to the mains power supply.
• Close supervision is required when using this appliance
near children.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
3
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
1500W 7 Fin Oil Filled Radiator with Timer
Model No. HEA1894
User Manual
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
• Children of less than 3 years should be kept away unless
continuously supervised.
• Children aged from 3 years and less than 8 years shall only
switch on/off the appliance provided that it has been
placed or installed in its intended normal operating
position and they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved.
• Children aged from 3 years and less than 8 years shall not
plug in, regulate and clean the appliance or perform user
maintenance.
WARNING! Some parts of this product can become very
hot and cause burns. Particular attention has to be given
where children and vulnerable people are present.
• DO NOT use this heater in the immediate surroundings of
a bath, a shower or a swimming pool.
• DO NOT immerse the appliance or its cord in water or any
other liquids.
• DO NOT leave the appliance unattended during use.
• DO NOT leave the appliance unattended whilst connected
to the mains supply.
• Always use this appliance on a solid, level, heat resistant
surface.
• DO NOT use this appliance outdoors.
• It is imperative to unplug the power cord after the
appliance has been used, before it is cleaned and whilst
being repaired.
4
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
1500W 7 Fin Oil Filled Radiator with Timer
Model No. HEA1894
User Manual
• Repairs to electrical appliances should only be performed
by a qualified electrician. Improper repairs may place user
at serious risk.
• DO NOT operate this appliance with a damaged plug or
cord, after a malfunction or after being dropped or
damaged in any way.
• Regular, periodic checks should be carried out on the
mains cable to ensure no damage is evident. Should there
be any signs of damage the appliance should not be used.
• If the power cable is damaged, it should only be replaced
by the manufacturer or a suitable qualified after-sales-
service in order to avoid a hazard
• DO NOT allow the mains cable to hang over sharp edges
or come in contact with hot surfaces.
• DO NOT run the mains cable under carpets, rugs, etc.
• Allow the unit to cool before storage.
• Before cleaning, disconnect the appliance from the mains
supply and allow to cool.
• Never place the appliance near to flammable material or
high pressure containers. e.g. Paper, wood, petrol,
solvents, spray canisters.
• This appliance is intended for household use only and
should not be used for industrial purposes.
• DO NOT use any accessories or attachments with this
appliance other than those supplied or recommended by
supplier.
• DO NOT use this appliance for anything other than its
intended use.
• DO NOT push objects into any openings as damage to the
appliance and/or electric shock may occur.
• Ensure appliance is situated in an open area, do not allow
it to come in contact with Cupboards, Curtains, wall
coverings, clothing or other flammable materials.
• The appliance should not be installed in areas which have
a fire-risk, such as garages, stables or wooden sheds; this
5
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
1500W 7 Fin Oil Filled Radiator with Timer
Model No. HEA1894
User Manual
is applicable also for rooms in which highly inflammable
gasses or dust can develop. Danger of fire!!
• Unplug after each use. Grasp the plug, not the cord.
ONCE ASSEMBLED ALLOW THE RADIATOR TO STAND UPRIGHT
FOR ONE HOUR TO ALLOW FOR THE OIL TO SETTLE
THIS RADIATOR MUST ONLY BE OPERATED IN THE UPRIGHT
POSITION WITH THE CASTORS FITTED.
THIS APPLIANCE MUST BE EARTHED
This appliance has been ERP classified as a portable space heater and should
only be used for supplementary, secondary or temporary heating. It should not
be considered for primary permanent heating in a room or dwelling.
During the first few minutes of initial use, you may notice a slight odour
and a little smoke. This is normal and will quickly disappear, It is the coating
applied to the heating elements to prevent any corrosion during transit.
This heater is filled with a precise quantity of special oil. Repairs requiring
opening of the oil container are only to be made by the manufacturer.
Whilst scrapping the heater, follow the regulations concerning the disposal of oil.
6
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
1500W 7 Fin Oil Filled Radiator with Timer
Model No. HEA1894
User Manual
Explanation of Symbols
The following warning symbols or words are used in this instruction manual:
Products labelled with UK Conformity Assessment identifies
products conforming to UK statutory requirements.
Products labelled with this symbol conform to applicable provisions
of the European Economic Area.
You should now recycle your waste electrical goods and in doing so
help the environment. This symbol means waste electrical products
at the end of their useful life should not be disposed of with normal
household waste and not sent to landfill. Please ensure it is taken
to a suitable facility for disposal. Check with your Local Authority or
retailer for recycling advice or visit www.recycle-more.co.uk enter
your postcode to find out your nearest recycling site.
This symbol provides useful additional information on the use of
this product.
This symbol indicates that the supply uses an alternating current
mains supply.
WARNING!
Safety Tip-Over Switch
This Oil Filled Radiator is fitted with built in safety Tip-Over Switch. If the radiator
is knocked over or not placed on a level surface the appliance will automatically
switch off.
Should the Safety Tip-Over Switch activate, remove the plug from the mains
socket and check for any damage.
If no damage has occurred, allow the radiator to stand upright for one hour to
allow for the oil to settle before use.
This designates a hazard with moderate risk, which may result in
severe injury if not adhered to.
7
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
1500W 7 Fin Oil Filled Radiator with Timer
Model No. HEA1894
User Manual

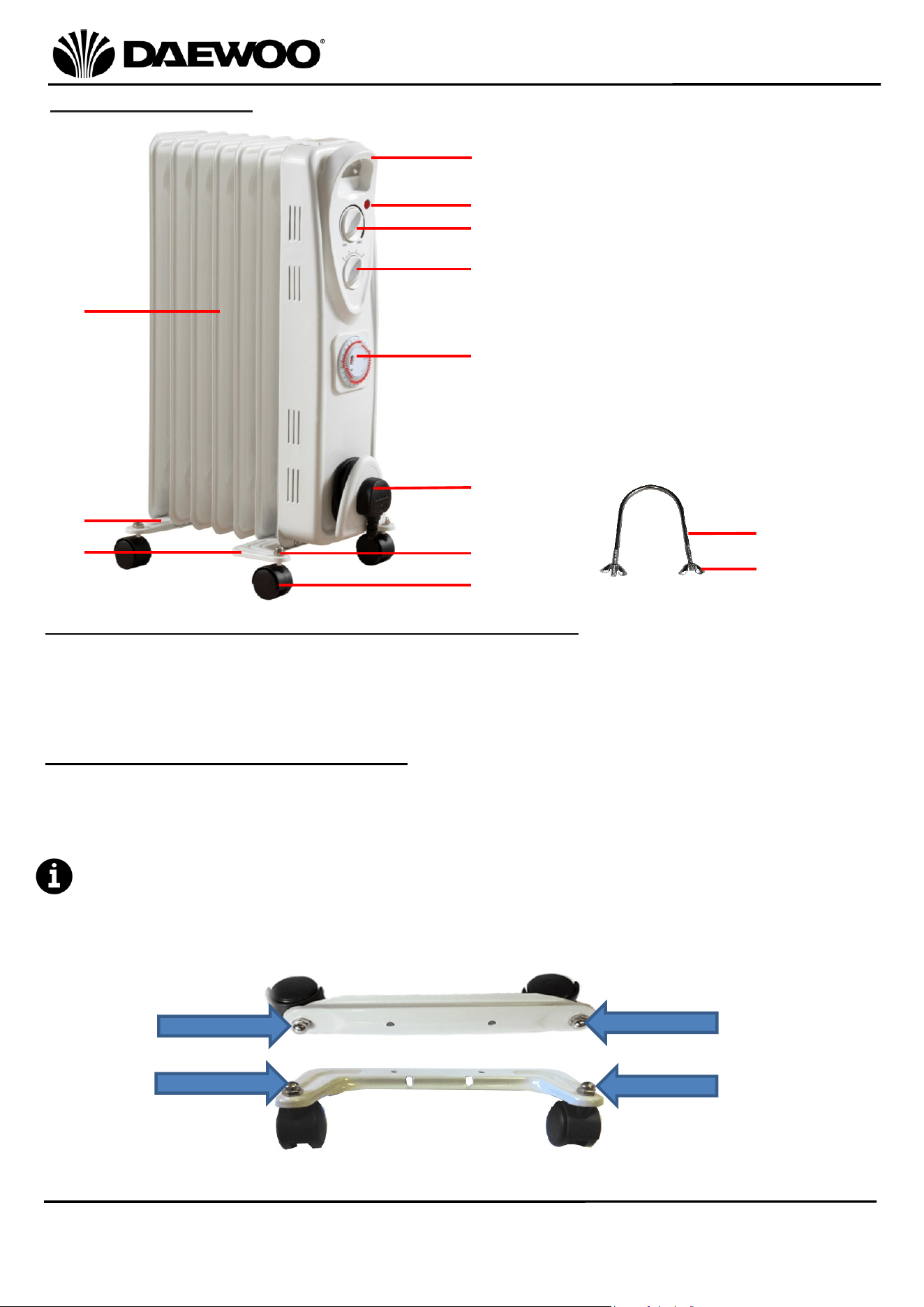

Description of Parts
Before the first time you use your Oil Filled Radiator
Remove all packing materials and discard responsibly.
Ensure that all parts are present before assembling your Oil Filled Radiator – see
Description of Parts above.
Assembling Your Oil Filled Radiator
1. Place protective material (such as cardboard) on the floor to prevent scratching
or damage to the appliance.
2. Turn the radiator upside down onto the material ensuring that it is stable.
The oil inside the radiator will be heard to settle inside this is quite normal.
3. Attach the Castors (11) to the Wheel Plates (8 & 9) using the Domed nuts (10)
supplied (arrowed below), tighten with a suitable spanner (not supplied):
1. Carry Handle
2. Heat Indicator
3. Thermostat
4. Heat Setting
5. Radiator Fins
6. Timer
7. Cord Storage
8. Straight Wheel Plate
9. Angled Wheel Plate
10. Domed Nuts (x 4)
11. Castors (x 4)
12. U-Bolts (x 2)
13. Wing Nuts (x 4)
8
2
5
3
1
7
9
12
13
10
Domed Nuts
Domed Nuts
4
6
11
8
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
1500W 7 Fin Oil Filled Radiator with Timer
Model No. HEA1894
User Manual

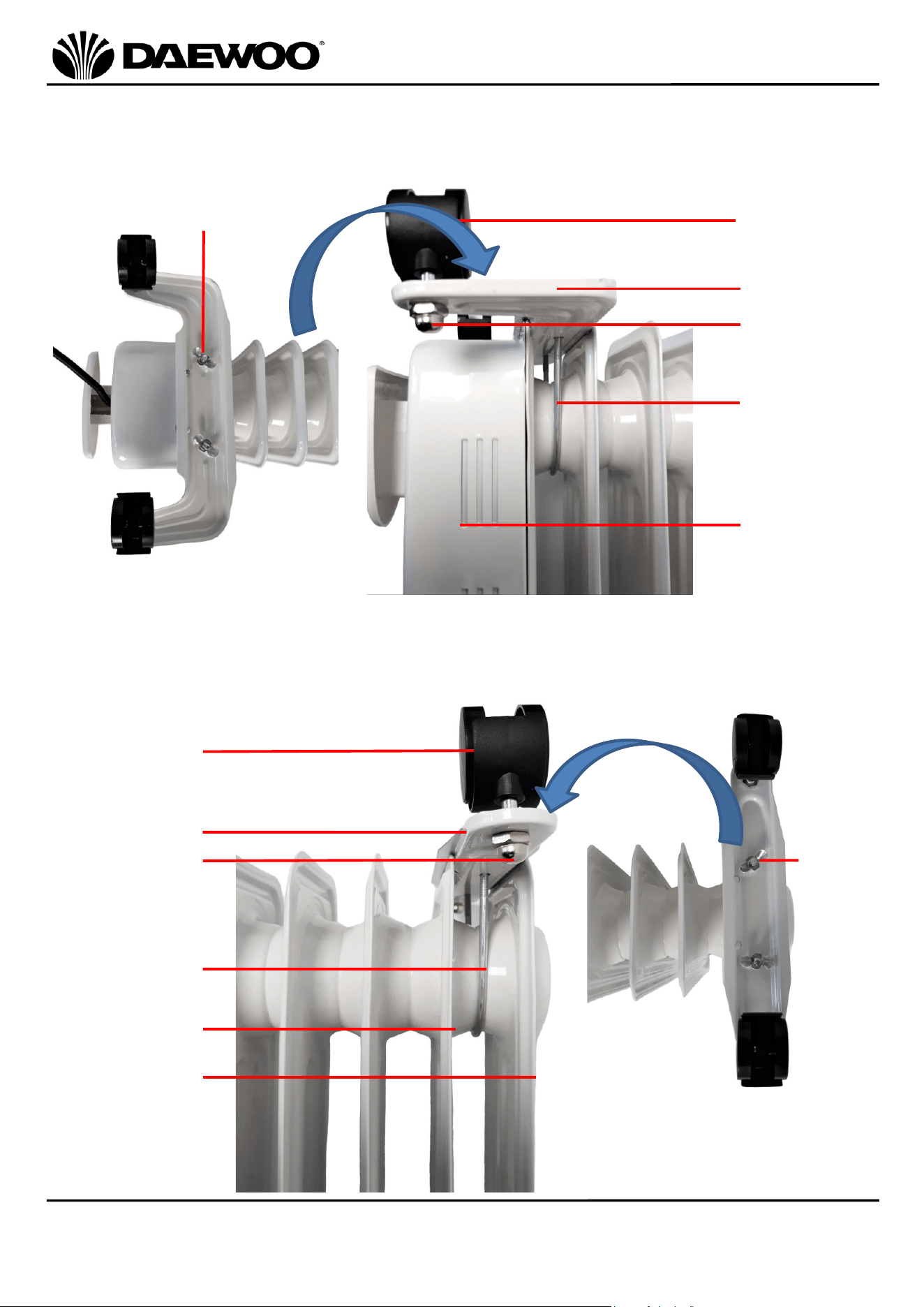

4. Remove the Wing Nuts (13) from one the U-Bolts (12) and loop it between the
first and second fins next to the control housing, attach the Angled Wheel Plate
(9-above) using the Wing Nuts (13) as in the image below, taking care not to
overtighten:
5. Remove the Wing Nuts (13) from the other U-Bolt (12) and loop it between the
end and next to the end fins. Attach the Straight Wheel Plate (8) (above) using
the Wing Nuts (13) as in the image below, taking care not to overtighten:
Castor(s)
Angled Wheel
Plate
Domed Nut
U-Bolt
Control
Housing
Wing Nuts
Castor(s)
Wing
Nuts
Straight
Wheel Plate
Domed Nut
U-Bolt
Next to End Fin
End Fin
Above: Underside view
Above: Underside view
9
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
1500W 7 Fin Oil Filled Radiator with Timer
Model No. HEA1894
User Manual
6. Once the Castors (11) are attached invert the radiator the correct way up onto
its Castors (11) and place into the desired position ensuring that it is stable and
vertical. The oil inside the radiator will be heard to settle inside this is quite
normal.

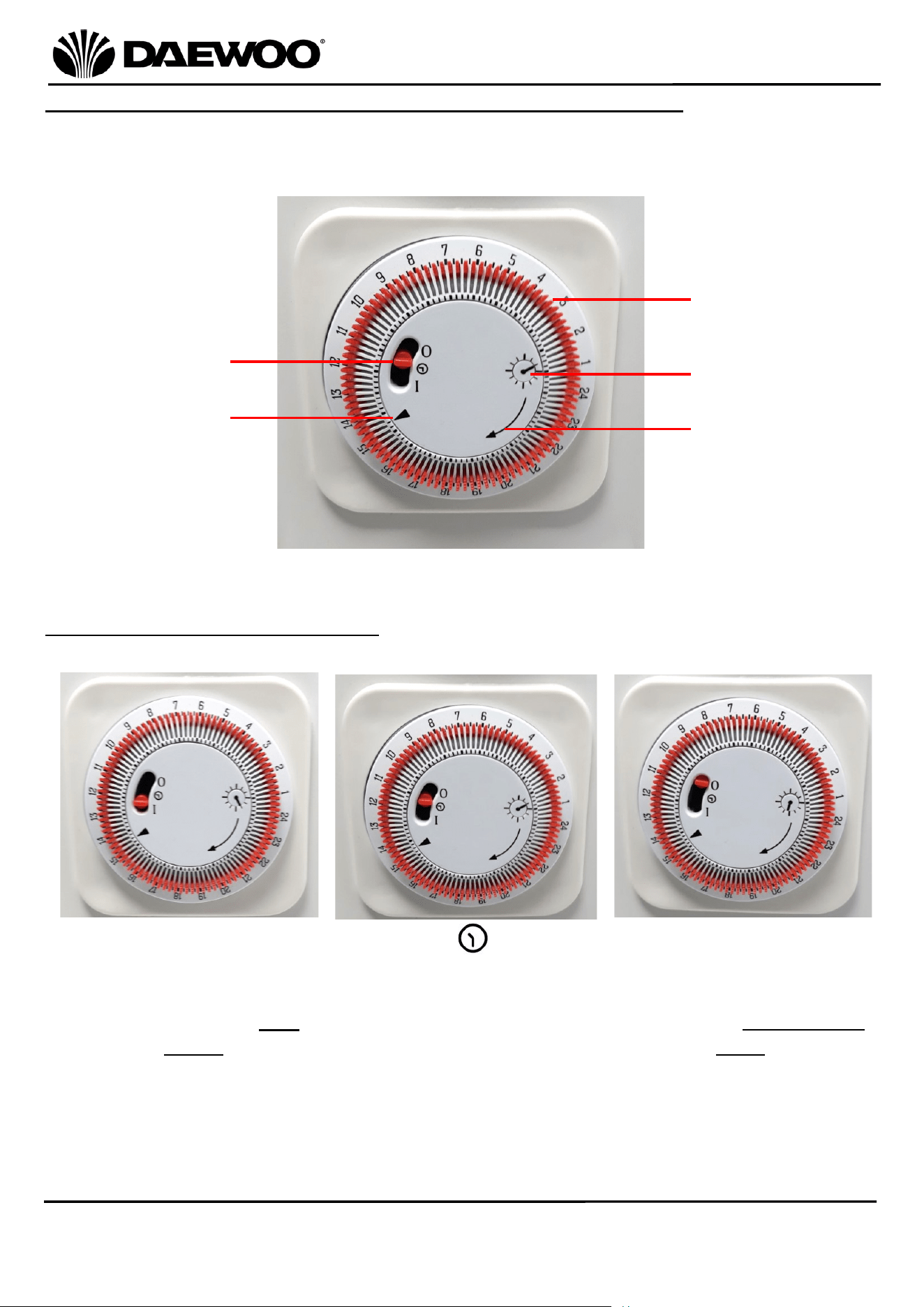

Operating Instructions – Using the Radiator without the Timer (6)
IMPORTANT: Before using your Oil Filled Radiator, ensure that the Timer Mode
Switch (14) on the Timer (6) is in the I position for the radiator to work normally:

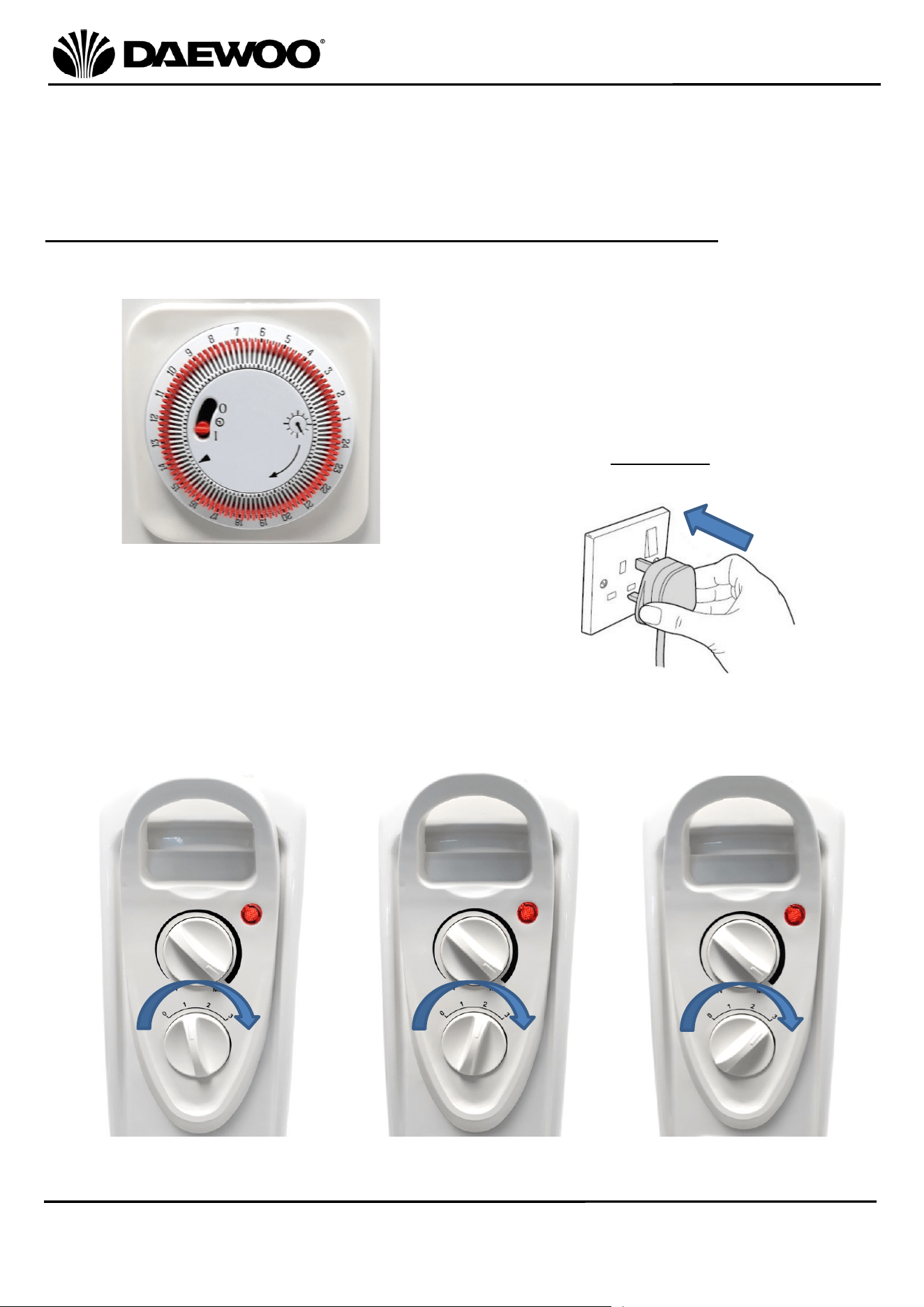

1. Insert the mains plug into the nearest socket and
switch the socket on (if applicable).
2. Select the desired heat setting by rotating the Heat Setting (4) switch clockwise
to position 1 for the low heat setting, to 2 for medium heat and to 3 for high
heat:
1 Low Heat
600W
2 Medium Heat
900w
3 High Heat
1500W
Left: The Timer Mode Switch
(14) shown in I position.
The radiator will work
normally and is not timed.
10
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
1500W 7 Fin Oil Filled Radiator with Timer
Model No. HEA1894
User Manual

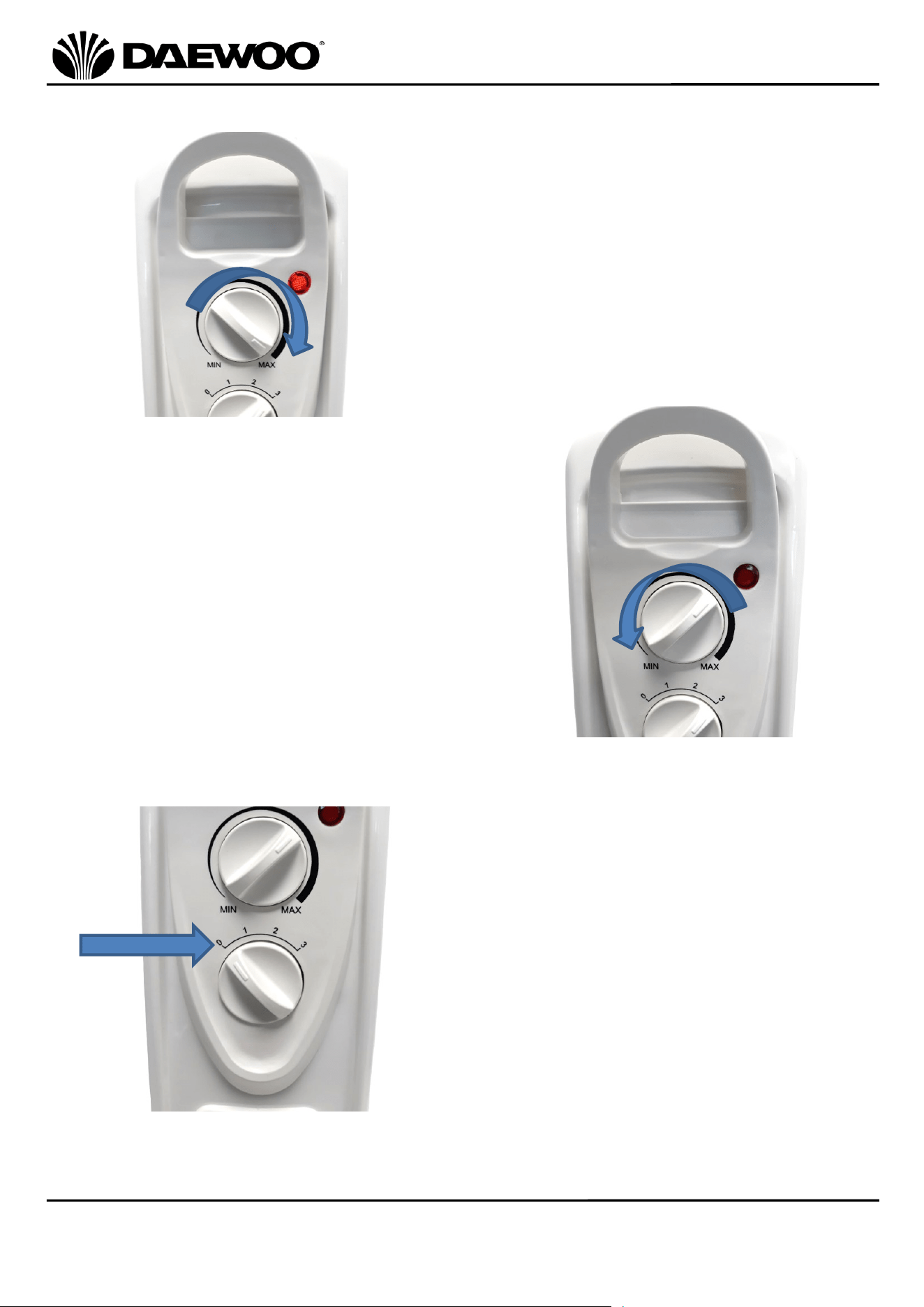

3. Once the Heat Setting has been
chosen as above, rotate the
Thermostat (3) to the fully clockwise
position. The Heat Indicator (2) will
illuminate to show the radiator is
heating up.
4. Once the room reaches the desired
temperature, rotate the Thermostat (3)
anti-clockwise until the Heat Indicator
(2) just goes out. The Thermostat (3)
will now maintain the set temperature.
The Thermostat (3) control may need to
be rotated clockwise to increase the
temperature or anticlockwise to reduce
the temperature to ‘fine tune’ the ideal
room temperature.
5. To switch off the radiator, return the Heat
Setting (4) switch to the ‘0’ position
(arrowed left) and the Thermostat (3)
fully anticlockwise.
11
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
1500W 7 Fin Oil Filled Radiator with Timer
Model No. HEA1894
User Manual
Operating Instructions – Using the Radiator with the Timer (6)
The Timer (6) is a 24 hour type and has 96 segments around the outside; each
segment is equivalent to 15 minutes.
Timer Mode Switch (14) Settings
Timing
Segments (16)
Timer Mode
Switch (14)
Time
Pointer (15)
Seconds
Counter (17)
Timer
Direction (18)
Switch in I position.
The radiator will work
normally and is not
timed.
Switch in position.
The radiator Timer is
activated and will switch
on and off according to
the time and segment
positions.
Switch in O position.
The radiator is switched
off and will not operate
at all.
12
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
1500W 7 Fin Oil Filled Radiator with Timer
Model No. HEA1894
User Manual
1. Insert the mains plug into the nearest mains socket
and switch the socket on (if applicable).
The heater must be left connected to the mains in order for the timer to
operate.
2. Set the correct time on the dial by rotating the dial clockwise in the Timer
Direction (18) until the correct time of day lines up with the Time Pointer (15).
i.e. to set the time for 8.00pm in the evening rotate the dial until the time
pointer aligns with 20 on the dial.
3. Move the Timer Mode Switch (14) to the timed mid position.
4. Pull the Timing Segments (16) out for the desired time when the heater needs
to be on.
5. Push the Timing Segments (16) in for the time when the heater needs to be off.
6. Set the radiator Heat Mode and Thermostat settings as described above.
7. The radiator will now come on only at the time set on the timer.
Whilst using the radiator in timer mode, due consideration must be given to the
fact that the heater may come on whilst unattended.
Care and Use of your Oil Filled Radiator
• Always disconnect the heater from the mains power supply and allow to cool
before cleaning.
• Clean outside of the heater with a clean damp cloth. Never clean with harsh or
abrasive cleaners.
• DO NOT submerge any part of the heater in water or any other liquids.
Technical Specification
Rated Voltage
220-240V~ 50/60Hz
Rated Power
1500W
Model Number
HEA1894
Protection Class
I (This appliance must be earthed)
13
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
1500W 7 Fin Oil Filled Radiator with Timer
Model No. HEA1894
User Manual
Non-Rewireable Mains Plug
If your appliance is supplied with a non-rewireable plug fitted to the mains lead
and should the fuse needed replacing, you must use an ASTA approved one
(conforming to BS 1362 of the same rating). Never use a plug with the fuse cover
missing. If in doubt, consult a qualified electrician.
If you need to remove the plug -DISCONNECT FROM THE MAINS- and then cut it
off the mains lead and immediately dispose of it safely. Never attempt to reuse
the plug or insert it into a socket outlet as there is a danger of electric shock.
Recycling Information
Disposal of the Packaging
Dispose of paper and cardboard in appropriate paper re-cycling facilities.
Dispose of recyclable plastics in appropriate plastic re-cycling facilities.
Dispose of non-recyclable plastics in the appropriate plastics collection service.
Disposal of the Product
You should now recycle your waste electrical goods and in doing so
help the environment. This symbol means waste electrical products
at the end of their useful life should not be disposed of with normal
household waste and not sent to landfill. Please ensure it is taken to
a suitable facility for disposal. Check with your Local Authority or
retailer for recycling advice or visit www.recycle-more.co.uk to find
your nearest recycling point.
This heater is filled with a precise quantity of special oil. Repairs requiring
opening of the oil container are only to be made by the manufacturer.
Whilst scrapping the heater, follow the regulations concerning the disposal of oil.
14
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
1500W 7 Fin Oil Filled Radiator with Timer
Model No. HEA1894
User Manual
15
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
1500W 7 Fin Oil Filled Radiator with Timer
Model No. HEA1894
User Manual
ErP Data
Model identifier(s): HEA1894
Item
Symbol
Value
unit
Item
unit
Heat output
Type of heat input, for electric storage local
space heaters only (select one)
Nominal heat output
P
nom
0.7001
kW
manual heat charge control, with
integrated thermostat
[no]
Minimum heat output
(indicative)
P
min
0.4535
kW
manual heat charge control with
room and/or outdoor temperature
feedback
[no]
Maximum continuous heat
output
P
max,c
0.7001
kW
electronic heat charge control with
room and/or outdoor temperature
feedback
[no]
Auxiliary electricity
consumption
fan assisted heat output
[no]
At nominal heat output
el
max
0.000
kW
Type of heat output/room temperature
control (select one)
At minimum heat output
el
min
0.000
kW
single stage heat output and no room
temperature control
[no]
In standby mode
el
sb
0.000
kW
Two or more manual stages, no room
temperature control
[no]
with mechanic thermostat room
temperature control
[yes]
with electronic room temperature
control
[no]
electronic room temperature control
plus day timer
[no]
electronic room temperature control
plus week timer
[no]
Other control options (multiple selections
possible)
room temperature control, with
presence detection
[no]
room temperature control, with open
window detection
[no]
with distance control option
[no]
with adaptive start control
[no]
with working time limitation
[no]
with black bulb sensor
[no]
Contact details:
16
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
1500W 7 Fin Oil Filled Radiator with Timer
Model No. HEA1894
User Manual
Daewoo® is a registered trademark.
Produced and imported under license by
Eurosonic Group Limited
Brightgate House
1 Brightgate Way
Manchester M32 0TB UK
EU Rep: EuroSonic Magppie (ESM) Ltd. Ireland D05 X006
www.esgltd.com
WARRANTY
Thank you for purchasing your Daewoo product.
As part of our commitment to quality, we are offering you an extra 2 years warranty in
addition to your 1 year guarantee
Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof
of purchase or receipt. If any defect should occur due to faulty workmanship or material, your
faulty product should be returned to the place of purchase, replacement or refund is at the
discretion of the retailer.
The guarantee is subject to the following provisions:
•
The product must be correctly installed and operated in accordance with the
requirements contained in the instruction manual.
•
The product must be used solely for domestic purposes.
•
It does not cover general wear and tear, damage, misuse or any consumable parts.
•
The guarantee will be rendered invalid if the product is re-sold or has been damaged through
inexpert repair.
•
The guarantee is only valid within the UK and Eire.
Your standard 1 year guarantee will only be extended to the maximum available for your
individual product upon registration. (Note: products must be registered individually and
covers the main body and housing). If you do not register your product within 28 days of the
original purchase date, your product will only be guaranteed for 1 year.
To validate your extended 2 year warranty*please register your purchase online within
28 days of the original purchase date by registering at:
https://help.daewooelectricals.com
or
Contact Us (daewooelectricals.com)
*Your extended warranty is only valid with proof of purchase receipt and subject to the
conditions outlined above.
