RVC-W9
Wireless Camera & Receiver Kit
User Manual
email - gmsupport@echomaster.com (US) - tel - 866-766-2267
2
Installation Guide
email - gmsupport@echomaster.com (US) - tel - 866-766-2267
RVC-W9
Wireless Camera & Receiver Kit
Introduction
Box Contents
u Camera with Antenna (TX)
u Camera Power Cable
u 4Pin Din Extension Cable
u Receiver (RX)
Thank you for purchasing your EchoMaster Wireless Camera & Receiver.
This EchoMaster camera with receiver is designed to improve safety during
driving by providing high quality images of surrounding areas and obstacles in
the vicinity of the vehicle.
Please ensure you read and understand all aspects of this manual before
tting or using your EchoMaster camera. Choose a suitable mounting place
dependant on the application. Ensure that there are no wiring harnesses or
hoses/pipes located behind this panel before drilling.
u Hole Saw
u 2 x Red Male Spades
u 2 x Red T-tap
u 2 x 10mm screws
RVC-W9
u 4 x Cable Ties
u Double Sided Tape
u QR User Manual
3
Installation Guide
email - gmsupport@echomaster.com (US) - tel - 866-766-2267email - gmsupport@echomaster.com (US) - tel - 866-766-2267
RVC-W9
Wireless Camera & Receiver Kit
Wiring Diagram & Pin-Out
Camera wiring
Red (Power) – Connect this wire to the positive parking lamp wire in the vehicle /
trailer.
Black (Ground) – Locate a suitable location to ground (negative) the Black wire in
the wiring harness. You may connect this wire to a factory ground point in the vehicle,
or attach a ring terminal to the black wire and screw into the body of the vehicle/trailer.
If you choose to screw into the body, clean the area of any paint or adhesives to allow
for good metal-to-metal contact.

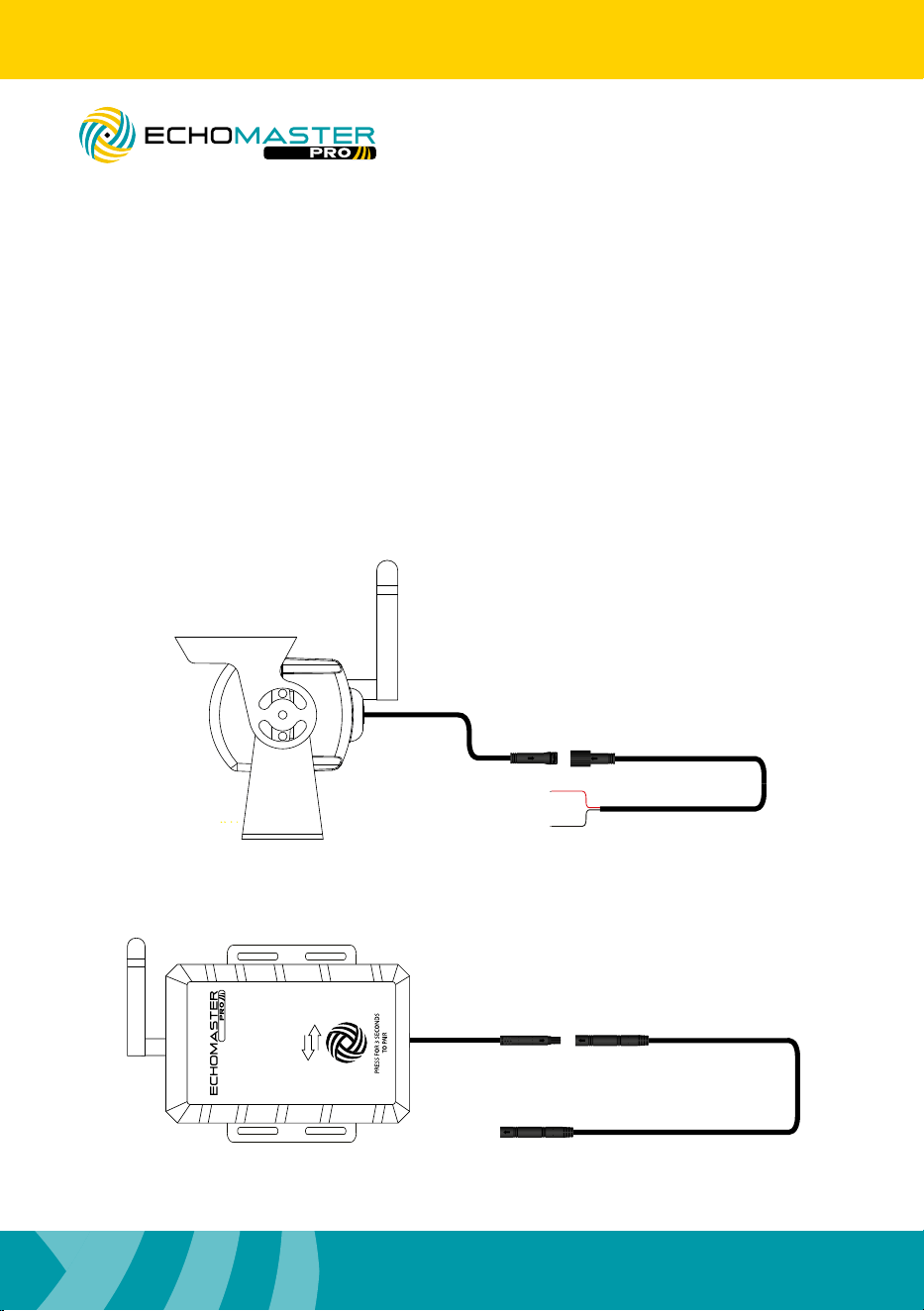

Wire connections are illustrated in the diagram below.
Connect to +12V parking lamp
Connect to parking lamp ground
Connect to Interface’s
Trailer Input
Connect to
Extension Cable
Camera
Receiver
Be sure to test the suspected
wires with a digital multimeter
as trailer wiring is not universal.
email - gmsupport@echomaster.com (US) - tel - 866-766-2267
4
Installation Guide
email - gmsupport@echomaster.com (US) - tel - 866-766-2267
RVC-W9
Wireless Camera & Receiver Kit
Pairing the Camera
The Camera & Receiver are automatically paired. There is no need to pair again
unless you need to replace the receiver or camera. If this happens please follow the
sequence below to pair the receiver and camera together.
How to pair:
Setup the video display to view the wireless camera. The “No Signal” screen should
be displayed at this time.
Within 30 seconds Press and Hold the receivers (RX) pair button for 3 seconds.
Pairing will then start and a 30 second count down will be shown on the video display.
Power up the camera by turning the vehicles parking lights on.
Once pairing is complete the camera picture, along with a signal indicator, will appear
on the video display and the GREEN LED on the receiver will be on constant.

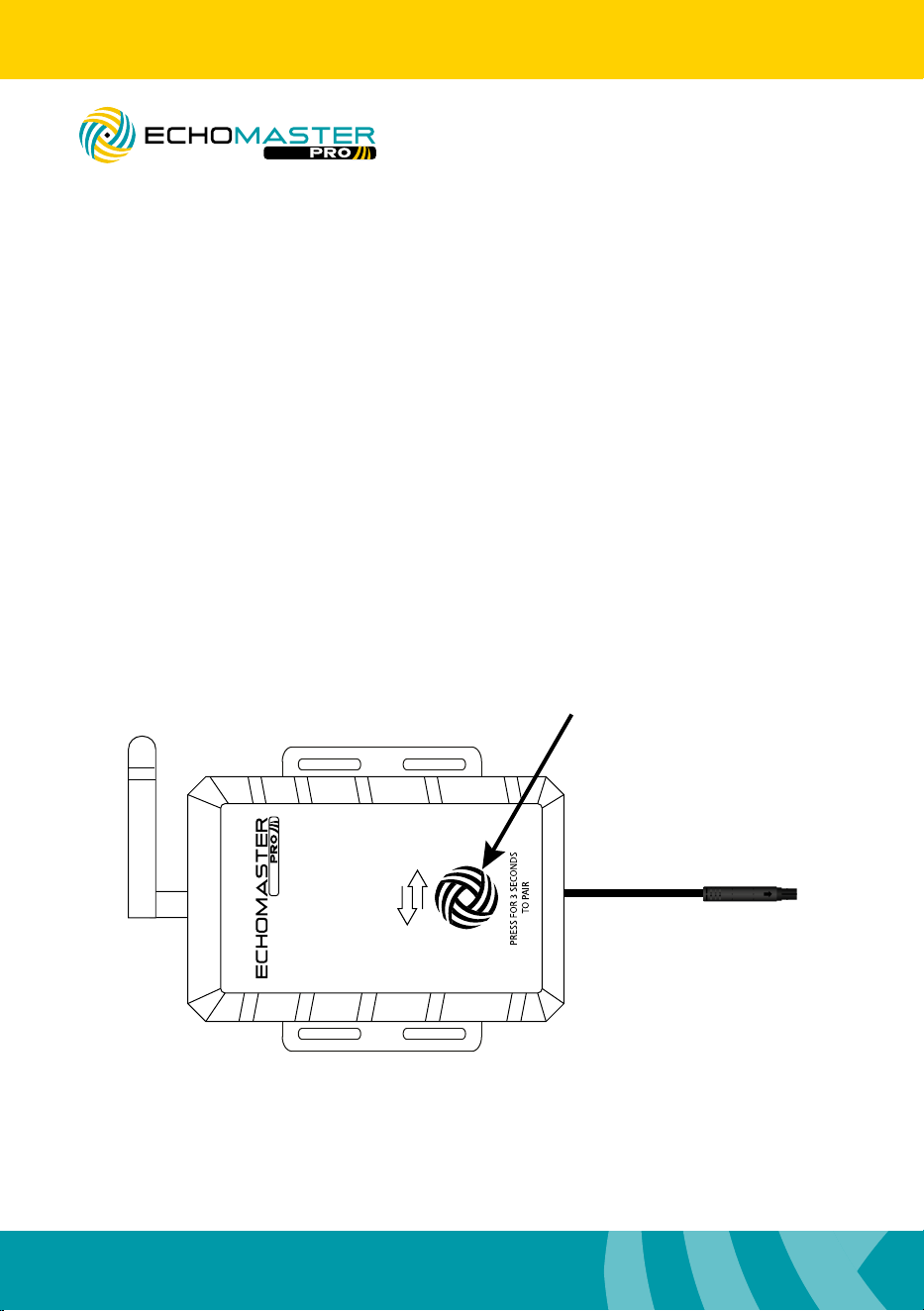

Receiver
Pairing Button
5
Installation Guide
email - gmsupport@echomaster.com (US) - tel - 866-766-2267email - gmsupport@echomaster.com (US) - tel - 866-766-2267
RVC-W9
Wireless Camera & Receiver Kit
Camera (with built-in TX)
Image Sensor HD CMOS 1/2.7”
Horizontal angle 105° ± 5°
Vertical angle 50° ± 5°
Imaging resolution 1920H x 1080V Pixel
Minimum illumination 0.2Lux/F1.2(0Lux IR ON)
Transmission power 23dBm ± 1 dBm
Working frequency 2.4GHz ~ 2.4835GHz
Antenna gain 5.0 dBi @ 2400 ~ 2500MHz
Water-proof Rating IP68
Current consumption <=360mA
Power supply DC 12/24V
Operating temperature -20°C to 75°C
Specifications
Receiver (RX)
Output signal AHD
Output resolution 1080p
Sensitivity
-78dBm(Typ.)@12MHz,16QAM BER<1E-3
-86dBm(Typ.)@12MHz QPSK BER<1E-3
Working Frequency 2.4GHz ~ 2.4835GHz
Antenna Gain 5.0 dBi @ 2400 ~ 2500GHz
Transmission range 200M
Latency time 200ms
Operating Voltage DC 12/24V
Working Current <= 250mA
Operating temperature -20°C to 75°C
email - gmsupport@echomaster.com (US) - tel - 866-766-2267
6
Installation Guide
email - gmsupport@echomaster.com (US) - tel - 866-766-2267
RVC-W9
Wireless Camera & Receiver Kit
Notes:
7
Installation Guide
email - gmsupport@echomaster.com (US) - tel - 866-766-2267email - gmsupport@echomaster.com (US) - tel - 866-766-2267
RVC-W9
Wireless Camera & Receiver Kit
Notes:
Clearwater Florida 33760
EchoMaster is a brand of Stinger.
www.echomaster.com
email - gmsupport@echomaster.com - tel - 866-766-2267 (US)
AGREEMENT: End user agrees to use this product in compliance with the instructions and terms
of use above and with all State and Federal laws. ECHOMASTER provides instructions and safety
warnings with respect to this product and disclaims all liability for any use not in conformity with
those instructions or other misuse of its product. If you do not agree, please discontinue use
immediately and contact EchoMaster. This product is intended for off-road use and passenger
use only.
REV. 020624
