REFRIGERATOR
1.6 & 2.4 CU. FT. SINGLE DOOR
FOR MODELS:
3W1BF16
3W1WF16
3W1BF26
3W1WF26
Before using your refrigerator, please
read this manual carefully and keep it for
future reference, along with your receipt.
USER MANUAL
For your own records, please attach a copy of your sales receipt to this manual and complete the
following:
Model Number: ________________________ Serial Number: ____________________________
Purchase Date: _________________________ Store Purchased: __________________________
Installation Date: _______________________ Installation Co.: ___________________________
Installer Name: _________________________ Installer Phone No.: ________________________
CONSUMER PRODUCT INFORMATION
CONTENTS
CONTENTS
1. SAFETY WARNINGS ............................................................. 1
1.1 Warning ...................................................................................................................................1
1.2 Meaning of Safety Warning Symbols ......................................................................................2
1.3 Electricity Related Warnings ....................................................................................................2
1.4 Warnings for Use .....................................................................................................................3
1.5 Warnings for Placement ..........................................................................................................3
1.6 Warnings for Energy ................................................................................................................4
1.7 Warnings for Disposal .............................................................................................................4
2. PROPER USE OF REFRIGERATORS .................................... 5
2.1 Placement................................................................................................................................5
2.2 Reversing the Door Swing .......................................................................................................6
2.3 Thermostat ..............................................................................................................................8
2.4 Starting ....................................................................................................................................8
2.5 Energy Saving Tips..................................................................................................................8
3. STRUCTURE ........................................................................... 9

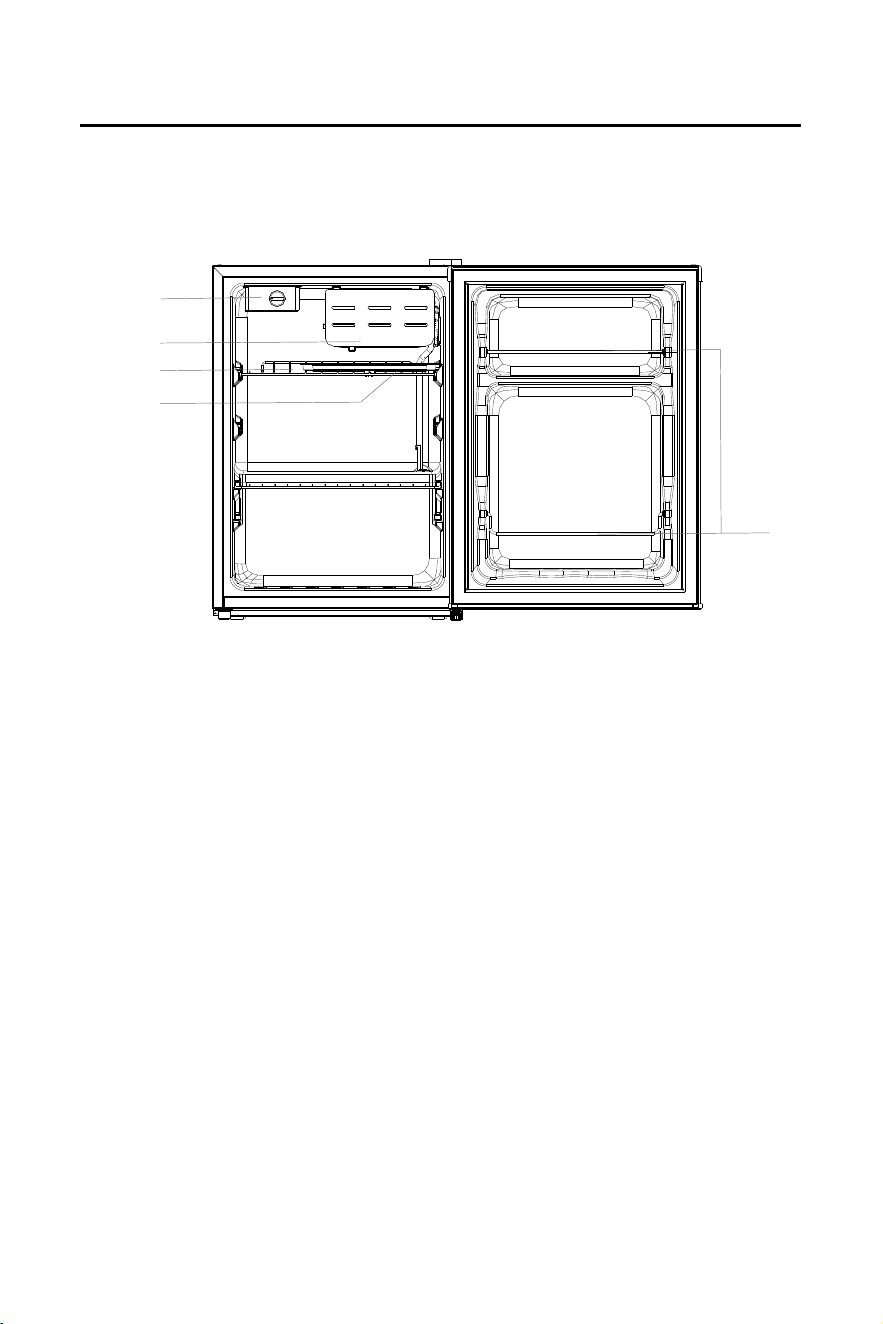

3.1 Names of Components ............................................................................................................9
4. MAINTENANCE & CARE OF THE UNIT ........................... 10
4.1 Overall Cleaning ....................................................................................................................10
4.2 Defrosting ..............................................................................................................................10
4.3 Out of Operation ....................................................................................................................10
5. TROUBLESHOOTING ......................................................... 11
To ensure that you get the best results from your new refrigerator, please take time to read through
the simple instructions in this booklet. Please ensure that the packing material is disposed of
in accordance with the current environmental requirements. When disposing of any refrigerator
equipment, please contact your local waste disposal department for advice on safe disposal. This
appliance must be only used for its intended purpose.
This manual provides the information needed for proper use and maintenance of this unit. Basic
preventative care can help extend the life of this unit. The “Troubleshooting” section in this manual
contains a chart with solutions to the most common problems. Referring to this section may save
time and prevent the need for a service call in the event of a problem.
1. SAFETY WARNINGS
1
RECOMMENDATIONS:
This appliance is intended to be used in household and similar applications such as sta kitchen
areas in shops, oces and other working environments; farm houses and by clients in hotels, motels
and other residential type environments; bed and breakfast type environments; catering and similar
non-retail applications.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
DO NOT store explosive substances such as aerosol cans with a ammable propellant in this appliance.
The appliance has to be unplugged after use and before carrying out user maintenance on the
appliance.
WARNING: Risk of re / ammable materials.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
WARNING: DO NOT use mechanical devices or other means to accelerate the defrosting process, other
than those recommended by the manufacturer.
WARNING: DO NOT damage the refrigerant circuit.
WARNING: DO NOT use electrical appliances inside the food storage compartments of the appliance,
unless they are the type recommended by the manufacturer.
WARNING: Please dispose of the refrigerator according to local regulators as it uses ammable blowing
gas and refrigerant.
DO NOT use extension cords or ungrounded (two prong) adapters.
DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:
-Remove the doors
-Leave the shelves in place so that children may not easily climb inside
The refrigerator must be disconnected from the electrical supply source before attempting accessory
installation.
Refrigerant and cyclopentane foaming material used for the refrigerator are ammable. Therefore,
when the refrigerator is scraped, it shall be kept away from any re source and be recovered by a
special recovering company with corresponding qualication other than be disposed by combustion,
so as to prevent damage to the environment or any other harm.
READ SAFETY PRECAUTIONS BEFORE INSTALLATION
To prevent injury to the user or other people and property damage, the following instructions must be
followed.
Incorrect operation due to ignoring of instructions may cause harm or damage.
1.1 WARNING
WARNING: Risk of re / ammable materials
2
1.2 MEANING OF SAFETY WARNING SYMBOLS
Prohibition Symbol
This is a prohibition symbol.
Any noncompliance with instructions marked with this symbol may result in
damage to the product or endanger the personal safety of the user.
Warning Symbol
This is a warning symbol.
It is required to operate in strict observance of instructions marked with this
symbol; or otherwise damage to the product or personal injury may occur.
Note Symbol
This is a cautioning symbol.
Instructions marked with this symbol require special caution. Insucient cau-
tion may result in slight or moderate injury, or damage to the product.
1.3 ELECTRICITY RELATED WARNINGS
DO NOT pull the power cord when pulling the power plug of the
refrigerator. Please rmly grasp the plug and pull it out from the
socket directly.
To ensure safe use, do not damage the power cord or use the power
cord when it is damaged or worn.
Please use a dedicated power socket and the power socket shall not
be shared with other electrical appliances. The power plug should be
rmly pressed into the socket to prevent the risk of re.
Please ensure that the grounding electrode of the power socket is
equipped with a reliable grounding line.
Please turn o the gas valve and open the doors and windows in
case of gas leakage and other ammable gases. DO NOT unplug the
refrigerator and other electrical appliances considering that sparks may
cause a re.
DO NOT use electrical appliances on top of the appliance unless they are
the type recommended by the manufacturer.

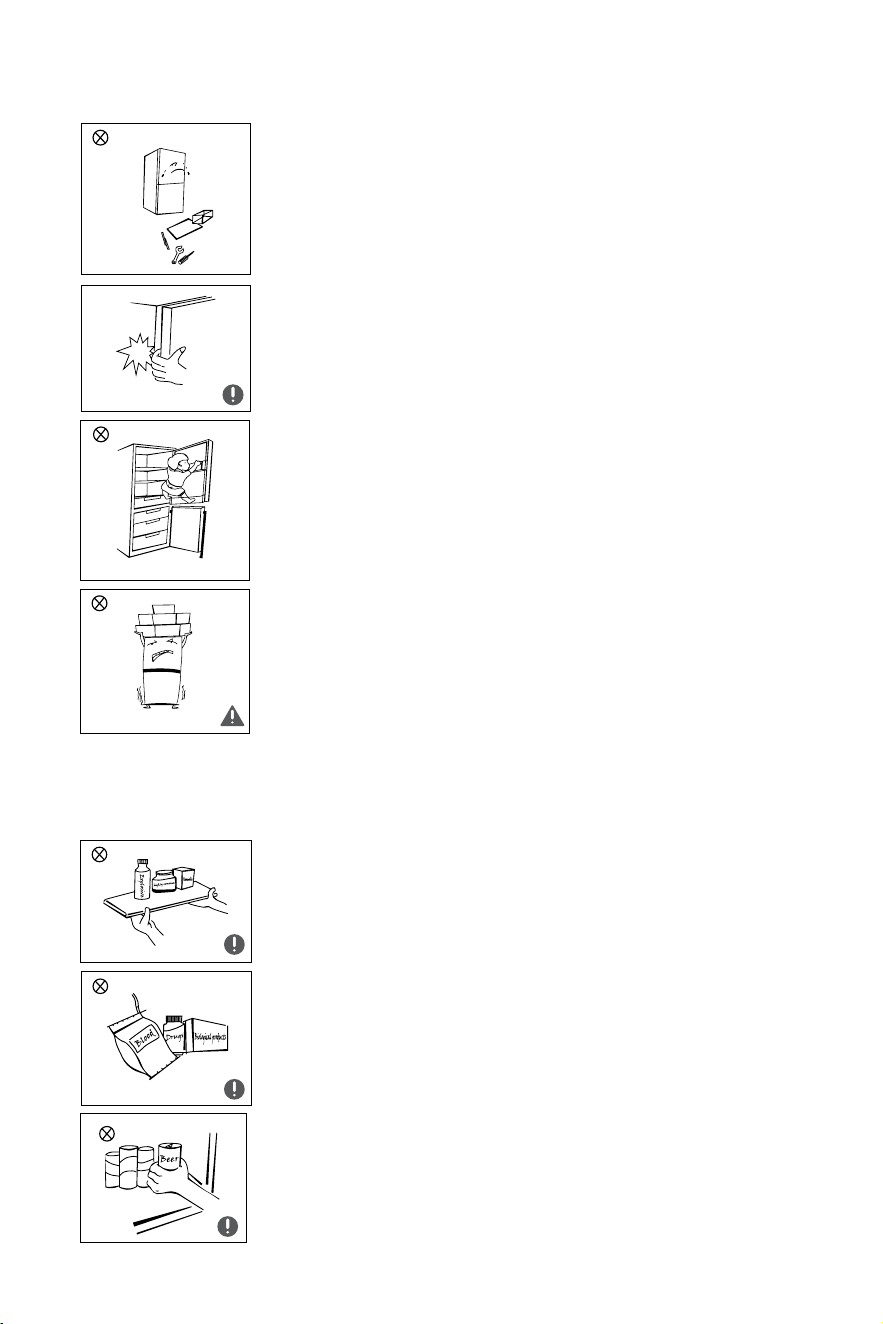

1.4 WARNINGS FOR USE
1.5 WARNINGS FOR PLACEMENT
DO NOT arbitrarily disassemble or reconstruct the refrigerator, nor damage
the refrigerant circuit; maintenance of the appliance must be conducted by
a specialist.
A damaged power cord must be replaced by the manufacturer, its
maintenance department or related professionals in order to avoid danger.
The gaps between refrigerator doors and between doors and refrigerator
body are small; to avoid possible injury to hands, DO NOT put your hand in
these areas. Please be gentle when closing the refrigerator door to avoid
falling articles.
DO NOT grab foods or containers with wet hands in the freezing chamber
when the refrigerator is running, especially metal containers in order to
avoid frostbite.
DO NOT place heavy objects on top of the refrigerator considering that
objects may fall when closing or opening the door and cause accidental
injuries.
Please pull out the plug in case of power failure or cleaning. DO NOT connect
the refrigerator to power supply within ve minutes to prevent damages to
the compressor due to successive starts.
DO NOT allow children to get into or climb the refrigerator; suocation, falling
or other injury may occur.
DO NOT put ammable, explosive, volatile and highly corrosive items in the
refrigerator to prevent damages to the product or re accidents.
DO NOT place ammable items near the refrigerator to avoid res.
The refrigerator is intended for household use only, such as storage of
foods; it shall not be used for other purposes, such as the storage of blood,
drugs or biological products, etc.
DO NOT store beer, beverages or other uids contained in bottles or en-
closed containers in the freezing chamber of the refrigerator; otherwise the
bottles or enclosed containers may freeze and pop, causing damages.
Freezing chambe r
3
1.6 WARNINGS FOR ENERGY
1) Refrigerating appliances might not operate consistently (possibility of defrosting of contents or
temperature becoming too warm in the frozen food compartment) when sited for an extended period
of time below the cold end of the range of temperatures for which the refrigerating appliance is
designed.
2) Carbonated drinks should not be stored in food freezer compartments or cabinets or in low-
temperature compartments or cabinets, and that some products such as ice should not be
consumed too cold;
3) DO NOT exceed the storage time(s) recommended by the food manufacturers for any kind of
food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage
compartments or cabinets;
4) Take necessary precautions to prevent an undue rise in the temperature of frozen food while
defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of
newspaper.
5) A rise in temperature of frozen foods during manual defrosting, maintenance or cleaning could
shorten the storage life.
6) For doors or lids tted with locks and keys, keys should be kept out of the reach of children and not
in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside
Correct Disposal of this product:
This marking indicates that this product should not be disposed with other household
wastes throughout the US. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the sustain-
able reuse of material resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was purchased. They can
take this product for environmental safe recycling.
1.7 WARNINGS FOR DISPOSAL
Refrigerant and cyclopentane foaming material used in the refrigerator are ammable.
Therefore, when the refrigerator is scraped, it shall be kept away from any re source
and be recovered by a special recovering company with corresponding qualication
other than be disposed by combustion, so as to prevent damage to the environment or
cause other harm.
When the refrigerator is scraped, disassemble the doors, and remove gasket of door
and shelves; put the doors and shelves in a proper place, so as to prevent trapping of
any child.
4
2.1 PLACEMENT
2. PROPER USE OF REFRIGERATORS
Before use, remove all packing materials, including bottom cushions, foam
pads and tape inside of the refrigerator; tear o the protective lm on the
doors and the refrigerator body.
Keep away from heat and avoid direct sunlight. DO NOT place the freezer in
moist or watery places to prevent rust or reduction of insulating eect.
DO NOT spray or wash the refrigerator; do not put the refrigerator in moist
places easy to be splashed with water so as not to aect the electrical
insulation properties of the refrigerator.
Place the refrigerator in a well-ventilated indoor location; the ground should
be at and sturdy (rotate left or right to adjust the wheel for leveling if
unstable).
There should be a minimum of 1 ft (30 cm) of space above the refrigerator,
and the refrigerator should be placed against a wall with a free distance
more than 4 inches (10cm) to facilitate heat dissipation.
Precautions before installation:
Information in the Instruction Manual is for reference only. The physical prod-
uct may dier. Before installation and adjusting of accessories, ensure that the
refrigerator is disconnected from power.
5

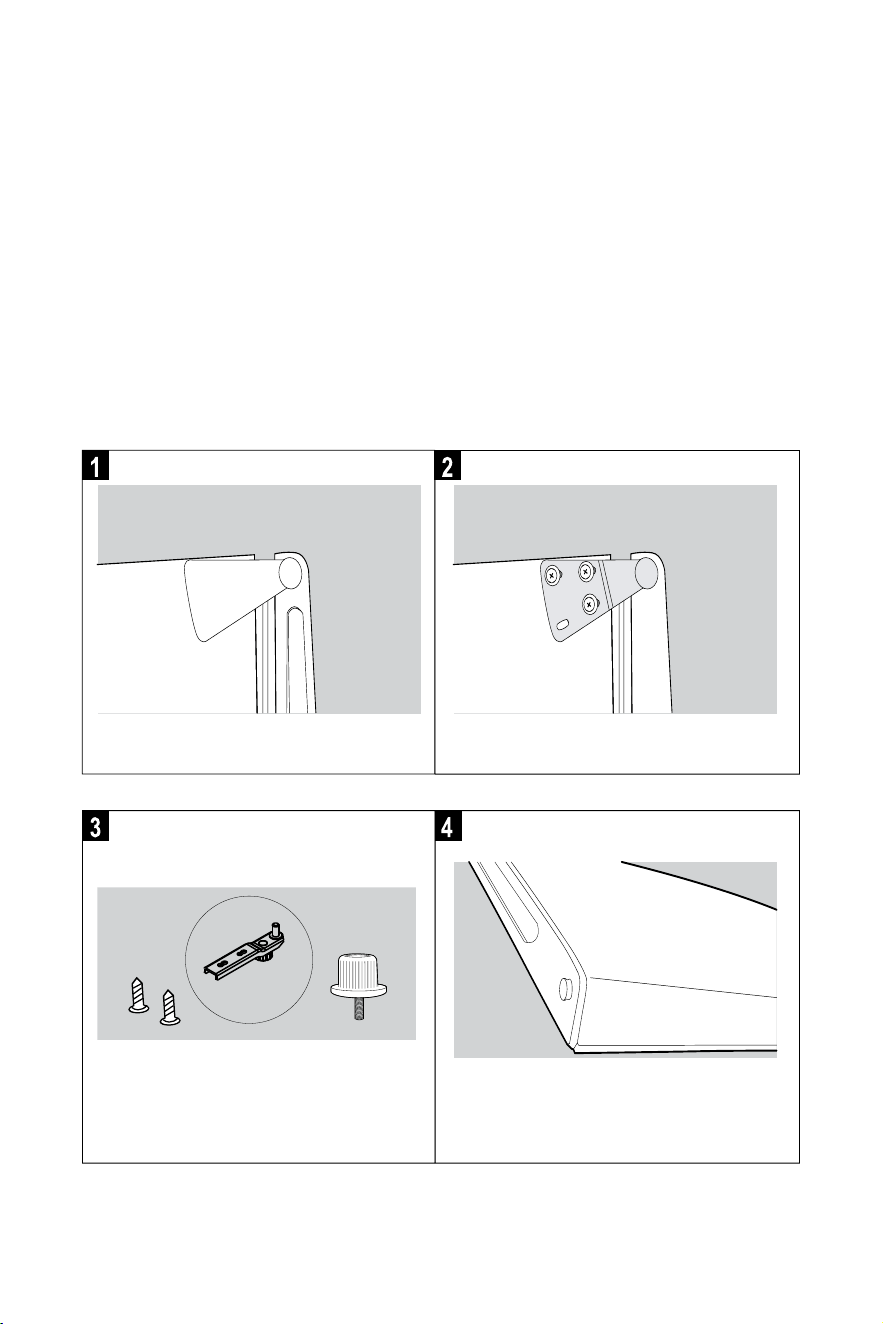

2.2 REVERSING THE DOOR SWING
CAUTION: To avoid injury to yourself and/or property, we recommend someone assist you during the
door reversal process.
TOOLS REQUIRED: Cross-bladed screw driver
• Ensure the appliance is unplugged and empty.
• Adjust the two leveling feet to their highest position.
NOTE: To take the door o it is necessary to tilt the appliance backward. You should rest the appliance
on something solid such as a chair just below the top panel so you can access the bottom of the
refrigerator.
DO NOT lay the appliance completely at as this may damage the coolant system.
Remove the plastic covering from the top door
hinge.
Place to one side in a safe location.
Remove the 3 screws from the bottom
bracket. Remove the foot from opposite side.
Slide the appliance door down about 6 inches
(15cm) off the top hinge pin and lift away from
the appliance.
6
Remove the 2 screws from top bracket and
replace on the opposite side. You will need
to first remove the plastic caps from the
other side.
Check that the
door is aligned
horizontally and
vertically and that
the seals are closed
on all sides before
finally tightening the
bottom hinge.
Re-adjust the
leveling feet.
Slide the appliance door back onto the top
hinge, making sure it’s the right way up.
Screw the bottom hinge into place on the new
side. Replace the other foot on the other side.
Replace the plastic covering by clicking back
into position on the door hinge.
The pictures above are for reference only. The actual conguration
will depend on the physical product or statement by the distributor.
7
2.3 THERMOSTAT
2.5 ENERGY SAVING TIPS
2.4 STARTING
• Setting “O”: Unit O
Setting “Min”: Less Cool Temperature
Setting “Med”: Normal Operation (adequate for most situations)
Setting “Max”: Coolest Temperature
• During high ambient temperatures e.g. on hot summer days, it may be necessary to set the
thermostat to the coolest setting/position (“Max”). This may cause the compressor to run
continuously in order to maintain a low temperature in the cabinet.
• THE FIRST TIME YOU INSTALL YOUR REFRIGERATOR, SET THE THERMOSTAT KNOB AT “MED”. Give your
refrigerator time to cool down completely before adding food. It is best to wait 24 hours before
adding food. The thermostat knob controls the temperature. When the thermostat control knob is set
to OFF, the refrigerator will not be running.
The instructions above are for reference only. The actual conguration
will depend on the physical product or statement by the distributor.
• The appliance should be located in the coolest area of the room, away from heat producing
appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before storing in the refrigerator. Overloading the appliance
forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This
cuts down on frost build-up inside the appliance.
• Refrigerator storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners
interfere with cold air circulation, making the appliance less ecient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as
needed at one time, and close the door as soon as possible.
• Before initial start, keep the refrigerator still for half an hour before connecting it to a power supply.
• Before putting any fresh or frozen foods inside the refrigerator, wait 2 – 3 hours, or more than 4 hours
in summer when the ambient temperature is high.
• Leave enough space to conveniently open the refrigerator doors and drawers.
18 in.
35 in.
32 in.
20 in.
8
3.1 NAMES OF COMPONENTS
The picture above is for reference only. The actual conguration will depend on the physical product or
statement by the distributor.
REFRIGERATING CHAMBER
• The refrigerating chamber is suitable for storage of a variety of fruits, vegetables, beverages and
other food consumed in the short term.
• Cooked foods shall not be put in the refrigerating chamber until cooled to room temperature.
• Foods are recommended to be sealed up before putting into the refrigerator.
• The glass shelves can be adjusted up or down for a reasonable amount of storage space and easy
use.
Thermostat
Shelf
Drain Tray
Freezer
Compartment
Wire Rack
3. STRUCTURE AND FUNCTIONS
9
4. MAINTENANCE & CARE OF THE UNIT
4.1 OVERALL CLEANING
4.2 DEFROSTING
4.3 OUT OF OPERATION
• Dust behind the refrigerator and the oor shall be cleaned once a month to improve the cooling eect
and save energy. The interior of the refrigerator should be cleaned regularly to avoid odor. Soft towels
or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning. The
freezer should be cleaned with clean water and a dry cloth. Open the door to air dry before the power
is turned on.
• Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic
solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean
refrigerator considering that this may damage the fridge surface and interior.
• Do not rinse with water so as not to aect the electrical insulation properties.
The refrigerator is made based on the air-cooling principle and thus has an automatic defrosting
function. Frost formed due to change of season or temperature may also be manually removed by
disconnection of the appliance from the power supply or by wiping down with a dry towel.
• POWER FAILURE: In case of power failure, even if it is in summer, foods inside the appliance can be
kept for several hours; during a power failure, avoid opening the door unless necessary. During this
time, do not add additional food to the refrigerator.
• LONG-TIME NON-USE: The appliance shall be unplugged and then cleaned per the instructions listed
above, and the doors are to be left open to prevent odor.
• MOVING: Before the refrigerator is moved, take all objects inside out, secure the glass shelves,
vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close
the doors and seal them with tape. When moving, the appliance shall not be laid upside down or
horizontally, or be vibrated; the inclination during movement shall be no more than 45°.
The appliance shall run continuously once it is started. Generally, the operation of
the appliance shall not be interrupted; otherwise, the service life may be impaired.
PLEASE UNPLUG THE REFRIGERATOR FOR DEFROSTING AND CLEANING.
10
5. TROUBLESHOOTING
BEFORE CALLING FOR SERVICE, PLEASE REVIEW THE CHART BELOW
ISSUE CAUSES/SOLUTIONS
NOT OPERATING
• Check that the unit is plugged in and connected to power
• Low voltage; check the outlet
• Check that the temperature control (power) knob is turned ON
• Check whether or not there is a power failure or partial circuits have tripped
ODOR
• Odorous foods should be properly wrapped
• Food has been in the unit too long (rotten food)
• Defrost and clean the unit
• Keep an open box of baking soda inside the refrigerator to help eliminate
odors
LONG-TIME
OPERATION OF THE
COMPRESSOR
• It is normal for the unit to operate for a long time in summer when the
ambient temperature is higher
• It is not suggested to store too much food in the unit at the
same time
• Let food cool before storing in the unit
• The doors are opened too frequently
LIGHT FAILS TO
ILLUMINATE
• Check whether the unit is connected to power supply and whether the
illuminating light needs to be replaced
DOOR CANNOT BE
PROPERLY CLOSED
• The door is obstructed by food packages
• Too much food is placed in the refrigerator or freezer
• The unit is tilted/unbalanced (tilt unit)
LOUD NOISES
• Check that the unit is sitting on a at and stable surface
• Check that accessories are properly placed inside the unit
DOOR SEAL FAILS TO
BE TIGHT
• Remove foreign matters from the door seal
• Heat the door seal and then cool it for restoration (or blow it with an
electrical drier or use a hot towel for heating)
WATER PAN
OVERFLOWS
• There is too much food in the chamber or stored food contains too much
water, resulting in heavy defrosting
• The doors are not closed properly, resulting in frosting due to entry of air and
increased water due to defrosting
HOT HOUSING
• Heat dissipation of the built-in condenser via the housing is normal
• When housing becomes hot due to high ambient temperature, storage of
too much food or shutdown of the compressor is shut down, provide sound
ventilation to facilitate heat dissipation
SURFACE
CONDENSATION
• Condensation on the exterior surface and door seals of the refrigerator is
normal when the ambient humidity is too high. Wipe the condensation with a
clean towel.
ABNORMAL NOISE
• Buzz: The compressor may produce buzzing during operation
and the buzzing noise is particularly loud upon start or stop. This
is normal.
• Creak: Refrigerant owing inside of the appliance may produce creaking,
which is normal.
For further assistance, contact Consumer Services at 844-4PA-AIRE (844-472-2473).
11
Distributed by:
Perfect Aire, LLC
5401 Dansher Rd.
Countryside, IL 60525
844-4PA-AIRE | 844-472-2473
www.perfectaire.us
Specification and performance data is subject to change without notice.
Printed in China
PA/User_3W1-F16_3W1-F26_Mid/06062018
