Smart and innovative
products from the
global market leader.
When it comes to network surveillance
video, Axis gives you a complete range
of solutions for numerous industries and
applications. Our world-leading solutions
are easy to install, congure and operate,
whatever your needs may be.
Table of
contents
About Axis
What we do 2
Our products & technology 3
Product highlights 4
Product portfolio
Network cameras 6
Fixed network cameras 8
Fixed dome network cameras 18
Pan/tilt/zoom (PTZ) network cameras 26
Thermal network cameras 33

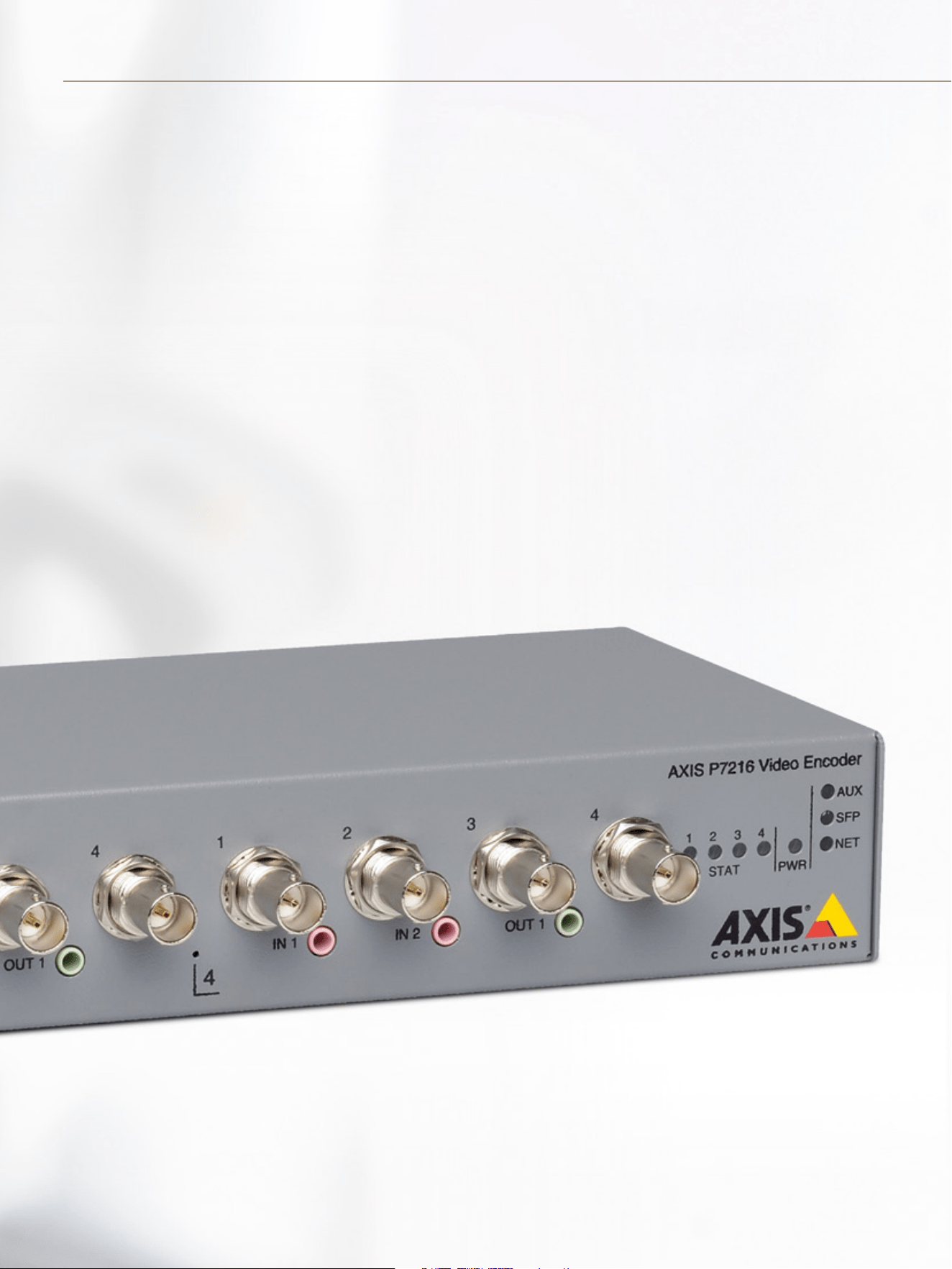

Video encoders 36
Naming structure 41
Hardware accessories 42
Mounting 44
Connecting 44
Add-on devices 45
Tools and extras 45
Video management 46
AXIS Camera Companion 48
AXIS Camera Station 49
Partner solutions 50
Surveillance as a cloud-based service 50
Smart technologies 51
What we do
Axis offers intelligent security solutions together with partners,
combining knowledge with innovative products, enabling
people to create a smarter and safer world.
World-leading intelligent security solutions
Axis’ innovative video surveillance products and
solutions are used all over the world. The demand for
network video solutions is increasing rapidly across all
areas where Axis is present: retail, transport, banks,
city surveillance, industry, education, healthcare,
infrastructure, and the public sector.
A global company with a local presence
Axis is a fast-growing Swedish-based company that
acts globally via its own oces, representatives,
and well-developed collaborations with partners.
As the global market leader, Axis strives to be the
driving force behind the development of innovative
and intelligent security solutions as well as a role
model when it comes to conducting business in a
responsible and sustainable way.
A wide portfolio of products and solutions
When Axis invented and launched the world’s rst
network camera in 1996, the company initiated
the market’s ongoing shift from analog to digital
video surveillance. Among some of Axis’ subsequent
innovations are the world’s rst video encoder, the
HDTV network camera, the thermal network camera,
the pioneering Lightnder technology, and the rst
non-proprietary and open IP-based access controller
with built-in web-based software.
2 | About Axis
Our products & technology
Who we work with
Retail
With Axis network video, you can achieve
greater security and loss prevention, optimize
store management, and significantly improve
store performance.
Transportation
Axis provides the means to improve security,
operations, and overall passenger experience at
airports, seaports and public transit systems.
Education
From daycare centers to universities, Axis network
video helps deter vandalism and increase student
and sta safety.
Industrial
Axis network video is used in a multitude of
industrial applications, such as remote monitoring
of manufacturing lines, incident detection and
perimeter security.
Banking and nance
Using existing equipment and infrastructure,
banks can deploy Axis video surveillance systems
that deliver exceptional image detail for easy
identication.
Healthcare
Axis allows hospitals to eciently monitor
emergency departments, passageways, and
restricted areas to ensure the protection of sta,
patients, and sensitive information.
City surveillance
Axis network video is an essential tool for
creating safe cities and protecting the public.
In emergencies, cameras can help police or
reghters to quickly focus their action.
Critical infrastructure
Whether it is a solar plant, an electrical substation,
or a waste management facility, Axis network video
can help ensure safe, secure, and uninterrupted
activity.
Government
Axis network video helps protect all kinds of public
buildings, from museums and oces to libraries
and prisons.
Our security cameras, video encoders, accessories and
access control products are based on open industry
standards. The products integrate easily with Axis’
video management software or with a partner product
to build a complete security or surveillance solution.
Superior image quality
The usability of video images is key to a good video
surveillance system. Axis oers technologies – HDTV,
Wide Dynamic Range, infrared and Lightnder – which
ensure clear images in most lighting conditions.
Intelligent applications
AXIS Camera Application Platform is an open
application platform that enables the development of
third party applications that can be downloaded and
installed on Axis network cameras and video encoders.
Secure communication
Axis understands network security and our products
comply with all viable standards that aect network
security.
Easy installation
In large-scale systems with hundreds of cameras,
easy installation signicantly reduces the system
cost. Axis’ products oer several features that
facilitate installation.
Ecient operation
Ecient and reliable operation is fundamental
to any surveillance system. Axis oers smart
products and system solutions for a wide range of
applications to maximize uptime and support right
operator decisions.
About Axis | 3
AXIS Q16 Series includes cameras with
Lightnder and WDR – Forensic Capture.
AXIS Q60 Series now includes
stainless steel pan/tilt/zoom cameras.
AXIS Q19 Series now includes high-
performance bullet-style cameras.
“Hello, we’re new
in the family.”
Axis remains the market leader in network video products
since it introduced the world’s first network camera in
1996. Some of our latest innovations are:
4 | About Axis Product highlights
Visit www.axis.com for
more new products.
AXIS M30 Series with outdoor-
ready xed mini domes with
360°/180° panoramic views.
AXIS P14 Series includes
4K UltraHD resolution.
AXIS F Series – Flexible
cameras that let you see more.
About Axis Product highlights | 5
Network cameras
6 | Network cameras
Types of network cameras
Axis’ cameras cover a variety of application needs,
from robust outdoor cameras for harsh climates,
to discreet products for sensitive environments.
The cameras provide a number of capabilities – 4K
Ultra HD, HDTV/megapixel resolution, wide dynamic
range, built-in IR, and Lightnder to name a few –
which ensure clear video even in dicult lighting
conditions. Axis’ cameras also provide advanced
video analytics features, such as motion detection,
audio detection, and tampering alarm.
Axis network cameras are ONVIF Prole S compliant.
The broadest portfolio for
security and surveillance.
Fixed network cameras
Deterrent or highly discreet cameras
with a xed or exchangeable lens.
Pan/Tilt/Zoom network cameras
Enabling wide area coverage and great
details when zooming in.
Fixed dome network cameras
With compact design for discreet and
ecient surveillance.

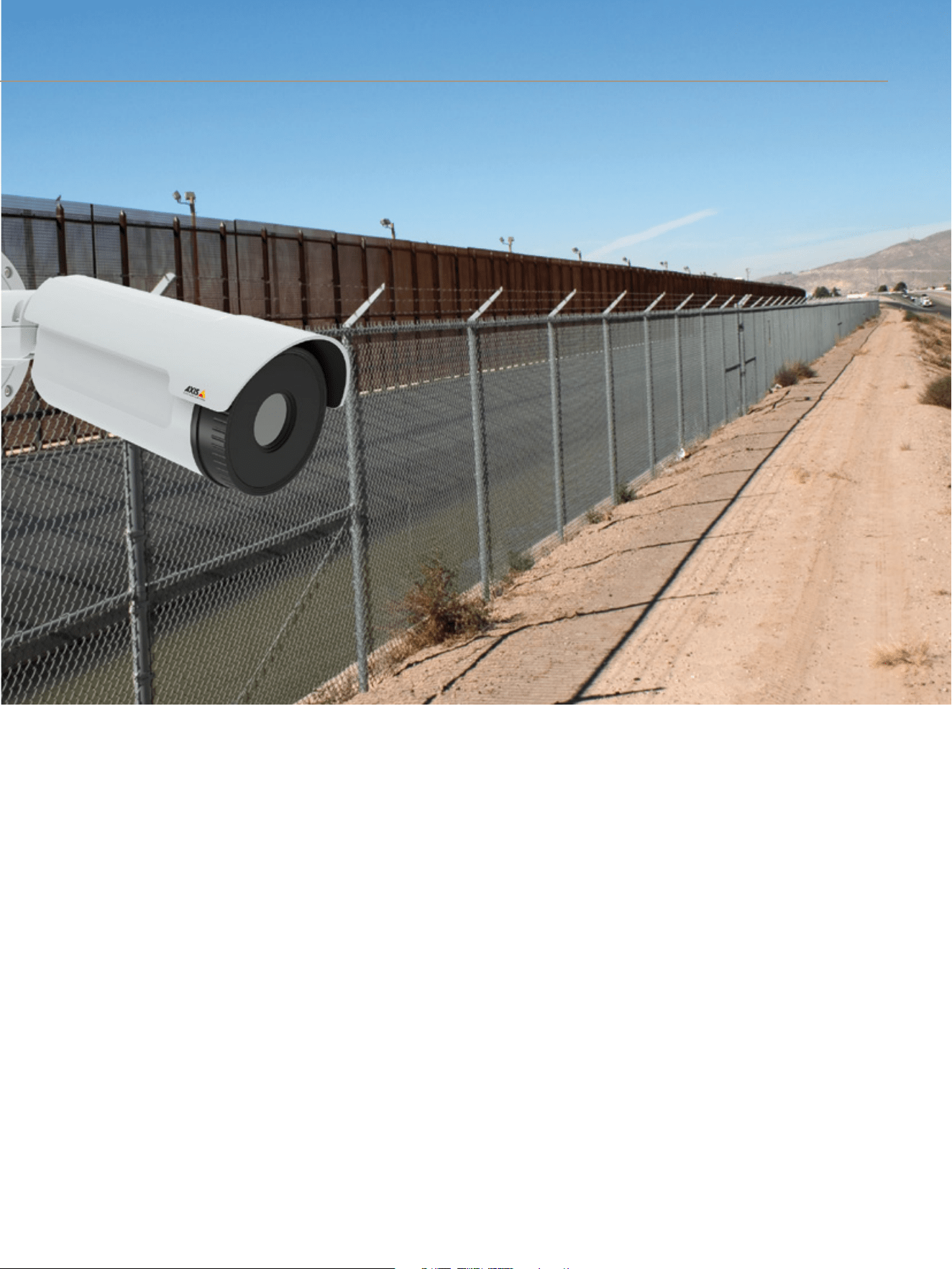

Thermal network cameras
Securing an area or a perimeter in
complete darkness.
Every Axis product
has a unique
naming structure
that lets you know
its functions and
capabilities at a
glance. Find out
more on page 41.
Network cameras | 7
Fixed network cameras
For a wide range of video surveillance applications
A xed network camera has a xed viewing direction once it
is mounted. It may come with a xed, varifocal, or motorized
zoom lens, and the lens may be exchangeable on some cameras.
Axis’ indoor and outdoor xed camera oerings include the
more traditional camera type where the camera and the
direction in which it is pointing are clearly visible, as well as
highly discreet cameras that are designed to blend into the
environment and are dicult to discover.
8 | Network cameras Fixed network cameras
Network cameras Fixed network cameras | 9
AXIS Q17 Network Camera Series
Reliable surveillance with high-quality identification
AXIS Q16 Network Camera Series
Outstanding image performance in demanding lighting conditions
AXIS Q17 Fixed Network Cameras are day and night HDTV cameras for the professional market’s demands. They are ideal for securing areas
such as streets and intersections, casinos, passport controls, airports and railway stations where high-quality identication is needed. AXIS
Q17 Network Cameras oer zoom, autofocus, OpimizedIR, enhanced video motion detection, audio detection, active tampering alarm,
Gatekeeper functionality, AXIS Camera Application Platform, edge storage, PoE, pixel counter and day/night functionality. The outdoor-ready
models feature Axis’ Arctic Temperature Control.
The award-winning AXIS Q16 Fixed Network Cameras oer outstanding models supporting WDR – Dynamic Capture and WDR – Forensic
Capture capabilities for surveillance in highly variable lighting conditions, and models supporting Lightnder technology for environments
with poor lighting conditions. Models supporting high frame rate ensure that quick movements are captured in more details. The outdoor-
ready models feature Axis’ Arctic Temperature Control.
AXIS Q1765-LE /
AXIS Q1765 LE PT Mount
> Megapixel/HDTV: 2 MP/HDTV 1080p
> Max video resolution: 1920 x 1080
> 18x zoom
> Two-way audio
> 2 congurable alarm in/outputs*)
> Serial port for communication with
pan-tilt motors**)
*) AXIS Q1765-LE
**) AXIS Q1765 LE PT Mount
Bullet-style, outdoor-ready camera with
integrated IR, 18x zoom and HDTV 1080p
AXIS Q1755/-E
> Megapixel/HDTV: 2 MP/HDTV 1080i
> Max video resolution: 1920 x 1080
> 10x zoom
> OptimizedIR
> Two-way audio and built-in microphone*)
> 2 congurable alarm in/outputs
*) AXIS Q1755
HDTV camera with zoom
AXIS Q1615/-E
> Megapixel/HDTV: 2 MP/HDTV 1080p
> Max video resolution: 1920 x 1200
> 50/60 fps
> Lightnder
> WDR – Forensic Capture
> Electronic Image Stabilization
> P-Iris
> Two-way audio and built-in microphone*)
*) AXIS Q1615
Indoor or outdoor-ready models for forensic
details and high speed
10 | Network cameras Fixed network cameras
AXIS Q1614/-E
> Megapixel/HDTV: 1 MP/HDTV 720p
> Max video resolution: 1280 x 960
> 50/60 fps
> WDR – Dynamic Capture
> P-Iris
> Two-way audio and built-in microphone*)
*) AXIS Q1614
Indoor or outdoor-ready models with out-
standing HDTV 720p video performance in
50/60 fps
AXIS Q1604/-E
> Megapixel/HDTV: 1 MP/HDTV 720p
> Max video resolution: 1280 x 960
> WDR – Dynamic Capture
> P-Iris
> Two-way audio and built-in microphone*)
*) AXIS Q1604
Indoor or outdoor-ready models for out-
standing performance in intense backlight
conditions
AXIS Q1602/-E
> Max video resolution: 768 x 576
> Lightnder technology
> WDR
> Two-way audio and built-in microphone*)
*) AXIS Q1602
Indoor or outdoor-ready models for out-
standing video in poor light conditions
AXIS P85 Network Camera Series
Discreet, eye-level cameras for identification
AXIS P85 Network Camera Series oers eye-level, pinhole cameras installed in a pipe for discreet, indoor video surveillance — ideal for retail,
hotel and banking environments. For placement near exits of buildings, AXIS P85 cameras are positioned to look straight at a person’s face for
more reliable identication even when the person is wearing a hood or baseball cap. AXIS P85 Cameras oer video motion detection, active
tampering alarm, AXIS Camera Application Platform, PoE and digital PTZ.
AXIS P8514
> Megapixel/HDTV: 1 MP/HDTV 720p
> Max video resolution: 1280 x 800
> Choice of colors
> Easy to install
Discreet, eye-level cameras for identication
Network cameras Fixed network cameras | 11
AXIS P14 Network Camera Series
Compact and cost-effective surveillance for any environment
AXIS P14 Network Cameras constitute a series of outdoor-ready bullet-style cameras. These cameras are ideal for 24/7 video surveillance, in
exposed outdoor areas such as parking lots, service stations and for general indoor surveillance purposes where a compact camera is needed.
AXIS P14 Series oers models with exceptional image quality from 1080p resolution up to 4K Ultra HD. All AXIS P14 Network Cameras oer video
motion detection, AXIS Camera Application Platform, P-Iris, edge storage, PoE, pixel counter, remote focus and zoom and day/night functionality.
AXIS P1428-E
> Megapixel/HDTV: 8 MP/4K Ultra HD
resolution
> Max video resolution: 3840 x 2160
> Input/output ports for external devices
Compact and cost-eective 4K surveillance
for exceptional details
AXIS P1427-E/-LE
> Megapixel/HDTV: 5 MP/1080p
> Max video resolution: 2592 x 1944
> Input/output ports for external devices
> OptimizedIR*)
*) AXIS P1427-LE
Compact and cost-eective 5-megapixel
surveillance
AXIS P1425-E/-LE
> Megapixel/HDTV: 2 MP/HDTV 1080p
> Max video resolution: 1920 x 1080
> Input/output ports for external devices
> OptimizedIR*)
*) AXIS P1425-LE
Compact and cost-eective HDTV
surveillance with OptimizedIR
AXIS P1405-E/-LE
> Megapixel/HDTV: 2 MP/HDTV 1080p
> Max video resolution: 1920 x 1080
> Built-in IR*)
*) AXIS P1405-LE
Compact and cost-eective HDTV
surveillance with built-in IR
12 | Network cameras Fixed network cameras
AXIS P1354/-E
> Megapixel/HDTV: 1 MP/720p
> Max video resolution: 1280 x 960
> Lightnder technology
> Two-way audio and built-in microphone*)
*) AXIS P1354
Indoor or outdoor-ready light sensitive
xed camera for video surveillance with
HDTV quality
AXIS P1353/-E
> Max video resolution: 800 x 600
> Lightnder technology
> Two-way audio and built-in microphone*)
*) AXIS P1353
Indoor or outdoor-ready light sensitive
xed camera for video surveillance in any
environment
AXIS P13 Network Camera Series
Superb image quality for video surveillance in any environment
AXIS P13 Network Cameras are suitable for a wide range of video surveillance applications, including government and industrial buildings, retail
environments, airports, railway stations and schools. All models are robust, light sensitive and oer CS-mount lens, audio support, alarm in-/
outputs, video motion detection, audio detection, active tampering alarm, AXIS Camera Application Platform, edge storage, PoE, digital PTZ, pixel
counter, remote back focus and day/night functionality. The outdoor-ready models feature Axis’ Arctic Temperature Control.
AXIS P1357/-E
> Megapixel/HDTV: 5 MP/1080p
> Max video resolution: 2592 x 1944
> P-Iris
> Two-way audio and built-in microphone*)
*) AXIS P1357
Exceptional video surveillance in HDTV/5 MP
AXIS P1355/-E
> Megapixel/HDTV: 2 MP/1080p
> Max video resolution: 1920 x 1080
> P-Iris
> Two-way audio and built-in microphone*)
*) AXIS P1355
Indoor or outdoor-ready excellent xed
camera for exceptional video surveillance
with 1080p HDTV quality
Network cameras Fixed network cameras | 13
AXIS P12 Network Camera Series
Miniature HDTV cameras for exceptional discreet surveillance
AXIS P12 Network Camera Series oers tiny cameras for exceptionally discreet indoor and outdoor surveillance. The design allows the cameras
to easily blend in with the environment. They are ideal for ATMs (automated teller machines), banks, stores, hotels, architectural buildings and
oces. The cameras can be installed on or ush-mounted in walls or ceilings, in elevators or in limited spaces such as in ATMs or doorways. All
models oer video motion detection, active tampering alarm, AXIS Camera Application Platform, PoE, pixel counter and edge storage. They come
with a IP66-rated sensor unit.
AXIS P1224-E
> Megapixel/HDTV: 720p
> Max video resolution: 1280 x 720
> Horizontal angle of view: 145°
Miniature wide-angle HDTV camera for
discreet outdoor surveillance
AXIS P1214/-E
> Megapixel/HDTV: 720p
> Max video resolution: 1280 x 720
> Horizontal angle of view: 57° (AXIS P1214),
81° (AXIS P1214-E)
Miniature HDTV camera for discreet indoor
or outdoor surveillance
AXIS P1204
> Megapixel/HDTV: 720p
> Max video resolution: 1280 x 720
> Horizontal angle of view: 57°
Miniature HDTV pinhole camera for discreet
surveillance
14 | Network cameras Fixed network cameras
AXIS M2014-E
> Megapixel/HDTV: 720p
> Max video resolution: 1280 x 720
> Horizontal angle of view: 81°
World´s smallest HDTV bullet-style
network camera
AXIS M2014-E Network Camera
World´s smallest HDTV bullet-style network camera
AXIS M11 Network Camera Series
Compact and affordable cameras for professional surveillance
AXIS M2014-E is a high-performance, compact bullet-style network camera designed for maximum exibility and ease of installation. The
camera´s functional and compact form factor makes it perfect for installations in retail stores, boutiques, hotels and small oces. AXIS
M2014-E is outdoor-ready IP66-rated and oer video motion detection, active tampering alarm, AXIS Camera Application Platform, PoE and
edge storage.
AXIS M11 Network Camera Series oers professional and cost-eective xed cameras suitable for a wide range of video surveillance
applications, such as retail as well as hotels and other oce buildings. All models come with CS-mount lens and support PoE.
AXIS M1145/-L
> Megapixel/HDTV: 2 MP/1080p
> Max video resolution: 1920 x 1080
> Day and night functionality
> P-Iris
> Built in IR LEDs and OptimizedIR*)
> I/O support
> Edge storage
> Horizontal angle of view: 95°–34°
*) AXIS M1145-L
Compact and aordable 1080p HDTV day
and night camera with OptimizedIR*
AXIS M1144-L
> Megapixel/HDTV: 1 MP/1080p
> Max video resolution: 1280 x 800
> Day and night functionality
> DC-iris
> Built in IR LEDs
> I/O support
> Edge storage
> Horizontal angle of view: 87°–40°
Compact and aordable HDTV camera with
built-in IR illumination
AXIS M1114-E
> Megapixel/HDTV: 1 MP/720p
> Max video resolution: 1280 x 800
> Horizontal angle of view: 77°–29°
Outdoor-ready compact and adaptable
HDTV camera for professional surveillance
Network cameras Fixed network cameras | 15
AXIS M1114
> Megapixel/HDTV: 1 MP/720p
> Max video resolution: 1280 x 800
> Horizontal angle of view: 77°–29°
Compact and adaptable HDTV camera for
professional surveillance
AXIS M1113/-E
> Max video resolution: 800 x 600
> Horizontal angle of view: 65°–25°
Compact and adaptable high-resolution
camera for professional surveillance
AXIS M1104
> Megapixel/HDTV: 1 MP/720p
> Max video resolution: 1280 x 800
> Horizontal angle of view: 80°
Compact and aordable HDTV camera for
professional surveillance
AXIS M1103
> Max video resolution: 800 x 600
> Horizontal angle of view: 66°
Compact and aordable high-resolution
camera for professional surveillance
16 | Network cameras Fixed network cameras
AXIS M10 Network Camera Series
Smallest and smartest network cameras from the market leader
AXIS M10 Network Camera Series offers small and smart cameras, ideal for securing locations such as small businesses, boutiques,
restaurants, hotels or residences. The cameras offer best-in-class image quality, professional monitoring capabilities and support for
edge storage. All cameras except AXIS M1054 offer adjustable focus.
AXIS M1054
> Megapixel/HDTV: 1 MP/720p
> Max video resolution: 1280 x 800
> Two-way audio with built-in mic and speaker
> I/O ports
> PIR sensor and illumination LED
> Horizontal angle of view: 84°
> PoE
Smallest and smartest HDTV network
camera from the market leader
AXIS M1034-W
> Megapixel/HDTV: 1 MP/720p
> Max video resolution: 1280 x 800
> Wireless
> Two-way audio with built-in mic and speaker
> I/O ports
> PIR sensor and illumination LED
> Horizontal angle of view: 80°
Smallest and smartest wireless HDTV
network camera from the market leader
AXIS M1033-W
> Max video resolution: 800 x 600
> Wireless
> Two-way audio with built-in mic and speaker
> I/O ports
> PIR sensor and illumination LED
> Horizontal angle of view: 67°
Smallest and smartest wireless SVGA
network camera from the market leader
AXIS M1025
> Megapixel/HDTV: 2 MP/1080p
> Max video resolution: 1920 x 1080
> HDMI output (Micro) in HDTV 720p
> PoE
> Horizontal angle of view: 94°
Smallest HDTV 1080p network camera with
HDMI and edge storage
AXIS M1014
> Megapixel/HDTV: 720p
> Max video resolution: 1280 x 800
> Horizontal angle of view: 80°
Smallest HDTV network camera with edge
storage
AXIS M1013
> Max video resolution: 800 x 600
> Horizontal angle of view: 67°
Smallest network camera with edge storage
AXIS M1004-W
> Megapixel/HDTV: 1 MP/720p
> Max video resolution: 1280 x 800
> Wireless
> I/O ports
> Horizontal angle of view: 80°
Aordable wireless HDTV network camera
Network cameras Fixed network cameras | 17
AXIS F Network Camera Series
Flexible cameras that let you see more
AXIS F Network Camera Series oers exible, high-performance cameras that support wide dynamic range and HDTV 1080p for superb image
detail in extremely discreet indoor, outdoor and mobile surveillance applications. They are ideal for ATMs (automated teller machines), banks,
stores, hotels, as well as rugged environments such as emergency vehicles. Based on a divided network camera concept, AXIS F Series comprises
AXIS F41 Main Unit and AXIS F Sensor Units.
AXIS F41 Main Unit
> Megapixel/HDTV: 2 MP/1080p
> Max video resolution: 1920 x 1080
> 50/60 fps
> WDR – Forensic Capture
> Rugged, easy-to-install design
> Two-way audio
Rugged design with WDR – Forensic
Capture and HDTV 1080p
AXIS F1015 Sensor Unit
> Flexible, discreet design for indoor use
> Varifocal lens with HDTV 1080p
resolution
Varifocal lens and HDTV resolution for
extremely discreet indoor surveillance
AXIS F1005-E Sensor Unit
> Flexible, rugged design for indoor,
outdoor and mobile use
> Fixed lens with HDTV 1080p resolution
> Wide 113° horizontal eld of view
Rugged design for extremely discreet
indoor, outdoor and mobile surveillance

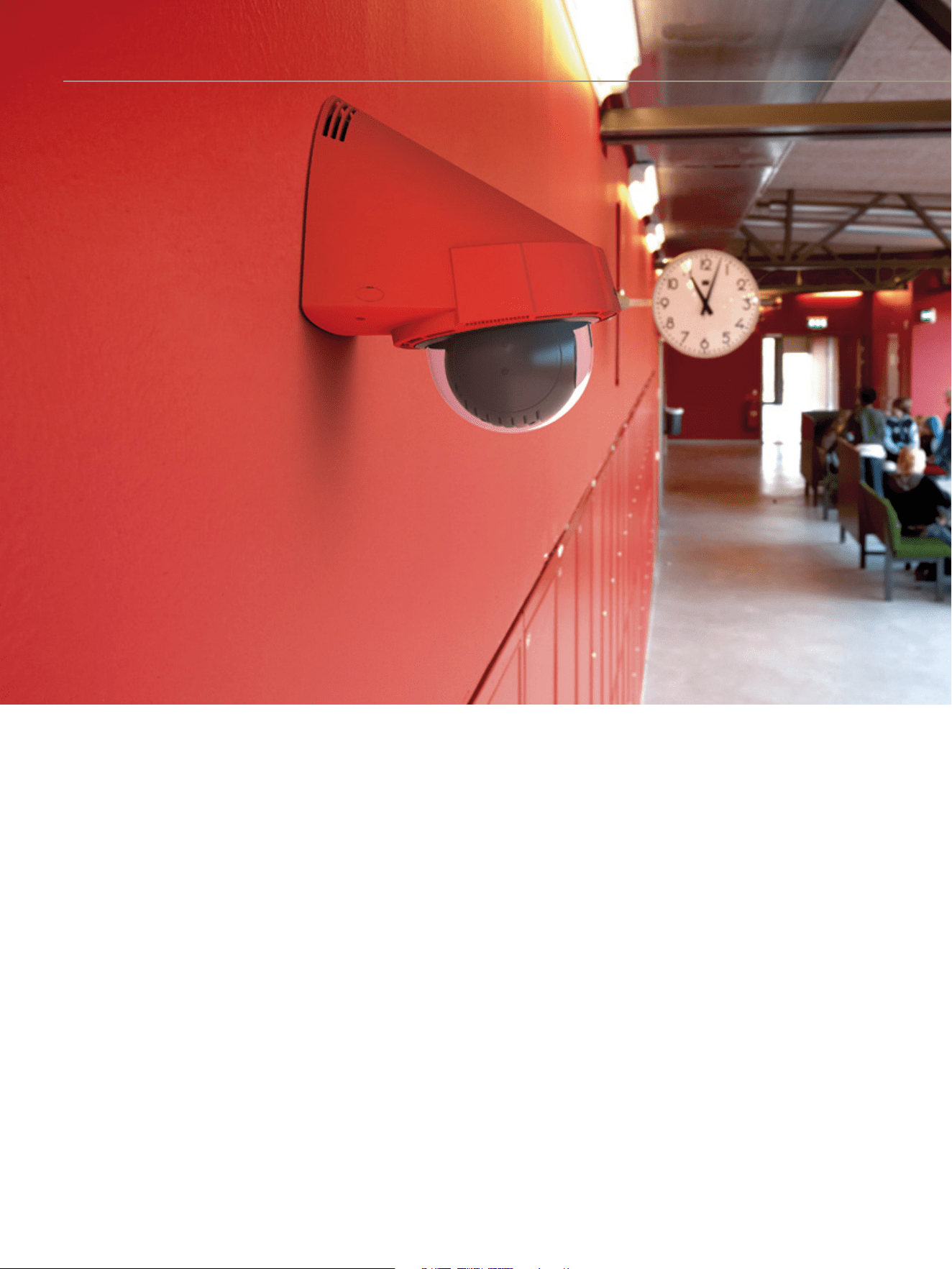

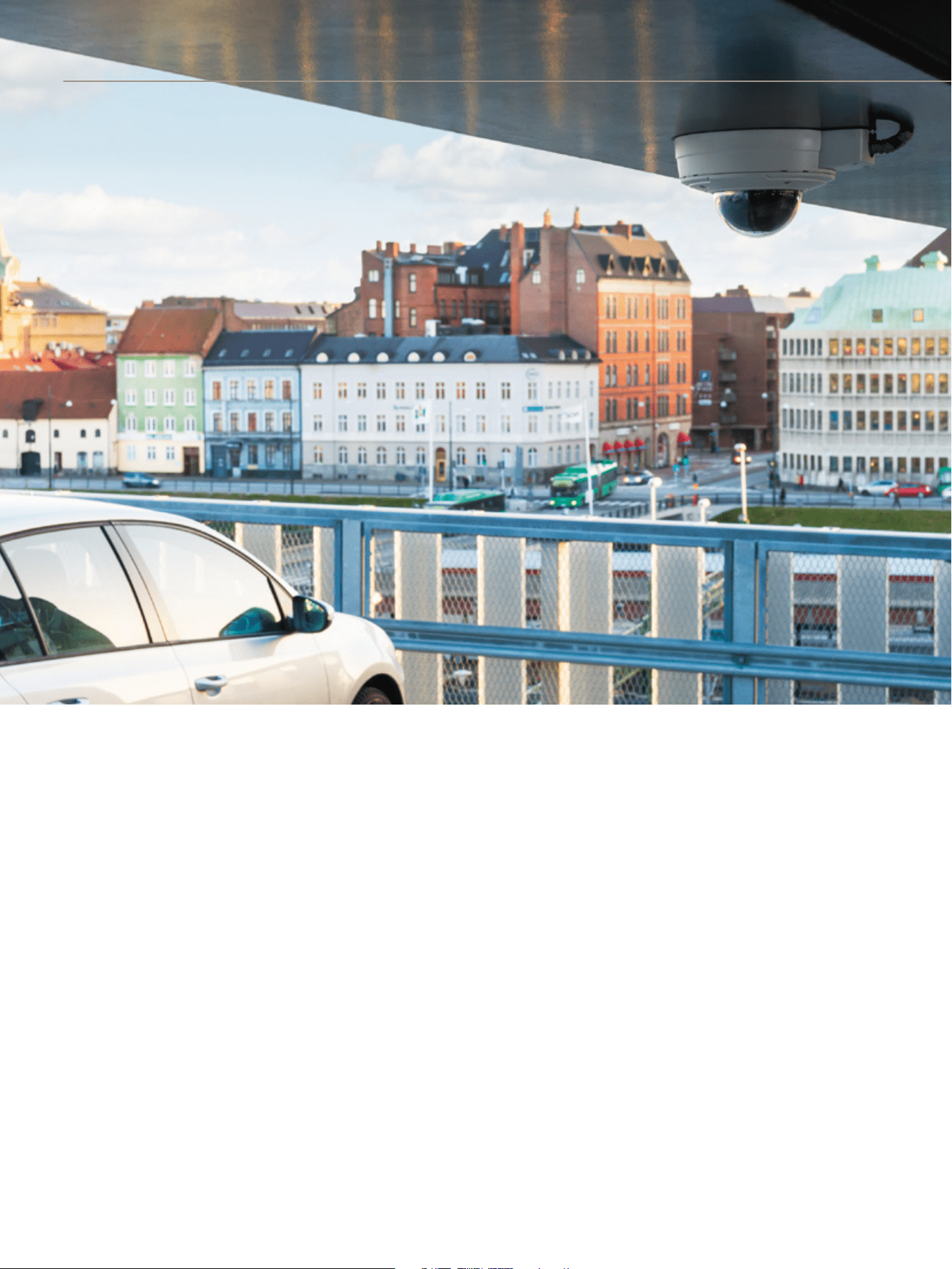

Fixed dome
network cameras
With compact design for discreet surveillance
A xed dome camera is a compact camera solution with
a dome casing. You benet from its discreet, non-obtrusive
design, and also from the fact that it is dicult to see in
which direction the camera is pointing. In addition, the
camera’s dome casing design offers efficient protection
against e.g. redirection and defocusing.
18 | Network cameras
Fixed dome network cameras
Network cameras Fixed dome network cameras | 19
AXIS Q35 Network Camera Series
Durable and reliable fixed domes with full HDTV at up to 60 fps.
AXIS P39-R Network Camera Series
High-performance cameras for onboard surveillance
AXIS Q35 Network Camera Series consists of high-performing, vandal-resistant, indoor and outdoor-ready xed domes that deliver high image
quality in full HDTV at up to 60 fps. The cameras’ Wide Dynamic Range (WDR) – Forensic Capture capability provides perfectly balanced video
quality in scenes with strong variations in light, while the Lightnder technology enables outstanding image usability in poor light. The cameras can
seamlessly transition between handling WDR and low-light conditions. AXIS Q35 Series also supports Axis’ Electronic Image Stabilization, barrel
distortion correction and include optical zoom for monitoring. The indoor AXIS Q3505-V has IK10 impact resistance and IP52-rated dust and water
protection. The outdoor-ready AXIS Q3505-VE has an IK10+ rating and can withstand a minimum of 50 joules of impact. All models are vibration-
and shock-resistant. The cameras have been designed for ecient installation with features such as versatile cable management, remote zoom and
focus, leveling assistant and auto rotation. AXIS Q35 Series xed domes are ideal for high-security applications in areas such as cities, airports,
railway stations, and industrial and critical infrastructure facilities.
The AXIS P39-R Network Camera Series is specially designed for video surveillance in buses, trains, subway cars and emergency vehicles. These
compact, rugged and discreet cameras have protection against dust and water, and can withstand tough conditions such as vibrations, shocks, bumps
and temperature uctuations. All models include features such as video motion detection, tampering alarm, support for AXIS Camera Application
Program, digital PTZ, pixel counter, PoE and edge storage. Trac Light mode helps to better distinguish colors of trac lights in very dark scenes.
AXIS Q3505-V/VE
> Megapixel/HDTV: 2.3 MP/HDTV 1080p
> Max video resolution: 1920 x 1200
(WUXGA)
> Two-way audio
> Alarm in-/outputs
Durable and reliable xed domes with full
HDTV at up to 60 fps and top-of-the-line
image usability
AXIS P3915-R
> Megapixel/HDTV: 2 MP/HDTV 1080p
> Max video resolution: 1920 x 1080
> Audio in
> Alarm in-/outputs
High-performance full HDTV camera with
audio for onboard surveillance
AXIS P3905-R
> Megapixel/HDTV: 2 MP/HDTV 1080p
> Max video resolution: 1920 x 1080
High-performance full HDTV camera for
onboard surveillance
AXIS P3904-R
> Megapixel/HDTV: 1MP/HDTV 720p
> Max video resolution: 1280 x 720
High-performance HDTV camera for on-
board surveillance
20 | Network cameras Fixed dome network cameras
AXIS P3365-V/-VE
> Megapixel/HDTV: 2 MP/HDTV 1080p
> Max video resolution: 1920 x 1080
Superb full HDTV xed dome with remote
focus and zoom
AXIS P3364-LV/-LVE
> Megapixel/HDTV: 1 MP/720p
> Max video resolution: 1280 x 960
> OptimizedIR
> Lightnder technology
Superb, vandal-resistant HDTV xed dome
with OptimizedIR, remote focus and zoom
AXIS P33 Network Camera Series
Fixed domes for any environment with remote focus and zoom
AXIS P33 Network Camera Series consists of full-featured fixed domes designed for efficient installation with remote focus and zoom
and is available in indoor, indoor vandal-resistant and outdoor-ready vandal-resistant models designed for extreme temperatures. They all oer
high-performance video and have automatic day and night functionality and P-Iris control. AXIS P3301/-V and AXIS P3304/-V Network
Cameras are smaller, discreet domes available in indoor and indoor vandal-resistant versions with a subset of the features of the AXIS
P33 Series. All models support PoE. All indoor vandal-resistant models support two-way audio and built-in microphone.
AXIS P3384-V/-VE
> Megapixel/HDTV: 1 MP/720p
> Max video resolution: 1280 x 960
> Lightnder technology
> WDR – Dynamic Capture
Vandal-resistant HDTV xed dome with
outstanding video quality in demanding
light conditions
AXIS P3367-V/-VE
> Megapixel/HDTV: 5 MP/1080p
> Max video resolution: 2592 x 1944
Superb 5-megapixel light-sensitive xed
dome with remote focus and zoom
AXIS P3354
> Megapixel/HDTV: 1 MP/720p
> Max video resolution: 1280 x 960
> Lightnder technology
Superb, light-sensitive and cost-ecient HDTV
xed dome with remote focus and zoom
AXIS P3304/-V
> Megapixel/HDTV: 1 MP/720p
> Max video resolution: 1280 x 960
Discreet video surveillance with outstanding
HDTV and H.264 performance
AXIS P3301/-V
> Max video resolution: 640 x 480
Discreet video surveillance with outstanding
H.264 performance
Network cameras Fixed dome network cameras | 21
AXIS P3364-V/-VE
> Megapixel/HDTV: 1 MP/720p
> Max video resolution: 1280 x 960
> Lightnder technology
Superb, light-sensitive and vandal-resistant
HDTV xed dome with remote focus and zoom
22 | Network cameras Fixed dome network cameras
AXIS P32 Network Camera Series
Streamlined and versatile varifocal fixed domes
AXIS P32 Network Camera Series consists of vandal-resistant indoor and outdoor cameras. They have a varifocal lens, P-Iris control, HDTV
image quality and day/night functionality. AXIS P32 cameras include remote zoom and focus to eliminate the need for hands-on ne tuning.
The camera casings are easily repaintable in any desired color to blend into the environment. All models also oer features such as video motion
detection, tampering alarm, support for AXIS Camera Application Platform, PoE, pixel counter and edge storage.
AXIS P3215-V/-VE
> Megapixel/HDTV: 2 MP/HDTV 1080p
> Max video resolution: 1920 x 1080
Streamlined and versatile varifocal xed
domes with HDTV 1080p
AXIS P3214-V/-VE
> Megapixel/HDTV: 1.3 MP/HDTV 720p
> Max video resolution: 1280 x 960
Streamlined and versatile varifocal xed
domes with HDTV 720p
AXIS M3204/-V
> Megapixel/HDTV: 1 MP/HDTV 720p
> Max video resolution: 1280 x 960
Discreet and aordable HDTV xed domes
for professional surveillance
AXIS M3203/-V
> Max video resolution: 800 x 600
Discreet and aordable xed domes for
professional surveillance
AXIS M3114-R
> Megapixel/HDTV: 1 MP/HDTV 720p
> Max video resolution: 1280 x 800
Compact, rugged HDTV network camera for
mobile video surveillance
AXIS M3113-R
> Max video resolution: 800 x 600
Compact, rugged network camera for
mobile video surveillance
Network cameras Fixed dome network cameras | 23
AXIS M32 Network Camera Series
Discreet and affordable fixed domes for professional surveillance
AXIS M32 Network Cameras are cost-eective and compact fíxed domes with handy features such as Power over Ethernet, varifocal lens and
pixel counter. They include intelligent capabilities such as video motion detection and camera tampering alarm. They are perfectly suited where
discreet, tamper-resistant or vandal-resistant xed domes are requested, e.g. in retail stores and schools. All models also include features such
as digital PTZ and supports AXIS Camera Application Platform.
AXIS M31-R Network Camera Series
Compact, rugged network cameras for mobile video surveillance
The AXIS M31-R Network Camera Series is specially designed for video surveillance in buses, trains, subway cars and emergency vehicles. These
cameras are discreet and rugged, and have protection against dust and water. They can withstand tough conditions such as vibrations, shocks,
bumps and temperature uctuations. All models include features such as motion detection, active tampering alarm, support for AXIS Camera
Application Platform, PoE and digital PTZ.
AXIS M30 Network Camera Series
High-performance fixed mini domes
AXIS M30 Network Camera Series offers affordably priced, highly discreet, flexible and easy-to-install compact fixed domes with Power
over Ethernet, memory card slots supporting edge storage, HDTV performance and 360°/180° panoramic views. They are ideal for retail
stores, hotels, schools, banks and offices with tight budgets for video surveillance. Models are available in both indoor and outdoor-ready,
vandal-resistant, day/night versions. AXIS M30 cameras are vandal- and dust-resistant (except for AXIS M3014 and AXIS M3007-P), and
can be mounted on walls or ceilings. AXIS M3007-P is highly discreet with its smoke-detector look. All models include features such as
video motion detection, active tampering alarm, support for AXIS Camera Application Program, digital PTZ and pixel counter.
AXIS M3027-PVE
> Megapixel/HDTV: 5 MP
> 360°/180° panoramic views
> Max video resolution: 2592 x 1944
> Digital PTZ
> Multi-view streaming with dewarped views
Outdoor-ready, day/night xed mini domes
with HDTV or 360°/180° panoramic views
AXIS M3026-VE
> Megapixel/HDTV: 3 MP/1080p
> Max video resolution: 2048 x 1536
> Multi-view streaming
> Enhanced capacity for video analytics
> Input/output ports for external devices
Outdoor-ready, day/night xed dome with
3-megapixel/HDTV 1080p
AXIS M3025-VE
> Megapixel/HDTV: 2 MP/1080p
> Max video resolution: 1920 x 1080
> Input/output ports for external devices
Outdoor-ready, day/night xed dome with
HDTV 1080p
AXIS M3024-LVE
> Megapixel/HDTV: 1 MP/720p
> Max video resolution: 1280 x 800
> Built-in IR illumination
> Input/output ports for external devices
Outdoor-ready, day/night xed dome with
IR illumination
AXIS M3014
> Megapixel/HDTV: 1 MP/ HDTV 720p
> Max video resolution: 1280 x 800
Ultra-discreet, recessed-mount video
surveillance solution
24 | Network cameras Fixed dome network cameras
AXIS M3007-P
> Megapixel/HDTV: 5 MP
> Max video resolution: 2592 x 1944
> 360°/180° panoramic views in up to
5 MP resolution
> Ultra-discreet design
> Digital PTZ and multi-view streaming
with dewarped views
Ultra-discreet xed mini dome with
360°/180° panoramic view
AXIS M3006-V
> Megapixel/HDTV: 3 MP/1080p
> Max video resolution: 2048 x 1536
> Wide viewing angle of 134°
> Compact, vandal- and dust-resistant
design
> Digital PTZ and multi-view streaming
Fixed mini dome with 3-megapixel wide
view and HDTV 1080p
AXIS M3005-V
> Megapixel/HDTV: 2 MP/1080p
> Max video resolution: 1920 x 1080
> Ultra-compact, vandal-resistant design
> Progressive scan
> Corridor Format
Fixed mini dome with HDTV performance
AXIS M3004-V
> Megapixel/HDTV: 1 MP/720p
> Max video resolution: 1280 x 800
> Ultra-compact, vandal-resistant design
> Progressive scan
> Corridor Format
Fixed mini dome with HDTV performance
Network cameras Fixed dome network cameras | 25
AXIS M3007-PV
> Megapixel/HDTV: 5 MP
> Max video resolution: 2592 x 1944
> 360°/180° panoramic views
> Digital PTZ and multi-view streaming
with dewarped views
Fixed mini dome with 360°/180°
panoramic view
Pan/tilt/zoom (PTZ)
network cameras
Pan, tilt, and zoom capabilities
for wide area coverage
Axis PTZ dome network cameras provide pan, tilt, and zoom
functions, enabling wide area coverage and great details when
zooming in. A wide range of accessories is available, including
joysticks for easy maneuvering and mounting kits for indoor
and outdoor installations.
26 | Network cameras Pan/tilt/zoom (PTZ) network cameras
Network cameras Pan/tilt/zoom (PTZ) network cameras | 27
AXIS Q60 PTZ Dome Network Camera Series
Advanced, high-speed PTZ domes with mission-critical functions
AXIS Q60 PTZ Dome Network Cameras are designed for the most demanding video surveillance applications, with outstanding, full frame
rate video in resolutions up to HDTV 1080p. With powerful zoom and high-speed, precision pan/tilt/zoom capabilities, the indoor and
outdoor-ready PTZ domes enable exceptional coverage of large areas and great detail when zooming in. With quick and reliable installation
features, the cameras are ideal for airports, seaports, stadiums, manufacturing plants as well as city and perimeter surveillance. Pressurized,
stainless steel versions are ideal outdoors for marine, mining, and oil and gas environments, and indoors in food, medical and clean room
manufacturing facilities. All models include features such as day/night functionality, video motion detection, Active Gatekeeper, support for
AXIS Camera Application Platform, PoE, pixel counter, autotracking, WDR and edge storage.
AXIS Q6045/-E
> Megapixel/HDTV: 2 MP/HDTV 1080p
> Max video resolution: 1920 x 1080
> 20x optical zoom
> Two-way audio*)
> IP52-rated protection against dust and
dripping water*)
> Arctic Temperature Control**)
> Vandal-resistant and shock detection
*) AXIS Q6045
**) AXIS Q6045-E
Indoor/outdoor high-speed PTZ dome with
HDTV 1080p and 20x zoom
AXIS Q6045-C
> Megapixel/HDTV: 2 MP/HDTV 1080p
> Max video resolution: 1920 x 1080
> 20x optical zoom
> Operates in temperatures up to 75 °C
(167 °F)
> Outdoor-ready, meeting military standard
> SFP slots for ber, RJ45 connections
> Input/outport ports for external devices
High-speed HDTV 1080p PTZ dome with
active cooling
AXIS Q6045-S
> Megapixel/HDTV: 2 MP/HDTV 1080p
> Max video resolution: 1920 x 1080
> 20x optical zoom
> Marine-grade stainless steel
> Casing for pressurized nitrogen
> SFP slots for ber, RJ45 connections
> Input/outport ports for external devices
Pressurized, stainless steel PTZ dome with
HDTV 1080p and 20x zoom
AXIS Q6044/-E
> HDTV: HDTV 720p
> Max video resolution: 1280 x 720
> 30x optical zoom
> Two-way audio*)
> IP52-rated protection against dust and
dripping water*)
> Arctic Temperature Control**)
> Vandal-resistant and shock detection
> Electronic image stabilization
> Automatic defog
*) AXIS Q6044
**) AXIS Q6044-E
Indoor/outdoor high-speed PTZ dome with
HDTV 720p and 30x zoom
AXIS Q6044-C
> HDTV: HDTV 720p
> Max video resolution: 1280 x 720
> 30x optical zoom
> Operates in temperatures up to 75 °C
(167 °F)
> Outdoor-ready, meeting military standard
> SFP slots for ber, RJ45 connections
> Input/outport ports for external devices
High-speed HDTV 720p PTC dome with
active cooling
AXIS Q6044-S
> HDTV: HDTV 720p
> Max video resolution: 1280 x 720
> 30x optical zoom
> Marine-grade stainless steel
> Casing for pressurized nitrogen
> SFP slots for ber, RJ45 connections
> Input/outport ports for external devices
Pressurized, stainless steel PTZ dome with
HDTV 720p and 30x zoom
AXIS Q6042/-E
> Max video resolution: Extended D1, 736 x
576 (50 Hz), 752 x 480 (60 Hz)
> 36x optical zoom
> Two-way audio*)
> IP52-rated protection against dust and
dripping water*)
> Arctic Temperature Control**)
> Vandal-resistant and shock detection
> Electronic image stabilization
*) AXIS Q6042
**) AXIS Q6042-E
Indoor/outdoor high-speed PTZ dome with
36x zoom
28 | Network cameras Pan/tilt/zoom (PTZ) network cameras
Network cameras Pan/tilt/zoom (PTZ) network cameras | 29
AXIS Q6042-C
> Max video resolution: Extended D1, 736 x
576 (50 Hz), 752 x 480 (60 Hz)
> 36x optical zoom
> Operates in temperatures up to 75 °C
(167 °F)
> Outdoor-ready, meeting military standard
> SFP slots for ber, RJ45 connections
> Input/outport ports for external devices
High-speed PTZ dome with active cooling
AXIS Q6042-S
> Max video resolution: Extended D1, 736 x
576 (50 Hz), 752 x 480 (60 Hz)
> 36x optical zoom
> Marine-grade stainless steel
> Casing for pressurized nitrogen
> SFP slots for ber, RJ45 connections
> Input/outport ports for external devices
Pressurized, stainless steel PTZ dome with
36x zoom
AXIS P55 PTZ Dome Network Camera Series
Advanced indoor and outdoor-ready PTZ domes
AXIS P55 PTZ Dome Network Camera Series consists of cost-eective, advanced indoor and outdoor-ready PTZ domes. They provide full frame rate
video in resolutions up to HDTV 720p and with optical zoom up to 29x. In addition, the unique AXIS P5544 PTZ Dome Network Camera with Panopsis
technology provides a 360° eld of view that covers more than 950 m² (10,000 sq. ft.) — more than the size of three tennis courts — enabling
panoramic views not only for security purposes, but also for crowd, ow and queue management.
The cameras enable surveillance of a large area and great details when zooming in. With quick and reliable installation features, the cameras
are ideal for stores, banks, warehouses, parking lots, airports and train stations, as well as city and perimeter surveillance. All models include
features such as day/night functionality, video motion detection, Advanced Gatekeeper, support for AXIS Camera Application Platform, PoE,
pixel counter and edge storage.
AXIS P5544
> HDTV: HDTV 720p
> Max video resolution: 1280 x 720
> WDR
> 18x optical zoom
> 360° panoramic view
> Panopsis lens: 180°
> Two-way audio
HDTV PTZ dome with 360° panoramic
view and 18x zoom
AXIS P5534/-E
> HDTV: HDTV 720p
> Max video resolution: 1280 x 720
> 18x optical zoom
> IP66- and NEMA 4X-rated protection
against dust, rain and snow*)
*) AXIS P5534-E
Indoor/outdoor-ready HDTV PTZ dome with
18x zoom
AXIS P5532/-E
> Max video resolution: D1 720 x 576
(50 Hz), 720 x 480 (60 Hz)
> WDR
> 29x optical zoom
> Image stabilizer
> IP66- and NEMA 4X-rated protection
against dust, rain and snow*)
*) AXIS P5532-E
Cost-eective PTZ dome camera with 29x
zoom for indoor/outdoor applications
AXIS P5522/-E
> Max video resolution: D1 720 x 576
(50 Hz), 720 x 480 (60 Hz)
> WDR
> 18x optical zoom
> IP66- and NEMA 4X-rated protection
against dust, rain and snow*)
*) AXIS P5522-E
Aordable day/night PTZ dome with 18x
zoom for broad indoor/outdoor application
AXIS P5512/-E
> Max video resolution: 4CIF 704 x 576
(50 Hz), 704 x 480 (60 Hz)
> 12x optical zoom
> IP66- and NEMA 4X-rated protection
against dust, rain and snow*)
*) AXIS P5512-E
Compact, aordable indoor/outdoor-ready
PTZ dome with 12x zoom
30 | Network cameras Pan/tilt/zoom (PTZ) network cameras
Network cameras Pan/tilt/zoom (PTZ) network cameras | 31
AXIS P54 PTZ Dome Network Camera Series
PTZ domes that blend in
AXIS P54 PTZ Dome Network Camera Series comprises outdoor-ready, wall-mounted HDTV pan/tilt/zoom cameras that are aesthetically designed
to blend in with a building. The attractively priced cameras are ideal for use in city and perimeter surveillance, parking houses and school yards.
AXIS P54 cameras mount directly on a wall without the traditional mounting arm. The design, which incorporates a wall bracket,
allows the cameras to be at one with the building. The built-in bracket also provides cost savings by eliminating the need for a
separate mounting accessory, and makes installation easier and quicker. The cameras’ integrated sunshield can be easily repainted to
match the color of the building. All models include features such as durable, low maintenance mechanics, 18x optical zoom, day/night
functionality, two-way audio, input/output ports for external devices, video motion detection, audio detection, Advanced Gatekeeper,
support for AXIS Camera Application Platform, PoE+, pixel counter and edge storage. The outdoor models have IP66 and NEMA 4X rating.
AXIS P5415-E
> Megapixel/HDTV: 2 MP/HDTV 1080p
> Max video resolution: 1920 x 1080
> Outdoor wall-mount design for easy
installation
> Repaintable integrated sunshield
> Durable, low-maintenance mechanics
> 18x optical zoom
> Two-way audio
> I/Os
Intelligent direct drive HDTV 1080p
PTZ dome
AXIS P5414-E
> HDTV: HDTV 720p
> Max video resolution: 1280 x 720
> Outdoor wall-mount design for easy
installation
> Repaintable integrated sunshield
> Durable, low-maintenance mechanics
> 18x optical zoom
> Two-way audio
> I/Os
Intelligent direct drive HDTV 720p
PTZ dome
32 | Network cameras Pan/tilt/zoom (PTZ) network cameras
AXIS 214 PTZ
> Max video resolution: 4CIF 704 x 576 (50
Hz), 704 x 480 (60 Hz)
Day & night camera with pan/tilt/zoom
and audio
AXIS 214 PTZ Network Camera
Day & night camera with pan/tilt/zoom and audio
AXIS 214 PTZ Network Camera is a high performance camera for professional surveillance and remote monitoring. It combines a high
quality color camera with the flexibility of remote pan/tilt/zoom through operator control. The 18x optical motorized lens with auto
focus makes it possible to zoom in on a small or distant object with exceptional clarity. The AXIS 214 PTZ is designed for use in mid-
sized businesses, such as retail stores and supermarkets. AXIS 214 include featureas such as day/night functionality, two-way audio,
video motion detection and audio detection.
AXIS M50 PTZ Dome Network Camera Series
Mini PTZ domes that give the big picture
AXIS M50 PTZ Dome Network Camera Series are affordably priced pan/tilt/zoom cameras. They are perfect for remote and discreet
monitoring of indoor areas such as stores, banks, hotels, office lobbies, restaurants and warehouses. The vandal-resistant models can be
used in those areas subject to vandalism. All models include features such as 3x digital zoom, video motion detection, support for AXIS
Camera Application Platform, PoE, pixel counter and edge storage.
AXIS M5014/-V
> HDTV: HDTV 720p
> Max video resolution: 1280 x 720
> Vandal-resistant model*)
> Two-way audio and built-in microphone**)
> Ultra-discreet design**)
> PoE
> IP66 and IK10 ratings*)
*) AXIS M5014-V
**) AXIS M5014
Mini HDTV PTZ dome that gives the big
AXIS M5013/-V
> Max video resolution: SVGA 800 x 600
> Vandal-resistant model*)
> Two-way audio and built-in
microphone**)
> Ultra-discreet design**)
> PoE
> IP66 and IK10 ratings*)
*) AXIS M5013-V
**) AXIS M5013
Mini PTZ dome that gives the big picture
Thermal network cameras
Reliable detection
– 24 hours a day, seven days a week
Axis thermal network cameras outperform a visual camera
in dark scenes and are a great tool for detecting people and
objects in 24/7 surveillance, from pitch dark areas to a sunlit
parking lot. The cameras create images based on the heat that
always radiates from any object, vehicle or person. This gives
the cameras the power to deliver images that allow operators
to detect and act on suspicious activity.
Network cameras
Thermal network cameras | 33
AXIS Q87-E Network Camera Series
Thermal detection, HDTV and PTZ surveillance all in one
AXIS Q19 Network Camera Series
High quality detection and wide range coverage
AXIS Q87-E Network Camera Series provides a visual camera and a thermal camera. The visual and thermal cameras can deliver several
independent H.264 streams. Both visual and thermal cameras are connected to an Ethernet switch placed inside the housing. All models
are outdoor-ready and include features such as day/night functionality, video motion detection, tampering alarm, support for AXIS Camera
Application program, edge storage and IP66 rating. The visual camera provides 10x optical zoom and auto focus, and on top of that AXIS Q87-E
is mounted on a pan/tilt motor. AXIS Q87-E models can pan 360° endlessly and tilt between 45° to -20° with a preset accuracy of 0.02°.
AXIS Q19 Thermal Network Cameras are a perfect complement to any network video system that needs to secure an area 24 hours a day, seven
days a week. The cameras use thermal imaging, which allows users to detect people, objects and incidents in complete darkness and dicult
conditions such as smoke, haze, dust and light fog. Most of the models include features such as audio support, video motion detection, audio
detection, active tampering alarm, support for AXIS Camera Application Platform, PoE and edge storage. The PT Mount models are designed to
be mounted on pan-tilt motors.
AXIS Q8722-E
> Megapixel/HDTV: 2 MP/HDTV 1080i
(visual camera)
> Max video resolution 1920 x 1080 (visual
camera), 640 x 480 (thermal camera)
> Detection up to 5500 m (6015 yards)
Superior thermal detection, HDTV and PTZ
surveillance all in one
AXIS Q8721-E
> Megapixel/HDTV: 2MP/HDTV 1080i (visual
camera)
> Max video resolution: 1920 x 1080 (visual
camera), 384 x 288 (thermal camera)
> 10x optical zoom
> Detection up to 3700 m (4046 yards)
High-quality thermal detection, HDTV and
PTZ surveillance all in one
AXIS Q1932-E /
AXIS Q1932-E PT Mount
> Max video resolution: 640 x 480
> Bullet-style design for indoor or outdoor
> Many lens alternatives for detection up
to 5500 m (6015 yards)
> Serial port for communication with
pan/tilt motors*)
*) AXIS Q1932-E PT Mount
Reliable VGA detection and wide range
coverage
34 | Network cameras Thermal network cameras
Network cameras Thermal network cameras | 35
AXIS Q1931-E/
AXIS Q1931-E PT Mount
> Max video resolution: 384 x 288
> Bullet-style design for indoor or outdoor
> Many lens alternatives for detection up
to 5420 m (5920 yards)
> Serial port for communication with pan/
tilt motors*)
*) AXIS Q1931-E PT Mount
Superior detection and wide range coverage
AXIS Q1922/-E
> Max video resolution: 640 x 480
> Outdoor-ready with window heater*)
> Lens alternatives for detection up to
5500 m (6015 yards)
*) AXIS Q1922-E
Superior detection and wide range coverage
AXIS Q1910/-E
> Max video resolution: 160 x 128
> Outdoor-ready with window heater*)
> Detection up to 550 m (600 yards)
*) AXIS Q1910-E
Reliable detection in dark and challenging
indoor/outdoor conditions
Video encoders
36 | Video encoders
Types of video encoders
With an Axis video encoder solution, you can integrate
your existing analog system with products that bring
your system up to speed with the latest IP technology.
Video encoders instantly provide you with the benets
of network video, as well as a platform to expand and
update your infrastructure with network cameras,
software and networking/storage devices.
All Axis video encoders include features such as video
motion detection and PTZ control.
Migrate your analog
security system to an
IP-based video solution.
1-channel video encoders
16-channel video encoders
4-channel video encoders 6-channel video encoders
Chassis for large installations
Every Axis product
has a unique
naming structure
that lets you know
its functions and
capabilities at a
glance. Find out
more on page 41.
Video encoders | 37
38 | Video encoders
AXIS Q74 Series
High-performance, full-featured video encoders with H.264
AXIS Q74 Video Encoder Series delivers superb video quality and oers full-featured, most advanced and secure integration of analog cameras
into an IP-based video surveillance system. All models include features such as alarm in-/outputs, tampering alarm and support for AXIS
Camera Application Platform.
AXIS Q7436 Blade
> Max video resolution: D1
> 50/60 fps
> Outstanding video processing
performance
> Intelligent video capabilities
High-performance, exible 6–channel video
encoder
AXIS Q7424-R
> Max video resolution: D1
> Rugged design
> Extended temperature range
> SFP slot for ber connection
> Edge storage
Full-featured video surveillance for tough
environments
AXIS Q7414 Blade
> Max video resolution: D1
High-density 4-channel video surveillance
solution with H.264 and full audio support
AXIS Q7411
> Max video resolution: D1
> 50/60 fps
> Outstanding video processing capabilities
> Intelligent video capabilities
> Edge storage
Full-featured, single-channel video encoder
with exceptional performance
AXIS Q7401 / AXIS Q7404
> Max video resolution: D1
> Intelligent video capabilities
> Two-way audio on one channel*)
> Edge storage**)
> 1-channel and 4-channel models
*) AXIS Q7404
**) AXIS Q7401
Full-featured video surveillance with
outstanding H.264 performance
Video encoders | 39
AXIS P72 Series
Full-featured, cost-effective video encoders with H.264
AXIS M70 Series
Cost-effective video encoders with H.264
AXIS P72 Video Encoder Series offers powerful, full-featured and efficient integration of analog cameras into an IP-based video
surveillance system. The video encoders are ideal for locations such as gas stations, convenience stores and small offices. All models
include features such as high resolution quad view, 30 fps, two-way audio, tampering alarm and alarm in-/outputs.
AXIS M70 Video Encoder Series offers high quality video, efficient and affordable integration of analog cameras into a powerful IP-based
video surveillance system and is ideal for locations such as gas stations, convenience stores and small offices.
AXIS P7224 Blade
> Max video resolution: D1
Full-featured, cost-eective 4-channel
video encoder blade with H.264
AXIS P7216
> Max video resolution: D1
> Edge storage
> SFP slot
Full-featured, cost-eective 16–channel
video encoder
AXIS P7214
> Max video resolution: D1
> Edge storage
Full-featured, cost-eective 4-channel
video encoder with H.264
AXIS M7016
> Max video resolution: D1
> 30 fps
Cost-eective 16–channel video encoder
40 | Video encoders
AXIS M7014
> Max video resolution: D1
> 15 fps
Cost-eective 4–channel video encoder
with H.264
AXIS M7001
> Max video resolution: D1
> 30 fps
The smallest 1-channel video encoder with
H.264
AXIS Q7920 Video Encoder Chassis
Reliable, high-density video encoder chassis for up to 84 channels
AXIS 291 1U Video Server Rack
Full frame rate, high-density video encoder rack solution for up to 18 channels
AXIS Q7920 is a high-density rack mount video
encoder chassis, providing an expandable solution
for migrating analog installations to network video.
This video encoder chassis is ideal for large, mission
critical installations where high performance,
exibility and reliability are required.
> Holds up to 14 hot-swappable blades
> SFP slots
> 5U rack mount video encoder chassis
> Power and network redundancy
> I/O and serial port support
AXIS 291 1U Video Server Rack is a high-density
solution for seamless and professional installation
of video encoders. AXIS 291 1U is designed for
expanding applications and is ideal for airports,
hotels and train stations – premises where analog
cameras are already installed.
> Holds up to 3 video encoder blades
> 1U 19” industry standard rack
> I/O and serial port support
Naming structure | 41
AXIS P3367-VE
Product line Product type Series no. Running no. ExtensionResolution/channels
Q
Most advanced,
secure video
solutions for
mission-critical
systems
P
Versatile and
secure advanced
video solutions
M
intuitive and
dependable
video solutions
F
Flexible, modular
system for a wide
variety of discreet
surveillance
products
T
A range of
accessories
that increase
network video
1
2
Fixed cameras
3
4
Fixed dome
cameras
5
6
PTZ cameras
7
Video encoders/
decoders
8
System products
9
Accessories
-C
Cooling
enclosure
-E
Outdoor
enclosure
-L
LED
illumination
-P
Panoramic
view 360
o
-R
Rugged
-V
Vandal-
resistant
-W
Wireless
-S
Stainless steel
enclosure
1
VGA 640x480
2
4CIF
704x480 (NTSC)
704x576 (PAL)
3
SVGA 800x600
4
HDTV 720
1.3 MP
1280x720
1280x1024
5
HDTV 1080
2 MP
1920x1080
1600x1200
6
3 MP –
<5 MP
2048x1536
7
5 MP -
< 8MP
2560x1920
8
4K Ultra HD
8 MP
3840x2160
Series name = AXIS P33
All Axis products follow a naming structure that
allows quick categorization and identication. The
products are named according to their product lines,
product types, series numbers, running numbers,
resolution/channels and extensions. The unique
product names will, at a glance, give you a clear idea
of the functions and capabilities of the products.
Naming structure
Hardware accessories
42 | Hardware accessories
Axis provides a wide range of accessories that
complements our network cameras and video encoders
and assists in your network video installation. Whether
the network cameras are to be placed in demanding
outdoors environment, mounted on ceilings, walls
or corners, or used for night-time surveillance, it is
important to nd the right accessories that fulll
these demands, and are quick and easy to install.
Accessories complementing
Axis network products for
a complete solution.
Mounting
Add-on devices
Connecting
Tools and extras
Types of hardware accessories
Video decoders
Every Axis product
has a unique
naming structure
that lets you know
its functions and
capabilities at a
glance. Find out
more on page 41.
Hardware accessories | 43
Mounting
Make your choice based on the orientation and protection you
need for your network camera installation.
Connecting
Axis provides devices for its network video products to allow them
to receive both data and power over dierent media, whether it is
power, Ethernet, ber or coax.
Camera Mounts
For installation on wall, pole,
ceiling, corner or back boxes.
Midspans
For powering your network
video product via an
Ethernet cable.
Enclosure Cabinets
Cabinets for accessories,
encoders or DIN rail parts.
Power Adapters
For direct power to your device.
Pan Tilt Motors
Add pan/tilt functionality to
Axis xed network cameras.
Cables and
Connectors
For special connections
and cameras.
Camera Housings
For xed, xed domes or PTZ
cameras.
Media Converters
For Ethernet communication
over alternative cables.
44 | Hardware accessories
Add-on devices
Choose among illuminators, lenses, audio and lenses, audio, and
output devices.
Tools and extras
Complete your surveillance solution with devices that help your
installation, from installation display to joysticks and cleaning
accessories.
Illuminators
White and infrared
LED illuminators.
Installation
Tools and Display
Direct connection to the
camera for easy installation
and live video.
I/O Audio
Add audio or input/output
devices to your surveillance.
Miscellaneous
From cleaning products
to labels.
Video Decoder
Full-featured video decoder
with H.264 support.
Lenses
Optional lenses to meet
special requirements.
Joysticks and
Control Boards
To control cameras
with PTZ capabilities.
Hardware accessories | 45
Video
management
46 | Video management
Remote viewing, recording,
and event management.
Axis oers its own video management solutions that
address, in particular, the needs of small installations
and medium-sized systems, the increasing requirements
for hosted video solutions (cloud solutions), and requests
from customers demanding a single-vendor solution.
Axis’ Application Development Partner program
comprises hundreds of companies that provide video
management solutions for all kinds of needs: from small
to enterprise solutions with thousands of cameras.
Video management software
AXIS Camera Companion
Partner solutions
AXIS Camera Station
Surveillance as a cloud-based service
Video management | 47
AXIS Camera Companion
AXIS Camera Companion is the market’s easiest video surveillance solution for
small systems from 1 to 16 cameras – perfect for retail, oces and hotels. With
AXIS Camera Companion, all video is recorded on SD cards in the cameras, and
no DVR or server is necessary – making each camera a smart, independent video
recording device. The system consists of standard Axis cameras, SD cards, software
clients for PC and smartphones, and standard network equipment.
> Excellent HDTV image quality
> Easy to install and use
> No central PC or DVR needed
> Remote and wireless access to video
> Viewing app for iPhone, iPad and Android devices
> Scalable and future-proof
> Multilingual support for English, UK English, Arabic, Brazilian Portuguese,
Czech, Dutch, Finnish, French, German, Italian, Japanese, Korean, Polish, Russian,
Simplied Chinese, Traditional Chinese, Slovak, Spanish, Swedish and Turkish
48 | Video management
AXIS Camera Station
AXIS Camera Station is a monitoring and recording system for small- to
mid-sized installations. Optimized for Axis network video products, this
software oers easy installation and setup, and an intuitive user interface
for eective investigation and high-denition identication. AXIS Camera
Station meets the needs for ecient surveillance of small- to mid-sized
installations, such as retail shops, hotels, schools, and manufacturing
sites. It is a proven solution designed to perfectly match Axis’ wide range
of HDTV network video products and product features.
The software client can be installed on any computer, enabling remote
viewing and control from anywhere on the corporate network or the
Internet. An easy setup wizard with automatic camera discovery guides
you through all the necessary steps of the conguration process. This
allows the system to be up and running within minutes.
An intuitive user interface with exible live-view layout, site maps, powerful
event conguration, ecient alarm management and responsive PTZ
control makes it possible to eectively manage the cameras in the system.
Quick investigation and retrieval of evidence for safe and secure export
is enabled by intuitive timeline visualization and an ecient video
search. By dening an area of interest you can quickly search through
vast amounts of high denition recordings.
> Optimized for Axis network video products
> Quick system setup
> Intuitive operation
> Eective investigation
> High-denition identication
Video management | 49
Partner solutions
Surveillance as a
cloud-based service
Axis works with the broadest network of industry-leading software vendors
to provide tightly integrated video management software for your Axis
network video products. They provide video management solutions for
all kinds of systems: from small to enterprise solutions with thousands
of cameras. In addition, our application partners oer many specialized
solutions for various industry needs or geographical requirements. With the
support of more than 1200 software vendors, you are sure to nd a video
management solution that meets your specic needs:
> With optimized features and functionality
> Specic for any industry segment
> Localized for your country
> Scalable to include any number or model of Axis video products
> Easily integrates with your existing physical security and
operating systems
Axis has a wide range of network cameras and encoders compatible with
hosted video. With these products as a base, our global network of service
providers can oer cloud-based surveillance services as well as other value
adding services to protect and develop your business. Benets include:
> A trouble-free solution where your partner manages and
maintains the solution
> No hardware investments that will be outdated over time
> A reliable security solution for you and your employees
> Flexible service oerings that support and can grow
with your business
> Easily get new features, applications and service
oerings to support your business
50 | Video management
Smart technologies
WDR
With Lightnder
Conventional camera
Without Lightnder
Wide Dynamic Range (WDR)
Many Axis cameras oer WDR, which makes
objects visible in both bright and dark areas
of a scene. The latest advancement is Axis’
unique WDR – Forensic Capture technology.
Lightnder
Axis’ Lightfinder is available in several
cameras and ensures extreme light sensitivity
with color video even at very low light.
Smart technologies | 51
Electronic Image Stabilization
Axis’ Electronic Image Stabilization is
available in several Axis cameras and
benefits the user by effectively minimizing
effects from vibration and shaking,
resulting in clear images even in scenes
with a lot of motion.
Electronic Image Stabilization ON Electronic Image Stabilization OFF
P-Iris Old technology
P-Iris
P-Iris is an automatic, precise iris control
available on selected Axis cameras. It
involves a special P-Iris lens and software
that optimizes image quality. Compared
with other lens systems, it provides
improvements in contrast, clarity and
depth of field.
Corridor Format
Axis’ unique Corridor Format, available on
all cameras, provides a vertical video stream.
This format optimizes the coverage of areas
such as hallways and aisles, maximizing
image quality while eliminating bandwidth
and storage waste.
52 | Smart technologies
Infrared (IR) illuminators
Built-in IR LEDs such as Axis’ OptimizedIR
technology allow the camera to deliver
high quality black and white images even in
complete darkness.
Power over Ethernet (PoE)
PoE is the standard in all Axis cameras, and
it powers devices over the network using the
same cable as for video and data. This removes
the cost of pulling separate power cables and
increases reliability, since a video surveillance
system with PoE can be powered centrally from
a server room, which is often backed up with a
UPS (Uninterruptible Power Supply). This means
that the video surveillance system is operational
even during a power outage.
Discreet eye-level camera Ceiling-mounted camera
Discreet surveillance
Axis offers cameras that blend into the
environment and are virtually impossible
to discover. They can be placed at eye-
level at entrances or integrated into
locations such as ATM machines for
discreet surveillance. They can enable
close-up shots for identification or
overview surveillance. Tampering risks are
also reduced.
Edge storage
Edge storage, also referred to as local storage
or onboard recording, is available in almost all
Axis cameras. It allows cameras to record video
directly to an SD memory card or a network-
attached storage (NAS). Edge storage allows
systems to be designed without any central
server, creating a very cost-ecient system.
Edge storage can also be used as a fail-over
solution to increase storage reliability, or for
remote or mobile surveillance.
Smart technologies | 53
4K Ultra HD
Axis was rst to oer an HDTV security
camera, now the standard in the industry. The
latest development is the 4K Ultra HD, which
oers four times the resolution of a standard
HDTV 1080p camera at full 30 frames per
second. This allows users to enhance any
portion of the screen to pull crisp forensic
video from large areas without losing details.
About Axis Communications
Distributed by:
©2014 Axis Communications AB. AXIS COMMUNICATIONS, AXIS, ETRAX, ARTPEC and VAPIX are registered
trademarks or trademark applications of Axis AB in various jurisdictions. All other company names and products
are trademarks or registered trademarks of their respective companies. We reserve the right to introduce
modications without notice.
Axis oers intelligent security solutions that enable a smarter, safer world. As the global market
leader in network video, Axis is driving the industry by continually launching innovative network
products based on an open platform – delivering high value to its customers and carried through
a global partner network. Axis has long-term relationships with partners and provides them with
knowledge and ground-breaking network products in existing and new markets.
Axis has more than 1,600 dedicated employees in more than 40 countries around the world,
supported by a network of over 65,000 partners across 179 countries. Founded in 1984, Axis is
a Sweden-based company listed on NASDAQ OMX Stockholm under the ticker AXIS.
For more information about Axis, please visit our website www.axis.com.
60161/EN/R1/1410
