PRODUCT GUIDE
This Product Guide provides short-form
information on all Veracity IP Transmission
Products and is intended as a useful product
comparison and product overview.
A full datasheet for each product is
available on the Veracity website
www.veracityglobal.com
Each product has an example application
diagram which illustrates how the product
might be connected.Further application
diagrams can be found in the datasheets and
on the website.
POE (Power Over Ethernet) is a core feature
of most modern IP installations, so we have
provided a useful reference table on page 4
which shows the POE Classes, IEEE standard,
the power levels at the PSE (Power Sourcing
Equipment) and the maximum power which
can be delivered at the PD (Powered Device).
For more information of POE and how it
works, please visit our website. Use the Power
Sources key on page 2, to know which sources
can be used with each product, as indicated
throughout the guide.
4
4
POE REFERENCE TABLE
PSE = Power Sourcing Equipment PD = Powered Device
POE
CLASS
0
1
2
3
4
5
6
7
8
POE POWER
AT PSE
15.4W
4W
7W
15.4W
30W
45W
60W
75W
90W
IEEE
STANDARD
802.3af
802.3af
802.3af
802.3af
802.3at
802.3bt
802.3bt
802.3bt
802.3bt
POE POWER
AT PD
12.95W
3.84W
6.49W
12.95W
25.5W
40W
51W
62W
71.3W
5
CONTENTS
ETHERNET OVER COAX HIGHWIRE 6
ETHERNET EXTENDERS OUTREACH 10
LONG RANGE ETHERNET LONGSPAN 13
NETWORK SWITCHES + DEVICES LIGHTSPAN 16
TIMENET 16
CAMSWITCH 18
INSTALLATION TOOLS POINTSOURCE 19
PINPOINT 19
POE INJECTORS + POWER SUPPLIES OUTSOURCE 20
POWER SUPPLIES 21
ACCESSORIES + SPARES 2-PIN POWER CORDS 23
6
1 PORT ETHERNET OVER COAX
HIGHWIRE
®
PRODUCT CODE VHW-HW
1 PORT POE OVER COAX
(BASE + CAMERA)
HIGHWIRE
®
POWERSTAR
PRODUCT CODES
Base VHW-HWPS-B
Camera VHW-HWPS-C
2 PORT POE OVER COAX (CAMERA)
HIGHWIRE
®
POWERSTAR
DUO
PRODUCT CODE VHW-HWPS-C2
COAX TO 500M | ETHERNET OVER COAX
POWER SOURCES
COAX TO 500M | ETHERNET & POE OVER COAX
POWER SOURCE
OR POE POWERED
COAX TO 500M | ETHERNET & POE OVER COAX
POWER SOURCES
OR POE POWERED
HIGHWIRE
| Upgrade analogue to IP cameras - no recabling.
| Uses legacy coaxial cabling.
| Supports HD and 4K IP cameras.
| Fully transparent full-duplex 100Base-TX.
| Easy to install - no IP address or other setup.
| 500m on RG11 or up to 300m on RG59.
| 12-40V DC or 24V AC power input.
| Non-POE, local power required at camera.
Device Size L:104mm W:54mm H:24mm
HIGHWIRE POWERSTAR
| Upgrade analogue to IP cameras - no recabling.
| Same as HIGHWIRE with POE over coax.
| POE switch powers HIGHWIRE Base device,
HIGHWIRE Camera device and IP Camera.
| For maximum range and power Veracity’s 57V
DC PSU can be used as an alternative to POE in.
| Up to 25W POE to IP camera with 57V DC PSU.
| SAFEVIEW™ Instant LED status confirmation.
Device Size L:104mm W:54mm H:24mm
HIGHWIRE POWERSTAR DUO
| Replace 1 analogue camera with 2 IP cameras
without the need to recable.
| Combines standard HIGHWIRE with two-port
POE network switch.
| No configuration is required.
| Pairs with HIGHWIRE Powerstar Base device.
| POE switch can power Base, Duo & IP cameras.
| SAFEVIEW™ Instant LED status confirmation.
Device Size L:132mm W:75mm H:22mm
DATA ONLY
NETWORK
SWITCH
ETHERNET
300M ON RG59 500M ON RG11
LOW VOLTAGE
POWER
ETHERNET WITH POE
ETHERNET DATA ONLY
POWER
VHW-HW
IP
CAMERA
VHW-HW
LOW VOLTAGE
POWER
COAXIAL VIDEO CABLE
COAXIAL VIDEO CABLE
POE NETWORK
SWITCH
POE
300M ON RG59 500M ON RG11
POE
(Optional Power)
ETHERNET WITH POE ETHERNET DATA ONLY
POWER
VHW-HWPS-C
IP
CAMERA
VHW-HWPS-B
POE OVER COAX
ETHERNET & OPTIONAL POE
300M ON RG59 500M ON RG11
VHW-HWPS-B
VHW-HWPS-C2
CAMERA
OPTIONAL 57V DC PSU
(for max power)
VPSU-POE-100
ETHERNET & POE
POE OVER COAX
POWER
SUPPLY
POE NETWORK
SWITCH
CAMERA
ETHERNET DATA ONLY ETHERNET AND POE
COAX TO 500M | ETHERNET & POE OVER COAX
POWER SOURCES
OR POE POWERED
COAX TO 500M | ETHERNET & POE OVER COAX
POWER SOURCES
COAX TO 500M | ETHERNET & POE OVER COAX
POWER SOURCES
7
HIGHWIRE POWERSTAR QUAD
| Replace 1 analogue camera with up to 4
IP cameras without recabling.
| Supports up to 4 HD IP cameras over
one coax link.
| Pairs with HIGHWIRE Powerstar Base device.
| POE switch can power Base, Quad & IP cameras.
| SAFEVIEW™ Instant LED status confirmation.
| No configuration required.
Device Size L:132mm W:75mm H:22mm
HIGHWIRE POWERSTAR BASE 4
| Replaces typical 4 channel analogue
video encoders to enable the installation of
replacement IP cameras over existing coax.
| Ethernet and POE over coax.
| Reuses existing coax.
| Fully automatic configuration.
| Gigabit Ethernet network uplink - SFP port
for optional fibre uplink.
Device Size L:173mm W:110mm H:22mm
HIGHWIRE POWERSTAR BASE 8
| 8 channels per Base device, up to 32Ch in 1U.
| Full duplex 100Base-TX on each coax link.
| Gigabit uplink port - fibre option via SFP socket.
| Only 1 main switch port needed per 8 channels.
| POE or POE Plus per channel, on all channels.
| Up to 300m on RG59, 500m on RG11.
| Automatic configuration for simple installation.
Device Size L:173mm W:110mm H:40mm
IP CAMERA
POWER
SUPPLY
POE NETWORK
SWITCH
ETHERNET & POE
VHW-HWPS-B
VHW-HWPS-C4
IP CAMERA
IP CAMERA
IP CAMERA
ETHERNET AND POE
300M ON RG59 500M ON RG11
POWER OVER COAX
ETHERNET DATA ONLY
ETHERNET AND POE
Optional 57V DC POWER
(for max power)
VPSU-POE-100

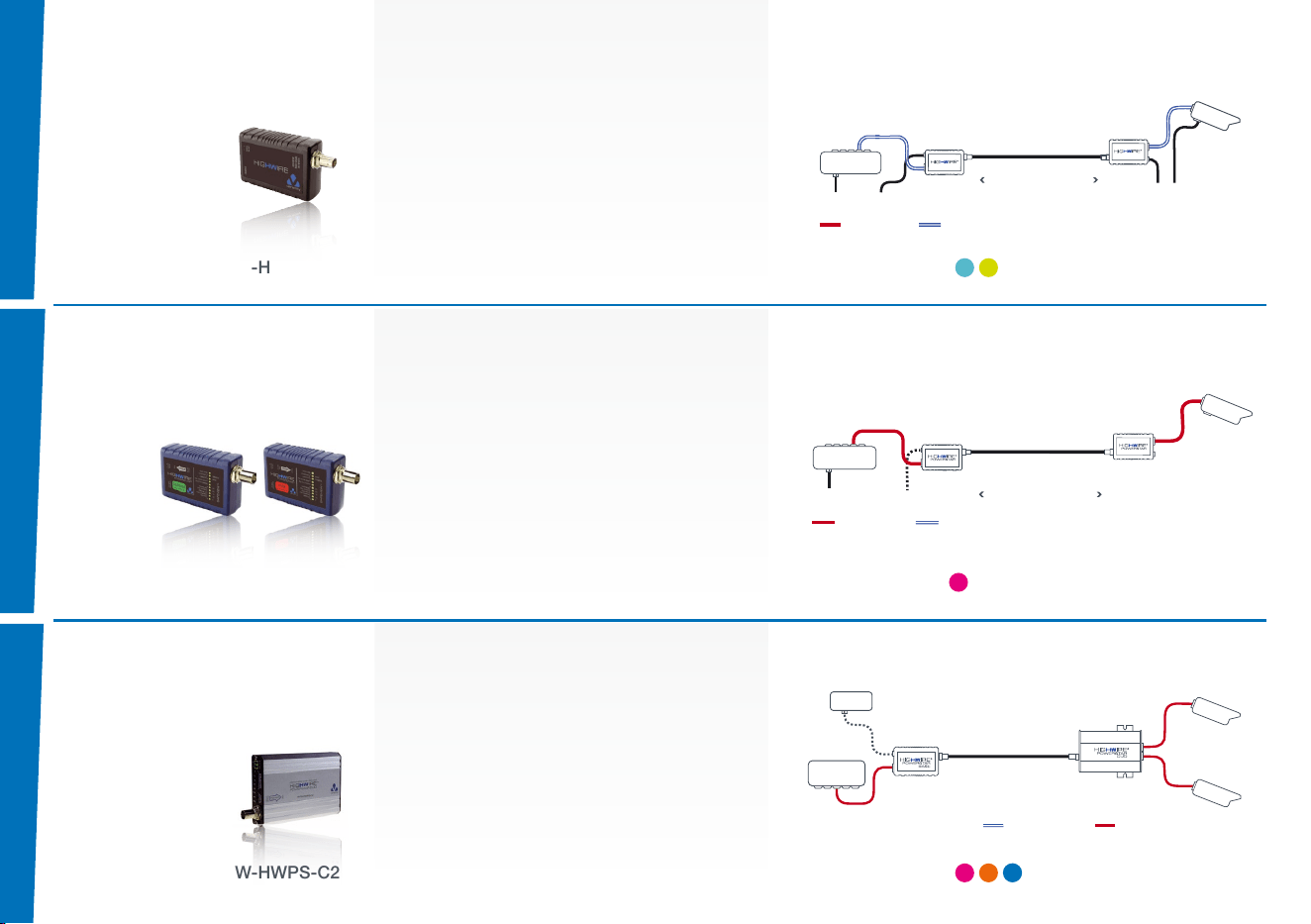

ETHERNET AND POWER OVER COAX CONNECTION DIAGRAM
UP TO 300M ON RG59 / 500M ON RG11
VPSU-POE-100
4 PORT POE OVER COAX (CAMERA)
HIGHWIRE
®
POWERSTAR
QUAD
PRODUCT CODE VHW-HWPS-C4
4 PORT POE OVER COAX (BASE)
HIGHWIRE
®
POWERSTAR
BASE 4
PRODUCT CODE VHW-HWPS-B4
8 PORT POE OVER COAX (BASE)
HIGHWIRE
®
POWERSTAR
BASE 8
PRODUCT CODE VHW-HWPS-B8
VHW-HWPS-C
ETHERNET DATA ONLY
ETHERNET AND POWER OVER COAX CONNECTION DIAGRAM
COAX
VHW-HWPS-B8
VPSU-POE-100
OR VPSU-POE-240
OR VPSU-57V-1U
POWER
ETHERNET & POE
ETHERNET DATA ONLY
POWER
SUPPLY
NETWORK
SWITCH
HIGHWIRE
POWERSTAR
BASE 8
ETHERNET & POE
8
COAX TO 500M | TAMPER-PROOF POE OVER COAX
POWER SOURCES
COAX TO 500M | TAMPER-PROOF POE OVER COAX
POWER SOURCES
CAT5/6 | 100BASE-TX TO 1400M | LAN & POE
POWER SOURCES
OR POE POWERED
INTERNAL LAN
BOUNDARY
INTERNAL WALL
EXTERNAL WALL
ETHERNET DATA ONLY
UP TO 300M ON RG59 / 500M ON RG11 ETHERNET & POE
COAX
VHW-HWPS-B8-LL
VPSU-POE-240
OR
VPSU-57V-1U
ETHERNET & POE
ETHERNET DATA ONLY
HIGHWIRE
POWERSTAR
BASE 8
LINKLOCK
POWER
SUPPLY
NETWORK
SWITCH
LINKLOCK
™
PROTECTED
ETHERNET AND POWER OVER COAX WITH LINKLOCK CONNECTION DIAGRAM
LINKLOCK PINS
VPSU-POE-100
HIGHWIRE POWERSTAR BASE 4 LINKLOCK
| Tamper-proof Ethernet and POE over coax.
| Relay contact alarm output on tamper, with
reset pins.
| Interference with cable shuts channel immediately.
| Reuses existing coax cabling.
| Fully automatic configuration. Simple installation.
| Gigabit Ethernet network uplink - SFP port
for optional fibre uplink.
Device Size L:173mm W:110mm H:22mm
HIGHWIRE POWERSTAR BASE 8 LINKLOCK
| Tamper-proof Ethernet and POE over coax.
| Eight Tamper-proof channels per Base device.
| Relay contact alarm output on tamper, with
reset pins.
| Interference with cable shuts channel.
| Gigabit uplink port - fibre option via SFP socket.
| Fully automatic configuration. Simple installation.
| Full-duplex 100Base-TX on each coax.
Device Size L:173mm W:110mm H:40mm
HIGHWIRE LONGSTAR
| Long range Ethernet and POE over coax cable.
| Fully automatic. Simple installation.
| Unrestricted 100Base-TX and POE over
1400m (4,600ft) on RG11.
| Ruggedised, extreme temperature range.
| BS EN 50121-4 compliant (rail and metro).
| Note: LONGSTAR is not compatible with the
HIGHWIRE Powerstar range.
Device Size L:115mm W:55mm H:27mm
POE NETWORK
SWITCH
ETHERNET AND
OPTIONAL POE
VLS-1P-BC VLS-1P-CC
ETHERNET & POE
UP TO 1400M ON COAX
CAMERA
BASE DEVICE
(Optional) VLS-1U
RACKMOUNTING BRACKET
(24 Channels in 1U)
CAMERA DEVICE
(Optional)
57V DC POWER
POWER
SUPPLY
VPSU-57V-800
OR VERACITY 1U RACKMOUNT
POWER SYSTEM VPSU-57V-1U
POE OVER COAX
ETHERNET WITH POE
ETHERNET DATA ONLY
POWER
SUPPLY
VPSU-57V
-800
4 PORT POE OVER COAX (BASE)
HIGHWIRE
®
POWERSTAR
BASE 4 LINKLOCK
PRODUCT CODE VHW-HWPS-B4-LL
8 PORT POE OVER COAX (BASE)
HIGHWIRE
®
POWERSTAR
BASE 8 LINKLOCK
PRODUCT CODE VHW-HWPS-B8-LL
1 PORT LONG RANGE POE
OVER COAX (BASE & CAMERA)
HIGHWIRE
®
LONGSTAR
PRODUCT CODES
Base VLS-1P-BC
Camera VLS-1P-CC
9
CAT5e/6 | 100BASE-TX TO 1400M | LAN
POWER SOURCES
COAX TO 500M | ETHERNET OVER COAX
POWER SOURCE |
57V 1500mA INCLUDED IN BUNDLE
COAX TO 500M | ETHERNET OVER COAX
POWER SOURCE | POE POWERED
HIGHWIRE LONGSTAR LITE
| Long range Ethernet over coax cable.
| Fully automatic. Simple installation. Requires pair.
| Unrestricted 100Base-TX over 1400m (4,600ft)
on RG11.
| Ruggedised, extreme temperature range.
| BS EN 50121-4 (rail and metro compliant).
| Up to 4.2km (2.5 miles) data-only link at
10Base-T.
Device Size L:115mm W:55mm H:27mm
HIGHWIRE ENCODER REPLACEMENT KIT
| Kit comes with HIGHWIRE Base 4, four
HIGHWIRE Powerstar (camera) devices and a
1500mA 57V Power Supply and Power Cord.
| Fully automatic configuration.
| Replaces typical 4 channel analogue
video encoders to enable the installation of
replacement IP cameras over existing coax.
| Ethernet and POE over coax.
Base Device Size L:173mm W:110mm H:22mm
HIGHWIRE BACKBOX
| Upgrade analogue to IP cameras - no re-cabling.
| Compact device for inside cameras housings.
| Flexible leads - easy connection in small space.
| Reliably power POE Plus cameras up to 25W.
| SAFEVIEW™ checks connection + power status.
| Compatible with VHW-HWPS Base devices.
| Full 100Base-TX Ethernet performance.
Device Size L:84mm W:62mm H:23mm
Lead Length: 150mm
POWER
SUPPLY
NETWORK
SWITCH
ETHERNET DATA ONLY
VLS-1N-LC
VLS-1N-LC
V
PSU-12V-U
ETHERNET
DATA ONLY
POWER
SUPPLY
(Optional) VLS-1U
RACKMOUNTING BRACKET
(24 Channels in 1U)
LOW POWER
NETWORK
DEVICE
ETHERNET WITH POE
ETHERNET DATA ONLY
UP TO 1400M ON COAX
DATA ONLY, NO POE OVER COAX
VPSU-12V
-U
LOW POWER
POWER
SUPPLY
COAX VIDEO CABLE
POE NETWORK
SWITCH
POE
300M ON RG59 500M ON RG11
POE
(Optional Power)
ETHERNET WITH POE
POE OVER COAX
ETHERNET AND POWER OVER COAX CONNECTION DIAGRAM
POWER
VHW-HWPS-B
POE OVER COAX
IP CAMERA
BACKBOX
VHW-HWPS-CBB
ETHERNET AND POWER OVER COAX CONNECTION DIAGRAM
UP TO 300M ON RG59 / 500M ON RG11
VPSU-POE-100
1 PORT LONG RANGE ETHERNET
OVER COAX
HIGHWIRE
®
LONGSTAR LITE
PRODUCT CODE
VLS-1N-LC (Non-POE)
4 PORT POE OVER COAX BUNDLE
HIGHWIRE
®
ENCODER
REPLACEMENT KIT
PRODUCT CODES
VHW-HWPS-ERK4-UK or EU or US
1 PORT COMPACT POE OVER COAX
(CAMERA)
HIGHWIRE
®
POWERSTAR
BACKBOX
PRODUCT CODE VHW-HWPS-CBB
10
ETHERNET & POE EXTENDER
OUTREACH
®
MAX
PRODUCT CODE VOR-ORM
ETHERNET EXTENDER
OUTREACH
®
LITE
PRODUCT CODE VOR-ORL
GIGABIT ETHERNET & POE EXTENDER
OUTREACH
®
MAX G
PRODUCT CODE VOR-ORM-G
CAT5e/6 | 100M EXTENSION PER DEVICE | LAN & POE
POWER SOURCE | POE POWERED
CAT5e/6 | 100M EXTENSION PER DEVICE | LAN
POWER SOURCE | POE POWERED
CAT5e/6 | 100M EXTENSION PER DEVICE | LAN & POE
POWER SOURCE | POE POWERED
OUTREACH MAX
| Extends Cat5e/6 Ethernet by 100 metres.
| Powered by POE.
| Daisy-chain devices for multiples of 100 metres.
| Easy to install, no set-up required.
| POE compatible. (802.3af, 802.3at, 802.3bt).
| Handles up to 90W high power.
| Full POE delivery at 200/300m (1device/2devices).
Device Size L:105mm W:40mm H:22mm
OUTREACH LITE
| Universal Ethernet network range extender.
| Double your network range without
having to install switch power cables.
| POE powered. No local power required.
| Full unrestricted network bandwidth - 10/100.
| LAN extender for non-POE devices.
| Integrated mounting holes.
| Easy to install, no set-up required.
Device Size L:105mm W:40mm H:22mm
OUTREACH MAX G
| Instantly doubles Gigabit Ethernet range to 200m.
| Full unrestricted Gigabit Ethernet.
| Powered by POE. No local power required.
| Easy to install, no set-up required.
| POE and POE Plus compliant (IEEE 802.3af
and 802.3at and higher power 802.3bt).
| Extends POE and POE Plus up to 90W.
| Universal 10/100/1000 compatibility.
Device Size L:119mm W:36mm H:24.5mm
IP DEVICE
POWER
NETWORK DATA ONLY
NETWORK
SWITCH
VOR-OS-30
POE
ETHERNET DATA ONLY
NETWORK DATA
100M100M
VOR-ORM
100M
VOR-ORM
ETHERNET WITH POE
IP CAMERA
ETHERNET & DATA ONLY APPLICATION DIAGRAM 2
NETWORK DATA
ETHERNET DATA ONLY
POWER OVER ETHERNET
VOR-ORL
100M
100M
POWER
NETWORK
SWITCH
POE
POWER
NETWORK DATA
VOR-OS-30
VOR-ORM-G
POWER
POE NETWORK
SWITCH
POE
ETHERNET DATA ONLY
GIGABIT NETWORK DATA
100M100M
ETHERNET WITH POE
CAMERA
GIGABIT ETHERNET
MAX G
11
CAT5e/6 | 100M EXTENSION PER DEVICE | LAN
POWER SOURCE | POE POWERED
CAT5e/6 | 100M EXTENSION PER DEVICE | LAN & POE
POWER SOURCE | POE POWERED
CAT5e/6 | 100M EXTENSION PER DEVICE | LAN
POWER SOURCE | POE POWERED
OUTREACH LITE G
| Instantly doubles Gigabit Ethernet range to 200m.
| Full unrestricted Gigabit Ethernet.
| No local power required. POE powered.
| Can be daisy-chained for distances further
than 200m.
| LAN extender for non-POE devices.
| Universal 10/100/1000 compatibility.
| Easy to install, no set-up. Auto configuring.
Device Size L:119mm W:36mm H:24.5mm
OUTREACH MAX XT
| External version of OUTREACH Max.
| Instantly doubles cable range to 200 metres.
| Tough IP66/67 Nema 4X/6P rated enclosure
for external installation. Easy to fit cable seals.
| Rated -40ºC to 70ºC for external use.
| Compatible with POE, POE Plus and
custom POE to 90 watts.
| Powered by POE.
Device Size L:183mm W:50mm H:30mm
OUTREACH LITE XT
| External version of OUTREACH Lite.
| Instantly doubles cable range to 200 metres.
| Tough IP66/67 Nema 4X/6P rated enclosure
for external installation. Easy to fit cable seals.
| Rated -40ºC to 70ºC for external use.
| Extends LAN to non-POE devices.
| POE powered, but does not forward POE.
Device Size L:183mm W:50mm H:30mm
GIGABIT ETHERNET EXTENDER
OUTREACH
®
LITE G
PRODUCT CODE VOR-ORL-G
EXTERIOR ETHERNET & POE EXTENDER
OUTREACH
®
MAX XT
PRODUCT CODE VOR-ORM-XT
EXTERIOR ETHERNET EXTENDER
OUTREACH
®
LITE XT
PRODUCT CODES VOR-ORL-XT
VOR-ORL-G
POE NETWORK
SWITCH
POE
ETHERNET DATA ONLY
GIGABIT NETWORK DATA
100M100M
ETHERNET WITH POE
CAMERA
LITE G
LITE G
POWER
SUPPLY
POWER
SUPPLY
GIGABIT ETHERNET
NO POE
NETWORK DATA ONLY
POWER
NETWORK
SWITCH
VOR-ORM-XT
POE
100M
POE & NETWORK DATA
ETHERNET DATA ONLY
POWER OVER ETHERNET
100M
VOR-OS-30
VOR-OS-90
IP CAMERA
POWER
POE NETWORK
SWITCH
VOR-ORL-XT
POE & NETWORK DATA
IP CAMERA
POWER
SUPPLY
ETHERNET DATA ONLY
POWER OVER ETHERNET
LITE XT
LOCAL POWER
ETHERNET DATA ONLY
12
EXTERIOR GIGABIT & POE EXTENDER
OUTREACH
®
MAX G XT
PRODUCT CODE VOR-ORM-GXT
EXTERIOR GIGABIT
ETHERNET EXTENDER
OUTREACH
®
LITE G XT
PRODUCT CODE VOR-ORL-GXT
POE SPLITTER
OUTBREAK™
5V or 12V
PRODUCT CODES VOR-OB5
VOR-OB12
CAT5e/6 | 100M EXTENSION PER DEVICE | LAN & POE
POWER SOURCE | POE POWERED
CAT5e/6 | 100M EXTENSION PER DEVICE | LAN
POWER SOURCE | POE POWERED
CAT5e/6 | POE TO DC SPLITTER
POWER SOURCE | POE POWERED
EXTERNAL ETHERNET & POE APPLICATION DIAGRAM
IP CAMERA
30
30
NETWORK DATA ONLY
POWER
NETWORK
SWITCH
VOR-ORM-GXT
POE
100M
GIGABIT NETWORK DATA
ETHERNET DATA ONLY
POWER OVER ETHERNET
100M
VOR-OS-30
POWER
NETWORK
SWITCH
VOR-OS-30
VOR-ORL-GXT
100M
GIGABIT NETWORK DATA
ETHERNET DATA ONLY
POWER OVER ETHERNET
OUTSOURCE
SOURCE
DATA ONLY
IP CAMERA
POWER
SUPPLY
LOCAL POWER
100M
LITE G XT
POE
POWER OUT
POE NETWORK
SWITCH
ETHERNET DATA ONLY ETHERNET WITH POE
CAMERA
ETHERNET WITH POE
ETHERNET DATA ONLY
POWER
VOR-OB12
or VOR-OB5
OUTREACH MAX GXT
| External Gigabit version of OUTREACH Max.
| Instantly doubles cable range to 200 metres.
| Unrestricted 10Base-T, 100Base-TX,1000Base-T.
| Tough IP66/67 Nema 4X/6P rated enclosure
for external installation. Easy to fit cable seals.
| Rated -40ºC to 70ºC for external use.
| Compatible with POE, POE Plus and custom
POE to 90 watts.
Device Size L:183mm W:50mm H:30mm
OUTREACH LITE GXT
| External Gigabit version of OUTREACH Lite.
| Instantly doubles cable range to 200 metres.
| Tough IP66/67 Nema 4X/6P rated enclosure
for external installation. Easy to fit cable seals.
| Rated -40ºC to 70ºC for external use.
| Extends Gigabit LAN to non-POE devices.
| POE powered, but does not forward POE.
Device Size L:183mm W:50mm H:30mm
OUTBREAK
| POE splitter with 5V or 12V DC output.
| Splits a POE connection into data-only
Ethernet and separate 5V or 12V DC connection.
| Powers non-POE devices over a POE network.
| Useful for access control, alarm interfaces,
sensors, etc.
| IEEE 802.3af compliant, with 10W output.
Device Size L:124mm W:55mm H:30mm
Plus Flying DC Lead 150mm
13
ETHERNET TO 820M | ETHERNET WITH POE
POWER SOURCES
OR POE POWERED
ETHERNET TO 820M | ETHERNET DATA ONLY
POWER SOURCES
ETHERNET TO 820M | ETHERNET INC. HI-POE
POWER SOURCES
OR POE POWERED
ETHERNET AND POWER CONNECTION DIAGRAM
GIGABIT ETHERNET DATA ONLY
VLS-LS-B8
VPSU-POE
POWER
ETHERNET & POE
GIGABIT ETHERNET DATA ONLY
POWER
SUPPLY
NETWORK
SWITCH
ADDITIONAL SURGE PROTECTION IS
RECOMMENDED FOR OUTDOOR RUNS
LONGSPAN
SPAN
BASE 8
BASE 8
VLS-1P-C
1 32
3
3
3
3
3
3
3
3
820M ON CAT6
ETHERNET & POE 100BASE-TX
LONGSPAN ETHERNET & POE
LONGSPAN ETHERNET & POE
1
1
1
1
1
1
1
1
LONGSPAN
| Long range, ruggedised, point-to-point
Ethernet over Cat5e/Cat6 adaptor.
| Unrestricted 100Base-TX with POE.
| Smart power and diagnostic display for
reliable and quick installation.
| 600m on Cat6 @100Mbit/s - full 25W POE Plus.
| 820m on Cat6 @100Mbit/s -15W POE delivery.
| BS EN 50121-4 (rail and metro compliant).
Device Size L:120mm W:36mm H:23mm
LONGSPAN LITE
| Same features as LONGSPAN without
POE transmission.
| Long range, ruggedised point-to-point
Ethernet over Cat5e/Cat6 adaptor.
| Back-to-back pairs of LONGSPAN devices can
be used to increase the maximum distance.
| High performance over extreme temperatures.
| Fully automatic, easy to install, maintenance-free.
Device Size L:120mm W:36mm H:23mm
LONGSPAN BASE 8
| Eight-channel LONGSPAN Base rack-mountable
device (32ch in 1U).
| Four x 70W ports plus four x 30W ports.
| Long range 100-Base-TX Ethernet with POE
to 820 metres.
| Integrated network switch saves on main
switch ports.
| Gigabit uplink port plus SFP socket for fibre option.
Device Size L:154mm W:110mm H:40mm
ETHERNET & POE APPLICATION DIAGRAM
POWER OVER ETHERNET 1 2 3 SURGE PROTECTION
POE NETWORK
SWITCH
ETHERNET & POE
POWER
UP TO 25W POE
(OPTIONAL)
POWER
SUPPLY
820M ON CAT6
VLS-1P-CVLS-1P-B
1
2
LONGSPAN LINK
3
LONGSPAN LINK
®
®
IP CAMERA
®
®
POWER
POWER
SUPPLY
100BASE-TX
820M ON CAT6
VLS-1N-LVLS-1N-L
POWER
SUPPLY
1
2
3
ETHERNET DATA ONLY 1 2 3 SURGE PROTECTION
12V DC POWER
NETWORK
SWITCH
LONGSPAN LINK
LONGSPAN LINK
IP CAMERA
1 PORT LONG RANGE ETHERNET
& POE
LONGSPAN
®
PRODUCT CODES
Base VLS-1P-B
Camera VLS-1P-C
1 PORT LONG RANGE ETHERNET
LONGSPAN
®
LITE
PRODUCT CODE VLS-1N-L
8 PORT HI-POE ETHERNET (BASE)
LONGSPAN
®
BASE 8
PRODUCT CODE VLS-LS-B8
14
1 PORT 90W LONG RANGE ETHERNET
(BASE)
LONGSPAN
®
MAX
PRODUCT CODE VLS-LSM-B
1 PORT 90W LONG RANGE ETHERNET
(CAMERA)
LONGSPAN
®
MAX
PRODUCT CODE VLS-LSM-C
4 PORT 90W LONG RANGE ETHERNET
(QUAD CAMERA)
LONGSPAN
®
MAX QUAD
PRODUCT CODE VLS-LSM-C4
ETHERNET TO 820M | ETHERNET WITH 90W POE
POWER SOURCES
OR POE POWERED
ETHERNET TO 820M | ETHERNET WITH 90W POE
POWER SOURCES
OR POE POWERED
ETHERNET TO 820M | ETHERNET WITH 90W POE
POWER SOURCES
OR POE POWERED
LONGSPAN MAX - BASE
| LONGSPAN enhanced with 90W POE (802.3bt).
| Long range point-to-point Ethernet over Cat5e
or Cat6 cable.
| Unrestricted 100Base-TX with POE over 820m.
| Can deliver 60W at 200m, 40W at 350m.
| Ruggedised high performance over wide
temperature range.
| Smart POE power, diagnostic display.
Device Size L:120mm W:36mm H:23mm
LONGSPAN MAX - CAMERA
| LONGSPAN enhanced with 90W POE (802.3bt).
| Long range point-to-point Ethernet over Cat5e
or Cat6 cable.
| Unrestricted 100Base-TX with POE over 820m.
| Can deliver 60W at 200m, 40W at 350m.
| Ruggedised high performance over wide
temperature range.
| Smart POE power, diagnostic display.
| Fully automatic, simple to install, maintenance-free.
Device Size L:113mm W:75mm H:22mm
LONGSPAN MAX QUAD - CAMERA
| Quad LONGSPAN device with 802.3bt POE.
| Long range point-to-point Ethernet over Cat5e
or Cat6 cable.
| Unrestricted 100Base-TX with POE at over 820m.
| Delivers power for 4 x 13W IP cameras up to
330m from Base device.
| With local power, can deliver POE for 4 x 71W
IP cameras at 820 metres.
Device Size L:113mm W:75mm H:22mm
3
MAX QUAD
NETWORK
SWITCH
POWER
ETHERNET & 90W POE
UP TO 820M ON CAT6
VLS-LSM-C4
VLS-LSM-B
1
2
POWER
SUPPLY
(RECOMMENDED
56/57V DC PSU
FOR MAX POWER)
LONGSPAN LINK
3
3
3
IP CAMERA
IP CAMERA
IP CAMERA
IP CAMERA
KEY DATA ONLY POWER OVER ETHERNET LONGSPAN LINK & POE
1 2 3 SURGE PROTECTION DEVICES RECOMMENDED FOR LONG OUTDOOR NETWORKS
MAX
3
NETWORK
SWITCH
POWER
(LOW VOLTAGE 12V DC)
POWER
SUPPLY
UP TO 820M ON CAT6
VLS-1N-L
VLS-LSM-C4
MAX
ETHERNET & HI-POE
1
2
LITE
POWER
SUPPLY
KEY DATA ONLY POWER OVER ETHERNET LONGSPAN LINK
1 2 3 SURGE PROTECTION DEVICES RECOMMENDED FOR LONG OUTDOOR NETWORKS
VPSU-12V-U
(RECOMMENDED
56/57V DC PSU
FOR MAX POWER)
LONGSPAN LINK
IP CAMERA
®
®
NETWORK
SWITCH
POWER
UP TO 71W
POE
UP TO 820M ON CAT6
VLS-LSM-C
VLS-LSM-B
1
2
3
MAX
POWER
SUPPLY
(RECOMMENDED
56/57V DC PSU FOR
MAXIMUM POWER)
KEY DATA ONLY POWER OVER ETHERNET LONGSPAN ETHERNET & POE
1 2 3 SURGE PROTECTION DEVICES RECOMMENDED FOR LONG OUTDOOR NETWORKS
MAX
IP CAMERA
(OPTIONAL)
POWER
SUPPLY
UP TO 90W
POE
15
90W LONG RANGE ETHERNET
LONGSPAN
®
MAX
LONGSPAN Max POE Range Table
POE DEVICE POWER
71 WATTS
62 WATTS
51 WATTS
40 WATTS
25 WATTS
Cat6
180m (590ft)
200m (656ft)
250m (825ft)
350m (1,148ft)
570m (1,870ft)
Cat5e
140m (459ft)
155m (508ft)
200m (656ft)
280m (919ft)
450m (1,476ft)
POWER SUPPLY KEY
POWER SOURCES
57V 800mA
57V 1500mA 57V 100W POE 56V 240W POE
57V 1U RACK 8800mA
12V UNIVERSAL PSU
24V RMPSU
The LONGSPAN Max variants are high power
versions of the LONGSPAN family, with the same
extreme 820m network data range.The Max
devices are IEEE 802.3bt compliant, which is the
highest POE power standard of 90W.
Please see the POE Reference Table on Page 4.
POE levels are set for the standard Ethernet
distance of 90m.
Veracity products such as OUTREACH and
LONGSPAN overcome distance limitations,
but are still subject to normal power losses
in the cabling.
While LONGSPAN Max can output 90W, the
POE delivered to the PD drops quickly with
distance, as shown in the comparison graph.
LONGSPAN (30W) and LONGSPAN Base 8
Hi-Power (70W). Note: At 450m - 500m, the
power curves converge and so the higher power
delivery advantage of LONGSPAN Max is
minimised at longer distances.
For maximum power delivery at very long distances,
a local PSU for LONGSPAN Max or Max Quad at
the camera end is recommended.See product
datasheets for full and detailed information.
LONGSPAN MAX POE V DISTANCE GRAPH
DISTANCE (METRES)
POE
(WATTS)
16
1 PORT ETHERNET - FIBRE MEDIA
CONVERTER
LIGHTSPAN
™
SC100
PRODUCT CODE VLT-SC100
NTP MASTER TIME SERVER
TIMENET
®
PRO
PRODUCT CODE VTN-TN-PRO
TIME SERVER CABLE EXTENSION
TIMENET
®
PRO
EXTEND
PRODUCT CODE VTN-EXTEND
FIBRE | 100BASE-FX AT 2000M
POWER SOURCES
NTP GPS | MASTER NTP TIME SERVER
POWER SOURCE
OR POE POWERED
NTP GPS | ANTENNA EXTENSION CABLE
LIGHTSPAN SC100
| Long distance, up to 2000m on Fibre.
| Slimline, ruggedised 100Base-FX media converter.
| Fast Ethernet speeds with fibre SC connection.
| Railway EMC compliance for harsh environments
with extended temperature range.
| Fully automatic, easy to install, maintenance-free.
| Versatile power input supports legacy 12V DC
/ 24V AC supplies.
Device Size L:123mm (inc brackets) W:36mm H:23mm
TIMENET PRO
| Accurate time for network device synchronisation.
| Master Network Time Protocol (NTP) clock.
| Worldwide GPS-based time reference.
| Supports Windows, Linux, macOS and
most embedded systems.
| Avoids use of internet time network ports.
| Compact, wall mountable.
| Simple browser interface.
| Also perfect for mobile/vehicle applications.
Device Size L:87mm W:75mm H:22mm
TIMENET PRO GPS EXTENSION CABLE
| 10m extension cable for GPS antenna
connection for TIMENET Pro.
| Adds 10m to standard 5m cable on
GPS antenna.
| Up to 25m using two extension cables.
| TIMENET Pro (above) includes GPS antenna.
| Enables additional flexibility in siting TIMENET Pro.
Device Size L:10000mm
DATA
POWER
(LOW POWER)
POWER
SUPPLY
2000M (1.24 MILES) ON FIBRE
VLT-1N-SC100VLT-1N-SC100
ETHERNET DATA ONLY
ETHERNET & FIBRE APPLICATION DIAGRAM
IP CAMERA
FIBRE
NETWORK
SWITCH
TM
TM
OPTICAL FIBRE CABLE
100BASE-FX FULL DUPLEX
125Mbps 1310nm
POWER
SUPPLY
VPSU-12V-U
(or share PSU with camer
a)
VPSU-12V-U
10M ANTENNA
EXTENSION CABLE
®
POWER
POE NETWORK
SWITCH
SATELLITE
ACCESS
ANTENNA
POE
NETWORK DATA
VTN-TN-PRO
ETHERNET & POE ETHERNET DATA ONLY
(Optional)
12V DC
POWER
CAMERA
17
THE IMPORTANCE OF ACCURATE TIME
Time Synchronisation and NTP explained
“All CCTV and video management system installations require accurate
reference time signals for synchronisation of system clocks to ensure that
they are always set at precisely the correct time and recorded evidence
is accurately time-stamped”
Video surveillance systems can ultimately
prove what happened, where it happened,
exactly when it happened, and nowadays
is usually able to provide information to help
identify the persons and/or vehicles involved.
Thus such recordings must be evidentially
robust. The requirements for evidentially
robust recordings include verifiable time
stamps. However, sometimes even the most
sophisticated, high-end CCTV and VMS
installations can be let down by something
as simple as having the clocks set at the
incorrect time. All VMS systems run on NVRs
or servers with internal clocks which drift
out of sync over time. It is also a fact that
the evidential value of CCTV recordings is
severely reduced if the recorded time stamps
are not correct.
The traditional solution to providing an
accurate reference time has been to use an
atomic clock radio receiver or GPS sensor
linked to an expensive rack-mounted master
clock server, separately powered and
sometimes only with a serial output to
a separate server for NTP transmission.
Consequently smaller VMS installations tend
not to have a reference time server at all or
are insecurely linked to the internet to get
a time signal, leaving the systems open to
cyberattack.
TIMENET Pro integrates the GPS receiver
and master NTP time server into a single
POE-powered cyber-secure device which is
directly connected to the network and can
be used as a closed system. TIMENET Pro
is extremely compact, can be wall-mounted,
uses very little power, is very reliable over
many years and is less than half the cost of
competing solutions.
About NTP
NTP stands for Network Time Protocol and is
a universal standard for time synchronisation
of computers or other devices on a network.
TIMENET Pro is NTP-compatible and acts as
a time server for any NTP-enabled client.
About UTC Time
Universal co-ordinated time is an official
worldwide atomic clock standard for time,
agreed by national standards around the world.
About GPS
GPS is a global satellite system used primarily
for position location, using very accurate
atomic clock references. GPS signals are
far less prone to interference than traditional
national radio clock signals. Thus TIMENET
Pro is a universal solution which can be used
anywhere in the world.
About Time Zone
UTC is effectively a GMT reference time and
TIMENET Pro provides this via NTP as a
universal reference. All data is recorded with
a UTC time reference. It’s the task of the network
device (server or PC) to define the local time
zone setting for the country or zone location,
including local or national variations to
daylight savings time or equivalent.
18
CAT5e/6 | ETHERNET & POE OUT
POWER SOURCES
CAT5e/6 | ETHERNET & POE OUT from 12/24V
POWER SOURCE | DC FROM VEHICLE
CAT5e/6 | ETHERNET & POE OUT from 12/24V
POWER SOURCE | DC FROM VEHICLE
CAMSWITCH 4 PLUS
| POE powered network switch with POE+ out.
| Compact, rugged, versatile inc. wall brackets.
| 802.3af and 802.3at compliant output.
| 57V DC input option for maximum efficiency.
| 4 + 1 ports inc. 1 x POE input port (90W).
| 4 POE output ports, up to 30W per port.
| If locally powered (power budget up to 120W).
| Ideal for small IP camera installations.
Device Size L:110mm W:64mm H:22mm
CAMSWITCH 4 MOBILE
| Low voltage POE Plus switch for 12/24V applications.
| Install IP cameras, POE and network devices in
transport, battery/solar powered, and other low
voltage applications.
| 4+1, 10/100 Ethernet network switch with
flexible 8.5V to 40V DC supply input
(min start-up is 10.5V).
| 4 x POE+ 802.3af/at compliant output
(POE power budget 80W).
Device Size L:110mm W:100mm H:40mm
CAMSWITCH 8 MOBILE
| Low voltage POE Plus switch for 12/24V applications.
| Install IP cameras, POE and network devices in
transport, battery/solar powered, and other low
voltage applications.
| 8 + 2 10/100 Ethernet network switch with flexible
8.5V to 40V DC supply input (min start-up is 10.5V).
| 8 x POE+ 802.3af/at compliant output (POE
power budget 80W).
Device Size L:110mm W:100mm H:40mm
UP TO 100M
VCS-4P1
ETHERNET DATA ONLY
POWER OVER ETHERNET
IP
CAMERA
POWER
NETWORK
SWITCH
POWER
NETWORK DATA
POE
100M
NETWORK DATA WITH POE
VOR-OS-30
VOR-OS-90
IP
CAMERA
IP
CAMERA
IP
CAMERA
®
12/24V DC
POWER
VCS-4P1-MOB
ALL CABLES UP TO 100M
CAT5e OR BETTER
ETHERNET WITH POE
ETHERNET DATA ONLY
UP TO 4 POE OR
NON-POE DEVICES
MOBILE NVR
®
POWER
12/24V DC
VCS-8P2-MOB
ALL CABLES UP TO 100M CAT5e OR BETTER
ETHERNET WITH POE
ETHERNET DATA ONLY
UP TO 8 POE OR
NON-POE DEVICES
MOBILE NVR
®
4 + 1 PORTS POE PLUS
NETWORK SWITCH
CAMSWITCH
®
4 PLUS
PRODUCT CODE VCS-4P1
4 + 1 PORTS 12V-24V POE PLUS
NETWORK SWITCH
CAMSWITCH
®
4 MOBILE
PRODUCT CODE VCS-4P1-MOB
8 + 2 PORTS 12V-24V POE PLUS
NETWORK SWITCH
CAMSWITCH
®
8 MOBILE
PRODUCT CODE VCS-8P2-MOB
19
PORTABLE POE INSTALLATION TOOL
POINTSOURCE
WIRELESS™
PRODUCT CODES VAD-PSW
VAD-PS-BM
PORTABLE POE INSTALLATION TOOL
POINTSOURCE
PLUS™
PRODUCT CODES VAD-PSP
VAD-PS-BM
WIRELESS INSTALLATION TOOL
PINPOINT™
WIRELESS
PRODUCT CODE VAD-PPW
BATTERY POWERED POE INJECTOR AND WAP
POWER SOURCE | RECHARGEABLE BATTERY
BATTERY POWERED POE INJECTOR
POWER SOURCE | RECHARGEABLE BATTERY
CAT5e/6 | WAP POWERED BY POE PASS THROUGH
POWER SOURCE | POE POWERED
POINTSOURCE WIRELESS
| Allows rapid adjustment, alignment, focus
and field of view of IP camera, wirelessly on
smart devices close to camera. Supports all
classes of 802.3af and 802.3at POE devices.
| Removable, rechargeable battery with sufficient
power for a day’s installation work.
| Spare batteries available for rapid swap over.
| USB charging point for tablets/smartphones.
Device Size L:205mm W:100mm H:150mm
POINTSOURCE PLUS
| Allows rapid adjustment, alignment, focus
and field of view of IP camera, on devices
close to camera.
| Removable, rechargeable battery with sufficient
power for a day’s installation work.
| Portable POE source for field use.
| Locally view IP camera on your laptop.
| Tool for installation, testing, surveys, inspections.
Device Size L:205mm W:100mm H:150mm
PINPOINT WIRELESS
| Allows local viewing, with wireless link of IP
camera images on smartphone, tablet or laptop
close to camera.
| Enables rapid, precise adjustment of lens focus
and viewing angle.
| Uses Power over Ethernet from the network no
local power is required. Uses only 2W.
| Installs in seconds – removes in seconds.
| CAMPOINT Installation App for iOS & Android.
Device Size L:128mm W:82mm H:28mm
ETHERNET WITH POE
WIRELESS
T
ABLET/SMARTPHONE
VAD-PSW
WIRELESS NETWORK
CAMPOINT
POWER OVER ETHERNET
IP CAMERA
TM
TABLET/SMARTPHONE
VAD-PPW
WIRELESS NETWORK
CAMPOINT
SMART APP
POE NETWORK
SWITCH
POWER
POWER OVER ETHERNET
IP CAMERA INSTALLATION TOOL & WIRELESS LINK APPLICATION DIAGRAM
NETWORK DATA & POE POE (NO DATA)
IP CAMERA
DATA ONLY
LAPTOP
IP CAMERA
ETHERNET WITH POE
ETHERNET DATA ONLY
ETHERNET WITH POE
TM
20
CAT5e/6 | POWERED BY POE PASS THROUGH
POWER SOURCE | POE POWERED
CAT5e/6 | 30W POE SOURCE MIDSPAN INJECTOR
POWER SOURCE | MAINS POWER
CAT5e/6 | 90W POE SOURCE MIDSPAN INJECTOR
POWER SOURCE | MAINS POWER
PINPOINT
| Allows local viewing of IP camera images on
laptop close to camera.
| Enables rapid, precise adjustment of lens focus
and viewing angle. Low cost reuseable device.
| Uses POE from network, no local power needed.
| Increases installation speed, less time on site.
| Installs in seconds - removes in seconds.
Device Size L:65mm W:32mm H:20mm
Plus 1000mm Flying Lead
OUTSOURCE 30
| Delivers enhanced 30W POE to all 802.3af,
802.3at standard POE and POE Plus devices.
| Gigabit Ethernet compatible and automatically
detects compatible devices.
| Delivers reliable remote power to IP cameras
and POE devices. 30W Power output.
| Safety assured, POE only enabled to compliant
devices. Integrated overload protection.
| Compact, wall-mountable device.
Device Size L:161mm W:52mm H:35mm
OUTSOURCE 90
| Delivers highest power allowed by the POE
standard (802.3bt), used for external PTZ
IP cameras and high power applications.
| 802.3bt compliant and GigE compatible 90W
Power output.
| Safety assured as POE is only enabled to
compliant devices. Integrated overload protection.
| Compact, wall-mountable device. Sealed,
fanless design for reliability.
Device Size L:167mm W:89mm H:44mm
VOR-OS-30
POWER
POE NETWORK
SWITCH
ETHERNET DATA ONLY ETHERNET WITH POE
IP CAMERA
ETHERNET WITH POE
ETHERNET DATA ONLY
VOR-OS-90
POWER
NETWORK
SWITCH
ETHERNET DATA ONLY
ETHERNET WITH POE
IP CAMERA
ETHERNET WITH POE
ETHERNET DATA ONLY
TM
POE
ETHERNET WITH POE ETHERNET DATA ONLY
DATA
VAD-PP
POWER
IP CAMERA
LAPTOP
POE NETWORK
SWITCH
TM
POE
NETWORK DATA & POE
POE (NO DATA)
CAMERA INSTALLATION TOOL
PINPOINT™
PRODUCT CODE VAD-PP
POE INJECTOR
OUTSOURCE™
30
PRODUCT CODE VOR-OS-30
POE INJECTOR
OUTSOURCE™
90
PRODUCT CODES VOR-OS-90
21

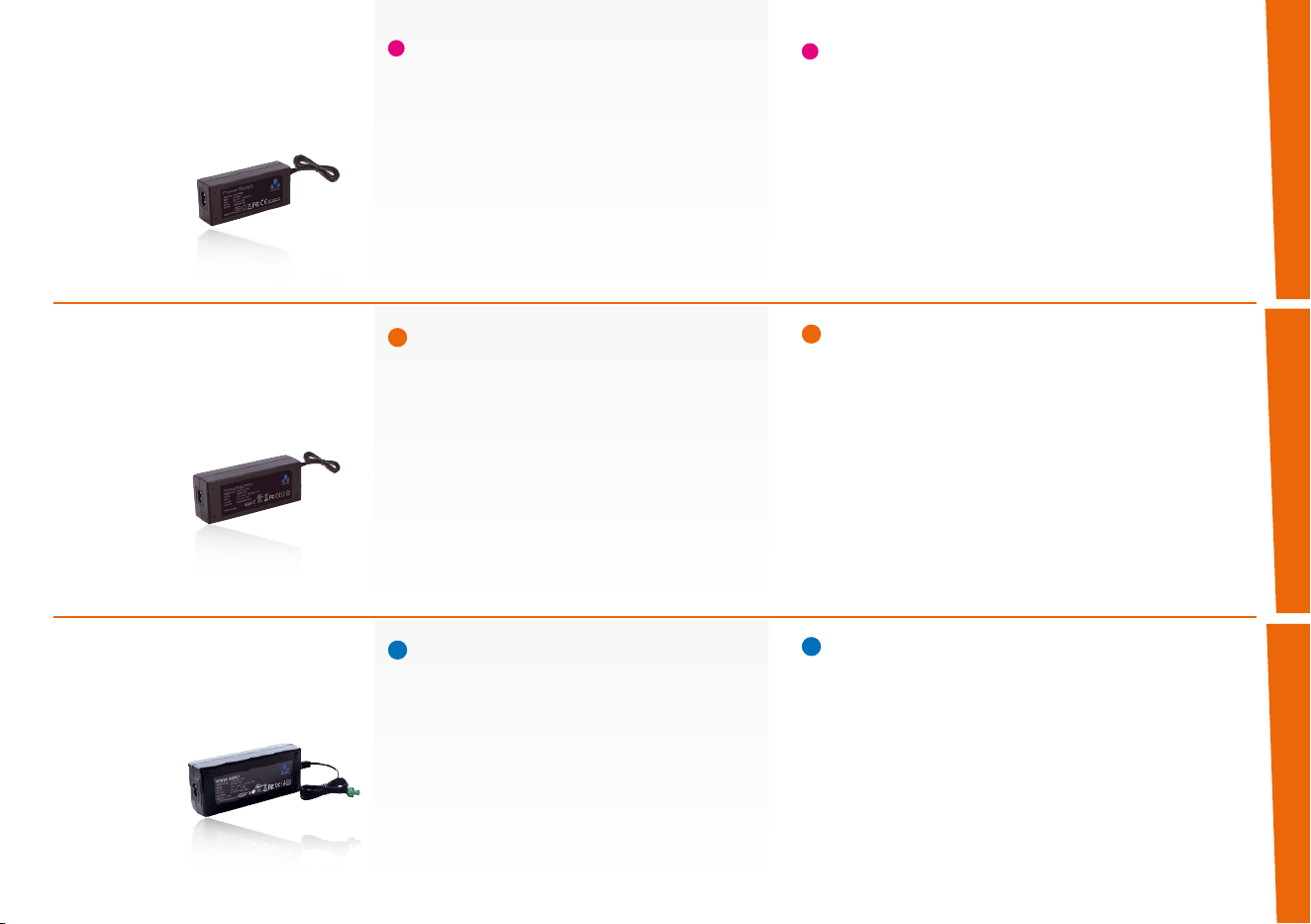

57V 800mA POWER SUPPLY
| 57V DC Power Supply, (40W total budget).
| Input Connector, 2-PIN IEC320, C8 Type
Accepts C7 Type “figure of 8” Power Cord).
| Output Cable, 1.0m, stripped and tinned.
| Needs 2-PIN Power Cord (C7) (buy separately).
| (Power Cord supplied in USA).
Device Size L:114.5mm W:50mm H:30.5mm
57V 1500mA POWER SUPPLY
| 57V DC Power Supply, (78W total budget).
| Input Connector, 2-PIN IEC320, C8 Type
(Accepts C7 Type “figure of 8” Power Cord).
| Output Cable, 1.0m, stripped and tinned.
| Needs 2-PIN Power Cord (C7) (buy separately).
| (Power Cord supplied in USA).
Device Size L:143mm W:64mm H:36mm
57V 100W POE POWER SUPPLY
| 100W PSU designed for POE applications.
| 57V DC, 1.75A output.
| Wide voltage range input.
| Short circuit protection.
| Overcurrent and overvoltage protection.
| Auto-reset on all fault conditions.
| Compact and fanless for high reliability.
| Wide operating temperature range.
Device Size L:150mm W:65mm H:35.5mm
57V 800mA POWER SUPPLY CAN BE USED WITH:
| HIGHWIRE Powerstar Base and Camera
| HIGHWIRE Powerstar Base 4 and Base 4 Linklock
| HIGHWIRE Powerstar Base 8 and Base 8 Linklock
| HIGHWIRE Powerstar Duo and Quad
| HIGHWIRE Longstar Base and Camera
| LONGSPAN Base
| CAMSWITCH 4 Plus
57V 1500mA POWER SUPPLY CAN BE USED WITH:
| HIGHWIRE Powerstar Base 4 and Base 4 Linklock
| HIGHWIRE Powerstar Base 8 and Base 8 Linklock
| HIGHWIRE Powerstar Duo and Quad
| HIGHWIRE Longstar Base and Camera
| LONGSPAN Base 8
| LONGSPAN Max Base and Camera
| LONGSPAN Max Quad
| CAMSWITCH 4 Plus
57V 100W POE POWER SUPPLY CAN BE USED WITH:
| HIGHWIRE Powerstar Base 4 and Base 4 Linklock
| HIGHWIRE Powerstar Base 8 and Base 8 Linklock
| HIGHWIRE Powerstar Duo and Quad
| LONGSPAN Base 8
| LONGSPAN Max Base and Camera
| LONGSPAN Max Quad
| CAMSWITCH 4 Plus
POWER SUPPLY FOR POE
57V 800mA
POWER SUPPLY
PRODUCT CODE VPSU-57V-800
POWER SUPPLY FOR POE
57V 1500mA
POWER SUPPLY
PRODUCT CODE VPSU-57V-1500
POWER SUPPLY FOR POE
POE 100W
POWER SUPPLY
PRODUCT CODE VPSU-POE-100
22
POWER SUPPLY FOR POE
POE 240W
POWER SUPPLY
PRODUCT CODE VPSU-POE-240
1U RACKMOUNT POWER SUPPLY
1U RACKMOUNT
POWER SUPPLY
PRODUCT CODES VPSU-57V-1U-UK
VPSU-57V-1U-US
VPSU-57V-1U-EU
UNIVERSAL POWER SUPPLY
12V UNIVERSAL
POWER SUPPLY
PRODUCT CODE VPSU-12V-U
56V 240W POE POWER SUPPLY
| 240W PSU designed for HI-POE applications.
| 56V DC, 4.48A output.
| Wide voltage range input.
| Short circuit protection.
| Overcurrent and overvoltage protection.
| Auto-reset on all fault conditions.
| Compact and fanless for high reliability.
| Wide operating temperature range.
Device Size L:150mm W:65mm H:35.5mm
57V 1U RACK 8800mA POWER SUPPLY
| Rackmount POE power source in 1U format.
| Mounts with Base devices in 1U for max density,
includes microfit cables to Base devices.
| Maximum 57V POE voltage for optimum
power and distance.
| Integrated overload protection, UL certification.
| Dual devices can provide fully redundant power.
| Supplied with UK, EU or US 3-PIN Power Cord.
Device Size L:442mm W:130mm H:44.5mm
12V DC UNIVERSAL POWER SUPPLY
| 12V DC plug (Universal) PSU for HIGHWIRE,
LONGSPAN Lite & HIGHWIRE Longstar Lite.
| Output Cable, 1.0m, stripped and tinned.
| Adaptors for UK, EU and USA can be fitted
to main power device.
| Photo shows each country adapter connected,
to the main device. Box contains one main
device and 3 country specific adaptors.
Device Size L:90mm W:42mm H:35mm
56V 240W POE POWER SUPPLY CAN BE USED WITH:
| HIGHWIRE Powerstar Base 8
| HIGHWIRE Powerstar Base 8 Linklock
| LONGSPAN Base 8
| LONGSPAN Max Quad
| CAMSWITCH 4 Plus
57V 1U RACK 8800mA POWER SUPPLY CAN BE
USED WITH:
| HIGHWIRE Powerstar Base (multiple)
| HIGHWIRE Powerstar Base 8
| HIGHWIRE Powerstar Base 8 Linklock
| HIGHWIRE Longstar Base (multiple)
| LONGSPAN Base (multiple)
| LONGSPAN Base 8
| LONGSPAN Max Base (multiple)
12V UNIVERSAL POWER SUPPLY CAN BE USED WITH:
| HIGHWIRE
| HIGHWIRE Longstar Lite
| LONGSPAN Lite
| LIGHTSPAN SC100
23
VHW RMPSU 24V POWER SUPPLY
| 24V DC Power Supply.
| Comes with 8-Way linking cable.
(for 8x HIGHWIRE, LONGSPAN Lite and
HIGHWIRE Longstar Lite devices).
| Needs a 2-PIN Power Cord (C7)
(please purchase the Power Cord separately).
| (Power Cord supplied in USA).
Device Size L:114mm W:53mm H:38mm
4W LINKING CABLE
| 4-Way linking cable for use with
VPSU-57V-1500 to allow up to 4 devices
to be powered from one Power Supply.
| Can be used with the 1U Rackmount Power
Supply to power multiple single channel base
devices - HIGHWIRE Powerstar, HIGHWIRE
Longstar, LONGSPAN and LONGSPAN Max.
Device Size L:100mm From Microfit to Phoenix
POWER CORDS
| 2-PIN C7 Power Cord with UK, US,
or EU connector, (1.8 metre Cord).
| Moulded Power Cord to meet all safety
standards.
Device Size L:1800mm
VHW RMPSU POWER SUPPLY CAN BE USED WITH:
| HIGHWIRE
| HIGHWIRE Longstar Lite
| LONGSPAN Lite
| LIGHTSPAN SC100
8W LINKING CABLE
| 8-Way linking cable for use with
VPSU-57V-1500 to allow up to 8 devices
to be powered from one Power Supply.
| Can be used with the 1U Rackmount Power
Supply to power multiple single channel base
devices - HIGHWIRE Powerstar, HIGHWIRE
Longstar, LONGSPAN and LONGSPAN Max.
Device Size L:100mm From Microfit to Phoenix
THE 2-PIN POWER CORDS CAN BE USED WITH:
| VHW-RMPSU POWER SUPPLY
| 57V 800mA POWER SUPPLY
| 57V 1500mA POWER SUPPLY
Note: 800mA, 1500mA - Power Cord is supplied in the USA
VHW RMPSU
POWER SUPPLY
PRODUCT CODE VHW-RMPSU
ACCESSORIES
RMPSU-4W
RMPSU-8W
LINKING CABLE
PRODUCT CODES RMPSU-4W,
RMPSU-8W
2-PIN POWER CORDS
2 PIN
POWER CORDS
PRODUCT CODES
2-PIN-UK, 2-PIN-US, 2-PIN-EU
OFFICES | HQ PRESTWICK, UK | EDINBURGH | GLASGOW | LEEDS | EUROPE | USA | MIDDLE EAST | INDIA | www.veracityglobal.com
UK
UK, IRELAND & WORLDWIDE Sales
Veracity UK Ltd
Tel: +44 (0)1292 264967
USA
USA Sales
Veracity USA Inc
Tel: 1-800-679-1590
EUROPE
EUROPE Sales
Veracity UK Ltd
Tel: +44 (0)1292 264967
ME
MIDDLE EAST Sales
Veracity ME DMCC
Tel: +971 (0)4 440 8938
INDIA
INDIA Sales
Veracity Systems Surveillance Pvt Ltd
Tel: +91 11 4986 5396
© Veracity UK Ltd. All rights reserved. 2021 DV4.7
