The ACR-3 is a remote level control & function switch designed to work with specific AudioControl line output converters and
processors. The ACR-3 can be surface or custom-mounted to add level control, or total system volume control, and more to your audio
system. Installation is simple and no power is required.
REMOTE LEVEL CONTROL
8 55814 00536 5
22410 70th Ave West, Mountlake Terrace, WA 98043 USA
Phone 425-775-8461
www.audiocontrol.com
©2022 AudioControl. All rights reserved. P/N 912-080-0 Rev A
Placement And Mounting of the ACR-3
The ACR-3 may be mounted under a dash or console using its own
bracket or through custom mounting holes in the dash/console. It
should be within reach of the driver and in a spot where the LED is
plainly visible.
Bracket Installation
ACR-3 mounts with four screws, which attach to the underside of
a dashboard/console. Slide under the dash or console and place
the ACR-3 in its mounting position, mark the mounting holes,
drill pilot holes, and secure with screws.
Custom Installation
For that custom, finished look, the ACR-3 can be flush
mounted directly on the dash/console panel (or anywhere

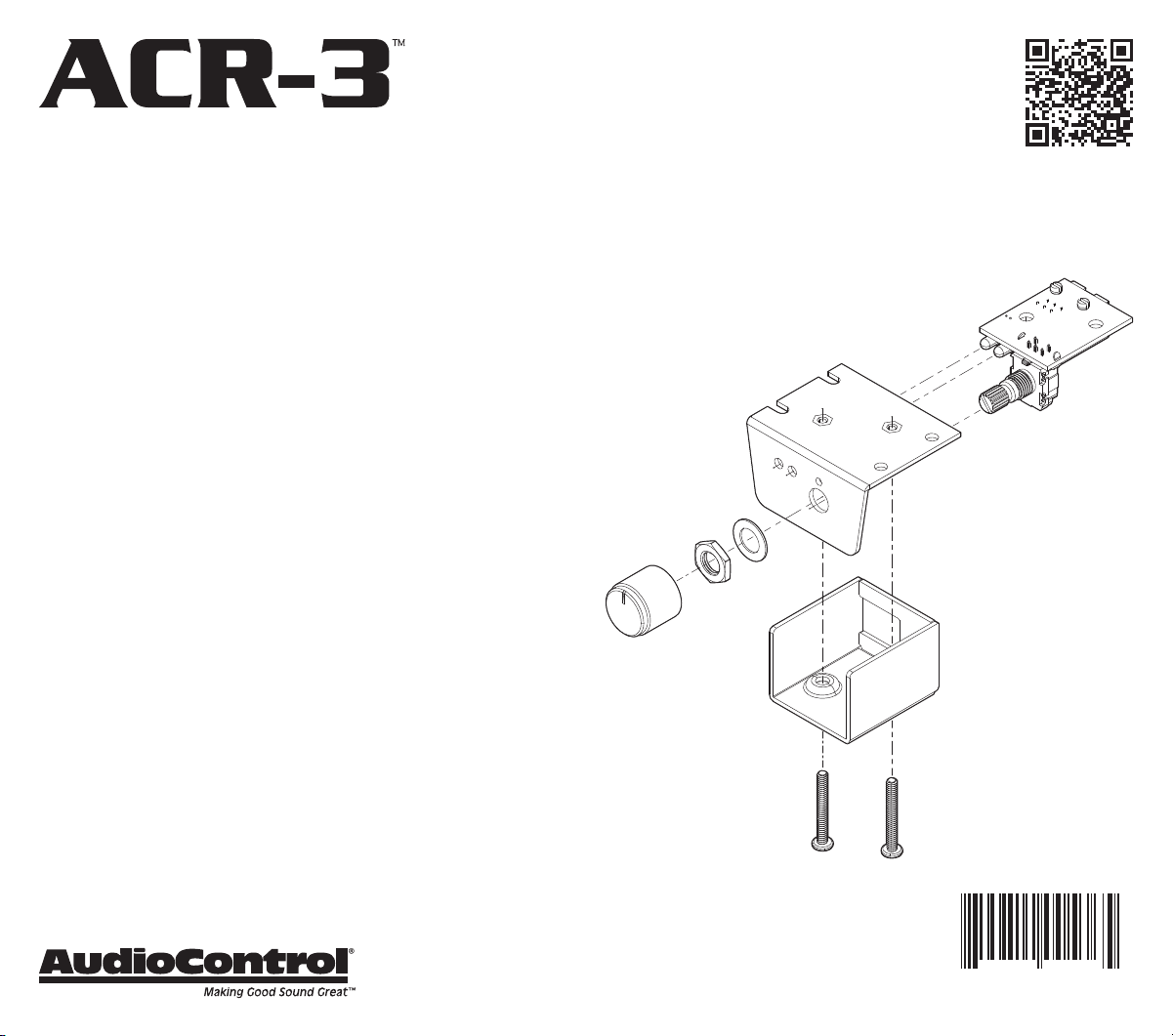

else). Referencing the drawing right, disassemble the ACR-3.
Drill a 9/32” (7 mm) hole in the panel for the control along with
a 3/32” (2.3 mm) hole for the lock tab and a 1/8” (3 mm) hole for
the LED. Reassemble the ACR-3 components on the dashboard or
console.
What’s Included?
ACR-3 Remote Level Control, 20’ Phone Cable (RJ-11)
