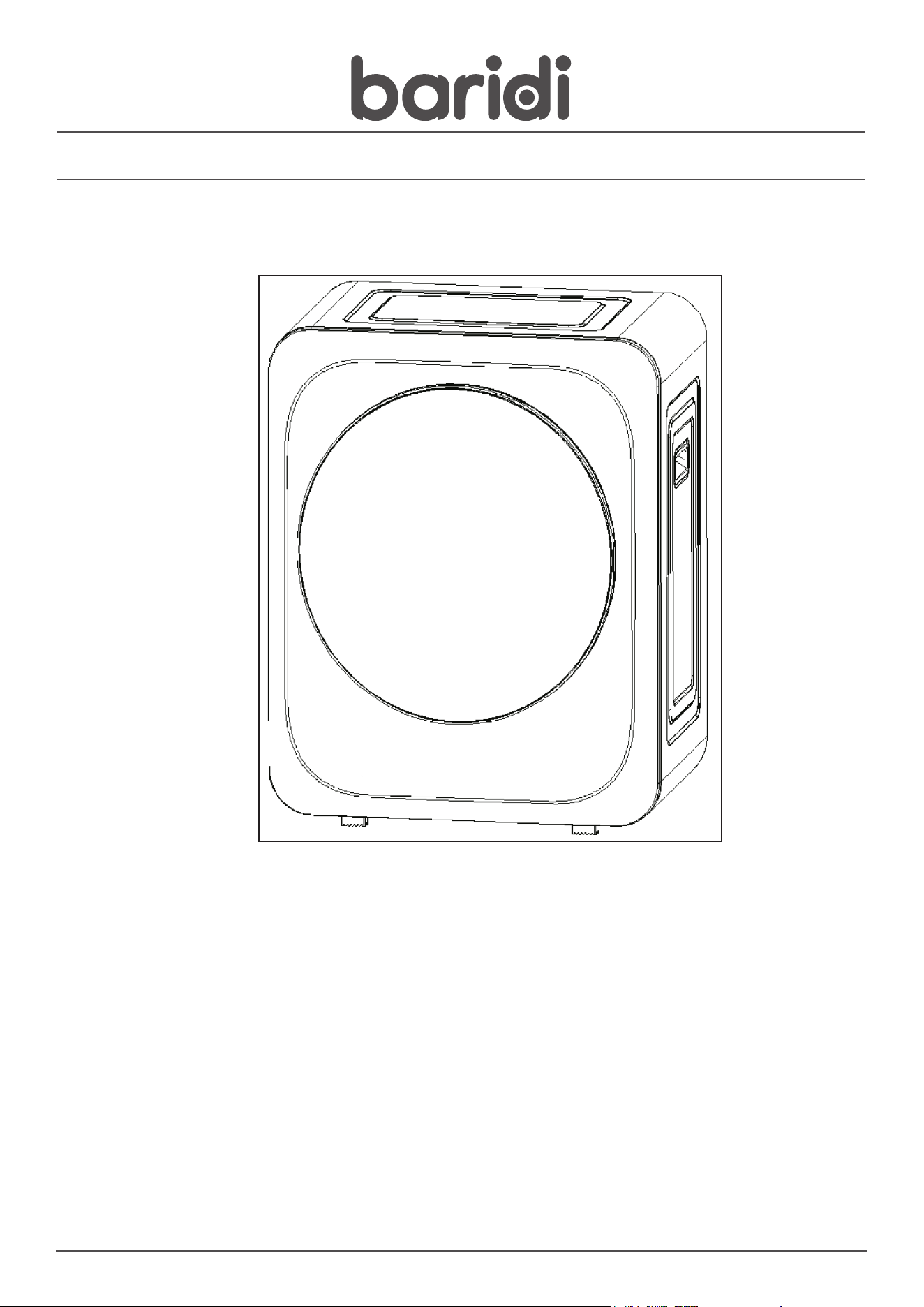

Baridi DH229 Tabletop Tumble Dryer Digital Controls 2.5kg User Manual

Small Tumble Dryer, Black Portable 2.5kg Vented, Perfect for

Counter Tops, Digital Controls

Model No. DH229

Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will, if used according to these instructions, and properly

maintained, give you years of trouble free performance.

www.dellonda.co.uk

DH229 Issue:3 11/11/23

Important Information

Please read these instructions carefully and note any safe operational requirements, warnings & cautions. Use the product correctly and with

care for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep

these instructions safe for future use.

Refer to

instruction

manual

Warning:

Hot

Surface

Caution:

Fire

• WARNING! It is the user’s responsibility to read and follow these instructions

• Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and

all electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with all electrical

products.

• Electrical safety information. It is important that the following information is read and understood:

• Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.

• Regularly check all connections to ensure that they are secure.

• Important:Ensurethatthevoltageratingontheappliancesuitsthepowersupplytobeusedandthattheplugisttedwiththe  

correct fuse.

• DO NOT pull or carry the appliance by the power cable.

• DO NOT pull the plug from the socket by the cable.

• DONOT usewornordamagedcables,plugsorconnectors.Ensurethatanyfaultyitemisrepairedorisreplacedimmediatelybya

qualiedelectrician.

• If the cable or plug is damaged during use, switch off the electricity supply and remove from use.

• Ensurethatrepairsarecarriedoutbyaqualiedelectrician.

• DuringtheoperationoftheclothesdryerDONOTputammableandvolatilesubstances(suchasgasoline,alcohol)neartheclothesdryerto

avoidre.

• DO NOT install the clothes dryer in wet places such as bathrooms or where it is likely to be wet by rain, so as to avoid electric shock, leakage and

other accidents.

• When the clothes dryer is in normal use, the power cord plug should be easy to plug and unplug. When there is a power outage, movement, disuse

or cleaning, unplug the power cord plug. DO NOT plug or pull the plug with wet hands.

• It is strictly forbidden to put the clothes dryer on the packaging during operation.

• When the inside of the drum or the outside of the dryer is dirty, wipe it with a soft wet towel, do not rinse directly with water, and do not wipe with

volatile substances (such as alcohol, gasoline, etc.).

• If chemicals are used to clean clothes, drum dryers cannot be used.

• Cotton shavings/material are not allowed to accumulate around the drum dryer.

• Exhaustisnotallowedintheueofappliancesforburninggasorothermaterials.

•

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the

hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• Children of less than 3 years should be kept away unless continuously supervised.

• Itthesupplycordisdamaged,itmustbereplacedbythemanufacturer,itsserviceagentorsimilarlyqualiedpersonsinordertoavoidahazard.

• The maximum mass of dry textile material in kilograms to be used in the appliance is 2.5kg.

• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.

• The lint trap has to be cleaned frequently.

• Lint must not to be allowed to accumulate around the tumble dryer.

• Adequateventilationhastobeprovidedtoavoidthebackowofgasesintotheroomfromappliancesburningotherfuels,includingopenres.

• DO NOT dry unwashed items in the tumble dryer.

• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax

removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

• Itemssuchasfoamrubber(latexfoam),showercaps,waterprooftextiles,rubberbackedarticlesandclothesorpillowsttedwithfoamrubber

pads should not be dried in the tumble dryer.

• Fabricsofteners,orsimilarproducts,shouldbeusedasspeciedbythefabricsoftenerinstructions.

• WARNING! Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is

dissipated.

• WARNING! The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly

switched on and off by a utility.

• Thatexhaustairmustnotbedischargedintoauewhichisusedforexhaustingfumesfromappliancesburninggasorotherfuels.

• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer,

in such a way that a full opening of the tumble dryer door is restricted.

REQUIREMENTS FOR USE

• Clothes wrung by hand should be avoided due to the existence of large amounts of water, the possibility of leakage and increase of drying time.

• Before drying, please check your clothes carefully remove: lighters, matches, sharp metal objects such as coins, hairpins and paper clip and keys.

• Zippers, and buttons should be fastened and clothes should be turned over inside out to dry. (This reduces the sound of colliding with the drum).

• If the clothing maintenance label states “dry cleaning” or “clothes cannot be washed with water” they cannot be dried by a clothes dryer.

• Woolen fabrics, wool clothes, leather materials should not be used in the clothes dryer because leather will be damaged, wool clothing will shrink

and deform.

• Afteruse,thethreadshavings,ontheairinletlterscreenandtheairoutletltercotton,mustbecleaned.

• It is best to dry clothes of the same or similar texture at one time.

• DO NOT dry clothes that have the following requirements on their care label:

-do not dry in a tumble dryer

-drip dry only

-dry in the shade

• Theclothesdryershouldbeplacedonahorizontalandsolidoor,desktoporspecialbracket.

• The dryer should be installed 10-15cm away from the back wall.

• If used in a narrow space, a ventilator can be installed or an exhaust pipe can be installed at the air outlet to vent hot and humid air

• outside.

• The length of the exhaust pipe should not exceed 2 meters.

• 1. INSTALLATION OF THE EXHAUST PIPE JOINT g.1

• Adjust angle of the exhaust to desired position.

• 2. DRYER MUST BE INSTALLED ON HORIZONTAL SURFACE

• Clothes dryer is not allowed to stand upside down. When the clothes dryer is placed on

thehorizontalgroundoracountertopdesktop,makesurethattheooranddesktopare

rmandnottilted,sothattheclothesdryerisupright.

• 3.WALLMOUNTEDINSTALLATIONrefertog’s2&3

• 3.1 Installation of clothes dryer bracket

• Whentheclothesdryerisinstalledonthebracketisnecessarytoensurethatthewallbracketisrmlyxedtoasurfacecapableofwithstanding

the weight of the dryer and its load.

• There should be at least a 13 cm distance between the bracket and the wall.

• 3.2 Wall installation of the dryer

• Determine the wall position of the dryer and note that the distance between the top of the dryer and the ceiling is recommended to be greater

than 100 mm.

• a.Fastenthewallbracketg.2.2tothewallwithexpansionscrews(M6).

• b.Fixthewallhangingbracketg.2.1totherearofthedryerwithfour4x10largeatheadtappingscrews(provided).

• c.Screwthewallhangingbracesg.2.3tothebottomoftherearofthebodyofthedryer.

• d. Hang the clothes dryer safely on the brackets.

DAILY MAINTENANCE g.4

• WARNING! Remove from mains supply before performing maintenance.

• Toensuresafeoperationofthedryerairoutletandairinletltersshould

be cleaned regularly.

• 1. OUTLET FILTER CLEANING

• Outletlterneedstobecleanedaftereachuse.

• a.Removethelterfrominsidethedrum:

• Insertyourhandintothedrumandgentlypullthelteroutusingthe

four cutouts in the air mask.

• b.Carefullyeasetheltersapartnotingtheirorientation.

• Use a soft brush or vacuum cleaner to clean each of them.

• Takecaretonotdamagethelters.

c.Installtheltersinthecorrectorderandorientation:

cottonrst,thennet,nallytheairmaskandretthemintothedrum.

• Checkthattheltersaresecurelyxed.

• 2. INLET FILTER CLEANING

• NOTE:Cleanltersonceamonth.

• a.Releasetheinletlterdoorbytiltingitupwardsandremoveit.

• b. Use a soft brush or vacuum to remove the dust attached to it.

• c. Replace after cleaning.

• 3. DRYER CLEANLINESS

• Wipe the dirt inside the drum or on the outside of the dryer with

a damp cloth.

g.1

g.2

g.3

g.4

• Ifthedirtisdifculttoremove,wipeitwithasmallamountofmildsoapandthenwipeitwithacleancloth.

• DO NOT use solvents or any abrasive cleaners.

CONTROLS

Label

Function

Power On/ O󰀨.

Start /Pause.

Cotton

Selectheat(Hi,Low),Settimer.Defaulttemp.setto60

Down

Selectheat(Hi,Low),Settimer.Defaulttemp.setto60

Underwear

Selectheat(Hi,Low),Settimer.Defaulttemp.setto60

Fresh

To remove smells, default heat low. Set timer to required value - either 30, 35 or 40 minutes (incremented per

press).

Wool

Default heat low. set timer to required value.

Xpress

Default heat high, set timer to required value in 10 minute increments per press up to 40 minutes.

High Heat

Settohighheatifoptionashing.

Low Heat

Settolowheatifoptionashing.

Delay

Set start time delay. Initially sets to 30 minutes then increments by one hour per press up to maximum of 8 hours.

Select UV, hold for three seconds to set timer for 30 minutes, press again to raise in 10 minute increments. UV

modecanworkalongside6dryingmodes.SelectthedesireddryingmoderstandthenpressUV.

Child Lock

Hold for three seconds and lock comes on. Hold for 3 seconds and lock cancels.

Timer

Press to increase function in 30 minutes steps up to 240 minutes.

6

Problem Cause Solution

Dryer will not start No power

Dryer overloaded with clothes

Temperature controller faulty

Check mains supply

Clothes must not be soaking wet when

loaded

If there are too many clothes, dry in

batches.

Contact Dellonda or repair professional.

Dryer is hot on the outside or there is a

hot smell.

Filter screen of the air intake lter is

blocked with material.

The air outlet or the exhaust duct is

blocked.

Clean the ‘thread shavings’ on the lter

net before and after each use.

Clear the blockage.

Clothes are not dry. Dryer is too full of clothes.

Filter is clogged, a󰀨ecting airow in and

out.

Too many clothes in the dryer and they

are twisted.

The dryer is installed in a narrow ‘airtight’

position.

Reduce batch size, dry the clothes again.

Clean the inlet and outlet lter regularly.

Shake the clothes loose and redry.

Reposition the dryer in a more suitable

location.

Too many wrinkles in the clothes Dryer too full of clothes.

Clothes were not removed at the end of

the cycle in time.

Clothes are not sorted properly.

Temperature is set too high.

Don’t overload dryer, reduce batch size.

Clothes should be taken out immediately

at end of cycle.

Dry clothes after sorting.

Follow the instructions on the clothing’s

label.

Clothing shrinkage. Excessive dryness. Follow instructions on label on clothing.

If clothing shrinks easily, it should be

checked frequently when drying.

Take out the clothes while they are still

slightly damp to avoid being too dry, and

Then hang them up or lay them at to

make them completely dry.

Hair balls on the clothes. It is normal for synthetic bres and non-

ironing bres to produce ‘hair’ masses.

This is caused by friction.

Soften clothes with a fabric softener. Turn

inside out to reduce friction.

Dellonda Limited, Sole UK Distributor of Baridi

Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR

01284 757575 suppor[email protected] www.dellonda.co.uk

Environment Protection, Waste Electrical and Waste Electronic Equipment Regulations

(WEEE)

Recycle unwanted packaging materials. When this product is no longer required, or has reached the end of its useful life, please dispose

ofinanenvironmentallyfriendlyway.Drainanyuids(ifapplicable)intoapprovedcontainers,inaccordancewithlocalwasteregulations.

Please note that this product contains one or more batteries. It is our policy to continually improve products and we reserve the right to

alterdata,specicationsandpartswithoutpriornotice.Noliabilityisacceptedforincorrectuseofthisproduct.Guaranteeis12months

from purchase date, proof of which is required for any claim.

TROUBLESHOOTING

Product Information Sheet. Tumble Drier.

SUPPLIER_NAME_OR_TRADEMARK Dellonda EU Ltd.

DELEGATED_ACT 932/2012/EU

MODEL_IDENTIFIER DH229

ADDRESS

Farney Street, Carrickmacross, Co. Monaghan, A81 PK68 Ireland

PHONE_NUMBER 01284 757 500

EMAIL_ADDRESS [email protected]

Parameter

Verification tolerances

Rated Capacity (Kg).

2.5

Energy efficiency class.

Weighted Annual Energy Consumption.

207.0

Automatic tumble dryer.

Built in tumble drier.

Energy Consumption .

Standard cotton programme at full load.

1.68

Energy Consumption .

Standard cotton programme at partial load.

0.97

Power Consumption of the off-mode.

0.00

Power Consumption of the left-on mode.

0.48

Duration of the left-on mode (minutes).

Weighted programme time of the ‘standard cotton

programme at full and partial load’.

Programme time of the ‘standard cotton

programme at full load’. Minutes.

130

Programme time of the ‘standard cotton

programme at partial load’. Minutes.

Condensation Class.

Average condensation efficiency full load.

Average condensation efficiency partial full load.

Sound power level.

Suppliers website https://www.dellonda.co.uk/

Small Tumble Dryer, Portable, 2.5kg, Vented, Perfect for Counter Top or Wall Mounted Use with Digital

Controls, Compact, Black Mini Spin Dryer

v1 19/12/2022

Instructions:

1) Enter the model reference in B4,

2) This document is populated automatically be infromation in the Ecodesign & Energy Labelling spreadsheet,

3) Export (create pdf*) the document.

4) Save the pdf document as 'ABC123 vX ERP Product Information Sheet yyyymmdd'

Baridi DH229 Tabletop Tumble Dryer Digital Controls 2.5kg Capacity - Black

Product's Documents

Instructions

Specifications

Baridi DH229 Questions and Answers
