SEALEY INFRARED SPACE HEATER

KEROSENE/DIESEL 136,000BTU/HR SPACE

WARMER WITH WHEELS®

MODEL NO: IR37.V6

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,

and properly maintained, give you years of trouble free performance.

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE

THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR

PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

THIS HEATER IS NOT SUITABLE FOR USE AS A PRIMARY HEATING SOURCE

1. SAFETY

1.1. ELECTRICAL SAFETY

 WARNING! It is the user’s responsibility to check the following:

Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and

all electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with all electrical

products.

If the product is used in the course of business duties, it must be maintained in a safe condition and routinely PAT (Portable

Appliance Test) tested.

Electrical safety information, it is important that the following information is read and understood.

Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power

supply.

Regularly inspect power supply cables and plugs for wear or damage and check all connections to

ensure that they are secure.

Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that

 theplugisttedwiththecorrectfuse-seefuseratingintheseinstructions.

8 DO NOT pull or carry the appliance by the power cable.

8 DO NOT pull the plug from the socket by the cable.

8 DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or

 isreplacedimmediatelybyaqualiedelectrician.

 ThisproductisttedwithaBS1363/A3pinplug.

 Ifthecableorplugisdamagedduringuse,switcho󰀨theelectricitysupplyandremovefromuse.

 Ensurethatrepairsarecarriedoutbyaqualiedelectrician.

 ReplaceadamagedplugwithaBS1363/A3pinplug.Ifindoubtcontactaqualiedelectrician.

 a)ConnecttheGREEN/YELLOWearthwiretotheearthterminal‘E’.

 b)ConnecttheBROWNlivewiretotheliveterminal‘L’.

 c)ConnecttheBLUEneutralwiretotheneutralterminal‘N’.

Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.

 Sealeyrecommendthatrepairsarecarriedoutbyaqualiedelectrician.

1.1.1. If an extension reel is used it should be fully unwound before connection. A reel with an RCD fitted is preferred since any appliance

 pluggedintoitwillbeprotected.Thecablecoresectionisimportantandshouldbeatleast1.5mm²,buttobeabsolutelysurethat

the capacity of the reel is suitable for this product and for others which may be used in the other output sockets, we recommend the

 useof2.5mm²sectioncable.

1.1.2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons to avoid a hazard.

1.2. GENERAL SAFETY

▲ DANGER! Risk of carbon monoxide poisoning. Failure to provide proper ventilation could result in serious illness or death.

9 Check that the heater is in sound condition and good working order. Take immediate action to repair or replace damaged parts.

9  Userecommendedpartsonly.Unauthorisedpartsmaybedangerousandwillinvalidatethewarranty.

9  Onlyusecleandieselorkerosene(notbio-diesel,para󰀩norpetrol)tofuelthisheater,inaccordancewithinstructionscontainedin

this manual.

9 Locate heater on a level and stable surface.

9  Switcho󰀨ifanyirregularitiesoccur.

 WARNING! Only use heater in well ventilated areas. Ensure continuous ventilation is provided to the heater operating area via

RECOMMENDED

FUSE RATING: 13A

Refer to

Instruction

Manual

Wear

Protective gloves

(refuelling)

Never use heater

where highly

flammable vapours

are present

Warning!:

Hot surface

DO NOT use

petrol

Always unplug

heater before

servicing and

checking

Useheaterinwell

ventilated areas

Original Language Version

DO NOT

cover

IR37.V6Issue2(3)12/09/23

DO NOT use

paraffin

 windowsanddoorsetc.Ifpeoplearenotrequiredtobepresentintheheatedarea,thevolumeofairtobeheated(mtr³)/ 

 heatoutput(kW)ratiomustbeatleast10:1andpeoplemustbeadvisednottoremainintheheatedareaforprolongedperiods.If

 peoplearerequiredtobepresentintheheatedarea,thevolumeofairtobeheated(mtr³)/heatoutput(kW)ratiomustbe 

 atleast30:1.Ventilationmustbetotheoutsideofthepremisesinwhichtheheateristobeoperated.Thetotalopenarea 

 (mtr²)mustbeatleast0.003timesthetotalheatoutput(kW).Thevolumeconcentrationofoxygen(O

) in the heated room,

 mustalwaysremainabove17%.

 WARNING! DO NOTusetheheaternearammablematerial,liquids,solids,gasesorcompressedgascylindersetc.

8 DO NOTswitchtheheatero󰀨bydisconnectingitfromthemains.ALWAYSsettheswitchontheburnertothe‘OFF’positionand

 allowthecoolingcycletonish,beforedisconnectingfromthemains.

8 DO NOTstandorplaceanyobjectlessthan3mfromtheheateroutputandkeeptheheateraminimumof2mfromanywallsor 

objects.

8 DO NOT use the heater in closed rooms, living areas, basements or below ground level.

8 DO NOT allow untrained persons to operate the heater and DO NOT operate the heater without the safety guard.

8 DO NOT move or handle the heater when hot, without wearing protective gloves. Never move the heater whilst it is operating.

8 DO NOTleavetheheaterunattendedforprolongedperiodsoftimewheninuse.Switchtheheatero󰀨andunplugfromthe 

mains before leaving work area.

8 DO NOTllthefueltankwhilsttheheaterisrunningorstillhot.DO NOToverllthefuelcontainer.Wipeupanyspiltfuel 

immediately.

8 DO NOT obstruct the air inlet (rear) and air outlet (front) of the heater and DO NOT use duct work in front or at the rear of the

heater.

8 DO NOT allow children or animals near the heater when in use, or whilst still hot.

 WARNING! RISK OF ELECTRIC SHOCK. DO NOT expose the heater to water spray, rain, dripping water or wind.

8 DO NOToperatetheheaterwhenyouaretiredorundertheinuenceofalcohol,drugsorintoxicatingmedication.

8 DO NOTtouchtheheateroutletorconewheninuse,orforaperiodoftimeafterit’sswitchedo󰀨,astheseareVERYhotandwill

take time to cool down.

8 DO NOTuseanexternalfueltank.Onlyusethetankthatisttedtotheheater,andonlyllitwhentheheaterhascooleddown.

9  Ensurethattheheateriscorrectlyturnedo󰀨.

9  Whennotinuseforanextendedperiod,storeinasafe,dryarea,outofreachofchildren.

Children from age 8 years and above, persons with reduced physical, sensory, or mental capabilities those with lack of experience and

knowledge can use the appliance, if they have been given supervision or instruction concerning use of the appliance in a safe way to

understand the hazards involved.

8 Children shall NOT play with the appliance.

8 Cleaning and user maintenance on the appliance shall NOT be made by children without supervision.

9 The appliance shall be disconnected from its power source during service and when replacing parts and, if that the removal of the plug

is foreseen, it shall be clearly indicated that the removal of the plug has to be such that an operator can check from any of the points to

which they have access that the plug remains removed.

2. INTRODUCTION

Versatileinfraredmulti-fuelheaterdesignedtorunonkeroseneordiesel.Cleanburningunitsuitableforwell-ventilatedapplications.38LTank

allowsapproximately10hrsrunningtime,makingthisunitextremelyeconomical.Safetyfeaturesinclude:solenoidvalve,automaticoverheat

safetyshut-offandquietoperation.

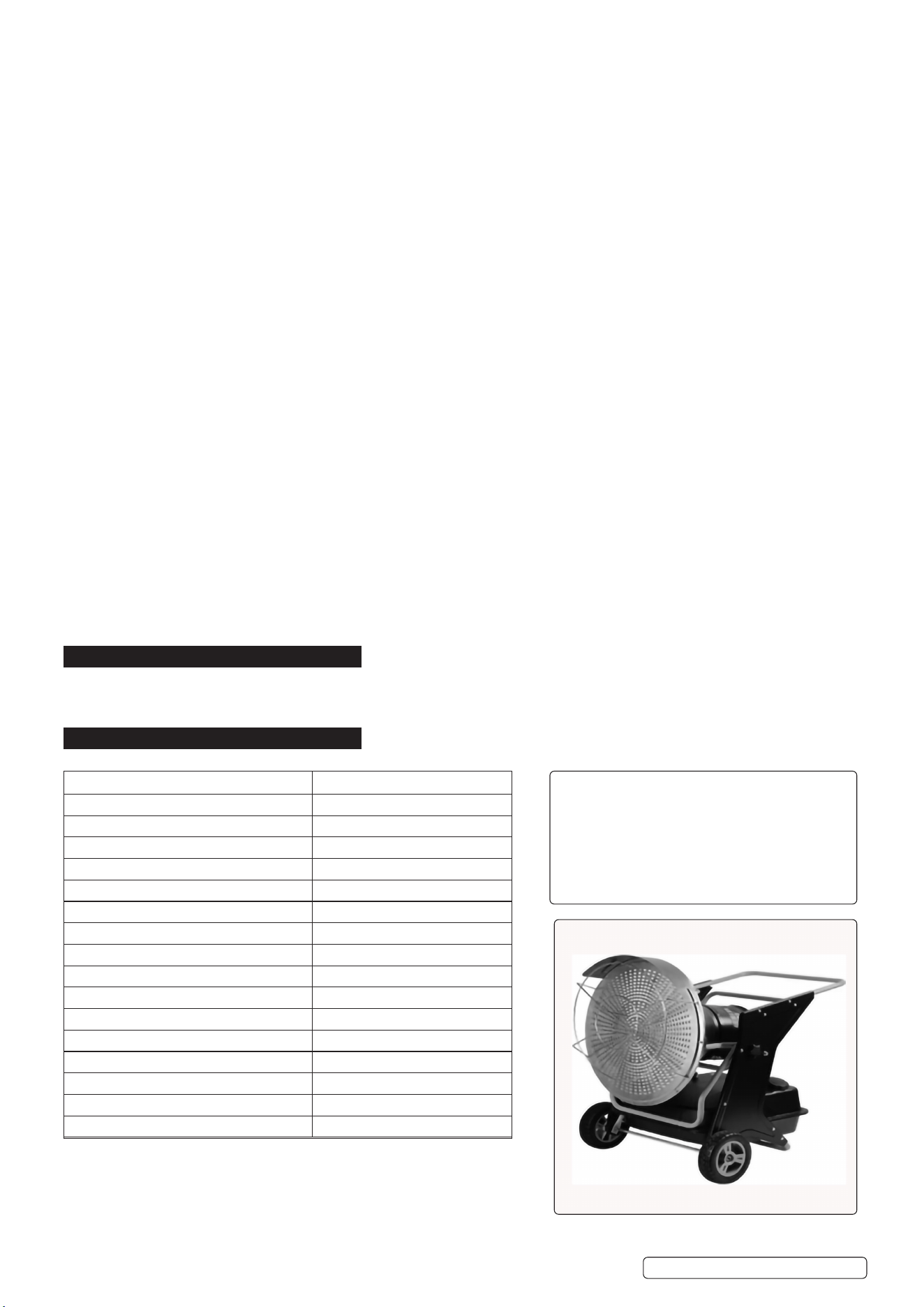

3. SPECIFICATION

 WARNING!

Thisheaterisnotsuitableforusewithpara󰀩n,petrol

orBio-Diesel.

UseofBio-Dieselwilldamagethelterandseals.

DamagecausedbyuseofPara󰀩n,PetrolorBio-

Diesel will not be covered by warranty.

Model IR37.V6

AutomaticShut-O󰀨 Yes

Fuel Tank 38L

Fuel Kerosene/Diesel

Fuse Rating 13A

HeatInputbasedongrosscaloricvalue 34400Kcal/h(1kW=860kcal/hr)

Heated Area 320-420m

IP Rating IPX4

Maximum Electrical Input 230V50Hz

Motor Power 80W

Nominal Heat Input 40kW

Output 136,000Btu/hr(40kW)

Plug Type 3-PinBS

Power Supply Cable Length 1.1m

Running Time Per Filling (Maximum) 10hours

Supply 230V50Hz

TransportWheels Yes

Original Language Version

IR37.V6Issue2(3)12/09/23

4. ASSEMBLY

4.1.  Removefrontguardfrompacked/transitposition.

4.2.  AssemblyRadiantVisortothetoprearoftheRadiantConeAssemblyusing3includedscrews(g.2).

4.3.  AttachSafetyGuardtofrontofheaterwithscrewsprovided(g.3).

4.4. Place handle on main structure and fasten with screws provided.

5. OPERATION

 WARNING! Thisheaterisnotsuitableforusewithpetrol,para󰀩norBio-Diesel;useofBio-Dieselwilldamagethelterandseals.

Damage caused by use of Paran, Petrol or Bio-Diesel will not be covered by warranty.

5.1. PRINCIPLES OF OPERATION

5.1.1. Fuel system:Thisheaterisequippedwithahigh-pressurepump.Thepumpdrawsfuelupfromthefueltanktothenozzleintheburner

head. It is sprayed into the combustion chamber in a fine mist where it is mixed with air for combustion.

5.1.2. Quick-Fire Ignition:Atransformersendshighvoltagetoatwo-prongedsparkplug.Thesparkignitesthefuel/airmixtureasitissprayed

into the combustion chamber.

5.1.3. Air System:Ablowermotorassemblyforcesairaroundthecombustionchamber,whereitissuper-heatedandupandaroundthe 

 chamberduringoperationandalsorunsduringthecool-downperiod.

5.1.4. Electrical System Protection: The heater’s electrical system is protected by a circuit breaker that protects the system components from

damage. If the heater fails, check the fuse first, and replace if necessary.

 WARNING! Air contaminants taken into the heater may affect the heat output, damage the unit and may cause health problems.

Example: Bodyshop filler dust/paint overspray will damage the motor bearing, clog the filter and compressor and contaminate

the combustion chamber causing flame flutter and health hazards. Please note that any parts damaged by filler dust/paint

overspray will not be covered by warranty. Additionally, a cleaning charge will be made for any heaters damaged by filler dust/

paint over spray.

5.2. VENTILATION:

 WARNING! Only use the heater in well ventilated areas. Careful consideration must be given to the placing of the heater to provide

safe and comfortable heating. Ensure continuous ventilation is provided to the heater operating area. A ventilation opening must run to

the outside of the premises in which the heater is to be operated.

The heater requires a fresh air opening of at least 3030cm².

For Example:

  -Atwocargaragedoorshouldbeopenatleast13cm.

  -Asinglecargaragedoorshouldbeopenatleast18cm.

  -Two76cmwindowsshouldbothbeopenatleast22cm.

5.3. STARTING THE HEATER

NOTE: If air has entered the fuel line; possible when new, when left standing

for a long period or when the tank level has fallen too low, priming may be

  necessary.Itispreferabletostarttheheateroutdoorsfortherst 

time, to allow any oils left over from the manufacturing process and

  transportingtobeburnto󰀨inasafeenvironment.Runitfor10minutes

  onthisrstburn.

5.3.1. Carefullyllthefueltankwithcleanapprovedfueluntilfull.

5.3.2. Ensure the fuel cap is secure.

5.3.3. Plug the power cord into a suitable power socket. If using an extension lead see

 ElectricalSafetysection1.1

5.3.4. Turnthe“ON/OFF”Switch“ON”(g.4).Theunitshouldbeonlineinafew 

seconds. If it is not, please refer to troubleshooting section.

NOTE: Intheeventofunitbeingturnedo󰀨duetorunningoutoffuel,turnthe 

 unito󰀨,allowtocoolforatleast5minutesrefuelandturnitbackon.

 WARNING:Whenturningtheunito󰀨,DO NOTswitcho󰀨thepoweror 

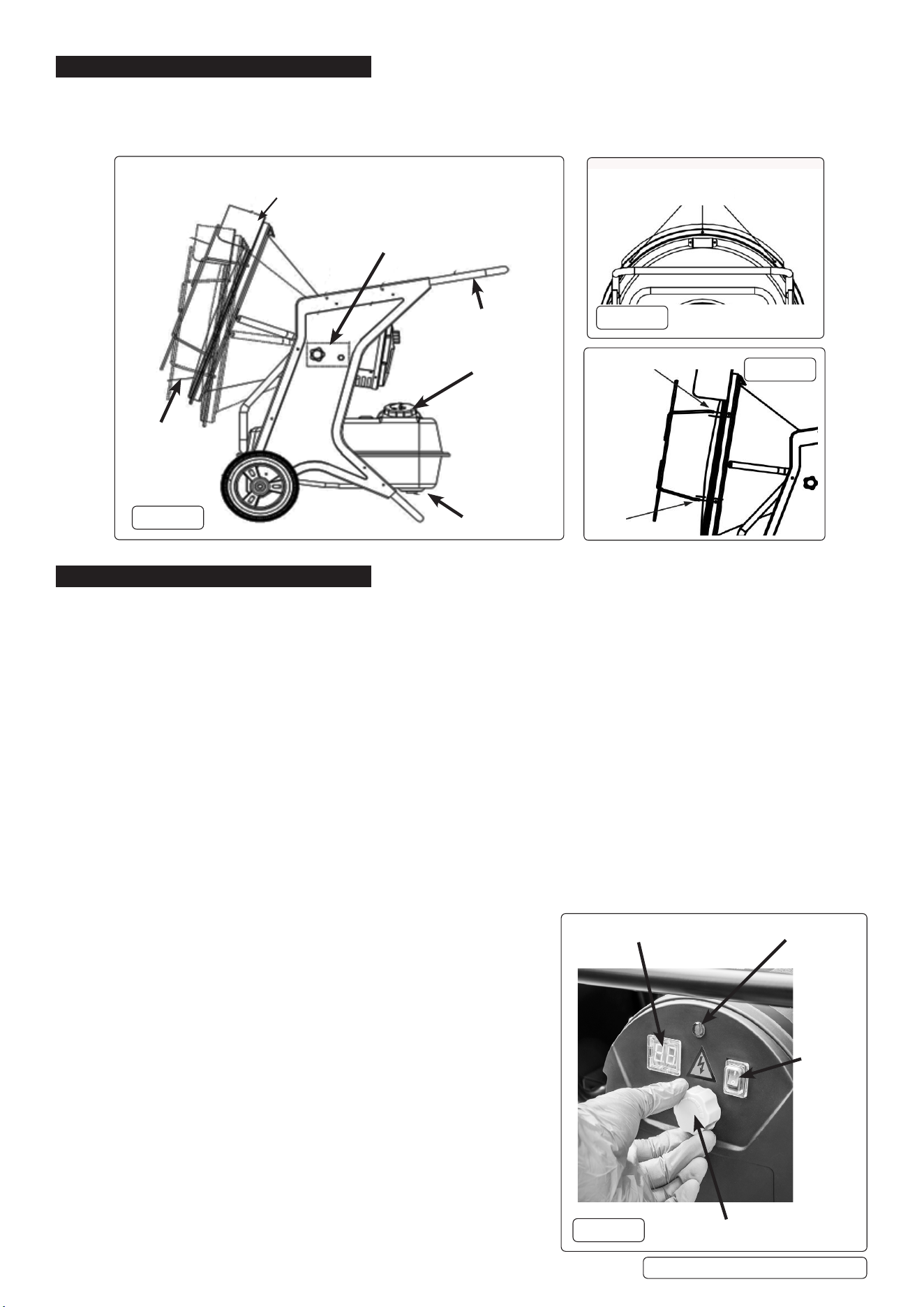

Fig.1

Original Language Version

RadiantVisor

Handle

Angle Adjustor

Drain Plug

Safety guard

Fuel Filler

LED Display for Temp.

Display and Error Codes

On/O󰀨

Switch

Power on light

Heater Control

Fig.4

Screws

Fig.2

Fig.3

Screws

IR37.V6Issue2(3)12/09/23

 disconnectthepowercablebeforetheunitcoolsdowncompletely(minimumof5minutesrequired).

6. MAINTENANCE

 WARNING!:Allowunittocooldownforaminimumof5minutesbeforeattemptinganymaintenance.

Use only original equipment replacement parts. Isolate power before any maintenance. The use of alternate or third party components

can cause unsafe operating conditions, and will invalidate the warranty. We suggest following a maintenance schedule as follows.

6.1. FUEL/FUEL TANK-Flushevery200hoursofoperationorasneeded.DO NOTusewatertoushthetank.Usefreshkerosene/

diesel only

(seeg.7).

6.2. FILTERS-TheFuelFiltershouldbecleanedatleasttwiceperheatingseasonbyrinsingthemincleankerosene/diesel. 

 Thisprocedureshouldalsobefollowedifthefuelisfoundtobecontaminated(g.5).

6.3. NOZZLE-Nozzlesshouldbecleanedorreplacedatleastonceperheatingseason(g.6).Thisprocedureshouldalsobefollowedif

the fuel is found to be contaminated. To clean dirt from nozzle, blow compressed air through nozzle front. It may be necessary to soak

 thenozzleincleankerosene/dieseltohelploosenanyparticles.

6.3.1. LONG TERM STORAGE

6.3.2. UnscrewtheDrainPluganddrainfuelintoasuitablecontainer(g.1,g.7).

6.3.3. Usingasmallamountofkerosene/diesel,rinseandswirlthefuelaroundthefueltank.Emptythetankcompletely.

6.3.4. Never store leftover kerosene/diesel over the summer. Using old fuel can damage the heater.

6.3.5. Store heater in a dry, well ventilated area.

6.3.6. Besurethatthestorageareaisfreeofdustandcorrosivevapours.Repacktheheaterintheoriginalshippingmaterial.Keep this

User’s Manual in an easily accessible place.

Component Maintenance frequency Procedure

Fuel tank Cleanevery150-200hoursofoperationorwhenwhennecessary Empty and rinse with fresh fuel

Nozzle Clean or replace once per season or when necessary Contact Sealey for Technical support

Photocell Clean or replace once per season or when necessary Contact Sealey for Technical support

Fuellter Clean or replace twice per season or when necessary Cleanthefuellterwithcleanfuel

Ignition device Cleanorreplaceevery1.000hoursofoperation,orwhennecessary Contact Sealey for Technical support

Fan blades Clean when necessary Contact Sealey for Technical support

Original Language Version

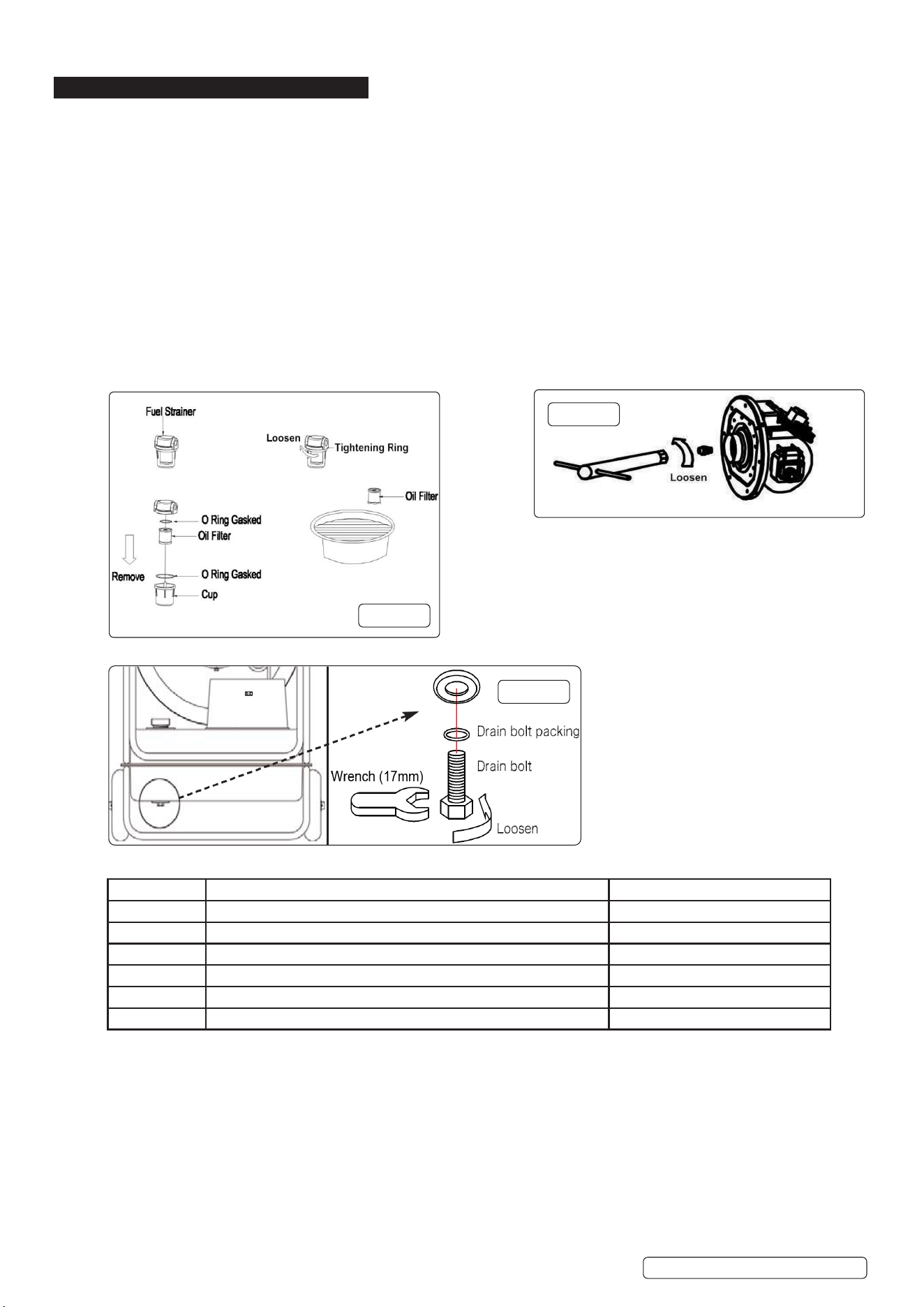

Fig.6

Fig.7

Fig.5

IR37.V6Issue2(3)12/09/23

7. TROUBLESHOOTING

8. ERROR CODES

Original Language Version

Motor/Pumpruns

buttheamedoes

not start

1.Nofuel 1.Turno󰀨thegenerator,rellthefueltank

then restart the generator

2. Ignition device is dirty 2. Contact the technical service centre

3.Fuellterisdirty 3.Cleanthelterusingcleanfuel

4.Nozzleisdirty Contact the technical service centre

5.Photocellisdirty,damagedorinstalled

improperly

6.Foreignsubstancespresentinthetank

7.Electrodesareuseduporplacedatan

improper distance

Fan blocked or

spins too slowly

1.Enginedamaged

Heater doesn’t run 1.Heaterblocked 1.RestarttheHeater

2.Thepowerswitchisinthe“(O)OFF”

position

2.Turntheswitch“(|)ON”

3.Nopower 3.1)Plugthefeedercableproperlyinto

the socket

2) Check the power supply network.

4.Feedercableunplugged 4)Contactthetechnicalservicecentre

5.Blockedcontrolcard 1)Restartthegenerator

2) Identify the display error

3)Contactthetechnicalservicecentre

6.Wrongthermostatsetting 6)Calibratethethermostatbysettingit

higher than ambient temperature

7.Temperaturesensoroverride 1)Waitatleasttenminutesthentrytorun

ignition again

2)Contact the technical service centre

8. Fuse damaged 8. Contact the technical service centre

Error Code Cause Solution

OPERATION ERROR

FO 1.The“ON/OFF”switchisturned“(ON)”

when the generator is plugged

1.Afterdisconnectingthegenerator,seethattheswitchisinthe“O(OFF)”

position,plugthegeneratorinandturntheswitch“ON”.

PHOTOCELL ERROR

F1 No fuel Turnpowero󰀨,allowunittocool(seeSectionX)andrelltank

Fuel is contaminated Turnpowero󰀨,allowunittocool(seeSectionX).Cleanfuellterandrelltank

(seeSectionY)

Photocell is dirty or damaged Contact Sealey for Technical support

Fuellterisdirty Turnpowero󰀨,allowunittocool(seeSectionX).Cleanfuellter(seeSection

Ignition failure Contact Sealey for Technical support

TEMPERATURECONTROLSENSORERROR

F2 Damaged cable Contact Sealey for Technical support

Damaged sensor Contact Sealey for Technical support

THERMOSTAT ERROR

F3 Internal generator over heating Turnpowero󰀨,allowunittocool(seeSectionX).

Anti-tiltsensoractive Turnpowero󰀨,allowunittocool(seeSectionX).Moveunittolevelsurface.

LO Externaltemperaturebelow-9

C Normal condition

CH Continuousoperation(55

C) Normal condition

IR37.V6Issue2(3)12/09/23

Original Language Version

Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR

01284 757500 sales@sealey.co.uk www.sealey.co.uk

Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior

notice. Ifyourequiredocumentationforalternativeversions,pleaseemailorcallourtechnicalteamontechnical@sealey.co.ukor01284757505.

Important: No Liability is accepted for incorrect use of this product.

Warranty:Guaranteeis12monthsfrompurchasedate,proofofwhichisrequiredforanyclaim.

ENVIRONMENT PROTECTION

Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,

takentoarecyclingcentreanddisposedofinamannerwhichiscompatiblewiththeenvironment.Whentheproduct

becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and

dispose of the product and fluids according to local regulations.

WEEE REGULATIONS

DisposeofthisproductattheendofitsworkinglifeincompliancewiththeEUDirectiveonWasteElectricalandElectronicEquipment

(WEEE).Whentheproductisnolongerrequired,itmustbedisposedofinanenvironmentallyprotectiveway.Contactyourlocalsolid

waste authority for recycling information.

PURCHASE HERE

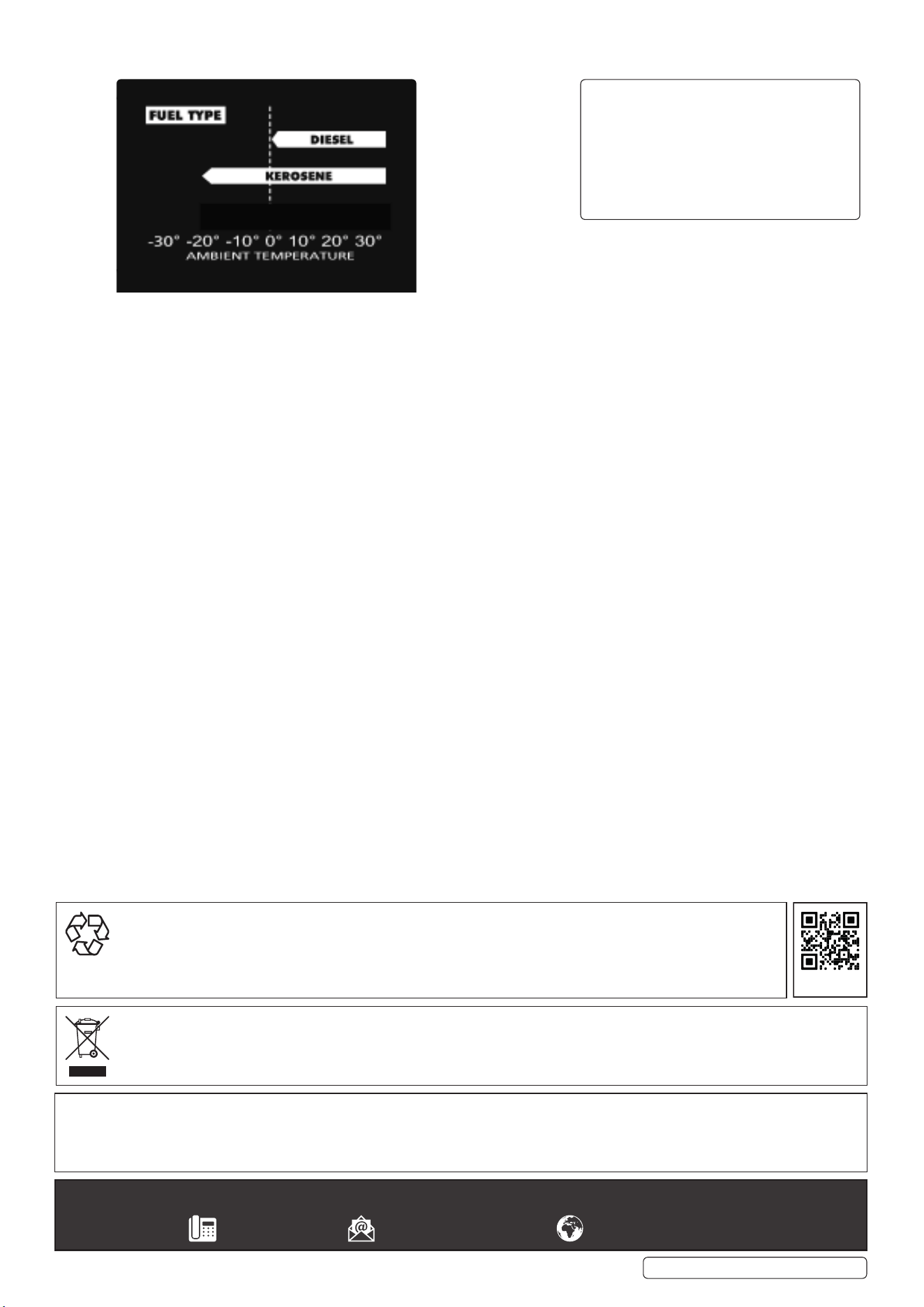

Although this heater operates with diesel fuel,

whenthetemperaturesarebelow0°C,diesel

additives are required to maintain the diesel's

viscosity. Typically diesel can cloud in freezing

conditionsandwillstarttogel.Youwillneed

additives for your fuel in these conditions.

Kerosene does not start to gel until the ambient

temperatureisaround-40°C.

IR37.V6Issue2(3)12/09/23

Sealey IR37 Infrared Space Heater Kerosene/diesel 136,000BTU/HR Space Warmer

Product's Documents

User Manual

Specifications

Sealey IR37 Questions and Answers
