Marey Electric Tankless Water Heater by Wahlbach
3
EN EN
Safety InstructionsContents
Marey Electric Tankless Water Heater by Wahlbach
1. Safety Instructions
Congratulations and thank you for choosing our instant water heater. The instruction
contains important information about commissioning, switching the device on and main-
tenance. To ensure your safety and that of others we recommend you read through this
safety manual carefully. Please refer to the back of the manual for details about the war-
ranty. Keep this manual for future reference.
If you lose the manual, contact your local distributor or manufacturer. When you call,
please tell us the model number and the serial number of your unit written on the rating
plate of the water heater.
Symbols used in this manual
The following symbols are used in these instructions/appear on the appliance:
Certified by CSA.
Failure to observe this instruction may expose you or others to danger.
Failure to observe this instruction may lead to damage to the device.
Indicates live parts.
Failure to observe this instruction may lead to damage to the device or dan-
ger to you or others.
Please read the manual.
Hazardous materials and waste electrical and electronic equipment should
be taken to a designated recycling point.
IMPORTANT SAFETY INSTRUCTIONS
When using this electrical equipment, basic safety precautions should always be
followed, including the following
.
READ AND FOLLOW ALL INSTRUCTIONS
All supply circuits must be disconnected before removing cover. Supply this ap-
pliance only from a grounded system. A wire connector marked “ ” is provided
for wiring the appliance. Connect the connector to the grounding terminal of the
electric service or supply panel with a continuous copper wire in accordance Ca-
nadian Electrical Code, Part I.
0. Contents
Contents ��������������������������������������������������������������������������������������������2
Safety Instructions �����������������������������������������������������������������������������3
Mounting Instructions ������������������������������������������������������������������������6
Technical Specifications �������������������������������������������������������������������19
User Manual ������������������������������������������������������������������������������������22
Maintenance ������������������������������������������������������������������������������������ 23
Troubleshooting �������������������������������������������������������������������������������24
Warranty Conditions �������������������������������������������������������������������������27
2
Marey Electric Tankless Water Heater by Wahlbach
3
EN EN
Safety InstructionsContents
Marey Electric Tankless Water Heater by Wahlbach
1. Safety Instructions
Congratulations and thank you for choosing our instant water heater. The instruction
contains important information about commissioning, switching the device on and main-
tenance. To ensure your safety and that of others we recommend you read through this
safety manual carefully. Please refer to the back of the manual for details about the war-
ranty. Keep this manual for future reference.
If you lose the manual, contact your local distributor or manufacturer. When you call,
please tell us the model number and the serial number of your unit written on the rating
plate of the water heater.
Symbols used in this manual
The following symbols are used in these instructions/appear on the appliance:
Certified by CSA.
Failure to observe this instruction may expose you or others to danger.
Failure to observe this instruction may lead to damage to the device.
Indicates live parts.
Failure to observe this instruction may lead to damage to the device or dan-
ger to you or others.
Please read the manual.
Hazardous materials and waste electrical and electronic equipment should
be taken to a designated recycling point.
IMPORTANT SAFETY INSTRUCTIONS
When using this electrical equipment, basic safety precautions should always be
followed, including the following
.
READ AND FOLLOW ALL INSTRUCTIONS
All supply circuits must be disconnected before removing cover. Supply this ap-
pliance only from a grounded system. A wire connector marked “ ” is provided
for wiring the appliance. Connect the connector to the grounding terminal of the
electric service or supply panel with a continuous copper wire in accordance Ca-
nadian Electrical Code, Part I.
0. Contents
Contents ��������������������������������������������������������������������������������������������2
Safety Instructions �����������������������������������������������������������������������������3
Mounting Instructions ������������������������������������������������������������������������6
Technical Specifications �������������������������������������������������������������������19
User Manual ������������������������������������������������������������������������������������22
Maintenance ������������������������������������������������������������������������������������ 23
Troubleshooting �������������������������������������������������������������������������������24
Warranty Conditions �������������������������������������������������������������������������27
4
Marey Electric Tankless Water Heater by Wahlbach
5
EN EN
Safety InstructionsSafety Instructions
Marey Electric Tankless Water Heater by Wahlbach
This product shall be protected by a Class A ground fault circuit interrupter.
This appliance is not intended for use by persons (including children) with re-
duced physical, sensory or mental capabilities, or lack of experience and knowl-
edge, unless they have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
The maximum inlet water pressure: 1.0 MPa (150 PSI).
The minimum inlet water pressure: 0.1 MPa (15 PSI).
WARNING
Before obtaining access to terminals, all supply circuits must be disconnected.
After service work is complete, proceed as during the first-time appliance start-
up.
The connection diagram or wiring diagram is marked. (Located on inside of Front
Enclosure)
CAUTION
1. DO NOT INSTALL IN A BATH ENCLOSURE OR SHOWER STALL OR CONNECT TO A
SALT- REGENERATED WATER SOFTENER OR A WATER SUPPLY OF SALT WATER
2. CONNECT ONLY TO A CIRCUIT PROTECTED BY A CLASS A GROUND FAULT CIR-
CUIT INTERRUPTER
For use on an individual branch circuit only.
USE COPPER CONDUCTORS ONLY
USE BONDING CONDUCTOR IN ACCORDANCE WITH THE CANADIAN ELECTRICAL
CODE, PART I
Each individual heating element is marked with the manufacturers’s part number
or its electrical rating in voltage and amperes/watts.
The specific spacing between the appliance and adjacent surface.
SAVE THESE INSTRUCTIONS
The appliance is not to be installed in locations where freezing can occur.
The resistivity of the water supply must not be less than 3300 Ω•in.
The appliance must be grounded properly!
The appliance is close-outlet type, the water connection of this appliance must
be connected to unvented water heating system.
No changes may be made to the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its ser-
vice agent or similarly qualified persons in order to avoid a hazard.
Declaration of conformity
We hereby declares that the Thermoflow devices comply with the following stan-
dards:
• CAN/CSA E60335-2-35
• CAN/CSA-C22.2 No. 60335-1
• UL 499
Standards and regulations
The installation (plumbing and electrical work), commissioning and maintenance
of this appliance should only be undertaken by personnel with electrical engi-
neering qualifications and in accordance with the relevant standards and regula-
tions (BSI, etc.) and this manual.
The following should also be observed:
• The appliance name plate;
• The technical specifications.
Connection to the water supply
Compatible cold water pipe materials: steel, copper and plastic.
4
Marey Electric Tankless Water Heater by Wahlbach
5
EN EN
Safety InstructionsSafety Instructions
Marey Electric Tankless Water Heater by Wahlbach
This product shall be protected by a Class A ground fault circuit interrupter.
This appliance is not intended for use by persons (including children) with re-
duced physical, sensory or mental capabilities, or lack of experience and knowl-
edge, unless they have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
The maximum inlet water pressure: 1.0 MPa (150 PSI).
The minimum inlet water pressure: 0.1 MPa (15 PSI).
WARNING
Before obtaining access to terminals, all supply circuits must be disconnected.
After service work is complete, proceed as during the first-time appliance start-
up.
The connection diagram or wiring diagram is marked. (Located on inside of Front
Enclosure)
CAUTION
1. DO NOT INSTALL IN A BATH ENCLOSURE OR SHOWER STALL OR CONNECT TO A
SALT- REGENERATED WATER SOFTENER OR A WATER SUPPLY OF SALT WATER
2. CONNECT ONLY TO A CIRCUIT PROTECTED BY A CLASS A GROUND FAULT CIR-
CUIT INTERRUPTER
For use on an individual branch circuit only.
USE COPPER CONDUCTORS ONLY
USE BONDING CONDUCTOR IN ACCORDANCE WITH THE CANADIAN ELECTRICAL
CODE, PART I
Each individual heating element is marked with the manufacturers’s part number
or its electrical rating in voltage and amperes/watts.
The specific spacing between the appliance and adjacent surface.
SAVE THESE INSTRUCTIONS
The appliance is not to be installed in locations where freezing can occur.
The resistivity of the water supply must not be less than 3300 Ω•in.
The appliance must be grounded properly!
The appliance is close-outlet type, the water connection of this appliance must
be connected to unvented water heating system.
No changes may be made to the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its ser-
vice agent or similarly qualified persons in order to avoid a hazard.
Declaration of conformity
We hereby declares that the Thermoflow devices comply with the following stan-
dards:
• CAN/CSA E60335-2-35
• CAN/CSA-C22.2 No. 60335-1
• UL 499
Standards and regulations
The installation (plumbing and electrical work), commissioning and maintenance
of this appliance should only be undertaken by personnel with electrical engi-
neering qualifications and in accordance with the relevant standards and regula-
tions (BSI, etc.) and this manual.
The following should also be observed:
• The appliance name plate;
• The technical specifications.
Connection to the water supply
Compatible cold water pipe materials: steel, copper and plastic.
6
Marey Electric Tankless Water Heater by Wahlbach
7
EN EN
Mounting InstructionsMounting Instructions
Marey Electric Tankless Water Heater by Wahlbach
2. Mounting Instructions
Electrical installation
The appliance must be permanently connected to fixed wiring.
The device has been prepared for connection to the electrical supply.
These units require a 240V, single-phase supply. Please take reference of the
rating plate on device.
Please take reference of the following diagram to connect
power supply with PP7, PP8, PP12 and PP15.
GR GR
L2
L1
Tankless
Water Heater
Circuit
Beaker
Electric Panel
240V~
60Hz
Please take reference of the following diagram to connect
power supply with PP18, PP24.
GR
GR
L2L1L2L1
Electric Panel
Tankless Water Heater
Circuit
Beaker
01
Circuit
Beaker
02
240V~
60Hz
240V~
60Hz

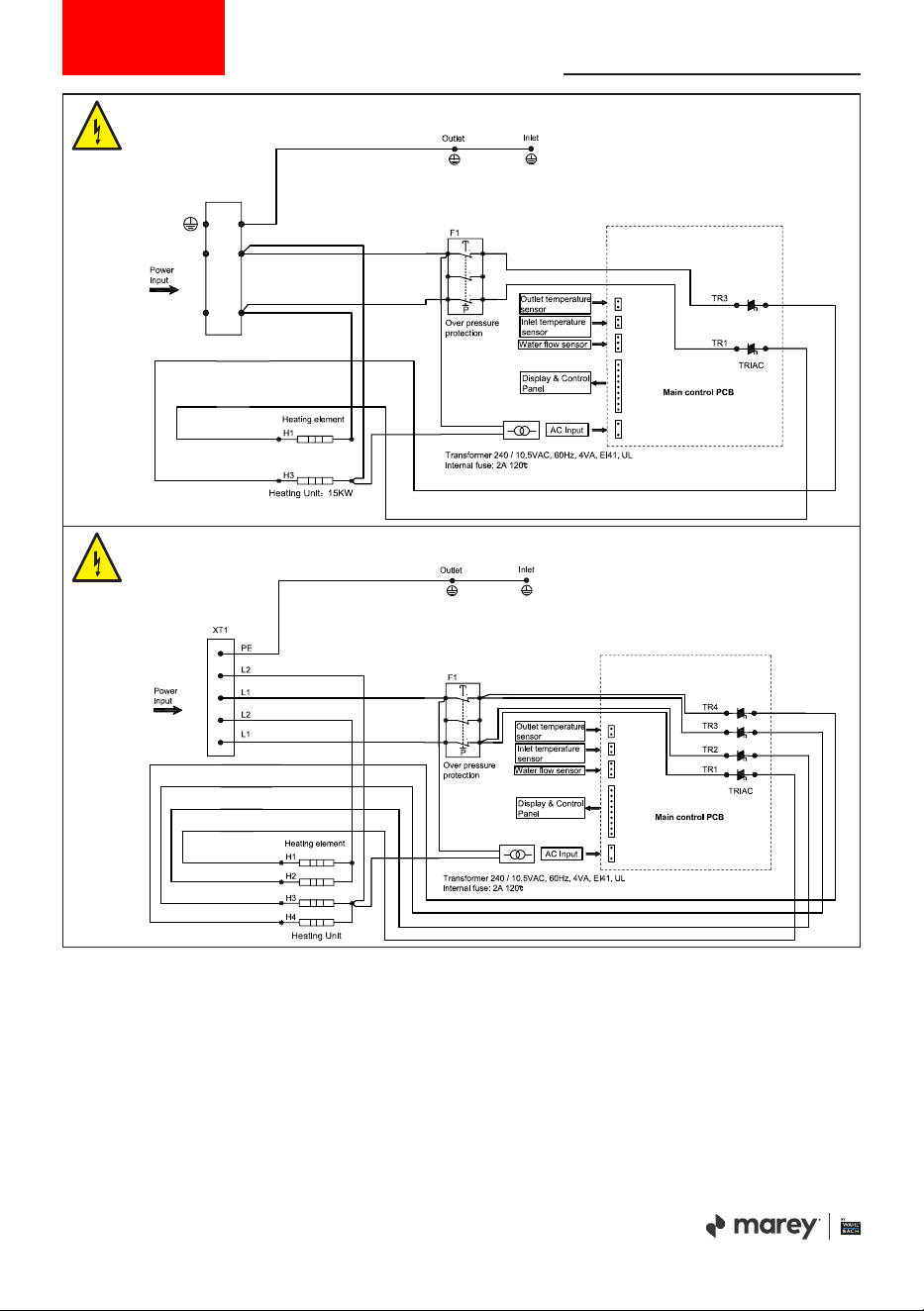

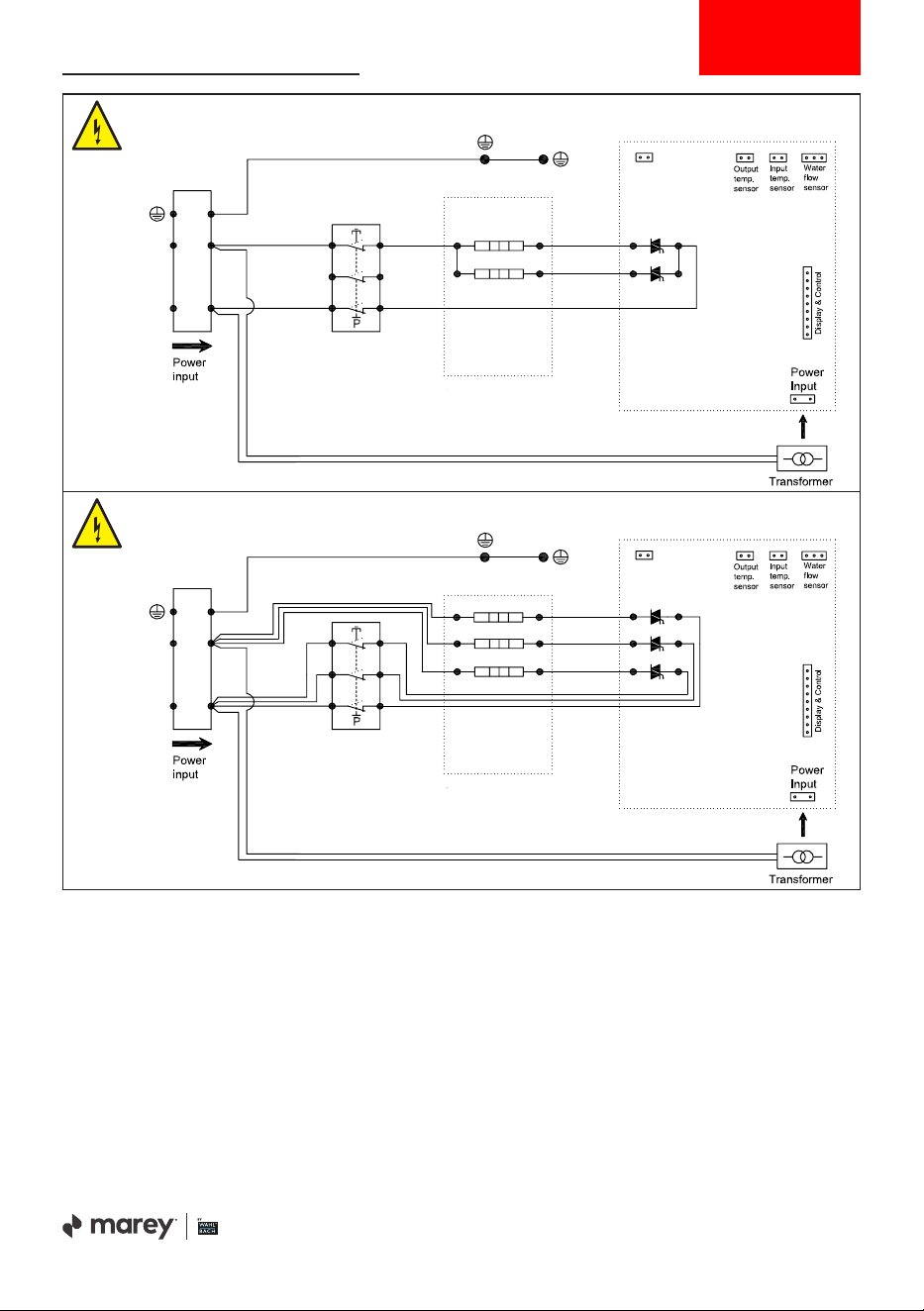

Circuit diagram for PP7, PP8
Heating element
Over-pressure cutoff
Outlet
Inlet
Main control PCB
TRIAC
Thermal
cutoff
L1
L2
Circuit diagram for PP12
Heating element
Over-pressure cutoff
Outlet
Inlet
Main control PCB
TRIAC
Thermal
cutoff
L1
L2
6
Marey Electric Tankless Water Heater by Wahlbach
7
EN EN
Mounting InstructionsMounting Instructions
Marey Electric Tankless Water Heater by Wahlbach
2. Mounting Instructions
Electrical installation
The appliance must be permanently connected to fixed wiring.
The device has been prepared for connection to the electrical supply.
These units require a 240V, single-phase supply. Please take reference of the
rating plate on device.
Please take reference of the following diagram to connect
power supply with PP7, PP8, PP12 and PP15.
GR GR
L2
L1
Tankless
Water Heater
Circuit
Beaker
Electric Panel
240V~
60Hz
Please take reference of the following diagram to connect
power supply with PP18, PP24.
GR
GR
L2L1L2L1
Electric Panel
Tankless Water Heater
Circuit
Beaker
01
Circuit
Beaker
02
240V~
60Hz
240V~
60Hz
Circuit diagram for PP7, PP8
Heating element
Over-pressure cutoff
Outlet
Inlet
Main control PCB
TRIAC
Thermal
cutoff
L1
L2
Circuit diagram for PP12
Heating element
Over-pressure cutoff
Outlet
Inlet
Main control PCB
TRIAC
Thermal
cutoff
L1
L2
8
Marey Electric Tankless Water Heater by Wahlbach
9
EN EN
Mounting InstructionsMounting Instructions
Marey Electric Tankless Water Heater by Wahlbach
Circuit diagram for PP15
L1
L2
Circuit diagram for PP18, PP24
Unpacking
Check if the device has been damaged in any way.
Contents
• 1 device
• 1 mounting template
• 1 bag of installation materials, contents:
1 filter mat
4 spacers
1 gasket
4 screws
4 anchors
Tools
You will require the following tools for the installation:
• Phillips-head screwdriver
• Open-ended spanner 7/8”
• Teflon tape
• Drill
• 5/16” stone or concrete drilling bits
• Pencil
• Adhesive tape
• Wire stripper
Environment
To prevent damage during transport this unit is supplied in robust packaging.
Please recycle the packaging where possible.
Disposal of the appliance
Old appliances must not be disposed of in your household waste!
Every consumer is legally obliged to dispose of old appliances separately from
their household waste and to take them, for example, to a collection point in
their local community or local district. Old electrical appliances will be accepted
there free of charge. This ensures that the old appliances are properly recycled
and any negative impacts on the environment are avoided. This is why electrical
appliances are marked with the symbol shown on the left.
Preparing for installation
The water and electricity supply need to be available at the place where the
device is to be supplied. If the electricity cable is buried in the wall then use the
supplied spacers. If the electricity cable is fixed to the wall then the device can
also be fixed straight to the wall.
The installation location for the appliance should keep away from the shower.
This appliance must be grounded properly!
Make sure taps/flow control device be install on the outlet of the appliance!
The appliance must be connected to a ground fault circuit interrupter.
A
B
C
D
E
A
B
C
D
E
8
Marey Electric Tankless Water Heater by Wahlbach
9
EN EN
Mounting InstructionsMounting Instructions
Marey Electric Tankless Water Heater by Wahlbach
Circuit diagram for PP15
L1
L2
Circuit diagram for PP18, PP24
Unpacking
Check if the device has been damaged in any way.
Contents
• 1 device
• 1 mounting template
• 1 bag of installation materials, contents:
1 filter mat
4 spacers
1 gasket
4 screws
4 anchors
Tools
You will require the following tools for the installation:
• Phillips-head screwdriver
• Open-ended spanner 7/8”
• Teflon tape
• Drill
• 5/16” stone or concrete drilling bits
• Pencil
• Adhesive tape
• Wire stripper
Environment
To prevent damage during transport this unit is supplied in robust packaging.
Please recycle the packaging where possible.
Disposal of the appliance
Old appliances must not be disposed of in your household waste!
Every consumer is legally obliged to dispose of old appliances separately from
their household waste and to take them, for example, to a collection point in
their local community or local district. Old electrical appliances will be accepted
there free of charge. This ensures that the old appliances are properly recycled
and any negative impacts on the environment are avoided. This is why electrical
appliances are marked with the symbol shown on the left.
Preparing for installation
The water and electricity supply need to be available at the place where the
device is to be supplied. If the electricity cable is buried in the wall then use the
supplied spacers. If the electricity cable is fixed to the wall then the device can
also be fixed straight to the wall.
The installation location for the appliance should keep away from the shower.
This appliance must be grounded properly!
Make sure taps/flow control device be install on the outlet of the appliance!
The appliance must be connected to a ground fault circuit interrupter.
A
B
C
D
E
A
B
C
D
E
10
Marey Electric Tankless Water Heater by Wahlbach
11
EN EN
Mounting InstructionsMounting Instructions
Marey Electric Tankless Water Heater by Wahlbach
Locate the installation location of the appliance
Make sure the clearance meet the requirement of following diagram.
Top clearance 4”
Bottom clearance 8”
Right clearance 4”Left clearance 4”
Front clearance 4”
Back clearance 1”
Top clearance 4”
Bottom clearance 8”
Right clearance 4”Left clearance 4”
Front clearance 4”
Back clearance 1”
PP7, PP8, PP12
A1.
1
2
A2.
1
Display plug
2
PP7, PP8, PP12
A3.
MOUNTING TEMPLATE
PLANTILLA DE MONTAJE
Connection to wall
Conexión a la pared
Warm water connection
Conexión de agua caliente
Cold water connection
Conexión de agua fría
Input electric cable
Cable de entrada eléctrico
Connection to wall
Conexión a la pared
Connection to wall
Conexión a la pared
Connection to wall
conexión a la pared
8mm / 5/16”8mm / 5/16”
8mm / 5/16”8mm / 5/16”
Mindestabstand zur Decke
Minimum distance to the ceiling
Distancia mínima al techo
10 cm
4”
10 cm
4”
10 cm
4”
20 cm
8”
Mindestabstand zur Wand
Minimum distance to the wall
Distancia mínima a la pared
Mindestabstand zur Wand
Minimum distance to the wall
Distancia mínima a la pared
Mindestabstand zum Boden
Minimum distance to the ground
Distancia mínima al suelo
A4.
A5.
max� 25mm (1”)
A6.
10
Marey Electric Tankless Water Heater by Wahlbach
11
EN EN
Mounting InstructionsMounting Instructions
Marey Electric Tankless Water Heater by Wahlbach
Locate the installation location of the appliance
Make sure the clearance meet the requirement of following diagram.
Top clearance 4”
Bottom clearance 8”
Right clearance 4”Left clearance 4”
Front clearance 4”
Back clearance 1”
Top clearance 4”
Bottom clearance 8”
Right clearance 4”Left clearance 4”
Front clearance 4”
Back clearance 1”
PP7, PP8, PP12
A1.
1
2
A2.
1
Display plug
2
PP7, PP8, PP12
A3.
MOUNTING TEMPLATE
PLANTILLA DE MONTAJE
Connection to wall
Conexión a la pared
Warm water connection
Conexión de agua caliente
Cold water connection
Conexión de agua fría
Input electric cable
Cable de entrada eléctrico
Connection to wall
Conexión a la pared
Connection to wall
Conexión a la pared
Connection to wall
conexión a la pared
8mm / 5/16”8mm / 5/16”
8mm / 5/16”8mm / 5/16”
Mindestabstand zur Decke
Minimum distance to the ceiling
Distancia mínima al techo
10 cm
4”
10 cm
4”
10 cm
4”
20 cm
8”
Mindestabstand zur Wand
Minimum distance to the wall
Distancia mínima a la pared
Mindestabstand zur Wand
Minimum distance to the wall
Distancia mínima a la pared
Mindestabstand zum Boden
Minimum distance to the ground
Distancia mínima al suelo
A4.
A5.
max� 25mm (1”)
A6.
12
Marey Electric Tankless Water Heater by Wahlbach
13
EN EN
Mounting InstructionsMounting Instructions
Marey Electric Tankless Water Heater by Wahlbach
PP7, PP8, PP12
A7.
1”
6”
L1
L2
208-240V AC
A8.
L1 L2
Push the button
to reset the switch
A9.
Two wrenches should
be used to fix the tube
to the inlet and outlet!
Filter mat must be
installed to the inlet!
A10.
3
2
Display plug
1
PP15, PP18, PP24
A11.
InletOutlet
Filter matGasket
PP15, PP18, PP24
B1.
1
2
B2.
Display plug
12
Marey Electric Tankless Water Heater by Wahlbach
13
EN EN
Mounting InstructionsMounting Instructions
Marey Electric Tankless Water Heater by Wahlbach
PP7, PP8, PP12
A7.
1”
6”
L1
L2
208-240V AC
A8.
L1 L2
Push the button
to reset the switch
A9.
Two wrenches should
be used to fix the tube
to the inlet and outlet!
Filter mat must be
installed to the inlet!
A10.
3
2
Display plug
1
PP15, PP18, PP24
A11.
InletOutlet
Filter matGasket
PP15, PP18, PP24
B1.
1
2
B2.
Display plug
14
Marey Electric Tankless Water Heater by Wahlbach
15
EN EN
Mounting InstructionsMounting Instructions
Marey Electric Tankless Water Heater by Wahlbach
PP15, PP18, PP24
B3.
MOUNTING TEMPLATE
Minimum distance from wall Minimum distance from wall
Warm water connection Cold water connection
Minimum distance to the ground
Minimum distance to the ceiling
Connection to wall Connection to wall
Input electric cable
Screws, washers and anchors
5/16”
5/16”
5/16”
4”
8”
4”
4”
5/16”
Rev02 NA
B4.
B5.
max� 25mm (1”)
B6.
PP15, PP18, PP24
B7.a PP15
25mm
(1”)
150mm (6”)
L1
L2
B8.a PP15
L1
L2
Push the button
to reset the switch
B7.b PP18, PP24
25mm
(1”)
150mm (6”)
L/L1
N/L2
L/L1
N/L2
220-240V
220-240V
B8.b PP18, PP24
Push the button
to reset the switch
L1 L2
L1
L2
14
Marey Electric Tankless Water Heater by Wahlbach
15
EN EN
Mounting InstructionsMounting Instructions
Marey Electric Tankless Water Heater by Wahlbach
PP15, PP18, PP24
B3.
MOUNTING TEMPLATE
Minimum distance from wall Minimum distance from wall
Warm water connection Cold water connection
Minimum distance to the ground
Minimum distance to the ceiling
Connection to wall Connection to wall
Input electric cable
Screws, washers and anchors
5/16”
5/16”
5/16”
4”
8”
4”
4”
5/16”
Rev02 NA
B4.
B5.
max� 25mm (1”)
B6.
PP15, PP18, PP24
B7.a PP15
25mm
(1”)
150mm (6”)
L1
L2
B8.a PP15
L1
L2
Push the button
to reset the switch
B7.b PP18, PP24
25mm
(1”)
150mm (6”)
L/L1
N/L2
L/L1
N/L2
220-240V
220-240V
B8.b PP18, PP24
Push the button
to reset the switch
L1 L2
L1
L2
16
Marey Electric Tankless Water Heater by Wahlbach
17
EN EN
Mounting InstructionsMounting Instructions
Marey Electric Tankless Water Heater by Wahlbach
PP15, PP18, PP24
B9.
Filter mat must be installed to
the inlet!
Two wrenches should
be used to fix the tube
to the inlet and outlet!
B10.
2
1
Display plug
3
B11.
InletOutlet
Filter matGasket
The appliance must be grounded properly!
The filter mat contained in accessory bag must be installed when connecting
with inlet(cold) water pipe or hose!
Ground fault circuit interrupter must be installed with the appliance, please take
page 17 to 22 for the selection of interrupter.
Frost
The appliance is not to be installed in locations where freezing can occur.
The device should be installed in a vertical position in a room protected from
frost and in the proximity of the water connections.
In case the room cannot be protected against frost, the device should not be
installed in this room. Should the device be installed in such a room, the device
should be emptied before the frost danger will occur.
Do not switch on if there is a possibility that the water in the device is frozen.
For PP7, PP8, PP12
See image A1, A2
Remove the screw with a Phillips-head screwdriver and open the top cover. Re-
move the display plug, remove the top cover and put aside.
See image A3
1. Use two pieces of tape to fix the template on the wall where the device is to
be installed.
2. Drill four 5/16”/8mm holes through the template.
See image A4, A5, A6, A7, A8
3. Insert the anchors into the holes drilled at last step.
4. Install the appliance with the supplied screws and spacers.
5. Cut the cable to the required length and connect it to the terminal block,
press the button to reset the switch, as indicated in A7 and A8.
This appliance must be grounded properly!
The electrical connection should be made by a qualified electrician, in accor-
dance with the relevant regulations (IEC, NEC, etc.)
See image A9, A10, A11
6. Install the hot water pipe to the left, and install the cold water supply to the
right, using two spanners, as indicated in A9.
7. Insert the display plug, and install the top of the housing.
8. Install the screw at the bottom.
Make sure only fittings for close-outlet water heaters can be used!
Make sure taps/flow control device be install on the outlet of the appliance!
Make sure the filter mat in the inlet is installed, as indicated in A9 and A11.
16
Marey Electric Tankless Water Heater by Wahlbach
17
EN EN
Mounting InstructionsMounting Instructions
Marey Electric Tankless Water Heater by Wahlbach
PP15, PP18, PP24
B9.
Filter mat must be installed to
the inlet!
Two wrenches should
be used to fix the tube
to the inlet and outlet!
B10.
2
1
Display plug
3
B11.
InletOutlet
Filter matGasket
The appliance must be grounded properly!
The filter mat contained in accessory bag must be installed when connecting
with inlet(cold) water pipe or hose!
Ground fault circuit interrupter must be installed with the appliance, please take
page 17 to 22 for the selection of interrupter.
Frost
The appliance is not to be installed in locations where freezing can occur.
The device should be installed in a vertical position in a room protected from
frost and in the proximity of the water connections.
In case the room cannot be protected against frost, the device should not be
installed in this room. Should the device be installed in such a room, the device
should be emptied before the frost danger will occur.
Do not switch on if there is a possibility that the water in the device is frozen.
For PP7, PP8, PP12
See image A1, A2
Remove the screw with a Phillips-head screwdriver and open the top cover. Re-
move the display plug, remove the top cover and put aside.
See image A3
1. Use two pieces of tape to fix the template on the wall where the device is to
be installed.
2. Drill four 5/16”/8mm holes through the template.
See image A4, A5, A6, A7, A8
3. Insert the anchors into the holes drilled at last step.
4. Install the appliance with the supplied screws and spacers.
5. Cut the cable to the required length and connect it to the terminal block,
press the button to reset the switch, as indicated in A7 and A8.
This appliance must be grounded properly!
The electrical connection should be made by a qualified electrician, in accor-
dance with the relevant regulations (IEC, NEC, etc.)
See image A9, A10, A11
6. Install the hot water pipe to the left, and install the cold water supply to the
right, using two spanners, as indicated in A9.
7. Insert the display plug, and install the top of the housing.
8. Install the screw at the bottom.
Make sure only fittings for close-outlet water heaters can be used!
Make sure taps/flow control device be install on the outlet of the appliance!
Make sure the filter mat in the inlet is installed, as indicated in A9 and A11.
18
Marey Electric Tankless Water Heater by Wahlbach
19
EN EN
Technical SpecificationsMounting Instructions
Marey Electric Tankless Water Heater by Wahlbach
Commissioning
• Fill the device and vent it by opening a hot water tap connected to it.
• Only switch on the electrical supply once the device is clear of any air.
• Switch on the earth leakage circuit breaker, turn on the appliance and open
the hot water tap, wait for about 20 secs before the appliance start working.
• Check the operation of the device.
For
PP15, PP18, PP24
See image B1, B2
Remove the screw with a Phillips-head screwdriver and open the top cover. Re-
move the display plug, remove the top cover and put aside.
See image B3
1. Use two pieces of tape to fix the template on the wall where the device is to
be installed.
2. Drill four 5/16”/8mm holes through the template.
See image B4, B5, B6, B7, B8
3. Insert the anchors into the holes drilled at last step.
4. Install the appliance with the supplied screws and spacers.
5. Cut the cable to the required length and connect it to the terminal block,
press the button to reset the switch, as indicated in B7 and B8, please note
that the wire connection is different between PP15, PP18 and PP24.
This appliance must be grounded properly!
The electrical connection should be made by a qualified electrician, in accor-
dance with the relevant regulations (IEC, NEC, etc.)
See image B9, B10, B11
6. Install the hot water pipe to the left, and install the cold water supply to the
right, using two spanners, as indicated in B9.
7. Insert the display plug, and install the top of the housing.
8. Install the screw at the bottom.
Make sure only fittings for close-outlet water heaters can be used!
Make sure taps/flow control device be install on the outlet of the appliance!
Make sure the filter mat in the inlet is installed, as indicated in B9 and B11.
Commissioning
• Fill the device and vent it by opening a hot water tap connected to it.
• Only switch on the electrical supply once the device is clear of any air.
• Switch on the earth leakage circuit breaker, turn on the appliance and open
the hot water tap, wait for about 20 secs before the appliance start working.
• Check the operation of the device.
3. Technical Specifications
Technical specifications
POWER PAK Series PP7 PP8 PP12
Electric supply
208-240V~
60Hz
208-240V~
60Hz
208-240V~
60Hz
Nominal power rating
5.4 kW @ 208V 6.4 kW @ 208V 9 kW @ 208V
7.2 kW @ 240V 8.5 kW @ 240V 12 kW @ 240V
Nominal current
26 A @ 208V 31 A @ 208V 43 A @ 208V
30 A @ 240V 36 A @ 240V 50 A @ 240V
Ground fault circuit inter-
rupter
2-POLE 30A 2-POLE 40A 2-POLE 60A
Cable size 10 AWG 10 AWG 10 AWG
Resistivity of the water
supply
≥ 3300 Ω•in ≥ 3300 Ω•in ≥ 3300 Ω•in
Flow rate (Δt=45°F) @ 240V 1.0 GPM 1.2 GPM 1.8 GPM
Flow rate (Δt=65°F) @ 240V 0.7 GPM 0.8 GPM 1.2 GPM
Heating system Bare element Bare element Bare element
Temperature range 95 - 140 °F 95 - 140 °F 95 - 140 °F
Switch on flow rate 0.58 GPM 0.58 GPM 0.58 GPM
Non-usage consumption < 1Wh/h < 1Wh/h < 1Wh/h
Protection class IP25 IP25 IP25
Unit dimensions 13¾ x 7
⅞
x 4¾” 13¾ x 7
⅞
x 4¾” 13¾ x 7
⅞
x 4¾”
Unit weight 5.4 lb 5.4 lb 5.4 lb
Water connections 1/2" NPT 1/2" NPT 1/2" NPT
Max. inlet water pressure 150 PSI 150 PSI 150 PSI
Min. inlet water pressure 15 PSI 15 PSI 15 PSI
Switch on flow pressure 15 PSI 15 PSI 15 PSI
18
Marey Electric Tankless Water Heater by Wahlbach
19
EN EN
Technical SpecificationsMounting Instructions
Marey Electric Tankless Water Heater by Wahlbach
Commissioning
• Fill the device and vent it by opening a hot water tap connected to it.
• Only switch on the electrical supply once the device is clear of any air.
• Switch on the earth leakage circuit breaker, turn on the appliance and open
the hot water tap, wait for about 20 secs before the appliance start working.
• Check the operation of the device.
For
PP15, PP18, PP24
See image B1, B2
Remove the screw with a Phillips-head screwdriver and open the top cover. Re-
move the display plug, remove the top cover and put aside.
See image B3
1. Use two pieces of tape to fix the template on the wall where the device is to
be installed.
2. Drill four 5/16”/8mm holes through the template.
See image B4, B5, B6, B7, B8
3. Insert the anchors into the holes drilled at last step.
4. Install the appliance with the supplied screws and spacers.
5. Cut the cable to the required length and connect it to the terminal block,
press the button to reset the switch, as indicated in B7 and B8, please note
that the wire connection is different between PP15, PP18 and PP24.
This appliance must be grounded properly!
The electrical connection should be made by a qualified electrician, in accor-
dance with the relevant regulations (IEC, NEC, etc.)
See image B9, B10, B11
6. Install the hot water pipe to the left, and install the cold water supply to the
right, using two spanners, as indicated in B9.
7. Insert the display plug, and install the top of the housing.
8. Install the screw at the bottom.
Make sure only fittings for close-outlet water heaters can be used!
Make sure taps/flow control device be install on the outlet of the appliance!
Make sure the filter mat in the inlet is installed, as indicated in B9 and B11.
Commissioning
• Fill the device and vent it by opening a hot water tap connected to it.
• Only switch on the electrical supply once the device is clear of any air.
• Switch on the earth leakage circuit breaker, turn on the appliance and open
the hot water tap, wait for about 20 secs before the appliance start working.
• Check the operation of the device.
3. Technical Specifications
Technical specifications
POWER PAK Series PP7 PP8 PP12
Electric supply
208-240V~
60Hz
208-240V~
60Hz
208-240V~
60Hz
Nominal power rating
5.4 kW @ 208V 6.4 kW @ 208V 9 kW @ 208V
7.2 kW @ 240V 8.5 kW @ 240V 12 kW @ 240V
Nominal current
26 A @ 208V 31 A @ 208V 43 A @ 208V
30 A @ 240V 36 A @ 240V 50 A @ 240V
Ground fault circuit inter-
rupter
2-POLE 30A 2-POLE 40A 2-POLE 60A
Cable size 10 AWG 10 AWG 10 AWG
Resistivity of the water
supply
≥ 3300 Ω•in ≥ 3300 Ω•in ≥ 3300 Ω•in
Flow rate (Δt=45°F) @ 240V 1.0 GPM 1.2 GPM 1.8 GPM
Flow rate (Δt=65°F) @ 240V 0.7 GPM 0.8 GPM 1.2 GPM
Heating system Bare element Bare element Bare element
Temperature range 95 - 140 °F 95 - 140 °F 95 - 140 °F
Switch on flow rate 0.58 GPM 0.58 GPM 0.58 GPM
Non-usage consumption < 1Wh/h < 1Wh/h < 1Wh/h
Protection class IP25 IP25 IP25
Unit dimensions 13¾ x 7
⅞
x 4¾” 13¾ x 7
⅞
x 4¾” 13¾ x 7
⅞
x 4¾”
Unit weight 5.4 lb 5.4 lb 5.4 lb
Water connections 1/2" NPT 1/2" NPT 1/2" NPT
Max. inlet water pressure 150 PSI 150 PSI 150 PSI
Min. inlet water pressure 15 PSI 15 PSI 15 PSI
Switch on flow pressure 15 PSI 15 PSI 15 PSI
20
Marey Electric Tankless Water Heater by Wahlbach
21
EN EN
Technical SpecificationsTechnical Specifications
Marey Electric Tankless Water Heater by Wahlbach
Technical specifications
POWER PAK Series PP15 PP18 PP24
Electric supply 208-240V~ 60Hz 208-240V~ 60Hz 208-240V~ 60Hz
Nominal power rating
11.3 kW @ 208V 13.5 kW @ 208V 18 kW @ 208V
15 kW @ 240V 18 kW @ 240V 24 kW @ 240V
Nominal current
54 A @ 208V 2 x 33 A @ 208V 2 x 43 A @ 208V
63 A @ 240V 2 x 40 A @ 240V 2 x 50 A @ 240V
Ground fault circuit inter-
rupter
(2) 2-POLE 70A (2) 2-POLE 40A (2) 2-POLE 60A
Cable size 8 AWG (2) 10 AWG (2) 10 AWG
Resistivity of the water
supply
≥ 3300 Ω•in ≥ 3300 Ω•in ≥ 3300 Ω•in
Flow rate (Δt=45°F) @ 240V 2.3 GPM 2.7 GPM 3.6 GPM
Flow rate (Δt=65°F) @ 240V 1.6 GPM 1.9 GPM 2.5 GPM
Heating system Bare element Bare element Bare element
Temperature range 95 - 140 °F 95 - 140 °F 95 - 140 °F
Switch on flow rate 0.66 GPM 0.66 GPM 0.66 GPM
Non-usage consumption < 1Wh/h < 1Wh/h < 1Wh/h
Protection class IP24 IP24 IP24
Unit dimensions 18¾ x 10
⅞
x 4
⅞
” 18¾ x 10
⅞
x 4
⅞
” 18¾ x 10
⅞
x 4
⅞
”
Unit weight 7.8 lb 7.8 lb 7.8 lb
Water connections 1/2" NPT 1/2" NPT 1/2" NPT
Max. inlet water pressure 150 PSI 150 PSI 150 PSI
Min. inlet water pressure 15 PSI 15 PSI 15 PSI
Switch on flow pressure 15 PSI 15 PSI 15 PSI
Maximum Temperature Rise vs. Flow Rate at 240V
Note: Temperature rise = Hot Water Temp. - Cold Water Temp.
10.000
20.000
30.000
40.000
50.000
60.000
70.000
80.000
90.000
0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6. 5 7.0 7.5 8. 0
Temperature Rise F
Flow Rate GPM
Maximum Temperature Rise vs. Flow Rate at 240V
PP7 PP8 PP12 PP15 PP18 PP24
20
Marey Electric Tankless Water Heater by Wahlbach
21
EN EN
Technical SpecificationsTechnical Specifications
Marey Electric Tankless Water Heater by Wahlbach
Technical specifications
POWER PAK Series PP15 PP18 PP24
Electric supply 208-240V~ 60Hz 208-240V~ 60Hz 208-240V~ 60Hz
Nominal power rating
11.3 kW @ 208V 13.5 kW @ 208V 18 kW @ 208V
15 kW @ 240V 18 kW @ 240V 24 kW @ 240V
Nominal current
54 A @ 208V 2 x 33 A @ 208V 2 x 43 A @ 208V
63 A @ 240V 2 x 40 A @ 240V 2 x 50 A @ 240V
Ground fault circuit inter-
rupter
(2) 2-POLE 70A (2) 2-POLE 40A (2) 2-POLE 60A
Cable size 8 AWG (2) 10 AWG (2) 10 AWG
Resistivity of the water
supply
≥ 3300 Ω•in ≥ 3300 Ω•in ≥ 3300 Ω•in
Flow rate (Δt=45°F) @ 240V 2.3 GPM 2.7 GPM 3.6 GPM
Flow rate (Δt=65°F) @ 240V 1.6 GPM 1.9 GPM 2.5 GPM
Heating system Bare element Bare element Bare element
Temperature range 95 - 140 °F 95 - 140 °F 95 - 140 °F
Switch on flow rate 0.66 GPM 0.66 GPM 0.66 GPM
Non-usage consumption < 1Wh/h < 1Wh/h < 1Wh/h
Protection class IP24 IP24 IP24
Unit dimensions 18¾ x 10
⅞
x 4
⅞
” 18¾ x 10
⅞
x 4
⅞
” 18¾ x 10
⅞
x 4
⅞
”
Unit weight 7.8 lb 7.8 lb 7.8 lb
Water connections 1/2" NPT 1/2" NPT 1/2" NPT
Max. inlet water pressure 150 PSI 150 PSI 150 PSI
Min. inlet water pressure 15 PSI 15 PSI 15 PSI
Switch on flow pressure 15 PSI 15 PSI 15 PSI
Maximum Temperature Rise vs. Flow Rate at 240V
Note: Temperature rise = Hot Water Temp. - Cold Water Temp.
10.000
20.000
30.000
40.000
50.000
60.000
70.000
80.000
90.000
0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6. 5 7.0 7.5 8. 0
Temperature Rise F
Flow Rate GPM
Maximum Temperature Rise vs. Flow Rate at 240V
PP7 PP8 PP12 PP15 PP18 PP24
22
Marey Electric Tankless Water Heater by Wahlbach
23
EN EN
MaintenanceUser Manual
Marey Electric Tankless Water Heater by Wahlbach
4. User Manual
Operation
The electronically regulated continuous-flow water heater with automatic tem-
perature adjustment keeps the outflow temperature constant.
The device has touch key to switch it on and off, and
/
keys to adjust the
heating.
: Decrease the outlet setting temperature;
: Increase the outlet setting temperature.
Adjust the temperature settings as desired.
If the selected outflow temperature is not reached when the tap is fully opened,
then the water flow through the device exceeds the capacity of the device. In
this case, the flow should be reduced with the hot water valve. There is a danger
of scalding at outflow temperatures exceeding 108°F.
This unit is intended for use with shower heads with a low pressure loss. Mixer
taps and thermostatic mixer taps should be of a design compatible with devices
with flow control.
Fittings for open-outlet water heaters should not be used!
Only fittings for close-outlet water heaters can be used!
Suggestion: To ensure that the minimum flow (switch-on flow) of a water-pressure
operated device is reached, the pressure loss (head loss) of the device, fittings,
shower head, shower hose and piping should all be considered when installing
the device.
Typical pressure losses at a water flow of approx. 2.6 GPM:
• Mixer tap: 5.8 - 11.6 PSI
• Thermostatic mixer tap: 4.4 - 7.3 PSI
• Shower head: 4.4 - 21.8 PSI
Without a temperature limiter, high temperatures may be reached at draw-off
points. Keep children away from the draw-off points.
Danger of scalding!
The appliance should be disconnected from the electrical mains supply when
working on the water supply. After service work is complete, proceed as during
the first-time appliance start-up.
The main water valve should be closed before any work is done on the water
pipe.
If the water supply is interrupted, e.g. due to maintenance on the mains water
supply, then the following steps should be undertaken before returning the de-
vice to operation:
1. Remove the fuses or isolate the device in another way.
2. Open a hot water valve connected to the device until the air is vented from
both the device and the cold-water supply pipe.
3. Replace the fuses or rPOWER PAKnnect the supply.
5. Maintenance
Maintenance
This device does not require any maintenance by the user. Professional mainte-
nance may only be carried out by duly authorized technical staff. Maintenance,
e.g. verifying electrical safety, should only be undertaken by a qualified electri-
cian, observing the relevant regulations (IEEE, etc.).
If faulty, please take follow the trouble shooting in page 24 to 26 to make the
diagnosis. If still have problem, never try to repair the hot water device yourself,
please contact the nearest service specialist for help.
Care
The enclosure can simply be cleaned with a damp cloth. Do not use aggressive
cleaners or cleaner’s with a scouring effect!
De-scaling
The appliance is only to be descaled by a suitably qualified specialist.
Legislation prevention
Do not use heated water as drinking water.
After prolonged shutdown of the device for example due holiday, the device
should be fully heated up to the maximum temperature (tap at minimum flow)
before re-using. It is rPOWER PAKmmended to flush the pipes for one minute.
22
Marey Electric Tankless Water Heater by Wahlbach
23
EN EN
MaintenanceUser Manual
Marey Electric Tankless Water Heater by Wahlbach
4. User Manual
Operation
The electronically regulated continuous-flow water heater with automatic tem-
perature adjustment keeps the outflow temperature constant.
The device has touch key to switch it on and off, and
/
keys to adjust the
heating.
: Decrease the outlet setting temperature;
: Increase the outlet setting temperature.
Adjust the temperature settings as desired.
If the selected outflow temperature is not reached when the tap is fully opened,
then the water flow through the device exceeds the capacity of the device. In
this case, the flow should be reduced with the hot water valve. There is a danger
of scalding at outflow temperatures exceeding 108°F.
This unit is intended for use with shower heads with a low pressure loss. Mixer
taps and thermostatic mixer taps should be of a design compatible with devices
with flow control.
Fittings for open-outlet water heaters should not be used!
Only fittings for close-outlet water heaters can be used!
Suggestion: To ensure that the minimum flow (switch-on flow) of a water-pressure
operated device is reached, the pressure loss (head loss) of the device, fittings,
shower head, shower hose and piping should all be considered when installing
the device.
Typical pressure losses at a water flow of approx. 2.6 GPM:
• Mixer tap: 5.8 - 11.6 PSI
• Thermostatic mixer tap: 4.4 - 7.3 PSI
• Shower head: 4.4 - 21.8 PSI
Without a temperature limiter, high temperatures may be reached at draw-off
points. Keep children away from the draw-off points.
Danger of scalding!
The appliance should be disconnected from the electrical mains supply when
working on the water supply. After service work is complete, proceed as during
the first-time appliance start-up.
The main water valve should be closed before any work is done on the water
pipe.
If the water supply is interrupted, e.g. due to maintenance on the mains water
supply, then the following steps should be undertaken before returning the de-
vice to operation:
1. Remove the fuses or isolate the device in another way.
2. Open a hot water valve connected to the device until the air is vented from
both the device and the cold-water supply pipe.
3. Replace the fuses or rPOWER PAKnnect the supply.
5. Maintenance
Maintenance
This device does not require any maintenance by the user. Professional mainte-
nance may only be carried out by duly authorized technical staff. Maintenance,
e.g. verifying electrical safety, should only be undertaken by a qualified electri-
cian, observing the relevant regulations (IEEE, etc.).
If faulty, please take follow the trouble shooting in page 24 to 26 to make the
diagnosis. If still have problem, never try to repair the hot water device yourself,
please contact the nearest service specialist for help.
Care
The enclosure can simply be cleaned with a damp cloth. Do not use aggressive
cleaners or cleaner’s with a scouring effect!
De-scaling
The appliance is only to be descaled by a suitably qualified specialist.
Legislation prevention
Do not use heated water as drinking water.
After prolonged shutdown of the device for example due holiday, the device
should be fully heated up to the maximum temperature (tap at minimum flow)
before re-using. It is rPOWER PAKmmended to flush the pipes for one minute.
24
Marey Electric Tankless Water Heater by Wahlbach
25
EN EN
TroubleshootingTroubleshooting
Marey Electric Tankless Water Heater by Wahlbach
6. Troubleshooting
First aid
• Check the leakage protection switch and the fuses.
• Check if any fittings or shower head are affected by the build-up of lime scale
or dirt.
• See also “Troubleshooting by users“.
Troubleshooting by users
Problem Cause Solution
Water heater is not heating
at all (water is flowing but
the unit is not heating - the
outgoing water temperature
is the same as the cold
water supply) - the digital
display does NOT light up.
No power or incor-
rect wiring.
Make sure the breakers at
main electrical panel are
ON. You may have a faulty
breaker or unit may be
wired incorrectly.
Water heater is not heating
at all (water is flowing but
the unit is not heating - the
outgoing water temperature
is the same as the cold-wa-
ter supply) The digital
display DOES light up, but
no temperature display.
Flow rate is too low /
water pressure is too
low.
Your water heater has
an activation flow rate of
approximately 0.58GP-
M/0.66GPM. If your water
flow rate is less than this
level, your unit will not
activate. Increase the flow
rate or check the filter mat
inside the inlet connector.
The air bubbles in the
water heater have
not been purged out.
Make sure the breakers at
main electrical panel are
ON, turn on the unit and
open the hot water tap for
about 20s.
Flow rate is too low
Something was
blocked in the fil-
ter mat / Pipe was
blocked
Check and clean the filter
mat inside the inlet con-
nector.
Water heater is not heat-
ing at all. The LCD display
shows “E2”
Internal part failure
Please call for your local
service.
Troubleshooting by users
Problem Cause Solution
Water heater is heating, but
the water temperature is
not hot enough.
User temperature
setting too low.
Increase the temperature
setting on the unit.
Flow rate is too high.
Depending on your in-
coming water temperature
and the kW of your heater,
your water flow rate may
exceed the physical heat-
ing capacity of your water
heater. Reduce the flow
rate by installing a Flow
Regulator.
Crossed wires.
If it’s a new installation,
have your electrician
double check the wiring. Is
possible that the wiring is
incorrect.
Voltage less than 240
volts.
The heating elements
on your water heater are
design for 240 volts. When
used with a lower voltage,
they produce less heating
power. You may need to
upgrade to a larger input
heater.
Mixing too much
cold water.
You do not need to mix as
much cold water with your
tankless water heater com-
pared to when you use a
conventional water heat-
er. You may also have an
anti-scald feature on your
faucet that is mixing cold
water. These types of fau-
cets can usually be adjust-
ed to reduce the amount of
cold water mixed.
24
Marey Electric Tankless Water Heater by Wahlbach
25
EN EN
TroubleshootingTroubleshooting
Marey Electric Tankless Water Heater by Wahlbach
6. Troubleshooting
First aid
• Check the leakage protection switch and the fuses.
• Check if any fittings or shower head are affected by the build-up of lime scale
or dirt.
• See also “Troubleshooting by users“.
Troubleshooting by users
Problem Cause Solution
Water heater is not heating
at all (water is flowing but
the unit is not heating - the
outgoing water temperature
is the same as the cold
water supply) - the digital
display does NOT light up.
No power or incor-
rect wiring.
Make sure the breakers at
main electrical panel are
ON. You may have a faulty
breaker or unit may be
wired incorrectly.
Water heater is not heating
at all (water is flowing but
the unit is not heating - the
outgoing water temperature
is the same as the cold-wa-
ter supply) The digital
display DOES light up, but
no temperature display.
Flow rate is too low /
water pressure is too
low.
Your water heater has
an activation flow rate of
approximately 0.58GP-
M/0.66GPM. If your water
flow rate is less than this
level, your unit will not
activate. Increase the flow
rate or check the filter mat
inside the inlet connector.
The air bubbles in the
water heater have
not been purged out.
Make sure the breakers at
main electrical panel are
ON, turn on the unit and
open the hot water tap for
about 20s.
Flow rate is too low
Something was
blocked in the fil-
ter mat / Pipe was
blocked
Check and clean the filter
mat inside the inlet con-
nector.
Water heater is not heat-
ing at all. The LCD display
shows “E2”
Internal part failure
Please call for your local
service.
Troubleshooting by users
Problem Cause Solution
Water heater is heating, but
the water temperature is
not hot enough.
User temperature
setting too low.
Increase the temperature
setting on the unit.
Flow rate is too high.
Depending on your in-
coming water temperature
and the kW of your heater,
your water flow rate may
exceed the physical heat-
ing capacity of your water
heater. Reduce the flow
rate by installing a Flow
Regulator.
Crossed wires.
If it’s a new installation,
have your electrician
double check the wiring. Is
possible that the wiring is
incorrect.
Voltage less than 240
volts.
The heating elements
on your water heater are
design for 240 volts. When
used with a lower voltage,
they produce less heating
power. You may need to
upgrade to a larger input
heater.
Mixing too much
cold water.
You do not need to mix as
much cold water with your
tankless water heater com-
pared to when you use a
conventional water heat-
er. You may also have an
anti-scald feature on your
faucet that is mixing cold
water. These types of fau-
cets can usually be adjust-
ed to reduce the amount of
cold water mixed.
26
Marey Electric Tankless Water Heater by Wahlbach
27
EN EN
Warranty ConditionsTroubleshooting
Marey Electric Tankless Water Heater by Wahlbach
Troubleshooting by users
Problem Cause Solution
The water temperature at
the faucet is less or greater
than the temperature set-
ting of my water heater.
Anti-Scald pressure/
balancing valve or
tempering valve.
Your faucet may have an
anti-scald feature or a
tempering valve that auto-
matically mixes cold water
even when you turn your
control lever or handle to
full hot. These devices
are usually adjustable so
you can turn off the cold
mix completely. You can
compensate for this by
increasing the setting on
your water heater if you
need/want hotter water.
Thermal loss due to
long pipe run
As the hot water from the
heater runs through the
hot water delivery system
to your faucet, some heat
will be lost especially if it
has long distance to travel
or the pipes are cold.
This is normal. You can
compensate for this by
increasing the setting on
your water heater if you
need/want hotter water.
Water temperature at
the faucet is too hot
Check your flow for too
little flow, set point tem-
perature is too high.
If the appliance still fails to operate after you have executed this procedure,
please inform customer service.
7. Warranty Conditions
Warranty
The rights under this manufacturer’s warranty shall apply in addition
to the buyer’s statutory rights. This warranty shall in no way restrict
the buyer’s statutory rights in particularly towards the seller.
Entitlement
The claiming of rights under this warranty shall be subject to the sub-
mission of the respective proof of purchase.
Content
We shall guarantee as the manufacturer that this product is free of
material and manufacturing errors. Material and manufacturing errors
arising during the warranty period shall justify the rights under the
warranty. This warranty shall not cover errors due to improper instal-
lation or incorrect usage, incorrect operating conditions or defective
maintenance or repair work.
Normal wear and tear such as lime scaling shall also be excluded
under this warranty. The warranty will not be valid if the problem is
caused by extreme values of drinking water (pH value not between 6.5
and 9.5 and/or Cl above 150 mg/l and/or Fe above 0.2mg/l).
Claims
The warranty shall be valid for 5 years. The warranty period shall
commence on the day on which the product is purchased. Warranty
services provided shall neither prolong the warranty period nor initiate
a new warranty period.
Invalidity of
warranty
Attempted repairs carried out by a customer or third party that are not
authorized by us shall invalidate the warranty. The same shall apply if
parts are installed in the product or connected to the product that are
not original parts from us.
Restriction
This warranty shall be restricted to rectification and subsequent de-
livery. This warranty shall not include compensation, withdrawal from
the agreement, reduction in price or any reimbursement for conse-
quential loss due to defects.
The statutory provisions and delivery conditions of the national com-
pany or importers must be observed.
26
Marey Electric Tankless Water Heater by Wahlbach
27
EN EN
Warranty ConditionsTroubleshooting
Marey Electric Tankless Water Heater by Wahlbach
Troubleshooting by users
Problem Cause Solution
The water temperature at
the faucet is less or greater
than the temperature set-
ting of my water heater.
Anti-Scald pressure/
balancing valve or
tempering valve.
Your faucet may have an
anti-scald feature or a
tempering valve that auto-
matically mixes cold water
even when you turn your
control lever or handle to
full hot. These devices
are usually adjustable so
you can turn off the cold
mix completely. You can
compensate for this by
increasing the setting on
your water heater if you
need/want hotter water.
Thermal loss due to
long pipe run
As the hot water from the
heater runs through the
hot water delivery system
to your faucet, some heat
will be lost especially if it
has long distance to travel
or the pipes are cold.
This is normal. You can
compensate for this by
increasing the setting on
your water heater if you
need/want hotter water.
Water temperature at
the faucet is too hot
Check your flow for too
little flow, set point tem-
perature is too high.
If the appliance still fails to operate after you have executed this procedure,
please inform customer service.
7. Warranty Conditions
Warranty
The rights under this manufacturer’s warranty shall apply in addition
to the buyer’s statutory rights. This warranty shall in no way restrict
the buyer’s statutory rights in particularly towards the seller.
Entitlement
The claiming of rights under this warranty shall be subject to the sub-
mission of the respective proof of purchase.
Content
We shall guarantee as the manufacturer that this product is free of
material and manufacturing errors. Material and manufacturing errors
arising during the warranty period shall justify the rights under the
warranty. This warranty shall not cover errors due to improper instal-
lation or incorrect usage, incorrect operating conditions or defective
maintenance or repair work.
Normal wear and tear such as lime scaling shall also be excluded
under this warranty. The warranty will not be valid if the problem is
caused by extreme values of drinking water (pH value not between 6.5
and 9.5 and/or Cl above 150 mg/l and/or Fe above 0.2mg/l).
Claims
The warranty shall be valid for 5 years. The warranty period shall
commence on the day on which the product is purchased. Warranty
services provided shall neither prolong the warranty period nor initiate
a new warranty period.
Invalidity of
warranty
Attempted repairs carried out by a customer or third party that are not
authorized by us shall invalidate the warranty. The same shall apply if
parts are installed in the product or connected to the product that are
not original parts from us.
Restriction
This warranty shall be restricted to rectification and subsequent de-
livery. This warranty shall not include compensation, withdrawal from
the agreement, reduction in price or any reimbursement for conse-
quential loss due to defects.
The statutory provisions and delivery conditions of the national com-
pany or importers must be observed.
