wood block

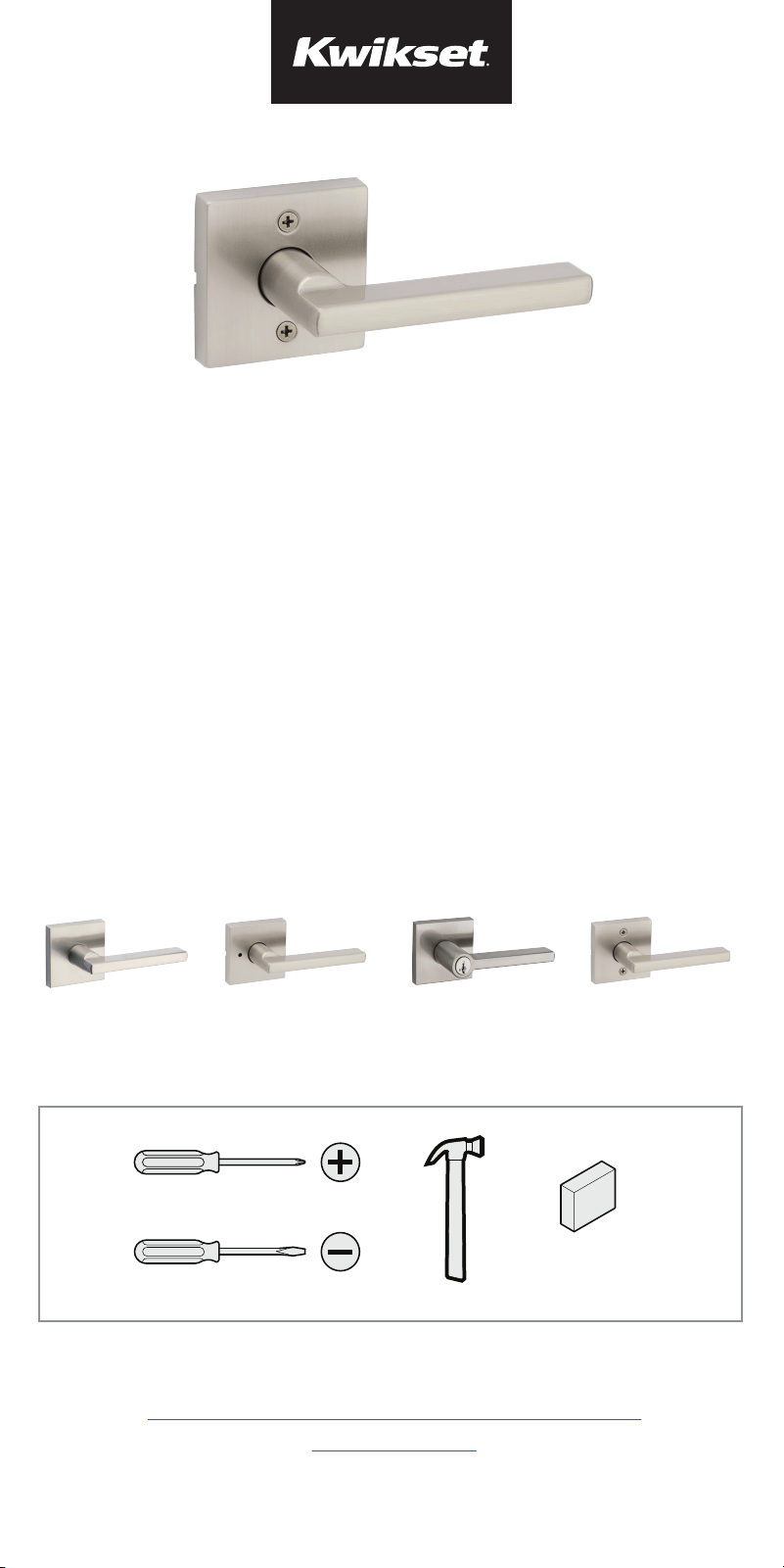

Recommended Tools
Passage
(Hall/ Closet)
Privacy
(Bed/ Bath)
Entry
(Keyed)
Inactive
(Non-Rotating)
*Tools will depend on install type
This manual can be used to install a variety of levers.
Please determine your function type prior to installation.
Door Prep: If you need help in preparing your door
1
Installation and Reference Guide
54784-001
Rev 01
English
Installation Guide
www.kwikset.com
1-800-327-5625
Welcome to the Kwikset family!
This guide will get you ready to install
your new lever.
If you have any issues, please visit our
support center:
kwikset.com/support
or call us at 1-800-327-5625.

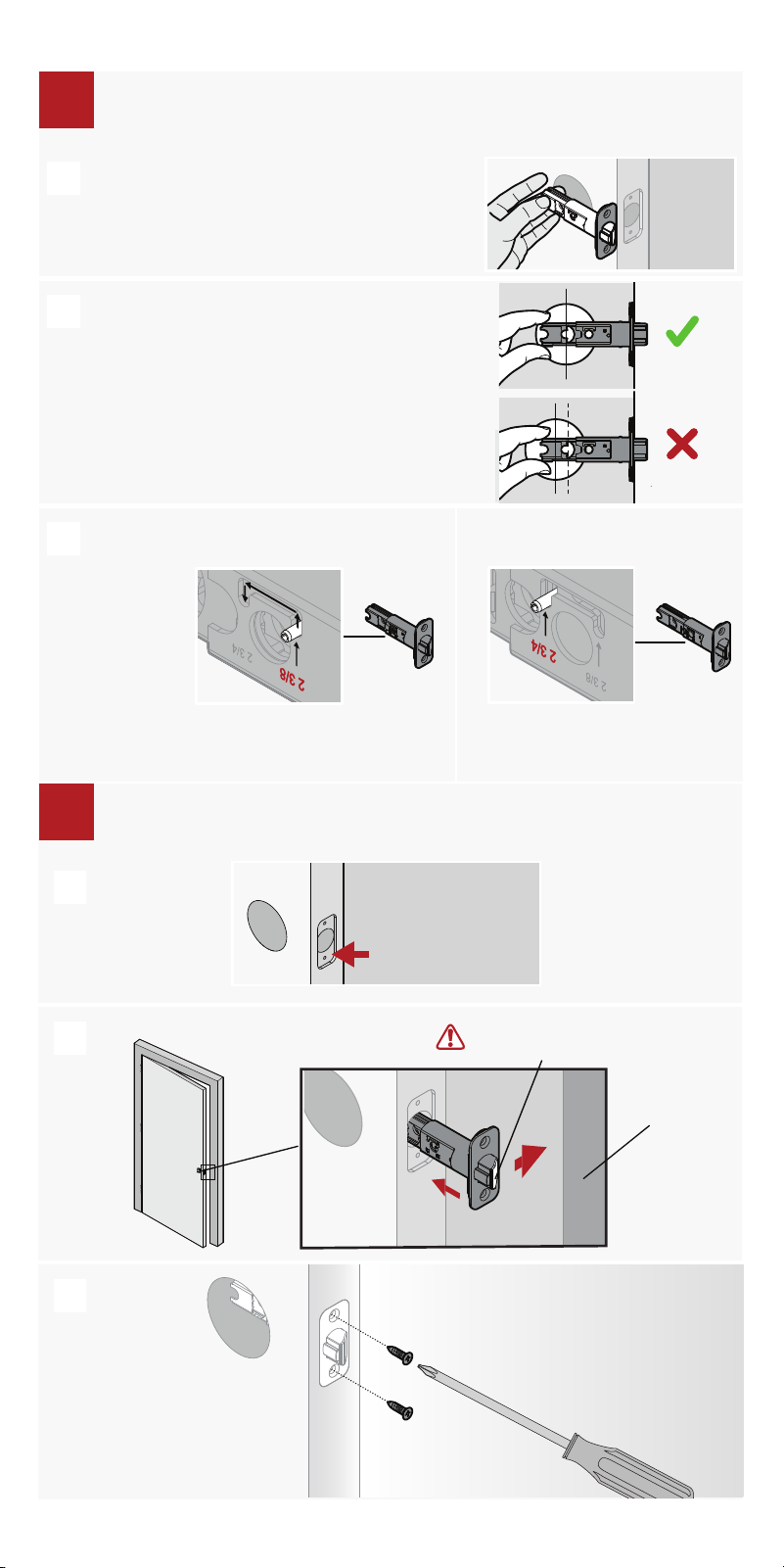

Drilling template
Hold the latch in front of the door hole,
with the latch face flush against the door
edge.
If the latch holes are centered in the door
hole, no adjustment is required. Proceed
to step 2.
If the latch holes are NOT centered, adjust
latch. See “Latch Adjustment” (step 1C).
Latch Adjustment (only if needed)
Move the pin to
extend the latch.
not centered
centered
A
B
C
1
Adjust the backset of the latch (if needed)
Door edge chiseled
Install latch (chiseled door)
Slant of latch bolt
faces door frame
Door frame
2
2
A
B
C

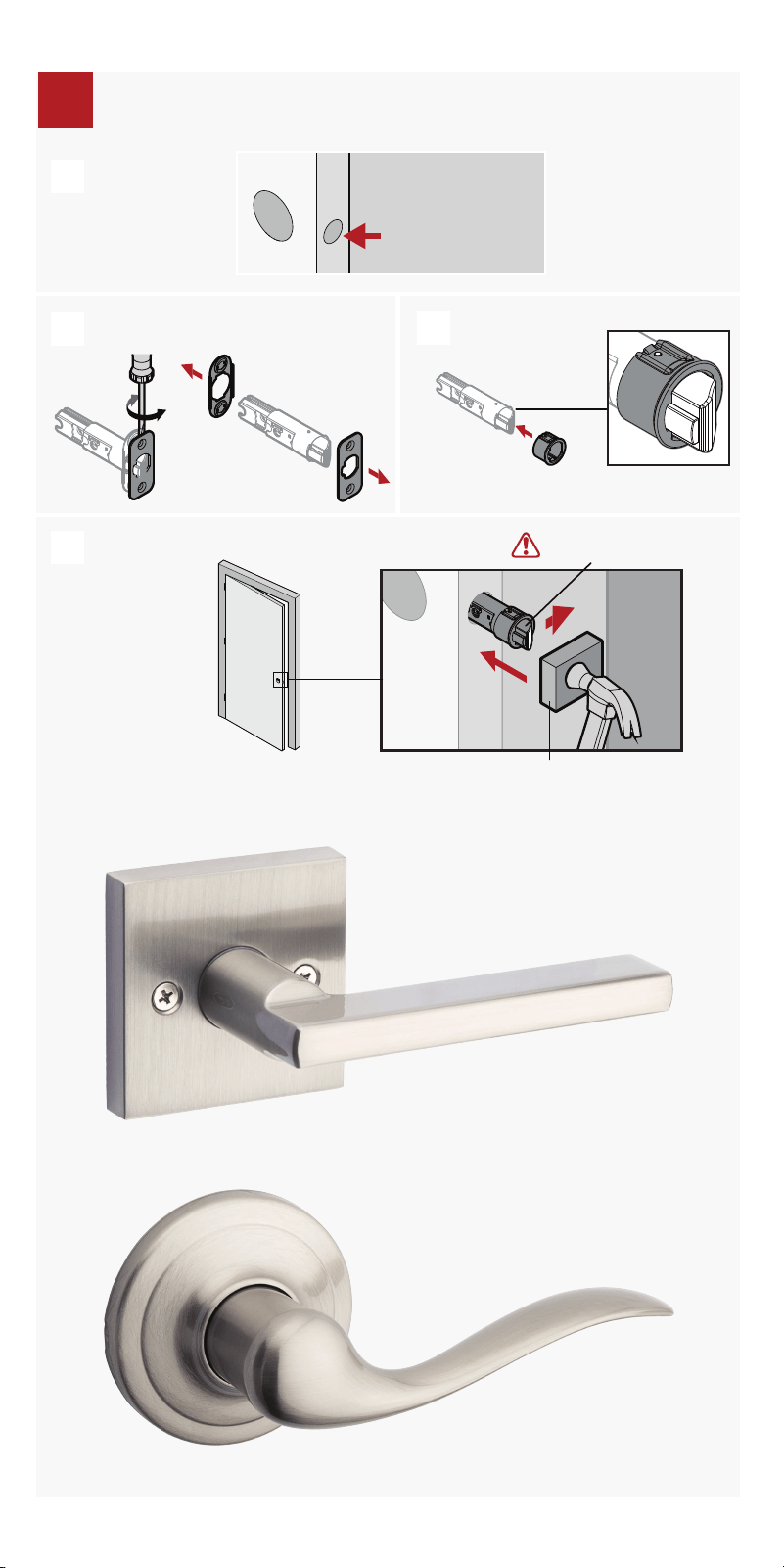

Door edge NOT
chiseled
Remove plates
Install drive-in collar
Wood block
Slant of latch bolt
faces door frame
Use hammer
and wood
block to tap in
latch without
damaging it.
Door frame
Install latch (non-chiseled door)
3
2
If screws are exposed, proceed to the next page.
If screws are concealed, proceed to page 5.
A
B
D
C
4

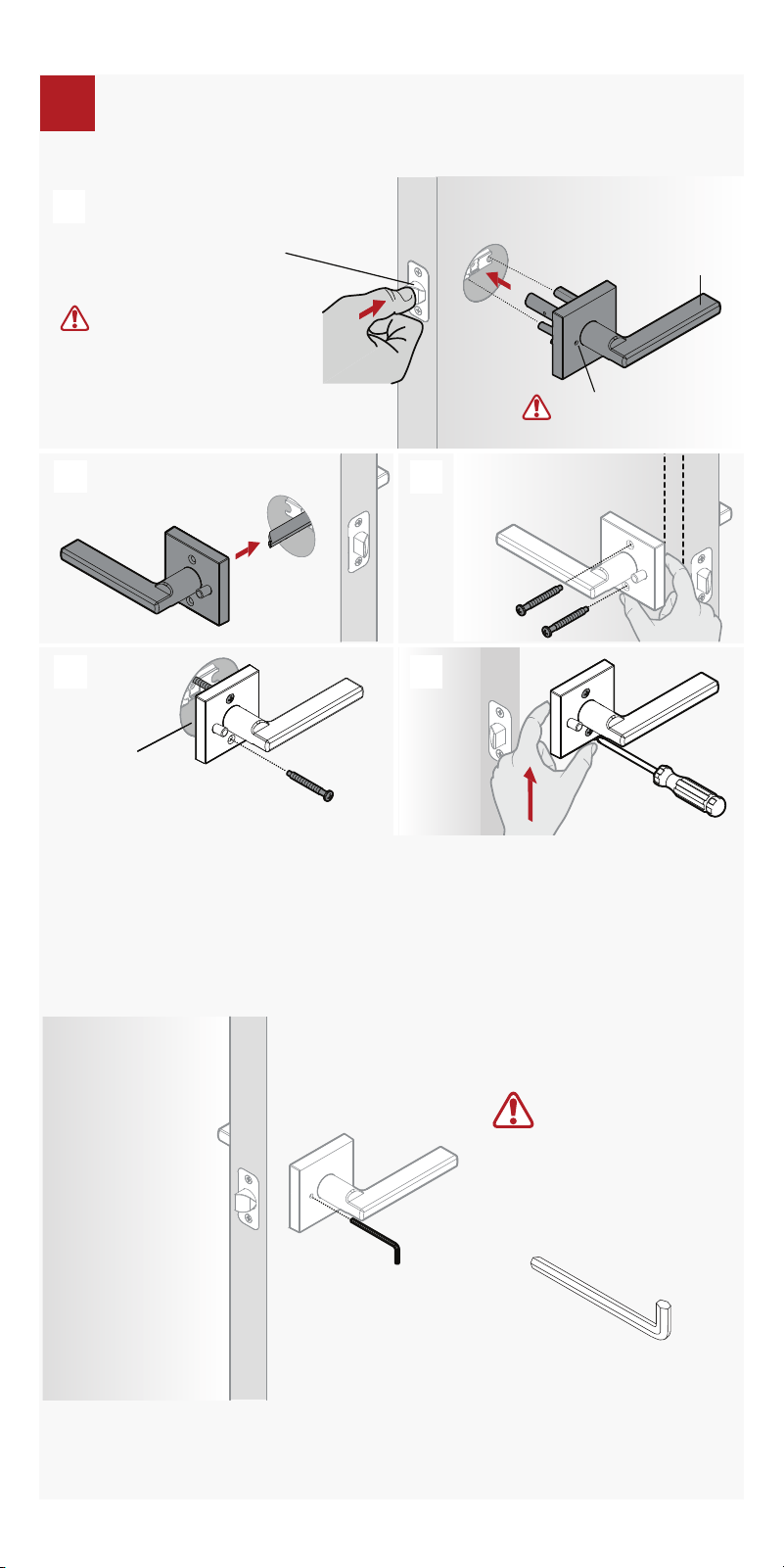

Install Passage, Privacy & Entry levers
(exposed screws)
IMPORTANT: If installing a
passage lock on an entry
door, make sure the lever
without the screw holes
is on the exterior side of
the door.
A
Lever handle faces
away from latch.
Exterior
Hole must be on the
side for privacy levers.
Press latch bolt
to install lever.
Tip: Pull lever
slightly away
from door to see
where screws insert.
B
D
C
E
Interior
Keep parallel
to the door
edge.
3
Save the bedroom/
bathroom emergency
unlock tool for
future use.
For Privacy Locks ONLY
5

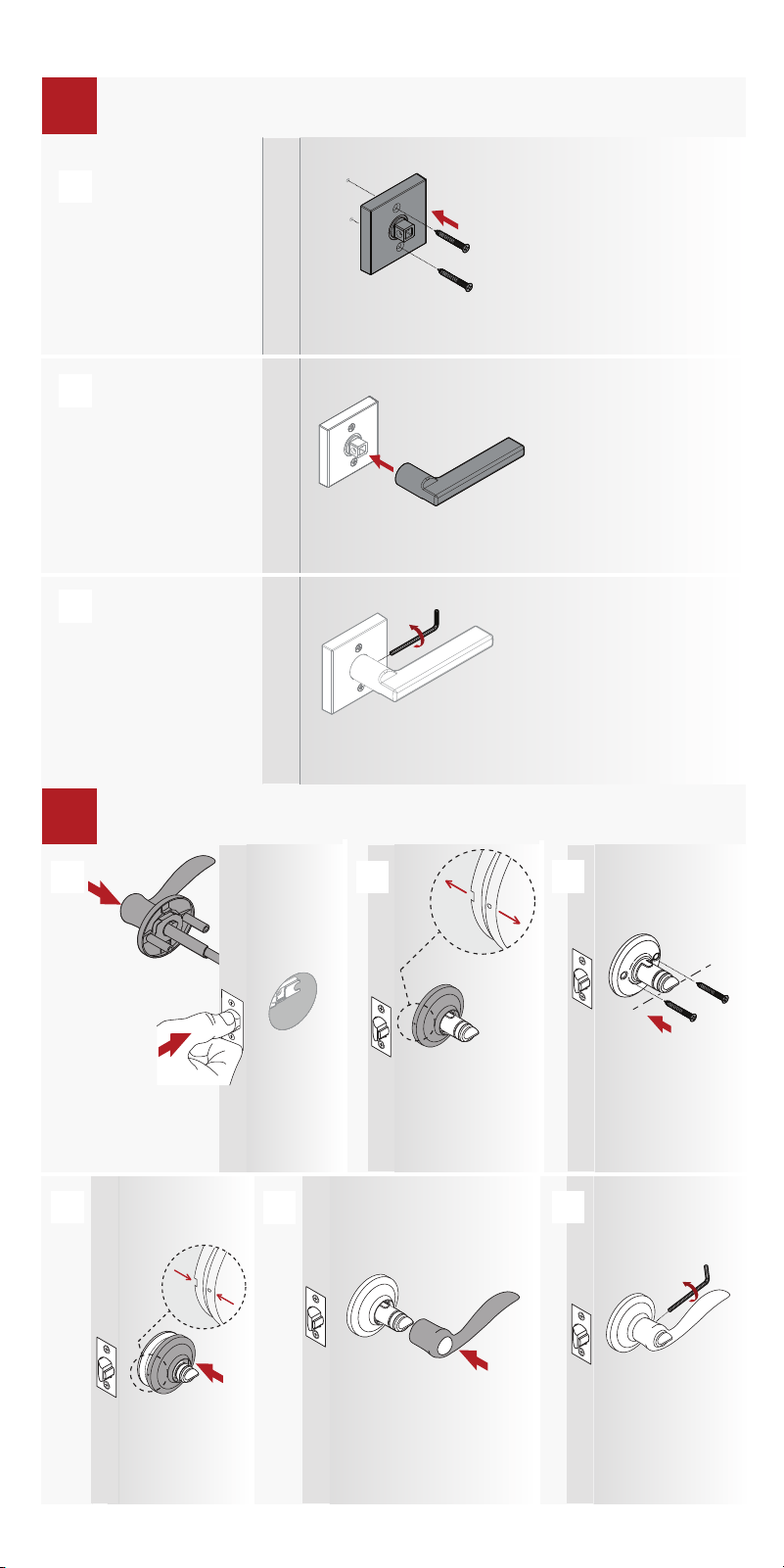

Install inactive (non-rotating) levers
3
C
B
A
A
D F
Interior Interior
E
Interior
A
B
C
Push bolt
to install
exterior
lever.
Interior
Keep turn button
horizontal as
shown.
Interior
Install levers (concealed screws)
Interior
3
6
A

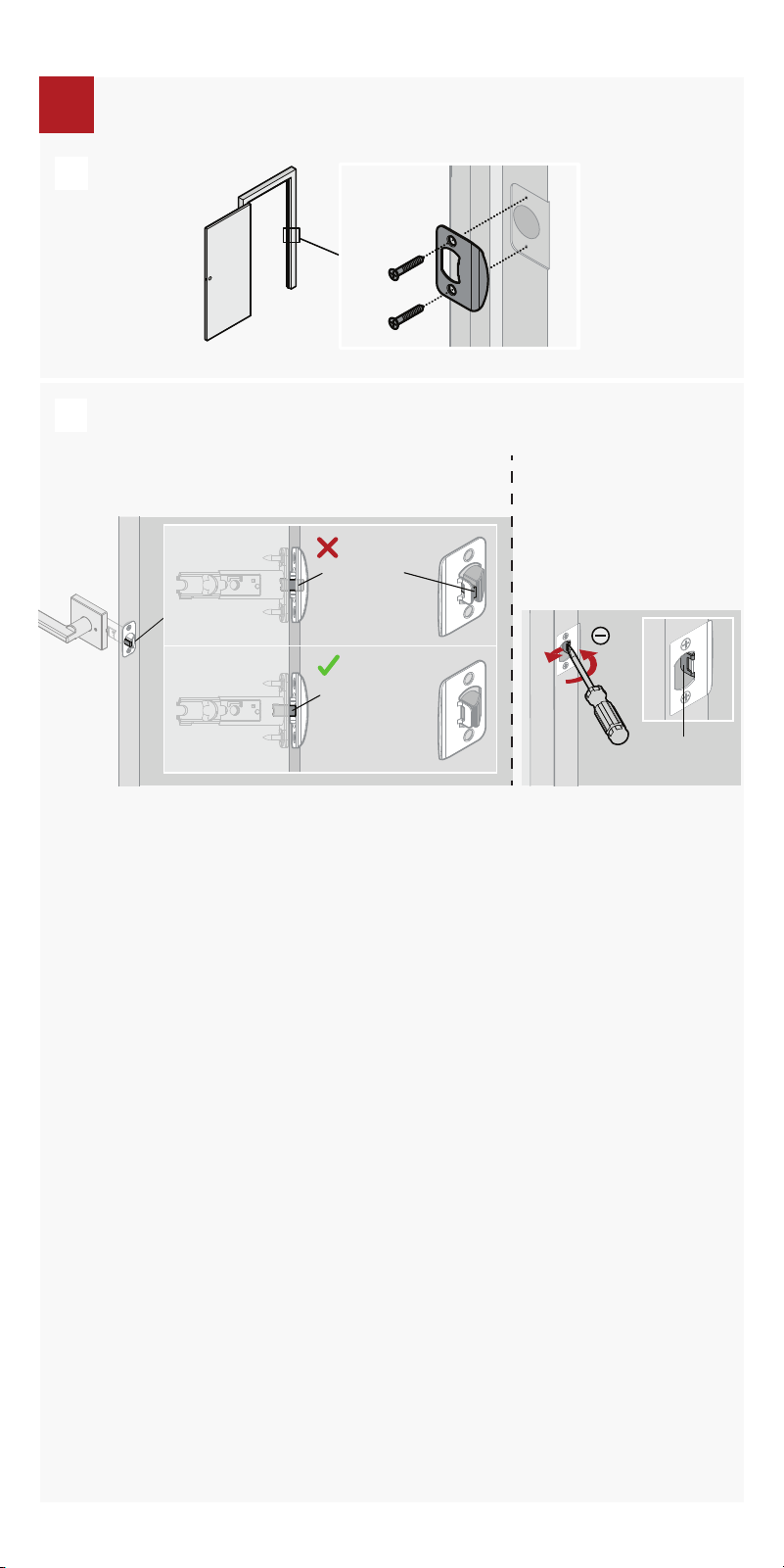

If small bolt of latch enters strike hole,
reposition strike.
small bolt
in strike hole
small bolt NOT
in strike hole
If latch is loose in the
strike, adjust the strike
tab so it grips the latch
bolt better when the
door is closed.
tab
Close door, test latch operation and make adjustments as needed:
B
Install strike to door frame
4
Copyright © 2024 ASSA ABLOY Americas Residential Inc. All rights reserved
SmartKey Rekeying Instructions
For rekeying instructions, you can also visit:
https://www.kwikset.com/support/answers/how-to-re-key-your-smartkey-security-locks
WARNING: This Manufacturer advises that no lock can provide
complete security by itself. This lock may be defeated by forcible or
technical means, or evaded by entry elsewhere on the property. No
lock can substitute for caution, awareness of your environment, and
common sense. Builder’s hardware is available in multiple
performance grades to suit the application. In order to enhance
security and reduce risk, you should consult a qualified locksmith or
other security professional.
