1. SAFETY
9 Refer to the Safety Precautions supplied with your jack.
9 Use jack in an adequate working area for its function, keep area clean & tidy and free from unrelated materials. Ensure there is adequate
lighting.
9 Before use ensure the weight does not exceed the capacity of the jack.
9 Ensure that the cross beam adaptor is complete and all components are in good working order.
9 Keep all unauthorised persons away during lifting and lowering.
9 Maintain correct balance and footing, wear non slip steel toe capped shoes.
9 Remove ill fitting clothing, ties, watches, rings, loose jewellery, and contain and/or tie back long hair.
9 Ensure the vehicle handbrake is engaged and the transmission is in 1st gear or reverse.
9 Ensure a minimum distance of 500mm between vehicle and walls, doors etc..
9 Only place the cross beam adaptor under those lifting points recommended by the vehicle manufacturer.
▲ DANGER! The cross beam adaptor is for lifting and lowering only. Axle stands MUST support vehicle during servicing.
8 DO NOT exceed the rated capacity of the adaptor or jack.
8 DO NOT allow untrained persons to operate the adaptor or jack.
8 DO NOT place any part of your body within or under the vehicle during lifting or lowering.
8 DO NOT work beneath vehicle until axle stands are correctly positioned.
8 DO NOT operate equipment when tired, under the influence of alcohol, drugs or intoxicating medication.
8 DO NOT use the cross beam adaptor for purposes other than that for which it is designed.
8 DO NOT make any modifications to the adaptor.
9 After use clean all parts and store in a safe and dry child proof location.
2. INTRODUCTION
Quickly and safely overcomes the awkward job of lifting 4x4 vehicles with offset differentials. Simply remove the existing trolley jack saddle,
replace with cross beam adaptor, t the jack saddle into the hole in the adaptor* and you are ready to lift. Suitable for jacks with a 30mm spigot
pin. *Note: Remove any rubber jack pad from the saddle before using to improve safety.
3. SPECIFICATION
Model No: ...................................................................... X137
Applications: .............................................3000CXD, 3010CX
Maximum Height: ....................................................... 230mm
Minimum Height: ........................................................ 140mm
Screw Adjustment: .......................................................90mm
4. ASSEMBLY
4.1. Unpack the product and check contents.
Should there be any damaged or missing parts contact
your supplier immediately.
4.2. Wind the knurled thumb nut (item 2) on to the
threaded yoke (item 1) with knurled shoulder uppermost
as in fig.1.
4.3. Look for the keyway slot in threaded yoke and align with the tapped hole in end of load beam (item 3).
4.4. Screw the cap screw in toward the threaded yoke keyway slot without clamping. This screw keeps the yoke ‘v’ on the axis of the
beam.
5. OPERATION
5.1. Remove trolley jack saddle from jack and the rubber pad from the saddle.
5.2. Place the assembled beam as shown in fig.1 on to the jack spigot hole.
5.3. Position the assembly beneath the vehicle axle as fig.2. Keeping the beam horizontal, jack the saddle up to the differential casing. Adjust
yoke height to engage with back axle housing for smooth lifting.
5.4. Raise vehicle to required height and immediately position axle stands to support vehicle during servicing. (See safety instructions)

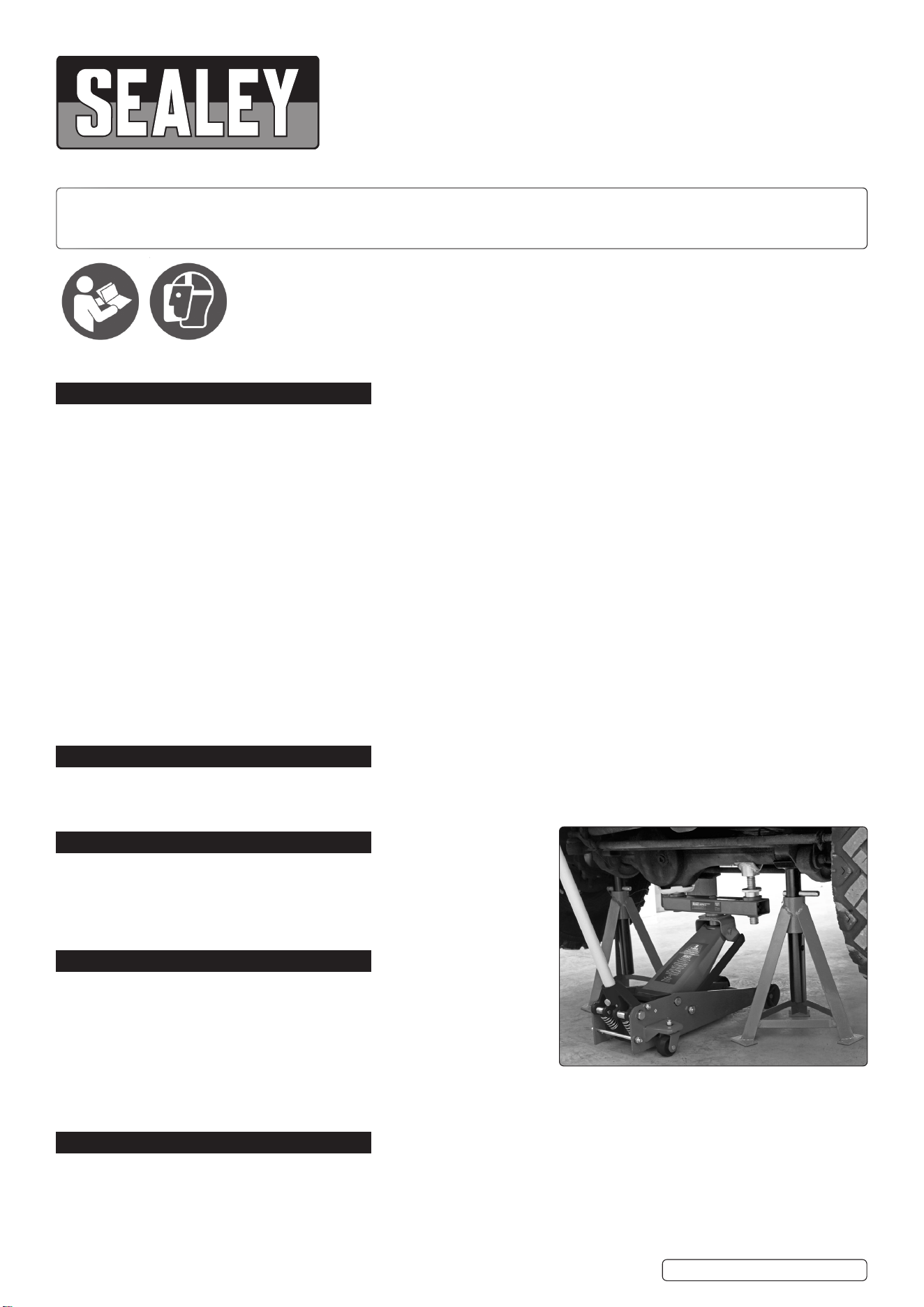

3 TONNE CROSS BEAM ADAPTOR 4X4
MODEL NO: X137
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instruction
manual
Wear protective
footwear
Original Language Version
© Jack Sealey Limited
X137 Issue 5 (H,2,F) 05/05/23
5.5. Lower the vehicle by method 5.3. Remove axle stands and lower.
5.6. After use, clean with a lightly oiled cloth with attention to M30 thread.
Original Language Version
© Jack Sealey Limited
X137 Issue 5 (H,2,F) 05/05/23
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product
becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and
dispose of the product and fluids according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.

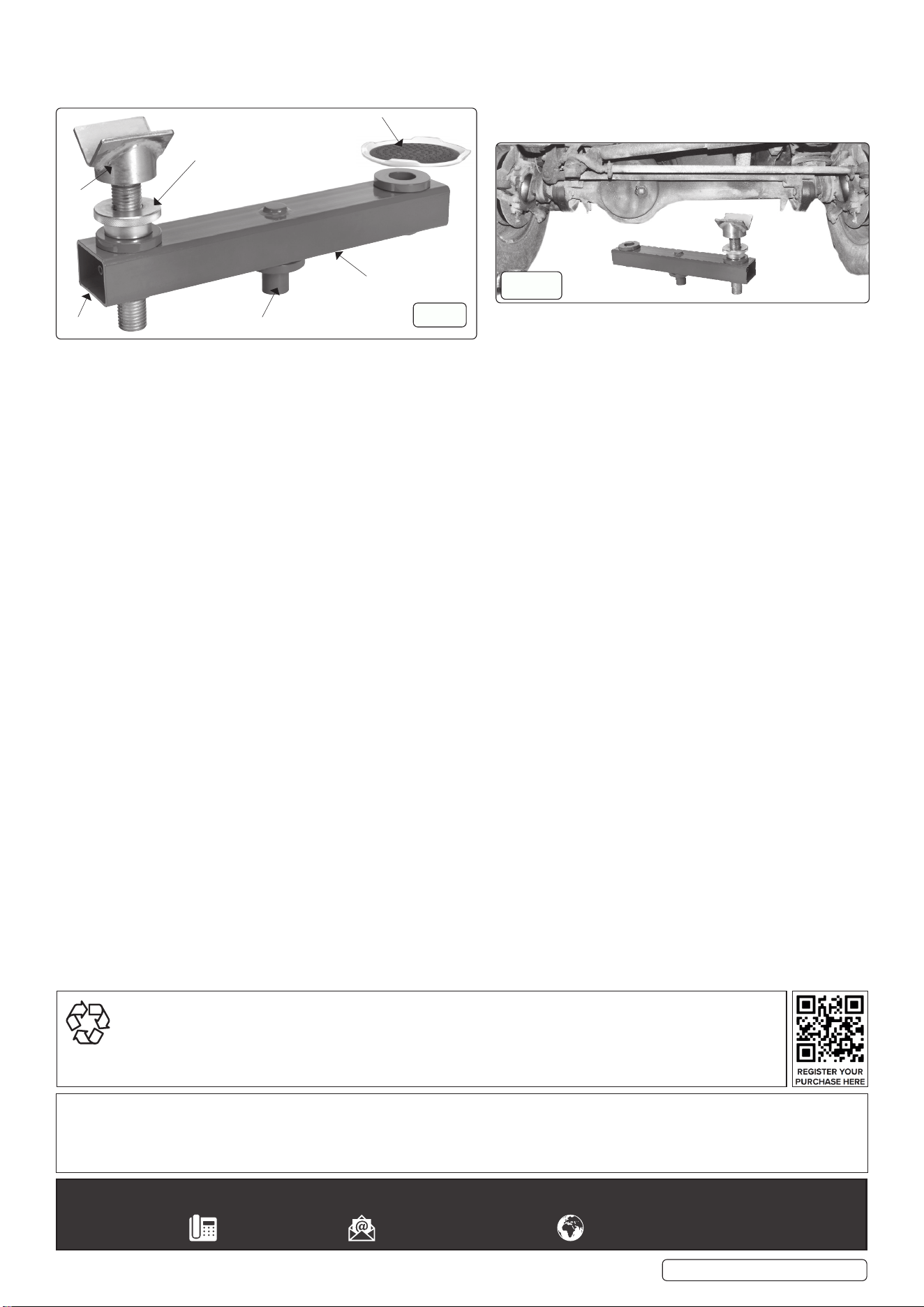

g.2
2
4
1
3
Ø30 Spigot jack adaption
g.1
Existing trolley jack saddle*
(remove rubber pad)
