The Waterproof Bluetooth Speaker
Incredible Sound, Powerful Volume, 100 Foot Wireless Bluetooth Range
OontZ App for the OontZ Angle 3 Pro
Control the OontZ Angle 3 Pro Advanced Features
from your iPhone or Smartphone
User Guide
3

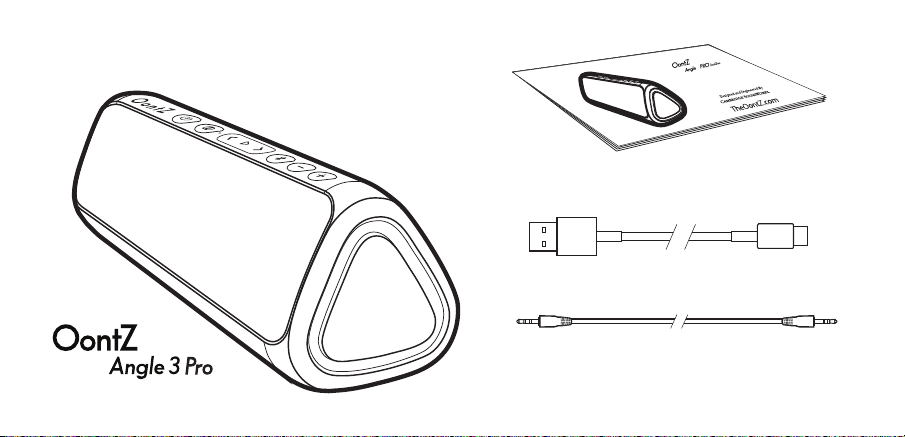

In the Package
USB Type C Charging Cable
User Guide
3.5mm Stereo Audio Cable
The Waterproof Bluetooth Speaker
Incredible Sound, Powerful Volume, 100 Foot Wireless Bluetooth Range
OontZ App for the OontZ Angle 3 Pro
Control the OontZ Angle 3 Pro Advanced Featu
res
from your iPhone or Smartphone
User Guide
3
Buttons, Built-in Mic, Lights, and Connectors
Battery Features and Charging the Battery
Turning On and Off
Pair & Connect with Your Device
IPX7 Water Resistance
Talk to Siri
To Play with Non-Bluetooth Devices Use a 3.5mm Stereo Audio Cable
Dual Mode - Connect Two OontZ Angle 3 Pro Speakers Together
Surround Mode - Connect 2, 3, or 4 OontZ Angle 3 Pro Speakers Together
The OontZ App
Reset Function and Wireless Hands Free Speakerphone
Contacting Customer Support
Safety and Precautions
Table of Contents
Pages
1 - 3
4 - 5
6
7 - 10
11
12
13
14 - 18
19 - 22
23 - 34
35
36
37 - 38
Buttons & Built-in Mic
Page 1
Important - The volume control on your device and the speaker work independently of each other.
To play the speaker at the loudest volume, set the volume on your device to maximum and raise the volume on the speaker to maximum.
Important - Some apps may not support track back, track forward, or play/pause
Power
Play/Pause
Bluetooth
(Dual Function)
Volume Down
Volume Up
Track
Back
Track
Forward
Source
Switch between
Aux In
and Bluetooth
Built-in Mic
For use with Siri
Lights
Page 2
Power Button Light
Lit Red when charging
- Slowly flashing - battery is charging
- Solid - battery is fully charged
- Rapidly flashing indicates battery
charge is low
Bluetooth Button Light
Lit Blue when speaker is on:
- Flashing in Bluetooth pairing mode
- Solid connected to Bluetooth Device
Source Button Light
Lit Green when Aux In is the selected
the audio source
Play/Pause Button Light - Two, Three or Four Speakers
Lit White when speakers are in Dual Mode
- With a second OontZ Angle 3 Pro speaker (sold separately) you can wirelessly
connect both speakers together to play in Dual Mode .
- For Dual Mode instructions
please see page 14.
Lit Orange when speakers are in Surround Mode
- With 2, 3 or 4 OontZ Angle 3 Pro speakers (sold separately) you can wirelessly
connect the speakers together to play with Surround Mode.
- For Surround Mode instructions please see page 19.
Play/Pause Button Light - Single Speaker
- Lit Green when connected to OontZ app
on iPhone or Smartphone
- Flashes Green every 5 seconds on
Host speaker when connected to the
OontZ app on iPhone or Smartphone and
in Dual Mode or Surround Mode
Connectors
AUX IN Jack
USB Type C
Charging
Connector
Page 3
- To access the connectors open the
rubber flap
- Pull the tab from the top, it is a snug fit as
part of the waterproofing
IMPORTANT:
- The rubber flap needs to be closed before
the speaker is exposed to water.
- The speaker is not water- resistant or
waterproof when the rubber flap is open.
Connectors under the Rubber Flap
Closing Rubber Flap
- Align the Rubber Flap directly over the
connector bay. Push the Rubber Flap
straight in until the edges are even with
the edges of the connector bay.
- Use for keeping your iPhone or
Smartphone charged while playing.
- Use to power your Echo Input.
- Output 5V - 1A
USB Power Bank
Page 4
Battery Features
Music Play Time
- Up to 15 hours on a full charge, at 2/3 volume.
- Louder volumes will reduce the battery play time.
- When using the USB Power Bank the play time will be reduced.
- The rechargeable battery comes with a partial charge and the speaker is ready to play.
- For maximum playtime, fully charge the battery.
- You can play while charging.
* Exception: certain devices, including the Amazon Echo Input, Amazon Echo Dot and Amazon Echo, disable the Power Saving Feature
and the speaker will remain on until you turn the power off.
Power Saving Feature
- When playing from battery power the OontZ Angle 3 Pro will turn off after 30 minutes of not playing audio to conserve the battery charge. *
- When plugged into a charging source the OontZ Angle 3 Pro will remain on until you turn the power off.
- You can continue to keep the speaker plugged into a charging source even when it is fully charged, keeping the speaker turned on and available.
Low Charge Remaining
- When the battery charge has less than 20% remaining the Power Button Light will begin flashing Red rapidly, the USB Power Bank will turn off
and the volume will decrease to preserve the remaining battery.
- To return to full volume follow the steps to charge the battery on Page 5.
Insert the larger end of the USB Type C Charging Cable into a USB wall charger for a Smartphone
or iPhone (USB wall charger* that is 5V 3A maximum) to charge the OontZ Angle 3 Pro battery.
*
Only use a USB wall charger that is UL listed. A UL listed USB wall charger will have the logo printed on it.
Charging the Battery
Page 5
Insert the small end of the USB Type C Charging Cable into the Charging Connector as shown.
Charging Time - Up to 3 hours to fully charge a low battery.
Lit Red when charging:
- Slowly flashing battery is charging
- Solid battery is fully charged
Important: When the OontZ Angle 3 Pro is plugged in to a charging source with the USB Type C Charging Cable, never use
the speaker in the shower, bath, or near water, to prevent risk of electric shock.
Turning On and Off
Page 6
Bluetooth Button Light
- Flashing Blue in pairing mode
- Solid Blue
your device has
connected with the OontZ Angle 3
Pro and is ready to play
- Press and Release the Power Button
- Power Button Light will turn Red for 3 seconds then
turn off
- Bluetooth Button Light will turn Blue
- Press and Hold Down the Power Button for 2 Seconds
- Bluetooth Button Light will turn off
Turn ON
Turn OFF
Turn ON your OontZ Angle 3 Pro
Flashing Blue Light
- The OontZ Angle 3 Pro is ready to pair and connect.
Solid Blue Light
- Your device has connected to the OontZ Angle 3 Pro and is ready to play.
- The OontZ Angle 3 Pro allows the last device it was connected with to automatically reconnect
with the speaker each time the speaker is turned on and that device is within range.*
The OontZ Angle 3 Pro can be connected to one device at a time.
- To pair and connect to a different device, you need to first disconnect the currently paired device.
- To disconnect the current device, press and hold down the Bluetooth button for 3 seconds.
- The Blue Light will begin flashing and the OontZ Angle 3 Pro is ready for the next device to pair and connect.
Pair & Connect with Your Device -- Step 1
Page 7
- Your device needs to be within 100 unobstructed feet of the OontZ Angle 3 Pro to pair and connect.
If there is an issue when connecting please move your device closer to the speaker, then pair and connect.
- When the charge is too low indicated by a flashing red light on the speaker, your device will not be able to connect with the speaker.
*Exception: certain devices may not automatically reconnect. When connected to an Amazon Echo device it will not automatically
reconnect. You will need to say to your Amazon Echo device, "Alexa, connect my speaker".
Pair & Connect with Your Device -- Step 2 --
Page 8
- Go to Settings > Bluetooth, check Bluetooth is on
- Select 'OontZ Angle 3 Pro SS xxx' when it appears under DEVICES (xxx: 3 characters which are unique to your speaker)
- Your device will connect in a few seconds
- The Bluetooth Button Light will turn solid blue and there will be a quiet chime
- You can now play your audio wirelessly to your OontZ Angle 3 Pro
Note: Your Smartphone or Tablet instructions may vary
-- With Your iPhone, iPad, iPod, Smartphone, Tablet & Mobile Devices
-- With Your Apple Mac or Windows Laptop/Computer
For the pairing and connecting guide for your Apple Mac or Windows laptop/computer, please visit: TheOontZ.com/pairing.
Important - The volume control on your device and the speaker work independently of each other. To play the speaker at the loudest
volume, set the volume on your device to maximum and raise the volume on the speaker to maximum.
Page 9
Pair & Connect with Your Device -- Step 2 --
-- With Your Amazon Echo, Amazon Echo Dot or Amazon Echo Input
- Open the Alexa app
- Select 'Devices' in the lower right corner of the screen.
- Press 'Echo & Alexa'
- Select your Amazon Echo device by pressing it
- Press 'Bluetooth Devices'
- Press 'Pair a New Device'
- Select the 'OontZ Angle 3 Pro SS xxx' (xxx: 3 characters unique to your speaker) when it appears in the list of 'Available
Speakers'
- Alexa will announce: "Connected to OontZ Angle 3 Pro SS xxx"
To connect the next time, turn on the OontZ Angle 3 Pro and say "Alexa, connect my speaker" or "Alexa, pair"
To pair and connect with the Amazon Echo, Amazon Echo Dot or Amazon Echo Input for the first time use the Alexa app.
For other Amazon Alexa devices please refer to their pairing and connecting instructions.
Page 10
Important Note: When the OontZ Angle 3 Pro is playing from battery power and connected to the Amazon Echo device, the
speaker will remain on and it will not automatically turn off after 30 minutes of not playing audio.
This will use up the battery charge.
We recommend to:
1) Keep the OontZ Angle 3 Pro plugged into a USB wall charger.
It can remain on and available to play from the Amazon Echo device.
- Or -
2) Turn off the OontZ Angle 3 Pro when you are done listening.
- Either turn off the speaker by pressing and holding down the power button for 2 seconds,
- or say "Alexa, disconnect my speaker" and the OontZ Angle 3 Pro will automatically turn off after 30 minutes.
- When you want to connect and play to the speaker again turn on the OontZ Angle 3 Pro and say "Alexa, connect my
speaker" or "Alexa, pair".
Pair & Connect with Your Device -- Step 2 --
-- With Your Amazon Echo or Amazon Echo Dot (continued)
For assistance with the Alexa app, contact Amazon's Customer Service.
Open the Alexa app and select Help & Feedback > Email Customer Service
Page 11
The OontZ Angle 3 Pro is Waterproof and it is IPX7 certified
The perfect speaker for listening to your favorite music in any environment
Perfect for taking to the lake, the beach, listening by the pool, listening in the shower
IPX7 means the OontZ Angle 3 Pro is WaterProof and can handle water spray or being splashed and can handle being partially or fully
submerged in water up to a maximum of 3 feet deep, for up to a maximum of 30 minutes
The rubber flap needs to be closed for the speaker to be waterproof and dustproof.
Important Safety Precaution: When the OontZ Angle 3 Pro speaker is plugged in to a charging source with the USB Type C
Charging Cable, never use the speaker in the shower, bath, or near water, to prevent risk of electric shock.
IPX7 WaterProof
Page 12
- Press and Release the Power Button on the
OontZ Angle 3 Pro
- The Source Button Light will turn Green and Flash 3
times.
- Wait for about two seconds until you hear a "chime"
- After the "chime" talk to Siri through the mic on the
OontZ Angle 3 Pro
- The response from Siri will then play through the
OontZ Angle 3 Pro, and may display information on
your iPhone or iPad
Your iPhone or iPad needs to be on the latest version
of iOS
Talk to Siri on your iPhone or iPad
through the OontZ Angle 3 Pro
This feature works when connected to an
iPhone or an iPad over Bluetooth.
To talk to Siri through the OontZ Angle 3 Pro
- Press and Release the Bluetooth Button
Wireless Hands Free Speakerphone
The Wireless Hands Free Speakerphone feature
works over Bluetooth with iPhones and
Smartphones only; this feature is not supported
when connected to other types of devices.
To answer an incoming Call / To End a Call
- Press and Release the Bluetooth Button for 3 seconds.
- Please keep the speaker close in front of you so you may
be heard clearly by the listener.
- You can use your iPhone or Smartphone to switch
between using the Hands Free Speakerphone and your
phone.
To reject incoming Call
Page 13
- Plug one end of the included 3.5mm Stereo Audio Cable into the
AUX IN jack on the speaker.
- Press the Source Button and the Source Button light will turn
solid Green.
- Plug the other end of that 3.5mm Stereo Audio Cable into the
headphone jack on your device.
- Make sure both ends of the cable are fully inserted
- You are now ready to play.
Important: The Bluetooth on the OontZ Angle 3 Pro is disabled when the Source Button is pressed. To switch back to Bluetooth press
the Source Button and the OontZ Angle 3 Pro allows the last device it was connected to automatically reconnect with the speaker
and
that device is within range.
Important Notes:
- Note: The rubber flap needs to be closed before the speaker is exposed to water. The speaker is not water-resistant or
waterproof when the flap is open.
- The volume control on your device and the speaker work independently of each other. To play the speaker at the loudest volume,
set the volume on your device to maximum and raise the volume on the speaker to maximum.
Turn ON your OontZ Angle 3 Pro
To Play with Non-Bluetooth Devices Use the 3.5mm Stereo Audio Cable
Page 14
*Placing the speakers on the ground or having walls or obstructions between the
speakers will significantly reduce the distance apart the two speakers can play together
Left Channel - Right Channel
for stereo separation
Left Channel Right Channel
Bluetooth
for playing music
Audio Cable
for playing the
audio from a video
or
Bluetooth
for playing music
Audio Cable
for playing the
audio from a video
or
Dual Stereo
for full stereo in separate areas
Full Stereo Full Stereo
Play your music wirelessly through both speakers up to 100 feet apart
*
Dual Mode -
Connect two OontZ Angle 3 Pro speakers together
Note: The OontZ Angle 3 Pro 2nd Generation is NOT compatible
with the previous generations of OontZ Angle 3 Pro speakers.
Page 15
– Turn on both OontZ Angle 3 Pro speakers.
– Pair and Connect one of the speakers with your device. When connected the Bluetooth Button light will be lit Solid Blue.
This speaker will serve as the Host Speaker.
– The second speaker must not be connected to any device, its Bluetooth Button light needs to be flashing. If the second speaker has a
solid Blue Light it is connected to a device and you need to disconnect it by pressing and holding down the Bluetooth Button for 3
seconds until the Bluetooth Button light begins flashing.
- On the Host Speaker (speaker with solid Blue Light) press and hold down the Play/Pause button for 3 seconds until the
Play/Pause Button is flashing with a White Light and the speaker says “Dual Pairing”.
- After a few seconds both speakers Play/Pause Button will be lit with a solid White light. The Play Control Speaker will say “Left
Channel” and the second speaker will say “Right Channel”. The speakers will be connected together for Left Channel - Right Channel
and you are ready to play.
Connecting two OontZ Angle 3 Pro speakers together for Left Channel - Right Channel
You can also us the OontZ app to connect two OontZ Angle 3 Pro speakers together - See page 26 for instructions on using the OontZ app
Page 16
– Use the buttons on the Host Speaker for volume, play/pause, track back, track forward, answer and end
phone calls. These controls are disabled on the second speaker when paired together.
– Use the Host Speaker for connecting to different audio devices via Bluetooth or AUX IN. The Bluetooth
and AUX IN are disabled on the second speaker when paired together.
– Speakerphone call audio will only play through the Host Speaker.
Host Speaker
Second Speaker
Two OontZ Angle 3 Pro Speakers connected for Left Channel - Right Channel
Lit Blue
Lit White
Blue Light OFF
Lit White
Left Channel -
Right Channel
Page 17
Changing to Dual Stereo from Left Channel - Right Channel
Changing back to Left Channel - Right Channel from Dual Stereo
–
To change back to Left Channel - Right Channel, press and hold down the Track Forward button on the Host Speaker for 3
seconds. The Host
Speaker will say “Left Channel” and the second speaker will say “Right Channel”. You are ready to play.
Use Dual Stereo when placing the two speakers in different areas, and both speakers will play in full stereo.
– To set both speakers for Dual Stereo they must first be connected together for Left Channel - Right Channel (see page 15).
– With the speakers connected together for Left Channel - Right Channel, you can change the speakers to Dual Stereo.
–
To change to Dual Stereo, press and hold down the Track Forward button on the Host Speaker for 3 seconds until both speakers
say “Dual Stereo”. You are ready to play.
Page 18
Turning the speakers off
– Turning the Host Speaker off will turn both speakers off.
– Turning the second speaker off first will only turn that speaker off and the Host Speaker will play as a single speaker.
Turning the speakers back on
– Turn both speakers on and they will automatically try to connect to each other again.
– Turn one of the speakers on and a device can connect with it, and play as a single speaker.
Disconnecting the two speakers from each other
– Both speakers need to be turned on.
– On the Host Speaker press and hold down the Play/Pause button for 3 seconds. The White Lights will turn off and the
speakers will be disconnected from each other.
Playing the audio from a video in Dual Mode
–To play the audio from a video or TV in Dual Mode you will need to connect the Host Speaker to your device or TV using a the
3.5mm Stereo Audio Cable, allowing the audio and video to play in sync with each other. If the Host Speaker is connected over
Bluetooth to your device or TV there will be a delay in the audio playback from a video.
– You can also use the OontZ Bluetooth Adapter 2nd Gen (Sold separately on www.theoontz.com) with it’s low latency technology
which removes or eliminates the delay in the audio playback from the video and allows the audio to play in sync with the video
when playing to two OontZ Angle 3 Pro 2nd Gen speakers.
OontZ Wireless Dual Stereo - Important Notes
Page 19
Play your music wirelessly through speakers up to 100 feet apart
*
* Placing the speakers on the ground or having walls or obstructions between the
speakers will significantly reduce the distance apart the two speakers can play together.
Surround Mode -
Connect 2, 3 or 4 OontZ Angle 3 Pro speakers together
Guest Speaker
Full Stereo
Bluetooth
for playing music
Audio Cable
for playing the
audio from a video
or
Host Speaker
Full Stereo
Guest Speaker
Full Stereo
Connect to 2, 3 or 4 Speakers
Up to 100 feet apart
*
Up to 100 feet apart
*
Note: The OontZ Angle 3 Pro 2nd Generation is NOT compatible
with the previous generations of OontZ Angle 3 Pro speakers.
– Turn on one of OontZ Angle 3 Pro speakers.
– Connect the speaker to your device or connect a 3.5mm audio cable to the Aux In of the speaker. When connected the Bluetooth Light
will be lit Solid Blue or the Source Light will be lit Solid Green if using Aux In. This speaker will serve as the Host Speaker.
– Turn on the other OontZ Angle 3 Pro speakers. These speakers will be the Guest Speakers.
– The Guest Speakers must not be connected to any device, their Bluetooth Light must be flashing. If a speaker has a solid Blue Light it
is connected to a device and you need to disconnect it by pressing and holding down the Bluetooth Button for 3 seconds until the
Bluetooth Light begins flashing.
– On the Host Speaker press and release the Bluetooth Button . The Play/Pause Button Light will turn solid Orange and the
speaker will say “Surround Mode Transmit”.
– On the Guest Speakers with a flashing Blue Light, press and release the Bluetooth Button . The Play/Pause Button Light will flash
Orange and the speaker will say “Surround Mode Receive”.
– After a few seconds each speaker will connect with the Host Speaker and will have the Play/Pause Button Light lit with a solid Orange
light.
Page 20
Connecting 2, 3 or 4 OontZ Angle 3 Pro speakers together
You can also us the OontZ app to connect the OontZ Angle 3 Pro speakers together - See page 30 for instructions on using the OontZ app
Page 21
– Use the buttons on the Host Speaker for volume, play/pause, track back, track forward, answer and end phone calls. These
controls are disabled on the other speakers when connected together.
– Use the Host Speaker for connecting to different audio devices via Bluetooth or AUX IN. The Bluetooth and AUX IN are
disabled on the other speakers when connected together.
– Speakerphone call audio will only play through the Host Speaker.
OontZ Angle 3 Pro Speakers connected in Surround Mode
Host Speaker
Guest Speaker
Lit Blue
Lit Orange
Blue Light OFF
Lit Orange
Page 22
Turning the speakers off
– Turning the Host Speaker off will turn off all the speakers.
– Turning a Guest Speaker off first will only turn that speaker off and the other Guest Speakers will continue to play. The Host Speaker
will play as a single speaker if no other Guest Speakers are connected.
Turning the speakers back on
– Turn all the speakers on and repeat the pairing process - S
ee page 20 for instructions.
– Turn one speaker on and the speaker can be paired and connected with another device. The speaker will play as a single speaker.
Disconnecting the speakers from each other
– To disconnect a single Guest Speaker, press and release the Bluetooth Button on the speaker. All other Guest Speakers will stay
connected to the Host Speaker.
– To disconnect all the speakers, turn off the Host Speaker or press and release the Bluetooth Button on the Host Speaker. The
speakers will all be disconnected from the Host Speaker.
– If the Guest Speaker(s) are not turned off and are disconnected by pressing and releasing the Bluetooth Button on the Host
Speaker. The speakers will automatically reconnected when the Host Speaker when Bluetooth Button on the Host Speaker is
pressed and released again. If a Guest Speaker is turned off the Bluetooth Button on the speaker will need to be pressed and
released to enter Surround Mode.
Note: To pair a Guest Speaker with a flashing Orange Light with another device, press and release the Bluetooth Button . The
Bluetooth
Light will begin flashing Blue and the OontZ Angle 3 Pro is ready to pair and connect with the device.
Surround Mode - Important Notes
Page 23
The OontZ app
Control the advanced features of your
OontZ Angle 3 Pro from your iPhone or Smartphone running the
Android operation system.
EQ - Adjust the Treble and Bass levels
Volume Control - With a single OontZ Angle 3 Pro speaker remotely control the volume. With two OontZ Angle 3
Pro speakers in Dual Mode sync the volume to control both speakers together or independently control the
volume on each OontZ Angle 3 Pro speaker
Dual Mode - Connect, Disconnect and change between Left Channel - Right Channel and Dual Stereo when using
two OontZ Angle 3 Pro (2nd Gen) Speakers.
Audio Source - Change the audio source between Bluetooth and Aux In
Surround Mode - Connect, Disconnect and manage 2, 3 or 4 OontZ Angle 3 Pro (2nd Gen) Speakers.
Support - View the latest online manual and get OontZ speaker updates
Speakers - Select to allow the OontZ app to control other connected OontZ speakers
Download the OontZ app from the Apple App Store® or Google Play™ Store.
1) Open the Apple App Store
®
or Google Play
™
Store on your iPhone or Smartphone running the Android
operating system.
2) Search for the “Oontz” app and install.
3) After the app has been installed the Oontz app will appear on your iPhone or smartphone.
Page 24
To enable the OontZ app with your OontZ Angle 3 Pro
- Turn on your OontZ Angle 3 Pro speaker
- Launch the OontZ app and the Home screen will appear
- Select the Menu in the upper left hand corner of the OontZ
app and the Menu screen will appear
- Select ‘Speakers’ from the Menu and the Speaker screen will
appear
OontZ Angle 3 Pro icon is Grey
- Press the Grey speaker icon on the app to enable the OontZ app with the OontZ Angle 3 Pro
- The OontZ app will be enabled with
your OontZ Angle 3 Pro in a few seconds
- The Grey speaker icon will turn Blue and the Play/Pause Button Light on the OontZ Angle 3 Pro will turn solid Green
- The
OontZ app is enabled and ready to use.
If the OontZ Angle 3 Pro icon is Blue and Play/Pause Button Light on the OontZ Angle 3 Pro is solid Green
- The OontZ app is already enabled and ready to use.
The OontZ app
Home screen
Menu screen
Speaker screen
Page 25
Select the Menu in the upper left hand corner of the app
- Select ‘EQ’ from the menu to access the speaker Equalizer screen
- Select ‘Volume Control’ from the menu to access the Volume Control screen
Using the OontZ app for EQ and Volume Control
The Left slider adjusts the Bass and the Right
slider adjusts the Treble. Press ‘Default EQ’
to set the EQ to the default setting.
Works when connected to one or two
speakers and the OontZ app will adjust both
speakers to the same EQ with two speakers
connected in OontZ Wireless Dual Stereo.
Press ‘Sync Volume’ to
control together the
volume of two OontZ
Angle 3 Pro speakers
when connected in OontZ
Wireless Dual Stereo.
Press ‘Independent
Volume’ to separately
control the volume of two
OontZ Angle 3 Pro
speakers when connected
in OontZ Wireless Dual
Stereo.
When using only one OontZ
Angle 3 Pro speaker, the
volume control functions
the same for ‘Sync Volume’
or ‘Independent Volume’.
EQ
screen
Volume
Control
screen
for Two
Speakers
Volume
Control
screen
for One
Speaker
Page 26
Using the OontZ app for Dual Mode
Connect two OontZ Angle 3 Pro speakers together - Play your music wirelessly through both speakers up to 100 feet apart.
Refer to Page 14 for more information about Dual Mode
– Turn on one of the OontZ Angle 3 Pro speakers.
– Pair and Connect the speaker with your device. When connected the Bluetooth Button Light will be lit solid Blue.
This speaker will serve as the Host Speaker.
– Enable the OontZ app with the OontZ Angle 3 Pro speaker. When the OontZ app is enabled the Play/Pause Button Light on the OontZ
Angle 3 Pro will be lit solid Green.
– Turn on the second OontZ Angle 3 Pro speaker.
– The second speaker must not be connected to any device, its Bluetooth Button light needs to be flashing. If the second speaker has a
solid Blue Bluetooth Button Light it is connected to a device and you need to disconnect it by pressing and holding down the
Bluetooth Button for 3 seconds until the Bluetooth Button Light begins flashing.
- Refer to the next page for connecting the two OontZ Angle 3 Pro speakers together with the OontZ app.
Page 27
Press ‘Connect’ to connect
two OontZ Angle 3 Pro
speakers in Dual Mode.
Select the Menu in the upper left hand corner of the app and select ‘Dual Mode’ from the menu.
Disconnecting and Reconnecting the OontZ Angle 3 Pro speakers.
– Press ‘Disconnect’ to disconnect the two OontZ Angle 3 Pro connected speakers.
– The Play/Pause Button White Light on the second speaker will turn off and the speakers will be disconnected from each other.
– To reconnect press ‘Connect’ with both OontZ Angle 3 Pro speakers turn on.
Playing the audio from a video in Dual Mode
– To play the audio from a video or TV in Dual Mode you will need to connect the Host Speaker to your device or TV using a the
3.5mm Stereo Audio Cable, allowing the audio and video to play in sync with each other. If the Host Speaker is connected over
Bluetooth to your device or TV there will be a delay in the audio playback from a video.
After a few seconds the second speaker Play/Pause Button Light will be
lit solid White. The Host Speaker will say “Left Channel” and the second
speaker will say “Right Channel”. The speakers are connected together for
Left Channel - Right Channel and you are ready to play.
Host Speaker
Left Channel
Lit Blue
Lit White
Will Flash Green
every 5 seconds
Second Speaker
Right Channel
Blue Light off
Lit White
Using the OontZ app for Dual Mode
Page 28
Use Dual Mode when placing the two
speakers in different areas, and both
speakers will play in full stereo.
– With the speakers connected together for
Left Channel - Right Channel, you can
change the speakers to Dual Stereo.
–
To change to Dual Stereo, press ‘Dual
Stereo’.
–
Both speakers will say “Dual Stereo” and
you are ready to play.
Using the OontZ app for Dual Mode
Use Left Channel - Right Channel for
incredible left and right stereo seperation.
– With the speakers connected together for
Dual Stereo, you can change the speakers
to Left Channel - Right Channel.
–
To change to Left Channel - Right Channel,
press ‘Left Channel Right Channel’.
– The Host Speaker
will say “Left Channel”
and the second speaker will say “Right
Channel” and you are ready to play.
Page 29
Using the OontZ app for Audio Source selection
Select the Menu in the upper left hand corner of the app and select ‘Audio Source’ from the menu.
Press “Aux In” to change the audio
source for the OontZ Angle 3 Pro to
play from the device connected to the
OontZ Angle 3 Pro Aux In Jack.
The Source Button Light on the
OontZ Angle 3 Pro will be lit solid
Green.
Press “Bluetooth” to change the audio
source for the OontZ Angle 3 Pro to
Bluetooth. The last device connected
to the OontZ Angle 3 Pro will
automatically reconnect if that device is
turned on and within range.
The Bluetooth Button Light on the
OontZ Angle 3 Pro will flash Blue until
reconnected to your device. After
connected the Bluetooth Button Light
wil be lit solid Blue.
Select the Menu in the upper left hand corner of the app and select ‘Surround Mode’ from the menu.
– Turn on one of OontZ Angle 3 Pro speakers.
– Connect the speaker to your device or connect a 3.5mm audio cable to the Aux In of the speaker. When connected the Bluetooth Button
Light will be lit Solid Blue or the Source Button will be lit Solid Green if using Aux In. This speaker will serve as the Host Speaker.
– Turn on the other OontZ Angle 3 Pro speakers. These speakers will be the Guest Speakers.
– The Guest speakers must not be connected to any device, their Bluetooth Light must be flashing Blue. If a speaker has a solid Blue Light it is
connected to a device and you need to disconnect it by pressing and holding down the Bluetooth Button for 3 seconds until the Bluetooth
Light begins flashing Blue.
Page 30
Using the OontZ app for Surround Mode
The ‘Host Speaker’ menu will be displayed
and the speaker connected to your iPhone
or Smartphone will be displayed.
The first time entering Surround Mode the
speaker connected with your device will
automatically be selected and the box will
turn from Grey to Blue.
The Play/Pause Button Light on the Host
Speaker will turn solid Orange and the speaker will
announce “Surround Mode Transmit”. This
speaker will serve as the Host Speaker.
If the Host Speaker has exited Surround Mode.
Surround Mode can be enabled again by selecting
the Grey box of the Host Speaker. The box will
turn from Grey to Blue.
Connecting 2, 3 or 4 OontZ Angle 3 Pro speakers together
Page 31
Using the OontZ app for Surround Mode
The selected speaker boxes will turn from
Grey to Blue.
The Play/Pause Button Light on the selected
speakers will flash Orange.
After a few seconds each speaker will connect
with the Host Speaker. The Play/Pause
Button Light on each speaker will be lit a solid
Orange
and the speaker will announce
“Surround Mode Receive”.
Press the ‘Guest Speaker’ Button.
The other OontZ Angle 3 Pro
speakers that are turned on and
within range will be displayed.
Select the Grey boxes in the list of
displayed speakers that you want to
connect with the Host Speaker in
Surround Mode.
Selecting the Guest Speaker(s)
Host Speaker
Lit Blue
Lit Orange
Will Flash Green
every 5 seconds
Guest Speaker
Blue Light off
Lit Orange
Page 32
Using the OontZ app for Surround Mode
Disconnecting and reconnecting the OontZ Angle 3 Pro speakers in Surround Mode
To disconnect a Guest speaker in
Surround Mode, press the ‘Guest
Speaker’ Button.
Select a desired speaker from the list of
displayed speakers.
Confirm you want the speaker to exit
Surround Mode.
The box will turn from Blue to Grey, the
speaker will disconnect from the Host
Speaker and the speaker will exit
Surround Mode.
If the Host Speaker is still in Surround
Mode, to reconnect a Guest Speaker just
select the Grey box. The Grey box will
turn Blue. The speaker will enter
Surround Mode and connect with the
Host Speaker.
To disconnect all speakers in Surround Mode, press
the ‘Host Speaker’ Button.
Select the Blue box displayed for the Host Speaker.
Confirm you want to the Host Speaker to exit
Surround Mode.
The box will turn from Blue to Grey, all speakers will
disconnect from the Host Speaker and the Host
Speaker will exit Surround Mode.
Guest Speaker(s) have not been turned off after being
disconnected and are in Surround Mode, the speakers
will automatically reconnect when the Host Speaker
is enabled for Surround Mode.
Guest Speaker(s) have been turned off and back on. The
speakers will need to be reconnected. To reconnect
using the OontZ app refer to the instructions on Page
30 and 31 or to reconnect with the Bluetooth button
on the speakers refer to instructions on Page 20.
The OontZ app allows you to control different supported OontZ speakers.
The OontZ app currently supports the following OontZ speaker models:
- OontZ Angle 3 Pro (1st and 2nd Gen)
- OontZ Angle 3 ULTRA (4th Gen)
- OontZ Angle 3 Pro Soundbar
- OontZ Bluetooth Adapter (2nd Gen)
- OontZ Angle 3 Shower with Alexa (OontZ app support only for Alexa function)
For the latest list of supported OontZ speakers please visit
TheOontZ.com/OontZapp
To utilize the OontZ app with a different supported OontZ speaker.
- Select the Menu in the upper left hand corner of the OontZ app and select
‘Speakers’ from the menu
- Select the desired speaker from the available list of OontZ speakers
- Speaker icon is Blue - the OontZ app is already enabled with this speaker
- Speaker icon is Grey - press and the OontZ app will be enabled with this
speaker.
The Play/Pause Button Light on the OontZ Angle 3 Pro will be lit solid Green to
indicate the OontZ app is enabled with this speaker.
Page 33
Using the OontZ app for Speaker selection
Menu screen
Speaker screen
Page 34
Using the OontZ app for Support
Select the Menu in the upper left hand corner of the app and select ‘Support’ from the menu to access the Support
screen.
Press ‘User Guide’ to display the
latest version of the online user
guide and FAQ for the OontZ
Angle 3 Pro.
Press ‘Update Speaker’ to
check the version of the
current firmware version on
the OontZ Angle 3 Pro and
whether there is a new version
available.
The firmware version of the OontZ Angle 3 Pro is
shown under ‘Current Firmware Version’.
If there is a new version of firmware for the OontZ
Angle 3 Pro it will be displayed under ‘New Firmware
Version’ along with the version number of the
update.
To update the OontZ Angle 3 Pro to the ‘New
Firmware Version’ press ‘Update Speaker’ and follow
the instructions in the OontZ app.
Note: The update may take up to 30 minutes. Make
sure the OontZ Angle 3 Pro is plugged into power
and the iPhone or Smartphone is not interrupted by
a phone call during the update of the OontZ Angle 3
Pro.
Press ‘Contact Us’ to display
the customer support form.
Fill in the information in the
displayed form to email to our
OontZ support team.
User Guide
Update Speaker
Contact Us
Page 35
Step 1: Remove the USB Type C Charging Cable and 3.5mm Stereo Audio cable, if connected.
Step 2: With the OontZ Angle 3 Pro on, press the Power button and Volume
+
together and release. The
speaker will then turn off.
Step 3: The speaker has now been reset and you can turn it on.
Reset Function
For online troubleshooting tips please visit:
TheOontZ.com/troubleshooting
and select the OontZ Angle 3 Pro
For latest version of this manual please visit:
TheOontZ.com/pages/manuals
and select the OontZ Angle 3 Pro (2nd Gen)
Contact us at:
TheOontZ.com/support
and fill in our customer support form
If you have a question about your OontZ Angle 3 Pro or experience an issue with the speaker,
our Customer Support Team wants to assist you.
Customer Support
Page 36
Safety and Precautions
When the OontZ Angle 3 Pro speaker is plugged in to a charging source with the USB Type C Charging Cable, never use
the speaker in the shower, bath, or near water, to prevent risk of electric shock.
Read and follow all instructions – All operating and use instructions should be followed.
Protect the USB Type C Charging Cable from being pinched, particularly at the connectors.
Unplug the USB Type C Charging Cable during lightning storms or when unused for long periods of time.
Do not place speaker near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
Refer all servicing to qualified personnel. Servicing is required when the speaker has been damaged in any way.
Do not make alterations to this speaker.
The battery in the speaker is not replaceable. Do not attempt to change it.
Use this speaker only with an agency approved power supply which meets local regulatory requirements (e.g., UL, CSA,
VDE, CCC) in accordance with the manufacturer’s specifications.
Do not place near naked flame sources, such as lighted candles, on or near the speaker.
Do not expose this speaker to excessive heat
(e.g. from storage in direct sunlight, fire or the like)
If the battery leaks, do not allow the liquid to come in contact with the skin or eyes. If contact is made, seek medical advice.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Page 37
Safety and Precautions (continued)
Apple, iPhone, iPad, iPod, Mac and Siri are registered trademarks of Apple Inc.
Amazon, Amazon Echo Input, Amazon Echo and Amazon Echo Dot are registered trademarks of Amazon.com, Inc.
Windows is a registered trademark of Microsoft Corporation
Bluetooth is a registered trademark of Bluetooth SIG, Inc
UL is a registered trademark of UL.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
Page 38
OontZ Bluetooth Adapter (2nd Gen)
Sold separately
Available at TheOontZ.com
• Allows you to play wirelessly over Bluetooth from your TV and Devices
that do not have built-in Bluetooth.
• When playing with two OontZ Angle 3 Pro speakers, using the OontZ
Bluetooth Adapter with it’s low latency technology removes or
eliminates the delay in the audio playback from the video and allows
the audio to play in sync with the video.
• Pairs with a single button to one or two OontZ Angle 3 Pro speakers
OontZ True Wireless BudZ ULTRA
Sold separately
• Totally Wireless
• Amazing Sound and Rich Bass
• Quiet Mode and Sound Passthrough Mode
• Comfortable with Secure Fit
• Sweatproof, Weaterproof, Splashproof
• Quick and Easy Connection
• Playtime up to 6 Hours with 12 Extra Hours from Small
Compact Charging Case
User Manual V2.0
