0-200MM(0-8”) DIGITAL VERNIER CALIPER
MODEL NO: AK9622EV
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure Health and Safety, local authority and general workshop practice regulations are adhered to when using
tools and equipment.
8 DO NOT use caliper if damaged.
9 Maintain caliper in good and clean condition for best and safest performance.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
9 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
9 Keep children and unauthorised persons away from the work area.
2. INTRODUCTION
Hardened and tempered stainless steel digital calipers with satin nish. Large LCD display with 11mm high gures for ease of reading. Metric
and Imperial calibration with conversion between the two. Zero setting control allows for comparative measurement. Supplied in storage case.
3. SPECIFICATION
Model no ...............................................................AK9622EV
Battery .................................................... 1 x LR44 (supplied)
Range ........................................................... 0-200mm (0-8”)
Resolution .................................................. 0.01mm (0.0005”)
4. OPERATION
WARNING! Ensure that you have read and understood Section 1 safety instructions before commencing.
8 DO NOT use the caliper if damaged.
8 DO NOT use the caliper for any purpose other than for which it is designed.
8 DO NOT get caliper wet or use in damp or wet locations, or areas where there is condensation. Keep caliper clean and dry using a dry
cotton cloth only.
8 DO NOT dip or submerge the caliper in any type of liquid.
8 DO NOT expose caliper to bright sunlight or dust.
8 DO NOT dis-assemble caliper. The caliper must be checked by qualified service personnel only.
8 DO NOT apply any voltage to the caliper i.e. with an electric marker pen.
4.1. The caliper is a precision instrument, treat with care, avoid using force and do not subject to knocks or shocks.
Refer to
instruction
manual
Original Language Version
© Jack Sealey Limited

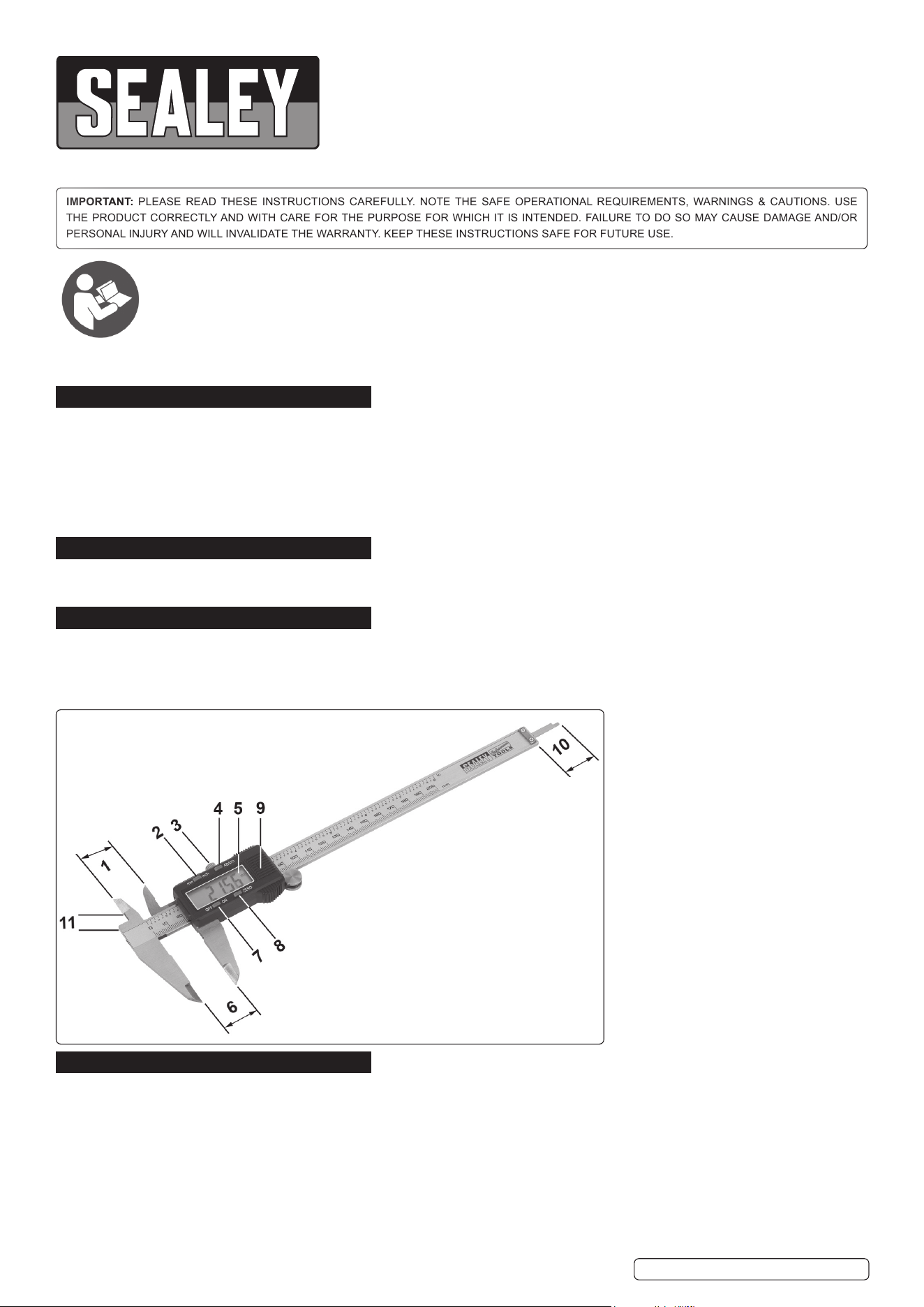

1 Internal Measure
2 Metric/Imperial Selector
3 Locking Screw
4 ABS/0 Switch
5 LCD Display
6 External Measure
7 On/Off Control
8 Zero Control
9 Battery Cover
10 Depth Measure
11 Step Measure
AK9622EV Issue:4 (H) 23/02/21
4.2. Take particular care not to damage or scratch the scale surface.
4.3. Use caliper in reasonably constant temperature conditions of approximately 20
O
C.
4.4. When not in use, turn off and store caliper in a safe, dry, childproof location.
4.5. Ensure all measuring surfaces are clean and then turn on caliper by pressing on/off control. Wait at least one second before use.
4.6. Loosen locking screw and close caliper; if read-out does not show zero when in closed position, reset by pressing zero control.
4.7. Select inch or mm units, as required, with the metric/imperial selector. Check that display shows the required units.
4.8. Measurements will now be shown directly on the LCD display.
4.9. A new zero may be obtained, at any open position of the caliper, by pressing the zero control.
4.10. A second measurement that then also needs to be added to the first one can be obtained by pressing the ABS/0 switch after obtaining
the first measurement (display will show INC), then move out the calipers to measure the second one. After noting this, press the ABS/0
switch again and the display will show the total of both measurements.

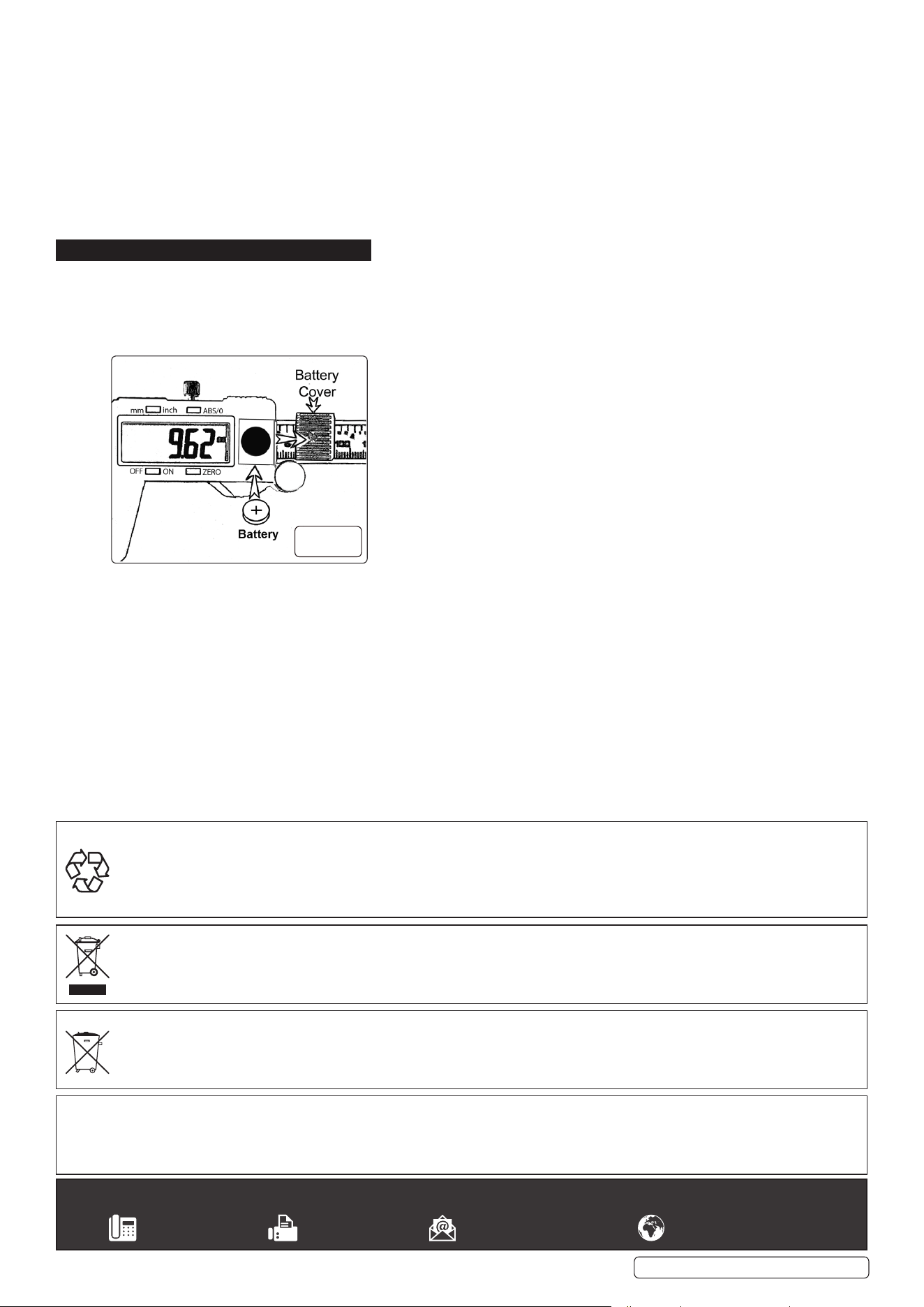

5. BATTERY CHANGE
5.1. A flashing display indicates that the battery is exhausted - replace as follows:
5.1.1. Switch off and then remove battery cover (9) by firmly sliding towards the right.
5.1.2. Remove exhausted battery and fit replacement with positive side uppermost (fig.1). Refit battery cover.
5.1.3. Dispose of old battery in a safe and approved manner. Do not burn.
5.2. If the display fails to alter when the slide is moved, remove the battery - wait at least 30 seconds and then refit the battery.
.
Original Language Version
© Jack Sealey Limited
AK9622EV Issue:4 (H) 23/02/21
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
BATTERY REMOVAL For details see section 5
Under the Waste Batteries and Accumulators Regulations 2009, Jack Sealey Ltd are required to inform potential purchasers of products
containing batteries (as defined within these regulations), that they are registered with Valpak’s registered compliance scheme.
Jack Sealey Ltd Batteries Producer Registration Number (BPRN) is BPRN00705.
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment
(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid
waste authority for recycling information.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
