D0T POC (C) Series
Bullet & Turret Camera
User Manual
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Type
Model
Type I Camera
DS-2CE16D0T-ITE(C)
DS-2CE17D0T-IT3E(C)
Type II Camera
DS-2CE19D0T-VFIT3E(C)
Type III Camera
DS-2CE79D0T-VFIT3E(C)
Type IV Camera
DS-2CE56D0T-IT3E(C)
This manual may contain several technical mistakes or
printing errors, and the content is subject to change
without notice. The updates will be added to the new
version of this manual. We will readily improve or
update the products or procedures described in the
manual.
01000020230306
Initiatives on the Use of Video Products
Thank you for choosing Hikvision products.
Technology affects every aspect of our life. As a
high-tech company, we are increasingly aware of the
role technology plays in improving business efficiency
and quality of life, but at the same time, the potential
harm of its improper usage. For example, video
products are capable of recording real, complete and
clear images. This provides a high value in retrospect
and preserving real-time facts. However, it may also
result in the infringement of a third party’s legitimate
rights and interests if improper distribution, use and/or
processing of video data takes place. With the
philosophy of “Technology for the Good”, Hikvision
requests that every end user of video technology and
video products shall comply with all the applicable laws
and regulations, as well as ethical customs, aiming to
jointly create a better community.
Please read the following initiatives carefully:
1. Everyone has a reasonable expectation of privacy,
and the installation of video products should not
be in conflict with this reasonable expectation.
Therefore, a warning notice shall be given in a
reasonable and effective manner and clarify the
monitoring range, when installing video products
in public areas. For non-public areas, a third
party’s rights and interests shall be evaluated
when installing video products, including but not
limited to, installing video products only after
obtaining the consent of the stakeholders, and
not installing highly-invisible video products.
2. The purpose of video products is to record real
activities within a specific time and space and
under specific conditions. Therefore, every user
shall first reasonably define his/her own rights in
such specific scope, in order to avoid infringing
on a third party’s portraits, privacy or other
legitimate rights.
3. During the use of video products, video image
data derived from real scenes will continue to be
generated, including a large amount of biological
data (such as facial images), and the data could
be further applied or reprocessed. Video
products themselves could not distinguish good
from bad regarding how to use the data based
solely on the images captured by the video
products. The result of data usage depends on
the method and purpose of use of the data
controllers. Therefore, data controllers shall not
only comply with all the applicable laws and
regulations and other normative requirements,
but also respect international norms, social
morality, good morals, common practices and
other non-mandatory requirements, and respect
individual privacy, portrait and other rights and
interests.
4. The rights, values and other demands of various
stakeholders should always be considered when
processing video data that is continuously
generated by video products. In this regard,
product security and data security are extremely
crucial. Therefore, every end user and data
controller, shall undertake all reasonable and
necessary measures to ensure data security and
avoid data leakage, improper disclosure and
improper use, including but not limited to,
setting up access control, selecting a suitable
network environment (the Internet or Intranet)
where video products are connected,
establishing and constantly optimizing network
security.
Video products have made great contributions to the
improvement of social security around the world, and
we believe that these products will also play an active
role in more aspects of social life. Any abuse of video
products in violation of human rights or leading to
criminal activities are contrary to the original intent of
technological innovation and product development.
Therefore, each user shall establish an evaluation and
tracking mechanism of their product application to
ensure that every product is used in a proper and
reasonable manner and with good faith.
© 2023 Hangzhou Hikvision Digital Technology Co., Ltd.
All rights reserved.
About this Manual
The Manual includes instructions for using and
managing the Product. Pictures, charts, images and all
other information hereinafter are for description and
explanation only. The information contained in the
Manual is subject to change, without notice, due to
firmware updates or other reasons. Please find the
latest version of this Manual at the Hikvision website
(https://www.hikvision.com/).
Please use this Manual with the guidance and
assistance of professionals trained in supporting the
Product.
Trademarks
and other Hikvision’s trademarks and
logos are the properties of Hikvision in various
jurisdictions.
Other trademarks and logos mentioned are the
properties of their respective owners.
Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE
LAW, THIS MANUAL AND THE PRODUCT DESCRIBED,
WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE
PROVIDED “AS IS” AND “WITH ALL FAULTS AND
ERRORS”. HIKVISION MAKES NO WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING WITHOUT LIMITATION,
MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS
FOR A PARTICULAR PURPOSE. THE USE OF THE
PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT
WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL,
CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,
INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF
BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS
OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF
DOCUMENTATION, WHETHER BASED ON BREACH OF
CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT
LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE
USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR
LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF THE
INTERNET PROVIDES FOR INHERENT SECURITY RISKS,
AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES
FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR
OTHER DAMAGES RESULTING FROM CYBER-ATTACK,
HACKER ATTACK, VIRUS INFECTION, OR OTHER
INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL
PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE
WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY
RESPONSIBLE FOR ENSURING THAT YOUR USE
CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU
ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A
MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF
THIRD PARTIES, INCLUDING WITHOUT LIMITATION,
RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS,
OR DATA PROTECTION AND OTHER PRIVACY RIGHTS.
YOU SHALL NOT USE THIS PRODUCT FOR ANY
PROHIBITED END-USES, INCLUDING THE DEVELOPMENT
OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION,
THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR
BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE
CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR
UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF
HUMAN RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS
MANUAL AND THE APPLICABLE LAW, THE LATTER
PREVAILS.
Regulatory Information
EU Compliance Statement
This product and - if applicable - the
supplied accessories too are marked with
"CE" and comply therefore with the
applicable harmonized European
standards listed under the Directive 2014/30/EU (EMCD)
and Directive 2011/65/EU (RoHS).
Note: The products with the input voltage of within 50
to 1000 VAC or 75 to 1500 VDC comply with Directive
2014/35/EU (LVD), and the rest products comply with
Directive 2001/95/EC (GPSD). Please check the specific
power supply information for reference.
Directive 2012/19/EU (WEEE Directive):
Products marked with this symbol cannot
be disposed of as unsorted municipal
waste in the European Union. For proper
recycling, return this product to your local
supplier upon the purchase of equivalent
new equipment, or dispose of it at designated
collection points. For more information see:
www.recyclethis.info.
Directive 2006/66/EC and its amendment
2013/56/EU (Battery Directive): This
product contains a battery that cannot be
disposed of as unsorted municipal waste in
the European Union. See the product
documentation for specific battery information. The
battery is marked with this symbol, which may include
lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery
to your supplier or to a designated collection point. For
more information see: www.recyclethis.info.
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A)
standards requirements.
KC
A 급 기기: 이 기기는 업무용(A 급) 전자파적합기기로써
판매자 또는 사용자는 이 점을 주의하시기바라며, 가정
외의 지역에서 사용하는 것을 목적으로 합니다.
Warning
This is a class A product. In a domestic environment this
product may cause radio interference in which case the
user may be required to take adequate measures.
Safety Instruction
These instructions are intended to ensure that user can
use the product correctly to avoid danger or property
loss.
The precaution measure is divided into “Warnings” and
“Cautions”.
Warnings: Serious injury or death may occur if any of
the warnings are neglected.
Cautions: Injury or equipment damage may occur if any
of the cautions are neglected.
Warnings
In the use of the device, you must be in strict
compliance with the electrical safety regulations of
the nation and region.
Input voltage should meet both the SELV (Safety Extra
Low Voltage) and the Limited Power Source with 12
VDC according to the IEC60950-1 standard. Refer to
technical specifications for detailed information.
Do not connect multiple devices to one power
adapter to avoid over-heating or a fire hazard caused
by overload.
Make sure that the plug is firmly connected to the
power socket.
Make sure that the device is firmly fixed if wall
mounting or ceiling mounting is adopted.
If smoke, odor or noise rise from the device, turn off
the power at once and unplug the power cord, and
then contact the service center.
Never attempt to disassemble the camera by
unprofessional personal.
Cautions
Do not drop the camera or subject it to physical
shock.
Do not touch senor modules with fingers.
Do not place the camera in extremely hot, cold (the
operating temperature shall be -40°C to 60°C), dusty
or damp locations, and do not expose it to high
electromagnetic radiation.
If cleaning is necessary, use clean cloth with a bit of
ethanol and wipe it gently.
Do not aim the camera at the sun or extra bright
places.
The sensor may be burned out by a laser beam, so
when any laser equipment is in using, make sure that
the surface of sensor will not be exposed to the laser
beam.
Do not expose the device to high electromagnetic
radiation or extremely hot, cold, dusty or damp
environment.
To avoid heat accumulation, good ventilation is
required for the operating environment.
Keep the camera away from liquid while in use for
non-water-proof device.
While in delivery, the camera shall be packed in its
original packing, or packing of the same texture.
1 Introduction
1.1 Product Features
The main features are as follows:
Warnings Follow
these safeguards to
prevent serious injury
or death.
Cautions Follow these
precautions to prevent
potential injury or
material damage.
High performance CMOS sensor
Smart IR
Auto white balance
Up to 40 m IR distance for bright night imaging
1.2 Overview
1.2.1 Overview of Type I Camera
Bracket
Main Body
Lens
Video Cable
Power Cord
Figure 1-1 Overview of Type I Camera
1.2.2 Overview of Type II Camera
TVI
DC12 V
IN
Lens
Main Body
Bracket
Power Cord
Video Cable
Figure 1-2 Overview of Type II Camera
1.2.3 Overview of Type III Camera
Enclosure
Main Body
Mounting Base
Power Cord
Video Cable
Figure 1-3 Overview of Type III Camera
1.2.4 Overview of Type IV Camera
DC12VIN
Enclosure
Main Body
Mounting
Base
Power Cord
Video Cable
Figure 1-4 Overview of Type IV Camera
2 Installation
Before you start
Make sure that the device in the package is in good
condition and all the assembly parts are included.
Make sure that all the related equipment is power-off
during the installation.
Check the specification of the products for the
installation environment.
Check whether the power supply is matched with
your power output to avoid the damage.
Make sure the wall is strong enough to withstand
three times the weight of the camera, and the
mount.
If the wall is cement, insert expansion bolts before
installing the camera. If the wall is wooden, use
self-tapping screws to secure the camera.
If the product does not function properly, contact
your dealer or the nearest service center. DO NOT
disassemble the camera for repair or maintenance by
yourself.
2.1 Installation of Type I Camera
2.1.1 Ceiling/Wall Mounting
Before you start:
The installation of ceiling mounting and wall mounting
are similar. Following takes ceiling mounting as an
example.
Steps:
1. Drill the screw holes and the cable hole (optional)
on the ceiling.
Note:
Drill the cable hole, when adopting the ceiling outlet
to route the cable.
2. Route the cables through the cable hole, or the side
opening.
3. Attach the bracket to the ceiling, and secure the
camera with supplied screws.
PA4 × 25 Screws
PA4 × 25 Screws
Expansion Bolts
Cement Wall/CeilingWooden Wall/Ceiling
Figure 2-1 Install Camera on Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall/ceiling, expansion bolts are
required to fix the camera. For wooden
wall/ceiling, self-tapping screws are required.
4. Connect the corresponding power cord, and video
cable.
5. Power on the camera to check if the image on the
monitor is gotten from the optimum angle. If not,
adjust the camera according to the figure below.
Rotation Position
[0° to 360°]
Tilt Position
[0° to 180°]
Pan Position
[0° to 360°]
Trim Ring
Screw B
Screw A
Figure 2-2 3-Axis Adjustment
1). Loosen the trim ring to adjust the pan position
[0° to 360°].
2). Loosen screw A to adjust the tilt position [0° to
180°].
3). Loosen screw B to adjust the rotation position [0°
to 360°].
2.1.2 Ceiling/Wall Mounting with Junction Box
Before you start:
You need to purchase a junction box in advance.
The installation of ceiling mounting and wall
mounting are similar. Following takes wall mounting
as an example.

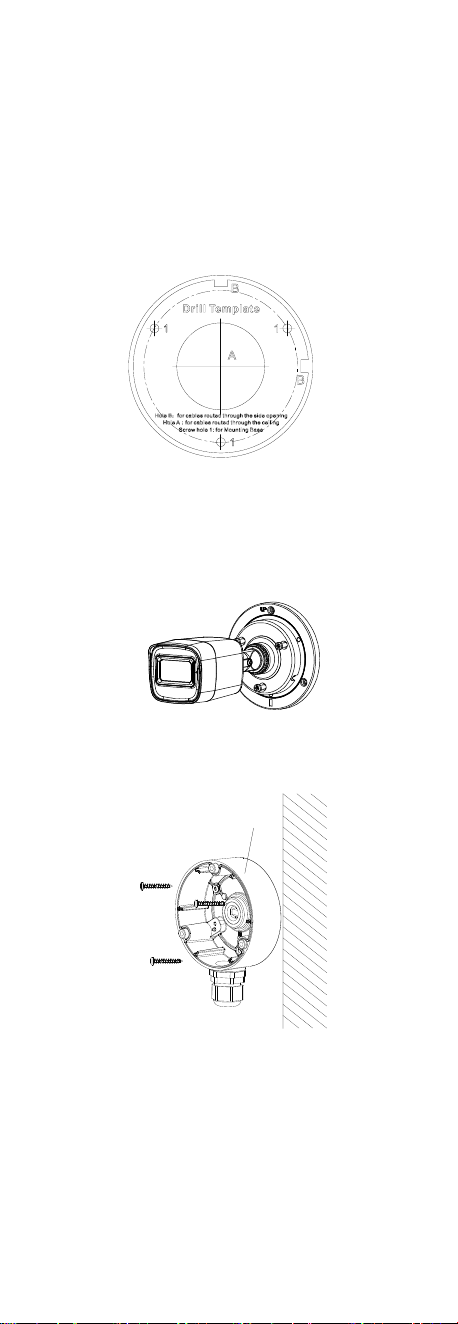

1. Paste the drill template on the wall.
2. Drill screw holes and the cable hole on the wall
according to the drill template.
Figure 2-3 Drill Template of Junction Box
3. Take apart the junction box, and align the screw
holes of the camera with those on the junction
box’s cover.
4. Attach the camera on the junction box’s cover with
supplied screws.
Figure 2-4 Attach Camera on Junction Box’s Body
5. Secure the junction box’s body on the wall with
supplied screws.
Junction Box
Body
Figure 2-5 Secure Junction Box on Wall
6. Route the cables through the bottom cable hole, or
the side cable hole of the junction box.
7. Combine the junction box cover with its body with
three PM3 × 16 L6 screws.
Figure 2-6 Combine Junction Box Cover back to its
Body
8. Connect the corresponding power cord, and video
cable.
9. Repeat step 5 of 2.1.1 Ceiling/Wall Mounting to
finish installation.
2.1.3 Wall Mounting with Wall Mount
Before you start:
You need to purchase a wall mount in advance.
Steps:
1. Take apart the wall mount.
Main Body
Cover
Figure 2-7 Take Apart Wall Mount
2. Paste the drill template (supplied) to the place
where you want to install the camera.
3. Drill the screw holes with a 5.5 mm drill and insert
the supplied wall plugs.
Figure 2-8 Drill Template for Wall Mount
4. Attach the main body of the wall mount to the wall
and secure it with three PA4 × 25 screws (supplied).
Figure 2-9 Secure Main Body to Wall
5. (Optional) Drill the cable hole, when the cables are
routed through the wall.
6. Secure the camera to the cover of the wall mount
with three PM4 × 13 screws and three M4 screws.
PM4 × 13 screw
M4 screw
Figure 2-10 Secure Camera to Wall Mount Cover
7. Route the cables through the cable hole of the wall
mount and connect the cables.
8. Insert one end of the wall mount cover diagonally
into the wall mount body, and then snap the other
end of the cover upward on the body.
Main Body
Step 2
Step 1
Cover
Figure 2-11 Secure Cover to Body
9. Lock the cover to the body with one PA3 × 8 screw.
Figure 2-12 Lock Cover to Body
10. Repeat steps 4 to 5 of 2.2.1 Ceiling/Wall Mounting
to adjust the angle and finish the installation.
2.2 Installation of Type II Camera
2.2.1 Ceiling/Wall Mounting
Before you start:
The installation of ceiling mounting and wall mounting
are similar. Following takes wall mounting as an
example.
Steps:
1. Refer to steps 1 to 4 of 2.2.1 Ceiling/Wall Mounting
to install the camera on the wall.
Figure 2-13 Install Camera on Wall
2. Power on the camera to check if the image on the
monitor is gotten from the optimum angle. If not,
adjust the camera according to the figure below.
Rotation Position
[0° to 360°]
Pan Position
[0° to 360°]
Tilt Position [0° to 90°]
T
R
P
Figure 2-14 3-Axis Adjustment
4). Loosen the T adjusting screw to adjust the tilt
position [0° to 90°].
5). Loosen the P adjusting screw to adjust the pan
position [0° to 360°].
6). Loosen the R adjusting screw to adjust the
rotation position [0° to 360°].
3. Tighten the screws to finish the installation.
2.2.2 Ceiling/Wall Mounting with Junction Box
Before you start:
You need to purchase a junction box in advance.
Steps:
1. Refer to steps 1 to 8 of 2.1.2 Ceiling/Wall Mounting
with Junction Box to mount the camera to the
junction box and connect the cables.
2. Refer to steps 2 of 2.2.1 Ceiling/Wall Mounting to
finish installation.

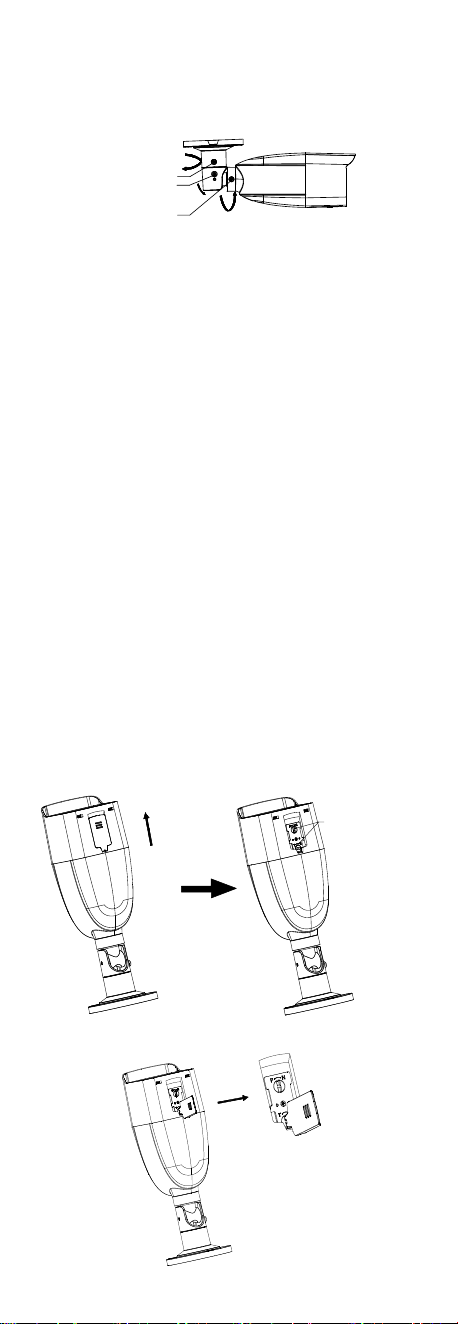

2.2.3 Adjust Zoom and Focus
Steps:
1. Remove the cover on the bottom of the device.
2. Tighten or loosen the screws by the cover to adjust
the zoom and focus.
F/N: Screw to the direction of F to focus far,
and screw to the direction of N to focus near.
T/W: Screw to the direction of T to zoom in,
and screw to the direction of W to zoom out.
Zoom & Focus
Adjusting
Screws
Figure 2-15 Remove Cover
Figure 2-16 Adjust Zoom and Focus
2.3 Installation of Type III Camera
2.3.1 Ceiling Mounting
Steps:
1. Disassemble the camera by rotating the camera to
align the notch to one of the marks.
2. Pry the mounting base by using a flat object, e.g., a
coin.
Mark
Notch
Figure 2-17 Disassemble Camera
3. Drill the screw holes and the cable hole (optional)
on the ceiling.
Note:
Drill the cable hole, when adopting the ceiling outlet
to route the cable.
4. Attach the mounting base to the ceiling, and secure
it with supplied screws. For cement ceiling, you
need to mount the expansion bolts at first.
Expansion Bolts
PA4 × 25 Screws
PA4 × 25 Screws
Cement Wall/CeilingWooden Wall/Ceiling
Figure 2-18 Install Mounting Base to Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall/ceiling, expansion bolts are
required to fix the camera. For wooden
wall/ceiling, self-tapping screws are required.
5. Route the cables through the cable hole, or the side
opening.
6. Install the camera back to the mounting base and
secure it.
Figure 2-19 Install the Camera Back
7. Connect the corresponding power cord, and video
cable.
8. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure below
to get an optimum angle.
Tilt Position
[0°to75°]
Rotation Position
[0° to 360°]
Pan Position
[0° to 360°]
Figure 2-20 3-Aixs Adjustment

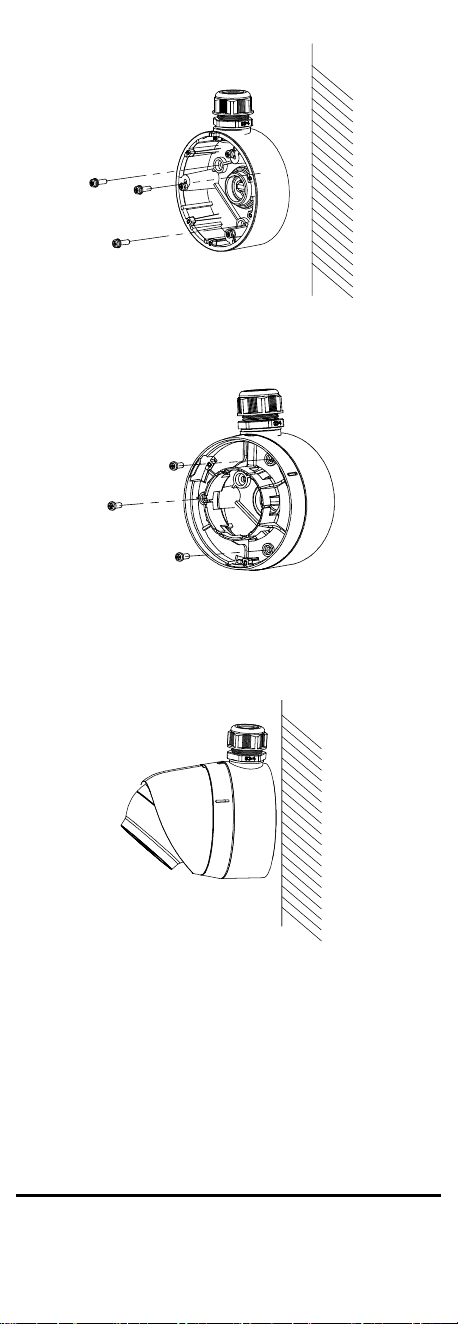

2.3.2 Ceiling Mounting with Junction Box/Inclined
Ceiling Mount
Before you start:
You need to purchase a junction box or an inclined
ceiling mount in advance.
Ceiling mounting with junction box and inclined
ceiling mount are similar. Following steps take
junction box installation as an example.
Steps:
1. Drill screw holes on the wall.
2. Take apart the junction box, and align the screw
holes of the mounting base with those on the
junction box’s cover.
3. Install the mounting base to the junction box’s cover
with three PM4 screws.
Figure 2-21 Secure Mounting Base on Junction Box’s
Cover
4. Secure the junction box’s body on the wall with four
PA4 × 25 screws.
Figure 2-22 Secure Junction Box’s Body
5. Route the cables and use four PM4 screws to
combine the junction box’s cover with its body.
Figure 2-23 Combine Junction Box Cover with its Body
6. Repeat the step 6 to 8 of 2.3.1 Ceiling Mounting to
finish the installation.
Figure 2-24 Finish Installation

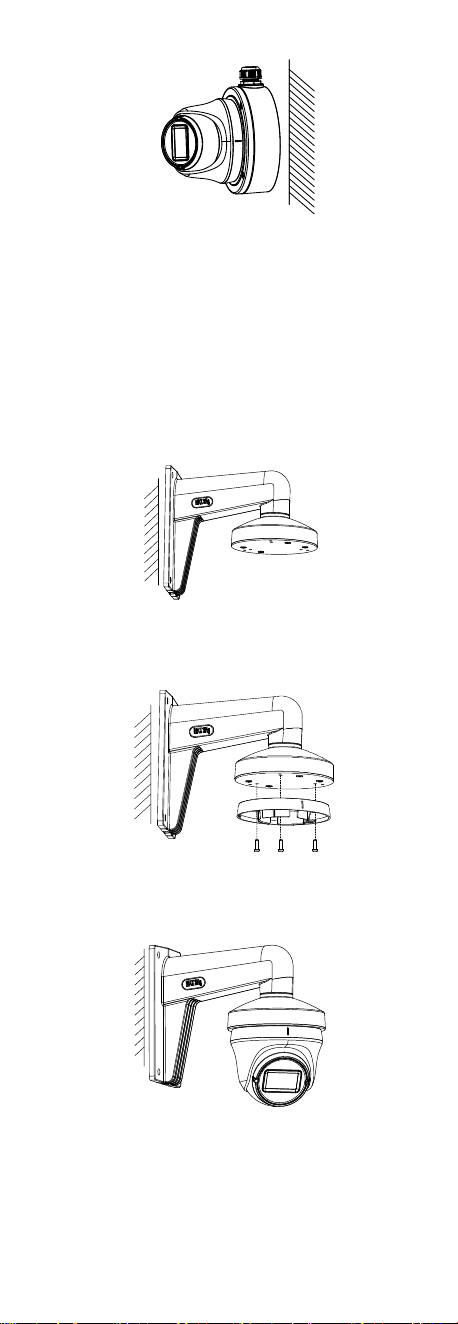

2.3.3 Wall Mounting
Before you start:
You need to purchase a wall mount in advance.
Steps:
1. Drill Ø10 mm screw holes in the wall where you
want to install the wall mount.
2. Use four M6 expansion bolts to fix the wall mount
onto the wall.
Figure 2-25 Fix Wall Mount
3. Use three PM4 × 10 screws to fix the gang box onto
the wall mount.
Figure 2-26 Fix Gang Box
4. Repeat the step 6 to 8 of
错误
!
未找到引用源。
Ceiling Mounting to adjust the angle and finish the
installation.
Figure 2-27 Finish Installation

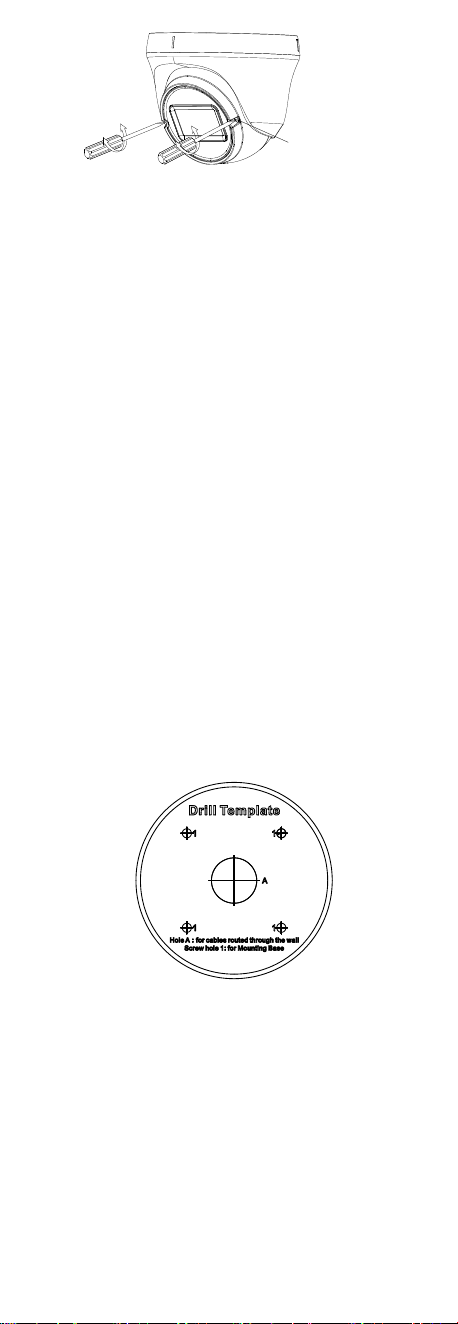

2.3.4 Adjust Zoom and Focus
Tighten or loosen the screws by a straight screwdriver
to adjust the zoom and focus.
F/N: Screw to the direction of F to focus far,
and screw to the direction of N to focus near.
T/W: Screw to the direction of T to zoom in,
and screw to the direction of W to zoom out.
Zoom Adjusting
Screw
Focus Adjusting
Screw
Figure 2-28 Adjust Zoom and Focus
2.4 Installation of Type IV Camera
2.4.1 Ceiling Mounting
Ceiling mounting of Type III camera and ceiling
mounting of Type IV camera are similar. You can refer to
2.3.1 Ceiling Mounting to finish installation.
2.4.2 Ceiling/Wall Mounting with Junction Box/Inclined
Ceiling Mount
Type I Junction Box/Inclined Ceiling Mount
Ceiling/wall mounting with Type I junction box/inclined
ceiling mount of Type IV camera is similar to that of
Type III camera. You can refer to 2.3.2 Ceiling Mounting
with Junction Box/Inclined Ceiling Mount to finish
installation.
Note:
You need to purchase a type I junction box or an
inclined ceiling mount in advance.
Type II Junction Box
Before you start:
You need to purchase a type II junction box in advance.
Steps:
1. Paste the drill template for junction box to the place
where you want to install the camera.
2. (Optional) For cement ceiling, drill the screw holes
with a 5.5 mm drill and insert the supplied wall
plugs.
Figure 2-29 Drill Template
Figure 2-30
3. (Optional) Drill the cable hole, when the cables are
routed through the wall.
4. Install the junction box to the wall with three PA4
screws.
Figure 2-31 Secure Junction Box to Wall
5. Dissemble the camera and secure the mounting
base to junction box with three PM 4 × 25 screws.
Figure 2-32 Secure Mounting Base to Junction Box
6. Route the cables through the cable hole.
7. Install the camera back to the mounting base and
secure it.
8. Refer to step 7 to 8 of 2.3.1 Ceiling Mounting to
adjust the angle and finish installation.
2.4.3 Wall Mounting
Wall mounting of Type III camera and wall mounting of
Type IV camera are similar. You can refer to 2.3.3 Wall
Mounting to finish installation.
Note:
You need to purchase a wall mount in advance.
3 Menu Description
Please follow the steps below to call the menu.
Note:
The actual display may vary with your camera model.
The menu is not available when you switch the video
output to CVBS.
Steps:
1. Connect the camera with the TVI DVR, and the
monitor, shown as the figure 3-1.
Camera
TVI DVR
Monitor
Figure 3-1 Connection
2. Power on the camera, TVI DVR, and the monitor to
view the image on the monitor.
3. Click PTZ Control to enter the PTZ Control interface.
4. Call the camera menu by clicking button, or call
the preset No. 95.
EXPOSURE
EXPOSURE MODE
MAIN MENU
VIDEO
SETTINGS
EXIT
SAVE & EXIT
AGC
BACK
EXIT
CONTRAST
SHARPNESS
SATURATION
DNR
BACK
VIDEO
FORMAT
FACTORY
DEFAULT
SAVE & EXIT
WHITE BALANCE
BRIGHTNESS
EXIT
SAVE & EXIT
IMAGE MODE
DAY/NIGHT
MODE
IR LIGHT
BACK
EXIT
SAVE & EXIT
SMART IR
D->N THRESHOLD
N->D THRESHOLD
Figure 3-2 Main Menu Overview
5. Click the direction arrow to control the camera.
1). Click up/down direction button to select the
item.
2). Click Iris + to confirm the selection.
3). Click left/right direction button to adjust the
value of the selected item.
3.1 VIDEO FORMAT
You can set the video format to 2 MP @25 fps or 2 MP
@30 fps.
3.2 EXPOSURE
EXPOSURE MODE
You can set the EXPOSURE MODE to GLOBAL, BLC, HLC,
or DWDR.
GLOBAL
GLOBAL refers to the normal exposure mode which
adjusts lighting distribution, variations, and
non-standard processing.
BLC (Backlight Compensation)
BLC (Backlight Compensation) compensates light to the
object in the front to make it clear, but this may cause
the over-exposure of the background where the light is
strong.
HLC (Highlight Compensation)
HLC stands for highlight compensation. The camera
detects the strong spots (the over-exposure portion of
image), then reduce the brightness of the strong spots
to improve the overall images.
DWDR (Digital Wide Dynamic Range)
Digital wide dynamic range gives the camera the ability
to view dark areas of the given image as well as
extremely lighted portions of the image, or areas of
high contrast.
AGC (Auto Gain Control)
It optimizes the clarity of the image in poor light
conditions. The AGC level can be set to HIGH, MEDIUM,
or LOW.
Note:
The noise will be amplified when setting the AGC level.
3.3 DAY/NIGHT
COLOR, B&W (Black and White), and AUTO are
selectable for DAY/NIGHT switch.
COLOR
The image is colorful in day mode all the time.
B&W (Black and White)
The image is black and white all the time, and the IR
LIGHT turns on in the poor light conditions.
You can turn on/off the IR LIGHT and set the value of
SMART IR in this menu
DAY/NIGHT
MODE
IR LIGHT
SMART IR
BACK
EXIT
SAVE & EXIT
B & W
ON
1
Figure 3-3 DAY/NIGHT
IR LIGHT
You can turn on/off the IR LIGHT to meet the
requirements of different circumstances.
SMART IR
The Smart IR function is used to adjust the light to its
most suitable intensity, and prevent the image from
over exposure.
AUTO
Automatically switch Color or B&W (Black and White)
according to actual scene brightness.
You can turn on/off the IR LIGHT, and set the value of
SMART IR in this menu.
DAY/NIGHT
MODE
IR LIGHT
SMART IR
D N THRESHOLD
N D THRESHOLD
BACK
EXIT
SAVE & EXIT
AUTO
ON
0
7
7
Figure 3-4 DAY/NIGHT
IR LIGHT
You can turn on/off the IR LIGHT to meet the
requirements of different circumstances.
SMART IR
The Smart IR function is used to adjust the light to its
most suitable intensity, and prevent the image from
over exposure.
D N Threshold (Day to Night Threshold)
Day to Night Threshold is used to control the sensitivity
of switching the day mode to the night mode. You can
set the value from 1 to 9. The larger the value is, the
more sensitive the camera is.
N D Threshold (Night to Day Threshold)
Night to Day Threshold is used to control the sensitivity
of switching the night mode to the day mode. You can
set the value from 1 to 9. The larger the value is, the
more sensitive the camera is.
3.4 VIDEO SETTINGS
Move the cursor to VIDEO SETTINGS and click Iris+ to
enter the submenu. IMAGE MODE, WHITE BALANCE,
BRIGHTNESS, CONTRAST, SHARPNESS, SATURATION,
and DNR are adjustable.
VIDEO SETTINGS
IMAGE MODE STD
WHITE BALANCE
BRIGHTNESS
CONTRAST
SHARPNESS
SATURATION
DNR
BACK
EXIT
SAVE & EXIT
5
5
5
5
5
Figure 3-5 VIDEO SETTINGS
IMAGE MODE
IMAGE MODE is used to adjust the image saturation,
and you can set it to STD (Standard) or HIGH-SAT (High
Saturation).
WHITE BALANCE
White balance, the white rendition function of the
camera, is to adjust the color temperature according to
the environment. It can remove unrealistic color casts in
the image. You can set WHITE BALANCE mode to AUTO,
or MANUAL.
AUTO
Under AUTO mode, white balance is being adjusted
automatically according to the color temperature of the
scene illumination.
MANUAL
You can set the R-GAIN/B-GAIN value to adjust the
shades of red/blue color of the image.
WHITE BALANCE
MODE
R-GAIN
B-GAIN
BACK
EXIT
SAVE&EXIT
MANUAL
110
110
Figure 3-6 MWB MODE
BRIGHTNESS
Brightness refers to the brightness of the image. You
can set the brightness value from 1 to 9 to darken or
brighten the image. The greater the value is, the
brighter the image is.
CONTRAST
This feature enhances the difference in color and light
between parts of an image.
SHARPNESS
Sharpness determines the amount of detail an imaging
system can reproduce.
SATURATION
Saturation is the proportion of pure chromatic color in
the total color sensation. Adjust this feature to change
the saturation of the color.
DNR
DNR refers to digital noise reduction. This function
reduces noise in video stream.
3.5 FACTORY DEFAULT
Reset all the settings to the factory default.
3.6 EXIT
Move the cursor to EXIT and click Iris+ to exit the menu.
3.7 SAVE & EXIT
Move the cursor to SAVE & EXIT and click Iris+ to save
the settings, and exit the menu.
