RF3017FFD99 / RF3017FFD00
USE & CARE
MANUAL
1
Defrosting------------------------------------------------------
Cleaning -------------------------------------------------------
General information -----------------------------------------
Normal phenomena -----------------------------------------
Troubleshooting ----------------------------------------------
20
20
20
21
22
Warnings------------------------------------------------------
Product features---------------------------------------------

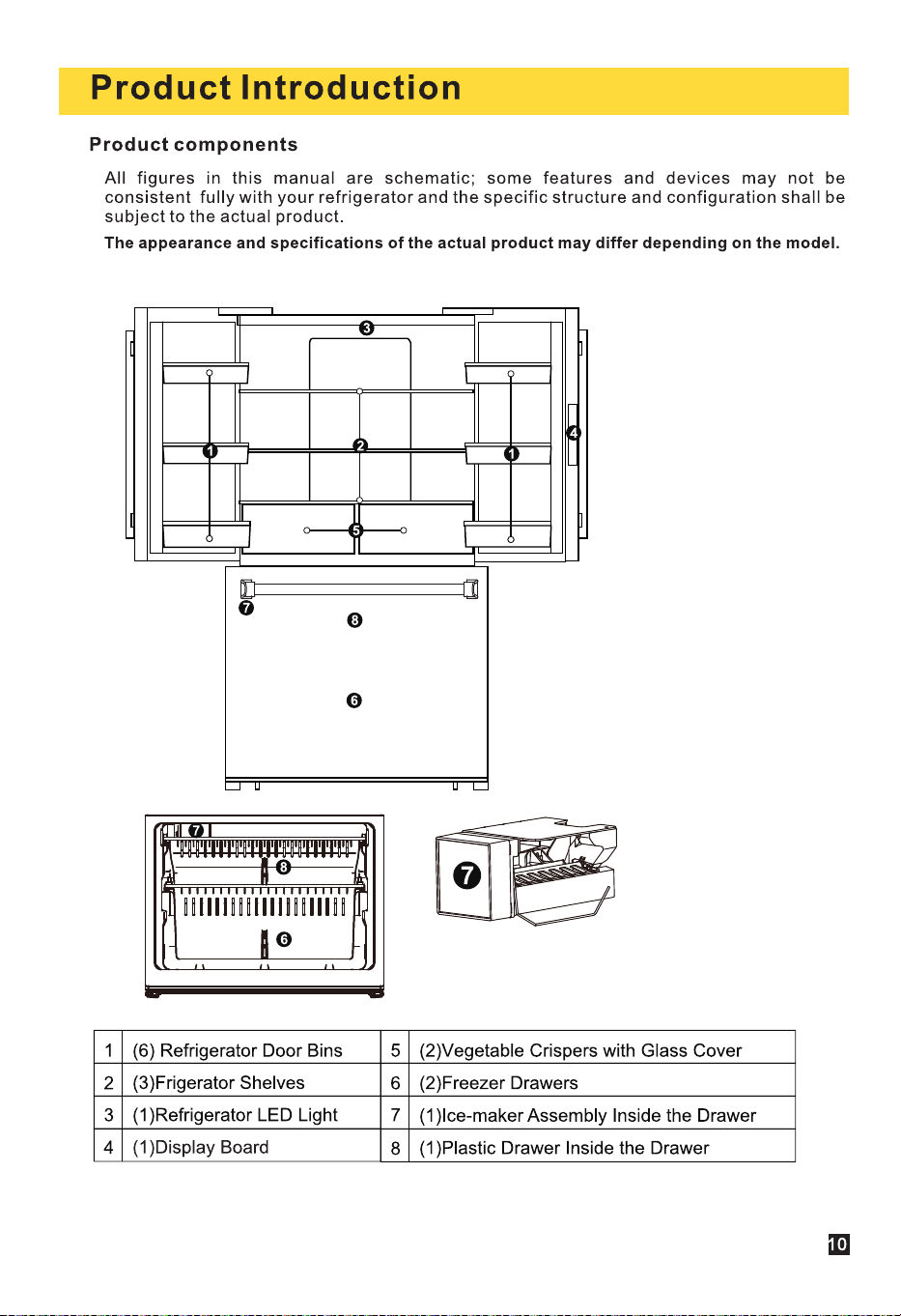

Product components---------------------------------------
Installation dimension--------------------------------------
Transportation-----------------------------------------------
Where to install your unit---------------------------------
Adjustable plastic feet-------------------------------------
Basic safety symbol----------------------------------------
Appliance connection -------------------------------------
Safety and warning information-------------------------
2
9
10
11
12
12
12
5
5
5
Warning
Safety and Warning Information
Before use ---------------------------------------------------
13
Water supply connection
--------------------------------
13
Starting -------------------------------------------------------
13
Control panel ------------------------------------------------
14
Freezer temperature controls----------------------------
15
Fridge temperature controls-----------------------------
15
Refrigerator chamber -------------------------------------
17

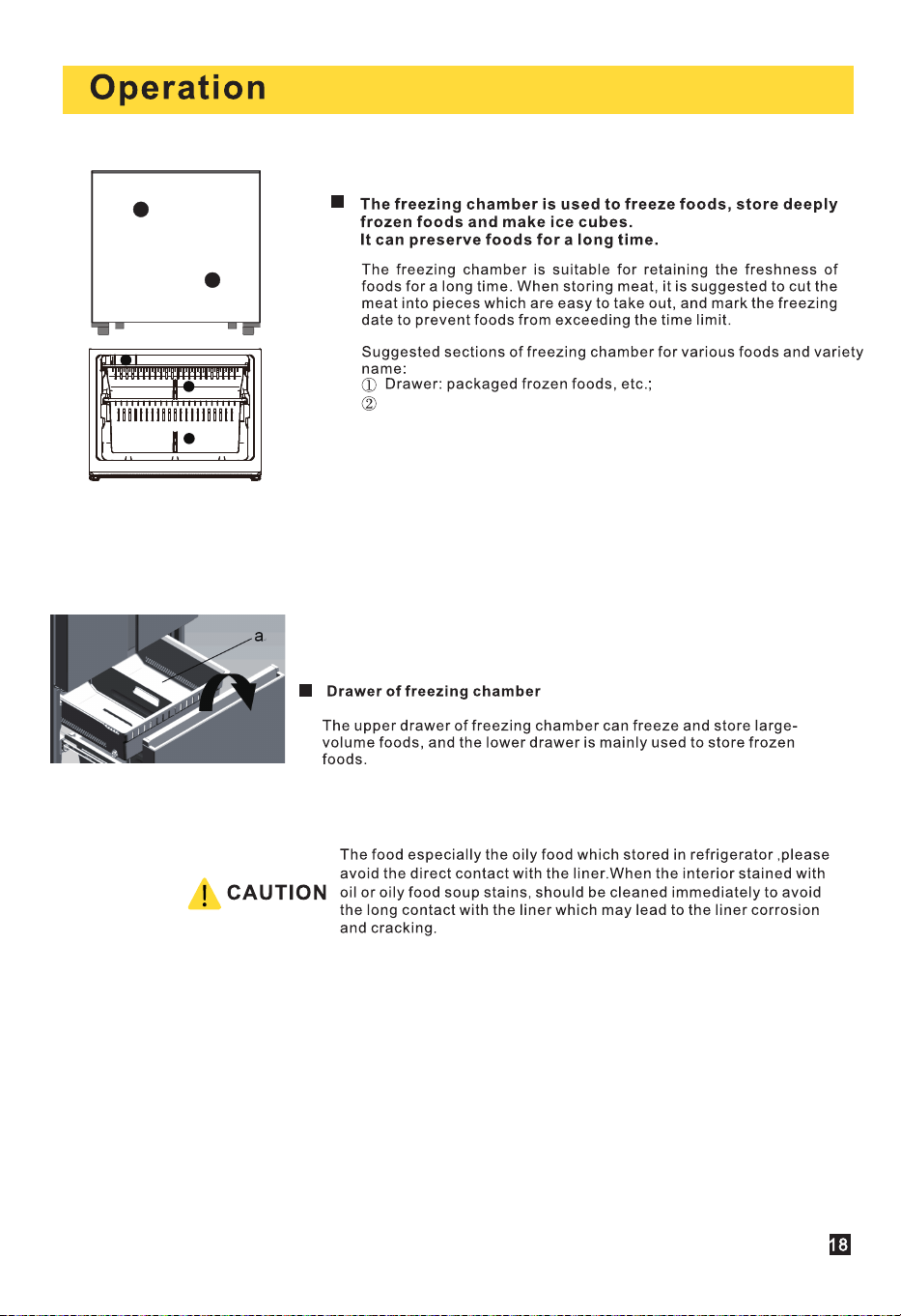

Freezing chamber -----------------------------------------
18
Storage of foods -------------------------------------------
19
Energy saving tips
----------------------------------------
19
1. The appliance must be positioned so
that the plug is accessible.
2. If the supply cord is damaged,it must
be replaced by the manufacturer,its service agent or
similarly qualified persons in order to avoid a hazard.
3.WARNING:Keep ventilation openings,in the
appliance enclosure or in the built-in structure,
clear of obstruction.
WARNING:
WARNING:
Symbol ISO 7010 W021 Warning;
Risk of fire/flammable materials
2
4.
WARNING:
Do not use mechanical devices or
other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
5. Do not damage the refrigerant circuit.WARNING:
6. Do not use electrical appliances in side
WARNING:
the food storage compartments of the appliance,unles
they are of the type recommended by the manufacturer
.
The refrigerant isobutene(R600a) is contained within
the refrigerant circuit of the appliance,a natural gas
with a high level of environmental compatibility,which
is nevertheless flammable.
During transportation and installation of the appliance,
ensure that none of the componentsof the refrigerant
circuit becomes damaged.
The refrigerant (R600a) is flammable.
Drinking Water
NSF/ANSI/CAN 372
NSF/ANSI/CAN 61: Q≤1
MC 274353
WARNINGS
9. Refrigerator discarded after the need for
disposal according to local laws and regulation.
10.WARNING:The refrigerant and insulation blowing g
as
are flammable.When disposing of the appliance, do so only at
an expose to flame.authorized waste disposal centre. Do not
WARNING:
11.WARNING: When positioning the appliance, ensure the
supply cord is not trapped or damaged.
12.WARNING: Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
13.WARNING: To avoid contamination of food, please respect
the following instructions.
– Opening the door for long periods can cause a significant
increase of the temperature in the compartments of the
appliance.
– Clean regularly surfaces that can come in contact with food
and accessible drainage systems.
– Store raw meat and fish in suitable containers in the
refrigerator, so that it is not in contact with or drip onto other food.
3
14.14.WARNING: Risk of child entrapment. Before you throw
away your old refrigerator or freezer:
Take off the doors
Leave the shelves in place so that children may not easil
climb inside.
–
–
WARNINGS
7.WARNING:
This
unit
is
using
R600a
as
the
Refrigerant
and
cyclopentance
as
Foaming
agent,both
of
this
two
kind
of
materiral
is
easy
to
be
burnt,
so
the
abandoned
unit
should
be
away
from
the
fire,
and
can
not
be
treated
with
fire.
8.WARNING:
Danger
of
electrical
shock,the yellow-green
earthing
of
this
appliance
must
be
earthed
before
operation.
4
●Before performing any type of installation or cleaning,
disconnect the refrigerator from the electrical source. When
you are finished, reconnect the refrigerator to the electrical
source and reset the temperature controls to the desired
setting.
●If the led light is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
●Before Installing the Water Supply Line, You Will Need：
– WARNING: fill with potable water only.
The water supply system must be installed and connected
by a professional technician. Connect the refrigerator with
the cold water pipe :
the maximum inlet water pressure is 690kPa;
the minimum inlet water pressure is 140kPa.
WARNING: Connect to potable water supply only.
●The new hose-sets supplied with the appliance are to be
used and that old hose-sets should not be reused.
This symbol on the product or in its packing indicates that this
product may not be treated as household waste. Instead, it
should be taken to the appropriate waste collection point for the
recycling of electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health,
which could otherwise be caused by the inappropriate waste
handling of this product. For more detailed information about the
recycling of this product, please contact your local council, your
household waste disposal service, or the shop where you
purchased the product.
WARNINGS
Safety and warning information
This guide contains many important safety messages.
Always read and obey all safety messages.
DANGER
WARNING
CAUTION
You will be killed or seriously injured if you don't follow the
instructions.
This is the safety alert symbol.It alerts you to safety messages
that inform you of hazards that can kill or hurt you or others or
cause damage to the product.All safety messages will be
preceded by the safety alert symbol and the hazard signal word
DANGER,WARNING,or CAUTION.These words mean:
To reduce the risk of fire,electric shock,or injury to persons
when using your product,basic safety precautions should be
followed,including the following.
Read all instructions before using this appliance.
You will be killed or seriously injured if you don't follow the
instructions.
Indicates an imminently hazardous situation which,if not avoided,
may result in minor or moderate injury,or product damage only.
Basic safety symbol
Safety and warning information
Appliance connection
CAUTION
5
The appliance must be applied with single phase alternating
current of 110~115V/60Hz. If the voltage fluctuates exceeding the
upper limit, A.C. automatic voltage regulator of more than 350W
should be applied to the refrigerator for safety use.
Safety and warning information
Children should be supervised to ensure that they do not play
with the appliance.
Do not use or store inflammable materials ether,benzene,
alcohol,medicine,LP gas,spray or cosmetics near or in the
fridge.It may cause explosion or fire.
Do not put glassware in freezing chamber or refrigerator
chamber air outlet,it may cause explosion or hurt.
Make sure of grounding.
Consult a qualified electrician or service person if the ground-
ing instructions are not completely understood,or if you have
doubts on whether the appliance is properly grounded.
The incorrect grounding may cause breakdown and electric
shock.
Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
DANGER
Do not damage the refrigerant circuit.
Refrigerant will cause serious injury when it splashing into the
eyes.If it happened please go to hospital immediately.
Keep ventilation openings,in the appliance enclosure or in the
built-in structure,clear of obstruction.
Do not use electrical appliance inside the food storage
chambers of the appliance, unless they are of the type
recommended by the manufacturer.
Do not use mechanical devices or other means to accelerate
the defrosting process,other than those recommended by the
manufacturer.
This appliance is not intended for use by persons(including
children)with reduced physical,sensory or mental capabilities,
or lack of experience and knowledge,unless they have been
given supervisionor instruction concerning use of the appliance
by a person responsible for their safety.
WARNING
CAUTION
This appliance is intended to be used in household and similar
applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential
type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
Safety and warning information
The refrigerant and insulation blowing gas are flammable. When
disposing of the appliance, do so only at an authorized waste
disposal centre. Do not expose to flame.
6
Safety and warning information
The dedicated outlet should be used.
Using several devices at one outlet may cause fire.
Install the appliance in a dry,well ventilated room.
The appliance should be place close to socket,it is easy
to cut off the power supply at the time of the accident.
Do not allow the power plug to face upward or to be
squeezed at the back of the fridge.
Water may be flown into or the plug may be damaged,
which causes fire or electric shock.
Do not allow the power cord bent or pressed by the heavy
object to be damaged.If it is damaged,it must be replaced
by the service agent or a similarly qualified person in order
to avoid a hazard.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
Unplug the power plug when cleaning,handling the interior
lamp of the fridge.
It may cause electric shock or injury.
If the LED lamp is damaged, it must be replaced by the
manufacturer, its service agent.
Remove water or dust from the power plug with dry clean
cloth,do not use wet hands touch it and insert it with the
ends of the pins securely connected.
Do not touch food or containers at the freezer with wet
hands.It may cause frostbite.
Do not place the heavy object or the dangerous object,
cup,flower vase,cosmetics,medicineor any container with
water on the fridge.
It may be dropped to cause injury,fire or electric shock
when opening or closing the door.
Do not spray water at the outside or the inside of the
fridgeor do not clean it with benzene or thinner.
Safety and warning information
7
GAS
NO
Wait for 5 minutes or longer when reconnecting the plug.
It may cause the operation of the freezer to fail.
Do not use the fridge for non-domestic perpose(storing
medicine or testing material,blood,using at the ship,etc.)
It may cause an unexpected risk such as fire,electric
shock,deterioration of stored material or chemical reaction.
Do not use drier to dry the inside,nor light a candle to
remove odor.It may cause explosion or fire.
Do not cling to the door or the trays of the door.
It may make the fridge fallen down or damage the hands.
Especially,do not allow the children to do the above.
When gas is leaked,do not touch the fridge or the outlet
and ventilate the room immediately.
The explosion by spark may cause fire or burn.
When the gas is leaked by the severe damage during
delivering,installing or using the fridge,any spark may
cause fire or burn.
Do not insert the hands or the metal stick into the exit of
cool air,the cover,the bottom of the fridge,the heatproof
grill(exhaust hole)at the backside.
It may cause electric shock or injury.
Do not put ice in thin crystal cup or ceramic ware.
It may break cup or ceramic ware to cause injury.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
Use the submerged the fridge after checking it.
It may cause electric shock or fire.
Do not install the fridge in the wet place or the place
which water or rain splashes.
Deterioration of insulation of electric parts may cause
electric leakage.Please check the fridge regularly.
Do not allow any person except the qualified engineer to
disassemble,repair or alter the fridge.
It may cause injury,electric shock or fire.
NO
After
5 minute s
Safety and warning information
Safety and warning information
8
Product features
Product Introduction
Automatic ice maker
The refrigerator has the function of automatic ice making, and users
can take ice cube, crushed ice and cold water outside the door.
Energy saving and noise reduction
It contains super freeze,energy saving,noise reduction,
optimal refrigeration system to achieve.
Precise temperature control
Microcomputer control system separate to set,control and
display the R-temperature and F-temperature,more
precise control.
Automatic defrosting
Special program to reduce the temperature fluctuation of
the fridge,it's for keeping food fresh.
LED display and touch button
Control board respectively display refrigerator and freezer
chamber temperature setting and functional status;touch
button operation is convenient.
Door-opening alarm system
If more than 1 minute door-opening,alarm system will
remind you to close the door.
Tempered glass,safe and reliable
Tempered glass,safe and reliable,easy clean and durable.
Easy clean and removable door seal
Door seal is easy clean and removable,and long service life.
9
The figure above is schematic for installation only, not representing
the actual product. The specific dimension shall be subject to the
product that you have bought.
Select a good location to place your appliance where it is flat and easy to use. Avoid
placing the unit near heat sources, direct sunlight or moisture.
To ensure proper air circulation around the fridge, please maintain
sufficient space. If install the top panel or closet, please maintain
sufficient space to move when necessary.
11
Product Introduction
Installation dimension
759mm 29.9in
650mm 25.6in
1780mm 70.1in
742mm 29.2in
317mm 12.5in
317mm 12.5in
1390mm 54.7in
1065mm 41.9in
The refrigerator must be placed on a hard, flat ground; if cushioning is
needed, stable, hard, nonflammable cushion blocks shall be used,
rather than the foam backing of refrigerator.
The refrigerator shall be kept away from damp locations where water
is easy to splash; water or dirt shall be removed with soft cloth timely
to prevent rusting which may have an effect on the electrical
characteristics.
Place the refrigerator in a well-ventilated place, reserve a certain
space around and behind the refrigerator, and do not cover or block
the air grille on the rear cover plate of compressor at the back of
refrigerator; Keep the refrigerator away from heat source or direct
sunlight.
Do not carry the refrigerator horizontally or reversely.
Do not carry the refrigerator by holding the door or handle; the
refrigerator shall be carried by lifting the bottom.
Installation
Transport
Adjust plastic feet
When the refrigerator stays in the packing box, plastic feet are in
tightened state. After carrying it out from the packing box for
placement, please make sure to adjust two front plastic feet until the
height is suitable; just adjust two plastic feet with a wrench or directly
by hand.
Plastic feet and rear rollers must touch the ground to prevent the
refrigerator from movement, vibration or noise.
When moving the refrigerator, adjust plastic feet counterclockwise to
keep them off the ground, and then push the refrigerator gently to
move it.
12
Where to install your unit
Operation
Before Using
Remove all packages, including the foam backing at the bottom of
refrigerator and the tapes fixing accessories in the box.
Place the refrigerator to a proper position, and adjust the feet to level.
It is better to clean the refrigerator before use.
Remove the film: There is a layer of transparent film on the panel of
our product, which can protect products from being scratched in the
process of production and transportation, and you can choose to
reserve or remove the film as needed.
Place the refrigerator and adjust to level, clean it, let the refrigerator
stand for above 2 ~ 6 hours, and then power on to ensure that the
refrigerator can operate normally.
The water supply system must be installed and connected by a
professional technician.
Connect the refrigerator with the cold water pipe:
Min. pressure: 140Kpa( 1.4bar )
Max. pressure:690Kpa( 6.9bar)
Water supply connection
When using the function of ice maker, please make sure that the tap
water pipe is connected normally and the water valve is opened.
Enough space shall be reserved for the faucet connecting water
source.
After the refrigerator operates stably, the ice maker will make ice.
Upon power-on for the first time, cold water is available after 5 hours
since the refrigerator operates normally, and ice cubes or crushed ice
is available after 12 hours.
WARNING: Connect to potable water supply only.
Connect the power cord, and turn on the power switch.
Upon startup for the first time, the screen will display respective set
temperature values (the temperature of refrigerating chamber is set
as38 ,temperature of freezing chamber -2 )
Starting
13
。
F
。
F
14
Default is Fahrenheit when power is on.
Press "MODE" button 5 seconds, to switch between °C and °F.
Other buttons use the same method to switch between two modes.
Set temperature range: Celsius degree mode
1.Fridge temperature range: 0~6℃ (Default value 3℃)
2.Freezer temperature range: -23~-15℃ (Default value -19℃)
Set temperature range: Fahrenheit degree mode
1.Fridge temperature range: 32~43°F (Default value 38°F)
2.Freezer temperature range: -10~5°F (Default value -2°F)
• CONTROL PANEL – CHILD LOCK
The CONTROL PANEL LOCK is designed to prevent any changes to the
settings to the refrigerator.
To enable the CHILD LOCK, press the LOCK button, the CHILD LOCK
icon will turn on.
The control panel will be locked until unlocked at the control panel or
there is a loss of power.
To disable the CHILD LOCK, press and hold the lock button for
approximately 3 seconds until the LOCK icon turns off and the control
panel is working in normal operation mode.
•
CONTROL PANEL – STANDBY
The CONTROL PANEL will go dark after approximately 20 seconds of no
activity.
To reactivate the display, simply press any of the buttons on the control
panel.
Setting the Temperature Control
• Your unit has one control for regulating the temperature. The temperature control is located on the outside of
the refrigerator compartment door.
• The first time you turn the unit on, the unit will start at the factory-set default temperature, which is 38ºF in the
refrigerator compartment and -02ºF in the freezer compartment.
• The first time you turn the unit on, adjust the temperature in the refrigerator compartment to 34ºF and run for
at least 4 hours before placing food inside. This will ensure that the freezer compartment is thoroughly chilled
and the refrigerator compartment is stabilized before food is placed inside. Then adjust the temperature setting
to your desired setting.
• To adjust the temperature in each zone, press the appropriate zone button, and the selected zone will flash
on and off. The temperature will change according to the pre-set temperatures as shown below. You will hear
a bell chime with each press of the control panel buttons.
Operation
Control panel
15
PRE-PROGRAMMED FUNCTIONS:
• FAST FREEZE MODE
This mode will set the freezer temperature to -10ºF for a quick drop in temperature
when storing large amounts of warm or room-temperature foods in the freezer.
The unit will remain in FAST FREEZE mode for 24 hours or until the temperature
reaches -10ºF and will then return to the original setting, or until the function is
turned off at the control panel. FAST COOL and FAST FREEZE can be run simultaneously.
To enable the FAST FREEZE mode, press the feature button until the FAST FREEZE icon is
illuminated. The icon will remain illuminated when activated.
To disable the FAST FREEZE mode, press the function button until the FAST FREEZE icon is
turned off.
•
FAST COOL MODE
This mode will set the refrigerator temperature to 32ºF for quick drop in temperature
when storing large amounts of warm or room temperature foods in the refrigerator.
The unit will remain in FAST COOL mode for 2 hours and 30 minutes or until the
temperature reaches 32ºF and will then return to the original setting, or until the function
is turned off at the control panel. Both FAST COOL and FAST FREEZE can be run together at the
same time.
To enable the FAST COOL mode, press the feature button until the FAST COOL icon is illuminated.
The icon will remain illuminated when activated.
To disable the FAST COOL mode, press the function button until the FAST COOL icon is turned off.
•
VACATION MODE
Use this mode when leaving for long periods of time, where you will remove the large
majority of the refrigerator contents but leave contents in the freezer.
Vacation mode will automatically set the refrigerator section to 43ºF and the freezer
section to 5ºF. The unit will remain in VACATION MODE until the feature is
To enable VACATION mode, press the feature button until the VACATION icon is illuminated.
The icon will remain illuminated when activated.
To disable VACATION mode, press the function button until the VACATION icon is turned off.
deactivated at the control panel.
Operation
Operation
16
NOTE:
WE DO NOT RECOMMEND INSTALLING THE REFRIGERATOR WHERE THE TEMPERATURE
WILL DROP BELOW 32ºF (0ºC) OR RISE ABOVE 110ºF (43ºC). THE COMPRESSOR WILL NOT
BE ABLE TO MAINTAIN PROPER TEMPERATURES INSIDE THE REFRIGERATOR.
FOR INSTALLATIONS WHERE THE TEMPERATURES WILL DROP BELOW 32º, SET THE
FREEZER TEMPERATURE CONTROL TO THE “COLDEST” SETTING. THIS WILL IMPROVE
THE FUNCTIONING THE REFRIGERATOR UNDER THESE CONDITIONS.
NOTE:
• IF THE UNIT IS UNPLUGGED, HAS LOST POWER, OR IT IS TURNED OFF. YOU MUST WAIT
3 TO 5 MINUTES BEFORE RESTARTING THE UNIT. IF YOU ATTEMPT TO RESTART BEFORE
THIS TIME DELAY, THE REFRIGERATOR-FREEZER WILL NOT START.
17
Fruit and vegetable box
The refrigerating chamber has a fruit and vegetable box, which can
retain the moisture of fruits and vegetables and keep the humidity of
the box proper. It is suitable for storing fruits and vegetables.
Disassembly: Hold both sides of the bottle shelf with both hands.
Push it from the side without the boss and push it inward as the
direction of the arrow. When pushing hard, please note that the
buckle on the edge of bottle shelf is separated from the groove
of the liner. Then bottle shelf can be removed.
Bottle Shelf
Installation :Hold both sides of the bottle shelf with both hands.
Install the buckle of the boss side at first. Then push the other
side inward slightly, the buckle can be fixed.
The refrigerator chamber is mainly used to store
foods that are preserved for a short time.
The refrigerator chamber is suitable for storing fruits,vegetables,drinks
and other foods that will be eaten recently. It is suggested to seal foods
and then put them into the refrigerator.
Suggested sections of refrigerator chamber for various foods and
variety name:
op tray: dairy products, odorous foods, etc.;
Glass shelve: wheaten foods, milk, etc.;
Drawer: fruits, vegetables, etc.;
T
①
②
③
Operation
Refrigerator chamber
Here is a boss on the liner
liner of door
bottle shelf
Ice maker.
1
2
Freezing chamber
1
1
2
Storage of foods
Instructions for storing foods
CAUTION
Energy saving tips
When storing freezing foods, put them to the inside of freezing
chamber, other than the bottle rack.
Do not put bottled or canned foods into the freezing chamber to
prevent frost cracking.
Before putting hot foods into the refrigerator, cool them to room
temperature first; otherwise, they will increase power consumption.
Mark the freezing date on the packaging bag according to different
storage lives of foods, so as to prevent foods from exceeding the
time limit.
Divide foods into proper pieces and package them separately, which
are easy to freeze thoroughly and will not frozen together.
The packaging materials shall be odorless, airtight, watertight and
pollution-free, so packaged foods are not easy to taint by other odor,
without quality reduction.
Do not put too many fresh foods into the freezing chamber once,
preferably not exceeding the freezing capacity value of refrigerator.
Melted foods can not be frozen again, unless they are made into
dishes; otherwise, their service quality will be affected.
Glass bottles or glass containers shall not be placed into the freezing
chamber or at the air outlet of refrigerating chamber duct; otherwise,
they may explode.
Foods can not block the air outlet; otherwise, abnormal air circulation
will be caused.
Make sure to keep the refrigerator away from heat source and direct
sunlight.
Before storing hot foods, cool them to room temperature and then
put into refrigerator.
Close the door timely, reduce the opening frequency, and shorten
the opening time.
When unfreezing frozen foods, you can put them into the
refrigerating chamber, which will assist in refrigeration of the
refrigerating chamber.
Make sure that the temperature sensor is not covered or blocked by
foods, and keep proper distance with foods.
Operation
19
Cleaning
Defrosting
This production has automatic defrosting function, without manual
operation.
Precautions for internal and external cleaning of refrigerator:
After cleaning, connect the power plug of refrigerator, and
connected with the refrigerator.
Maintenance
■ Before cleaning, always turn off the power switch, disconnect the
power plug.
■ During cleaning, make sure that no water will enter the switch,
control panel, door lamp and top control box.
■ Remove dirt from the outside of refrigerator with mild cleaner, then
wipe with clean soft cloth, and let the refrigerator dry naturally.
■ When cleaning door sealing strip, always use clean water, wipe
with dry cloth and let it dry naturally. Wet soft cloth with warm water
or neutral cleaner to wipe the refrigerator body except the door
sealing strip.
■ It is forbidden to flush the refrigerator directly with water, which will
affect electrical insulation properties, etc.
■ It is forbidden to clean the refrigerator with metal wipers, ware
brushes, coarse abrasive cleaners, strong alkaline detergents, or
flammable or toxic cleaning fluids.
20
General information
On vacation
■ When you want to leave for vacation, you had better to make the
refrigerator operate continuously and leave foods that can be
stored for a short time. If you want to stop the refrigerator, remove
all foods, disconnect the power plug, clean the inside of refrigerator
fully, and open the door to avoid producing abnormal odors.
At power failure
■ Generally, short-term power failure will not affect the temperature
of the refrigerator sharply. However, if power failure lasts for a long
time, you shall reduce the opening frequency of refrigerator, and
shall not put fresh foods into the refrigerator (prevent rise in the
temperature of refrigerator from speeding up).
■ If you know power failure is coming, you can turn on the “Super
Freezer” func tion in advance to keep the temperature of
refrigerator to the lowest value.
Shutdown
■ Generally, it is not suggested to stop refrigerator or turn off the
power switch; otherwise, the life of refrigerator may be affected.
Normal phenomena
Maintenance
Low voltage,the compressor can't start
You should purchase pressurizer of more than 1000W
when the area of the appliance installation,that's better to
protect your fridge.
Long time to start
When the ambient temperature too high, it will take long time
to start the appliance.
Button failure
Please check the control board whether the fridge under
lock mode.When under lock mode,all buttons can't work.
Dew drops
When external air flows into the cool inner surface of the
fridge,dew drops can be formed.
If the humidity of the installed location is high or during
the rainy season,dew drops can form on the outer side
of the fridge.This is a natural phenomenon that occurs
during the humid weather,Wipe the water drops with a
dry cloth.
Noise
When you operate the fridge for the first time,the fridge
will operate at high speed to cool fast and the sound can
seem louder.When the internal temperature falls below a
certain level,the noise will subside.
When the operation of the compressor is starting or
ending;various parts expanding/contracting or various
control devices operating or temperature change within
the fridge,you will hear the sounds,these are normal
sounds.
Compressor hot
When working,the temperature of the compressor is
more than 80℃,please do not touch the compressor,it
may cuase serious injury.
outer
Compressor long time running
When the ambient temperature too high or put too much
fresh foods into the fridge,it will take long time to cool
down until the appliance run at the setting temperature.
Middle beams feel hot
Middle beams feel hot after a period of time of the appliance run,
it belongs to the normal phenomenon.
21
Maintenance
Trouble shooting
22
The mains plug of the appliance
is not in the socket properly.
Check whether the power is
on.
Warranty And Service
Warranty and Service
This product has been manufactured by Thor International, 4651 E Airport Drive, California
91761
. For Customer Service, please call (877) 288 - 8099
For the most up to date warranty and service policy, please refer to our website
WWW.THORKITCHEN.COM/WARRANTY-REGISTRATION
For in-warranty service requests, please visit our website at
WWW.THORKITCHEN.COM/SERVICE
Please Note: You must provide proof of purchase or installation date for any in-warranty
service requests
WELCOME TO THE THOR KITCHEN X
GORDON RAMSAY COLLECTION
THOR Kitchen x Gordon Ramsay Collection is backed by a solid two-year warranty
on both parts and labor. It’s our commitment to quality and your peace of mind.
Registering your appliance ensures top-notch service and personalized support.
Your registration helps us stay informed about your appliance, enabling us
to provide timely maintenance reminders, updates, and exclusive offers. This
ensures your appliance maintains peak performance for years to come.
01
02
03
Scan the QR Code or visit thorkitchen.
com/register-your-product.
Input your purchase and product
information and select register.
That’s it. You’re all set.
Start cookin’!
ThorKitchen.com/Gordon-Ramsay-Collection
