1
8 LITRE
DUAL BASKET AIR FRYER
USER MANUAL
MODEL: T17151
海宫 145x210mm 24P（16Kx6张）彩色印刷 2024-3-9 17:55:59
2
TABLE OF CONTENTS
THIS BOX CONTAINS 3
SPECIFICATIONS 3
IMPORTANT SAFETY INFORMATION 4
• Key Safety Points 4
• General safety 4
• Whilst Air Frying 5
• Plug and cord 6
• Wiring safety 7
GETTING TO KNOW YOUR AIR FRYER 8
• Control panel and display 8
• Structure of your appliance 9
BEFORE FIRST USE 10
• Preparing for use 10
USING YOUR AIR FRYER 10
• Air Fryer Cooking basket Safety Switch 10
• Removing the Cooking baskets 10
• Turning the appliance ON/OFF 10
• Selecting the Cooking baskets 11
• Pre-set Menus 11
• Setting the Temperature 11
• Setting the Timer 12
• Starting and Pausing the Cooking Process 12
• Cooking with Both Cooking baskets 12
• Cooking Separate Ingredients – The ‘Smart’ Function 12
• Cooking Larger Batches – The ‘Match’ Function 13
• Starting a Cooking Session 13-14
• Settings Table 14
SUGGESTED TIMES/TEMPS 15
ACCESSORIES / SPARE PARTS 16
TROUBLESHOOTING 17
CLEANING AND CARE 18
DISPOSAL OF THE UNIT / CUSTOMER SUPPORT 19
WEIGHTS & MEASURES TABLE 20
RECIPES 21-23
3
THIS BOX CONTAINS
SPECIFICATIONS
RATED VOLTAGE AC 220 - 240V~
FREQUENCY 50/60Hz
POWER CONSUMPTION 2570-3040W
CAPACITY 8 Litre
TEMPERATURE RANGE 80°C - 200°C
TIME RANGE 1-60 minutes
Instruction Manual
8L Dual Basket Air Fryer
Removable Grill Plates
4
Please read these safety
NOTES carefully BEFORE
using your Tower appliance.
These warnings have been
provided in the interest
of safety. Basic safety
precautions should always
be followed including the
following:
KEY SAFETY POINTS
CAUTION:
During operation:
• Surfaces are hot. DO
NOT touch the hot
surfaces.
• Hot steam is released
through the air outlet
openings. Keep your
hands and face at a safe
distance from the steam
and from the air outlet
openings.
• Hot steam and air
may escape when the
appliance cooking basket
is opened.
GENERAL SAFETY
• DO NOT immerse cords,
plugs or any part of the
appliance in water or any
other liquid.
• Close supervision is
necessary when any
appliance is used by or
near children.
• Children should not play
with the appliance.
• This appliance can
be used by children
aged from 8 years and
above and persons
with reduced physical,
sensory or mental
capabilities or lack
of experience and
knowledge if they have
been given supervision
or instruction concerning
use of the appliance in a
safe way and understand
the hazards involved.
• Cleaning and user
maintenance should
not be undertaken
by children without
supervision.
• Take care when any
appliance is used near
pets.
• Switch off and unplug
before fitting or
removing accessories,
after use and before
cleaning.
• Allow the appliance
to cool down for
approximately 30
minutes before fitting or
removing accessories or
cleaning.
IMPORTANT SAFETY INFORMATION
5
• If the supply cord or
appliance is damaged,
stop using the appliance
immediately and
seek advice from the
manufacturer, its service
agent or a similarly
qualified person.
• The use of accessory
attachments is not
recommended by the
appliance manufacturer,
apart from those
supplied with this
product.
• DO NOT use the
appliance outdoors.
• DO NOT place the
appliance on or near a
hot stove top or heated
oven.
• Take care when moving
the appliance, or
removing accessories
and food as hot oil or
other hot liquids may be
present.
• This appliance is for
household use only.
• DO NOT place anything
on top of the appliance.
• DO NOT clean the
appliance with
metal kitchen utensils,
caustic or abrasive
cleaning agents or
scouring sponges.
•
DO NOT use this
appliance for anything
other than its intended
use.
WHILST AIR FRYING
• Please ensure that the
appliance is used on a
stable, level, and heat
resistant surface.
• DO NOT place the
appliance on or near
combustible materials
such as a tablecloth or
curtain.
•
DO NOT place the
appliance against
a wall or against other
appliances. Leave at least
10cm free space
on the back and sides
and 10cm free space
above the appliance.
•
DO NOT place the
appliance in the
presence of explosive
and/or flammable fumes.
•
DO NOT cover the air
inlet and outlet during
operation.
• Any accessories, baking
trays or oven dishes
used in the appliance
will become hot. Always
use oven gloves when
handling or removing
anything from the
appliance.
6
• DO NOT place food that
is still packed in plastic
wrap or plastic bags
in the appliance.
•
DO NOT allow food to
come into contact with
the heating element of
the appliance.
• If the appliance begins
to emit smoke, unplug it
immediately. Only open
the door once the smoke
has cleared. Remove
burnt remnants.
• DO NOT leave this
appliance unattended
whilst operating.
PLUG AND CORD
• Check that the voltage
of the main circuit
corresponds with the
rating of the appliance
before operating.
• WARNING: DO NOT
let the cord hang over
the edge of a table or
counter, serious burns
may result from the air
fryer being pulled off the
counter where it may
be grabbed by children
or become entangled
with the user.
•
DO NOT let the supply
cord touch hot surfaces.
• DO NOT carry the
appliance by the power
cord.
• DO NOT use any
extension cord
with this appliance.
•
The appliance is not
intended to be operated
by means of an external
timer or separate
remote-control system.
• DO NOT pull the plug
out by the cord as this
may damage the plug
and/or
the cable.
•
DO NOT plug and
unplug with wet hands.
It is important that this instruction
manual is retained for future
reference.
If the appliance is given to someone
else, it should always be accompanied
by these operating instructions, as
they form an integral part of the
appliance.
IMPORTANT SAFETY INFORMATION
7
In the unlikely event the appliance develops a fault, stop using it immediately
and seek advice from the Customer Support Team.
IMPORTANT
:
As the colours in the mains
lead of this appliance may not correspond
with the coloured markings identifying
the terminals in your plug, please proceed
as follows:
The wires in the mains lead are labelled in
accordance with the following code:
Blue neutral [N] Brown live [L] Green/
Yellow [EARTH]
PLUG FITTING DETAILS (WHERE
APPLICABLE).
• Plug Fitting Details (Where
Applicable). The wire labelled blue is
the neutral and must be connected to
the terminal marked [N].
• The wire labelled brown is the live
wire and must be connected to the
terminal marked [L].
• The wire labelled green/yellow must
be connected to the terminal marked
with the letter [E].
• On no account must either the brown
or the blue wire be connected to the
[EARTH] terminal.
• Always ensure that the cord grip is
fastened correctly.
• The plug must be fitted with a fuse
of the same rating already fitted and
conforming to BS 1362 and be ASTA
approved.
• If in doubt consult a qualified
electrician who will be pleased to do
this for you.
NON-REWIREABLE MAINS
PLUG.
If your appliance is supplied with a non-
rewireable plug fitted to the mains lead
and should the fuse need replacing,
you must use an ASTA approved one
(conforming to BS 1362 of the same rating).
If in doubt, consult a qualified electrician
who will be pleased to do this for you.
If you need to remove the plug -
disconnect it from the mains - then cut
it off of the mains lead and immediately
dispose of it in a safe manner. Never
attempt to reuse the plug or insert it into
a socket outlet as there is a danger of an
electric shock.
WIRING SAFETY FOR UK USE ONLY
8
GETTING TO KNOW YOUR AIR FRYER
CONTROL PANEL AND DISPLAY
1. Temperature Up key
2.
3.
Temperature
Temperature Down key
4. LED displays
5. Time Up key
6.
7.
Time
Time Down key
8.
Cooking basket 1 selection key
9. Cooking basket 1 light On/Off key
10. Match cook function key
11. Pre-set selection menu key
12. Power On/Off key
13. Start/Pause key
14.
Smart cook function key
15.
Cooking basket 2 light On/Off key
16. Cooking basket 2 selection key
PRESET INDICATORS
1. Drumsticks pre-set indicator
2. Chicken pre-set indicator
3. Steak pre-set indicator
4. Fish pre-set indicator
5. Bacon pre-set indicator
6. Shrimp pre-set indicator
7. Fries pre-set indicator
8. Vegetables pre-set indicator
9. Cake pre-set indicator
41 52 63 74
98 10 11 12 13 14 15 16
1 2 3
4 5 6 7 8 9
9

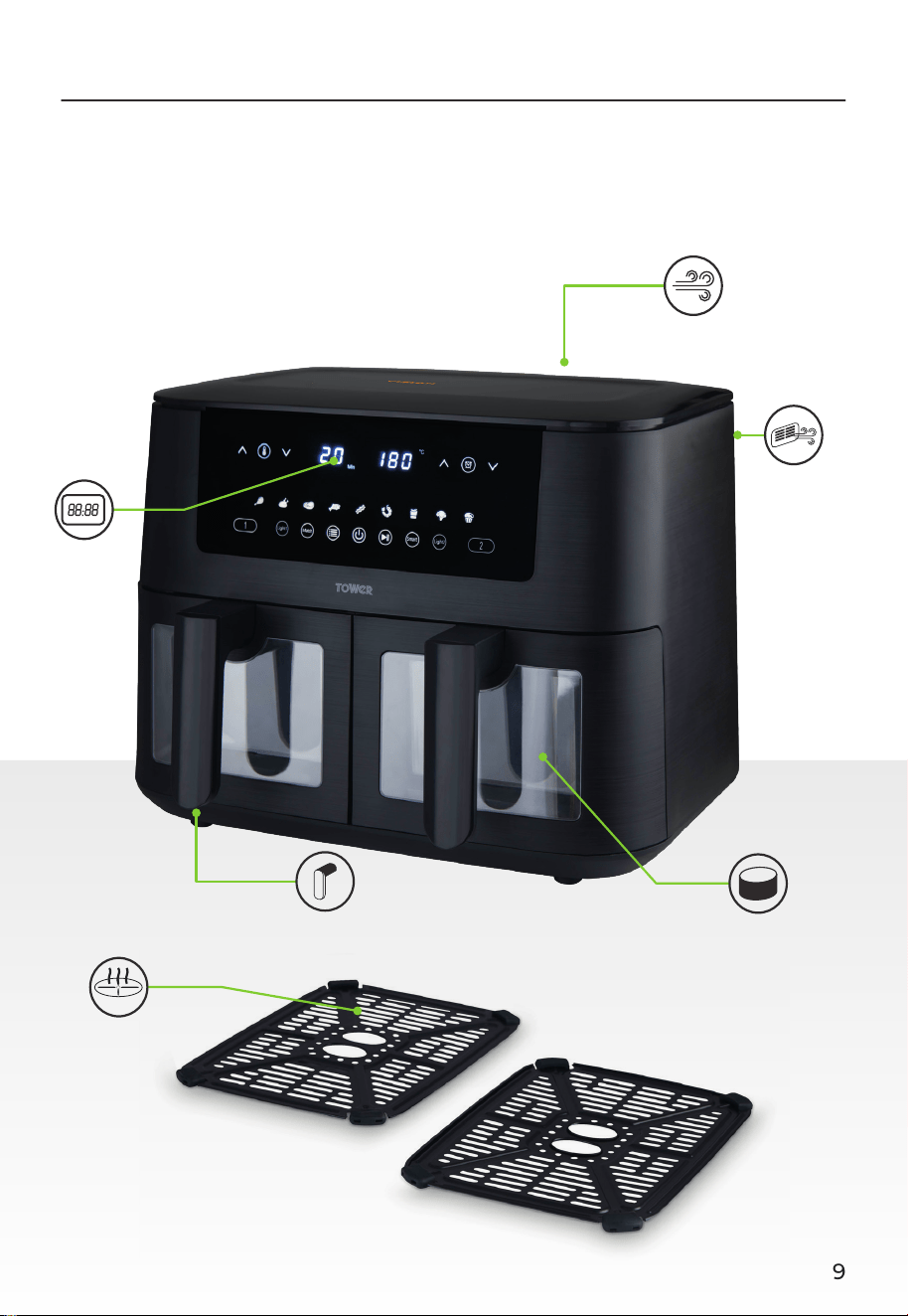

STRUCTURE OF YOUR APPLIANCE
Air inlet
Air outlet
Control
Panel
Cooking
basket
Basket
handles
Grill plates
10
PREPARING FOR USE
1. Read all instructions and safety
information carefully before first use.
Please retain this information for
future reference.
2. Remove your appliance from the
packaging.
3. Check that there is no damage to
the cord or any visible damage to the
body.
4. Dispose of the packaging in a
responsible manner.
5. Remove any stickers or labels from
the appliance. DO NOT remove the
rating label.
6. Thoroughly clean the grill plates and
cooking baskets with hot water, some
washing-up liquid and a non-abrasive
sponge. Dry thoroughly.
7. Place the grill plates on the bottom of
the cooking baskets before use.
8. Wipe the inside and outside of the
appliance with a damp cloth. Dry
thoroughly.
9. Do not fill the appliance with oil or
frying fat. This appliance operates
using hot air and requires very little to
no oil.
10. Familiarise yourself with the control
panel shown in the Specifications
section.
11. Situate your appliance according to
the Important Safety Instructions
section.
NOTE: When using the appliance for the
first time, a slight smoke or odour may
be emitted. This is normal and will soon
subside. Ensure that there is sufficient
ventilation around the appliance.
BEFORE FIRST USE
USING YOUR AIR FRYER
This appliance allows for just one or
both cooking baskets to be used while
cooking.
The two compartments, along with the
dedicated ‘Match’ and ‘Smart’ settings,
allow for dual zone food preparation,
allowing for different foods to be cooked
simultaneously with different cooking
times and temperatures, while still
being ready at the same time.
AIR FRYER COOKING BASKET
SAFETY SWITCH:
For your safety, this air fryer contains
a safety switch in each of the cooking
baskets, designed to keep if from
accidentally turning on whenever
the cooking baskets are not properly
situated inside the appliance or the
timer is not set. Before using your air
fryer, please ensure that the grill plates
are inside the cooking baskets and the
cooking baskets are fully closed.
REMOVING THE COOKING
BASKETS:
The cooking baskets can be removed
fully from the air fryer. Pull on the
corresponding handle at any time to slide
each cooking basket out of the air fryer.
NOTE: If a cooking basket is removed
from the main body of the fryer when
in operation, that side of the unit will
automatically stop working and the text
‘OUT’ will be displayed in the unit’s LED
display to indicate the cooking process
has been paused. When the cooking
basket is re-inserted, the air fryer will
resume operation on the latest selected
settings.
NOTE: Removing one cooking basket
from the unit will not disturb the cooking
process for the other basket.
11
TURNING THE APPLIANCE ON/
OFF:
1. Plug the unit into a mains socket.
The LED display and control panels
will briefly illuminate and the Power
button will light up red to show the
unit has been plugged in.
2. Press the Power button on the unit’s
control panel to turn the unit on.
There will be a sound prompt and the
LED display and control panel will
illuminate to show the unit has been
turned on.
3. Long-press the Power button again
while the unit is turned on to put it
into Standby mode. All the indicators
on the unit’s control panel will go off
and the Power button will turn red.
SELECTING THE COOKING
BASKETS:
This unit allows you to cook on either
of its two cooking baskets separately,
or use both for simultaneous meal
preparation.
1. To select the cooking basket you
wish to use, press the corresponding
button on the unit’s control panel. The
button will flash, the corresponding
side of the LED display will display
the temperature and time for the
Chicken preset and the Chicken pre-
set indicator and basket number will
begin to flash.
2. To select the other cooking basket at
any time. The second cooking basket
button will illuminate, the opposite
side of the LED display will display
the temperature and time for the
Chicken preset and the Chicken pre-
set indicator and basket number will
begin to flash to indicate the other
cooking basket has been selected.
NOTE: To select the second cooking
basket while a cooking cycle is under way,
first press the Start/Pause button, then
press the second basket selection button,
program it as required, and press the
Start/Pause button again to resume the
cooking cycle.
PRE-SET MENUS:
The appliance’s cooking temperature can
be set manually, from 80ºC to 200ºC.
1. Once the unit is on and the required
cooking basket or cooking baskets
have been selected, select one of the
unit’s nine pre-set cooking menus
to start a cooking section. To do this,
press the Menu button on the unit’s
control panel. The corresponding
indicator will begin to flash and the
default temperature setting for that
mode will flash on the unit’s LED
screen to show which Pre-set has
been selected.
2. Press the Menu key on the unit’s
control panel again to switch over to
a different preset. The corresponding
indicator will flash and the default
temperature setting for that mode
will flash on the unit’s LED screen to
show a different pre-set has been
selected.
NOTE: It is not possible to change pre-
sets midway through a cooking cycle.
To change modes when a cooking cycle
is under way, that cycle must first be
paused, cancelled or ended before the
new pre-set can be selected.
NOTE: A pre-set MUST be selected before
a cooking session can be started or any
time and temperature settings can be
adjusted.
NOTE: The default pre-set for this unit is
Chicken.
NOTE: The pre-set times and
temperatures for each program should be
adjusted if necessary to ensure the food
is fully cooked. Adjustments can also be
made during the cooking process. Refer to
the ‘Setting the Temperature’ and ‘Setting
the Timer’ sections of this instruction
manual for guidance on how to manually
adjust each setting.
USING YOUR AIR FRYER
12
USING YOUR AIR FRYER
SETTING THE TEMPERATURE:
1. Press the Temp ▲ or ▼ arrows
to manually adjust the cooking
temperature, by increments of
5. Press the ▲ key to increase the
temperature or the ▼ key to decrease
it.
2. Alternatively, press and hold the
Temperature ▲ or ▼ keys to cycle
through the available time options in
more quickly.
NOTE: Temperature ranges will differ
according to the function or mode
selected.
SETTING THE TIMER:
1. Press the Time ▲ or ▼ arrows to
manually adjust the cooking time
from 1 to 60 minutes, by increments of
1. Press the ▲ key to increase the time
or the ▼ key to decrease it.
2. Alternatively, press and hold the
Time ▲ or ▼ keys to cycle through the
available time options in more quickly.
STARTING AND PAUSING THE
COOKING PROCESS:
1. Once the appropriate function,
time and temperature have been
selected, touch the Start/Pause
key on the unit’s control panel
to start the cooking process.
Alternatively, touch the Start/Pause
key without programming the time
or temperature to start a cooking
session on the default settings for
each pre-set.
2. Touch the Start/Pause button or
cooking basket selection button while
the unit is in operation to pause the
cooking process, and press the Start/
Pause button again while the unit is
paused to resume it.
3. Alternatively, long-press the Power
button to interrupt and cancel the
cooking cycle. The unit will go into
Standby mode.
COOKING WITH BOTH
COOKING BASKETS:
This unit offers a choice of two functions
when cooking with both cooking baskets
simultaneously. The ‘Smart’ function
allows you to cook separate ingredients
on each cooking basket so that they are
ready at the same time, while the ‘Match’
function lets you set both cooking baskets
of the air fryer on the same settings,
allowing for larger batch cooking.
COOKING SEPARATE
INGREDIENTS – THE ‘SMART’
FUNCTION:
1. To use either cooking basket of
the air fryer on separate time and
temperature settings, press the
‘Smart’ button on the unit’s control
panel. The corresponding indicator
will flash to show this function has
been selected.
2. Once the ‘Smart’ function is selected,
press the ‘1’ button on the unit’s
control panel to select and set one of
the unit’s cooking baskets. The LED
screen will display the default time
and temperature for the selected
setting.
NOTE: After a pre-set has been selected,
the default cooking time and temperature
settings can be adjusted manually to suit
individual preference. Refer to the ‘Setting
the Temperature’ and ‘Setting the Timer’
sections of this instruction manual for
guidance on how to select and set the
required time and temperature.
3. Once the required settings have been
selected on the first cooking basket,
press the ‘2’ button to move on to
programming the second cooking
basket. The unit’s LED displays will
alternately display the time and
temperature for each of the selected
pre-sets.
4. Repeat the process detailed above
to select a pre-set menu and adjust
cooking settings for the second
cooking basket. When the required
settings have been selected, press
the Start/Pause button to start the
cooking process. The unit will begin
to cook the food inside each cooking
basket on the selected setting for
13
USING YOUR AIR FRYER
that cooking basket, and make the
necessary adjustments to ensure the
pre-set programs for each cooking
basket finish simultaneously, so
you can enjoy a fully cooked meal
straight away. For example, if one of
the pre-sets has a shorter cooking
time than the other, the unit will delay
the start of the shorter program until
the longer program has reached
the appropriate stage in its cooking
process; for instance, if the program
in cooking basket 1 has a cooking
time of six minutes, and the program
in cooking basket 2 has a cooking
time of 20 minutes, the unit will delay
the start of the cooking process for
cooking basket’ 1 by 14 minutes, so
that the two programs conclude at
the same time.
COOKING LARGER BATCHES –
THE ‘MATCH’ FUNCTION:
1. To select and set the same time and
temperature settings for both cooking
baskets of the air fryer, allowing for
larger batches of ingredients to be
cooked at once, press the ‘Match’
button on the unit’s control panel. The
corresponding indicator will flash and
both sides of the unit’s LED display
will show ’000’ to indicate the ‘Match’
function has been selected.
2. Once the ‘Match’ function is selected,
program each cooking basket as
detailed in the corresponding section
above and adjust the required time
and temperature settings for the
ingredients you wish to cook. Refer
to the ‘Pre-set Menus’, ‘Setting the
Temperature’ and ‘Setting the Timer’
sections of this instruction manual for
guidance on how to select and set the
required time and temperature.
3. Alternatively, you can simply select
one of the unit pre-set menus for
each cooking basket, and the unit
will automatically begin cooking at
the default time and temperature
settings for that pre-set. Refer to
the ‘Pre-set Menus’ section of this
instruction manual for guidance on
how to select a pre-set menu directly
from the unit’s control panel.
STARTING A COOKING SESSION:
1. Once the required settings have
been selected, press the Start/Pause
button to start the cooking process.
The unit will automatically begin
to cook the food on the selected
settings.
2. When the cooking process is
complete, the unit will give off a
sound prompt to indicate the cooking
process has concluded and the food is
ready, and the unit’s LED display will
turn off, with only the Power button
remaining illuminated.
TIPS:
• To remove large or fragile ingredients,
lift the ingredients out of the cooking
basket with a pair of tongs.
• The cooking time will depend on the
size of your ingredients. Smaller sizes
may require a shorter cooking time.
• A larger quantity of ingredients
requires a slightly longer preparation
time than a smaller quantity of
ingredients.
• Shaking smaller ingredients halfway
during the cooking time optimises
the end result and can help prevent
unevenly fried ingredients.
• For perfectly fluffy fries, it is
recommended that potatoes be
parboiled before frying.
• Add some oil to fresh potatoes for a
crispy result. Fry your ingredients in
the air fryer within a few minutes after
you added the oil.
• The optimal amount for preparing
crispy fries is 500 grams.
• Be cautious of using extremely greasy
ingredients such as sausages in the
air fryer.
• Snacks that can be prepared in an
oven can also be prepared in the air
fryer.
• Use pre-made dough to prepare filled
snacks quickly and easily. Pre-made
dough also requires a shorter cooking
time than home-made dough.
• Place a baking tin or oven dish in the
air fryer cooking basket if you want
to bake a cake or quiche, or if you
want to fry fragile ingredients or filled
ingredients.
14
USING YOUR AIR FRYER
• The air fryer can be used to reheat
ingredients. To reheat ingredients, set
the temperature to 150°C for up to 10
minutes.
• If the ingredients are ready empty
the cooking basket into a bowl or
onto a plate. Take care if tilting
the cooking basket, as any excess
oil that has collected on the
bottom of the cooking basket will
leak onto the ingredients, and the
grill plate may also detach from the
cooking basket and fall onto the
food.
• When a batch of food is ready, the
appliance is instantly ready for
preparing another batch.
• Unplug the appliance when the unit is
not required for further cooking.
SETTINGS TABLE:
NOTE: Once a pre-set mode has
been selected, the cooking time and
temperature can be adjusted manually,
to suit any number of foods. This
settings table will help you to select the
basic settings for a variety of popular
ingredients.
NOTE: Keep in mind that these settings
are indications. As ingredients differ in
origin, size, shape and brand the best
settings for the ingredients cannot be
guaranteed.
NOTE: Because the Rapid Air technology
instantly reheats the air inside the
appliance, removing the drawer briefly
out of the appliance during hot air frying
barely disturbs the process.
NOTE: Add 3 minutes to the preparation
time before you start frying if the
appliance or ingredients are cold.
15
Action during
cooking
Default
Cooking
Time (mins)
Default
Temperature
(ºC)
Recommended
amount of
ingredients (g)
Action during
cooking
FISH
20 180 400-500
Shake
FRIES
18 200 300-500
Shake
BACON
12 180 80-120
BAKE
12 180
100-150
CHICKEN LEG
20 180
400-600 Shake
STEAK
14 180
150-200 Shake
VEGETABLE
10 150
200-300
PRAWN
12 160
350-500 Shake
CHICKEN
36 180
500-550
SUGGESTED TIMES/TEMPS
Shake
Shake
Shake
16
Spare part replacements and accessories are available to purchase via:
+44 (0) 333 220 6066
www.towerhousewares.co.uk
PART NO DESCRIPTION
T1715101 Left Hand Basket
T1715102 Right Hand Basket
T1715103 Grill Plate
ACCESSORIES/SPARE PARTS
17
PROBLEM POSSIBLE CAUSE SOLUTION
The air fryer
does not work
The appliance is not plugged in.
A cooking basket’ or cooking mode has
not been selected.
The Start/Stop key has not been pressed.
The cooking basket’s are open and the
selected function is paused.
Plug the appliance into an earthed wall
socket.
Select the required cooking basket’ and
cooking mode by pressing the corresponding
buttons on the unit’s control panel.
Press the Start/Stop key.
Close the cooking baskets to automatically
resume the selected function.
The cooking
baskets will
not slide
inside the unit
properly.
There is too much food in the cooking
baskets.
Take care not to overfill the cooking baskets.
The fried
ingredients
are not done.
Too much food has been added to the
air fryer.
The set temperature is too low.
The cooking time is too short.
Put smaller batches of ingredients in the air
fryer. Smaller batches are fried more evenly.
Set to an appropriate temperature or select
the appropriate pre-set program from the
unit’s control panel.
Set an appropriate cooking time or select the
appropriate pre-set program from the unit’s
control panel.
Fresh fries are
fried unevenly
in the air fryer.
Wrong type of potatoes used.
The potato sticks were not rinsed
adequately before frying.
Use fresh potatoes and make sure they stay
firm during frying.
Rinse the potato sticks properly to remove
starch from the outside.
Fried snacks
are not crispy
or evenly fried
when they
come out of
the air fryer.
Some food materials have to be fried
with oil.
Wrong type of snacks used.
Food is stuck together or not in an even
layer.
Brush a thin layer of oil on the surface of the
food first, then start to fry it.
Use oven snacks or lightly brush some oil onto
the snacks for a crispier result.
Shake or turn the food periodically through
the cooking process.
Fresh fries
are not crispy
when they
come out of
the air fryer.
The crispiness of the fries depends on
the amount of oil and water in the fries.
Make sure you dry the potato sticks properly
before you add the oil.
Cut the potato sticks smaller for a crispier
result.
Add slightly more oil for a crispier result.
The appliance
is smoking.
The ingredients have a high oil content.
The appliance contains grease from a
previous use.
An inappropriate temperature has been
set.
Smoking will be normal.
White smoke is caused by grease heating up
inside the fryer.
Clean the appliance properly after each use.
Follow the suggested settings or food
manufacturer’s recommendations.
The food is
burned
The food was cooked for too long.
The food was left in the appliance after
the cooking time had elapsed.
Check on the progress of the food periodically
throughout the cooking process.
Remove the food from the appliance as soon
as the cooking time has elapsed.
TROUBLESHOOTING
18
CLEANING AND CARE
WARNING! Do not immerse the appliance
in water or any other liquid.
NOTE: Clean the appliance after every use.
1. Do not use metal kitchen utensils or
abrasive cleaning materials to clean
the cooking baskets and grill plates,
as this may damage the non-stick
coating.
1. Clean the cooking baskets and grill
plates with hot water, some washing-
up liquid and a non-abrasive sponge
or brush.
Tip: If food residue is stuck to the grill
plates or the bottom of the cooking
baskets, leave them to soak in hot water
and some washing-up liquid for a few
hours or overnight.
2. DO NOT allow water or any other
liquid to enter the unit.
3. Wipe the outside of the appliance
with a damp cloth.
4. Wipe the inside of the appliance with
hot water and a non-abrasive sponge.
5. Clean the heating element with a
cleaning brush to remove any food
residues.
6. Ensure all parts are thoroughly dry
before use.
NOTE: The cooking basket is NOT
dishwasher-proof. NEVER place the
cooking basket in the dishwasher.
STORAGE
• Ensure that the air fryer is cool, clean
and dry before you store it.
• Store the appliance in a cool and dry
place.
19
Appliances bearing the symbol shown
here may not be disposed of in domestic
rubbish. You are required to dispose of old
electrical and electronic appliances like
this separately.
Please visit www.recycle-more.co.uk
or www.recyclenow.co.uk for access
to information about the recycling of
electrical items.
Please visit www.weeeireland.ie for
access to information about the recycling
of electrical items purchased in Ireland.
If you have any questions or concerns about your new product,
please contact our helpful Customer Support Team:
+44 (0) 333 220 6066
www.towerhousewares.co.uk
Please have your Model No. available. This can be found on the front
cover of this instruction manual and on the appliance’s rating label.
The WEEE directive, introduced in August
2006, states that all electrical items must
be recycled, rather than taken to landfill.
Please arrange to take this appliance to
your local Civic Amenity site for recycling,
once it has reached the end of its life.
DISPOSAL OF THE UNIT
CUSTOMER SUPPORT
20
WEIGHTS AND MEASURES
Check these charts for basic imperial to metric conversions of weights.
IMPERIAL Metric
1/2 oz 15g
1 oz 30g
2 oz 60g
3 oz 90g
4 oz 110g
5 oz 140g
6 oz 170g
7 oz 200g
8 oz 225g
9 oz 255g
10 oz 280g
11 oz 310g
12 oz 340g
13 oz 370g
14 oz 400g
16 oz 425g
1 lb oz 450g
METRIC IMPERIAL US CUPS
250ml 8 fl oz 1 cup
180ml 6 fl oz 3/4 cup
150ml 5 fl oz 2/3 cup
120ml 4 fl oz 1/2 cup
75ml 2 ½ fl oz 1/3 cup
60ml 2 fl oz 1/4 cup
30ml 1 fl oz 1/8 cup
15ml 1/2 fl oz 1 tablespoon
21
INGREDIENTS
2 large potatoes
½ tbsp. paprika
Pinch of salt
Pinch of pepper
1 tbsp. sunflower oil
1. Wash, peel and slice the potatoes.
2. Dry with kitchen paper.
3. Cut the potatoes into your desired
length and thickness.
4. Bring a large pot of water to the boil with
a pinch of salt. Add the chips and allow
to part boil for 10 minutes.
5. Strain the fries and immediately run
under cold water to stop them from
cooking any more.
6. Pour the oil in a bowl, with the paprika,
salt and pepper. Put the fries on top and
mix until all the fries are coated.
7. Remove the fries from the bowl with
your fingers or kitchen utensil so that the
excess oil stays behind in the bowl.
8. Place the fries in the air fryer and
then set the fryer to cook as per the
suggested times/temperature in the
Settings Table.
Variations: Try replacing ½ tbsp. of paprika
with ½ tbsp. garlic powder, or ½ tbsp. of
grated parmesan cheese.
HOMEMADE FRIES
FAMILY SIZE
SERVES
4
22
HONEY LIME CHICKEN WINGS
INGREDIENTS
12 chicken wings
2 tbsp soy sauce
2 tbsp honey
1 ½ tsp salt
¼ tsp white pepper
¼ tsp black pepper
2 tbsp fresh lime
juice
METHOD
1. Place all the ingredients inside a large
mixing bowl or zip-locked sealing
bag and mix them well. Marinate in
the refrigerator for at least 4 hours
(preferably overnight)
2. Evenly scatter the chicken wings across
the basket.
3. Cook the wings, turning halfway
through as per the suggested time and
temperature most
FAMILY SIZE
SERVES
4
23
MOLTEN CHOCOLATE LAVA CAKE
INGREDIENTS
100g dark chocolate
chips
100g unsalted butter
1 ½ tbsp. self-raising flour
2 eggs
2 ½ tbsp. sugar
METHOD
1. Melt the chocolate and the butter,
stirring all the time.
2. Stir the flour into the mixture, mix it in
lightly and set the mixture aside.
3. In a separate mixing bowl, mix together
the eggs and sugar until light and
frothy. Mix in the chocolate sauce slowly
until the ingredients are well blended
together.
4. Pour the batter into an oven-safe cup or
ramekin and place it inside the air fryer.
5. Turn the air fryer to 190ºC for 6 minutes.
6. When ready, top with ice-cream and
serve immediately.
FAMILY SIZE
SERVES
4
24
This product is guaranteed for 12
months from the date of original
purchase.
If any defect arises due to faulty
materials of workmanship, the faulty
products must be returned to the place
of purchase.
Refund or replacement is at the
discretion of the retailer.
THE FOLLOWING CONDITIONS APPLY:
The product must be returned to the
retailer with proof of purchase or a
receipt.
The product must be installed and used
in accordance with the instructions
contained in this instruction guide.
It must be used only for domestic
purposes.
It does not cover wear and tear, damage,
misuse or consumable parts.
Tower has limited liability for incidental
or consequential loss or damage.
This guarantee is valid in the UK and
Eire only.
The standard one year guarantee is only
extended to the maximum available
for each particular product upon
registration of the product within 28
days of purchase. If you do not register
the product with us within the 28 day
period, your product is guaranteed for
1 year only.
To validate your extended warranty,
please visit www.towerhousewares.
co.uk and register with us online.
Please note that length of extended
warranty offered is dependent on
product type and that each qualifying
product needs to be registered
individually in order to extend its
warranty past the standard 1 year.
Extended warranty is only valid with
proof of purchase or receipt.
Your warranty becomes void should you
decide to use non Tower spare parts.
Spare parts can be purchased from
www.towerhousewares.co.uk
Or call our Customer Support Team on:
+44 (0) 333 220 6066
We hope you enjoy your appliance for many years...
YEAR
GUARANTEE
3
1023V1
