Copyright
©2022
Hanwha Techwin
Co., Ltd. All rights reserved.
Trademark
Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their
respective company.
Restriction
Copyright of this document is reserved. Under no circumstances, this document shall be reproduced, distributed or changed, partially or wholly, without
formal authorization.
Disclaimer
Hanwha Techwin
makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be
provided. Use of this document and the subsequent results shall be entirely on the user’s own responsibility.
Hanwha Techwin
reserves the
right to change the contents of this document without prior notice.
※
Design and specications are subject to change without prior notice.
※
The initial administrator ID is “admin” and the password should be set when logging in for the rst time.
Please change your password every three months to safely protect personal information and to prevent the damage of the information theft.
Please, take note that it’s a user’s responsibility for the security and any other problems caused by mismanaging a password.
Network Camera
User Manual
English _3
! OVERVIEW
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean the contaminated area on the product surface with a soft, dry cloth or a damp cloth.
(Do not use a detergent or cosmetic products that contain alcohol, solvents or surfactants or oil constituents
as they may deform or cause damage to the product.)
7. Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
15. This product is intended to be supplied by a Listed Power Supply Unit marked “Class 2” or “LPS” and rated
from
12 Vdc, 0.72 A / PoE , 0.22 A. (XNB-6002)
16. This Lens module has to be connected with equipment, which supplied by a power supply unit marked “Class
2” or “LPS”. (SLA-T1080FA/SLA-T2480A/SLA-T2480VA/
SLA-T2880BA/SLA-T4680A/SLA-T4680VA/
SLA-T4680DA/SLA-T4680DSA)
17. This product is intended to be supplied by isolation power.
18. If you use excessive force when installing the product, the camera may be damaged and malfunction.
If you forcibly install the product using non-compliant tools, the product may be damaged.
19. Do not install the product in a place where chemical substances or oil mist exists or may be generated. As
edible oils such as soybean oil may damage or warp the product, do not install the product in the kitchen or
near the kitchen table.
This may cause damage to the product.
20. When installing the product, be careful not to allow the surface of the product to be stained with chemical
substance.
Some chemical solvents such as cleaner or adhesives may cause serious damage to the product’s surface.
21. If you install/disassemble the product in a manner that has not been recommended, the production functions/
performance may not be guaranteed.
Install the product by referring to “Installation & connection” in the user manual.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE
VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,
such as vases, shall be placed on the apparatus.
To prevent injury, this apparatus must be securely attached to the Wall/ceiling in accordance
with the installation instructions.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION
: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the product.
overview
22. Installing or using the product in water can cause serious damage to the product.
23. This device has been verified using STP cable. The use of appropriate GND grounding and STP cable
is recommended to effectively protect your product and property from transient voltage, thunderstroke,
communication interruption.
overview
4_ overview
Class construction
An apparatus with CLASS
construction shall be connected to a MAINS socket outlet with a
protective earthing connection.
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive heat such as
sunshine, fire or the like.
The battery cannot be replaced.
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected. And please call a repair man in
your location.
When used outside of the U.S., it may be used HAR code with fittings of an approved
agency is employed.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
ATTENTION
IL Y A RISQUE D’EXPLOSION SI LA BATTERIE EST REMPLACÉE PAR UNE BATTERIE DE
TYPE INCORRECT.
METTRE AU REBUT LES BATTERIES USAGÉES CONFORMÉMENT AUX INSTRUCTIONS.
CAUTION
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than that contained in
the operating instructions unless you are qualified to do so.
The Test Monitor Out port of the product is provided for easier installation, and is not
recommended for monitoring purposes.
The Micro USB port of the product is provided for easier installation, and is not recommended
for monitoring purposes.
Please use the input power with just one camera and other devices must not be connected.
Before connecting the Power Terminal Block, you need to unplug the power plug from the
outlet first.
The ITE is to be connected only to PoE networks without routing to the outside plant.
The wired LAN hub providing power over the Ethernet (PoE) in accordance with
IEEE
802-3af
shall be a UL Listed device with the output evaluated as a Limited Power Source
as defined in UL60950-1 or PS2 as defined in UL62368-1.
Unit is intended for installation in a Network Environment 0 as defined in IEC TR 62102.
As such, associated Ethernet wiring shall be limited to inside the building.
Please read the following recommended safety precautions carefully.
~
Do not place this apparatus on an uneven surface.
~
Do not install on a surface where it is exposed to direct sunlight, near heating equipment or
heavy cold area.
~
Do not place this apparatus near conductive material.
~
Do not attempt to service this apparatus yourself.
~
Do not place a glass of water on the product.
~
Do not install near any magnetic sources.
~
Do not block any ventilation openings.
~
Do not place heavy items on the product.
~
Please wear protective gloves when installing/removing the camera.
The high temperature of the product surface may cause a burn.
User’s Manual is a guidance book for how to use the products.
The meaning of the symbols are shown below.
~
Reference : In case of providing information for helping of product’s usages
~
Notice : If there’s any possibility to occur any damages for the goods and human caused by
not following the instruction
※
Please read this manual for the safety before using of goods and keep it in the safe place.
We do not guarantee the quality of third-party products (e.g. lenses, accessories) that you
separately purchase.
In particular installation environments, there might be interference in radio communications.
When interference of electromagnetic waves occurs between the product and radio
communication device, it is recommended to keep a certain distance between the two or
change the direction of the receiving antenna.
The mount height for the product should not be higher than 2 m.
English _5
! OVERVIEW
CONTENTS
OVERVIEW
3
3 Important Safety Instructions
6 Recommended PC Specifications
6 Recommended Micro SD/SDHC/SDXC
Memory Card Specifications
6 NAS recommended specs
6 Video output
7 What’s Included (XNB-6002)
7 What’s Included (Lens module - Optional)
12 At a Glance
INSTALLATION & CONNECTION
14
14 Installation
18 Inserting/Removing a Micro SD card
19 Connecting with other Device
NETWORK CONNECTION AND
SETUP
22
22 Connecting the Camera Directly to Local
Area Networking
22 Connecting the Camera Directly to a DHCP
Based DSL/Cable Modem

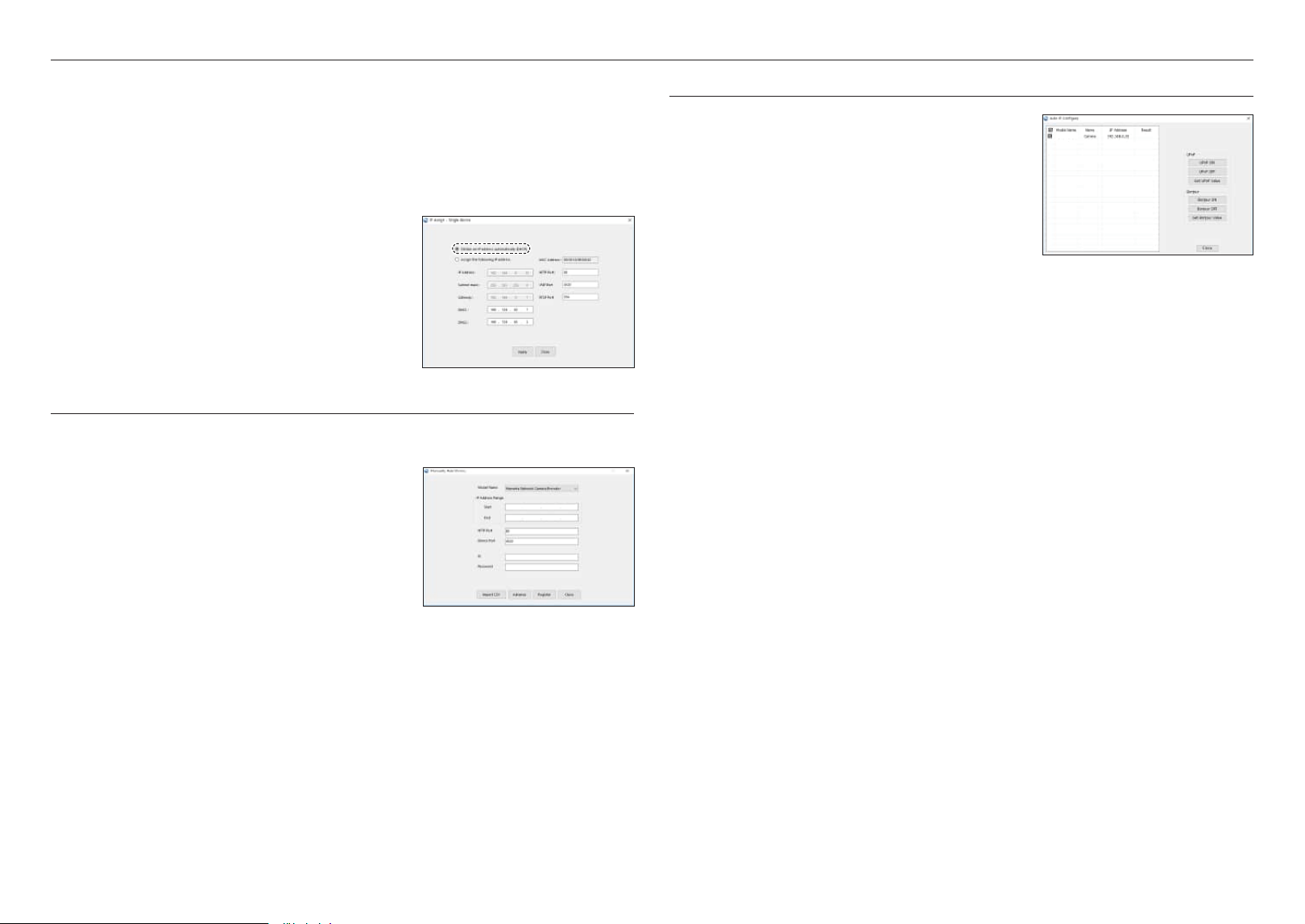

23 Using Device Manager
23 Automatically searching camera
23 Configuring IP address
24 Manually registering camera
24 Automatically configuring IP
25 Port Range Forward (Port Mapping) Setup
26 Connecting to the Camera from a Shared
Local PC
26 Connecting to the Camera from a Remote
PC via the Internet
WEB VIEWER
27
27 Connecting to the Camera
28 Password setting
28 Login
28 Camera Web Viewer Setup
APPENDIX
29
29 Troubleshooting
overview
6_ overview
RECOMMENDED PC SPECIFICATIONS
~
CPU : Intel(R) Core(TM) i7 3.4 GHz or higher
~
RAM : 8G or higher
~
Recommended browser: Chrome
~
Supported browsers: Chrome, Safari, Firefox, MS Edge(chromium based)
~
Supported OS : Windows, Mac, Linux, Android, iOS, Chrome
~
Verification environment
- Windows 10: Google Chrome version 80 or later, Firefox version 72 or later, MS Edge version 83 or later
- Mac 10.13/14: Safari version 11.0.1 or later
※
The video play performance of the web viewer depends on the performance of the user’s CPU and GPU.
RECOMMENDED MICRO SD/SDHC/SDXC MEMORY CARD
SPECIFICATIONS
~
Recommended capacity : 16GB to 1TB (MLC or 3D TLC type required)
~
Recommended Manufacturers : SanDisk, Transcend
, Samsung, Western Digital
~
Product Type : High endurance, Pro endurance, WD Purple
~
The compatibility varies depending on the card manufacturers and types.
NAS RECOMMENDED SPECS
~
Recommended capacity : 200GB or higher is recommended.
~
For this camera, you are recommended to use a NAS with the following manufacturer’s specs.
Recommended products : QNAP NAS, Synology NAS
VIDEO OUTPUT
~
The CVBS type of video output is initially set to NTSC. This may vary for different regions, so refer to the
following directory to change the settings if necessary.
Camera web viewer’s <Setup (
)>
;
<Video & Audio>
;
<Video setup>
;
<Video output>
;
<CVBS type> On the menu, select NTSC or PAL.
English _7
! OVERVIEW

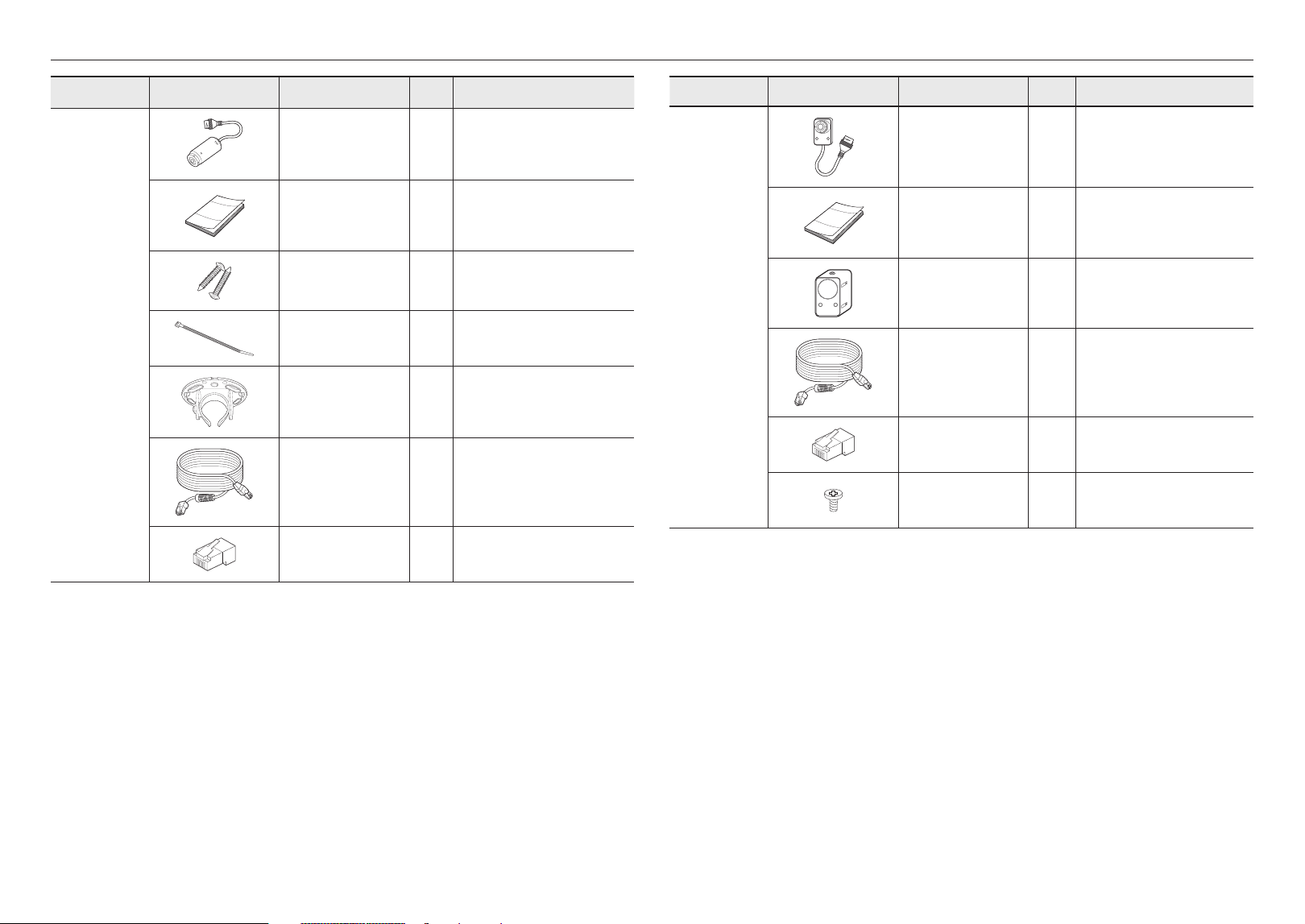

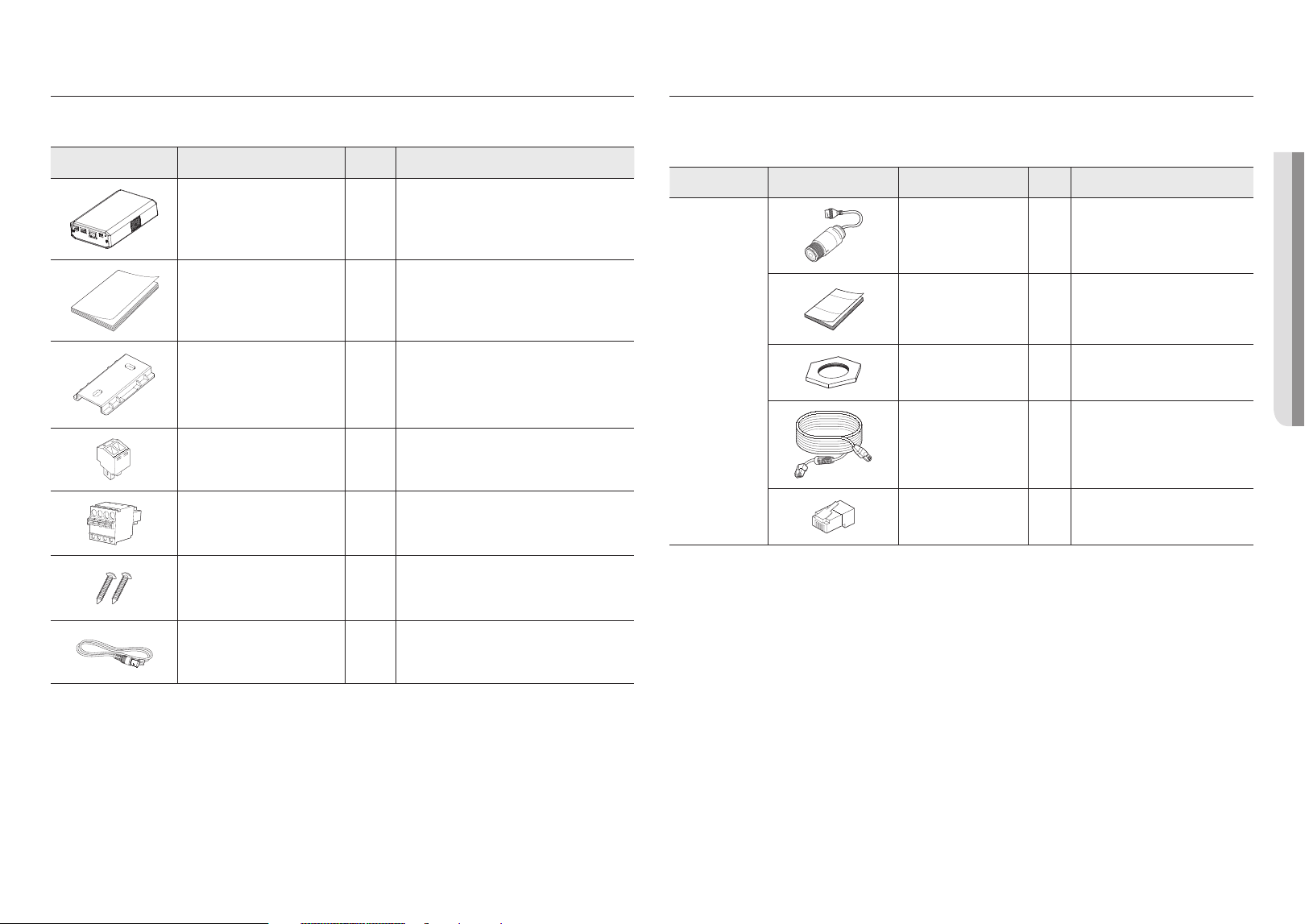

WHAT’S INCLUDED (XNB-6002)
Please check if your camera and accessories are all included in the product package.
(As for each sales country, accessories are not the same.)
Appearance Item Name Quantity Description
DC 12V
GND : 1,2
ALARM OUT : 3
ALARM IN : 4
4 3 2 1
NETWORK
VIDEO
RESET
Main Unit
1
Quick Guide
(Optional)
1
Installation bracket
1
Used to install the main unit on the wall/
ceiling.
Power Terminal Block
1
Plugged in the power plug
Alarm terminal block
1
Used by inserting it into the alarm output
terminal.
Tapping Screw
2
Used for installation on the wall or ceiling
Cable for the testing monitor
1
Used to test the camera connection
to a portable display device

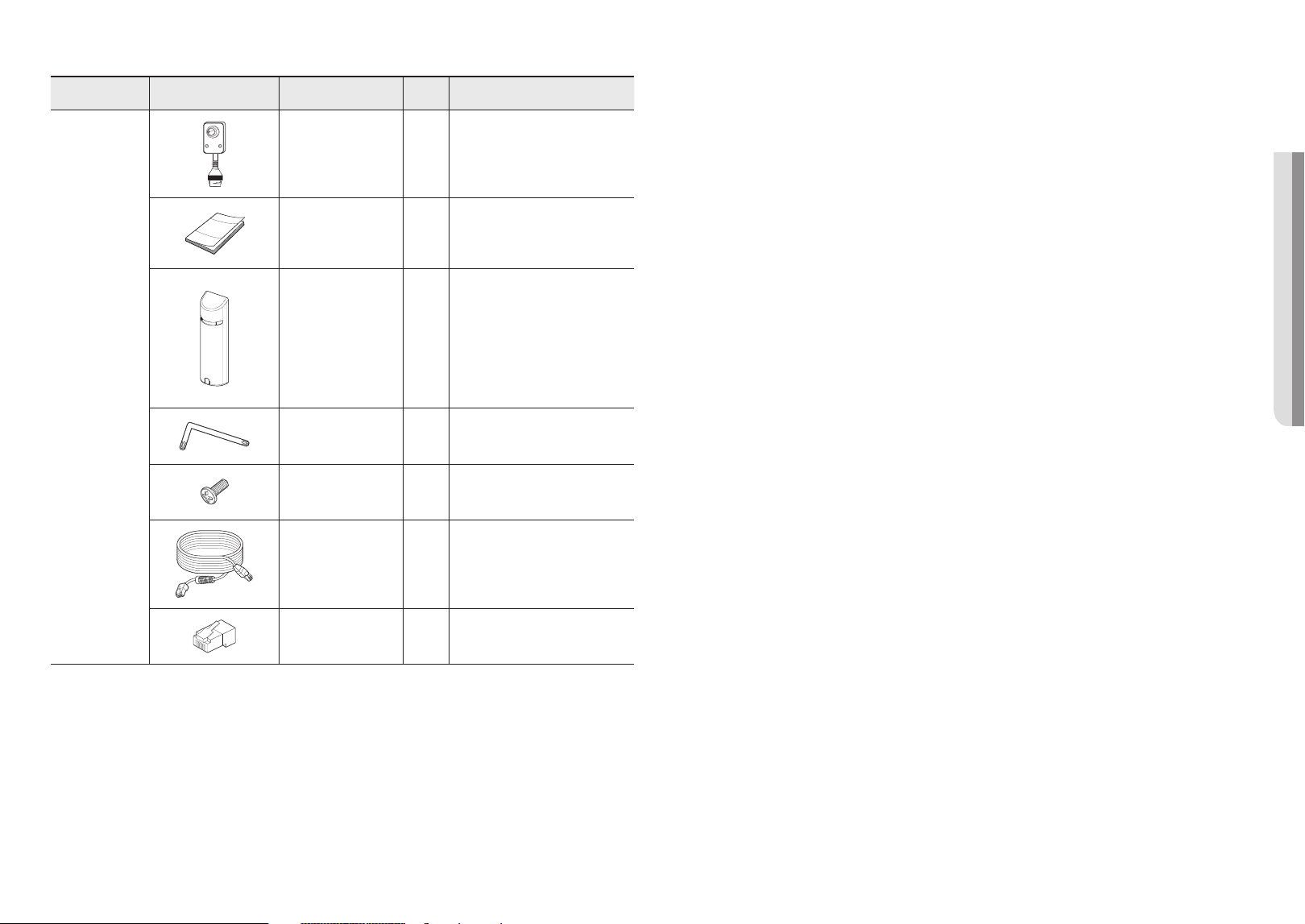

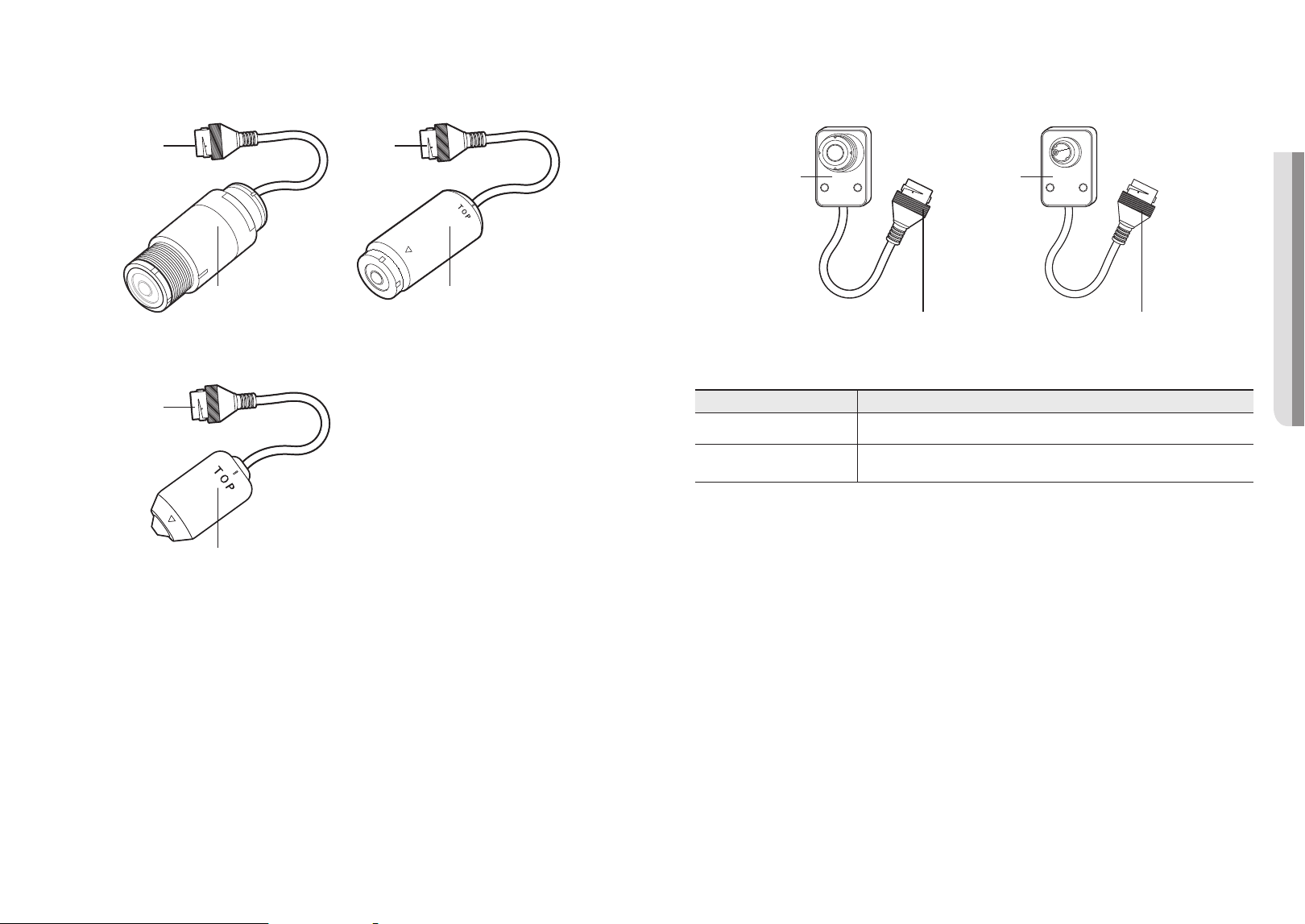

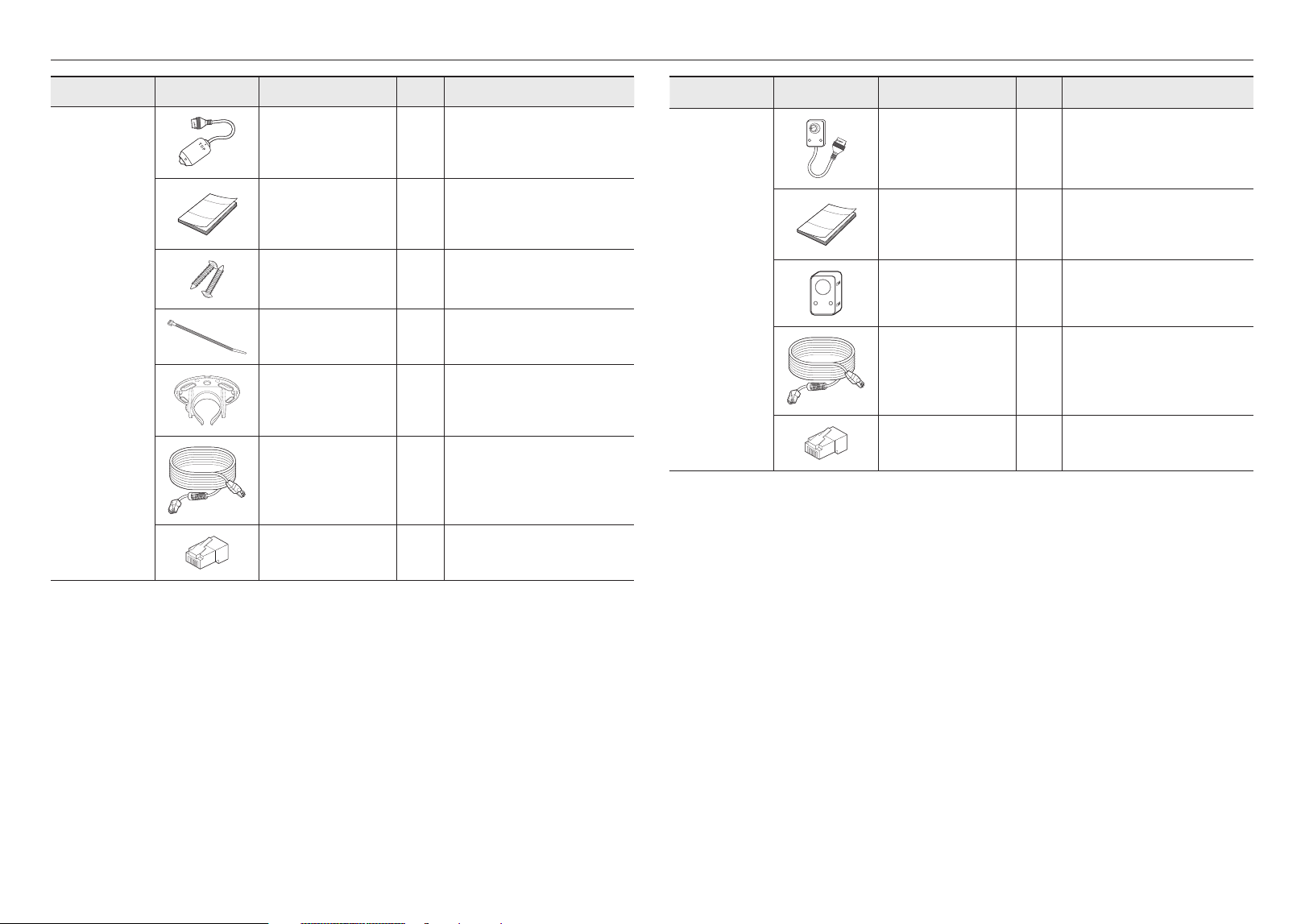

WHAT’S INCLUDED (LENS MODULE - OPTIONAL)
This is a lens module separately sold that is mounted to
XNB-6002.
Please check if your camera and accessories are all included in the product package.
(As for each sales country, accessories are not the same.)
Model Name Appearance Item Name Quantity Description
SLA-T1080FA
Lens Module
1
Quick Guide
(Optional)
1
Nut for mounting the lens
module
1
Used to fix the lens module on a ceiling or
wall.
Cable to connect lens module
1
Use this when connecting the main Unit
and lens module
RJ12 Plug
1
Use this when adjusting the length of the
cable to connect the lens module
overview
8_ overview
Model Name Appearance Item Name Quantity Description
SLA-T2480VA
Lens Module
1
Quick Guide
(Optional)
1
Lens module bracket
1
Use this for lens module installation
Cable to connect lens module
1
Use this when connecting the main unit
and lens module
RJ12 Plug
1
Use this when adjusting the length of the
cable to connect the lens module
Fixture screw
1
Applicable when a BRACKET is used
Model Name Appearance Item Name Quantity Description
SLA-T2480A
Lens Module
1
Quick Guide
(Optional)
1
Tapping Screw
2
Used for installation on the wall or ceiling
Cable tie
1
Use this for organizing the cable
Bracket for lens module
installation
1
Use this when installing and fixing lens
module on the ceiling or wall
Cable to connect lens module
1
Use this when connecting the main unit
and lens module
RJ12 Plug
1
Use this when adjusting the length of the
cable to connect the lens module
English _9
! OVERVIEW

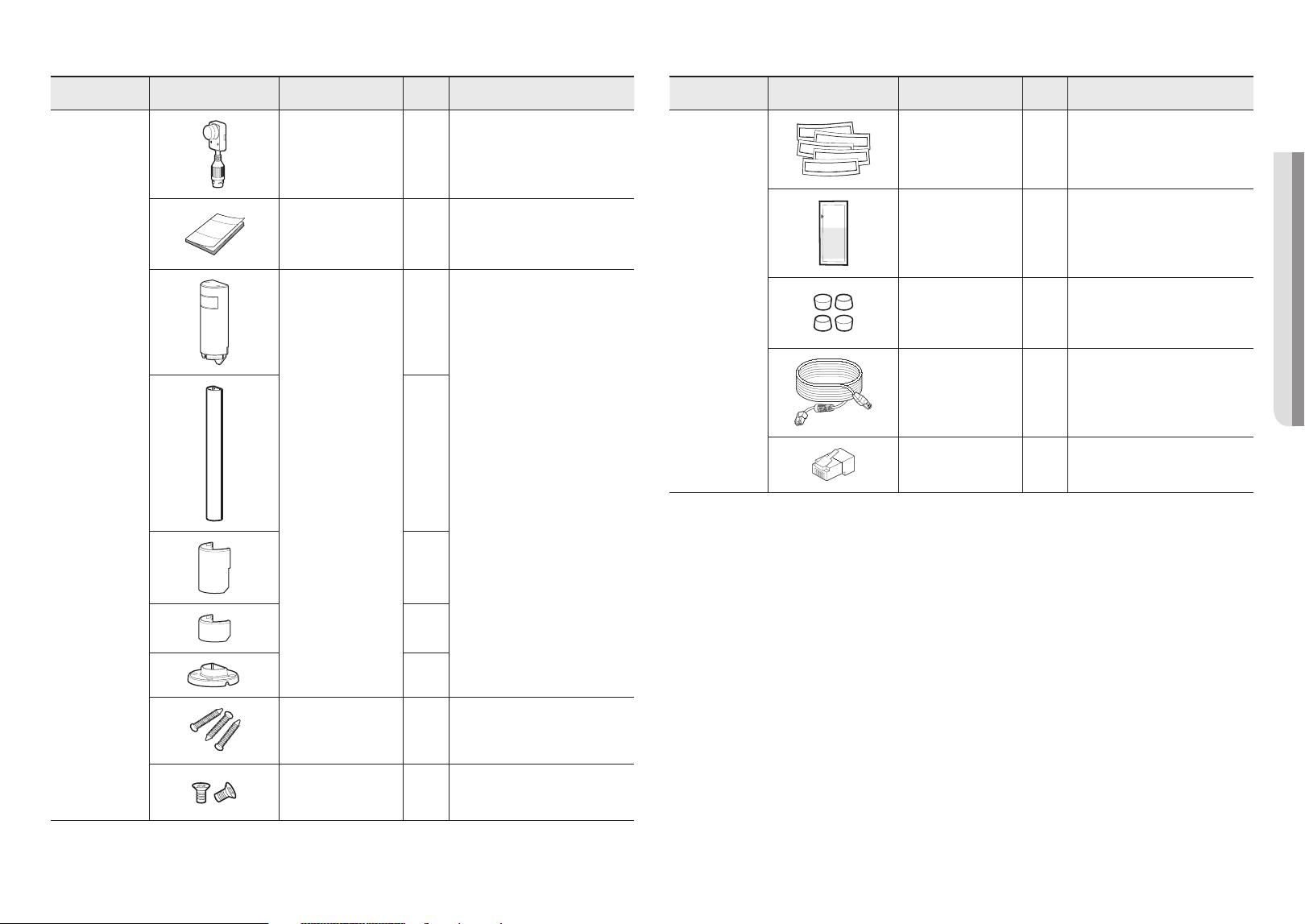

Model Name Appearance Item Name Quantity Description
SLA-T2880BA
Lens Module 1
Quick Guide
(Optional)
1
Lens module bracket
1
Use this for lens module installation
1
1
1
1
Fixture screw 3
Used to assemble floor installation
brackets
Screw 2 Used to assemble pipe brackets
Model Name Appearance Item Name Quantity Description
SLA-T2880BA
Double-sided tape 5 Used to fix brackets on glass
Surface cleaner 1
Used to remove pollutants on surfaces
where brackets are attached
Screw cover 4
Used as tapping screw covers for floor
installation
Cable to connect lens
module
1
Use this when connecting the main unit
and lens module
RJ12 Plug 1
Use this when adjusting the length of the
cable to connect the lens module
overview
10_ overview
Model Name Appearance Item Name Quantity Description
SLA-T4680A
Lens Module
1
Quick Guide
(Optional)
1
Tapping Screw
2
Used for installation on the wall or ceiling
Cable tie
1
Use this for organizing the cable
Bracket for lens module
installation
1
Use this when installing and fixing lens
module on the ceiling or wall
Cable to connect lens module
1
Use this when connecting the main unit
and lens module
RJ12 Plug
1
Use this when adjusting the length of the
cable to connect the lens module
Model Name Appearance Item Name Quantity Description
SLA-T4680VA
Lens Module
1
Quick Guide
(Optional)
1
Lens module bracket
1
Use this for lens module installation
Cable to connect lens module
1
Use this when connecting the main unit
and lens module
RJ12 Plug
1
Use this when adjusting the length of the
cable to connect the lens module
English _11
! OVERVIEW
Model Name Appearance Item Name Quantity Description
SLA-T4680DA/
SLA-T4680DSA
Lens Module 1
Quick Guide
(Optional)
1
Lens module bracket 1 Use this for lens module installation
Torx L wrench 1 Used to remove and attach the bracket
Screw 1
Used to fix the direction of the lens
module
Cable to connect lens
module
1
Use this when connecting the main unit
and lens module
RJ12 Plug 1
Use this when adjusting the length of the
cable to connect the lens module
overview
12_ overview

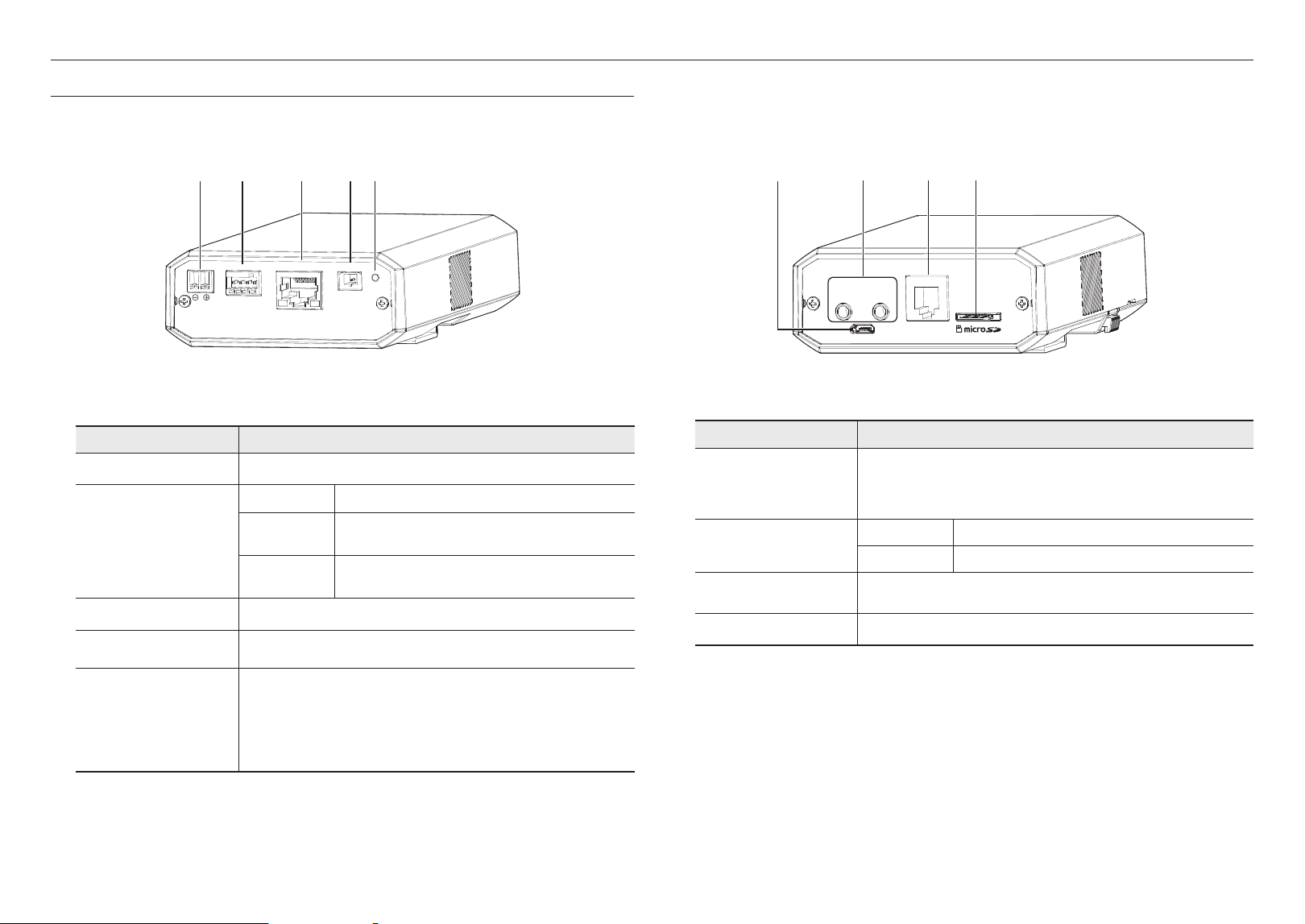

AT A GLANCE
Front of the main unit
a b c d e
4
3
2
1
DC 12V
NETWORK
VIDEO
RESET
GND : 1, 2
ALARM OUT : 3
ALARM IN : 4
Item Description
a
Power Port(DC 12V) Port for power terminal block.
b
Alarm I/O Port
GND Ground terminal.
ALARM OUT
The terminal sends the alarm output signal.

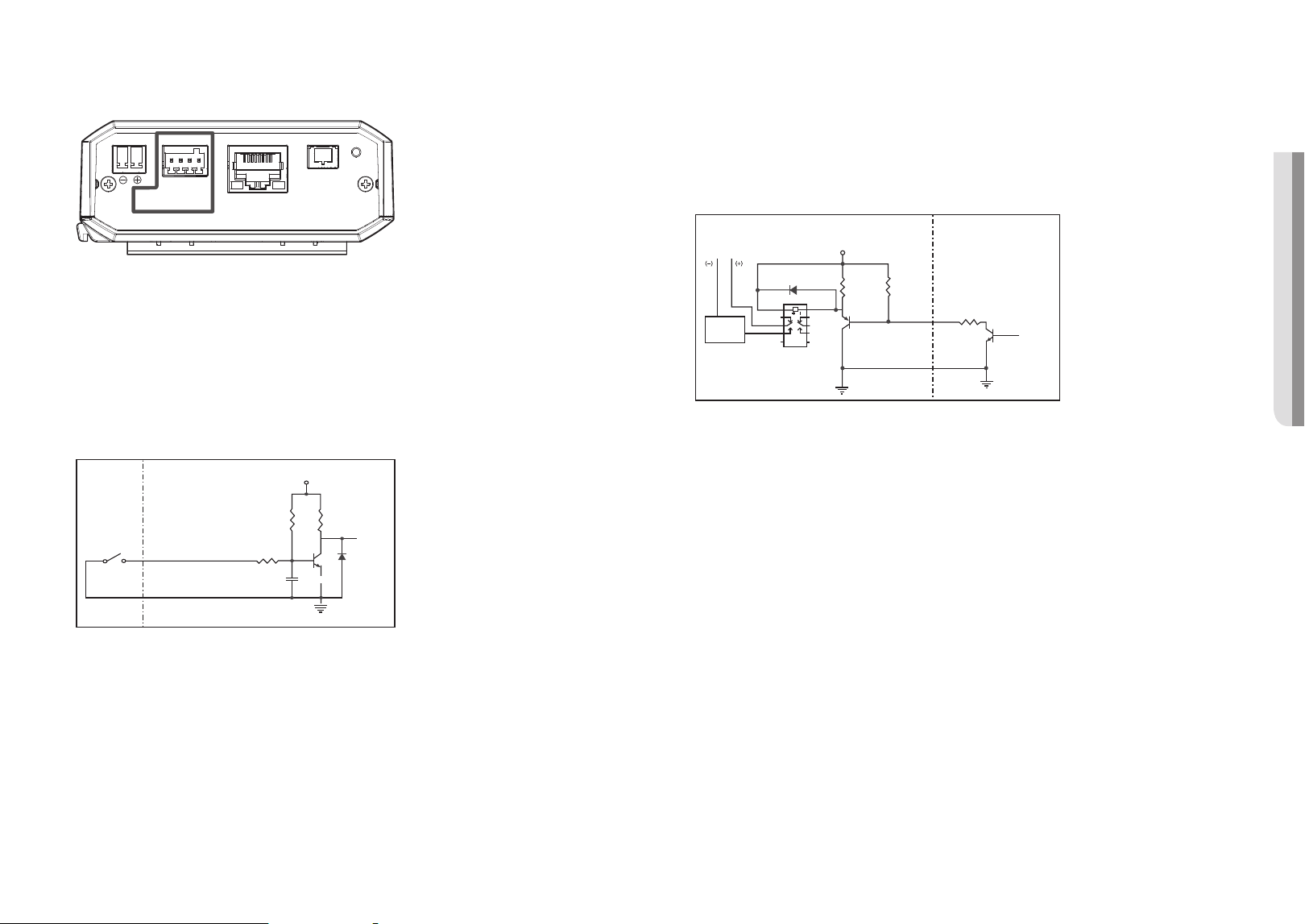

Refer to “Alarm Out Wiring Diagram” (page 21).
ALARM IN
The terminal sends the alarm input signal.
Refer to “Alarm In Wiring Diagram” (page 21).
c
Network Port
Terminal used to connect to PoE or LAN via the RJ-45 cable.
d
Test monitor out port
Output port for test monitoring the video output. Use the test monitor cable to connect to a
mobile display and check the test video.
e
Reset Button
The button restores all camera settings to the factory default.
Press and hold for about 5 seconds to reboot the system.
J
If you reset the camera, the network settings will be adjusted so that DHCP can be
enabled. If there is no DHCP server in the network, you must run the Device Manager
program to change the basic network settings such as IP address, Subnet mask,
Gateway, etc., before you can connect to the network.
Rear of the main unit
AUDIO
OUT
AUDIO
IN
USB
CAM
ba c d
Item Description
a
MICRO USB port
Port to connect the Wi-Fi dongle.
You can check the installation video through the applications installed in the smartphone.
Refer to “Connecting WiFi” on page 20.
`
Wifi dongle and OTG adapter are sold separately.
b
Audio cable port
AUDIO IN Used to connect to a microphone.
AUDIO OUT Used to connect to speakers.
c
Connection terminal of lens
module
This terminal is connected to the lens module through the cable to connect the lens
module.
d
Micro SD Card slot Compartment for the Micro SD card.
English _13
! OVERVIEW
Appearance of lens module
b
a
b
a
b
a
<SLA-T1080FA> <SLA-T2480A>
<SLA-T4680A>
Item Description
a
Lens Module This lens module is used to shoot video.
b
Main unit connection
terminal
This terminal is connected to the main unit through the cable to connect the lens module.
a
b
<SLA-T2480VA> <SLA-T4680VA>
a
b
14_ installation & connection
installation & connection
INSTALLATION
Precautions before installation
Ensure you read out the following instructions before installing the camera:
~
Organize the cable separately in order to prevent excessive burden on the lens module while the camera is
installed (within 1m from the lens module ).
~
Select an installation site that can hold at least 5 times the camera’s weight.
~
Stuck-in or peeled-off cables can cause damage to the product or a fire.
~
For safety purposes, keep anyone else away from the installation site.
And put aside personal belongings from the site, just in case.
~
The power must be turned off when installing or removing lens module.

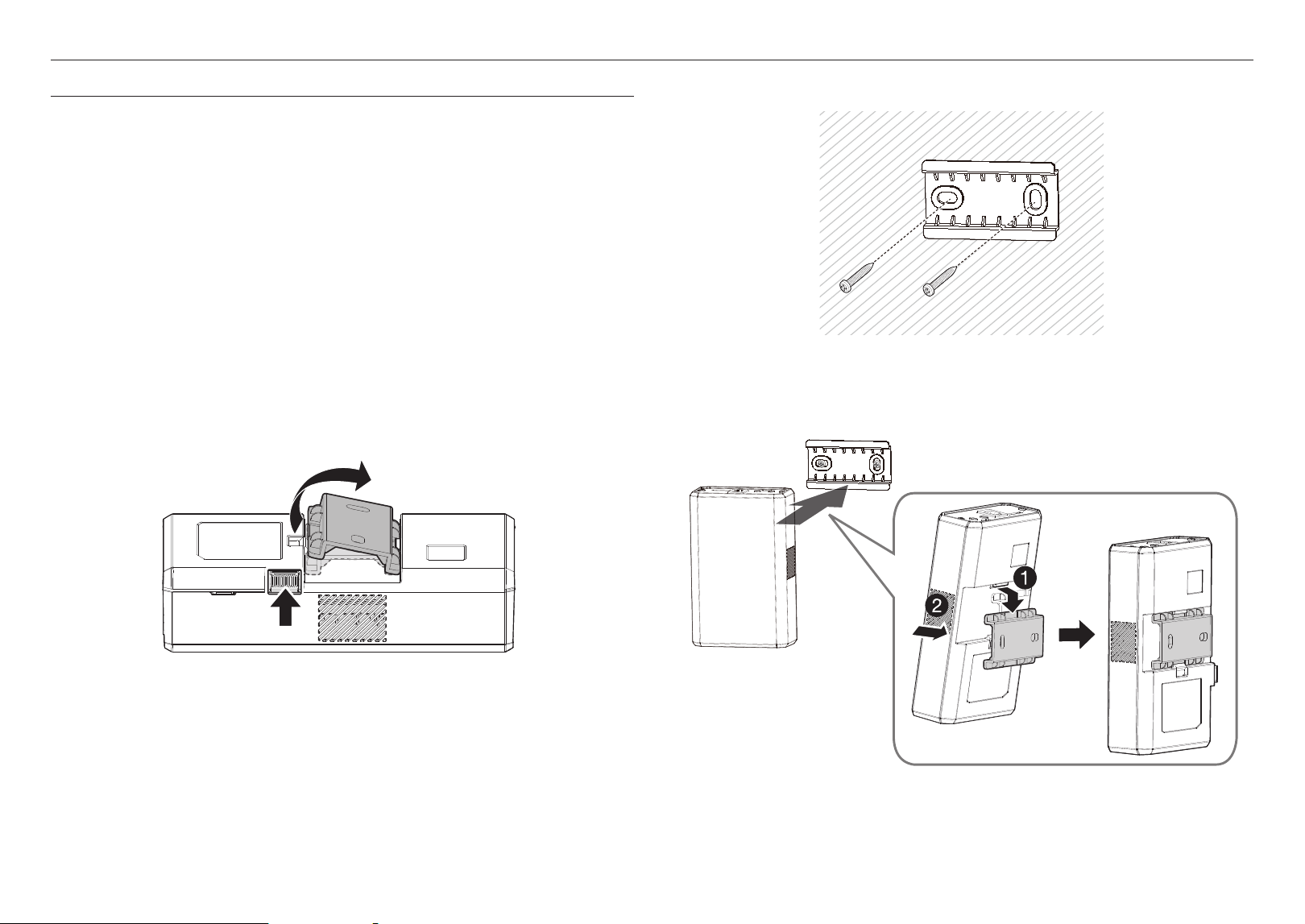

Installing the main unit
1. Before installing the main unit on the ceiling, wall, etc., detach the installation bracket from the main unit
as in the picture below.
2. Install the bracket on the wall by using the two tapping screws that are included in the product.
3. Align the main unit and upper groove of the bracket. The unit is installed successfully when an audible
click is heard.
English _15
! INSTALLATION & CONNECTION

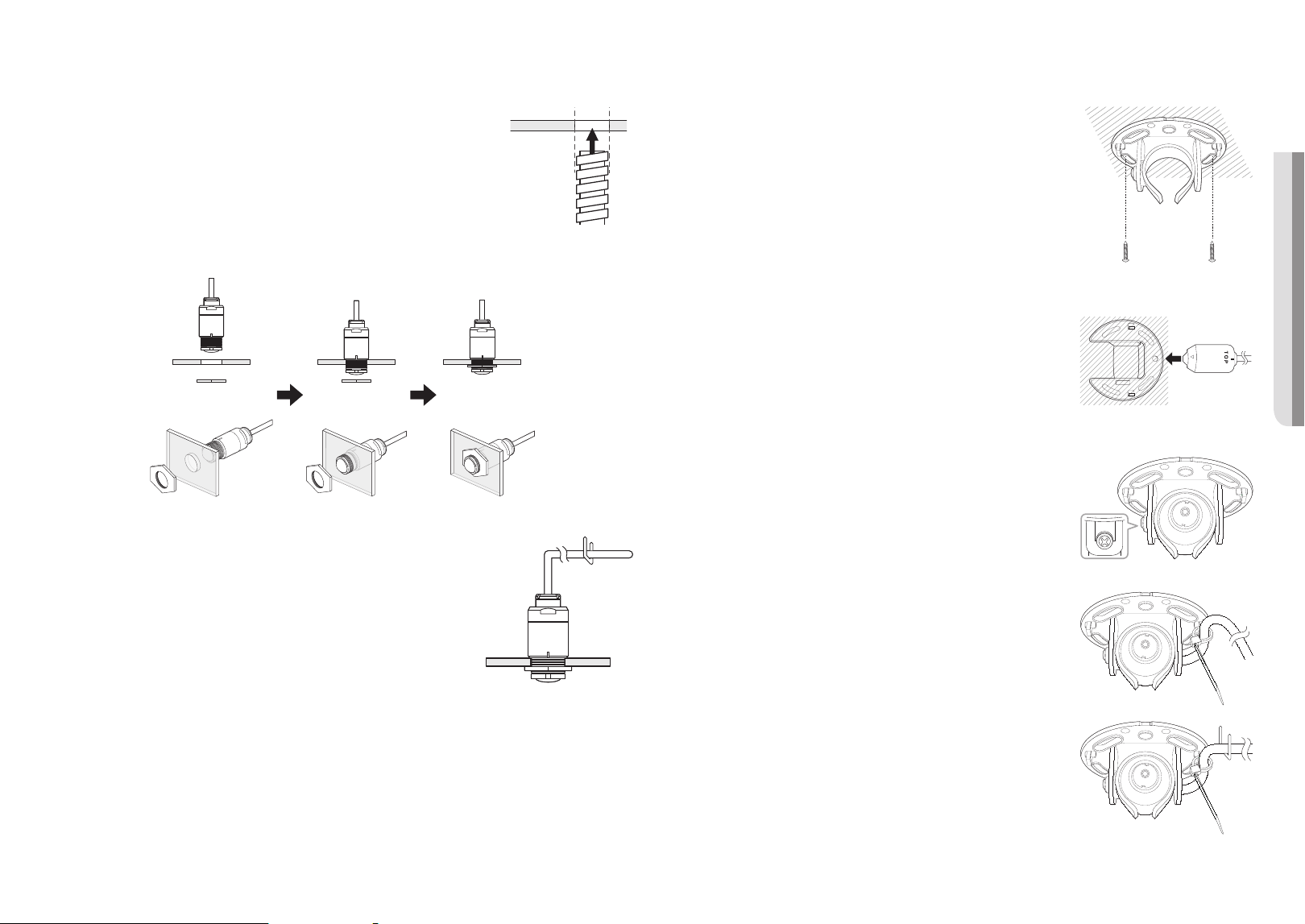

Install lens module (SLA-T1080FA)
1. Drill a hole which the lens is passed through at the location where you want to
install it.
J
`
Hole size (inner diameter): Ø30 ± 2mm
(If the size of the hole is outside of this range, the installation may fail.)
2. After inserting the lens module into the hole, fix the lens module using the supplied nut (M27).
3. Fix the cable separately. (Within 1m from the lens module)
Install lens module (SLA-T2480A/SLA-T4680A)
1. Use two screws provided or remove protective film to use the double-
sided tape on the bottom side of the lens module bracket to install the
lens module bracket.
J
`
Remove foreign substances on the target object before attachment.
2. Push the lens module into the bracket.
3. Considering the direction of monitoring, adjust the lens to make it face
the desired direction.
4. Fasten the screw next to the bracket and fix the lens direction.
5. After installation, pull the cable. Make sure that the lens module does
not move by fixing it to the bracket with the cable tie.
6. Organize the cable separately (within 1m from the lens module).
installation & connection
16_ installation & connection
Install lens module (SLA-T2480VA/SLA-T4680VA)
1.
Make a hole for the lens module at the spot where you want to install it.
2. Remove the protective film to use the double-sided tape of the lens module bracket
and attach it to match the hole.
J
`
Remove foreign substances on the target object before attachment.
3. Insert the lens module into the lens module bracket.
4. Tighten the screws in the screw hole on the bracket.
`
This only applies to the SLA-T2480VA.
5. Organize the cable separately (within 1m from the lens module).

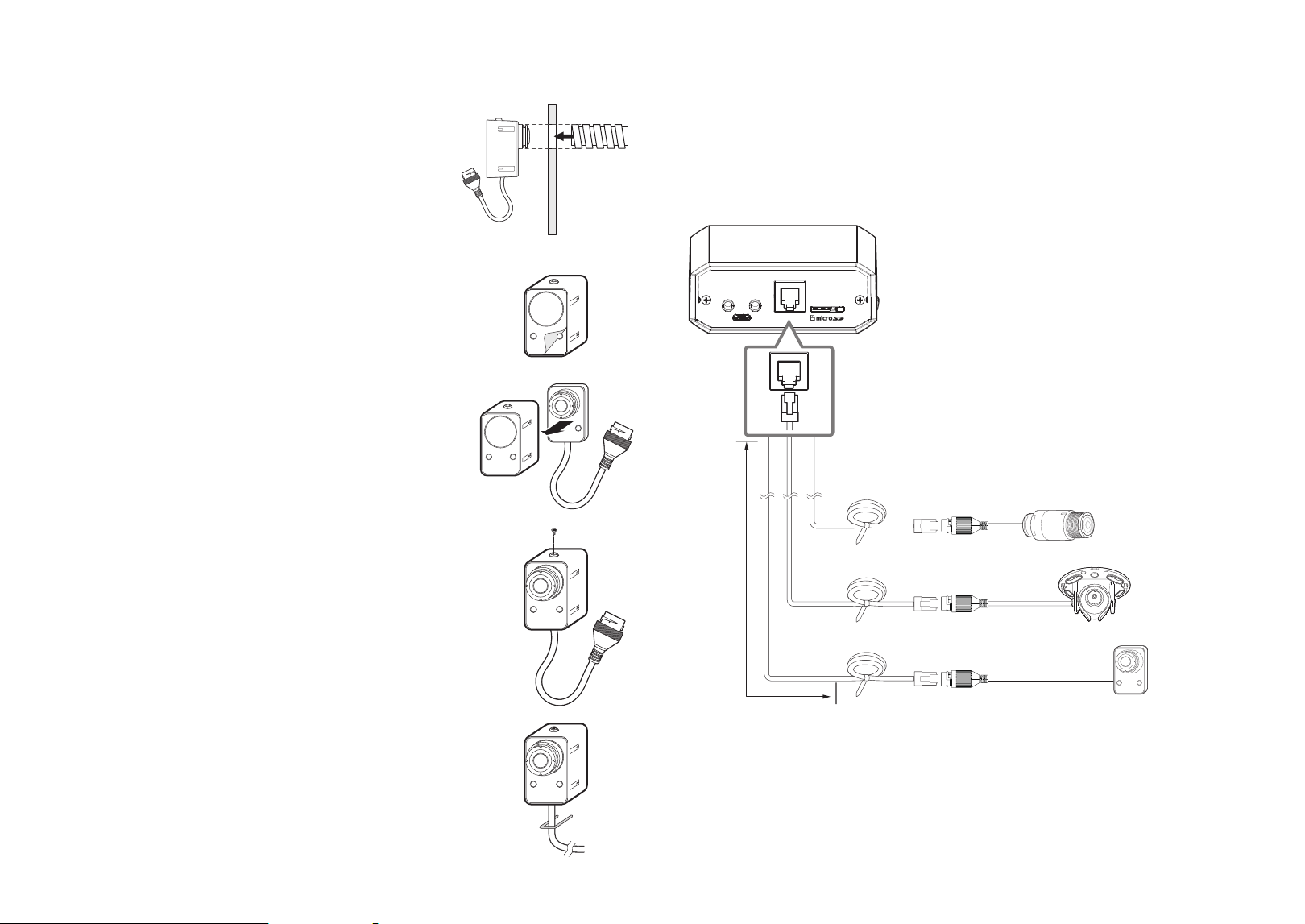

Installing the lens module in the main unit
Connect the lens module cable to the [
CAM] port on the side of the main unit.
J
`
Connect the lens module and turn it on.
`
Turn off the main unit power when connect or remove lens module
`
Install the lens at least 3 meters away from the main unit. It is recommended to not fix the cable within 3 meters from the
main unit.
3m
AUDIO
OUT
AUDIO
IN
USB
CAM
<SLA-T2480VA/SLA-T4680VA>
<SLA-T2480A/SLA-T4680A>
<SLA-T1080FA>
English _17
! INSTALLATION & CONNECTION

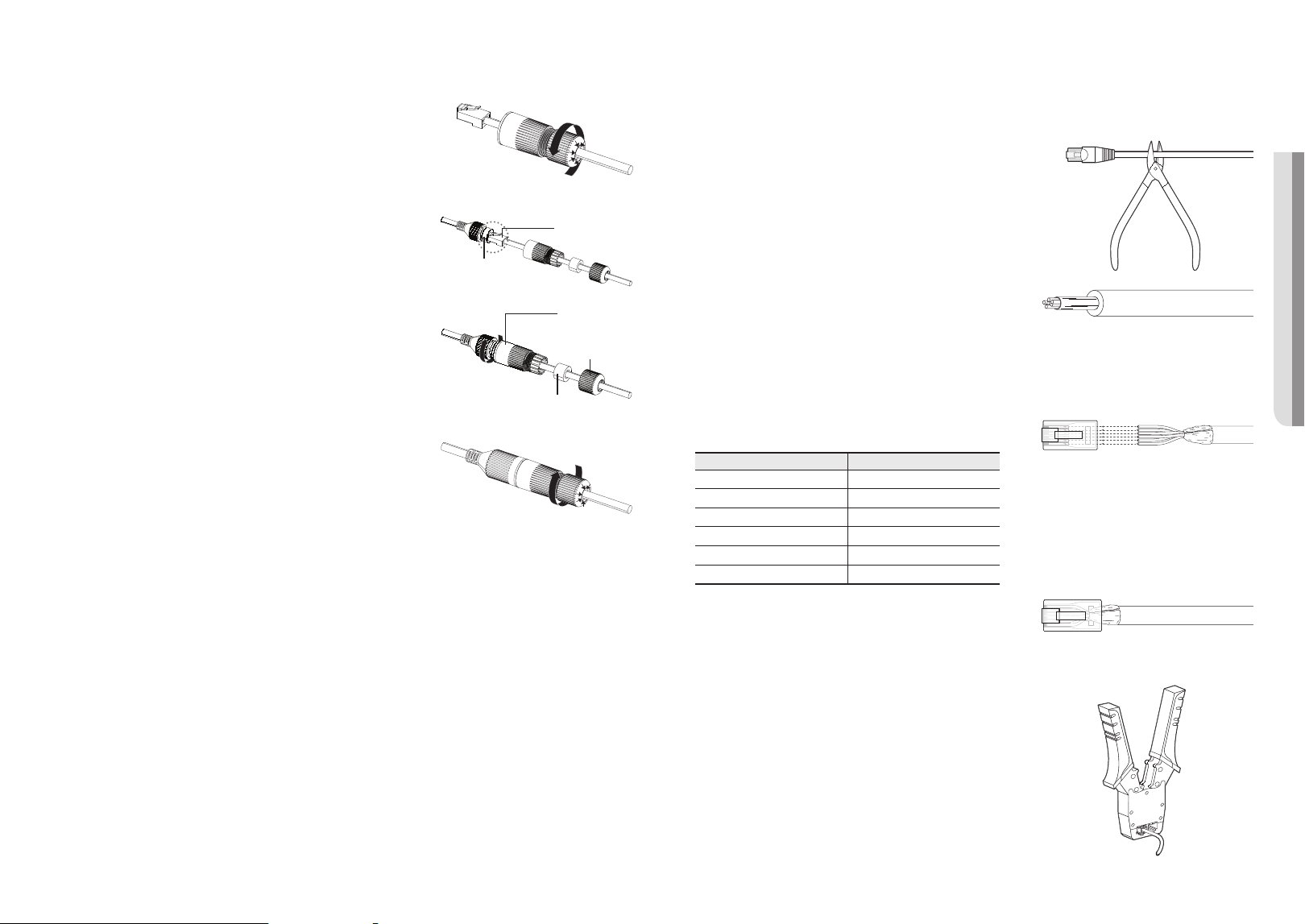

Connect lens module cable to lens module
1. Unscrew the back cover by turning it counterclockwise.
J
`
Be sure to remove the back cover first and assemble/disassemble the RJ45
connector.
2. Connect the RJ45 modular jack (female) to the RJ45 connector
(male).
3. Assemble by rotating the RJ45 modular jack (female) and the RJ45
protection cover clockwise (Follow the arrow).
4. Assemble by rotating RJ45 protection cover and back cover
clockwise (Follow the arrow). When the back cover is assembled,
the cable waterproof gasket is tightly attached to the cable to make
it waterproof.
J
`
You must fully assemble it to rotate the back cover up to the end of the screw thread of the RJ45 connector.
RJ45 connector
(male)
RJ45 modular
jack (female)
RJ45 connector
protection cover
Back cover
Cable aterproof
gasket
Adjust the length of the cable for connecting the lens module
The length of the cable for connecting the main unit and lens module can be adjusted. Please follow the
steps in the correct order to adjust the length of the cable for connection:
1. Cut out the cable from the RJ12 Plug at the length you want.
2. Peel off the sheath of the cable you cut out.
3. Peel off the silver foil and pull it back.
4. Straighten the colored wires in the following order.
Number Color
1 Black
2 Red
3 Blue
4 Orange
5 White
6 Green
5.
Insert the electric wire into the end of the RJ12 PLUG provided
as an accessory.
6. Fix the plug to the cable by using a pressing tool.
7. After adjusting the length, remove the remaining silver shield on
the rear side of the plug.
J
`
Be sure to cut out the RJ12 Plug area to adjust the length.
`
Make sure the color and order of the wires match what is provided in the
table.
`
Check out whether the silver shield of the cable properly makes contact
with the RJ12 PLUG metal shield.
1
6
installation & connection
18_ installation & connection

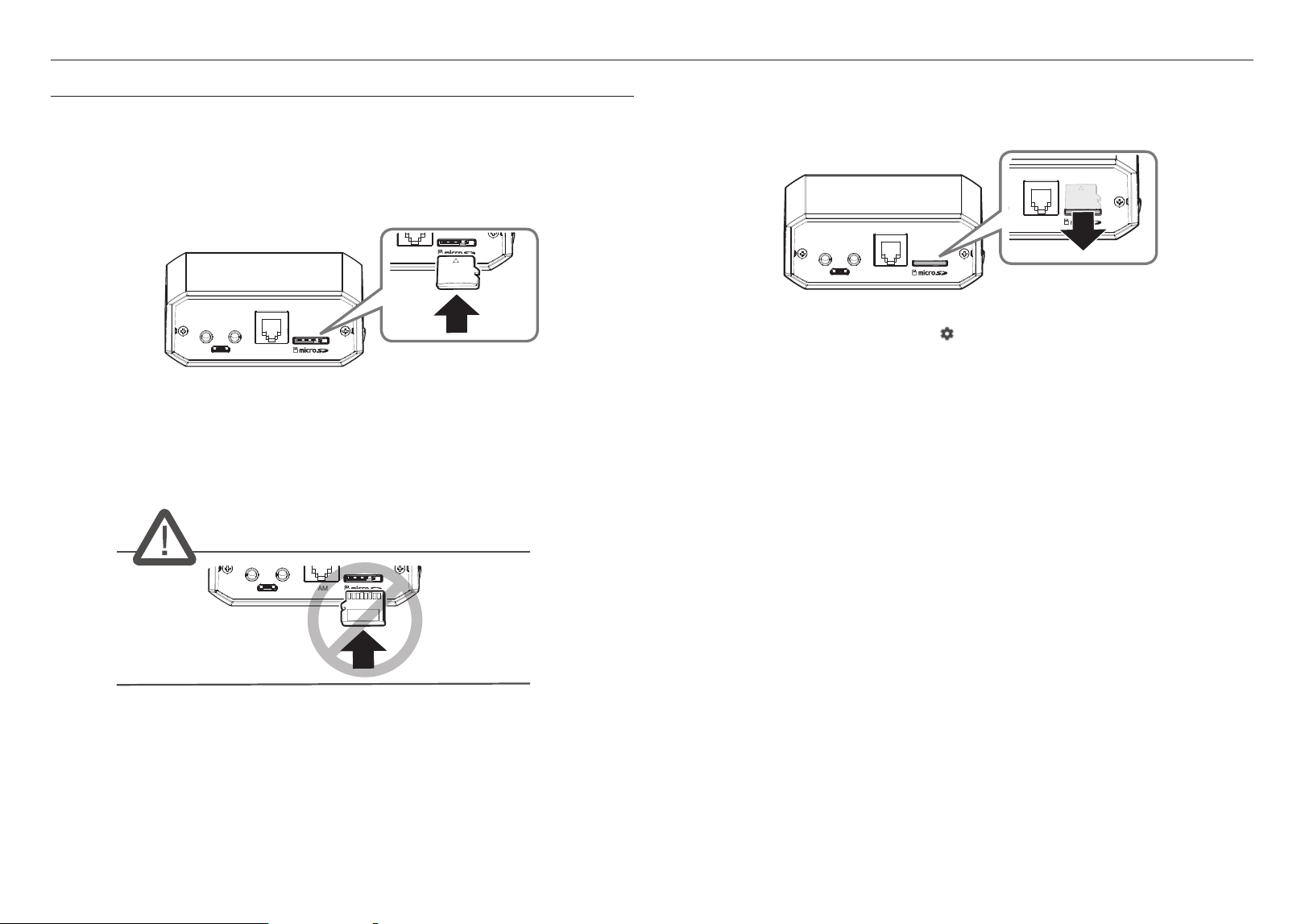

INSERTING/REMOVING A MICRO SD CARD
J
`
Disconnect the power cable from the camera before inserting the Micro SD card.
`
When it rains or the humidity is high, insertion or ejection of a Micro SD card is not recommended.
Inserting a Micro SD card
Insert a Micro SD card in the arrow direction shown in the figure.
AUDIO
OUT
AUDIO
IN
USB
CAM
CAM
J
`
Do not insert the Micro SD card while it’s upside down by force.
Otherwise, it may damage the Micro SD card.
USB
CAM
Removing a Micro SD card
Gently press down on the exposed end of the memory card as shown in the diagram to eject the memory
card from the slot.
AUDIO
OUT
AUDIO
IN
USB
CAM
AUDIO
CAM
J
`
Before removing the Micro SD card, in <Setup ( )>-<Event>-<Storage>, set the device to <Off> and press the [Apply]
button and turn the camera off.
`
If you turn off the camera or remove the Micro SD card that contains data from the product, the data may be lost or damaged.
English _19
! INSTALLATION & CONNECTION

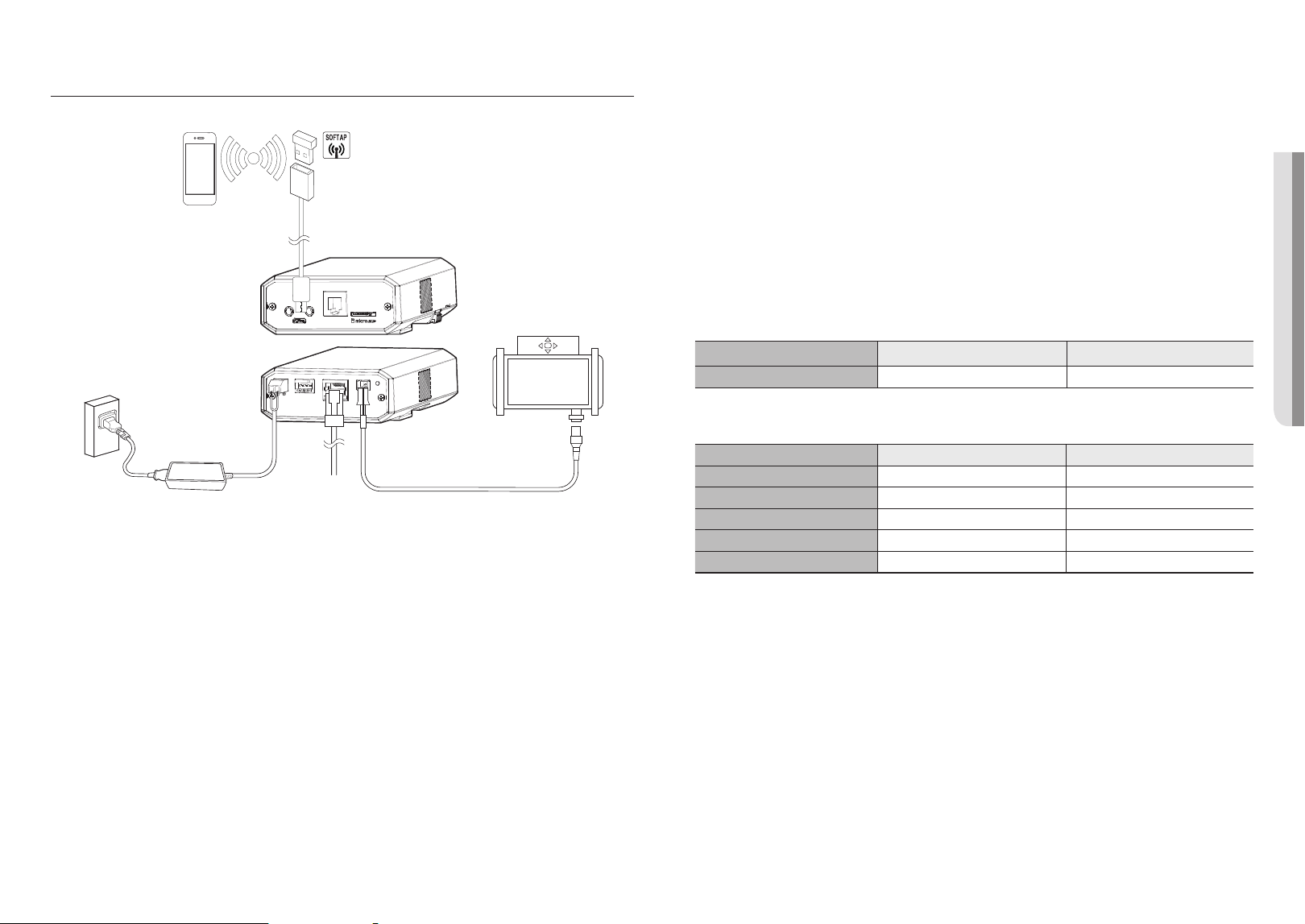

CONNECTING WITH OTHER DEVICE
AUDIO
OUT
AUDIO
IN
USB
CAM
4
3
2
1
DC 12V
NETWORK
VIDEO
RESET
GND : 1, 2
ALARM OUT : 3
ALARM IN : 4
WiFi dongle
Monitor for installation
Ethernet
Power
J
`
The Test Monitor Out port of the product is provided for easier installation, and is not recommended for monitoring purposes.
`
The Micro USB port of the product is provided for easier installation, and is not recommended for monitoring purposes.
Ethernet Connection
Connect the Ethernet cable to the local network or to the Internet.
Power Supply
Use the screwdriver to connect each line (+, –) of the power cable to the corresponding power port of the
camera.
J
`
If the power sources for PoE and DC 12 V are simultaneously turned on, the device power will be supplied by both of PoE and
DC 12V.
-
You can also use a router featuring
PoE to supply power to the camera.
-
Use
PoE that is compliant with the IEEE802.3af protocols.
`
Be careful not to reverse the polarity when you connect the power cable.
`
If you want to connect an external device, you must turn off the external device before proceeding.
`
Connect the set and the adapter power line first, and then connect the power cable to the outlet on the wall.
Power Cable Specification
In case of DC 12V Input:
Wire Type (AWG) #20 #18
Cable Length (Max.) 18 m 29 m
Network Cable Specification
Item Contents Remark
Connector
RJ45
Ethernet 10/100Base-T 10/100 Mbps
Cable Category 5e
Max Distance 100 m DC Resistance ≤ 0.125 Ω/m
PoE Support
IEEE 802.3af
J
`
If you use a cable other than Category 5e standards, 100m of transmission distance is not guaranteed.
installation & connection
20_ installation & connection
Connecting WiFi
Camera Setup
1. Connect OTG adapter (5-pin) and WiFi dongle to the micro USB port.
Smartphone Setup
1. Install the Wisenet Installation application.
2. Select the camera SSID after turning on the WiFi.
3. Run the Wisenet Installation application.
4. When you log in to the camera, the video will be connected.
`
The video will be played without being logged in during the initial connection.
5. You can adjust angle of view while watching the video through smartphone.
Recommended dongle manufacturer
Manufacturer Model
NETIS WF2123 n300
EDIMAX EW-7811Un V2 (New ver.)
IP Time N100mini
IP Time N105L
TP-LINK TL-WN823N V1
TP-LINK TL-WN725N
TP-LINK T2U Nano
ASUS USB-N13
ASUS USB-N10 NANO
NETGEAR WNA3100M
IODATA WN-G150UMW
IODATA WN-S150UM
TOTOLINK N300UM

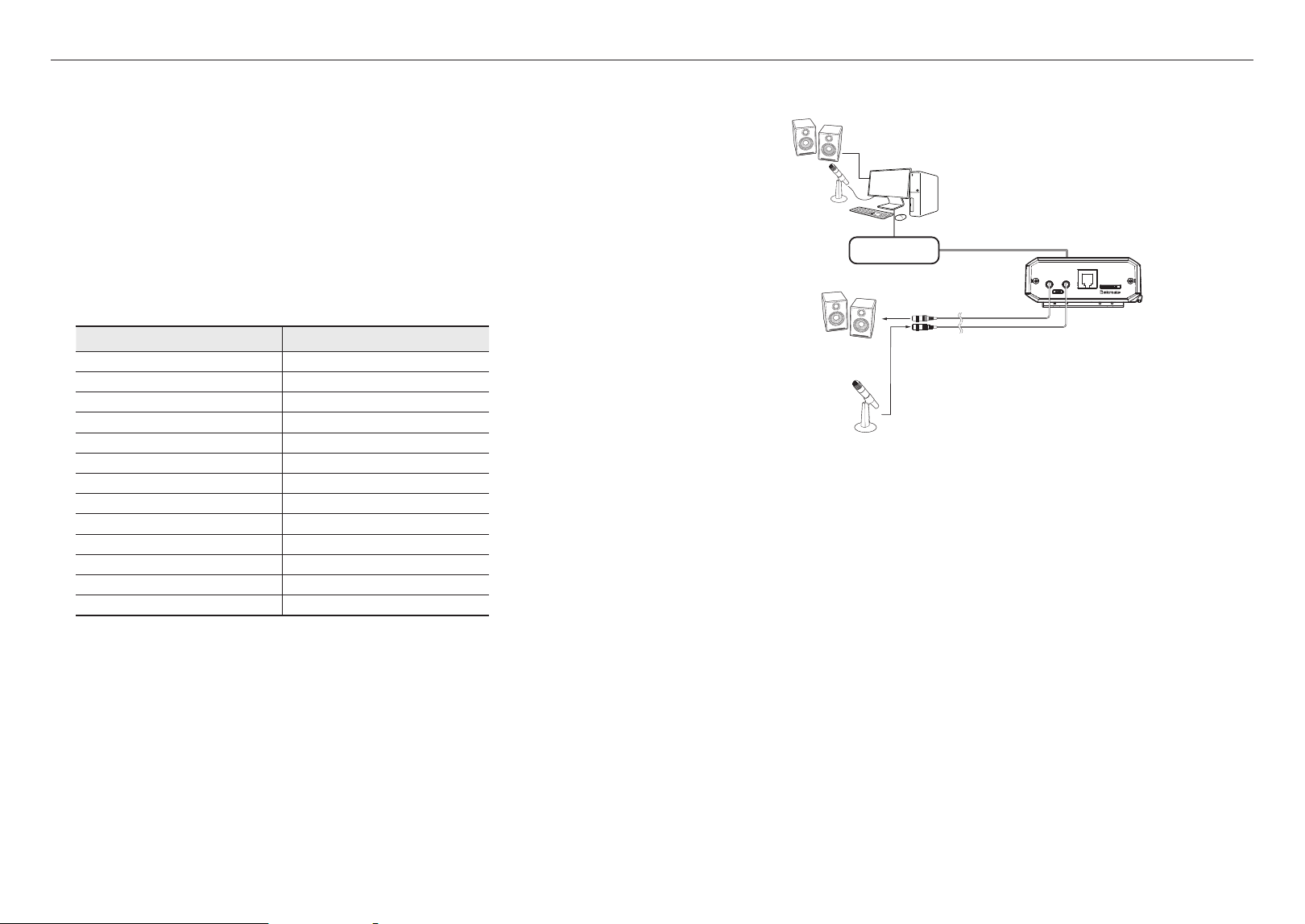

Connecting to Audio Input/Output
AUDIO
OUT
AUDIO
IN
USB
CAM
Network
Speaker
Microphone
Microphone
Speaker
PC
1. Connect the AUDIO IN port of the camera with the microphone or LINE OUT port of the amplifier that the
microphone is connected to.
2. Connect the AUDIO OUT port of the camera with the speaker or LINE IN port of the amplifier that the
speaker is connected to.
3. Check the specifications for audio input.
~
Audio Codec
- Audio In : G.711 PCM (Bit Rate: 64kbps / Sampling Frequency: 8kHz), G.726 ADPCM (Bit Rate:
16Kbps, 24Kbps, 32Kbps, 40Kbps / Sampling Frequency: 8kHz), AAC (Bit Rate: 48Kbps / Sampling
Frequency: 16kHz)
- Audio Out : G.711 PCM (Bit Rate: 64kbps / Sampling Frequency: 8kHz)
~
Full duplex Audio
~
Audio in : Selectable (microphone/Line-in), Supported voltage: 2.5VDC (4mA), Input impedance: 2K Ohm
~
Audio out : Line-out (3.5mm mono jack), Maximum output: 1Vms
~
Line out impedance : 600Ω
English _21
! INSTALLATION & CONNECTION
Connecting to the I/O port box
Connect the Alarm I/O cable to the corresponding port of the port box.
4
3
2
1
DC 12V
NETWORK
VIDEO
RESET
GND : 1, 2
ALARM OUT : 3
ALARM IN : 4
~
GND : Used for earth-grounding.
~
ALARM-OUT : Used to connect the alarm output signal.
~
ALARM-IN : Used to connect the alarm input sensor or external day/night sensor.
To connect the external sensor
Connect one strand of each signal line (2-strand) of the sensors to the [ALARM IN] port, and connect the
other strand to the [GND] port.
Alarm In Wiring Diagram
Sensor
GND
RESISTORALARM IN (5mA SINK)
RESISTOR RESISTOR
VCC_3.3V
DIODE
GND
MLCC
TRANSISTOR
External
connection
Inside of the camera
To connect the alarm out
If devices (e.g., flashing light and siren) that exceed the voltage and current specifications are connected by
using the open collector method, it may cause malfunction.
Refer to the alarm out connection diagram below when connecting devices that exceed the voltage and
current specifications.
Alarm Out Wiring Diagram
Warning lamp /
Siren power
Warning lamp /
Siren
ALARM OUT (12VDC 20mA MAX)
RESISTOR 10K ohm
DIODE
RELAY
DC 5V or 3.3V
TRANSISTOR
GND
GND
TRANSISTOR
External connection Inside of the camera
GND
RESISTOR
22_ network connection and setup
network connection and setup
You can set up the network settings according to your network configurations.

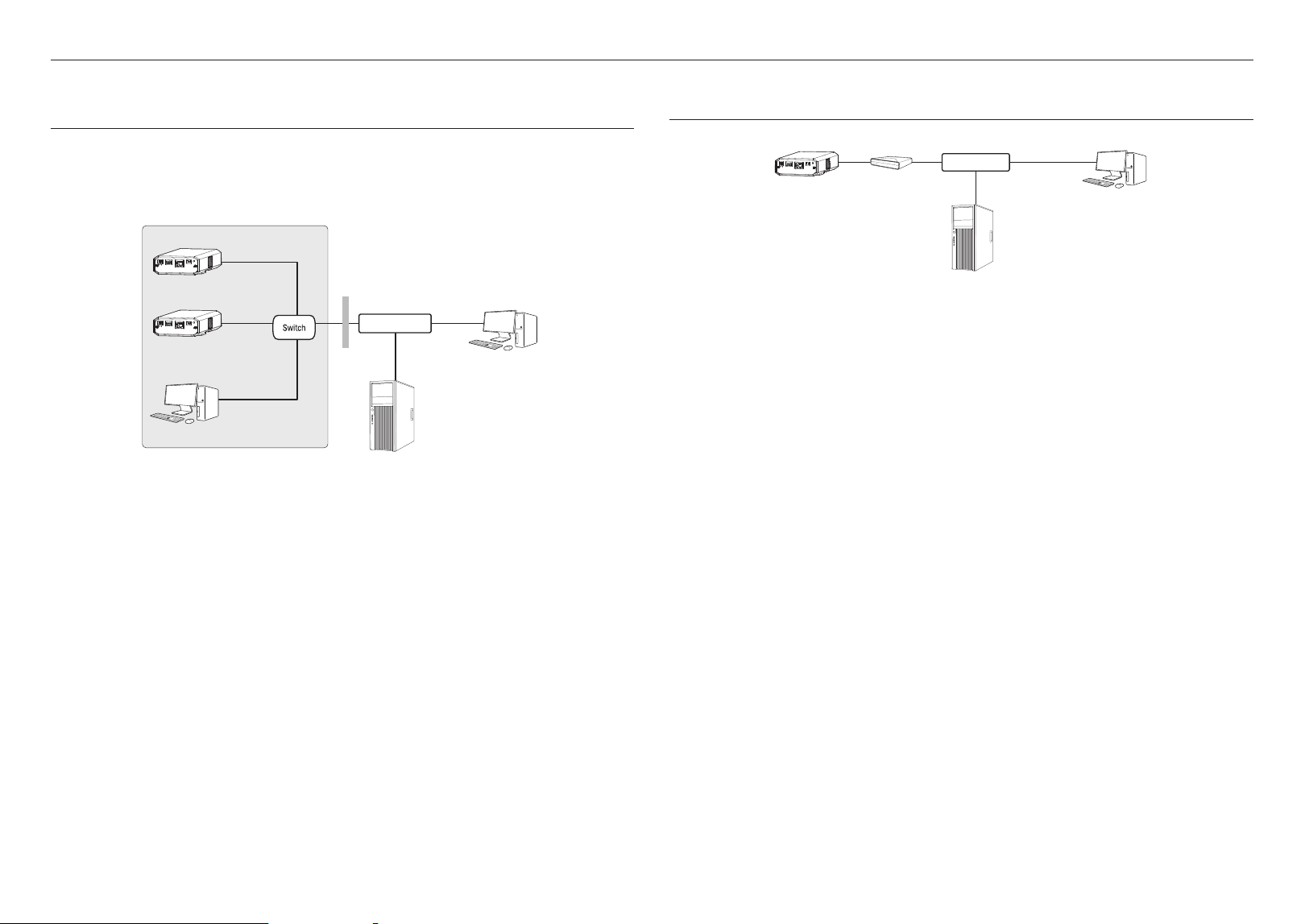

CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING
Connecting to the camera from a local PC in the LAN
1. Launch an Internet browser on the local PC.
2. Enter the IP address of the camera in the address bar of the browser.
<Local Network>
4
3
2
1
DC 12V
NETWORK
VIDEO
RESET
GND : 1, 2
ALARM OUT : 3
ALARM IN : 4
4
3
2
1
DC 12V
NETWORK
VIDEO
RESET
GND : 1, 2
ALARM OUT : 3
ALARM IN : 4
Camera
Camera
Local PC
INTERNET
External Remote PC
DDNS Server
(Data Center, KOREA)
M
`
A remote PC in an external Internet out of the LAN network may not be able to connect to the camera installed in the intranet
if the port-forwarding is not properly set or a firewall is set.
In this case, to resolve the problem, contact your network administrator.
`
By factory default, the IP address will be assigned from the DHCP server automatically.
If there is no DHCP server available, the IP address will be set to 192.168.1.100.
To change the IP address, use the Device Manager.
For further details on Device Manager use, refer to “Using Device Manager”. (
Page 23)
CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE
MODEM
4
3
2
1
DC 12V
NETWORK
VIDEO
RESET
GND : 1, 2
ALARM OUT : 3
ALARM IN : 4
Camera
External Remote PC
DDNS Server
(Data Center, KOREA)
DSL/Cable Modem
INTERNET
1. Connect the user PC directly with the network camera.
2. Run the Device Manager and change the IP address of the camera so that you can use the web browser
on your desktop to connect to the Internet.
3. Use the Internet browser to connect to the web viewer.
4. Move to [Setup] page.
5. Move to [Network] – [DDNS] and configure the DDNS settings.
6. Move to [Basic] – [IP & Port], and set the IP type to [DHCP].
7. Connect the camera, which was removed from your PC, directly to the modem.
8. Restart the camera.
M
`
For information on how to set DDNS, refer to the online help of Web Viewer.
`
For information on how to set the IP format, refer to the online help of Web Viewer.
English _23
! NETWORK CONNECTION AND SETUP
USING DEVICE MANAGER
M
`
Device manager program can be downloaded from <Support>-<Online Tools> menu at Hanwha Techwin website (http://www.
hanwha-security.com).
`
More instructions of Device Manager can be found at <Help> menu of the main page.
AUTOMATICALLY SEARCHING CAMERA
If a camera is connected to the same network of the PC where device manager is installed, you
can find network camera by using search function.
1. Click <Search> at the main page of device manager.
2. Check the camera from the list.
~
Check MAC address at the sticker attached to the camera.
CONFIGURING IP ADDRESS
If you want to change camera network setting, <Login OK> sign must be displayed at <Status>.
Click <Authentication> at the main page to log in.
Configuring Static IP
Manually insert and configure IP address & port information.
1. Click the camera from the list that you want the change the
IP setting.
2. Click <IP Assign> at the main page of device manager.
3. Select <Assign the following IP address>.
~
IP information of the camera will be displayed as previously
set.
4. Fill in IP & Port related categories.
If not using a Broadband Router
For setting <IP Address>, <Subnet Mask>, and <Gateway>, contact your network administrator.
~
HTTP Port : Used to access the camera using the Internet browser, defaulted to 80.
~
RTSP Port: A port that controls real-time streaming. The initial value is 554.
If using a Broadband Router
~ IP Address : Enter an address falling in the IP range provided
by the Broadband Router.
ex) 192.168.1.2~254, 192.168.0.2~254,
192.168.XXX.2~254
~
Subnet Mask : The <Subnet Mask> of the Broadband Router
will be the <Subnet Mask> of the camera.
~
Gateway : The <Local IP Address> of the Broadband Router
will be the <Gateway> of the camera.
M
`
The settings may differ depending on the connected Broadband Router model.
For more information, refer to the user manual of the applicable router.
`
For more information about port forwarding of the broadband router, refer to “Port Range Forward (Port Mapping) Setup”.
(
Page 25)
If the Broadband Router has more than one camera connected
Configure the IP related settings and the Port related settings distinctly with each other.
ex)
Category Camera #1 Camera #2
IP related settings
IP Address
Subnet Mask
Gateway
192.168.1.100
255.255.255.0
192.168.1.1
192.168.1.101
255.255.255.0
192.168.1.1
Port related settings
HTTP Port
RTSP Port
8080
554
8081
555
M
`
If the <HTTP Port> is set other than 80, you must provide the <Port> number in the address bar of the Internet browser
before you can access the camera.
ex) http://IP address : HTTP Port
http://192.168.1.100:8080
5. Click [Apply] Button.
6. If the success message is displayed, click [OK].
network connection and setup
24_ network connection and setup

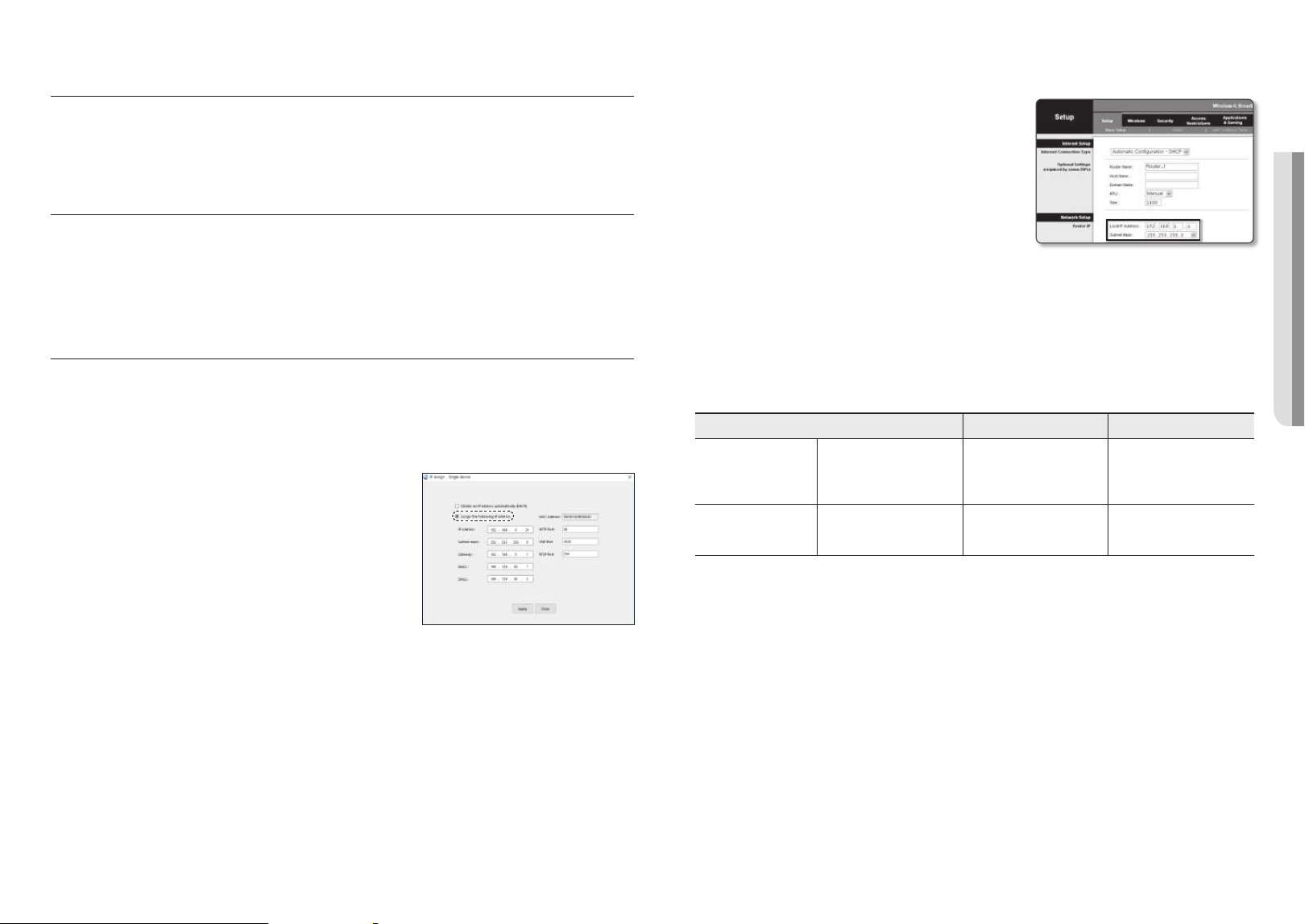

Configuring Dynamic IP
Receive IP address from DHCP
~
Example of the Dynamic IP environment
- If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server
- If connecting the camera directly to modem using the DHCP protocols
- If IPs are assigned by the internal DHCP server via the LAN
1. Click the camera from the list that you want to change the IP
setting.
2. Click <IP Assign> at the main page of device manager.
3. Select <Obtain an IP address automatically (DHCP)>.
4. Click [Apply] button.
5. If the success message is displayed, click [OK].
MANUALLY REGISTERING CAMERA
If the camera cannot be found using search function, the camera can be registered remotely by
manually inserting IP information, if the camera is connected to external network.
1. Click <Add Devices> - <Manually Add Device> at the main
page of device manager.
2. Insert the range of IP address that you search.
3. Select the <Model Name> of the camera that you register,
and insert HTTP port, ID, and password.
4. Click [Register] button.
5. Check if camera is registered.
~
Check MAC address at the sticker attached to the camera.
AUTOMATICALLY CONFIGURING IP
1. Click the camera from the list that you want to automatically
configure the IP.
2. Click < + > at the main page of device manager.
~
Equipment Setting menu appears.
3. At the menu, click <Auto IP Configure>.
4. Click [Close] button.
XNB-6002
English _25
! NETWORK CONNECTION AND SETUP

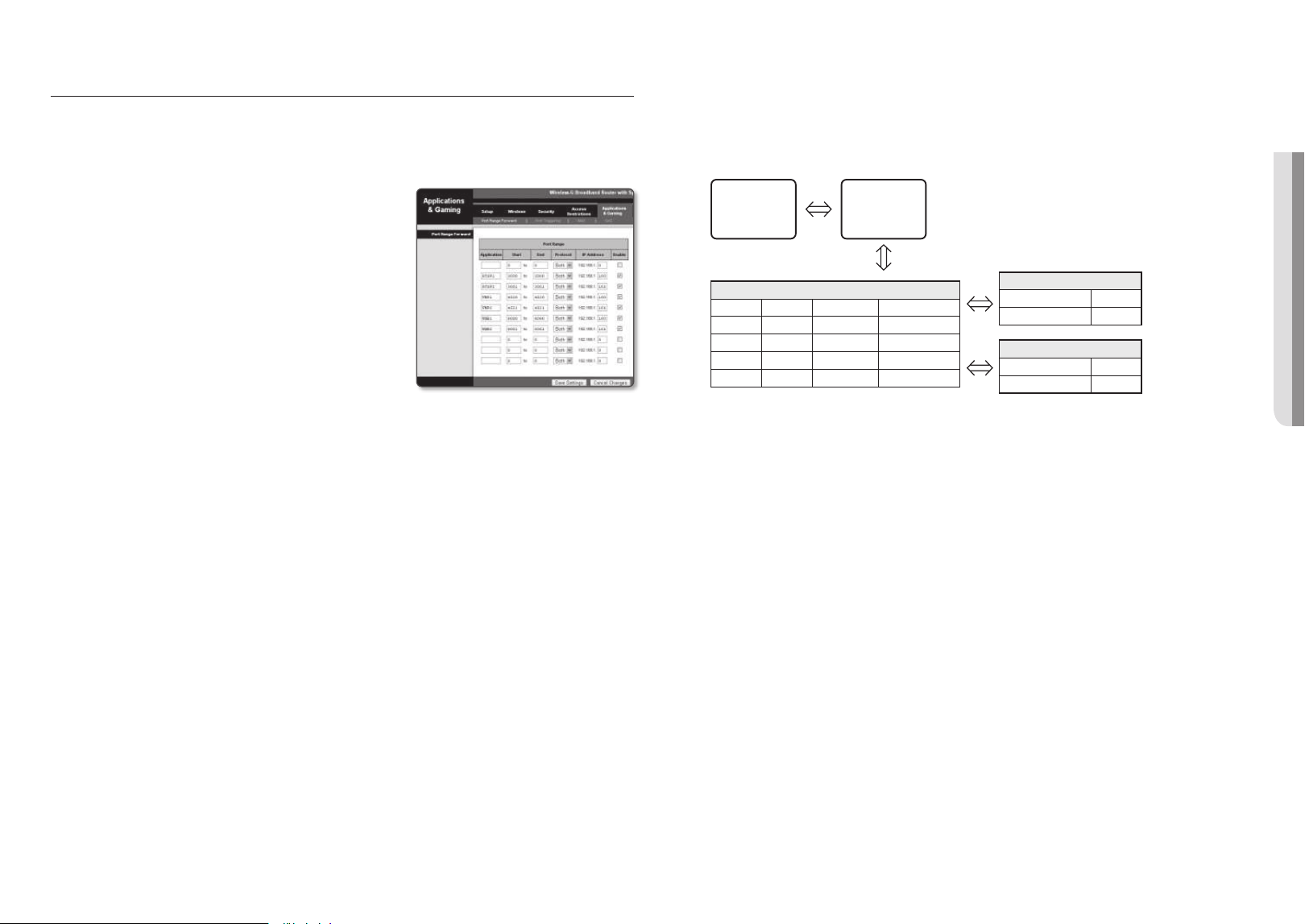

PORT RANGE FORWARD (PORT MAPPING) SETUP
If you have installed a Broadband Router with a camera connected, you must set the port range forwarding on the
Broadband Router so that a remote PC can access the camera in it.
Manual Port Range Forwarding
1. From the Setup menu of the Broadband Router, select
<Applications & Gaming> - <Port Range Forward>.
For setting the port range forward for a third-party Broadband
Router, refer to the user guide of that Broadband Router.
2. Select <TCP> and <UDP Port> for each connected camera
to the Broadband Router.
The number of each port to be configured to the IP router
should be set according to the port number designated
in <Setup> - <Basic> - <IP & Port> on the camera web
viewer.
3. When done, click [Save Settings].
Your settings will be saved.
M
`
Port forwarding setting is an example of setting CISCO IP router.
`
The settings may differ depending on the connected Broadband Router model.
For more information, refer to the user manual of the applicable router.
Setting up Port Range Forward for several network cameras
~
You can set a rule of Port Forwarding on the Broadband Router device through its configuration web page.
~
A user can change each port using the camera setting screen.
When Camera1 and Camera2 are connected to a router :
User
Internet
Broadband Router
Start End Protocol IP Address
3000 3000 TCP/UDP 192.168.1.100
3001 3001 TCP/UDP 192.168.1.101
8080 8080 TCP/UDP 192.168.1.100
8081 8081 TCP/UDP 192.168.1.101
Camera1 (192.168.1.100)
HTTP port 8080
RTSP port 3000
Camera2 (192.168.1.101)
HTTP port 8081
RTSP port 3001
M
`
Port forwarding can be done without additional router setup if the router supports the UPnP (Universal Plug and Play) function.
After connecting the network camera, select the checkbox from the menu <Quick connect> in <Wisenet DDNS> in
“Settings -> Network -> DDNS”.
network connection and setup
26_ network connection and setup
CONNECTING TO THE CAMERA FROM A SHARED LOCAL PC
1. Run device manager.
It will scan for connected cameras and display them as a list.
2. Double-click a camera to access.
The Internet browser starts and connects to the camera.
M
`
Access to the camera can also be gained by typing the camera’s IP address in the address bar of the Internet browser.
CONNECTING TO THE CAMERA FROM A REMOTE PC VIA THE
INTERNET
On a remote computer that is not in the Broadband Router’s network cluster is not allowed, users can access
cameras within a Broadband Router’s network by using the camera’s DDNS URL.
1. Before you can access a camera in the Broadband Router network, you should have set the port range
forward for the Broadband Router.
2. From the remote PC, launch the Internet browser and type the DDNS URL address of the camera, or the
IP address of the Broadband Router in the address bar.
ex) http://ddns.hanwha-security.com/ID
M
`
To use Wisenet DDNS, sign up at the Wisenet DDNS homepage (http://ddns.hanwha-security.com) and register the product
at [My DDNS]>[Register Product].
English _27
! WEB VIEWER
web viewer
CONNECTING TO THE CAMERA
Normally, you would
1. Launch the Internet browser.
2. Type the IP address of the camera in the address bar.
ex) • IP address (IPv4) : 192.168.1.100
;
http://192.168.1.100
- the Login dialog should appear.
• IP address (IPv6) : 2001:230:abcd: ffff:0000:0000:ffff:1111
;
http://[2001:230:abcd:ffff:0000:0000:ffff:1111] - the Login
dialog should appear.
If the HTTP port is other than 80
1. Launch the Internet browser.
2. Type the IP address and HTTP port number of the camera in the address bar.
ex) IP address : 192.168.1.100:HTTP Port number(8080)
;
http://192.168.1.100:8080 - the Login dialog should appear.
Using URL
1. Launch the Internet browser.
2. Type the DDNS URL of the camera in the address bar.
ex) URL address : http://ddns.hanwha-security.com/ID
- the Login dialog should appear.
J
`
Network connection is disabled in the LAN only environment.
Connecting via UPnP
1. Run the client or operating system in support of the UPnP protocol.
2. Click the camera name for search.
In the Windows operating system, click the camera name searched from the network menu.
- The login window is displayed.
Connecting via Bonjour
1. Run the client or operating system in support of the Bonjour protocol.
2. Click the camera name for search.
In the Mac operating system, click the camera name searched from the Bonjour tab of Safari.
- The login window is displayed.
To check the DDNS address
If the camera is connected directly to the DHCP cable modem, DSL modem, the IP address of your network
will be changed each time you try to connect to the ISP (Internet Service Provider) server.
If this is the case, you will not be informed of the IP address changed by DDNS.
Once you register a dynamic IP-based device with the DDNS server, you can easily check the changed IP
when you try to access the device.
To register your device to the <DDNS> server, visit http://ddns.hanwha-security.com and register your device
first, and then set the Web Viewer’s <Network> - <DDNS> to <Wisenet DDNS>, as well as providing
<Product ID> that had been used for DDNS registration.
web viewer
28_ web viewer

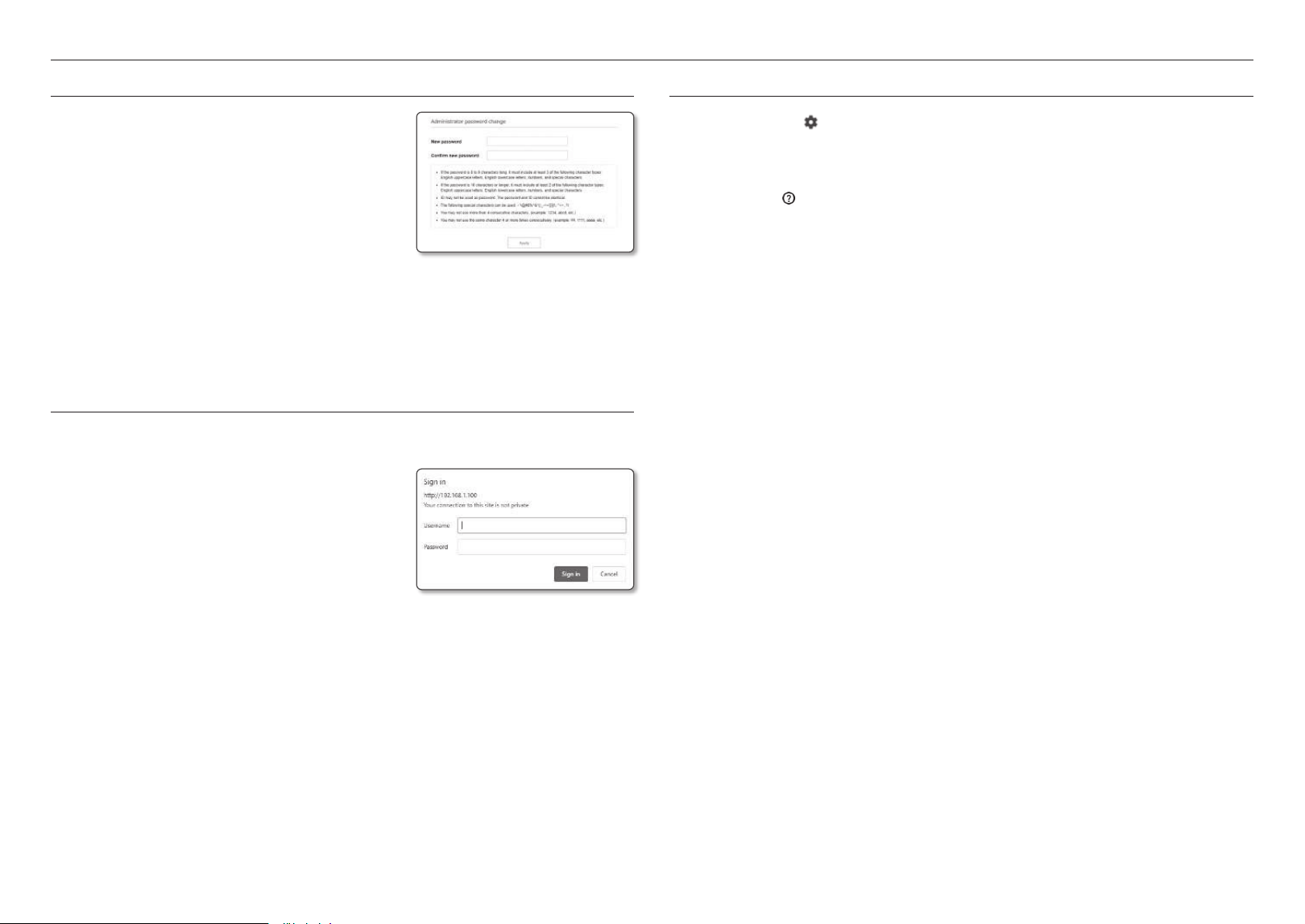

PASSWORD SETTING
When you access the product for the first time, you must register the
login password.
J
`
For a new password with 8 to 9 digits, you must use at least 3 of
the following: uppercase/lowercase letters, numbers and special
characters. For a password with 10 to 15 digits, you must use at
least 2 types of those mentioned.
-
Special characters that are allowed. :
~`!@#$%^&*( )_-+={ }[
]|\;:‘“< >.,?/
`
Space is not allowed for password.
`
For higher security, you are not recommended to repeat the same characters or consecutive keyboard inputs for your
passwords.
`
If you lost your password, you can press the [RESET] button to initialize the product. So, don’t lose your password by using a
memo pad or memorizing it.
LOGIN
Whenever you access the camera, the login window appears.
Enter the User ID and password to access the camera.
1. Enter “admin” in the <User name> input box.
The administrator’s ID, “admin,” can be changed in the Web
Viewer.
2. Enter the password in the <Password> input field.
3. Click [Sign in].
If you have logged in successfully, you will the Live Viewer
screen.
J
`
When you access the camera web viewer, pay special attention to the
security by checking whether the image data is encrypted.
M
`
You will experience the best video quality if the screen size is 100%. Reducing the ratio may cut the image on the borders.
CAMERA WEB VIEWER SETUP
1. Click the [Setup (
)] icon.
2. The Settings window appears.
3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and
system over the network.
4. Click <Help (
)> to view detailed descriptions of each function.
English _29
! APPENDIX
appendix
TROUBLESHOOTING
PROBLEM SOLUTION
When an Windows 10 user accesses
the web viewer through Chrome
or Firefox, the sound volume of
microphone changes periodically.
~
This is what happens when microphone driver has been set to Realtek driver.
Install the High Definition Audio device (Windows Default Driver) or the third party driver as
the microphone driver.
No video is displayed when accessing
the plug-in free webviewer on Safari
via HTTPS.
~
On the authentication popup window prompted when initially accessing https, click "View
Authentication Certificate" and select the "Always trust when connecting to the designated
webviewer IP" check box.
~
If the webviewer continues failing to display a video after you select "Next" on the message
window below, press the command key + Q to exit the Safari browser, access again and
follow the procedures stated above.
I can’t access the camera from a web
browser.
~
Check to make sure that the camera’s Network settings are appropriate.
~
Check to make sure that all network cables have been connected properly.
~
If connected using DHCP, verify that the camera is able to acquire dynamic IP addresses
without any problem.
~
If the camera is connected to a Broadband Router, verify that port forwarding is properly
configured.
Viewer got disconnected during
monitoring.
~
Connected Viewers become disconnected upon any change to camera or network
configurations.
~
Check all network connections.
The camera connected to the network
is not detected in the Device Manager
program.
~
Turn off the firewall settings on your PC and then search the camera again.
Images overlap.
~
Check whether two or more cameras are set to a single multicast address instead of different
addresses. If a single address is used for multiple cameras, the images may overlap.
No image appears.
~
If the transmission method is set to multicast, check whether there is a router that supports
multicast in the LAN the camera is connected to.
Voice is not recorded even though
audio input settings are configured.
~
You must enable the <Audio In> check box in <Basic> - <Video Profile>.
PROBLEM SOLUTION
<Motion detection> of <Analytics> is
set to <Enable>, but no notification
e-mail reaches me even when an
analysis event had occurred.
~
Verify the settings in the following sequence:
A. Check <Data & Time> settings.
B. The <Motion detection> should be set to <Enable>.
C. Check if the <E-mail> option of <Event setup> menu is checked to use.
No signal is found at the Alarm Output
port even when an intelligent video
analysis event is generated.
~
Check alarm output port settings.
Cannot record into the Micro SD card.
~
Check if the Micro SD card is defective.
~
When replacing the Micro SD card, it must be done while the power is disconnected from
the product.
Micro SD card is inserted but the
camera does not operate properly.
~
Check if the Micro SD card is inserted in the proper direction. Operation of Micro SD card that
is formatted by other devices is not guaranteed with this camera unit.
~
Format the Micro SD card again in <Setup>
;
<Event>
;
<Storage> menu.
Cannot record in the NAS.
~
Confirm that the information registered in the NAS is correct.
It reports that NAS setting has failed.
~
Confirm that the IP address of the NAS is valid.
~
Confirm that the ID/password of the NAS is valid.
~
Confirm that you can access the folder designated as the default folder using the ID of the
NAS.
~
Confirm that the NAS SMB/CIFS items are unchecked.
~
Confirm that the NAS IP address and the camera IP address are in the same format.
ex) The NAS & camera subnet mask initial value is 255.255.255.0.
If the IP address is 192.168.20.32 then the NAS IP address should be in the range of
192.168.20.1~192.168.20.255.
~
Check whether you tried to access as another user without formatting the default folder
saved or used.
~
Confirm that you used recommended NAS equipment.
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other
household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains
mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these
substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them
through your local, free battery return system.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.
charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate
these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material
resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product and its electronic accessories should not be mixed with other commercial wastes for disposal.
Hanwha Techwin cares for the environment at all product manufacturing stages, and is taking measures to provide
customers with more environmentally friendly products.
The Eco mark represents Hanwha Techwin's devotion to creating environmentally friendly products, and indicates
that the product satisfies the EU RoHS Directive.
Any changes or modifications in construction of this device which are not expressly approved by the
party responsible for compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
