1. High Level inputs. High Level inputs, also referred to as speaker level inputs,
allow you to connect to the factory speaker wires. They are called High Level inputs
because they convert the high voltage running through factory speaker wires to one
the amplifier can handle. These inputs will provide the end user with clean, well
defined sound for optimal musical enjoyment.
2. Bass Remote. Connect dashmounted bass remote (included) via RJ45 cable (included).
3. RCA inputs. Connect directly to your head unit’s RCA ouputs.
4. Gain control. The gain control regulates the volume input to the pre-amp stage.
5. Low Pass Crossover control. Adjust Low Pass frequency from 40Hz to 250Hz.
6. Adjustable Bass control.
7. Power/Protect LED indicators.
8. Power connections. See wiring diagram for proper set up.
9. 20A Fuse.
9
1
2 3 4 5 86
7
Remote from
Head Unit
Ground
Bass Remote
To Positive (+)
terminal of battery
From Head Unit RCA output
or subwoofer output if available
+ –

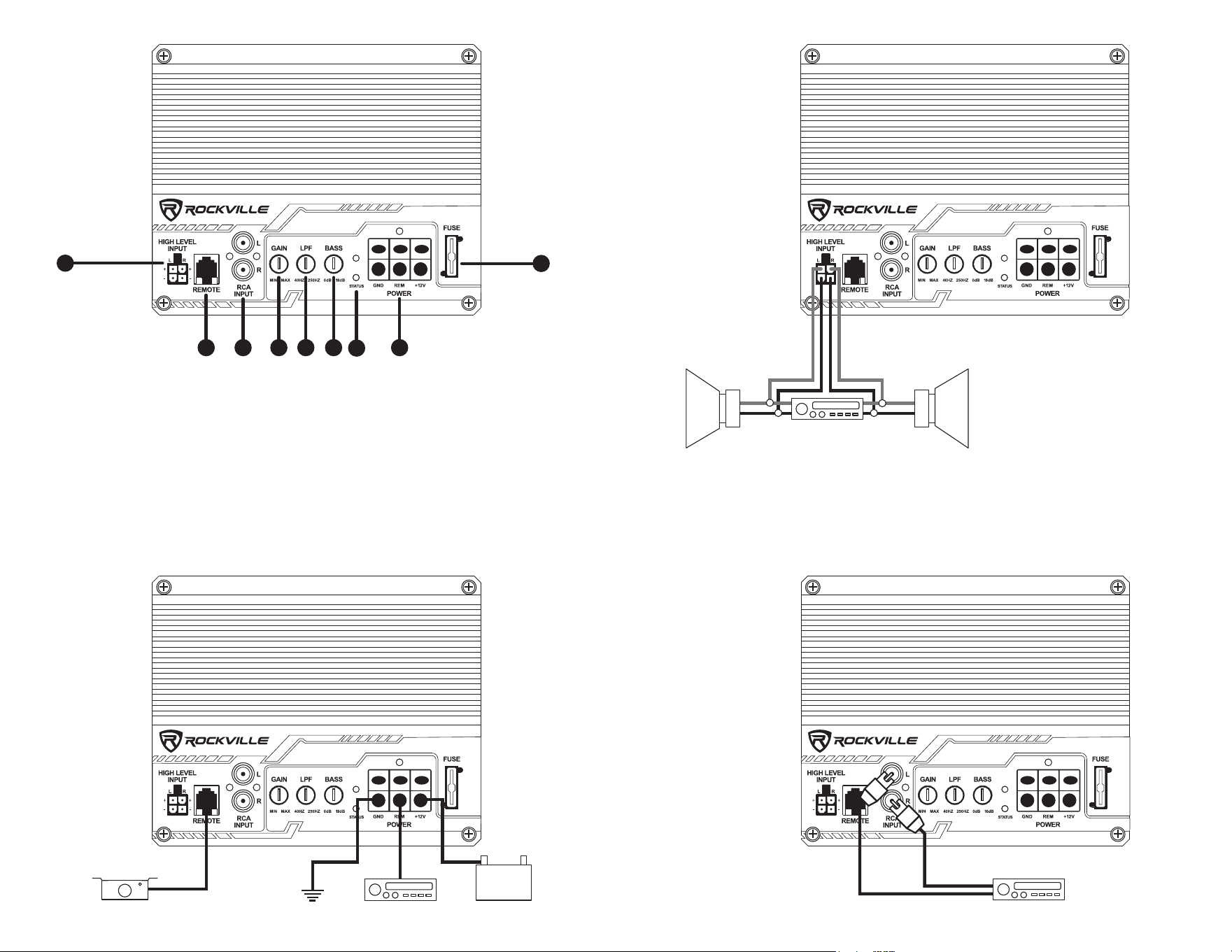

WIRING /
BASS REMOTE
FEATURES
HIGH LEVEL INPUT
RCA INPUT
From Left speaker From Right speaker
